Doxygen introspection did not find any typical Config paths. More...

#include <dsr-routing.h>

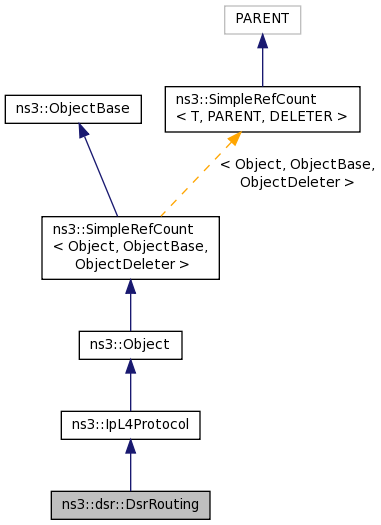

Inheritance diagram for ns3::dsr::DsrRouting:

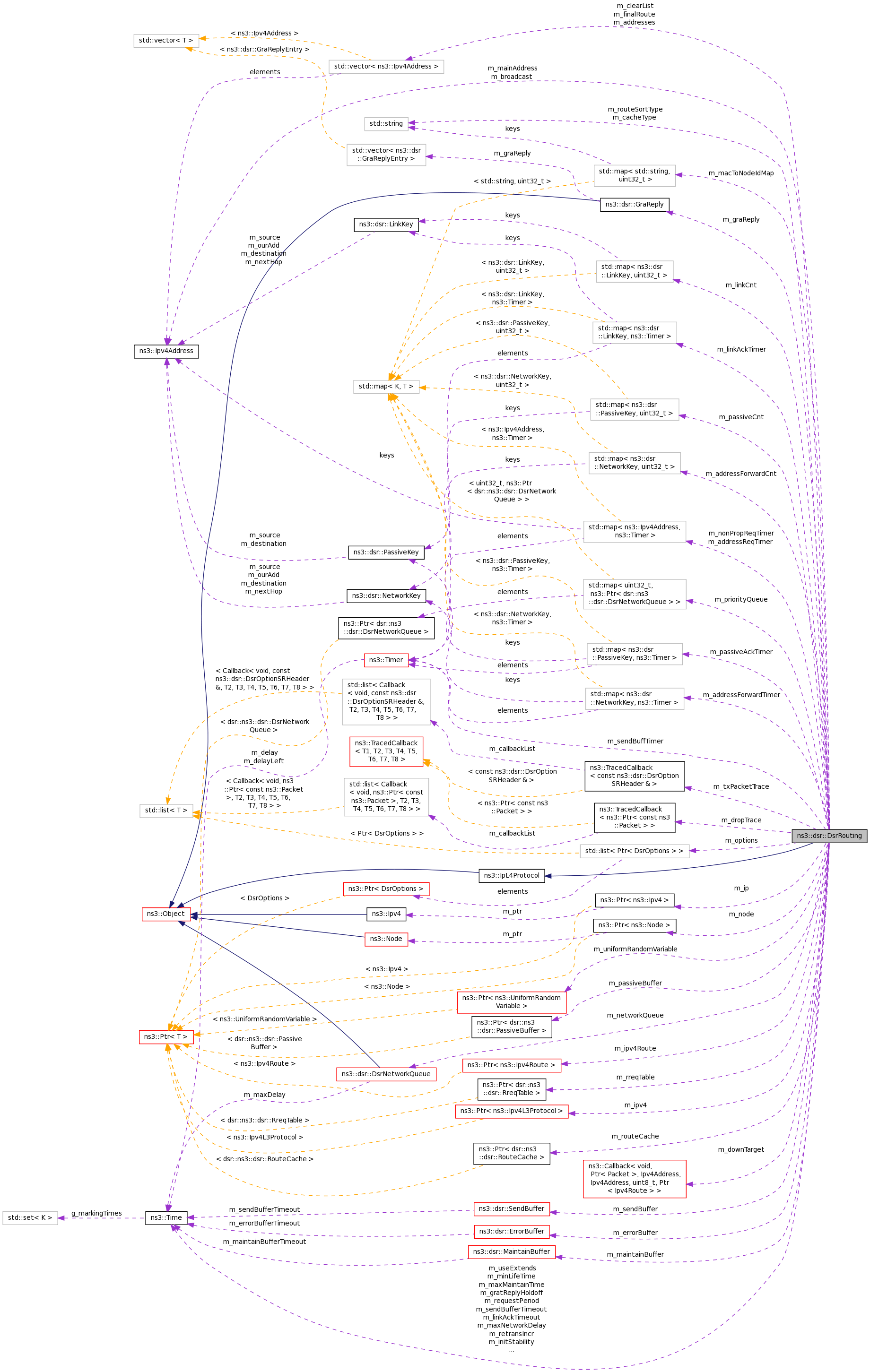

Collaboration diagram for ns3::dsr::DsrRouting:

Public Member Functions

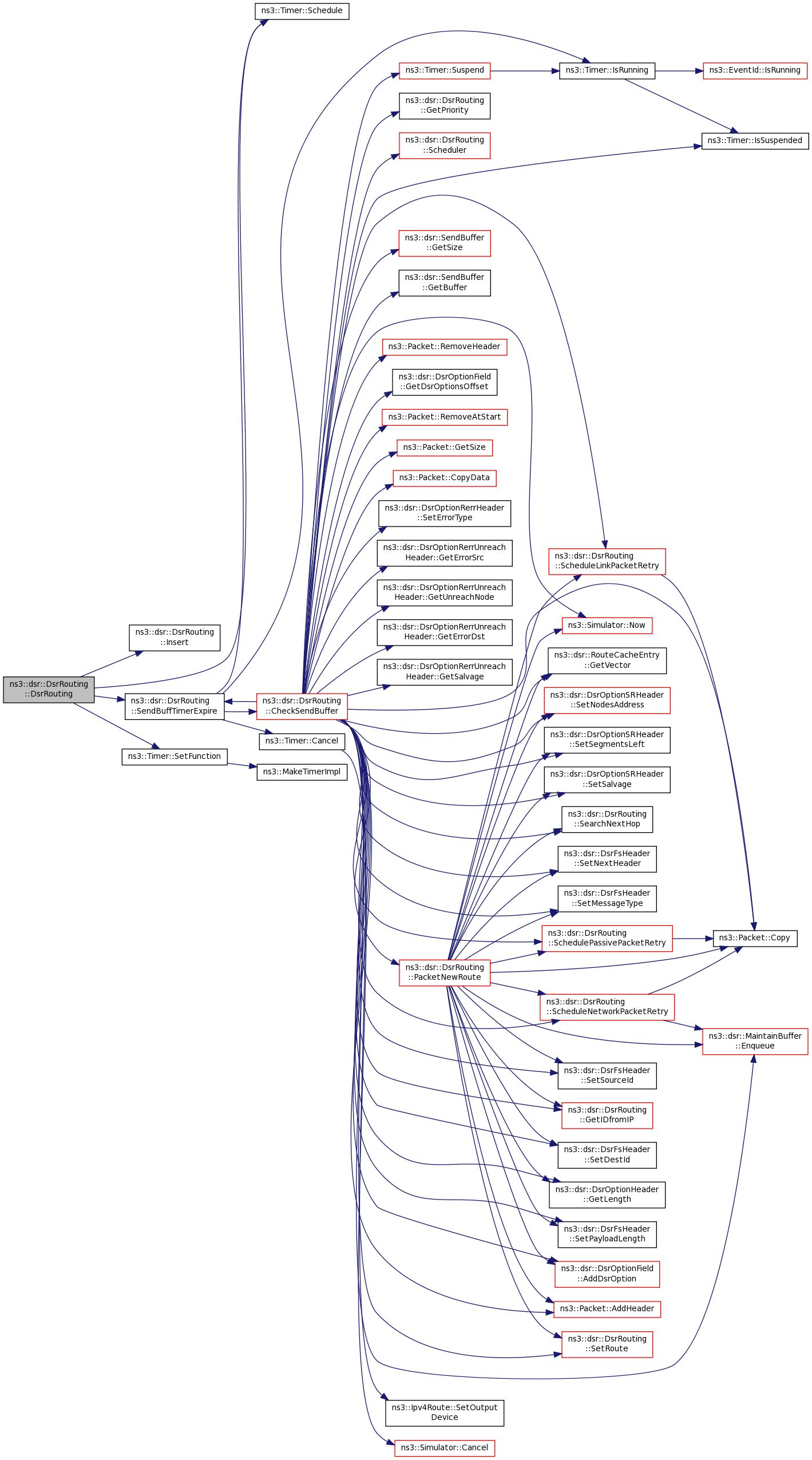

	DsrRouting ()
	Constructor. More...

virtual	~DsrRouting ()
	Destructor. More...

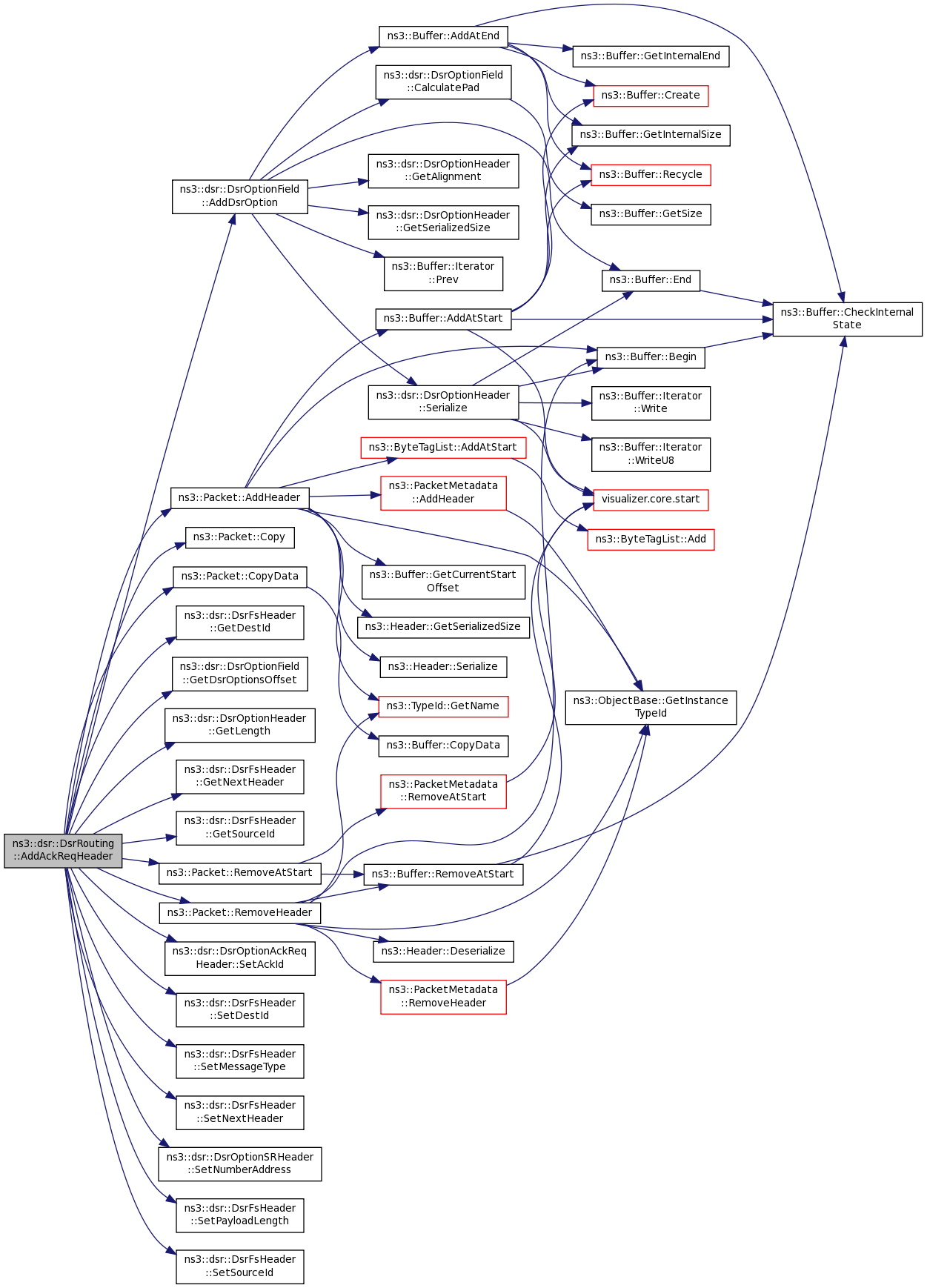

uint16_t	AddAckReqHeader (Ptr< Packet > &packet, Ipv4Address nextHop)
	This function is called to add ack request header for network acknowledgement. More...

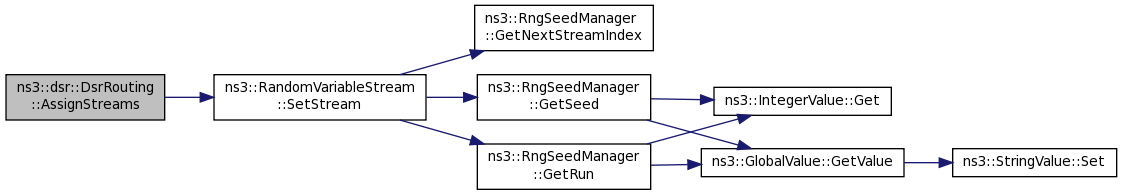

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

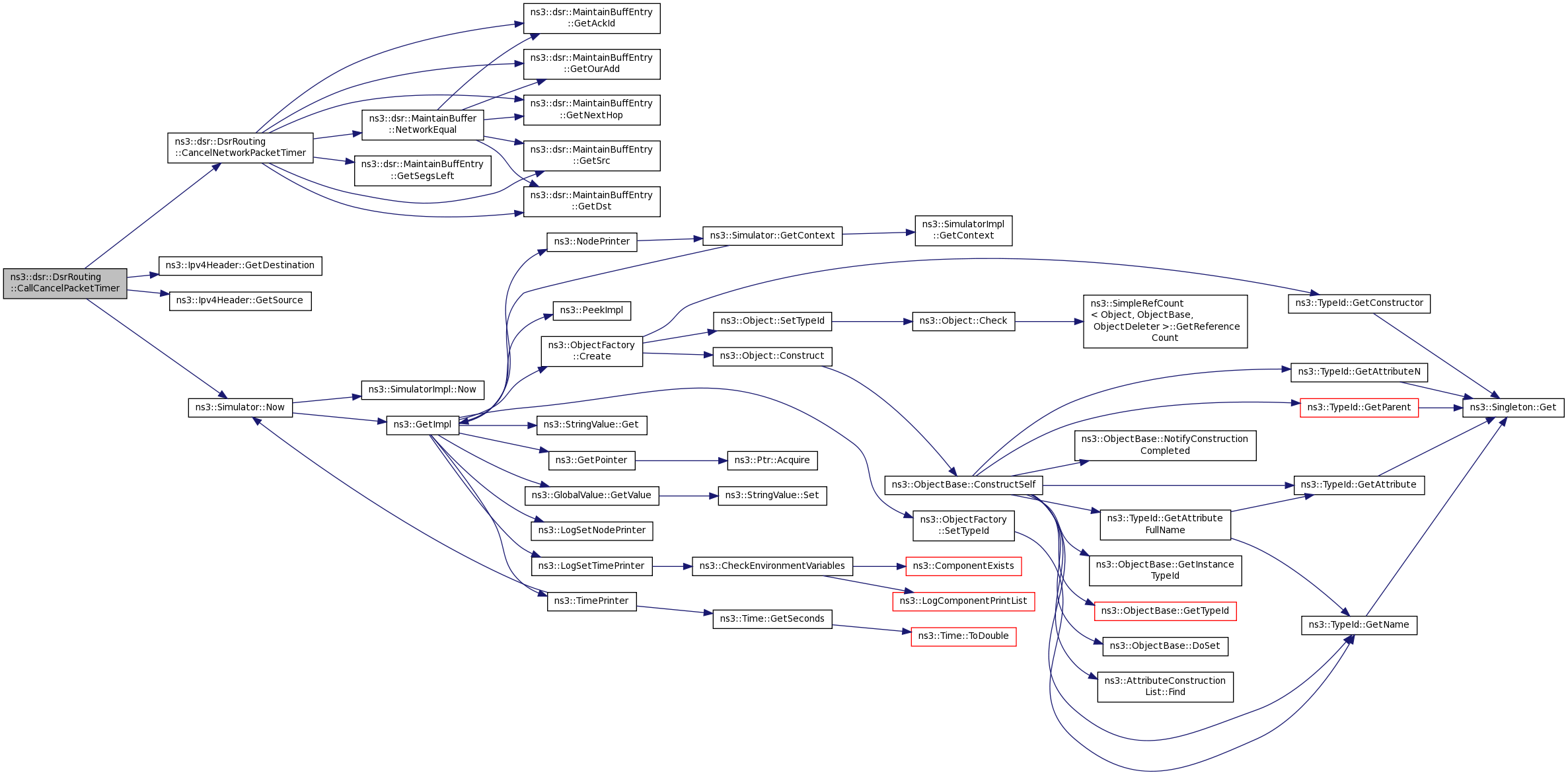

void	CallCancelPacketTimer (uint16_t ackId, Ipv4Header const &ipv4Header, Ipv4Address realSrc, Ipv4Address realDst)
	Call the cancel packet retransmission timer function. More...

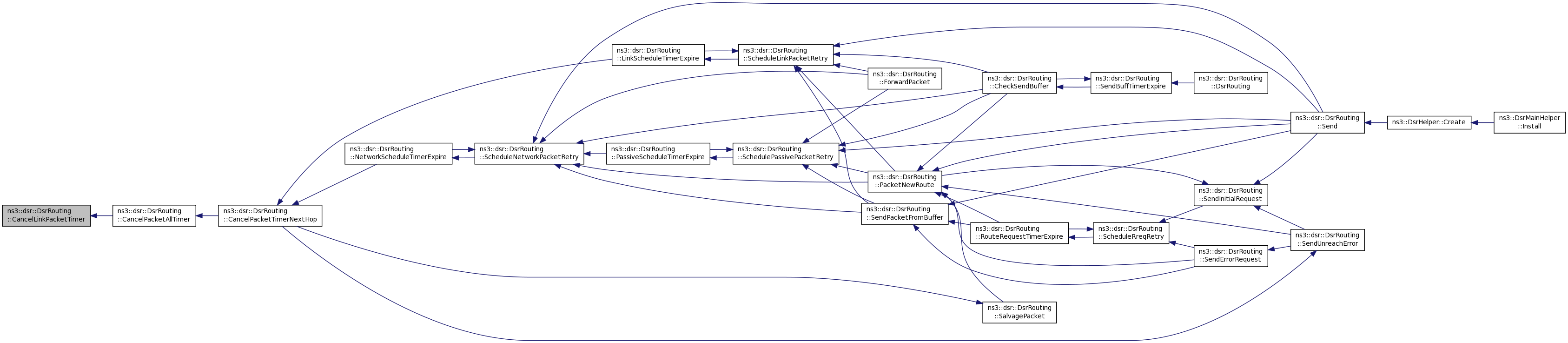

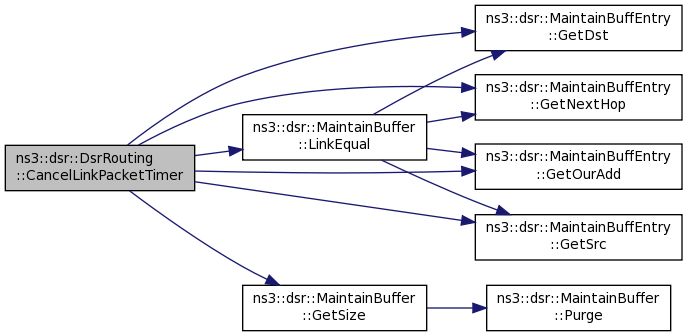

void	CancelLinkPacketTimer (MaintainBuffEntry &mb)
	Cancel the link packet retransmission timer for a specific maintenance entry. More...

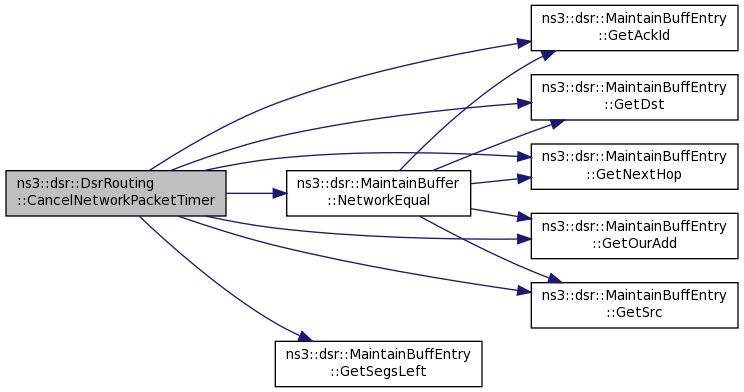

void	CancelNetworkPacketTimer (MaintainBuffEntry &mb)
	Cancel the network packet retransmission timer for a specific maintenance entry. More...

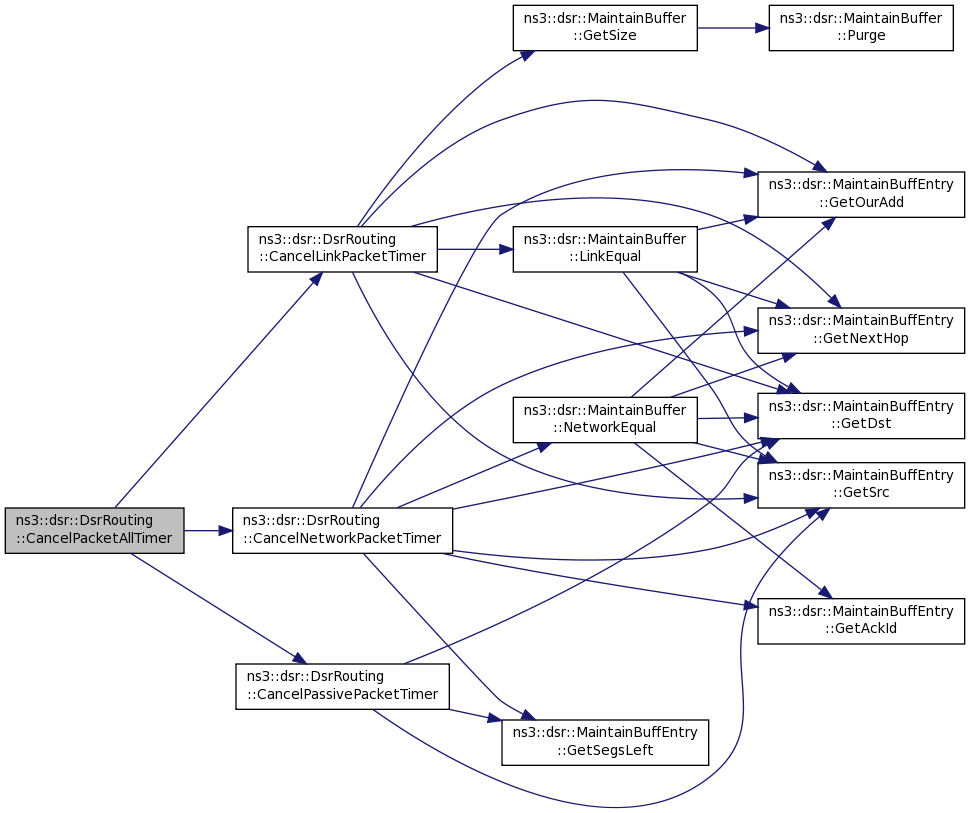

void	CancelPacketAllTimer (MaintainBuffEntry &mb)
	Cancel all the packet timers. More...

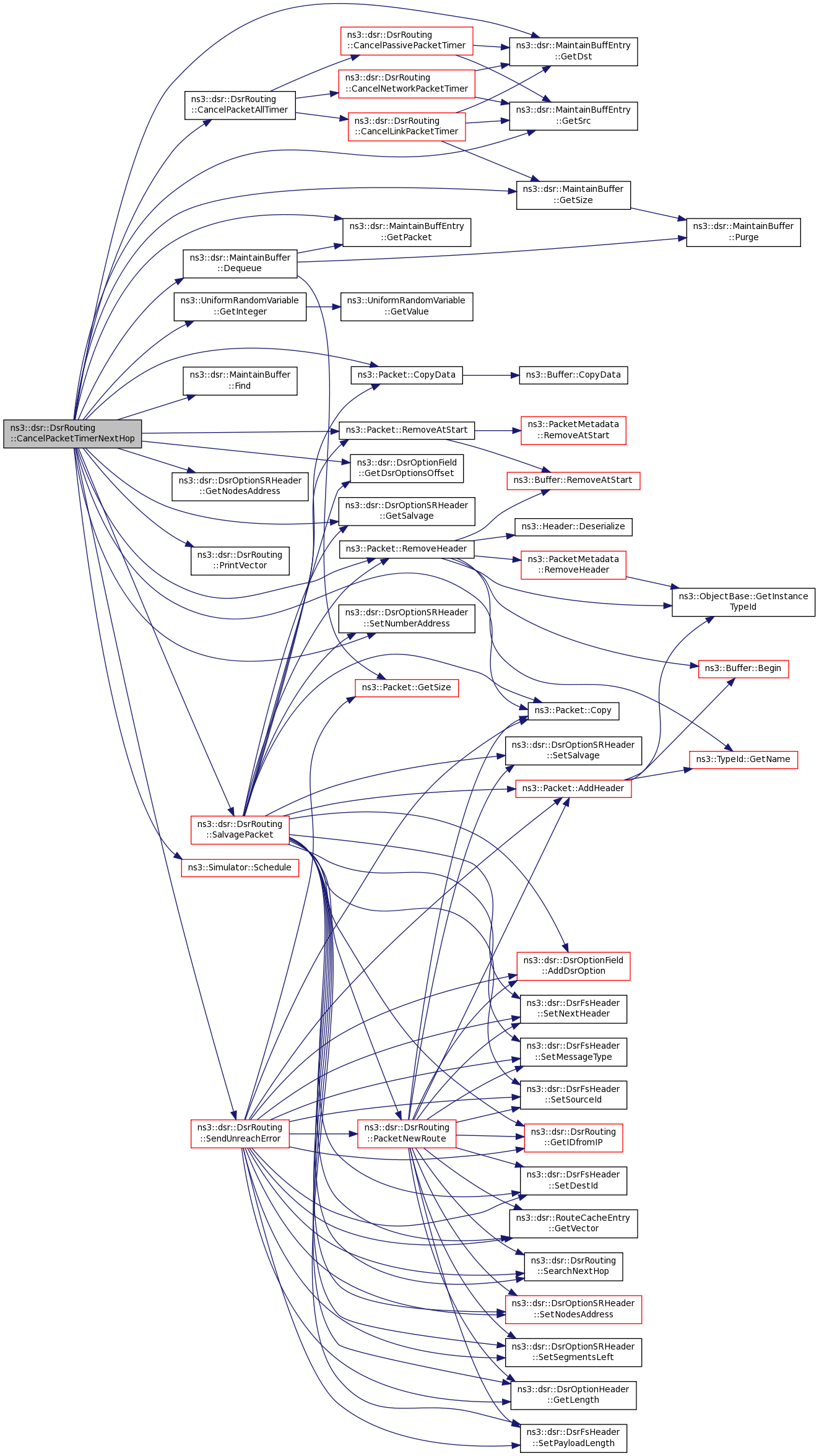

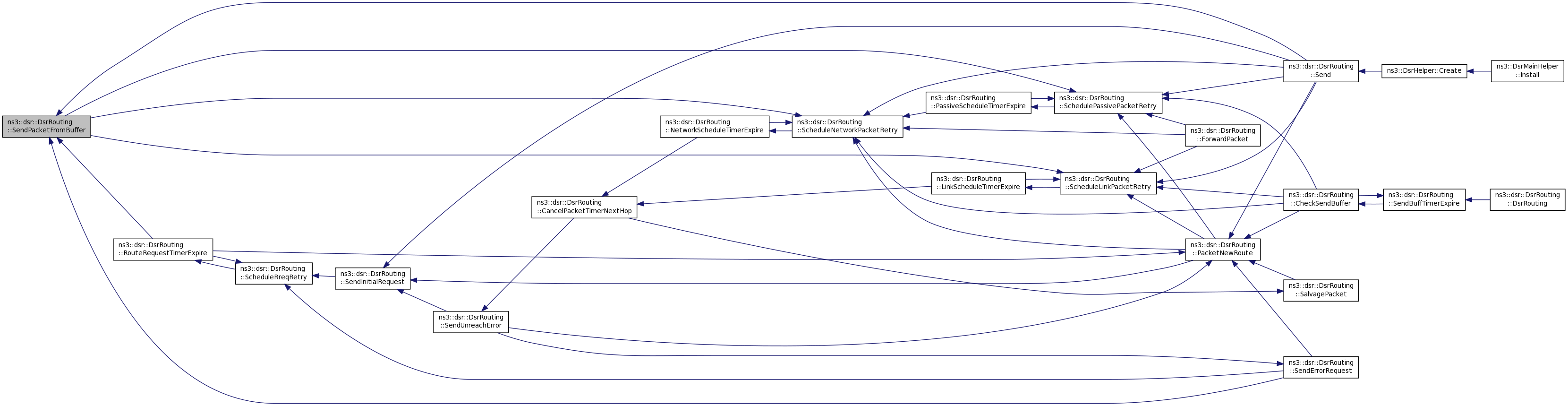

void	CancelPacketTimerNextHop (Ipv4Address nextHop, uint8_t protocol)
	Cancel the packet retransmission timer for a all maintenance entries with nextHop address. More...

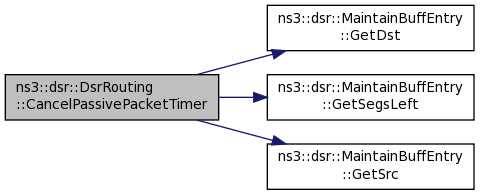

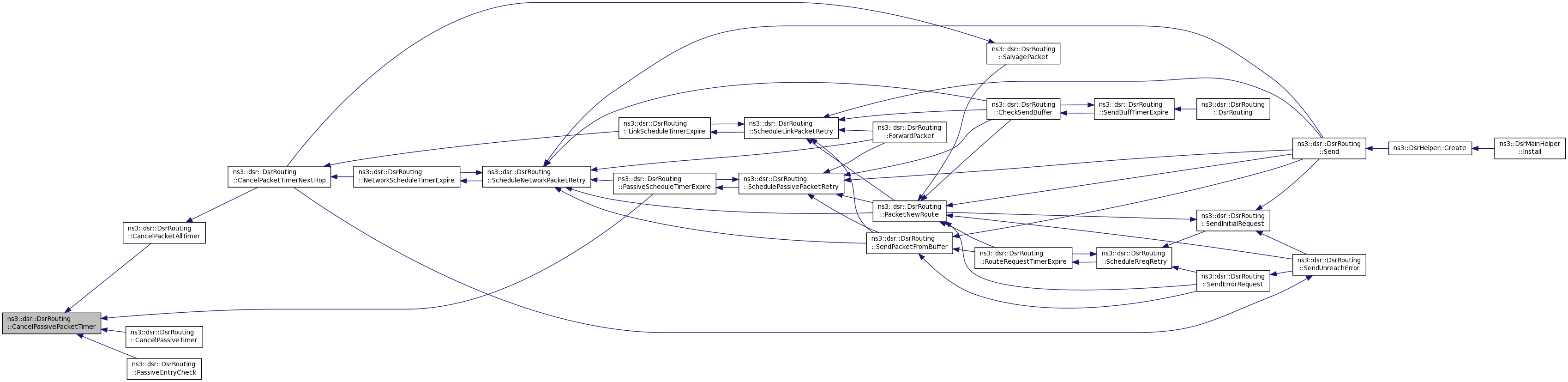

void	CancelPassivePacketTimer (MaintainBuffEntry &mb)
	Cancel the passive packet retransmission timer for a specific maintenance entry. More...

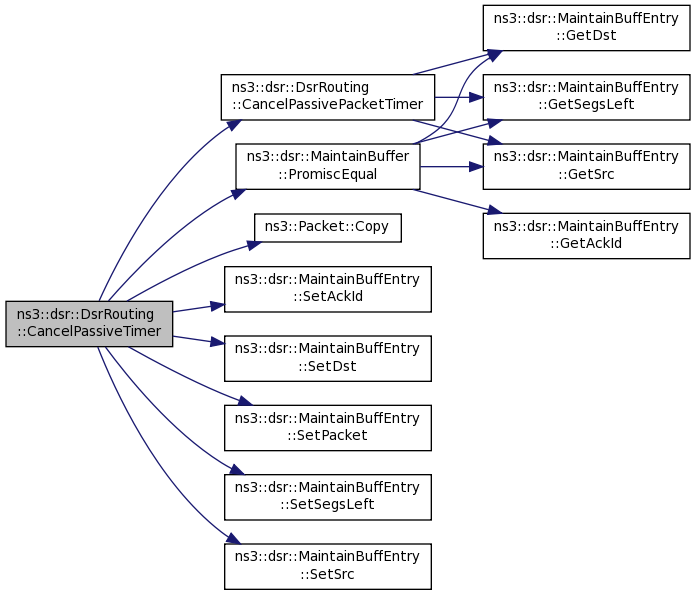

bool	CancelPassiveTimer (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t segsLeft)
	Cancel the passive timer. More...

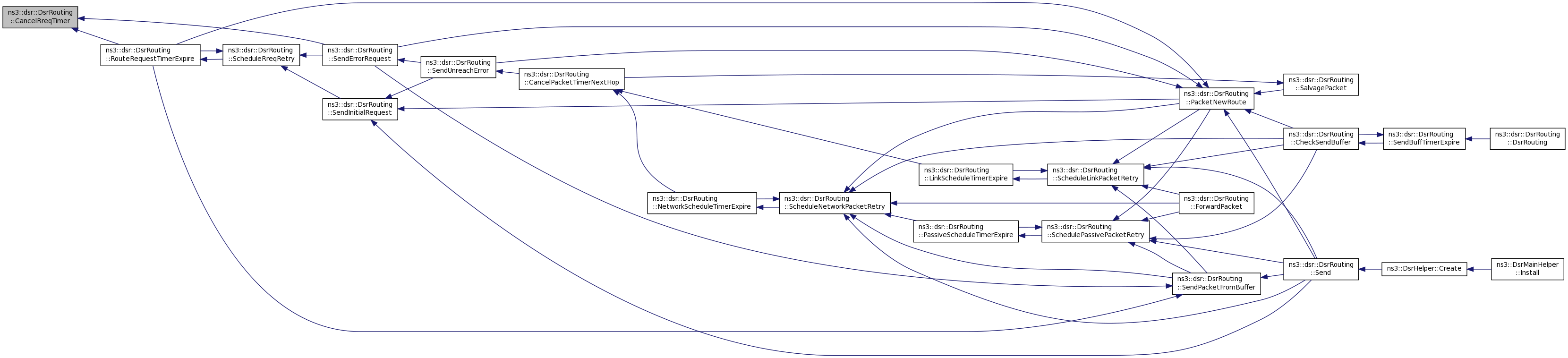

void	CancelRreqTimer (Ipv4Address dst, bool isRemove)
	Cancel the route request timer. More...

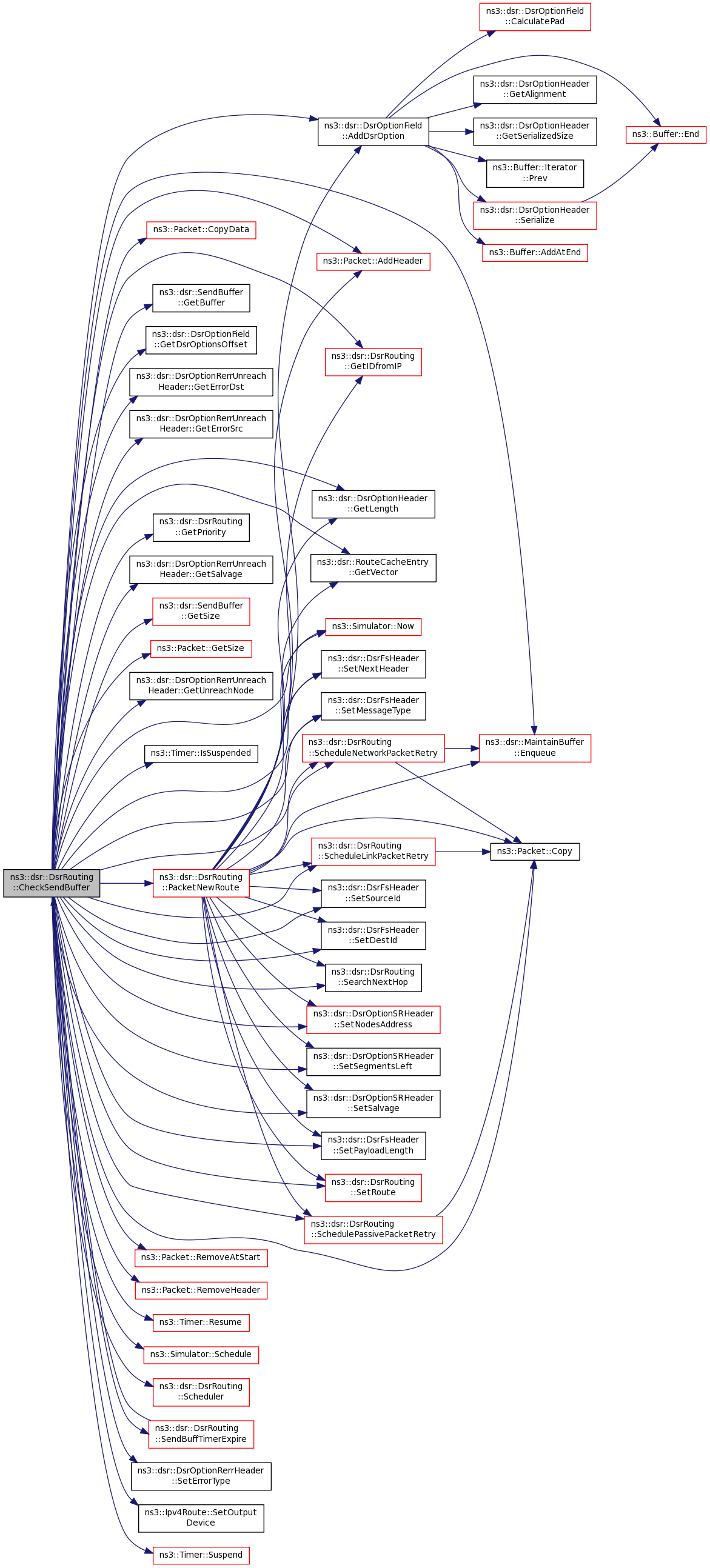

void	CheckSendBuffer ()
	Check the send buffer of packets with route when send buffer timer expire. More...

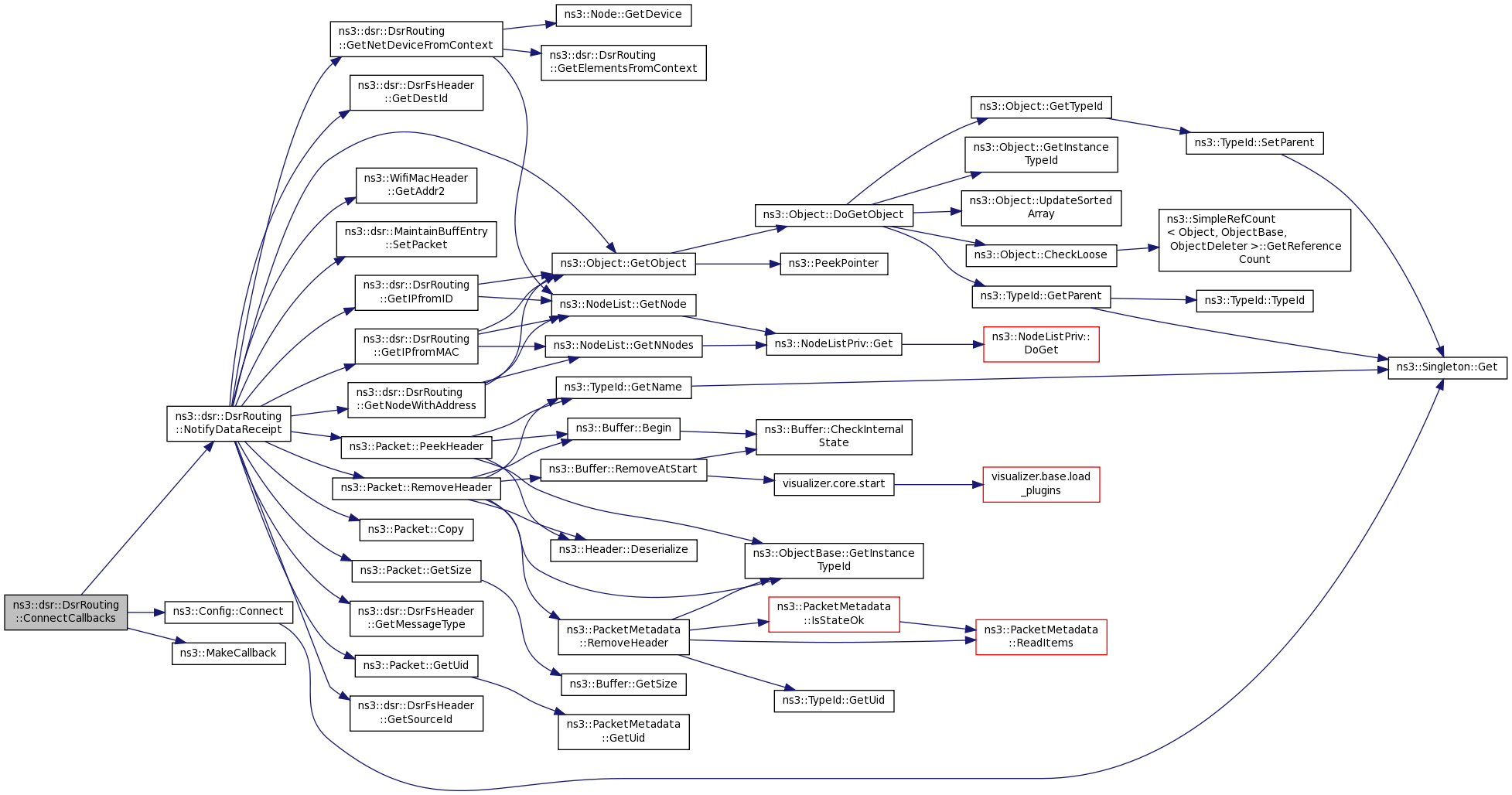

void	ConnectCallbacks ()
	Connect the callback for the tracing event. More...

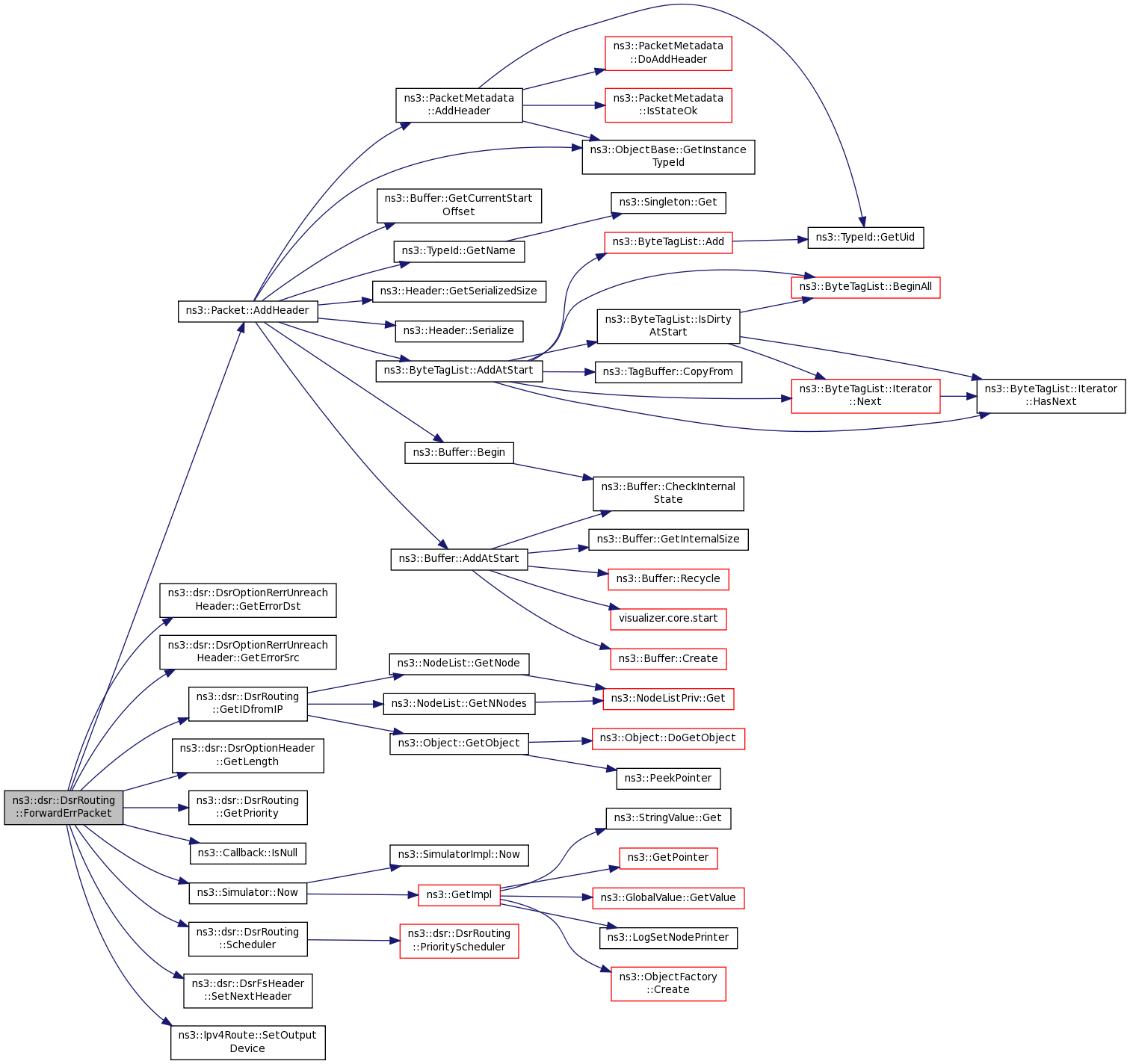

void	ForwardErrPacket (DsrOptionRerrUnreachHeader &rerr, DsrOptionSRHeader &sourceRoute, Ipv4Address nextHop, uint8_t protocol, Ptr< Ipv4Route > route)
	This function is responsible for forwarding error packets along the route. More...

void	ForwardPacket (Ptr< const Packet > packet, DsrOptionSRHeader &sourceRoute, Ipv4Header const &ipv4Header, Ipv4Address source, Ipv4Address destination, Ipv4Address targetAddress, uint8_t protocol, Ptr< Ipv4Route > route)
	Forward the packet using the route saved in the source route option header. More...

IpL4Protocol::DownTargetCallback	GetDownTarget (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

IpL4Protocol::DownTargetCallback6	GetDownTarget6 (void) const
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

std::vector< std::string >	GetElementsFromContext (std::string context)
	Get the elements from the tracing context. More...

uint16_t	GetIDfromIP (Ipv4Address address)
	Get the node id from ip address. More...

Ipv4Address	GetIPfromID (uint16_t id)
	Get the ip address from id. More...

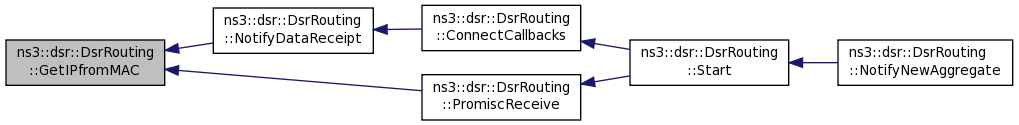

Ipv4Address	GetIPfromMAC (Mac48Address address)
	Get the Ip address from mac address. More...

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)
	Get the netdevice from the context. More...

Ptr< Node >	GetNode () const
	Get the node. More...

Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
	Get the node with give ip address. More...

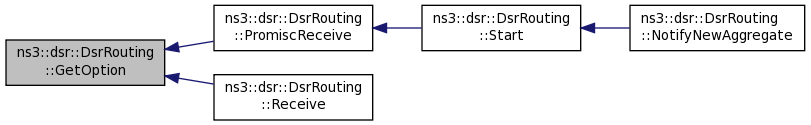

Ptr< dsr::DsrOptions >	GetOption (int optionNumber)
	Get the option corresponding to optionNumber. More...

Ptr< dsr::PassiveBuffer >	GetPassiveBuffer () const
	Get the passive buffer. More...

uint32_t	GetPriority (DsrMessageType messageType)
	Set the priority of the packet in network queue. More...

int	GetProtocolNumber (void) const
	Get the dsr protocol number. More...

Ptr< dsr::RreqTable >	GetRequestTable () const
	Get the request table. More...

Ptr< dsr::RouteCache >	GetRouteCache () const
	Get the route cache. More...

void	IncreaseRetransTimer ()
	This function is called to increase the retransmission timer for data packet in the network queue. More...

void	Insert (Ptr< dsr::DsrOptions > option)
	Insert a new Dsr Option. More...

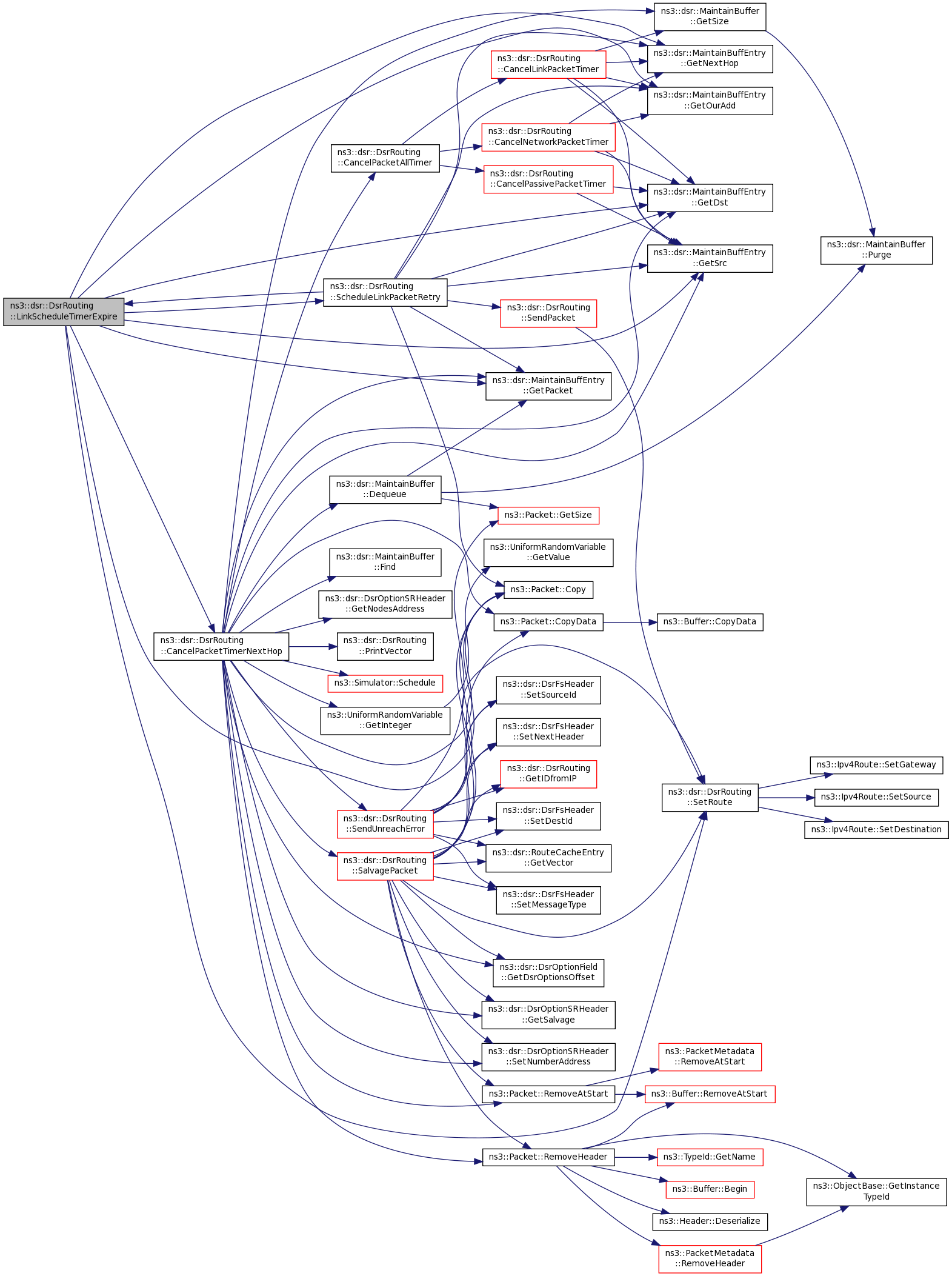

void	LinkScheduleTimerExpire (MaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using link acknowledgment. More...

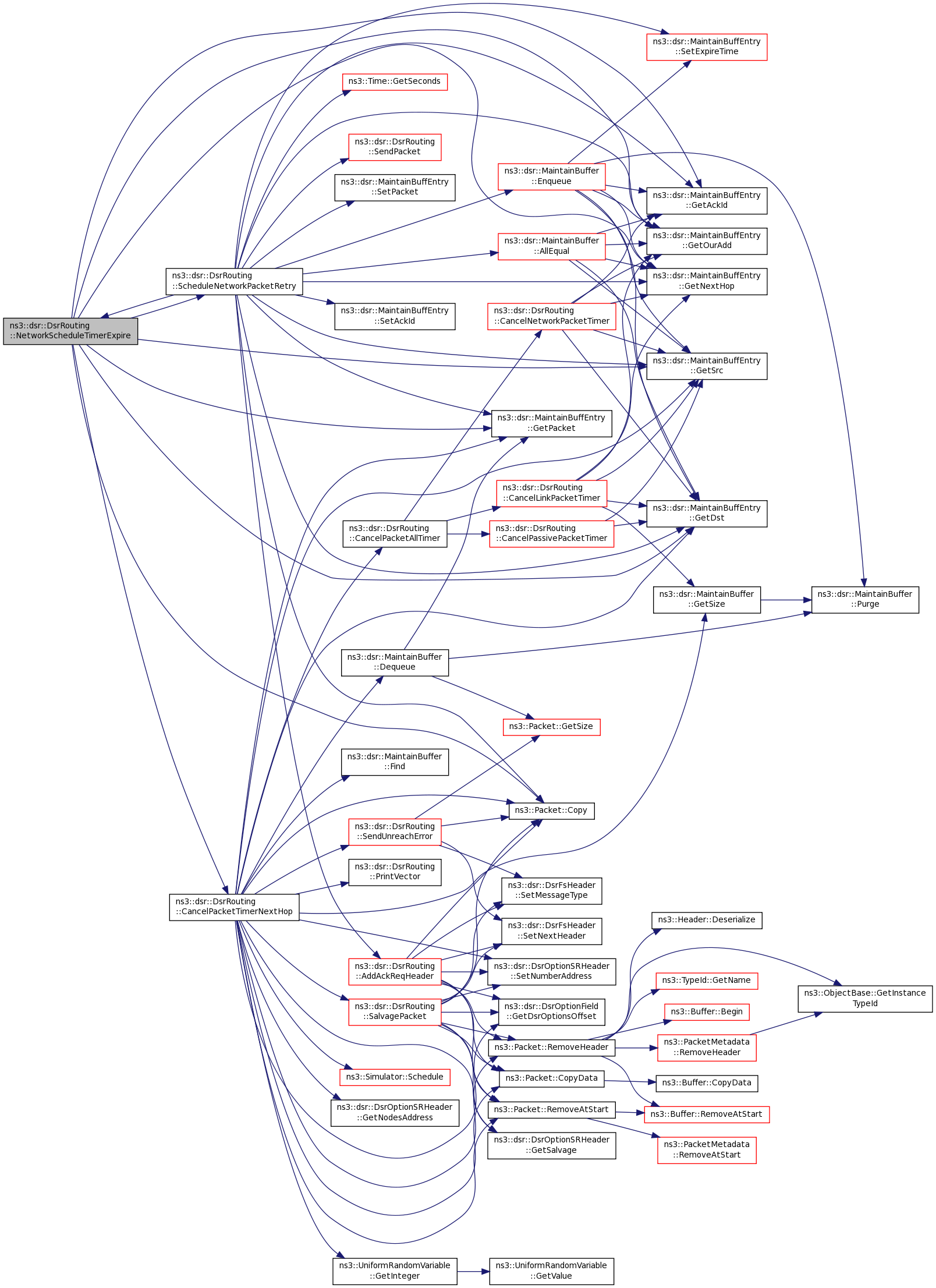

void	NetworkScheduleTimerExpire (MaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using network acknowledgment. More...

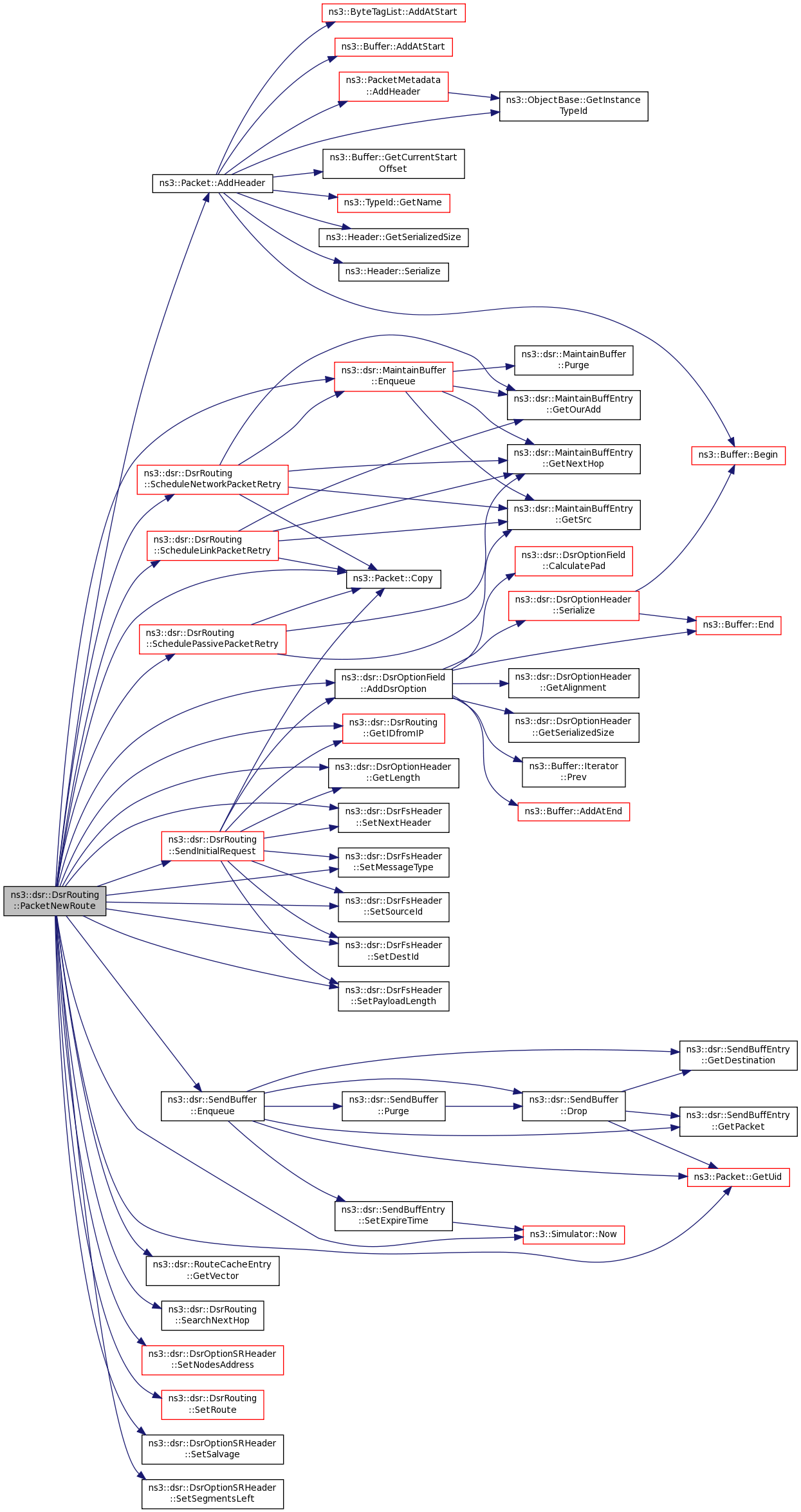

void	PacketNewRoute (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	When route vector corrupted, originate a new packet, normally not happening. More...

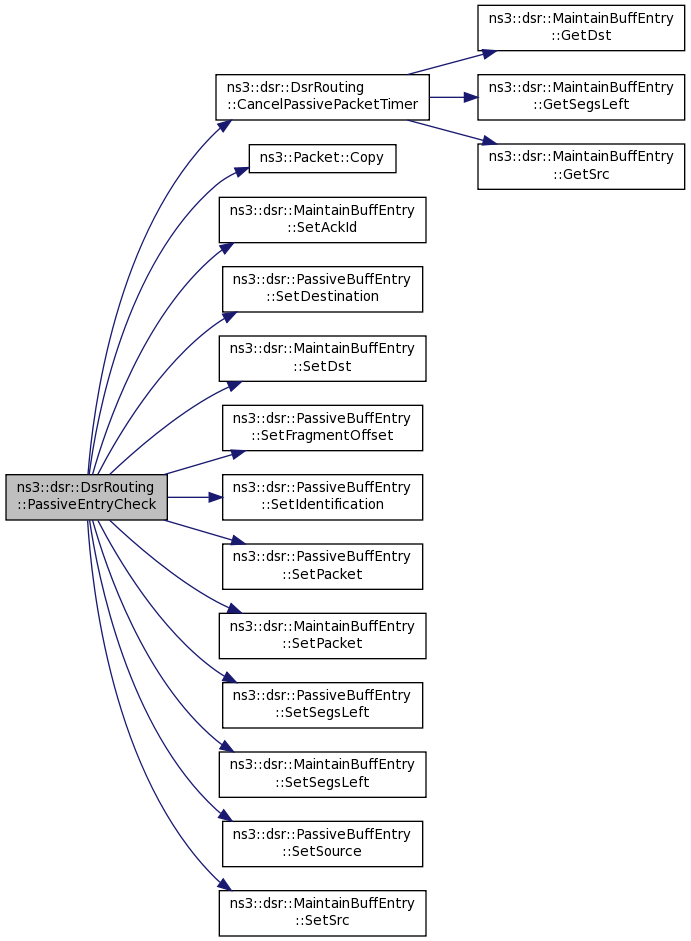

bool	PassiveEntryCheck (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t segsLeft, uint16_t fragmentOffset, uint16_t identification, bool saveEntry)
	Find the same passive entry. More...

void	PassiveScheduleTimerExpire (MaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using passive acknowledgment. More...

void	PrintVector (std::vector< Ipv4Address > &vec)
	Print the route vector. More...

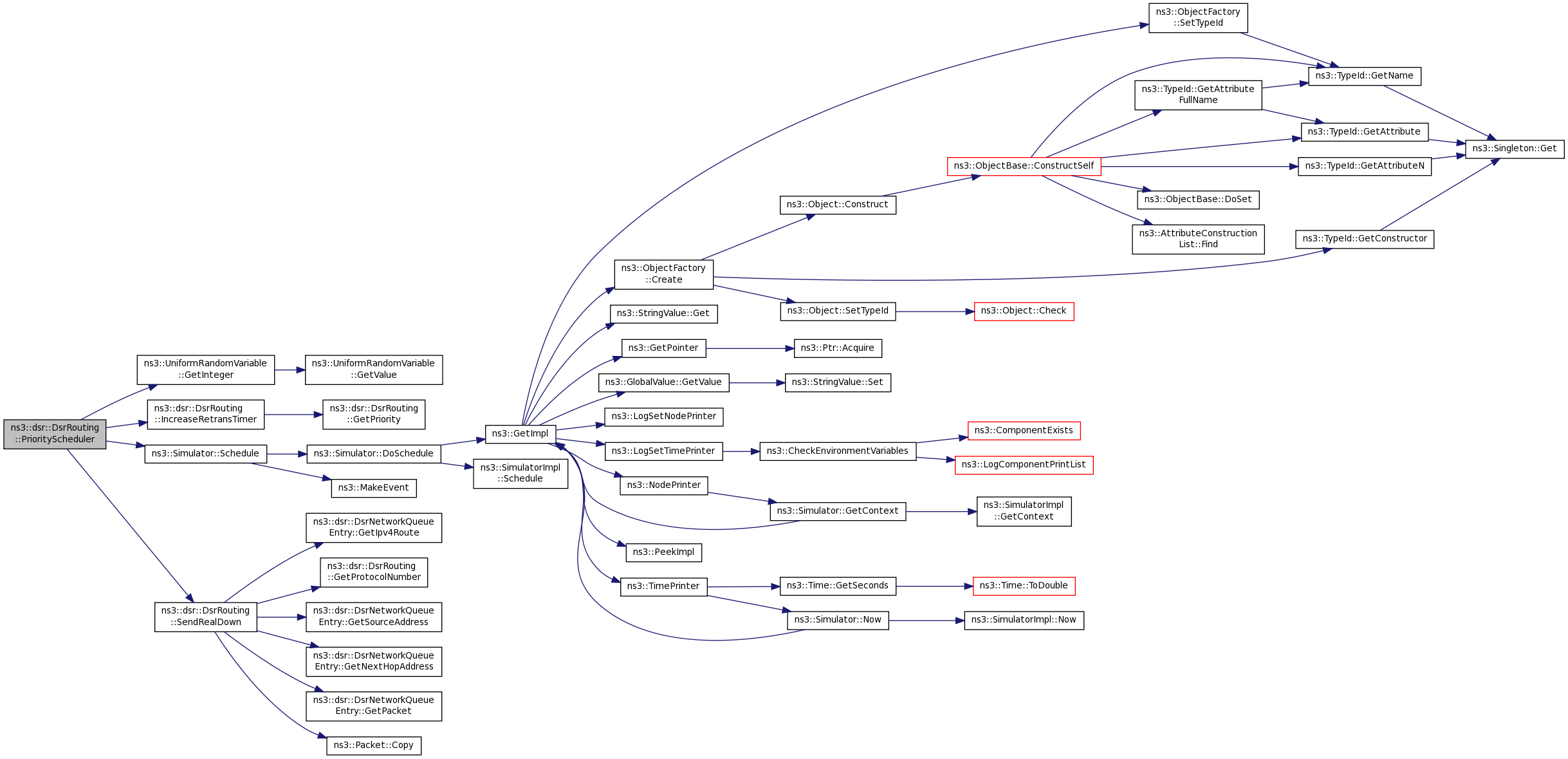

void	PriorityScheduler (uint32_t priority, bool continueWithFirst)
	This function is called to schedule sending packets from the network queue by priority. More...

uint8_t	Process (Ptr< Packet > &packet, Ipv4Header const &ipv4Header, Ipv4Address dst, uint8_t *nextHeader, uint8_t protocol, bool &isDropped)
	Process method Called from Ipv4L3Protocol::Receive. More...

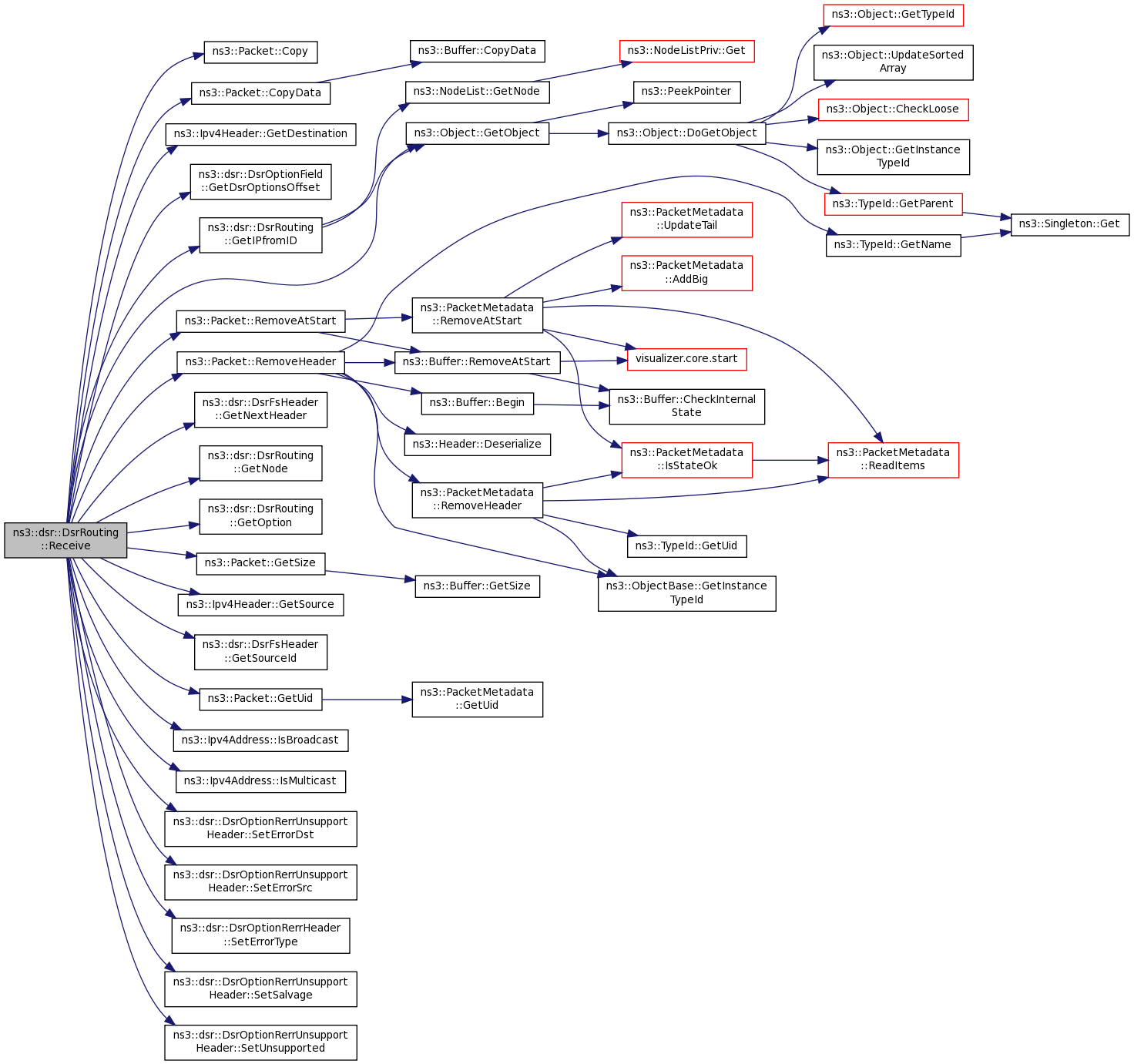

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)

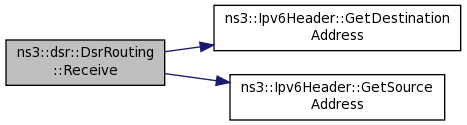

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > incomingInterface)

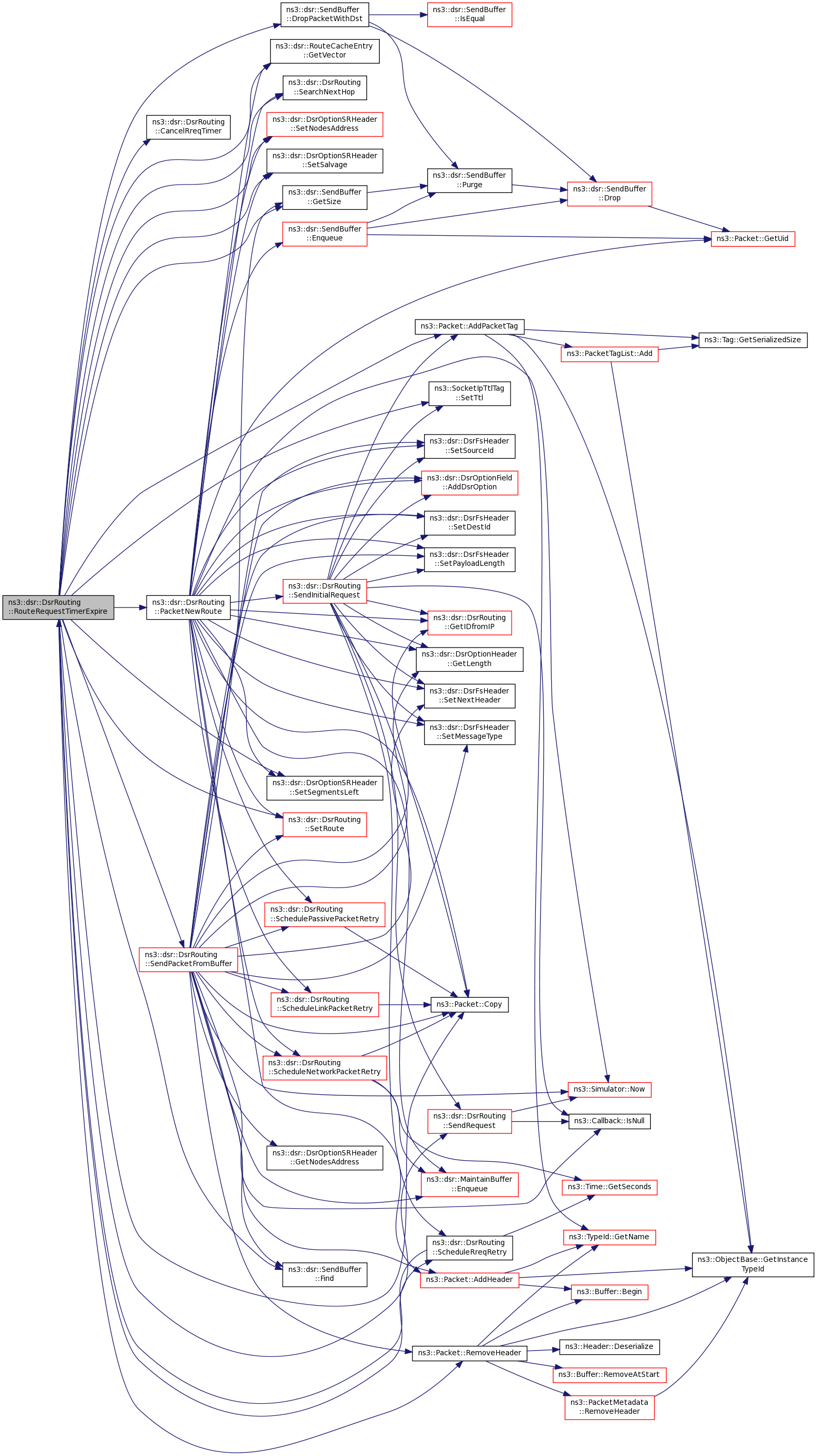

void	RouteRequestTimerExpire (Ptr< Packet > packet, std::vector< Ipv4Address > address, uint32_t requestId, uint8_t protocol)
	Handle route discovery timer. More...

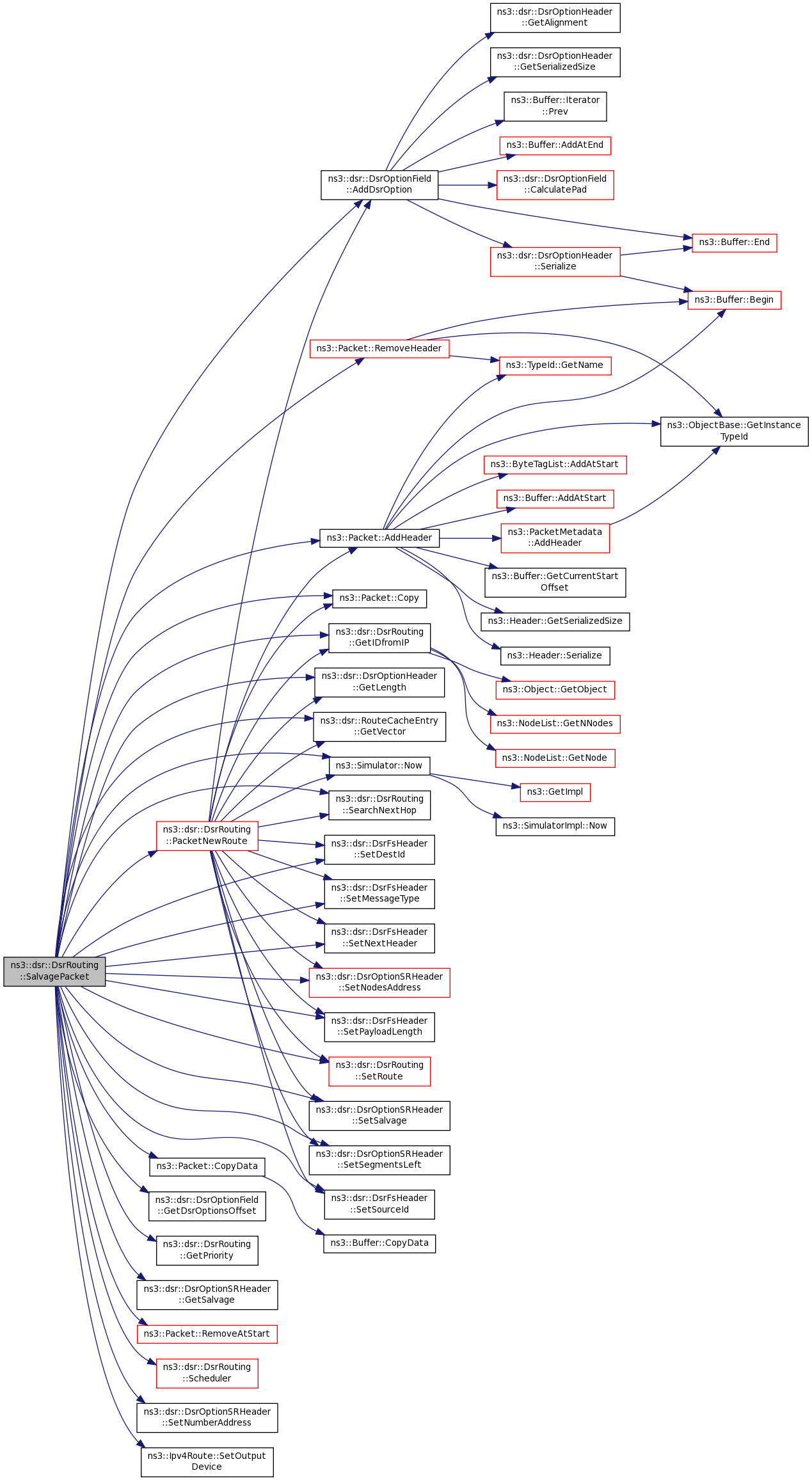

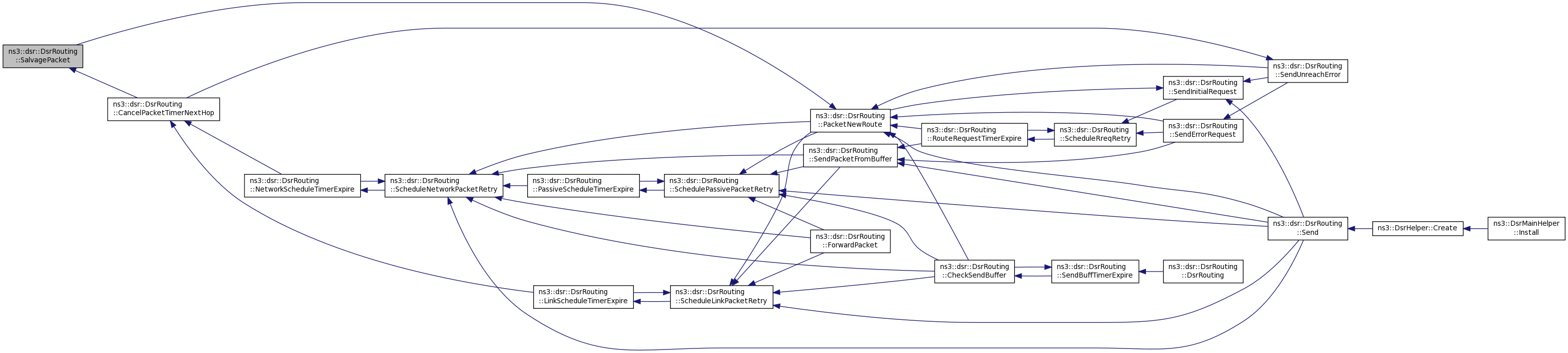

void	SalvagePacket (Ptr< const Packet > packet, Ipv4Address source, Ipv4Address dst, uint8_t protocol)
	Salvage the packet which has been transmitted for 3 times. More...

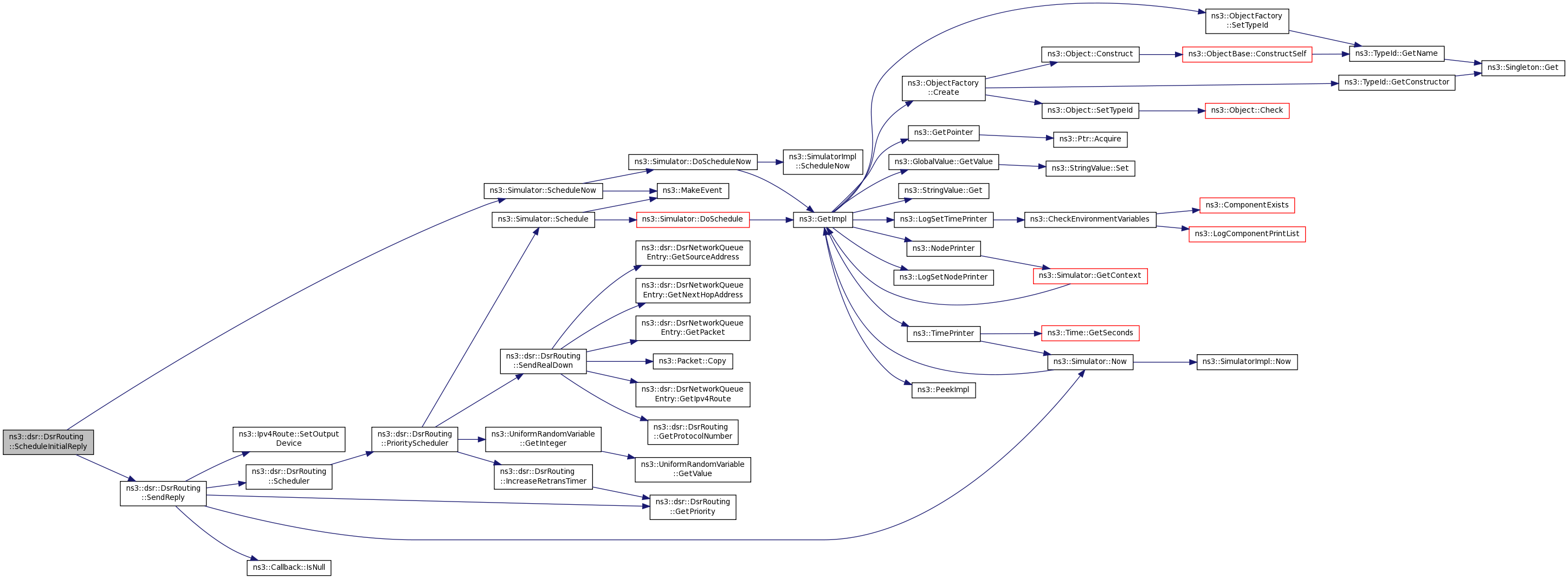

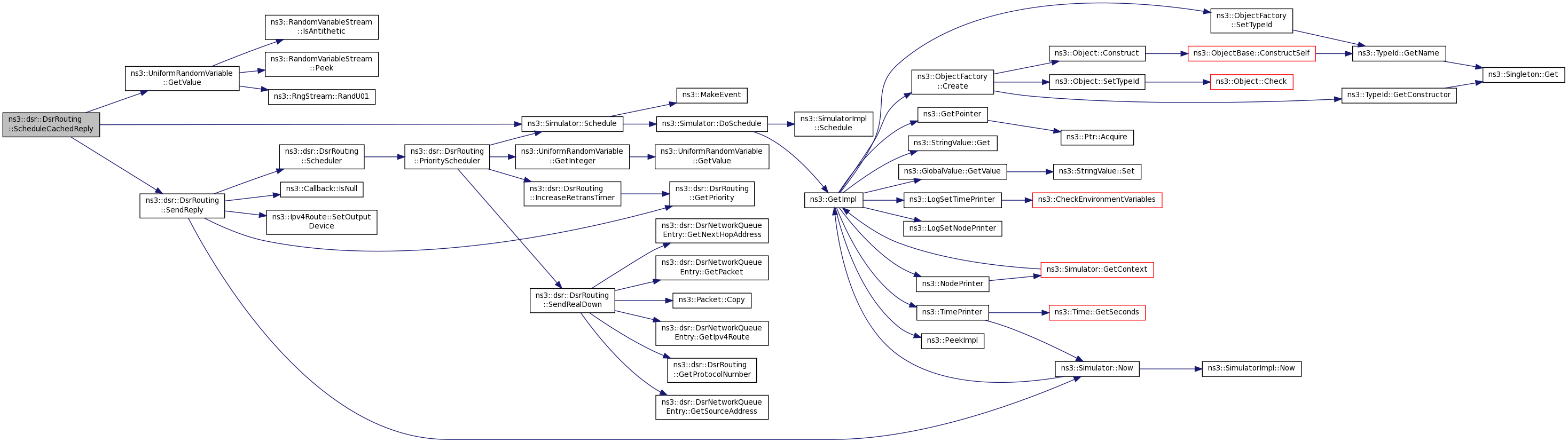

void	ScheduleCachedReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, Ptr< Ipv4Route > route, double hops)
	Schedule the cached reply to a random start time to avoid possible route reply storm. More...

void	ScheduleInitialReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, Ptr< Ipv4Route > route)
	this is a generating the initial route reply from the destination address, a random delay time [0, m_broadcastJitter] is used before unicasting back the route reply packet More...

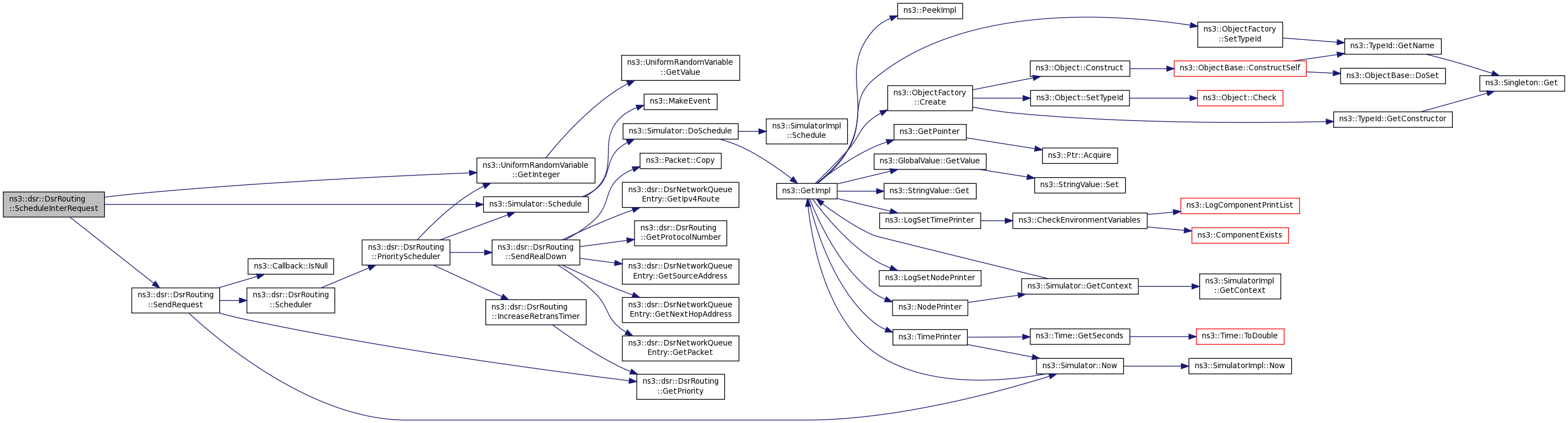

void	ScheduleInterRequest (Ptr< Packet > packet)
	Schedule the intermediate route request. More...

void	ScheduleLinkPacketRetry (MaintainBuffEntry &mb, uint8_t protocol)
	Schedule the packet retransmission based on link-layer acknowledgment. More...

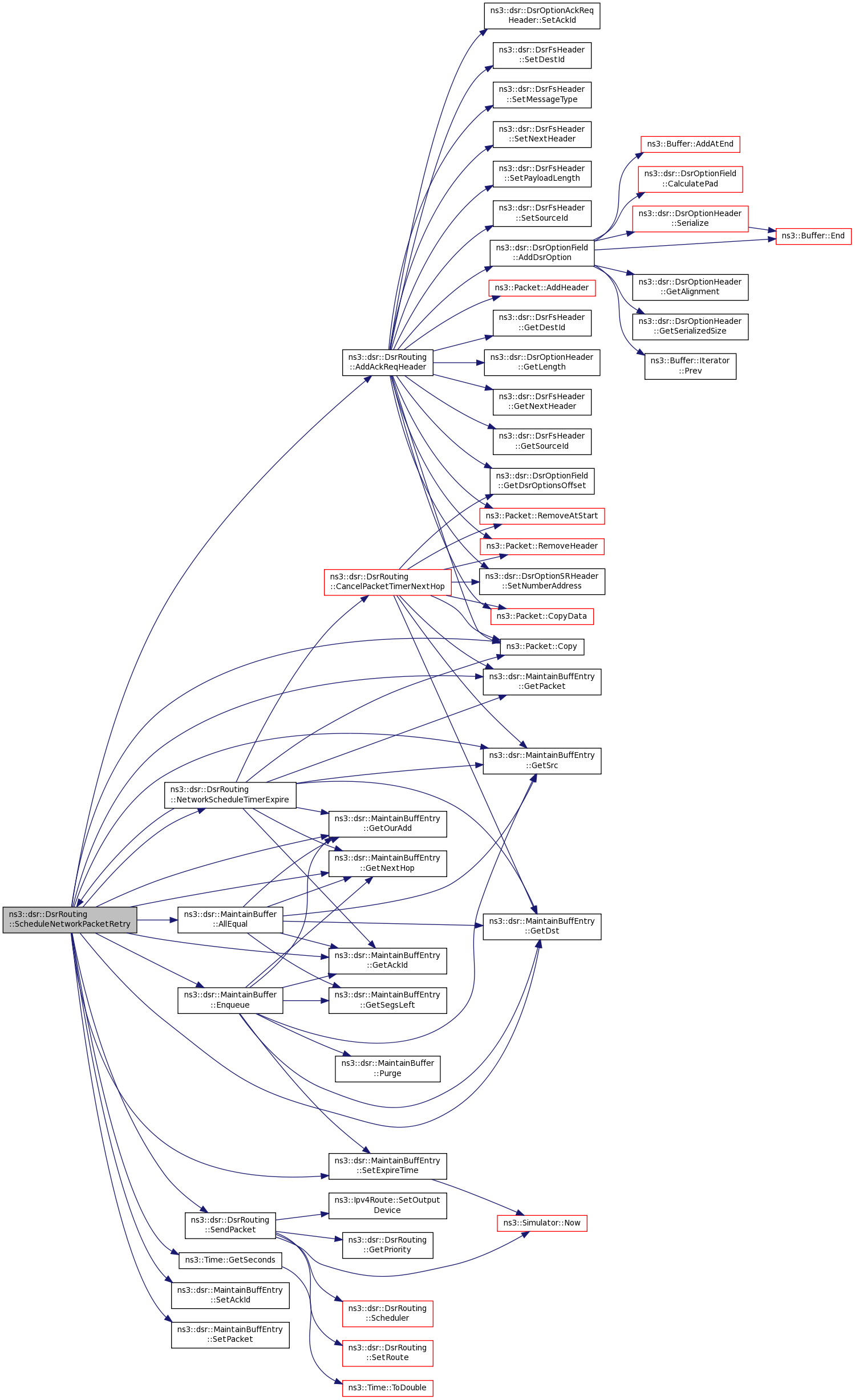

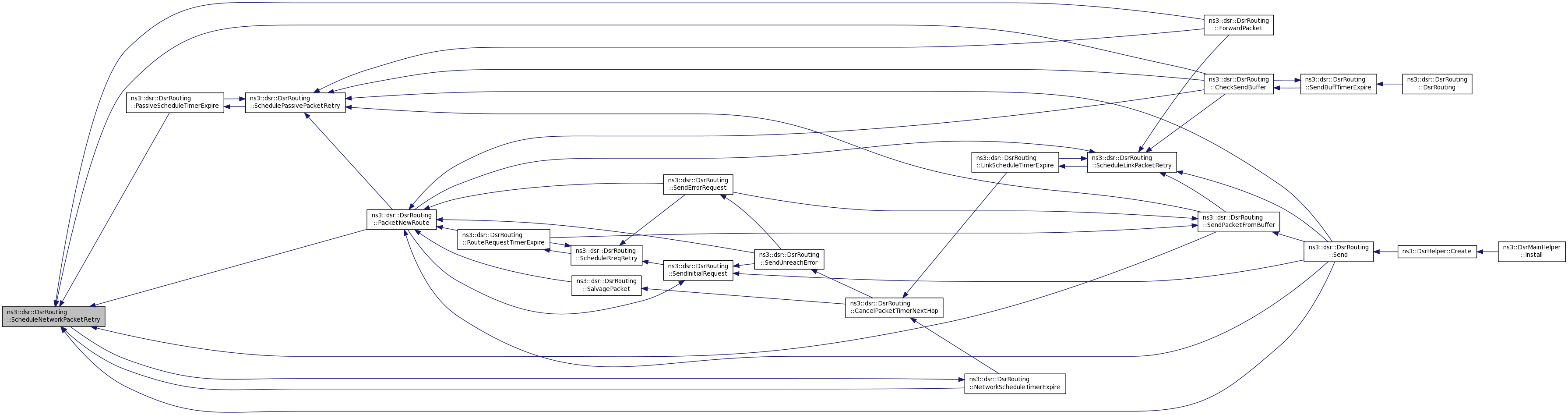

void	ScheduleNetworkPacketRetry (MaintainBuffEntry &mb, bool isFirst, uint8_t protocol)
	Schedule the packet retransmission based on network layer acknowledgment. More...

void	SchedulePassivePacketRetry (MaintainBuffEntry &mb, uint8_t protocol)
	Schedule the packet retransmission based on passive acknowledgment. More...

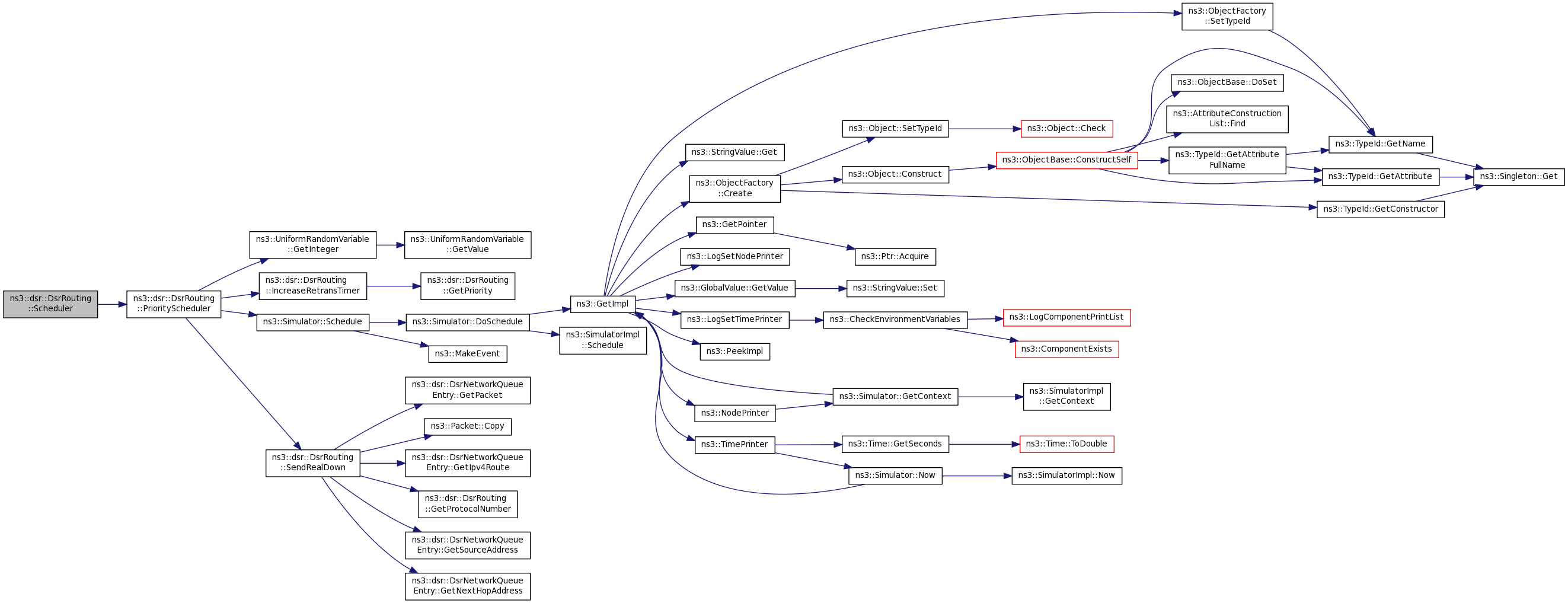

void	Scheduler (uint32_t priority)
	This function is called to schedule sending packets from the network queue. More...

void	ScheduleRreqRetry (Ptr< Packet > packet, std::vector< Ipv4Address > address, bool nonProp, uint32_t requestId, uint8_t protocol)
	Schedule the route request retry. More...

Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Get the next hop of the route. More...

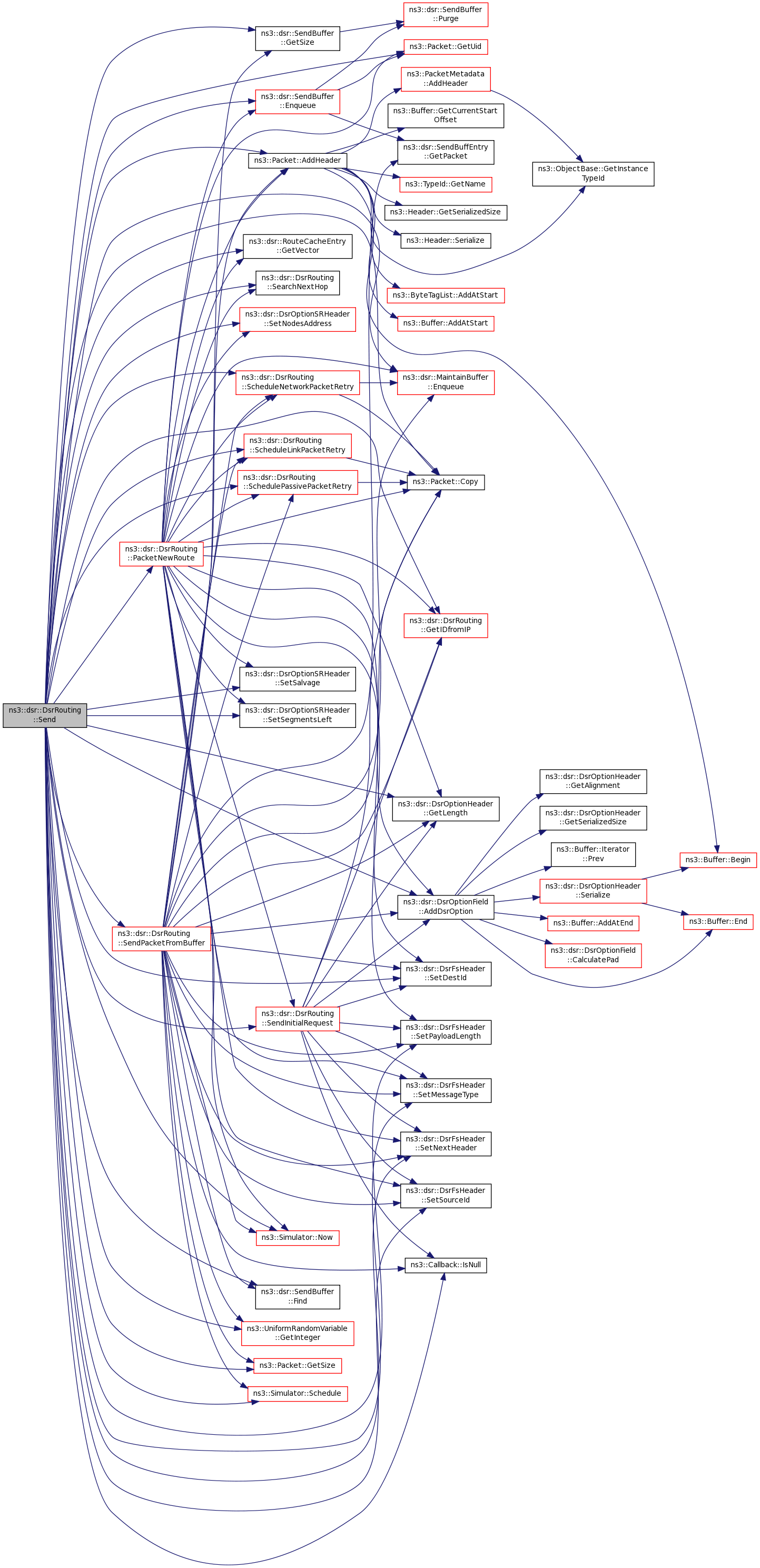

void	Send (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol, Ptr< Ipv4Route > route)
	This function is called by higher layer protocol when sending packets. More...

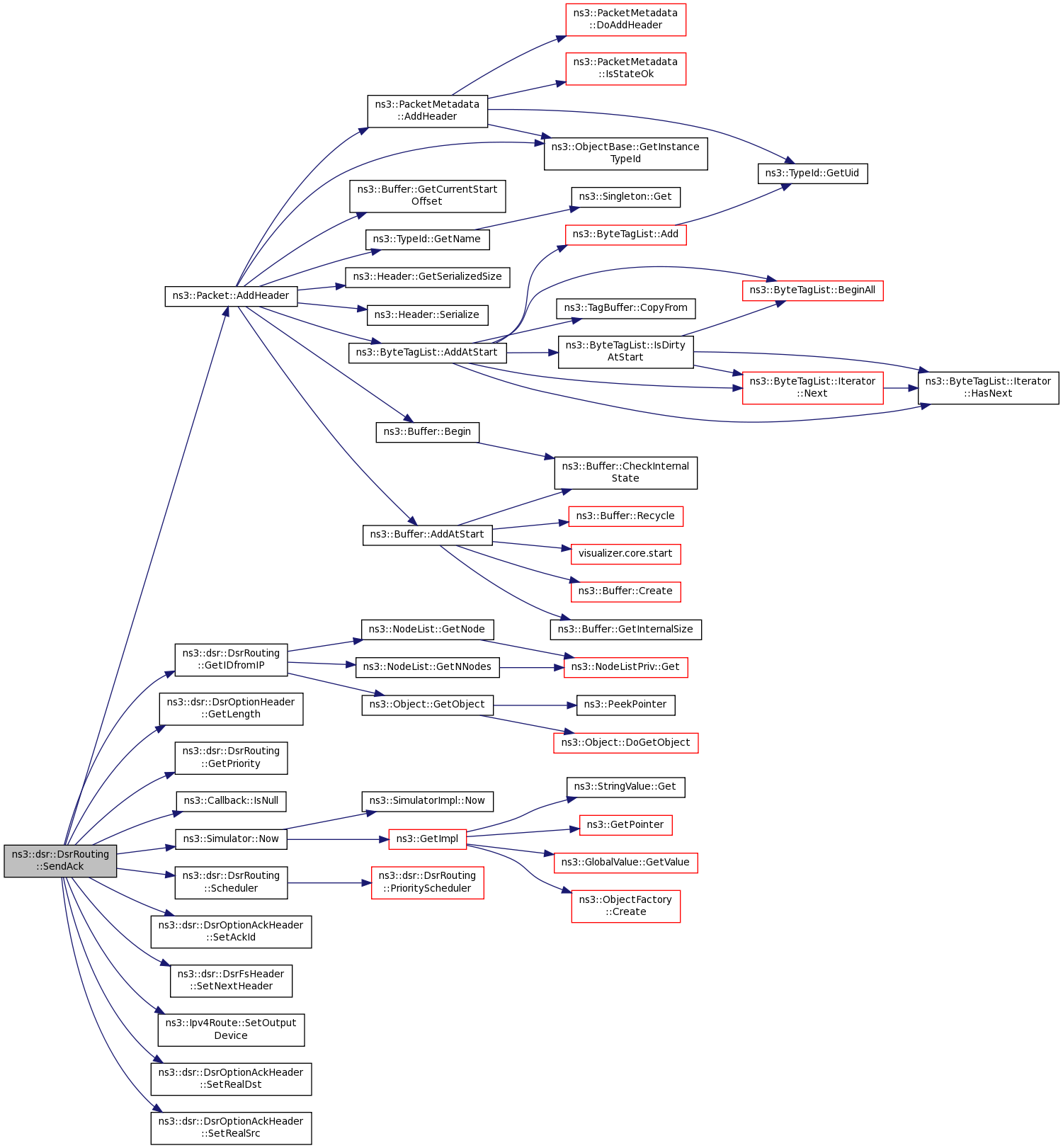

void	SendAck (uint16_t ackId, Ipv4Address destination, Ipv4Address realSrc, Ipv4Address realDst, uint8_t protocol, Ptr< Ipv4Route > route)
	Send network layer acknowledgment back to the earlier hop to notify the receipt of data packet. More...

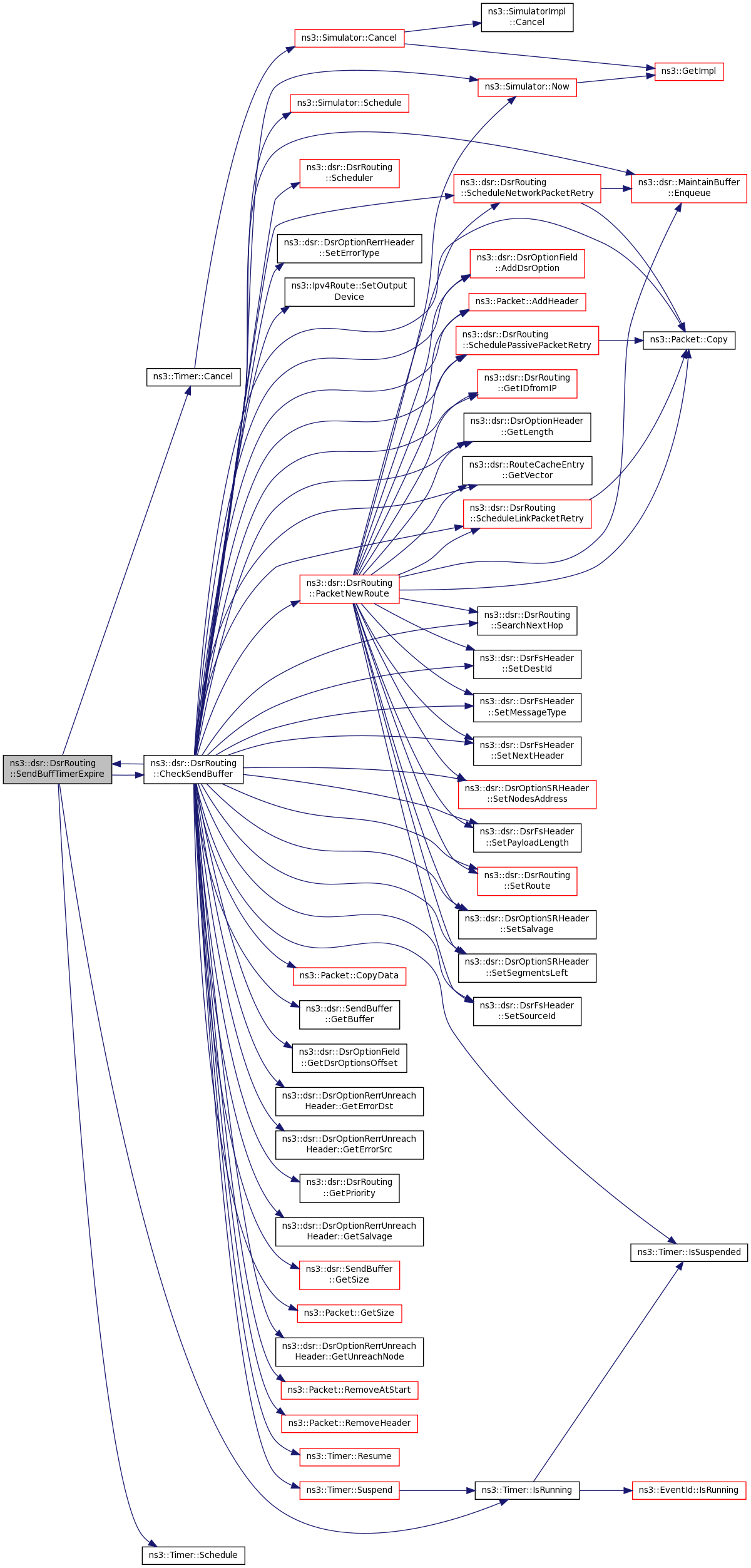

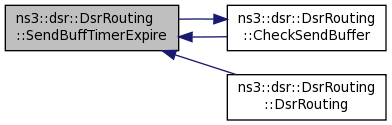

void	SendBuffTimerExpire ()
	The send buffer timer expire. More...

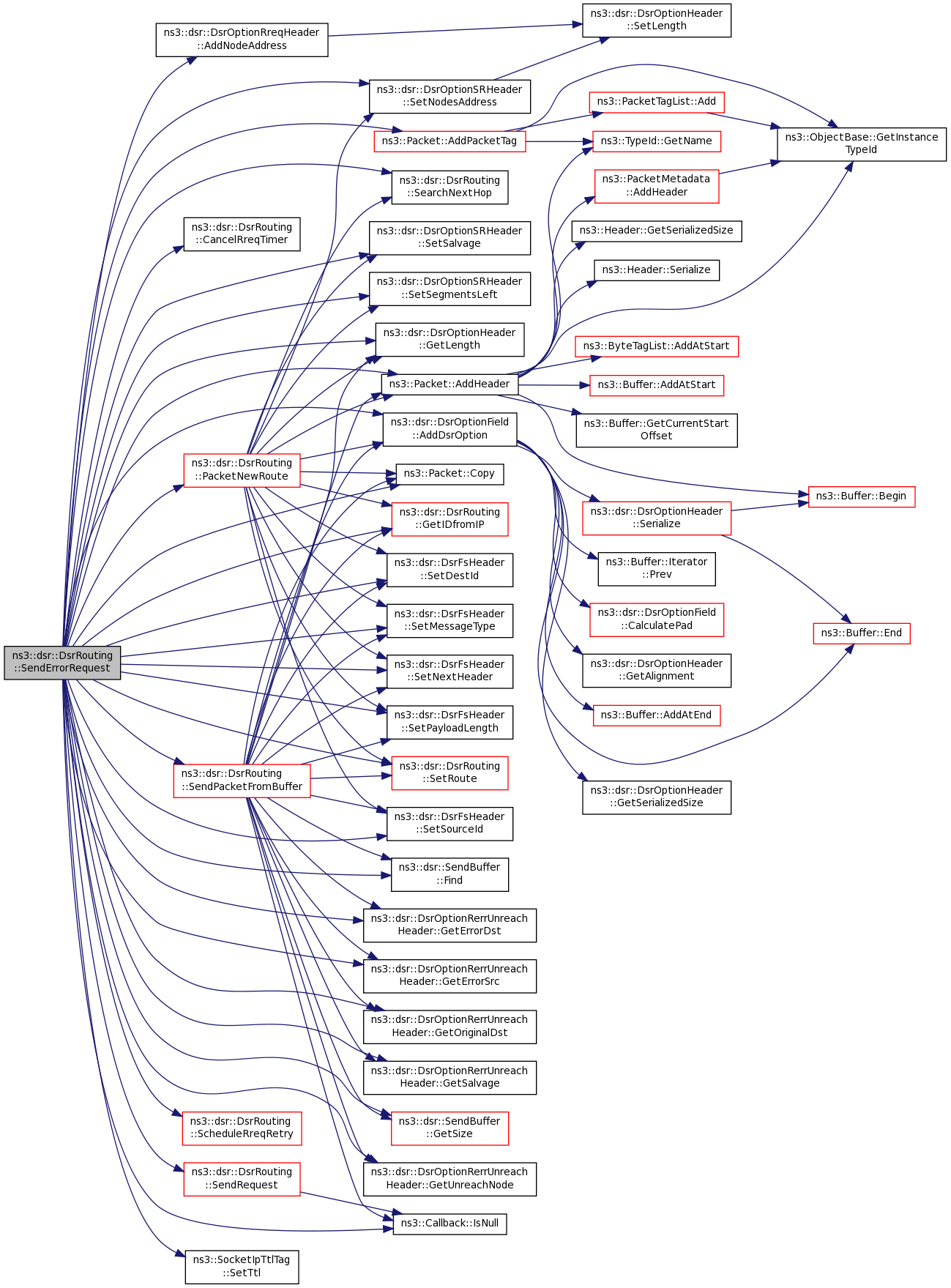

void	SendErrorRequest (DsrOptionRerrUnreachHeader &rerr, uint8_t protocol)
	Send the error request packet. More...

void	SendGratuitousReply (Ipv4Address replyTo, Ipv4Address replyFrom, std::vector< Ipv4Address > &nodeList, uint8_t protocol)
	Send the gratuitous reply. More...

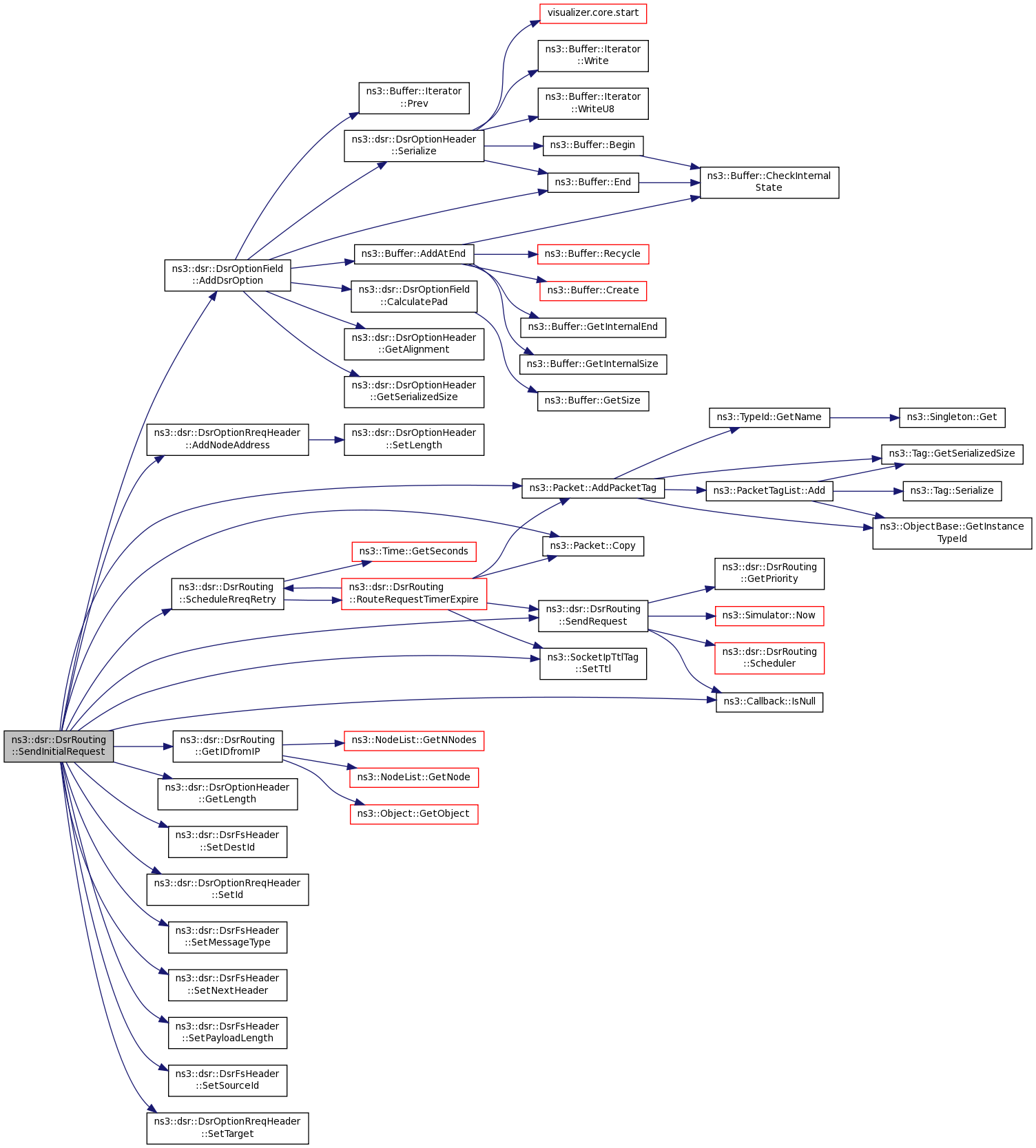

void	SendInitialRequest (Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	Broadcast the route request packet in subnet. More...

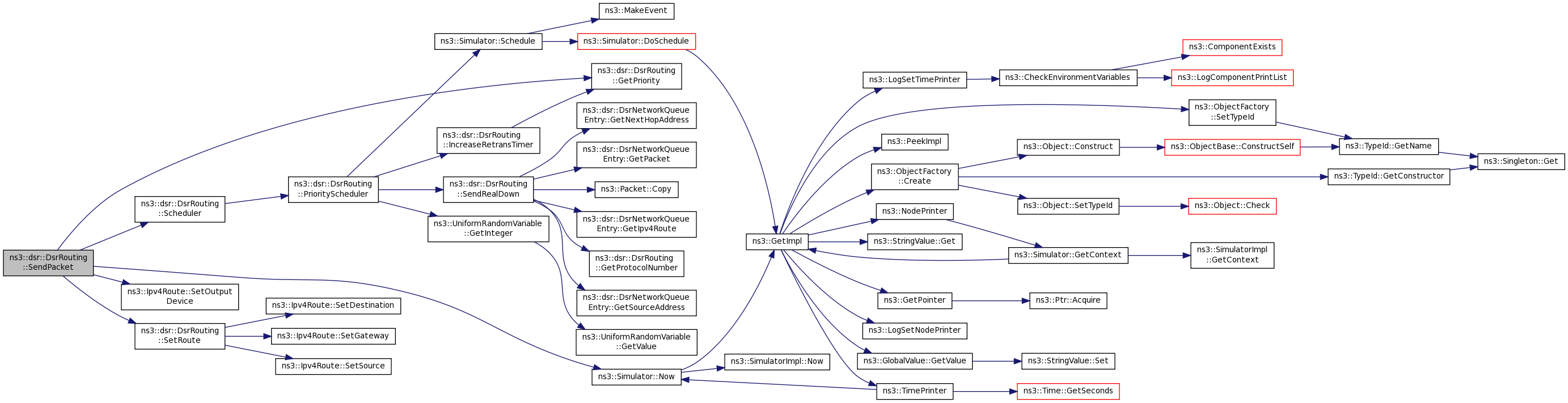

void	SendPacket (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, uint8_t protocol)
	This function is called by when really sending out the packet. More...

void	SendPacketFromBuffer (DsrOptionSRHeader const &sourceRoute, Ipv4Address nextHop, uint8_t protocol)
	This function is responsible for sending out data packets when have route, if no route found, it will cache the packet and send out route requests. More...

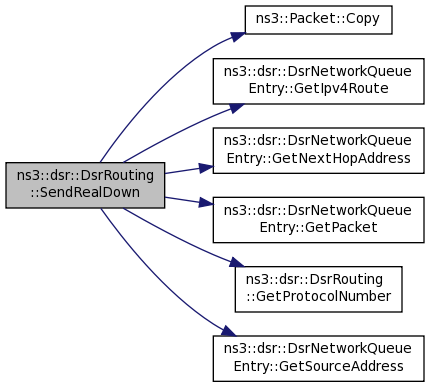

bool	SendRealDown (DsrNetworkQueueEntry &newEntry)
	This function is called to send packets down stack. More...

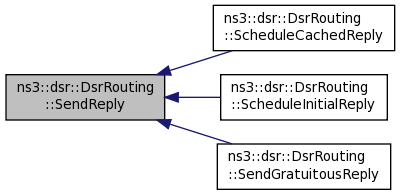

void	SendReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, Ptr< Ipv4Route > route)
	Send the route reply back to the request originator with the cumulated route. More...

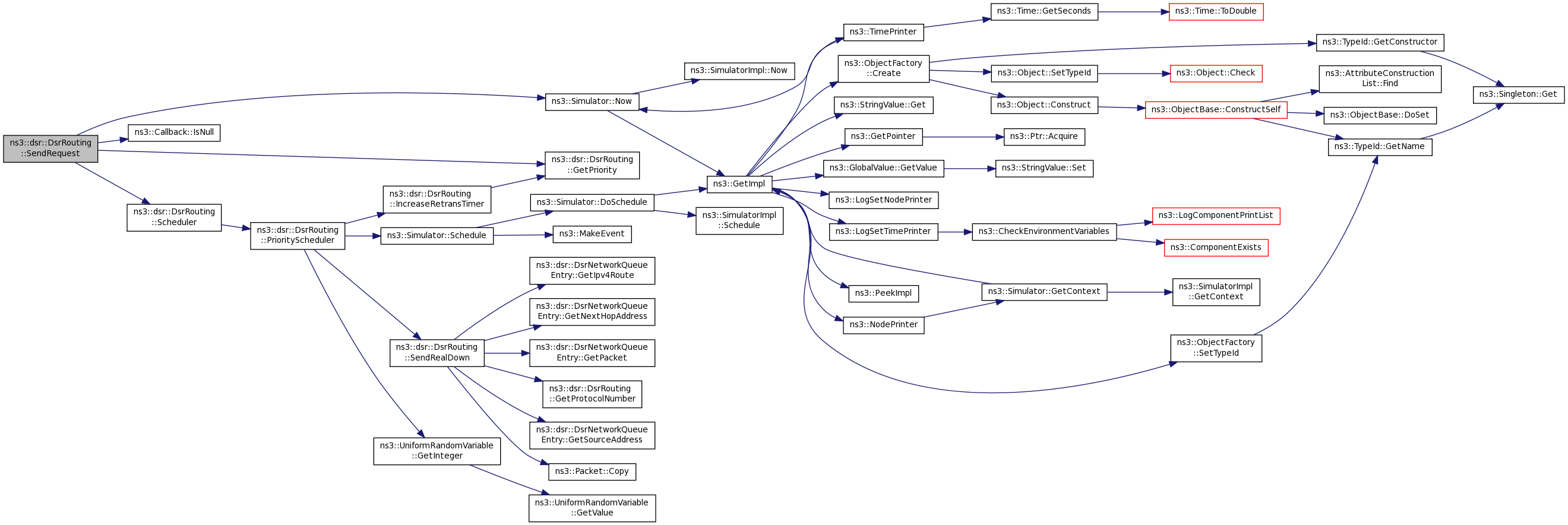

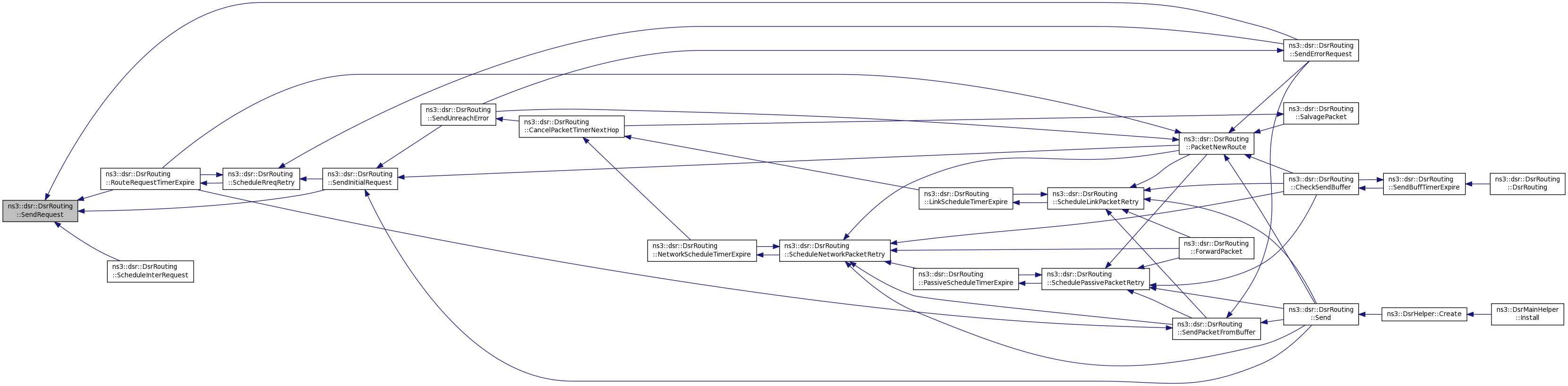

void	SendRequest (Ptr< Packet > packet, Ipv4Address source)
	Forward the route request if the node is not the destination. More...

void	SendUnreachError (Ipv4Address unreachNode, Ipv4Address destination, Ipv4Address originalDst, uint8_t salvage, uint8_t protocol)
	This function is responsible for sending error packets in case of break link to next hop. More...

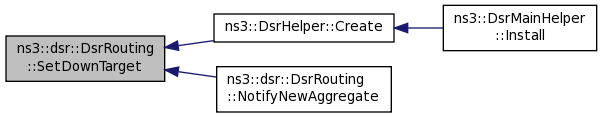

void	SetDownTarget (IpL4Protocol::DownTargetCallback callback)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 callback)
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

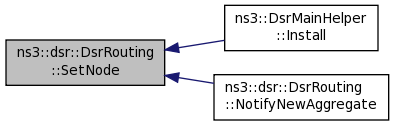

void	SetNode (Ptr< Node > node)
	Set the node. More...

void	SetPassiveBuffer (Ptr< dsr::PassiveBuffer > r)
	Set the node. More...

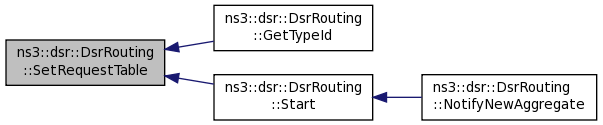

void	SetRequestTable (Ptr< dsr::RreqTable > r)
	Set the node. More...

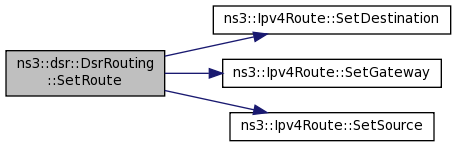

Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
	Set the route to use for data packets, used by the option headers when sending data/control packets. More...

void	SetRouteCache (Ptr< dsr::RouteCache > r)
	Set the route cache. More...


bool	IsLinkCache ()
	functions used to direct to route cache More...

void	UseExtends (RouteCacheEntry::IP_VECTOR rt)
	functions used to direct to route cache More...

bool	LookupRoute (Ipv4Address id, RouteCacheEntry &rt)
	functions used to direct to route cache More...

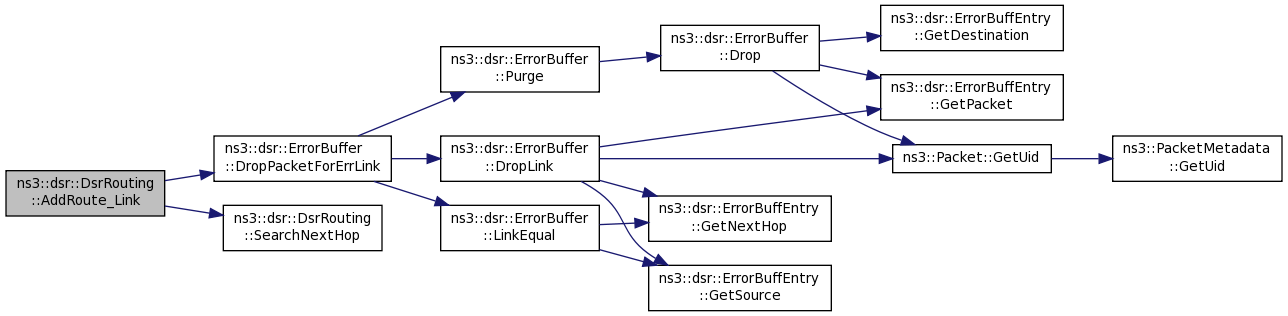

bool	AddRoute_Link (RouteCacheEntry::IP_VECTOR nodelist, Ipv4Address source)
	functions used to direct to route cache More...

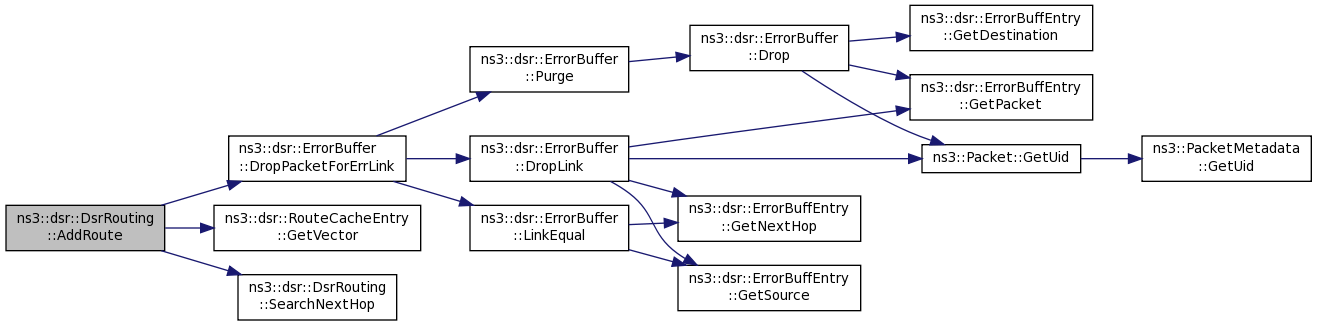

bool	AddRoute (RouteCacheEntry &rt)
	functions used to direct to route cache More...

void	DeleteAllRoutesIncludeLink (Ipv4Address errorSrc, Ipv4Address unreachNode, Ipv4Address node)
	functions used to direct to route cache More...

bool	UpdateRouteEntry (Ipv4Address dst)
	functions used to direct to route cache More...

bool	FindSourceEntry (Ipv4Address src, Ipv4Address dst, uint16_t id)
	functions used to direct to route cache More...

Public Member Functions inherited from ns3::IpL4Protocol
virtual	~IpL4Protocol ()

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

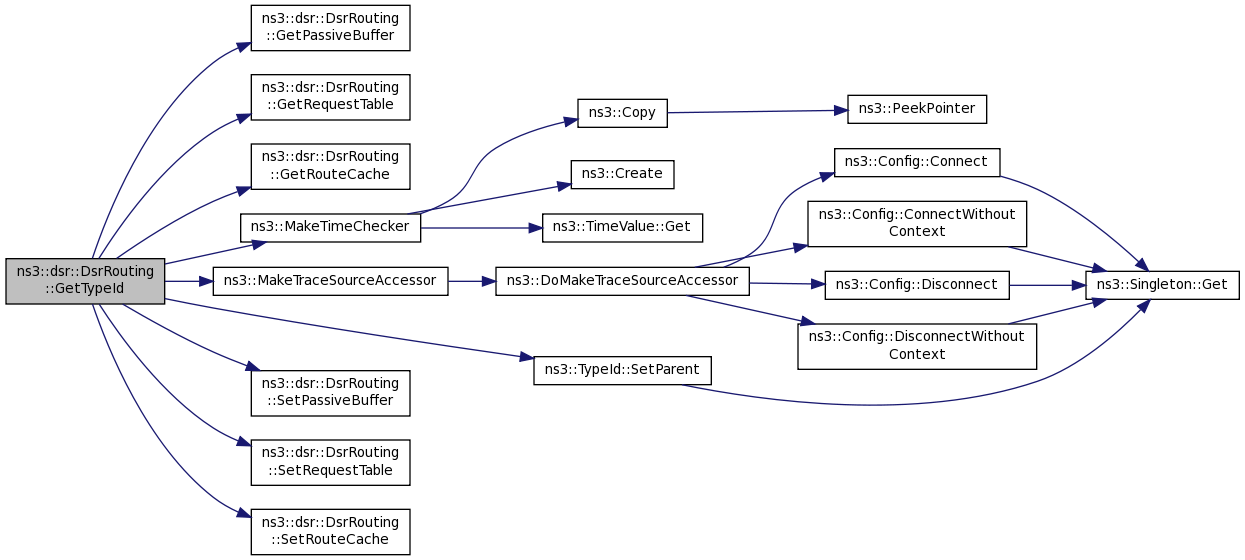

static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 48
	Define the dsr protocol number. More...

Protected Member Functions
virtual void	DoDispose (void)
	Drop trace callback. More...

virtual void	NotifyNewAggregate ()
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes
TracedCallback< Ptr< const Packet > >	m_dropTrace
	The trace for drop, receive and send data packets. More...

TracedCallback< const DsrOptionSRHeader & >	m_txPacketTrace

Private Types
typedef std::list< Ptr < DsrOptions > >	DsrOptionList_t
	Define the list to hold DSR options. More...

Private Member Functions
void	NotifyDataReceipt (std::string context, Ptr< const Packet > p)
	Notify the data receipt. More...

bool	PromiscReceive (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Promiscuous receive data packets destined to some other node. More...

void	SendRerrWhenBreaksLinkToNextHop (Ipv4Address nextHop, uint8_t protocol)
	Send the route error message when the link breaks to the next hop. More...

void	Start ()

Private Attributes
uint16_t	m_ackId
	The ack id assigned to each acknowledge. More...

std::vector< Ipv4Address >	m_addresses
	The bind ipv4 addresses with next hop, src, destination address in sequence. More...

std::map< NetworkKey, uint32_t >	m_addressForwardCnt
	Map network key + forward counts. More...

std::map< NetworkKey, Timer >	m_addressForwardTimer
	Map network key + forward timer. More...

std::map< Ipv4Address, Timer >	m_addressReqTimer
	Map IP address + RREQ timer. More...

Time	m_blacklistTimeout
	The black list time out. More...

Ipv4Address	m_broadcast
	The broadcast IP address. More...

uint32_t	m_broadcastJitter
	The max time to delay route request broadcast. More...

std::string	m_cacheType
	The type of route cache. More...

std::vector< Ipv4Address >	m_clearList
	The node that is clear to send packet to. More...

uint32_t	m_discoveryHopLimit
	Maximum hops to go for route request. More...

IpL4Protocol::DownTargetCallback	m_downTarget
	The callback for down layer. More...

ErrorBuffer	m_errorBuffer
	The error buffer to save the error messages. More...

std::vector< Ipv4Address >	m_finalRoute
	The route cache. More...

GraReply	m_graReply
	The gratuitous route reply. More...

uint32_t	m_graReplyTableSize
	Set the gratuitous reply table size. More...

Time	m_gratReplyHoldoff
	The max gratuitous reply hold off time. More...

Time	m_initStability
	The initial stability value for link cache. More...

Ptr< Ipv4 >	m_ip
	The ip ptr. More...

Ptr< Ipv4L3Protocol >	m_ipv4
	Ipv4l3Protocol. More...

Ptr< Ipv4Route >	m_ipv4Route
	Ipv4 Route. More...

bool	m_linkAck
	define if we use link acknowledgement or not More...

Time	m_linkAckTimeout
	The timeout value for link acknowledge. More...

std::map< LinkKey, Timer >	m_linkAckTimer
	The timer for link acknowledgment. More...

std::map< LinkKey, uint32_t >	m_linkCnt
	Map packet key + link forward counts. More...

uint32_t	m_linkRetries
	of retries have been sent for link acknowledgment More...

std::map< std::string, uint32_t >	m_macToNodeIdMap
	The map of mac address to node id. More...

Ipv4Address	m_mainAddress
	Our own Ip address. More...

MaintainBuffer	m_maintainBuffer
	The declaration of maintain buffer. More...

uint32_t	m_maxCacheLen
	Max # of cache entries for route cache. More...

Time	m_maxCacheTime
	Max time for caching the route cache entry. More...

uint32_t	m_maxEntriesEachDst
	Max number of route entries to save for each destination. More...

uint32_t	m_maxMaintainLen
	Max # of entries for maintainance buffer. More...

Time	m_maxMaintainTime
	Time out for maintainance buffer. More...

uint32_t	m_maxMaintRexmt
	Maximum number of retransmissions of data packets. More...

Time	m_maxNetworkDelay
	Maximum network delay. More...

uint32_t	m_maxNetworkSize
	Maximum network queue size. More...

Time	m_maxRequestPeriod
	The max request period. More...

uint32_t	m_maxRreqId
	The max number of request ids for a single destination. More...

Time	m_maxRreqTime
	Max time for caching the route request entry. More...

uint8_t	m_maxSalvageCount
	Maximum # times to salvage a packet. More...

uint32_t	m_maxSendBuffLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

Time	m_minLifeTime
	The min life time. More...

DsrNetworkQueue	m_networkQueue
	The network queue. More...

Ptr< Node >	m_node
	The node ptr. More...

Time	m_nodeTraversalTime
	Time estimated for packet to travel between two nodes. More...

std::map< Ipv4Address, Timer >	m_nonPropReqTimer
	Map IP address + RREQ timer. More...

Time	m_nonpropRequestTimeout
	The non-propagation request timeout. More...

uint32_t	m_numPriorityQueues
	The number of priority queues used. More...

DsrOptionList_t	m_options
	List of DSR Options supported. More...

Time	m_passiveAckTimeout
	The timeout value for passive acknowledge. More...

std::map< PassiveKey, Timer >	m_passiveAckTimer
	The timer for passive acknowledgment. More...

Ptr< dsr::PassiveBuffer >	m_passiveBuffer
	A "drop-front" queue used by the routing layer to cache route request sent. More...

std::map< PassiveKey, uint32_t >	m_passiveCnt
	Map packet key + passive forward counts. More...

uint32_t	m_passiveRetries
	of retries have been sent for passive acknowledgment More...

std::map< uint32_t, Ptr < dsr::DsrNetworkQueue > >	m_priorityQueue
	priority queues More...

uint32_t	m_requestId
	The id assigned to each route request. More...

Time	m_requestPeriod
	The base time interval between route requests. More...

uint32_t	m_requestTableIds
	The request table identifiers. More...

uint32_t	m_requestTableSize
	The max size of the request table size. More...

Time	m_retransIncr
	the increase time for retransmission timer when face network congestion More...

Ptr< dsr::RouteCache >	m_routeCache
	A "drop-front" queue used by the routing layer to cache routes found. More...

std::string	m_routeSortType
	The type of route sort methods. More...

uint32_t	m_rreqRetries
	Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route. More...

Ptr< dsr::RreqTable >	m_rreqTable
	A "drop-front" queue used by the routing layer to cache route request sent. More...

SendBuffer	m_sendBuffer
	The send buffer. More...

Time	m_sendBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for. More...

Time	m_sendBuffInterval
	how often to check send buffer More...

Timer	m_sendBuffTimer
	The send buffer timer. More...

uint32_t	m_sendRetries
	of retries have been sent for network acknowledgment More...

uint32_t	m_stabilityDecrFactor
	The initial decrease factor for link cache. More...

uint32_t	m_stabilityIncrFactor
	The initial increase factor for link cache. More...

bool	m_subRoute
	Whether to save sub route or not. More...

uint32_t	m_tryLinkAcks
	Maximum number of packet transmission using link acknowledgment. More...

uint32_t	m_tryPassiveAcks
	Maximum number of packet transmission using passive acknowledgment. More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

Time	m_useExtends
	The use extension of the life time for link cache. More...

uint8_t	segsLeft
	The segment left value from SR header. More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr < Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr < Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr < Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr < Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Dsr Routing base.

Attributes

RouteCache: The route cache for saving routes from route discovery process.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::dsr::RouteCache>
- Initial value: 0
- Flags: construct write read
RreqTable: The request table to manage route requests.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::dsr::RreqTable>
- Initial value: 0
- Flags: construct write read
PassiveBuffer: The passive buffer to manage promisucously received passive ack.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::dsr::PassiveBuffer>
- Initial value: 0
- Flags: construct write read
MaxSendBuffLen: Maximum number of packets that can be stored in send buffer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
MaxSendBuffTime: Maximum time packets can be queued in the send buffer .
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
MaxMaintLen: Maximum number of packets that can be stored in maintenance buffer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 50
- Flags: construct write read
MaxMaintTime: Maximum time packets can be queued in maintenance buffer.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
MaxCacheLen: Maximum number of route entries that can be stored in route cache.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
RouteCacheTimeout: Maximum time the route cache can be queued in route cache.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +300000000000.0ns
- Flags: construct write read
MaxEntriesEachDst: Maximum number of route entries for a single destination to respond.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: construct write read
SendBuffInterval: How often to check send buffer for packet with route.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000000.0ns
- Flags: construct write read
NodeTraversalTime: The time it takes to traverse two neighboring nodes.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +40000000.0ns
- Flags: construct write read
RreqRetries: Maximum number of retransmissions for request discovery of a route.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 16
- Flags: construct write read
MaintenanceRetries: Maximum number of retransmissions for data packets from maintenance buffer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
RequestTableSize: Maximum number of request entries in the request table, set this as the number of nodes in the simulation.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
RequestIdSize: Maximum number of request source Ids in the request table.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 16
- Flags: construct write read
UniqueRequestIdSize: Maximum number of request Ids in the request table for a single destination.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 256
- Flags: construct write read
NonPropRequestTimeout: The timeout value for non-propagation request.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000.0ns
- Flags: construct write read
DiscoveryHopLimit: The max discovery hop limit for route requests.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 255
- Flags: construct write read
MaxSalvageCount: The max salvage count for a single data packet.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 15
- Flags: construct write read
BlacklistTimeout: The time for a neighbor to stay in blacklist.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
GratReplyHoldoff: The time for gratuitous reply entry to expire.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
BroadcastJitter: The jitter time to avoid collision for broadcast packets.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
LinkAckTimeout: The time a packet in maintenance buffer wait for link acknowledgment.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
TryLinkAcks: The number of link acknowledgment to use.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
PassiveAckTimeout: The time a packet in maintenance buffer wait for passive acknowledgment.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
TryPassiveAcks: The number of passive acknowledgment to use.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
RequestPeriod: The base time interval between route requests.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
MaxRequestPeriod: The max time interval between route requests.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
GraReplyTableSize: The gratuitous reply table size.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
CacheType: Use Link Cache or use Path Cache
- Set with class: StringValue
- Underlying type:
- Initial value: LinkCache
- Flags: construct write read
StabilityDecrFactor: The stability decrease factor for link cache
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
StabilityIncrFactor: The stability increase factor for link cache
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4
- Flags: construct write read
InitStability: The initial stability factor for link cache
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000000000.0ns
- Flags: construct write read
MinLifeTime: The minimal life time for link cache
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
UseExtends: The extension time for link cache
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000000.0ns
- Flags: construct write read
EnableSubRoute: Enables saving of sub route when receiving route error messages, only available when using path route cache
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
RetransIncr: The increase time for retransmission timer when facing network congestion
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read
MaxNetworkQueueSize: The max number of packet to save in the network queue.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 400
- Flags: construct write read
MaxNetworkQueueDelay: The max time for a packet to stay in the network queue.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
NumPriorityQueues: The max number of packet to save in the network queue.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
LinkAcknowledgment: Enable Link layer acknowledgment mechanism
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::IpL4Protocol

ProtocolNumber: The Ip protocol number.
- Set with class: ns3::UintegerValue
- Underlying type: int32_t 18446744071562067968:2147483647
- Flags: read

TraceSources

Tx: Send DSR packet.
Drop: Drop DSR packet

Definition at line 95 of file dsr-routing.h.

Member Typedef Documentation

typedef std::list<Ptr<DsrOptions> > ns3::dsr::DsrRouting::DsrOptionList_t

private

Define the list to hold DSR options.

Definition at line 609 of file dsr-routing.h.

Constructor & Destructor Documentation

ns3::dsr::DsrRouting::DsrRouting ( )

Constructor.

Definition at line 290 of file dsr-routing.cc.

References Insert(), m_sendBuffTimer, m_uniformRandomVariable, NS_LOG_FUNCTION_NOARGS, ns3::Timer::Schedule(), SendBuffTimerExpire(), and ns3::Timer::SetFunction().

Here is the call graph for this function:

ns3::dsr::DsrRouting::~DsrRouting ( )

virtual

Destructor.

Definition at line 325 of file dsr-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint16_t ns3::dsr::DsrRouting::AddAckReqHeader	(	Ptr< Packet > &	packet,
		Ipv4Address	nextHop
	)

This function is called to add ack request header for network acknowledgement.

Definition at line 1547 of file dsr-routing.cc.

Referenced by ScheduleNetworkPacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::AddRoute ( RouteCacheEntry & rt )

functions used to direct to route cache

Definition at line 691 of file dsr-routing.cc.

References ns3::dsr::ErrorBuffer::DropPacketForErrLink(), ns3::dsr::RouteCacheEntry::GetVector(), m_errorBuffer, m_mainAddress, m_routeCache, and SearchNextHop().

Here is the call graph for this function:

bool ns3::dsr::DsrRouting::AddRoute_Link	(	RouteCacheEntry::IP_VECTOR	nodelist,
		Ipv4Address	source
	)

functions used to direct to route cache

Definition at line 684 of file dsr-routing.cc.

References ns3::dsr::ErrorBuffer::DropPacketForErrLink(), m_errorBuffer, m_routeCache, and SearchNextHop().

Here is the call graph for this function:

int64_t ns3::dsr::DsrRouting::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 2606 of file dsr-routing.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::CallCancelPacketTimer	(	uint16_t	ackId,
		Ipv4Header const &	ipv4Header,
		Ipv4Address	realSrc,
		Ipv4Address	realDst
	)

Call the cancel packet retransmission timer function.

Definition at line 2015 of file dsr-routing.cc.

References CancelNetworkPacketTimer(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::dsr::DsrRouting::CancelLinkPacketTimer ( MaintainBuffEntry & mb )

Cancel the link packet retransmission timer for a specific maintenance entry.

TODO need to think about this part

Definition at line 2041 of file dsr-routing.cc.

References ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetOurAdd(), ns3::dsr::MaintainBuffer::GetSize(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::MaintainBuffer::LinkEqual(), ns3::dsr::LinkKey::m_destination, m_linkAckTimer, m_linkCnt, m_maintainBuffer, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::LinkKey::m_source, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CancelPacketAllTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::CancelNetworkPacketTimer ( MaintainBuffEntry & mb )

Cancel the network packet retransmission timer for a specific maintenance entry.

Definition at line 2091 of file dsr-routing.cc.

References ns3::dsr::MaintainBuffEntry::GetAckId(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetOurAdd(), ns3::dsr::MaintainBuffEntry::GetSegsLeft(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::NetworkKey::m_ackId, m_addressForwardCnt, m_addressForwardTimer, ns3::dsr::NetworkKey::m_destination, m_maintainBuffer, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::NetworkKey::m_ourAdd, ns3::dsr::NetworkKey::m_source, ns3::dsr::MaintainBuffer::NetworkEqual(), NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CallCancelPacketTimer(), and CancelPacketAllTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::CancelPacketAllTimer ( MaintainBuffEntry & mb )

Cancel all the packet timers.

Definition at line 2032 of file dsr-routing.cc.

References CancelLinkPacketTimer(), CancelNetworkPacketTimer(), CancelPassivePacketTimer(), and NS_LOG_FUNCTION.

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::CancelPacketTimerNextHop	(	Ipv4Address	nextHop,
		uint8_t	protocol
	)

Cancel the packet retransmission timer for a all maintenance entries with nextHop address.

TODO if the errorDst is not seen before

TODO need to think about whether we need the network queue entry or not

Definition at line 2177 of file dsr-routing.cc.

References CancelPacketAllTimer(), ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::dsr::MaintainBuffer::Dequeue(), ns3::dsr::MaintainBuffer::Find(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::UniformRandomVariable::GetInteger(), ns3::dsr::DsrOptionSRHeader::GetNodesAddress(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::DsrOptionSRHeader::GetSalvage(), ns3::dsr::MaintainBuffer::GetSize(), ns3::dsr::MaintainBuffEntry::GetSrc(), m_maintainBuffer, m_uniformRandomVariable, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, PrintVector(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), SalvagePacket(), ns3::Simulator::Schedule(), SendUnreachError(), and ns3::dsr::DsrOptionSRHeader::SetNumberAddress().

Referenced by LinkScheduleTimerExpire(), and NetworkScheduleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::CancelPassivePacketTimer ( MaintainBuffEntry & mb )

Cancel the passive packet retransmission timer for a specific maintenance entry.

Definition at line 2141 of file dsr-routing.cc.

References ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetSegsLeft(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_passiveAckTimer, m_passiveCnt, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CancelPacketAllTimer(), CancelPassiveTimer(), PassiveEntryCheck(), and PassiveScheduleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::CancelPassiveTimer	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	segsLeft
	)

Cancel the passive timer.

Definition at line 1988 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), m_maintainBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::dsr::MaintainBuffer::PromiscEqual(), ns3::dsr::MaintainBuffEntry::SetAckId(), ns3::dsr::MaintainBuffEntry::SetDst(), ns3::dsr::MaintainBuffEntry::SetPacket(), ns3::dsr::MaintainBuffEntry::SetSegsLeft(), and ns3::dsr::MaintainBuffEntry::SetSrc().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::CancelRreqTimer	(	Ipv4Address	dst,
		bool	isRemove
	)

Cancel the route request timer.

Parameters

dst	The dst address of the route request timer
isRemove	whether to remove the route request entry or not

Definition at line 2882 of file dsr-routing.cc.

References m_addressReqTimer, m_nonPropReqTimer, m_rreqTable, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by RouteRequestTimerExpire(), and SendErrorRequest().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::CheckSendBuffer ( )

Check the send buffer of packets with route when send buffer timer expire.

When found a route and use it, UseExtends to the link cache

This will be priority 0

Todo:: New DsrNetworkQueueEntry

When found a route and use it, UseExtends to the link cache

Definition at line 858 of file dsr-routing.cc.

Referenced by SendBuffTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::ConnectCallbacks ( )

Connect the callback for the tracing event.

Returns: void

Definition at line 456 of file dsr-routing.cc.

References ns3::Config::Connect(), ns3::MakeCallback(), and NotifyDataReceipt().

Referenced by Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::DeleteAllRoutesIncludeLink	(	Ipv4Address	errorSrc,
		Ipv4Address	unreachNode,
		Ipv4Address	node
	)

functions used to direct to route cache

Definition at line 699 of file dsr-routing.cc.

References m_routeCache.

void ns3::dsr::DsrRouting::DoDispose ( void )

protectedvirtual

Drop trace callback.

Reimplemented from ns3::Object.

Definition at line 576 of file dsr-routing.cc.

References ns3::Object::DoDispose(), m_ipv4, m_node, m_routeCache, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

bool ns3::dsr::DsrRouting::FindSourceEntry	(	Ipv4Address	src,
		Ipv4Address	dst,
		uint16_t	id
	)

functions used to direct to route cache

Definition at line 709 of file dsr-routing.cc.

References m_rreqTable.

void ns3::dsr::DsrRouting::ForwardErrPacket	(	DsrOptionRerrUnreachHeader &	rerr,
		DsrOptionSRHeader &	sourceRoute,
		Ipv4Address	nextHop,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

This function is responsible for forwarding error packets along the route.

Todo:: New DsrNetworkQueueEntry

Definition at line 1362 of file dsr-routing.cc.

References ns3::Packet::AddHeader(), ns3::dsr::DSR_CONTROL_PACKET, ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorSrc(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), GetPriority(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_ip, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, Scheduler(), ns3::dsr::DsrFsHeader::SetNextHeader(), and ns3::Ipv4Route::SetOutputDevice().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::ForwardPacket	(	Ptr< const Packet >	packet,
		DsrOptionSRHeader &	sourceRoute,
		Ipv4Header const &	ipv4Header,
		Ipv4Address	source,
		Ipv4Address	destination,
		Ipv4Address	targetAddress,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

Forward the packet using the route saved in the source route option header.

Definition at line 2650 of file dsr-routing.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::MaintainBuffer::Enqueue(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionSRHeader::GetSegmentsLeft(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_ackId, m_addressForwardCnt, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_downTarget, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), and ns3::dsr::DsrFsHeader::SetNextHeader().

Here is the call graph for this function:

IpL4Protocol::DownTargetCallback ns3::dsr::DsrRouting::GetDownTarget ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3498 of file dsr-routing.cc.

References m_downTarget.

IpL4Protocol::DownTargetCallback6 ns3::dsr::DsrRouting::GetDownTarget6 ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3504 of file dsr-routing.cc.

References NS_FATAL_ERROR.

std::vector< std::string > ns3::dsr::DsrRouting::GetElementsFromContext ( std::string context )

Get the elements from the tracing context.

Parameters

context context

Returns: the elements we are looking for

Definition at line 560 of file dsr-routing.cc.

Referenced by GetNetDeviceFromContext().

Here is the caller graph for this function:

uint16_t ns3::dsr::DsrRouting::GetIDfromIP ( Ipv4Address address )

Get the node id from ip address.

Parameters

address IPv4 address

Returns: the node id

Definition at line 804 of file dsr-routing.cc.

References first::address, ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), and ns3::Object::GetObject().

Referenced by CheckSendBuffer(), ForwardErrPacket(), ForwardPacket(), PacketNewRoute(), SalvagePacket(), Send(), SendAck(), SendErrorRequest(), SendGratuitousReply(), SendInitialRequest(), SendPacketFromBuffer(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrRouting::GetIPfromID ( uint16_t id )

Get the ip address from id.

Parameters

id unique ID

Returns: the ip address for the id

Definition at line 820 of file dsr-routing.cc.

References ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_DEBUG.

Referenced by NotifyDataReceipt(), PromiscReceive(), and Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrRouting::GetIPfromMAC ( Mac48Address address )

Get the Ip address from mac address.

Parameters

address Mac48Address

Returns: the ip address

Definition at line 715 of file dsr-routing.cc.

References first::address, ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_FUNCTION.

Referenced by NotifyDataReceipt(), and PromiscReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::dsr::DsrRouting::GetNetDeviceFromContext ( std::string context )

Get the netdevice from the context.

Parameters

context context

Returns: the netdevice we are looking for

Definition at line 548 of file dsr-routing.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by NotifyDataReceipt().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Node > ns3::dsr::DsrRouting::GetNode ( void ) const

Get the node.

Returns: the node

Definition at line 606 of file dsr-routing.cc.

References m_node, and NS_LOG_FUNCTION_NOARGS.

Referenced by Receive().

Here is the caller graph for this function:

Ptr< Node > ns3::dsr::DsrRouting::GetNodeWithAddress ( Ipv4Address ipv4Address )

Get the node with give ip address.

Parameters

ipv4Address IPv4 address

Returns: the node associated with the ip address

Definition at line 652 of file dsr-routing.cc.

References ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_FUNCTION.

Referenced by NotifyDataReceipt().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< dsr::DsrOptions > ns3::dsr::DsrRouting::GetOption ( int optionNumber )

Get the option corresponding to optionNumber.

Parameters

optionNumber the option number of the option to retrieve

Returns: a matching Dsr option

Definition at line 3515 of file dsr-routing.cc.

References m_options.

Referenced by PromiscReceive(), and Receive().

Here is the caller graph for this function:

Ptr< dsr::PassiveBuffer > ns3::dsr::DsrRouting::GetPassiveBuffer ( ) const

Get the passive buffer.

Returns: the passive buffer

Definition at line 645 of file dsr-routing.cc.

References m_passiveBuffer.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrRouting::GetPriority ( DsrMessageType messageType )

Set the priority of the packet in network queue.

Parameters

messageType Message type

Returns: the priority value

Definition at line 836 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET.

Referenced by CheckSendBuffer(), ForwardErrPacket(), IncreaseRetransTimer(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), and SendUnreachError().

Here is the caller graph for this function:

int ns3::dsr::DsrRouting::GetProtocolNumber ( void ) const

virtual

Get the dsr protocol number.

Returns: protocol number

Implements ns3::IpL4Protocol.

Definition at line 797 of file dsr-routing.cc.

References PROT_NUMBER.

Referenced by SendRealDown().

Here is the caller graph for this function:

Ptr< dsr::RreqTable > ns3::dsr::DsrRouting::GetRequestTable ( ) const

Get the request table.

Returns: the request table

Definition at line 632 of file dsr-routing.cc.

References m_rreqTable.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< dsr::RouteCache > ns3::dsr::DsrRouting::GetRouteCache ( ) const

Get the route cache.

Returns: the route cache

Definition at line 619 of file dsr-routing.cc.

References m_routeCache.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrRouting::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 106 of file dsr-routing.cc.

References GetPassiveBuffer(), GetRequestTable(), GetRouteCache(), m_blacklistTimeout, m_broadcastJitter, m_cacheType, m_discoveryHopLimit, m_dropTrace, m_graReplyTableSize, m_gratReplyHoldoff, m_initStability, m_linkAck, m_linkAckTimeout, m_maxCacheLen, m_maxCacheTime, m_maxEntriesEachDst, m_maxMaintainLen, m_maxMaintainTime, m_maxMaintRexmt, m_maxNetworkDelay, m_maxNetworkSize, m_maxRequestPeriod, m_maxRreqId, m_maxSalvageCount, m_maxSendBuffLen, m_minLifeTime, m_nodeTraversalTime, m_nonpropRequestTimeout, m_numPriorityQueues, m_passiveAckTimeout, m_requestPeriod, m_requestTableIds, m_requestTableSize, m_retransIncr, m_rreqRetries, m_sendBufferTimeout, m_sendBuffInterval, m_stabilityDecrFactor, m_stabilityIncrFactor, m_subRoute, m_tryLinkAcks, m_tryPassiveAcks, m_txPacketTrace, m_useExtends, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::TypeId::SetParent(), SetPassiveBuffer(), SetRequestTable(), and SetRouteCache().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::IncreaseRetransTimer ( )

This function is called to increase the retransmission timer for data packet in the network queue.

Definition at line 1698 of file dsr-routing.cc.

References ns3::dsr::DSR_DATA_PACKET, GetPriority(), m_addressForwardTimer, m_priorityQueue, m_retransIncr, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by PriorityScheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::Insert ( Ptr< dsr::DsrOptions > option )

Insert a new Dsr Option.

Parameters

option the option to insert

Definition at line 3510 of file dsr-routing.cc.

References m_options.

Referenced by DsrRouting().

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::IsLinkCache ( )

functions used to direct to route cache

Definition at line 669 of file dsr-routing.cc.

References m_routeCache.

void ns3::dsr::DsrRouting::LinkScheduleTimerExpire	(	MaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using link acknowledgment.

Definition at line 2518 of file dsr-routing.cc.

References CancelPacketTimerNextHop(), ns3::Packet::Copy(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetOurAdd(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::LinkKey::m_destination, m_linkAckTimer, m_linkCnt, m_linkRetries, m_mainAddress, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, m_routeCache, ns3::dsr::LinkKey::m_source, m_tryLinkAcks, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleLinkPacketRetry(), and SetRoute().

Referenced by ScheduleLinkPacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::LookupRoute	(	Ipv4Address	id,
		RouteCacheEntry &	rt
	)

functions used to direct to route cache

Definition at line 679 of file dsr-routing.cc.

References m_routeCache.

void ns3::dsr::DsrRouting::NetworkScheduleTimerExpire	(	MaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using network acknowledgment.

Definition at line 2614 of file dsr-routing.cc.

References CancelPacketTimerNextHop(), ns3::Packet::Copy(), ns3::dsr::MaintainBuffEntry::GetAckId(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetOurAdd(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::NetworkKey::m_ackId, m_addressForwardCnt, ns3::dsr::NetworkKey::m_destination, m_mainAddress, m_maxMaintRexmt, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::NetworkKey::m_ourAdd, m_routeCache, m_sendRetries, ns3::dsr::NetworkKey::m_source, and ScheduleNetworkPacketRetry().

Referenced by ScheduleNetworkPacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::NotifyDataReceipt	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Notify the data receipt.

Returns: void

Todo:: this is a hard-coded check, need to find a better way to work on this

Internal:: Tried to use peekheader here, but for ipv4 header here, dsr removes the Ipv4Header and then pass the packet and the header separately to Ipv4L3Protocol. Ipv4L3Protocol then re-adds them together, which causes the problem. Check Bug 1479

Remove the ipv4 header here

Remove the dsr routing header here

This is the ip address we just received data packet from

Remember this is the entry for previous node

Get the previous node's maintenance buffer and passive ack

Definition at line 463 of file dsr-routing.cc.

References ns3::Packet::Copy(), ns3::WifiMacHeader::GetAddr2(), ns3::dsr::DsrFsHeader::GetDestId(), GetIPfromID(), GetIPfromMAC(), ns3::dsr::DsrFsHeader::GetMessageType(), GetNetDeviceFromContext(), GetNodeWithAddress(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::dsr::DsrFsHeader::GetSourceId(), ns3::Packet::GetUid(), m_mainAddress, NS_ASSERT, NS_LOG_DEBUG, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), and ns3::dsr::MaintainBuffEntry::SetPacket().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::NotifyNewAggregate ( void )

protectedvirtual

This method is invoked whenever two sets of objects are aggregated together.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 331 of file dsr-routing.cc.

References ns3::Object::GetObject(), m_ip, m_ipv4, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Ipv4L3Protocol::Send(), SetDownTarget(), SetNode(), and Start().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::PacketNewRoute	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

When route vector corrupted, originate a new packet, normally not happening.

When found a route and use it, UseExtends to the link cache

Definition at line 1131 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::SendBuffer::Enqueue(), ns3::dsr::MaintainBuffer::Enqueue(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::Packet::GetUid(), ns3::dsr::RouteCacheEntry::GetVector(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_addressForwardCnt, m_addressReqTimer, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, m_nonPropReqTimer, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, m_routeCache, ns3::dsr::PassiveKey::m_segsLeft, m_sendBuffer, m_sendBufferTimeout, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), SearchNextHop(), SendInitialRequest(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::dsr::DsrFsHeader::SetSourceId().

Referenced by CheckSendBuffer(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::PassiveEntryCheck	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	segsLeft,
		uint16_t	fragmentOffset,
		uint16_t	identification,
		bool	saveEntry
	)

Find the same passive entry.

Save this passive buffer entry for later check

Definition at line 1945 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), m_passiveBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::dsr::MaintainBuffEntry::SetAckId(), ns3::dsr::PassiveBuffEntry::SetDestination(), ns3::dsr::MaintainBuffEntry::SetDst(), ns3::dsr::PassiveBuffEntry::SetFragmentOffset(), ns3::dsr::PassiveBuffEntry::SetIdentification(), ns3::dsr::PassiveBuffEntry::SetPacket(), ns3::dsr::MaintainBuffEntry::SetPacket(), ns3::dsr::PassiveBuffEntry::SetSegsLeft(), ns3::dsr::MaintainBuffEntry::SetSegsLeft(), ns3::dsr::PassiveBuffEntry::SetSource(), and ns3::dsr::MaintainBuffEntry::SetSrc().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::PassiveScheduleTimerExpire	(	MaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using passive acknowledgment.

Definition at line 2565 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::MaintainBuffEntry::GetSegsLeft(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_mainAddress, m_passiveAckTimer, m_passiveCnt, m_passiveRetries, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, m_tryPassiveAcks, NS_LOG_DEBUG, NS_LOG_FUNCTION, ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), and SetRoute().

Referenced by SchedulePassivePacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::PrintVector ( std::vector< Ipv4Address > & vec )

Print the route vector.

Definition at line 733 of file dsr-routing.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by CancelPacketTimerNextHop().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::PriorityScheduler	(	uint32_t	priority,
		bool	continueWithFirst
	)

This function is called to schedule sending packets from the network queue by priority.

Definition at line 1625 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetInteger(), IncreaseRetransTimer(), m_numPriorityQueues, m_priorityQueue, m_uniformRandomVariable, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and SendRealDown().

Referenced by Scheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrRouting::Process	(	Ptr< Packet > &	packet,
		Ipv4Header const &	ipv4Header,
		Ipv4Address	dst,
		uint8_t *	nextHeader,
		uint8_t	protocol,
		bool &	isDropped
	)

Process method Called from Ipv4L3Protocol::Receive.

Parameters

packet	the packet
ipv4Header	IPv4 header of the packet
dst	destination address of the packet received (i.e. us)
nextHeader	the next header
protocol	the protocol number
isDropped	if the packet must be dropped

Returns: the size processed

bool ns3::dsr::DsrRouting::PromiscReceive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

private

Promiscuous receive data packets destined to some other node.

Parameters

device	The network device
packet	Data packet we just received
protocol	The protocol we receive, need to verify it is dsr protocol
from	The from address we received the packet
to	The address this packet is destined for
packetType	The dsr packet type, 0 is for control packet, 1 for data packet

Returns: true if the packet was processed, false otherwise

Definition at line 1070 of file dsr-routing.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::Packet::Copy(), ns3::Packet::CopyData(), data, ns3::Ipv4Header::GetDestination(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), GetIPfromID(), GetIPfromMAC(), ns3::dsr::DsrFsHeader::GetNextHeader(), GetOption(), ns3::Ipv4Header::GetProtocol(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::dsr::DsrFsHeader::GetSourceId(), ns3::Packet::GetUid(), m_mainAddress, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_INFO, ns3::NetDevice::PACKET_OTHERHOST, ns3::Ipv4L3Protocol::PROT_NUMBER, PROT_NUMBER, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Referenced by Start().

Here is the call graph for this function:

Here is the caller graph for this function:

enum IpL4Protocol::RxStatus ns3::dsr::DsrRouting::Receive	(	Ptr< Packet >	p,
		Ipv4Header const &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

virtual

Parameters

p	packet to forward up
header	IPv4 Header information
incomingInterface	the Ipv4Interface on which the packet arrived

Returns: receive status

Called from lower-level layers to send the packet up in the stack.

this is just here for the sake of passing in the promisc source

Implements ns3::IpL4Protocol.

Definition at line 3289 of file dsr-routing.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), data, ns3::Ipv4Header::GetDestination(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), GetIPfromID(), ns3::dsr::DsrFsHeader::GetNextHeader(), GetNode(), ns3::Object::GetObject(), GetOption(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::dsr::DsrFsHeader::GetSourceId(), ns3::Packet::GetUid(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), m_dropTrace, m_mainAddress, m_node, m_rreqTable, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_CLOSED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, ns3::IpL4Protocol::RX_OK, ns3::dsr::DsrOptionRerrUnsupportHeader::SetErrorDst(), ns3::dsr::DsrOptionRerrUnsupportHeader::SetErrorSrc(), ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrOptionRerrUnsupportHeader::SetSalvage(), and ns3::dsr::DsrOptionRerrUnsupportHeader::SetUnsupported().

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::dsr::DsrRouting::Receive	(	Ptr< Packet >	p,
		Ipv6Header const &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

virtual

Parameters

p	packet to forward up
header	IPv6 Header information
incomingInterface	the Ipv6Interface on which the packet arrived

Returns: receive status

Called from lower-level layers to send the packet up in the stack. Not implemented (IPv6).

Implements ns3::IpL4Protocol.

Definition at line 3476 of file dsr-routing.cc.

References ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

Here is the call graph for this function:

void ns3::dsr::DsrRouting::RouteRequestTimerExpire	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	address,
		uint32_t	requestId,
		uint8_t	protocol
	)

Handle route discovery timer.

Parameters

packet	the original packet
address	List of IPv4 addresses
requestId	Unique request ID
protocol	the protocol number

Set the salvage value to 0

Try to send out data packet from the send buffer if found

Definition at line 3003 of file dsr-routing.cc.

References ns3::Packet::AddPacketTag(), CancelRreqTimer(), ns3::Packet::Copy(), ns3::dsr::SendBuffer::DropPacketWithDst(), ns3::dsr::SendBuffer::Find(), ns3::dsr::SendBuffer::GetSize(), ns3::dsr::RouteCacheEntry::GetVector(), m_discoveryHopLimit, m_mainAddress, m_routeCache, m_rreqRetries, m_rreqTable, m_sendBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PacketNewRoute(), ns3::Packet::RemoveHeader(), ScheduleRreqRetry(), SearchNextHop(), SendPacketFromBuffer(), SendRequest(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), SetRoute(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by ScheduleRreqRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SalvagePacket	(	Ptr< const Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	dst,
		uint8_t	protocol
	)

Salvage the packet which has been transmitted for 3 times.

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 2252 of file dsr-routing.cc.

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::ScheduleCachedReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		Ptr< Ipv4Route >	route,
		double	hops
	)

Schedule the cached reply to a random start time to avoid possible route reply storm.

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
destination	IPv4 address of the destination
route	Route

Definition at line 3223 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetValue(), m_nodeTraversalTime, m_uniformRandomVariable, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SendReply().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::ScheduleInitialReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		Ptr< Ipv4Route >	route
	)

this is a generating the initial route reply from the destination address, a random delay time [0, m_broadcastJitter] is used before unicasting back the route reply packet

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
nextHop	IPv4 address of the next hop
route	Route

Definition at line 3212 of file dsr-routing.cc.

References NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendReply().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::ScheduleInterRequest ( Ptr< Packet > packet )

Schedule the intermediate route request.

Parameters

packet the original packet

Definition at line 3106 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetInteger(), m_broadcastJitter, m_mainAddress, m_uniformRandomVariable, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SendRequest().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::ScheduleLinkPacketRetry	(	MaintainBuffEntry &	mb,
		uint8_t	protocol
	)

Schedule the packet retransmission based on link-layer acknowledgment.

Parameters

mb	maintainenace buffer entry
protocol	the protocol number

Definition at line 2349 of file dsr-routing.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::Packet::Copy(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetOurAdd(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::MaintainBuffEntry::GetSrc(), LinkScheduleTimerExpire(), ns3::dsr::LinkKey::m_destination, m_linkAckTimeout, m_linkAckTimer, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::LinkKey::m_source, NS_LOG_FUNCTION, and SendPacket().

Referenced by CheckSendBuffer(), ForwardPacket(), LinkScheduleTimerExpire(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::ScheduleNetworkPacketRetry	(	MaintainBuffEntry &	mb,
		bool	isFirst,
		uint8_t	protocol
	)

Schedule the packet retransmission based on network layer acknowledgment.

Parameters

mb	maintainenace buffer entry
isFirst	see if this is the first packet retry or not
protocol	the protocol number

Definition at line 2410 of file dsr-routing.cc.

Referenced by CheckSendBuffer(), ForwardPacket(), NetworkScheduleTimerExpire(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SchedulePassivePacketRetry	(	MaintainBuffEntry &	mb,
		uint8_t	protocol
	)

Schedule the packet retransmission based on passive acknowledgment.

Parameters

mb	maintainenace buffer entry
protocol	the protocol number

Definition at line 2379 of file dsr-routing.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::Packet::Copy(), ns3::dsr::MaintainBuffEntry::GetDst(), ns3::dsr::MaintainBuffEntry::GetNextHop(), ns3::dsr::MaintainBuffEntry::GetPacket(), ns3::dsr::MaintainBuffEntry::GetSegsLeft(), ns3::dsr::MaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_passiveAckTimeout, m_passiveAckTimer, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, NS_LOG_DEBUG, NS_LOG_FUNCTION, PassiveScheduleTimerExpire(), and SendPacket().

Referenced by CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::Scheduler ( uint32_t priority )

This function is called to schedule sending packets from the network queue.

Definition at line 1618 of file dsr-routing.cc.

References NS_LOG_FUNCTION, and PriorityScheduler().

Referenced by CheckSendBuffer(), ForwardErrPacket(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::ScheduleRreqRetry	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	address,
		bool	nonProp,
		uint32_t	requestId,
		uint8_t	protocol
	)

Schedule the route request retry.

Parameters

packet	the original packet
address	List of IPv4 addresses
nonProp	flag if RREQ is non-propagating
requestId	Unique request ID
protocol	the protocol number

Definition at line 2931 of file dsr-routing.cc.

References first::address, ns3::Timer::CANCEL_ON_DESTROY, ns3::Time::GetSeconds(), m_addressReqTimer, m_maxRequestPeriod, m_nonPropReqTimer, m_nonpropRequestTimeout, m_requestPeriod, m_rreqTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RouteRequestTimerExpire().

Referenced by RouteRequestTimerExpire(), SendErrorRequest(), and SendInitialRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrRouting::SearchNextHop	(	Ipv4Address	ipv4Address,
		std::vector< Ipv4Address > &	vec
	)

Get the next hop of the route.

Parameters

ipv4Address
vec	Route

Returns: the next hop address of the route

Definition at line 753 of file dsr-routing.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by AddRoute(), AddRoute_Link(), CheckSendBuffer(), PacketNewRoute(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), and SendUnreachError().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::Send	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

This function is called by higher layer protocol when sending packets.

When found a route and use it, UseExtends to the link cache

Definition at line 1406 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::SendBuffer::Enqueue(), ns3::dsr::MaintainBuffer::Enqueue(), ns3::dsr::SendBuffer::Find(), GetIDfromIP(), ns3::UniformRandomVariable::GetInteger(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::SendBuffer::GetSize(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::dsr::RouteCacheEntry::GetVector(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_addressForwardCnt, m_addressReqTimer, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_downTarget, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, m_nonPropReqTimer, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, m_routeCache, m_rreqTable, ns3::dsr::PassiveKey::m_segsLeft, m_sendBuffer, m_sendBufferTimeout, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, m_uniformRandomVariable, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PacketNewRoute(), ns3::Simulator::Schedule(), ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), SearchNextHop(), SendInitialRequest(), SendPacketFromBuffer(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::dsr::DsrFsHeader::SetSourceId().

Referenced by ns3::DsrHelper::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendAck	(	uint16_t	ackId,
		Ipv4Address	destination,
		Ipv4Address	realSrc,
		Ipv4Address	realDst,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

Send network layer acknowledgment back to the earlier hop to notify the receipt of data packet.

Parameters

ackId	ACK ID
destination	IPv4 address of the immediate ACK receiver
realSrc	IPv4 address of the real source
realDst	IPv4 address of the real destination
protocol	the protocol number
route	Route

Todo:: New DsrNetworkQueueEntry

Definition at line 3234 of file dsr-routing.cc.

References ns3::Packet::AddHeader(), ns3::dsr::DSR_CONTROL_PACKET, GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), GetPriority(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_ip, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, Scheduler(), ns3::dsr::DsrOptionAckHeader::SetAckId(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::Ipv4Route::SetOutputDevice(), ns3::dsr::DsrOptionAckHeader::SetRealDst(), and ns3::dsr::DsrOptionAckHeader::SetRealSrc().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::SendBuffTimerExpire ( )

The send buffer timer expire.

Definition at line 848 of file dsr-routing.cc.

References ns3::Timer::Cancel(), CheckSendBuffer(), ns3::Timer::IsRunning(), m_sendBuffInterval, m_sendBuffTimer, and ns3::Timer::Schedule().

Referenced by CheckSendBuffer(), and DsrRouting().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendErrorRequest	(	DsrOptionRerrUnreachHeader &	rerr,
		uint8_t	protocol
	)

Send the error request packet.

Parameters

rerr	the route error header
protocol	the protocol number

When found a route and use it, UseExtends to the link cache

Try to send out the packet from the buffer once we found one route

Definition at line 2777 of file dsr-routing.cc.

Referenced by SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendGratuitousReply	(	Ipv4Address	replyTo,
		Ipv4Address	replyFrom,
		std::vector< Ipv4Address > &	nodeList,
		uint8_t	protocol
	)

Send the gratuitous reply.

Parameters

replyTo	The destination address to send the reply to
replyFrom	The source address sending the reply
nodeList	Route
protocol	the protocol number

Push back the node addresses other than those between srcAddress and our own ip address

Definition at line 3118 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::dsr::GraReply::AddEntry(), ns3::Packet::AddHeader(), ns3::dsr::GraReply::FindAndUpdate(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), m_finalRoute, m_graReply, m_gratReplyHoldoff, m_ipv4Route, m_mainAddress, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, SendReply(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionRrepHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), and ns3::dsr::DsrFsHeader::SetSourceId().

Here is the call graph for this function:

void ns3::dsr::DsrRouting::SendInitialRequest	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

Broadcast the route request packet in subnet.

Definition at line 2728 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::dsr::DsrOptionRreqHeader::AddNodeAddress(), ns3::Packet::AddPacketTag(), first::address, ns3::Packet::Copy(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_mainAddress, m_requestId, m_rreqTable, NS_ASSERT_MSG, NS_LOG_FUNCTION, ScheduleRreqRetry(), SendRequest(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrOptionRreqHeader::SetId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrFsHeader::SetPayloadLength(), ns3::dsr::DsrFsHeader::SetSourceId(), ns3::dsr::DsrOptionRreqHeader::SetTarget(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by PacketNewRoute(), Send(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendPacket	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		uint8_t	protocol
	)

This function is called by when really sending out the packet.

Todo:: New DsrNetworkQueueEntry

Definition at line 1589 of file dsr-routing.cc.

References ns3::dsr::DSR_DATA_PACKET, GetPriority(), m_ip, m_ipv4Route, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, Scheduler(), ns3::Ipv4Route::SetOutputDevice(), and SetRoute().

Referenced by ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), and SchedulePassivePacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendPacketFromBuffer	(	DsrOptionSRHeader const &	sourceRoute,
		Ipv4Address	nextHop,
		uint8_t	protocol
	)

This function is responsible for sending out data packets when have route, if no route found, it will cache the packet and send out route requests.

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 1734 of file dsr-routing.cc.

Referenced by RouteRequestTimerExpire(), Send(), and SendErrorRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::SendRealDown ( DsrNetworkQueueEntry & newEntry )

This function is called to send packets down stack.

Definition at line 1722 of file dsr-routing.cc.

References ns3::Packet::Copy(), ns3::dsr::DsrNetworkQueueEntry::GetIpv4Route(), ns3::dsr::DsrNetworkQueueEntry::GetNextHopAddress(), ns3::dsr::DsrNetworkQueueEntry::GetPacket(), GetProtocolNumber(), ns3::dsr::DsrNetworkQueueEntry::GetSourceAddress(), m_downTarget, and NS_LOG_FUNCTION.

Referenced by PriorityScheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		Ptr< Ipv4Route >	route
	)

Send the route reply back to the request originator with the cumulated route.

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
nextHop	IPv4 address of the next hop
route	Route

Todo:: New DsrNetworkQueueEntry

Definition at line 3180 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET, GetPriority(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_ipv4, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, Scheduler(), and ns3::Ipv4Route::SetOutputDevice().

Referenced by ScheduleCachedReply(), ScheduleInitialReply(), and SendGratuitousReply().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendRequest	(	Ptr< Packet >	packet,
		Ipv4Address	source
	)

Forward the route request if the node is not the destination.

Parameters

packet	the original packet
source	address

Todo:: New DsrNetworkQueueEntry

Definition at line 3077 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET, GetPriority(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_broadcast, m_downTarget, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, and Scheduler().

Referenced by RouteRequestTimerExpire(), ScheduleInterRequest(), SendErrorRequest(), and SendInitialRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SendRerrWhenBreaksLinkToNextHop	(	Ipv4Address	nextHop,
		uint8_t	protocol
	)

private

Send the route error message when the link breaks to the next hop.

void ns3::dsr::DsrRouting::SendUnreachError	(	Ipv4Address	unreachNode,
		Ipv4Address	destination,
		Ipv4Address	originalDst,
		uint8_t	salvage,
		uint8_t	protocol
	)

This function is responsible for sending error packets in case of break link to next hop.

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 1250 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::DSR_CONTROL_PACKET, ns3::dsr::ErrorBuffer::Enqueue(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), GetPriority(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::dsr::RouteCacheEntry::GetVector(), m_addressReqTimer, m_errorBuffer, m_ip, m_ipv4Route, m_mainAddress, m_nonPropReqTimer, m_priorityQueue, m_routeCache, m_sendBufferTimeout, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PacketNewRoute(), Scheduler(), SearchNextHop(), SendErrorRequest(), SendInitialRequest(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrOptionRerrUnreachHeader::SetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::SetErrorSrc(), ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), ns3::dsr::DsrOptionRerrUnreachHeader::SetOriginalDst(), ns3::Ipv4Route::SetOutputDevice(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), ns3::dsr::DsrOptionRerrUnreachHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), ns3::dsr::DsrFsHeader::SetSourceId(), and ns3::dsr::DsrOptionRerrUnreachHeader::SetUnreachNode().

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SetDownTarget ( IpL4Protocol::DownTargetCallback cb )

virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case)

Parameters

cb	current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3485 of file dsr-routing.cc.

References m_downTarget.

Referenced by ns3::DsrHelper::Create(), and NotifyNewAggregate().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SetDownTarget6 ( IpL4Protocol::DownTargetCallback6 cb )

virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case)

Parameters

cb	current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3491 of file dsr-routing.cc.

References NS_FATAL_ERROR.

void ns3::dsr::DsrRouting::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 600 of file dsr-routing.cc.

References m_node.

Referenced by ns3::DsrMainHelper::Install(), and NotifyNewAggregate().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SetPassiveBuffer ( Ptr< dsr::PassiveBuffer > r )

Set the node.

Parameters

r	the passive buffer to set

Definition at line 638 of file dsr-routing.cc.

References m_passiveBuffer.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SetRequestTable ( Ptr< dsr::RreqTable > r )

Set the node.

Parameters

r	the request table to set

Definition at line 625 of file dsr-routing.cc.

References m_rreqTable.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

Ptr< Ipv4Route > ns3::dsr::DsrRouting::SetRoute	(	Ipv4Address	nextHop,
		Ipv4Address	srcAddress
	)

Set the route to use for data packets, used by the option headers when sending data/control packets.

Parameters

nextHop	next hop IPv4 address
srcAddress	IPv4 address of the source

Returns: the route

Definition at line 786 of file dsr-routing.cc.

References m_ipv4Route, NS_LOG_FUNCTION, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), and ns3::Ipv4Route::SetSource().

Referenced by CheckSendBuffer(), LinkScheduleTimerExpire(), PacketNewRoute(), PassiveScheduleTimerExpire(), RouteRequestTimerExpire(), SalvagePacket(), SendErrorRequest(), SendGratuitousReply(), SendPacket(), SendPacketFromBuffer(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::SetRouteCache ( Ptr< dsr::RouteCache > r )

Set the route cache.

Parameters

r	the route cache to set

Definition at line 612 of file dsr-routing.cc.

References m_routeCache.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

void ns3::dsr::DsrRouting::Start ( void )

private

TODO whether this SendRerrWhenBreaksLinkToNextHop is used or not

Definition at line 358 of file dsr-routing.cc.

References ConnectCallbacks(), ns3::Time::GetSeconds(), m_broadcast, m_cacheType, m_discoveryHopLimit, m_errorBuffer, m_graReply, m_graReplyTableSize, m_initStability, m_ipv4, m_mainAddress, m_maintainBuffer, m_maxCacheLen, m_maxCacheTime, m_maxEntriesEachDst, m_maxMaintainLen, m_maxMaintainTime, m_maxNetworkDelay, m_maxNetworkSize, m_maxRreqId, m_maxSendBuffLen, m_minLifeTime, m_numPriorityQueues, m_priorityQueue, m_requestTableIds, m_requestTableSize, m_sendBuffer, m_sendBufferTimeout, m_stabilityDecrFactor, m_stabilityIncrFactor, m_subRoute, m_useExtends, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PromiscReceive(), ns3::dsr::ErrorBuffer::SetErrorBufferTimeout(), ns3::dsr::GraReply::SetGraTableSize(), ns3::dsr::MaintainBuffer::SetMaintainBufferTimeout(), ns3::dsr::ErrorBuffer::SetMaxQueueLen(), ns3::dsr::SendBuffer::SetMaxQueueLen(), ns3::dsr::MaintainBuffer::SetMaxQueueLen(), SetPassiveBuffer(), SetRequestTable(), SetRouteCache(), and ns3::dsr::SendBuffer::SetSendBufferTimeout().

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrRouting::UpdateRouteEntry ( Ipv4Address dst )

functions used to direct to route cache

Definition at line 704 of file dsr-routing.cc.

References m_routeCache.

void ns3::dsr::DsrRouting::UseExtends ( RouteCacheEntry::IP_VECTOR rt )

functions used to direct to route cache

Definition at line 674 of file dsr-routing.cc.

References m_routeCache.

Member Data Documentation

uint16_t ns3::dsr::DsrRouting::m_ackId

private

The ack id assigned to each acknowledge.

Definition at line 677 of file dsr-routing.h.

Referenced by AddAckReqHeader(), and ForwardPacket().

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_addresses

private

The bind ipv4 addresses with next hop, src, destination address in sequence.

Definition at line 763 of file dsr-routing.h.

std::map<NetworkKey, uint32_t> ns3::dsr::DsrRouting::m_addressForwardCnt

private

Map network key + forward counts.

Definition at line 735 of file dsr-routing.h.

Referenced by CancelNetworkPacketTimer(), CheckSendBuffer(), ForwardPacket(), NetworkScheduleTimerExpire(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), and SendPacketFromBuffer().

std::map<NetworkKey, Timer> ns3::dsr::DsrRouting::m_addressForwardTimer

private

Map network key + forward timer.

Definition at line 733 of file dsr-routing.h.

Referenced by CancelNetworkPacketTimer(), IncreaseRetransTimer(), and ScheduleNetworkPacketRetry().

std::map<Ipv4Address, Timer> ns3::dsr::DsrRouting::m_addressReqTimer

private

Map IP address + RREQ timer.

Definition at line 729 of file dsr-routing.h.

Referenced by CancelRreqTimer(), PacketNewRoute(), ScheduleRreqRetry(), Send(), SendErrorRequest(), and SendUnreachError().

Time ns3::dsr::DsrRouting::m_blacklistTimeout

private

The black list time out.

Definition at line 685 of file dsr-routing.h.

Referenced by GetTypeId().

Ipv4Address ns3::dsr::DsrRouting::m_broadcast

private

The broadcast IP address.

Definition at line 687 of file dsr-routing.h.

Referenced by SendRequest(), and Start().

uint32_t ns3::dsr::DsrRouting::m_broadcastJitter

private

The max time to delay route request broadcast.

Definition at line 689 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleInterRequest().

std::string ns3::dsr::DsrRouting::m_cacheType

private

The type of route cache.

Definition at line 709 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_clearList

private

The node that is clear to send packet to.

Definition at line 761 of file dsr-routing.h.

uint32_t ns3::dsr::DsrRouting::m_discoveryHopLimit

private

Maximum hops to go for route request.

Definition at line 633 of file dsr-routing.h.

Referenced by GetTypeId(), RouteRequestTimerExpire(), SendErrorRequest(), and Start().

IpL4Protocol::DownTargetCallback ns3::dsr::DsrRouting::m_downTarget

private

The callback for down layer.

Definition at line 627 of file dsr-routing.h.

Referenced by ForwardErrPacket(), ForwardPacket(), GetDownTarget(), Send(), SendAck(), SendErrorRequest(), SendInitialRequest(), SendPacketFromBuffer(), SendRealDown(), SendReply(), SendRequest(), and SetDownTarget().

TracedCallback<Ptr<const Packet> > ns3::dsr::DsrRouting::m_dropTrace

protected

The trace for drop, receive and send data packets.

Definition at line 579 of file dsr-routing.h.

Referenced by GetTypeId(), and Receive().

ErrorBuffer ns3::dsr::DsrRouting::m_errorBuffer

private

The error buffer to save the error messages.

Definition at line 659 of file dsr-routing.h.

Referenced by AddRoute(), AddRoute_Link(), SendPacketFromBuffer(), SendUnreachError(), and Start().

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_finalRoute

private

The route cache.

Definition at line 727 of file dsr-routing.h.

Referenced by SendGratuitousReply().

GraReply ns3::dsr::DsrRouting::m_graReply

private

The gratuitous route reply.

Definition at line 757 of file dsr-routing.h.

Referenced by SendGratuitousReply(), and Start().

uint32_t ns3::dsr::DsrRouting::m_graReplyTableSize

private

Set the gratuitous reply table size.

Definition at line 707 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_gratReplyHoldoff

private

The max gratuitous reply hold off time.

Definition at line 703 of file dsr-routing.h.

Referenced by GetTypeId(), and SendGratuitousReply().

Time ns3::dsr::DsrRouting::m_initStability

private

The initial stability value for link cache.

Definition at line 717 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Ptr<Ipv4> ns3::dsr::DsrRouting::m_ip

private

The ip ptr.

Definition at line 619 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardErrPacket(), NotifyNewAggregate(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), and SendUnreachError().

Ptr<Ipv4L3Protocol> ns3::dsr::DsrRouting::m_ipv4

private

Ipv4l3Protocol.

Definition at line 615 of file dsr-routing.h.

Referenced by DoDispose(), NotifyNewAggregate(), SendReply(), and Start().

Ptr<Ipv4Route> ns3::dsr::DsrRouting::m_ipv4Route

private

Ipv4 Route.

Definition at line 617 of file dsr-routing.h.

Referenced by CheckSendBuffer(), SalvagePacket(), SendGratuitousReply(), SendPacket(), SendPacketFromBuffer(), SendUnreachError(), and SetRoute().

bool ns3::dsr::DsrRouting::m_linkAck

private

define if we use link acknowledgement or not

Definition at line 753 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardPacket(), GetTypeId(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

Time ns3::dsr::DsrRouting::m_linkAckTimeout

private

The timeout value for link acknowledge.

Definition at line 695 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleLinkPacketRetry().

std::map<LinkKey, Timer> ns3::dsr::DsrRouting::m_linkAckTimer

private

The timer for link acknowledgment.

Definition at line 743 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), LinkScheduleTimerExpire(), and ScheduleLinkPacketRetry().

std::map<LinkKey, uint32_t> ns3::dsr::DsrRouting::m_linkCnt

private

Map packet key + link forward counts.

Definition at line 741 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), CheckSendBuffer(), ForwardPacket(), LinkScheduleTimerExpire(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

uint32_t ns3::dsr::DsrRouting::m_linkRetries

private

of retries have been sent for link acknowledgment

Definition at line 645 of file dsr-routing.h.

Referenced by LinkScheduleTimerExpire().

std::map<std::string, uint32_t> ns3::dsr::DsrRouting::m_macToNodeIdMap

private

The map of mac address to node id.

Definition at line 765 of file dsr-routing.h.

Ipv4Address ns3::dsr::DsrRouting::m_mainAddress

private

Our own Ip address.

Definition at line 623 of file dsr-routing.h.

Referenced by AddRoute(), CheckSendBuffer(), ForwardErrPacket(), ForwardPacket(), LinkScheduleTimerExpire(), NetworkScheduleTimerExpire(), NotifyDataReceipt(), PacketNewRoute(), PassiveScheduleTimerExpire(), PromiscReceive(), Receive(), RouteRequestTimerExpire(), SalvagePacket(), ScheduleInterRequest(), Send(), SendAck(), SendErrorRequest(), SendGratuitousReply(), SendInitialRequest(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendUnreachError(), and Start().

MaintainBuffer ns3::dsr::DsrRouting::m_maintainBuffer

private

The declaration of maintain buffer.

Definition at line 673 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), CancelNetworkPacketTimer(), CancelPacketTimerNextHop(), CancelPassiveTimer(), CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), SendPacketFromBuffer(), and Start().

uint32_t ns3::dsr::DsrRouting::m_maxCacheLen

private

Max # of cache entries for route cache.

Definition at line 665 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_maxCacheTime

private

Max time for caching the route cache entry.

Definition at line 667 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_maxEntriesEachDst

private

Max number of route entries to save for each destination.

Definition at line 671 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_maxMaintainLen

private

Max # of entries for maintainance buffer.

Definition at line 661 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_maxMaintainTime

private

Time out for maintainance buffer.

Definition at line 663 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardPacket(), GetTypeId(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), SendPacketFromBuffer(), and Start().

uint32_t ns3::dsr::DsrRouting::m_maxMaintRexmt

private

Maximum number of retransmissions of data packets.

Definition at line 649 of file dsr-routing.h.

Referenced by GetTypeId(), and NetworkScheduleTimerExpire().

Time ns3::dsr::DsrRouting::m_maxNetworkDelay

private

Maximum network delay.

Definition at line 631 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_maxNetworkSize

private

Maximum network queue size.

Definition at line 629 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_maxRequestPeriod

private

The max request period.

Definition at line 705 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

uint32_t ns3::dsr::DsrRouting::m_maxRreqId

private

The max number of request ids for a single destination.

Definition at line 683 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_maxRreqTime

private

Max time for caching the route request entry.

Definition at line 669 of file dsr-routing.h.

uint8_t ns3::dsr::DsrRouting::m_maxSalvageCount

private

Maximum # times to salvage a packet.

Definition at line 635 of file dsr-routing.h.

Referenced by GetTypeId(), and SalvagePacket().

uint32_t ns3::dsr::DsrRouting::m_maxSendBuffLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 653 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_minLifeTime

private

The min life time.

Definition at line 719 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

DsrNetworkQueue ns3::dsr::DsrRouting::m_networkQueue

private

The network queue.

Definition at line 759 of file dsr-routing.h.

Ptr<Node> ns3::dsr::DsrRouting::m_node

private

The node ptr.

Definition at line 621 of file dsr-routing.h.

Referenced by DoDispose(), GetNode(), NotifyNewAggregate(), Receive(), and SetNode().

Time ns3::dsr::DsrRouting::m_nodeTraversalTime

private

Time estimated for packet to travel between two nodes.

Definition at line 651 of file dsr-routing.h.

Referenced by GetTypeId(), ScheduleCachedReply(), and ScheduleNetworkPacketRetry().

std::map<Ipv4Address, Timer> ns3::dsr::DsrRouting::m_nonPropReqTimer

private

Map IP address + RREQ timer.

Definition at line 731 of file dsr-routing.h.

Referenced by CancelRreqTimer(), PacketNewRoute(), ScheduleRreqRetry(), Send(), SendErrorRequest(), and SendUnreachError().

Time ns3::dsr::DsrRouting::m_nonpropRequestTimeout

private

The non-propagation request timeout.

Definition at line 639 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

uint32_t ns3::dsr::DsrRouting::m_numPriorityQueues

private

The number of priority queues used.

Definition at line 751 of file dsr-routing.h.

Referenced by GetTypeId(), PriorityScheduler(), and Start().

DsrOptionList_t ns3::dsr::DsrRouting::m_options

private

List of DSR Options supported.

Definition at line 613 of file dsr-routing.h.

Referenced by GetOption(), and Insert().

Time ns3::dsr::DsrRouting::m_passiveAckTimeout

private

The timeout value for passive acknowledge.

Definition at line 691 of file dsr-routing.h.

Referenced by GetTypeId(), and SchedulePassivePacketRetry().

std::map<PassiveKey, Timer> ns3::dsr::DsrRouting::m_passiveAckTimer

private

The timer for passive acknowledgment.

Definition at line 739 of file dsr-routing.h.

Referenced by CancelPassivePacketTimer(), PassiveScheduleTimerExpire(), and SchedulePassivePacketRetry().

Ptr<dsr::PassiveBuffer> ns3::dsr::DsrRouting::m_passiveBuffer

private

A "drop-front" queue used by the routing layer to cache route request sent.

Definition at line 749 of file dsr-routing.h.

Referenced by GetPassiveBuffer(), PassiveEntryCheck(), and SetPassiveBuffer().

std::map<PassiveKey, uint32_t> ns3::dsr::DsrRouting::m_passiveCnt

private

Map packet key + passive forward counts.

Definition at line 737 of file dsr-routing.h.

Referenced by CancelPassivePacketTimer(), CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

uint32_t ns3::dsr::DsrRouting::m_passiveRetries

private

of retries have been sent for passive acknowledgment

Definition at line 643 of file dsr-routing.h.

Referenced by PassiveScheduleTimerExpire().

std::map<uint32_t, Ptr<dsr::DsrNetworkQueue> > ns3::dsr::DsrRouting::m_priorityQueue

private

priority queues

Definition at line 755 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardErrPacket(), IncreaseRetransTimer(), PriorityScheduler(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), SendUnreachError(), and Start().

uint32_t ns3::dsr::DsrRouting::m_requestId

private

The id assigned to each route request.

Definition at line 675 of file dsr-routing.h.

Referenced by SendErrorRequest(), and SendInitialRequest().

Time ns3::dsr::DsrRouting::m_requestPeriod

private

The base time interval between route requests.

Definition at line 637 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

uint32_t ns3::dsr::DsrRouting::m_requestTableIds

private

The request table identifiers.

Definition at line 681 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_requestTableSize

private

The max size of the request table size.

Definition at line 679 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

Time ns3::dsr::DsrRouting::m_retransIncr

private

the increase time for retransmission timer when face network congestion

Definition at line 725 of file dsr-routing.h.

Referenced by GetTypeId(), and IncreaseRetransTimer().

Ptr<dsr::RouteCache> ns3::dsr::DsrRouting::m_routeCache

private

A "drop-front" queue used by the routing layer to cache routes found.

Definition at line 745 of file dsr-routing.h.

Referenced by AddAckReqHeader(), AddRoute(), AddRoute_Link(), CheckSendBuffer(), DeleteAllRoutesIncludeLink(), DoDispose(), GetRouteCache(), IsLinkCache(), LinkScheduleTimerExpire(), LookupRoute(), NetworkScheduleTimerExpire(), PacketNewRoute(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), SendPacketFromBuffer(), SendUnreachError(), SetRouteCache(), UpdateRouteEntry(), and UseExtends().

std::string ns3::dsr::DsrRouting::m_routeSortType

private

The type of route sort methods.

Definition at line 711 of file dsr-routing.h.

uint32_t ns3::dsr::DsrRouting::m_rreqRetries

private

Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route.

Definition at line 647 of file dsr-routing.h.

Referenced by GetTypeId(), and RouteRequestTimerExpire().

Ptr<dsr::RreqTable> ns3::dsr::DsrRouting::m_rreqTable

private

A "drop-front" queue used by the routing layer to cache route request sent.

Definition at line 747 of file dsr-routing.h.

Referenced by CancelRreqTimer(), FindSourceEntry(), GetRequestTable(), Receive(), RouteRequestTimerExpire(), ScheduleRreqRetry(), Send(), SendErrorRequest(), SendInitialRequest(), and SetRequestTable().

SendBuffer ns3::dsr::DsrRouting::m_sendBuffer

private

The send buffer.

Definition at line 657 of file dsr-routing.h.

Referenced by CheckSendBuffer(), PacketNewRoute(), RouteRequestTimerExpire(), Send(), SendErrorRequest(), SendPacketFromBuffer(), and Start().

Time ns3::dsr::DsrRouting::m_sendBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for.

Definition at line 655 of file dsr-routing.h.

Referenced by GetTypeId(), PacketNewRoute(), Send(), SendUnreachError(), and Start().

Time ns3::dsr::DsrRouting::m_sendBuffInterval

private

how often to check send buffer

Definition at line 701 of file dsr-routing.h.

Referenced by CheckSendBuffer(), GetTypeId(), and SendBuffTimerExpire().

Timer ns3::dsr::DsrRouting::m_sendBuffTimer

private

The send buffer timer.

Definition at line 699 of file dsr-routing.h.

Referenced by CheckSendBuffer(), DsrRouting(), and SendBuffTimerExpire().

uint32_t ns3::dsr::DsrRouting::m_sendRetries

private

of retries have been sent for network acknowledgment

Definition at line 641 of file dsr-routing.h.

Referenced by NetworkScheduleTimerExpire(), and ScheduleNetworkPacketRetry().

uint32_t ns3::dsr::DsrRouting::m_stabilityDecrFactor

private

The initial decrease factor for link cache.

Definition at line 713 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_stabilityIncrFactor

private

The initial increase factor for link cache.

Definition at line 715 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

bool ns3::dsr::DsrRouting::m_subRoute

private

Whether to save sub route or not.

Definition at line 723 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

uint32_t ns3::dsr::DsrRouting::m_tryLinkAcks

private

Maximum number of packet transmission using link acknowledgment.

Definition at line 697 of file dsr-routing.h.

Referenced by GetTypeId(), and LinkScheduleTimerExpire().

uint32_t ns3::dsr::DsrRouting::m_tryPassiveAcks

private

Maximum number of packet transmission using passive acknowledgment.

Definition at line 693 of file dsr-routing.h.

Referenced by GetTypeId(), and PassiveScheduleTimerExpire().

TracedCallback<const DsrOptionSRHeader &> ns3::dsr::DsrRouting::m_txPacketTrace

protected

Definition at line 580 of file dsr-routing.h.

Referenced by GetTypeId().

Ptr<UniformRandomVariable> ns3::dsr::DsrRouting::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 767 of file dsr-routing.h.

Referenced by AssignStreams(), CancelPacketTimerNextHop(), DsrRouting(), PriorityScheduler(), ScheduleCachedReply(), ScheduleInterRequest(), Send(), and SendPacketFromBuffer().

Time ns3::dsr::DsrRouting::m_useExtends

private

The use extension of the life time for link cache.

Definition at line 721 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

const uint8_t ns3::dsr::DsrRouting::PROT_NUMBER = 48

static

Define the dsr protocol number.

Definition at line 106 of file dsr-routing.h.

Referenced by GetProtocolNumber(), and PromiscReceive().

uint8_t ns3::dsr::DsrRouting::segsLeft

private

The segment left value from SR header.

Definition at line 625 of file dsr-routing.h.

The documentation for this class was generated from the following files:

src/dsr/model/dsr-routing.h
src/dsr/model/dsr-routing.cc

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

of retries have been sent for link acknowledgment

of retries have been sent for passive acknowledgment

of retries have been sent for network acknowledgment

Additional Inherited Members

Detailed Description

Attributes

Attributes defined in parent class ns3::IpL4Protocol

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

of retries have been sent for link acknowledgment

of retries have been sent for passive acknowledgment

of retries have been sent for network acknowledgment
