This queue contains packets for a particular access class. More...

#include "edca-txop-n.h"

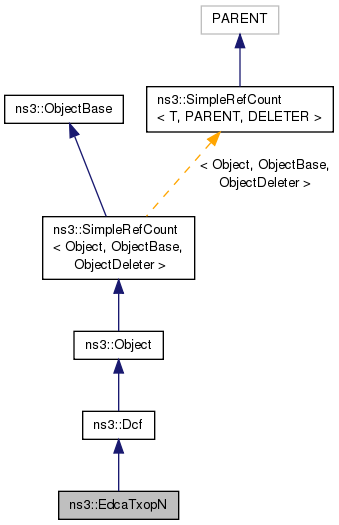

Inheritance diagram for ns3::EdcaTxopN:

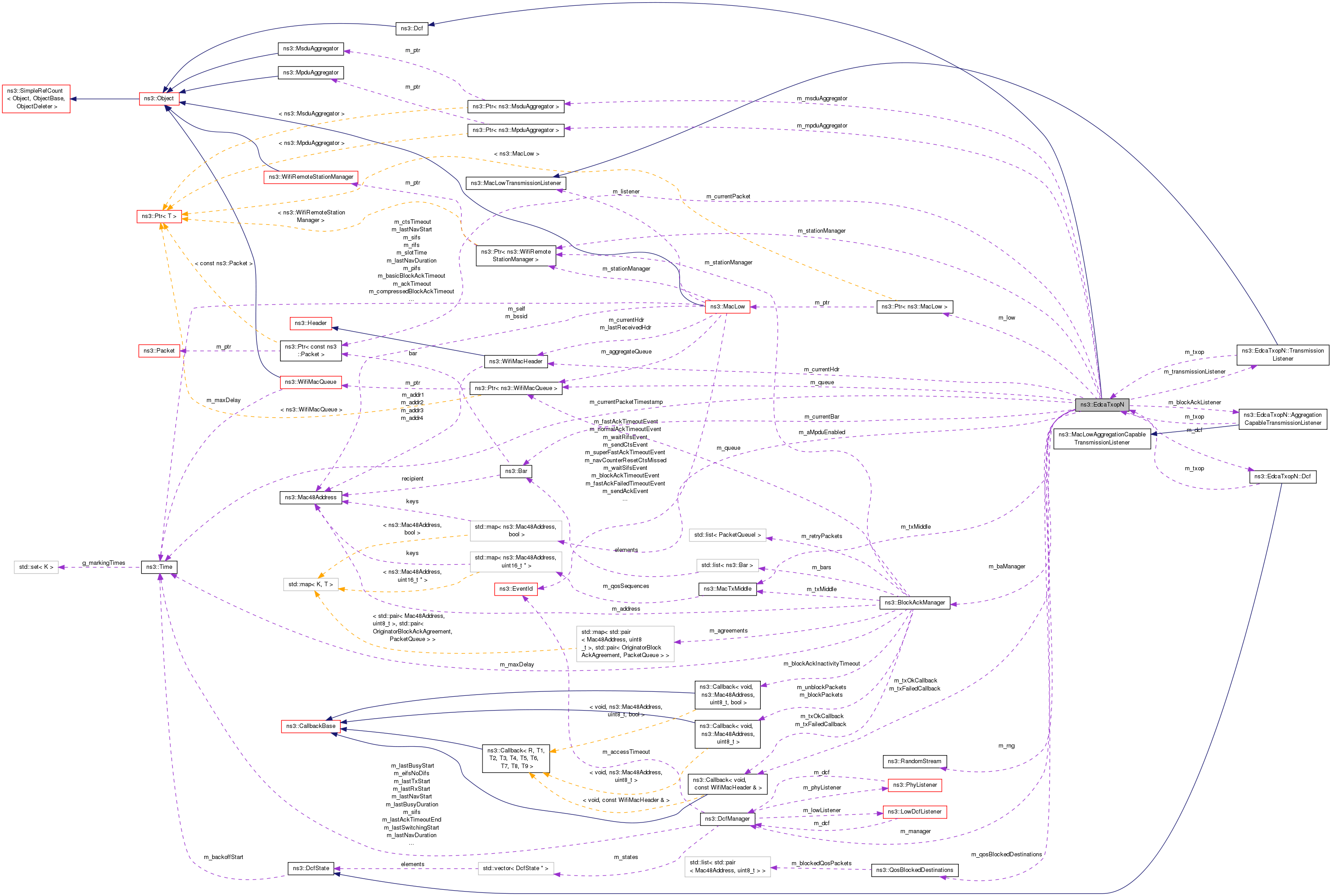

Collaboration diagram for ns3::EdcaTxopN:

Classes
class	AggregationCapableTransmissionListener

class	Dcf

class	TransmissionListener

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions
	EdcaTxopN ()

virtual	~EdcaTxopN ()

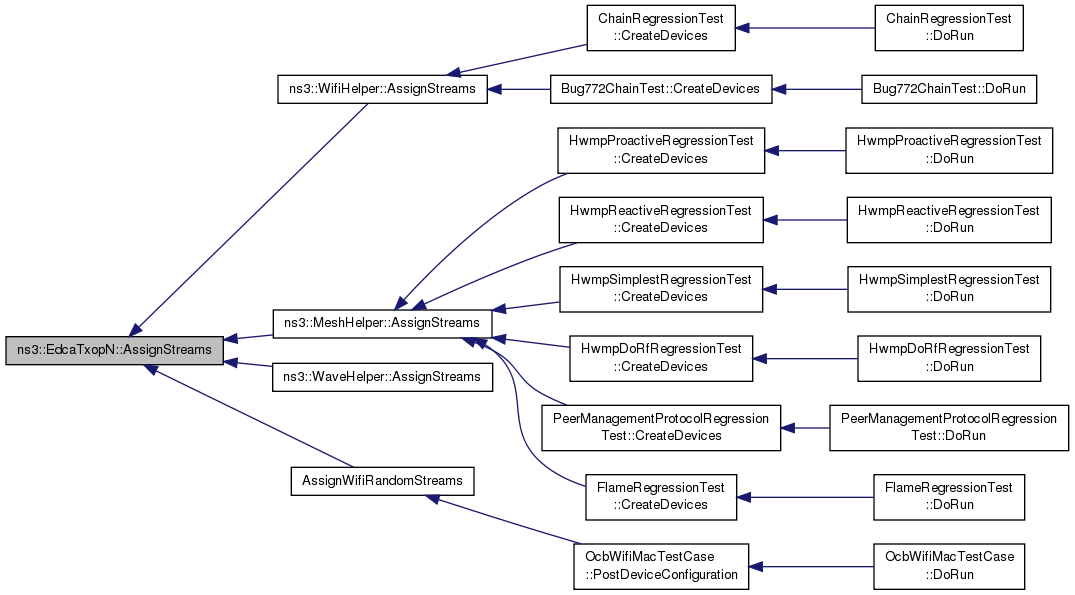

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	BaTxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver. More...

void	BaTxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver. More...

void	Cancel (void)
	Cancel the transmission. More...

void	CompleteAmpduTransfer (Mac48Address recipient, uint8_t tid)

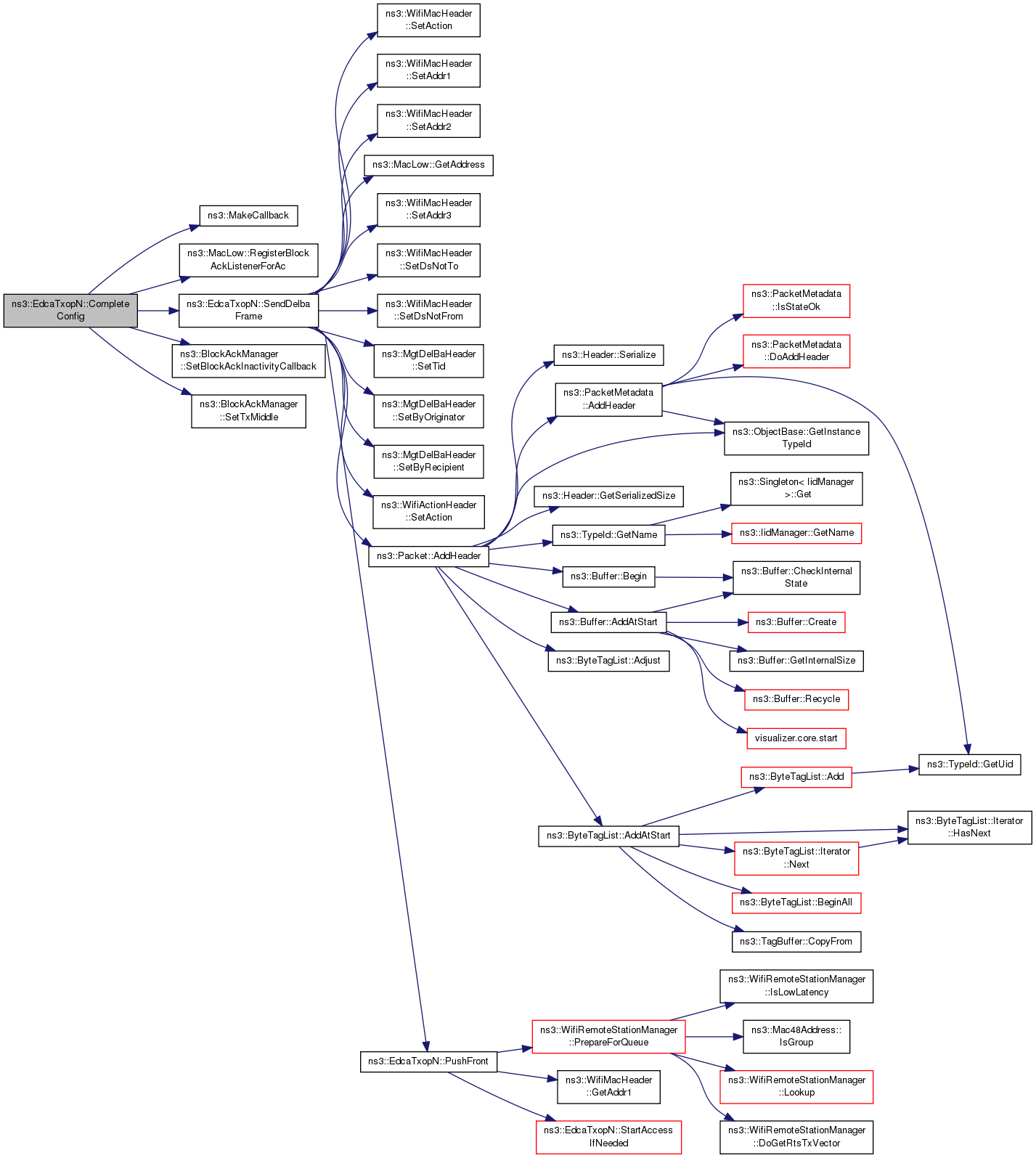

void	CompleteConfig (void)
	Complete block ACK configuration. More...

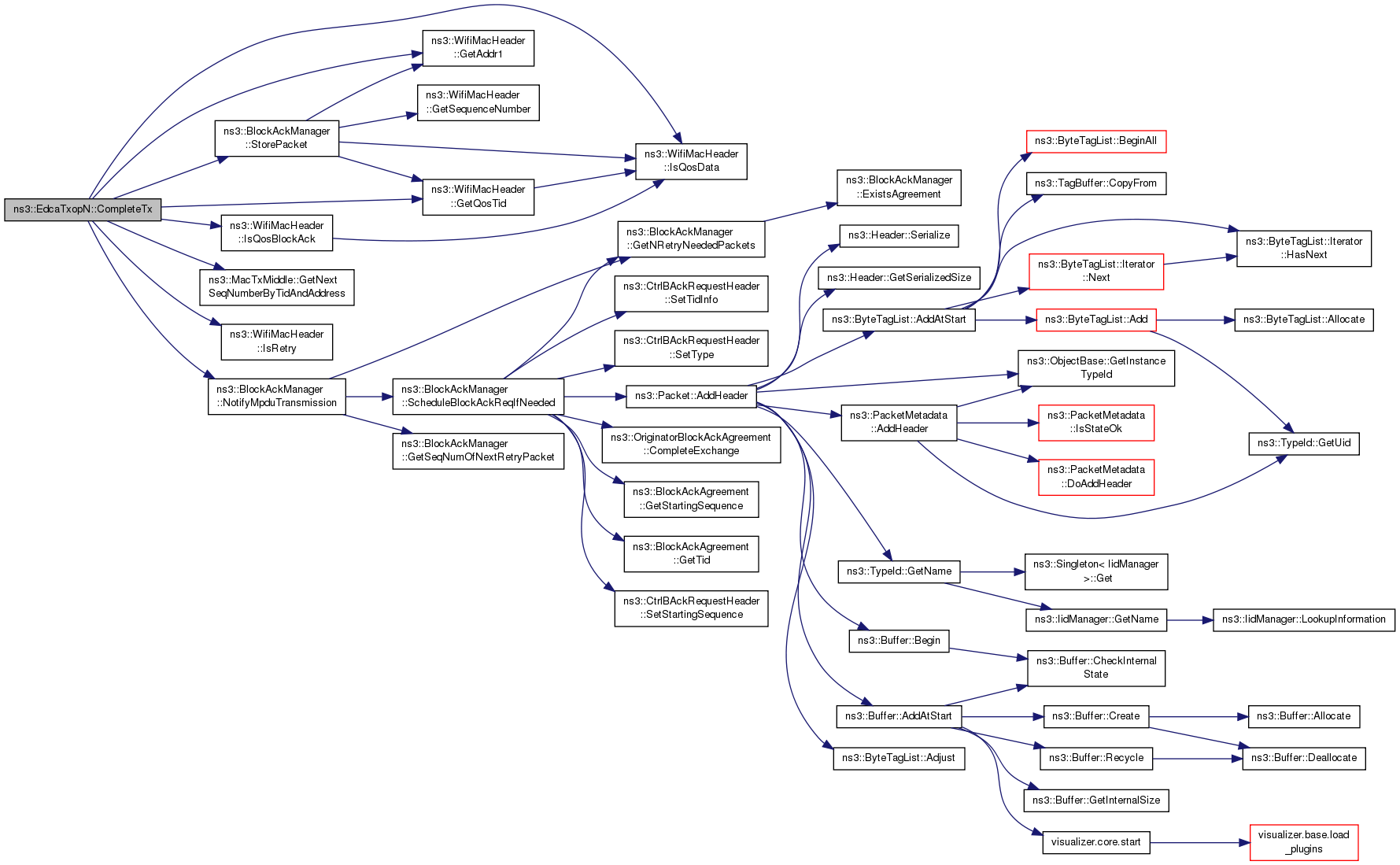

void	CompleteMpduTx (Ptr< const Packet > packet, WifiMacHeader hdr, Time tstamp)

void	DoDispose ()
	Destructor implementation. More...

void	EndTxNoAck (void)
	Event handler when a transmission that does not require an ACK has completed. More...

virtual uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

bool	GetAmpduExist (Mac48Address dest)

bool	GetBaAgreementExists (Mac48Address address, uint8_t tid)

uint8_t	GetBlockAckThreshold (void) const
	Return the current threshold for block ACK mechanism. More...

Ptr< WifiMacQueue >	GetEdcaQueue () const
	Return the packet queue associated with this EdcaTxopN. More...

uint32_t	GetFragmentOffset (void)
	Calculate the offset for the current fragment. More...

Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
	Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

uint32_t	GetFragmentSize (void)
	Calculate the size of the current fragment. More...

virtual uint32_t	GetMaxCw (void) const
	Return the maximum contention window size. More...

virtual uint32_t	GetMinCw (void) const
	Return the minimum contention window size. More...

Ptr< MpduAggregator >	GetMpduAggregator (void) const

Ptr< MsduAggregator >	GetMsduAggregator (void) const

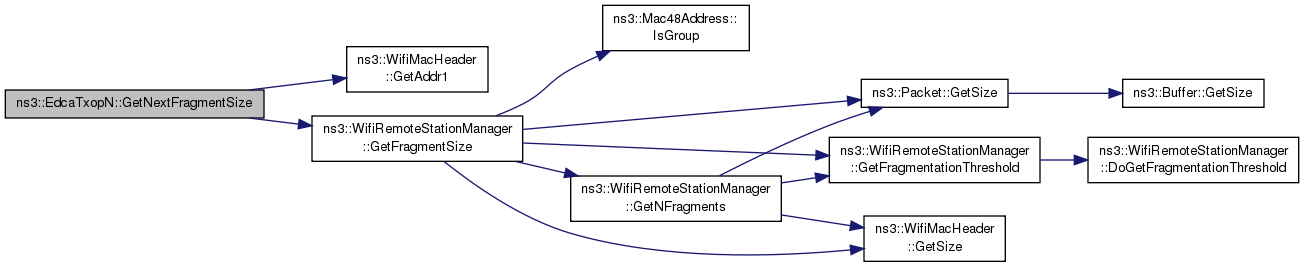

uint32_t	GetNextFragmentSize (void)
	Calculate the size of the next fragment. More...

uint16_t	GetNextSequenceNumberfor (WifiMacHeader *hdr)
	Return the next sequence number for the given header. More...

uint32_t	GetNOutstandingPacketsInBa (Mac48Address address, uint8_t tid)

uint32_t	GetNRetryNeededPackets (Mac48Address recipient, uint8_t tid) const

enum TypeOfStation	GetTypeOfStation (void) const
	Return type of station. More...

void	GotAck (double snr, WifiMode txMode)
	Event handler when an ACK is received. More...

void	GotAddBaResponse (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)

void	GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient, double rxSnr, WifiMode txMode, double dataSnr)
	Event handler when a Block ACK is received. More...

void	GotCts (double snr, WifiMode txMode)
	Event handler when a CTS is received. More...

void	GotDelBaFrame (const MgtDelBaHeader *delBaHdr, Mac48Address recipient)

bool	IsLastFragment (void) const
	Check if the current fragment is the last fragment. More...

Ptr< MacLow >	Low (void)
	Return the MacLow associated with this EdcaTxopN. More...

void	MissedAck (void)
	Event handler when an ACK is missed. More...

void	MissedBlockAck (uint32_t nMpdus)
	Event handler when a Block ACK timeout has occurred. More...

void	MissedCts (void)
	Event handler when a CTS timeout has occurred. More...

bool	NeedBarRetransmission (void)
	Check if Block ACK Request should be re-transmitted. More...

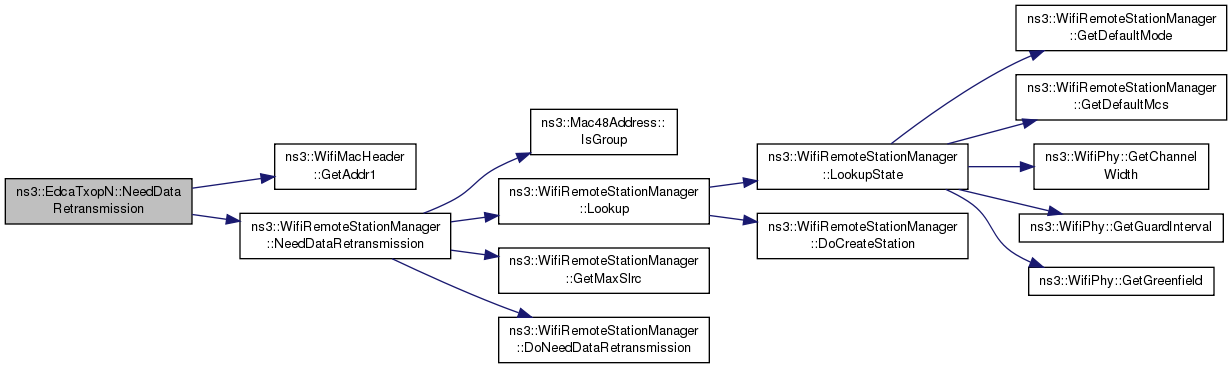

bool	NeedDataRetransmission (void)
	Check if DATA should be re-transmitted if ACK was missed. More...

bool	NeedFragmentation (void) const
	Check if the current packet should be fragmented. More...

bool	NeedRtsRetransmission (void)
	Check if RTS should be re-transmitted if CTS was missed. More...

bool	NeedsAccess (void) const
	Check if the EDCAF requires access. More...

void	NextFragment (void)
	Continue to the next fragment. More...

void	NotifyAccessGranted (void)
	Notify the EDCAF that access has been granted. More...

void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

void	NotifyCollision (void)
	Notify the EDCAF that collision has occurred. More...

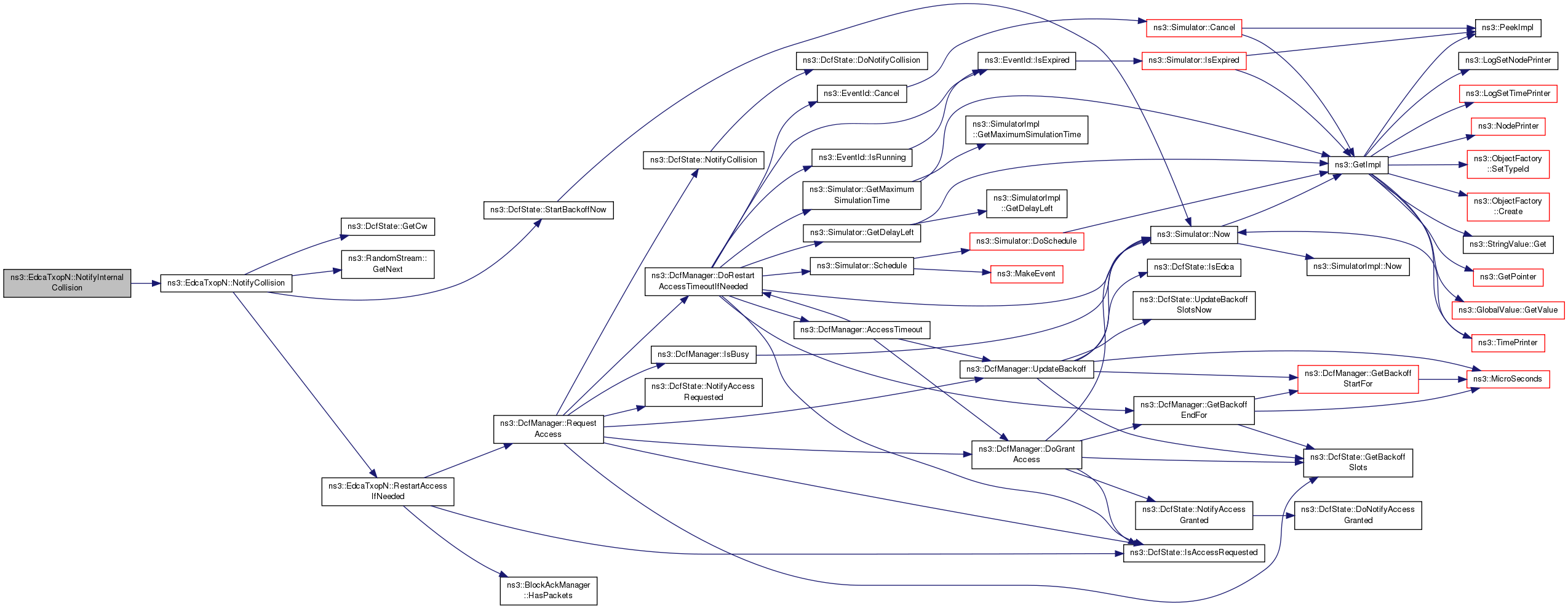

void	NotifyInternalCollision (void)
	Notify the EDCAF that internal collision has occurred. More...

void	NotifySleep (void)
	When sleep operation occurs, re-insert pending packet into front of the queue. More...

void	NotifyWakeUp (void)
	When wake up operation occurs, restart channel access. More...

Ptr< const Packet >	PeekNextRetransmitPacket (WifiMacHeader &header, Mac48Address recipient, uint8_t tid, Time *timestamp)

uint16_t	PeekNextSequenceNumberfor (WifiMacHeader *hdr)
	Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e. More...

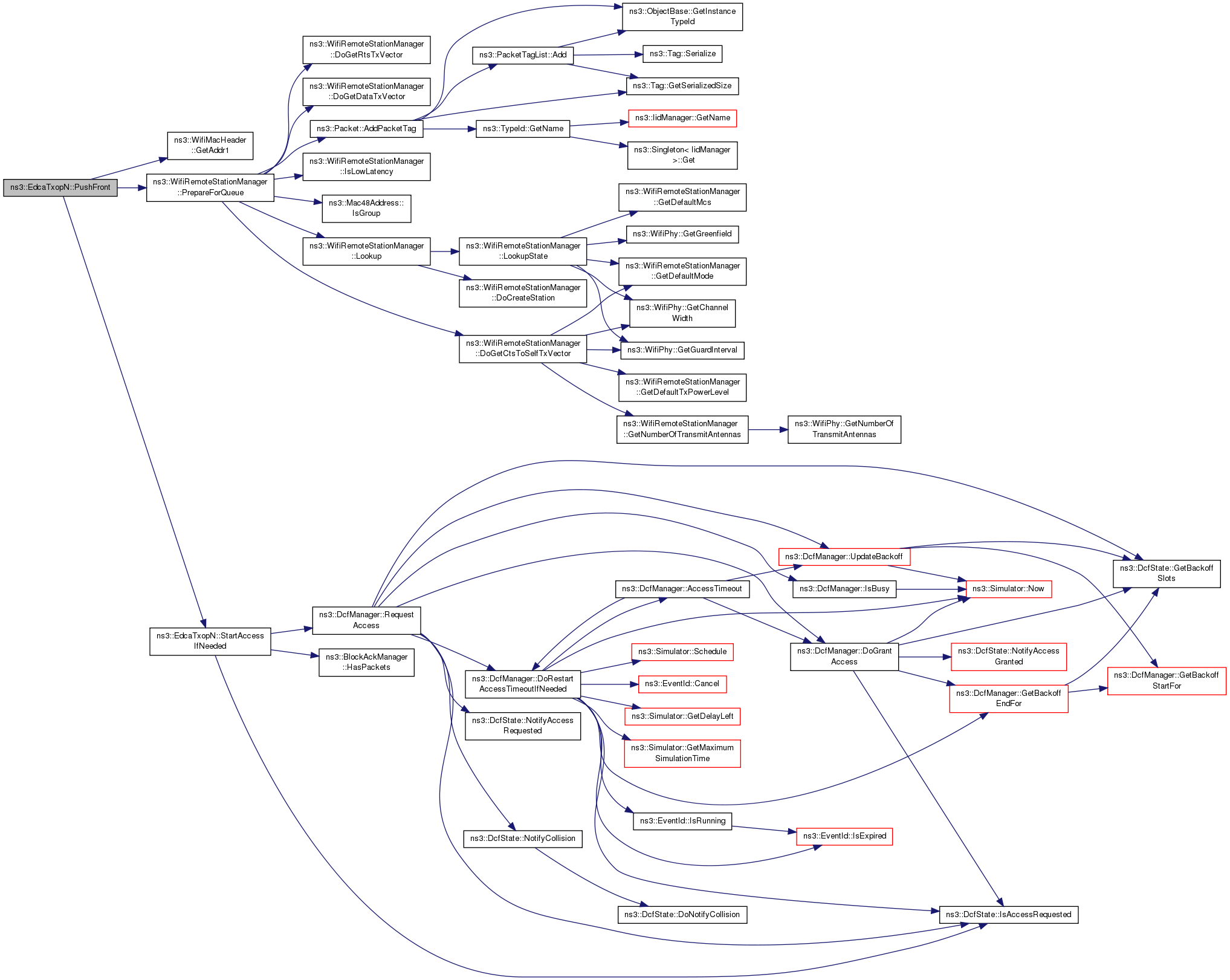

void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)

void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

void	RemoveRetransmitPacket (uint8_t tid, Mac48Address recipient, uint16_t seqnumber)
	Remove a packet after you peek in the retransmit queue and get it. More...

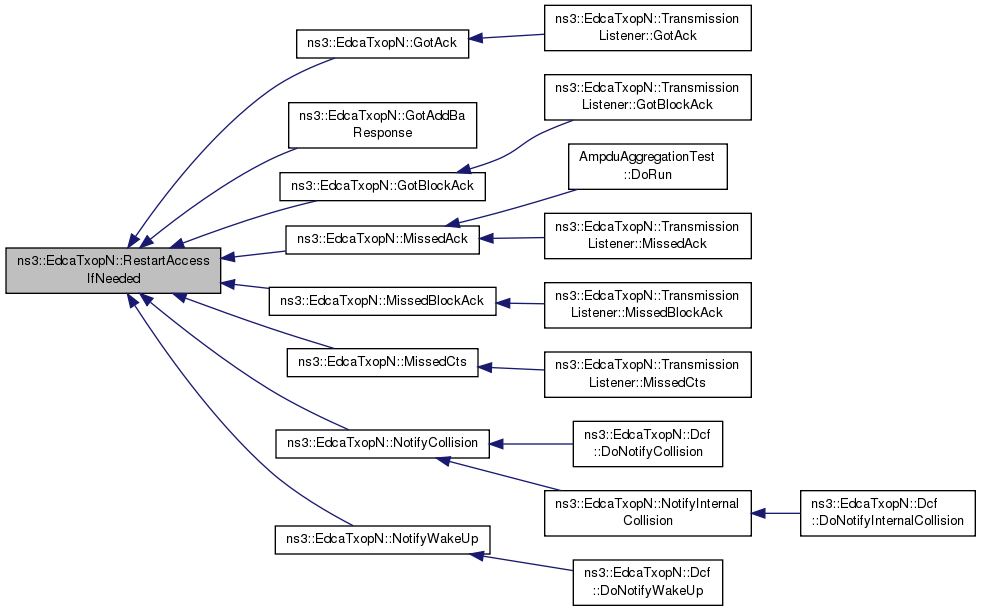

void	RestartAccessIfNeeded (void)
	Restart access request if needed. More...

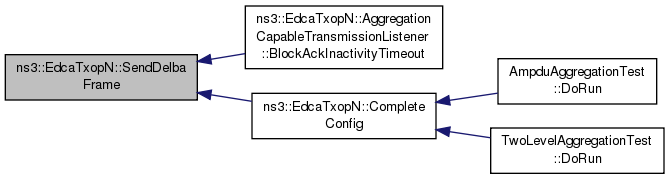

void	SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)

void	SetAccessCategory (enum AcIndex ac)
	Set the access category of this EDCAF. More...

virtual void	SetAifsn (uint32_t aifsn)

void	SetAmpduExist (Mac48Address dest, bool enableAmpdu)

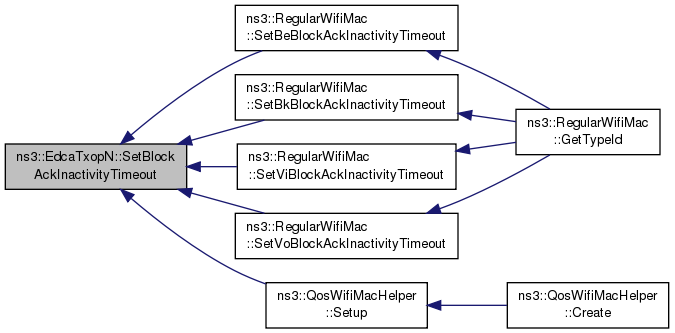

void	SetBlockAckInactivityTimeout (uint16_t timeout)

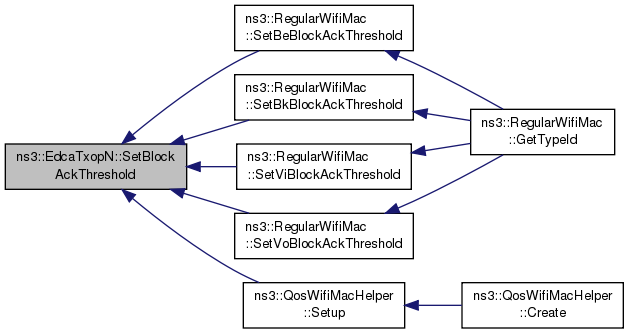

void	SetBlockAckThreshold (uint8_t threshold)
	Set threshold for block ACK mechanism. More...

void	SetLow (Ptr< MacLow > low)
	Set MacLow associated with this EdcaTxopN. More...

void	SetManager (DcfManager *manager)
	Set DcfManager this EdcaTxopN is associated to. More...

virtual void	SetMaxCw (uint32_t maxCw)
	Set the maximum contention window size. More...

virtual void	SetMinCw (uint32_t minCw)
	Set the minimum contention window size. More...

void	SetMpduAggregator (Ptr< MpduAggregator > aggr)

void	SetMsduAggregator (Ptr< MsduAggregator > aggr)

void	SetTxFailedCallback (TxFailed callback)

void	SetTxMiddle (MacTxMiddle *txMiddle)

void	SetTxOkCallback (TxOk callback)

void	SetTypeOfStation (enum TypeOfStation type)
	Set type of station with the given type. More...

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)
	Set WifiRemoteStationsManager this EdcaTxopN is associated to. More...

void	StartAccessIfNeeded (void)
	Request access from DCF manager if needed. More...

void	StartNext (void)
	Start transmission for the next fragment. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Dcf
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
std::map< Mac48Address, bool >	m_aMpduEnabled

Private Member Functions
	EdcaTxopN (const EdcaTxopN &)

void	CompleteTx (void)
	For now is typically invoked to complete transmission of a packets sent with ack policy Block Ack: the packet is buffered and dcf is reset. More...

void	DoInitialize ()
	Initialize() implementation. More...

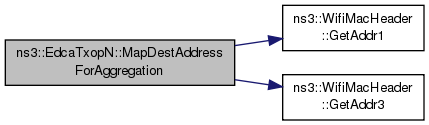

Mac48Address	MapDestAddressForAggregation (const WifiMacHeader &hdr)

Mac48Address	MapSrcAddressForAggregation (const WifiMacHeader &hdr)
	This functions are used only to correctly set addresses in a-msdu subframe. More...

EdcaTxopN &	operator= (const EdcaTxopN &)

void	SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startSeq, uint16_t timeout, bool immediateBAck)
	Sends an ADDBA Request to establish a block ack agreement with sta addressed by recipient for tid tid. More...

void	SendBlockAckRequest (const struct Bar &bar)
	After that all packets, for which a block ack agreement was established, have been transmitted, we have to send a block ack request. More...

bool	SetupBlockAckIfNeeded ()
	If number of packets in the queue reaches m_blockAckThreshold value, an ADDBA Request frame is sent to destination in order to setup a block ack. More...

void	VerifyBlockAck (void)
	Verifies if dequeued packet has to be transmitted with ack policy Block Ack. More...

Private Attributes
AcIndex	m_ac

BlockAckManager *	m_baManager

uint16_t	m_blockAckInactivityTimeout

AggregationCapableTransmissionListener *	m_blockAckListener

uint8_t	m_blockAckThreshold

enum BlockAckType	m_blockAckType

struct Bar	m_currentBar

WifiMacHeader	m_currentHdr

Ptr< const Packet >	m_currentPacket

Time	m_currentPacketTimestamp

Dcf *	m_dcf

uint8_t	m_fragmentNumber

Ptr< MacLow >	m_low

DcfManager *	m_manager

Ptr< MpduAggregator >	m_mpduAggregator

Ptr< MsduAggregator >	m_msduAggregator

QosBlockedDestinations *	m_qosBlockedDestinations

Ptr< WifiMacQueue >	m_queue

RandomStream *	m_rng

Ptr< WifiRemoteStationManager >	m_stationManager

TransmissionListener *	m_transmissionListener

TxFailed	m_txFailedCallback

MacTxMiddle *	m_txMiddle

TxOk	m_txOkCallback

TypeOfStation	m_typeOfStation

Friends
class	::AmpduAggregationTest

class	Dcf

class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This queue contains packets for a particular access class.

possibles access classes are:

-AC_VO : voice, tid = 6,7 ^ -AC_VI : video, tid = 4,5 | -AC_BE : best-effort, tid = 0,3 | priority -AC_BK : background, tid = 1,2 |

For more details see section 9.1.3.1 in 802.11 standard.

Config Paths

ns3::EdcaTxopN is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN"

Attributes

Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue>
- Flags: read

Attributes defined in parent class ns3::Dcf

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 328 bytes (on a 64-bit architecture).

Definition at line 85 of file edca-txop-n.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 100 of file edca-txop-n.h.

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 95 of file edca-txop-n.h.

Constructor & Destructor Documentation

ns3::EdcaTxopN::EdcaTxopN ( )

ns3::EdcaTxopN::~EdcaTxopN ( )

virtual

Definition at line 272 of file edca-txop-n.cc.

References NS_LOG_FUNCTION.

ns3::EdcaTxopN::EdcaTxopN ( const EdcaTxopN & )

private

Member Function Documentation

int64_t ns3::EdcaTxopN::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 1519 of file edca-txop-n.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::WifiHelper::AssignStreams(), ns3::MeshHelper::AssignStreams(), ns3::WaveHelper::AssignStreams(), and AssignWifiRandomStreams().

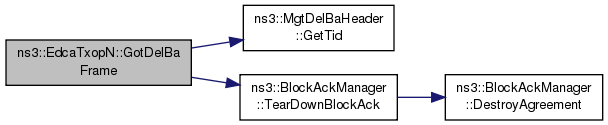

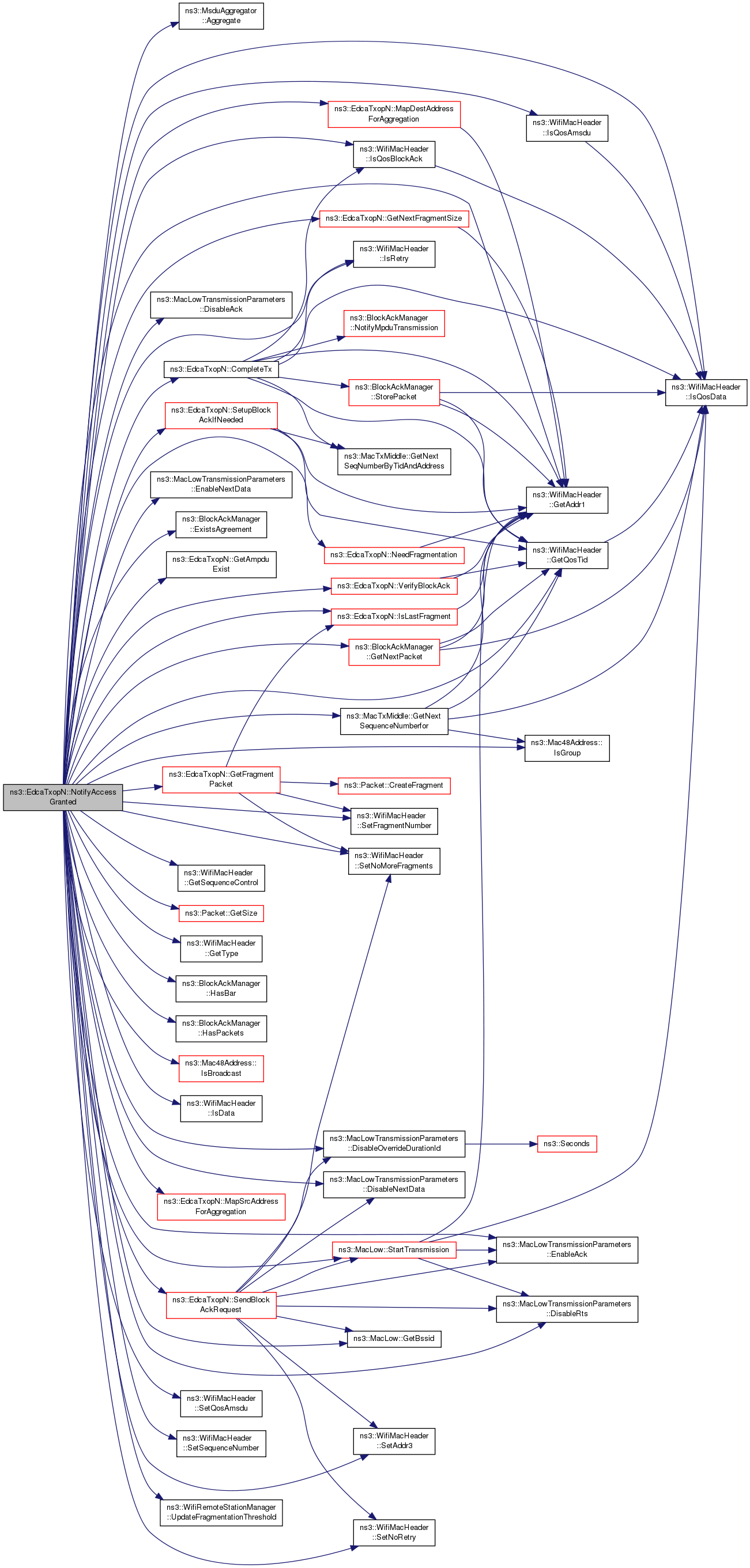

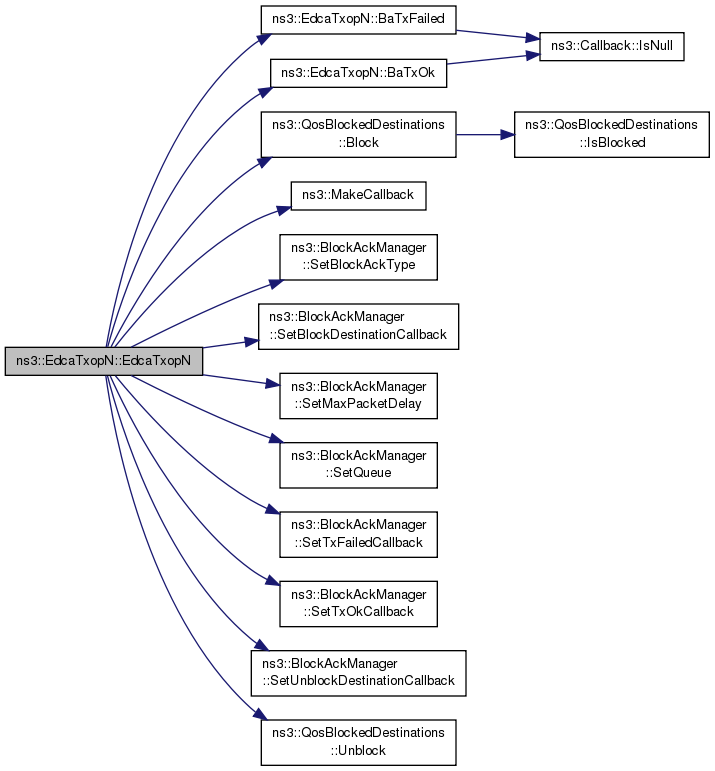

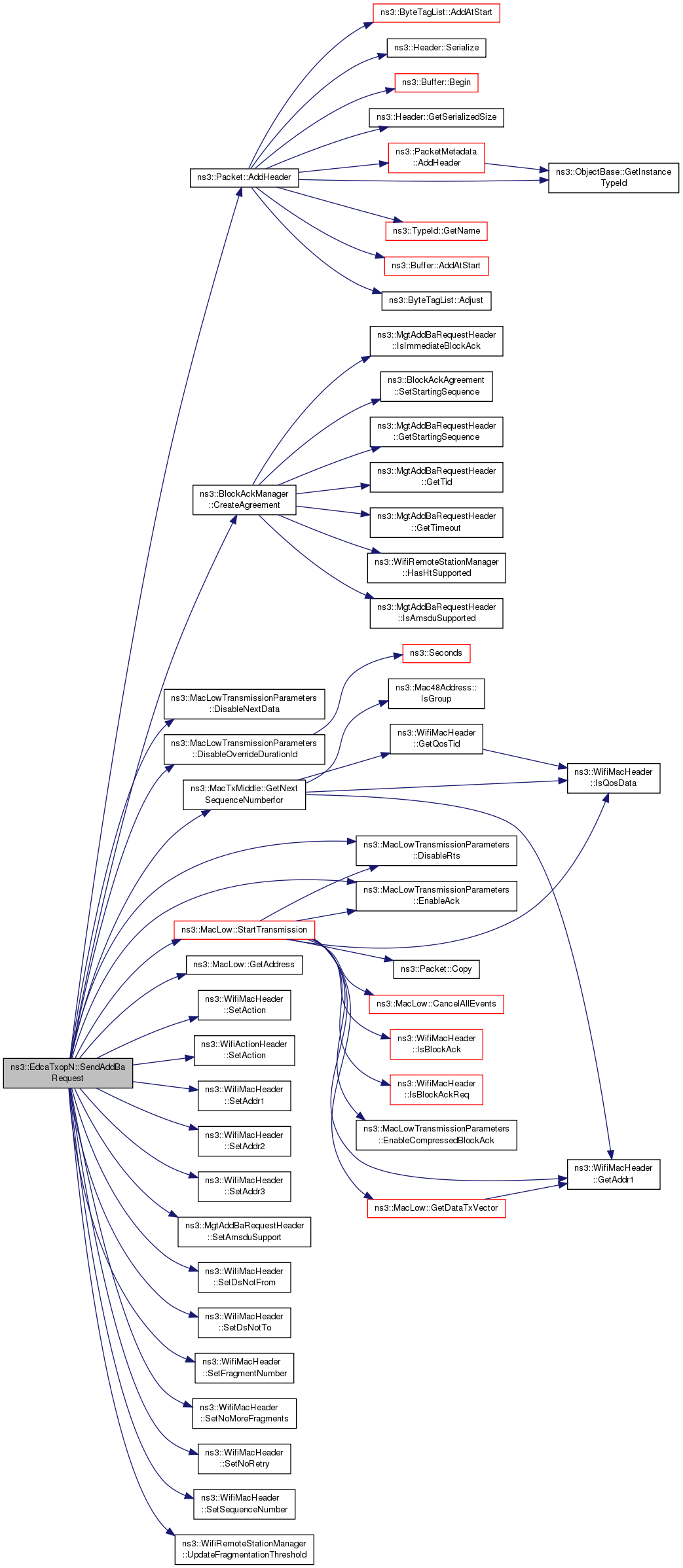

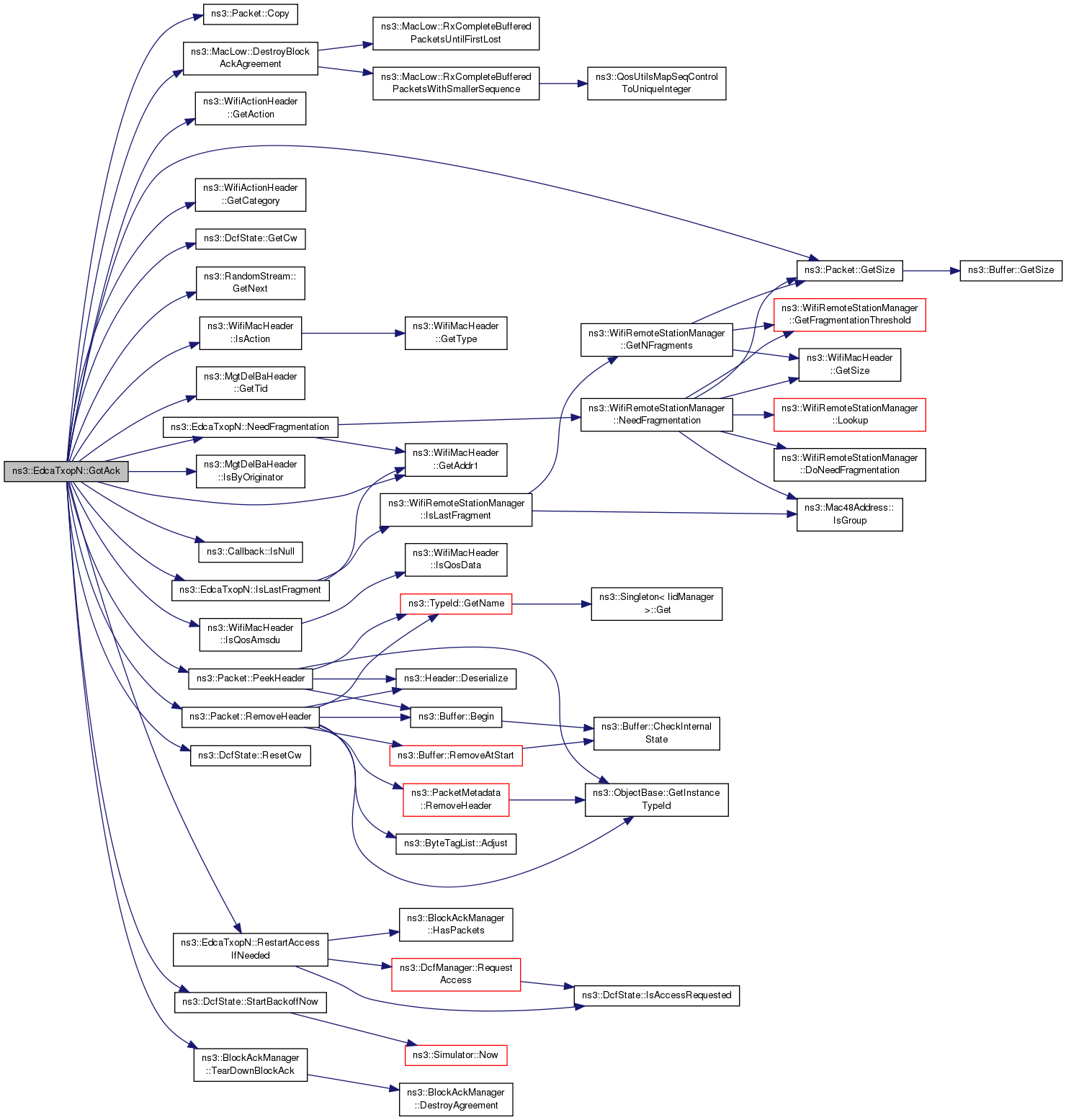

Here is the call graph for this function:

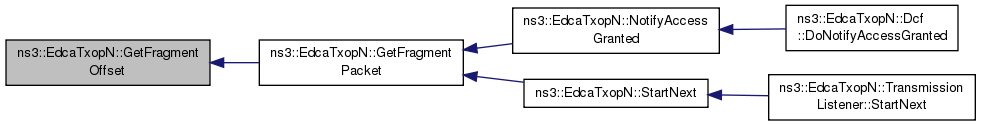

Here is the caller graph for this function:

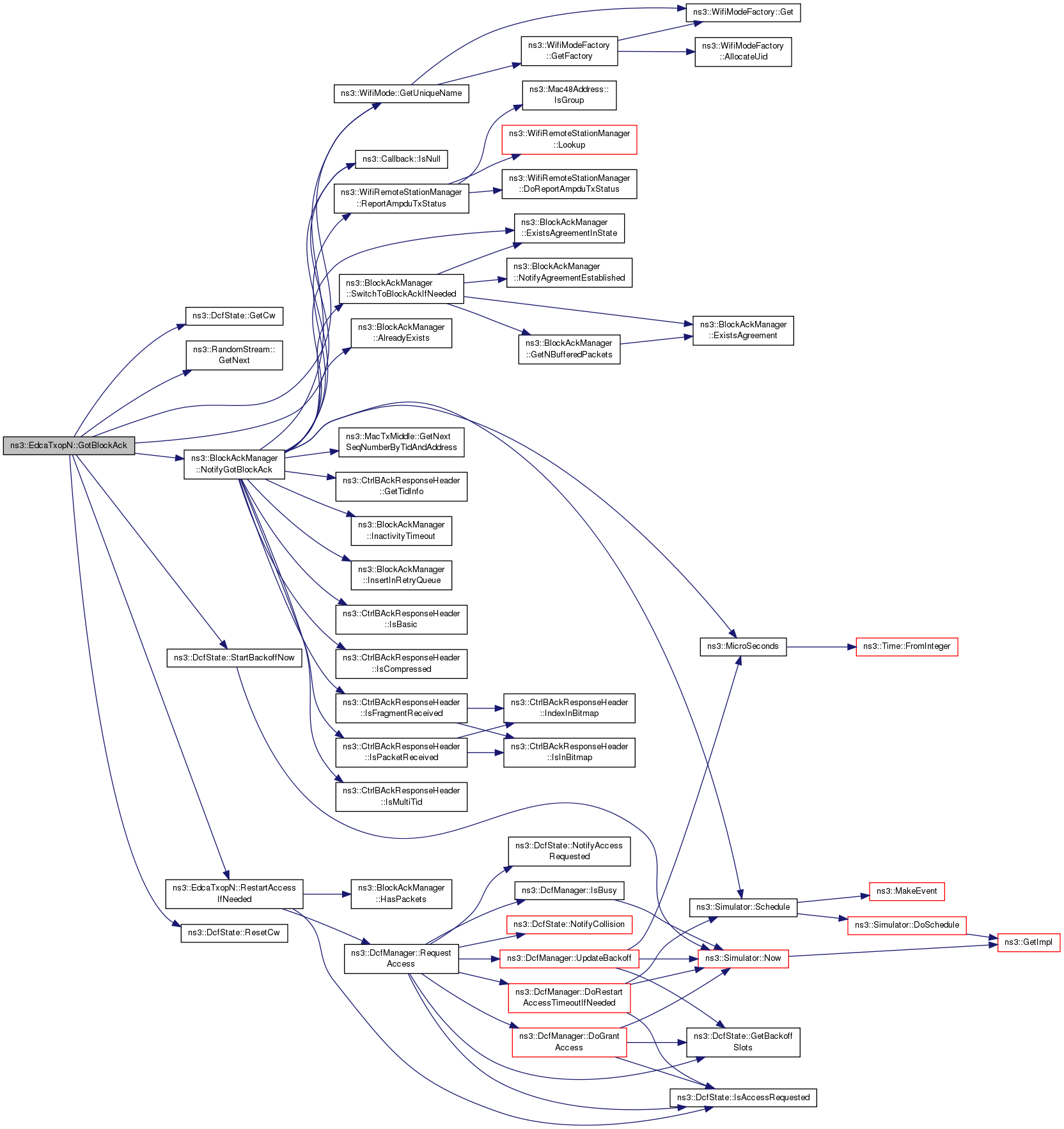

void ns3::EdcaTxopN::BaTxFailed ( const WifiMacHeader & hdr )

The packet we sent was successfully received by the receiver.

Parameters

hdr	the header of the packet that we failed to sent

Definition at line 1546 of file edca-txop-n.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_txFailedCallback, and NS_LOG_FUNCTION.

Referenced by EdcaTxopN().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::BaTxOk ( const WifiMacHeader & hdr )

The packet we sent was successfully received by the receiver.

Parameters

hdr	the header of the packet that we successfully sent

Definition at line 1536 of file edca-txop-n.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by EdcaTxopN().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::Cancel ( void )

Cancel the transmission.

Definition at line 1071 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::Cancel().

Here is the caller graph for this function:

void ns3::EdcaTxopN::CompleteAmpduTransfer	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	address of peer station involved in block ack mechanism.
tid	Ttraffic ID of transmitted packet.

This function resets the status of OriginatorBlockAckAgreement after the transfer of an A-MPDU with ImmediateBlockAck policy (i.e. no BAR is scheduled)

Definition at line 320 of file edca-txop-n.cc.

References ns3::BlockAckManager::CompleteAmpduExchange(), and m_baManager.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::CompleteTransfer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::CompleteConfig ( void )

Complete block ACK configuration.

Definition at line 1389 of file edca-txop-n.cc.

References m_ac, m_baManager, m_blockAckListener, m_low, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::MacLow::RegisterBlockAckListenerForAc(), SendDelbaFrame(), ns3::BlockAckManager::SetBlockAckInactivityCallback(), and ns3::BlockAckManager::SetTxMiddle().

Referenced by AmpduAggregationTest::DoRun(), and TwoLevelAggregationTest::DoRun().

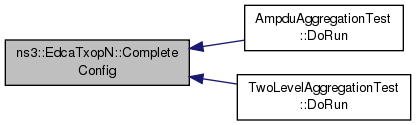

Here is the call graph for this function:

Here is the caller graph for this function:

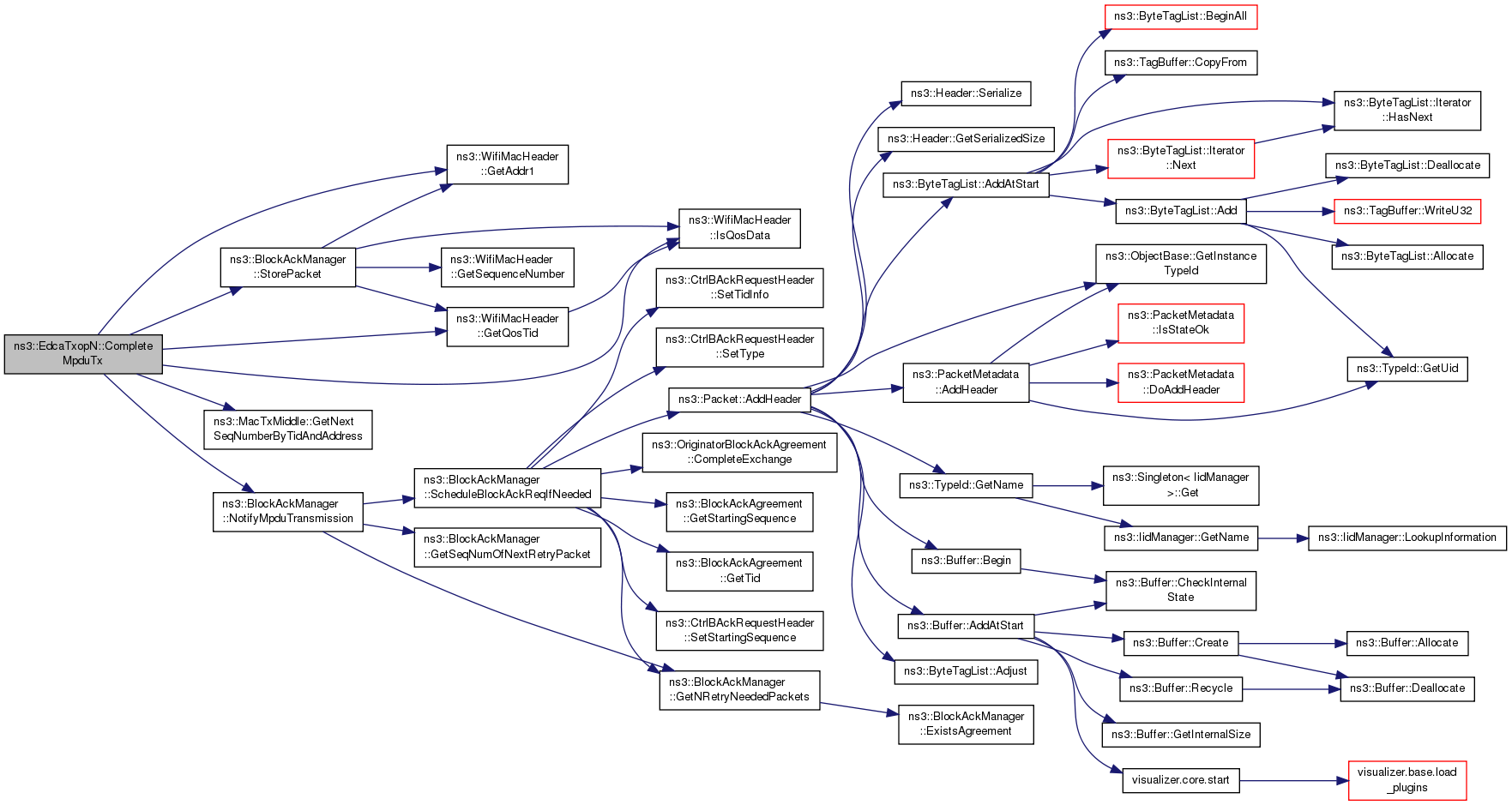

void ns3::EdcaTxopN::CompleteMpduTx	(	Ptr< const Packet >	packet,
		WifiMacHeader	hdr,
		Time	tstamp
	)

Definition at line 1316 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), m_baManager, m_txMiddle, ns3::WifiMacHeader::NORMAL_ACK, ns3::BlockAckManager::NotifyMpduTransmission(), NS_ASSERT, and ns3::BlockAckManager::StorePacket().

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::CompleteMpduTx().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::CompleteTx ( void )

private

For now is typically invoked to complete transmission of a packets sent with ack policy Block Ack: the packet is buffered and dcf is reset.

Definition at line 1300 of file edca-txop-n.cc.

References ns3::WifiMacHeader::BLOCK_ACK, ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_baManager, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_txMiddle, ns3::BlockAckManager::NotifyMpduTransmission(), NS_LOG_FUNCTION, and ns3::BlockAckManager::StorePacket().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 278 of file edca-txop-n.cc.

References m_baManager, m_blockAckListener, m_dcf, m_low, m_mpduAggregator, m_msduAggregator, m_qosBlockedDestinations, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 1527 of file edca-txop-n.cc.

References ns3::Object::DoInitialize(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

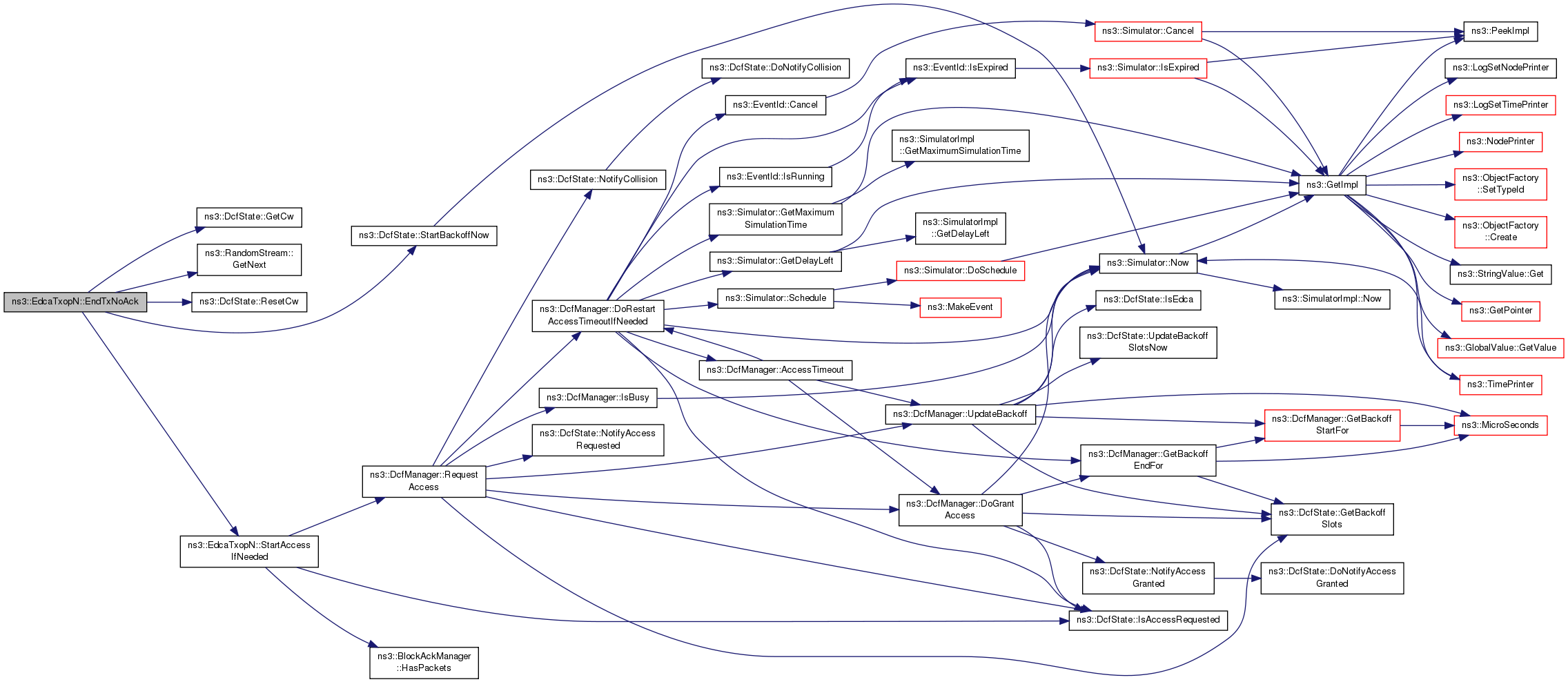

Here is the call graph for this function:

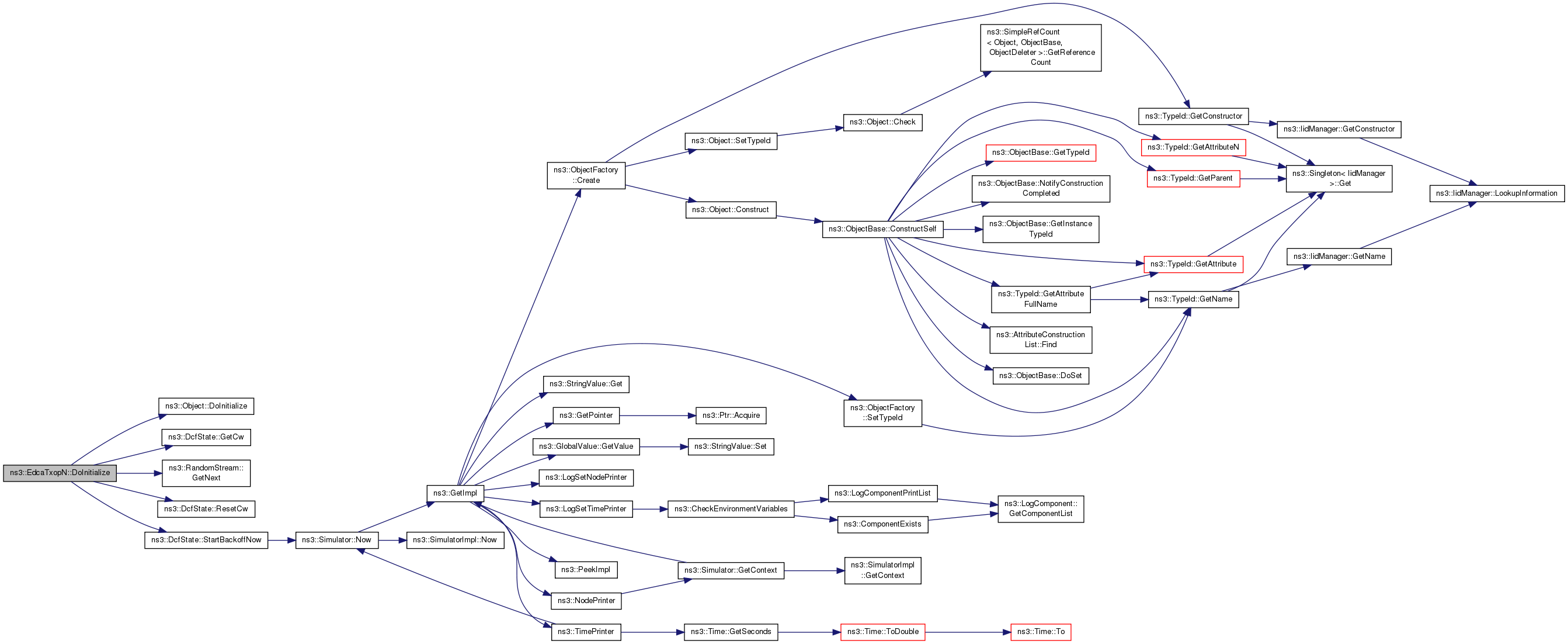

void ns3::EdcaTxopN::EndTxNoAck ( void )

Event handler when a transmission that does not require an ACK has completed.

Definition at line 1078 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::EndTxNoAck().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetAifsn ( void ) const

virtual

Return the number of slots that make up an AIFS.

Returns: the number of slots that make up an AIFS

Implements ns3::Dcf.

Definition at line 412 of file edca-txop-n.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::EdcaTxopN::GetAmpduExist ( Mac48Address dest )

Definition at line 1276 of file edca-txop-n.cc.

References m_aMpduEnabled, and NS_LOG_FUNCTION.

Referenced by MissedAck(), MissedBlockAck(), MissedCts(), and NotifyAccessGranted().

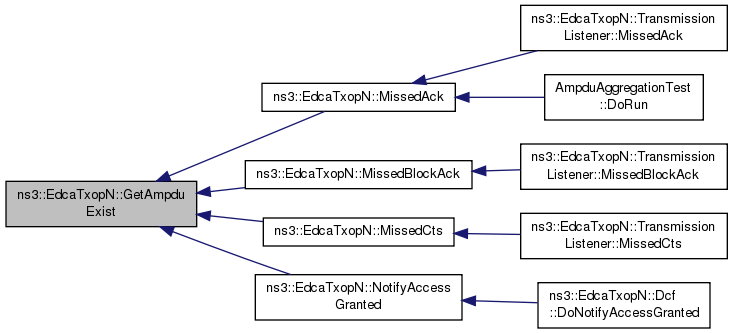

Here is the caller graph for this function:

bool ns3::EdcaTxopN::GetBaAgreementExists	(	Mac48Address	address,
		uint8_t	tid
	)

Parameters

recipient	address of the peer station
tid	traffic ID.

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement exists with station addressed by recipient for tid tid.

Definition at line 302 of file edca-txop-n.cc.

References ns3::BlockAckManager::ExistsAgreement(), and m_baManager.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetBlockAckAgreementExists(), MissedAck(), and MissedCts().

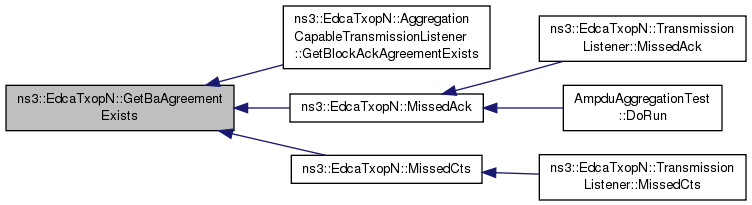

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::EdcaTxopN::GetBlockAckThreshold ( void ) const

Return the current threshold for block ACK mechanism.

Returns: the current threshold for block ACK mechanism

Definition at line 1413 of file edca-txop-n.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Ptr< WifiMacQueue > ns3::EdcaTxopN::GetEdcaQueue ( ) const

Return the packet queue associated with this EdcaTxopN.

Returns: WifiMacQueue

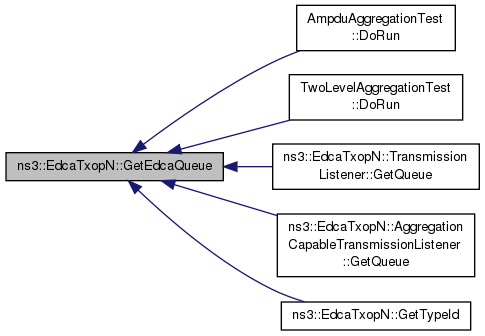

Definition at line 370 of file edca-txop-n.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::EdcaTxopN::TransmissionListener::GetQueue(), ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetQueue(), and GetTypeId().

Here is the caller graph for this function:

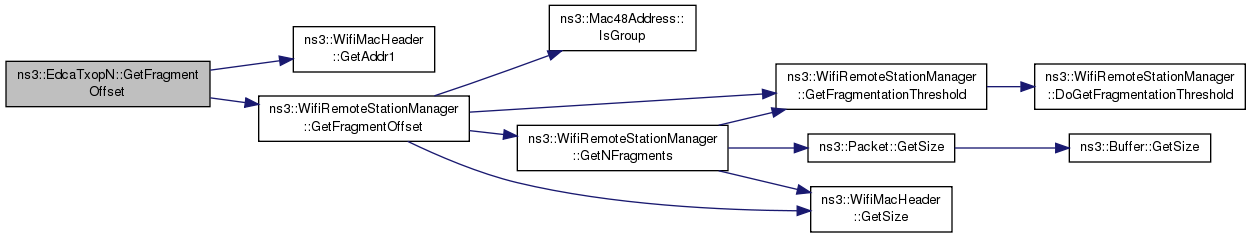

uint32_t ns3::EdcaTxopN::GetFragmentOffset ( void )

Calculate the offset for the current fragment.

Returns: the offset for the current fragment

Definition at line 1113 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

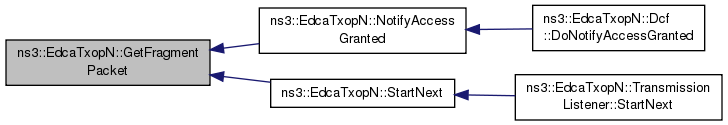

Ptr< Packet > ns3::EdcaTxopN::GetFragmentPacket ( WifiMacHeader * hdr )

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters

hdr

Returns: the fragment with the current fragment number

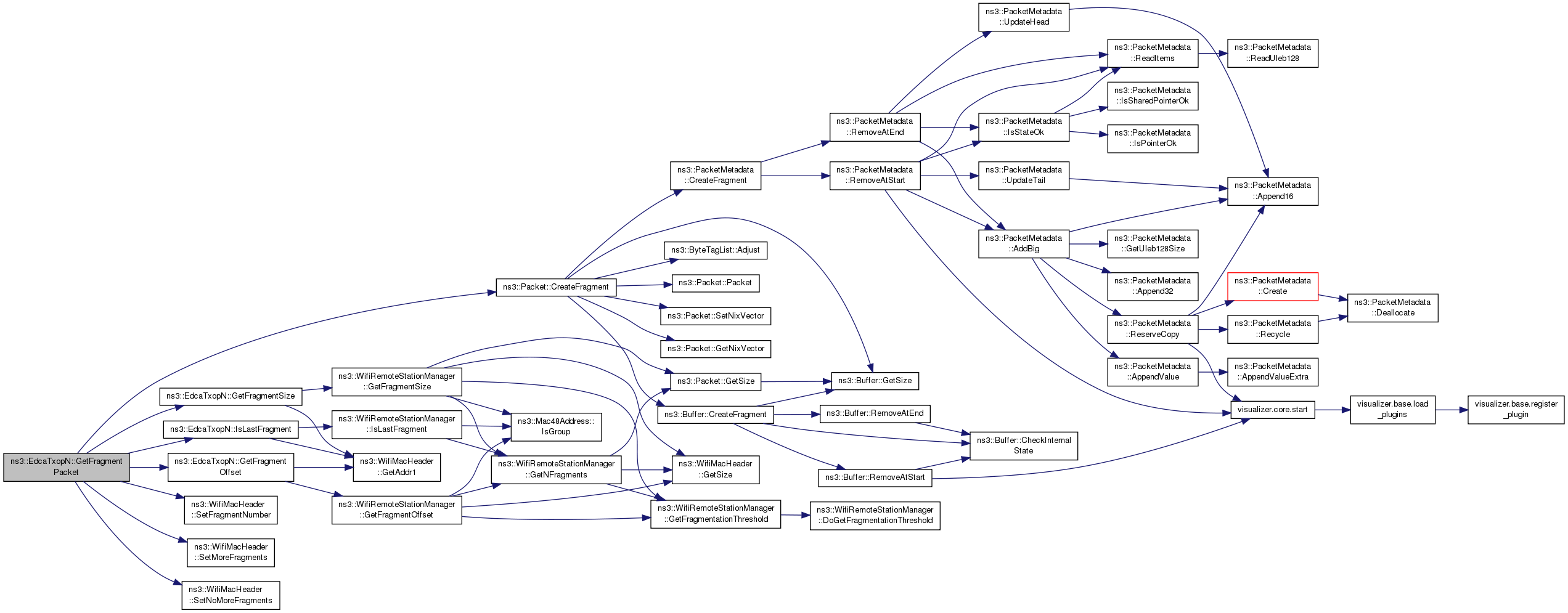

Definition at line 1130 of file edca-txop-n.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

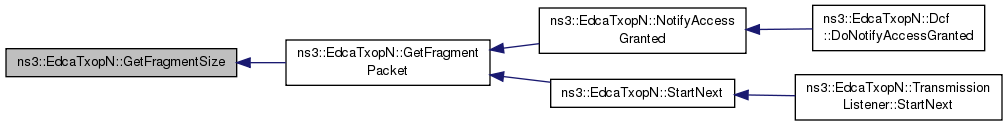

uint32_t ns3::EdcaTxopN::GetFragmentSize ( void )

Calculate the size of the current fragment.

Returns: the size of the current fragment

Definition at line 1097 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

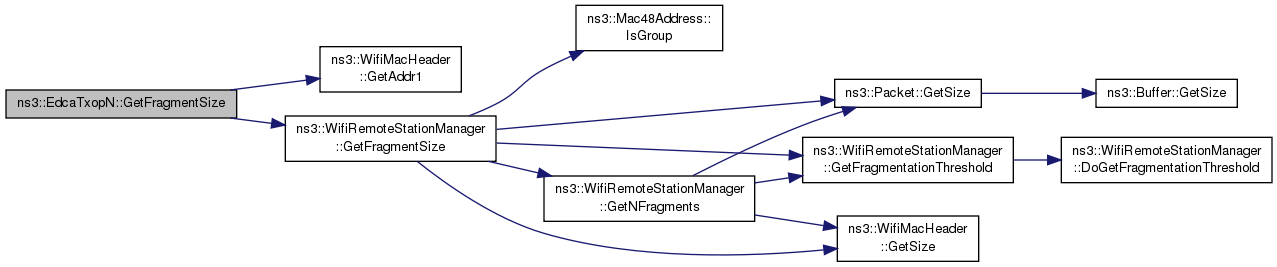

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetMaxCw ( void ) const

virtual

Return the maximum contention window size.

Returns: the maximum contention window size

Implements ns3::Dcf.

Definition at line 405 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::EdcaTxopN::GetMinCw ( void ) const

virtual

Return the minimum contention window size.

Returns: the minimum contention window size

Implements ns3::Dcf.

Definition at line 398 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

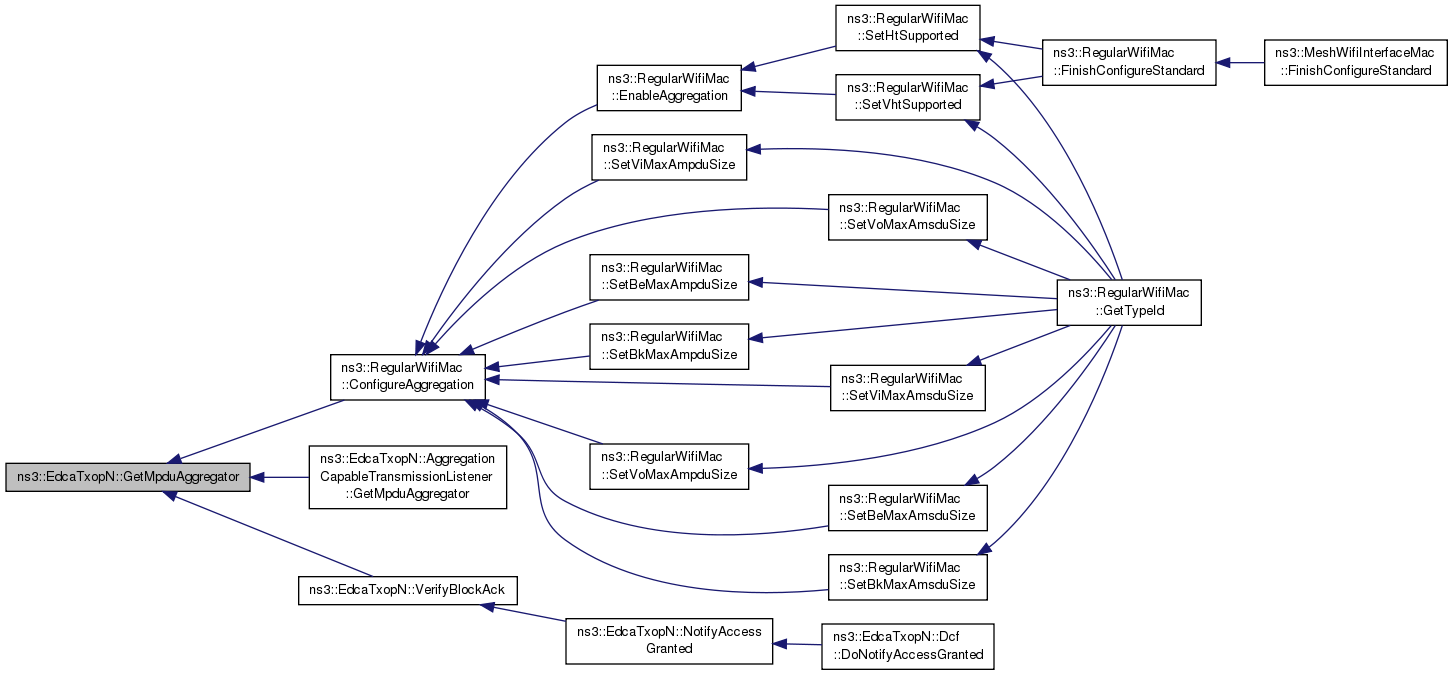

Ptr< MpduAggregator > ns3::EdcaTxopN::GetMpduAggregator ( void ) const

Definition at line 967 of file edca-txop-n.cc.

References m_mpduAggregator.

Referenced by ns3::RegularWifiMac::ConfigureAggregation(), ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetMpduAggregator(), and VerifyBlockAck().

Here is the caller graph for this function:

Ptr< MsduAggregator > ns3::EdcaTxopN::GetMsduAggregator ( void ) const

Definition at line 961 of file edca-txop-n.cc.

References m_msduAggregator.

Referenced by ns3::RegularWifiMac::ConfigureAggregation(), and ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetMsduAggregator().

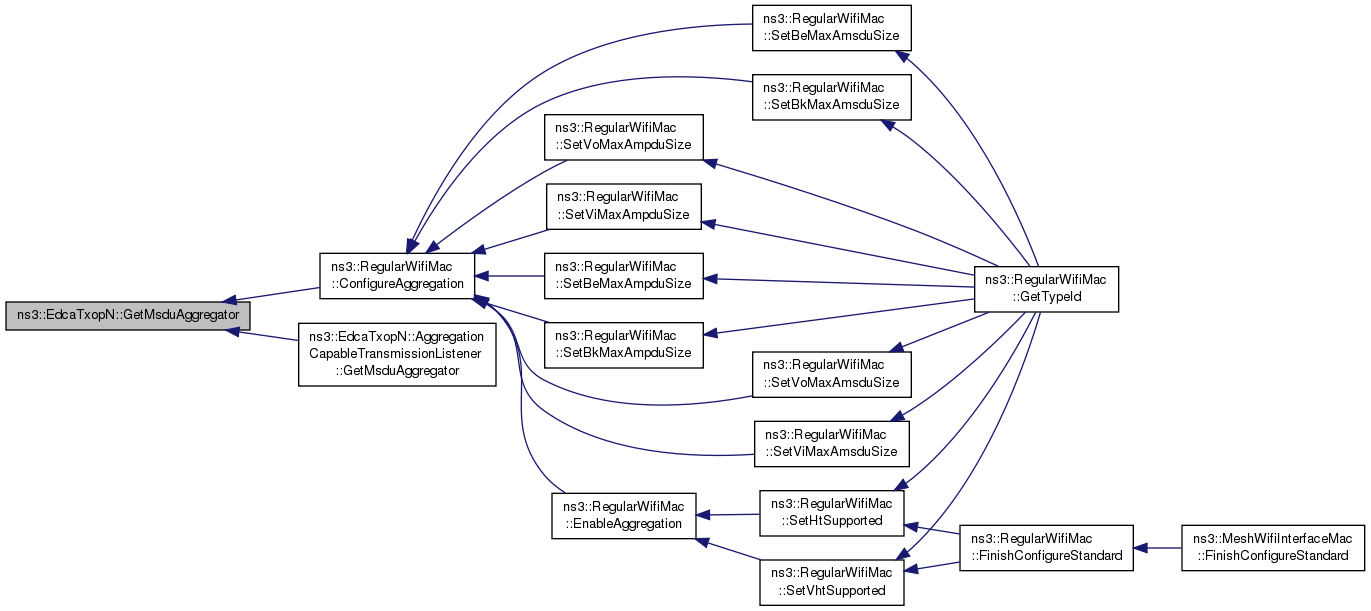

Here is the caller graph for this function:

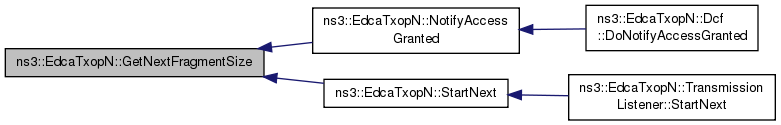

uint32_t ns3::EdcaTxopN::GetNextFragmentSize ( void )

Calculate the size of the next fragment.

Returns: the size of the next fragment

Definition at line 1105 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::EdcaTxopN::GetNextSequenceNumberfor ( WifiMacHeader * hdr )

Return the next sequence number for the given header.

Parameters

hdr	Wi-Fi header

Returns: the next sequence number

Definition at line 446 of file edca-txop-n.cc.

References ns3::MacTxMiddle::GetNextSequenceNumberfor(), and m_txMiddle.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetNextSequenceNumberfor().

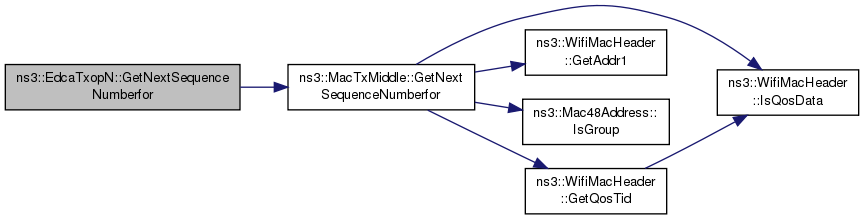

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetNOutstandingPacketsInBa	(	Mac48Address	address,
		uint8_t	tid
	)

Parameters

recipient	address of peer station involved in block ack mechanism.
tid	traffic ID.

Returns: the number of packets buffered for a specified agreement

Returns number of packets buffered for a specified agreement.

Definition at line 308 of file edca-txop-n.cc.

References ns3::BlockAckManager::GetNBufferedPackets(), and m_baManager.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetNOutstandingPackets().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetNRetryNeededPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	address of peer station involved in block ack mechanism.
tid	traffic ID.

Returns: the number of packets for a specific agreement that need retransmission

Returns number of packets for a specific agreement that need retransmission.

Definition at line 314 of file edca-txop-n.cc.

References ns3::BlockAckManager::GetNRetryNeededPackets(), and m_baManager.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetNRetryNeededPackets().

Here is the call graph for this function:

Here is the caller graph for this function:

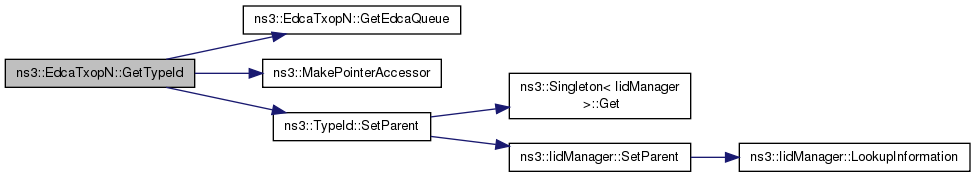

TypeId ns3::EdcaTxopN::GetTypeId ( void )

static

Definition at line 232 of file edca-txop-n.cc.

References GetEdcaQueue(), ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

enum TypeOfStation ns3::EdcaTxopN::GetTypeOfStation ( void ) const

Return type of station.

Returns: type of station

Definition at line 363 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::GotAck	(	double	snr,
		WifiMode	txMode
	)

Event handler when an ACK is received.

Parameters

snr
txMode

Definition at line 757 of file edca-txop-n.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Packet::Copy(), ns3::MacLow::DestroyBlockAckAgreement(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiActionHeader::GetCategory(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsQosAmsdu(), m_baManager, m_currentHdr, m_currentPacket, m_dcf, m_low, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::BlockAckManager::TearDownBlockAck().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

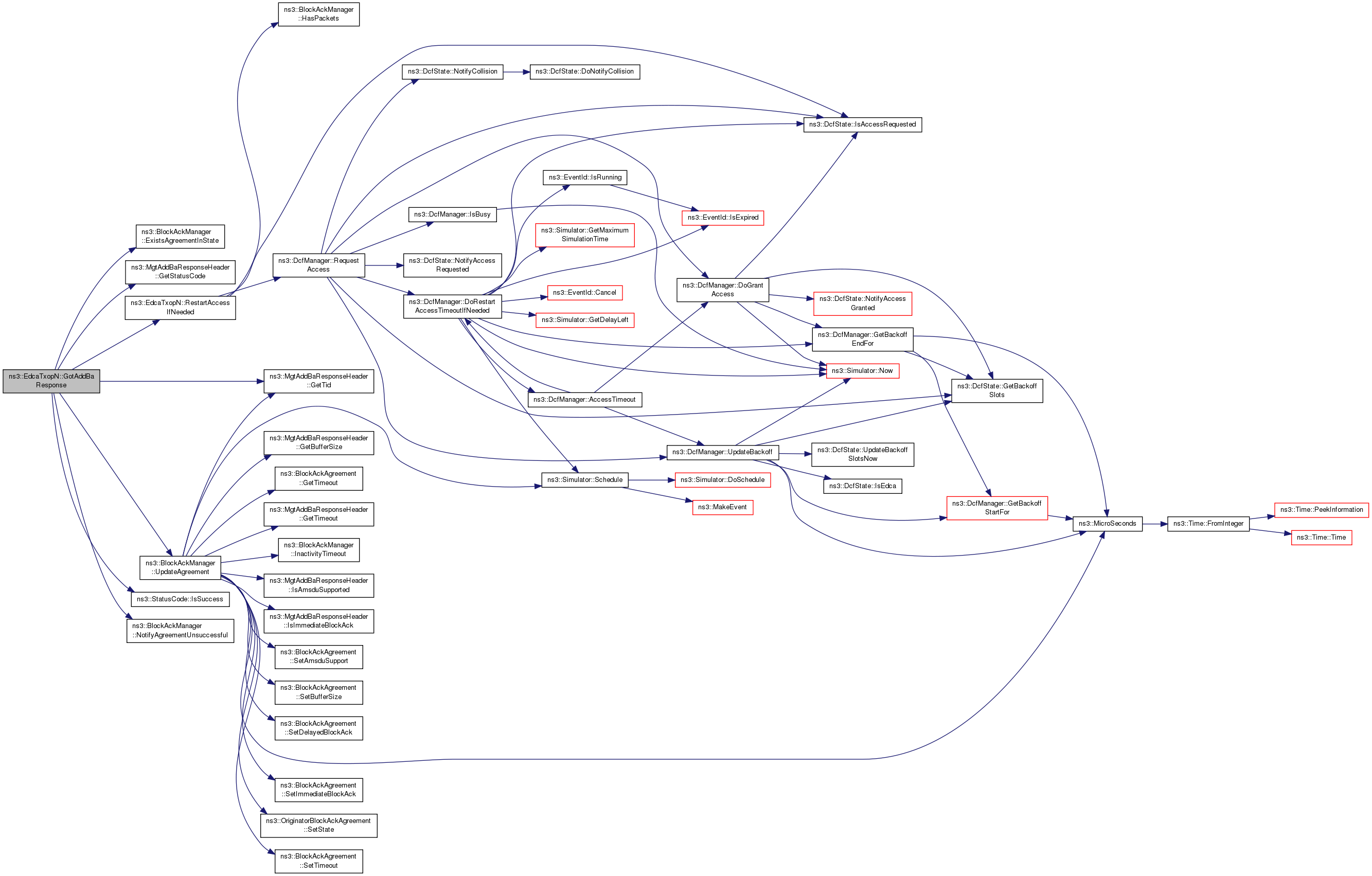

void ns3::EdcaTxopN::GotAddBaResponse	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient
	)

Definition at line 1214 of file edca-txop-n.cc.

References ns3::BlockAckManager::ExistsAgreementInState(), ns3::MgtAddBaResponseHeader::GetStatusCode(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::StatusCode::IsSuccess(), m_baManager, ns3::BlockAckManager::NotifyAgreementUnsuccessful(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, RestartAccessIfNeeded(), and ns3::BlockAckManager::UpdateAgreement().

Here is the call graph for this function:

void ns3::EdcaTxopN::GotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	recipient,
		double	rxSnr,
		WifiMode	txMode,
		double	dataSnr
	)

Event handler when a Block ACK is received.

Parameters

blockAck
recipient
rxSnr	SNR of the block ack itself
txMode
dataSnr	reported data SNR from the peer

Definition at line 1244 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::WifiMode::GetUniqueName(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_baManager, m_currentHdr, m_currentPacket, m_dcf, m_rng, m_txOkCallback, ns3::BlockAckManager::NotifyGotBlockAck(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotCts	(	double	snr,
		WifiMode	txMode
	)

Event handler when a CTS is received.

Parameters

snr
txMode

Definition at line 640 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::GotCts().

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotDelBaFrame	(	const MgtDelBaHeader *	delBaHdr,
		Mac48Address	recipient
	)

Definition at line 1236 of file edca-txop-n.cc.

References ns3::MgtDelBaHeader::GetTid(), m_baManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::BlockAckManager::TearDownBlockAck().

Here is the call graph for this function:

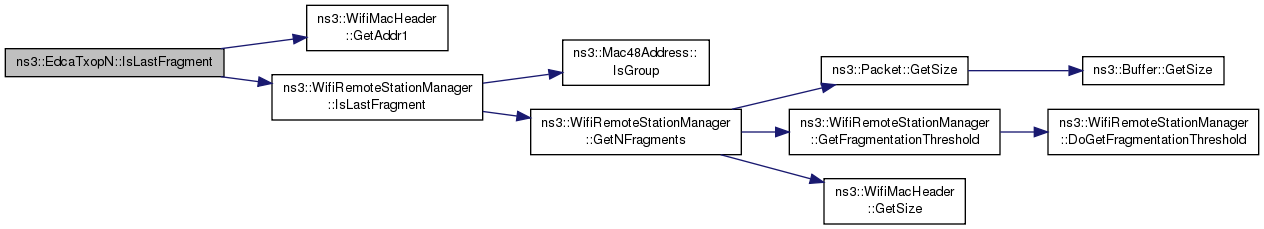

bool ns3::EdcaTxopN::IsLastFragment ( void ) const

Check if the current fragment is the last fragment.

Returns: true if the current fragment is the last fragment, false otherwise

Definition at line 1122 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

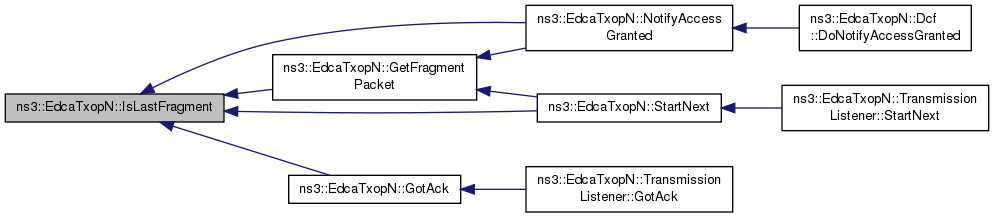

Here is the caller graph for this function:

Ptr< MacLow > ns3::EdcaTxopN::Low ( void )

Return the MacLow associated with this EdcaTxopN.

Returns: MacLow

Definition at line 426 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

Mac48Address ns3::EdcaTxopN::MapDestAddressForAggregation ( const WifiMacHeader & hdr )

private

Definition at line 1174 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::AP, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetDestAddressForAggregation(), and NotifyAccessGranted().

Here is the call graph for this function:

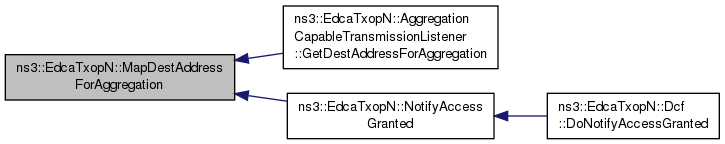

Here is the caller graph for this function:

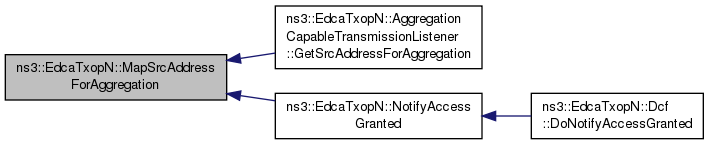

Mac48Address ns3::EdcaTxopN::MapSrcAddressForAggregation ( const WifiMacHeader & hdr )

private

This functions are used only to correctly set addresses in a-msdu subframe.

If aggregating sta is a STA (in an infrastructured network): SA = Address2 DA = Address3 If aggregating sta is an AP SA = Address3 DA = Address1

Parameters

hdr

Returns: Mac48Address

Definition at line 1158 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, NS_LOG_FUNCTION, and ns3::STA.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::GetSrcAddressForAggregation(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

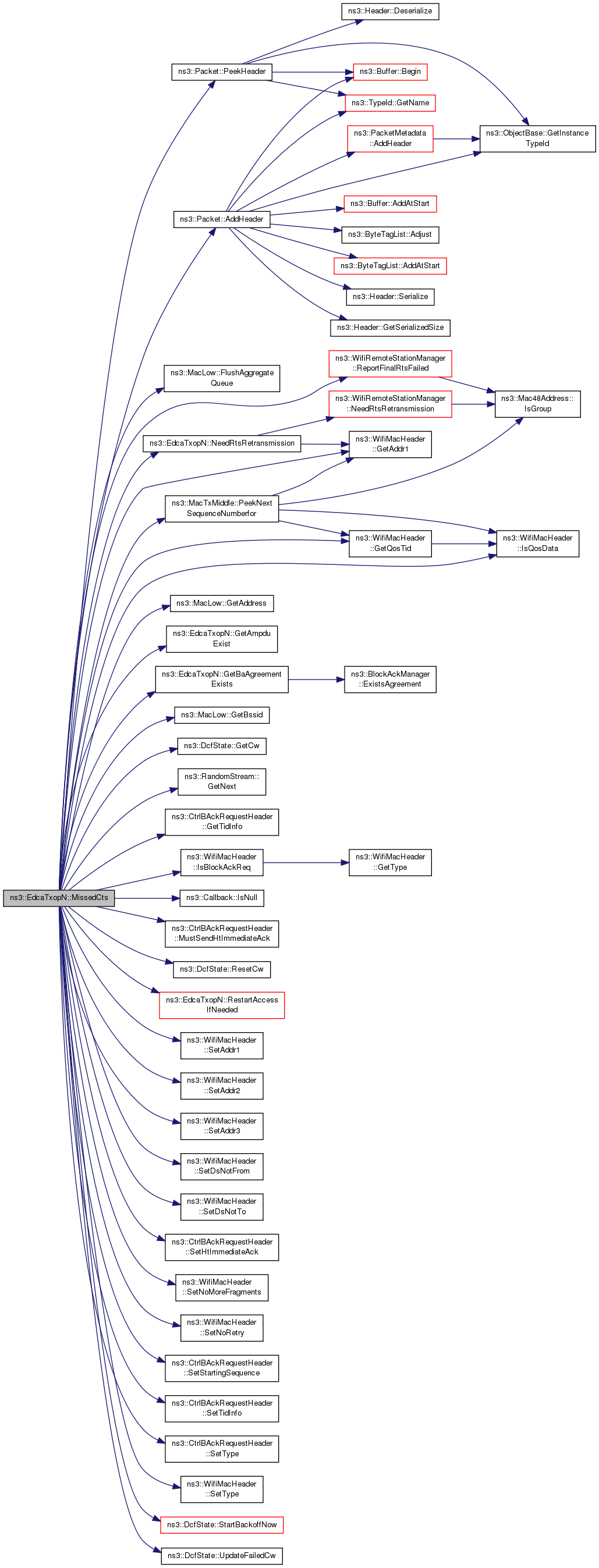

void ns3::EdcaTxopN::MissedAck ( void )

Event handler when an ACK is missed.

Definition at line 803 of file edca-txop-n.cc.

Referenced by AmpduAggregationTest::DoRun(), and ns3::EdcaTxopN::TransmissionListener::MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

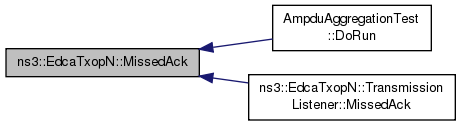

void ns3::EdcaTxopN::MissedBlockAck ( uint32_t nMpdus )

Event handler when a Block ACK timeout has occurred.

Definition at line 873 of file edca-txop-n.cc.

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedBlockAck().

Here is the call graph for this function:

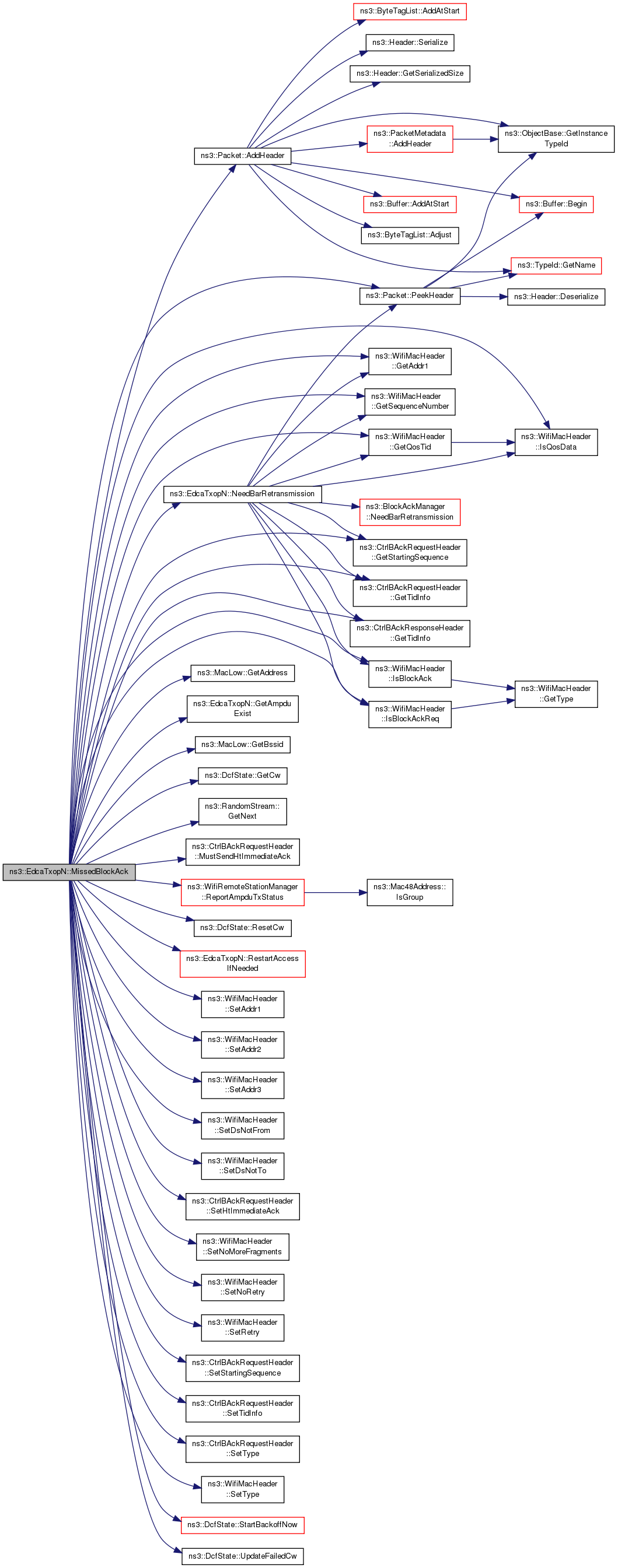

Here is the caller graph for this function:

void ns3::EdcaTxopN::MissedCts ( void )

Event handler when a CTS timeout has occurred.

Definition at line 647 of file edca-txop-n.cc.

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedBarRetransmission ( void )

Check if Block ACK Request should be re-transmitted.

Returns: true if BAR should be re-transmitted, false otherwise

Definition at line 1013 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::CtrlBAckRequestHeader::GetStartingSequence(), ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::CtrlBAckResponseHeader::GetTidInfo(), ns3::WifiMacHeader::IsBlockAck(), ns3::WifiMacHeader::IsBlockAckReq(), ns3::WifiMacHeader::IsQosData(), m_baManager, m_currentHdr, m_currentPacket, ns3::BlockAckManager::NeedBarRetransmission(), and ns3::Packet::PeekHeader().

Referenced by MissedBlockAck().

Here is the call graph for this function:

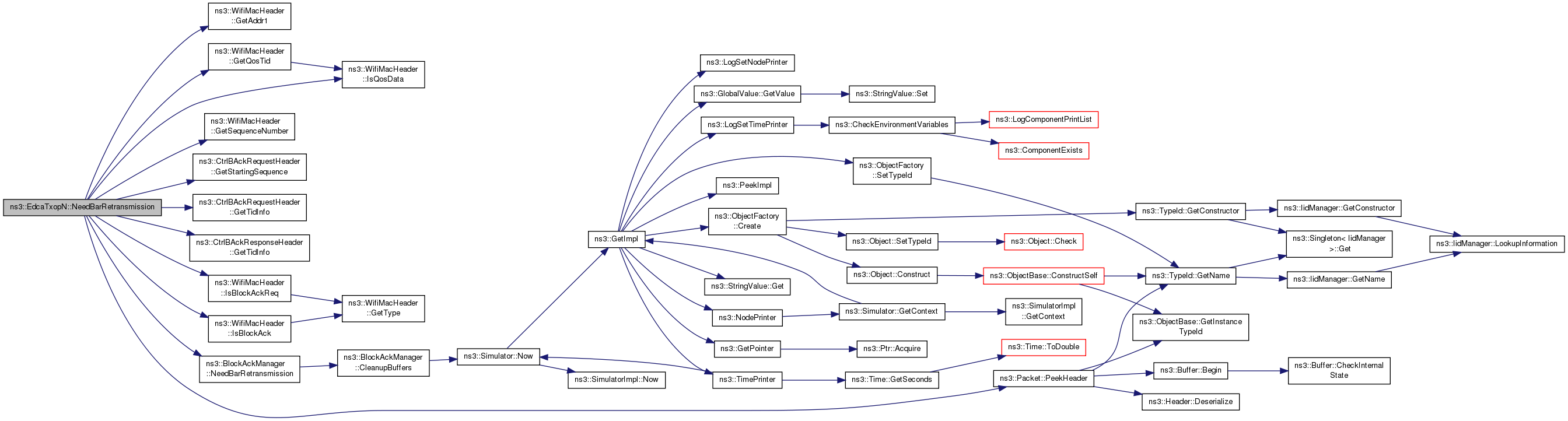

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedDataRetransmission ( void )

Check if DATA should be re-transmitted if ACK was missed.

Returns: true if DATA should be re-transmitted, false otherwise

Definition at line 1005 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedDataRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedAck().

Here is the call graph for this function:

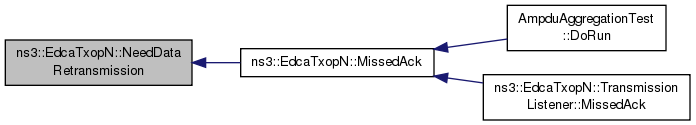

Here is the caller graph for this function:

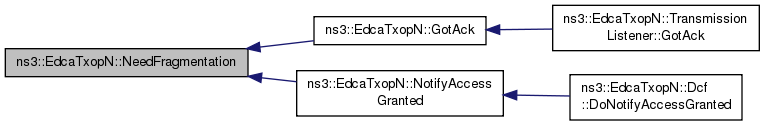

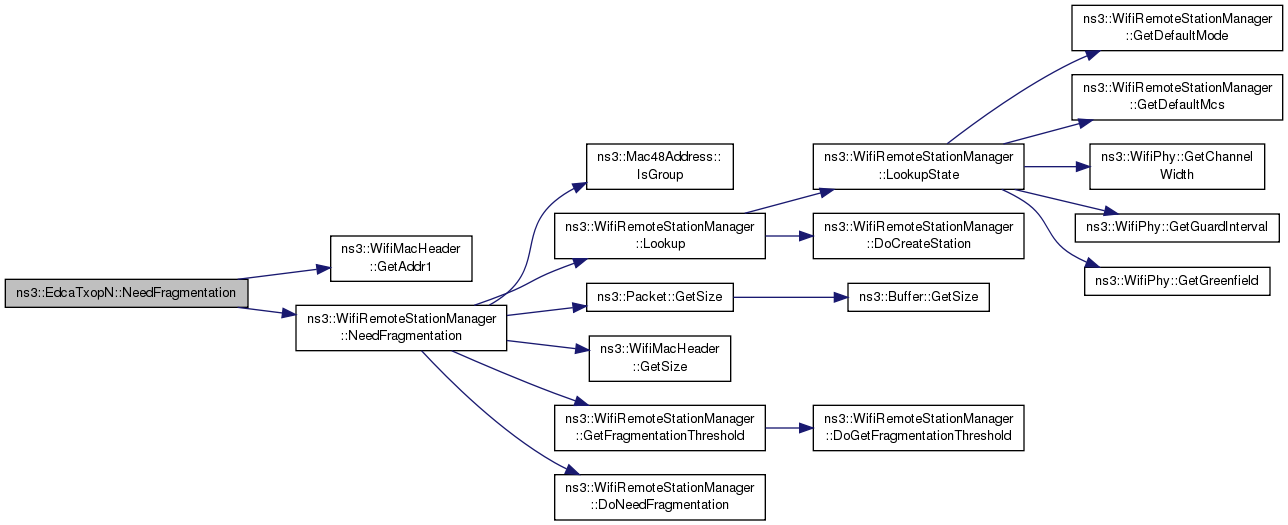

bool ns3::EdcaTxopN::NeedFragmentation ( void ) const

Check if the current packet should be fragmented.

Returns: true if the current packet should be fragmented, false otherwise

Definition at line 1089 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedFragmentation(), and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedRtsRetransmission ( void )

Check if RTS should be re-transmitted if CTS was missed.

Returns: true if RTS should be re-transmitted, false otherwise

Definition at line 997 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedRtsRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedCts().

Here is the call graph for this function:

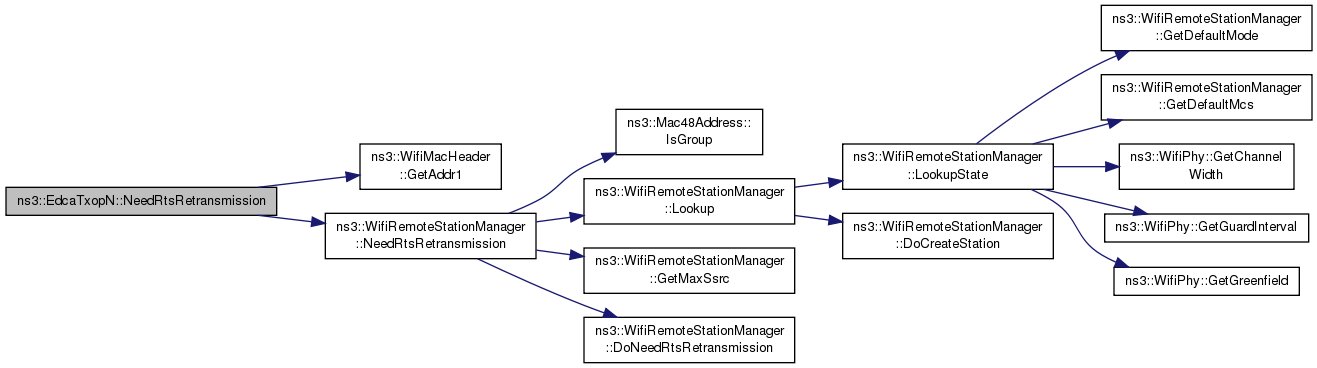

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedsAccess ( void ) const

Check if the EDCAF requires access.

Returns: true if the EDCAF requires access, false otherwise

Definition at line 440 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), m_baManager, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EdcaTxopN::NextFragment ( void )

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 1040 of file edca-txop-n.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyAccessGranted ( void )

Notify the EDCAF that access has been granted.

Definition at line 469 of file edca-txop-n.cc.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

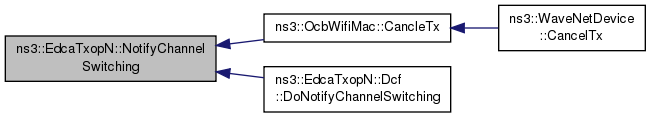

void ns3::EdcaTxopN::NotifyChannelSwitching ( void )

When a channel switching occurs, enqueued packets are removed.

Definition at line 721 of file edca-txop-n.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::CancleTx(), and ns3::EdcaTxopN::Dcf::DoNotifyChannelSwitching().

Here is the caller graph for this function:

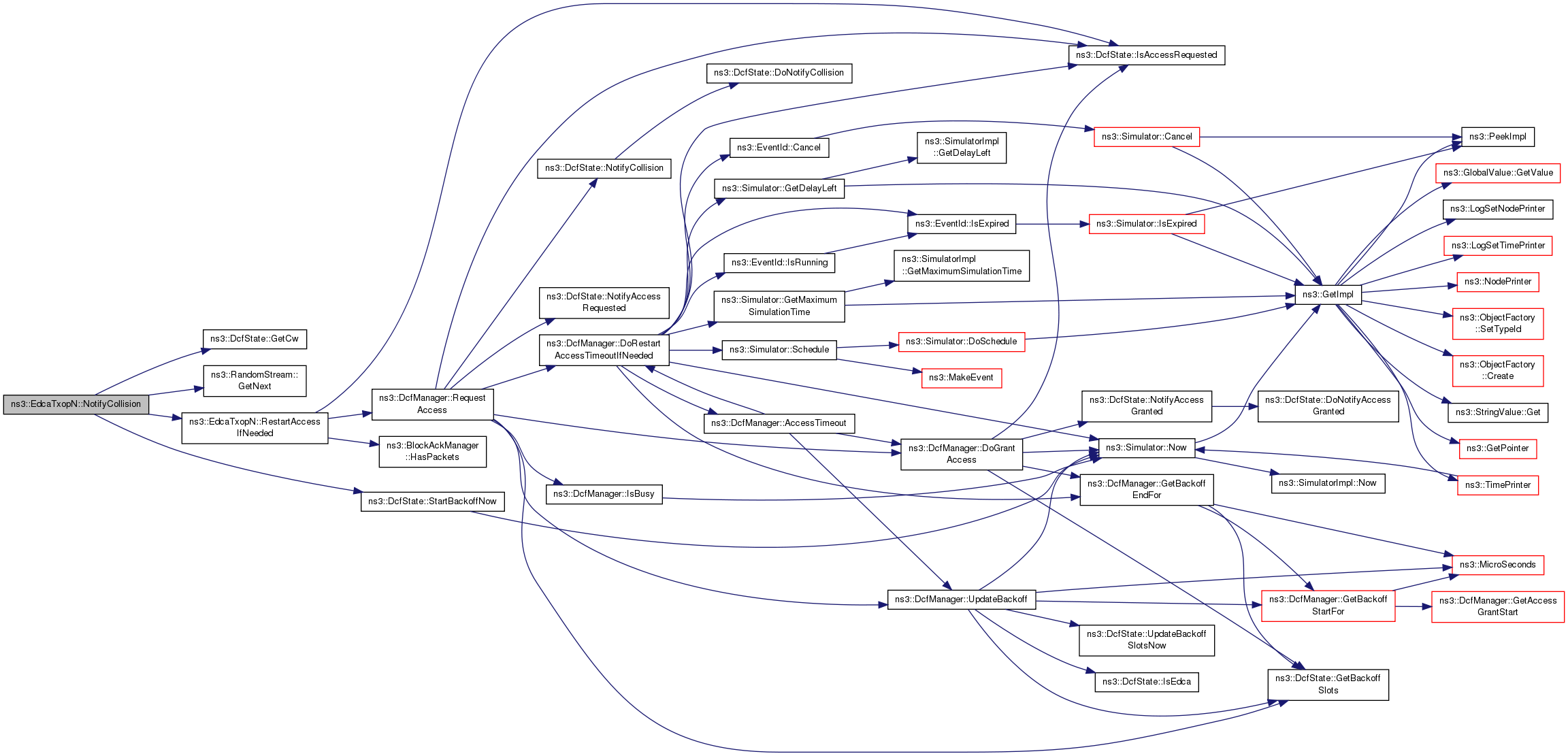

void ns3::EdcaTxopN::NotifyCollision ( void )

Notify the EDCAF that collision has occurred.

Definition at line 632 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

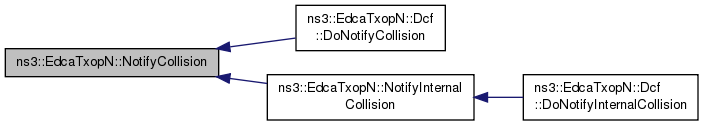

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyInternalCollision ( void )

Notify the EDCAF that internal collision has occurred.

Definition at line 625 of file edca-txop-n.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifySleep ( void )

When sleep operation occurs, re-insert pending packet into front of the queue.

Definition at line 729 of file edca-txop-n.cc.

References m_currentHdr, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifySleep().

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyWakeUp ( void )

When wake up operation occurs, restart channel access.

Definition at line 740 of file edca-txop-n.cc.

References NS_LOG_FUNCTION, and RestartAccessIfNeeded().

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyWakeUp().

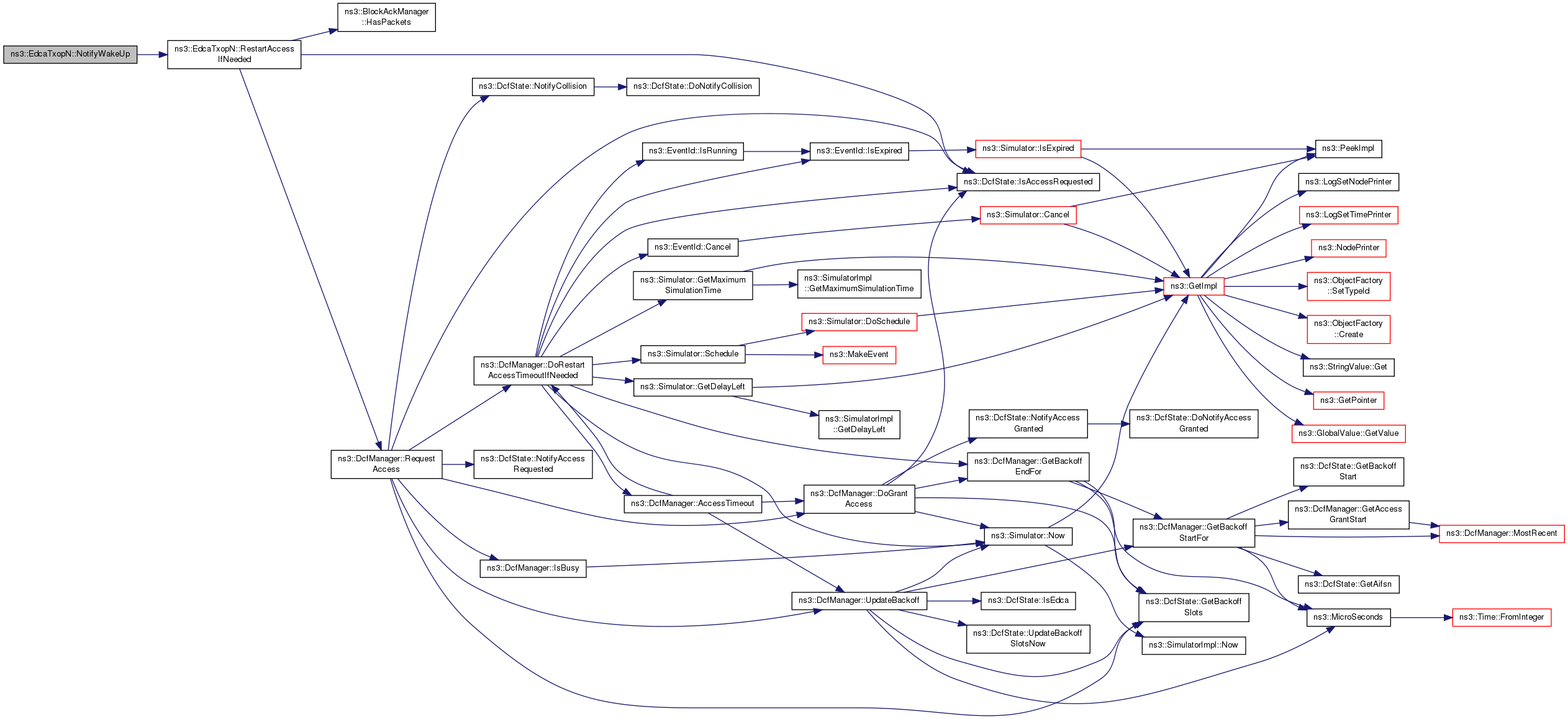

Here is the call graph for this function:

Here is the caller graph for this function:

EdcaTxopN& ns3::EdcaTxopN::operator= ( const EdcaTxopN & )

private

Ptr< const Packet > ns3::EdcaTxopN::PeekNextRetransmitPacket	(	WifiMacHeader &	header,
		Mac48Address	recipient,
		uint8_t	tid,
		Time *	timestamp
	)

Definition at line 457 of file edca-txop-n.cc.

References m_baManager, and ns3::BlockAckManager::PeekNextPacket().

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::PeekNextPacketInBaQueue().

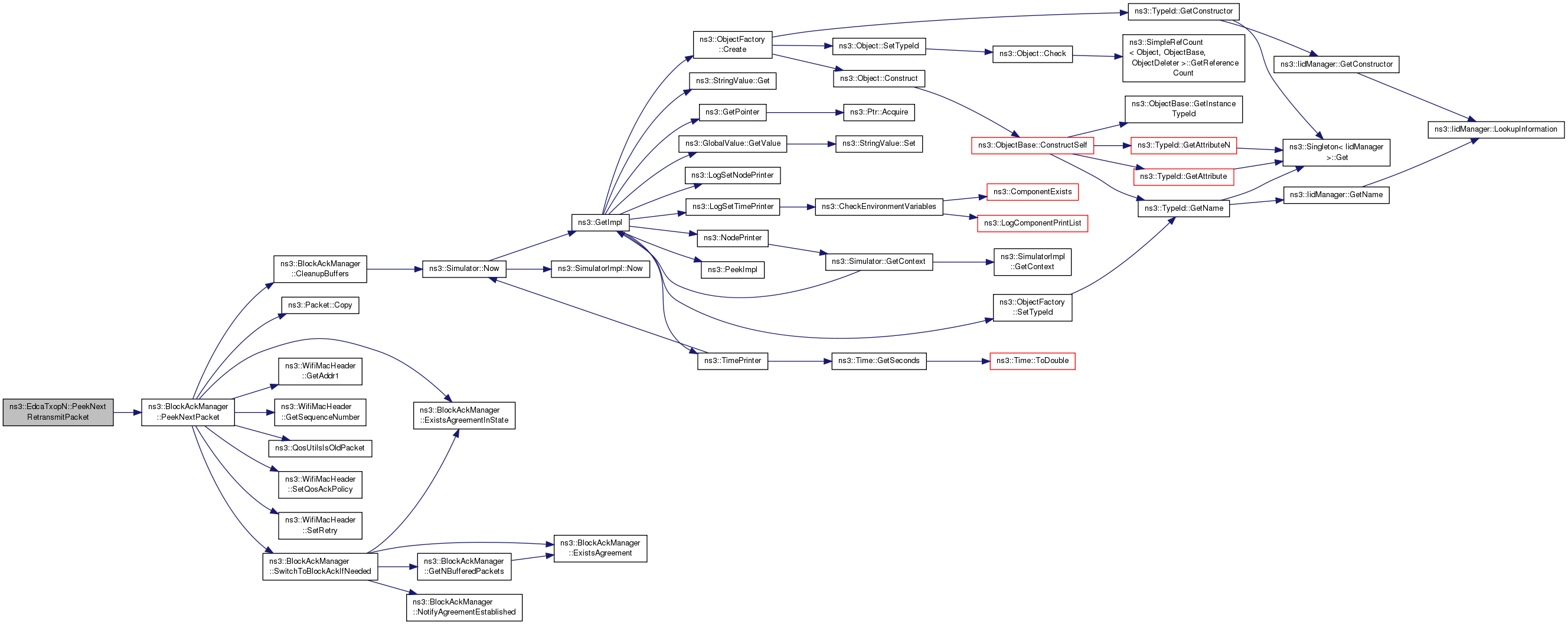

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::EdcaTxopN::PeekNextSequenceNumberfor ( WifiMacHeader * hdr )

Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e.

the current sequence number remains unchanged).

Parameters

hdr	Wi-Fi header

Returns: the next sequence number

Definition at line 451 of file edca-txop-n.cc.

References m_txMiddle, and ns3::MacTxMiddle::PeekNextSequenceNumberfor().

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::PeekNextSequenceNumberfor().

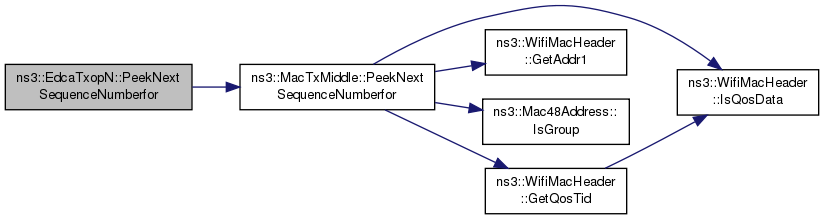

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the front of the internal queue until it can be sent safely.

Definition at line 1204 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), and StartAccessIfNeeded().

Referenced by SendDelbaFrame().

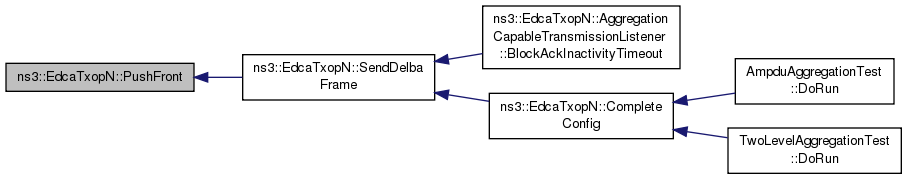

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 747 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), and StartAccessIfNeeded().

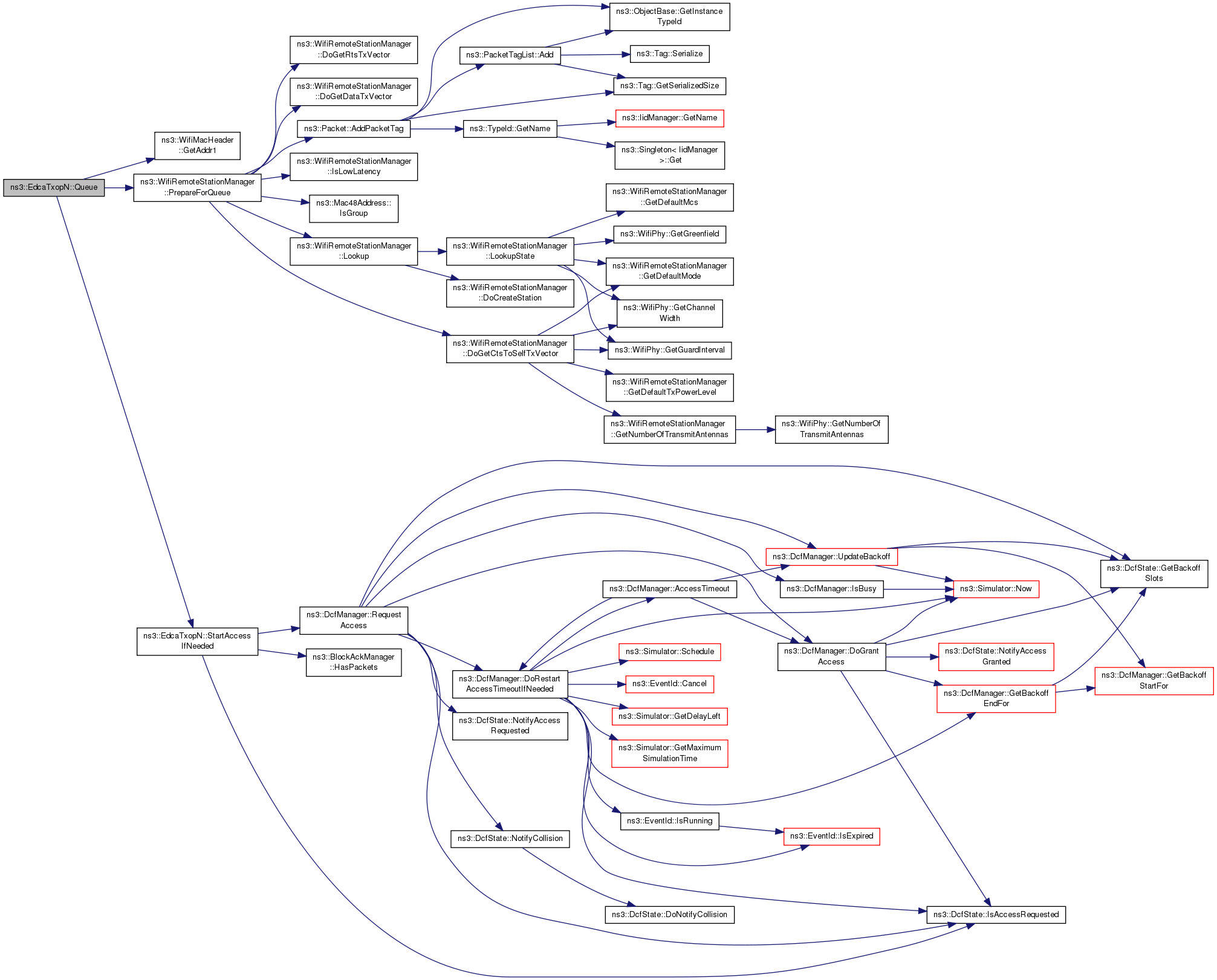

Here is the call graph for this function:

void ns3::EdcaTxopN::RemoveRetransmitPacket	(	uint8_t	tid,
		Mac48Address	recipient,
		uint16_t	seqnumber
	)

Remove a packet after you peek in the retransmit queue and get it.

Definition at line 463 of file edca-txop-n.cc.

References m_baManager, and ns3::BlockAckManager::RemovePacket().

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::RemoveFromBaQueue().

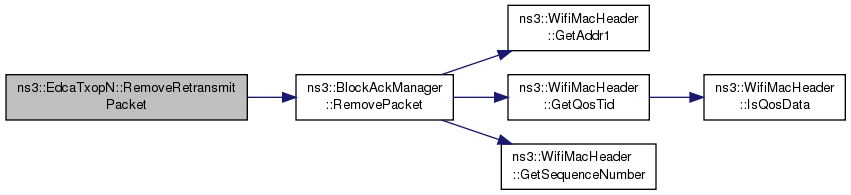

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::RestartAccessIfNeeded ( void )

Restart access request if needed.

Definition at line 973 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), GotAddBaResponse(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyCollision(), and NotifyWakeUp().

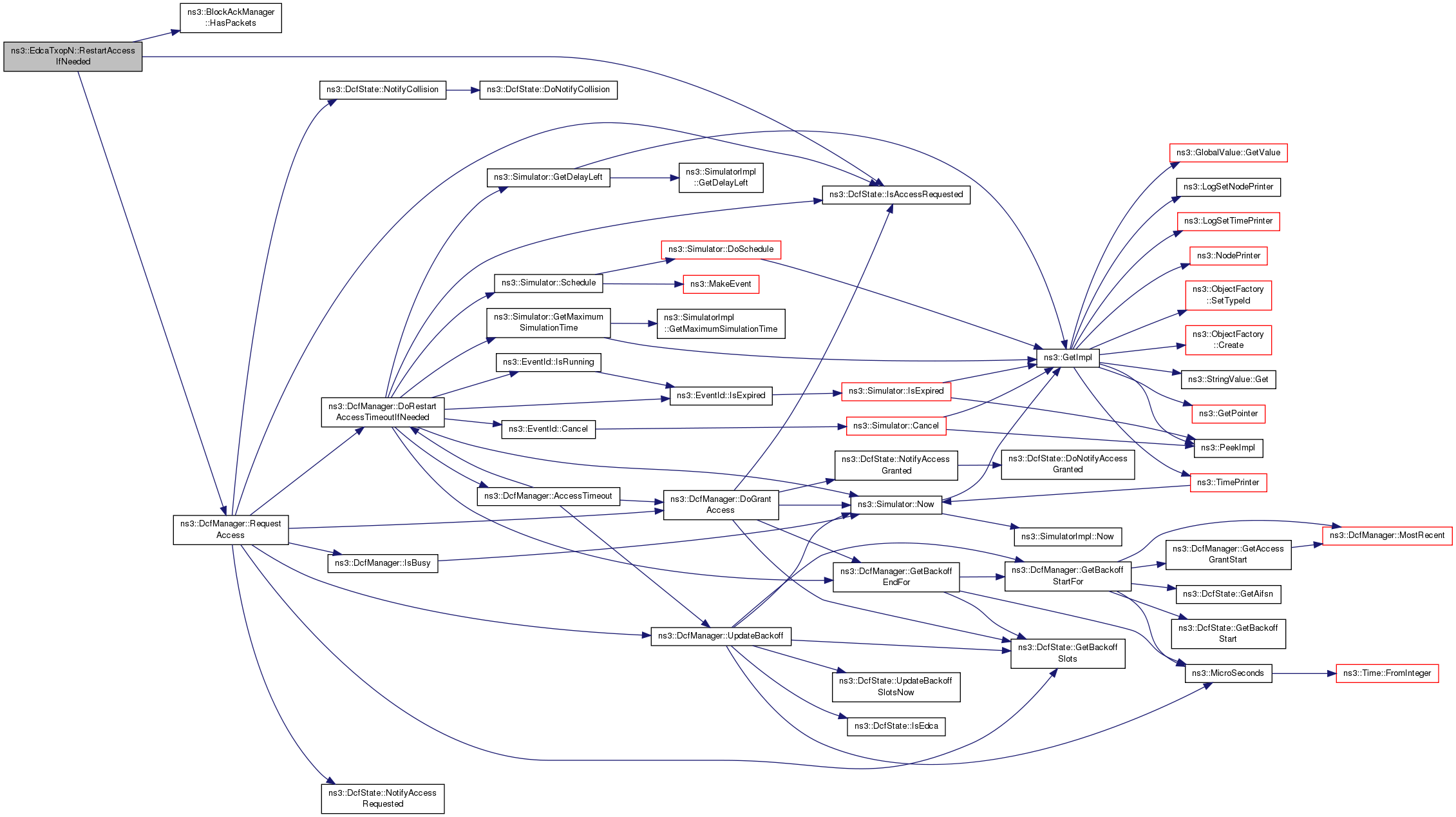

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SendAddBaRequest	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startSeq,
		uint16_t	timeout,
		bool	immediateBAck
	)

private

Sends an ADDBA Request to establish a block ack agreement with sta addressed by recipient for tid tid.

Parameters

recipient
tid
startSeq
timeout
immediateBAck

Definition at line 1420 of file edca-txop-n.cc.

Referenced by SetupBlockAckIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SendBlockAckRequest ( const struct Bar & bar )

private

After that all packets, for which a block ack agreement was established, have been transmitted, we have to send a block ack request.

Parameters

bar

Definition at line 1345 of file edca-txop-n.cc.

References ns3::Bar::bar, ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableBasicBlockAck(), ns3::MacLowTransmissionParameters::EnableCompressedBlockAck(), ns3::MacLow::GetAddress(), ns3::MacLow::GetBssid(), ns3::Bar::immediate, m_blockAckType, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Bar::recipient, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), ns3::MacLow::StartTransmission(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by NotifyAccessGranted().

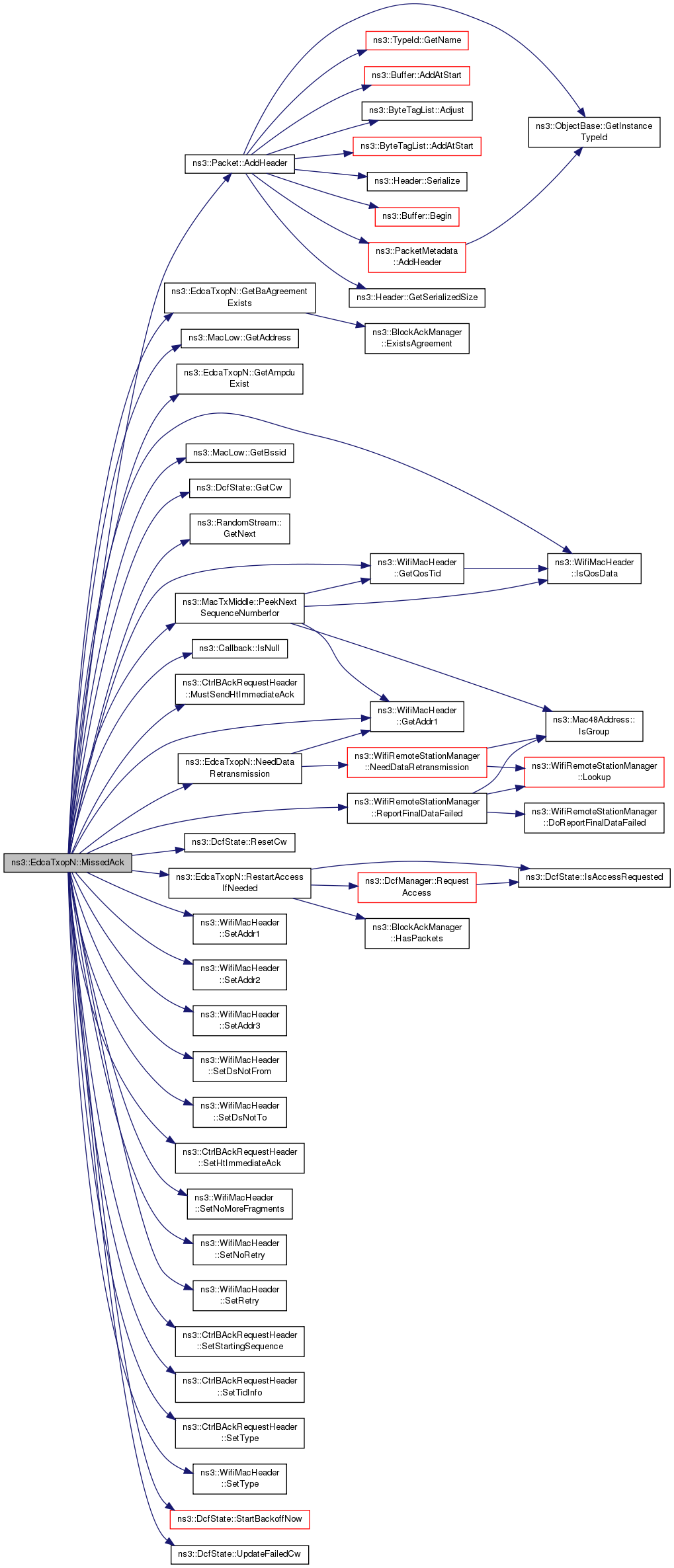

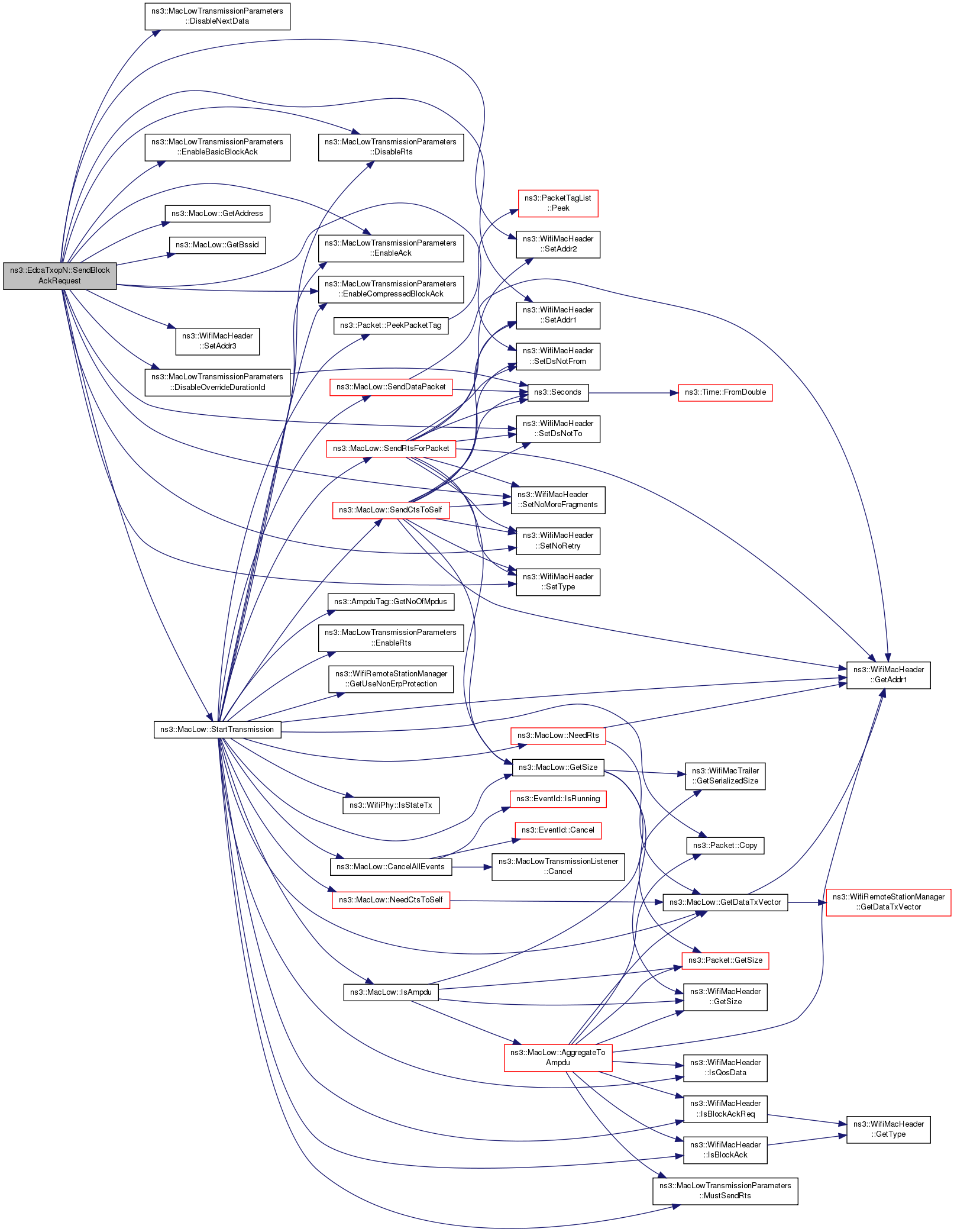

Here is the call graph for this function:

Here is the caller graph for this function:

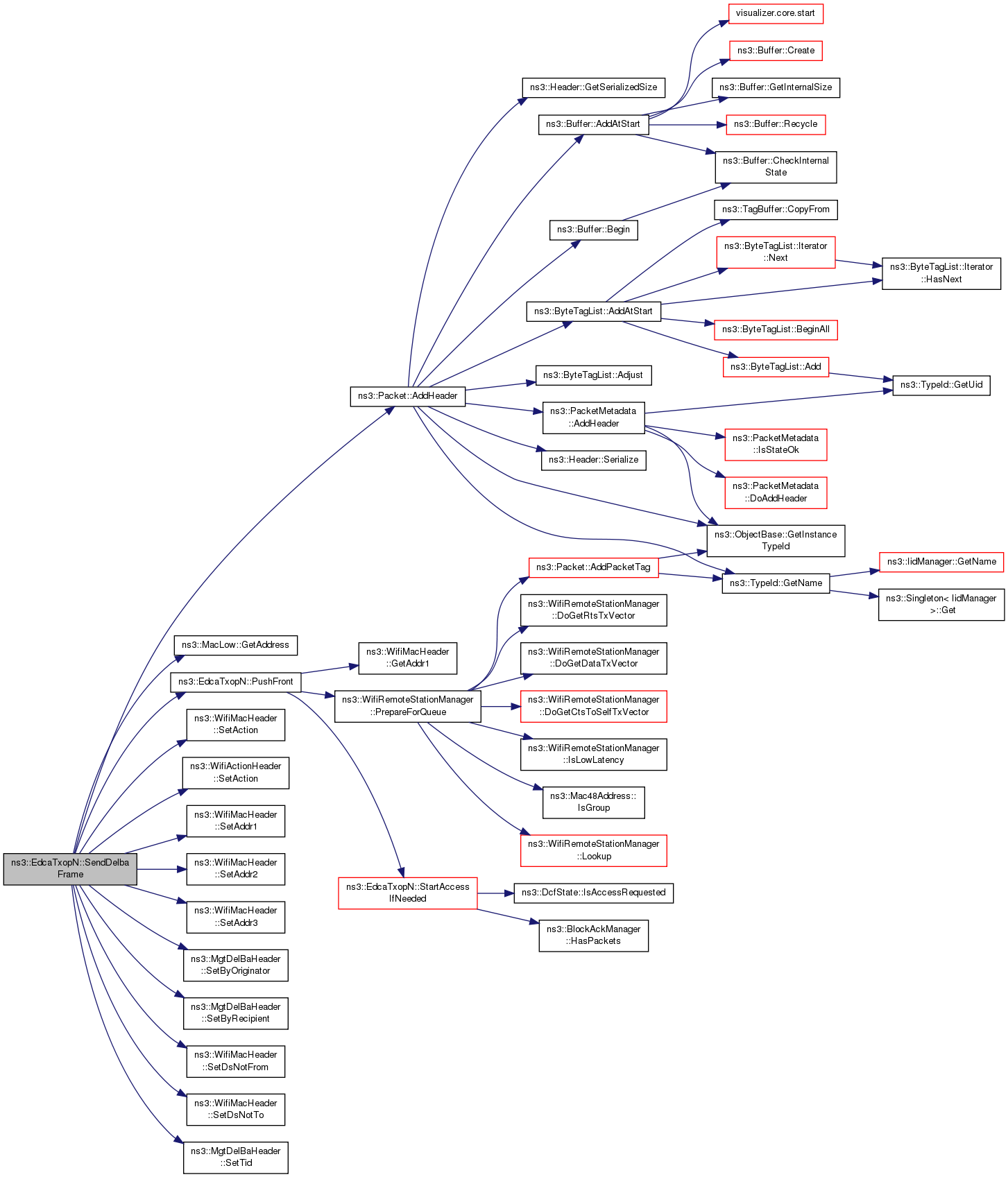

void ns3::EdcaTxopN::SendDelbaFrame	(	Mac48Address	addr,
		uint8_t	tid,
		bool	byOriginator
	)

Definition at line 1484 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::MacLow::GetAddress(), m_low, NS_LOG_FUNCTION, PushFront(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtDelBaHeader::SetByOriginator(), ns3::MgtDelBaHeader::SetByRecipient(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtDelBaHeader::SetTid().

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::BlockAckInactivityTimeout(), and CompleteConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetAccessCategory ( enum AcIndex ac )

Set the access category of this EDCAF.

Parameters

ac

Definition at line 1151 of file edca-txop-n.cc.

References m_ac, and NS_LOG_FUNCTION.

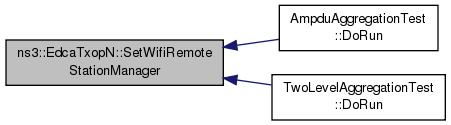

Referenced by AmpduAggregationTest::DoRun(), and TwoLevelAggregationTest::DoRun().

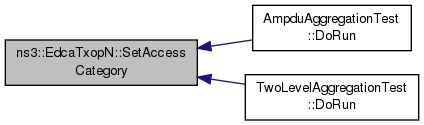

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetAifsn ( uint32_t aifsn )

virtual

Parameters

aifsn the number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Implements ns3::Dcf.

Definition at line 391 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetAmpduExist	(	Mac48Address	dest,
		bool	enableAmpdu
	)

Definition at line 1286 of file edca-txop-n.cc.

References m_aMpduEnabled, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::AggregationCapableTransmissionListener::SetAmpdu().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetBlockAckInactivityTimeout ( uint16_t timeout )

Definition at line 1406 of file edca-txop-n.cc.

References m_blockAckInactivityTimeout, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::RegularWifiMac::SetBeBlockAckInactivityTimeout(), ns3::RegularWifiMac::SetBkBlockAckInactivityTimeout(), ns3::QosWifiMacHelper::Setup(), ns3::RegularWifiMac::SetViBlockAckInactivityTimeout(), and ns3::RegularWifiMac::SetVoBlockAckInactivityTimeout().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetBlockAckThreshold ( uint8_t threshold )

Set threshold for block ACK mechanism.

If number of packets in the queue reaches the threshold, block ACK mechanism is used.

Parameters

threshold

Definition at line 1398 of file edca-txop-n.cc.

References m_baManager, m_blockAckThreshold, NS_LOG_FUNCTION, and ns3::BlockAckManager::SetBlockAckThreshold().

Referenced by ns3::RegularWifiMac::SetBeBlockAckThreshold(), ns3::RegularWifiMac::SetBkBlockAckThreshold(), ns3::QosWifiMacHelper::Setup(), ns3::RegularWifiMac::SetViBlockAckThreshold(), and ns3::RegularWifiMac::SetVoBlockAckThreshold().

Here is the call graph for this function:

Here is the caller graph for this function:

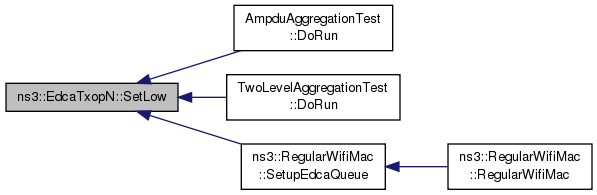

void ns3::EdcaTxopN::SetLow ( Ptr< MacLow > low )

Set MacLow associated with this EdcaTxopN.

Parameters

low MacLow

Definition at line 433 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and ns3::RegularWifiMac::SetupEdcaQueue().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetManager ( DcfManager * manager )

Set DcfManager this EdcaTxopN is associated to.

Parameters

manager DcfManager

Definition at line 326 of file edca-txop-n.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetMaxCw ( uint32_t maxCw )

virtual

Set the maximum contention window size.

Parameters

maxCw the maximum contention window size

Implements ns3::Dcf.

Definition at line 384 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMinCw ( uint32_t minCw )

virtual

Set the minimum contention window size.

Parameters

minCw the minimum contention window size

Implements ns3::Dcf.

Definition at line 377 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Here is the call graph for this function:

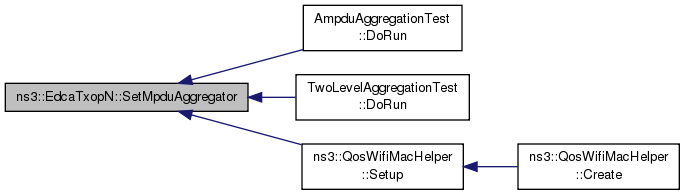

void ns3::EdcaTxopN::SetMpduAggregator ( Ptr< MpduAggregator > aggr )

Definition at line 1197 of file edca-txop-n.cc.

References m_mpduAggregator, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

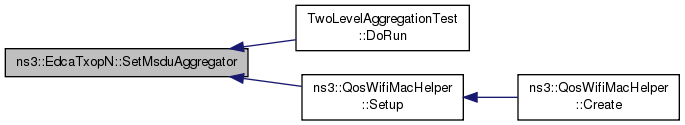

void ns3::EdcaTxopN::SetMsduAggregator ( Ptr< MsduAggregator > aggr )

Definition at line 1190 of file edca-txop-n.cc.

References m_msduAggregator, and NS_LOG_FUNCTION.

Referenced by TwoLevelAggregationTest::DoRun(), and ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 341 of file edca-txop-n.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxMiddle ( MacTxMiddle * txMiddle )

Definition at line 419 of file edca-txop-n.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 334 of file edca-txop-n.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTypeOfStation ( enum TypeOfStation type )

Set type of station with the given type.

Parameters

type

Definition at line 356 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

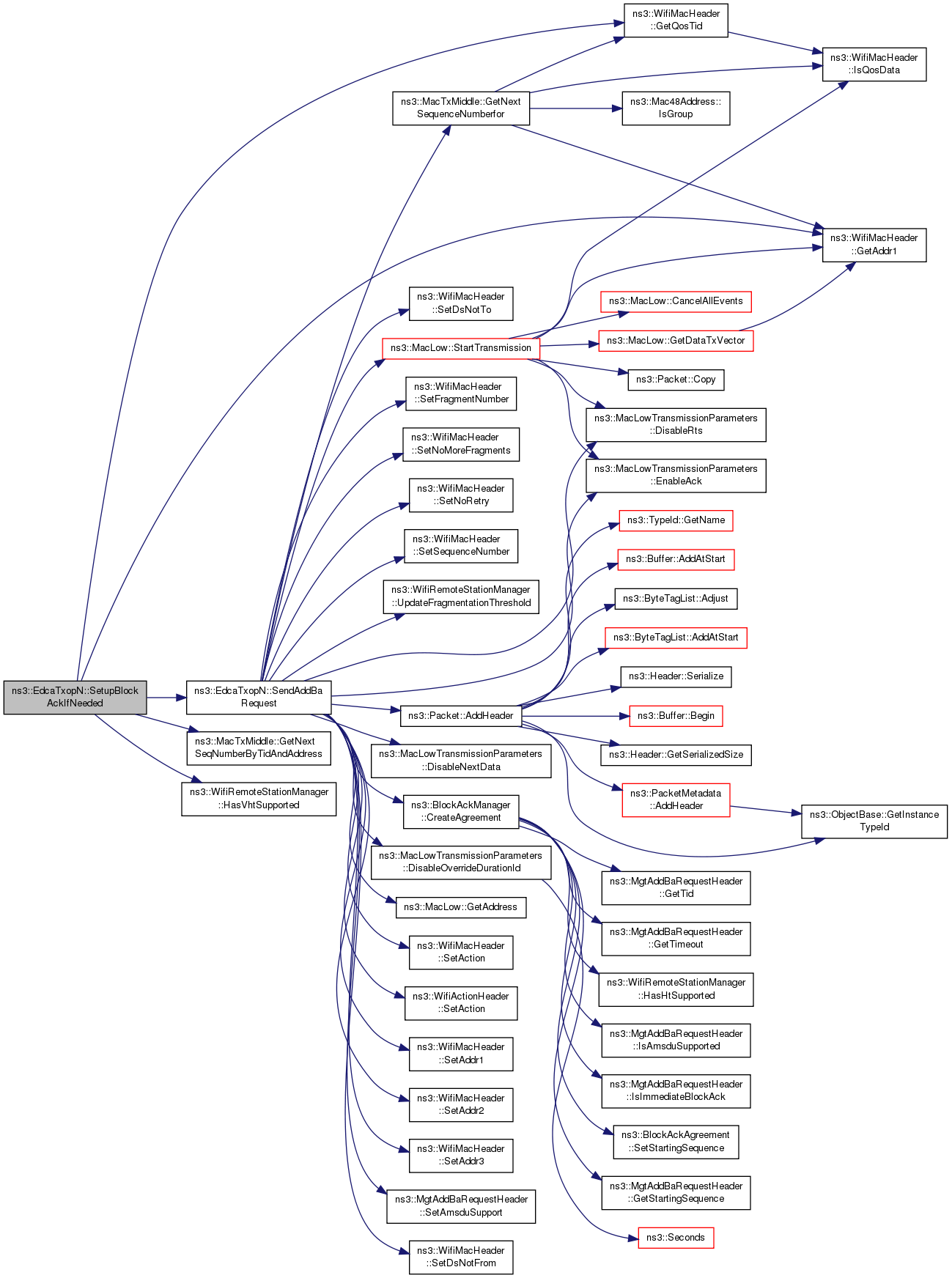

bool ns3::EdcaTxopN::SetupBlockAckIfNeeded ( )

private

If number of packets in the queue reaches m_blockAckThreshold value, an ADDBA Request frame is sent to destination in order to setup a block ack.

Returns: true if we tried to set up block ACK, false otherwise

Definition at line 1326 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiRemoteStationManager::HasVhtSupported(), m_blockAckInactivityTimeout, m_blockAckThreshold, m_currentHdr, m_mpduAggregator, m_queue, m_stationManager, m_txMiddle, NS_LOG_FUNCTION, and SendAddBaRequest().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > remoteManager )

Set WifiRemoteStationsManager this EdcaTxopN is associated to.

Parameters

remoteManager WifiRemoteStationManager

Definition at line 348 of file edca-txop-n.cc.

References m_baManager, m_stationManager, NS_LOG_FUNCTION, and ns3::BlockAckManager::SetWifiRemoteStationManager().

Referenced by AmpduAggregationTest::DoRun(), and TwoLevelAggregationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

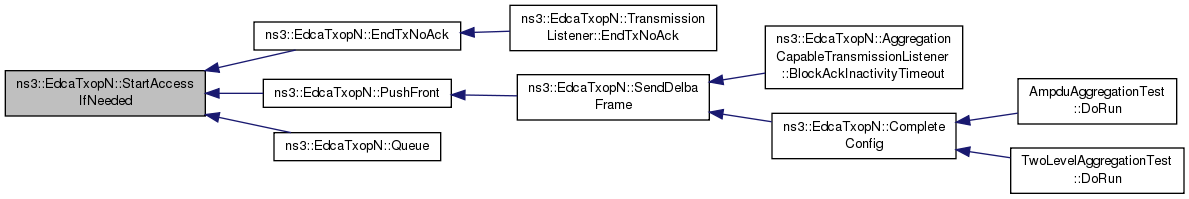

void ns3::EdcaTxopN::StartAccessIfNeeded ( void )

Request access from DCF manager if needed.

Definition at line 985 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), PushFront(), and Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::StartNext ( void )

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 1047 of file edca-txop-n.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MacLow::StartTransmission().

Referenced by ns3::EdcaTxopN::TransmissionListener::StartNext().

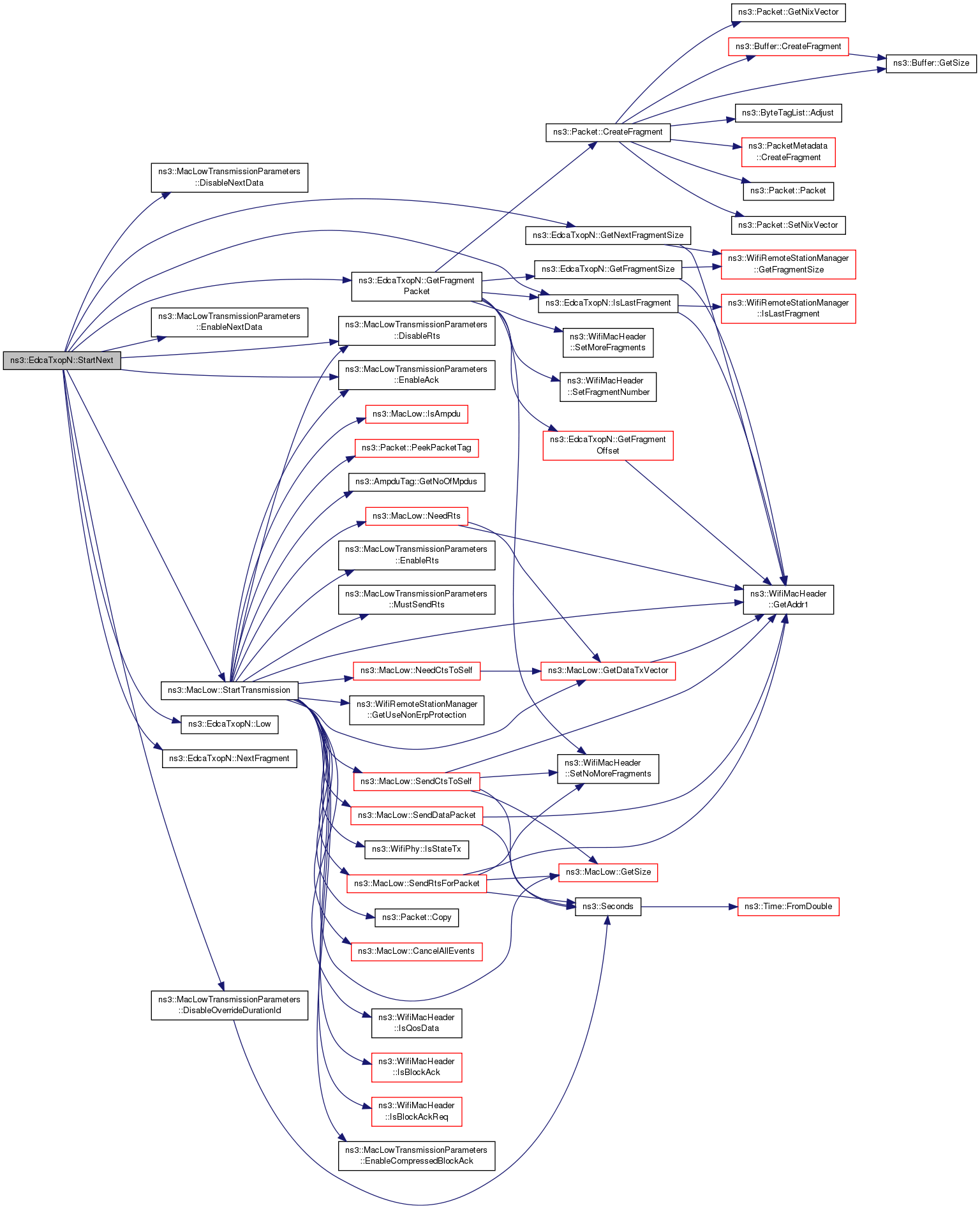

Here is the call graph for this function:

Here is the caller graph for this function:

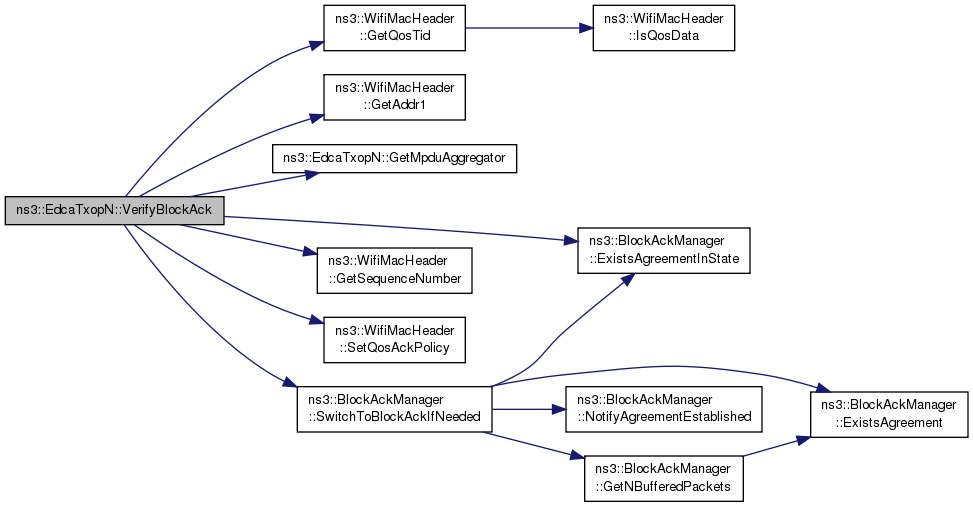

void ns3::EdcaTxopN::VerifyBlockAck ( void )

private

Verifies if dequeued packet has to be transmitted with ack policy Block Ack.

This happens if an established block ack agreement exists with the receiver.

Definition at line 1260 of file edca-txop-n.cc.

References ns3::WifiMacHeader::BLOCK_ACK, ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::BlockAckManager::ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), GetMpduAggregator(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::OriginatorBlockAckAgreement::INACTIVE, m_baManager, m_currentHdr, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetQosAckPolicy(), and ns3::BlockAckManager::SwitchToBlockAckIfNeeded().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ::AmpduAggregationTest

friend

Definition at line 89 of file edca-txop-n.h.

friend class Dcf

friend

Definition at line 530 of file edca-txop-n.h.

Referenced by EdcaTxopN().

friend class TransmissionListener

friend

Definition at line 532 of file edca-txop-n.h.

Referenced by EdcaTxopN().

Member Data Documentation

AcIndex ns3::EdcaTxopN::m_ac

private

Definition at line 527 of file edca-txop-n.h.

Referenced by CompleteConfig(), and SetAccessCategory().

std::map<Mac48Address, bool> ns3::EdcaTxopN::m_aMpduEnabled

Definition at line 102 of file edca-txop-n.h.

Referenced by GetAmpduExist(), and SetAmpduExist().

BlockAckManager* ns3::EdcaTxopN::m_baManager

private

uint16_t ns3::EdcaTxopN::m_blockAckInactivityTimeout

private

Definition at line 563 of file edca-txop-n.h.

Referenced by SetBlockAckInactivityTimeout(), and SetupBlockAckIfNeeded().

AggregationCapableTransmissionListener* ns3::EdcaTxopN::m_blockAckListener

private

Definition at line 541 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), and EdcaTxopN().

uint8_t ns3::EdcaTxopN::m_blockAckThreshold

private

Definition at line 560 of file edca-txop-n.h.

Referenced by GetBlockAckThreshold(), NotifyAccessGranted(), SetBlockAckThreshold(), and SetupBlockAckIfNeeded().

enum BlockAckType ns3::EdcaTxopN::m_blockAckType

private

Definition at line 561 of file edca-txop-n.h.

Referenced by EdcaTxopN(), NotifyAccessGranted(), and SendBlockAckRequest().

struct Bar ns3::EdcaTxopN::m_currentBar

private

Definition at line 564 of file edca-txop-n.h.

Referenced by MissedAck(), MissedBlockAck(), MissedCts(), and NotifyAccessGranted().

WifiMacHeader ns3::EdcaTxopN::m_currentHdr

private

Ptr<const Packet> ns3::EdcaTxopN::m_currentPacket

private

Time ns3::EdcaTxopN::m_currentPacketTimestamp

private

Definition at line 562 of file edca-txop-n.h.

Referenced by CompleteTx(), and NotifyAccessGranted().

Dcf* ns3::EdcaTxopN::m_dcf

private

Definition at line 533 of file edca-txop-n.h.

Referenced by DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::EdcaTxopN::m_fragmentNumber

private

Definition at line 544 of file edca-txop-n.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::EdcaTxopN::m_low

private

Definition at line 538 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), GotAck(), Low(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SendDelbaFrame(), and SetLow().

DcfManager* ns3::EdcaTxopN::m_manager

private

Definition at line 534 of file edca-txop-n.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

Ptr<MpduAggregator> ns3::EdcaTxopN::m_mpduAggregator

private

Definition at line 553 of file edca-txop-n.h.

Referenced by DoDispose(), GetMpduAggregator(), SetMpduAggregator(), and SetupBlockAckIfNeeded().

Ptr<MsduAggregator> ns3::EdcaTxopN::m_msduAggregator

private

Definition at line 552 of file edca-txop-n.h.

Referenced by DoDispose(), GetMsduAggregator(), NotifyAccessGranted(), and SetMsduAggregator().

QosBlockedDestinations* ns3::EdcaTxopN::m_qosBlockedDestinations

private

Definition at line 555 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), and NotifyAccessGranted().

Ptr<WifiMacQueue> ns3::EdcaTxopN::m_queue

private

Definition at line 535 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), GetEdcaQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), NotifySleep(), PushFront(), Queue(), RestartAccessIfNeeded(), SetupBlockAckIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::EdcaTxopN::m_rng

private

Definition at line 542 of file edca-txop-n.h.

Referenced by AssignStreams(), DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::EdcaTxopN::m_stationManager

private

Definition at line 543 of file edca-txop-n.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedBlockAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NotifyAccessGranted(), PushFront(), Queue(), SendAddBaRequest(), SetupBlockAckIfNeeded(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::EdcaTxopN::m_transmissionListener

private

Definition at line 540 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), and StartNext().

TxFailed ns3::EdcaTxopN::m_txFailedCallback

private

Definition at line 537 of file edca-txop-n.h.

Referenced by BaTxFailed(), MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::EdcaTxopN::m_txMiddle

private

Definition at line 539 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteMpduTx(), CompleteTx(), DoDispose(), GetNextSequenceNumberfor(), MissedAck(), MissedCts(), NotifyAccessGranted(), PeekNextSequenceNumberfor(), SendAddBaRequest(), SetTxMiddle(), and SetupBlockAckIfNeeded().

TxOk ns3::EdcaTxopN::m_txOkCallback

private

Definition at line 536 of file edca-txop-n.h.

Referenced by BaTxOk(), GotAck(), GotBlockAck(), and SetTxOkCallback().

TypeOfStation ns3::EdcaTxopN::m_typeOfStation

private

Definition at line 554 of file edca-txop-n.h.

Referenced by GetTypeOfStation(), MapDestAddressForAggregation(), MapSrcAddressForAggregation(), and SetTypeOfStation().

The documentation for this class was generated from the following files:

src/wifi/model/edca-txop-n.h
src/wifi/model/edca-txop-n.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Dcf

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
