Inheritance diagram for ns3::EdcaTxopN::TransmissionListener:

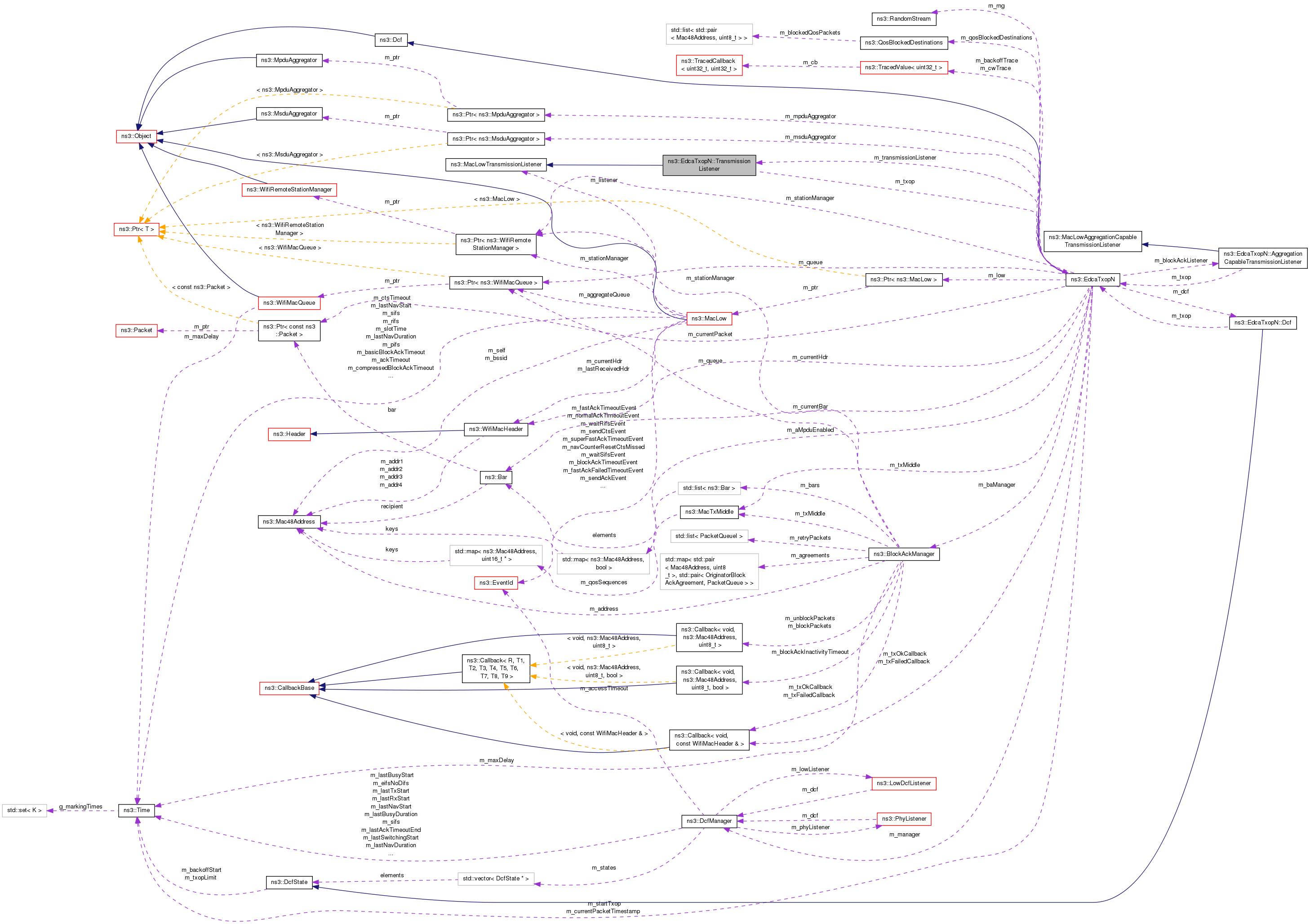

Collaboration diagram for ns3::EdcaTxopN::TransmissionListener:

Public Member Functions
	TransmissionListener (EdcaTxopN *txop)

virtual	~TransmissionListener ()

virtual void	Cancel (void)
	Invoked if this transmission was canceled one way or another. More...

virtual void	EndTxNoAck (void)
	Invoked upon the end of the transmission of a frame that does not require an ACK (e.g., broadcast and multicast frames). More...

virtual Ptr< WifiMacQueue >	GetQueue (void)

virtual void	GotAck (double snr, WifiMode txMode)

virtual void	GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address source, double rxSnr, WifiMode txMode, double dataSnr)

virtual void	GotCts (double snr, WifiMode txMode)

virtual void	MissedAck (void)
	ns3::MacLow did not receive an expected ACK within AckTimeout. More...

virtual void	MissedBlockAck (uint32_t nMpdus)

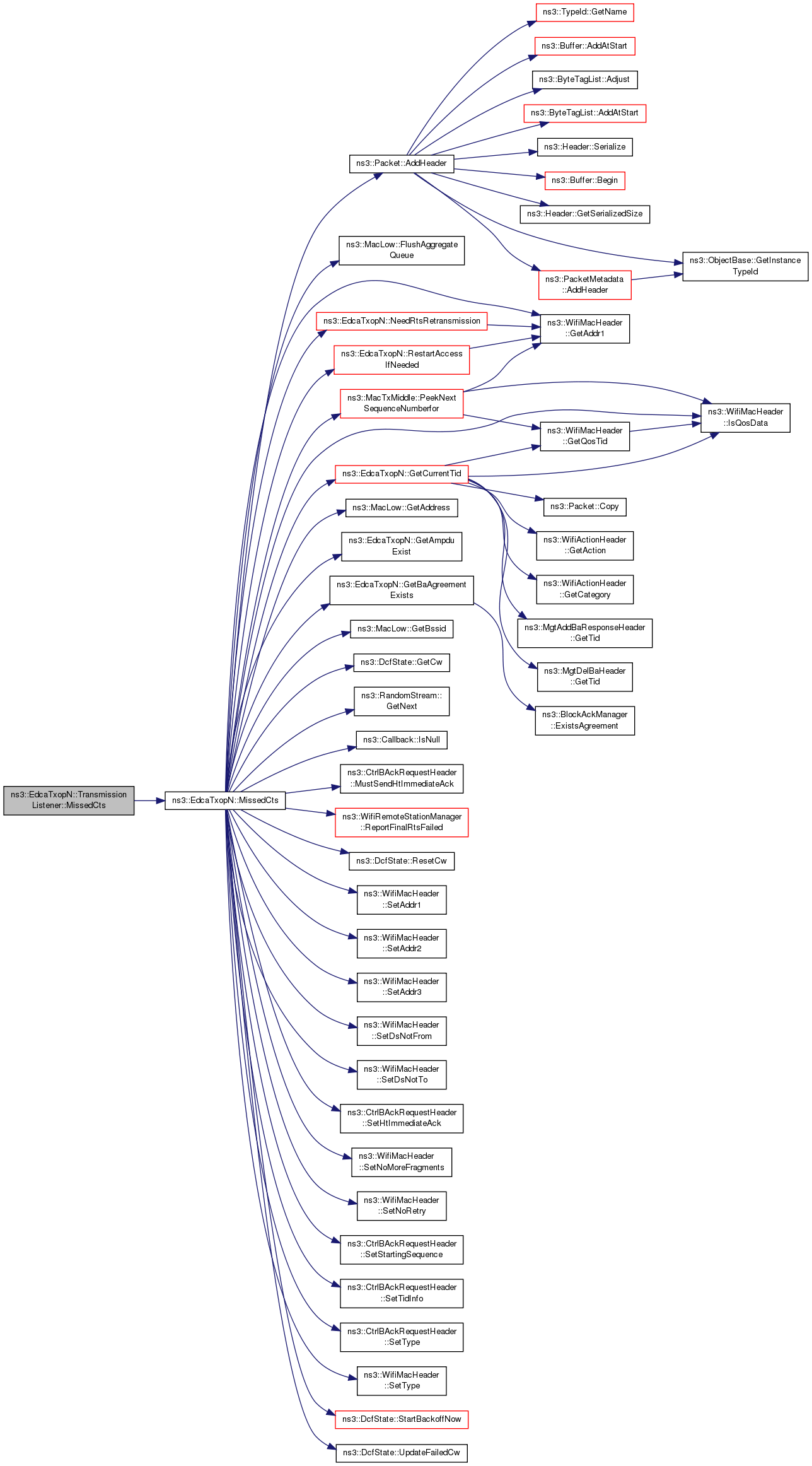

virtual void	MissedCts (void)
	ns3::MacLow did not receive an expected CTS within CtsTimeout. More...

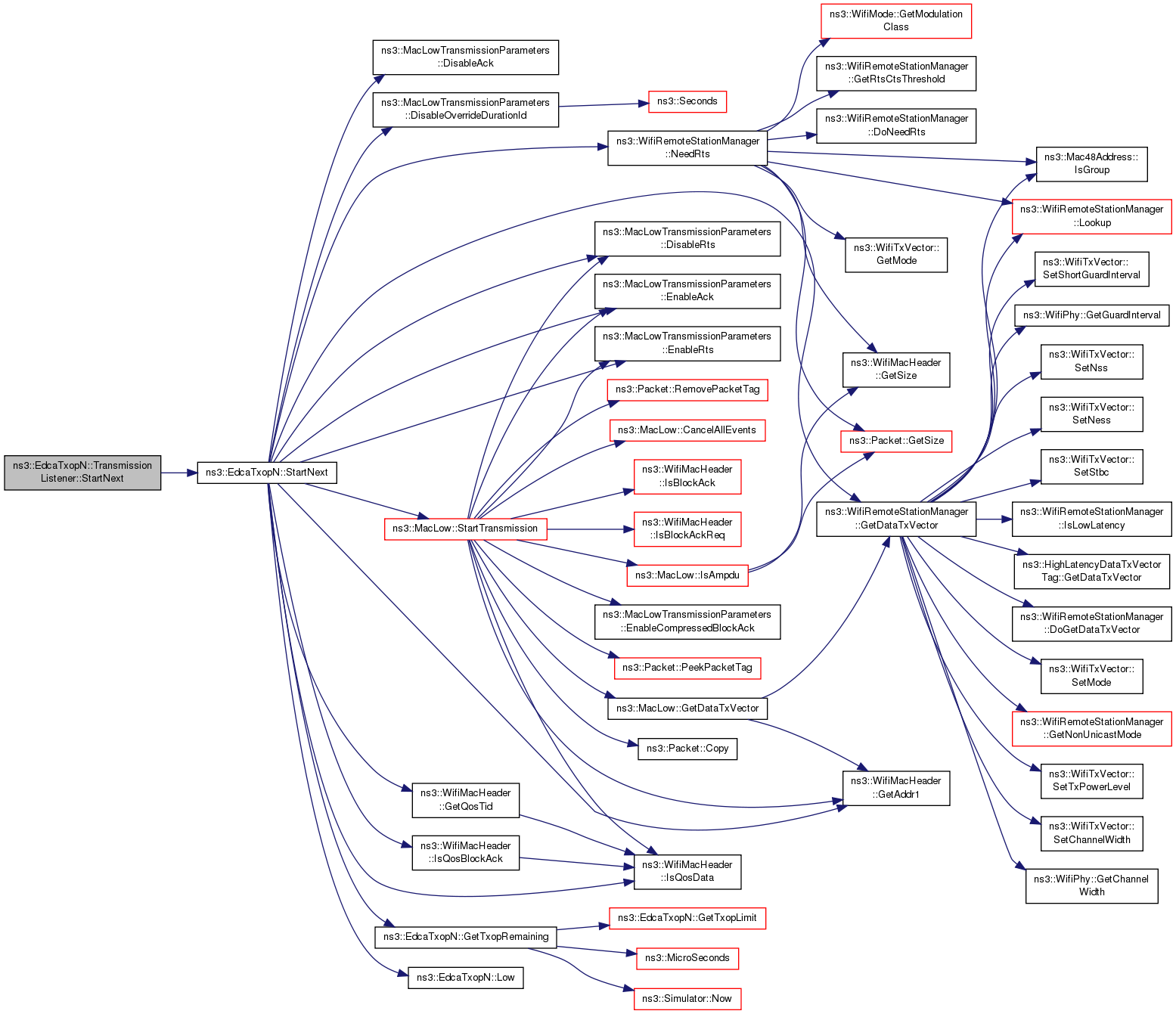

virtual void	StartNext (void)
	Invoked when ns3::MacLow wants to continue the TXOP. More...

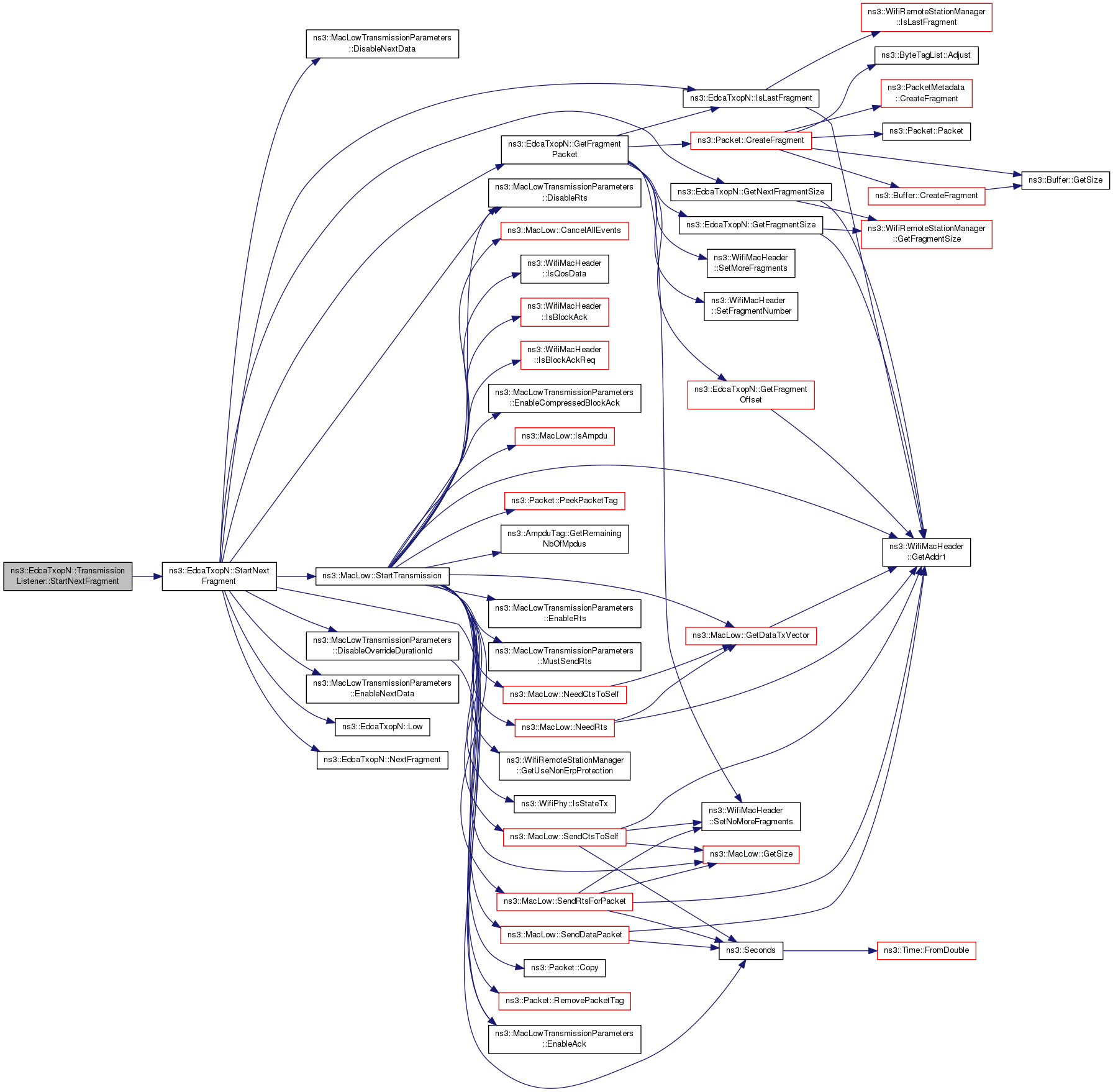

virtual void	StartNextFragment (void)
	Invoked when ns3::MacLow wants to start a new transmission as configured by MacLowTransmissionParameters::EnableNextData. More...

Public Member Functions inherited from ns3::MacLowTransmissionListener
	MacLowTransmissionListener ()

virtual	~MacLowTransmissionListener ()

Private Attributes
EdcaTxopN *	m_txop

Detailed Description

Definition at line 90 of file edca-txop-n.cc.

Constructor & Destructor Documentation

ns3::EdcaTxopN::TransmissionListener::TransmissionListener ( EdcaTxopN * txop )

inline

Definition at line 93 of file edca-txop-n.cc.

virtual ns3::EdcaTxopN::TransmissionListener::~TransmissionListener ( )

inlinevirtual

Definition at line 99 of file edca-txop-n.cc.

Member Function Documentation

virtual void ns3::EdcaTxopN::TransmissionListener::Cancel ( void )

inlinevirtual

Invoked if this transmission was canceled one way or another.

When this method is invoked, you can assume that the packet has not been passed down the stack to the PHY.

Implements ns3::MacLowTransmissionListener.

Definition at line 135 of file edca-txop-n.cc.

References ns3::EdcaTxopN::Cancel(), and m_txop.

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::TransmissionListener::EndTxNoAck ( void )

inlinevirtual

Invoked upon the end of the transmission of a frame that does not require an ACK (e.g., broadcast and multicast frames).

Implements ns3::MacLowTransmissionListener.

Definition at line 139 of file edca-txop-n.cc.

References ns3::EdcaTxopN::EndTxNoAck(), and m_txop.

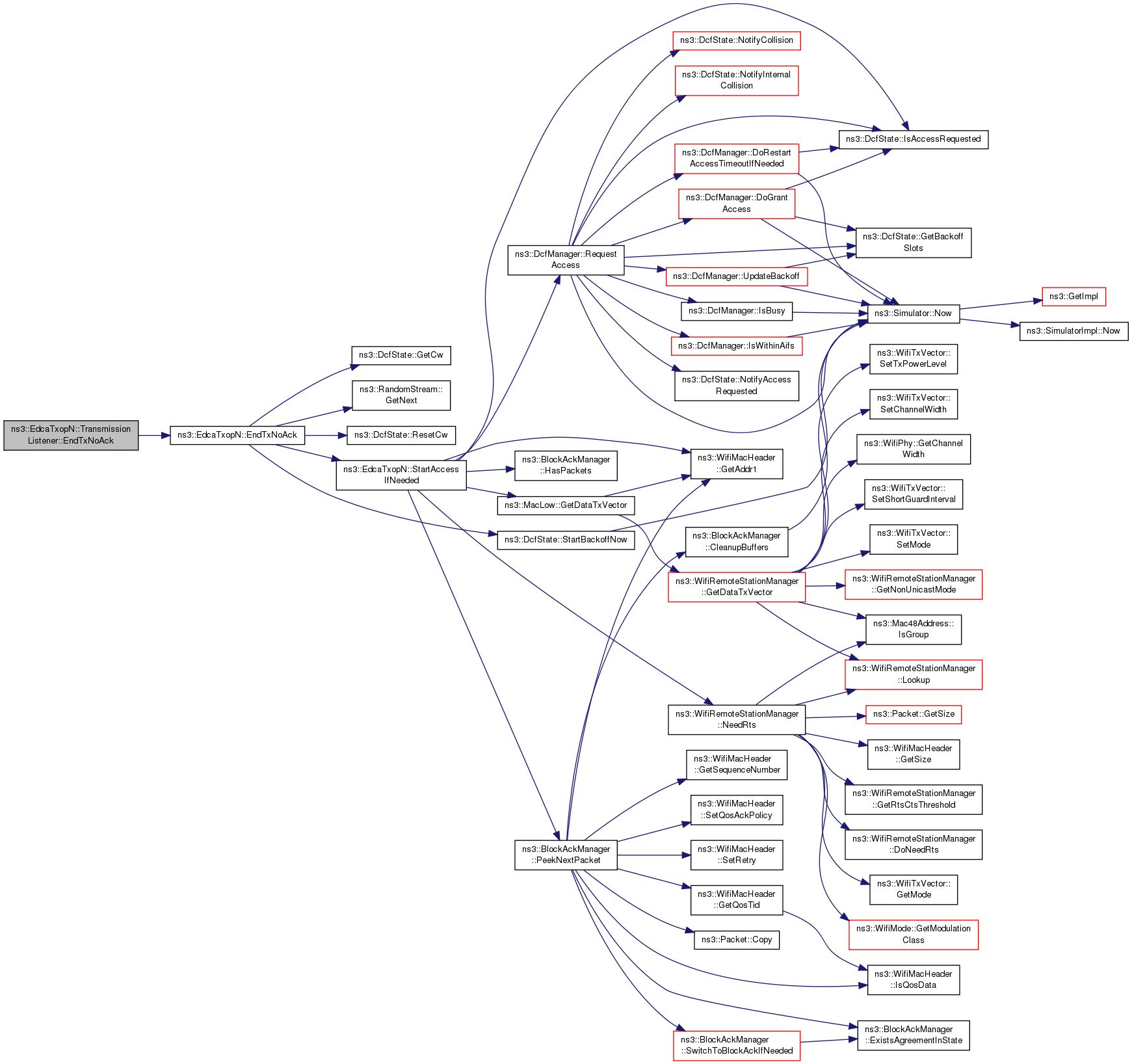

Here is the call graph for this function:

virtual Ptr<WifiMacQueue> ns3::EdcaTxopN::TransmissionListener::GetQueue ( void )

inlinevirtual

Definition at line 143 of file edca-txop-n.cc.

References ns3::EdcaTxopN::GetEdcaQueue(), and m_txop.

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::TransmissionListener::GotAck	(	double	snr,
		WifiMode	txMode
	)

inlinevirtual

Parameters

snr	the snr of the ack
txMode	the transmission mode of the ack

ns3::MacLow received an expected ACK within AckTimeout. The snr and txMode arguments are not valid when SUPER_FAST_ACK is used.

Implements ns3::MacLowTransmissionListener.

Definition at line 111 of file edca-txop-n.cc.

References ns3::EdcaTxopN::GotAck(), and m_txop.

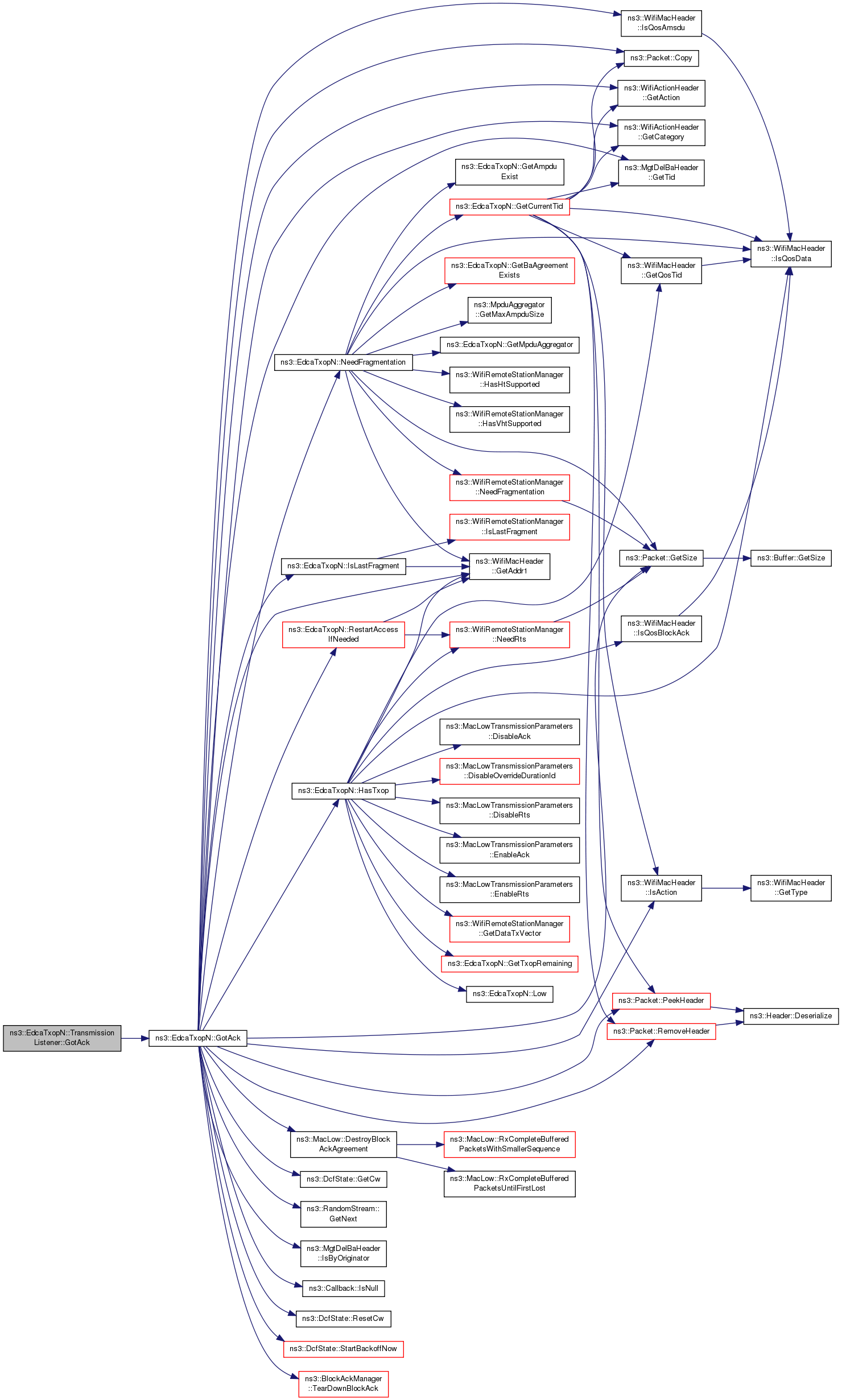

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::TransmissionListener::GotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	source,
		double	rxSnr,
		WifiMode	txMode,
		double	dataSnr
	)

inlinevirtual

Parameters

blockAck	Block ack response header
source	Address of block ack sender
rxSnr	received SNR of block ack response
txMode	mode of block ack response
dataSnr	SNR conveyed from remote station (received data SNR)

Invoked when ns3::MacLow receives a block ack frame. Block ack frame is received after a block ack request and contains information about the correct reception of a set of packet for which a normal ack wasn't send. Default implementation for this method is empty. Every queue that intends to be notified by MacLow of reception of a block ack must redefine this function.

Reimplemented from ns3::MacLowTransmissionListener.

Definition at line 119 of file edca-txop-n.cc.

References ns3::EdcaTxopN::GotBlockAck(), and m_txop.

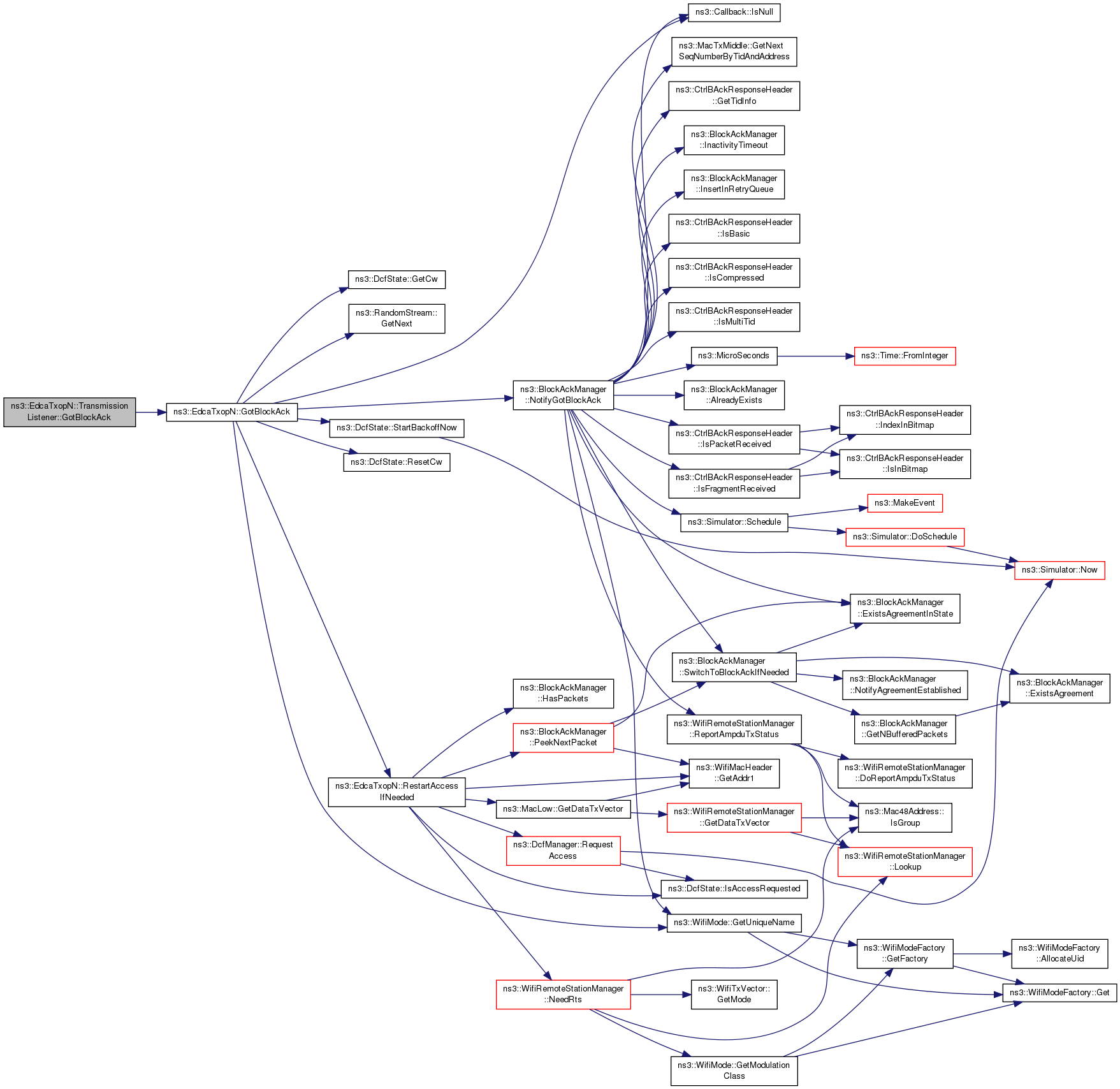

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::TransmissionListener::GotCts	(	double	snr,
		WifiMode	txMode
	)

inlinevirtual

Parameters

snr	the snr of the cts
txMode	the txMode of the cts

ns3::MacLow received an expected CTS within CtsTimeout.

Implements ns3::MacLowTransmissionListener.

Definition at line 103 of file edca-txop-n.cc.

References ns3::EdcaTxopN::GotCts(), and m_txop.

Here is the call graph for this function:

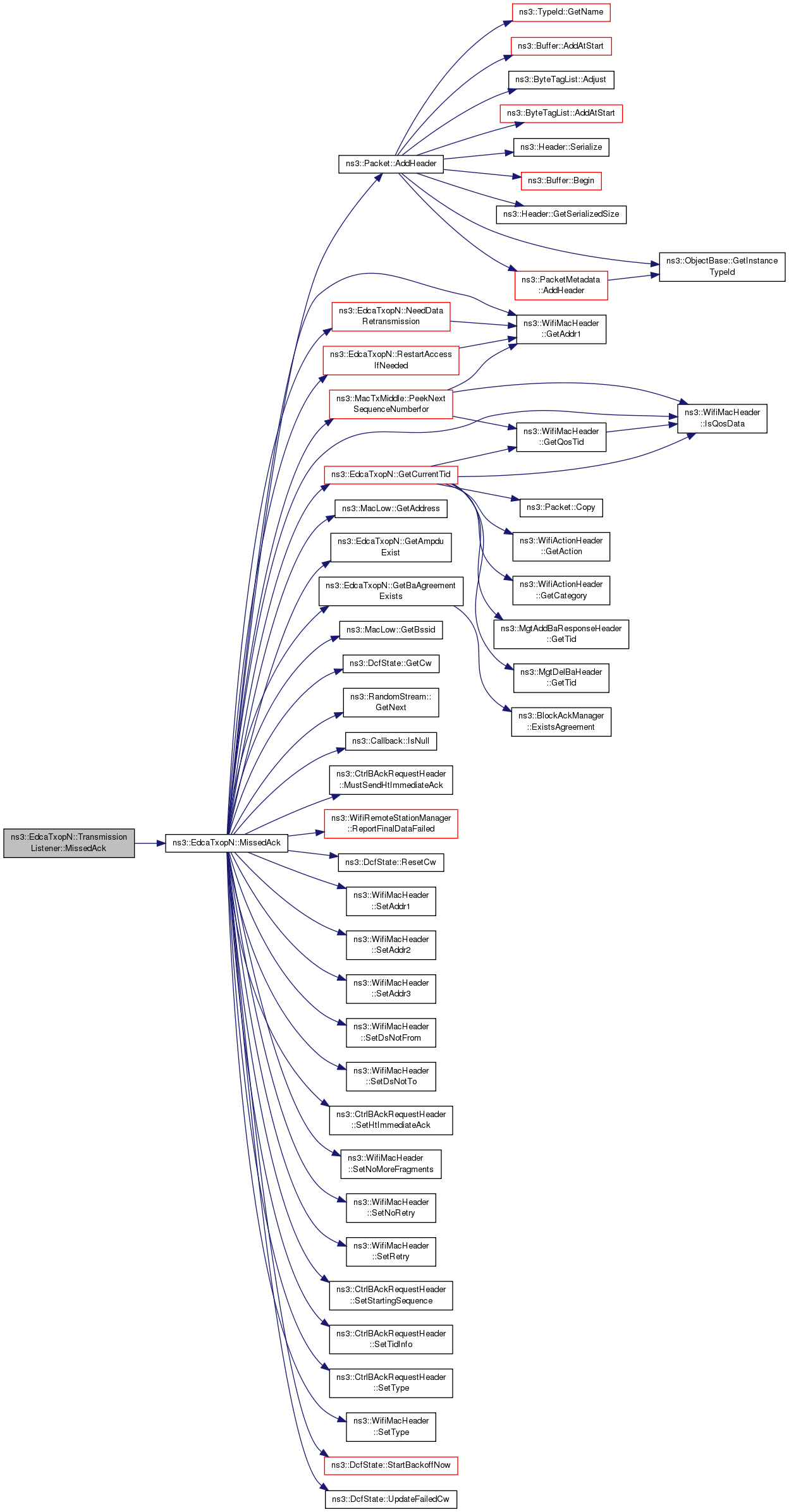

virtual void ns3::EdcaTxopN::TransmissionListener::MissedAck ( void )

inlinevirtual

ns3::MacLow did not receive an expected ACK within AckTimeout.

Implements ns3::MacLowTransmissionListener.

Definition at line 115 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::MissedAck().

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::TransmissionListener::MissedBlockAck ( uint32_t nMpdus )

inlinevirtual

Parameters

nMpdus number of MPDUs that were transmitted in the unsuccesful A-MPDU transmission

ns3::MacLow did not receive an expected BLOCK_ACK within BlockAckTimeout. This method is used only for immediate block ack variant. With delayed block ack, the MissedAck method will be called instead: upon receipt of a block ack request, the rx station will reply with a normal ack frame. Later, when the rx station gets a txop, it will send the block ack back to the tx station which will reply with a normal ack to the rx station.

Reimplemented from ns3::MacLowTransmissionListener.

Definition at line 123 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::MissedBlockAck().

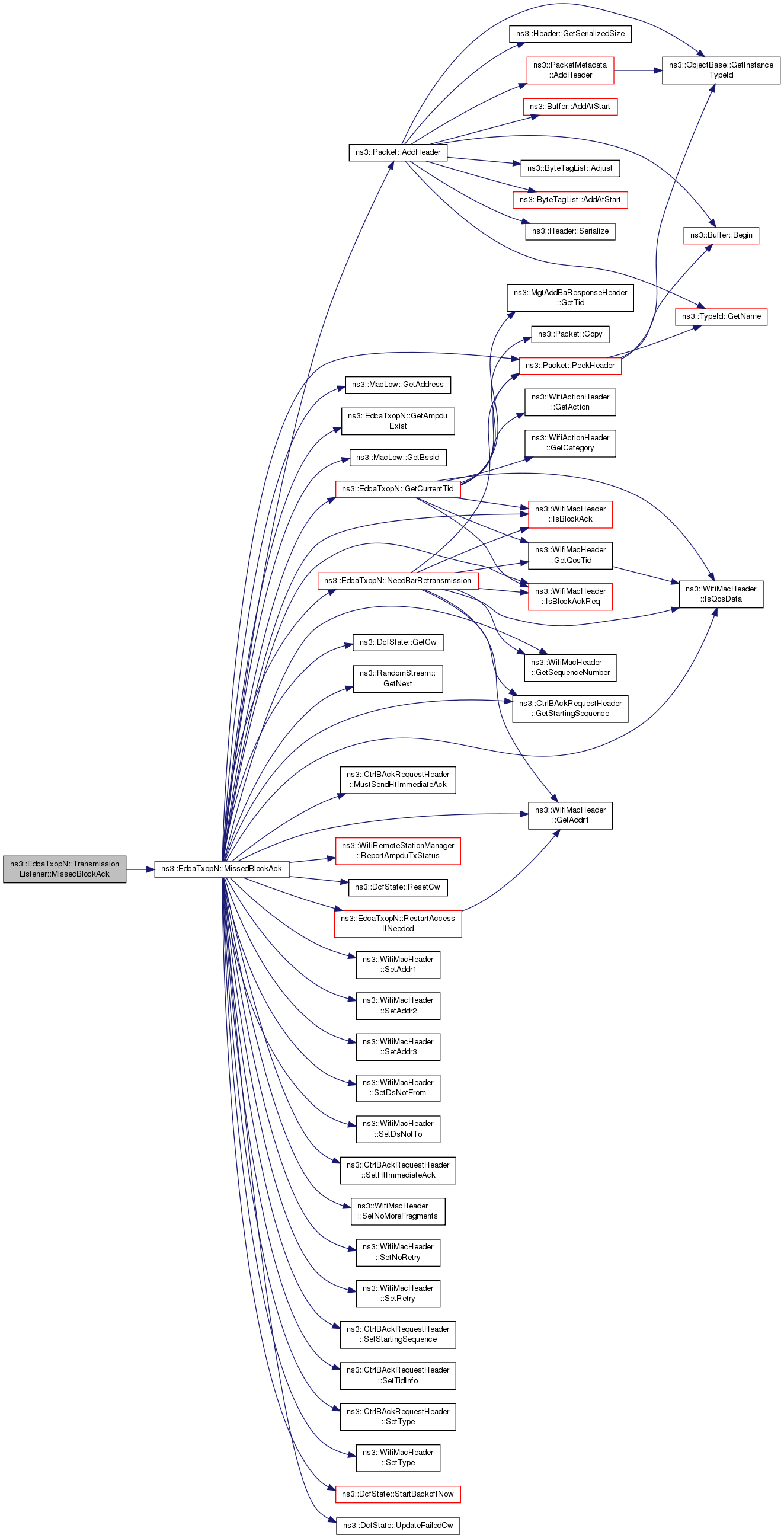

Here is the call graph for this function:
