The LteSpectrumPhy models the physical layer of LTE. More...

#include "lte-ue-phy.h"

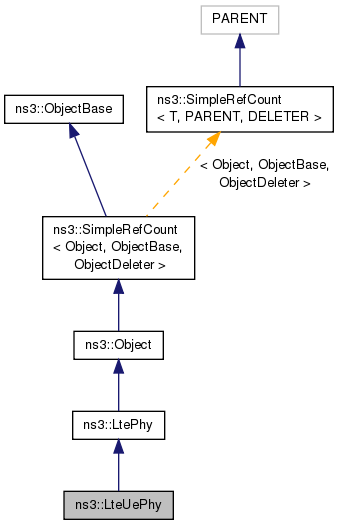

Inheritance diagram for ns3::LteUePhy:

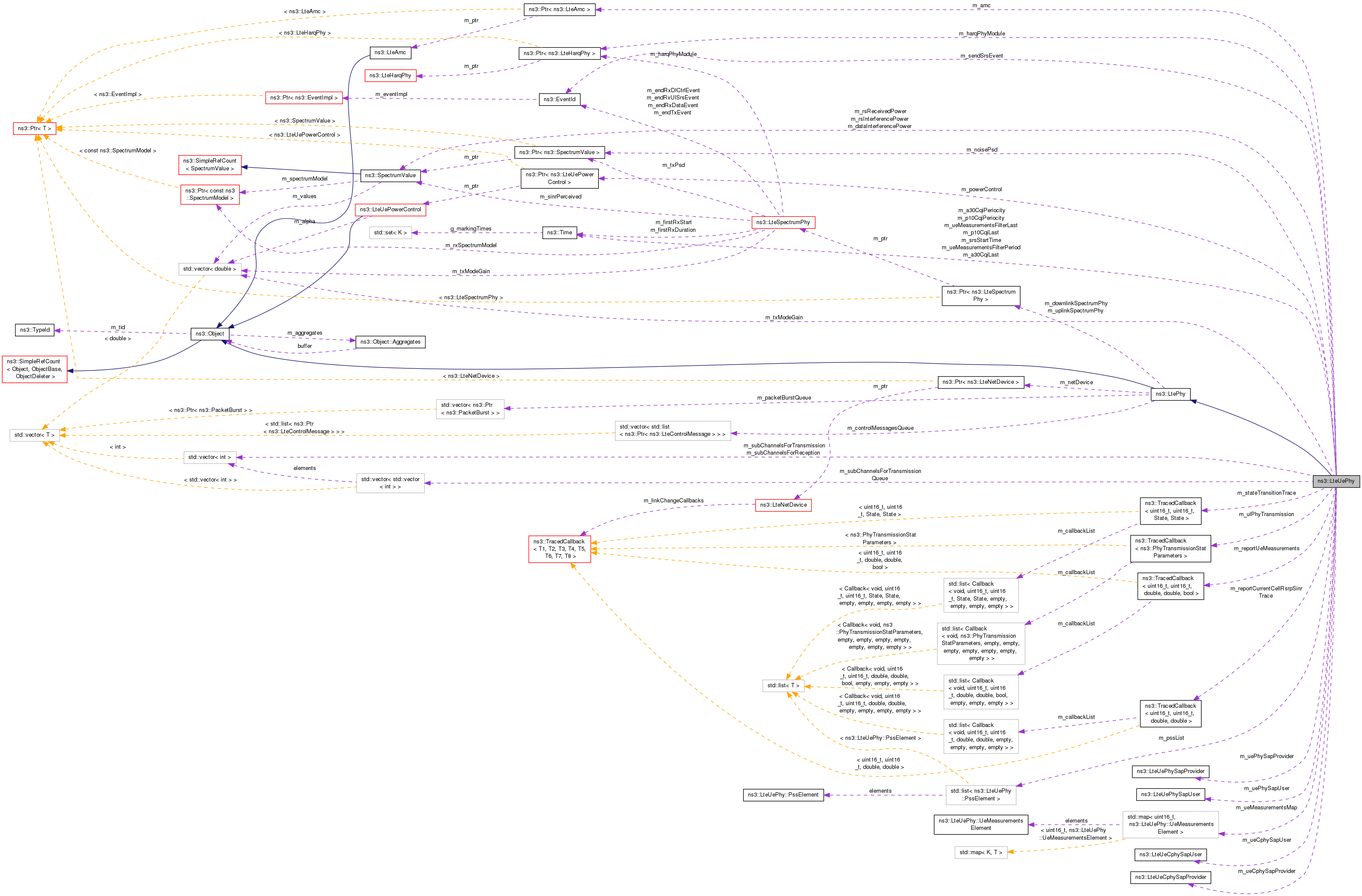

Collaboration diagram for ns3::LteUePhy:

Classes
struct	PssElement

struct	UeMeasurementsElement
	Summary results of measuring a specific cell. Used for layer-1 filtering. More...

Public Types
typedef void(*	RsrpRsrqTracedCallback) (uint16_t rnti, uint16_t cellId, double rsrp, double rsrq, bool isServingCell)
	TracedCallback signature for cell RSRP and RSRQ. More...

typedef void(*	RsrpSinrTracedCallback) (uint16_t cellId, uint16_t rnti, double rsrp, double sinr)
	TracedCallback signature for cell RSRP and SINR report. More...

enum	State { CELL_SEARCH = 0, SYNCHRONIZED, NUM_STATES }
	The states of the UE PHY entity. More...

typedef void(*	StateTracedCallback) (uint16_t cellId, uint16_t rnti, State oldState, State newState)
	TracedCallback signature for state transition events. More...

Public Member Functions
	LteUePhy ()

	LteUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LteUePhy ()

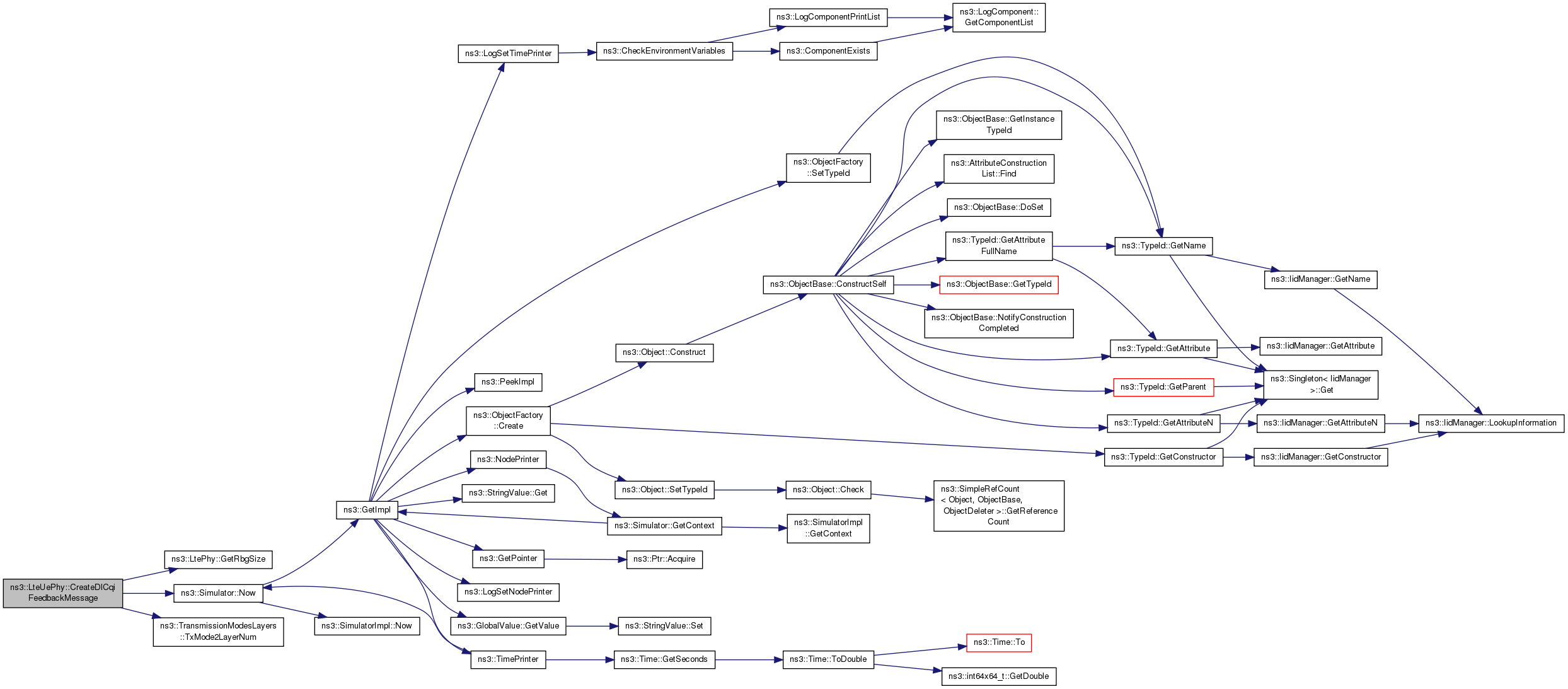

Ptr< DlCqiLteControlMessage >	CreateDlCqiFeedbackMessage (const SpectrumValue &sinr)
	Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB. More...

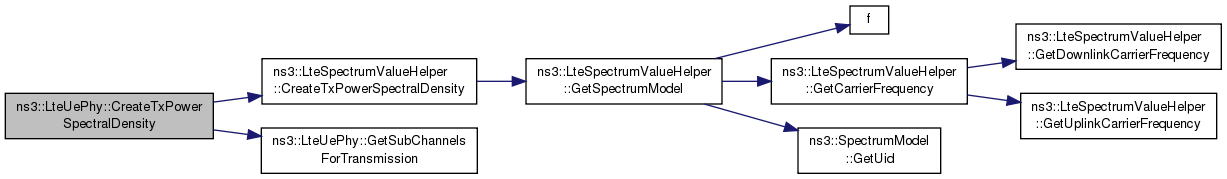

virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Ctrl frame More...

virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs) More...

virtual void	GenerateMixedCqiReport (const SpectrumValue &sinr)

Ptr< LteSpectrumPhy >	GetDlSpectrumPhy () const

LteUeCphySapProvider *	GetLteUeCphySapProvider ()
	Get the CPHY SAP provider. More...

LteUePhySapProvider *	GetLteUePhySapProvider ()
	Get the PHY SAP provider. More...

uint8_t	GetMacChDelay (void) const

double	GetNoiseFigure () const

State	GetState () const

std::vector< int >	GetSubChannelsForReception (void)
	Get a list of sub channels to use in RX. More...

std::vector< int >	GetSubChannelsForTransmission (void)
	Get a list of sub channels to use in RX. More...

double	GetTxPower () const

Ptr< LteSpectrumPhy >	GetUlSpectrumPhy () const

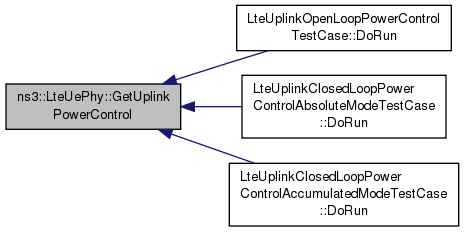

Ptr< LteUePowerControl >	GetUplinkPowerControl () const

void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU. More...

virtual void	ReceiveLteControlMessageList (std::list< Ptr< LteControlMessage > >)

virtual void	ReceiveLteDlHarqFeedback (DlInfoListElement_s mes)
	PhySpectrum generated a new DL HARQ feedback. More...

virtual void	ReceivePss (uint16_t cellId, Ptr< SpectrumValue > p)

virtual void	ReportDataInterference (const SpectrumValue &interf)

virtual void	ReportInterference (const SpectrumValue &interf)
	generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB More...

virtual void	ReportRsReceivedPower (const SpectrumValue &power)
	generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP More...

void	SendSrs ()
	Send the SRS signal in the last symbols of the frame. More...

void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)
	Set the HARQ PHY module. More...

void	SetLteUeCphySapUser (LteUeCphySapUser *s)
	Set the CPHY SAP User. More...

void	SetLteUePhySapUser (LteUePhySapUser *s)
	Set the PHY SAP User. More...

void	SetNoiseFigure (double nf)

void	SetSubChannelsForReception (std::vector< int > mask)
	Get a list of sub channels to use in RX. More...

void	SetSubChannelsForTransmission (std::vector< int > mask)
	Set a list of sub channels to use in TX. More...

void	SetTxPower (double pow)

void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	trigger from eNB the start from a new frame More...

Public Member Functions inherited from ns3::LtePhy
	LtePhy ()

	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LtePhy ()

void	DoSetCellId (uint16_t cellId)

std::list< Ptr< LteControlMessage > >	GetControlMessages (void)

Ptr< LteNetDevice >	GetDevice () const
	Get the device where the phy layer is attached. More...

Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()

Ptr< PacketBurst >	GetPacketBurst (void)

uint8_t	GetRbgSize (void) const

uint16_t	GetSrsPeriodicity (uint16_t srcCi) const

uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const

double	GetTti (void) const

Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()

void	SetControlMessages (Ptr< LteControlMessage > m)

void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached. More...

void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
	Set the downlink channel. More...

void	SetMacPdu (Ptr< Packet > p)

void	SetTti (double tti)

void	SetUplinkChannel (Ptr< SpectrumChannel > c)
	Set the uplink channel. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LtePhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoConfigureReferenceSignalPower (int8_t referenceSignalPower)

void	DoConfigureUplink (uint16_t ulEarfcn, uint8_t ulBandwidth)

void	DoReset ()

virtual void	DoSendLteControlMessage (Ptr< LteControlMessage > msg)

virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent (according to m_macChTtiDelay) More...

virtual void	DoSendRachPreamble (uint32_t prachId, uint32_t raRnti)

void	DoSetDlBandwidth (uint8_t ulBandwidth)

void	DoSetPa (double pa)

void	DoSetRnti (uint16_t rnti)

void	DoSetSrsConfigurationIndex (uint16_t srcCi)

void	DoSetTransmissionMode (uint8_t txMode)

void	DoStartCellSearch (uint16_t dlEarfcn)

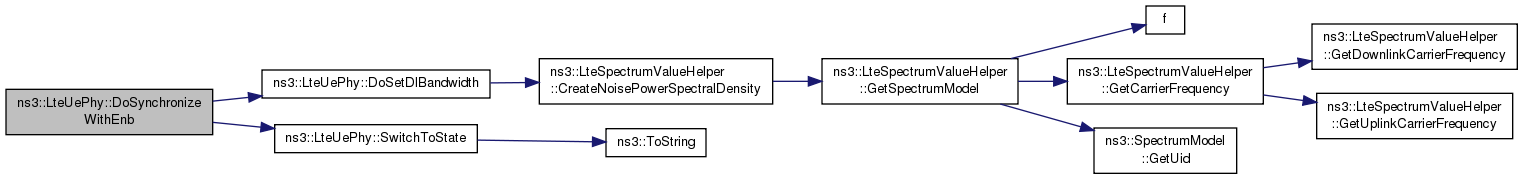

void	DoSynchronizeWithEnb (uint16_t cellId)

void	DoSynchronizeWithEnb (uint16_t cellId, uint16_t dlEarfcn)

void	GenerateCqiRsrpRsrq (const SpectrumValue &sinr)
	internal method that takes care of generating CQI reports, calculating the RSRP and RSRQ metrics, and generating RSRP+SINR traces More...

void	QueueSubChannelsForTransmission (std::vector< int > rbMap)

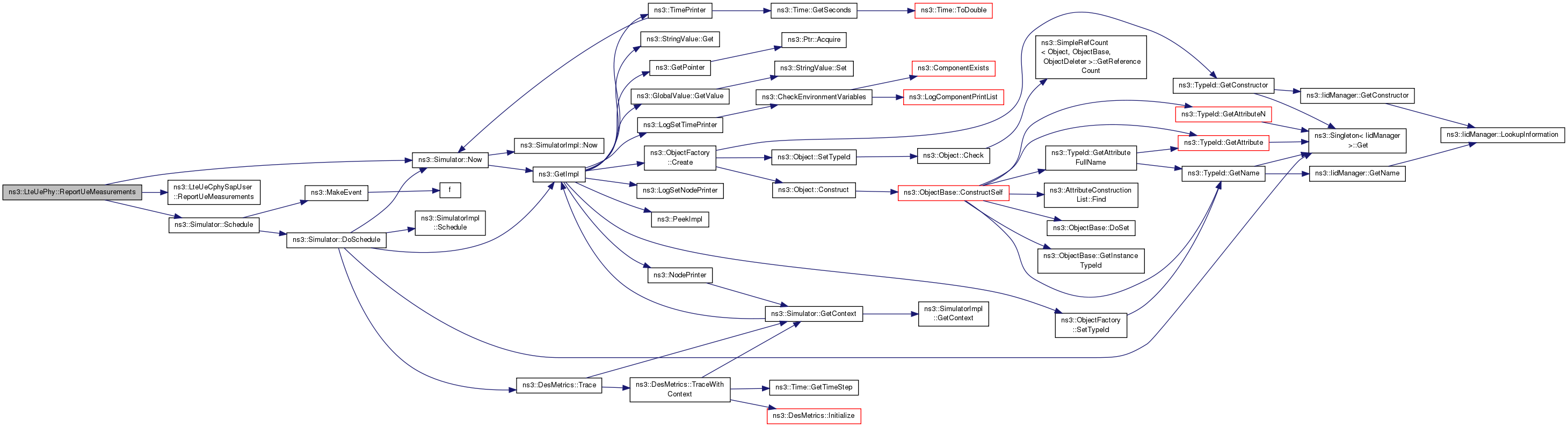

void	ReportUeMeasurements ()
	Layer-1 filtering of RSRP and RSRQ measurements and reporting to the RRC entity. More...

void	SetTxMode1Gain (double gain)

void	SetTxMode2Gain (double gain)

void	SetTxMode3Gain (double gain)

void	SetTxMode4Gain (double gain)

void	SetTxMode5Gain (double gain)

void	SetTxMode6Gain (double gain)

void	SetTxMode7Gain (double gain)

void	SetTxModeGain (uint8_t txMode, double gain)

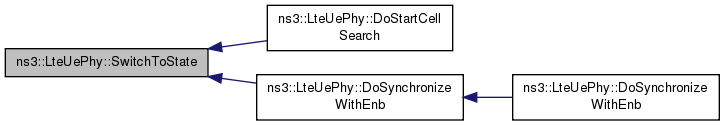

void	SwitchToState (State s)
	Switch the UE PHY to the given state. More...

Private Attributes
Time	m_a30CqiLast

Time	m_a30CqiPeriocity
	SubBand Aperiodic CQI. More...

Ptr< LteAmc >	m_amc

SpectrumValue	m_dataInterferencePower

bool	m_dataInterferencePowerUpdated

bool	m_dlConfigured

bool	m_enableUplinkPowerControl
	The `EnableUplinkPowerControl` attribute. More...

Ptr< LteHarqPhy >	m_harqPhyModule

Ptr< SpectrumValue >	m_noisePsd
	Noise power spectral density for the configured bandwidth. More...

Time	m_p10CqiLast

Time	m_p10CqiPeriocity
	Wideband Periodic CQI. 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms. More...

double	m_paLinear

Ptr< LteUePowerControl >	m_powerControl
	Pointer to UE Uplink Power Control entity. More...

std::list< PssElement >	m_pssList

bool	m_pssReceived

double	m_pssReceptionThreshold
	The `RsrqUeMeasThreshold` attribute. More...

uint32_t	m_raPreambleId

uint32_t	m_raRnti

TracedCallback< uint16_t, uint16_t, double, double >	m_reportCurrentCellRsrpSinrTrace
	The `ReportCurrentCellRsrpSinr` trace source. More...

TracedCallback< uint16_t, uint16_t, double, double, bool >	m_reportUeMeasurements
	The `ReportUeMeasurements` trace source. More...

uint16_t	m_rnti

SpectrumValue	m_rsInterferencePower

bool	m_rsInterferencePowerUpdated

SpectrumValue	m_rsReceivedPower

bool	m_rsReceivedPowerUpdated

uint16_t	m_rsrpSinrSampleCounter

uint16_t	m_rsrpSinrSamplePeriod
	The `RsrpSinrSamplePeriod` attribute. More...

EventId	m_sendSrsEvent

uint16_t	m_srsConfigured

uint16_t	m_srsPeriodicity

Time	m_srsStartTime

uint16_t	m_srsSubframeOffset

State	m_state
	The current UE PHY state. More...

TracedCallback< uint16_t, uint16_t, State, State >	m_stateTransitionTrace
	The `StateTransition` trace source. More...

std::vector< int >	m_subChannelsForReception
	A list of sub channels to use in RX. More...

std::vector< int >	m_subChannelsForTransmission
	A list of sub channels to use in TX. More...

std::vector< std::vector< int > >	m_subChannelsForTransmissionQueue

uint8_t	m_subframeNo

uint8_t	m_transmissionMode

std::vector< double >	m_txModeGain

LteUeCphySapProvider *	m_ueCphySapProvider

LteUeCphySapUser *	m_ueCphySapUser

Time	m_ueMeasurementsFilterLast

Time	m_ueMeasurementsFilterPeriod
	The `UeMeasurementsFilterPeriod` attribute. More...

std::map< uint16_t, UeMeasurementsElement >	m_ueMeasurementsMap
	Store measurement results during the last layer-1 filtering period. More...

LteUePhySapProvider *	m_uePhySapProvider

LteUePhySapUser *	m_uePhySapUser

bool	m_ulConfigured

TracedCallback< PhyTransmissionStatParameters >	m_ulPhyTransmission
	The `UlPhyTransmission` trace source. More...

Friends
class	MemberLteUeCphySapProvider< LteUePhy >

class	UeMemberLteUePhySapProvider

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
	Cell identifier. More...

std::vector< std::list< Ptr< LteControlMessage > > >	m_controlMessagesQueue
	A queue of control messages to be sent. More...

uint8_t	m_dlBandwidth
	The DL bandwidth in number of PRBs. More...

uint16_t	m_dlEarfcn
	The downlink carrier frequency. More...

Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
	The downlink LteSpectrumPhy associated to this LtePhy. More...

uint8_t	m_macChTtiDelay
	Delay between MAC and channel layer in terms of TTIs. More...

Ptr< LteNetDevice >	m_netDevice
	Pointer to the NetDevice where this PHY layer is attached. More...

double	m_noiseFigure
	Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
	A queue of packet bursts to be sent. More...

uint8_t	m_rbgSize
	The RB gruop size according to the bandwidth. More...

double	m_tti
	Transmission time interval. More...

double	m_txPower
	Transmission power in dBm. More...

uint8_t	m_ulBandwidth
	The UL bandwidth in number of PRBs. More...

uint16_t	m_ulEarfcn
	The uplink carrier frequency. More...

Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy
	The uplink LteSpectrumPhy associated to this LtePhy. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The LteSpectrumPhy models the physical layer of LTE.

Config Paths

ns3::LteUePhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy"

Attributes

TxPower: Transmission power in dBm
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 9
- Flags: construct write read
TxMode1Gain: Transmission mode 1 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode2Gain: Transmission mode 2 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 4.2
- Flags: construct write
TxMode3Gain: Transmission mode 3 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -2.8
- Flags: construct write
TxMode4Gain: Transmission mode 4 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode5Gain: Transmission mode 5 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode6Gain: Transmission mode 6 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode7Gain: Transmission mode 7 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
RsrpSinrSamplePeriod: The sampling period for reporting RSRP-SINR stats (default value 1)
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
DlSpectrumPhy: The downlink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy>
- Flags: read
UlSpectrumPhy: The uplink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy>
- Flags: read
RsrqUeMeasThreshold: Receive threshold for PSS on RSRQ [dB]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -1000
- Flags: construct write read
UeMeasurementsFilterPeriod: Time period for reporting UE measurements, i.e., thelength of layer-1 filtering.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
EnableUplinkPowerControl: If true, Uplink Power Control will be enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

ReportCurrentCellRsrpSinr: RSRP and SINR statistics.
Callback signature: ns3::LteUePhy::RsrpSinrTracedCallback
UlPhyTransmission: DL transmission PHY layer statistics.
Callback signature: ns3::PhyTransmissionStatParameters::TracedCallback
ReportUeMeasurements: Report UE measurements RSRP (dBm) and RSRQ (dB).
Callback signature: ns3::LteUePhy::RsrpRsrqTracedCallback
StateTransition: Trace fired upon every UE PHY state transition
Callback signature: ns3::LteUePhy::StateTracedCallback

Size of this type is 728 bytes (on a 64-bit architecture).

Definition at line 51 of file lte-ue-phy.h.

Member Typedef Documentation

typedef void(* ns3::LteUePhy::RsrpRsrqTracedCallback) (uint16_t rnti, uint16_t cellId, double rsrp, double rsrq, bool isServingCell)

TracedCallback signature for cell RSRP and RSRQ.

Parameters

[in]	rnti
[in]	cellId
[in]	rsrp
[in]	rsrq
[in]	isServingCell

Definition at line 270 of file lte-ue-phy.h.

typedef void(* ns3::LteUePhy::RsrpSinrTracedCallback) (uint16_t cellId, uint16_t rnti, double rsrp, double sinr)

TracedCallback signature for cell RSRP and SINR report.

Parameters

[in]	cellId
[in]	rnti
[in]	rsrp
[in]	sinr

Definition at line 258 of file lte-ue-phy.h.

typedef void(* ns3::LteUePhy::StateTracedCallback) (uint16_t cellId, uint16_t rnti, State oldState, State newState)

TracedCallback signature for state transition events.

Parameters

[in]	cellId
[in]	rnti
[in]	oldState
[in]	newState

Definition at line 247 of file lte-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteUePhy::LteUePhy ( )

Warning: the default constructor should not be used

Definition at line 136 of file lte-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

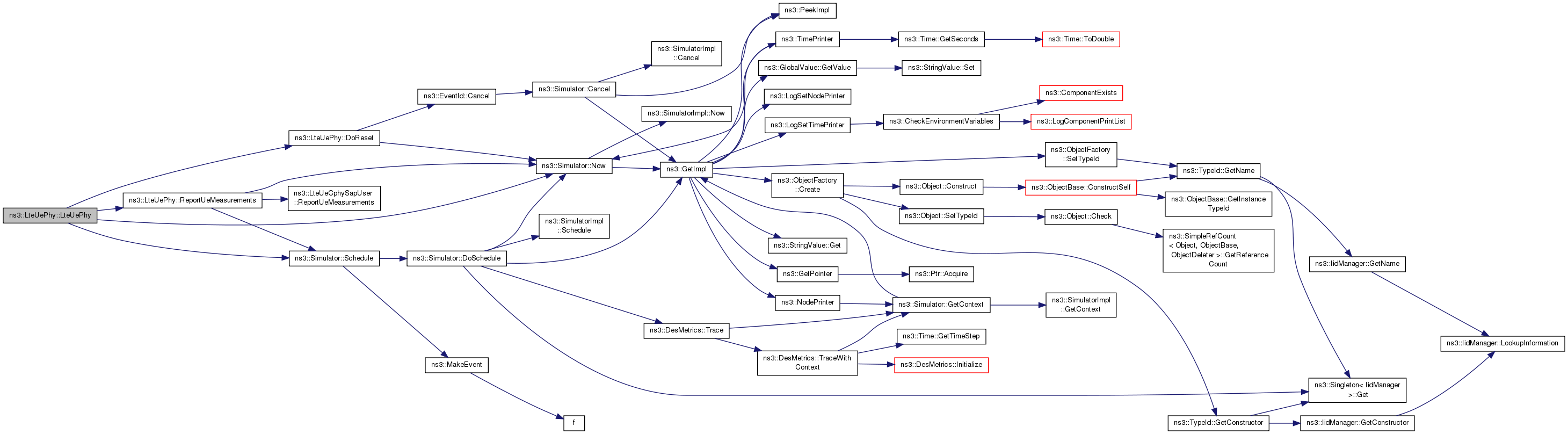

ns3::LteUePhy::LteUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 142 of file lte-ue-phy.cc.

References DoReset(), m_amc, ns3::LtePhy::m_macChTtiDelay, m_powerControl, m_ueCphySapProvider, m_ueMeasurementsFilterPeriod, m_uePhySapProvider, ns3::Simulator::Now(), NS_ASSERT_MSG, ReportUeMeasurements(), ns3::Simulator::Schedule(), UeMemberLteUePhySapProvider, and UL_PUSCH_TTIS_DELAY.

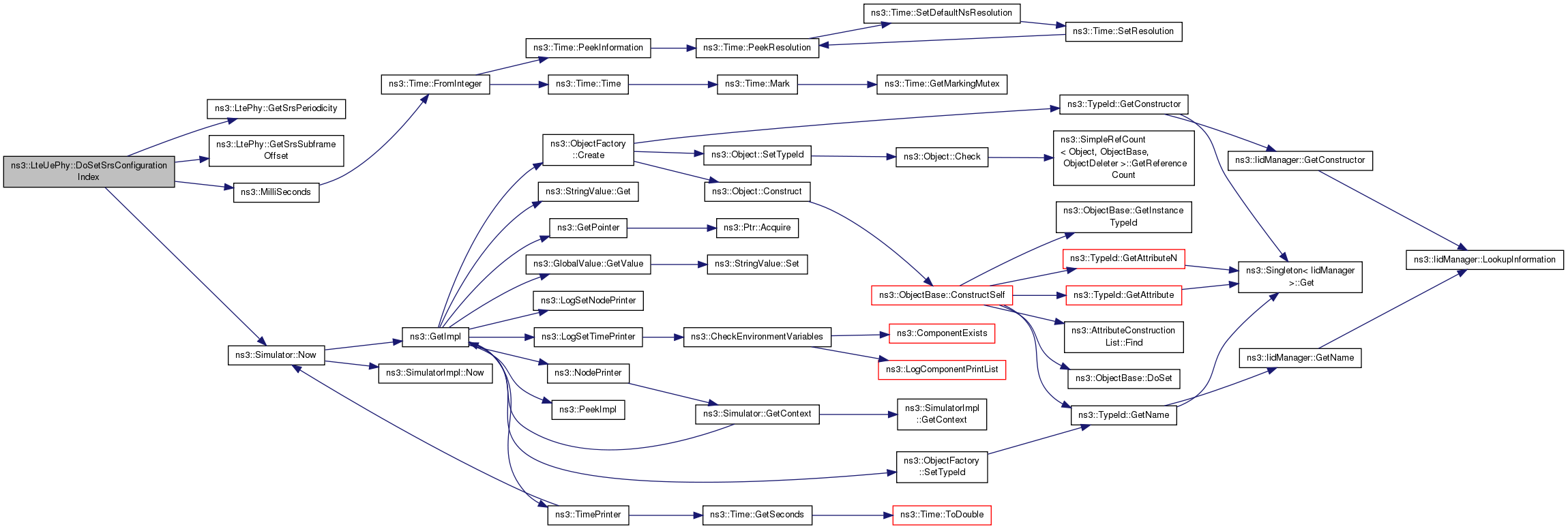

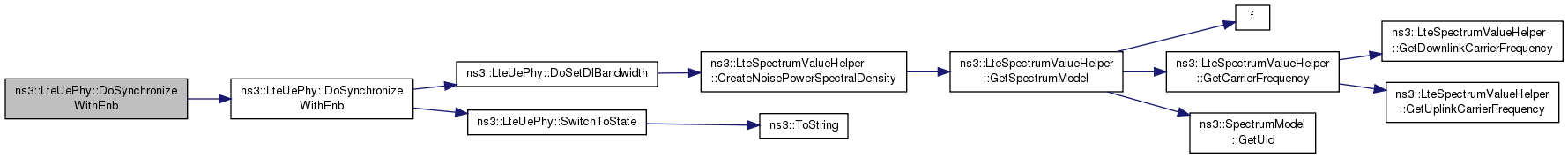

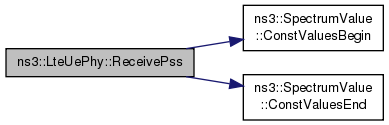

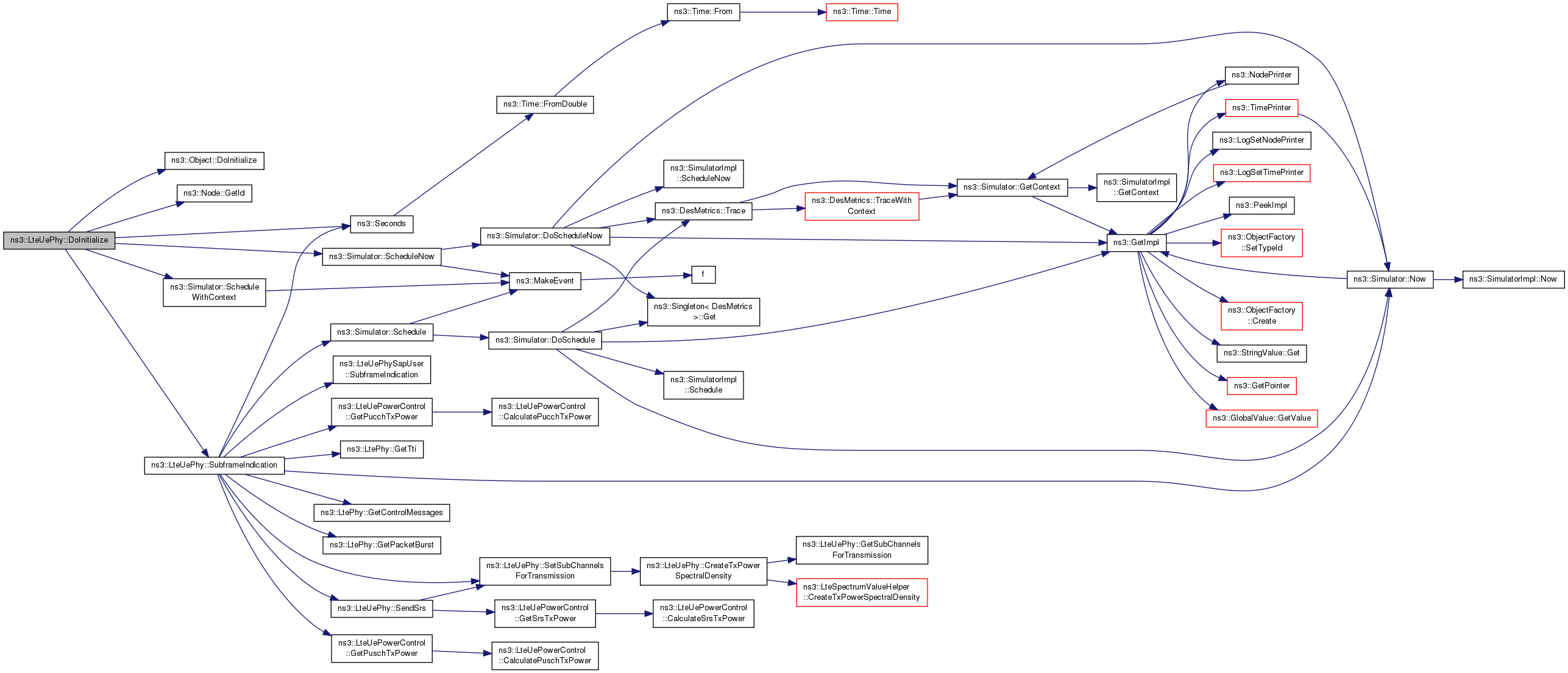

Here is the call graph for this function:

ns3::LteUePhy::~LteUePhy ( )

virtual

Definition at line 172 of file lte-ue-phy.cc.

References m_txModeGain.

Member Function Documentation

Ptr< DlCqiLteControlMessage > ns3::LteUePhy::CreateDlCqiFeedbackMessage ( const SpectrumValue & sinr )

Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.

Parameters

sinr	SINR values vector

Returns: a DL CQI control message containing the CQI feedback

Definition at line 699 of file lte-ue-phy.cc.

References ns3::CqiListElement_s::A30, ns3::LtePhy::GetRbgSize(), m_a30CqiLast, m_a30CqiPeriocity, m_amc, ns3::LtePhy::m_dlBandwidth, ns3::SbMeasResult_s::m_higherLayerSelected, m_p10CqiLast, m_p10CqiPeriocity, m_rnti, ns3::HigherLayerSelected_s::m_sbCqi, ns3::HigherLayerSelected_s::m_sbPmi, m_transmissionMode, m_txModeGain, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::CqiListElement_s::P10, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Referenced by GenerateCqiRsrpRsrq().

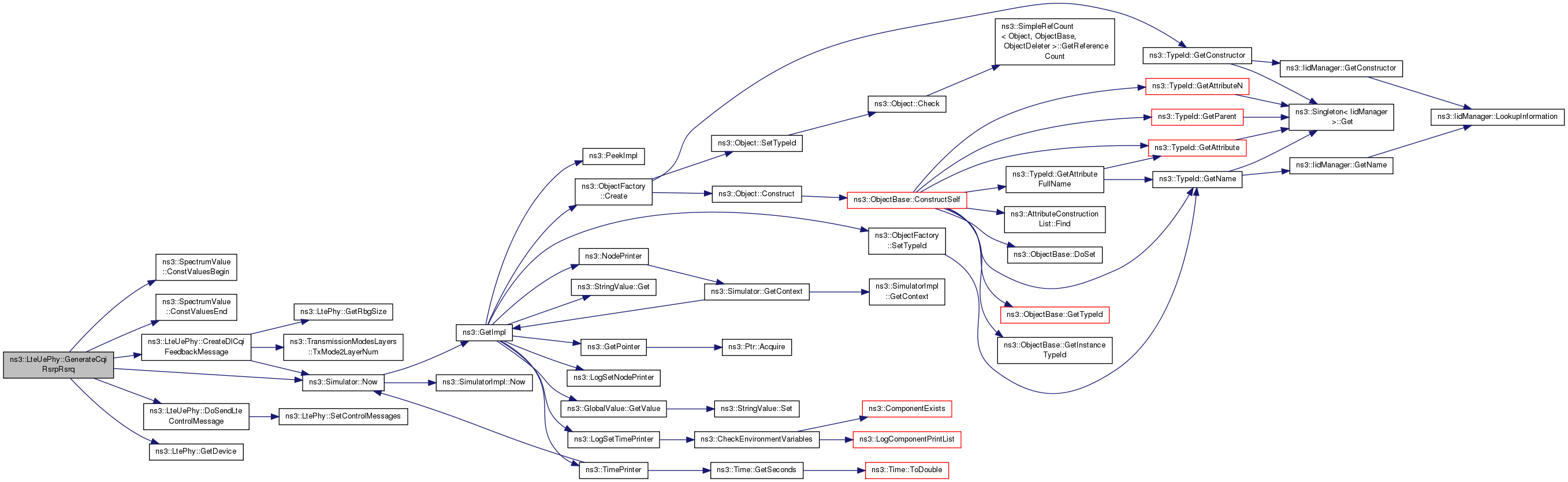

Here is the call graph for this function:

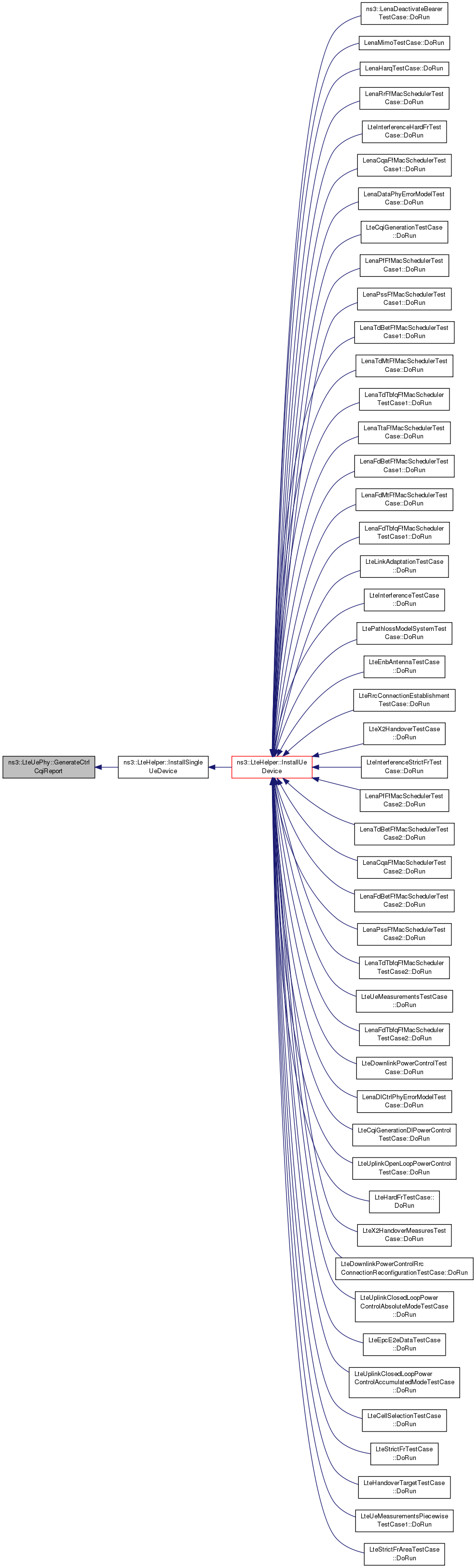

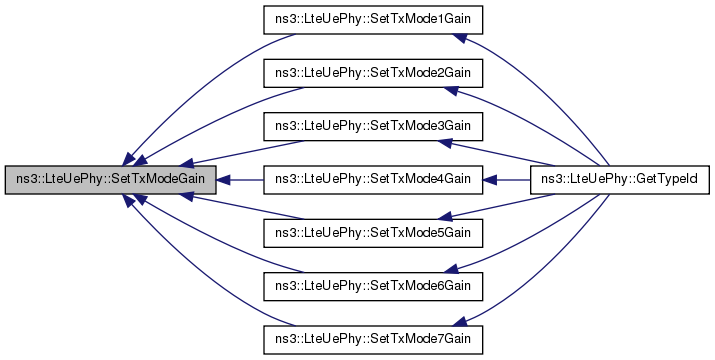

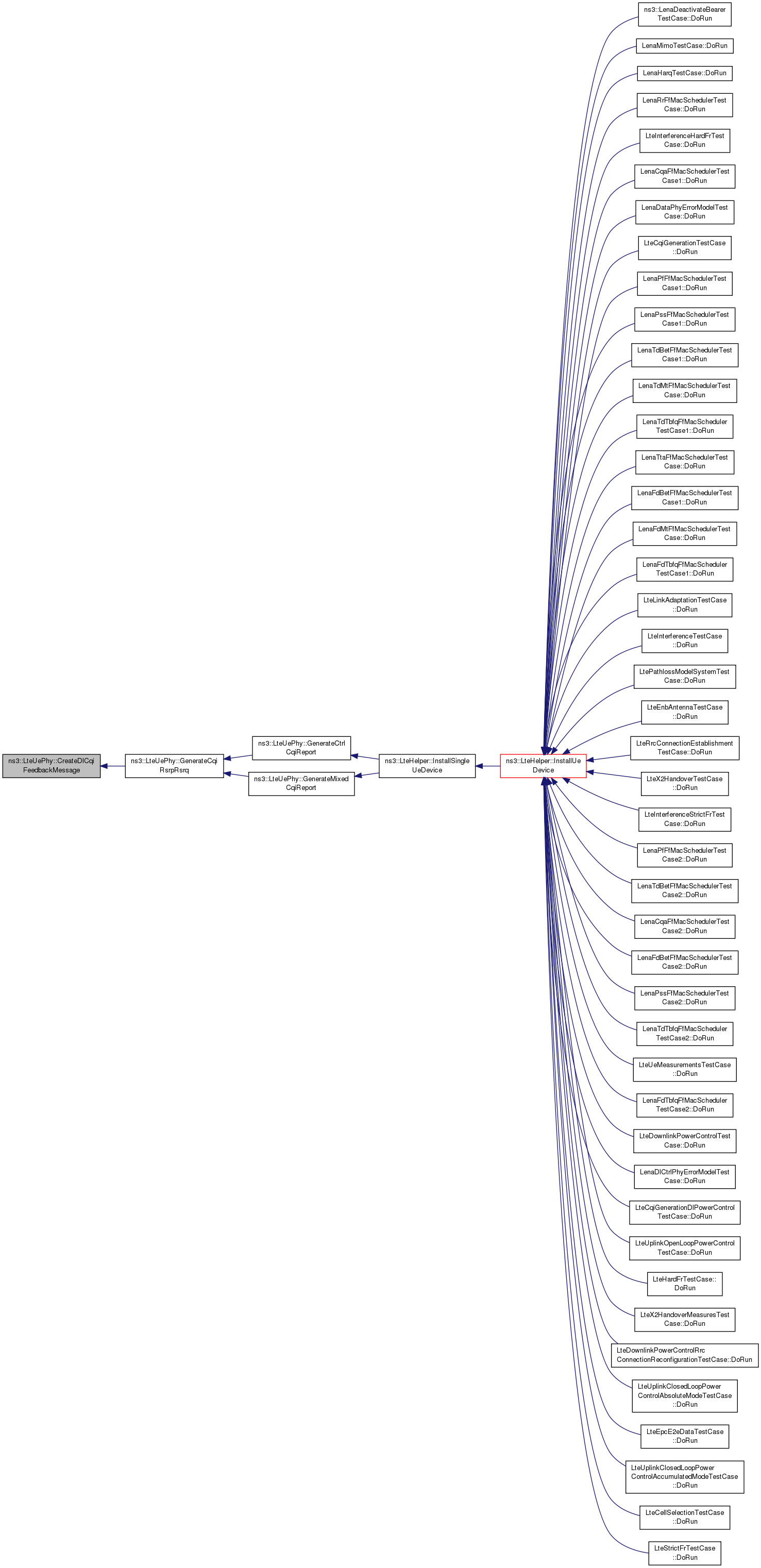

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns: the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 462 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetSubChannelsForTransmission(), ns3::LtePhy::m_txPower, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

Referenced by SetSubChannelsForTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoConfigureReferenceSignalPower ( int8_t referenceSignalPower )

private

Definition at line 1304 of file lte-ue-phy.cc.

References ns3::LteUePowerControl::ConfigureReferenceSignalPower(), m_powerControl, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoConfigureUplink	(	uint16_t	ulEarfcn,
		uint8_t	ulBandwidth
	)

private

Definition at line 1296 of file lte-ue-phy.cc.

References ns3::LtePhy::m_ulBandwidth, m_ulConfigured, and ns3::LtePhy::m_ulEarfcn.

void ns3::LteUePhy::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 178 of file lte-ue-phy.cc.

References ns3::LtePhy::DoDispose(), m_ueCphySapProvider, m_uePhySapProvider, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoInitialize ( void )

virtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 302 of file lte-ue-phy.cc.

References ns3::Object::DoInitialize(), ns3::Node::GetId(), ns3::LtePhy::m_netDevice, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), and SubframeIndication().

Here is the call graph for this function:

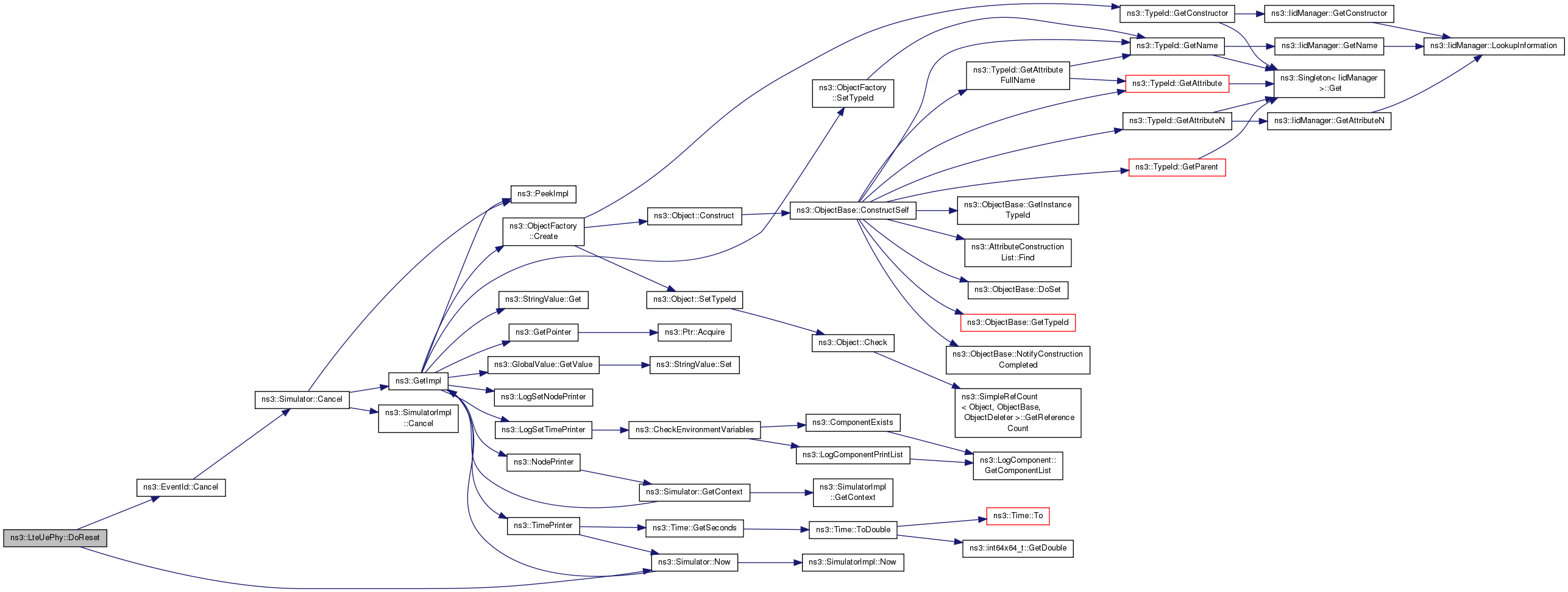

void ns3::LteUePhy::DoReset ( void )

private

Definition at line 1188 of file lte-ue-phy.cc.

References ns3::EventId::Cancel(), m_a30CqiLast, ns3::LtePhy::m_controlMessagesQueue, m_dlConfigured, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_macChTtiDelay, m_p10CqiLast, ns3::LtePhy::m_packetBurstQueue, m_paLinear, m_raPreambleId, m_raRnti, m_rnti, m_rsrpSinrSampleCounter, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_subChannelsForTransmissionQueue, m_transmissionMode, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by LteUePhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendLteControlMessage ( Ptr< LteControlMessage > msg )

privatevirtual

Definition at line 840 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by GenerateCqiRsrpRsrq(), and ns3::UeMemberLteUePhySapProvider::SendLteControlMessage().

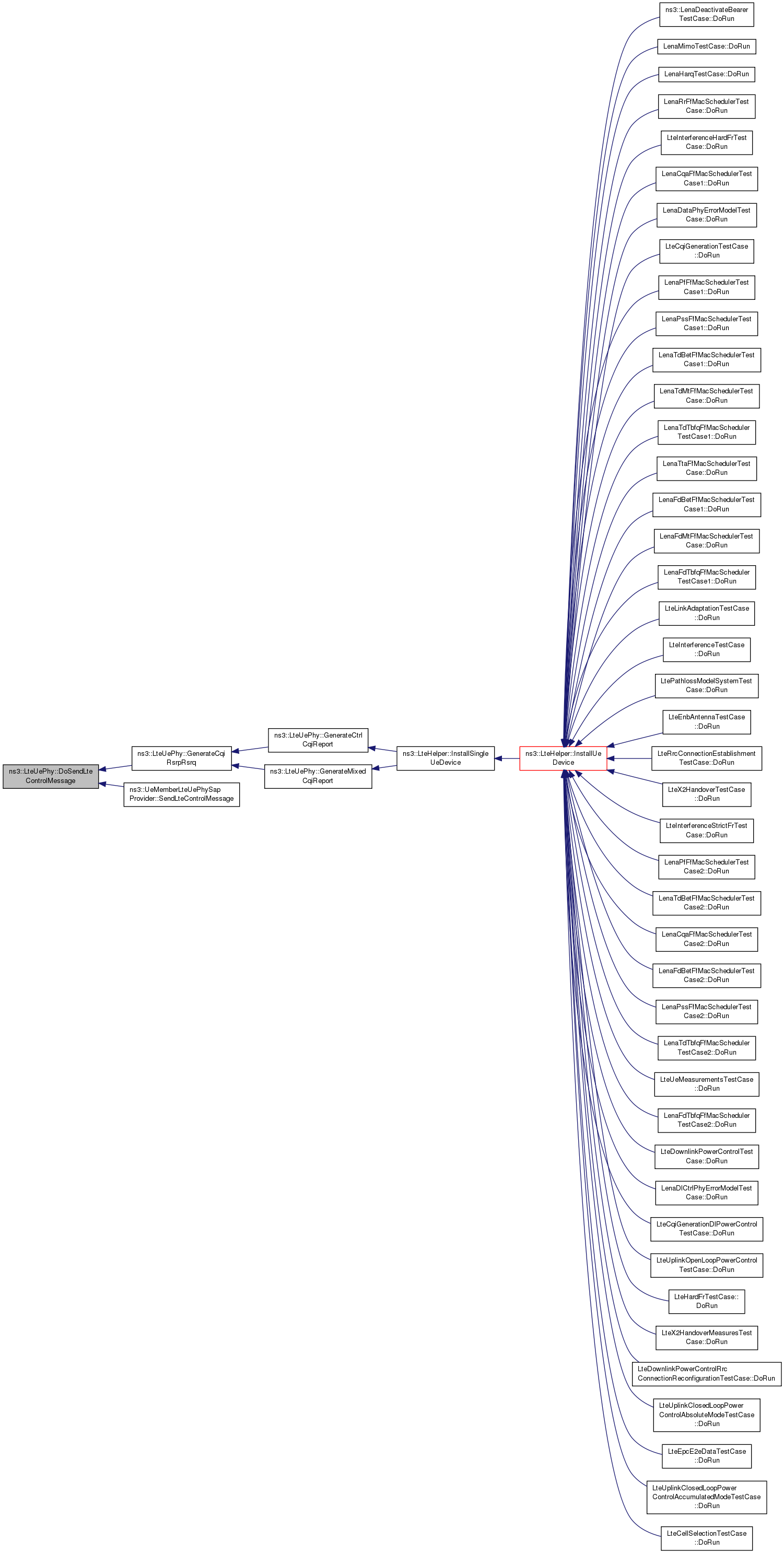

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendMacPdu ( Ptr< Packet > p )

privatevirtual

Queue the MAC PDU to be sent (according to m_macChTtiDelay)

Parameters

p	the MAC PDU to sent

Implements ns3::LtePhy.

Definition at line 411 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::UeMemberLteUePhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendRachPreamble	(	uint32_t	prachId,
		uint32_t	raRnti
	)

privatevirtual

Definition at line 848 of file lte-ue-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, m_raPreambleId, m_raRnti, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUePhySapProvider::SendRachPreamble().

Here is the caller graph for this function:

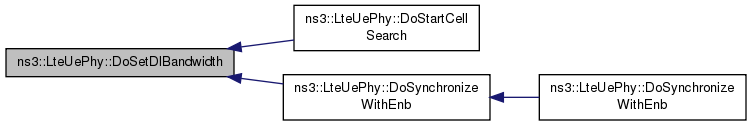

void ns3::LteUePhy::DoSetDlBandwidth ( uint8_t ulBandwidth )

private

Definition at line 1265 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LtePhy::m_dlBandwidth, m_dlConfigured, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_noiseFigure, m_noisePsd, ns3::LtePhy::m_rbgSize, NS_LOG_FUNCTION, and ns3::Type0AllocationRbg.

Referenced by DoStartCellSearch(), and DoSynchronizeWithEnb().

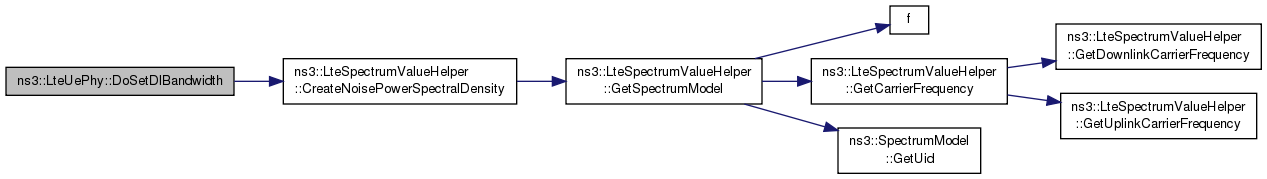

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetPa ( double pa )

private

Definition at line 1343 of file lte-ue-phy.cc.

References m_paLinear, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoSetRnti ( uint16_t rnti )

private

Definition at line 1311 of file lte-ue-phy.cc.

References ns3::LtePhy::m_cellId, m_powerControl, m_rnti, NS_LOG_FUNCTION, ns3::LteUePowerControl::SetCellId(), and ns3::LteUePowerControl::SetRnti().

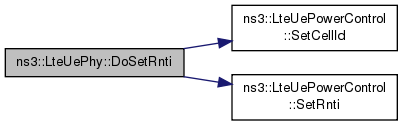

Here is the call graph for this function:

void ns3::LteUePhy::DoSetSrsConfigurationIndex ( uint16_t srcCi )

private

Definition at line 1329 of file lte-ue-phy.cc.

References ns3::LtePhy::GetSrsPeriodicity(), ns3::LtePhy::GetSrsSubframeOffset(), ns3::LtePhy::m_cellId, m_rnti, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoSetTransmissionMode ( uint8_t txMode )

private

Definition at line 1321 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_transmissionMode, and NS_LOG_FUNCTION.

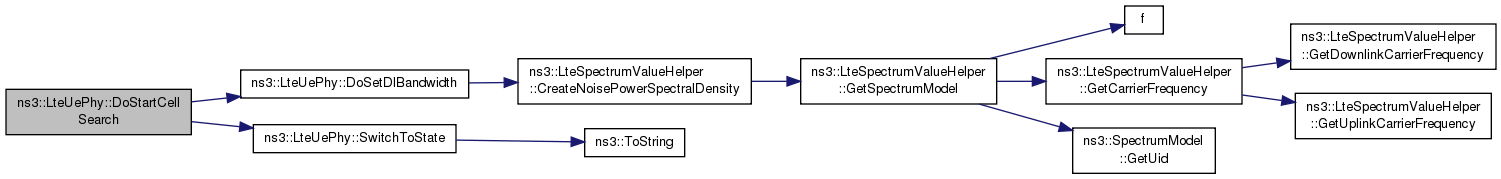

void ns3::LteUePhy::DoStartCellSearch ( uint16_t dlEarfcn )

private

Definition at line 1225 of file lte-ue-phy.cc.

References CELL_SEARCH, DoSetDlBandwidth(), ns3::LtePhy::m_dlEarfcn, NS_LOG_FUNCTION, and SwitchToState().

Here is the call graph for this function:

void ns3::LteUePhy::DoSynchronizeWithEnb ( uint16_t cellId )

private

Definition at line 1242 of file lte-ue-phy.cc.

References DoSetDlBandwidth(), ns3::LtePhy::m_cellId, m_dlConfigured, ns3::LtePhy::m_downlinkSpectrumPhy, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, NS_FATAL_ERROR, NS_LOG_FUNCTION, SwitchToState(), and SYNCHRONIZED.

Referenced by DoSynchronizeWithEnb().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSynchronizeWithEnb	(	uint16_t	cellId,
		uint16_t	dlEarfcn
	)

private

Definition at line 1234 of file lte-ue-phy.cc.

References DoSynchronizeWithEnb(), ns3::LtePhy::m_dlEarfcn, and NS_LOG_FUNCTION.

Here is the call graph for this function:

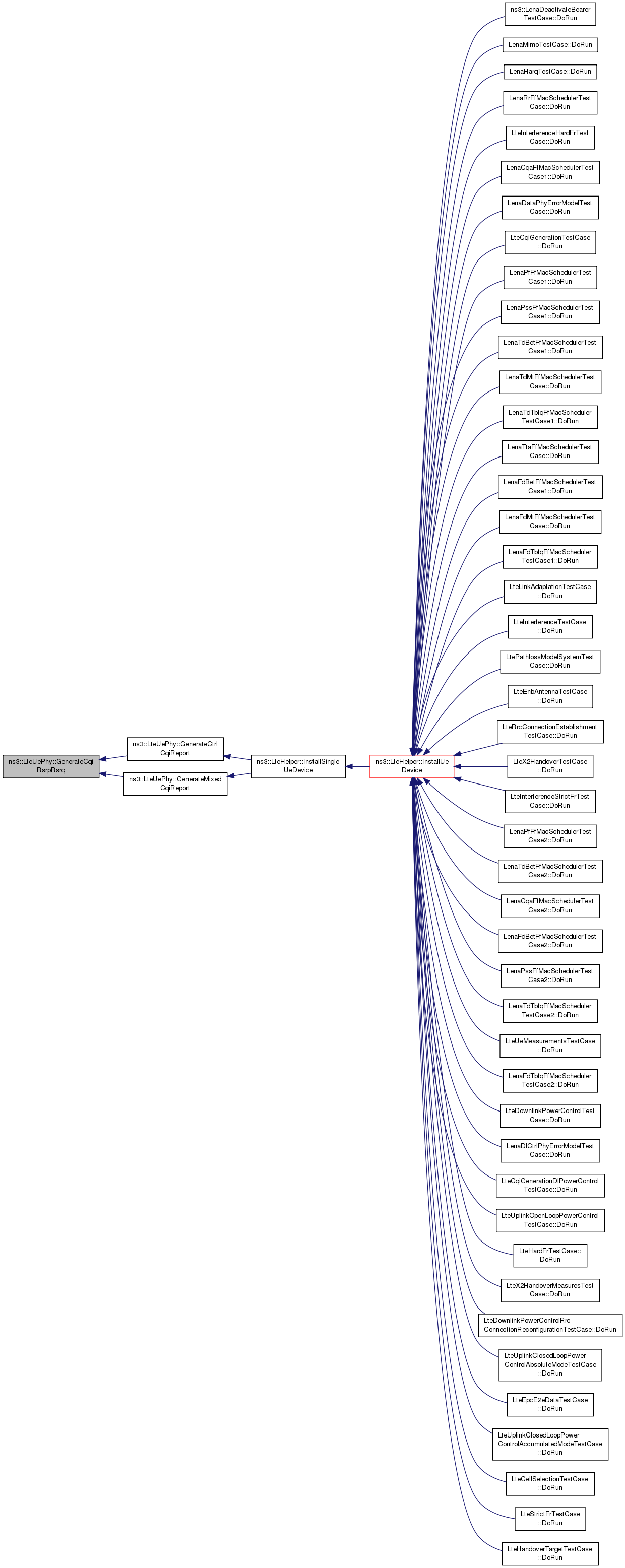

void ns3::LteUePhy::GenerateCqiRsrpRsrq ( const SpectrumValue & sinr )

private

internal method that takes care of generating CQI reports, calculating the RSRP and RSRQ metrics, and generating RSRP+SINR traces

Parameters

sinr

Definition at line 480 of file lte-ue-phy.cc.

References CELL_SEARCH, ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), CreateDlCqiFeedbackMessage(), DoSendLteControlMessage(), ns3::LtePhy::GetDevice(), m_a30CqiLast, m_a30CqiPeriocity, ns3::LtePhy::m_cellId, m_dlConfigured, m_p10CqiLast, m_p10CqiPeriocity, m_pssList, m_pssReceived, m_pssReceptionThreshold, m_reportCurrentCellRsrpSinrTrace, m_rnti, m_rsInterferencePower, m_rsInterferencePowerUpdated, m_rsReceivedPower, m_rsReceivedPowerUpdated, m_rsrpSinrSampleCounter, m_rsrpSinrSamplePeriod, m_state, m_ueMeasurementsMap, m_ulConfigured, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_WARN.

Referenced by GenerateCtrlCqiReport(), and GenerateMixedCqiReport().

Here is the call graph for this function:

Here is the caller graph for this function:

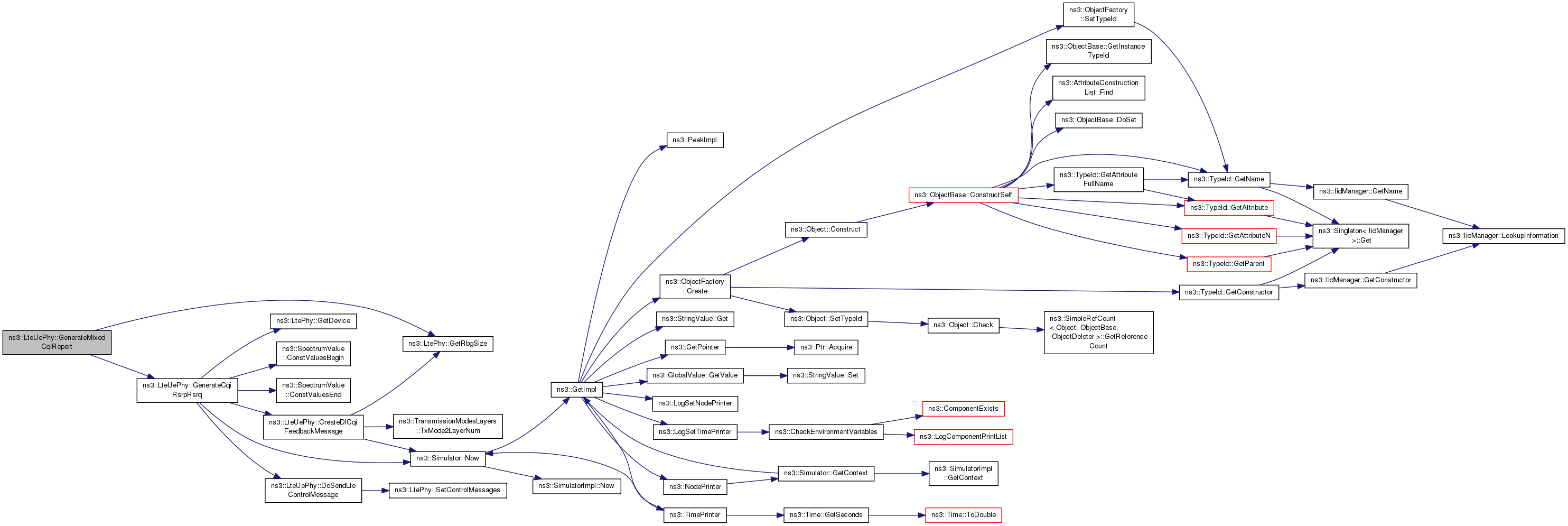

void ns3::LteUePhy::GenerateCtrlCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Ctrl frame

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 472 of file lte-ue-phy.cc.

References GenerateCqiRsrpRsrq(), and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::GenerateDataCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs)

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 603 of file lte-ue-phy.cc.

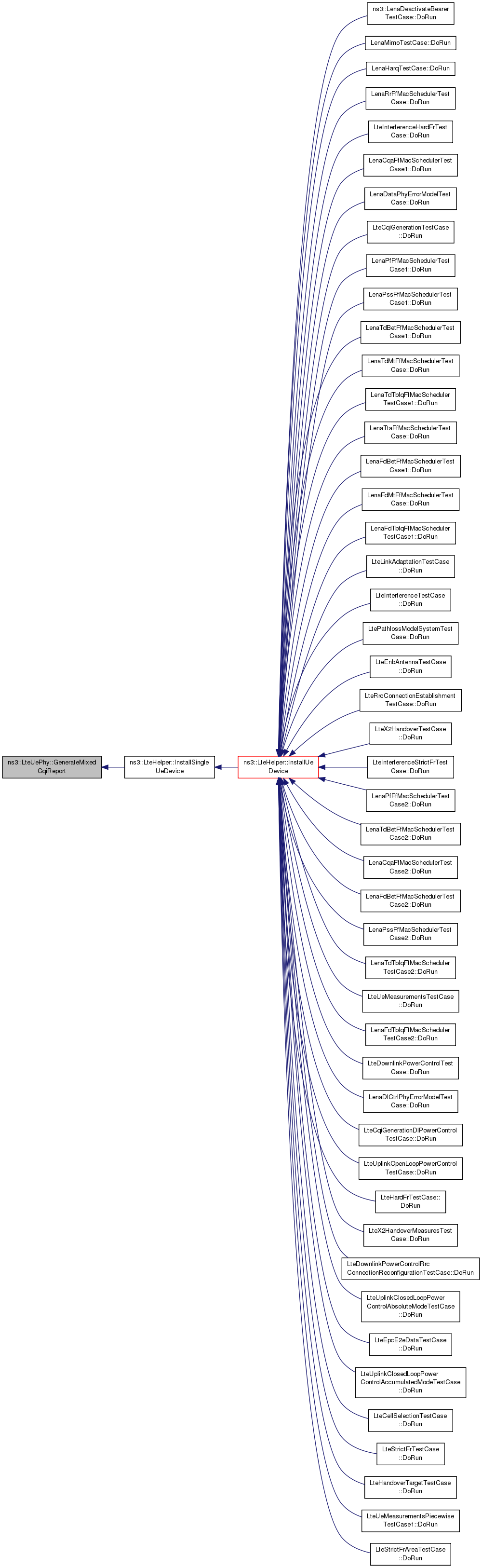

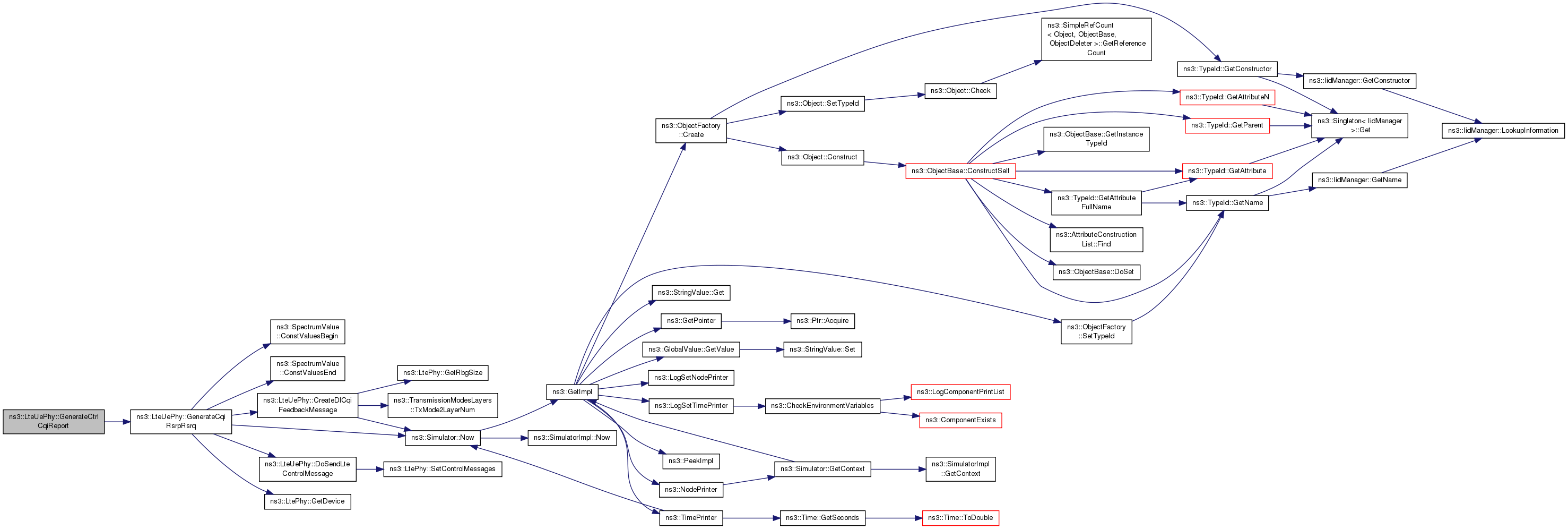

void ns3::LteUePhy::GenerateMixedCqiReport ( const SpectrumValue & sinr )

virtual

Definition at line 609 of file lte-ue-phy.cc.

References CELL_SEARCH, GenerateCqiRsrpRsrq(), ns3::LtePhy::GetRbgSize(), ns3::LtePhy::m_cellId, m_dataInterferencePower, m_dataInterferencePowerUpdated, ns3::LtePhy::m_dlBandwidth, m_paLinear, m_rsReceivedPower, m_state, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetDlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the downlink

Definition at line 399 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUeCphySapProvider * ns3::LteUePhy::GetLteUeCphySapProvider ( )

Get the CPHY SAP provider.

Returns: a pointer to the SAP Provider

Definition at line 350 of file lte-ue-phy.cc.

References m_ueCphySapProvider, and NS_LOG_FUNCTION.

LteUePhySapProvider * ns3::LteUePhy::GetLteUePhySapProvider ( )

Get the PHY SAP provider.

Returns: a pointer to the SAP Provider

Definition at line 335 of file lte-ue-phy.cc.

References m_uePhySapProvider, and NS_LOG_FUNCTION.

uint8_t ns3::LteUePhy::GetMacChDelay ( void ) const

Returns: the TTI delay between MAC and channel

Definition at line 393 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

double ns3::LteUePhy::GetNoiseFigure ( ) const

Returns: the noise figure in dB

Definition at line 364 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUePhy::State ns3::LteUePhy::GetState ( void ) const

Returns: The current state

Definition at line 1440 of file lte-ue-phy.cc.

References m_state, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForReception ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 454 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForTransmission ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 446 of file lte-ue-phy.cc.

References m_subChannelsForTransmission, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity().

Here is the caller graph for this function:

double ns3::LteUePhy::GetTxPower ( ) const

Returns: the transmission power in dBm

Definition at line 379 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

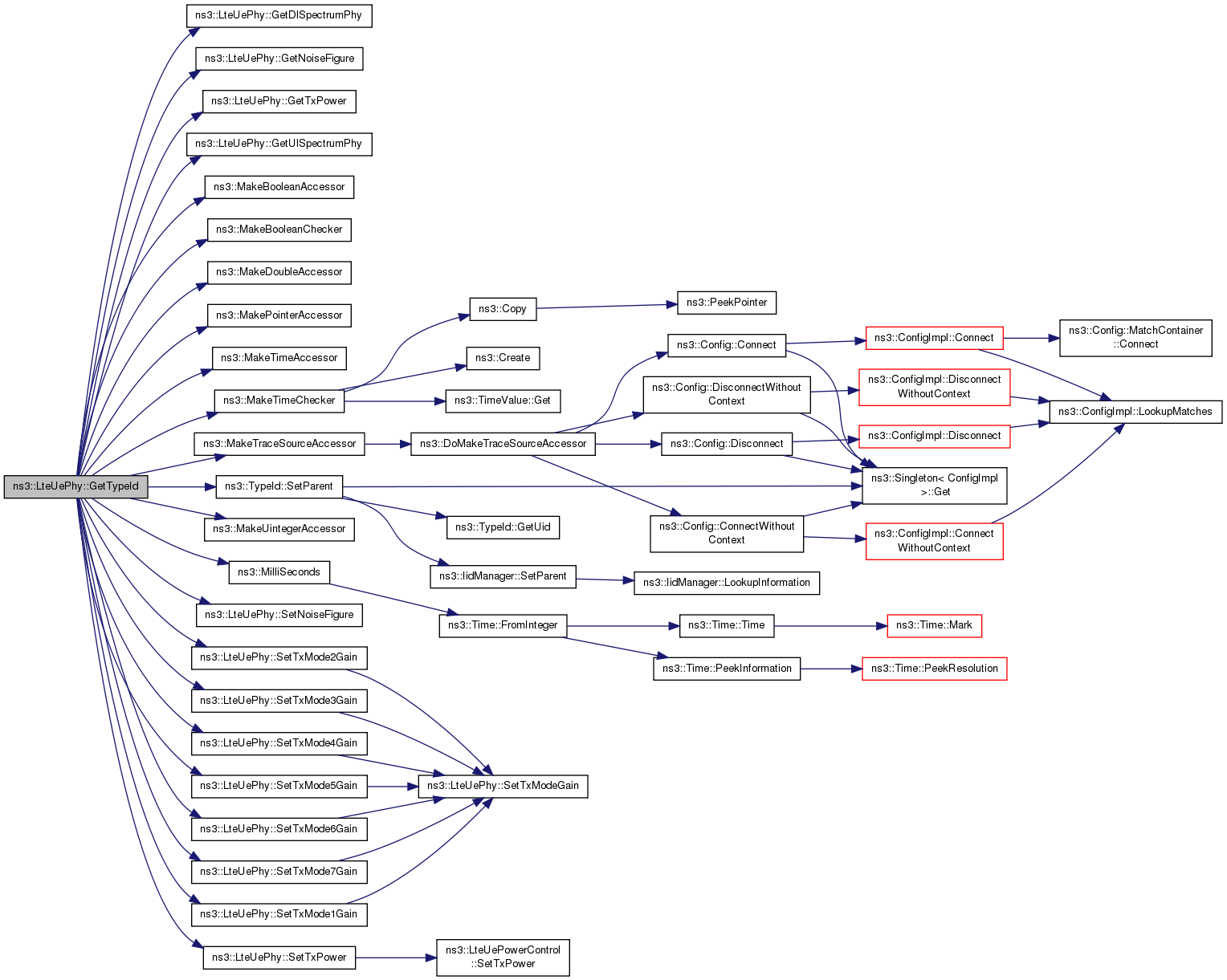

TypeId ns3::LteUePhy::GetTypeId ( void )

static

Definition at line 189 of file lte-ue-phy.cc.

References ns3::TypeId::ATTR_GET, GetDlSpectrumPhy(), GetNoiseFigure(), GetTxPower(), GetUlSpectrumPhy(), m_enableUplinkPowerControl, m_pssReceptionThreshold, m_reportCurrentCellRsrpSinrTrace, m_reportUeMeasurements, m_rsrpSinrSamplePeriod, m_stateTransitionTrace, m_ueMeasurementsFilterPeriod, m_ulPhyTransmission, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), SetTxMode7Gain(), and SetTxPower().

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetUlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the uplink

Definition at line 405 of file lte-ue-phy.cc.

References ns3::LtePhy::m_uplinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< LteUePowerControl > ns3::LteUePhy::GetUplinkPowerControl ( ) const

Returns: ptr to UE Uplink Power Control entity

Definition at line 386 of file lte-ue-phy.cc.

References m_powerControl, and NS_LOG_FUNCTION.

Referenced by LteUplinkOpenLoopPowerControlTestCase::DoRun(), LteUplinkClosedLoopPowerControlAbsoluteModeTestCase::DoRun(), and LteUplinkClosedLoopPowerControlAccumulatedModeTestCase::DoRun().

Here is the caller graph for this function:

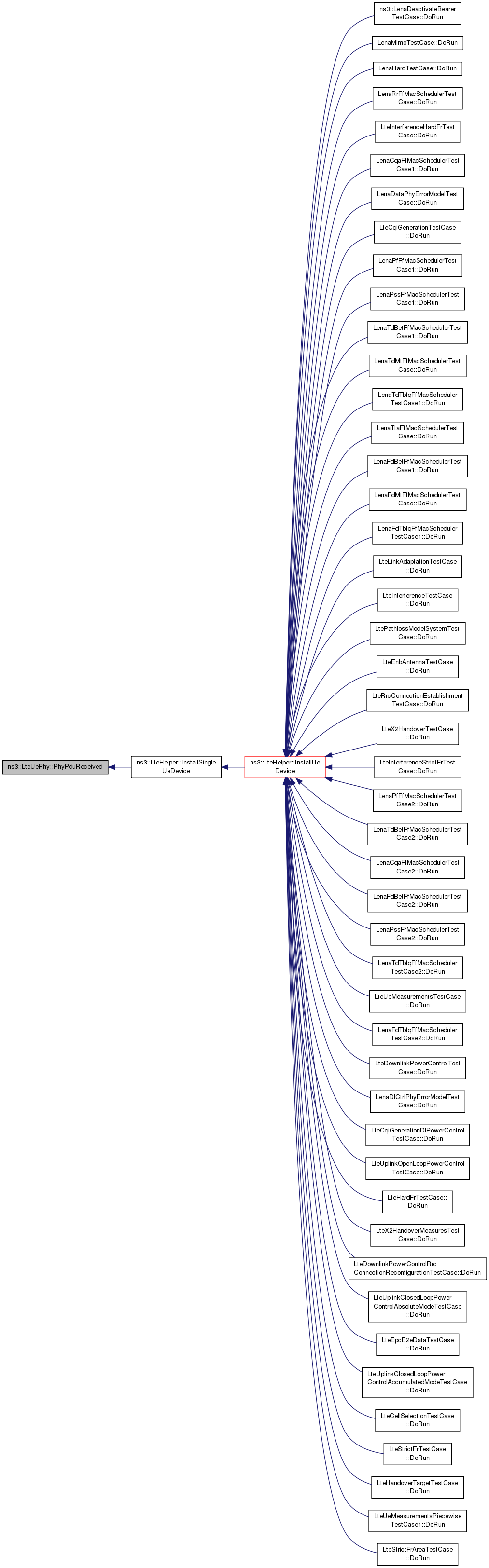

void ns3::LteUePhy::PhyPduReceived ( Ptr< Packet > p )

PhySpectrum received a new PHY-PDU.

Definition at line 420 of file lte-ue-phy.cc.

References m_uePhySapUser, and ns3::LteUePhySapUser::ReceivePhyPdu().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

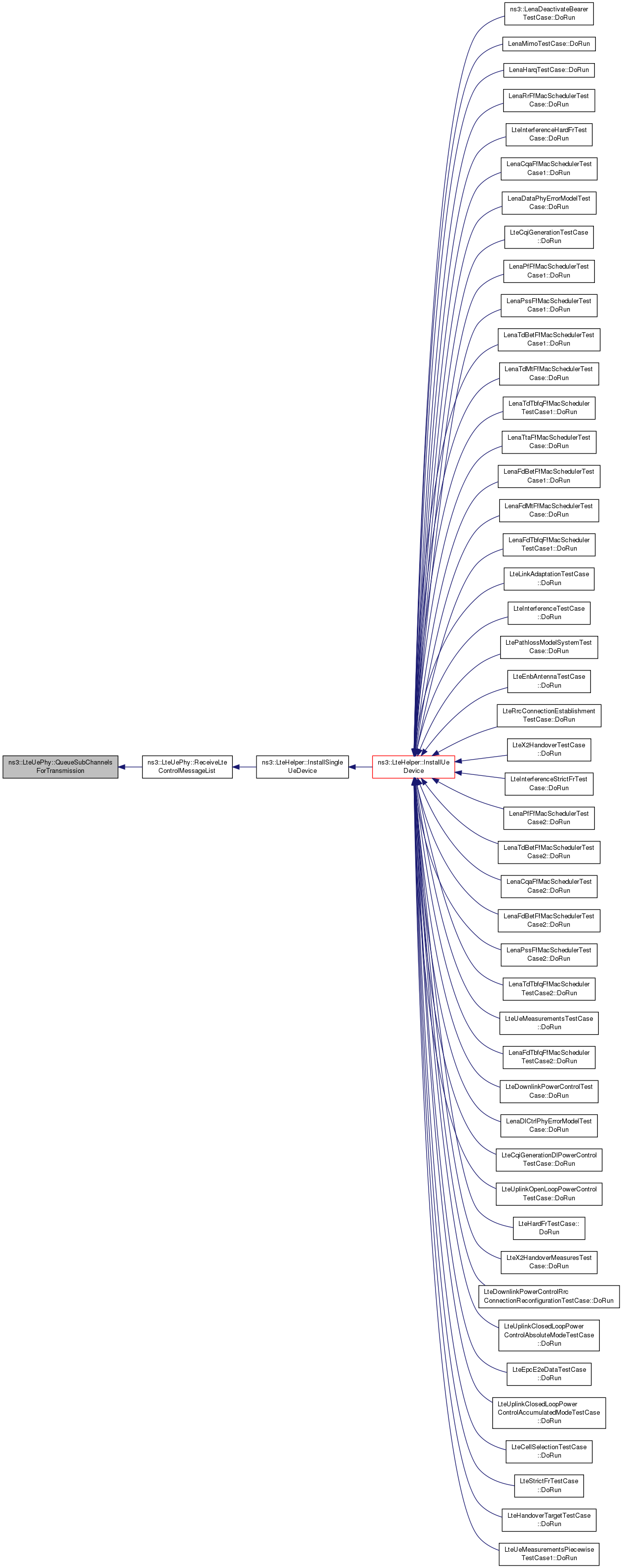

void ns3::LteUePhy::QueueSubChannelsForTransmission ( std::vector< int > rbMap )

private

Definition at line 1068 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay, and m_subChannelsForTransmissionQueue.

Referenced by ReceiveLteControlMessageList().

Here is the caller graph for this function:

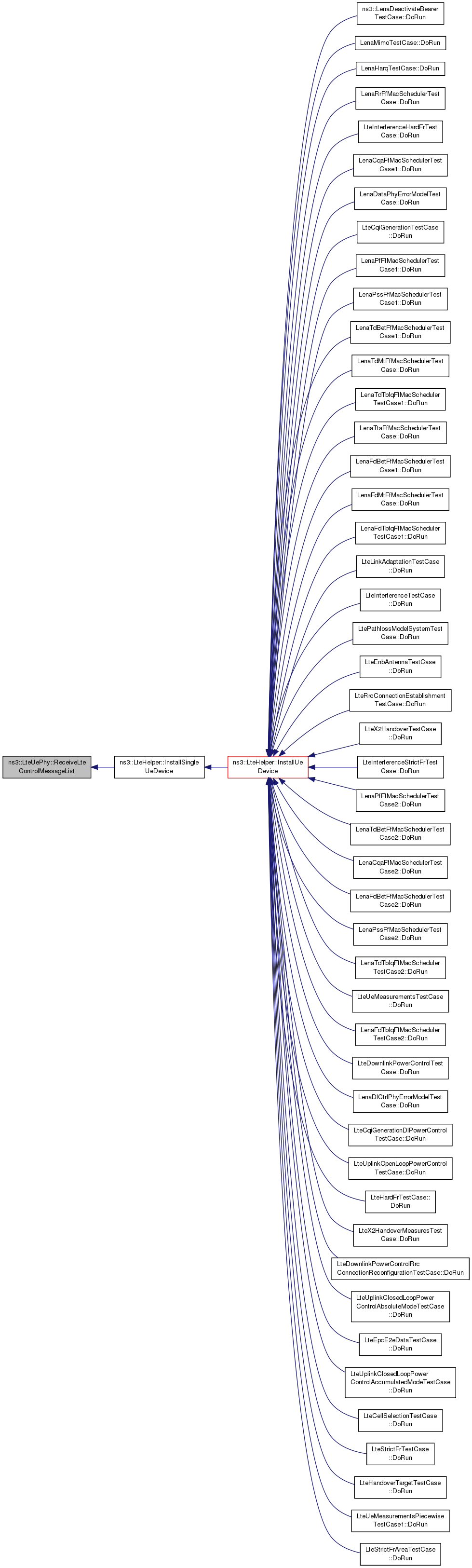

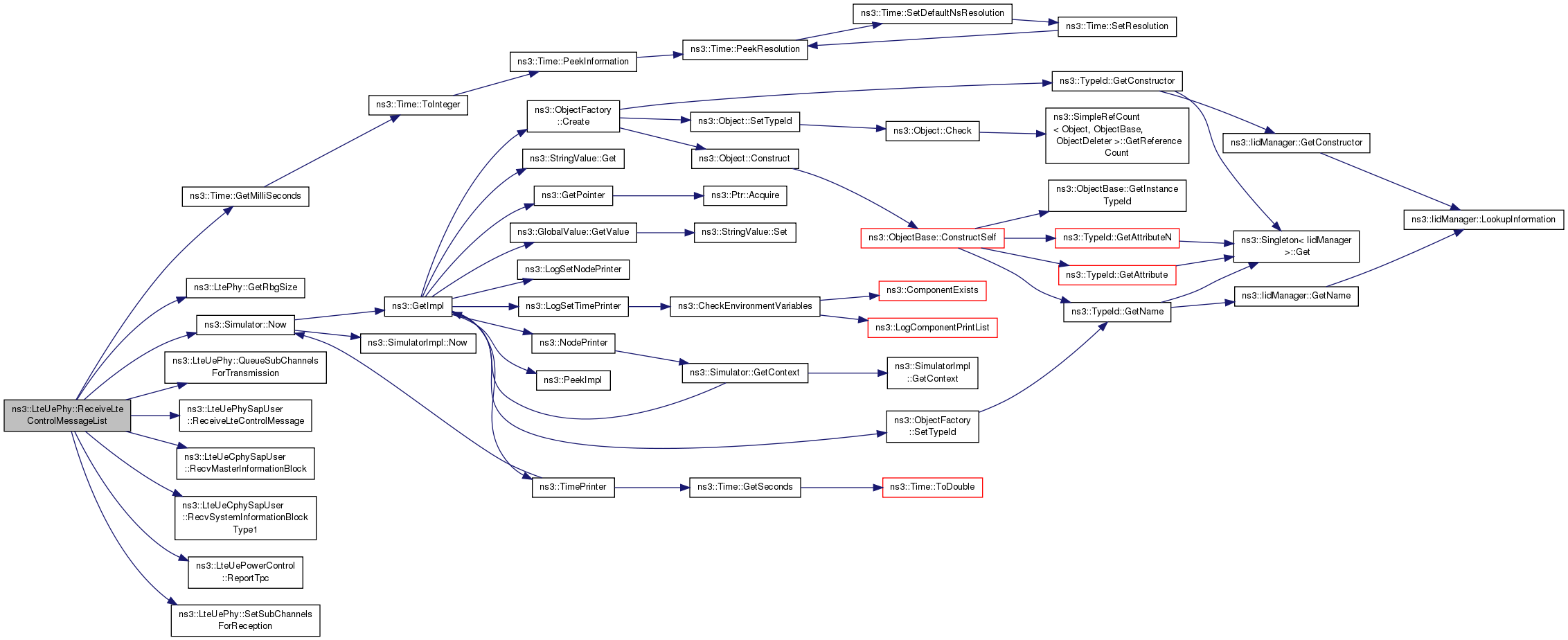

void ns3::LteUePhy::ReceiveLteControlMessageList ( std::list< Ptr< LteControlMessage > > msgList )

virtual

Definition at line 862 of file lte-ue-phy.cc.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveLteDlHarqFeedback ( DlInfoListElement_s mes )

virtual

PhySpectrum generated a new DL HARQ feedback.

Definition at line 1423 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

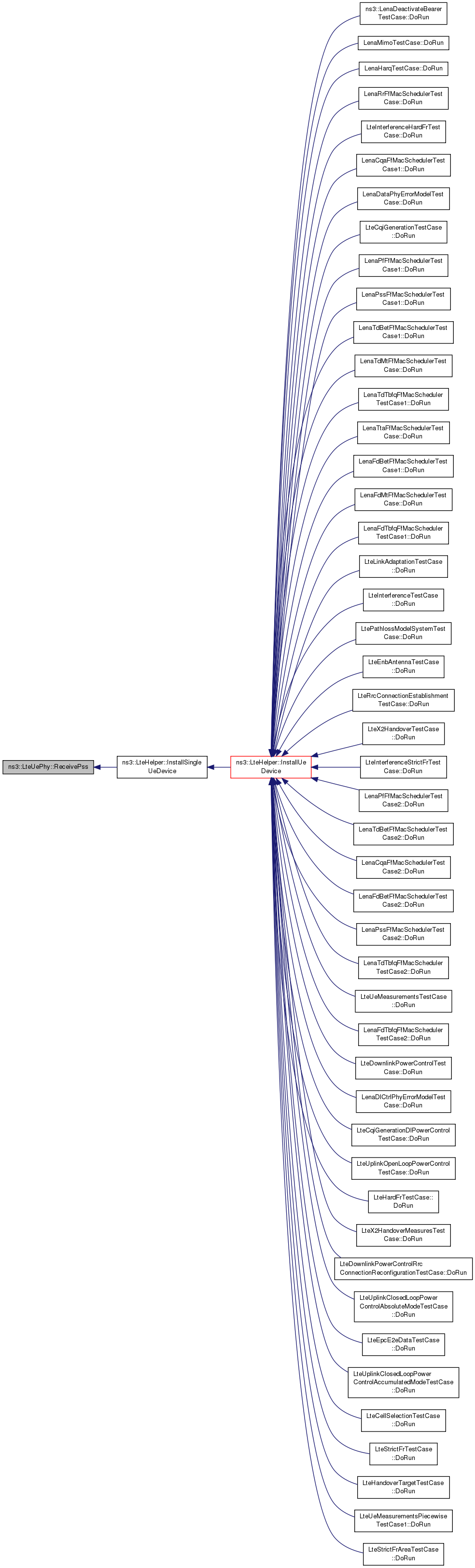

void ns3::LteUePhy::ReceivePss	(	uint16_t	cellId,
		Ptr< SpectrumValue >	p
	)

virtual

Definition at line 1014 of file lte-ue-phy.cc.

References ns3::LteUePhy::PssElement::cellId, ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), ns3::LtePhy::m_cellId, m_pssList, m_pssReceived, m_rnti, m_ueMeasurementsMap, ns3::LteUePhy::PssElement::nRB, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteUePhy::PssElement::pssPsdSum, ns3::LteUePhy::UeMeasurementsElement::rsrpNum, ns3::LteUePhy::UeMeasurementsElement::rsrpSum, ns3::LteUePhy::UeMeasurementsElement::rsrqNum, and ns3::LteUePhy::UeMeasurementsElement::rsrqSum.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

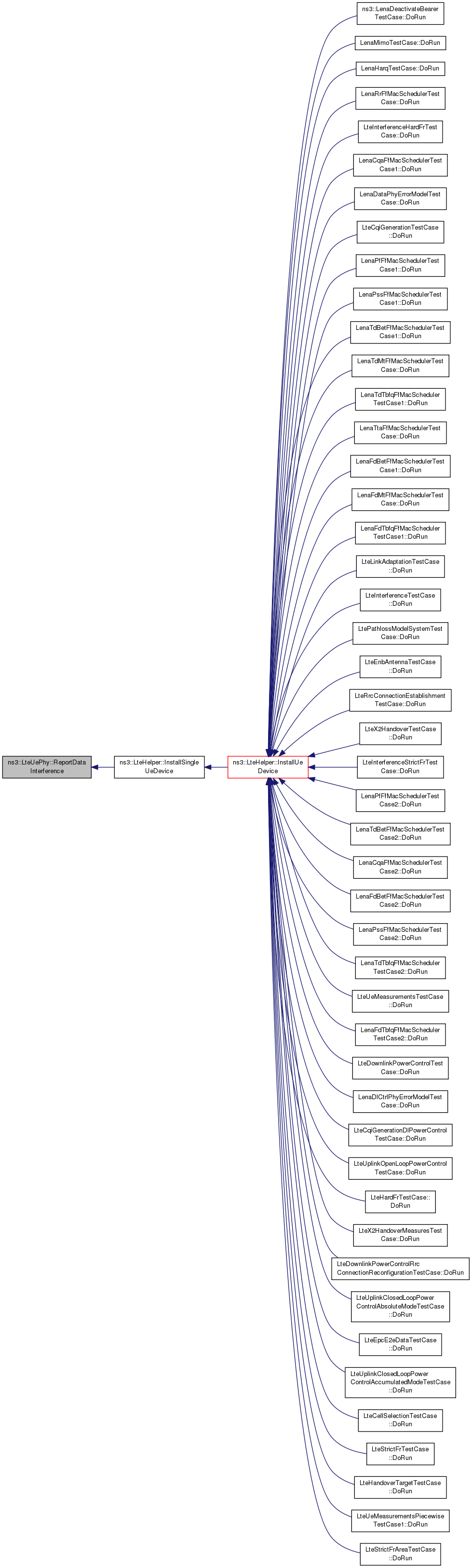

void ns3::LteUePhy::ReportDataInterference ( const SpectrumValue & interf )

virtual

Definition at line 665 of file lte-ue-phy.cc.

References m_dataInterferencePower, m_dataInterferencePowerUpdated, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the caller graph for this function:

void ns3::LteUePhy::ReportInterference ( const SpectrumValue & interf )

virtual

generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB

Parameters

interf the interference + noise power measured by the device

Implements ns3::LtePhy.

Definition at line 657 of file lte-ue-phy.cc.

References m_rsInterferencePower, m_rsInterferencePowerUpdated, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the caller graph for this function:

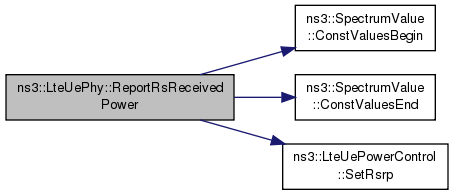

void ns3::LteUePhy::ReportRsReceivedPower ( const SpectrumValue & power )

virtual

generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP

Parameters

power the RS power measured by the device

Implements ns3::LtePhy.

Definition at line 674 of file lte-ue-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), m_enableUplinkPowerControl, m_powerControl, m_rsReceivedPower, m_rsReceivedPowerUpdated, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUePowerControl::SetRsrp().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::ReportUeMeasurements ( )

private

Layer-1 filtering of RSRP and RSRQ measurements and reporting to the RRC entity.

Initially executed at +0.200s, and then repeatedly executed with periodicity as indicated by the UeMeasurementsFilterPeriod attribute.

Definition at line 799 of file lte-ue-phy.cc.

References ns3::LteUeCphySapUser::UeMeasurementsElement::m_cellId, ns3::LtePhy::m_cellId, m_reportUeMeasurements, m_rnti, ns3::LteUeCphySapUser::UeMeasurementsElement::m_rsrp, ns3::LteUeCphySapUser::UeMeasurementsElement::m_rsrq, m_ueCphySapUser, m_ueMeasurementsFilterPeriod, ns3::LteUeCphySapUser::UeMeasurementsParameters::m_ueMeasurementsList, m_ueMeasurementsMap, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LteUeCphySapUser::ReportUeMeasurements(), and ns3::Simulator::Schedule().

Referenced by LteUePhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SendSrs ( )

Send the SRS signal in the last symbols of the frame.

Definition at line 1166 of file lte-ue-phy.cc.

References ns3::LteUePowerControl::GetSrsTxPower(), ns3::LtePhy::m_cellId, m_enableUplinkPowerControl, m_powerControl, m_rnti, ns3::LtePhy::m_txPower, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_uplinkSpectrumPhy, NS_ASSERT, NS_LOG_FUNCTION, and SetSubChannelsForTransmission().

Referenced by SubframeIndication().

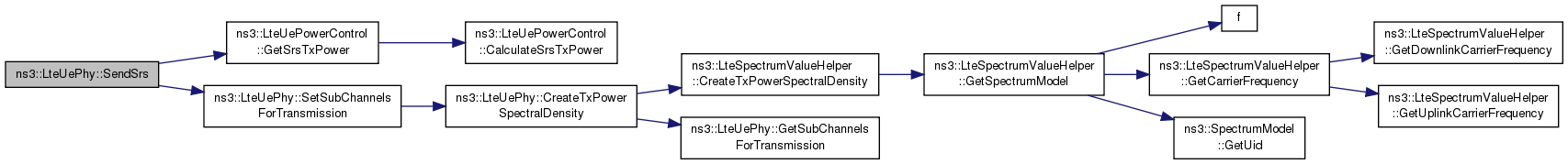

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetHarqPhyModule ( Ptr< LteHarqPhy > harq )

Set the HARQ PHY module.

Definition at line 1433 of file lte-ue-phy.cc.

References m_harqPhyModule.

void ns3::LteUePhy::SetLteUeCphySapUser ( LteUeCphySapUser * s )

Set the CPHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 343 of file lte-ue-phy.cc.

References m_ueCphySapUser, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SetLteUePhySapUser ( LteUePhySapUser * s )

Set the PHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 328 of file lte-ue-phy.cc.

References m_uePhySapUser, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SetNoiseFigure ( double nf )

Parameters

nf	the noise figure in dB

Definition at line 357 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

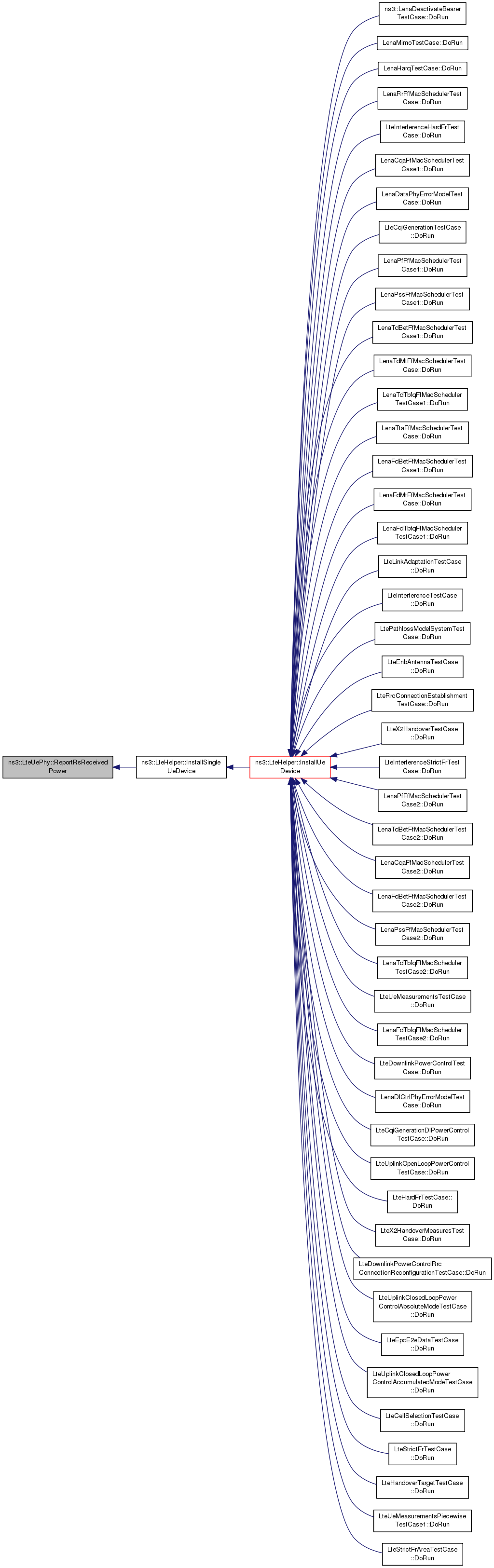

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForReception ( std::vector< int > mask )

Get a list of sub channels to use in RX.

Parameters

mask	list of sub channels

Definition at line 438 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

Referenced by ReceiveLteControlMessageList().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForTransmission ( std::vector< int > mask )

Set a list of sub channels to use in TX.

Parameters

mask	a list of sub channels

Definition at line 426 of file lte-ue-phy.cc.

References CreateTxPowerSpectralDensity(), m_subChannelsForTransmission, ns3::LtePhy::m_uplinkSpectrumPhy, and NS_LOG_FUNCTION.

Referenced by SendSrs(), and SubframeIndication().

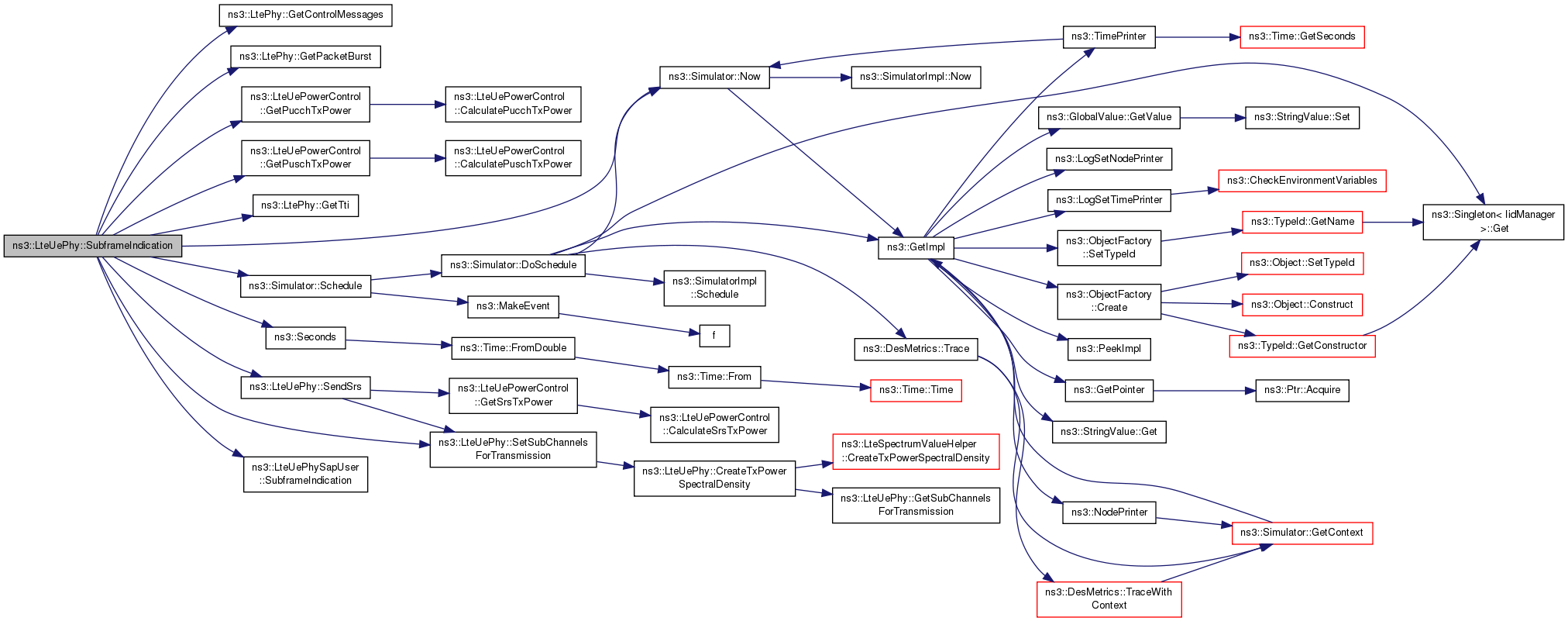

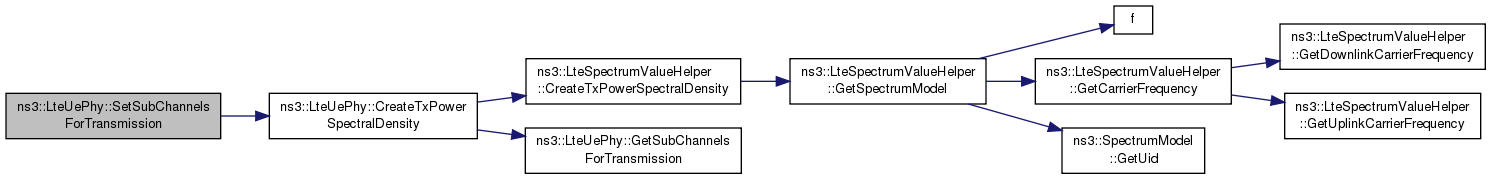

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode1Gain ( double gain )

private

Definition at line 1350 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode2Gain ( double gain )

private

Definition at line 1356 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode3Gain ( double gain )

private

Definition at line 1362 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode4Gain ( double gain )

private

Definition at line 1368 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode5Gain ( double gain )

private

Definition at line 1374 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode6Gain ( double gain )

private

Definition at line 1380 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode7Gain ( double gain )

private

Definition at line 1386 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 1393 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_txModeGain, and NS_LOG_FUNCTION.

Referenced by SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), and SetTxMode7Gain().

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxPower ( double pow )

Parameters

pow	the transmission power in dBm

Definition at line 371 of file lte-ue-phy.cc.

References m_powerControl, ns3::LtePhy::m_txPower, NS_LOG_FUNCTION, and ns3::LteUePowerControl::SetTxPower().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

trigger from eNB the start from a new frame

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 1075 of file lte-ue-phy.cc.

References ns3::LtePhy::GetControlMessages(), ns3::LtePhy::GetPacketBurst(), ns3::LteUePowerControl::GetPucchTxPower(), ns3::LteUePowerControl::GetPuschTxPower(), ns3::LtePhy::GetTti(), ns3::LtePhy::m_cellId, m_enableUplinkPowerControl, ns3::LtePhy::m_macChTtiDelay, m_powerControl, m_pssReceived, m_rnti, m_rsInterferencePowerUpdated, m_rsReceivedPowerUpdated, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, m_subChannelsForTransmissionQueue, m_subframeNo, ns3::LtePhy::m_txPower, m_uePhySapUser, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Simulator::Schedule(), ns3::Seconds(), SendSrs(), SetSubChannelsForTransmission(), and ns3::LteUePhySapUser::SubframeIndication().

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SwitchToState ( State s )

private

Switch the UE PHY to the given state.

Parameters

s	the destination state

Definition at line 1448 of file lte-ue-phy.cc.

References ns3::LtePhy::m_cellId, m_rnti, m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::ToString().

Referenced by DoStartCellSearch(), and DoSynchronizeWithEnb().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteUeCphySapProvider< LteUePhy >

friend

Definition at line 55 of file lte-ue-phy.h.

friend class UeMemberLteUePhySapProvider

friend

Definition at line 54 of file lte-ue-phy.h.

Referenced by LteUePhy().

Member Data Documentation

Time ns3::LteUePhy::m_a30CqiLast

private

Definition at line 357 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCqiRsrpRsrq().

Time ns3::LteUePhy::m_a30CqiPeriocity

private

SubBand Aperiodic CQI.

Activated by DCI format 0 or Random Access Response Grant.

Note: Defines a periodicity for academic studies.

Definition at line 356 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiRsrpRsrq().

Ptr<LteAmc> ns3::LteUePhy::m_amc

private

Definition at line 337 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and LteUePhy().

SpectrumValue ns3::LteUePhy::m_dataInterferencePower

private

Definition at line 398 of file lte-ue-phy.h.

Referenced by GenerateMixedCqiReport(), and ReportDataInterference().

bool ns3::LteUePhy::m_dataInterferencePowerUpdated

private

Definition at line 397 of file lte-ue-phy.h.

Referenced by GenerateMixedCqiReport(), and ReportDataInterference().

bool ns3::LteUePhy::m_dlConfigured

private

Definition at line 377 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetDlBandwidth(), DoSynchronizeWithEnb(), and GenerateCqiRsrpRsrq().

bool ns3::LteUePhy::m_enableUplinkPowerControl

private

The EnableUplinkPowerControl attribute.

If true, Uplink Power Control will be enabled.

Definition at line 343 of file lte-ue-phy.h.

Referenced by GetTypeId(), ReceiveLteControlMessageList(), ReportRsReceivedPower(), SendSrs(), and SubframeIndication().

Ptr<LteHarqPhy> ns3::LteUePhy::m_harqPhyModule

private

Definition at line 437 of file lte-ue-phy.h.

Referenced by ReceiveLteControlMessageList(), and SetHarqPhyModule().

Ptr<SpectrumValue> ns3::LteUePhy::m_noisePsd

private

Noise power spectral density for the configured bandwidth.

Definition at line 473 of file lte-ue-phy.h.

Referenced by DoSetDlBandwidth().

Time ns3::LteUePhy::m_p10CqiLast

private

Definition at line 349 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCqiRsrpRsrq().

Time ns3::LteUePhy::m_p10CqiPeriocity

private

Wideband Periodic CQI. 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms.

Definition at line 348 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiRsrpRsrq().

double ns3::LteUePhy::m_paLinear

private

Definition at line 375 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetPa(), and GenerateMixedCqiReport().

Ptr<LteUePowerControl> ns3::LteUePhy::m_powerControl

private

Pointer to UE Uplink Power Control entity.

Definition at line 345 of file lte-ue-phy.h.

Referenced by DoConfigureReferenceSignalPower(), DoSetRnti(), GetUplinkPowerControl(), LteUePhy(), ReceiveLteControlMessageList(), ReportRsReceivedPower(), SendSrs(), SetTxPower(), and SubframeIndication().

std::list<PssElement> ns3::LteUePhy::m_pssList

private

Definition at line 407 of file lte-ue-phy.h.

Referenced by GenerateCqiRsrpRsrq(), and ReceivePss().

bool ns3::LteUePhy::m_pssReceived

private

Definition at line 400 of file lte-ue-phy.h.

Referenced by GenerateCqiRsrpRsrq(), ReceivePss(), and SubframeIndication().

double ns3::LteUePhy::m_pssReceptionThreshold

private

The RsrqUeMeasThreshold attribute.

Receive threshold for PSS on RSRQ in dB.

Definition at line 413 of file lte-ue-phy.h.

Referenced by GenerateCqiRsrpRsrq(), and GetTypeId().

uint32_t ns3::LteUePhy::m_raPreambleId

private

Definition at line 439 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

uint32_t ns3::LteUePhy::m_raRnti

private

Definition at line 440 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

TracedCallback<uint16_t, uint16_t, double, double> ns3::LteUePhy::m_reportCurrentCellRsrpSinrTrace

private

The ReportCurrentCellRsrpSinr trace source.

Trace information regarding RSRP and average SINR (see TS 36.214). Exporting cell ID, RNTI, RSRP, and SINR.

Definition at line 447 of file lte-ue-phy.h.

Referenced by GenerateCqiRsrpRsrq(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double, double, bool> ns3::LteUePhy::m_reportUeMeasurements

private

The ReportUeMeasurements trace source.

Contains trace information regarding RSRP and RSRQ measured from a specific cell (see TS 36.214). Exporting RNTI, the ID of the measured cell, RSRP (in dBm), RSRQ (in dB), and whether the cell is the serving cell.

Definition at line 461 of file lte-ue-phy.h.

Referenced by GetTypeId(), and ReportUeMeasurements().

uint16_t ns3::LteUePhy::m_rnti

private

Definition at line 365 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), DoSetRnti(), DoSetSrsConfigurationIndex(), GenerateCqiRsrpRsrq(), ReceiveLteControlMessageList(), ReceivePss(), ReportUeMeasurements(), SendSrs(), SubframeIndication(), and SwitchToState().
