listen for block ack events. More...

#include "mac-low.h"

Inheritance diagram for ns3::MacLowAggregationCapableTransmissionListener:

Public Member Functions
	MacLowAggregationCapableTransmissionListener ()

virtual	~MacLowAggregationCapableTransmissionListener ()

virtual void	BlockAckInactivityTimeout (Mac48Address originator, uint8_t tid)=0
	Typically is called in order to notify EdcaTxopN that a block ack inactivity timeout occurs for the block ack agreement identified by the pair originator, tid. More...

virtual void	CompleteMpduTx (Ptr< const Packet > packet, WifiMacHeader hdr, Time tstamp)
	This function stores an MPDU (part of an A-MPDU) in blockackagreement (i.e. More...

virtual void	CompleteTransfer (Mac48Address address, uint8_t tid)

virtual bool	GetBlockAckAgreementExists (Mac48Address address, uint8_t tid)=0

virtual Mac48Address	GetDestAddressForAggregation (const WifiMacHeader &hdr)

virtual Ptr< MpduAggregator >	GetMpduAggregator (void) const

virtual Ptr< MsduAggregator >	GetMsduAggregator (void) const

virtual uint16_t	GetNextSequenceNumberfor (WifiMacHeader *hdr)
	Return the next sequence number for the given header. More...

virtual uint32_t	GetNOutstandingPackets (Mac48Address recipient, uint8_t tid)

virtual uint32_t	GetNRetryNeededPackets (Mac48Address recipient, uint8_t tid) const

virtual Ptr< WifiMacQueue >	GetQueue (void)=0
	Returns the EDCA queue to check if there are packets that can be aggregated with a Block Ack. More...

virtual Mac48Address	GetSrcAddressForAggregation (const WifiMacHeader &hdr)

virtual Ptr< const Packet >	PeekNextPacketInBaQueue (WifiMacHeader &header, Mac48Address recipient, uint8_t tid, Time *timestamp)

virtual uint16_t	PeekNextSequenceNumberfor (WifiMacHeader *hdr)
	Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e. More...

virtual void	RemoveFromBaQueue (uint8_t tid, Mac48Address recipient, uint16_t seqnumber)
	Remove a packet after you peek in the retransmit queue and get it. More...

virtual void	SetAmpdu (Mac48Address dest, bool enableAmpdu)

Detailed Description

listen for block ack events.

Definition at line 205 of file mac-low.h.

Constructor & Destructor Documentation

ns3::MacLowAggregationCapableTransmissionListener::MacLowAggregationCapableTransmissionListener ( )

Definition at line 70 of file mac-low.cc.

ns3::MacLowAggregationCapableTransmissionListener::~MacLowAggregationCapableTransmissionListener ( )

virtual

Definition at line 73 of file mac-low.cc.

Member Function Documentation

virtual void ns3::MacLowAggregationCapableTransmissionListener::BlockAckInactivityTimeout	(	Mac48Address	originator,
		uint8_t	tid
	)

pure virtual

Typically is called in order to notify EdcaTxopN that a block ack inactivity timeout occurs for the block ack agreement identified by the pair originator, tid.

Rx station maintains an inactivity timer for each block ack agreement. Timer is reset when a frame with ack policy block ack or a block ack request are received. When this timer reaches zero this method is called and a delba frame is scheduled for transmission.

Parameters

originator	MAC address of the data originator
tid

Implemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded().

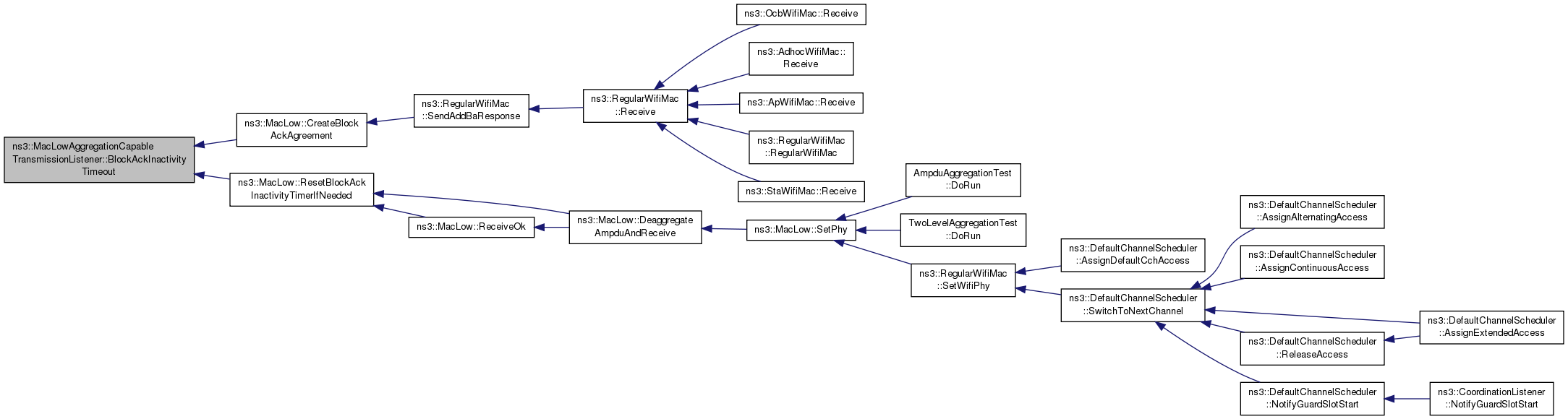

Here is the caller graph for this function:

void ns3::MacLowAggregationCapableTransmissionListener::CompleteMpduTx	(	Ptr< const Packet >	packet,
		WifiMacHeader	hdr,
		Time	tstamp
	)

virtual

This function stores an MPDU (part of an A-MPDU) in blockackagreement (i.e.

the sender is waiting for a blockack containing the sequence number of this MPDU). It also calls NotifyMpdu transmission that updates the status of OriginatorBlockAckAgreement.

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 83 of file mac-low.cc.

void ns3::MacLowAggregationCapableTransmissionListener::CompleteTransfer	(	Mac48Address	address,
		uint8_t	tid
	)

virtual

Parameters

address	address of peer station involved in block ack mechanism.
tid	traffic ID of transmitted packet.

Calls CompleteAmpduTransfer that resets the status of OriginatorBlockAckAgreement after the transfer of an A-MPDU with ImmediateBlockAck policy (i.e. no BAR is scheduled)

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 79 of file mac-low.cc.

virtual bool ns3::MacLowAggregationCapableTransmissionListener::GetBlockAckAgreementExists	(	Mac48Address	address,
		uint8_t	tid
	)

pure virtual

Parameters

recipient	address of the peer station
tid	traffic ID.

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement exists with station addressed by recipient for tid tid.

Implemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Mac48Address ns3::MacLowAggregationCapableTransmissionListener::GetDestAddressForAggregation ( const WifiMacHeader & hdr )

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 131 of file mac-low.cc.

Ptr< MpduAggregator > ns3::MacLowAggregationCapableTransmissionListener::GetMpduAggregator ( void ) const

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 121 of file mac-low.cc.

Ptr< MsduAggregator > ns3::MacLowAggregationCapableTransmissionListener::GetMsduAggregator ( void ) const

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 116 of file mac-low.cc.

uint16_t ns3::MacLowAggregationCapableTransmissionListener::GetNextSequenceNumberfor ( WifiMacHeader * hdr )

virtual

Return the next sequence number for the given header.

Parameters

hdr	Wi-Fi header

Returns: the next sequence number

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 87 of file mac-low.cc.

uint32_t ns3::MacLowAggregationCapableTransmissionListener::GetNOutstandingPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)

virtual

Parameters

recipient	address of peer station involved in block ack mechanism.
tid	traffic ID.

Returns: the number of packets buffered for a specified agreement

Returns number of packets buffered for a specified agreement.

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 106 of file mac-low.cc.

uint32_t ns3::MacLowAggregationCapableTransmissionListener::GetNRetryNeededPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

virtual

Parameters

recipient	address of peer station involved in block ack mechanism.
tid	traffic ID.

Returns: the number of packets for a specific agreement that need retransmission

Returns number of packets for a specific agreement that need retransmission.

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 111 of file mac-low.cc.

virtual Ptr<WifiMacQueue> ns3::MacLowAggregationCapableTransmissionListener::GetQueue ( void )

pure virtual

Returns the EDCA queue to check if there are packets that can be aggregated with a Block Ack.

Implemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Mac48Address ns3::MacLowAggregationCapableTransmissionListener::GetSrcAddressForAggregation ( const WifiMacHeader & hdr )

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 126 of file mac-low.cc.

Ptr< const Packet > ns3::MacLowAggregationCapableTransmissionListener::PeekNextPacketInBaQueue	(	WifiMacHeader &	header,
		Mac48Address	recipient,
		uint8_t	tid,
		Time *	timestamp
	)

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 97 of file mac-low.cc.

uint16_t ns3::MacLowAggregationCapableTransmissionListener::PeekNextSequenceNumberfor ( WifiMacHeader * hdr )

virtual

Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e.

the current sequence number remains unchanged).

Parameters

hdr	Wi-Fi header

Returns: the next sequence number

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 92 of file mac-low.cc.

void ns3::MacLowAggregationCapableTransmissionListener::RemoveFromBaQueue	(	uint8_t	tid,
		Mac48Address	recipient,
		uint16_t	seqnumber
	)

virtual

Remove a packet after you peek in the retransmit queue and get it.

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 102 of file mac-low.cc.

void ns3::MacLowAggregationCapableTransmissionListener::SetAmpdu	(	Mac48Address	dest,
		bool	enableAmpdu
	)

virtual

Reimplemented in ns3::EdcaTxopN::AggregationCapableTransmissionListener.

Definition at line 76 of file mac-low.cc.

The documentation for this class was generated from the following files:

src/wifi/model/mac-low.h
src/wifi/model/mac-low.cc
