Implement the header for management frames of type probe request. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtProbeRequestHeader:

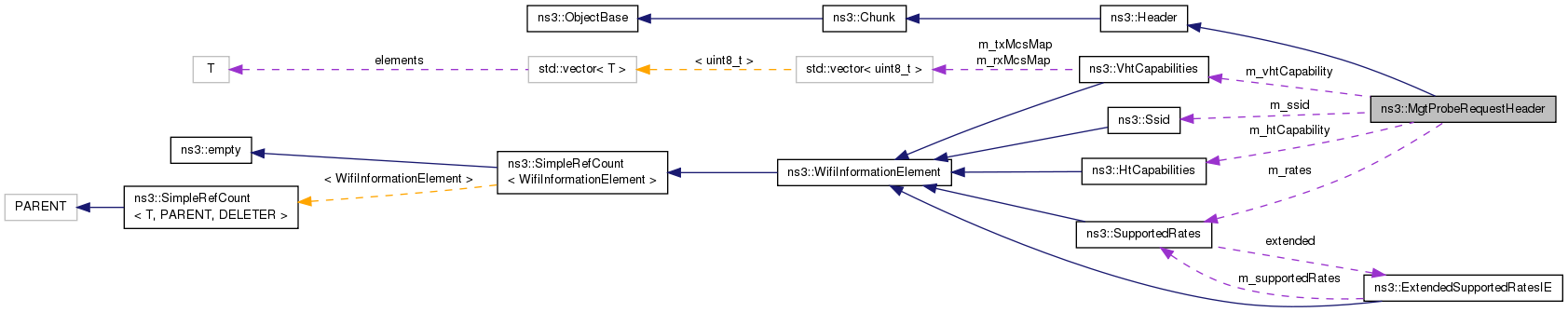

Collaboration diagram for ns3::MgtProbeRequestHeader:

Public Member Functions
	~MgtProbeRequestHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

Ssid	GetSsid (void) const
	Return the Service Set Identifier (SSID). More...

SupportedRates	GetSupportedRates (void) const
	Return the supported rates. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetHtCapabilities (HtCapabilities htcapabilities)
	Set the HT capabilities. More...

void	SetSsid (Ssid ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSupportedRates (SupportedRates rates)
	Set the supported rates. More...

void	SetVhtCapabilities (VhtCapabilities vhtcapabilities)
	Set the VHT capabilities. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
HtCapabilities	m_htCapability
	HT capabilities. More...

SupportedRates	m_rates
	List of supported rates. More...

Ssid	m_ssid
	Service Set ID (SSID) More...

VhtCapabilities	m_vhtCapability
	VHT capabilities. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type probe request.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 400 bytes (on a 64-bit architecture).

Definition at line 283 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtProbeRequestHeader::~MgtProbeRequestHeader ( )

Definition at line 36 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtProbeRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 138 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_htCapability, m_rates, m_ssid, m_vhtCapability, and visualizer.core::start().

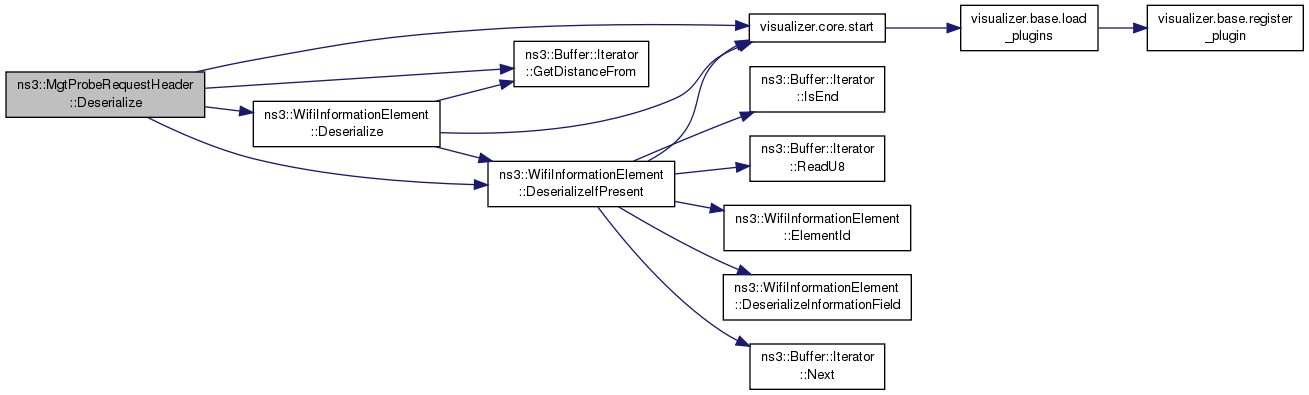

Here is the call graph for this function:

HtCapabilities ns3::MgtProbeRequestHeader::GetHtCapabilities ( void ) const

Return the HT capabilities.

Returns: HT capabilities

Definition at line 65 of file mgt-headers.cc.

References m_htCapability.

TypeId ns3::MgtProbeRequestHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 112 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::MgtProbeRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 89 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::VhtCapabilities::GetSerializedSize(), ns3::HtCapabilities::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_htCapability, m_rates, m_ssid, and m_vhtCapability.

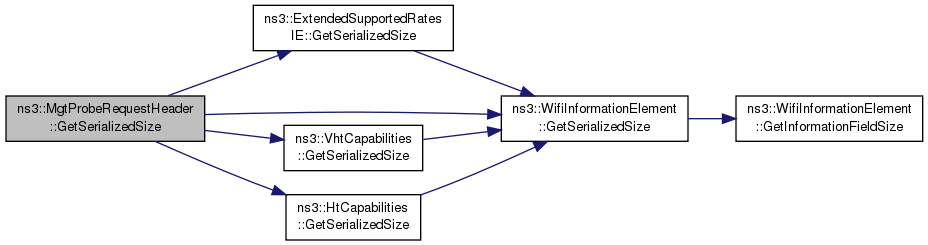

Here is the call graph for this function:

Ssid ns3::MgtProbeRequestHeader::GetSsid ( void ) const

Return the Service Set Identifier (SSID).

Returns: SSID

Definition at line 47 of file mgt-headers.cc.

References m_ssid.

SupportedRates ns3::MgtProbeRequestHeader::GetSupportedRates ( void ) const

Return the supported rates.

Returns: the supported rates

Definition at line 83 of file mgt-headers.cc.

References m_rates.

TypeId ns3::MgtProbeRequestHeader::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 101 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

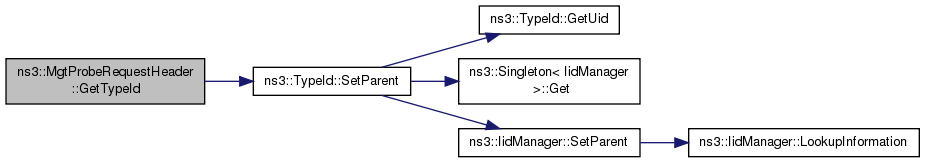

Here is the call graph for this function:

Here is the caller graph for this function:

VhtCapabilities ns3::MgtProbeRequestHeader::GetVhtCapabilities ( void ) const

Return the VHT capabilities.

Returns: VHT capabilities

Definition at line 77 of file mgt-headers.cc.

References m_vhtCapability.

void ns3::MgtProbeRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 118 of file mgt-headers.cc.

References m_htCapability, m_rates, m_ssid, and m_vhtCapability.

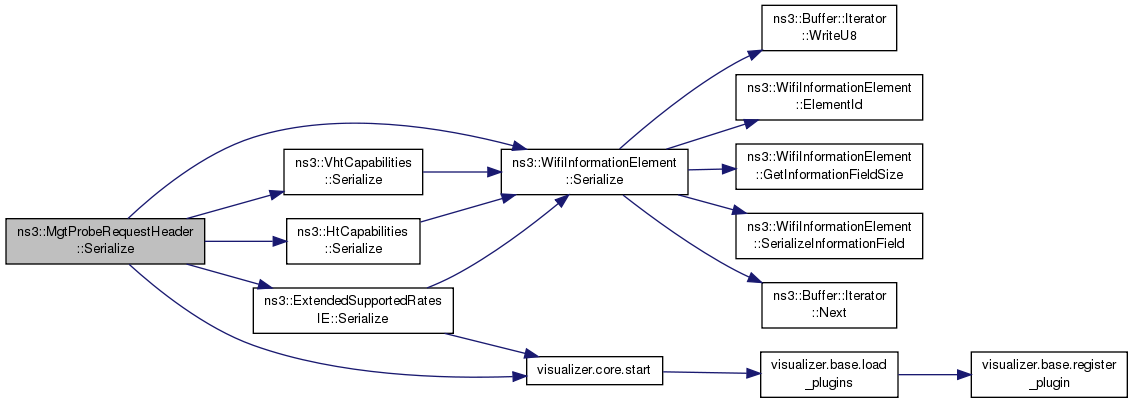

void ns3::MgtProbeRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 127 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_htCapability, m_rates, m_ssid, m_vhtCapability, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::VhtCapabilities::Serialize(), ns3::WifiInformationElement::Serialize(), ns3::HtCapabilities::Serialize(), and visualizer.core::start().
