Manages all the radio bearer information possessed by the ENB RRC for a single UE. More...

#include "lte-enb-rrc.h"

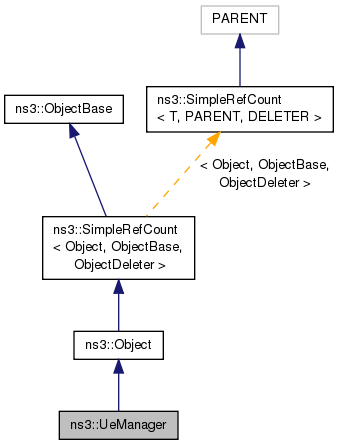

Inheritance diagram for ns3::UeManager:

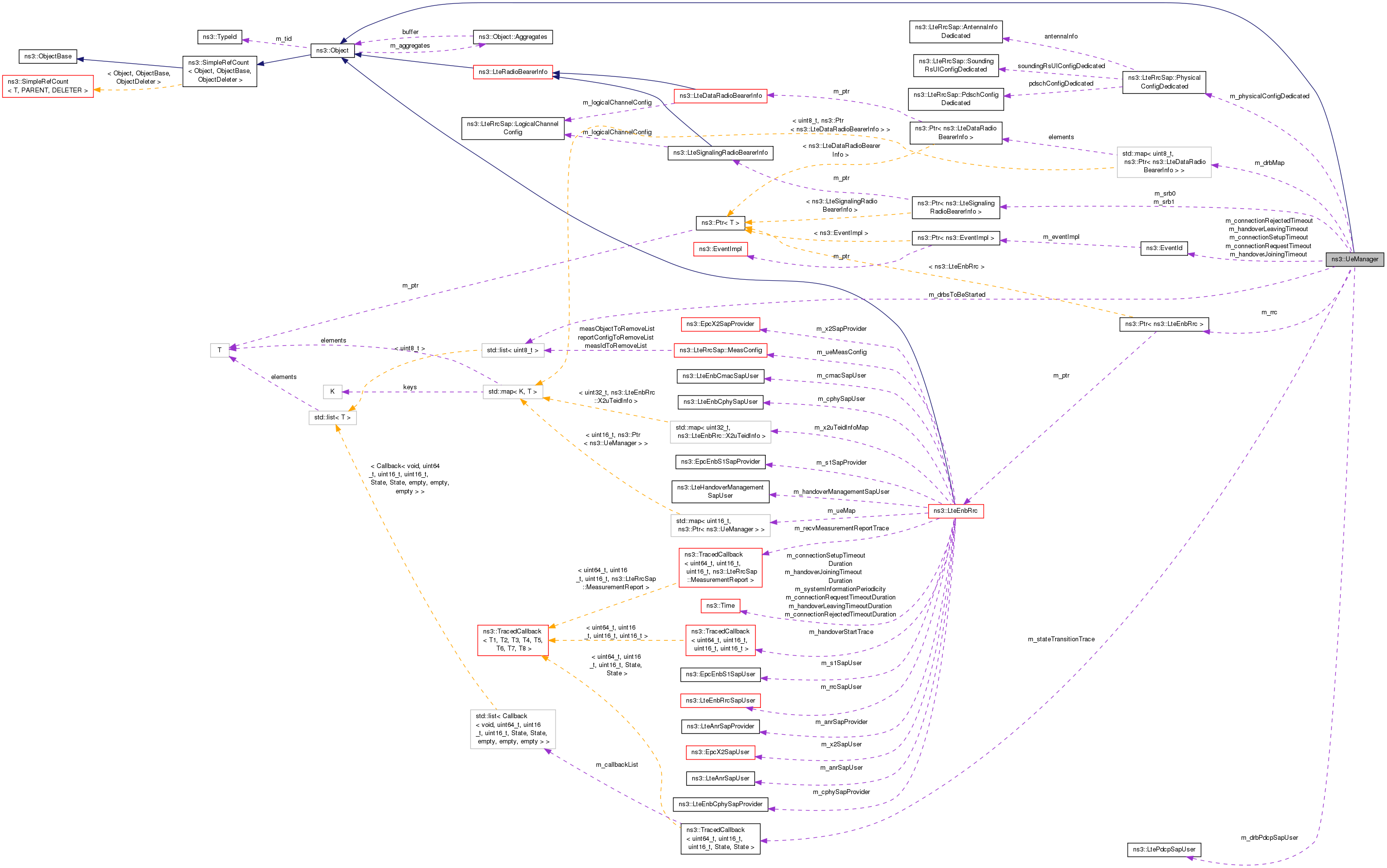

Collaboration diagram for ns3::UeManager:

Public Types
enum	State { INITIAL_RANDOM_ACCESS = 0, CONNECTION_SETUP, CONNECTION_REJECTED, CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, HANDOVER_PREPARATION, HANDOVER_JOINING, HANDOVER_PATH_SWITCH, HANDOVER_LEAVING, NUM_STATES }
	The state of the UeManager at the eNB RRC. More...

typedef void(*	StateTracedCallback) (uint64_t imsi, uint16_t cellId, uint16_t rnti, State oldState, State newState)
	TracedCallback signature for state transition events. More...

Public Member Functions
	UeManager ()

	UeManager (Ptr< LteEnbRrc > rrc, uint16_t rnti, State s)
	UeManager constructor. More...

virtual	~UeManager (void)

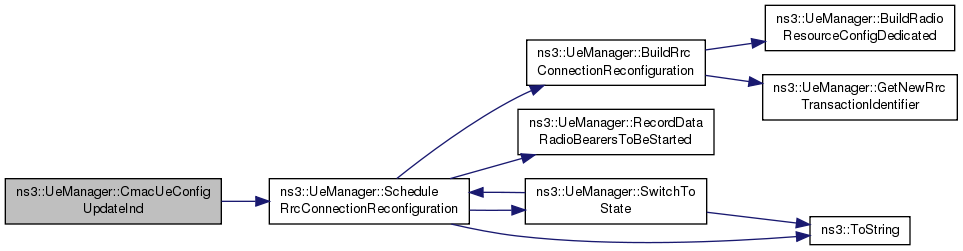

void	CmacUeConfigUpdateInd (LteEnbCmacSapUser::UeConfig cmacParams)

void	CompleteSetupUe (LteEnbRrcSapProvider::CompleteSetupUeParameters params)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::CompleteSetupUe interface. More...

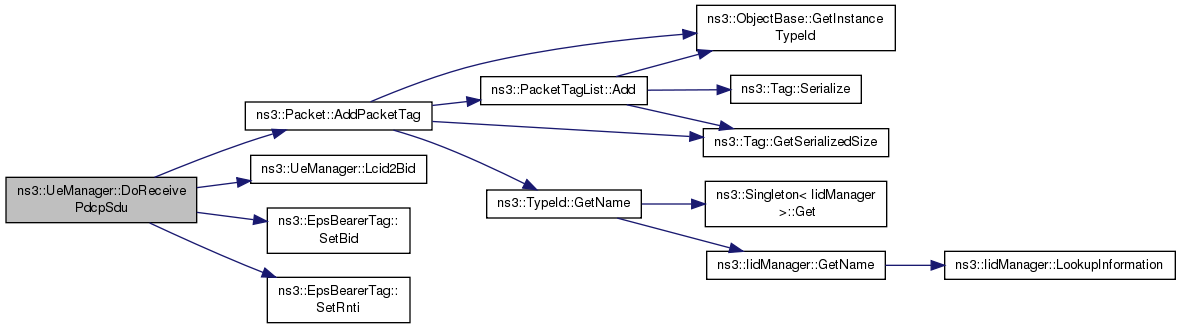

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

std::vector< EpcX2Sap::ErabToBeSetupItem >	GetErabList ()

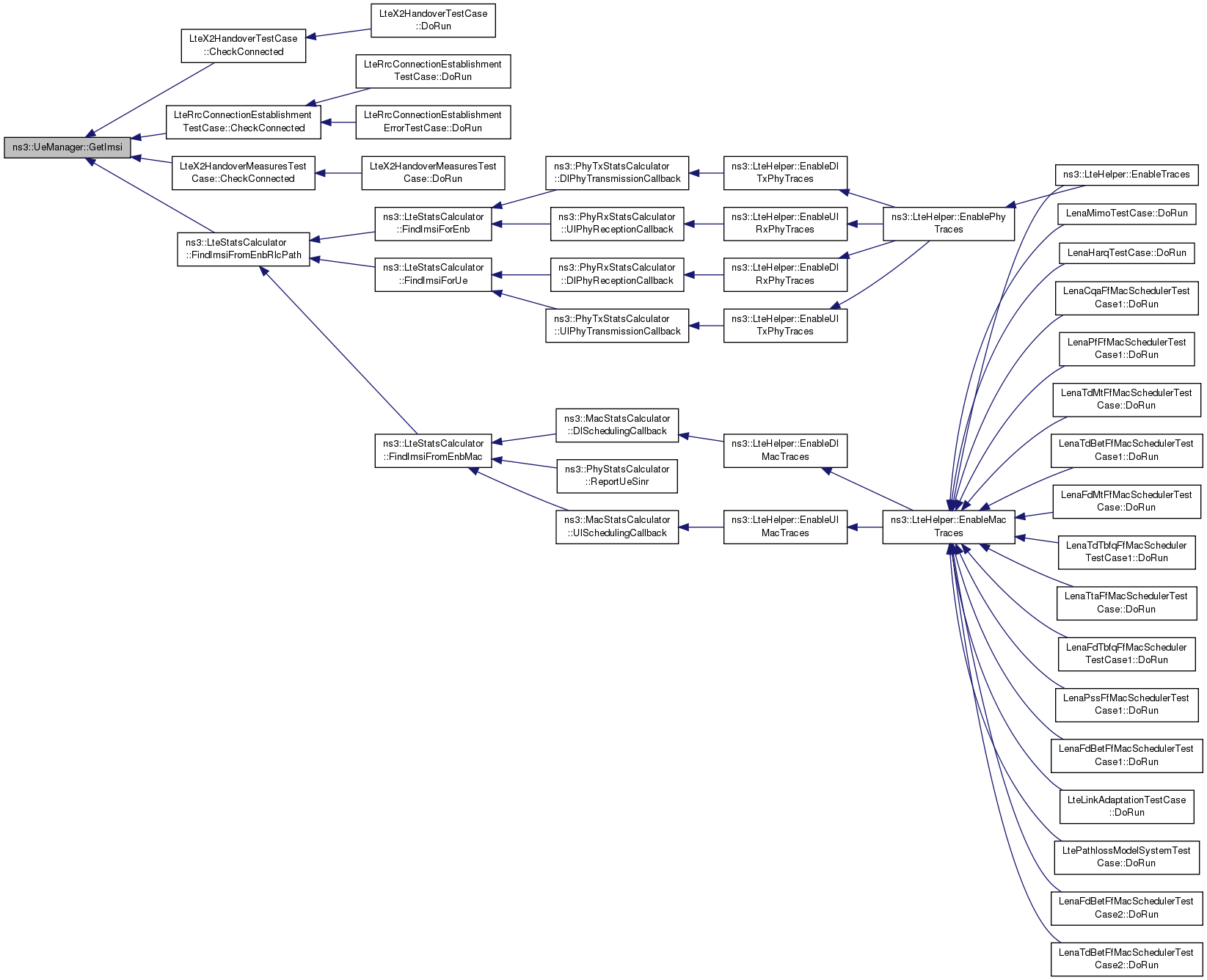

uint64_t	GetImsi (void) const

LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigForHandoverPreparationInfo ()

uint16_t	GetRnti (void) const

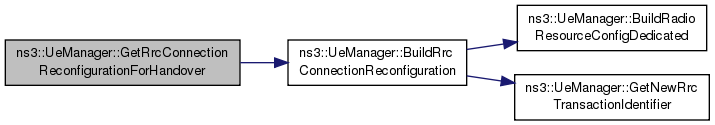

LteRrcSap::RrcConnectionReconfiguration	GetRrcConnectionReconfigurationForHandover ()

uint16_t	GetSrsConfigurationIndex (void) const

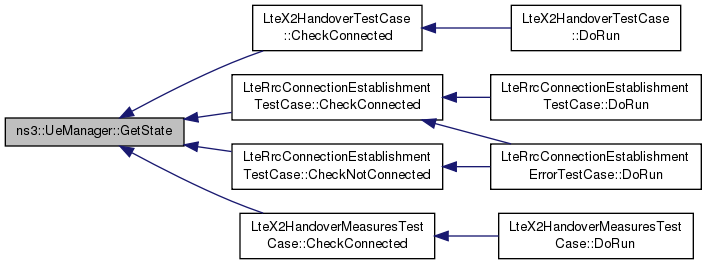

State	GetState () const

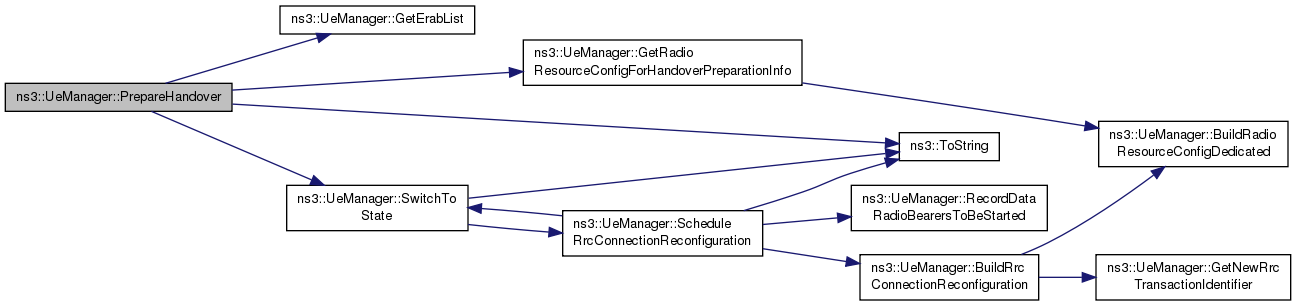

void	PrepareHandover (uint16_t cellId)
	Start the handover preparation and send the handover request. More...

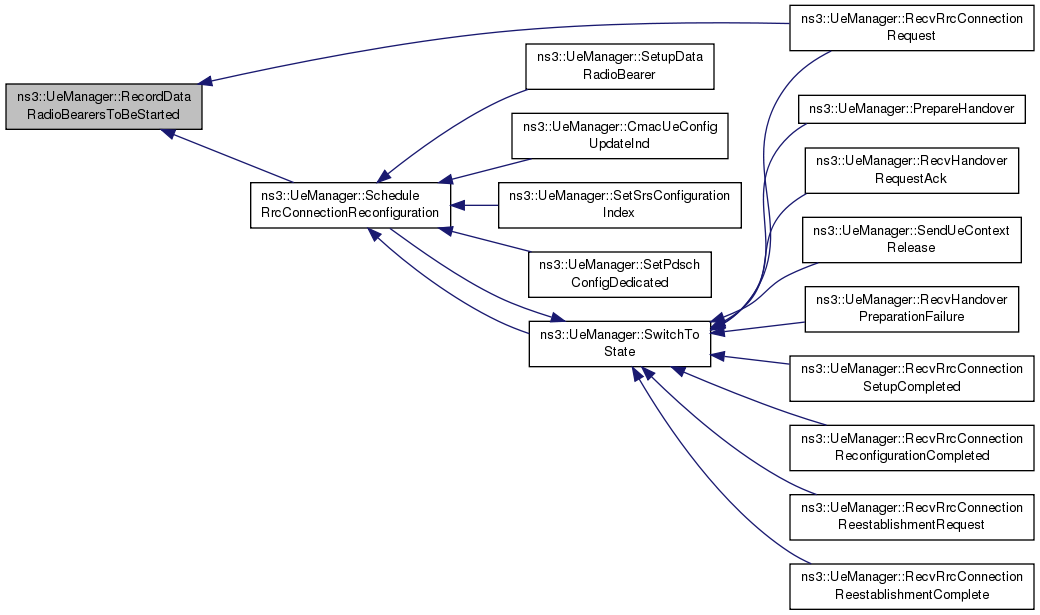

void	RecordDataRadioBearersToBeStarted ()
	Start all configured data radio bearers. More...

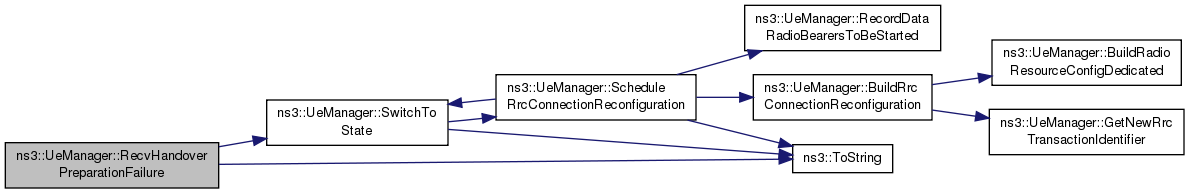

void	RecvHandoverPreparationFailure (uint16_t cellId)
	Take the necessary actions in response to the reception of an X2 HO preparation failure message. More...

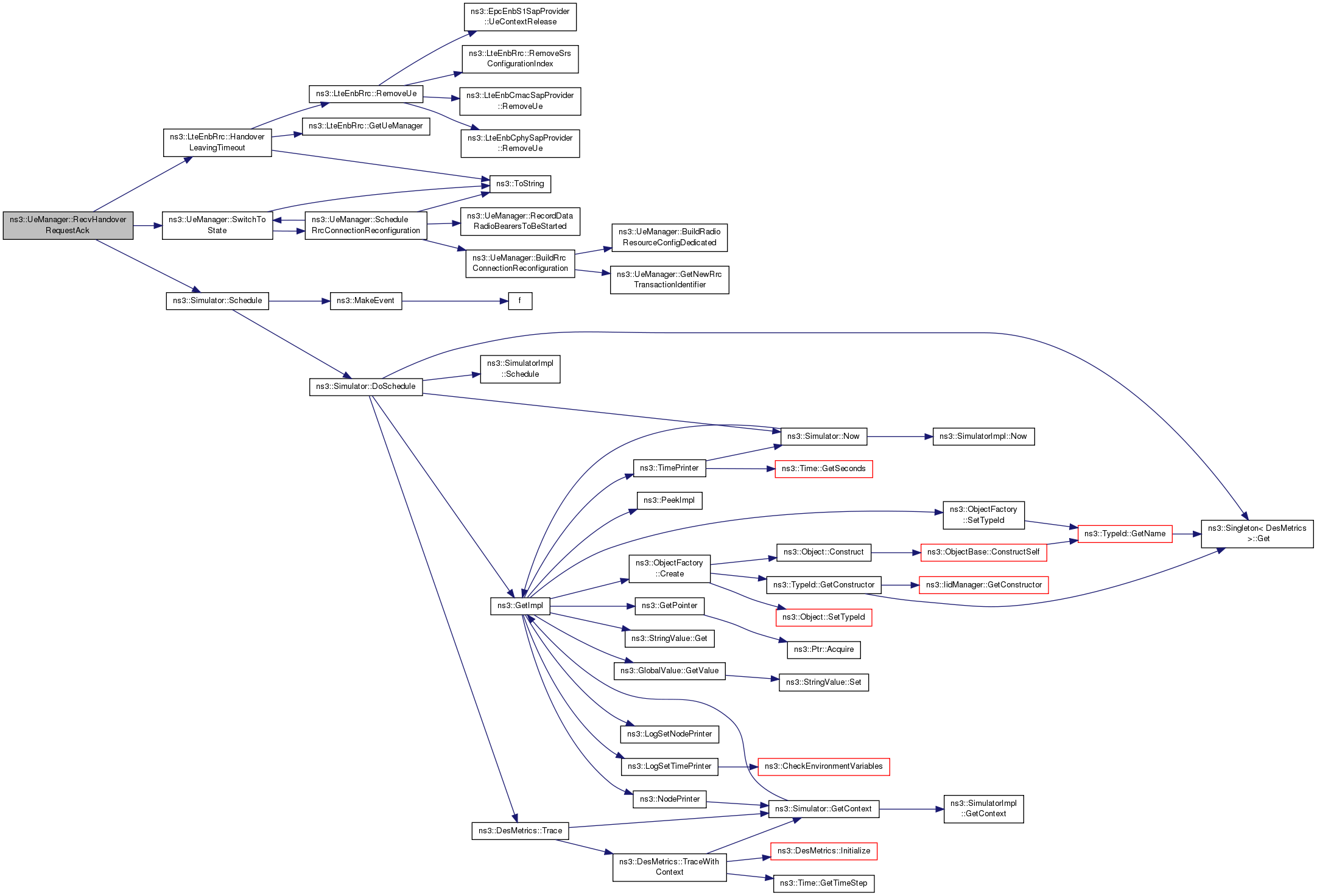

void	RecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)
	take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message More...

void	RecvMeasurementReport (LteRrcSap::MeasurementReport msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvMeasurementReport interface. More...

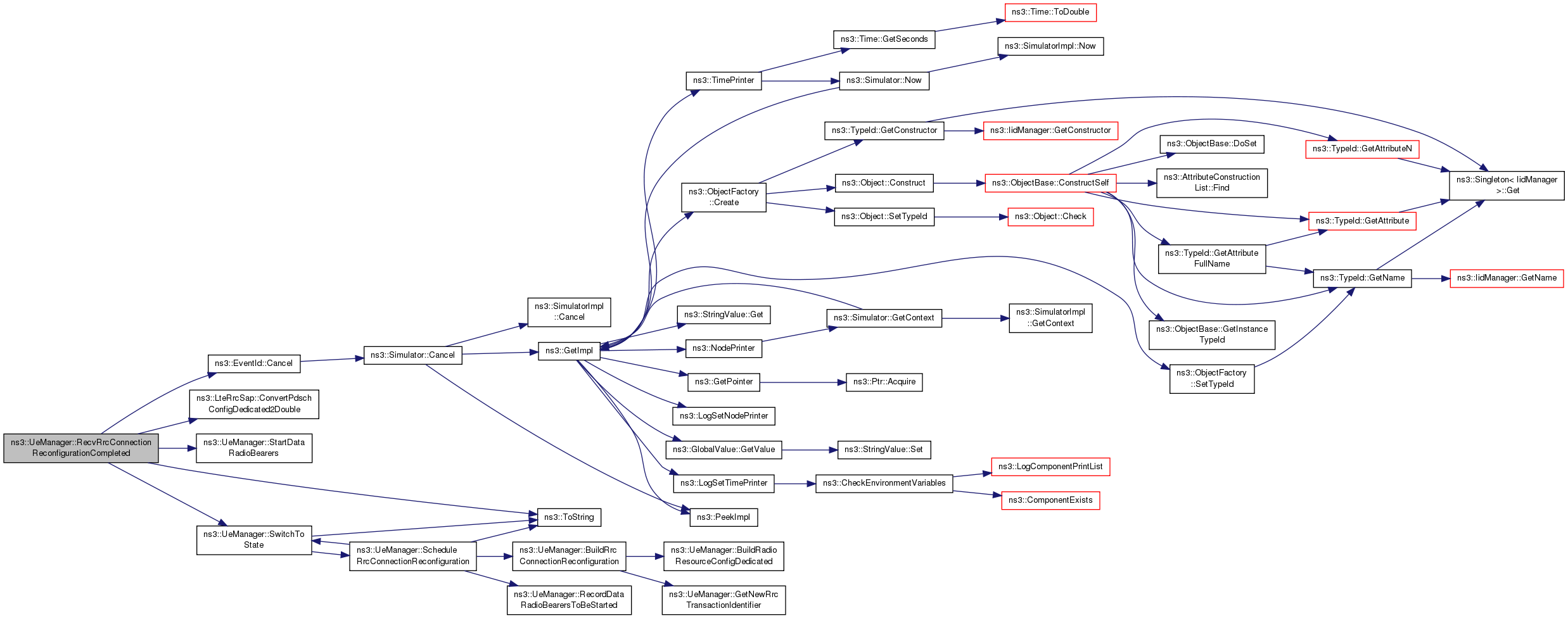

void	RecvRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface. More...

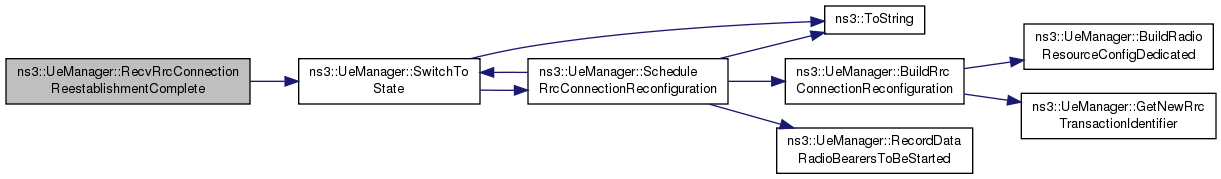

void	RecvRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface. More...

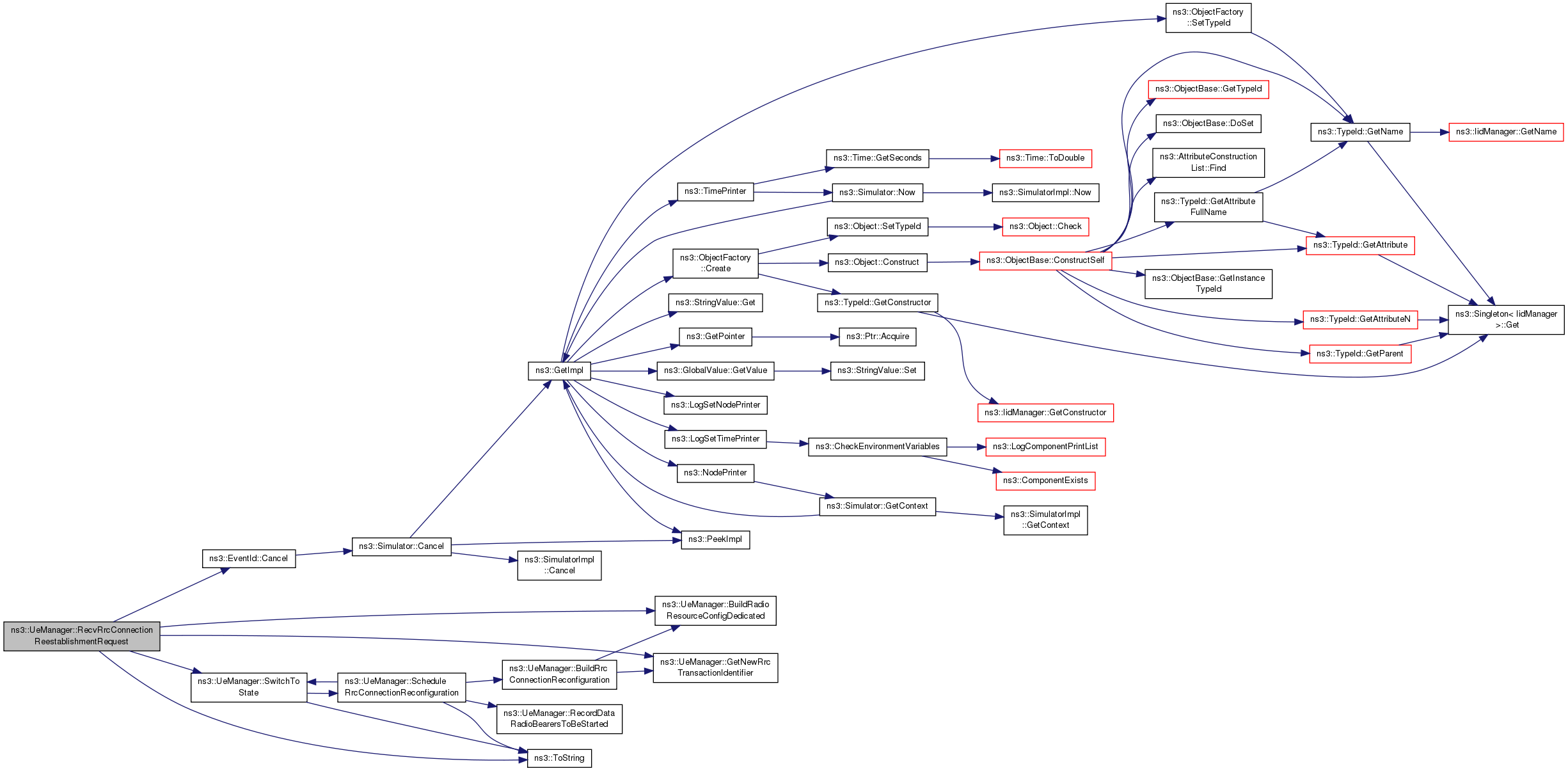

void	RecvRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface. More...

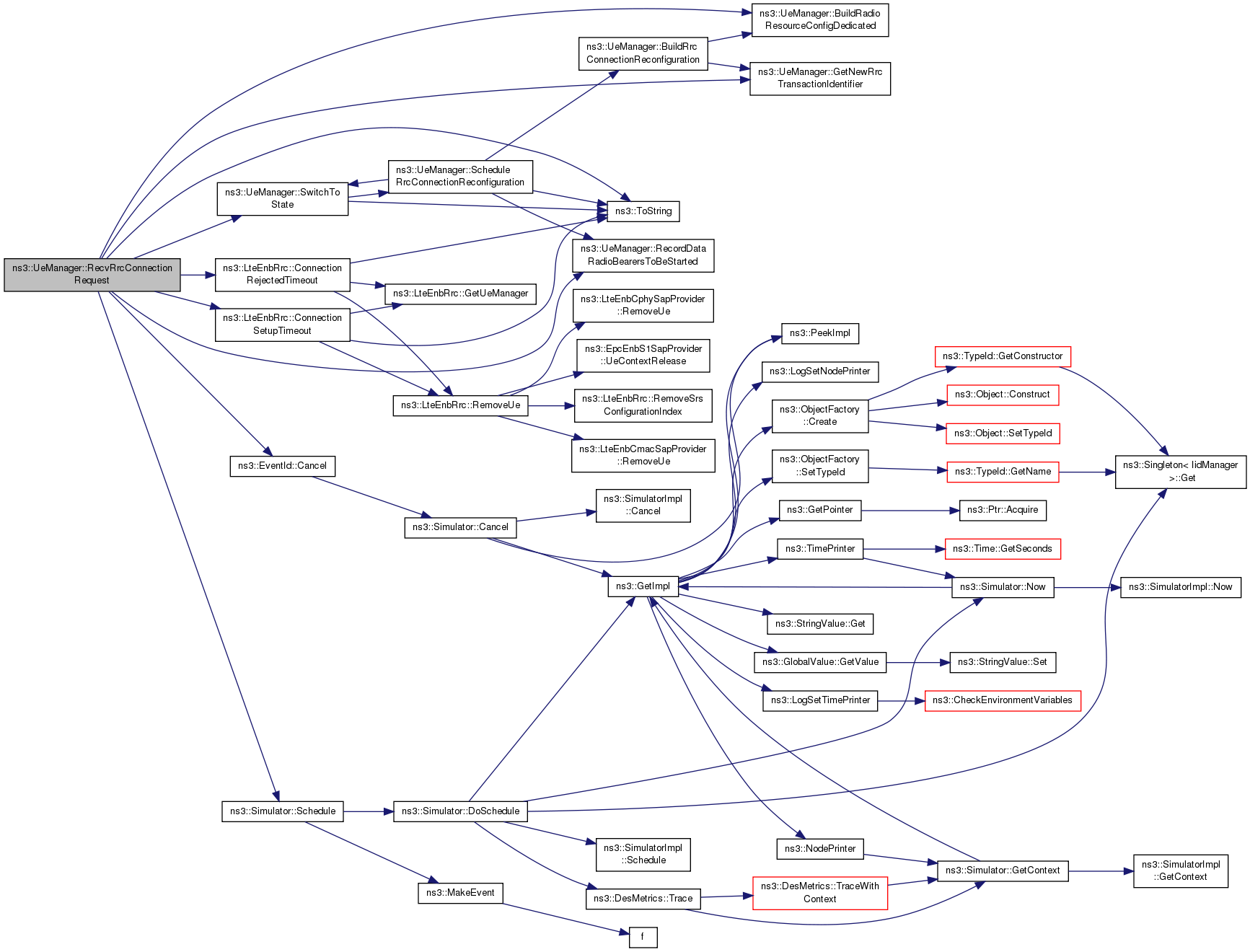

void	RecvRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionRequest interface. More...

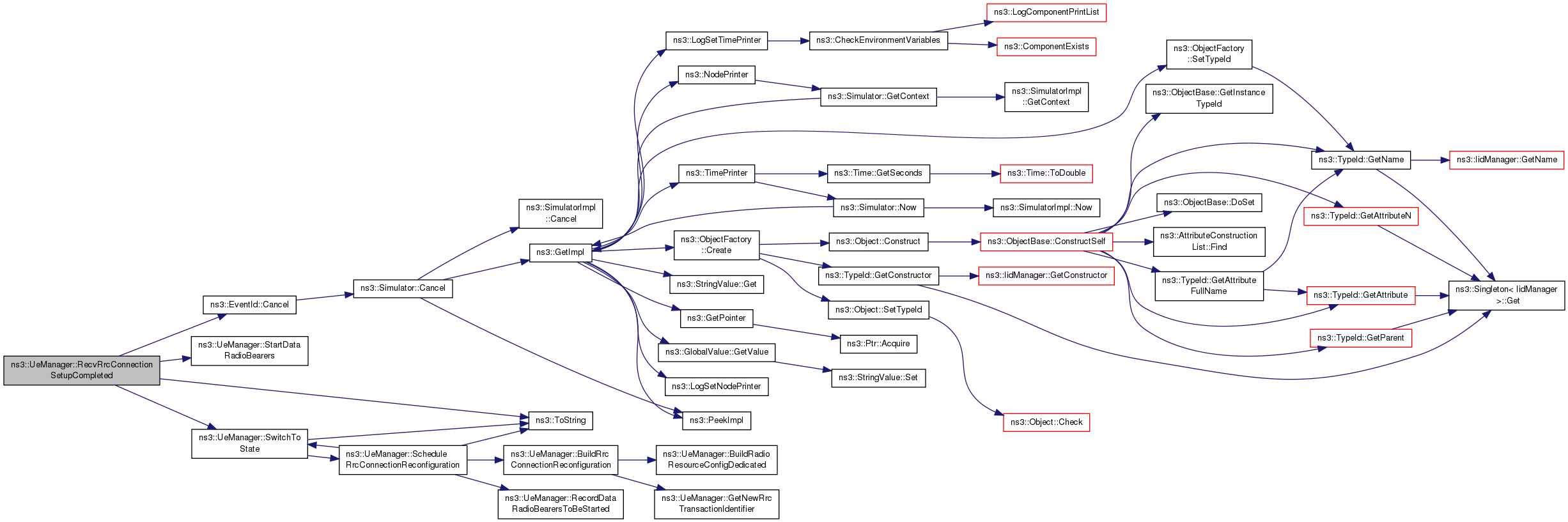

void	RecvRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
	Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface. More...

void	RecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)
	Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message. More...

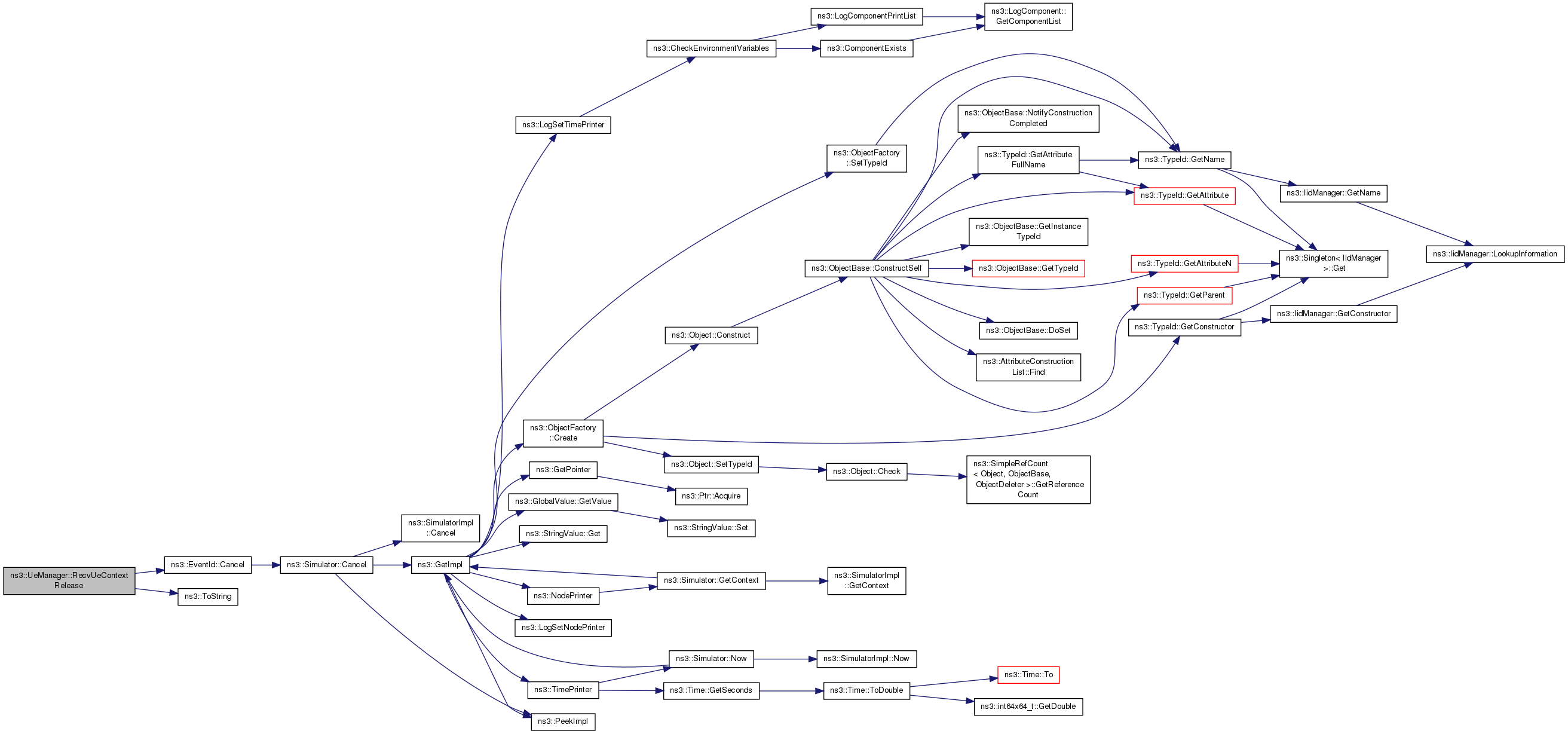

void	RecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)
	Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message. More...

void	ReleaseDataRadioBearer (uint8_t drbid)
	Release a given radio bearer. More...

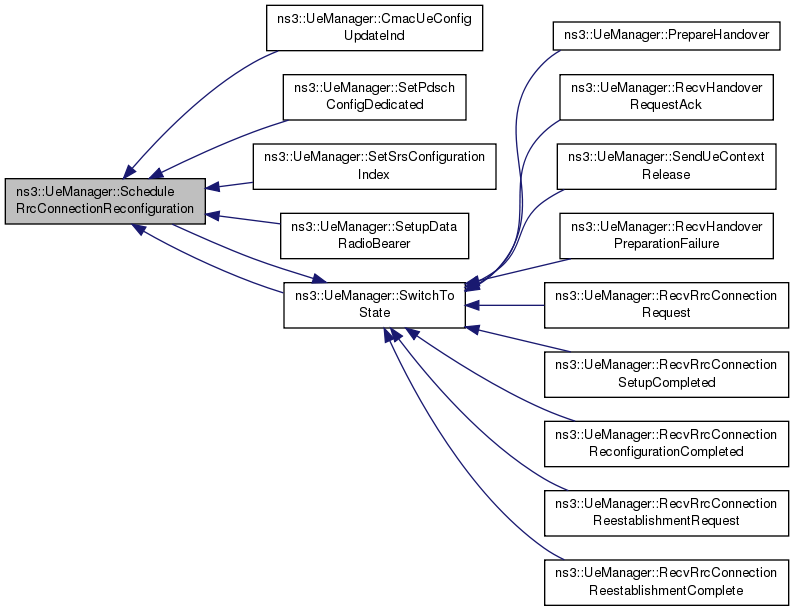

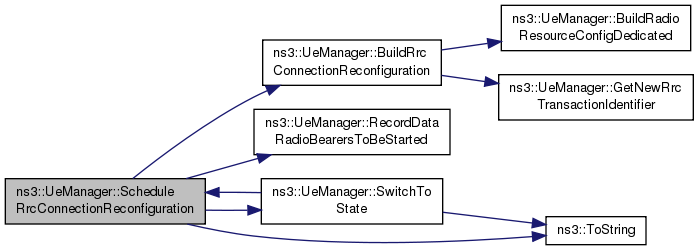

void	ScheduleRrcConnectionReconfiguration ()
	schedule an RRC Connection Reconfiguration procedure with the UE More...

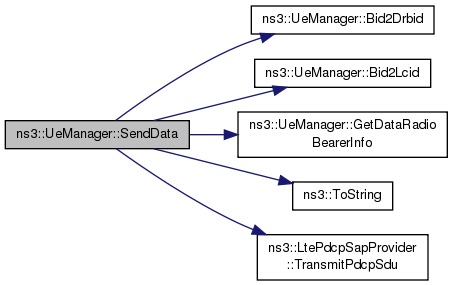

void	SendData (uint8_t bid, Ptr< Packet > p)
	Send a data packet over the appropriate Data Radio Bearer. More...

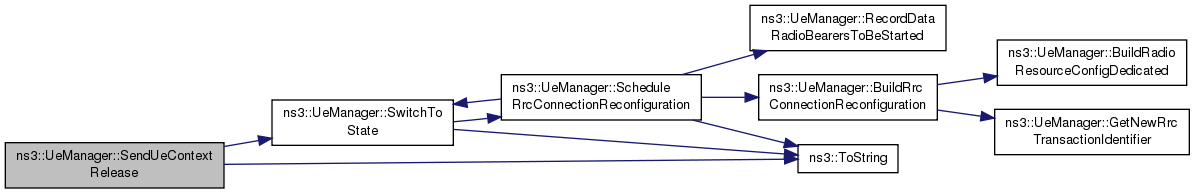

void	SendUeContextRelease ()
	send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure More...

void	SetImsi (uint64_t imsi)
	Set the IMSI. More...

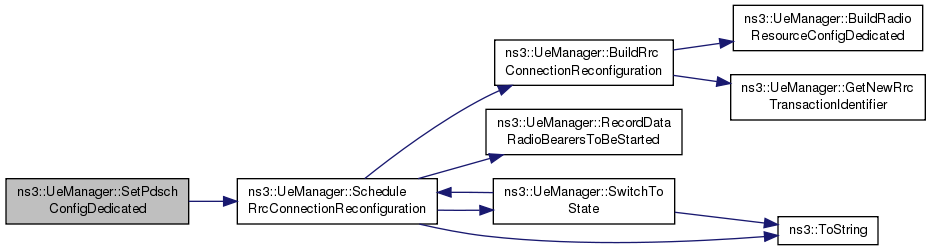

void	SetPdschConfigDedicated (LteRrcSap::PdschConfigDedicated pdschConfigDedicated)
	Configure PdschConfigDedicated (i.e. More...

void	SetSource (uint16_t sourceCellId, uint16_t sourceX2apId)
	Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure. More...

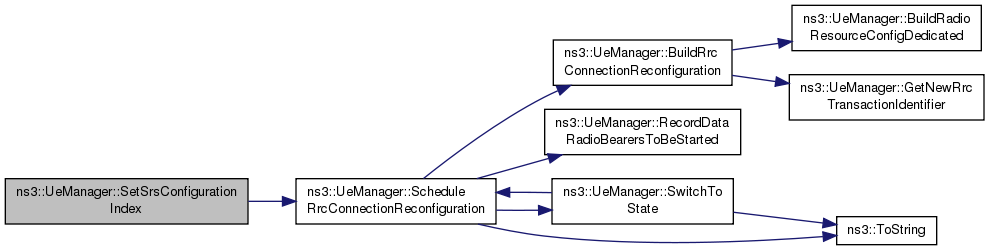

void	SetSrsConfigurationIndex (uint16_t srsConfIndex)
	Set the SRS configuration index and do the necessary reconfiguration. More...

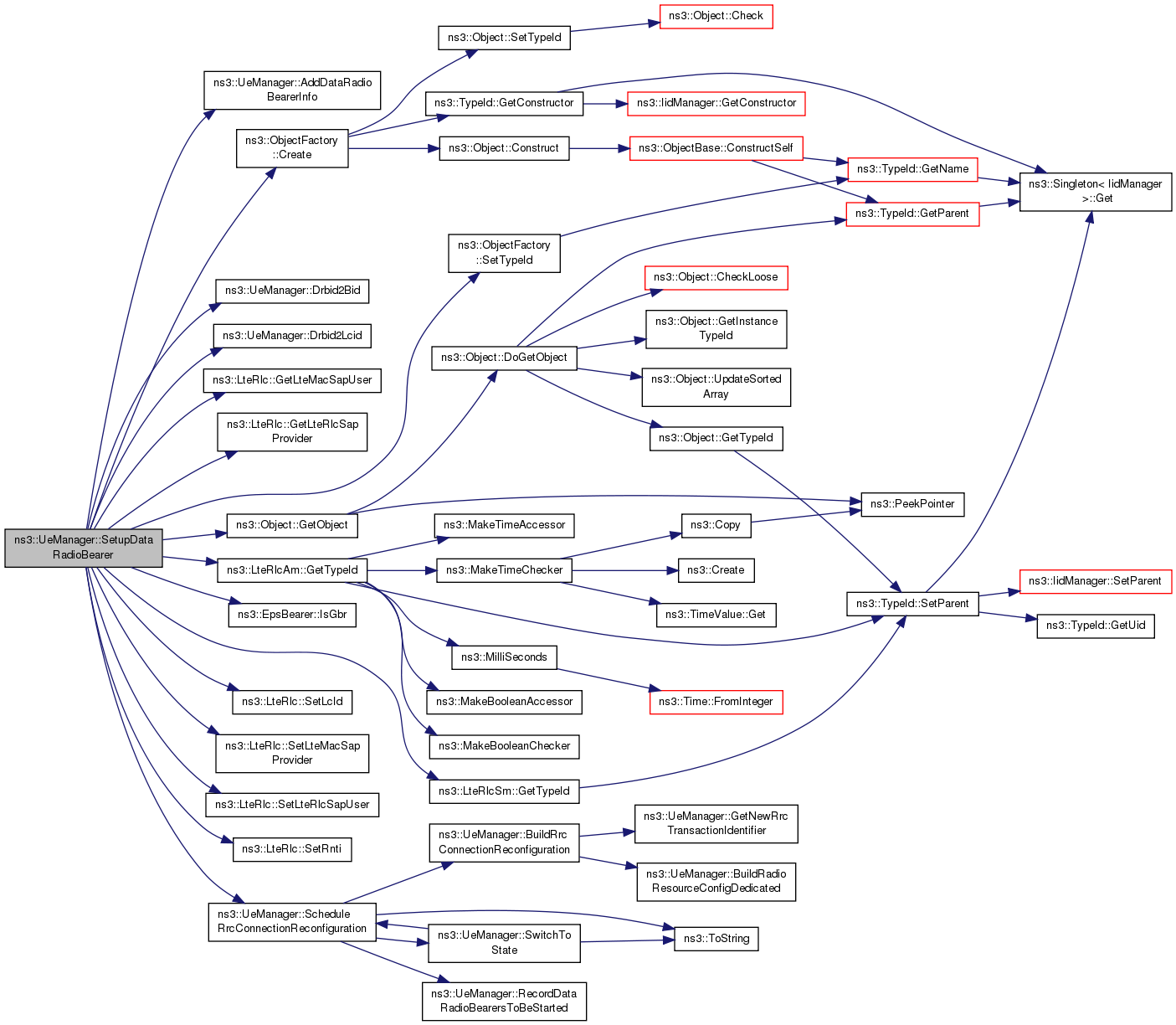

void	SetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint32_t gtpTeid, Ipv4Address transportLayerAddress)
	Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE. More...

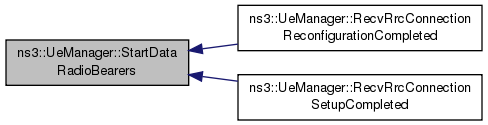

void	StartDataRadioBearers ()
	Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted() More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

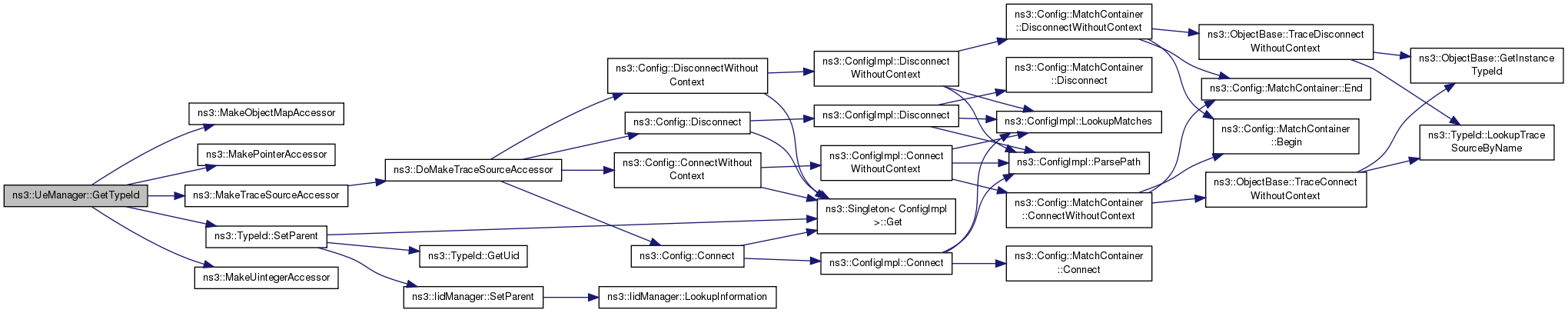

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

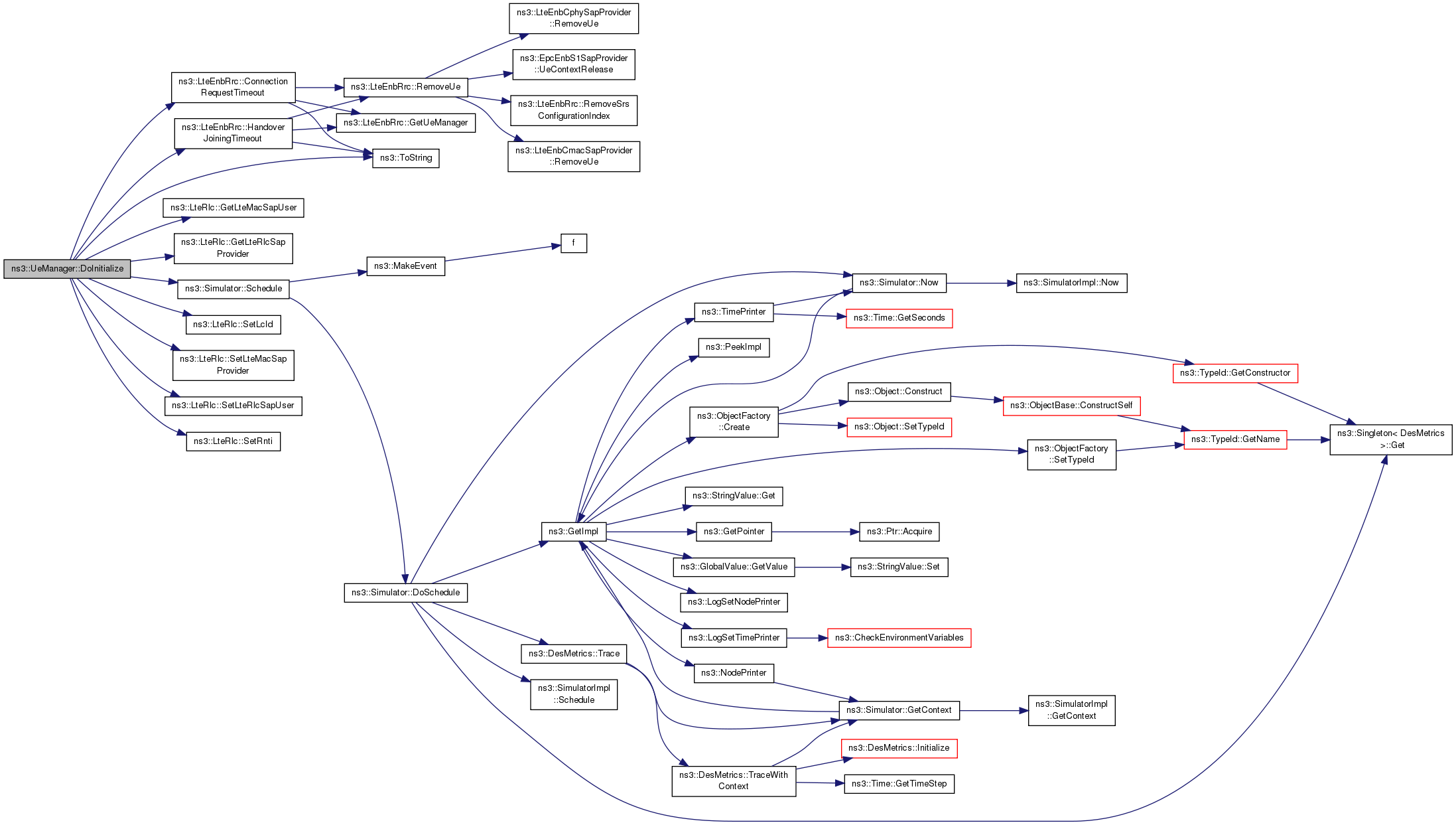

virtual void	DoInitialize ()
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
uint8_t	AddDataRadioBearerInfo (Ptr< LteDataRadioBearerInfo > radioBearerInfo)
	Add a new LteDataRadioBearerInfo structure to the UeManager. More...

uint8_t	Bid2Drbid (uint8_t bid)

uint8_t	Bid2Lcid (uint8_t bid)

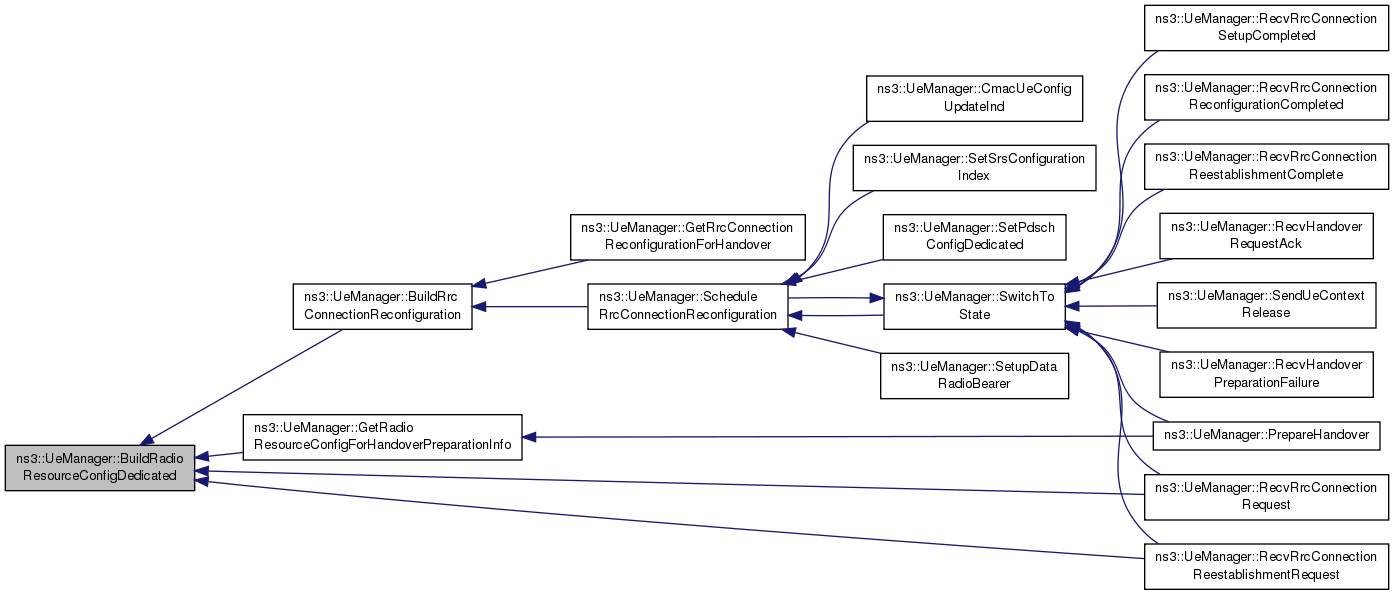

LteRrcSap::RadioResourceConfigDedicated	BuildRadioResourceConfigDedicated ()

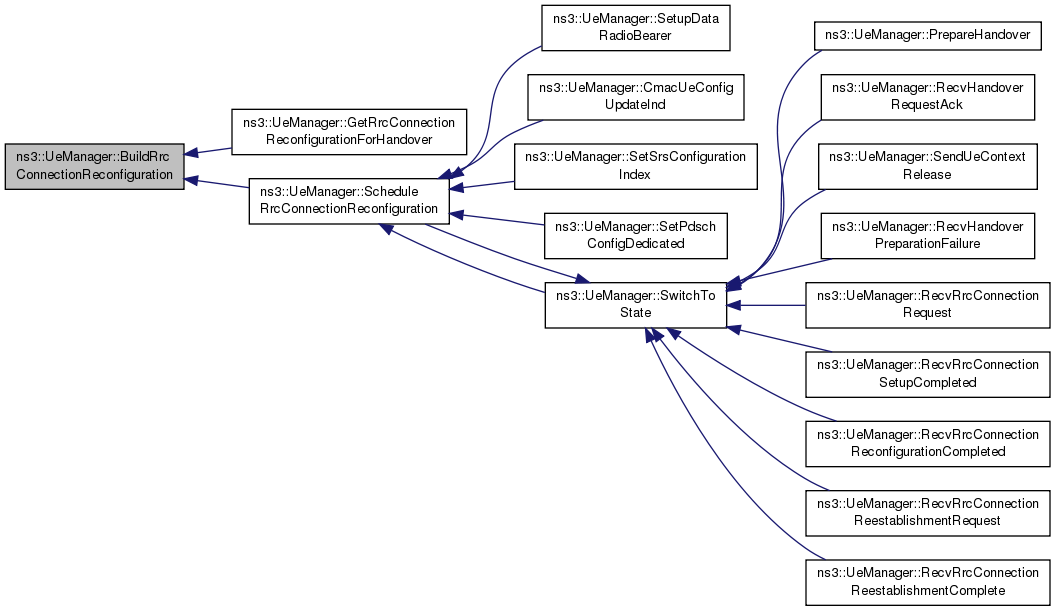

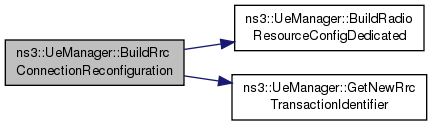

LteRrcSap::RrcConnectionReconfiguration	BuildRrcConnectionReconfiguration ()

uint8_t	Drbid2Bid (uint8_t drbid)

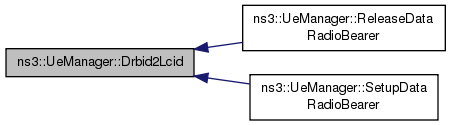

uint8_t	Drbid2Lcid (uint8_t drbid)

Ptr< LteDataRadioBearerInfo >	GetDataRadioBearerInfo (uint8_t drbid)

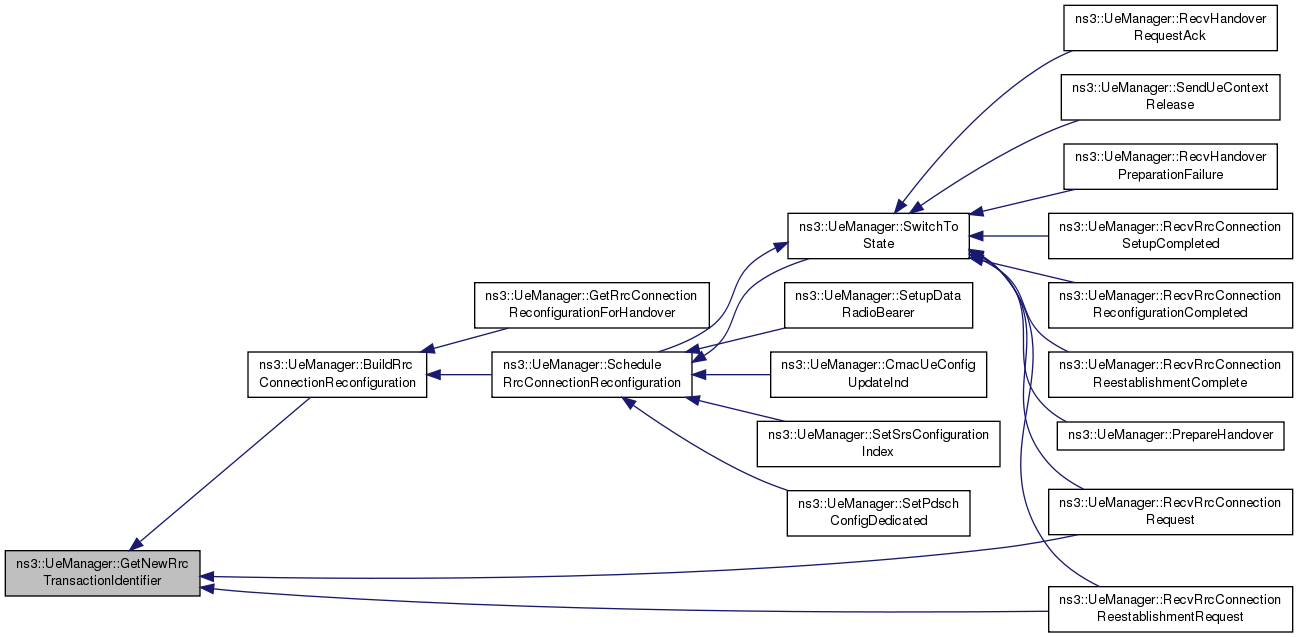

uint8_t	GetNewRrcTransactionIdentifier ()

uint8_t	Lcid2Bid (uint8_t lcid)

uint8_t	Lcid2Drbid (uint8_t lcid)

void	RemoveDataRadioBearerInfo (uint8_t drbid)
	remove the LteDataRadioBearerInfo corresponding to a bearer being released More...

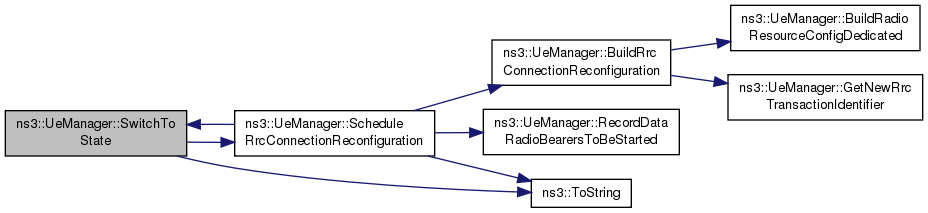

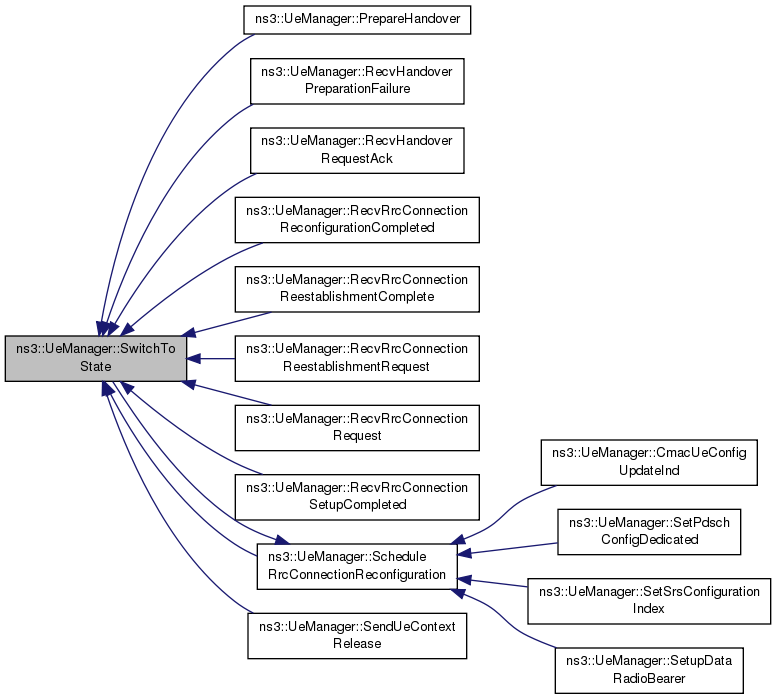

void	SwitchToState (State s)
	Switch the UeManager to the given state. More...

Private Attributes
EventId	m_connectionRejectedTimeout
	The delay before a connection rejected timeout occurs. More...

EventId	m_connectionRequestTimeout
	Time limit before a connection request timeout occurs. More...

EventId	m_connectionSetupTimeout
	Time limit before a connection setup timeout occurs. More...

std::map< uint8_t, Ptr< LteDataRadioBearerInfo > >	m_drbMap
	The `DataRadioBearerMap` attribute. More...

LtePdcpSapUser *	m_drbPdcpSapUser

std::list< uint8_t >	m_drbsToBeStarted

EventId	m_handoverJoiningTimeout
	Time limit before a handover joining timeout occurs. More...

EventId	m_handoverLeavingTimeout
	Time limit before a handover leaving timeout occurs. More...

uint64_t	m_imsi
	International Mobile Subscriber Identity assigned to this UE. More...

uint8_t	m_lastAllocatedDrbid

uint8_t	m_lastRrcTransactionIdentifier

bool	m_needPhyMacConfiguration

bool	m_pendingRrcConnectionReconfiguration

LteRrcSap::PhysicalConfigDedicated	m_physicalConfigDedicated

uint16_t	m_rnti
	The `C-RNTI` attribute. More...

Ptr< LteEnbRrc >	m_rrc
	Pointer to the parent eNodeB RRC. More...

uint16_t	m_sourceCellId

uint16_t	m_sourceX2apId

Ptr< LteSignalingRadioBearerInfo >	m_srb0
	The `Srb0` attribute. More...

Ptr< LteSignalingRadioBearerInfo >	m_srb1
	The `Srb1` attribute. More...

State	m_state
	The current UeManager state. More...

TracedCallback< uint64_t, uint16_t, uint16_t, State, State >	m_stateTransitionTrace
	The `StateTransition` trace source. More...

uint16_t	m_targetCellId

Friends
class	LtePdcpSpecificLtePdcpSapUser< UeManager >

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE.

Config Paths

ns3::UeManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]"

Attributes

DataRadioBearerMap: List of UE DataRadioBearerInfo by DRBID.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::LteDataRadioBearerInfo>
- Flags: read
Srb0: SignalingRadioBearerInfo for SRB0
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo>
- Initial value: 0
- Flags: construct write read
Srb1: SignalingRadioBearerInfo for SRB1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo>
- Initial value: 0
- Flags: construct write read
C-RNTI: Cell Radio Network Temporary Identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read

TraceSources

StateTransition: fired upon every UE state transition seen by the UeManager at the eNB RRC
Callback signature: ns3::UeManager::StateTracedCallback

Size of this type is 336 bytes (on a 64-bit architecture).

Definition at line 62 of file lte-enb-rrc.h.

Member Typedef Documentation

typedef void(* ns3::UeManager::StateTracedCallback) (uint64_t imsi, uint16_t cellId, uint16_t rnti, State oldState, State newState)

TracedCallback signature for state transition events.

Parameters

[in]	imsi
[in]	cellId
[in]	rnti
[in]	oldState
[in]	newState

Definition at line 317 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::UeManager::UeManager ( )

Definition at line 129 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR.

ns3::UeManager::UeManager	(	Ptr< LteEnbRrc >	rrc,
		uint16_t	rnti,
		State	s
	)

UeManager constructor.

Parameters

rrc	pointer to the LteEnbRrc holding this UeManager
rnti	RNTI of the UE
s	initial state of the UeManager

Returns

Definition at line 135 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

ns3::UeManager::~UeManager ( void )

virtual

Definition at line 267 of file lte-enb-rrc.cc.

Member Function Documentation

uint8_t ns3::UeManager::AddDataRadioBearerInfo ( Ptr< LteDataRadioBearerInfo > radioBearerInfo )

private

Add a new LteDataRadioBearerInfo structure to the UeManager.

Parameters

radioBearerInfo

Returns: the id of the newly added data radio bearer structure

Definition at line 1108 of file lte-enb-rrc.cc.

References m_drbMap, m_lastAllocatedDrbid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by SetupDataRadioBearer().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Drbid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1235 of file lte-enb-rrc.cc.

Referenced by SendData().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Lcid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Logical Channel Identifier

Definition at line 1223 of file lte-enb-rrc.cc.

Referenced by SendData().

Here is the caller graph for this function:

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::BuildRadioResourceConfigDedicated ( )

private

Returns: a RadioResourceConfigDedicated struct built based on the current configuration

Definition at line 1167 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::DrbToAddMod::drbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::DrbToAddMod::epsBearerIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::SrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelIdentity, m_drbMap, m_physicalConfigDedicated, m_srb1, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::DrbToAddMod::rlcConfig, ns3::LteRrcSap::SrbToAddMod::srbIdentity, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

Referenced by BuildRrcConnectionReconfiguration(), GetRadioResourceConfigForHandoverPreparationInfo(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

Here is the caller graph for this function:

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::BuildRrcConnectionReconfiguration ( )

private

Returns: an RrcConnectionReconfiguration struct built based on the current configuration

Definition at line 1153 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), GetNewRrcTransactionIdentifier(), ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, m_rrc, ns3::LteRrcSap::RrcConnectionReconfiguration::measConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated, and ns3::LteRrcSap::RrcConnectionReconfiguration::rrcTransactionIdentifier.

Referenced by GetRrcConnectionReconfigurationForHandover(), and ScheduleRrcConnectionReconfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::CmacUeConfigUpdateInd ( LteEnbCmacSapUser::UeConfig cmacParams )

Definition at line 1020 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, m_needPhyMacConfiguration, m_physicalConfigDedicated, m_rnti, ns3::LteEnbCmacSapUser::UeConfig::m_transmissionMode, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), and ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode.

Here is the call graph for this function:

void ns3::UeManager::CompleteSetupUe ( LteEnbRrcSapProvider::CompleteSetupUeParameters params )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::CompleteSetupUe interface.

Definition at line 792 of file lte-enb-rrc.cc.

References m_srb0, m_srb1, NS_LOG_FUNCTION, ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb0SapUser, and ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb1SapUser.

void ns3::UeManager::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 272 of file lte-enb-rrc.cc.

References m_drbMap, m_drbPdcpSapUser, and m_rrc.

void ns3::UeManager::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 151 of file lte-enb-rrc.cc.

Here is the call graph for this function:

void ns3::UeManager::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

Definition at line 1037 of file lte-enb-rrc.cc.

References ns3::Packet::AddPacketTag(), ns3::LtePdcpSapUser::ReceivePdcpSduParameters::lcid, Lcid2Bid(), m_rrc, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::rnti, ns3::EpsBearerTag::SetBid(), and ns3::EpsBearerTag::SetRnti().

Here is the call graph for this function:

uint8_t ns3::UeManager::Drbid2Bid ( uint8_t drbid )

private

Parameters

drbid Data Radio Bearer Id

Returns: the corresponding EPS Bearer Identifier

Definition at line 1229 of file lte-enb-rrc.cc.

Referenced by SetupDataRadioBearer().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Drbid2Lcid ( uint8_t drbid )

private

Parameters

drbid a Data Radio Bearer Id

Returns: the corresponding Logical Channel Identifier

Definition at line 1211 of file lte-enb-rrc.cc.

Referenced by ReleaseDataRadioBearer(), and SetupDataRadioBearer().

Here is the caller graph for this function:

Ptr< LteDataRadioBearerInfo > ns3::UeManager::GetDataRadioBearerInfo ( uint8_t drbid )

private

Parameters

drbid the Data Radio Bearer id

Returns: the corresponding LteDataRadioBearerInfo

Definition at line 1132 of file lte-enb-rrc.cc.

References m_drbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SendData().

Here is the caller graph for this function:

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::UeManager::GetErabList ( )

Returns: a list of ERAB-to-be-setup items to be put in a X2 HO REQ message

Definition at line 701 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding, ns3::EpcX2Sap::ErabToBeSetupItem::erabId, ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters, ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid, m_drbMap, NS_LOG_FUNCTION, and ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress.

Referenced by PrepareHandover().

Here is the caller graph for this function:

uint64_t ns3::UeManager::GetImsi ( void ) const

Returns: the IMSI, i.e., a globally unique UE identifier

Definition at line 1059 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by LteX2HandoverTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), and ns3::LteStatsCalculator::FindImsiFromEnbRlcPath().

Here is the caller graph for this function:

uint8_t ns3::UeManager::GetNewRrcTransactionIdentifier ( )

private

Returns: a newly allocated identifier for a new RRC transaction

Definition at line 1198 of file lte-enb-rrc.cc.

References m_lastRrcTransactionIdentifier.

Referenced by BuildRrcConnectionReconfiguration(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

Here is the caller graph for this function:

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::GetRadioResourceConfigForHandoverPreparationInfo ( )

Returns: the HandoverPreparationInfo sent by the source eNB to the target eNB in the X2-based handover procedure

Definition at line 629 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), and NS_LOG_FUNCTION.

Referenced by PrepareHandover().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::UeManager::GetRnti ( void ) const

Returns: the RNTI, i.e., an UE identifier that is unique within the cell

Definition at line 1053 of file lte-enb-rrc.cc.

References m_rnti.

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::GetRrcConnectionReconfigurationForHandover ( )

Returns: retrieve the data that the target eNB needs to send to the source eNB as the Handover Command in the X2-based handover procedure.

Note: mobility control info is not expected to be filled in (shall be filled in by the caller).

Definition at line 636 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::UeManager::GetSrsConfigurationIndex ( void ) const

Returns: the SRS Configuration Index

Definition at line 1065 of file lte-enb-rrc.cc.

References m_physicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

UeManager::State ns3::UeManager::GetState ( void ) const

Returns: the current state

Definition at line 1090 of file lte-enb-rrc.cc.

References m_state.

Referenced by LteX2HandoverTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), and LteRrcConnectionEstablishmentTestCase::CheckNotConnected().

Here is the caller graph for this function:

TypeId ns3::UeManager::GetTypeId ( void )

static

Definition at line 285 of file lte-enb-rrc.cc.

References ns3::TypeId::ATTR_GET, m_drbMap, m_rnti, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::UeManager::Lcid2Bid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding EPS Bearer Identifier

Definition at line 1216 of file lte-enb-rrc.cc.

References NS_ASSERT.

Referenced by DoReceivePdcpSdu().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Lcid2Drbid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1204 of file lte-enb-rrc.cc.

References NS_ASSERT.

void ns3::UeManager::PrepareHandover ( uint16_t cellId )

Start the handover preparation and send the handover request.

Parameters

cellId id of the target cell

Definition at line 526 of file lte-enb-rrc.cc.

Here is the call graph for this function:

void ns3::UeManager::RecordDataRadioBearersToBeStarted ( )

Start all configured data radio bearers.

It is safe to call this method if any bearer had been already started previously.

Definition at line 420 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionRequest(), and ScheduleRrcConnectionReconfiguration().

Here is the caller graph for this function:

void ns3::UeManager::RecvHandoverPreparationFailure ( uint16_t cellId )

Take the necessary actions in response to the reception of an X2 HO preparation failure message.

Parameters

cellId id of the target cell

Definition at line 744 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PREPARATION, m_state, m_targetCellId, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::UeManager::RecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams params )

take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message

Parameters

params

Definition at line 582 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlPdcpSn, ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, HANDOVER_LEAVING, ns3::LteEnbRrc::HandoverLeavingTimeout(), ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, m_drbMap, m_handoverLeavingTimeout, m_imsi, m_rnti, m_rrc, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::notAdmittedBearers, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::LtePdcp::Status::rxSn, ns3::Simulator::Schedule(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, SwitchToState(), ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId, ns3::EpcX2Sap::SnStatusTransferParams::targetCellId, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LtePdcp::Status::txSn, and ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulPdcpSn.

Here is the call graph for this function:

void ns3::UeManager::RecvMeasurementReport ( LteRrcSap::MeasurementReport msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvMeasurementReport interface.

Definition at line 969 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::MeasResults::haveMeasResultNeighCells, m_imsi, m_rnti, m_rrc, ns3::LteRrcSap::MeasResults::measId, ns3::LteRrcSap::MeasResults::measResultListEutra, ns3::LteRrcSap::MeasurementReport::measResults, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::MeasResults::rsrpResult, and ns3::LteRrcSap::MeasResults::rsrqResult.

void ns3::UeManager::RecvRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface.

Definition at line 872 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::bearersToBeSwitched, ns3::EventId::Cancel(), ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::cellId, CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, ns3::LteRrcSap::ConvertPdschConfigDedicated2Double(), ns3::EpcEnbS1SapProvider::BearerToBeSwitched::epsBearerId, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, m_drbMap, m_handoverJoiningTimeout, m_imsi, m_needPhyMacConfiguration, m_physicalConfigDedicated, ns3::LteEnbCmacSapProvider::UeConfig::m_rnti, m_rnti, m_rrc, m_state, ns3::LteEnbCmacSapProvider::UeConfig::m_transmissionMode, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::mmeUeS1Id, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::rnti, StartDataRadioBearers(), SwitchToState(), ns3::EpcEnbS1SapProvider::BearerToBeSwitched::teid, ns3::ToString(), and ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode.

Here is the call graph for this function:

void ns3::UeManager::RecvRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface.

Definition at line 962 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, NS_LOG_FUNCTION, and SwitchToState().

Here is the call graph for this function:

void ns3::UeManager::RecvRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface.

Definition at line 937 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), ns3::EventId::Cancel(), CONNECTED_NORMALLY, CONNECTION_REESTABLISHMENT, GetNewRrcTransactionIdentifier(), HANDOVER_LEAVING, m_handoverLeavingTimeout, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReestablishment::radioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionReestablishment::rrcTransactionIdentifier, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::UeManager::RecvRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionRequest interface.

Definition at line 800 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), ns3::EventId::Cancel(), CONNECTION_REJECTED, CONNECTION_SETUP, ns3::LteEnbRrc::ConnectionRejectedTimeout(), ns3::LteEnbRrc::ConnectionSetupTimeout(), GetNewRrcTransactionIdentifier(), INITIAL_RANDOM_ACCESS, m_connectionRejectedTimeout, m_connectionRequestTimeout, m_connectionSetupTimeout, m_imsi, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, RecordDataRadioBearersToBeStarted(), ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier, ns3::Simulator::Schedule(), SwitchToState(), ns3::ToString(), ns3::LteRrcSap::RrcConnectionRequest::ueIdentity, and ns3::LteRrcSap::RrcConnectionReject::waitTime.

Here is the call graph for this function:

void ns3::UeManager::RecvRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted msg )

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface.

Definition at line 853 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), CONNECTED_NORMALLY, CONNECTION_SETUP, m_connectionSetupTimeout, m_imsi, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, StartDataRadioBearers(), SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::UeManager::RecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams params )

Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message.

Parameters

params the SN STATUS

Definition at line 762 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, and NS_LOG_FUNCTION.

void ns3::UeManager::RecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams params )

Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message.

Parameters

params the SN STATUS

Definition at line 781 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), HANDOVER_LEAVING, m_handoverLeavingTimeout, m_state, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

void ns3::UeManager::ReleaseDataRadioBearer ( uint8_t drbid )

Release a given radio bearer.

Parameters

drbid the data radio bearer id of the bearer to be released

Definition at line 452 of file lte-enb-rrc.cc.

References Drbid2Lcid(), ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, m_drbMap, m_physicalConfigDedicated, m_rnti, m_rrc, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, and ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated.

Here is the call graph for this function:

void ns3::UeManager::RemoveDataRadioBearerInfo ( uint8_t drbid )

private

remove the LteDataRadioBearerInfo corresponding to a bearer being released

Parameters

drbid the Data Radio Bearer id

Definition at line 1143 of file lte-enb-rrc.cc.

References m_drbMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::UeManager::ScheduleRrcConnectionReconfiguration ( )

schedule an RRC Connection Reconfiguration procedure with the UE

Definition at line 493 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, m_pendingRrcConnectionReconfiguration, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, RecordDataRadioBearersToBeStarted(), SwitchToState(), and ns3::ToString().

Referenced by CmacUeConfigUpdateInd(), SetPdschConfigDedicated(), SetSrsConfigurationIndex(), SetupDataRadioBearer(), and SwitchToState().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::SendData	(	uint8_t	bid,
		Ptr< Packet >	p
	)

Send a data packet over the appropriate Data Radio Bearer.

Parameters

bid	the corresponding EPS Bearer ID
p	the packet

Definition at line 643 of file lte-enb-rrc.cc.

References Bid2Drbid(), Bid2Lcid(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, GetDataRadioBearerInfo(), ns3::EpcX2Sap::UeDataParams::gtpTeid, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_drbMap, m_rnti, m_rrc, m_state, m_targetCellId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, ns3::ToString(), ns3::LtePdcpSapProvider::TransmitPdcpSdu(), and ns3::EpcX2Sap::UeDataParams::ueData.

Here is the call graph for this function:

void ns3::UeManager::SendUeContextRelease ( )

send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure

Definition at line 721 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PATH_SWITCH, m_imsi, m_rnti, m_rrc, m_sourceCellId, m_sourceX2apId, m_state, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

void ns3::UeManager::SetImsi ( uint64_t imsi )

Set the IMSI.

Parameters

imsi the IMSI

Definition at line 325 of file lte-enb-rrc.cc.

References m_imsi.

void ns3::UeManager::SetPdschConfigDedicated ( LteRrcSap::PdschConfigDedicated pdschConfigDedicated )

Configure PdschConfigDedicated (i.e.

P_A value) for UE and start RrcConnectionReconfiguration to inform UE about new PdschConfigDedicated

Parameters

pdschConfigDedicated new pdschConfigDedicated (i.e. P_A value) to be set

Definition at line 1096 of file lte-enb-rrc.cc.

References m_needPhyMacConfiguration, m_physicalConfigDedicated, NS_LOG_FUNCTION, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, and ScheduleRrcConnectionReconfiguration().

Here is the call graph for this function:

void ns3::UeManager::SetSource	(	uint16_t	sourceCellId,
		uint16_t	sourceX2apId
	)

Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure.

Parameters

sourceCellId
sourceX2apId

Definition at line 318 of file lte-enb-rrc.cc.

References m_sourceCellId, and m_sourceX2apId.

void ns3::UeManager::SetSrsConfigurationIndex ( uint16_t srsConfIndex )

Set the SRS configuration index and do the necessary reconfiguration.

Parameters

srsConfIndex

Definition at line 1071 of file lte-enb-rrc.cc.

References INITIAL_RANDOM_ACCESS, m_physicalConfigDedicated, m_rnti, m_rrc, m_state, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

Here is the call graph for this function:

void ns3::UeManager::SetupDataRadioBearer	(	EpsBearer	bearer,
		uint8_t	bearerId,
		uint32_t	gtpTeid,
		Ipv4Address	transportLayerAddress
	)

Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE.

Parameters

bearer	the QoS characteristics of the bearer
bearerId	the EPS bearer identifier
gtpTeid	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1
transportLayerAddress	IP Address of the SGW, see 36.423 9.2.1

Definition at line 331 of file lte-enb-rrc.cc.

Here is the call graph for this function:

void ns3::UeManager::StartDataRadioBearers ( )

Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted()

Definition at line 432 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionReconfigurationCompleted(), and RecvRrcConnectionSetupCompleted().

Here is the caller graph for this function:

void ns3::UeManager::SwitchToState ( State s )

private

Switch the UeManager to the given state.

Parameters

s	the given state

Definition at line 1242 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, HANDOVER_JOINING, HANDOVER_LEAVING, INITIAL_RANDOM_ACCESS, m_imsi, m_pendingRrcConnectionReconfiguration, m_rnti, m_rrc, m_state, m_stateTransitionTrace, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleRrcConnectionReconfiguration(), and ns3::ToString().

Referenced by PrepareHandover(), RecvHandoverPreparationFailure(), RecvHandoverRequestAck(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionReestablishmentComplete(), RecvRrcConnectionReestablishmentRequest(), RecvRrcConnectionRequest(), RecvRrcConnectionSetupCompleted(), ScheduleRrcConnectionReconfiguration(), and SendUeContextRelease().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< UeManager >

friend

Definition at line 64 of file lte-enb-rrc.h.

Member Data Documentation

EventId ns3::UeManager::m_connectionRejectedTimeout

private

The delay before a connection rejected timeout occurs.

Set after an RRC CONNECTION REJECT is sent. Calling LteEnbRrc::ConnectionRejectedTimeout() when it expires.

Definition at line 484 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionRequest().

EventId ns3::UeManager::m_connectionRequestTimeout

private

Time limit before a connection request timeout occurs.

Set after a new UE context is added after a successful Random Access. Calling LteEnbRrc::ConnectionRequestTimeout() when it expires. Cancelled when RRC CONNECTION REQUEST is received.

Definition at line 472 of file lte-enb-rrc.h.

Referenced by DoInitialize(), and RecvRrcConnectionRequest().

EventId ns3::UeManager::m_connectionSetupTimeout

private

Time limit before a connection setup timeout occurs.

Set after an RRC CONNECTION SETUP is sent. Calling LteEnbRrc::ConnectionSetupTimeout() when it expires. Cancelled when RRC CONNECTION SETUP COMPLETE is received.

Definition at line 478 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionRequest(), and RecvRrcConnectionSetupCompleted().

std::map<uint8_t, Ptr<LteDataRadioBearerInfo> > ns3::UeManager::m_drbMap

private

The DataRadioBearerMap attribute.

List of UE DataRadioBearerInfo by DRBID.

Definition at line 420 of file lte-enb-rrc.h.

Referenced by AddDataRadioBearerInfo(), BuildRadioResourceConfigDedicated(), DoDispose(), GetDataRadioBearerInfo(), GetErabList(), GetTypeId(), RecordDataRadioBearersToBeStarted(), RecvHandoverRequestAck(), RecvRrcConnectionReconfigurationCompleted(), ReleaseDataRadioBearer(), RemoveDataRadioBearerInfo(), SendData(), and StartDataRadioBearers().

LtePdcpSapUser* ns3::UeManager::m_drbPdcpSapUser

private

Definition at line 449 of file lte-enb-rrc.h.

Referenced by DoDispose(), DoInitialize(), and SetupDataRadioBearer().

std::list<uint8_t> ns3::UeManager::m_drbsToBeStarted

private

Definition at line 463 of file lte-enb-rrc.h.

Referenced by RecordDataRadioBearersToBeStarted(), and StartDataRadioBearers().

EventId ns3::UeManager::m_handoverJoiningTimeout

private

Time limit before a handover joining timeout occurs.

Set after a new UE context is added after receiving a handover request. Calling LteEnbRrc::HandoverJoiningTimeout() when it expires. Cancelled when RRC CONNECTION RECONFIGURATION COMPLETE is received.

Definition at line 491 of file lte-enb-rrc.h.

Referenced by DoInitialize(), and RecvRrcConnectionReconfigurationCompleted().

EventId ns3::UeManager::m_handoverLeavingTimeout

private

Time limit before a handover leaving timeout occurs.

Set after a handover command is sent. Calling LteEnbRrc::HandoverLeavingTimeout() when it expires. Cancelled when RRC CONNECTION RE-ESTABLISHMENT or X2 UE CONTEXT RELEASE is received.

Definition at line 498 of file lte-enb-rrc.h.

Referenced by RecvHandoverRequestAck(), RecvRrcConnectionReestablishmentRequest(), and RecvUeContextRelease().

uint64_t ns3::UeManager::m_imsi

private

International Mobile Subscriber Identity assigned to this UE.

A globally unique UE identifier.

Definition at line 439 of file lte-enb-rrc.h.

Referenced by GetImsi(), PrepareHandover(), RecvHandoverRequestAck(), RecvMeasurementReport(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionRequest(), RecvRrcConnectionSetupCompleted(), SendUeContextRelease(), SetImsi(), and SwitchToState().
