802.11 PHY layer modelThis PHY implements a spectrum-aware enhancement of the 802.11 SpectrumWifiPhy model. More...

#include "spectrum-wifi-phy.h"

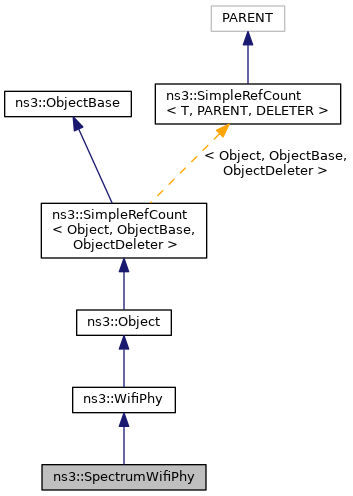

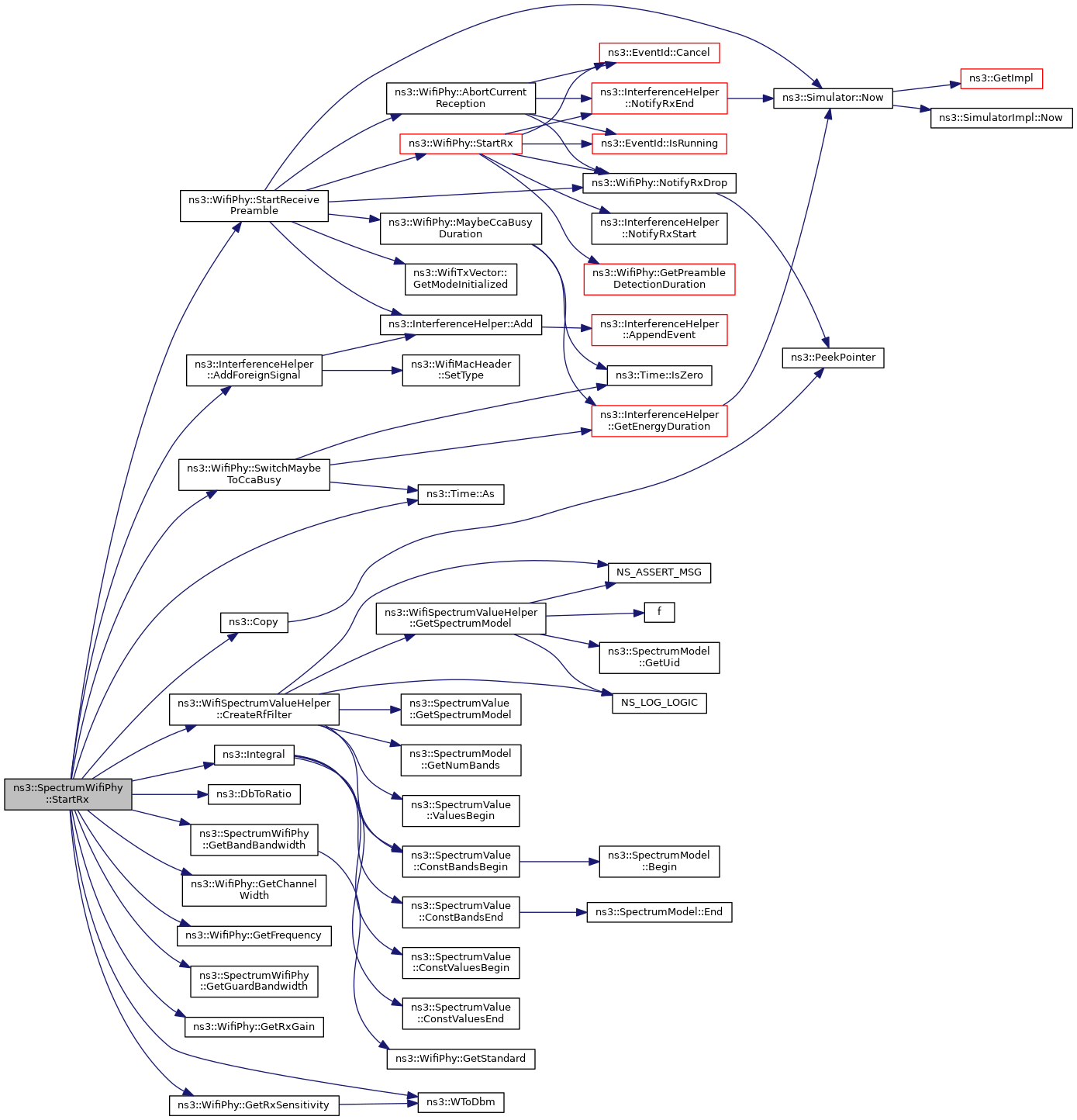

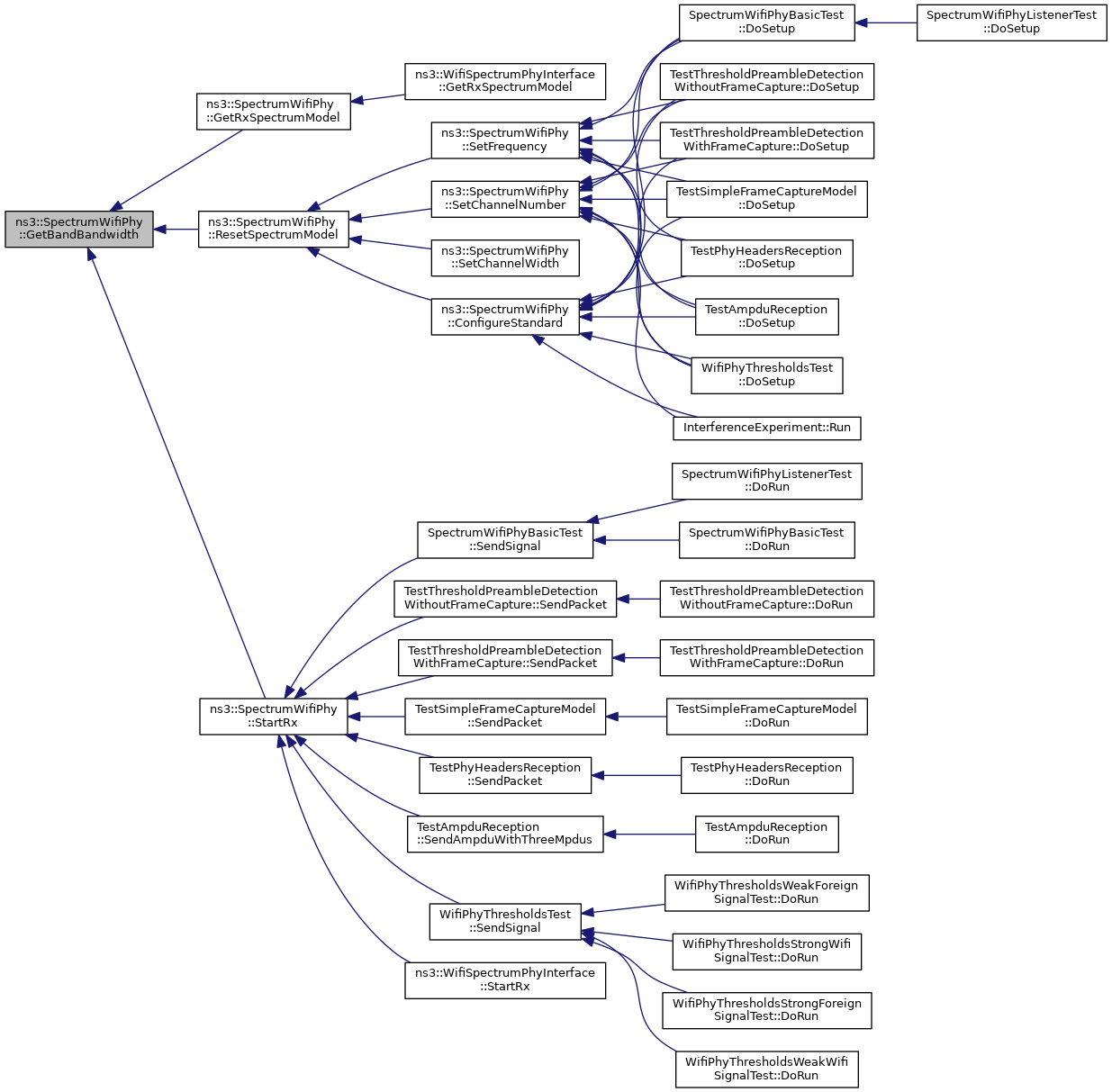

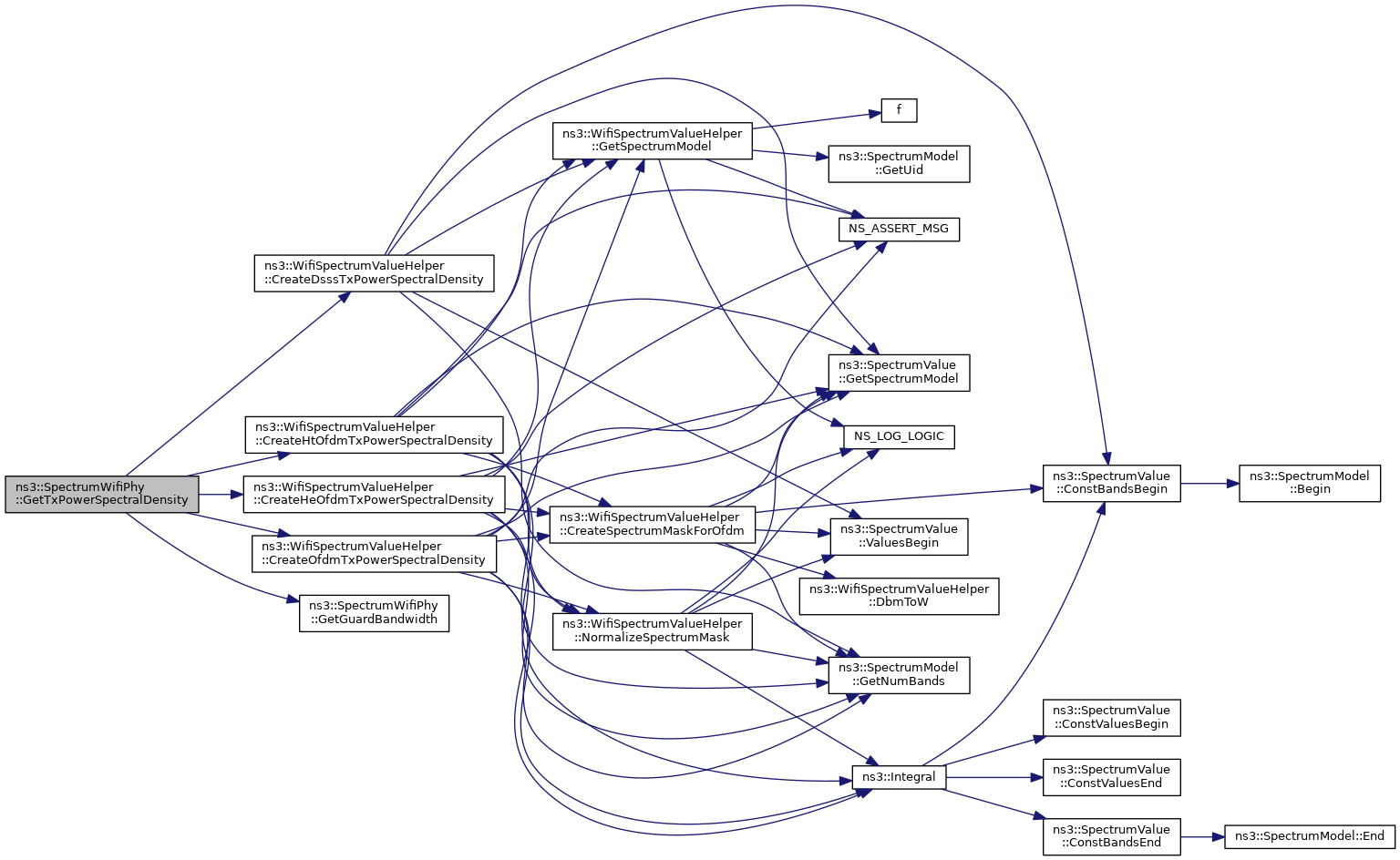

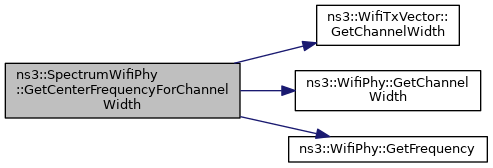

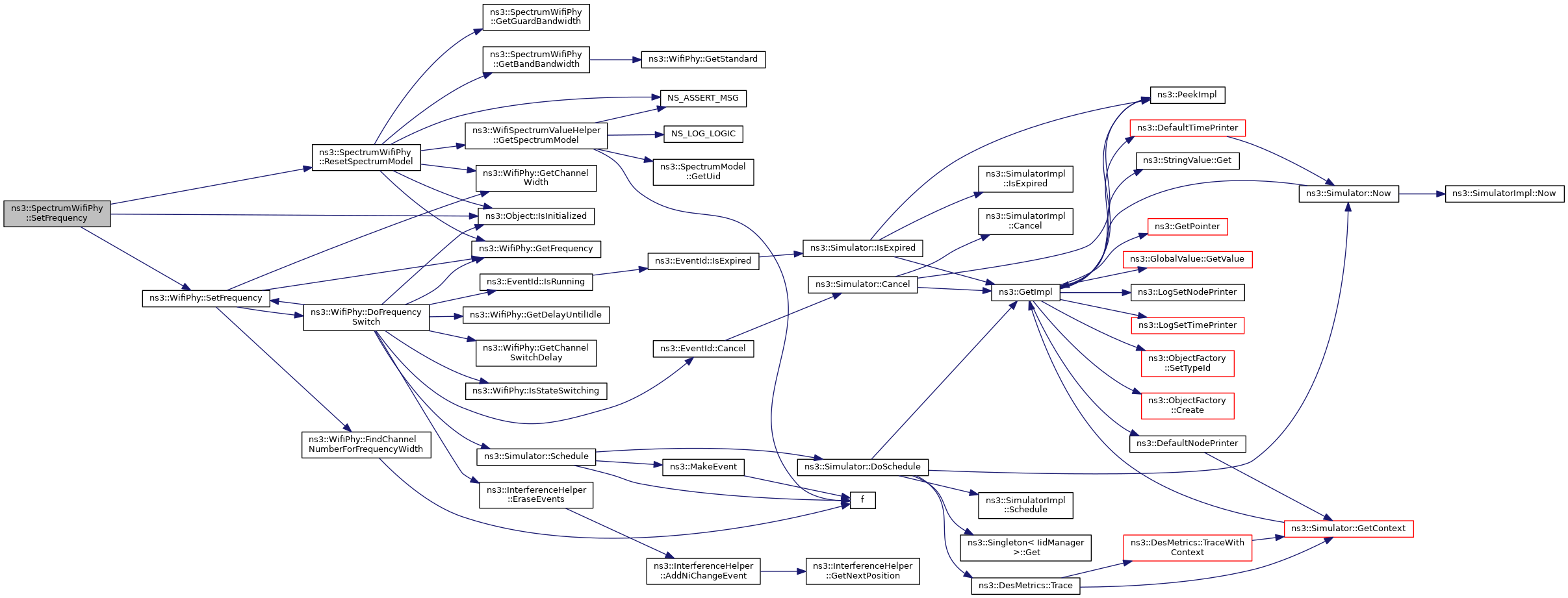

Inheritance diagram for ns3::SpectrumWifiPhy:

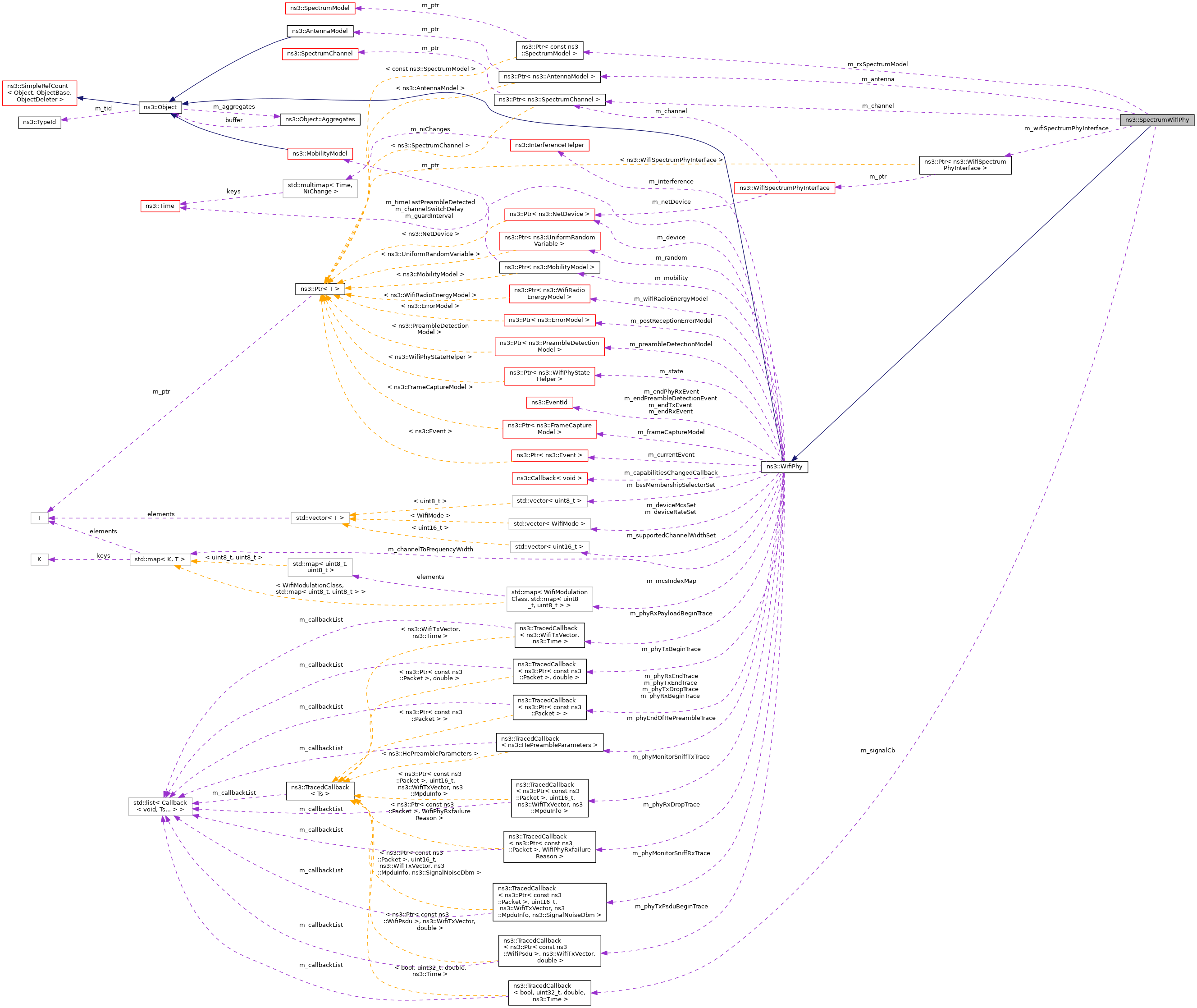

Collaboration diagram for ns3::SpectrumWifiPhy:

Public Types
typedef void(*	SignalArrivalCallback) (bool signalType, uint32_t senderNodeId, double rxPower, Time duration)
	Callback invoked when the PHY model starts to process a signal. More...

Public Types inherited from ns3::WifiPhy
typedef std::pair< uint8_t, WifiPhyStandard >	ChannelNumberStandardPair
	A pair of a ChannelNumber and WifiPhyStandard. More...

typedef void(*	EndOfHePreambleCallback) (HePreambleParameters params)
	TracedCallback signature for end of HE-SIG-A events. More...

typedef std::pair< uint16_t, uint16_t >	FrequencyWidthPair
	A pair of a center Frequency (MHz) and a ChannelWidth (MHz) More...

typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu)
	TracedCallback signature for monitor mode transmit events. More...

typedef void(*	PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration)
	TracedCallback signature for start of PSDU reception events. More...

typedef void(*	PsduTxBeginCallback) (Ptr< const WifiPsdu > psdu, WifiTxVector txVector, double txPowerW)
	TracedCallback signature for PSDU transmit events. More...

Public Member Functions
	SpectrumWifiPhy ()

virtual	~SpectrumWifiPhy ()

virtual void	ConfigureStandard (WifiPhyStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

void	CreateWifiSpectrumPhyInterface (Ptr< NetDevice > device)
	Method to encapsulate the creation of the WifiSpectrumPhyInterface object (used to bind the WifiSpectrumPhy to a SpectrumChannel) and to link it to this SpectrumWifiPhy instance. More...

uint32_t	GetBandBandwidth (void) const

uint16_t	GetCenterFrequencyForChannelWidth (WifiTxVector txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More...

Ptr< Channel >	GetChannel (void) const
	Return the Channel this WifiPhy is connected to. More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

Ptr< AntennaModel >	GetRxAntenna (void) const
	Get the antenna model used for reception. More...

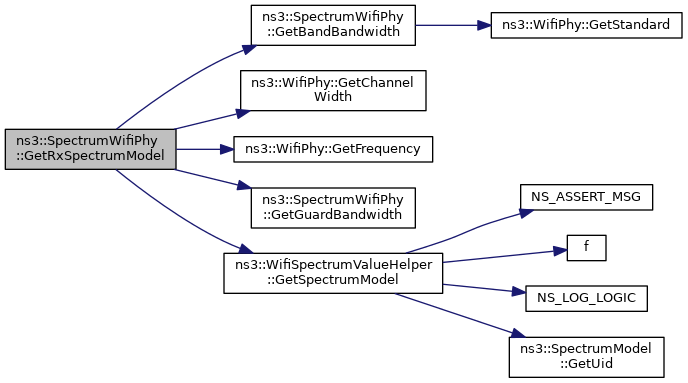

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	SetAntenna (const Ptr< AntennaModel > antenna)

void	SetChannel (const Ptr< SpectrumChannel > channel)
	Set the SpectrumChannel this SpectrumWifiPhy is to be connected to. More...

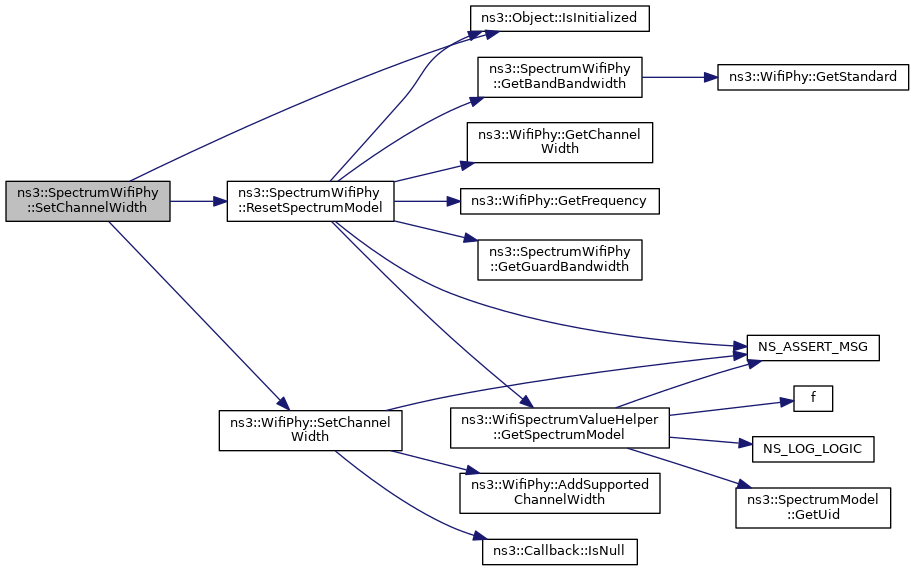

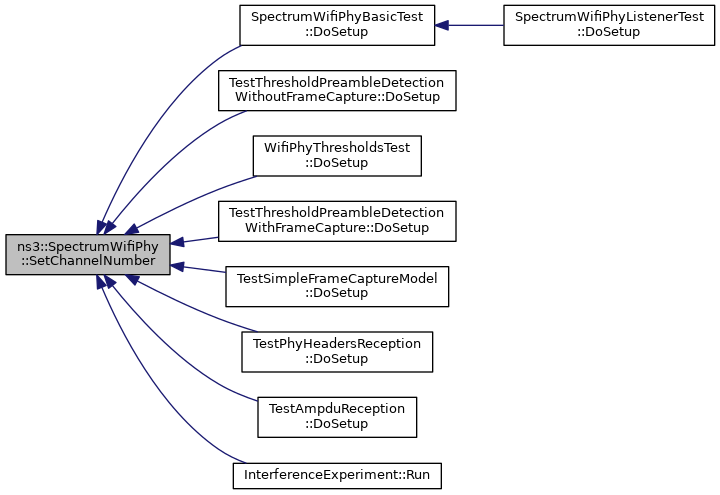

virtual void	SetChannelNumber (uint8_t id)
	Set channel number. More...

virtual void	SetChannelWidth (uint16_t channelwidth)

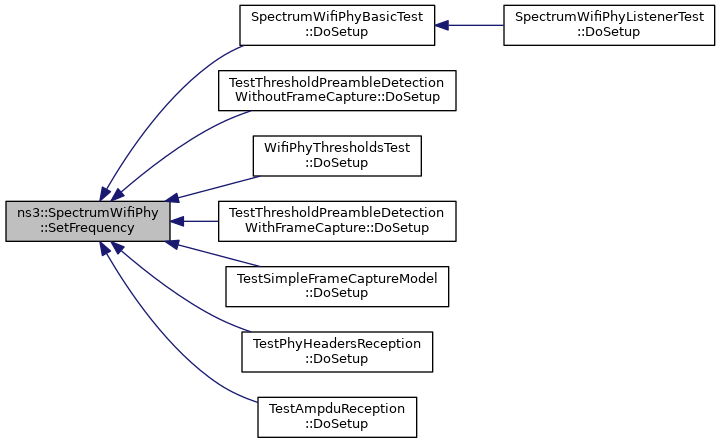

virtual void	SetFrequency (uint16_t freq)

void	StartRx (Ptr< SpectrumSignalParameters > rxParams)
	Input method for delivering a signal from the spectrum channel and low-level PHY interface to this SpectrumWifiPhy instance. More...

void	StartTx (Ptr< WifiPpdu > ppdu)

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

void	AddSupportedChannelWidth (uint16_t width)

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	CalculateSnr (WifiTxVector txVector, double ber) const

void	ContinueReceiveHeader (Ptr< Event > event)
	Continue receiving the PHY header of a PPDU (i.e. More...

bool	DefineChannelNumber (uint8_t channelNumber, WifiPhyStandard standard, uint16_t frequency, uint16_t channelWidth)
	Add a channel definition to the WifiPhy. More...

void	EndReceive (Ptr< Event > event)
	The last symbol of the PPDU has arrived. More...

void	EndReceiveInterBss (void)
	For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception. More...

uint8_t	GetBssMembershipSelector (uint8_t selector) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

double	GetCcaEdThreshold (void) const
	Return the CCA threshold (dBm). More...

uint8_t	GetChannelNumber (void) const
	Return current channel number. More...

Time	GetChannelSwitchDelay (void) const

uint16_t	GetChannelWidth (void) const

Time	GetDelayUntilIdle (void)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

uint16_t	GetFrequency (void) const

bool	GetGreenfield (void) const
	Return whether Greenfield is supported. More...

Time	GetGuardInterval (void) const

WifiMode	GetHeMcs (uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the HE modulation class. More...

WifiMode	GetHtMcs (uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the HT modulation class. More...

Time	GetLastRxEndTime (void) const
	Return the end time of the last received packet. More...

Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

uint8_t	GetMaxSupportedRxSpatialStreams (void) const

uint8_t	GetMaxSupportedTxSpatialStreams (void) const

WifiMode	GetMcs (uint8_t mcs) const
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

WifiMode	GetMcs (WifiModulationClass modulation, uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the given modulation class. More...

Ptr< MobilityModel >	GetMobility (void) const
	Return the mobility model this PHY is associated with. More...

WifiMode	GetMode (uint8_t mode) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

uint8_t	GetNBssMembershipSelectors (void) const
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

uint8_t	GetNMcs (void) const
	The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

uint8_t	GetNModes (void) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

uint8_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

uint8_t	GetNumberOfAntennas (void) const

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

double	GetRxGain (void) const
	Return the reception gain (dB). More...

double	GetRxSensitivity (void) const
	Return the receive sensitivity threshold (dBm). More...

bool	GetShortGuardInterval (void) const
	Return whether short guard interval is supported. More...

bool	GetShortPhyPreambleSupported (void) const
	Return whether short PHY preamble is supported. More...

WifiPhyStandard	GetStandard (void) const
	Get the configured Wi-Fi standard. More...

Ptr< WifiPhyStateHelper >	GetState (void) const
	Return the WifiPhyStateHelper of this PHY. More...

std::vector< uint16_t >	GetSupportedChannelWidthSet (void) const

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

double	GetTxPowerForTransmission (WifiTxVector txVector) const
	Compute the transmit power (in dBm) for the next transmission. More...

double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

WifiMode	GetVhtMcs (uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the VHT modulation class. More...

bool	IsMcsSupported (WifiMode mcs) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsMcsSupported (WifiModulationClass mc, uint8_t mcs) const
	Check if the given MCS of the given modulation class is supported by the PHY. More...

bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsStateCcaBusy (void) const

bool	IsStateIdle (void) const

bool	IsStateOff (void) const

bool	IsStateRx (void) const

bool	IsStateSleep (void) const

bool	IsStateSwitching (void) const

bool	IsStateTx (void) const

void	NotifyChannelAccessRequested (void)
	Notify the PHY that an access to the channel was requested. More...

void	NotifyEndOfHePreamble (HePreambleParameters params)
	Public method used to fire a EndOfHePreamble trace once both HE SIG fields have been received, as well as training fields. More...

void	NotifyMonitorSniffRx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being received. More...

void	NotifyMonitorSniffTx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being transmitted. More...

void	NotifyRxBegin (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const WifiPsdu > psdu, WifiPhyRxfailureReason reason)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const WifiPsdu > psdu, double txPowerW)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyTxEnd trace. More...

void	RegisterListener (WifiPhyListener *listener)

void	ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0)
	Reset PHY to IDLE, with some potential TX power restrictions for the next transmission. More...

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the packet under reception after it has failed the PHY header. More...

void	ResumeFromOff (void)
	Resume from off mode. More...

void	ResumeFromSleep (void)
	Resume from sleep mode. More...

void	Send (Ptr< const WifiPsdu > psdu, WifiTxVector txVector)

void	SetCapabilitiesChangedCallback (Callback< void > callback)

void	SetCcaEdThreshold (double threshold)
	Sets the CCA threshold (dBm). More...

void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetEdThreshold (double threshold)
	Sets the energy detection threshold (dBm). More...

void	SetErrorRateModel (const Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

void	SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel)
	Sets the frame capture model. More...

void	SetGreenfield (bool greenfield)
	Enable or disable Greenfield support. More...

void	SetGuardInterval (Time guardInterval)

void	SetMaxSupportedRxSpatialStreams (uint8_t streams)

void	SetMaxSupportedTxSpatialStreams (uint8_t streams)

void	SetMobility (const Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint8_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

void	SetNumberOfAntennas (uint8_t antennas)

void	SetOffMode (void)
	Put in off mode. More...

void	SetPostReceptionErrorModel (const Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the WifiPhy. More...

void	SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel)
	Sets the preamble detection model. More...

void	SetReceiveErrorCallback (RxErrorCallback callback)

void	SetReceiveOkCallback (RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

void	SetRxSensitivity (double threshold)
	Sets the receive sensitivity threshold (dBm). More...

void	SetShortGuardInterval (bool shortGuardInterval)
	Enable or disable support for HT/VHT short guard interval. More...

void	SetShortPhyPreambleSupported (bool preamble)
	Enable or disable short PHY preamble. More...

void	SetSleepMode (void)
	Put in sleep mode. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

void	SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel)
	Sets the wifi radio energy model. More...

void	StartReceiveHeader (Ptr< Event > event)
	Start receiving the PHY header of a PPDU (i.e. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

void	StartReceivePreamble (Ptr< WifiPpdu > ppdu, double rxPowerW)
	Start receiving the PHY preamble of a PPDU (i.e. More...

void	UnregisterListener (WifiPhyListener *listener)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiPhy
static Time	CalculatePhyPreambleAndHeaderDuration (WifiTxVector txVector)

static Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency)

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-OFDM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-OFDM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-OFDM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-OFDM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-OFDM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-OFDM at 54Mbps. More...

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-OFDM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-OFDM at 9Mbps. More...

static WifiMode	GetHeMcs0 ()
	Return MCS 0 from HE MCS values. More...

static WifiMode	GetHeMcs1 ()
	Return MCS 1 from HE MCS values. More...

static WifiMode	GetHeMcs10 ()
	Return MCS 10 from HE MCS values. More...

static WifiMode	GetHeMcs11 ()
	Return MCS 11 from HE MCS values. More...

static WifiMode	GetHeMcs2 ()
	Return MCS 2 from HE MCS values. More...

static WifiMode	GetHeMcs3 ()
	Return MCS 3 from HE MCS values. More...

static WifiMode	GetHeMcs4 ()
	Return MCS 4 from HE MCS values. More...

static WifiMode	GetHeMcs5 ()
	Return MCS 5 from HE MCS values. More...

static WifiMode	GetHeMcs6 ()
	Return MCS 6 from HE MCS values. More...

static WifiMode	GetHeMcs7 ()
	Return MCS 7 from HE MCS values. More...

static WifiMode	GetHeMcs8 ()
	Return MCS 8 from HE MCS values. More...

static WifiMode	GetHeMcs9 ()
	Return MCS 9 from HE MCS values. More...

static WifiMode	GetHePhyHeaderMode ()

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetHtPhyHeaderMode ()

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54Mbps. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More...

static Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency, MpduType mpdutype=NORMAL_MPDU)

static Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, uint16_t frequency, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols)

static Time	GetPhyHeaderDuration (WifiTxVector txVector)

static WifiMode	GetPhyHeaderMode (WifiTxVector txVector)

static Time	GetPhyHtSigHeaderDuration (WifiPreamble preamble)

static Time	GetPhyPreambleDuration (WifiTxVector txVector)

static Time	GetPhySigA1Duration (WifiPreamble preamble)

static Time	GetPhySigA2Duration (WifiPreamble preamble)

static Time	GetPhySigBDuration (WifiPreamble preamble)

static Time	GetPhyTrainingSymbolDuration (WifiTxVector txVector)

static Time	GetPreambleDetectionDuration (void)

static Time	GetStartOfPacketDuration (WifiTxVector txVector)

static TypeId	GetTypeId (void)
	Get the type ID. More...

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

static WifiMode	GetVhtPhyHeaderMode ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void)
	Destructor implementation. More...

void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::WifiPhy
bool	DoChannelSwitch (uint8_t id)
	The default implementation does nothing and returns true. More...

bool	DoFrequencySwitch (uint16_t frequency)
	The default implementation does nothing and returns true. More...

void	SwitchMaybeToCcaBusy (void)
	Check if PHY state should move to CCA busy state based on current state of interference tracker. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
Ptr< SpectrumValue >	GetTxPowerSpectralDensity (uint16_t centerFrequency, uint16_t channelWidth, double txPowerW, WifiModulationClass modulationClass) const

void	ResetSpectrumModel (void)
	Perform run-time spectrum model change. More...

Private Attributes
Ptr< AntennaModel >	m_antenna
	antenna model More...

Ptr< SpectrumChannel >	m_channel
	SpectrumChannel that this SpectrumWifiPhy is connected to. More...

bool	m_disableWifiReception
	forces this PHY to fail to sync on any signal More...

Ptr< const SpectrumModel >	m_rxSpectrumModel
	receive spectrum model More...

TracedCallback< bool, uint32_t, double, Time >	m_signalCb
	Signal callback. More...

Ptr< WifiSpectrumPhyInterface >	m_wifiSpectrumPhyInterface
	Spectrum PHY interface. More...

Additional Inherited Members
Protected Attributes inherited from ns3::WifiPhy
EventId	m_endPhyRxEvent
	the end of PHY receive event More...

EventId	m_endPreambleDetectionEvent
	the end of preamble detection event More...

EventId	m_endRxEvent
	the end of receive event More...

EventId	m_endTxEvent
	the end of transmit event More...

InterferenceHelper	m_interference
	Pointer to InterferenceHelper. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

uint32_t	m_rxMpduReferenceNumber
	A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

uint32_t	m_txMpduReferenceNumber
	A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

This PHY implements a spectrum-aware enhancement of the 802.11 SpectrumWifiPhy model.

This PHY model depends on a channel loss and delay model as provided by the ns3::SpectrumPropagationLossModel and ns3::PropagationDelayModel classes.

Config Paths

ns3::SpectrumWifiPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::SpectrumWifiPhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/$ns3::SpectrumWifiPhy"

Attributes

DisableWifiReception: Prevent Wi-Fi frame sync from ever happening
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::WifiPhy

Frequency: The operating center frequency (MHz)
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
ChannelWidth: Whether 5MHz, 10MHz, 20MHz, 22MHz, 40MHz, 80 MHz or 160 MHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 5:160
- Initial value: 20
- Flags: construct write read
ChannelNumber: If set to non-zero defined value, will control Frequency and ChannelWidth assignment
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:196
- Initial value: 0
- Flags: construct write read
EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dBm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -101
- Flags: construct write
RxSensitivity: The energy of a received signal should be higher than this threshold (dBm) for the PHY to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -101
- Flags: construct write read
CcaEdThreshold: The energy of a non Wi-Fi received signal should be higher than this threshold (dBm) to allow the PHY layer to declare CCA BUSY state. This check is performed on the 20 MHz primary channel only.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -62
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dBm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dBm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)".
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write
State: The state of the PHY layer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper>
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +250000.0ns
- Flags: construct write read
Antennas: The number of antennas on the device.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
MaxSupportedTxSpatialStreams: The maximum number of supported TX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
MaxSupportedRxSpatialStreams: The maximum number of supported RX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:8
- Initial value: 1
- Flags: construct write read
ShortGuardEnabled: Whether or not short guard interval is enabled for HT/VHT transmissions.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
GuardInterval: Whether 800ns, 1600ns or 3200ns guard interval is used for HE transmissions.This parameter is only valuable for 802.11ax STAs and APs.
- Set with class: ns3::TimeValue
- Underlying type: Time +800.0ns:+3200.0ns
- Initial value: +3200.0ns
- Flags: construct write read
GreenfieldEnabled: Whether or not Greenfield is enabled.This parameter is only valuable for 802.11n STAs and APs.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
ShortPlcpPreambleSupported: Whether or not short PHY preamble is supported.This parameter is only valuable for 802.11b STAs and APs.Note: 802.11g APs and STAs always support short PHY preamble.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
FrameCaptureModel: Ptr to an object that implements the frame capture model
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::FrameCaptureModel>
- Initial value: 0
- Flags: construct write read
PreambleDetectionModel: Ptr to an object that implements the preamble detection model
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::PreambleDetectionModel>
- Initial value: 0
- Flags: construct write read
PostReceptionErrorModel: An optional packet error model can be added to the receive packet process after any propagation-based (SNR-based) error models have been applied. Typically this is used to force specific packet drops, for testing purposes.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorModel>
- Initial value: 0
- Flags: construct write read

TraceSources

SignalArrival: Signal arrival
Callback signature: ns3::SpectrumWifiPhy::SignalArrivalCallback

TraceSources defined in parent class ns3::WifiPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
Callback signature: ns3::Packet::TracedCallback
PhyTxPsduBegin: Trace source indicating a PSDU has begun transmitting over the channel medium
Callback signature: ns3::WifiPhy::PsduTxBeginCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxPayloadBegin: Trace source indicating the reception of the payload of a PPDU has begun
Callback signature: ns3::WifiPhy::PhyRxPayloadBeginTracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Callback signature: ns3::Packet::TracedCallback
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback
EndOfHePreamble: Trace source indicating the end of the 802.11ax preamble (after training fields)
Callback signature: ns3::WifiPhy::EndOfHePreambleTracedCallback

Size of this type is 816 bytes (on a 64-bit architecture).

Definition at line 51 of file spectrum-wifi-phy.h.

Member Typedef Documentation

◆ SignalArrivalCallback

typedef void(* ns3::SpectrumWifiPhy::SignalArrivalCallback) (bool signalType, uint32_t senderNodeId, double rxPower, Time duration)

Callback invoked when the PHY model starts to process a signal.

Parameters

signalType	Whether signal is WiFi (true) or foreign (false)
senderNodeId	Node Id of the sender of the signal
rxPower	received signal power (dBm)
duration	Signal duration

Definition at line 151 of file spectrum-wifi-phy.h.

Constructor & Destructor Documentation

◆ SpectrumWifiPhy()

ns3::SpectrumWifiPhy::SpectrumWifiPhy ( )

Definition at line 63 of file spectrum-wifi-phy.cc.

References NS_LOG_FUNCTION.

◆ ~SpectrumWifiPhy()

ns3::SpectrumWifiPhy::~SpectrumWifiPhy ( )

virtual

Definition at line 68 of file spectrum-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConfigureStandard()

void ns3::SpectrumWifiPhy::ConfigureStandard ( WifiPhyStandard standard )

virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Parameters

standard the Wi-Fi standard

Reimplemented from ns3::WifiPhy.

Definition at line 182 of file spectrum-wifi-phy.cc.

References ns3::WifiPhy::ConfigureStandard(), ns3::Object::IsInitialized(), NS_LOG_FUNCTION, and ResetSpectrumModel().

Referenced by SpectrumWifiPhyBasicTest::DoSetup(), TestThresholdPreambleDetectionWithoutFrameCapture::DoSetup(), WifiPhyThresholdsTest::DoSetup(), TestThresholdPreambleDetectionWithFrameCapture::DoSetup(), TestSimpleFrameCaptureModel::DoSetup(), TestPhyHeadersReception::DoSetup(), TestAmpduReception::DoSetup(), and InterferenceExperiment::Run().

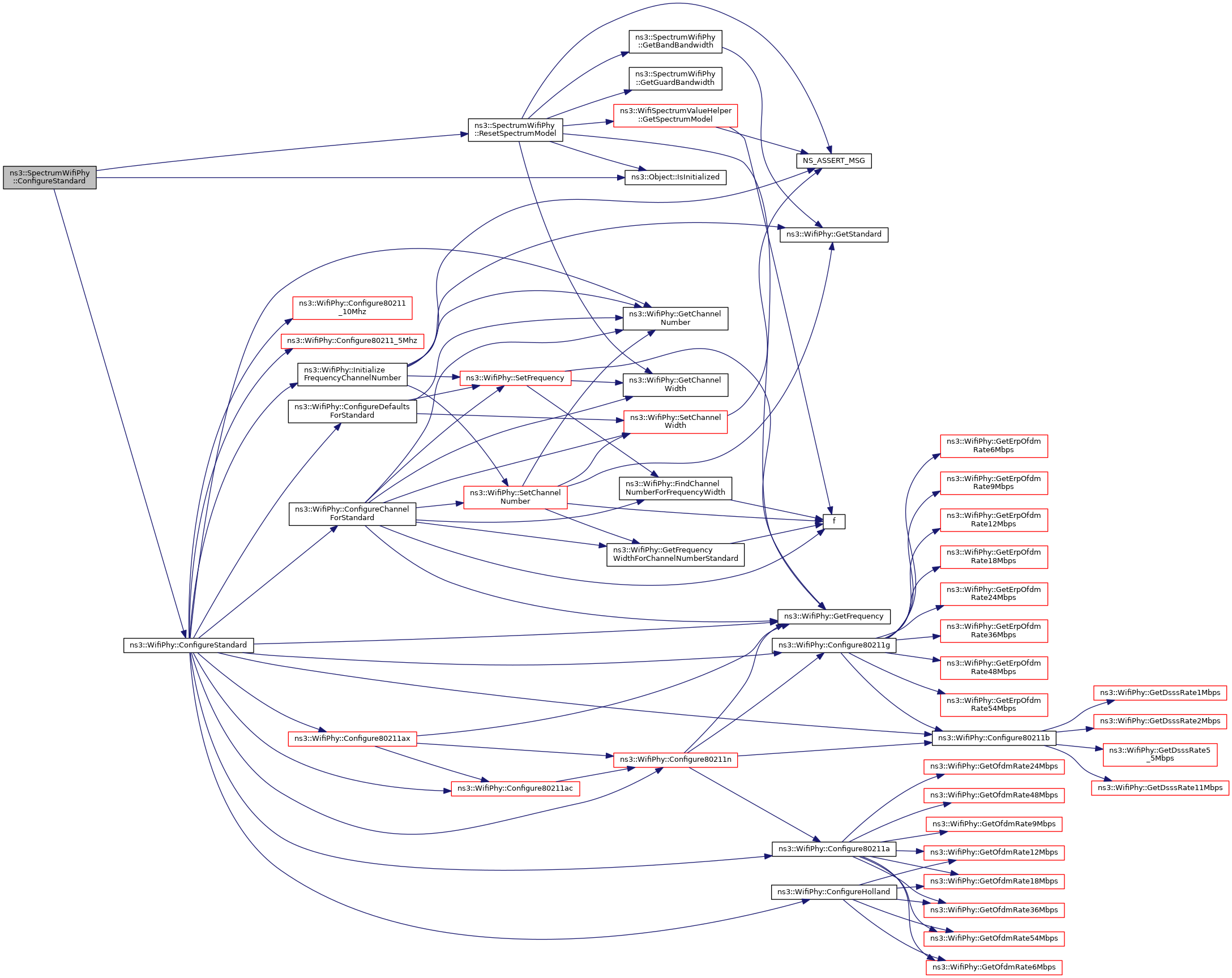

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateWifiSpectrumPhyInterface()

void ns3::SpectrumWifiPhy::CreateWifiSpectrumPhyInterface ( Ptr< NetDevice > device )

Method to encapsulate the creation of the WifiSpectrumPhyInterface object (used to bind the WifiSpectrumPhy to a SpectrumChannel) and to link it to this SpectrumWifiPhy instance.

Parameters

device pointer to the NetDevice object including this new object

Definition at line 262 of file spectrum-wifi-phy.cc.

References m_wifiSpectrumPhyInterface, and NS_LOG_FUNCTION.

Referenced by InterferenceExperiment::Run().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SpectrumWifiPhy::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiPhy.

Definition at line 74 of file spectrum-wifi-phy.cc.

References ns3::WifiPhy::DoDispose(), m_channel, m_wifiSpectrumPhyInterface, and NS_LOG_FUNCTION.

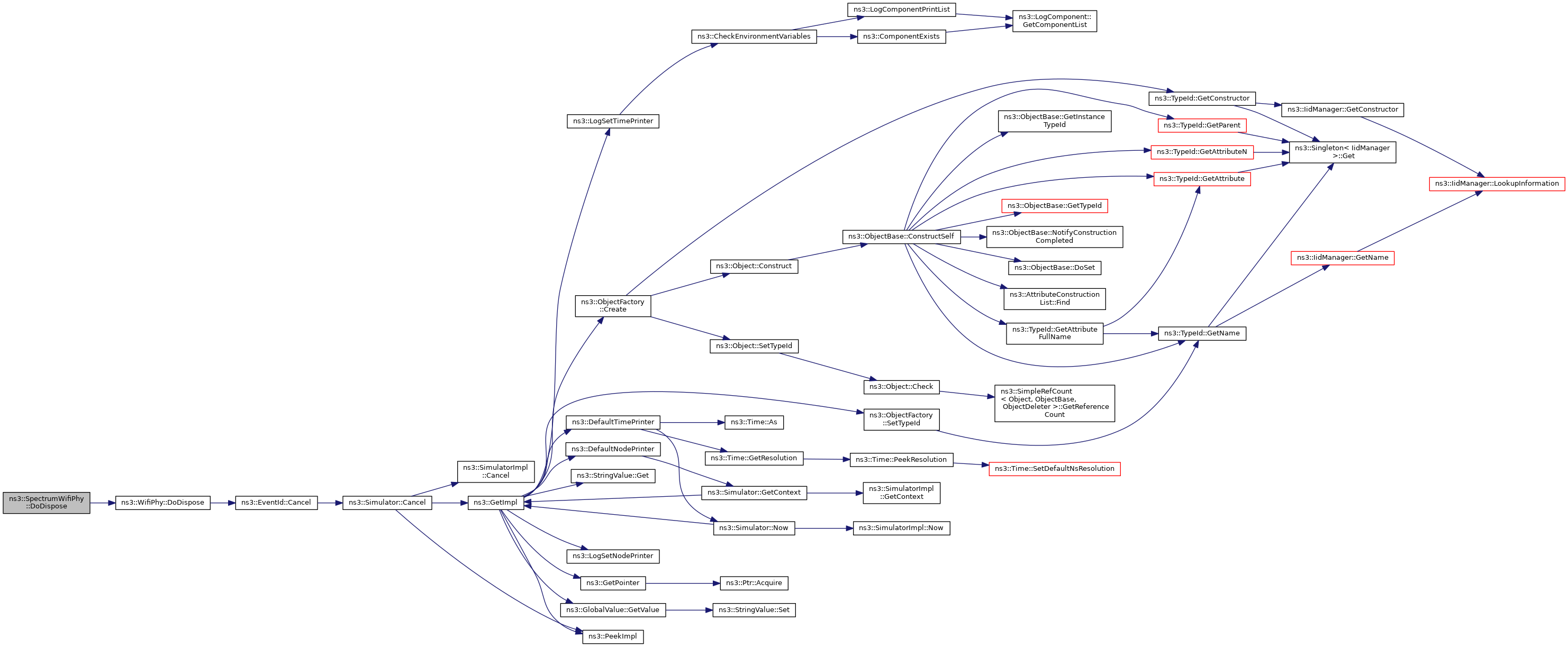

Here is the call graph for this function:

◆ DoInitialize()

void ns3::SpectrumWifiPhy::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::WifiPhy.

Definition at line 83 of file spectrum-wifi-phy.cc.

References ns3::WifiPhy::DoInitialize(), m_channel, m_wifiSpectrumPhyInterface, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

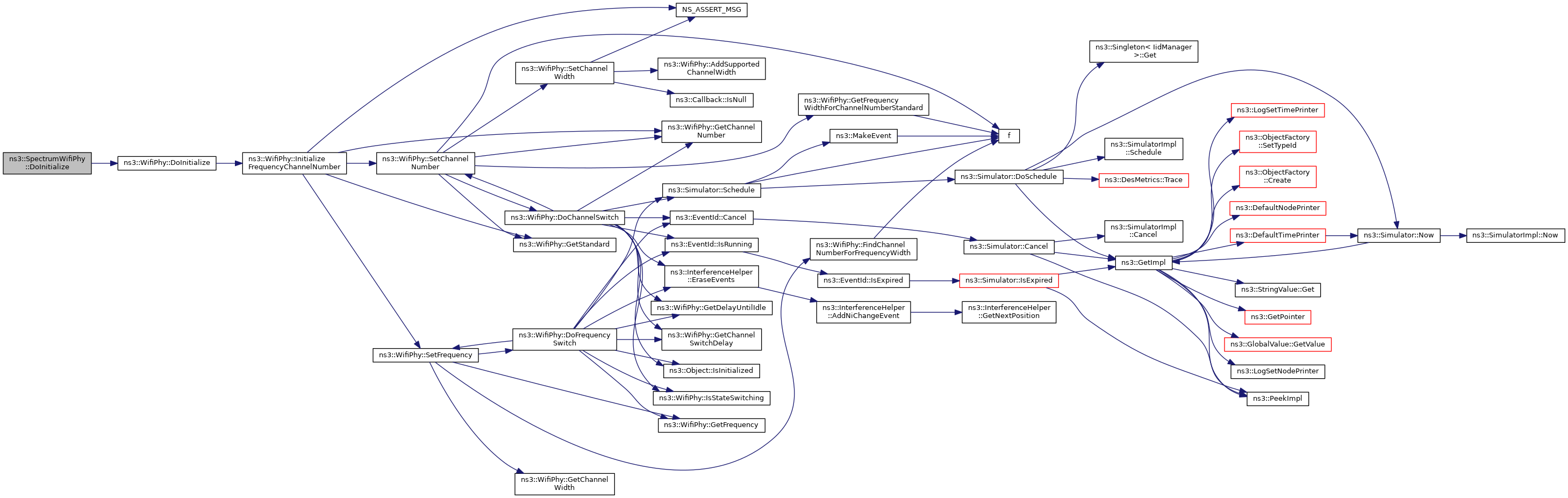

Here is the call graph for this function:

◆ GetBandBandwidth()

uint32_t ns3::SpectrumWifiPhy::GetBandBandwidth ( void ) const

Returns: the width of each band (Hz)

Definition at line 337 of file spectrum-wifi-phy.cc.

References ns3::WifiPhy::GetStandard(), NS_FATAL_ERROR, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211ax_5GHZ, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

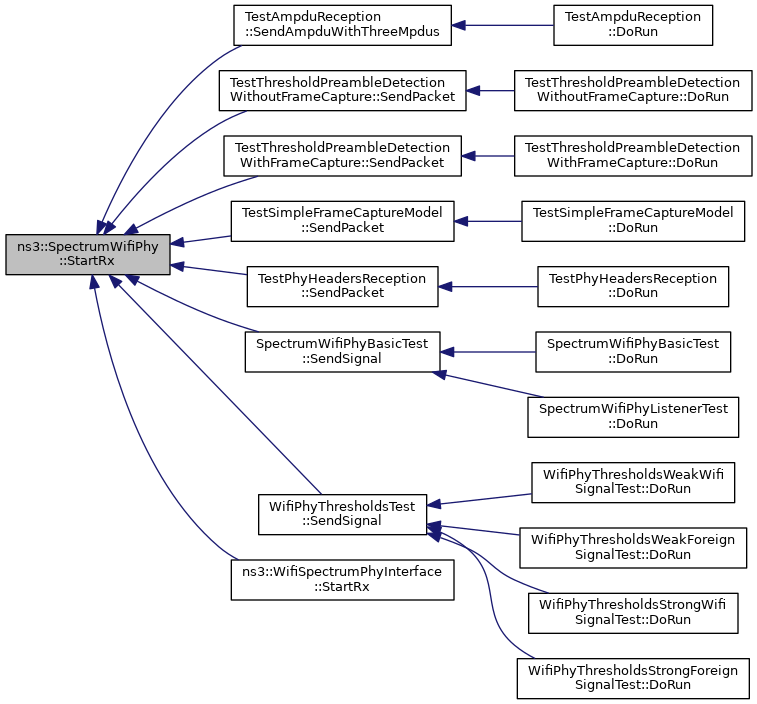

Referenced by GetRxSpectrumModel(), ResetSpectrumModel(), and StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCenterFrequencyForChannelWidth()

uint16_t ns3::SpectrumWifiPhy::GetCenterFrequencyForChannelWidth ( WifiTxVector txVector ) const

Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width.

Consider that this "primary channel" is on the lower part for the time being.

Parameters

txVector the TXVECTOR that has the channel width that is to be used

Returns: the center frequency in MHz corresponding to the channel width to be used

Definition at line 301 of file spectrum-wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiPhy::GetFrequency(), and NS_LOG_FUNCTION.

Referenced by StartTx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannel()

Ptr< Channel > ns3::SpectrumWifiPhy::GetChannel ( void ) const

virtual

Return the Channel this WifiPhy is connected to.

Returns: the Channel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 124 of file spectrum-wifi-phy.cc.

References m_channel.

◆ GetGuardBandwidth()

uint16_t ns3::SpectrumWifiPhy::GetGuardBandwidth ( uint16_t currentChannelWidth ) const

Parameters

currentChannelWidth channel width of the current transmission (MHz)

Returns: the width of the guard band (MHz)

Note: in order to properly model out of band transmissions for OFDM, the guard band has been configured so as to expand the modeled spectrum up to the outermost referenced point in "Transmit spectrum mask" sections' PSDs of each PHY specification of 802.11-2016 standard. It thus ultimately corresponds to the current channel bandwidth (which can be different from devices max channel width).

Definition at line 373 of file spectrum-wifi-phy.cc.

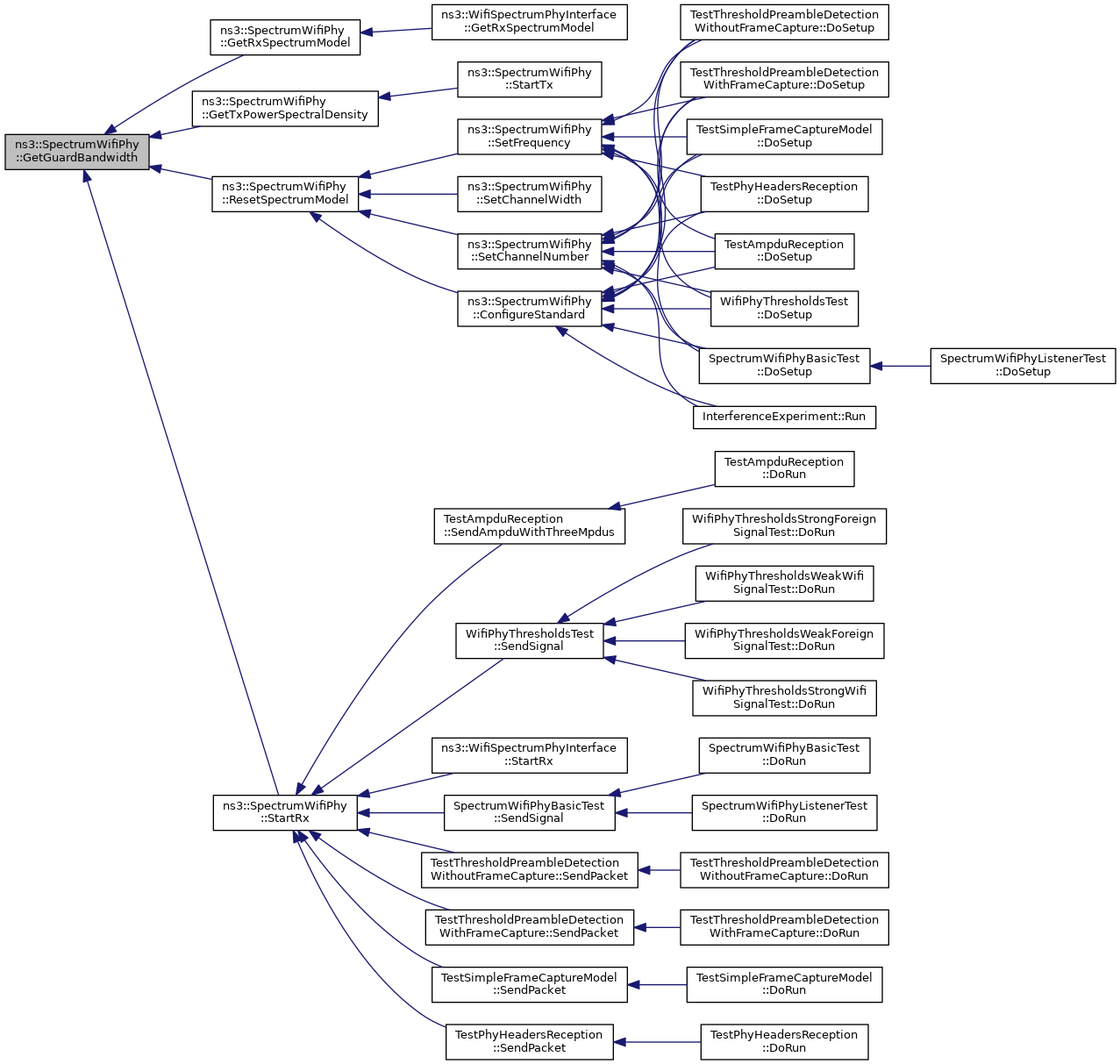

Referenced by GetRxSpectrumModel(), GetTxPowerSpectralDensity(), ResetSpectrumModel(), and StartRx().

Here is the caller graph for this function:

◆ GetRxAntenna()

Ptr< AntennaModel > ns3::SpectrumWifiPhy::GetRxAntenna ( void ) const

Get the antenna model used for reception.

Returns: the AntennaModel used for reception

Definition at line 249 of file spectrum-wifi-phy.cc.

References m_antenna.

Referenced by ns3::WifiSpectrumPhyInterface::GetRxAntenna().

Here is the caller graph for this function:

◆ GetRxSpectrumModel()

Ptr< const SpectrumModel > ns3::SpectrumWifiPhy::GetRxSpectrumModel ( void ) const

Returns: the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Definition at line 99 of file spectrum-wifi-phy.cc.

References GetBandBandwidth(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiPhy::GetFrequency(), GetGuardBandwidth(), ns3::WifiSpectrumValueHelper::GetSpectrumModel(), m_rxSpectrumModel, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::WifiSpectrumPhyInterface::GetRxSpectrumModel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::SpectrumWifiPhy::GetTxPowerSpectralDensity	(	uint16_t	centerFrequency,
		uint16_t	channelWidth,
		double	txPowerW,
		WifiModulationClass	modulationClass
	)		const

private

Parameters

centerFrequency	center frequency (MHz)
channelWidth	channel width (MHz) of the channel for the current transmission
txPowerW	power in W to spread across the bands
modulationClass	the modulation class

Returns: Pointer to SpectrumValue

This is a helper function to create the right TX PSD corresponding to the standard in use.

Definition at line 271 of file spectrum-wifi-phy.cc.

References ns3::WifiSpectrumValueHelper::CreateDsssTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateHeOfdmTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateHtOfdmTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateOfdmTxPowerSpectralDensity(), GetGuardBandwidth(), NS_ABORT_MSG_IF, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by StartTx().

Here is the call graph for this function:

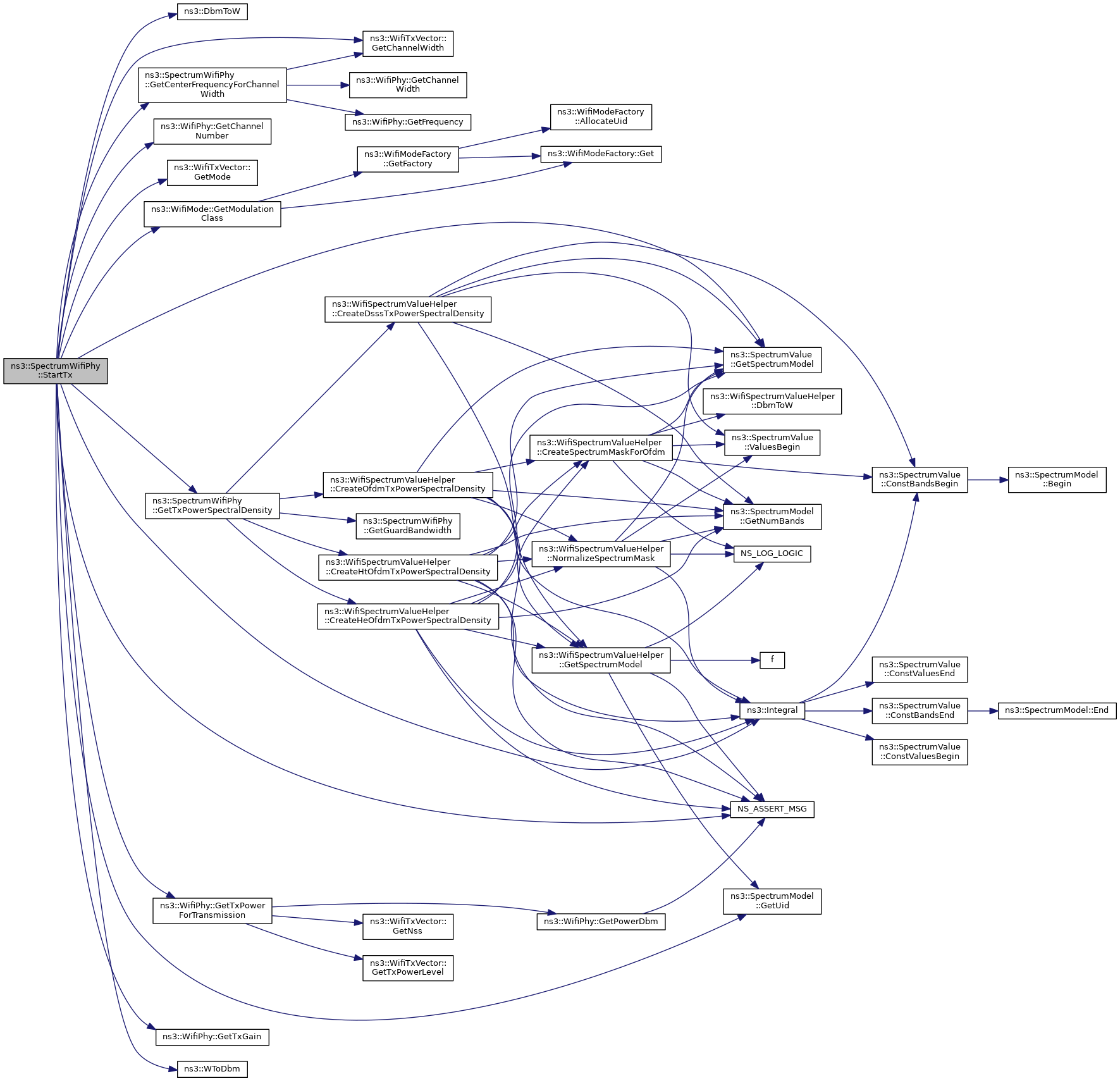

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SpectrumWifiPhy::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 45 of file spectrum-wifi-phy.cc.

References m_disableWifiReception, m_signalCb, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

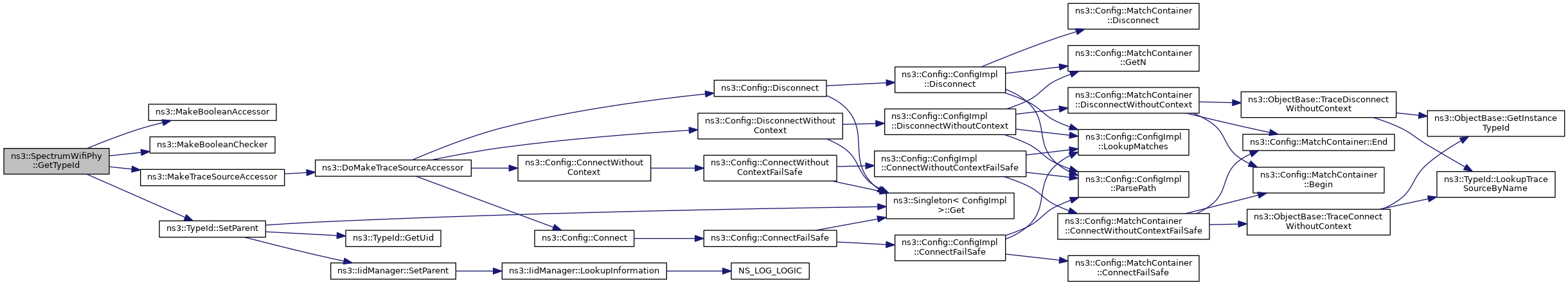

Here is the call graph for this function:

◆ ResetSpectrumModel()

void ns3::SpectrumWifiPhy::ResetSpectrumModel ( void )

private

Perform run-time spectrum model change.

Definition at line 136 of file spectrum-wifi-phy.cc.

References GetBandBandwidth(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiPhy::GetFrequency(), GetGuardBandwidth(), ns3::WifiSpectrumValueHelper::GetSpectrumModel(), ns3::Object::IsInitialized(), m_channel, m_rxSpectrumModel, m_wifiSpectrumPhyInterface, NS_ASSERT_MSG(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard(), SetChannelNumber(), SetChannelWidth(), and SetFrequency().

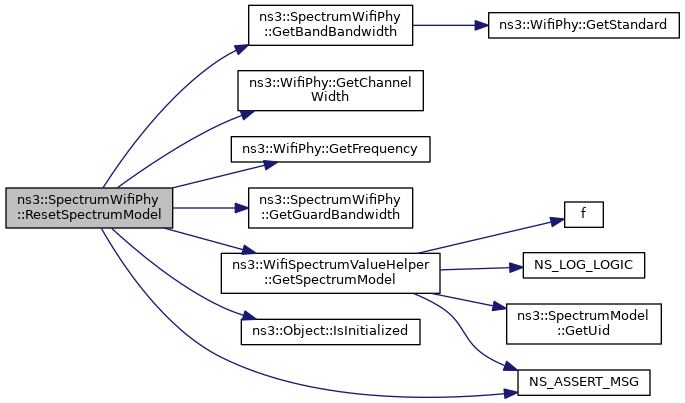

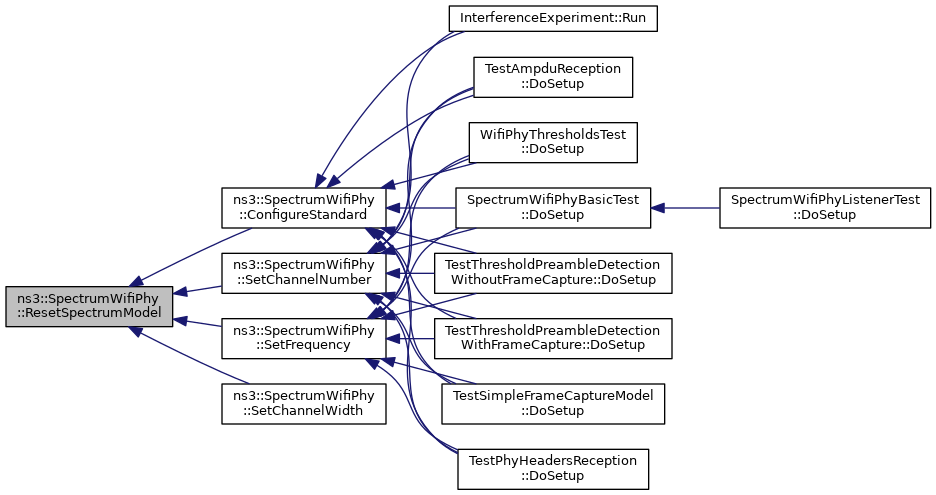

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAntenna()

void ns3::SpectrumWifiPhy::SetAntenna ( const Ptr< AntennaModel > antenna )

Parameters

antenna an AntennaModel to include in the transmitted SpectrumSignalParameters (in case any objects downstream of the SpectrumWifiPhy wish to adjust signal properties based on the transmitted antenna model. This antenna is also used when the underlying WifiSpectrumPhyInterface::GetRxAntenna() method is called.

Note: this method may be split into separate SetTx and SetRx methods in the future if the modeling need for this arises

Definition at line 255 of file spectrum-wifi-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

◆ SetChannel()

void ns3::SpectrumWifiPhy::SetChannel ( const Ptr< SpectrumChannel > channel )

Set the SpectrumChannel this SpectrumWifiPhy is to be connected to.

Parameters

channel the SpectrumChannel this SpectrumWifiPhy is to be connected to

Definition at line 130 of file spectrum-wifi-phy.cc.

References third::channel, and m_channel.

Referenced by InterferenceExperiment::Run().

Here is the caller graph for this function:

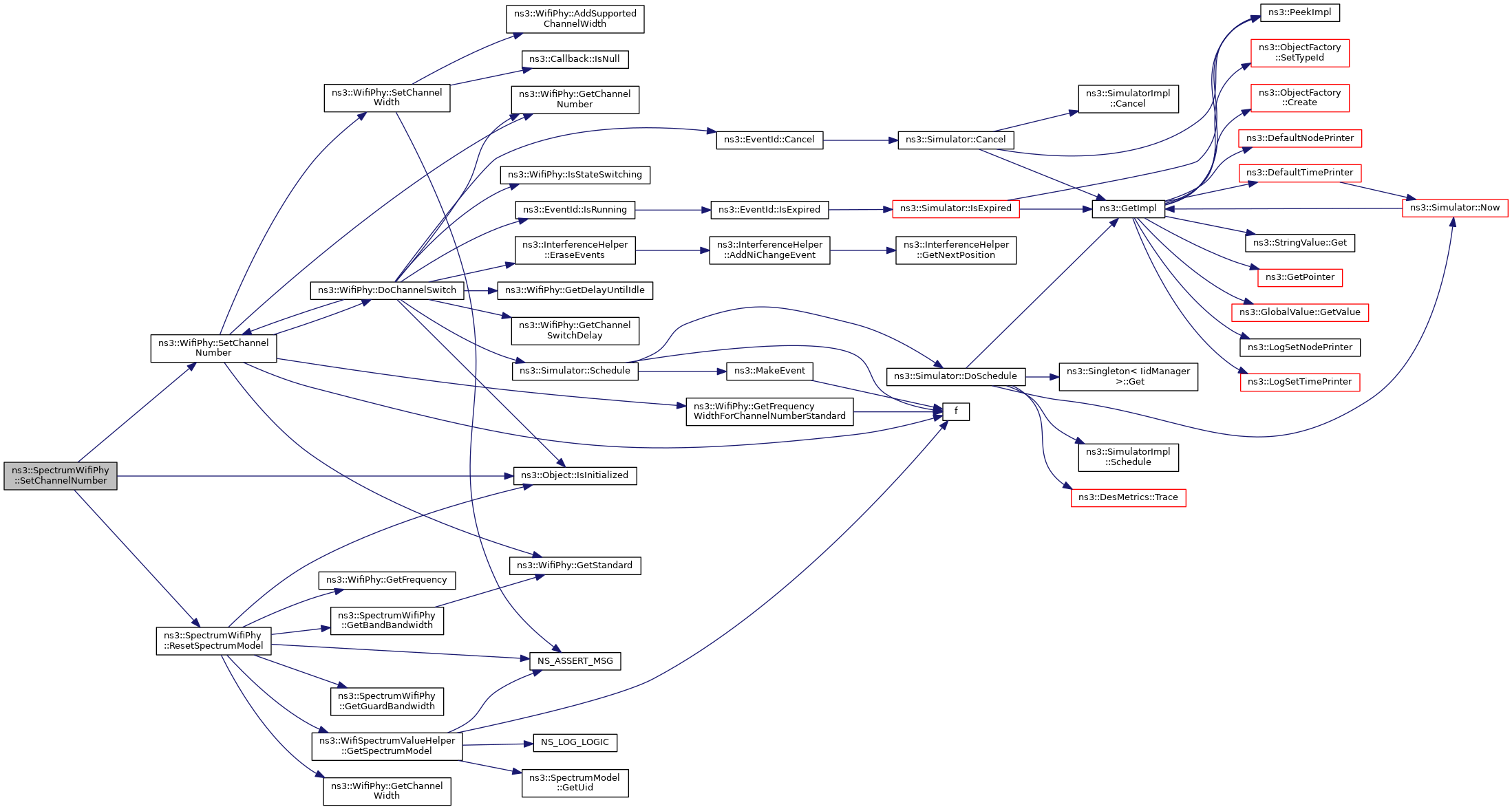

◆ SetChannelNumber()

void ns3::SpectrumWifiPhy::SetChannelNumber ( uint8_t id )

virtual

Set channel number.

Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)

where Starting channel frequency is standard-dependent, as defined in (Section 18.3.8.4.2 "Channel numbering"; IEEE Std 802.11-2012). This method may fail to take action if the PHY model determines that the channel number cannot be switched for some reason (e.g. sleep state)

Parameters
