ns3::ArfWifiManager Class Reference

ARF Rate control algorithm. More...

#include "arf-wifi-manager.h"

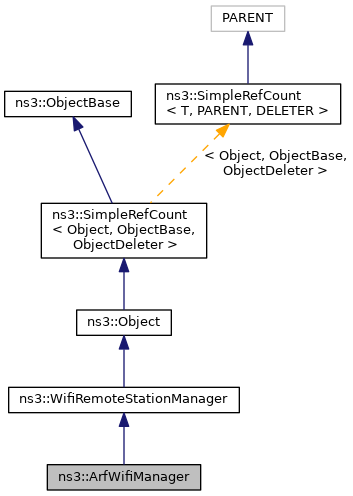

+ Inheritance diagram for ns3::ArfWifiManager:

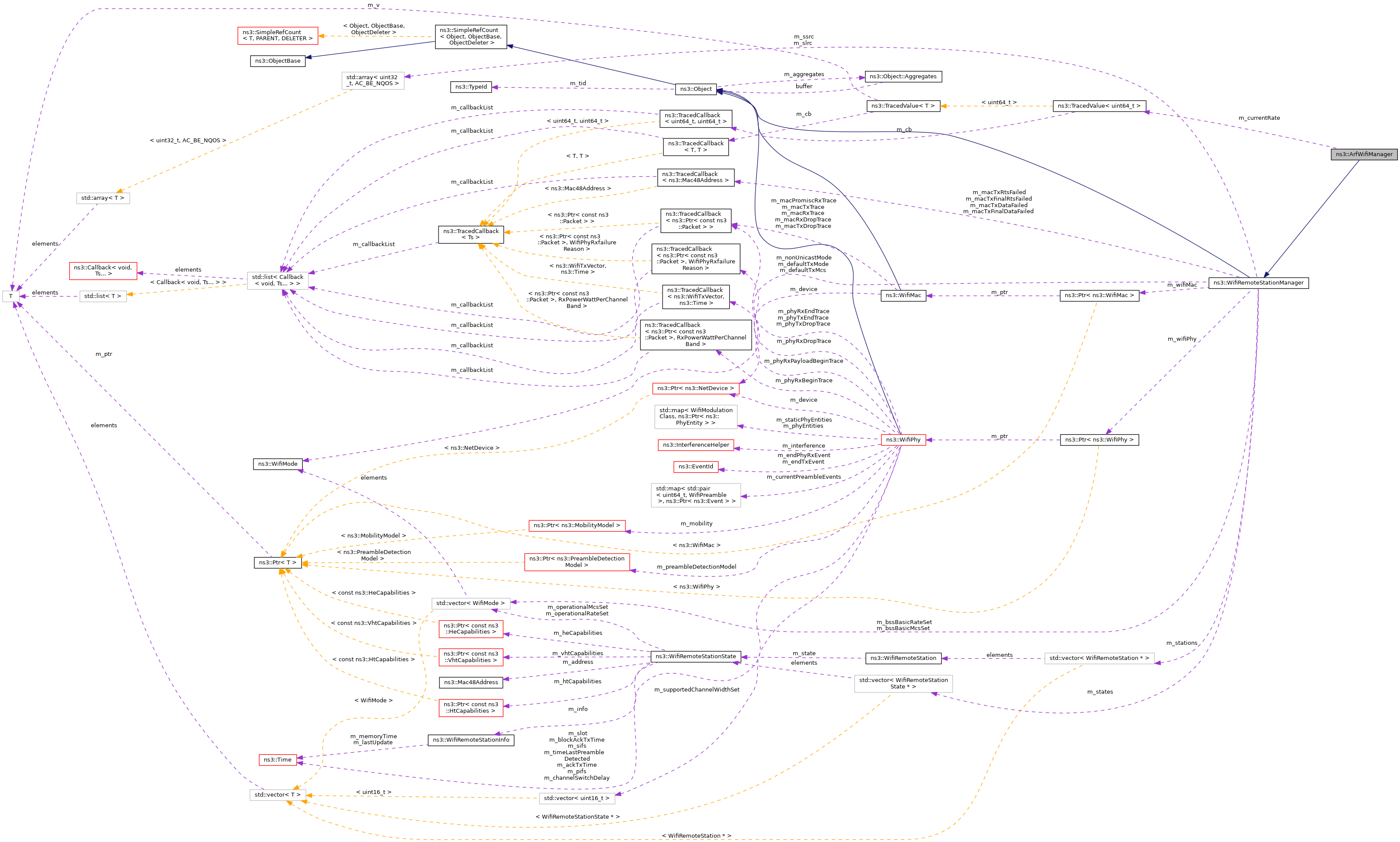

+ Collaboration diagram for ns3::ArfWifiManager:

Public Member Functions

 ArfWifiManager ()

virtual ~ArfWifiManager ()

- Public Member Functions inherited from ns3::WifiRemoteStationManager
 WifiRemoteStationManager ()

virtual ~WifiRemoteStationManager ()

void AddAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally. More...

void AddAllSupportedModes (Mac48Address address)
 Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally. More...

void AddBasicMcs (WifiMode mcs)
 Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

void AddBasicMode (WifiMode mode)
 Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

void AddStationHeCapabilities (Mac48Address from, HeCapabilities heCapabilities)
 Records HE capabilities of the remote station. More...

void AddStationHtCapabilities (Mac48Address from, HtCapabilities htCapabilities)
 Records HT capabilities of the remote station. More...

void AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtCapabilities)
 Records VHT capabilities of the remote station. More...

void AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported)
 Record whether the short ERP slot time is supported by the station. More...

void AddSupportedMcs (Mac48Address address, WifiMode mcs)
 Record the MCS index supported by the station. More...

void AddSupportedMode (Mac48Address address, WifiMode mode)
 Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

void AddSupportedPhyPreamble (Mac48Address address, bool isShortPreambleSupported)
 Record whether the short PHY preamble is supported by the station. More...

virtual int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

WifiTxVector GetAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
 Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender. More...

WifiMode GetBasicMcs (uint8_t i) const
 Return the MCS at the given list index. More...

WifiMode GetBasicMode (uint8_t i) const
 Return a basic mode from the set of basic modes. More...

WifiTxVector GetBlockAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
 Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender. More...

uint16_t GetChannelWidthSupported (Mac48Address address) const
 Return the channel width supported by the station. More...

WifiMode GetControlAnswerMode (WifiMode reqMode) const
 Get control answer mode function. More...

WifiTxVector GetCtsToSelfTxVector (void)
 Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager. More...

WifiTxVector GetCtsTxVector (Mac48Address to, WifiMode rtsTxMode) const
 Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender. More...

WifiTxVector GetDataTxVector (const WifiMacHeader &header)

WifiMode GetDefaultMcs (void) const
 Return the default Modulation and Coding Scheme (MCS) index. More...

WifiMode GetDefaultMode (void) const
 Return the default transmission mode. More...

uint8_t GetDefaultTxPowerLevel (void) const

bool GetDsssSupported (const Mac48Address &address) const
 Return whether the station supports DSSS or not. More...

bool GetErpOfdmSupported (const Mac48Address &address) const
 Return whether the station supports ERP OFDM or not. More...

uint32_t GetFragmentationThreshold (void) const
 Return the fragmentation threshold. More...

uint32_t GetFragmentOffset (Ptr< const WifiMacQueueItem > mpdu, uint32_t fragmentNumber)

uint32_t GetFragmentSize (Ptr< const WifiMacQueueItem > mpdu, uint32_t fragmentNumber)

uint16_t GetGuardInterval (void) const
 Return the supported HE guard interval duration (in nanoseconds). More...

bool GetHeSupported (void) const
 Return whether the device has HE capability support enabled. More...

bool GetHeSupported (Mac48Address address) const
 Return whether the station supports HE or not. More...

bool GetHtSupported (void) const
 Return whether the device has HT capability support enabled. More...

bool GetHtSupported (Mac48Address address) const
 Return whether the station supports HT or not. More...

WifiRemoteStationInfo GetInfo (Mac48Address address)

bool GetLdpcSupported (void) const
 Return whether the device has LDPC support enabled. More...

bool GetLdpcSupported (Mac48Address address) const
 Return whether the station supports LDPC or not. More...

Ptr< WifiMacGetMac (void) const
 Return the WifiMac. More...

uint8_t GetMaxNumberOfTransmitStreams (void) const

double GetMostRecentRssi (Mac48Address address) const

uint8_t GetNBasicMcs (void) const
 Return the number of basic MCS index. More...

uint8_t GetNBasicModes (void) const
 Return the number of basic modes we support. More...

uint8_t GetNMcsSupported (Mac48Address address) const
 Return the number of MCS supported by the station. More...

uint32_t GetNNonErpBasicModes (void) const
 Return the number of non-ERP basic modes we support. More...

WifiMode GetNonErpBasicMode (uint8_t i) const
 Return a basic mode from the set of basic modes that is not an ERP mode. More...

WifiMode GetNonUnicastMode (void) const
 Return a mode for non-unicast packets. More...

uint8_t GetNumberOfAntennas (void) const

uint8_t GetNumberOfSupportedStreams (Mac48Address address) const
 Return the number of spatial streams supported by the station. More...

bool GetOfdmSupported (const Mac48Address &address) const
 Return whether the station supports OFDM or not. More...

Ptr< WifiPhyGetPhy (void) const
 Return the WifiPhy. More...

bool GetQosSupported (Mac48Address address) const
 Return whether the given station is QoS capable. More...

WifiTxVector GetRtsTxVector (Mac48Address address)

bool GetShortGuardIntervalSupported (void) const
 Return whether the device has SGI support enabled. More...

bool GetShortGuardIntervalSupported (Mac48Address address) const
 Return whether the station supports HT/VHT short guard interval. More...

bool GetShortPreambleEnabled (void) const
 Return whether the device uses short PHY preambles. More...

bool GetShortPreambleSupported (Mac48Address address) const
 Return whether the station supports short PHY preamble or not. More...

bool GetShortSlotTimeEnabled (void) const
 Return whether the device uses short slot time. More...

bool GetShortSlotTimeSupported (Mac48Address address) const
 Return whether the station supports short ERP slot time or not. More...

Ptr< const HeCapabilitiesGetStationHeCapabilities (Mac48Address from)
 Return the HE capabilities sent by the remote station. More...

Ptr< const HtCapabilitiesGetStationHtCapabilities (Mac48Address from)
 Return the HT capabilities sent by the remote station. More...

Ptr< const VhtCapabilitiesGetStationVhtCapabilities (Mac48Address from)
 Return the VHT capabilities sent by the remote station. More...

bool GetUseNonErpProtection (void) const
 Return whether the device supports protection of non-ERP stations. More...

bool GetUseNonHtProtection (void) const
 Return whether the device supports protection of non-HT stations. More...

bool GetVhtSupported (void) const
 Return whether the device has VHT capability support enabled. More...

bool GetVhtSupported (Mac48Address address) const
 Return whether the station supports VHT or not. More...

bool IsAssociated (Mac48Address address) const
 Return whether the station associated. More...

bool IsBrandNew (Mac48Address address) const
 Return whether the station state is brand new. More...

bool IsLastFragment (Ptr< const WifiMacQueueItem > mpdu, uint32_t fragmentNumber)

bool IsWaitAssocTxOk (Mac48Address address) const
 Return whether we are waiting for an ACK for the association response we sent. More...

bool NeedCtsToSelf (WifiTxVector txVector)
 Return if we need to do CTS-to-self before sending a DATA. More...

bool NeedFragmentation (Ptr< const WifiMacQueueItem > mpdu)

bool NeedRetransmission (Ptr< const WifiMacQueueItem > mpdu)

bool NeedRts (const WifiMacHeader &header, uint32_t size)

void RecordDisassociated (Mac48Address address)
 Records that the STA was disassociated. More...

void RecordGotAssocTxFailed (Mac48Address address)
 Records that we missed an ACK for the association response we sent. More...

void RecordGotAssocTxOk (Mac48Address address)
 Records that we got an ACK for the association response we sent. More...

void RecordWaitAssocTxOk (Mac48Address address)
 Records that we are waiting for an ACK for the association response we sent. More...

void RemoveAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to delete all of the supported MCS by a destination. More...

void ReportAmpduTxStatus (Mac48Address address, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, WifiTxVector dataTxVector)
 Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

void ReportDataFailed (Ptr< const WifiMacQueueItem > mpdu)
 Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void ReportDataOk (Ptr< const WifiMacQueueItem > mpdu, double ackSnr, WifiMode ackMode, double dataSnr, WifiTxVector dataTxVector)
 Should be invoked whenever we receive the ACK associated to a data packet we just sent. More...

void ReportFinalDataFailed (Ptr< const WifiMacQueueItem > mpdu)
 Should be invoked after calling ReportDataFailed if NeedRetransmission returns false. More...

void ReportFinalRtsFailed (const WifiMacHeader &header)
 Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false. More...

void ReportRtsFailed (const WifiMacHeader &header)
 Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

void ReportRtsOk (const WifiMacHeader &header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
 Should be invoked whenever we receive the CTS associated to an RTS we just sent. More...

void ReportRxOk (Mac48Address address, RxSignalInfo rxSignalInfo, WifiTxVector txVector)

void Reset (void)
 Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void SetDefaultTxPowerLevel (uint8_t txPower)
 Set the default transmission power level. More...

void SetFragmentationThreshold (uint32_t threshold)
 Sets a fragmentation threshold. More...

void SetMaxSlrc (uint32_t maxSlrc)
 Sets the maximum STA long retry count (SLRC). More...

void SetMaxSsrc (uint32_t maxSsrc)
 Sets the maximum STA short retry count (SSRC). More...

void SetQosSupport (Mac48Address from, bool qosSupported)
 Records QoS support of the remote station. More...

void SetRtsCtsThreshold (uint32_t threshold)
 Sets the RTS threshold. More...

void SetShortPreambleEnabled (bool enable)
 Enable or disable short PHY preambles. More...

void SetShortSlotTimeEnabled (bool enable)
 Enable or disable short slot time. More...

virtual void SetupMac (const Ptr< WifiMac > mac)
 Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g. More...

virtual void SetupPhy (const Ptr< WifiPhy > phy)
 Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

void SetUseNonErpProtection (bool enable)
 Enable or disable protection for non-ERP stations. More...

void SetUseNonHtProtection (bool enable)
 Enable or disable protection for non-HT stations. More...

bool UseLdpcForDestination (Mac48Address dest) const

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

WifiRemoteStationDoCreateStation (void) const override

WifiTxVector DoGetDataTxVector (WifiRemoteStation *station) override

WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station) override

void DoInitialize (void) override
 Initialize() implementation. More...

void DoReportDataFailed (WifiRemoteStation *station) override
 It is important to realize that "recovery" mode starts after failure of the first transmission after a rate increase and ends at the first successful transmission. More...

void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportFinalDataFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportFinalRtsFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRtsFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode) override
 This method is a pure virtual method that must be implemented by the sub-class. More...


Private Attributes

TracedValue< uint64_t > m_currentRate
 Trace rate changes. More...

uint32_t m_successThreshold
 success threshold More...

uint32_t m_timerThreshold
 timer threshold More...


Additional Inherited Members

- Public Types inherited from ns3::WifiRemoteStationManager
typedef void(* PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)
 TracedCallback signature for power change events. More...

enum  ProtectionMode { RTS_CTS, CTS_TO_SELF }
 ProtectionMode enumeration. More...

typedef void(* RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)
 TracedCallback signature for rate change events. More...

typedef std::vector< WifiRemoteStation * > Stations
 A vector of WifiRemoteStations. More...

typedef std::vector< WifiRemoteStationState * > StationStates
 A vector of WifiRemoteStationStates. More...

- Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void DoDispose (void)
 Destructor implementation. More...

Mac48Address GetAddress (const WifiRemoteStation *station) const
 Return the address of the station. More...

bool GetAggregation (const WifiRemoteStation *station) const
 Return whether the given station supports A-MPDU. More...

uint16_t GetChannelWidth (const WifiRemoteStation *station) const
 Return the channel width supported by the station. More...

uint16_t GetGuardInterval (const WifiRemoteStation *station) const
 Return the HE guard interval duration supported by the station. More...

bool GetHeSupported (const WifiRemoteStation *station) const
 Return whether the given station is HE capable. More...

bool GetHtSupported (const WifiRemoteStation *station) const
 Return whether the given station is HT capable. More...

WifiMode GetMcsSupported (const WifiRemoteStation *station, uint8_t i) const
 Return the WifiMode supported by the specified station at the specified index. More...

uint8_t GetNess (const WifiRemoteStation *station) const

uint8_t GetNMcsSupported (const WifiRemoteStation *station) const
 Return the number of MCS supported by the given station. More...

uint32_t GetNNonErpSupported (const WifiRemoteStation *station) const
 Return the number of non-ERP modes supported by the given station. More...

WifiMode GetNonErpSupported (const WifiRemoteStation *station, uint8_t i) const
 Return whether non-ERP mode associated with the specified station at the specified index. More...

uint8_t GetNSupported (const WifiRemoteStation *station) const
 Return the number of modes supported by the given station. More...

uint8_t GetNumberOfSupportedStreams (const WifiRemoteStation *station) const
 Return the number of supported streams the station has. More...

bool GetQosSupported (const WifiRemoteStation *station) const
 Return whether the given station is QoS capable. More...

bool GetShortGuardIntervalSupported (const WifiRemoteStation *station) const
 Return whether the given station supports HT/VHT short guard interval. More...

WifiMode GetSupported (const WifiRemoteStation *station, uint8_t i) const
 Return whether mode associated with the specified station at the specified index. More...

bool GetVhtSupported (const WifiRemoteStation *station) const
 Return whether the given station is VHT capable. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

ARF Rate control algorithm.


This class implements the so-called ARF algorithm which was initially described in WaveLAN-II: A High-performance wireless LAN for the unlicensed band, by A. Kamerman and L. Monteban. in Bell Lab Technical Journal, pages 118-133, Summer 1997.

This implementation differs from the initial description in that it uses a packet-based timer rather than a time-based timer as described in XXX (I cannot find back the original paper which described how the time-based timer could be easily replaced with a packet-based timer.)

This RAA does not support HT modes and will error exit if the user tries to configure this RAA with a Wi-Fi MAC that supports 802.11n or higher.

Config Paths

ns3::ArfWifiManager is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ArfWifiManager"

Attributes

  • TimerThreshold: The 'timer' threshold in the ARF algorithm.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 15
    • Flags: construct write read
  • SuccessThreshold: The minimum number of successful transmissions to try a new rate.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 10
    • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

  • MaxSsrc: The maximum number of retransmission attempts for any packet with size <= RtsCtsThreshold. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 7
    • Flags: construct write
  • MaxSlrc: The maximum number of retransmission attempts for any packet with size > RtsCtsThreshold. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 4
    • Flags: construct write
  • RtsCtsThreshold: If the size of the PSDU is bigger than this value, we use an RTS/CTS handshake before sending the data frame.This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write
  • FragmentationThreshold: If the size of the PSDU is bigger than this value, we fragment it such that the size of the fragments are equal or smaller. This value does not apply when it is carried in an A-MPDU. This value will not have any effect on some rate control algorithms.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 65535
    • Flags: construct write read
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read
  • DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do not implement TX power control.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 0
    • Flags: construct write read
  • ErpProtectionMode: Protection mode used when non-ERP STAs are connected to an ERP AP: Rts-Cts or Cts-To-Self
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Cts-To-Self
    • Flags: construct write read
  • HtProtectionMode: Protection mode used when non-HT STAs are connected to a HT AP: Rts-Cts or Cts-To-Self
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: Cts-To-Self
    • Flags: construct write read

TraceSources

TraceSources defined in parent class ns3::WifiRemoteStationManager

Size of this type is 320 bytes (on a 64-bit architecture).

Definition at line 48 of file arf-wifi-manager.h.

Constructor & Destructor Documentation

◆ ArfWifiManager()

ns3::ArfWifiManager::ArfWifiManager ( )

Definition at line 74 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ ~ArfWifiManager()

ns3::ArfWifiManager::~ArfWifiManager ( )
virtual

Definition at line 81 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoCreateStation()

◆ DoGetDataTxVector()

WifiTxVector ns3::ArfWifiManager::DoGetDataTxVector ( WifiRemoteStation station)
overrideprivatevirtual
Parameters
stationthe station that we need to communicate
Returns
the TXVECTOR to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implements ns3::WifiRemoteStationManager.

Definition at line 227 of file arf-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetAggregation(), ns3::WifiRemoteStationManager::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::WifiRemoteStationManager::GetSupported(), m_currentRate, ns3::ArfWifiRemoteStation::m_rate, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoGetRtsTxVector()

WifiTxVector ns3::ArfWifiManager::DoGetRtsTxVector ( WifiRemoteStation station)
overrideprivatevirtual
Parameters
stationthe station that we need to communicate
Returns
the transmission mode to use to send an RTS to the station

Note: This method is called before sending an RTS to a station to decide which transmission mode to use for the RTS.

Todo:
we could/should implement the ARF algorithm for RTS only by picking a single rate within the BasicRateSet.

Implements ns3::WifiRemoteStationManager.

Definition at line 246 of file arf-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetAggregation(), ns3::WifiRemoteStationManager::GetChannelWidth(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiMode::GetModulationClass(), ns3::WifiRemoteStationManager::GetNonErpSupported(), ns3::GetPreambleForTransmission(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::WifiRemoteStationManager::GetSupported(), ns3::WifiRemoteStationManager::GetUseNonErpProtection(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::ArfWifiManager::DoInitialize ( void  )
overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 87 of file arf-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetHeSupported(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiRemoteStationManager::GetVhtSupported(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoReportDataFailed()

void ns3::ArfWifiManager::DoReportDataFailed ( WifiRemoteStation st)
overrideprivatevirtual

It is important to realize that "recovery" mode starts after failure of the first transmission after a rate increase and ends at the first successful transmission.

Specifically, recovery mode transcends retransmissions boundaries. Fundamentally, ARF handles each data transmission independently, whether it is the initial transmission of a packet or the retransmission of a packet. The fundamental reason for this is that there is a backoff between each data transmission, be it an initial transmission or a retransmission.

Parameters
stthe station that we failed to send Data

Implements ns3::WifiRemoteStationManager.

Definition at line 139 of file arf-wifi-manager.cc.

References ns3::ArfWifiRemoteStation::m_failed, ns3::ArfWifiRemoteStation::m_rate, ns3::ArfWifiRemoteStation::m_recovery, ns3::ArfWifiRemoteStation::m_success, ns3::ArfWifiRemoteStation::m_timer, NS_ASSERT, and NS_LOG_FUNCTION.

◆ DoReportDataOk()

void ns3::ArfWifiManager::DoReportDataOk ( WifiRemoteStation station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr,
uint16_t  dataChannelWidth,
uint8_t  dataNss
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ackSnrthe SNR of the ACK we received
ackModethe WifiMode the receiver used to send the ACK
dataSnrthe SNR of the DATA we sent
dataChannelWidththe channel width (in MHz) of the DATA we sent
dataNssthe number of spatial streams used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 192 of file arf-wifi-manager.cc.

References ns3::ArfWifiRemoteStation::m_failed, ns3::WifiRemoteStationState::m_operationalRateSet, ns3::ArfWifiRemoteStation::m_rate, ns3::ArfWifiRemoteStation::m_recovery, ns3::WifiRemoteStation::m_state, ns3::ArfWifiRemoteStation::m_success, m_successThreshold, ns3::ArfWifiRemoteStation::m_timer, m_timerThreshold, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ DoReportFinalDataFailed()

void ns3::ArfWifiManager::DoReportFinalDataFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 221 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ DoReportFinalRtsFailed()

void ns3::ArfWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 215 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ DoReportRtsFailed()

void ns3::ArfWifiManager::DoReportRtsFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 122 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ DoReportRtsOk()

void ns3::ArfWifiManager::DoReportRtsOk ( WifiRemoteStation station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ctsSnrthe SNR of the CTS we received
ctsModethe WifiMode the receiver used to send the CTS
rtsSnrthe SNR of the RTS we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 185 of file arf-wifi-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ DoReportRxOk()

void ns3::ArfWifiManager::DoReportRxOk ( WifiRemoteStation station,
double  rxSnr,
WifiMode  txMode
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that sent the DATA to us
rxSnrthe SNR of the DATA we received
txModethe WifiMode the sender used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 179 of file arf-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::ArfWifiManager::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 51 of file arf-wifi-manager.cc.

References m_currentRate, m_successThreshold, m_timerThreshold, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_currentRate

TracedValue<uint64_t> ns3::ArfWifiManager::m_currentRate
private

Trace rate changes.

Definition at line 79 of file arf-wifi-manager.h.

Referenced by DoGetDataTxVector(), and GetTypeId().

◆ m_successThreshold

uint32_t ns3::ArfWifiManager::m_successThreshold
private

success threshold

Definition at line 77 of file arf-wifi-manager.h.

Referenced by DoCreateStation(), DoReportDataOk(), and GetTypeId().

◆ m_timerThreshold

uint32_t ns3::ArfWifiManager::m_timerThreshold
private

timer threshold

Definition at line 76 of file arf-wifi-manager.h.

Referenced by DoCreateStation(), DoReportDataOk(), and GetTypeId().


The documentation for this class was generated from the following files:
