This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time). More...

#include "half-duplex-ideal-phy.h"

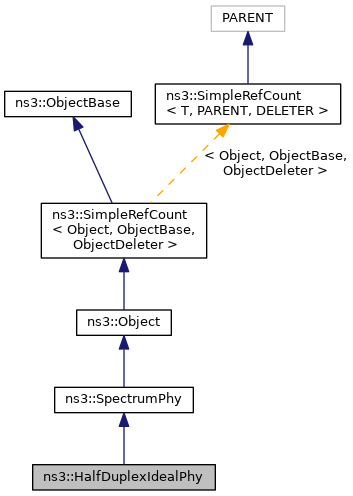

Inheritance diagram for ns3::HalfDuplexIdealPhy:

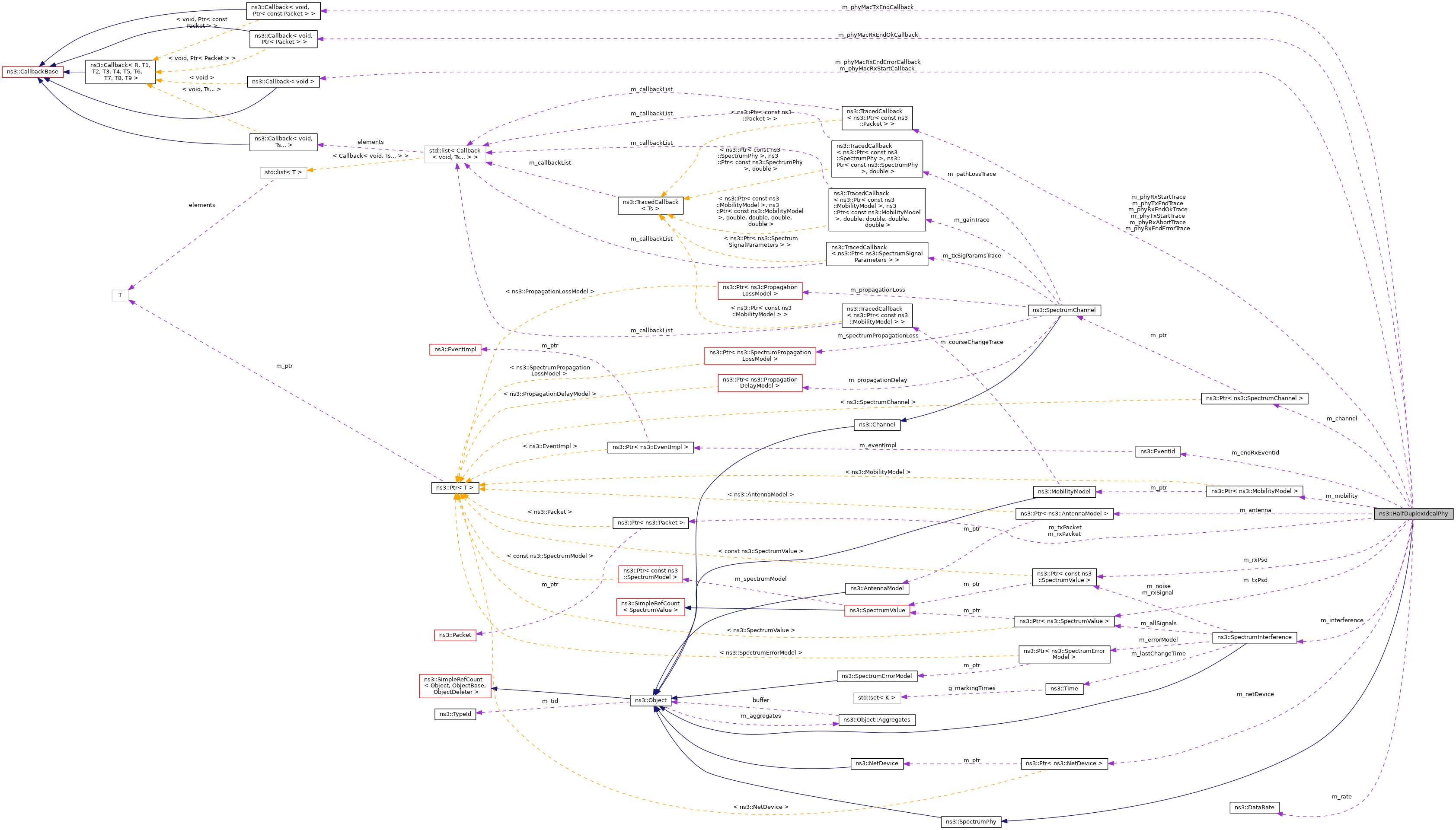

Collaboration diagram for ns3::HalfDuplexIdealPhy:

Public Types
enum	State { IDLE, TX, RX }
	PHY states. More...

Public Member Functions
	HalfDuplexIdealPhy ()

virtual	~HalfDuplexIdealPhy ()

Ptr< NetDevice >	GetDevice () const
	Get the associated NetDevice instance. More...

Ptr< MobilityModel >	GetMobility () const
	Get the associated MobilityModel instance. More...

DataRate	GetRate () const
	Get the PHY rate to be used by this PHY. More...

Ptr< AntennaModel >	GetRxAntenna () const
	Get the AntennaModel used by the NetDevice for reception. More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	SetAntenna (Ptr< AntennaModel > a)
	set the AntennaModel to be used More...

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	Set the associated NetDevice instance. More...

void	SetGenericPhyRxEndErrorCallback (GenericPhyRxEndErrorCallback c)
	set the callback for the end of a RX in error, as part of the interconnections between the PHY and the MAC More...

void	SetGenericPhyRxEndOkCallback (GenericPhyRxEndOkCallback c)
	set the callback for the successful end of a RX, as part of the interconnections between the PHY and the MAC More...

void	SetGenericPhyRxStartCallback (GenericPhyRxStartCallback c)
	Set the callback for the start of RX, as part of the interconnections between the PHY and the MAC. More...

void	SetGenericPhyTxEndCallback (GenericPhyTxEndCallback c)
	Set the callback for the end of a TX, as part of the interconnections between the PHY and the MAC. More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
	Set the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz. More...

void	SetRate (DataRate rate)
	Set the PHY rate to be used by this PHY. More...

void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
	Set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz. More...

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

bool	StartTx (Ptr< Packet > p)
	Start a transmission. More...

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	AbortRx ()
	About current Rx. More...

void	ChangeState (State newState)
	Change the PHY state. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

void	EndRx ()
	End current Rx. More...

void	EndTx ()
	End the current Tx. More...

Private Attributes
Ptr< AntennaModel >	m_antenna
	Antenna model. More...

Ptr< SpectrumChannel >	m_channel
	Channel. More...

EventId	m_endRxEventId
	End Rx event. More...

SpectrumInterference	m_interference
	Received interference. More...

Ptr< MobilityModel >	m_mobility
	Mobility model. More...

Ptr< NetDevice >	m_netDevice
	NetDevice connected to theis phy. More...

GenericPhyRxEndErrorCallback	m_phyMacRxEndErrorCallback
	Callback - Rx error. More...

GenericPhyRxEndOkCallback	m_phyMacRxEndOkCallback
	Callback - Rx end. More...

GenericPhyRxStartCallback	m_phyMacRxStartCallback
	Callback - Rx start. More...

GenericPhyTxEndCallback	m_phyMacTxEndCallback
	Callback - Tx end. More...

TracedCallback< Ptr< const Packet > >	m_phyRxAbortTrace
	Trace - Rx abort. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndErrorTrace
	Trace - Rx end (error) More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndOkTrace
	Trace - Tx end (ok) More...

TracedCallback< Ptr< const Packet > >	m_phyRxStartTrace
	Trace - Rx start. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	Trace - Tx end. More...

TracedCallback< Ptr< const Packet > >	m_phyTxStartTrace
	Trace - Tx start. More...

DataRate	m_rate
	Datarate. More...

Ptr< Packet >	m_rxPacket
	Rx packet. More...

Ptr< const SpectrumValue >	m_rxPsd
	Rx power spectral density. More...

State	m_state
	PHY state. More...

Ptr< Packet >	m_txPacket
	Tx packet. More...

Ptr< SpectrumValue >	m_txPsd
	Tx power spectral density. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time).

Introspection did not find any typical Config paths.

The device is ideal in the sense that: 1) it uses an error model based on the Shannon capacity, which assumes ideal channel coding; 2) it uses ideal signal acquisition, i.e., preamble detection and synchronization are always successful 3) it has no PHY layer overhead

Being half duplex, if a RX is ongoing but a TX is requested, the RX is aborted and the TX is started. Of course, no RX can be performed while there is an ongoing TX.

The use of OFDM is modeled by means of the Spectrum framework. By calling the method SetTxPowerSpectralDensity(), the user can specify how much of the spectrum is used, how many subcarriers are used, and what power is allocated to each subcarrier.

The user can also specify the PHY rate at which communications take place by using SetRate(). This is equivalent to choosing a particular modulation and coding scheme.

The use of the ShannonSpectrumErrorModel allows us to account for the following aspects in determining whether a transmission is successful or not:

the PHY rate (trades off communication speed with reliability)
the power spectral density (trade-off among total power consumed, total bandwidth used (i.e., how much of the spectrum is occupied), and communication reliability)
the signal propagation

This PHY model supports a single antenna model instance which is used for both transmission and reception.

Attributes

Rate: The PHY rate used by this device
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 1000000bps
- Flags: construct write read

TraceSources

TxStart: Trace fired when a new transmission is started
Callback signature: ns3::Packet::TracedCallback
TxEnd: Trace fired when a previously started transmission is finished
Callback signature: ns3::Packet::TracedCallback
RxStart: Trace fired when the start of a signal is detected
Callback signature: ns3::Packet::TracedCallback
RxAbort: Trace fired when a previously started RX is aborted before time
Callback signature: ns3::Packet::TracedCallback
RxEndOk: Trace fired when a previously started RX terminates successfully
Callback signature: ns3::Packet::TracedCallback
RxEndError: Trace fired when a previously started RX terminates with an error (packet is corrupted)
Callback signature: ns3::Packet::TracedCallback

Size of this type is 336 bytes (on a 64-bit architecture).

Definition at line 78 of file half-duplex-ideal-phy.h.

Member Enumeration Documentation

◆ State

enum ns3::HalfDuplexIdealPhy::State

PHY states.

Enumerator
IDLE	Idle state.
TX	Transmitting state.
RX	Receiving state.

Definition at line 88 of file half-duplex-ideal-phy.h.

Constructor & Destructor Documentation

◆ HalfDuplexIdealPhy()

ns3::HalfDuplexIdealPhy::HalfDuplexIdealPhy ( )

Definition at line 41 of file half-duplex-ideal-phy.cc.

References m_interference, and ns3::SpectrumInterference::SetErrorModel().

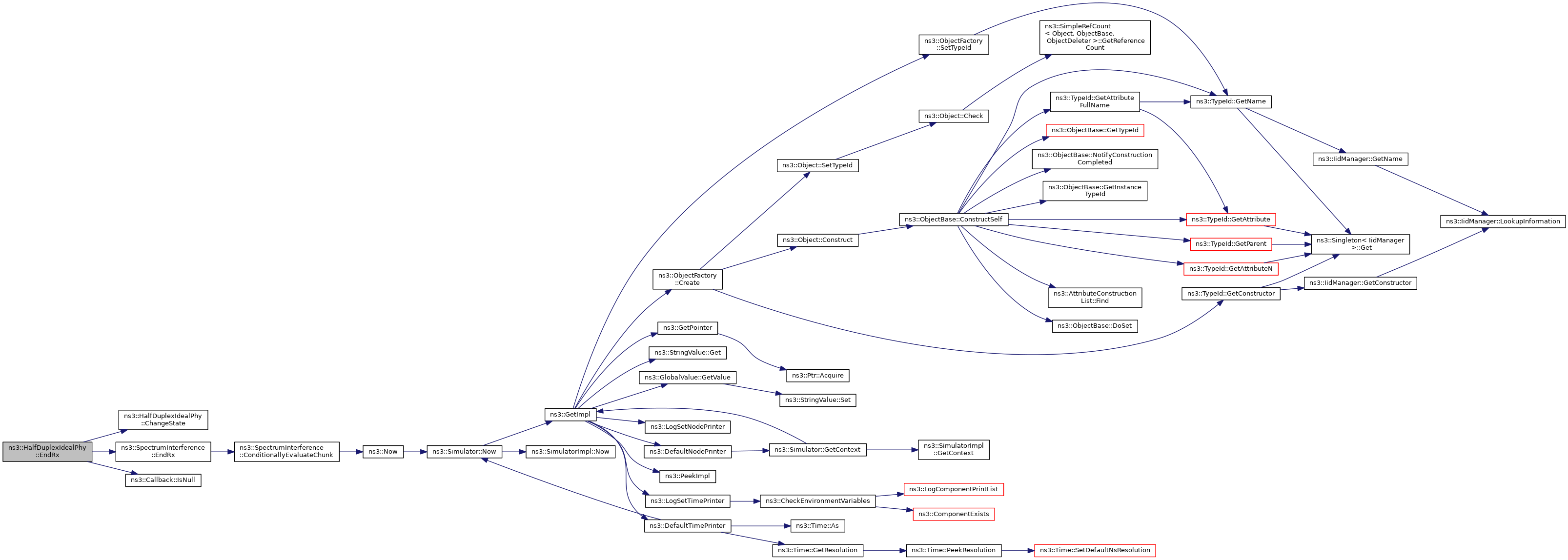

Here is the call graph for this function:

◆ ~HalfDuplexIdealPhy()

ns3::HalfDuplexIdealPhy::~HalfDuplexIdealPhy ( )

virtual

Definition at line 52 of file half-duplex-ideal-phy.cc.

Member Function Documentation

◆ AbortRx()

void ns3::HalfDuplexIdealPhy::AbortRx ( )

private

About current Rx.

Definition at line 406 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumInterference::AbortRx(), ns3::EventId::Cancel(), ChangeState(), IDLE, m_endRxEventId, m_interference, m_phyRxAbortTrace, m_rxPacket, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX.

Referenced by StartTx().

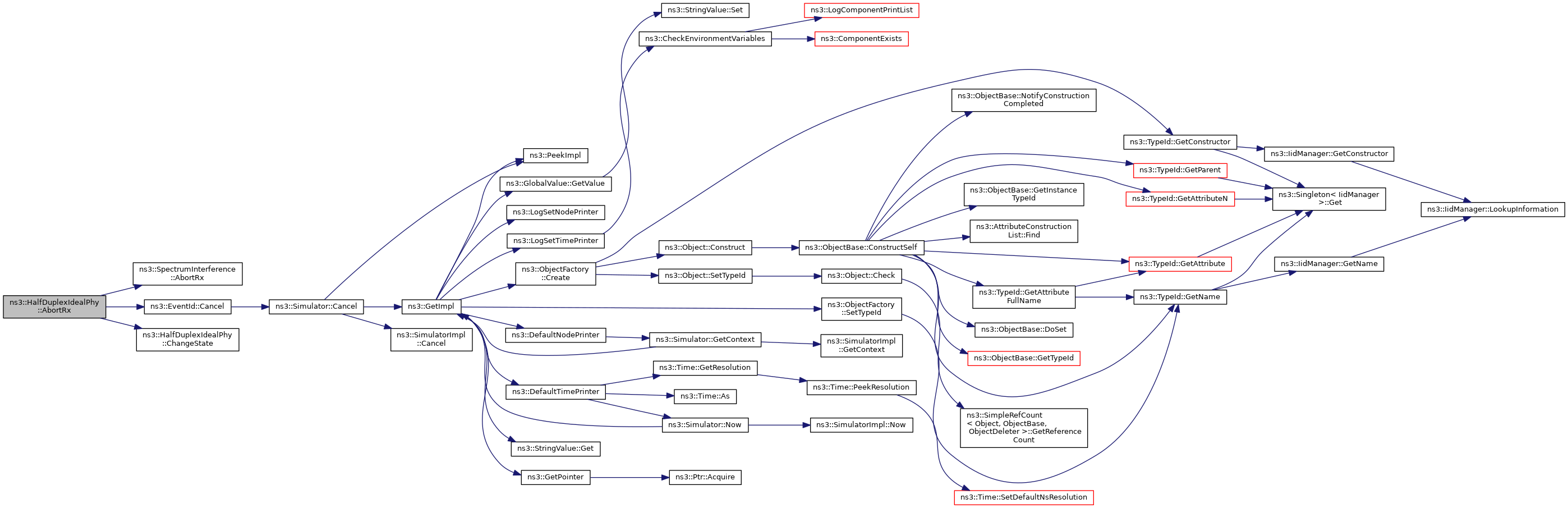

Here is the call graph for this function:

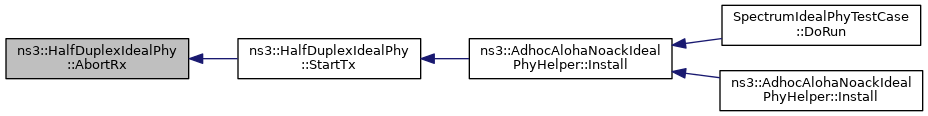

Here is the caller graph for this function:

◆ ChangeState()

void ns3::HalfDuplexIdealPhy::ChangeState ( State newState )

private

Change the PHY state.

Parameters

newState new state

Definition at line 273 of file half-duplex-ideal-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by AbortRx(), EndRx(), EndTx(), StartRx(), and StartTx().

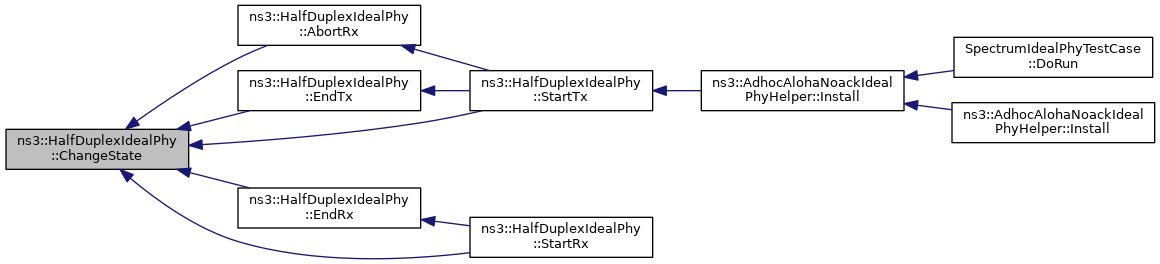

Here is the caller graph for this function:

◆ DoDispose()

void ns3::HalfDuplexIdealPhy::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file half-duplex-ideal-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_mobility, m_netDevice, m_phyMacRxEndErrorCallback, m_phyMacRxEndOkCallback, m_phyMacRxStartCallback, m_phyMacTxEndCallback, m_rxPacket, m_rxPsd, m_txPacket, m_txPsd, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ EndRx()

void ns3::HalfDuplexIdealPhy::EndRx ( )

private

End current Rx.

Definition at line 421 of file half-duplex-ideal-phy.cc.

References ChangeState(), ns3::SpectrumInterference::EndRx(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_interference, m_phyMacRxEndErrorCallback, m_phyMacRxEndOkCallback, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_rxPacket, m_rxPsd, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX.

Referenced by StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndTx()

void ns3::HalfDuplexIdealPhy::EndTx ( void )

private

End the current Tx.

Definition at line 321 of file half-duplex-ideal-phy.cc.

References ChangeState(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_phyMacTxEndCallback, m_phyTxEndTrace, m_state, m_txPacket, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTx().

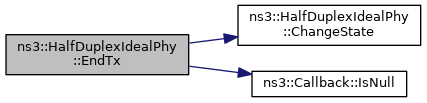

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDevice()

Ptr< NetDevice > ns3::HalfDuplexIdealPhy::GetDevice ( ) const

virtual

Get the associated NetDevice instance.

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 145 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

◆ GetMobility()

Ptr< MobilityModel > ns3::HalfDuplexIdealPhy::GetMobility ( ) const

virtual

Get the associated MobilityModel instance.

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 153 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

◆ GetRate()

DataRate ns3::HalfDuplexIdealPhy::GetRate ( void ) const

Get the PHY rate to be used by this PHY.

Returns: the PHY rate used by this PHY.

Definition at line 221 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetRxAntenna()

Ptr< AntennaModel > ns3::HalfDuplexIdealPhy::GetRxAntenna ( ) const

virtual

Get the AntennaModel used by the NetDevice for reception.

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 259 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

◆ GetRxSpectrumModel()

Ptr< const SpectrumModel > ns3::HalfDuplexIdealPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 184 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumValue::GetSpectrumModel(), and m_txPsd.

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::HalfDuplexIdealPhy::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 102 of file half-duplex-ideal-phy.cc.

References GetRate(), m_phyRxAbortTrace, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, ns3::MakeDataRateAccessor(), ns3::MakeDataRateChecker(), ns3::MakeTraceSourceAccessor(), ns3::TypeId::SetParent(), and SetRate().

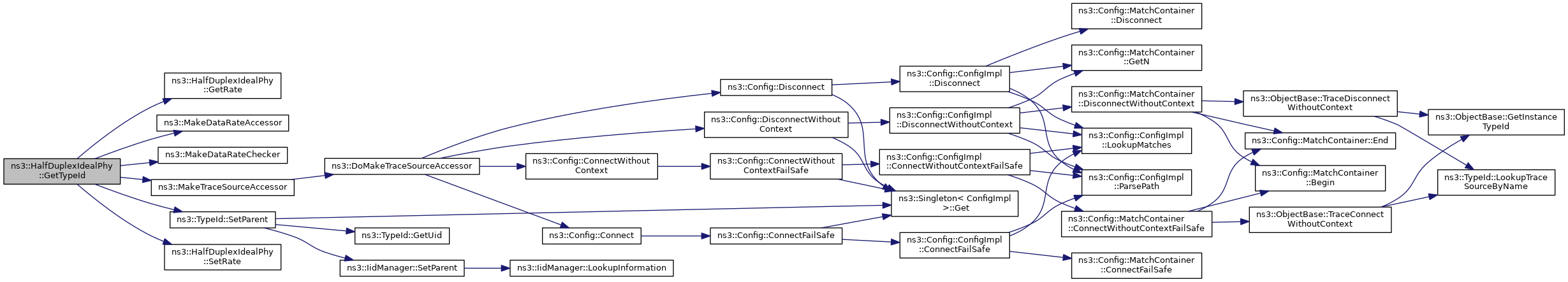

Here is the call graph for this function:

◆ SetAntenna()

void ns3::HalfDuplexIdealPhy::SetAntenna ( Ptr< AntennaModel > a )

set the AntennaModel to be used

Parameters

a	the Antenna Model

Definition at line 266 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

◆ SetChannel()

void ns3::HalfDuplexIdealPhy::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 177 of file half-duplex-ideal-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ SetDevice()

void ns3::HalfDuplexIdealPhy::SetDevice ( Ptr< NetDevice > d )

virtual

Set the associated NetDevice instance.

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 161 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

◆ SetGenericPhyRxEndErrorCallback()

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndErrorCallback ( GenericPhyRxEndErrorCallback c )

set the callback for the end of a RX in error, as part of the interconnections between the PHY and the MAC

Parameters

c	the callback

Definition at line 244 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndErrorCallback, and NS_LOG_FUNCTION.

◆ SetGenericPhyRxEndOkCallback()

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndOkCallback ( GenericPhyRxEndOkCallback c )

set the callback for the successful end of a RX, as part of the interconnections between the PHY and the MAC

Parameters

c	the callback

Definition at line 252 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndOkCallback, and NS_LOG_FUNCTION.

◆ SetGenericPhyRxStartCallback()

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxStartCallback ( GenericPhyRxStartCallback c )

Set the callback for the start of RX, as part of the interconnections between the PHY and the MAC.

Parameters

c	the callback

Definition at line 236 of file half-duplex-ideal-phy.cc.

References m_phyMacRxStartCallback, and NS_LOG_FUNCTION.

◆ SetGenericPhyTxEndCallback()

void ns3::HalfDuplexIdealPhy::SetGenericPhyTxEndCallback ( GenericPhyTxEndCallback c )

Set the callback for the end of a TX, as part of the interconnections between the PHY and the MAC.

Parameters

c	the callback

Definition at line 229 of file half-duplex-ideal-phy.cc.

References m_phyMacTxEndCallback, and NS_LOG_FUNCTION.

◆ SetMobility()

void ns3::HalfDuplexIdealPhy::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 169 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

◆ SetNoisePowerSpectralDensity()

void ns3::HalfDuplexIdealPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

Set the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Parameters

noisePsd the Noise Power Spectral Density

Definition at line 206 of file half-duplex-ideal-phy.cc.

References m_interference, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SpectrumInterference::SetNoisePowerSpectralDensity().

Here is the call graph for this function:

◆ SetRate()

void ns3::HalfDuplexIdealPhy::SetRate ( DataRate rate )

Set the PHY rate to be used by this PHY.

Parameters

rate DataRate

Definition at line 214 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetTxPowerSpectralDensity()

void ns3::HalfDuplexIdealPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

Set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz.

Parameters

txPsd Tx Power Spectral Density

Definition at line 197 of file half-duplex-ideal-phy.cc.

References m_txPsd, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ StartRx()

void ns3::HalfDuplexIdealPhy::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 341 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumInterference::AddSignal(), ChangeState(), EndRx(), IDLE, ns3::Integral(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_endRxEventId, m_interference, m_phyMacRxStartCallback, m_phyRxStartTrace, m_rxPacket, m_rxPsd, m_state, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), ns3::SpectrumInterference::StartRx(), and TX.

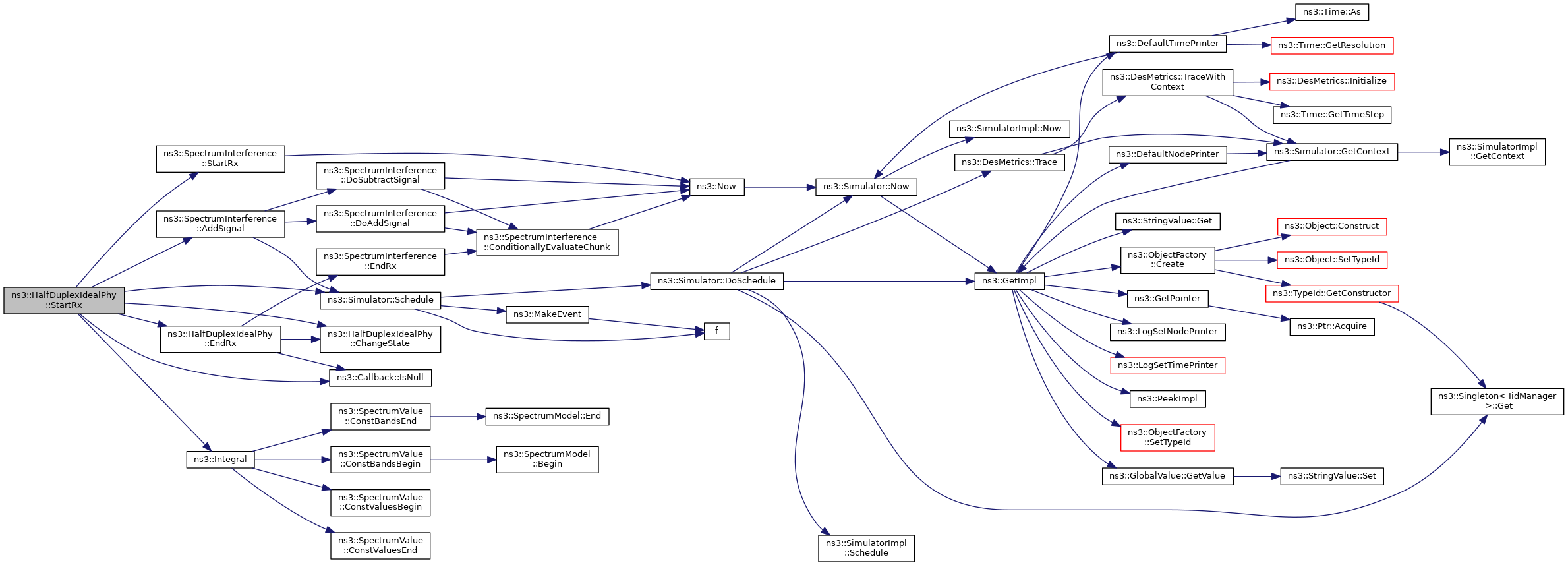

Here is the call graph for this function:

◆ StartTx()

bool ns3::HalfDuplexIdealPhy::StartTx ( Ptr< Packet > p )

Start a transmission.

Parameters

p	the packet to be transmitted

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 280 of file half-duplex-ideal-phy.cc.

References AbortRx(), ns3::DataRate::CalculateBytesTxTime(), ChangeState(), EndTx(), ns3::Packet::GetSize(), IDLE, ns3::Integral(), m_antenna, m_channel, m_phyTxStartTrace, m_rate, m_state, m_txPacket, m_txPsd, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), and TX.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

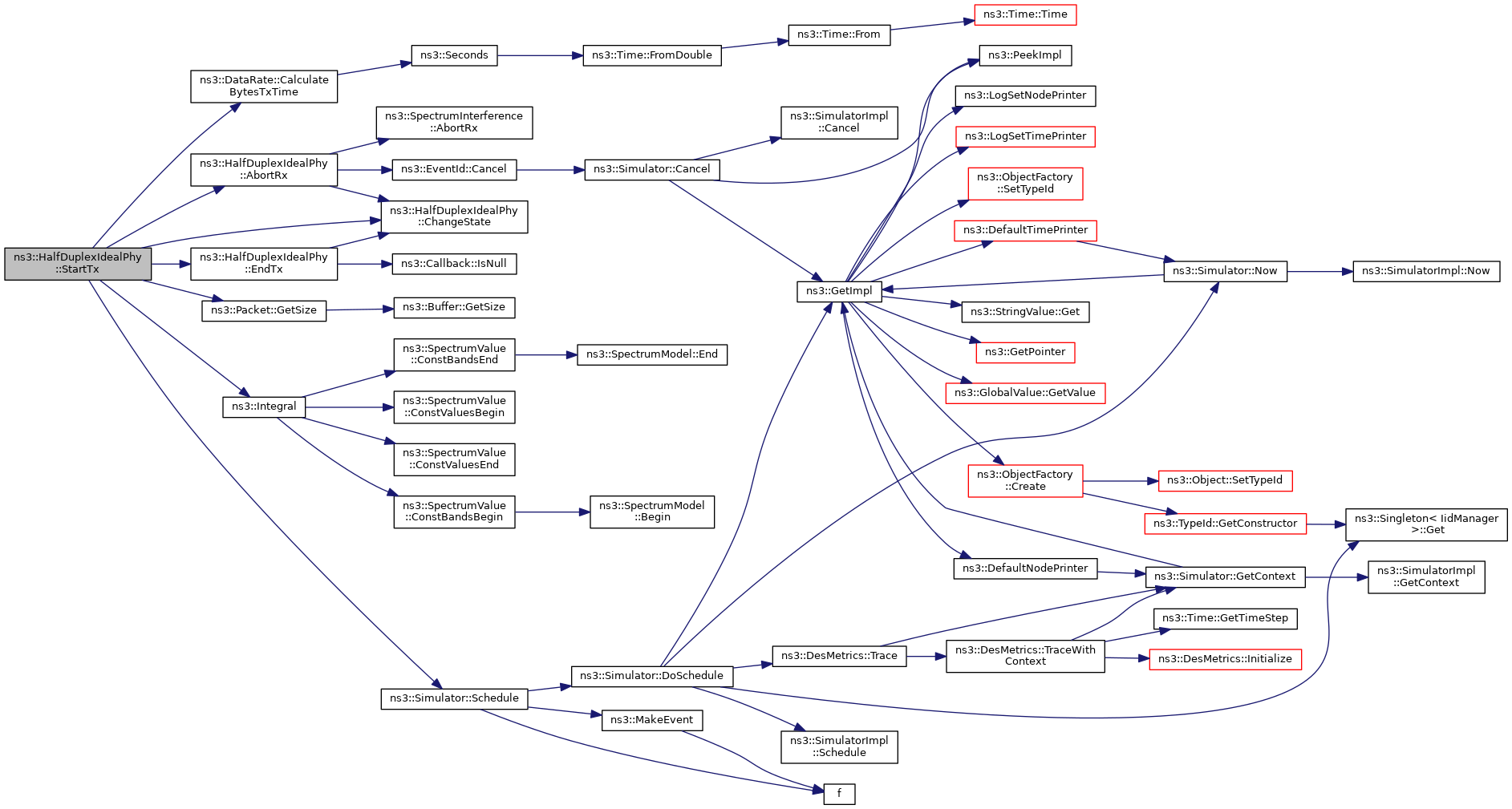

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_antenna

Ptr<AntennaModel> ns3::HalfDuplexIdealPhy::m_antenna

private

Antenna model.

Definition at line 216 of file half-duplex-ideal-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), and StartTx().

◆ m_channel

Ptr<SpectrumChannel> ns3::HalfDuplexIdealPhy::m_channel

private

Channel.

Definition at line 218 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetChannel(), and StartTx().

◆ m_endRxEventId

EventId ns3::HalfDuplexIdealPhy::m_endRxEventId

private

End Rx event.

Definition at line 213 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and StartRx().

◆ m_interference

SpectrumInterference ns3::HalfDuplexIdealPhy::m_interference

private

Received interference.

Definition at line 240 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), EndRx(), HalfDuplexIdealPhy(), SetNoisePowerSpectralDensity(), and StartRx().

◆ m_mobility

Ptr<MobilityModel> ns3::HalfDuplexIdealPhy::m_mobility

private

Mobility model.

Definition at line 215 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

◆ m_netDevice

Ptr<NetDevice> ns3::HalfDuplexIdealPhy::m_netDevice

private

NetDevice connected to theis phy.

Definition at line 217 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

◆ m_phyMacRxEndErrorCallback

GenericPhyRxEndErrorCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndErrorCallback

private

Callback - Rx error.

Definition at line 237 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndErrorCallback().

◆ m_phyMacRxEndOkCallback

GenericPhyRxEndOkCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndOkCallback

private

Callback - Rx end.

Definition at line 238 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndOkCallback().

◆ m_phyMacRxStartCallback

GenericPhyRxStartCallback ns3::HalfDuplexIdealPhy::m_phyMacRxStartCallback

private

Callback - Rx start.

Definition at line 236 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetGenericPhyRxStartCallback(), and StartRx().

◆ m_phyMacTxEndCallback

GenericPhyTxEndCallback ns3::HalfDuplexIdealPhy::m_phyMacTxEndCallback

private

Callback - Tx end.

Definition at line 235 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and SetGenericPhyTxEndCallback().

◆ m_phyRxAbortTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxAbortTrace

private

Trace - Rx abort.

Definition at line 231 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and GetTypeId().

◆ m_phyRxEndErrorTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndErrorTrace

private

Trace - Rx end (error)

Definition at line 233 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

◆ m_phyRxEndOkTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndOkTrace

private

Trace - Tx end (ok)

Definition at line 232 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

◆ m_phyRxStartTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxStartTrace

private

Trace - Rx start.

Definition at line 230 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartRx().

◆ m_phyTxEndTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxEndTrace

private

Trace - Tx end.

Definition at line 229 of file half-duplex-ideal-phy.h.

Referenced by EndTx(), and GetTypeId().

◆ m_phyTxStartTrace

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxStartTrace

private

Trace - Tx start.

Definition at line 228 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartTx().

◆ m_rate

DataRate ns3::HalfDuplexIdealPhy::m_rate

private

Datarate.

Definition at line 225 of file half-duplex-ideal-phy.h.

Referenced by GetRate(), SetRate(), and StartTx().

◆ m_rxPacket

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_rxPacket

private

Rx packet.

Definition at line 223 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), DoDispose(), EndRx(), and StartRx().

◆ m_rxPsd

Ptr<const SpectrumValue> ns3::HalfDuplexIdealPhy::m_rxPsd

private

Rx power spectral density.

Definition at line 221 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and StartRx().

◆ m_state

State ns3::HalfDuplexIdealPhy::m_state

private

PHY state.

Definition at line 226 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), ChangeState(), EndRx(), EndTx(), StartRx(), and StartTx().

◆ m_txPacket

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_txPacket

private

Tx packet.

Definition at line 222 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and StartTx().

◆ m_txPsd

Ptr<SpectrumValue> ns3::HalfDuplexIdealPhy::m_txPsd

private

Tx power spectral density.

Definition at line 220 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetRxSpectrumModel(), SetTxPowerSpectralDensity(), and StartTx().

The documentation for this class was generated from the following files:

src/spectrum/model/half-duplex-ideal-phy.h
src/spectrum/model/half-duplex-ideal-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ HalfDuplexIdealPhy()

◆ ~HalfDuplexIdealPhy()

Member Function Documentation

◆ AbortRx()

◆ ChangeState()

◆ DoDispose()

◆ EndRx()

◆ EndTx()

◆ GetDevice()

◆ GetMobility()

◆ GetRate()

◆ GetRxAntenna()

◆ GetRxSpectrumModel()

◆ GetTypeId()

◆ SetAntenna()

◆ SetChannel()

◆ SetDevice()

◆ SetGenericPhyRxEndErrorCallback()

◆ SetGenericPhyRxEndOkCallback()

◆ SetGenericPhyRxStartCallback()

◆ SetGenericPhyTxEndCallback()

◆ SetMobility()

◆ SetNoisePowerSpectralDensity()

◆ SetRate()

◆ SetTxPowerSpectralDensity()

◆ StartRx()

◆ StartTx()

Member Data Documentation

◆ m_antenna

◆ m_channel

◆ m_endRxEventId

◆ m_interference

◆ m_mobility

◆ m_netDevice

◆ m_phyMacRxEndErrorCallback

◆ m_phyMacRxEndOkCallback

◆ m_phyMacRxStartCallback

◆ m_phyMacTxEndCallback

◆ m_phyRxAbortTrace

◆ m_phyRxEndErrorTrace

◆ m_phyRxEndOkTrace

◆ m_phyRxStartTrace

◆ m_phyTxEndTrace

◆ m_phyTxStartTrace

◆ m_rate

◆ m_rxPacket

◆ m_rxPsd

◆ m_state

◆ m_txPacket

◆ m_txPsd
