wifi-acknowledgment.h File Reference
#include "ns3/nstime.h"
#include "wifi-tx-vector.h"
#include "block-ack-type.h"
#include "wifi-mac-header.h"
#include "ctrl-headers.h"
#include <map>
#include <memory>

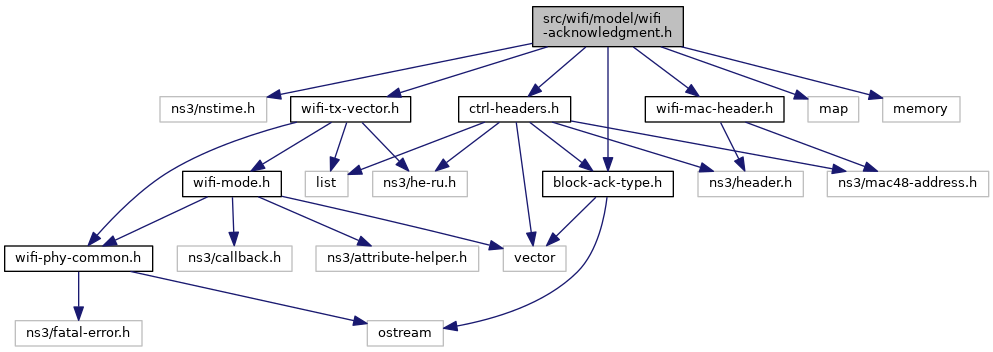

+ Include dependency graph for wifi-acknowledgment.h:

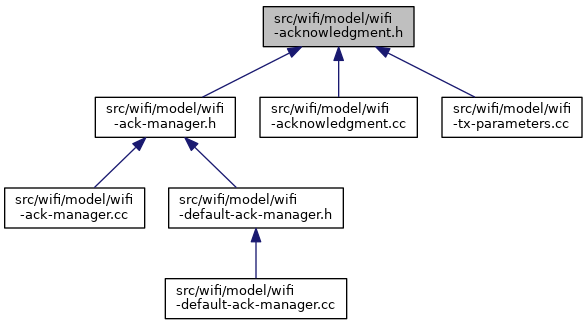

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  ns3::WifiDlMuBarBaSequence::AckInfo
 information related to an Ack frame sent by a station More...

struct  ns3::WifiDlMuAggregateTf::BlockAckInfo
 information related to a BlockAck frame sent by a station More...

struct  ns3::WifiDlMuTfMuBar::BlockAckInfo
 information related to a BlockAck frame sent by a station More...

struct  ns3::WifiDlMuBarBaSequence::BlockAckInfo
 information related to a BlockAck frame sent by a station More...

struct  ns3::WifiDlMuBarBaSequence::BlockAckReqInfo
 information related to a BlockAckReq frame sent to a station More...

struct  ns3::WifiAckAfterTbPpdu
 WifiAckAfterTbPpdu is used when a station prepares a TB PPDU to send in response to a Basic Trigger Frame. More...

struct  ns3::WifiAcknowledgment
 WifiAcknowledgment is an abstract base struct. More...

struct  ns3::WifiBarBlockAck
 WifiBarBlockAck specifies that a BlockAckReq is sent to solicit a Block Ack response. More...

struct  ns3::WifiBlockAck
 WifiBlockAck specifies that acknowledgment via Block Ack is required. More...

struct  ns3::WifiDlMuAggregateTf
 WifiDlMuAggregateTf specifies that a DL MU PPDU made of PSDUs including each a MU-BAR Trigger Frame is acknowledged through BlockAck frames sent as HE TB PPDUs. More...

struct  ns3::WifiDlMuBarBaSequence
 WifiDlMuBarBaSequence specifies that a DL MU PPDU is acknowledged through a sequence of BlockAckReq and BlockAck frames. More...

struct  ns3::WifiDlMuTfMuBar
 WifiDlMuTfMuBar specifies that a DL MU PPDU is followed after a SIFS duration by a MU-BAR Trigger Frame (sent as single user frame) soliciting BlockAck frames sent as HE TB PPDUs. More...

struct  ns3::WifiNoAck
 WifiNoAck specifies that no acknowledgment is required. More...

struct  ns3::WifiNormalAck
 WifiNormalAck specifies that acknowledgment via Normal Ack is required. More...

struct  ns3::WifiUlMuMultiStaBa
 WifiUlMuMultiStaBa specifies that a Basic Trigger Frame is being sent to solicit TB PPDUs that will be acknowledged through a multi-STA BlockAck frame. More...


Namespaces

 ns3
 Every class exported by the ns3 library is enclosed in the ns3 namespace.


Functions

std::ostream & ns3::operator<< (std::ostream &os, const WifiAcknowledgment *acknowledgment)
 Stream insertion operator. More...
