ns3::RandomWalk2dMobilityModel Class Reference

2D random walk mobility model. More...

#include "random-walk-2d-mobility-model.h"

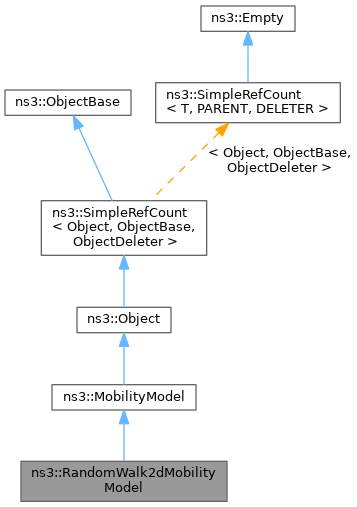

+ Inheritance diagram for ns3::RandomWalk2dMobilityModel:
+ Collaboration diagram for ns3::RandomWalk2dMobilityModel:

Public Types

enum  Mode { MODE_DISTANCE , MODE_TIME }
 An enum representing the different working modes of this module. More...

- Public Types inherited from ns3::MobilityModel
typedef void(* TracedCallback) (Ptr< const MobilityModel > model)
 TracedCallback signature.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::MobilityModel
static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

int64_t DoAssignStreams (int64_t) override
 The default implementation does nothing but return the passed-in parameter.

void DoDispose () override
 Destructor implementation.

Vector DoGetPosition () const override

Vector DoGetVelocity () const override

void DoInitialize () override
 Initialize() implementation.

void DoInitializePrivate ()
 Perform initialization of the object before MobilityModel::DoInitialize ()

void DoSetPosition (const Vector &position) override

void DoWalk (Time timeLeft)
 Walk according to position and velocity, until distance is reached, time is reached, or intersection with the bounding box.

void Rebound (Time timeLeft)
 Performs the rebound of the node if it reaches a boundary.


Private Attributes

Rectangle m_bounds
 Bounds of the area to cruise.

Ptr< RandomVariableStreamm_direction
 rv for picking direction

EventId m_event
 stored event ID

ConstantVelocityHelper m_helper
 helper for this object

Mode m_mode
 whether in time or distance mode

double m_modeDistance
 Change direction and speed after this distance.

Time m_modeTime
 Change current direction and speed after this delay.

Ptr< RandomVariableStreamm_speed
 rv for picking speed


Additional Inherited Members

- Public Member Functions inherited from ns3::MobilityModel
 MobilityModel ()

 ~MobilityModel () override=0

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model.

double GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector GetPosition () const

Vector GetPositionWithReference (const Vector &referencePosition) const
 This method may be used if the position returned may depend on some reference position provided.

double GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector GetVelocity () const

void SetPosition (const Vector &position)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.

- Protected Member Functions inherited from ns3::MobilityModel
void NotifyCourseChange () const
 Must be invoked by subclasses when the course of the position changes to notify course change listeners.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

2D random walk mobility model.

Each instance moves with a speed and direction chosen at random with the user-provided random variables until either a fixed distance has been walked or until a fixed amount of time. If we hit one of the boundaries (specified by a rectangle), of the model, we rebound on the boundary with a reflexive angle and speed. This model is often identified as a brownian motion model.

Config Paths

ns3::RandomWalk2dMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel"

Attributes

  • Bounds: Bounds of the area to cruise.
  • Direction: A random variable used to pick the direction (radians).
  • Distance: Change current direction and speed after moving for this distance.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • Mode: The mode indicates the condition used to change the current speed and direction
    • Set with class: ns3::EnumValue
    • Underlying type: Distance|Time
    • Initial value: Distance
    • Flags: constructwriteread
  • Speed: A random variable used to pick the speed (m/s).
  • Time: Change current direction and speed after moving for this delay.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1e+09ns
    • Flags: constructwriteread

Attributes defined in parent class ns3::MobilityModel

  • Position: The current position of the mobility model.
  • Velocity: The current velocity of the mobility model.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::MobilityModel

Size of this type is 208 bytes (on a 64-bit architecture).

Definition at line 46 of file random-walk-2d-mobility-model.h.

Member Enumeration Documentation

◆ Mode

An enum representing the different working modes of this module.

Enumerator
MODE_DISTANCE
MODE_TIME

Definition at line 56 of file random-walk-2d-mobility-model.h.

Member Function Documentation

◆ DoAssignStreams()

int64_t ns3::RandomWalk2dMobilityModel::DoAssignStreams ( int64_t  start)
overrideprivatevirtual

The default implementation does nothing but return the passed-in parameter.

Subclasses using random variables are expected to override this.

Parameters
startstarting stream index
Returns
the number of streams used

Reimplemented from ns3::MobilityModel.

Definition at line 189 of file random-walk-2d-mobility-model.cc.

References m_direction, m_speed, and ns3::RandomVariableStream::SetStream().

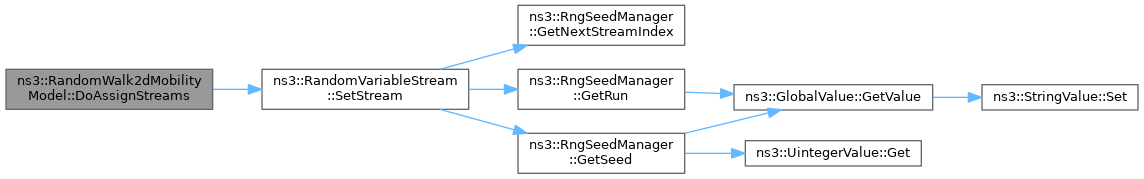

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::RandomWalk2dMobilityModel::DoDispose ( )
overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 160 of file random-walk-2d-mobility-model.cc.

References ns3::Object::DoDispose().

+ Here is the call graph for this function:

◆ DoGetPosition()

Vector ns3::RandomWalk2dMobilityModel::DoGetPosition ( ) const
overrideprivatevirtual
Returns
the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 167 of file random-walk-2d-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetCurrentPosition(), m_bounds, m_helper, and ns3::ConstantVelocityHelper::UpdateWithBounds().

+ Here is the call graph for this function:

◆ DoGetVelocity()

Vector ns3::RandomWalk2dMobilityModel::DoGetVelocity ( ) const
overrideprivatevirtual
Returns
the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 183 of file random-walk-2d-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetVelocity(), and m_helper.

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::RandomWalk2dMobilityModel::DoInitialize ( )
overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 83 of file random-walk-2d-mobility-model.cc.

References ns3::Object::DoInitialize(), and DoInitializePrivate().

+ Here is the call graph for this function:

◆ DoInitializePrivate()

void ns3::RandomWalk2dMobilityModel::DoInitializePrivate ( )
private

Perform initialization of the object before MobilityModel::DoInitialize ()

Definition at line 90 of file random-walk-2d-mobility-model.cc.

References DoWalk(), ns3::RandomVariableStream::GetValue(), m_direction, m_helper, m_mode, m_modeDistance, m_modeTime, m_speed, MODE_TIME, ns3::Seconds(), ns3::ConstantVelocityHelper::SetVelocity(), ns3::ConstantVelocityHelper::Unpause(), and ns3::ConstantVelocityHelper::Update().

Referenced by DoInitialize(), DoSetPosition(), and DoWalk().

+ Here is the call graph for this function:

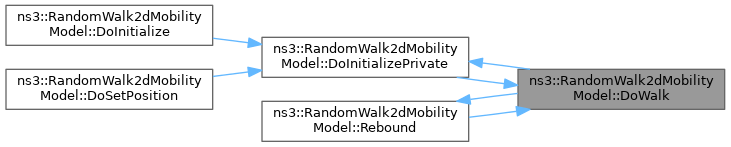

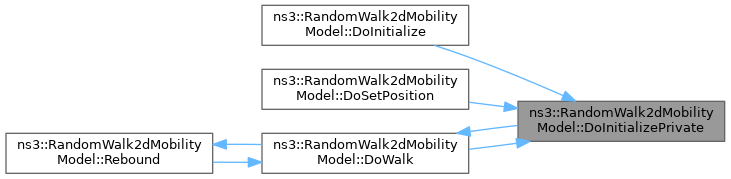

+ Here is the caller graph for this function:

◆ DoSetPosition()

void ns3::RandomWalk2dMobilityModel::DoSetPosition ( const Vector &  position)
overrideprivatevirtual
Parameters
positionthe position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 174 of file random-walk-2d-mobility-model.cc.

References ns3::EventId::Cancel(), DoInitializePrivate(), ns3::Rectangle::IsInside(), m_bounds, m_event, m_helper, NS_ASSERT, ns3::Simulator::ScheduleNow(), and ns3::ConstantVelocityHelper::SetPosition().

+ Here is the call graph for this function:

◆ DoWalk()

void ns3::RandomWalk2dMobilityModel::DoWalk ( Time  timeLeft)
private

Walk according to position and velocity, until distance is reached, time is reached, or intersection with the bounding box.

Parameters
timeLeftThe remaining time of the walk

Definition at line 112 of file random-walk-2d-mobility-model.cc.

References ns3::Rectangle::CalculateIntersection(), ns3::EventId::Cancel(), DoInitializePrivate(), ns3::ConstantVelocityHelper::GetCurrentPosition(), ns3::Time::GetSeconds(), ns3::ConstantVelocityHelper::GetVelocity(), ns3::Rectangle::IsInside(), m_bounds, m_event, m_helper, ns3::MobilityModel::NotifyCourseChange(), Rebound(), ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by DoInitializePrivate(), and Rebound().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

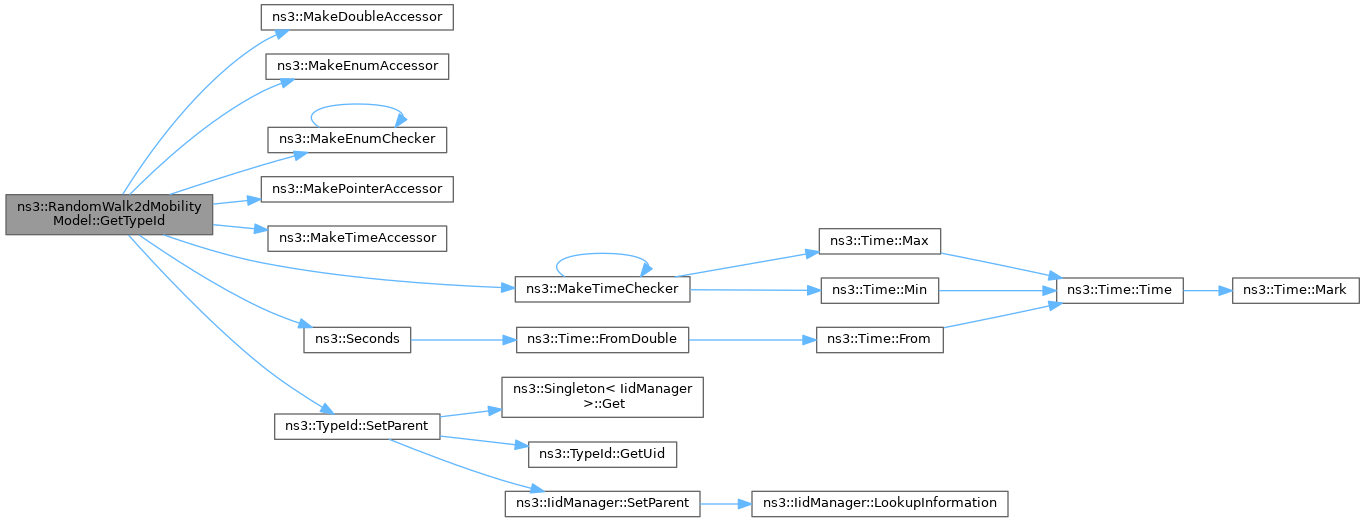

◆ GetTypeId()

TypeId ns3::RandomWalk2dMobilityModel::GetTypeId ( )
static

◆ Rebound()

void ns3::RandomWalk2dMobilityModel::Rebound ( Time  timeLeft)
private

Performs the rebound of the node if it reaches a boundary.

Parameters
timeLeftThe remaining time of the walk

Definition at line 138 of file random-walk-2d-mobility-model.cc.

References ns3::Rectangle::BOTTOM, DoWalk(), ns3::Rectangle::GetClosestSide(), ns3::ConstantVelocityHelper::GetCurrentPosition(), ns3::ConstantVelocityHelper::GetVelocity(), ns3::Rectangle::LEFT, m_bounds, m_helper, ns3::Rectangle::RIGHT, ns3::ConstantVelocityHelper::SetVelocity(), ns3::Rectangle::TOP, ns3::ConstantVelocityHelper::Unpause(), and ns3::ConstantVelocityHelper::UpdateWithBounds().

Referenced by DoWalk().

+ Here is the call graph for this function:

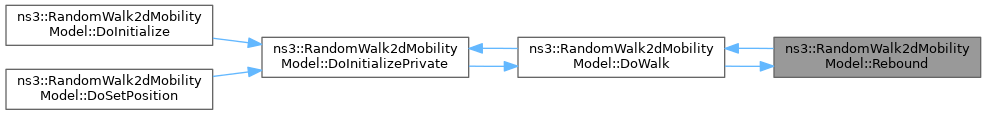

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_bounds

Rectangle ns3::RandomWalk2dMobilityModel::m_bounds
private

Bounds of the area to cruise.

Definition at line 92 of file random-walk-2d-mobility-model.h.

Referenced by DoGetPosition(), DoSetPosition(), DoWalk(), GetTypeId(), and Rebound().

◆ m_direction

Ptr<RandomVariableStream> ns3::RandomWalk2dMobilityModel::m_direction
private

rv for picking direction

Definition at line 91 of file random-walk-2d-mobility-model.h.

Referenced by DoAssignStreams(), DoInitializePrivate(), and GetTypeId().

◆ m_event

EventId ns3::RandomWalk2dMobilityModel::m_event
private

stored event ID

Definition at line 86 of file random-walk-2d-mobility-model.h.

Referenced by DoSetPosition(), and DoWalk().

◆ m_helper

ConstantVelocityHelper ns3::RandomWalk2dMobilityModel::m_helper
private

helper for this object

Definition at line 85 of file random-walk-2d-mobility-model.h.

Referenced by DoGetPosition(), DoGetVelocity(), DoInitializePrivate(), DoSetPosition(), DoWalk(), and Rebound().

◆ m_mode

Mode ns3::RandomWalk2dMobilityModel::m_mode
private

whether in time or distance mode

Definition at line 87 of file random-walk-2d-mobility-model.h.

Referenced by DoInitializePrivate(), and GetTypeId().

◆ m_modeDistance

double ns3::RandomWalk2dMobilityModel::m_modeDistance
private

Change direction and speed after this distance.

Definition at line 88 of file random-walk-2d-mobility-model.h.

Referenced by DoInitializePrivate(), and GetTypeId().

◆ m_modeTime

Time ns3::RandomWalk2dMobilityModel::m_modeTime
private

Change current direction and speed after this delay.

Definition at line 89 of file random-walk-2d-mobility-model.h.

Referenced by DoInitializePrivate(), and GetTypeId().

◆ m_speed

Ptr<RandomVariableStream> ns3::RandomWalk2dMobilityModel::m_speed
private

rv for picking speed

Definition at line 90 of file random-walk-2d-mobility-model.h.

Referenced by DoAssignStreams(), DoInitializePrivate(), and GetTypeId().


The documentation for this class was generated from the following files:
