Test the exchange of EML Operating Mode Notification frames. More...

Inheritance diagram for EmlNotificationExchangeTest:

Collaboration diagram for EmlNotificationExchangeTest:

Public Member Functions
	EmlNotificationExchangeTest (const std::set< uint8_t > &linksToEnableEmlsrOn, Time transitionTimeout)
	Constructor.

	~EmlNotificationExchangeTest () override=default

Public Member Functions inherited from EmlsrOperationsTestBase
	EmlsrOperationsTestBase (const std::string &name)
	Constructor.

	~EmlsrOperationsTestBase () override=default

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Protected Member Functions
void	CheckEmlCapabilitiesInAssocReq (Ptr< const WifiMpdu > mpdu, const WifiTxVector &txVector, uint8_t linkId)
	Check the content of the EML Capabilities subfield of the Multi-Link Element included in the Association Request frame sent by the non-AP MLD.

void	CheckEmlCapabilitiesInAssocResp (Ptr< const WifiMpdu > mpdu, const WifiTxVector &txVector, uint8_t linkId)
	Check the content of the EML Capabilities subfield of the Multi-Link Element included in the Association Response frame sent by the AP MLD to the EMLSR client.

void	CheckEmlNotification (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint8_t linkId)
	Check the content of a received EML Operating Mode Notification frame.

void	CheckEmlsrLinks ()
	Check that the EMLSR mode has been enabled on the expected EMLSR links.

void	DoRun () override
	Implementation to actually run this TestCase.

void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW) override
	Callback invoked when a FEM passes PSDUs to the PHY.

void	TxDropped (WifiMacDropReason reason, Ptr< const WifiMpdu > mpdu)
	Callback invoked when the non-AP MLD drops the given MPDU for the given reason.

void	TxOk (Ptr< const WifiMpdu > mpdu)
	Callback invoked when the non-AP MLD receives the acknowledgment for a transmitted MPDU.

Protected Member Functions inherited from EmlsrOperationsTestBase
void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

Ptr< PacketSocketClient >	GetApplication (TrafficDirection dir, std::size_t staId, std::size_t count, std::size_t pktSize) const

virtual void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a FEM passes PSDUs to the PHY.

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Private Attributes
std::optional< uint8_t >	m_assocLinkId
	ID of the link used to establish association.

std::size_t	m_checkEmlsrLinksCount
	counter for the number of times CheckEmlsrLinks is called (should be two: when the transition timeout expires and when the EML Notification response from the AP MLD is received

std::size_t	m_emlNotificationDroppedCount
	counter for the number of times the EML Notification frame sent by the non-AP MLD has been dropped due to max retry limit

Ptr< ListErrorModel >	m_errorModel
	error rate model to corrupt packets at AP MLD

std::list< uint64_t >	m_uidList
	list of UIDs of packets to corrupt

Additional Inherited Members
Public Types inherited from EmlsrOperationsTestBase
enum	TrafficDirection : uint8_t { DOWNLINK = 0 , UPLINK }
	Enumeration for traffic directions. More...

Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Attributes inherited from EmlsrOperationsTestBase
Ptr< ApWifiMac >	m_apMac
	AP wifi MAC.

std::vector< PacketSocketAddress >	m_dlSockets
	packet socket address for DL traffic

Time	m_duration {0}
	simulation duration

bool	m_establishBaDl {false}
	whether BA needs to be established (for TID 0) with the AP as originator

bool	m_establishBaUl {false}
	whether BA needs to be established (for TID 0) with the AP as recipient

uint16_t	m_lastAid {0}
	AID of last associated station.

std::set< uint8_t >	m_linksToEnableEmlsrOn
	IDs of the links on which EMLSR mode has to be enabled.

std::size_t	m_nEmlsrStations {1}
	number of stations to create that activate EMLSR

std::size_t	m_nNonEmlsrStations {0}
	number of stations to create that do not activate EMLSR

std::vector< Time >	m_paddingDelay
	Padding Delay advertised by the non-AP MLD.

std::vector< Ptr< StaWifiMac > >	m_staMacs
	MACs of the non-AP MLDs.

std::vector< Time >	m_transitionDelay
	Transition Delay advertised by the non-AP MLD.

Time	m_transitionTimeout {MicroSeconds(128)}
	Transition Timeout advertised by the AP MLD.

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs

std::vector< PacketSocketAddress >	m_ulSockets
	packet socket address for UL traffic

Detailed Description

Test the exchange of EML Operating Mode Notification frames.

This test considers an AP MLD and a non-AP MLD with EMLSR activated. Upon association, the non-AP MLD sends an EML Operating Mode Notification frame, which is however corrupted by using a post reception error model (installed on the AP MLD). We keep corrupting the EML Notification frames transmitted by the non-AP MLD until the frame is dropped due to exceeded max retry limit. It is checked that:

the Association Request contains a Multi-Link Element including an EML Capabilities field that contains the expected values for Padding Delay and Transition Delay
the Association Response contains a Multi-Link Element including an EML Capabilities field that contains the expected value for Transition Timeout
all EML Notification frames contain the expected values for EMLSR Mode, EMLMR Mode and Link Bitmap fields and are transmitted on the link used for association
the correct EMLSR link set is stored by the EMLSR Manager, both when the transition timeout expires and when an EML Notification response is received from the AP MLD (thus, the correct EMLSR link set is stored after whichever of the two events occur first)

Definition at line 534 of file wifi-emlsr-test.cc.

Constructor & Destructor Documentation

◆ EmlNotificationExchangeTest()

EmlNotificationExchangeTest::EmlNotificationExchangeTest	(	const std::set< uint8_t > &	linksToEnableEmlsrOn,
		Time	transitionTimeout
	)

Constructor.

Parameters

linksToEnableEmlsrOn	IDs of links on which EMLSR mode should be enabled
transitionTimeout	the Transition Timeout advertised by the AP MLD

Definition at line 620 of file wifi-emlsr-test.cc.

References EmlsrOperationsTestBase::m_duration, EmlsrOperationsTestBase::m_linksToEnableEmlsrOn, EmlsrOperationsTestBase::m_nEmlsrStations, EmlsrOperationsTestBase::m_nNonEmlsrStations, EmlsrOperationsTestBase::m_transitionTimeout, and ns3::Seconds().

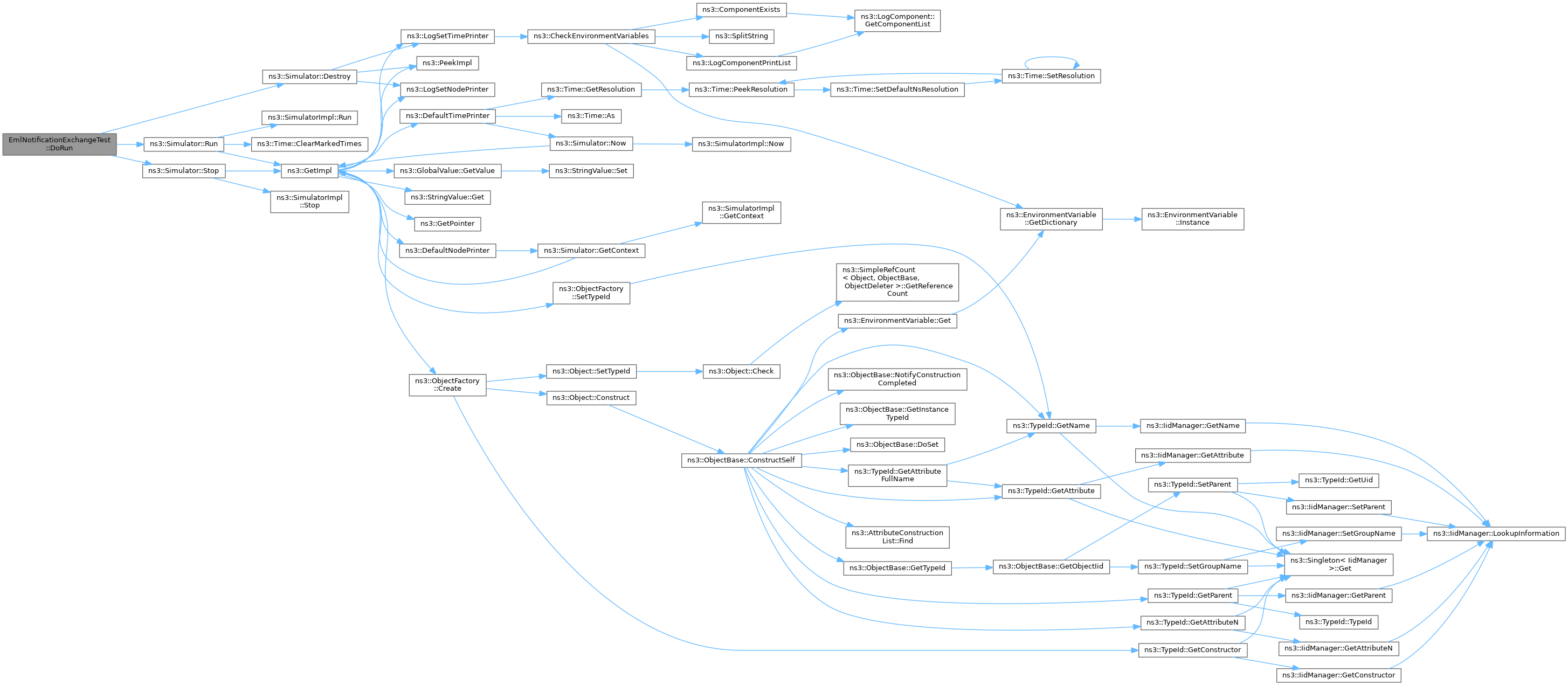

Here is the call graph for this function:

◆ ~EmlNotificationExchangeTest()

EmlNotificationExchangeTest::~EmlNotificationExchangeTest ( )

overridedefault

Member Function Documentation

◆ CheckEmlCapabilitiesInAssocReq()

void EmlNotificationExchangeTest::CheckEmlCapabilitiesInAssocReq	(	Ptr< const WifiMpdu >	mpdu,
		const WifiTxVector &	txVector,
		uint8_t	linkId
	)

protected

Check the content of the EML Capabilities subfield of the Multi-Link Element included in the Association Request frame sent by the non-AP MLD.

Parameters

mpdu	the MPDU containing the Association Request frame
txVector	the TXVECTOR used to transmit the frame
linkId	the ID of the link on which the frame was transmitted

Definition at line 698 of file wifi-emlsr-test.cc.

References EmlsrOperationsTestBase::m_paddingDelay, EmlsrOperationsTestBase::m_transitionDelay, and NS_TEST_ASSERT_MSG_EQ.

Referenced by Transmit().

Here is the caller graph for this function:

◆ CheckEmlCapabilitiesInAssocResp()

void EmlNotificationExchangeTest::CheckEmlCapabilitiesInAssocResp	(	Ptr< const WifiMpdu >	mpdu,
		const WifiTxVector &	txVector,
		uint8_t	linkId
	)

protected

Check the content of the EML Capabilities subfield of the Multi-Link Element included in the Association Response frame sent by the AP MLD to the EMLSR client.

Parameters

mpdu	the MPDU containing the Association Response frame
txVector	the TXVECTOR used to transmit the frame
linkId	the ID of the link on which the frame was transmitted

Definition at line 723 of file wifi-emlsr-test.cc.

References EmlsrOperationsTestBase::m_staMacs, EmlsrOperationsTestBase::m_transitionTimeout, and NS_TEST_ASSERT_MSG_EQ.

Referenced by Transmit().

Here is the caller graph for this function:

◆ CheckEmlNotification()

void EmlNotificationExchangeTest::CheckEmlNotification	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		uint8_t	linkId
	)

protected

Check the content of a received EML Operating Mode Notification frame.

Parameters

psdu	the PSDU containing the EML Operating Mode Notification frame
txVector	the TXVECTOR used to transmit the frame
linkId	the ID of the link on which the frame was transmitted

Definition at line 755 of file wifi-emlsr-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), CheckEmlsrLinks(), ns3::MgtEmlOperatingModeNotification::EmlControl::emlmrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrParamUpdateCtrl, ns3::MgtEmlOperatingModeNotification::GetLinkBitmap(), ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_assocLinkId, ns3::MgtEmlOperatingModeNotification::m_emlControl, EmlsrOperationsTestBase::m_linksToEnableEmlsrOn, EmlsrOperationsTestBase::m_staMacs, ns3::MicroSeconds(), NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ, NS_TEST_EXPECT_MSG_EQ, ns3::WifiActionHeader::Remove(), and ns3::Simulator::Schedule().

Referenced by Transmit().

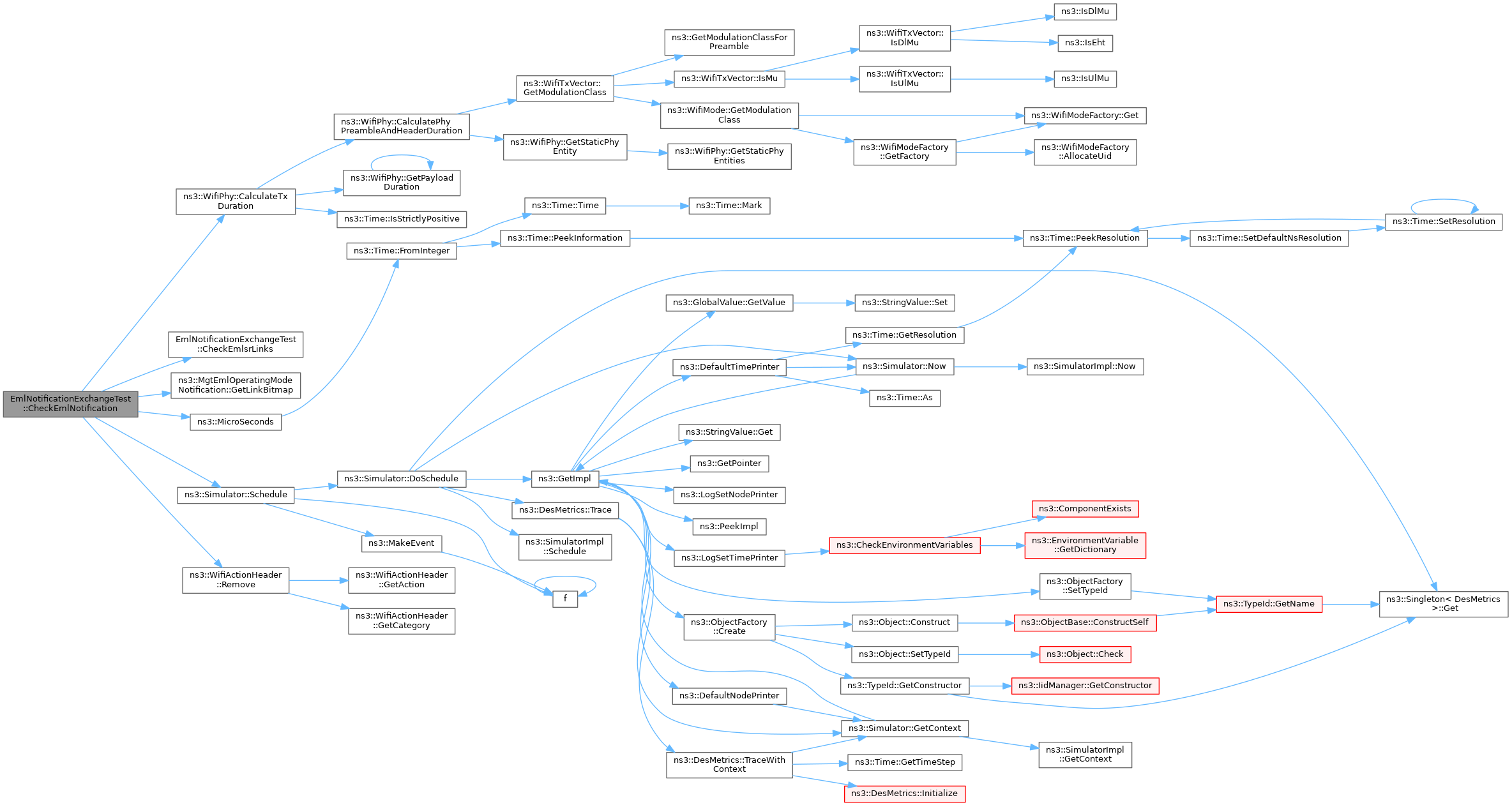

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckEmlsrLinks()

void EmlNotificationExchangeTest::CheckEmlsrLinks ( )

protected

Check that the EMLSR mode has been enabled on the expected EMLSR links.

Definition at line 862 of file wifi-emlsr-test.cc.

References m_checkEmlsrLinksCount, EmlsrOperationsTestBase::m_linksToEnableEmlsrOn, EmlsrOperationsTestBase::m_staMacs, and NS_TEST_EXPECT_MSG_EQ.

Referenced by CheckEmlNotification(), and TxOk().

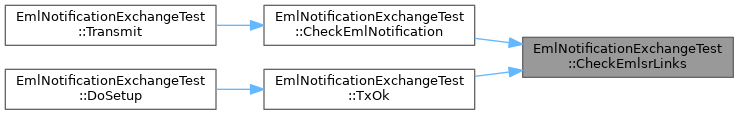

Here is the caller graph for this function:

◆ DoRun()

void EmlNotificationExchangeTest::DoRun ( )

overrideprotectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 880 of file wifi-emlsr-test.cc.

References ns3::Simulator::Destroy(), m_checkEmlsrLinksCount, EmlsrOperationsTestBase::m_duration, m_emlNotificationDroppedCount, NS_TEST_EXPECT_MSG_EQ, ns3::Simulator::Run(), and ns3::Simulator::Stop().

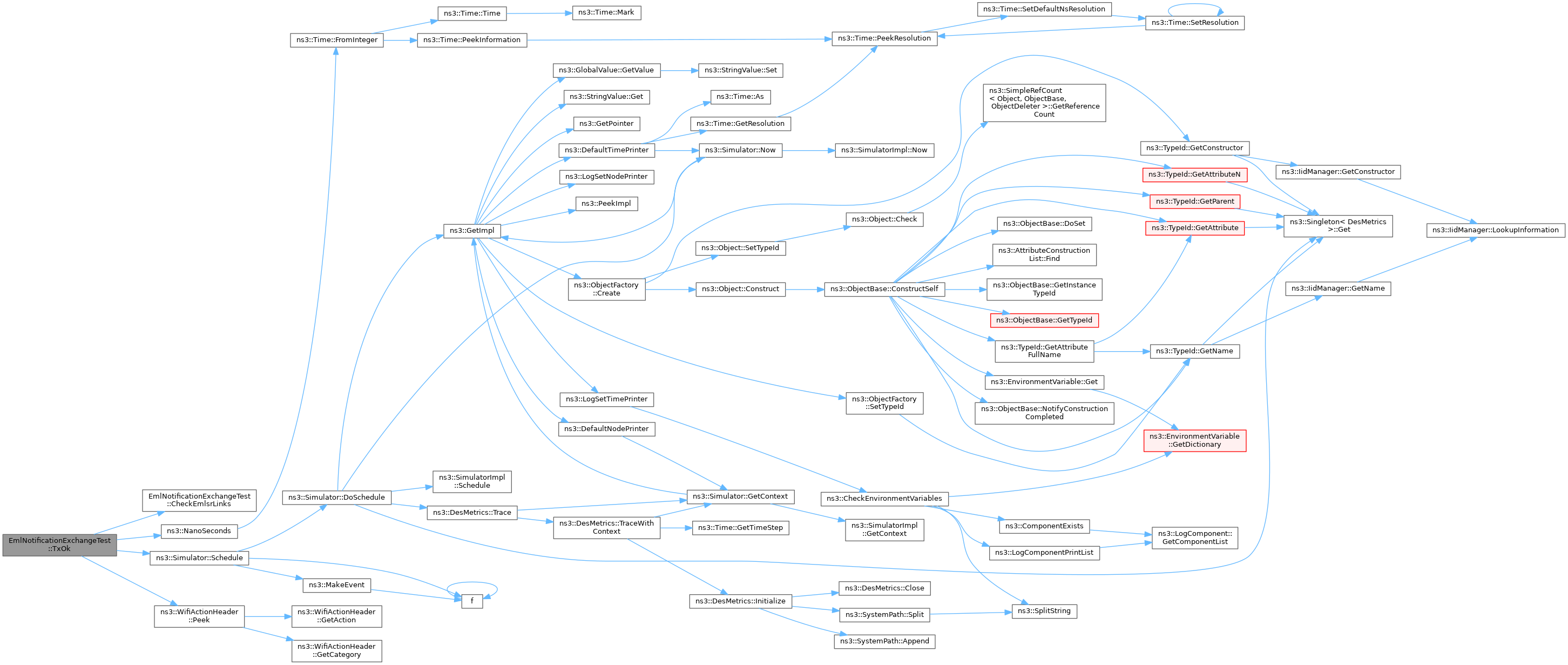

Here is the call graph for this function:

◆ DoSetup()

void EmlNotificationExchangeTest::DoSetup ( )

overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from EmlsrOperationsTestBase.

Definition at line 635 of file wifi-emlsr-test.cc.

References EmlsrOperationsTestBase::DoSetup(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiPhy(), EmlsrOperationsTestBase::m_apMac, m_errorModel, EmlsrOperationsTestBase::m_staMacs, ns3::MakeCallback(), ns3::WifiPhy::SetPostReceptionErrorModel(), TxDropped(), and TxOk().

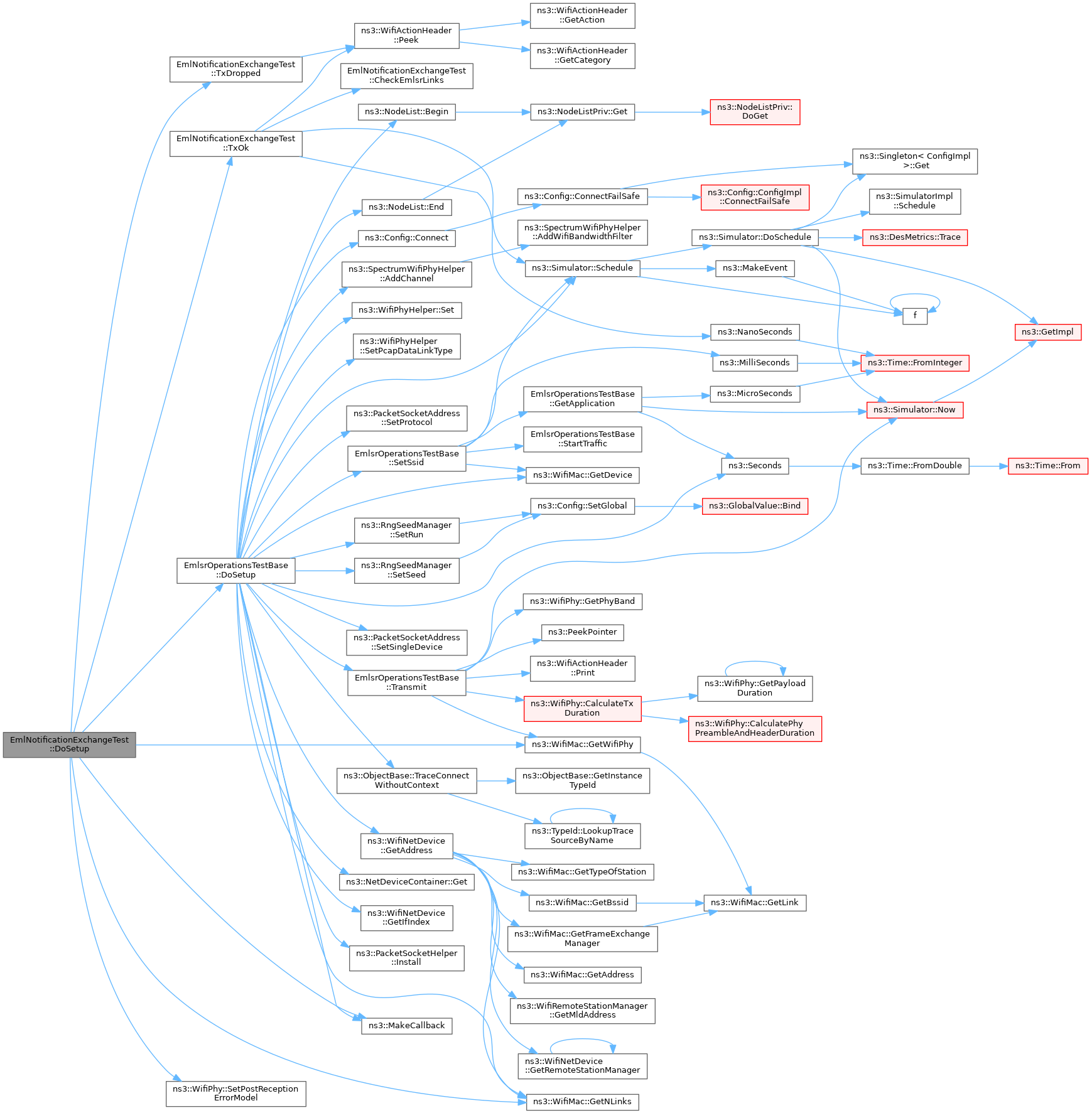

Here is the call graph for this function:

◆ Transmit()

void EmlNotificationExchangeTest::Transmit	(	uint8_t	linkId,
		std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

overrideprotectedvirtual

Callback invoked when a FEM passes PSDUs to the PHY.

Parameters

linkId	the ID of the link transmitting the PSDUs
context	the context
psduMap	the PSDU map
txVector	the TX vector
txPowerW	the tx power in Watts

Reimplemented from EmlsrOperationsTestBase.

Definition at line 654 of file wifi-emlsr-test.cc.

References CheckEmlCapabilitiesInAssocReq(), CheckEmlCapabilitiesInAssocResp(), CheckEmlNotification(), m_assocLinkId, m_emlNotificationDroppedCount, m_errorModel, EmlsrOperationsTestBase::m_staMacs, m_uidList, ns3::WifiActionHeader::Peek(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, ns3::ListErrorModel::SetList(), EmlsrOperationsTestBase::Transmit(), ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

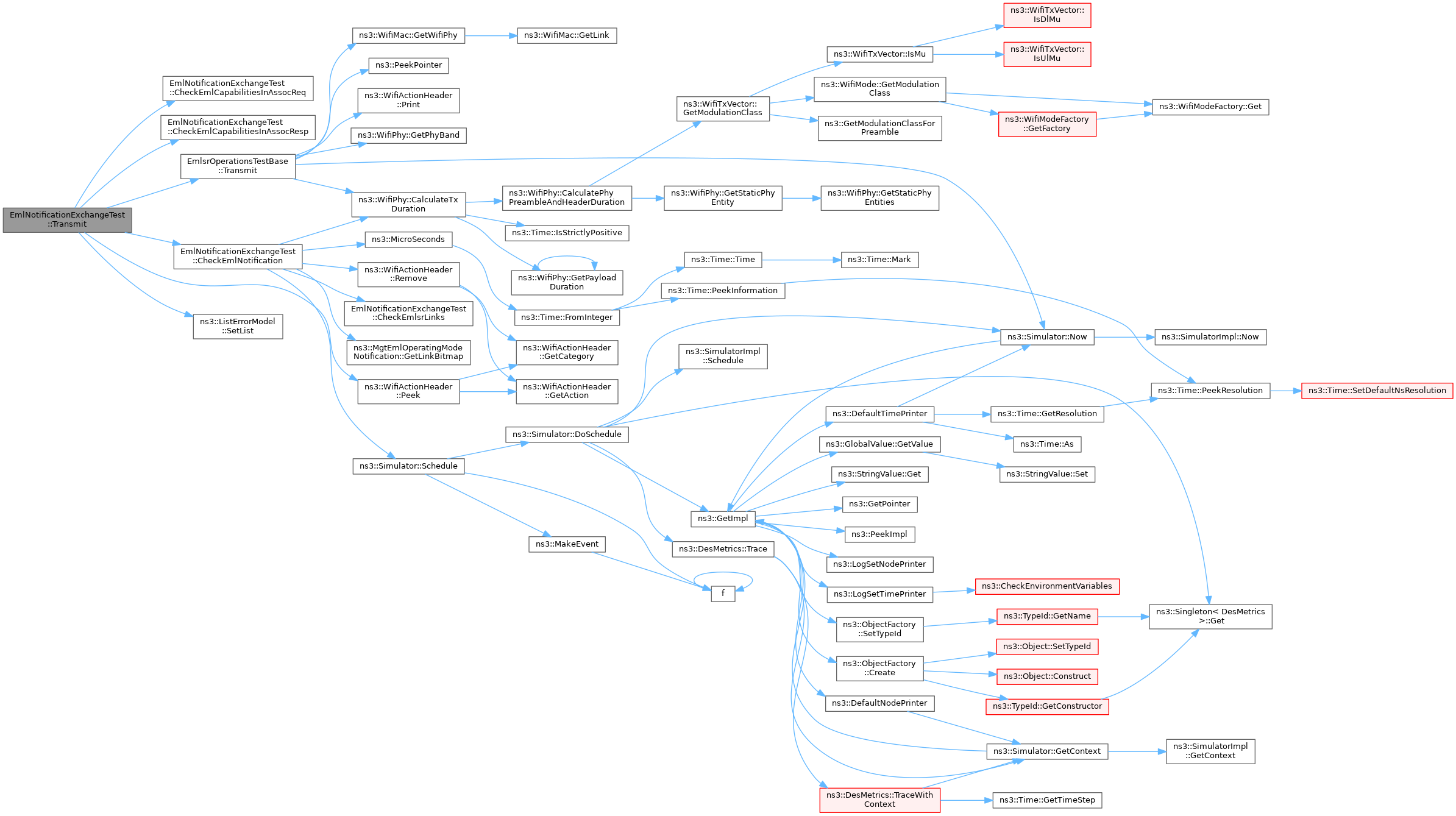

Here is the call graph for this function:

◆ TxDropped()

void EmlNotificationExchangeTest::TxDropped	(	WifiMacDropReason	reason,
		Ptr< const WifiMpdu >	mpdu
	)

protected

Callback invoked when the non-AP MLD drops the given MPDU for the given reason.

Parameters

reason	the reason why the MPDU was dropped
mpdu	the dropped MPDU

Definition at line 843 of file wifi-emlsr-test.cc.

References m_emlNotificationDroppedCount, ns3::WifiActionHeader::Peek(), ns3::WifiActionHeader::PROTECTED_EHT, and ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION.

Referenced by DoSetup().

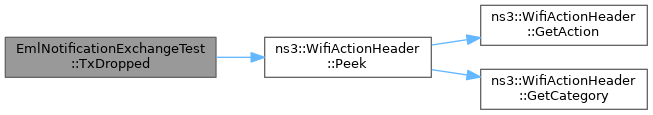

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TxOk()

void EmlNotificationExchangeTest::TxOk ( Ptr< const WifiMpdu > mpdu )

protected

Callback invoked when the non-AP MLD receives the acknowledgment for a transmitted MPDU.

Parameters

mpdu	the acknowledged MPDU

Definition at line 822 of file wifi-emlsr-test.cc.

References CheckEmlsrLinks(), EmlsrOperationsTestBase::m_transitionTimeout, ns3::NanoSeconds(), ns3::WifiActionHeader::Peek(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, and ns3::Simulator::Schedule().

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_assocLinkId

std::optional<uint8_t> EmlNotificationExchangeTest::m_assocLinkId

private

ID of the link used to establish association.

Definition at line 608 of file wifi-emlsr-test.cc.

Referenced by CheckEmlNotification(), and Transmit().

◆ m_checkEmlsrLinksCount

std::size_t EmlNotificationExchangeTest::m_checkEmlsrLinksCount

private

counter for the number of times CheckEmlsrLinks is called (should be two: when the transition timeout expires and when the EML Notification response from the AP MLD is received

Definition at line 609 of file wifi-emlsr-test.cc.

Referenced by CheckEmlsrLinks(), and DoRun().

◆ m_emlNotificationDroppedCount

std::size_t EmlNotificationExchangeTest::m_emlNotificationDroppedCount

private

counter for the number of times the EML Notification frame sent by the non-AP MLD has been dropped due to max retry limit

Definition at line 613 of file wifi-emlsr-test.cc.

Referenced by DoRun(), Transmit(), and TxDropped().

◆ m_errorModel

Ptr<ListErrorModel> EmlNotificationExchangeTest::m_errorModel

private

error rate model to corrupt packets at AP MLD

Definition at line 616 of file wifi-emlsr-test.cc.

Referenced by DoSetup(), and Transmit().

◆ m_uidList

std::list<uint64_t> EmlNotificationExchangeTest::m_uidList

private

list of UIDs of packets to corrupt

Definition at line 617 of file wifi-emlsr-test.cc.

Referenced by Transmit().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-emlsr-test.cc

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EmlNotificationExchangeTest()

◆ ~EmlNotificationExchangeTest()

Member Function Documentation

◆ CheckEmlCapabilitiesInAssocReq()

◆ CheckEmlCapabilitiesInAssocResp()

◆ CheckEmlNotification()

◆ CheckEmlsrLinks()

◆ DoRun()

◆ DoSetup()

◆ Transmit()

◆ TxDropped()

◆ TxOk()

Member Data Documentation

◆ m_assocLinkId

◆ m_checkEmlsrLinksCount

◆ m_emlNotificationDroppedCount

◆ m_errorModel

◆ m_uidList
