EmlsrOperationsTestBase Class Reference

Base class for EMLSR Operations tests. More...

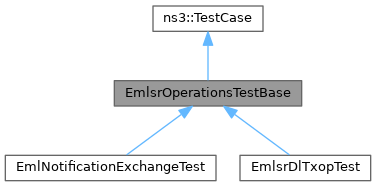

+ Inheritance diagram for EmlsrOperationsTestBase:
+ Collaboration diagram for EmlsrOperationsTestBase:

Classes

struct  FrameInfo
 Information about transmitted frames. More...


Public Types

enum  TrafficDirection : uint8_t { DOWNLINK = 0 , UPLINK }
 Enumeration for traffic directions. More...

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...


Public Member Functions

 EmlsrOperationsTestBase (const std::string &name)
 Constructor.

 ~EmlsrOperationsTestBase () override=default

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Protected Member Functions

void DoSetup () override
 Implementation to do any local setup required for this TestCase.

Ptr< PacketSocketClientGetApplication (TrafficDirection dir, std::size_t staId, std::size_t count, std::size_t pktSize) const

virtual void Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
 Callback invoked when a FEM passes PSDUs to the PHY.

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Protected Attributes

Ptr< ApWifiMacm_apMac
 AP wifi MAC.

std::vector< PacketSocketAddressm_dlSockets
 packet socket address for DL traffic

Time m_duration {0}
 simulation duration

bool m_establishBaDl {false}
 whether BA needs to be established (for TID 0) with the AP as originator

bool m_establishBaUl {false}
 whether BA needs to be established (for TID 0) with the AP as recipient

uint16_t m_lastAid {0}
 AID of last associated station.

std::set< uint8_t > m_linksToEnableEmlsrOn
 IDs of the links on which EMLSR mode has to be enabled.

std::size_t m_nEmlsrStations {1}
 number of stations to create that activate EMLSR

std::size_t m_nNonEmlsrStations {0}
 number of stations to create that do not activate EMLSR

std::vector< Timem_paddingDelay
 Padding Delay advertised by the non-AP MLD.

std::vector< Ptr< StaWifiMac > > m_staMacs
 MACs of the non-AP MLDs.

std::vector< Timem_transitionDelay
 Transition Delay advertised by the non-AP MLD.

Time m_transitionTimeout {MicroSeconds(128)}
 Transition Timeout advertised by the AP MLD.

std::vector< FrameInfom_txPsdus
 transmitted PSDUs

std::vector< PacketSocketAddressm_ulSockets
 packet socket address for UL traffic


Private Member Functions

void SetSsid (uint16_t aid, Mac48Address)
 Set the SSID on the next station that needs to start the association procedure.

virtual void StartTraffic ()
 Start the generation of traffic (needs to be overridden)


Detailed Description

Base class for EMLSR Operations tests.

This base class setups and configures one AP MLD, a variable number of non-AP MLDs with EMLSR activated and a variable number of non-AP MLD with EMLSR deactivated. Every MLD has three links, each operating on a distinct PHY band (2.4 GHz, 5 GHz and 6 GHz). Therefore, it is expected that three links are setup by the non-AP MLD(s). The values for the Padding Delay, the Transition Delay and the Transition Timeout are provided as argument to the constructor of this class, along with the IDs of the links on which EMLSR mode must be enabled for the non-AP MLDs (this information is used to set the EmlsrLinkSet attribute of the DefaultEmlsrManager installed on the non-AP MLDs).

Definition at line 149 of file wifi-emlsr-test.cc.

Member Enumeration Documentation

◆ TrafficDirection

Enumeration for traffic directions.

Enumerator
DOWNLINK
UPLINK

Definition at line 161 of file wifi-emlsr-test.cc.

Constructor & Destructor Documentation

◆ EmlsrOperationsTestBase()

EmlsrOperationsTestBase::EmlsrOperationsTestBase ( const std::string &  name)

Constructor.

Parameters
nameThe name of the new TestCase created

Definition at line 247 of file wifi-emlsr-test.cc.

◆ ~EmlsrOperationsTestBase()

EmlsrOperationsTestBase::~EmlsrOperationsTestBase ( )
overridedefault

Member Function Documentation

◆ DoSetup()

void EmlsrOperationsTestBase::DoSetup ( )
overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Reimplemented in EmlNotificationExchangeTest, and EmlsrDlTxopTest.

Definition at line 295 of file wifi-emlsr-test.cc.

References ns3::SpectrumWifiPhyHelper::AddChannel(), ns3::NodeList::Begin(), ns3::Config::Connect(), ns3::WifiPhyHelper::DLT_IEEE802_11_RADIO, ns3::NodeList::End(), ns3::NetDeviceContainer::Get(), ns3::WifiNetDevice::GetAddress(), ns3::WifiMac::GetDevice(), ns3::WifiNetDevice::GetIfIndex(), ns3::WifiMac::GetNLinks(), ns3::PacketSocketHelper::Install(), m_apMac, m_dlSockets, m_duration, m_linksToEnableEmlsrOn, m_nEmlsrStations, m_nNonEmlsrStations, m_paddingDelay, m_staMacs, m_transitionDelay, m_transitionTimeout, m_ulSockets, ns3::MakeCallback(), NS_ASSERT_MSG, NS_TEST_ASSERT_MSG_NE, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::WifiPhyHelper::Set(), ns3::WifiPhyHelper::SetPcapDataLinkType(), ns3::PacketSocketAddress::SetProtocol(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), ns3::PacketSocketAddress::SetSingleDevice(), SetSsid(), ns3::ObjectBase::TraceConnectWithoutContext(), Transmit(), ns3::WIFI_SPECTRUM_2_4_GHZ, ns3::WIFI_SPECTRUM_5_GHZ, ns3::WIFI_SPECTRUM_6_GHZ, and ns3::WIFI_STANDARD_80211be.

Referenced by EmlNotificationExchangeTest::DoSetup(), and EmlsrDlTxopTest::DoSetup().

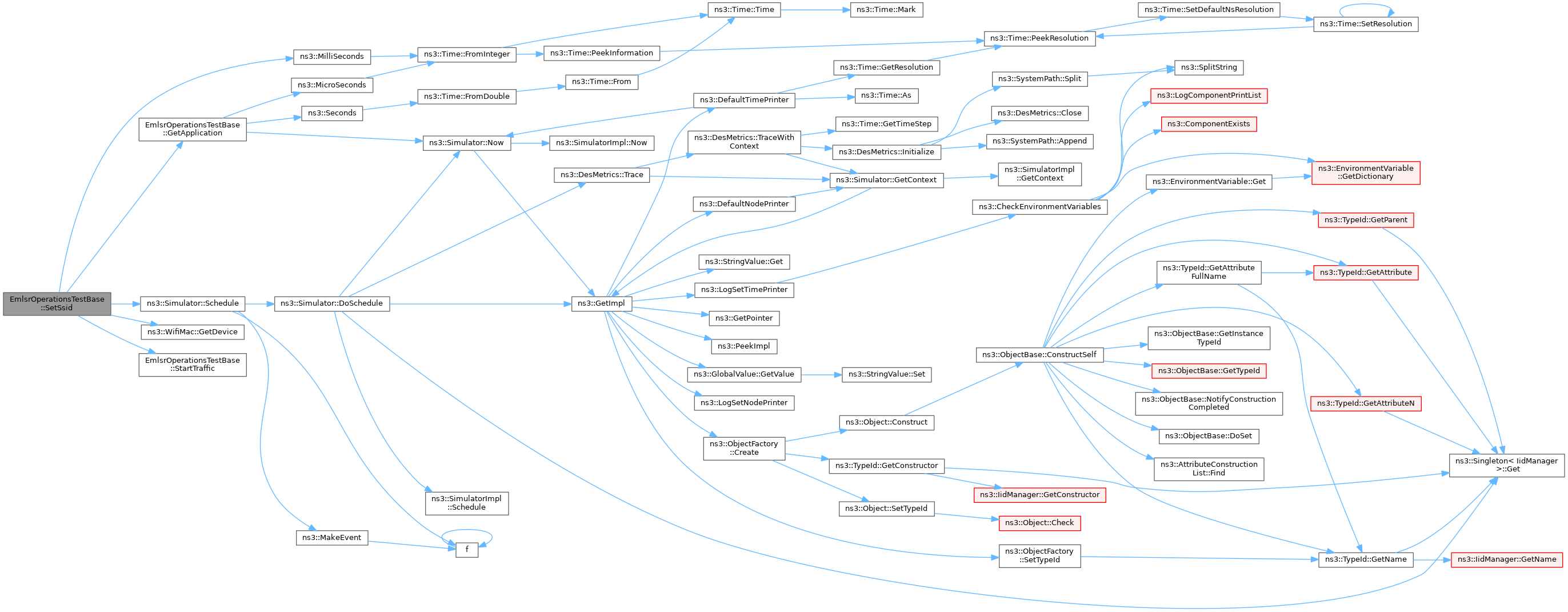

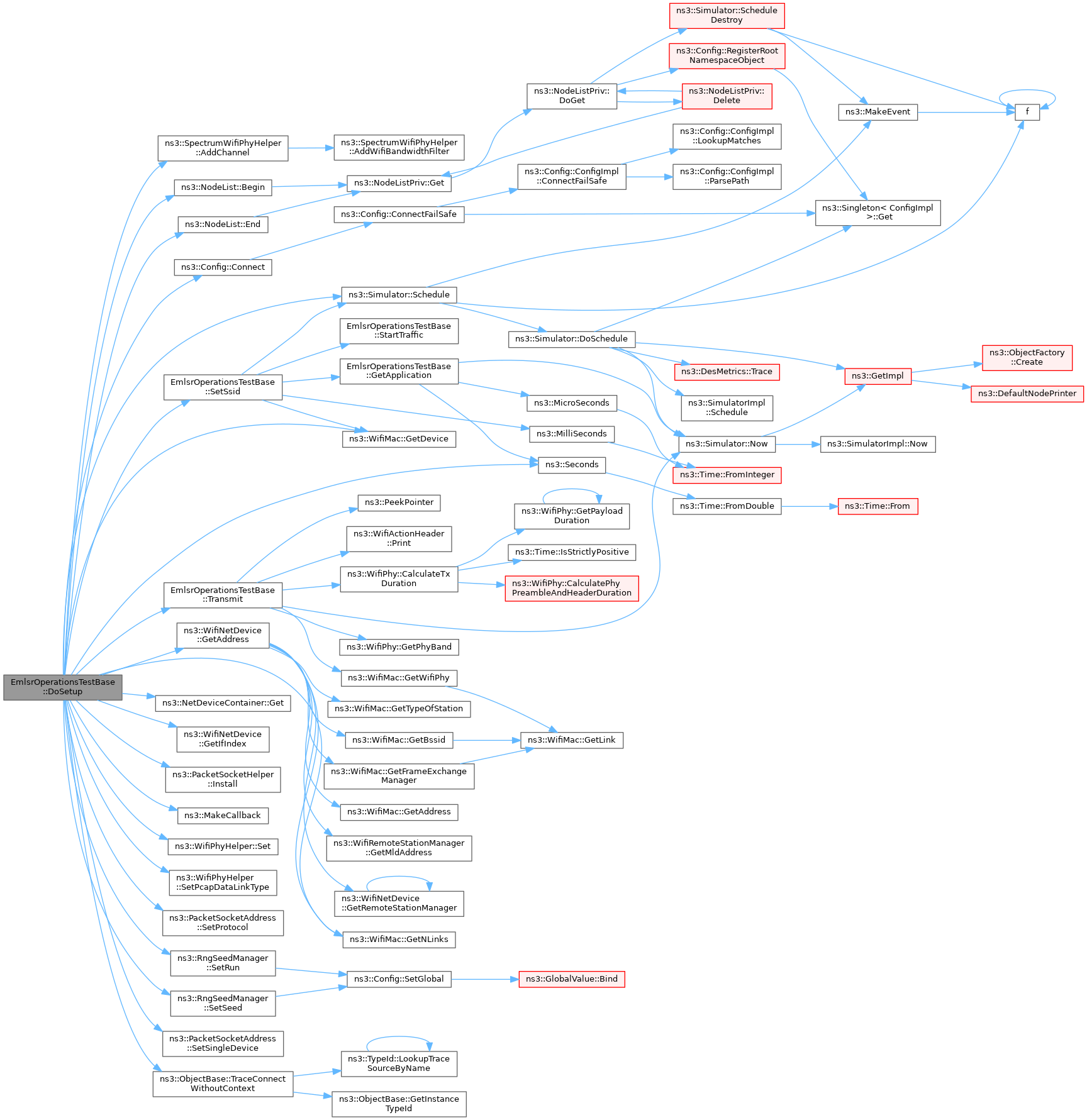

+ Here is the call graph for this function:

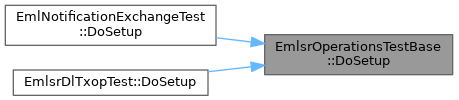

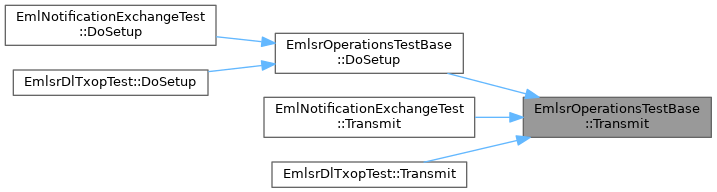

+ Here is the caller graph for this function:

◆ GetApplication()

Ptr< PacketSocketClient > EmlsrOperationsTestBase::GetApplication ( TrafficDirection  dir,
std::size_t  staId,
std::size_t  count,
std::size_t  pktSize
) const
protected
Parameters
dirthe traffic direction (downlink/uplink)
staIdthe index (starting at 0) of the non-AP MLD generating/receiving packets
countthe number of packets to generate
pktSizethe size of the packets to generate
Returns
an application generating the given number packets of the given size from/to the AP MLD to/from the given non-AP MLD

Definition at line 449 of file wifi-emlsr-test.cc.

References dir, DOWNLINK, m_dlSockets, m_duration, m_ulSockets, ns3::MicroSeconds(), ns3::Simulator::Now(), pktSize, and ns3::Seconds().

Referenced by EmlsrDlTxopTest::CheckQosFrames(), SetSsid(), and EmlsrDlTxopTest::StartTraffic().

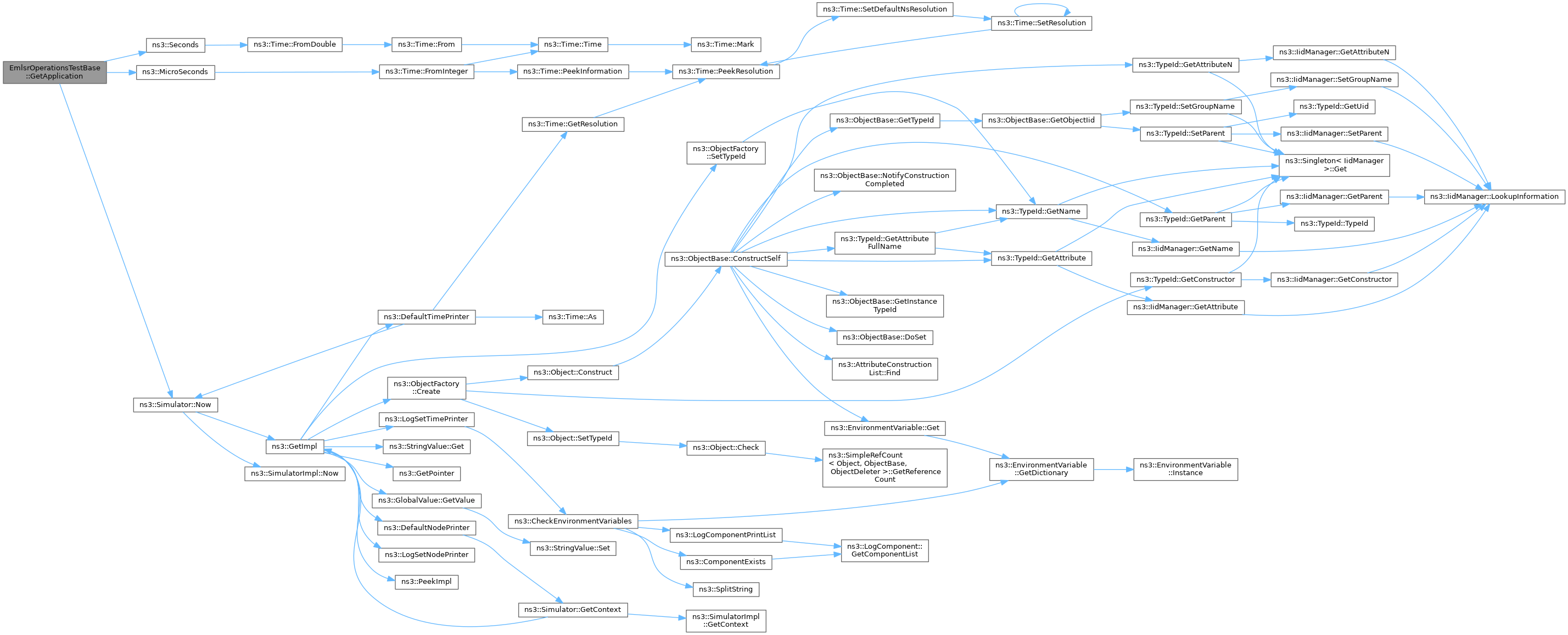

+ Here is the call graph for this function:

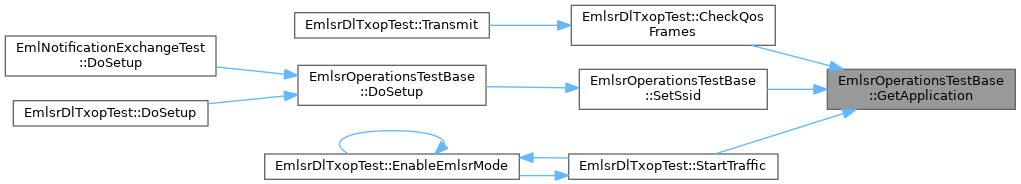

+ Here is the caller graph for this function:

◆ SetSsid()

void EmlsrOperationsTestBase::SetSsid ( uint16_t  aid,
Mac48Address
)
private

Set the SSID on the next station that needs to start the association procedure.

This method is connected to the ApWifiMac's AssociatedSta trace source. Start generating traffic (if needed) when all stations are associated.

Parameters
aidthe AID assigned to the previous associated STA

Definition at line 466 of file wifi-emlsr-test.cc.

References DOWNLINK, GetApplication(), ns3::WifiMac::GetDevice(), m_apMac, m_establishBaDl, m_establishBaUl, m_lastAid, m_nEmlsrStations, m_nNonEmlsrStations, m_staMacs, ns3::MilliSeconds(), ns3::Simulator::Schedule(), StartTraffic(), and UPLINK.

Referenced by DoSetup().

+ Here is the call graph for this function:

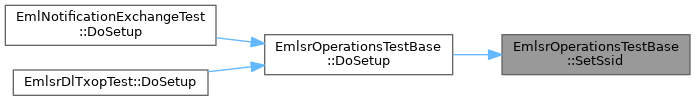

+ Here is the caller graph for this function:

◆ StartTraffic()

virtual void EmlsrOperationsTestBase::StartTraffic ( )
inlineprivatevirtual

Start the generation of traffic (needs to be overridden)

Reimplemented in EmlsrDlTxopTest.

Definition at line 242 of file wifi-emlsr-test.cc.

Referenced by SetSsid().

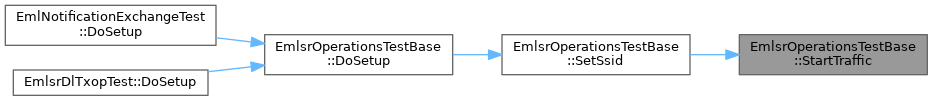

+ Here is the caller graph for this function:

◆ Transmit()

void EmlsrOperationsTestBase::Transmit ( uint8_t  linkId,
std::string  context,
WifiConstPsduMap  psduMap,
WifiTxVector  txVector,
double  txPowerW
)
protectedvirtual

Callback invoked when a FEM passes PSDUs to the PHY.

Parameters
linkIdthe ID of the link transmitting the PSDUs
contextthe context
psduMapthe PSDU map
txVectorthe TX vector
txPowerWthe tx power in Watts

Reimplemented in EmlNotificationExchangeTest, and EmlsrDlTxopTest.

Definition at line 253 of file wifi-emlsr-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::GetPhyBand(), ns3::WifiMac::GetWifiPhy(), m_apMac, m_txPsdus, ns3::Time::MS, ns3::Simulator::Now(), NS_LOG_INFO, ns3::PeekPointer(), and ns3::WifiActionHeader::Print().

Referenced by DoSetup(), EmlNotificationExchangeTest::Transmit(), and EmlsrDlTxopTest::Transmit().

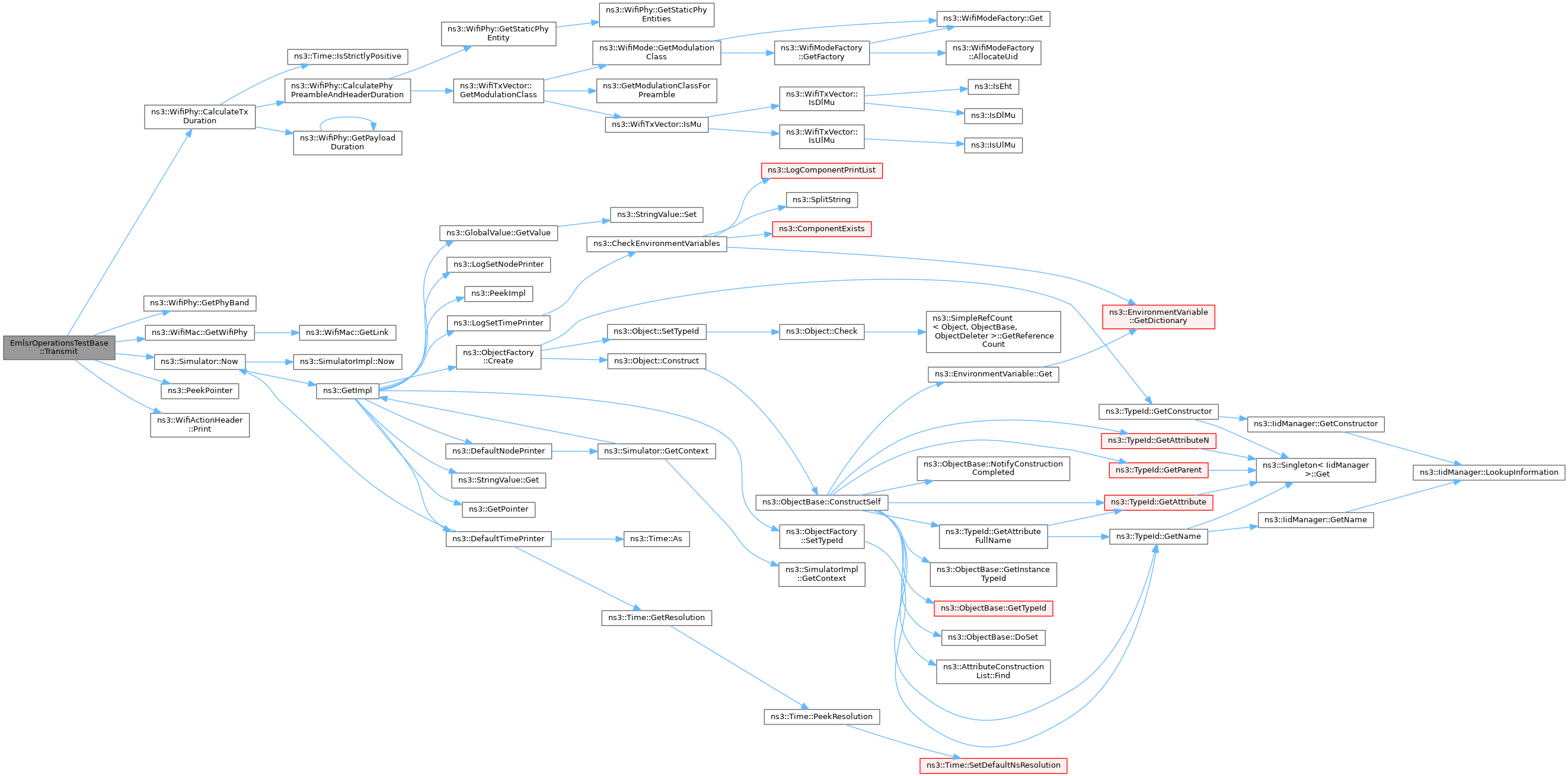

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_apMac

◆ m_dlSockets

std::vector<PacketSocketAddress> EmlsrOperationsTestBase::m_dlSockets
protected

packet socket address for DL traffic

Definition at line 224 of file wifi-emlsr-test.cc.

Referenced by DoSetup(), and GetApplication().

◆ m_duration

◆ m_establishBaDl

bool EmlsrOperationsTestBase::m_establishBaDl {false}
protected

whether BA needs to be established (for TID 0) with the AP as originator

Definition at line 217 of file wifi-emlsr-test.cc.

Referenced by EmlsrDlTxopTest::EmlsrDlTxopTest(), and SetSsid().

◆ m_establishBaUl

bool EmlsrOperationsTestBase::m_establishBaUl {false}
protected

whether BA needs to be established (for TID 0) with the AP as recipient

Definition at line 219 of file wifi-emlsr-test.cc.

Referenced by SetSsid().

◆ m_lastAid

uint16_t EmlsrOperationsTestBase::m_lastAid {0}
protected

AID of last associated station.

Definition at line 226 of file wifi-emlsr-test.cc.

Referenced by EmlsrDlTxopTest::EnableEmlsrMode(), SetSsid(), and EmlsrDlTxopTest::StartTraffic().

◆ m_linksToEnableEmlsrOn

std::set<uint8_t> EmlsrOperationsTestBase::m_linksToEnableEmlsrOn
protected

◆ m_nEmlsrStations

◆ m_nNonEmlsrStations

std::size_t EmlsrOperationsTestBase::m_nNonEmlsrStations {0}
protected

◆ m_paddingDelay

std::vector<Time> EmlsrOperationsTestBase::m_paddingDelay
protected
Initial value:
{
{MicroSeconds(32)}}

Padding Delay advertised by the non-AP MLD.

Definition at line 213 of file wifi-emlsr-test.cc.

Referenced by EmlsrDlTxopTest::EmlsrDlTxopTest(), EmlNotificationExchangeTest::CheckEmlCapabilitiesInAssocReq(), EmlsrDlTxopTest::CheckInitialControlFrame(), and DoSetup().

◆ m_staMacs

◆ m_transitionDelay

std::vector<Time> EmlsrOperationsTestBase::m_transitionDelay
protected
Initial value:
{
{MicroSeconds(16)}}

Transition Delay advertised by the non-AP MLD.

Definition at line 215 of file wifi-emlsr-test.cc.

Referenced by EmlsrDlTxopTest::EmlsrDlTxopTest(), EmlsrDlTxopTest::CheckBlockAck(), EmlNotificationExchangeTest::CheckEmlCapabilitiesInAssocReq(), EmlsrDlTxopTest::CheckQosFrames(), and DoSetup().

◆ m_transitionTimeout

Time EmlsrOperationsTestBase::m_transitionTimeout {MicroSeconds(128)}
protected

◆ m_txPsdus

std::vector<FrameInfo> EmlsrOperationsTestBase::m_txPsdus
protected

transmitted PSDUs

Definition at line 221 of file wifi-emlsr-test.cc.

Referenced by EmlsrDlTxopTest::CheckResults(), and Transmit().

◆ m_ulSockets

std::vector<PacketSocketAddress> EmlsrOperationsTestBase::m_ulSockets
protected

packet socket address for UL traffic

Definition at line 225 of file wifi-emlsr-test.cc.

Referenced by DoSetup(), and GetApplication().
