Wi-Fi AP state machine. More...
#include "ap-wifi-mac.h"
Classes | |
struct | ApLinkEntity |
Structure holding information specific to a single link. More... | |
struct | BsrType |
store value and timestamp for each Buffer Status Report More... | |
Public Member Functions | |
ApWifiMac () | |
~ApWifiMac () override | |

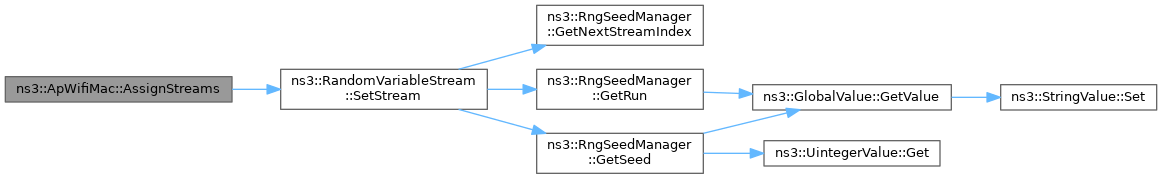

int64_t | AssignStreams (int64_t stream) |
Assign a fixed random variable stream number to the random variables used by this model. | |

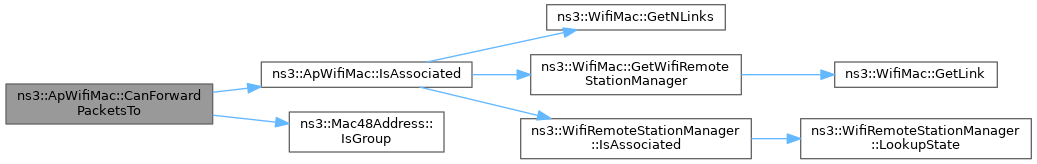

bool | CanForwardPacketsTo (Mac48Address to) const override |
Return true if packets can be forwarded to the given destination, false otherwise. | |

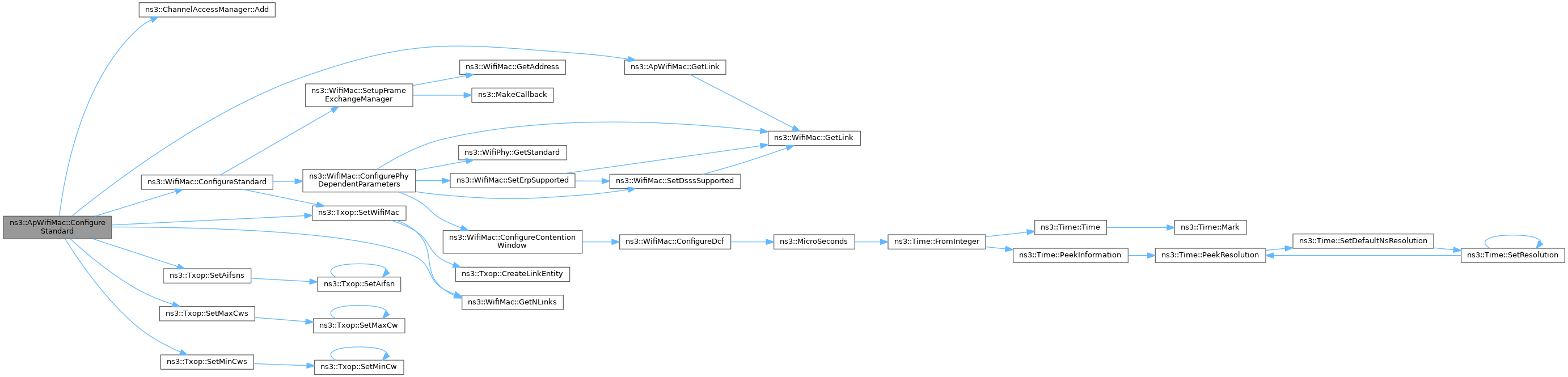

void | ConfigureStandard (WifiStandard standard) override |

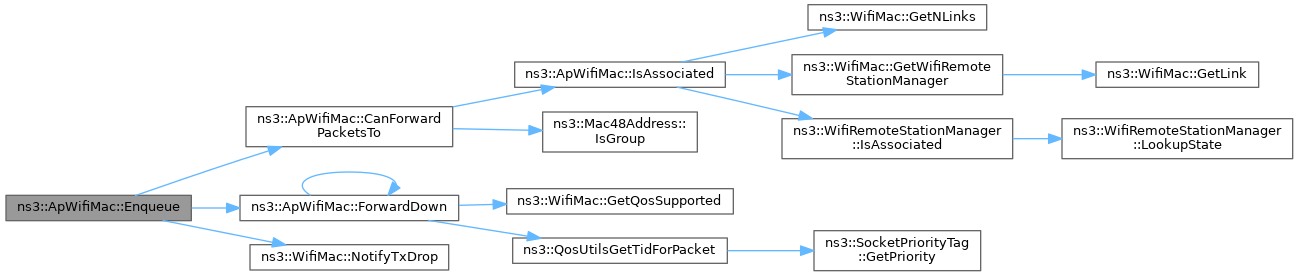

void | Enqueue (Ptr< Packet > packet, Mac48Address to) override |
void | Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from) override |

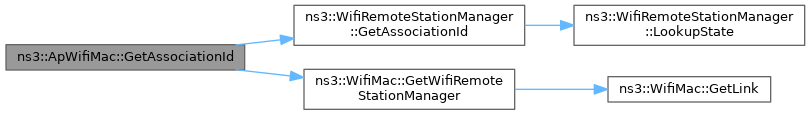

uint16_t | GetAssociationId (Mac48Address addr, uint8_t linkId) const |

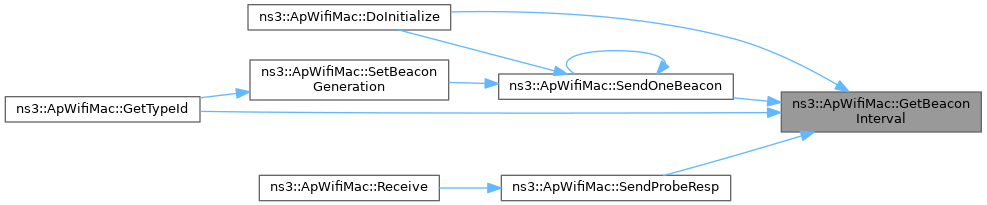

Time | GetBeaconInterval () const |
uint8_t | GetBufferStatus (uint8_t tid, Mac48Address address) const |
Return the value of the Queue Size subfield of the last QoS Data or QoS Null frame received from the station with the given MAC address and belonging to the given TID. | |
uint8_t | GetMaxBufferStatus (Mac48Address address) const |
Return the maximum among the values of the Queue Size subfield of the last QoS Data or QoS Null frames received from the station with the given MAC address and belonging to any TID. | |

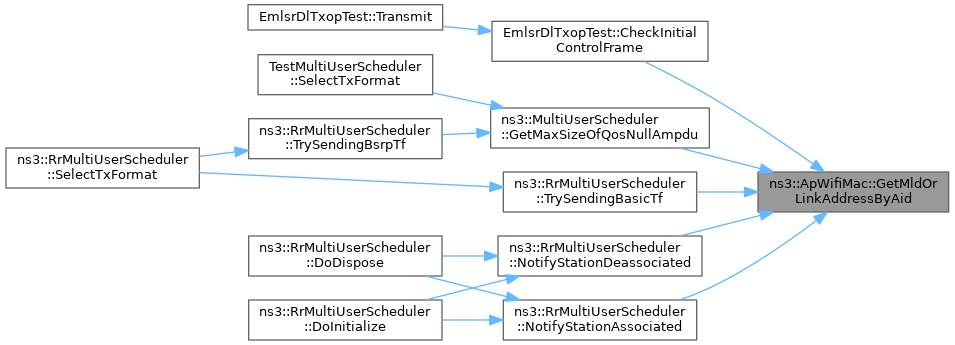

std::optional< Mac48Address > | GetMldOrLinkAddressByAid (uint16_t aid) const |

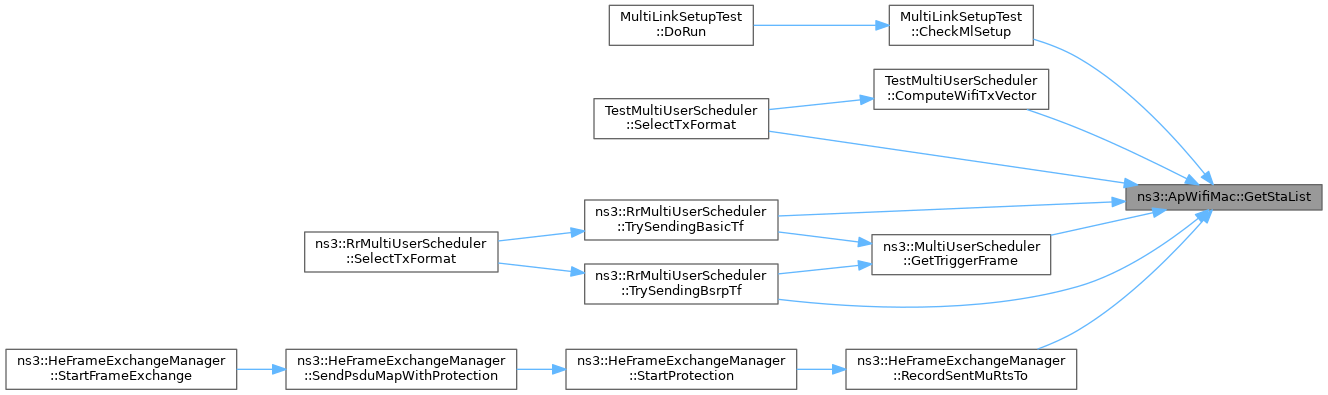

const std::map< uint16_t, Mac48Address > & | GetStaList (uint8_t linkId) const |
Get a const reference to the map of associated stations on the given link. | |
Ptr< WifiMacQueue > | GetTxopQueue (AcIndex ac) const override |
Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. | |

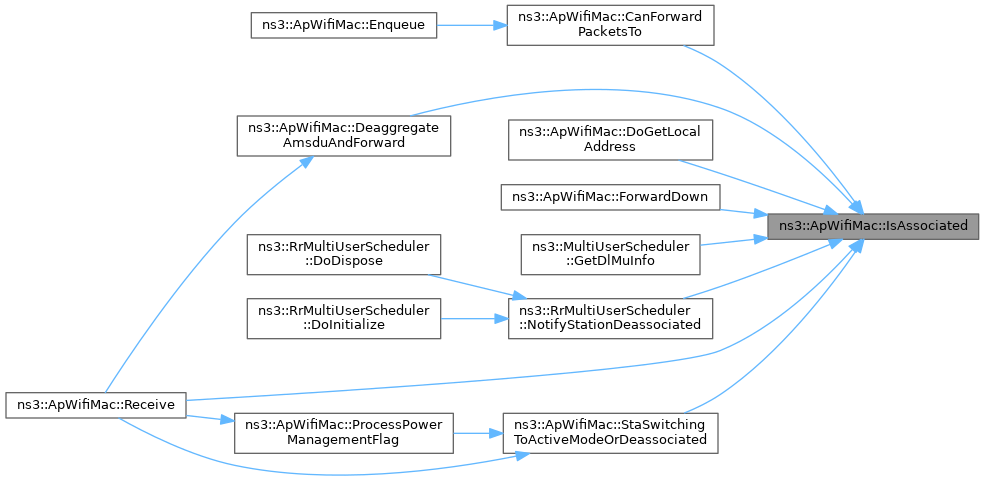

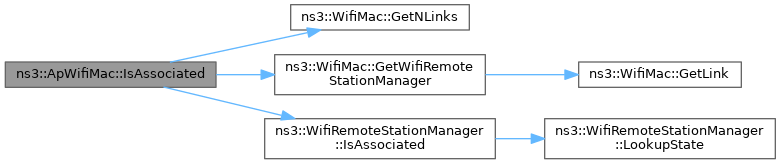

std::optional< uint8_t > | IsAssociated (const Mac48Address &address) const |
Get the ID of a link (if any) that has been setup with the station having the given MAC address. | |

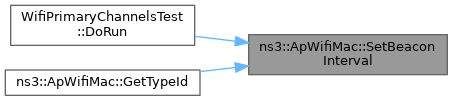

void | SetBeaconInterval (Time interval) |
void | SetBufferStatus (uint8_t tid, Mac48Address address, uint8_t size) |
Store the value of the Queue Size subfield of the last QoS Data or QoS Null frame received from the station with the given MAC address and belonging to the given TID. | |
void | SetLinkUpCallback (Callback< void > linkUp) override |
bool | SupportsSendFrom () const override |

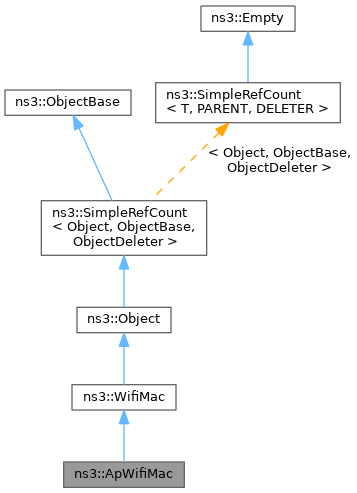

Public Member Functions inherited from ns3::WifiMac | |
WifiMac () | |
WifiMac (const WifiMac &)=delete | |
~WifiMac () override | |
void | BlockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds) |
Block the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason. | |
virtual bool | CanForwardPacketsTo (Mac48Address to) const =0 |
Return true if packets can be forwarded to the given destination, false otherwise. | |
virtual void | ConfigureStandard (WifiStandard standard) |
virtual void | Enqueue (Ptr< Packet > packet, Mac48Address to)=0 |
virtual void | Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from) |
Mac48Address | GetAddress () const |
OriginatorAgreementOptConstRef | GetBaAgreementEstablishedAsOriginator (Mac48Address recipient, uint8_t tid) const |
RecipientAgreementOptConstRef | GetBaAgreementEstablishedAsRecipient (Mac48Address originator, uint8_t tid) const |
BlockAckReqType | GetBarTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const |
BlockAckReqType | GetBarTypeAsRecipient (Mac48Address originator, uint8_t tid) const |
BlockAckType | GetBaTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const |
BlockAckType | GetBaTypeAsRecipient (Mac48Address originator, uint8_t tid) const |
Mac48Address | GetBssid (uint8_t linkId) const |
Ptr< ChannelAccessManager > | GetChannelAccessManager (uint8_t linkId=SINGLE_LINK_OP_ID) const |
Get the Channel Access Manager associated with the given link. | |
Ptr< WifiNetDevice > | GetDevice () const |
Return the device this PHY is associated with. | |
bool | GetDsssSupported (uint8_t linkId) const |
Return whether the device supports DSSS on the given link. | |
EhtCapabilities | GetEhtCapabilities (uint8_t linkId) const |
Return the EHT capabilities of the device for the given link. | |
Ptr< EhtConfiguration > | GetEhtConfiguration () const |
bool | GetEhtSupported () const |
Return whether the device supports EHT. | |
bool | GetEhtSupported (const Mac48Address &address) const |
bool | GetErpSupported (uint8_t linkId) const |
Return whether the device supports ERP on the given link. | |
ExtendedCapabilities | GetExtendedCapabilities () const |
Return the extended capabilities of the device. | |
Ptr< FrameExchangeManager > | GetFrameExchangeManager (uint8_t linkId=SINGLE_LINK_OP_ID) const |
Get the Frame Exchange Manager associated with the given link. | |
HeCapabilities | GetHeCapabilities (uint8_t linkId) const |
Return the HE capabilities of the device for the given link. | |
Ptr< HeConfiguration > | GetHeConfiguration () const |
bool | GetHeSupported () const |
Return whether the device supports HE. | |
bool | GetHeSupported (const Mac48Address &address) const |
HtCapabilities | GetHtCapabilities (uint8_t linkId) const |
Return the HT capabilities of the device for the given link. | |
Ptr< HtConfiguration > | GetHtConfiguration () const |
bool | GetHtSupported () const |
Return whether the device supports HT. | |
bool | GetHtSupported (const Mac48Address &address) const |
virtual std::optional< uint8_t > | GetLinkIdByAddress (const Mac48Address &address) const |
Get the ID of the link having the given MAC address, if any. | |
Mac48Address | GetLocalAddress (const Mac48Address &remoteAddr) const |
Get the local MAC address used to communicate with a remote STA. | |
Ptr< WifiMacQueueScheduler > | GetMacQueueScheduler () const |
Get the wifi MAC queue scheduler. | |
uint32_t | GetMaxAmpduSize (AcIndex ac) const |
Return the maximum A-MPDU size of the given Access Category. | |
uint16_t | GetMaxAmsduSize (AcIndex ac) const |
Return the maximum A-MSDU size of the given Access Category. | |
std::optional< Mac48Address > | GetMldAddress (const Mac48Address &remoteAddr) const |
uint8_t | GetNLinks () const |
Get the number of links (can be greater than 1 for 11be devices only). | |
bool | GetQosSupported () const |
Return whether the device supports QoS. | |
Ptr< QosTxop > | GetQosTxop (AcIndex ac) const |
Accessor for a specified EDCA object. | |
Ptr< QosTxop > | GetQosTxop (uint8_t tid) const |
Accessor for a specified EDCA object. | |
Ssid | GetSsid () const |
Ptr< Txop > | GetTxop () const |
Accessor for the Txop object. | |
virtual Ptr< WifiMacQueue > | GetTxopQueue (AcIndex ac) const |
Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. | |
TypeOfStation | GetTypeOfStation () const |
Return the type of station. | |
VhtCapabilities | GetVhtCapabilities (uint8_t linkId) const |
Return the VHT capabilities of the device for the given link. | |
Ptr< VhtConfiguration > | GetVhtConfiguration () const |
bool | GetVhtSupported (const Mac48Address &address) const |
bool | GetVhtSupported (uint8_t linkId) const |
Return whether the device supports VHT on the given link. | |
Ptr< WifiPhy > | GetWifiPhy (uint8_t linkId=SINGLE_LINK_OP_ID) const |
Ptr< WifiRemoteStationManager > | GetWifiRemoteStationManager (uint8_t linkId=0) const |
virtual bool | HasFramesToTransmit (uint8_t linkId) |
Check if the MAC has frames to transmit over the given link. | |
virtual void | NotifyChannelSwitching (uint8_t linkId) |
Notify that channel on the given link has been switched. | |
void | NotifyPromiscRx (Ptr< const Packet > packet) |
void | NotifyRx (Ptr< const Packet > packet) |
void | NotifyRxDrop (Ptr< const Packet > packet) |
void | NotifyTx (Ptr< const Packet > packet) |
void | NotifyTxDrop (Ptr< const Packet > packet) |
WifiMac & | operator= (const WifiMac &)=delete |
void | ResetWifiPhys () |
Remove currently attached WifiPhy objects from this MAC. | |
virtual void | SetAddress (Mac48Address address) |
void | SetBssid (Mac48Address bssid, uint8_t linkId) |
void | SetCtsToSelfSupported (bool enable) |
Enable or disable CTS-to-self feature. | |
void | SetDevice (const Ptr< WifiNetDevice > device) |
Sets the device this PHY is associated with. | |
void | SetForwardUpCallback (ForwardUpCallback upCallback) |
void | SetLinkDownCallback (Callback< void > linkDown) |
virtual void | SetLinkUpCallback (Callback< void > linkUp) |
virtual void | SetMacQueueScheduler (Ptr< WifiMacQueueScheduler > scheduler) |
Set the wifi MAC queue scheduler. | |
void | SetPromisc () |
Sets the interface in promiscuous mode. | |
void | SetSsid (Ssid ssid) |
void | SetTypeOfStation (TypeOfStation type) |
This method is invoked by a subclass to specify what type of station it is implementing. | |
virtual void | SetWifiPhys (const std::vector< Ptr< WifiPhy > > &phys) |
void | SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager) |
void | SetWifiRemoteStationManagers (const std::vector< Ptr< WifiRemoteStationManager > > &stationManagers) |
virtual bool | SupportsSendFrom () const |
void | UnblockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds) |
Unblock the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason. | |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::WifiMac | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Protected Member Functions | |
ApLinkEntity & | GetLink (uint8_t linkId) const |
Get a reference to the link associated with the given ID. | |
Protected Member Functions inherited from ns3::WifiMac | |
virtual void | ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax) |
virtual void | DeaggregateAmsduAndForward (Ptr< const WifiMpdu > mpdu) |
This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. | |
void | DoDispose () override |
Destructor implementation. | |
void | DoInitialize () override |
Initialize() implementation. | |
void | ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to) |
Forward the packet up to the device. | |
Ptr< QosTxop > | GetBEQueue () const |
Accessor for the AC_BE channel access function. | |
Ptr< QosTxop > | GetBKQueue () const |
Accessor for the AC_BK channel access function. | |
LinkEntity & | GetLink (uint8_t linkId) const |
Get a reference to the link associated with the given ID. | |
bool | GetShortSlotTimeSupported () const |
Ptr< QosTxop > | GetVIQueue () const |
Accessor for the AC_VI channel access function. | |
Ptr< QosTxop > | GetVOQueue () const |
Accessor for the AC_VO channel access function. | |
virtual void | Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId) |
This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link. | |
void | SetQosSupported (bool enable) |
Enable or disable QoS support for the device. | |
void | SetShortSlotTimeSupported (bool enable) |
Enable or disable short slot time feature. | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Protected Attributes | |
std::map< uint16_t, Mac48Address > | m_aidToMldOrLinkAddress |
Maps AIDs to MLD addresses (for MLDs) or link addresses (in case of single link devices) | |
Protected Attributes inherited from ns3::WifiMac | |
Callback< void > | m_linkDown |
Callback when a link is down. | |
Callback< void > | m_linkUp |
Callback when a link is up. | |
Ptr< MacRxMiddle > | m_rxMiddle |
RX middle (defragmentation etc.) | |
Ptr< WifiMacQueueScheduler > | m_scheduler |
wifi MAC queue scheduler | |
Ptr< MacTxMiddle > | m_txMiddle |
TX middle (aggregation etc.) | |
Ptr< Txop > | m_txop |
TXOP used for transmission of frames to non-QoS peers. | |
Private Types | |
typedef void(* | AssociationCallback) (uint16_t aid, Mac48Address address) |
TracedCallback signature for association/deassociation events. | |
using | LinkIdStaAddrMap = std::map< uint8_t, Mac48Address > |
Map of (link ID, remote STA address) of the links to setup. | |
Private Member Functions | |
std::unique_ptr< LinkEntity > | CreateLinkEntity () const override |
Create a LinkEntity object. | |
void | DeaggregateAmsduAndForward (Ptr< const WifiMpdu > mpdu) override |
This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack. | |
void | DoDispose () override |
Destructor implementation. | |
Mac48Address | DoGetLocalAddress (const Mac48Address &remoteAddr) const override |
This method is called if this device is an MLD to determine the MAC address of the affiliated STA used to communicate with the single link device having the given MAC address. | |
void | DoInitialize () override |
Initialize() implementation. | |
void | ForwardDown (Ptr< Packet > packet, Mac48Address from, Mac48Address to) |
Forward the packet down to DCF/EDCAF (enqueue the packet). | |
void | ForwardDown (Ptr< Packet > packet, Mac48Address from, Mac48Address to, uint8_t tid) |
Forward the packet down to DCF/EDCAF (enqueue the packet). | |
MgtAssocResponseHeader | GetAssocResp (Mac48Address to, uint8_t linkId) |
Get the Association Response frame to send on a given link. | |
CapabilityInformation | GetCapabilities (uint8_t linkId) const |
Return the Capability information of the current AP for the given link. | |
DsssParameterSet | GetDsssParameterSet (uint8_t linkId) const |
Return the DSSS Parameter Set that we support on the given link. | |
EdcaParameterSet | GetEdcaParameterSet (uint8_t linkId) const |
Return the EDCA Parameter Set of the current AP for the given link. | |
EhtOperation | GetEhtOperation (uint8_t linkId) const |
Return the EHT operation of the current AP for the given link. | |
ErpInformation | GetErpInformation (uint8_t linkId) const |
Return the ERP information of the current AP for the given link. | |
HeOperation | GetHeOperation (uint8_t linkId) const |
Return the HE operation of the current AP for the given link. | |
HtOperation | GetHtOperation (uint8_t linkId) const |
Return the HT operation of the current AP for the given link. | |
LinkIdStaAddrMap | GetLinkIdStaAddrMap (MgtAssocResponseHeader &assoc, const Mac48Address &to, uint8_t linkId) |
Get a map of (link ID, remote STA address) of the links to setup. | |
std::optional< MuEdcaParameterSet > | GetMuEdcaParameterSet () const |
Return the MU EDCA Parameter Set of the current AP, if one needs to be advertised. | |
MultiLinkElement | GetMultiLinkElement (uint8_t linkId, WifiMacType frameType, const Mac48Address &to=Mac48Address::GetBroadcast()) |
Return the Multi-Link Element that the current AP includes in the management frames of the given type it transmits on the given link. | |
uint16_t | GetNextAssociationId (std::list< uint8_t > linkIds) |
std::optional< ReducedNeighborReport > | GetReducedNeighborReport (uint8_t linkId) const |
Return the Reduced Neighbor Report (RNR) element that the current AP sends on the given link, if one needs to be advertised. | |
AllSupportedRates | GetSupportedRates (uint8_t linkId) const |
Return an instance of SupportedRates that contains all rates that we support for the given link (including HT rates). | |
bool | GetUseNonErpProtection (uint8_t linkId) const |
Return whether protection for non-ERP stations is used in the BSS corresponding to the given link. | |
VhtOperation | GetVhtOperation (uint8_t linkId) const |
Return the VHT operation of the current AP for the given link. | |
void | ParseReportedStaInfo (const AssocReqRefVariant &assoc, Mac48Address from, uint8_t linkId) |
Given a (Re)Association Request frame body containing a Multi-Link Element, check if a link can be setup with each of the reported stations (STA MAC address and a (Re)Association Request frame body must be present, the Link ID identifies a valid link other than the one the frame was received on and the supported rates are compatible with our basic rate set). | |
void | ProcessPowerManagementFlag (Ptr< const WifiMpdu > mpdu, uint8_t linkId) |
Process the Power Management bit in the Frame Control field of an MPDU successfully received on the given link. | |
void | Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId) override |
This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link. | |
bool | ReceiveAssocRequest (const AssocReqRefVariant &assoc, const Mac48Address &from, uint8_t linkId) |
Check whether the supported rate set included in the received (Re)Association Request frame is compatible with our Basic Rate Set. | |
void | ReceiveEmlNotification (MgtEmlOperatingModeNotification &frame, const Mac48Address &sender, uint8_t linkId) |
Take necessary actions upon receiving the given EML Operating Mode Notification frame from the given station on the given link. | |
void | SendAssocResp (Mac48Address to, bool isReassoc, uint8_t linkId) |
Forward an association or a reassociation response packet to the DCF/EDCA. | |
void | SendOneBeacon (uint8_t linkId) |
Forward a beacon packet to the beacon special DCF for transmission on the given link. | |
void | SendProbeResp (Mac48Address to, uint8_t linkId) |
Send a Probe Response in response to a Probe Request received from the STA with the given address on the given link. | |
void | SetAid (MgtAssocResponseHeader &assoc, const LinkIdStaAddrMap &linkIdStaAddrMap) |
Set the AID field of the given Association Response frame. | |
void | SetBeaconGeneration (bool enable) |
Enable or disable beacon generation of the AP. | |
void | StaSwitchingToActiveModeOrDeassociated (const Mac48Address &staAddr, uint8_t linkId) |
Perform the necessary actions when a given station deassociates or switches from powersave mode to active mode. | |
void | StaSwitchingToPsMode (const Mac48Address &staAddr, uint8_t linkId) |
Perform the necessary actions when a given station switches from active mode to powersave mode. | |
void | TxFailed (WifiMacDropReason timeoutReason, Ptr< const WifiMpdu > mpdu) |
The packet we sent was successfully received by the receiver (i.e. | |
void | TxOk (Ptr< const WifiMpdu > mpdu) |
The packet we sent was successfully received by the receiver (i.e. | |
void | UpdateShortPreambleEnabled (uint8_t linkId) |
Update whether short preamble should be enabled or not in the BSS corresponding to the given link. | |
void | UpdateShortSlotTimeEnabled (uint8_t linkId) |
Update whether short slot time should be enabled or not in the BSS corresponding to the given link. | |
Private Attributes | |
TracedCallback< uint16_t, Mac48Address > | m_assocLogger |
association logger | |
Time | m_beaconInterval |
Beacon interval. | |
Ptr< UniformRandomVariable > | m_beaconJitter |
UniformRandomVariable used to randomize the time of the first beacon. | |
Ptr< Txop > | m_beaconTxop |
Dedicated Txop for beacons. | |
Time | m_bsrLifetime |
Lifetime of Buffer Status Reports. | |
std::unordered_map< WifiAddressTidPair, BsrType, WifiAddressTidHash > | m_bufferStatus |
Per (MAC address, TID) buffer status reports. | |
TracedCallback< uint16_t, Mac48Address > | m_deAssocLogger |
deassociation logger | |
bool | m_enableBeaconGeneration |
Flag whether beacons are being generated. | |
bool | m_enableBeaconJitter |
Flag whether the first beacon should be generated at random time. | |
bool | m_enableNonErpProtection |
Flag whether protection mechanism is used or not when non-ERP STAs are present within the BSS. | |
std::map< Mac48Address, EventId > | m_transitionTimeoutEvents |
transition timeout events running for EMLSR clients | |
Additional Inherited Members | |
Public Types inherited from ns3::WifiMac | |
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address > | ForwardUpCallback |
This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. | |
using | OriginatorAgreementOptConstRef = std::optional< std::reference_wrapper< const OriginatorBlockAckAgreement > > |
optional const reference to OriginatorBlockAckAgreement | |
using | RecipientAgreementOptConstRef = std::optional< std::reference_wrapper< const RecipientBlockAckAgreement > > |
optional const reference to RecipientBlockAckAgreement | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Wi-Fi AP state machine.
Handle association, dis-association and authentication, of STAs within an infrastructure BSS.
ns3::ApWifiMac is accessible through the following paths with Config::Set and Config::Connect:
Time
+9.22337e+18ns:+9.22337e+18ns Time
+9.22337e+18ns:+9.22337e+18ns Ssid
Size of this type is 696 bytes (on a 64-bit architecture).
Definition at line 64 of file ap-wifi-mac.h.
|
private |
TracedCallback signature for association/deassociation events.
aid | the AID of the station |
address | the MAC address of the station |
Definition at line 549 of file ap-wifi-mac.h.
|
private |
Map of (link ID, remote STA address) of the links to setup.
Definition at line 318 of file ap-wifi-mac.h.
ns3::ApWifiMac::ApWifiMac | ( | ) |
Definition at line 110 of file ap-wifi-mac.cc.
References ns3::AC_BEACON, ns3::AP, m_beaconTxop, ns3::WifiMac::m_txMiddle, NS_LOG_FUNCTION, ns3::Txop::SetTxMiddle(), and ns3::WifiMac::SetTypeOfStation().
|
override |
Definition at line 121 of file ap-wifi-mac.cc.
References NS_LOG_FUNCTION.
int64_t ns3::ApWifiMac::AssignStreams | ( | int64_t | stream | ) |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
stream | first stream index to use |
Definition at line 235 of file ap-wifi-mac.cc.
References m_beaconJitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().
|
overridevirtual |
Return true if packets can be forwarded to the given destination, false otherwise.
to | the address to which the packet should be sent |
Implements ns3::WifiMac.
Definition at line 391 of file ap-wifi-mac.cc.
References IsAssociated(), and ns3::Mac48Address::IsGroup().
Referenced by Enqueue().
|
overridevirtual |
standard | the wifi standard to be configured |
This method completes the configuration process for a requested PHY standard by creating the Frame Exchange Manager and the Channel Access Manager and configuring the PHY dependent parameters. This method can only be called after a configured PHY has been set.
Reimplemented from ns3::WifiMac.
Definition at line 155 of file ap-wifi-mac.cc.
References ns3::ChannelAccessManager::Add(), ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::ConfigureStandard(), GetLink(), ns3::WifiMac::GetNLinks(), m_beaconTxop, NS_LOG_FUNCTION, ns3::Txop::SetAifsns(), ns3::Txop::SetMaxCws(), ns3::Txop::SetMinCws(), and ns3::Txop::SetWifiMac().
|
overrideprivatevirtual |
Create a LinkEntity object.
Reimplemented from ns3::WifiMac.
Definition at line 143 of file ap-wifi-mac.cc.
|
overrideprivatevirtual |
This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack.
We override the WifiMac version here because, as an AP, we also need to think about redistributing to other associated STAs.
mpdu | the MPDU containing the A-MSDU. |
Reimplemented from ns3::WifiMac.
Definition at line 2187 of file ap-wifi-mac.cc.
References ForwardDown(), ns3::WifiMac::ForwardUp(), IsAssociated(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::PeekPointer().
Referenced by Receive().
|
overrideprivatevirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 127 of file ap-wifi-mac.cc.
References ns3::Object::Dispose(), ns3::WifiMac::DoDispose(), m_beaconTxop, m_enableBeaconGeneration, and NS_LOG_FUNCTION.
|
overrideprivatevirtual |
This method is called if this device is an MLD to determine the MAC address of the affiliated STA used to communicate with the single link device having the given MAC address.
This method is overridden because its implementation depends on the type of station.
remoteAddr | the MAC address of the remote single link device |
Reimplemented from ns3::WifiMac.
Definition at line 1596 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetFrameExchangeManager(), IsAssociated(), and NS_ASSERT_MSG.
|
overrideprivatevirtual |
Initialize() implementation.
This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.
Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 2206 of file ap-wifi-mac.cc.
References ns3::ApWifiMac::ApLinkEntity::beaconEvent, ns3::EventId::Cancel(), ns3::WifiMac::DoInitialize(), ns3::WifiMac::GetAddress(), GetBeaconInterval(), GetLink(), ns3::Time::GetMicroSeconds(), ns3::WifiMac::GetNLinks(), ns3::UniformRandomVariable::GetValue(), ns3::Object::Initialize(), m_beaconJitter, m_beaconTxop, m_enableBeaconGeneration, m_enableBeaconJitter, ns3::MakeCallback(), ns3::MicroSeconds(), NS_ABORT_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SendOneBeacon(), ns3::ObjectBase::TraceConnectWithoutContext(), TxFailed(), TxOk(), UpdateShortPreambleEnabled(), and UpdateShortSlotTimeEnabled().
|
overridevirtual |
packet | the packet to send. |
to | the address to which the packet should be sent. |
The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.
Implements ns3::WifiMac.
Definition at line 411 of file ap-wifi-mac.cc.
References Enqueue(), ns3::WifiMac::GetAddress(), and NS_LOG_FUNCTION.
Referenced by Enqueue().
|
overridevirtual |
packet | the packet to send. |
to | the address to which the packet should be sent. |
from | the address from which the packet should be sent. |
The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.
Reimplemented from ns3::WifiMac.
Definition at line 397 of file ap-wifi-mac.cc.
References CanForwardPacketsTo(), ForwardDown(), ns3::WifiMac::NotifyTxDrop(), and NS_LOG_FUNCTION.
|
private |
Forward the packet down to DCF/EDCAF (enqueue the packet).
This method is a wrapper for ForwardDown with traffic id.
packet | the packet we are forwarding to DCF/EDCAF |
from | the address to be used for Address 3 field in the header |
to | the address to be used for Address 1 field in the header |
Definition at line 290 of file ap-wifi-mac.cc.
References ForwardDown(), ns3::WifiMac::GetQosSupported(), NS_LOG_FUNCTION, and ns3::QosUtilsGetTidForPacket().
Referenced by DeaggregateAmsduAndForward(), Enqueue(), ForwardDown(), and Receive().
|
private |
Forward the packet down to DCF/EDCAF (enqueue the packet).
packet | the packet we are forwarding to DCF/EDCAF |
from | the address to be used for Address 3 field in the header |
to | the address to be used for Address 1 field in the header |
tid | the traffic id for the packet |
Definition at line 315 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetQosTxop(), ns3::WifiMac::GetTxop(), ns3::WifiMac::GetWifiRemoteStationManager(), IsAssociated(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::Txop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoOrder(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_DATA, and ns3::WIFI_MAC_QOSDATA.
uint16_t ns3::ApWifiMac::GetAssociationId | ( | Mac48Address | addr, |
uint8_t | linkId | ||
) | const |
addr | the address of the associated station |
linkId | the ID of the link on which the station is associated |
Definition at line 2271 of file ap-wifi-mac.cc.
References ns3::WifiRemoteStationManager::GetAssociationId(), and ns3::WifiMac::GetWifiRemoteStationManager().
Referenced by MultiLinkSetupTest::CheckMlSetup(), and ns3::HeFrameExchangeManager::SendPsduMap().
|
private |
Get the Association Response frame to send on a given link.
The returned frame never includes a Multi-Link Element.
to | the address of the STA we are sending an association response to |
linkId | the ID of the given link |
Definition at line 1037 of file ap-wifi-mac.cc.
References ns3::MgtAssocResponseHeader::Capabilities(), GetCapabilities(), GetEdcaParameterSet(), ns3::WifiMac::GetEhtCapabilities(), GetEhtOperation(), ns3::WifiMac::GetEhtSupported(), ns3::WifiMac::GetExtendedCapabilities(), ns3::WifiMac::GetHeCapabilities(), GetHeOperation(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), GetHtOperation(), ns3::WifiMac::GetHtSupported(), GetMuEdcaParameterSet(), ns3::WifiMac::GetQosSupported(), GetSupportedRates(), ns3::WifiMac::GetVhtCapabilities(), GetVhtOperation(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_ABORT_IF, ns3::StatusCode::SetFailure(), ns3::MgtAssocResponseHeader::SetStatusCode(), and ns3::StatusCode::SetSuccess().
Referenced by GetMultiLinkElement(), and SendAssocResp().
Time ns3::ApWifiMac::GetBeaconInterval | ( | ) | const |
Definition at line 199 of file ap-wifi-mac.cc.
References m_beaconInterval, and NS_LOG_FUNCTION.
Referenced by DoInitialize(), GetTypeId(), SendOneBeacon(), and SendProbeResp().
uint8_t ns3::ApWifiMac::GetBufferStatus | ( | uint8_t | tid, |
Mac48Address | address | ||
) | const |
Return the value of the Queue Size subfield of the last QoS Data or QoS Null frame received from the station with the given MAC address and belonging to the given TID.
The Queue Size value is the total size, rounded up to the nearest multiple of 256 octets and expressed in units of 256 octets, of all MSDUs and A-MSDUs buffered at the STA (excluding the MSDU or A-MSDU of the present QoS Data frame). A queue size value of 254 is used for all sizes greater than 64 768 octets. A queue size value of 255 is used to indicate an unspecified or unknown size. See Section 9.2.4.5.6 of 802.11-2016
tid | the given TID |
address | the given MAC address |
Definition at line 2277 of file ap-wifi-mac.cc.
References m_bsrLifetime, m_bufferStatus, and ns3::Simulator::Now().
Referenced by GetMaxBufferStatus().
|
private |
Return the Capability information of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 483 of file ap-wifi-mac.cc.
References GetLink(), NS_LOG_FUNCTION, ns3::CapabilityInformation::SetEss(), ns3::CapabilityInformation::SetShortPreamble(), and ns3::CapabilityInformation::SetShortSlotTime().
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
Return the DSSS Parameter Set that we support on the given link.
linkId | the ID of the given link |
Definition at line 473 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetDsssSupported(), ns3::WifiMac::GetWifiPhy(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::DsssParameterSet::SetCurrentChannel().
Referenced by SendOneBeacon(), and SendProbeResp().
|
private |
Return the EDCA Parameter Set of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 515 of file ap-wifi-mac.cc.
References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::Time::GetMicroSeconds(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetQosTxop(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EdcaParameterSet::SetBeAci(), ns3::EdcaParameterSet::SetBeAifsn(), ns3::EdcaParameterSet::SetBeCWmax(), ns3::EdcaParameterSet::SetBeCWmin(), ns3::EdcaParameterSet::SetBeTxopLimit(), ns3::EdcaParameterSet::SetBkAci(), ns3::EdcaParameterSet::SetBkAifsn(), ns3::EdcaParameterSet::SetBkCWmax(), ns3::EdcaParameterSet::SetBkCWmin(), ns3::EdcaParameterSet::SetBkTxopLimit(), ns3::EdcaParameterSet::SetQosInfo(), ns3::EdcaParameterSet::SetViAci(), ns3::EdcaParameterSet::SetViAifsn(), ns3::EdcaParameterSet::SetViCWmax(), ns3::EdcaParameterSet::SetViCWmin(), ns3::EdcaParameterSet::SetViTxopLimit(), ns3::EdcaParameterSet::SetVoAci(), ns3::EdcaParameterSet::SetVoAifsn(), ns3::EdcaParameterSet::SetVoCWmax(), ns3::EdcaParameterSet::SetVoCWmin(), and ns3::EdcaParameterSet::SetVoTxopLimit().
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
Return the EHT operation of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 905 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetEhtSupported(), GetLink(), ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EhtOperation::SetMaxRxNss(), ns3::EhtOperation::SetMaxTxNss(), and ns3::WIFI_EHT_MAX_MCS_INDEX.
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
Return the ERP information of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 494 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetErpSupported(), GetLink(), GetUseNonErpProtection(), NS_ASSERT, NS_LOG_FUNCTION, ns3::ErpInformation::SetBarkerPreambleMode(), ns3::ErpInformation::SetNonErpPresent(), and ns3::ErpInformation::SetUseProtection().
Referenced by SendOneBeacon(), and SendProbeResp().
|
private |
Return the HE operation of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 875 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetHeConfiguration(), ns3::WifiMac::GetHeSupported(), GetLink(), ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_ASSERT, NS_LOG_FUNCTION, ns3::HeOperation::SetBssColor(), and ns3::HeOperation::SetMaxHeMcsPerNss().
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
Return the HT operation of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 728 of file ap-wifi-mac.cc.
References ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetHtConfiguration(), ns3::WifiMac::GetHtSupported(), GetLink(), ns3::WifiMode::GetMcsValue(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::MIXED_MODE_PROTECTION, ns3::NO_PROTECTION, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HtOperation::SetDualBeacon(), ns3::HtOperation::SetDualCtsProtection(), ns3::HtOperation::SetHtProtection(), ns3::HtOperation::SetLSigTxopProtectionFullSupport(), ns3::HtOperation::SetNonGfHtStasPresent(), ns3::HtOperation::SetObssNonHtStasPresent(), ns3::HtOperation::SetPcoActive(), ns3::HtOperation::SetPhase(), ns3::HtOperation::SetPrimaryChannel(), ns3::HtOperation::SetRifsMode(), ns3::HtOperation::SetRxHighestSupportedDataRate(), ns3::HtOperation::SetRxMcsBitmask(), ns3::HtOperation::SetSecondaryChannelOffset(), ns3::HtOperation::SetStaChannelWidth(), ns3::HtOperation::SetStbcBeacon(), ns3::HtOperation::SetTxMaxNSpatialStreams(), ns3::HtOperation::SetTxMcsSetDefined(), ns3::HtOperation::SetTxRxMcsSetUnequal(), ns3::HtOperation::SetTxUnequalModulation(), and ns3::WIFI_MOD_CLASS_HT.
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
protected |
Get a reference to the link associated with the given ID.
linkId | the given link ID |
Definition at line 149 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetLink().
Referenced by ConfigureStandard(), DoInitialize(), GetCapabilities(), GetEhtOperation(), GetErpInformation(), GetHeOperation(), GetHtOperation(), GetReducedNeighborReport(), GetStaList(), GetUseNonErpProtection(), GetVhtOperation(), Receive(), ReceiveEmlNotification(), SendOneBeacon(), SendProbeResp(), SetAid(), SetBeaconGeneration(), UpdateShortPreambleEnabled(), and UpdateShortSlotTimeEnabled().
|
private |
Get a map of (link ID, remote STA address) of the links to setup.
Information is taken from the given Association Response that is sent over the given link to the given station.
assoc | the given Association Response frame |
to | the Receiver Address (RA) of the Association Response frame |
linkId | the ID of the link on which the Association Response frame is sent |
Definition at line 1091 of file ap-wifi-mac.cc.
References ns3::WifiRemoteStationManager::GetAffiliatedStaAddress(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::MgtAssocResponseHeader::GetStatusCode(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::StatusCode::IsSuccess(), and NS_ABORT_MSG_IF.
Referenced by SendAssocResp().
uint8_t ns3::ApWifiMac::GetMaxBufferStatus | ( | Mac48Address | address | ) | const |
Return the maximum among the values of the Queue Size subfield of the last QoS Data or QoS Null frames received from the station with the given MAC address and belonging to any TID.
address | the given MAC address |
Definition at line 2302 of file ap-wifi-mac.cc.
References GetBufferStatus().
Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf().
std::optional< Mac48Address > ns3::ApWifiMac::GetMldOrLinkAddressByAid | ( | uint16_t | aid | ) | const |
aid | the given AID |
Definition at line 1604 of file ap-wifi-mac.cc.
References m_aidToMldOrLinkAddress.
Referenced by EmlsrDlTxopTest::CheckInitialControlFrame(), ns3::MultiUserScheduler::GetMaxSizeOfQosNullAmpdu(), ns3::RrMultiUserScheduler::NotifyStationAssociated(), ns3::RrMultiUserScheduler::NotifyStationDeassociated(), and ns3::RrMultiUserScheduler::TrySendingBasicTf().
|
private |
Return the MU EDCA Parameter Set of the current AP, if one needs to be advertised.
Definition at line 562 of file ap-wifi-mac.cc.
References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::TimeValue::Get(), ns3::UintegerValue::Get(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiMac::GetHeSupported(), ns3::MuEdcaParameterSet::GetMuEdcaTimer(), ns3::Time::IsZero(), NS_ABORT_MSG_UNLESS, NS_ASSERT, NS_LOG_FUNCTION, ns3::MuEdcaParameterSet::SetMuAifsn(), ns3::MuEdcaParameterSet::SetMuCwMax(), ns3::MuEdcaParameterSet::SetMuCwMin(), ns3::MuEdcaParameterSet::SetMuEdcaTimer(), and ns3::MuEdcaParameterSet::SetQosInfo().
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
Return the Multi-Link Element that the current AP includes in the management frames of the given type it transmits on the given link.
linkId | the ID of the link to send the Multi-Link Element onto |
frameType | the type of the frame containing the Multi-Link Element |
to | the Receiver Address of the frame containing the Multi-Link Element |
Definition at line 661 of file ap-wifi-mac.cc.
References ns3::MultiLinkElement::AddPerStaProfileSubelement(), ns3::MultiLinkElement::BASIC_VARIANT, ns3::BooleanValue::Get(), ns3::TimeValue::Get(), ns3::WifiMac::GetAddress(), GetAssocResp(), ns3::WifiMac::GetEhtConfiguration(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetMldAddress(), ns3::WifiMac::GetNLinks(), ns3::MultiLinkElement::GetNPerStaProfileSubelements(), ns3::MultiLinkElement::GetPerStaProfile(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_ABORT_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::MultiLinkElement::SetBssParamsChangeCount(), ns3::MultiLinkElement::SetEmlsrSupported(), ns3::MultiLinkElement::PerStaProfileSubelement::SetLinkId(), ns3::MultiLinkElement::SetLinkIdInfo(), ns3::MultiLinkElement::SetMldMacAddress(), ns3::MultiLinkElement::SetTransitionTimeout(), ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, and ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE.
Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().
|
private |
linkIds | the IDs of the links for which the next Association ID is requested |
Definition at line 2247 of file ap-wifi-mac.cc.
References NS_FATAL_ERROR.
Referenced by SetAid().
|
private |
Return the Reduced Neighbor Report (RNR) element that the current AP sends on the given link, if one needs to be advertised.
linkId | the ID of the link to send the RNR element onto |
Definition at line 630 of file ap-wifi-mac.cc.
References ns3::ReducedNeighborReport::AddNbrApInfoField(), ns3::ReducedNeighborReport::AddTbttInformationField(), ns3::WifiMac::LinkEntity::feManager, ns3::WifiMac::GetEhtSupported(), GetLink(), ns3::WifiMac::GetNLinks(), ns3::ReducedNeighborReport::GetNNbrApInfoFields(), ns3::WifiPhy::GetOperatingChannel(), NS_ABORT_IF, NS_LOG_FUNCTION, ns3::WifiMac::LinkEntity::phy, ns3::ReducedNeighborReport::SetBssid(), ns3::ReducedNeighborReport::SetBssParameters(), ns3::ReducedNeighborReport::SetMldParameters(), ns3::ReducedNeighborReport::SetOperatingChannel(), ns3::ReducedNeighborReport::SetPsd20MHz(), and ns3::ReducedNeighborReport::SetShortSsid().
Referenced by SendOneBeacon(), and SendProbeResp().
const std::map< uint16_t, Mac48Address > & ns3::ApWifiMac::GetStaList | ( | uint8_t | linkId | ) | const |
Get a const reference to the map of associated stations on the given link.
Each station is specified by an (association ID, MAC address) pair. Make sure not to use the returned reference after that this object has been deallocated.
linkId | the ID of the given link |
Definition at line 2265 of file ap-wifi-mac.cc.
References GetLink(), and ns3::ApWifiMac::ApLinkEntity::staList.
Referenced by MultiLinkSetupTest::CheckMlSetup(), TestMultiUserScheduler::ComputeWifiTxVector(), ns3::MultiUserScheduler::GetTriggerFrame(), ns3::HeFrameExchangeManager::RecordSentMuRtsTo(), TestMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().
|
private |
Return an instance of SupportedRates that contains all rates that we support for the given link (including HT rates).
linkId | the ID of the given link |
Definition at line 428 of file ap-wifi-mac.cc.
References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::AllSupportedRates::AddBssMembershipSelectorRate(), ns3::AllSupportedRates::AddSupportedRate(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetHtSupported(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiMode::GetUniqueName(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::AllSupportedRates::SetBasicRate(), and ns3::WIFI_MOD_CLASS_HR_DSSS.
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
|
overridevirtual |
Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise.
ac | the given Access Category |
Reimplemented from ns3::WifiMac.
Definition at line 170 of file ap-wifi-mac.cc.
References ns3::AC_BEACON, ns3::WifiMac::GetTxopQueue(), ns3::Txop::GetWifiMacQueue(), and m_beaconTxop.
Referenced by MultiLinkMuTxTest::CheckBlockAck().
|
static |
Get the type ID.
Definition at line 57 of file ap-wifi-mac.cc.
References GetBeaconInterval(), m_assocLogger, m_beaconJitter, m_bsrLifetime, m_deAssocLogger, m_enableBeaconJitter, m_enableNonErpProtection, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MicroSeconds(), ns3::MilliSeconds(), SetBeaconGeneration(), SetBeaconInterval(), and ns3::TypeId::SetParent().
|
private |
Return whether protection for non-ERP stations is used in the BSS corresponding to the given link.
linkId | the ID of the given link |
Definition at line 2239 of file ap-wifi-mac.cc.
References GetLink(), ns3::WifiMac::GetWifiRemoteStationManager(), m_enableNonErpProtection, ns3::ApWifiMac::ApLinkEntity::numNonErpStations, and ns3::WifiRemoteStationManager::SetUseNonErpProtection().
Referenced by GetErpInformation().
|
private |
Return the VHT operation of the current AP for the given link.
linkId | the ID of the given link |
Definition at line 826 of file ap-wifi-mac.cc.
References GetLink(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_ASSERT, NS_LOG_FUNCTION, ns3::VhtOperation::SetChannelCenterFrequencySegment0(), ns3::VhtOperation::SetChannelCenterFrequencySegment1(), ns3::VhtOperation::SetChannelWidth(), and ns3::VhtOperation::SetMaxVhtMcsPerNss().
Referenced by GetAssocResp(), SendOneBeacon(), and SendProbeResp().
std::optional< uint8_t > ns3::ApWifiMac::IsAssociated | ( | const Mac48Address & | address | ) | const |
Get the ID of a link (if any) that has been setup with the station having the given MAC address.
The address can be either a link address or an MLD address. In the former case, the returned ID is the ID of the link connecting the AP to the STA with the given address.
address | the given MAC address |
Definition at line 1582 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiRemoteStationManager::IsAssociated(), and NS_LOG_DEBUG.
Referenced by CanForwardPacketsTo(), DeaggregateAmsduAndForward(), DoGetLocalAddress(), ForwardDown(), ns3::MultiUserScheduler::GetDlMuInfo(), ns3::RrMultiUserScheduler::NotifyStationDeassociated(), Receive(), and StaSwitchingToActiveModeOrDeassociated().
|
private |
Given a (Re)Association Request frame body containing a Multi-Link Element, check if a link can be setup with each of the reported stations (STA MAC address and a (Re)Association Request frame body must be present, the Link ID identifies a valid link other than the one the frame was received on and the supported rates are compatible with our basic rate set).
assoc | the frame body of the received (Re)Association Request |
from | the Transmitter Address field of the frame |
linkId | the ID of the link on which the frame was received |
Definition at line 1985 of file ap-wifi-mac.cc.
References ns3::WifiRemoteStationManager::AddStationEmlCapabilities(), ns3::CommonInfoBasicMle::EncodeEmlsrPaddingDelay(), ns3::CommonInfoBasicMle::EncodeEmlsrTransitionDelay(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ReceiveAssocRequest(), and ns3::WifiRemoteStationManager::SetMldAddress().
Referenced by Receive().
|
private |
Process the Power Management bit in the Frame Control field of an MPDU successfully received on the given link.
mpdu | the successfully received MPDU |
linkId | the ID of the given link |
Definition at line 1532 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiRemoteStationManager::IsInPsMode(), NS_LOG_FUNCTION, StaSwitchingToActiveModeOrDeassociated(), and StaSwitchingToPsMode().
Referenced by Receive().
This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.
The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.
This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.
The given link may be undefined in some cases (e.g., in case of QoS Data frames received in the context of a Block Ack agreement – because the BlockAckManager does not have to record the link each buffered MPDU has been received on); in such a cases, the value of linkId should be WIFI_LINKID_UNDEFINED.
mpdu | the MPDU that has been received. |
linkId | the ID of the given link |
Reimplemented from ns3::WifiMac.
Definition at line 1615 of file ap-wifi-mac.cc.
References DeaggregateAmsduAndForward(), ForwardDown(), ns3::WifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetDsssSupported(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetHtSupported(), GetLink(), ns3::WifiMac::GetNLinks(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMac::GetSsid(), ns3::WifiMacHeader::GetType(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::HasData(), IsAssociated(), ns3::WifiMacHeader::IsAssocReq(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsFromDs(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), ns3::WifiMacHeader::IsProbeReq(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsReassocReq(), ns3::WifiMacHeader::IsToDs(), m_deAssocLogger, ns3::WifiMac::NotifyRxDrop(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ApWifiMac::ApLinkEntity::numNonErpStations, ns3::ApWifiMac::ApLinkEntity::numNonHtStations, ParseReportedStaInfo(), ProcessPowerManagementFlag(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, ns3::WifiMac::Receive(), ReceiveAssocRequest(), ReceiveEmlNotification(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiActionHeader::Remove(), SendAssocResp(), SendProbeResp(), ns3::ApWifiMac::ApLinkEntity::staList, StaSwitchingToActiveModeOrDeassociated(), UpdateShortPreambleEnabled(), UpdateShortSlotTimeEnabled(), ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_DISASSOCIATION, and ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST.
|
private |
Check whether the supported rate set included in the received (Re)Association Request frame is compatible with our Basic Rate Set.
If so, record all the station's supported modes in its associated WifiRemoteStation and return true. Otherwise, return false.
assoc | the frame body of the received (Re)Association Request |
from | the Transmitter Address field of the frame |
linkId | the ID of the link on which the frame was received |
Definition at line 1814 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetEhtSupported(), ns3::WifiMac::GetErpSupported(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtSupported(), ns3::WifiMode::GetMcsValue(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::CapabilityInformation::IsShortPreamble(), ns3::CapabilityInformation::IsShortSlotTime(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_MOD_CLASS_VHT.
Referenced by ParseReportedStaInfo(), and Receive().
|
private |
Take necessary actions upon receiving the given EML Operating Mode Notification frame from the given station on the given link.
frame | the received EML Operating Mode Notification frame |
sender | the MAC address of the sender of the frame |
linkId | the ID of the link over which the frame was received |
After the successful transmission of the EML Operating Mode Notification frame by the non-AP STA affiliated with the non-AP MLD, the non-AP MLD shall operate in the EMLSR mode and the other non-AP STAs operating on the corresponding EMLSR links shall transition to active mode after the transition delay indicated in the Transition Timeout subfield in the EML Capabilities subfield of the Basic Multi-Link element or immediately after receiving an EML Operating Mode Notification frame from one of the APs operating on the EMLSR links and affiliated with the AP MLD (Sec. 35.3.17 of 802.11be D3.0)
After the successful transmission of the EML Operating Mode Notification frame by the non-AP STA affiliated with the non-AP MLD, the non-AP MLD shall disable the EMLSR mode and the other non-AP STAs operating on the corresponding EMLSR links shall transition to power save mode after the transition delay indicated in the Transition Timeout subfield in the EML Capabilities subfield of the Basic Multi-Link element or immediately after receiving an EML Operating Mode Notification frame from one of the APs operating on the EMLSR links and affiliated with the AP MLD. (Sec. 35.3.17 of 802.11be D3.0)
Definition at line 2047 of file ap-wifi-mac.cc.
References ns3::WifiPhy::CalculateTxDuration(), ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrParamUpdateCtrl, ns3::BooleanValue::Get(), ns3::TimeValue::Get(), ns3::WifiMac::GetEhtConfiguration(), GetLink(), ns3::MgtEmlOperatingModeNotification::GetLinkBitmap(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiRemoteStationManager::GetStationEmlCapabilities(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::MgtEmlOperatingModeNotification::m_emlControl, ns3::MgtEmlOperatingModeNotification::m_emlsrParamUpdate, m_transitionTimeoutEvents, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().
Referenced by Receive().
|
private |
Forward an association or a reassociation response packet to the DCF/EDCA.
to | the address of the STA we are sending an association response to |
isReassoc | indicates whether it is a reassociation response |
linkId | the ID of the link on which the association response must be sent |
Definition at line 1264 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetAddress(), GetAssocResp(), ns3::WifiMac::GetBEQueue(), ns3::WifiMac::GetFrameExchangeManager(), GetLinkIdStaAddrMap(), ns3::WifiMac::GetMldAddress(), GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetTxop(), ns3::WifiMacHeader::GetType(), ns3::WifiMac::GetVOQueue(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_LOG_FUNCTION, ns3::Txop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), SetAid(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, and ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE.
Referenced by Receive().
|
private |
Forward a beacon packet to the beacon special DCF for transmission on the given link.
linkId | the ID of the given link |
Definition at line 1317 of file ap-wifi-mac.cc.
References ns3::MgtProbeResponseHeader::Capabilities(), GetBeaconInterval(), ns3::Mac48Address::GetBroadcast(), GetCapabilities(), GetDsssParameterSet(), ns3::WifiMac::GetDsssSupported(), GetEdcaParameterSet(), ns3::WifiMac::GetEhtCapabilities(), GetEhtOperation(), ns3::WifiMac::GetEhtSupported(), GetErpInformation(), ns3::WifiMac::GetErpSupported(), ns3::WifiMac::GetExtendedCapabilities(), ns3::WifiMac::GetHeCapabilities(), GetHeOperation(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), GetHtOperation(), ns3::WifiMac::GetHtSupported(), GetLink(), ns3::Time::GetMicroSeconds(), GetMuEdcaParameterSet(), GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosSupported(), GetReducedNeighborReport(), ns3::WifiMac::GetSsid(), GetSupportedRates(), ns3::WifiMac::GetVhtCapabilities(), GetVhtOperation(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), m_beaconTxop, ns3::MicroSeconds(), NS_LOG_FUNCTION, ns3::Txop::Queue(), ns3::Simulator::Schedule(), SendOneBeacon(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtProbeResponseHeader::SetBeaconIntervalUs(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiRemoteStationManager::SetShortPreambleEnabled(), ns3::WifiRemoteStationManager::SetShortSlotTimeEnabled(), ns3::WifiPhy::SetSlot(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_MGT_BEACON.
Referenced by DoInitialize(), SendOneBeacon(), and SetBeaconGeneration().
|
private |
Send a Probe Response in response to a Probe Request received from the STA with the given address on the given link.
to | the address of the STA we are sending a probe response to |
linkId | the ID of the given link |
Definition at line 929 of file ap-wifi-mac.cc.
References ns3::MgtProbeResponseHeader::Capabilities(), GetBeaconInterval(), ns3::WifiMac::GetBEQueue(), GetCapabilities(), GetDsssParameterSet(), ns3::WifiMac::GetDsssSupported(), GetEdcaParameterSet(), ns3::WifiMac::GetEhtCapabilities(), GetEhtOperation(), ns3::WifiMac::GetEhtSupported(), GetErpInformation(), ns3::WifiMac::GetErpSupported(), ns3::WifiMac::GetExtendedCapabilities(), ns3::WifiMac::GetHeCapabilities(), GetHeOperation(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), GetHtOperation(), ns3::WifiMac::GetHtSupported(), GetLink(), ns3::Time::GetMicroSeconds(), GetMuEdcaParameterSet(), GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosSupported(), GetReducedNeighborReport(), ns3::WifiMac::GetSsid(), GetSupportedRates(), ns3::WifiMac::GetTxop(), ns3::WifiMac::GetVhtCapabilities(), GetVhtOperation(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetVOQueue(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_LOG_FUNCTION, ns3::Txop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtProbeResponseHeader::SetBeaconIntervalUs(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiRemoteStationManager::SetShortPreambleEnabled(), ns3::WifiRemoteStationManager::SetShortSlotTimeEnabled(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_MGT_PROBE_RESPONSE.
Referenced by Receive().
|
private |
Set the AID field of the given Association Response frame.
In case of multi-link setup, the selected AID value must be assigned to all the STAs corresponding to the setup links. The AID value is selected among the AID values that are possibly already assigned to the STAs affiliated with the non-AP MLD we are associating with. If no STA has an assigned AID value, a new AID value is selected.
assoc | the given Association Response frame |
linkIdStaAddrMap | a map of (link ID, remote STA address) of the links to setup |
Definition at line 1131 of file ap-wifi-mac.cc.
References GetLink(), ns3::WifiRemoteStationManager::GetMldAddress(), GetNextAssociationId(), ns3::MgtAssocResponseHeader::GetStatusCode(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::StatusCode::IsSuccess(), m_aidToMldOrLinkAddress, m_assocLogger, ns3::MgtAssocResponseHeader::SetAssociationId(), UpdateShortPreambleEnabled(), and UpdateShortSlotTimeEnabled().
Referenced by SendAssocResp().
|
private |
Enable or disable beacon generation of the AP.
enable | enable or disable beacon generation |
Definition at line 180 of file ap-wifi-mac.cc.
References ns3::ApWifiMac::ApLinkEntity::beaconEvent, ns3::EventId::Cancel(), GetLink(), ns3::WifiMac::GetNLinks(), m_enableBeaconGeneration, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendOneBeacon().
Referenced by GetTypeId().
void ns3::ApWifiMac::SetBeaconInterval | ( | Time | interval | ) |
interval | the interval between two beacon transmissions. |
Definition at line 218 of file ap-wifi-mac.cc.
References ns3::Time::GetMicroSeconds(), m_beaconInterval, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by WifiPrimaryChannelsTest::DoRun(), and GetTypeId().
void ns3::ApWifiMac::SetBufferStatus | ( | uint8_t | tid, |
Mac48Address | address, | ||
uint8_t | size | ||
) |
Store the value of the Queue Size subfield of the last QoS Data or QoS Null frame received from the station with the given MAC address and belonging to the given TID.
tid | the given TID |
address | the given MAC address |
size | the value of the Queue Size subfield |
Definition at line 2288 of file ap-wifi-mac.cc.
References m_bufferStatus, and ns3::Simulator::Now().
|
overridevirtual |
linkUp | the callback to invoke when the link becomes up. |
Reimplemented from ns3::WifiMac.
Definition at line 206 of file ap-wifi-mac.cc.
References NS_LOG_FUNCTION, and ns3::WifiMac::SetLinkUpCallback().
|
private |
Perform the necessary actions when a given station deassociates or switches from powersave mode to active mode.
staAddr | the MAC address of the given station |
linkId | the ID of the link on which the given station is operating |
Definition at line 1565 of file ap-wifi-mac.cc.
References ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetWifiRemoteStationManager(), IsAssociated(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::POWER_SAVE_MODE, ns3::WifiRemoteStationManager::SetPsMode(), and ns3::WifiMac::UnblockUnicastTxOnLinks().
Referenced by ProcessPowerManagementFlag(), and Receive().
|
private |
Perform the necessary actions when a given station switches from active mode to powersave mode.
staAddr | the MAC address of the given station |
linkId | the ID of the link on which the given station is operating |
Definition at line 1552 of file ap-wifi-mac.cc.
References ns3::WifiMac::BlockUnicastTxOnLinks(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetWifiRemoteStationManager(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::POWER_SAVE_MODE, and ns3::WifiRemoteStationManager::SetPsMode().
Referenced by ProcessPowerManagementFlag(), and TxOk().
|
overridevirtual |
The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.
Reimplemented from ns3::WifiMac.
Definition at line 421 of file ap-wifi-mac.cc.
References NS_LOG_FUNCTION.
|
private |
The packet we sent was successfully received by the receiver (i.e.
we did not receive an Ack from the receiver). If the packet was an association response to the receiver, we record that the receiver is not associated with us yet.
timeoutReason | the reason why the TX timer was started ( |
mpdu | the MPDU that we failed to sent |
Definition at line 1493 of file ap-wifi-mac.cc.
References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetLinkIdByAddress(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiMacHeader::IsReassocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::RecordGotAssocTxFailed().
Referenced by DoInitialize().
The packet we sent was successfully received by the receiver (i.e.
we received an Ack from the receiver). If the packet was an association response to the receiver, we record that the receiver is now associated with us.
mpdu | the MPDU that we successfully sent |
The STA is affiliated with an MLD. From Sec. 35.3.7.1.4 of 802.11be D3.0: When a link becomes enabled for a non-AP STA that is affiliated with a non-AP MLD after successful association with an AP MLD with (Re)Association Request/Response frames transmitted on another link [...], the power management mode of the non-AP STA, immediately after the acknowledgement of the (Re)Association Response frame [...], is power save mode, and its power state is doze.
Thus, STAs operating on all the links but the link used to establish association transition to power save mode.
Definition at line 1425 of file ap-wifi-mac.cc.
References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetLinkIdByAddress(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::IsAction(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiMacHeader::IsReassocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), m_transitionTimeoutEvents, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiActionHeader::Peek(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, ns3::WifiRemoteStationManager::RecordGotAssocTxOk(), and StaSwitchingToPsMode().
Referenced by DoInitialize().
|
private |
Update whether short preamble should be enabled or not in the BSS corresponding to the given link.
Typically, short preamble is enabled only when the AP and all associated stations support short PHY preamble. Otherwise, it is disabled.
linkId | the ID of the given link |
Definition at line 266 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetErpSupported(), GetLink(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), and NS_LOG_FUNCTION.
Referenced by DoInitialize(), Receive(), and SetAid().
|
private |
Update whether short slot time should be enabled or not in the BSS corresponding to the given link.
Typically, short slot time is enabled only when there is no non-ERP station associated to the AP, and that short slot time is supported by the AP and by all other ERP stations that are associated to the AP. Otherwise, it is disabled.
linkId | the ID of the given link |
Definition at line 243 of file ap-wifi-mac.cc.
References ns3::WifiMac::GetErpSupported(), GetLink(), ns3::WifiMac::GetShortSlotTimeSupported(), ns3::WifiMac::GetWifiRemoteStationManager(), and NS_LOG_FUNCTION.
Referenced by DoInitialize(), Receive(), and SetAid().
|
protected |
Maps AIDs to MLD addresses (for MLDs) or link addresses (in case of single link devices)
Definition at line 205 of file ap-wifi-mac.h.
Referenced by GetMldOrLinkAddressByAid(), and SetAid().
|
private |
association logger
Definition at line 551 of file ap-wifi-mac.h.
Referenced by GetTypeId(), and SetAid().
|
private |
Beacon interval.
Definition at line 523 of file ap-wifi-mac.h.
Referenced by GetBeaconInterval(), and SetBeaconInterval().
|
private |
UniformRandomVariable used to randomize the time of the first beacon.
Definition at line 525 of file ap-wifi-mac.h.
Referenced by AssignStreams(), DoInitialize(), and GetTypeId().
Dedicated Txop for beacons.
Definition at line 521 of file ap-wifi-mac.h.
Referenced by ApWifiMac(), ConfigureStandard(), DoDispose(), DoInitialize(), GetTxopQueue(), and SendOneBeacon().
|
private |
Lifetime of Buffer Status Reports.
Definition at line 529 of file ap-wifi-mac.h.
Referenced by GetBufferStatus(), and GetTypeId().
|
private |
Per (MAC address, TID) buffer status reports.
Definition at line 541 of file ap-wifi-mac.h.
Referenced by GetBufferStatus(), and SetBufferStatus().
|
private |
deassociation logger
Definition at line 552 of file ap-wifi-mac.h.
Referenced by GetTypeId(), and Receive().
|
private |
Flag whether beacons are being generated.
Definition at line 522 of file ap-wifi-mac.h.
Referenced by DoDispose(), DoInitialize(), and SetBeaconGeneration().
|
private |
Flag whether the first beacon should be generated at random time.
Definition at line 526 of file ap-wifi-mac.h.
Referenced by DoInitialize(), and GetTypeId().
|
private |
Flag whether protection mechanism is used or not when non-ERP STAs are present within the BSS.
Definition at line 527 of file ap-wifi-mac.h.
Referenced by GetTypeId(), and GetUseNonErpProtection().
|
private |
transition timeout events running for EMLSR clients
Definition at line 531 of file ap-wifi-mac.h.
Referenced by ReceiveEmlNotification(), and TxOk().
