The Multi-Link element. More...
#include "multi-link-element.h"
Classes | |
class | PerStaProfileSubelement |
Per-STA Profile Subelement of Multi-Link element. More... | |
Public Types | |
using | ContainingFrame = std::variant< std::monostate, std::reference_wrapper< const MgtAssocRequestHeader >, std::reference_wrapper< const MgtReassocRequestHeader >, std::reference_wrapper< const MgtAssocResponseHeader > > |
Typedef for structure holding a reference to the containing frame. | |
enum | SubElementId : uint8_t { PER_STA_PROFILE_SUBELEMENT_ID = 0 } |
SubElement IDs. More... | |
enum | Variant : uint8_t { BASIC_VARIANT = 0 , UNSET } |
Multi-Link element variants. More... | |
Public Member Functions | |
MultiLinkElement (ContainingFrame frame={}) | |
Construct a Multi-Link Element with no variant set. | |
MultiLinkElement (Variant variant, ContainingFrame frame={}) | |
Constructor. | |
void | AddPerStaProfileSubelement () |
Add a Per-STA Profile Subelement in the Link Info field. | |
uint16_t | DeserializeInformationField (Buffer::Iterator start, uint16_t length) override |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) | |
WifiInformationElementId | ElementId () const override |
Get the wifi information element ID. | |
WifiInformationElementId | ElementIdExt () const override |
Get the wifi information element ID extension. | |
uint8_t | GetBssParamsChangeCount () const |
Return the BSS Parameters Change Count subfield in the Common Info field. | |
Time | GetEmlsrPaddingDelay () const |
Get the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field. | |
Time | GetEmlsrTransitionDelay () const |
Get the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field. | |
uint16_t | GetInformationFieldSize () const override |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. | |
uint8_t | GetLinkIdInfo () const |
Return the Link ID Info subfield in the Common Info field. | |
Time | GetMediumSyncDelayTimer () const |
Get the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field. | |
uint8_t | GetMediumSyncMaxNTxops () const |
Get the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA. | |
int8_t | GetMediumSyncOfdmEdThreshold () const |
Get the Medium Synchronization OFDM ED Threshold in dBm. | |
Mac48Address | GetMldMacAddress () const |
Return the MLD MAC Address subfield in the Common Info field. | |
std::size_t | GetNPerStaProfileSubelements () const |
Return the number of Per-STA Profile Subelement in the Link Info field. | |
PerStaProfileSubelement & | GetPerStaProfile (std::size_t i) |
Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. | |
const PerStaProfileSubelement & | GetPerStaProfile (std::size_t i) const |
Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. | |
Time | GetTransitionTimeout () const |
Get the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field. | |
Variant | GetVariant () const |
Get the Multi-Link element variant. | |
bool | HasBssParamsChangeCount () const |
Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise. | |
bool | HasEmlCapabilities () const |
Return true if the EML Capabilities subfield in the Common Info field is present and false otherwise. | |
bool | HasLinkIdInfo () const |
Return true if the Link ID Info subfield in the Common Info field is present and false otherwise. | |
bool | HasMediumSyncDelayInfo () const |
Return true if the Medium Synchronization Delay Information subfield in the Common Info field is present and false otherwise. | |
bool | IsEmlsrSupported () const |
Return true if the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field is set to 1 and false otherwise. | |
void | SerializeInformationField (Buffer::Iterator start) const override |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets) | |
void | SetBssParamsChangeCount (uint8_t count) |
Set the BSS Parameters Change Count subfield in the Common Info field. | |
void | SetEmlsrPaddingDelay (Time delay) |
Set the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field. | |
void | SetEmlsrSupported (bool supported) |
Set the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field to 1 if EMLSR mode is supported and set it to 0 otherwise. | |
void | SetEmlsrTransitionDelay (Time delay) |
Set the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field. | |
void | SetLinkIdInfo (uint8_t linkIdInfo) |
Set the Link ID Info subfield in the Common Info field. | |
void | SetMediumSyncDelayTimer (Time delay) |
Set the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field. | |
void | SetMediumSyncMaxNTxops (uint8_t nTxops) |
Set the Medium Synchronization Maximum Number of TXOPs subfield of the Medium Synchronization Delay information in the Common Info field. | |
void | SetMediumSyncOfdmEdThreshold (int8_t threshold) |
Set the Medium Synchronization OFDM ED Threshold subfield of the Medium Synchronization Delay information in the Common Info field. | |
void | SetMldMacAddress (Mac48Address address) |
Set the MLD MAC Address subfield in the Common Info field. | |

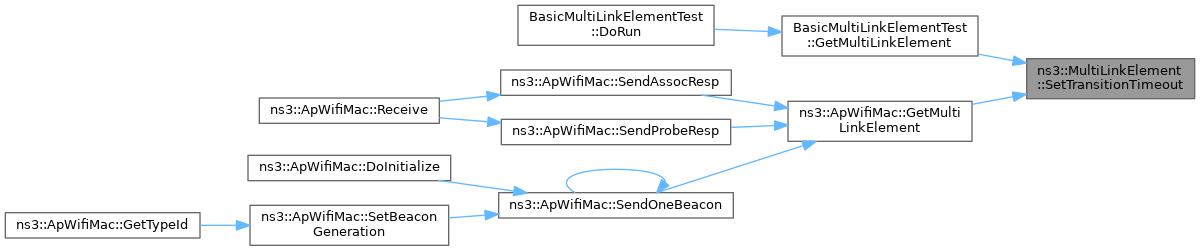

void | SetTransitionTimeout (Time timeout) |
Set the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field. | |
![]() | |
virtual | ~WifiInformationElement () |
Buffer::Iterator | Deserialize (Buffer::Iterator i) |
Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. | |
Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. | |
virtual WifiInformationElementId | ElementId () const =0 |
Get the wifi information element ID. | |
virtual WifiInformationElementId | ElementIdExt () const |
Get the wifi information element ID extension. | |
uint16_t | GetSerializedSize () const |
Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). | |
virtual bool | operator== (const WifiInformationElement &a) const |
Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. | |
virtual void | Print (std::ostream &os) const |
Generate human-readable form of IE. | |
Buffer::Iterator | Serialize (Buffer::Iterator i) const |
Serialize entire IE including Element ID and length fields. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Attributes | |
ContainingFrame | m_containingFrame |
reference to the mgt frame containing this MLE | |
Private Types | |
using | CommonInfo = std::variant< CommonInfoBasicMle, std::monostate > |
Typedef for structure holding a Common Info field. | |
Private Member Functions | |
void | SetVariant (Variant variant) |
Set the variant of this Multi-Link Element. | |
Private Attributes | |
CommonInfo | m_commonInfo |
Common Info field. | |
std::vector< PerStaProfileSubelement > | m_perStaProfileSubelements |
Per-STA Profile Subelements. | |
The Multi-Link element.
The 802.11be Multi-Link element (see Sec.9.4.2.312 of 802.11be D1.5)
TODO:
Definition at line 156 of file multi-link-element.h.
|
private |
Typedef for structure holding a Common Info field.
Definition at line 614 of file multi-link-element.h.
using ns3::MultiLinkElement::ContainingFrame = std::variant<std::monostate, std::reference_wrapper<const MgtAssocRequestHeader>, std::reference_wrapper<const MgtReassocRequestHeader>, std::reference_wrapper<const MgtAssocResponseHeader> > |
Typedef for structure holding a reference to the containing frame.
Definition at line 188 of file multi-link-element.h.
ns3::MultiLinkElement::MultiLinkElement | ( | ContainingFrame | frame = {} | ) |
Construct a Multi-Link Element with no variant set.
frame | the management frame containing this Multi-Link Element |
Definition at line 225 of file multi-link-element.cc.
ns3::MultiLinkElement::MultiLinkElement | ( | Variant | variant, |
ContainingFrame | frame = {} |
||
) |
Constructor.
variant | the Multi-Link element variant (cannot be UNSET) |
frame | the management frame containing this Multi-Link Element |
Definition at line 231 of file multi-link-element.cc.
References NS_ASSERT, SetVariant(), and UNSET.

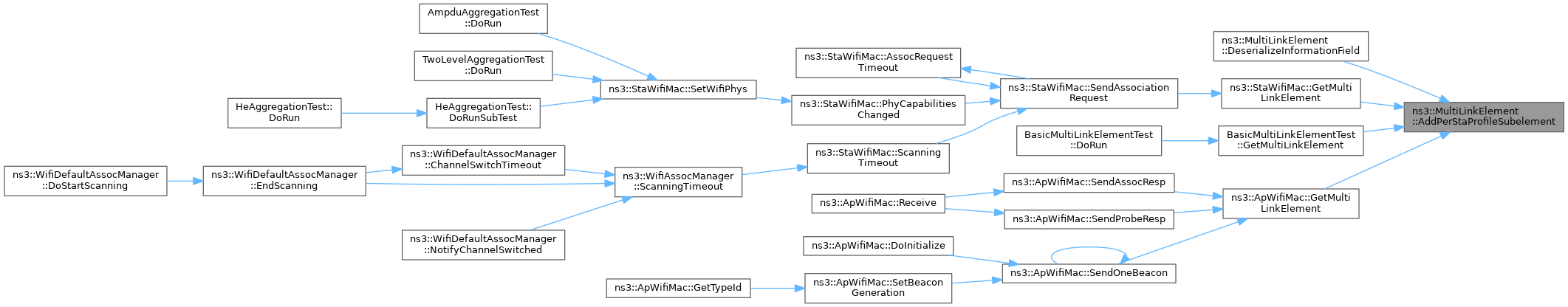

void ns3::MultiLinkElement::AddPerStaProfileSubelement | ( | ) |
Add a Per-STA Profile Subelement in the Link Info field.
Definition at line 795 of file multi-link-element.cc.
References GetVariant(), m_perStaProfileSubelements, NS_ABORT_IF, and UNSET.
Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
|
overridevirtual |

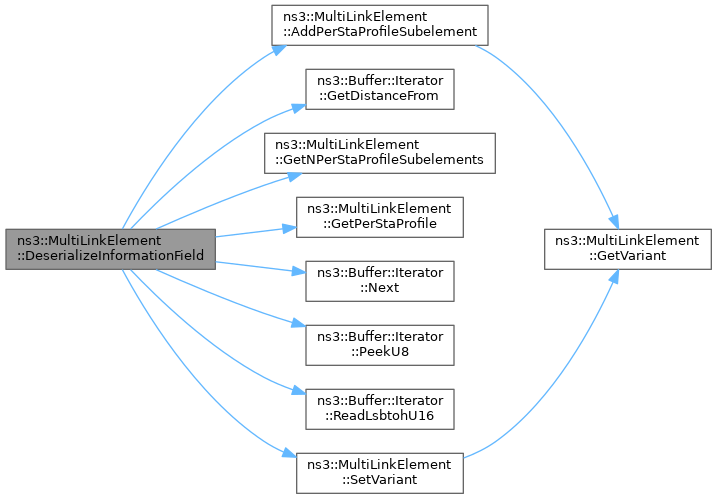

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
length | the expected number of bytes to read |
Implements ns3::WifiInformationElement.
Definition at line 878 of file multi-link-element.cc.
References AddPerStaProfileSubelement(), ns3::Buffer::Iterator::GetDistanceFrom(), GetNPerStaProfileSubelements(), GetPerStaProfile(), m_commonInfo, m_containingFrame, ns3::Buffer::Iterator::Next(), NS_ABORT_MSG, ns3::Buffer::Iterator::PeekU8(), PER_STA_PROFILE_SUBELEMENT_ID, ns3::Buffer::Iterator::ReadLsbtohU16(), and SetVariant().
|
overridevirtual |
Get the wifi information element ID.
Implements ns3::WifiInformationElement.
Definition at line 239 of file multi-link-element.cc.
References IE_EXTENSION.
|
overridevirtual |
Get the wifi information element ID extension.
Reimplemented from ns3::WifiInformationElement.
Definition at line 245 of file multi-link-element.cc.
References IE_EXT_MULTI_LINK_ELEMENT.
uint8_t ns3::MultiLinkElement::GetBssParamsChangeCount | ( | ) | const |
Return the BSS Parameters Change Count subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the BSS Parameters Change Count subfield is present.
Definition at line 315 of file multi-link-element.cc.
References m_commonInfo.
Time ns3::MultiLinkElement::GetEmlsrPaddingDelay | ( | ) | const |
Get the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.
Definition at line 470 of file multi-link-element.cc.
References ns3::CommonInfoBasicMle::DecodeEmlsrPaddingDelay(), m_commonInfo, and NS_ASSERT.

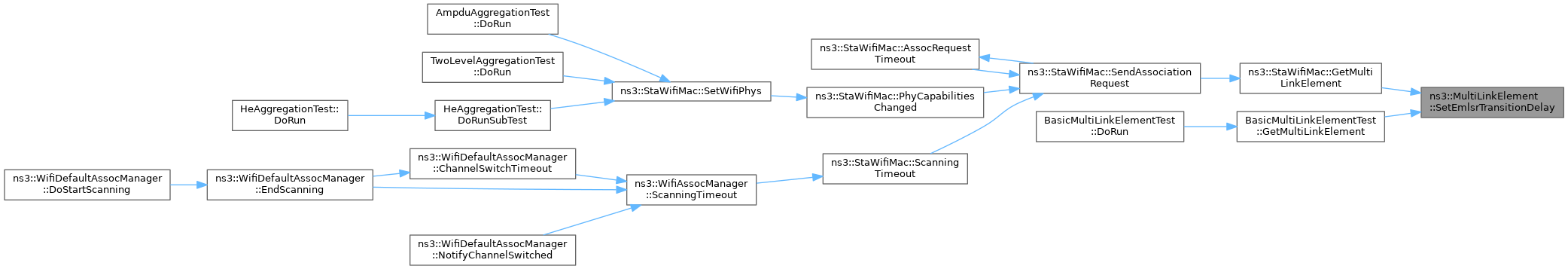

Time ns3::MultiLinkElement::GetEmlsrTransitionDelay | ( | ) | const |
Get the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.
Definition at line 478 of file multi-link-element.cc.
References ns3::CommonInfoBasicMle::DecodeEmlsrTransitionDelay(), m_commonInfo, and NS_ASSERT.
|
overridevirtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)
Implements ns3::WifiInformationElement.
Definition at line 821 of file multi-link-element.cc.
References m_commonInfo, m_containingFrame, m_perStaProfileSubelements, and NS_ABORT_MSG.
uint8_t ns3::MultiLinkElement::GetLinkIdInfo | ( | ) | const |
Return the Link ID Info subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the Link ID Info subfield is present.
Definition at line 297 of file multi-link-element.cc.
References m_commonInfo.
Time ns3::MultiLinkElement::GetMediumSyncDelayTimer | ( | ) | const |
Get the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.
Definition at line 336 of file multi-link-element.cc.
References m_commonInfo, and ns3::MicroSeconds().
uint8_t ns3::MultiLinkElement::GetMediumSyncMaxNTxops | ( | ) | const |
Get the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA.
Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.
Definition at line 381 of file multi-link-element.cc.
References m_commonInfo.
int8_t ns3::MultiLinkElement::GetMediumSyncOfdmEdThreshold | ( | ) | const |
Get the Medium Synchronization OFDM ED Threshold in dBm.
Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.
Definition at line 358 of file multi-link-element.cc.
References m_commonInfo.

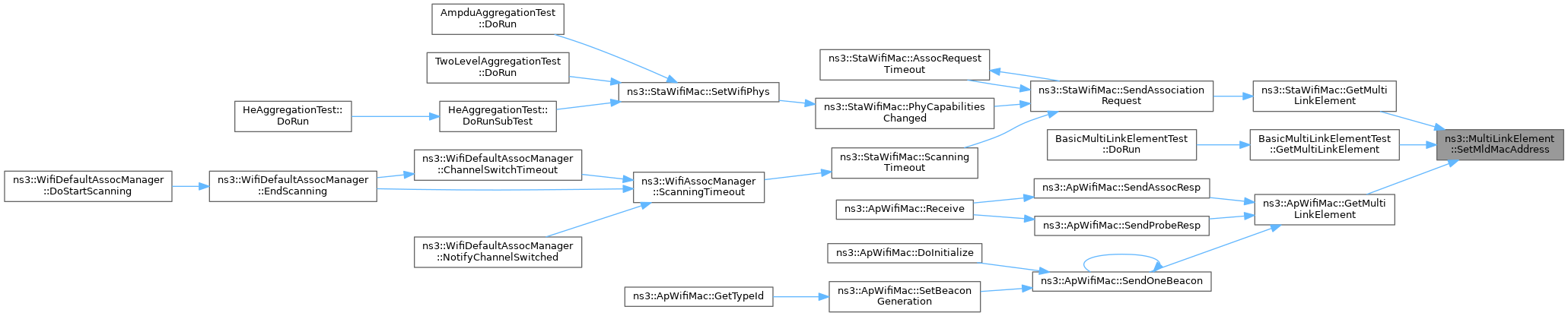

Mac48Address ns3::MultiLinkElement::GetMldMacAddress | ( | ) | const |
Return the MLD MAC Address subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
Definition at line 279 of file multi-link-element.cc.
References m_commonInfo.

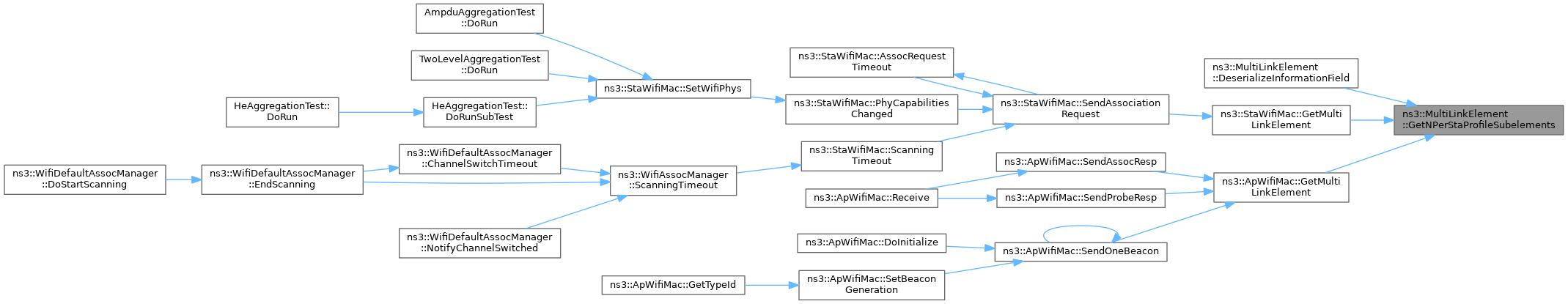

std::size_t ns3::MultiLinkElement::GetNPerStaProfileSubelements | ( | ) | const |
Return the number of Per-STA Profile Subelement in the Link Info field.
Definition at line 803 of file multi-link-element.cc.
References m_perStaProfileSubelements.
Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile | ( | std::size_t | i | ) |
Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.
i | the index of the Per-STA Profile Subelement in the Link Info field |
Definition at line 809 of file multi-link-element.cc.
References m_perStaProfileSubelements.
Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
const MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile | ( | std::size_t | i | ) | const |
Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.
i | the index of the Per-STA Profile Subelement in the Link Info field |
Definition at line 815 of file multi-link-element.cc.
References m_perStaProfileSubelements.
Time ns3::MultiLinkElement::GetTransitionTimeout | ( | ) | const |
Get the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.
Definition at line 486 of file multi-link-element.cc.
References m_commonInfo, ns3::MicroSeconds(), and NS_ASSERT.

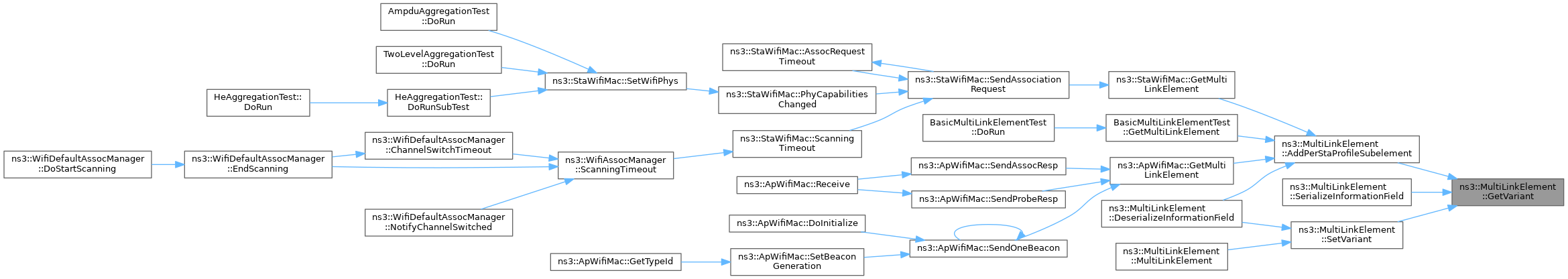

MultiLinkElement::Variant ns3::MultiLinkElement::GetVariant | ( | ) | const |
Get the Multi-Link element variant.
Definition at line 251 of file multi-link-element.cc.
References m_commonInfo.
Referenced by AddPerStaProfileSubelement(), SerializeInformationField(), and SetVariant().
bool ns3::MultiLinkElement::HasBssParamsChangeCount | ( | ) | const |
Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise.
Make sure that this is a Basic Multi-Link Element.
Definition at line 309 of file multi-link-element.cc.
References m_commonInfo.
bool ns3::MultiLinkElement::HasEmlCapabilities | ( | ) | const |
Return true if the EML Capabilities subfield in the Common Info field is present and false otherwise.
Make sure that this is a Basic Multi-Link Element.
Definition at line 458 of file multi-link-element.cc.
References m_commonInfo.
bool ns3::MultiLinkElement::HasLinkIdInfo | ( | ) | const |
Return true if the Link ID Info subfield in the Common Info field is present and false otherwise.
Make sure that this is a Basic Multi-Link Element.
Definition at line 291 of file multi-link-element.cc.
References m_commonInfo.
bool ns3::MultiLinkElement::HasMediumSyncDelayInfo | ( | ) | const |
Return true if the Medium Synchronization Delay Information subfield in the Common Info field is present and false otherwise.
Make sure that this is a Basic Multi-Link Element.
Definition at line 390 of file multi-link-element.cc.
References m_commonInfo.
bool ns3::MultiLinkElement::IsEmlsrSupported | ( | ) | const |
Return true if the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field is set to 1 and false otherwise.
Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.
Definition at line 464 of file multi-link-element.cc.
References m_commonInfo.
|
overridevirtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 851 of file multi-link-element.cc.
References GetVariant(), m_commonInfo, m_perStaProfileSubelements, and NS_ABORT_MSG.

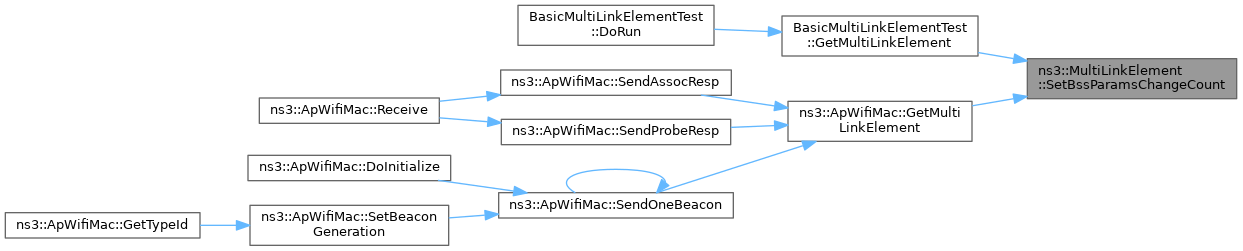

void ns3::MultiLinkElement::SetBssParamsChangeCount | ( | uint8_t | count | ) |
Set the BSS Parameters Change Count subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
count | the BSS Parameters Change Count |
Definition at line 303 of file multi-link-element.cc.
References m_commonInfo.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
void ns3::MultiLinkElement::SetEmlsrPaddingDelay | ( | Time | delay | ) |
Set the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
delay | the EMLSR Padding delay (0us, 32us, 64us, 128us or 256us) |
Definition at line 407 of file multi-link-element.cc.
References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrPaddingDelay, ns3::CommonInfoBasicMle::EncodeEmlsrPaddingDelay(), and m_commonInfo.
Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and BasicMultiLinkElementTest::GetMultiLinkElement().
void ns3::MultiLinkElement::SetEmlsrSupported | ( | bool | supported | ) |
Set the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field to 1 if EMLSR mode is supported and set it to 0 otherwise.
Make sure that this is a Basic Multi-Link Element.
supported | whether EMLSR mode is supported |
Definition at line 396 of file multi-link-element.cc.
References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrSupport, and m_commonInfo.
Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
void ns3::MultiLinkElement::SetEmlsrTransitionDelay | ( | Time | delay | ) |
Set the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
delay | the EMLSR Transition delay (0us, 16us, 32us, 64us, 128us or 256us) |
Definition at line 418 of file multi-link-element.cc.
References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrTransitionDelay, ns3::CommonInfoBasicMle::EncodeEmlsrTransitionDelay(), and m_commonInfo.
Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and BasicMultiLinkElementTest::GetMultiLinkElement().
void ns3::MultiLinkElement::SetLinkIdInfo | ( | uint8_t | linkIdInfo | ) |
Set the Link ID Info subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
linkIdInfo | the link ID information |
Definition at line 285 of file multi-link-element.cc.
References m_commonInfo.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
void ns3::MultiLinkElement::SetMediumSyncDelayTimer | ( | Time | delay | ) |
Set the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
delay | the timer duration (must be a multiple of 32 microseconds) |
Definition at line 321 of file multi-link-element.cc.
References ns3::Time::GetMicroSeconds(), m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncDuration, and NS_ABORT_MSG_IF.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().
void ns3::MultiLinkElement::SetMediumSyncMaxNTxops | ( | uint8_t | nTxops | ) |
Set the Medium Synchronization Maximum Number of TXOPs subfield of the Medium Synchronization Delay information in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
nTxops | the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA |
Definition at line 367 of file multi-link-element.cc.
References m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncMaxNTxops, and NS_ASSERT.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().
void ns3::MultiLinkElement::SetMediumSyncOfdmEdThreshold | ( | int8_t | threshold | ) |
Set the Medium Synchronization OFDM ED Threshold subfield of the Medium Synchronization Delay information in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
threshold | the threshold in dBm (ranges from -72 to -62 dBm) |
Definition at line 344 of file multi-link-element.cc.
References m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncOfdmEdThreshold, and NS_ABORT_MSG_IF.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().
void ns3::MultiLinkElement::SetMldMacAddress | ( | Mac48Address | address | ) |
Set the MLD MAC Address subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
address | the MLD MAC address |
Definition at line 273 of file multi-link-element.cc.
References m_commonInfo.
Referenced by ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
void ns3::MultiLinkElement::SetTransitionTimeout | ( | Time | timeout | ) |
Set the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field.
Make sure that this is a Basic Multi-Link Element.
timeout | the Transition Timeout (0us or 2^n us, with n=7..16) |
Definition at line 429 of file multi-link-element.cc.
References ns3::Time::As(), ns3::Time::GetMicroSeconds(), m_commonInfo, NS_ABORT_MSG_IF, timeout, and ns3::Time::US.
Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().
|
private |

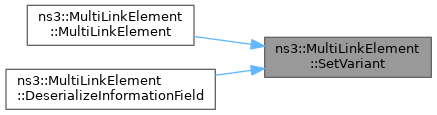

Set the variant of this Multi-Link Element.
variant | the variant of this Multi-Link Element |
Definition at line 257 of file multi-link-element.cc.
References BASIC_VARIANT, GetVariant(), m_commonInfo, NS_ABORT_MSG, NS_ABORT_MSG_IF, and UNSET.
Referenced by MultiLinkElement(), and DeserializeInformationField().
|
private |
Common Info field.
Definition at line 618 of file multi-link-element.h.
Referenced by DeserializeInformationField(), GetBssParamsChangeCount(), GetEmlsrPaddingDelay(), GetEmlsrTransitionDelay(), GetInformationFieldSize(), GetLinkIdInfo(), GetMediumSyncDelayTimer(), GetMediumSyncMaxNTxops(), GetMediumSyncOfdmEdThreshold(), GetMldMacAddress(), GetTransitionTimeout(), GetVariant(), HasBssParamsChangeCount(), HasEmlCapabilities(), HasLinkIdInfo(), HasMediumSyncDelayInfo(), IsEmlsrSupported(), SerializeInformationField(), SetBssParamsChangeCount(), SetEmlsrPaddingDelay(), SetEmlsrSupported(), SetEmlsrTransitionDelay(), SetLinkIdInfo(), SetMediumSyncDelayTimer(), SetMediumSyncMaxNTxops(), SetMediumSyncOfdmEdThreshold(), SetMldMacAddress(), SetTransitionTimeout(), and SetVariant().
|
mutable |
reference to the mgt frame containing this MLE
Definition at line 409 of file multi-link-element.h.
Referenced by DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), GetInformationFieldSize(), ns3::MultiLinkElement::PerStaProfileSubelement::GetInformationFieldSize(), and ns3::MultiLinkElement::PerStaProfileSubelement::SerializeInformationField().
|
private |
Per-STA Profile Subelements.
Definition at line 624 of file multi-link-element.h.
Referenced by AddPerStaProfileSubelement(), GetInformationFieldSize(), GetNPerStaProfileSubelements(), GetPerStaProfile(), and SerializeInformationField().
