Per-STA Profile Subelement of Multi-Link element. More...

#include "multi-link-element.h"

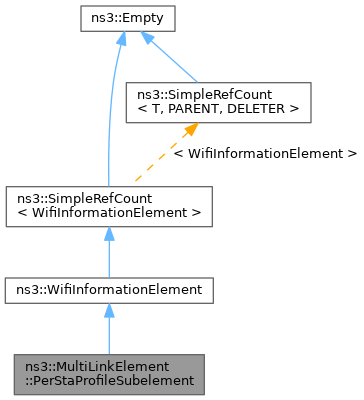

Inheritance diagram for ns3::MultiLinkElement::PerStaProfileSubelement:

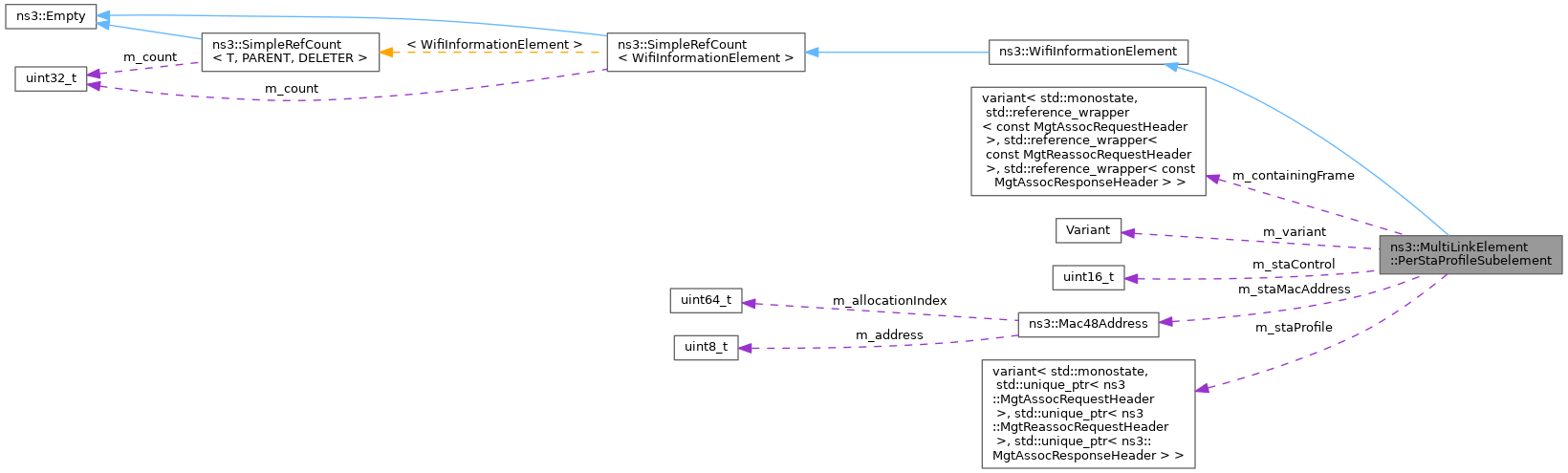

Collaboration diagram for ns3::MultiLinkElement::PerStaProfileSubelement:

Public Member Functions
	PerStaProfileSubelement (const PerStaProfileSubelement &perStaProfile)
	Copy constructor performing a deep copy of the object.

	PerStaProfileSubelement (Variant variant)
	Constructor.

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID.

AssocReqRefVariant	GetAssocRequest () const
	Get the (Re)Association Request frame body included in the STA Profile field of this Per-STA Profile subelement.

MgtAssocResponseHeader &	GetAssocResponse () const
	Get the (Re)Association Response frame body included in the STA Profile field of this Per-STA Profile subelement.

uint8_t	GetLinkId () const
	Get the Link ID subfield in the STA Control field.

uint8_t	GetStaInfoLength () const
	Get the size in bytes of the serialized STA Info Length subfield of the STA Info field.

Mac48Address	GetStaMacAddress () const
	Get the STA MAC Address subfield in the STA Info field, if present.

bool	HasAssocRequest () const
	Return true if an Association Request frame body is included in the STA Profile field of this Per-STA Profile subelement.

bool	HasAssocResponse () const
	Return true if a (Re)Association Response frame body is included in the STA Profile field of this Per-STA Profile subelement.

bool	HasReassocRequest () const
	Return true if a Reassociation Request frame body is included in the STA Profile field of this Per-STA Profile subelement.

bool	HasStaMacAddress () const
	Return true if the STA MAC Address subfield in the STA Info field is present.

bool	IsCompleteProfileSet () const

PerStaProfileSubelement &	operator= (const PerStaProfileSubelement &perStaProfile)
	Copy assignment operator performing a deep copy of the object.

PerStaProfileSubelement &	operator= (PerStaProfileSubelement &&perStaProfile)=default
	Use default move assignment operator.

void	SetAssocRequest (const std::variant< MgtAssocRequestHeader, MgtReassocRequestHeader > &assoc)
	Include the given (Re)Association Request frame body in the STA Profile field of this Per-STA Profile subelement.

void	SetAssocRequest (std::variant< MgtAssocRequestHeader, MgtReassocRequestHeader > &&assoc)
	Include the given (Re)Association Request frame body in the STA Profile field of this Per-STA Profile subelement.

void	SetAssocResponse (const MgtAssocResponseHeader &assoc)
	Include the given (Re)Association Response frame body in the STA Profile field of this Per-STA Profile subelement.

void	SetAssocResponse (MgtAssocResponseHeader &&assoc)
	Include the given (Re)Association Response frame body in the STA Profile field of this Per-STA Profile subelement.

void	SetCompleteProfile ()
	Set the Complete Profile flag in the STA Control field.

void	SetLinkId (uint8_t linkId)
	Set the Link ID subfield in the STA Control field.

void	SetStaMacAddress (Mac48Address address)
	Set the STA MAC Address subfield in the STA Info field.

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present.

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present.

virtual WifiInformationElementId	ElementId () const =0
	Get the wifi information element ID.

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension.

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into).

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version.

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE.

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Attributes
ContainingFrame	m_containingFrame
	the mgt frame containing this Per-STA Profile

Private Member Functions
uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Private Attributes
uint16_t	m_staControl
	STA Control field.

Mac48Address	m_staMacAddress
	STA MAC address.

std::variant< std::monostate, std::unique_ptr< MgtAssocRequestHeader >, std::unique_ptr< MgtReassocRequestHeader >, std::unique_ptr< MgtAssocResponseHeader > >	m_staProfile
	STA Profile field, containing the frame body of a frame of the same type as the frame containing the Multi-Link Element.

Variant	m_variant
	Multi-Link element variant.

Detailed Description

Per-STA Profile Subelement of Multi-Link element.

See Sec. 9.4.2.312.2.3 of 802.11be D1.5

The frame body of the management frame included in the Per-STA Profile field is stored as a (unique) pointer to the Header base class, because we cannot include mgt-headers.h here (otherwise, we would create a circular dependency).

TODO:

complete the implementation of STA Control and STA Info subfields

Definition at line 423 of file multi-link-element.h.

Constructor & Destructor Documentation

◆ PerStaProfileSubelement() [1/2]

ns3::MultiLinkElement::PerStaProfileSubelement::PerStaProfileSubelement ( Variant variant )

Constructor.

Parameters

variant the Multi-Link element variant

Definition at line 497 of file multi-link-element.cc.

◆ PerStaProfileSubelement() [2/2]

ns3::MultiLinkElement::PerStaProfileSubelement::PerStaProfileSubelement ( const PerStaProfileSubelement & perStaProfile )

Copy constructor performing a deep copy of the object.

Parameters

perStaProfile the object to copy

Definition at line 503 of file multi-link-element.cc.

References m_staProfile.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 755 of file multi-link-element.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), ns3::MultiLinkElement::m_containingFrame, NS_ASSERT_MSG, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), and ns3::Buffer::Iterator::ReadU8().

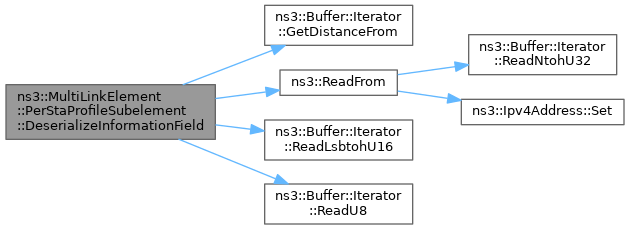

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::MultiLinkElement::PerStaProfileSubelement::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 687 of file multi-link-element.cc.

References ns3::MultiLinkElement::PER_STA_PROFILE_SUBELEMENT_ID.

◆ GetAssocRequest()

AssocReqRefVariant ns3::MultiLinkElement::PerStaProfileSubelement::GetAssocRequest ( ) const

Get the (Re)Association Request frame body included in the STA Profile field of this Per-STA Profile subelement.

Returns: the (Re)Association Request frame body

Definition at line 638 of file multi-link-element.cc.

References NS_ABORT_UNLESS.

◆ GetAssocResponse()

MgtAssocResponseHeader & ns3::MultiLinkElement::PerStaProfileSubelement::GetAssocResponse ( ) const

Get the (Re)Association Response frame body included in the STA Profile field of this Per-STA Profile subelement.

Returns: the (Re)Association Response frame body

Definition at line 667 of file multi-link-element.cc.

References NS_ABORT_IF.

◆ GetInformationFieldSize()

uint16_t ns3::MultiLinkElement::PerStaProfileSubelement::GetInformationFieldSize ( ) const

overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 693 of file multi-link-element.cc.

References ns3::MultiLinkElement::m_containingFrame, and NS_ASSERT_MSG.

◆ GetLinkId()

uint8_t ns3::MultiLinkElement::PerStaProfileSubelement::GetLinkId ( ) const

Get the Link ID subfield in the STA Control field.

Returns: the Link ID subfield in the STA Control field

Definition at line 564 of file multi-link-element.cc.

◆ GetStaInfoLength()

uint8_t ns3::MultiLinkElement::PerStaProfileSubelement::GetStaInfoLength ( ) const

Get the size in bytes of the serialized STA Info Length subfield of the STA Info field.

Returns: the size in bytes of the serialized STA Info Length subfield

Definition at line 674 of file multi-link-element.cc.

◆ GetStaMacAddress()

Mac48Address ns3::MultiLinkElement::PerStaProfileSubelement::GetStaMacAddress ( ) const

Get the STA MAC Address subfield in the STA Info field, if present.

Returns: the STA MAC Address subfield in the STA Info field, if present

Definition at line 596 of file multi-link-element.cc.

References NS_ABORT_IF.

◆ HasAssocRequest()

bool ns3::MultiLinkElement::PerStaProfileSubelement::HasAssocRequest ( ) const

Return true if an Association Request frame body is included in the STA Profile field of this Per-STA Profile subelement.

Returns: true if an Association Request frame body is included

Definition at line 626 of file multi-link-element.cc.

◆ HasAssocResponse()

bool ns3::MultiLinkElement::PerStaProfileSubelement::HasAssocResponse ( ) const

Return true if a (Re)Association Response frame body is included in the STA Profile field of this Per-STA Profile subelement.

Returns: true if a (Re)Association Response frame body is included

Definition at line 661 of file multi-link-element.cc.

◆ HasReassocRequest()

bool ns3::MultiLinkElement::PerStaProfileSubelement::HasReassocRequest ( ) const

Return true if a Reassociation Request frame body is included in the STA Profile field of this Per-STA Profile subelement.

Returns: true if a Reassociation Request frame body is included

Definition at line 632 of file multi-link-element.cc.

◆ HasStaMacAddress()

bool ns3::MultiLinkElement::PerStaProfileSubelement::HasStaMacAddress ( ) const

Return true if the STA MAC Address subfield in the STA Info field is present.

Returns: true if the STA MAC Address subfield in the STA Info field is present

Definition at line 590 of file multi-link-element.cc.

◆ IsCompleteProfileSet()

bool ns3::MultiLinkElement::PerStaProfileSubelement::IsCompleteProfileSet ( ) const

Returns: whether the Complete Profile flag in the STA Control field is set

Definition at line 576 of file multi-link-element.cc.

◆ operator=() [1/2]

MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::PerStaProfileSubelement::operator= ( const PerStaProfileSubelement & perStaProfile )

Copy assignment operator performing a deep copy of the object.

Parameters

perStaProfile the object to copy-assign

Returns: a reference to this object

Definition at line 526 of file multi-link-element.cc.

References m_staControl, m_staMacAddress, m_staProfile, and m_variant.

◆ operator=() [2/2]

PerStaProfileSubelement & ns3::MultiLinkElement::PerStaProfileSubelement::operator= ( PerStaProfileSubelement && perStaProfile )

default

Use default move assignment operator.

Parameters

perStaProfile the object to move-assign

Returns: a reference to this object

◆ SerializeInformationField()

void ns3::MultiLinkElement::PerStaProfileSubelement::SerializeInformationField ( Buffer::Iterator start ) const

overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 723 of file multi-link-element.cc.

References ns3::MultiLinkElement::m_containingFrame, NS_ASSERT_MSG, and ns3::WriteTo().

Here is the call graph for this function:

◆ SetAssocRequest() [1/2]

void ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocRequest ( const std::variant< MgtAssocRequestHeader, MgtReassocRequestHeader > & assoc )

Include the given (Re)Association Request frame body in the STA Profile field of this Per-STA Profile subelement.

Parameters

assoc the given (Re)Association Request frame body

Definition at line 603 of file multi-link-element.cc.

Referenced by BasicMultiLinkElementTest::DoRun().

Here is the caller graph for this function:

◆ SetAssocRequest() [2/2]

void ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocRequest ( std::variant< MgtAssocRequestHeader, MgtReassocRequestHeader > && assoc )

Include the given (Re)Association Request frame body in the STA Profile field of this Per-STA Profile subelement.

Parameters

assoc the given (Re)Association Request frame body

Definition at line 614 of file multi-link-element.cc.

◆ SetAssocResponse() [1/2]

void ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocResponse ( const MgtAssocResponseHeader & assoc )

Include the given (Re)Association Response frame body in the STA Profile field of this Per-STA Profile subelement.

Parameters

assoc the given (Re)Association Response frame body

Definition at line 649 of file multi-link-element.cc.

◆ SetAssocResponse() [2/2]

void ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocResponse ( MgtAssocResponseHeader && assoc )

Include the given (Re)Association Response frame body in the STA Profile field of this Per-STA Profile subelement.

Parameters

assoc the given (Re)Association Response frame body

Definition at line 655 of file multi-link-element.cc.

◆ SetCompleteProfile()

void ns3::MultiLinkElement::PerStaProfileSubelement::SetCompleteProfile ( )

Set the Complete Profile flag in the STA Control field.

Definition at line 570 of file multi-link-element.cc.

Referenced by BasicMultiLinkElementTest::DoRun().

Here is the caller graph for this function:

◆ SetLinkId()

void ns3::MultiLinkElement::PerStaProfileSubelement::SetLinkId ( uint8_t linkId )

Set the Link ID subfield in the STA Control field.

Parameters

linkId the Link ID value

Definition at line 557 of file multi-link-element.cc.

Referenced by BasicMultiLinkElementTest::DoRun(), ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

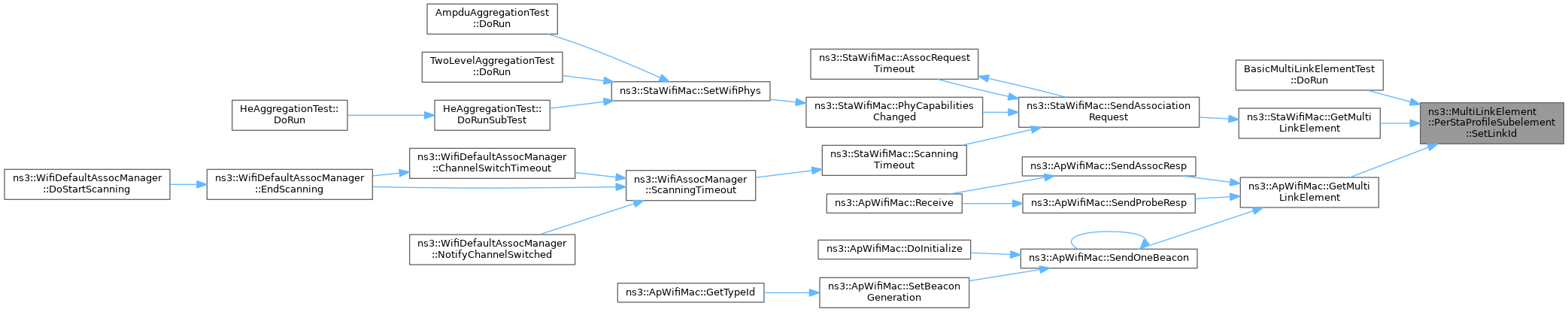

Here is the caller graph for this function:

◆ SetStaMacAddress()

void ns3::MultiLinkElement::PerStaProfileSubelement::SetStaMacAddress ( Mac48Address address )

Set the STA MAC Address subfield in the STA Info field.

Parameters

address the MAC address to set

Definition at line 582 of file multi-link-element.cc.

References ns3::MultiLinkElement::BASIC_VARIANT, and NS_ABORT_IF.

Referenced by BasicMultiLinkElementTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_containingFrame

ContainingFrame ns3::MultiLinkElement::PerStaProfileSubelement::m_containingFrame

mutable

the mgt frame containing this Per-STA Profile

Definition at line 562 of file multi-link-element.h.

◆ m_staControl

uint16_t ns3::MultiLinkElement::PerStaProfileSubelement::m_staControl

private

STA Control field.

Definition at line 570 of file multi-link-element.h.

Referenced by operator=().

◆ m_staMacAddress

Mac48Address ns3::MultiLinkElement::PerStaProfileSubelement::m_staMacAddress

private

STA MAC address.

Definition at line 571 of file multi-link-element.h.

Referenced by operator=().

◆ m_staProfile

std::variant<std::monostate, std::unique_ptr<MgtAssocRequestHeader>, std::unique_ptr<MgtReassocRequestHeader>, std::unique_ptr<MgtAssocResponseHeader> > ns3::MultiLinkElement::PerStaProfileSubelement::m_staProfile

private

STA Profile field, containing the frame body of a frame of the same type as the frame containing the Multi-Link Element.

Definition at line 576 of file multi-link-element.h.

Referenced by PerStaProfileSubelement(), and operator=().

◆ m_variant

Variant ns3::MultiLinkElement::PerStaProfileSubelement::m_variant

private

Multi-Link element variant.

Definition at line 569 of file multi-link-element.h.

Referenced by operator=().

The documentation for this class was generated from the following files:

src/wifi/model/eht/multi-link-element.h
src/wifi/model/eht/multi-link-element.cc

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PerStaProfileSubelement() [1/2]

◆ PerStaProfileSubelement() [2/2]

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetAssocRequest()

◆ GetAssocResponse()

◆ GetInformationFieldSize()

◆ GetLinkId()

◆ GetStaInfoLength()

◆ GetStaMacAddress()

◆ HasAssocRequest()

◆ HasAssocResponse()

◆ HasReassocRequest()

◆ HasStaMacAddress()

◆ IsCompleteProfileSet()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ SerializeInformationField()

◆ SetAssocRequest() [1/2]

◆ SetAssocRequest() [2/2]

◆ SetAssocResponse() [1/2]

◆ SetAssocResponse() [2/2]

◆ SetCompleteProfile()

◆ SetLinkId()

◆ SetStaMacAddress()

Member Data Documentation

◆ m_containingFrame

◆ m_staControl

◆ m_staMacAddress

◆ m_staProfile

◆ m_variant
