ns3::ThreeGppIndoorOfficePropagationLossModel Class Reference

Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the Indoor Office scenario. More...

#include "three-gpp-propagation-loss-model.h"

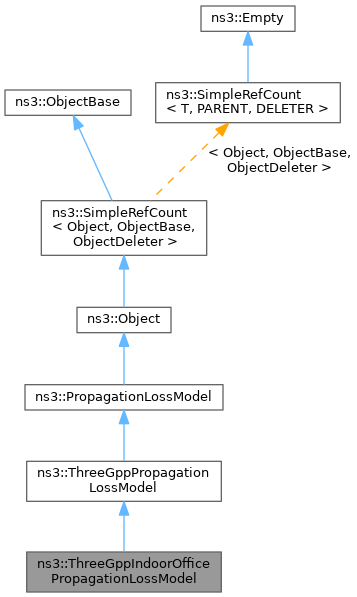

+ Inheritance diagram for ns3::ThreeGppIndoorOfficePropagationLossModel:
+ Collaboration diagram for ns3::ThreeGppIndoorOfficePropagationLossModel:

Public Member Functions

 ThreeGppIndoorOfficePropagationLossModel ()
 Constructor.

 ThreeGppIndoorOfficePropagationLossModel (const ThreeGppIndoorOfficePropagationLossModel &)=delete

 ~ThreeGppIndoorOfficePropagationLossModel () override
 Destructor.

ThreeGppIndoorOfficePropagationLossModeloperator= (const ThreeGppIndoorOfficePropagationLossModel &)=delete

- Public Member Functions inherited from ns3::ThreeGppPropagationLossModel
 ThreeGppPropagationLossModel ()
 Constructor.

 ThreeGppPropagationLossModel (const ThreeGppPropagationLossModel &)=delete

 ~ThreeGppPropagationLossModel () override
 Destructor.

Ptr< ChannelConditionModelGetChannelConditionModel () const
 Returns the associated channel condition model.

double GetFrequency () const
 Return the current central frequency.

bool IsO2iLowPenetrationLoss (Ptr< const ChannelCondition > cond) const
 Return true if the O2I Building Penetration loss corresponds to a low loss condition.

ThreeGppPropagationLossModeloperator= (const ThreeGppPropagationLossModel &)=delete

void SetChannelConditionModel (Ptr< ChannelConditionModel > model)
 Set the channel condition model used to determine the channel state (e.g., the LOS/NLOS condition)

void SetFrequency (double f)
 Set the central frequency of the model.

- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()

 PropagationLossModel (const PropagationLossModel &)=delete

 ~PropagationLossModel () override

int64_t AssignStreams (int64_t stream)
 If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
 Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one.

Ptr< PropagationLossModelGetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal.

PropagationLossModeloperator= (const PropagationLossModel &)=delete

void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ThreeGppPropagationLossModel
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

double GetLossLos (double distance2D, double distance3D, double hUt, double hBs) const override
 Computes the pathloss between a and b considering that the line of sight is not obstructed.

double GetLossNlos (double distance2D, double distance3D, double hUt, double hBs) const override
 Computes the pathloss between a and b considering that the line of sight is obstructed.

double GetO2iDistance2dIn () const override
 Returns the minimum of the two independently generated distances according to the uniform distribution between the minimum and the maximum value depending on the specific 3GPP scenario (UMa, UMi-Street Canyon, RMa), i.e., between 0 and 25 m for UMa and UMi-Street Canyon, and between 0 and 10 m for RMa.

double GetShadowingCorrelationDistance (ChannelCondition::LosConditionValue cond) const override
 Returns the shadow fading correlation distance.

double GetShadowingStd (Ptr< MobilityModel > a, Ptr< MobilityModel > b, ChannelCondition::LosConditionValue cond) const override
 Returns the shadow fading standard deviation.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ThreeGppPropagationLossModel
void DoDispose () override
 Destructor implementation.

virtual int64_t DoAssignStreams (int64_t stream)=0
 Assign a fixed random variable stream number to the random variables used by this model.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.

- Static Protected Member Functions inherited from ns3::ThreeGppPropagationLossModel
static double Calculate2dDistance (Vector a, Vector b)
 Computes the 2D distance between two 3D vectors.

- Protected Attributes inherited from ns3::ThreeGppPropagationLossModel
bool m_buildingPenLossesEnabled
 enable/disable building penetration losses

Ptr< ChannelConditionModelm_channelConditionModel
 pointer to the channel condition model

bool m_enforceRanges
 strictly enforce TR 38.901 parameter ranges

double m_frequency
 operating frequency in Hz

Ptr< NormalRandomVariablem_normalO2iHighLossVar
 a normal random variable for the calculation of 02i high loss, see TR38.901 Table 7.4.3-2

Ptr< NormalRandomVariablem_normalO2iLowLossVar
 a normal random variable for the calculation of 02i low loss, see TR38.901 Table 7.4.3-2

Ptr< NormalRandomVariablem_normRandomVariable
 normal random variable

std::unordered_map< uint32_t, O2iLossMapItemm_o2iLossMap
 map to store the o2i Loss values

Ptr< UniformRandomVariablem_randomO2iVar1
 a uniform random variable for the calculation of the indoor loss, see TR38.901 Table 7.4.3-2

Ptr< UniformRandomVariablem_randomO2iVar2
 a uniform random variable for the calculation of the indoor loss, see TR38.901 Table 7.4.3-2

bool m_shadowingEnabled
 enable/disable shadowing

std::unordered_map< uint32_t, ShadowingMapItemm_shadowingMap
 map to store the shadowing values


Detailed Description

Implements the pathloss model defined in 3GPP TR 38.901, Table 7.4.1-1 for the Indoor Office scenario.

Config Paths

ns3::ThreeGppIndoorOfficePropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppIndoorOfficePropagationLossModel"

No Attributes are defined for this type.

Attributes defined in parent class ns3::ThreeGppPropagationLossModel

  • BuildingPenetrationLossesEnabled: Enable/disable Building Penetration Losses.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread
  • ChannelConditionModel: Pointer to the channel condition model.
  • EnforceParameterRanges: Whether to strictly enforce TR38.901 applicability ranges
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructwriteread
  • Frequency: The centre frequency in Hz.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 5e+08
    • Flags: constructwriteread
  • ShadowingEnabled: Enable/disable shadowing.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 216 bytes (on a 64-bit architecture).

Definition at line 668 of file three-gpp-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ ThreeGppIndoorOfficePropagationLossModel() [1/2]

ns3::ThreeGppIndoorOfficePropagationLossModel::ThreeGppIndoorOfficePropagationLossModel ( )

◆ ~ThreeGppIndoorOfficePropagationLossModel()

ns3::ThreeGppIndoorOfficePropagationLossModel::~ThreeGppIndoorOfficePropagationLossModel ( )
override

Destructor.

Definition at line 1285 of file three-gpp-propagation-loss-model.cc.

References NS_LOG_FUNCTION.

◆ ThreeGppIndoorOfficePropagationLossModel() [2/2]

ns3::ThreeGppIndoorOfficePropagationLossModel::ThreeGppIndoorOfficePropagationLossModel ( const ThreeGppIndoorOfficePropagationLossModel )
delete

Member Function Documentation

◆ GetLossLos()

double ns3::ThreeGppIndoorOfficePropagationLossModel::GetLossLos ( double  distance2D,
double  distance3D,
double  hUt,
double  hBs
) const
overrideprivatevirtual

Computes the pathloss between a and b considering that the line of sight is not obstructed.

Parameters
distance2Dthe 2D distance between tx and rx in meters
distance3Dthe 3D distance between tx and rx in meters
hUtthe height of the UT in meters
hBsthe height of the BS in meters
Returns
pathloss value in dB

Implements ns3::ThreeGppPropagationLossModel.

Definition at line 1297 of file three-gpp-propagation-loss-model.cc.

References ns3::ThreeGppPropagationLossModel::m_enforceRanges, ns3::ThreeGppPropagationLossModel::m_frequency, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetLossNlos().

+ Here is the caller graph for this function:

◆ GetLossNlos()

double ns3::ThreeGppIndoorOfficePropagationLossModel::GetLossNlos ( double  distance2D,
double  distance3D,
double  hUt,
double  hBs
) const
overrideprivatevirtual

Computes the pathloss between a and b considering that the line of sight is obstructed.

Parameters
distance2Dthe 2D distance between tx and rx in meters
distance3Dthe 3D distance between tx and rx in meters
hUtthe height of the UT in meters
hBsthe height of the BS in meters
Returns
pathloss value in dB

Implements ns3::ThreeGppPropagationLossModel.

Definition at line 1321 of file three-gpp-propagation-loss-model.cc.

References GetLossLos(), ns3::ThreeGppPropagationLossModel::m_enforceRanges, ns3::ThreeGppPropagationLossModel::m_frequency, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_WARN.

+ Here is the call graph for this function:

◆ GetO2iDistance2dIn()

double ns3::ThreeGppIndoorOfficePropagationLossModel::GetO2iDistance2dIn ( ) const
overrideprivatevirtual

Returns the minimum of the two independently generated distances according to the uniform distribution between the minimum and the maximum value depending on the specific 3GPP scenario (UMa, UMi-Street Canyon, RMa), i.e., between 0 and 25 m for UMa and UMi-Street Canyon, and between 0 and 10 m for RMa.

According to 3GPP TR 38.901 this 2D−in distance shall be UT-specifically generated. 2D−in distance is used for the O2I penetration losses calculation according to 3GPP TR 38.901 7.4.3. See GetO2iLowPenetrationLoss/GetO2iHighPenetrationLoss functions.

Returns
Returns 02i 2D distance (in meters) used to calculate low/high losses.

Implements ns3::ThreeGppPropagationLossModel.

Definition at line 1291 of file three-gpp-propagation-loss-model.cc.

◆ GetShadowingCorrelationDistance()

double ns3::ThreeGppIndoorOfficePropagationLossModel::GetShadowingCorrelationDistance ( ChannelCondition::LosConditionValue  cond) const
overrideprivatevirtual

Returns the shadow fading correlation distance.

Parameters
condthe LOS/NLOS channel condition
Returns
shadowing correlation distance in meters

Implements ns3::ThreeGppPropagationLossModel.

Definition at line 1371 of file three-gpp-propagation-loss-model.cc.

References ns3::ChannelCondition::LOS, ns3::ChannelCondition::NLOS, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetShadowingStd()

double ns3::ThreeGppIndoorOfficePropagationLossModel::GetShadowingStd ( Ptr< MobilityModel a,
Ptr< MobilityModel b,
ChannelCondition::LosConditionValue  cond
) const
overrideprivatevirtual

Returns the shadow fading standard deviation.

Parameters
atx mobility model
brx mobility model
condthe LOS/NLOS channel condition
Returns
shadowing std in dB

Implements ns3::ThreeGppPropagationLossModel.

Definition at line 1346 of file three-gpp-propagation-loss-model.cc.

References ns3::ChannelCondition::LOS, ns3::ChannelCondition::NLOS, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::ThreeGppIndoorOfficePropagationLossModel::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 1267 of file three-gpp-propagation-loss-model.cc.

References ns3::TypeId::SetParent().

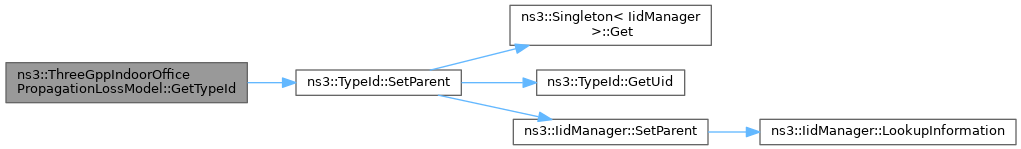

+ Here is the call graph for this function:

◆ operator=()

ThreeGppIndoorOfficePropagationLossModel & ns3::ThreeGppIndoorOfficePropagationLossModel::operator= ( const ThreeGppIndoorOfficePropagationLossModel )
delete

The documentation for this class was generated from the following files:
