Base class for Multi-Link Operations tests. More...

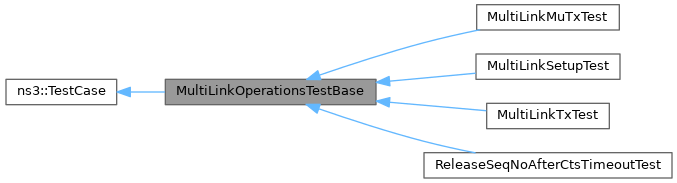

Inheritance diagram for MultiLinkOperationsTestBase:

Collaboration diagram for MultiLinkOperationsTestBase:

Classes
struct	FrameInfo
	Information about transmitted frames. More...

Public Member Functions
	MultiLinkOperationsTestBase (const std::string &name, uint8_t nStations, std::vector< std::string > staChannels, std::vector< std::string > apChannels, std::vector< uint8_t > fixedPhyBands={})
	Constructor.

	~MultiLinkOperationsTestBase () override=default

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Protected Types
using	ChannelMap = std::map< FrequencyRange, Ptr< MultiModelSpectrumChannel > >
	PHY band-indexed map of spectrum channels.

enum	Direction { DL = 0 , UL }
	Uplink or Downlink direction. More...

Protected Member Functions
void	CheckAddresses (Ptr< const WifiPsdu > psdu, std::optional< Direction > direction=std::nullopt)
	Check that the Address 1 and Address 2 fields of the given PSDU contain device MAC addresses.

void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

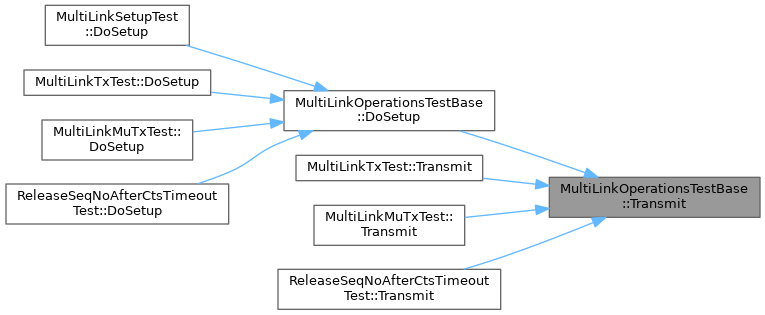

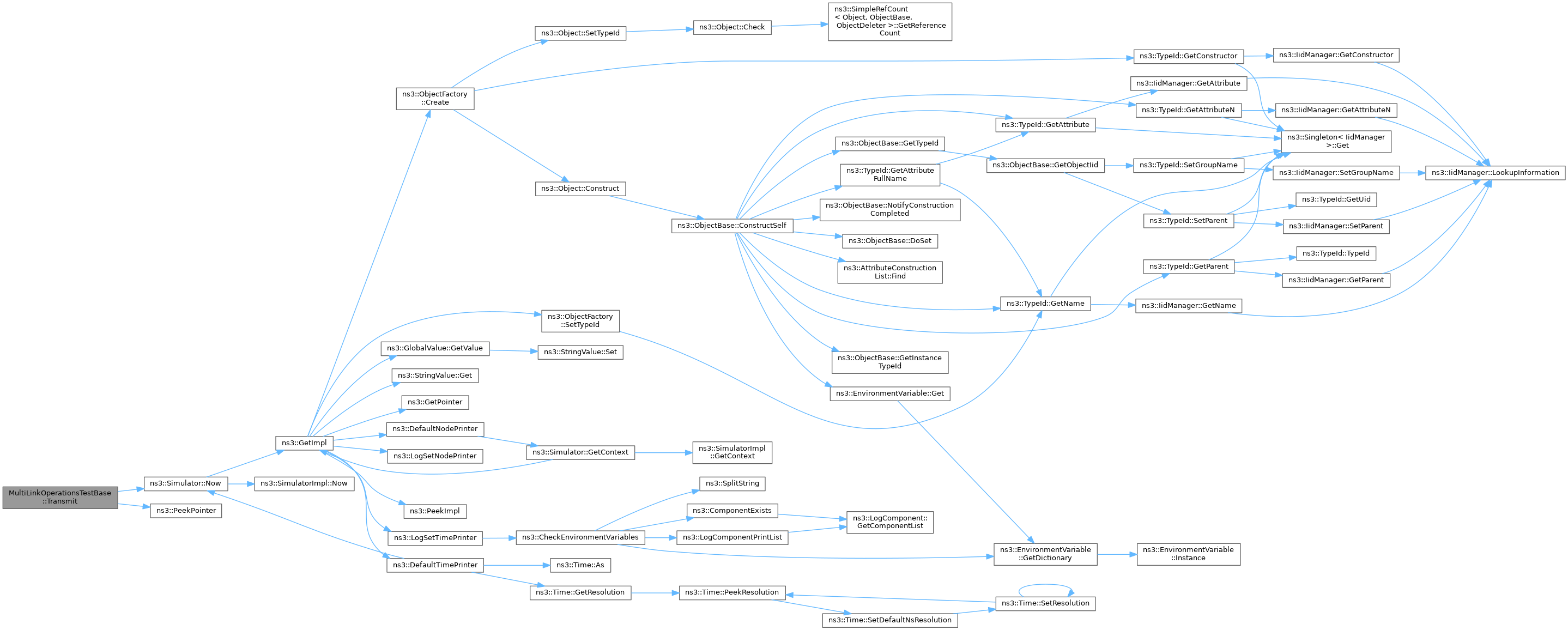

virtual void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a FEM passes PSDUs to the PHY.

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Protected Attributes
const std::vector< std::string >	m_apChannels
	strings specifying channels for AP

Ptr< ApWifiMac >	m_apMac
	AP wifi MAC.

const std::vector< uint8_t >	m_fixedPhyBands
	links on non-AP MLD with fixed PHY band

uint16_t	m_lastAid
	AID of last associated station.

uint8_t	m_nStations
	number of stations to create

const std::vector< std::string >	m_staChannels
	strings specifying channels for STA

std::vector< Ptr< StaWifiMac > >	m_staMacs
	STA wifi MACs.

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs

Private Member Functions
void	SetChannels (SpectrumWifiPhyHelper &helper, const std::vector< std::string > &channels, const ChannelMap &channelMap)
	Reset the given PHY helper, use the given strings to set the ChannelSettings attribute of the PHY objects to create, and attach them to the given spectrum channels appropriately.

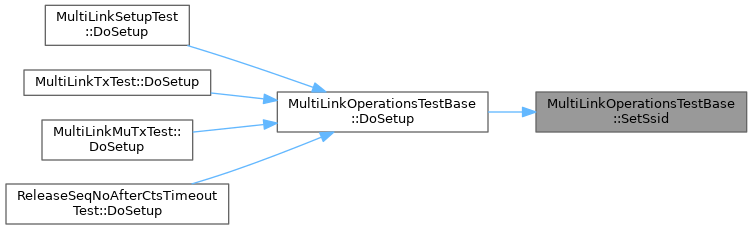

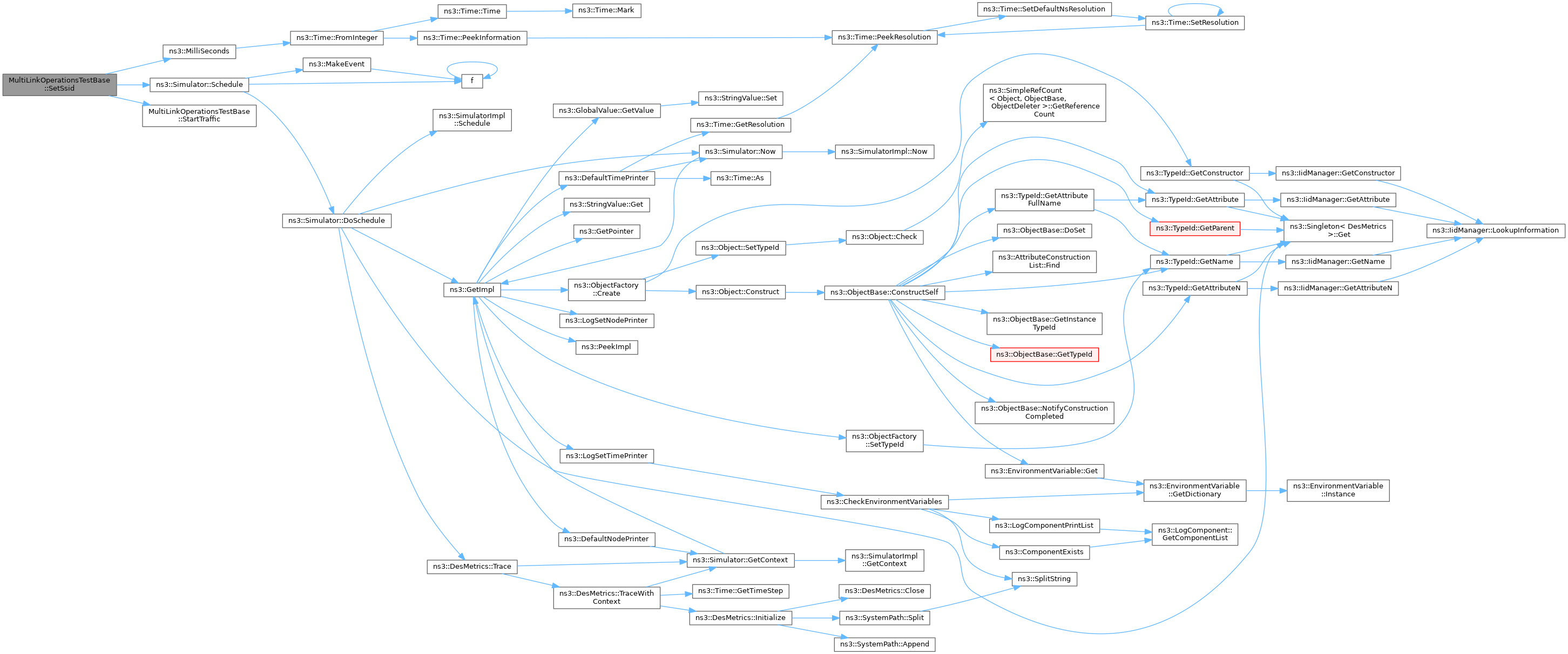

void	SetSsid (uint16_t aid, Mac48Address)
	Set the SSID on the next station that needs to start the association procedure.

virtual void	StartTraffic ()
	Start the generation of traffic (needs to be overridden)

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Base class for Multi-Link Operations tests.

Three spectrum channels are created, one for each band (2.4 GHz, 5 GHz and 6 GHz). Each PHY object is attached to the spectrum channel corresponding to the PHY band in which it is operating.

Definition at line 202 of file wifi-mlo-test.cc.

Member Typedef Documentation

◆ ChannelMap

using MultiLinkOperationsTestBase::ChannelMap = std::map<FrequencyRange, Ptr<MultiModelSpectrumChannel> >

protected

PHY band-indexed map of spectrum channels.

Definition at line 240 of file wifi-mlo-test.cc.

Member Enumeration Documentation

◆ Direction

enum MultiLinkOperationsTestBase::Direction

protected

Uplink or Downlink direction.

Enumerator
DL
UL

Definition at line 245 of file wifi-mlo-test.cc.

Constructor & Destructor Documentation

◆ MultiLinkOperationsTestBase()

MultiLinkOperationsTestBase::MultiLinkOperationsTestBase	(	const std::string &	name,
		uint8_t	nStations,
		std::vector< std::string >	staChannels,
		std::vector< std::string >	apChannels,
		std::vector< uint8_t >	fixedPhyBands = `{}`
	)

Constructor.

Parameters

name	The name of the new TestCase created
nStations	the number of stations to create
staChannels	the strings specifying the operating channels for the STA
apChannels	the strings specifying the operating channels for the AP
fixedPhyBands	list of IDs of STA links that cannot switch PHY band

Definition at line 309 of file wifi-mlo-test.cc.

◆ ~MultiLinkOperationsTestBase()

MultiLinkOperationsTestBase::~MultiLinkOperationsTestBase ( )

overridedefault

Member Function Documentation

◆ CheckAddresses()

void MultiLinkOperationsTestBase::CheckAddresses	(	Ptr< const WifiPsdu >	psdu,
		std::optional< Direction >	direction = `std::nullopt`
	)

protected

Check that the Address 1 and Address 2 fields of the given PSDU contain device MAC addresses.

Parameters

psdu	the given PSDU
direction	indicates direction for management frames (DL or UL)

Definition at line 325 of file wifi-mlo-test.cc.

References DL, ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetNLinks(), m_apMac, m_nStations, m_staMacs, NS_ASSERT, NS_TEST_EXPECT_MSG_EQ, and UL.

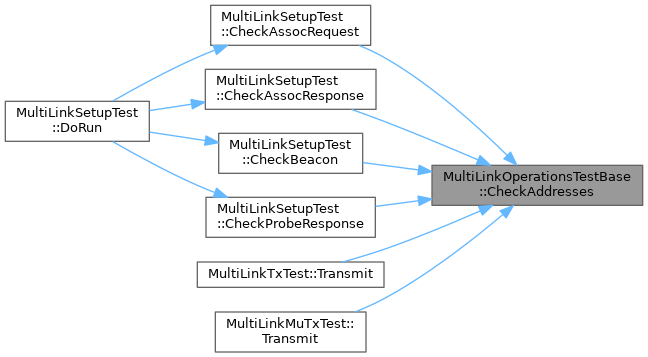

Referenced by MultiLinkSetupTest::CheckAssocRequest(), MultiLinkSetupTest::CheckAssocResponse(), MultiLinkSetupTest::CheckBeacon(), MultiLinkSetupTest::CheckProbeResponse(), MultiLinkTxTest::Transmit(), and MultiLinkMuTxTest::Transmit().

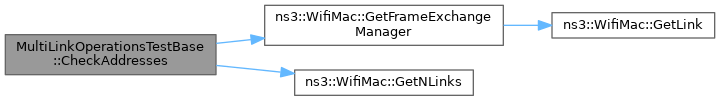

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSetup()

void MultiLinkOperationsTestBase::DoSetup ( )

overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Reimplemented in MultiLinkSetupTest, MultiLinkTxTest, MultiLinkMuTxTest, and ReleaseSeqNoAfterCtsTimeoutTest.

Definition at line 452 of file wifi-mlo-test.cc.

References ns3::Config::Connect(), m_apChannels, m_apMac, m_fixedPhyBands, m_nStations, m_staChannels, m_staMacs, ns3::MakeCallback(), ns3::WifiPhyHelper::Set(), SetChannels(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), SetSsid(), ns3::ObjectBase::TraceConnectWithoutContext(), Transmit(), ns3::WIFI_SPECTRUM_2_4_GHZ, ns3::WIFI_SPECTRUM_5_GHZ, ns3::WIFI_SPECTRUM_6_GHZ, and ns3::WIFI_STANDARD_80211be.

Referenced by MultiLinkSetupTest::DoSetup(), MultiLinkTxTest::DoSetup(), MultiLinkMuTxTest::DoSetup(), and ReleaseSeqNoAfterCtsTimeoutTest::DoSetup().

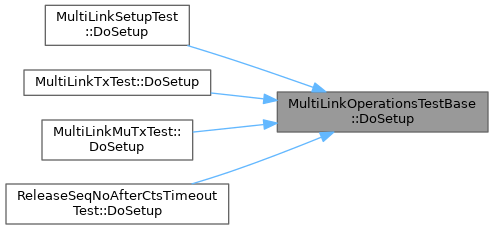

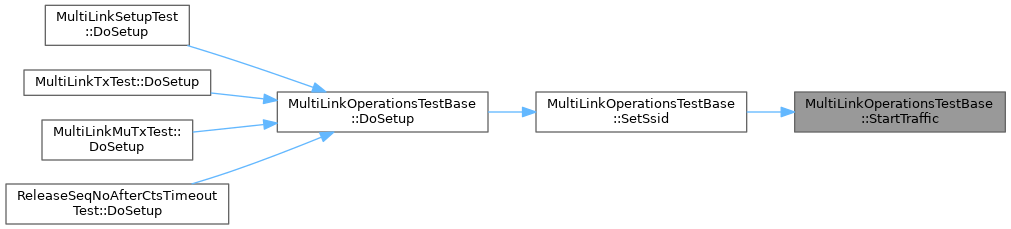

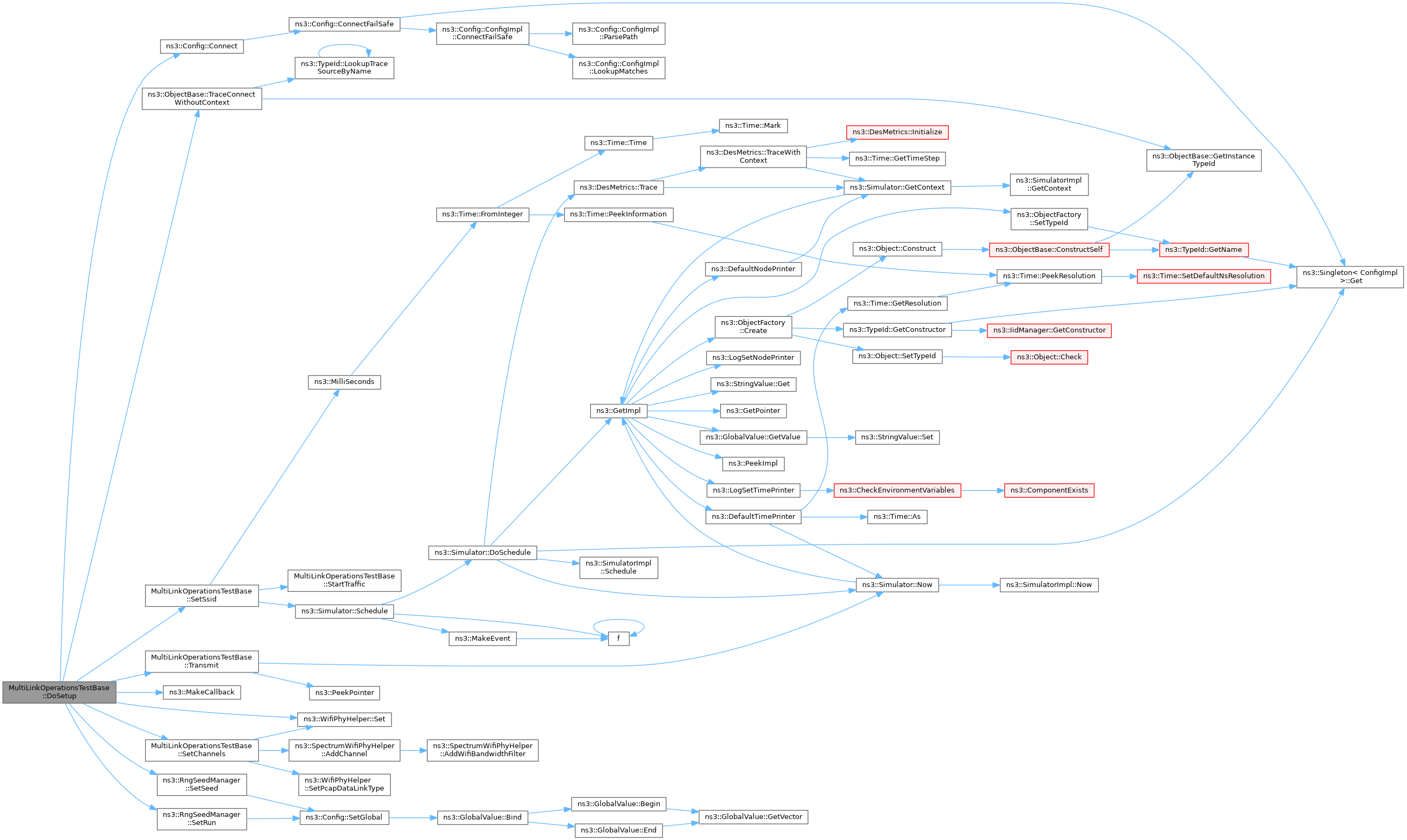

Here is the call graph for this function:

Here is the caller graph for this function:

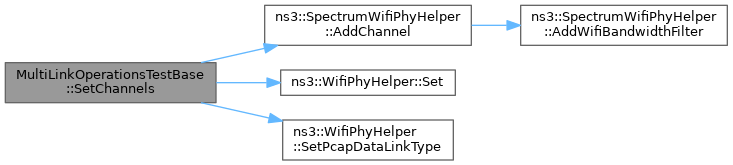

◆ SetChannels()

void MultiLinkOperationsTestBase::SetChannels	(	SpectrumWifiPhyHelper &	helper,
		const std::vector< std::string > &	channels,
		const ChannelMap &	channelMap
	)

private

Reset the given PHY helper, use the given strings to set the ChannelSettings attribute of the PHY objects to create, and attach them to the given spectrum channels appropriately.

Parameters
