Test data transmission between MLDs using OFDMA MU transmissions. More...

Inheritance diagram for MultiLinkMuTxTest:

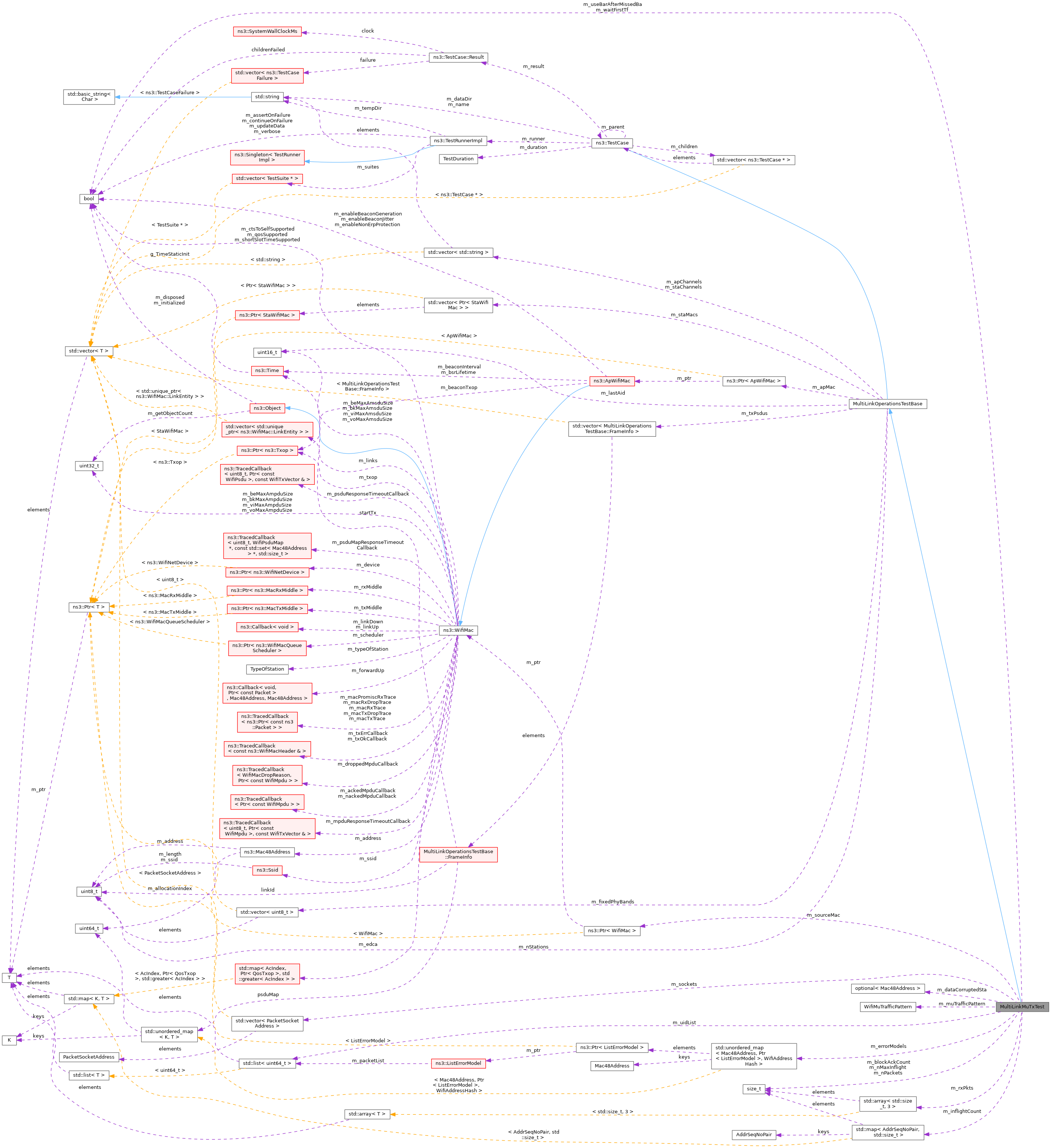

Collaboration diagram for MultiLinkMuTxTest:

Public Member Functions
	MultiLinkMuTxTest (WifiMuTrafficPattern muTrafficPattern, WifiUseBarAfterMissedBa useBarAfterMissedBa, uint8_t nMaxInflight, const std::vector< std::string > &staChannels, const std::vector< std::string > &apChannels, const std::vector< uint8_t > &fixedPhyBands={})
	Constructor.

	~MultiLinkMuTxTest () override=default

Public Member Functions inherited from MultiLinkOperationsTestBase
	MultiLinkOperationsTestBase (const std::string &name, uint8_t nStations, std::vector< std::string > staChannels, std::vector< std::string > apChannels, std::vector< uint8_t > fixedPhyBands={})
	Constructor.

	~MultiLinkOperationsTestBase () override=default

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Protected Member Functions
void	CheckBlockAck (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint8_t linkId)
	Check the content of a received BlockAck frame when the max number of links on which an MPDU can be inflight is one.

void	DoRun () override
	Implementation to actually run this TestCase.

void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

void	L7Receive (uint8_t nodeId, Ptr< const Packet > p, const Address &addr)
	Function to trace packets received by the server application.

void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW) override
	Callback invoked when a FEM passes PSDUs to the PHY.

Protected Member Functions inherited from MultiLinkOperationsTestBase
void	CheckAddresses (Ptr< const WifiPsdu > psdu, std::optional< Direction > direction=std::nullopt)
	Check that the Address 1 and Address 2 fields of the given PSDU contain device MAC addresses.

void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

virtual void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a FEM passes PSDUs to the PHY.

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Private Types
using	AddrSeqNoPair = std::pair< Mac48Address, uint16_t >
	A pair of a MAC address (the address of the receiver for DL frames and the address of the sender for UL frames) and a sequence number identifying a transmitted QoS data frame.

using	RxErrorModelMap = std::unordered_map< Mac48Address, Ptr< ListErrorModel >, WifiAddressHash >
	Receiver address-indexed map of list error models.

Private Member Functions
void	StartTraffic () override
	Start the generation of traffic (needs to be overridden)

Private Attributes
std::size_t	m_blockAckCount {0}
	transmitted BlockAck counter

std::optional< Mac48Address >	m_dataCorruptedSta
	MAC address of the station that received MPDU with SeqNo=2 corrupted.

RxErrorModelMap	m_errorModels
	error rate models to corrupt packets

std::map< AddrSeqNoPair, std::size_t >	m_inflightCount
	max number of simultaneous transmissions of each data frame

WifiMuTrafficPattern	m_muTrafficPattern
	the pattern of traffic to generate

std::size_t	m_nMaxInflight
	max number of links on which an MPDU can be inflight

std::size_t	m_nPackets
	number of application packets to generate

std::array< std::size_t, 3 >	m_rxPkts {}
	number of packets received at application layer by each node (AP, STA 0, STA 1)

std::vector< PacketSocketAddress >	m_sockets
	packet socket addresses for STAs

Ptr< WifiMac >	m_sourceMac
	MAC of the node sending application packets.

std::list< uint64_t >	m_uidList
	list of UIDs of packets to corrupt

bool	m_useBarAfterMissedBa
	whether to send BAR after missed BlockAck

bool	m_waitFirstTf {true}
	whether we are waiting for the first Basic Trigger Frame

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Types inherited from MultiLinkOperationsTestBase
using	ChannelMap = std::map< FrequencyRange, Ptr< MultiModelSpectrumChannel > >
	PHY band-indexed map of spectrum channels.

enum	Direction { DL = 0 , UL }
	Uplink or Downlink direction. More...

Protected Attributes inherited from MultiLinkOperationsTestBase
const std::vector< std::string >	m_apChannels
	strings specifying channels for AP

Ptr< ApWifiMac >	m_apMac
	AP wifi MAC.

const std::vector< uint8_t >	m_fixedPhyBands
	links on non-AP MLD with fixed PHY band

uint16_t	m_lastAid
	AID of last associated station.

uint8_t	m_nStations
	number of stations to create

const std::vector< std::string >	m_staChannels
	strings specifying channels for STA

std::vector< Ptr< StaWifiMac > >	m_staMacs
	STA wifi MACs.

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs

Detailed Description

Test data transmission between MLDs using OFDMA MU transmissions.

This test sets up an AP MLD and two non-AP MLDs having a variable number of links. The RF channels to set each link to are provided as input parameters through the test case constructor, along with the identifiers (starting at 0) of the links that cannot switch PHY band (if any). This test aims at veryfing the successful transmission of both DL MU and UL MU frames. In the DL MU scenarios, the client applications installed on the AP generate 8 packets addressed to each of the stations (plus 3 packets to trigger the establishment of BlockAck agreements). In the UL MU scenario, client applications installed on the stations generate 4 packets each (plus 3 packets to trigger the establishment of BlockAck agreements).

The maximum A-MSDU size is set such that two packets can be aggregated in an A-MSDU. The MPDU with sequence number equal to 3 is corrupted (by using a post reception error model) once and for a single station, to test its successful re-transmission.

Also, we enable the concurrent transmission of data frames over two links and check that at least one MPDU is concurrently transmitted over two links.

Definition at line 1768 of file wifi-mlo-test.cc.

Member Typedef Documentation

◆ AddrSeqNoPair

using MultiLinkMuTxTest::AddrSeqNoPair = std::pair<Mac48Address, uint16_t>

private

A pair of a MAC address (the address of the receiver for DL frames and the address of the sender for UL frames) and a sequence number identifying a transmitted QoS data frame.

Definition at line 1825 of file wifi-mlo-test.cc.

◆ RxErrorModelMap

using MultiLinkMuTxTest::RxErrorModelMap = std::unordered_map<Mac48Address, Ptr<ListErrorModel>, WifiAddressHash>

private

Receiver address-indexed map of list error models.

Definition at line 1821 of file wifi-mlo-test.cc.

Constructor & Destructor Documentation

◆ MultiLinkMuTxTest()

MultiLinkMuTxTest::MultiLinkMuTxTest	(	WifiMuTrafficPattern	muTrafficPattern,
		WifiUseBarAfterMissedBa	useBarAfterMissedBa,
		uint8_t	nMaxInflight,
		const std::vector< std::string > &	staChannels,
		const std::vector< std::string > &	apChannels,
		const std::vector< uint8_t > &	fixedPhyBands = `{}`
	)

Constructor.

Parameters

muTrafficPattern	the pattern of traffic to generate
useBarAfterMissedBa	whether a BAR or Data frames are sent after missed BlockAck
nMaxInflight	the max number of links on which an MPDU can be simultaneously inflight (unused if Block Ack agreements are not established)
staChannels	the strings specifying the operating channels for the STA
apChannels	the strings specifying the operating channels for the AP
fixedPhyBands	list of IDs of STA links that cannot switch PHY band

Definition at line 1846 of file wifi-mlo-test.cc.

◆ ~MultiLinkMuTxTest()

MultiLinkMuTxTest::~MultiLinkMuTxTest ( )

overridedefault

Member Function Documentation

◆ CheckBlockAck()

void MultiLinkMuTxTest::CheckBlockAck	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		uint8_t	linkId
	)

protected

Check the content of a received BlockAck frame when the max number of links on which an MPDU can be inflight is one.

Parameters

psdu	the PSDU containing the BlockAck
txVector	the TXVECTOR used to transmit the BlockAck
linkId	the ID of the link on which the BlockAck was transmitted

Definition at line 2005 of file wifi-mlo-test.cc.

References ns3::AC_BE, ns3::WifiPhy::CalculateTxDuration(), ns3::CtrlBAckResponseHeader::FindPerAidTidInfoWithAid(), ns3::WifiMac::GetLinkIdByAddress(), ns3::ApWifiMac::GetTxopQueue(), ns3::CtrlBAckResponseHeader::IsMultiSta(), ns3::CtrlBAckResponseHeader::IsPacketReceived(), MultiLinkOperationsTestBase::m_apMac, m_blockAckCount, m_dataCorruptedSta, m_muTrafficPattern, m_nPackets, MultiLinkOperationsTestBase::m_nStations, MultiLinkOperationsTestBase::m_staMacs, ns3::MicroSeconds(), NS_ABORT_MSG, NS_TEST_ASSERT_MSG_EQ, NS_TEST_EXPECT_MSG_EQ, and ns3::Simulator::Schedule().

Referenced by Transmit().

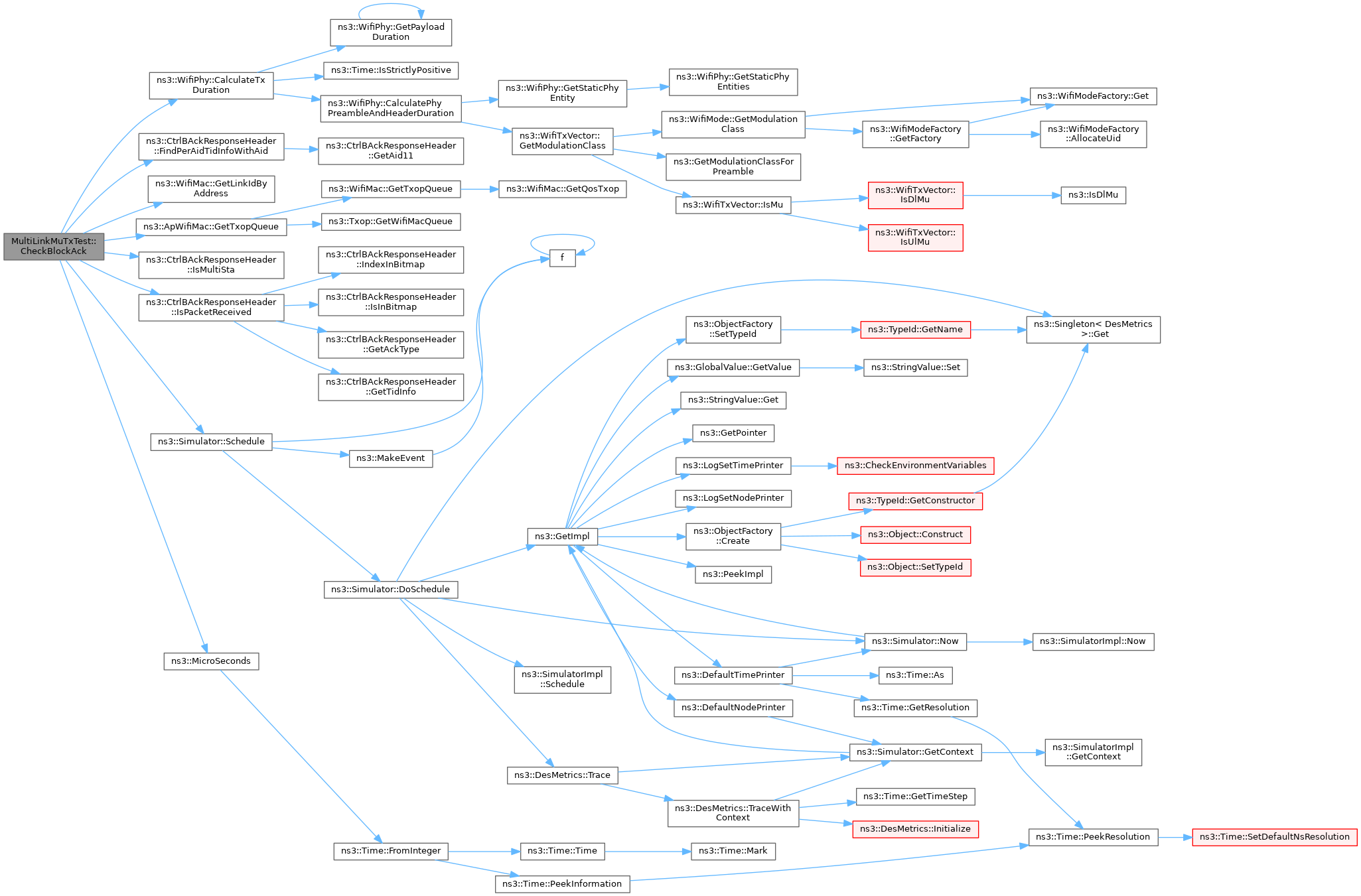

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void MultiLinkMuTxTest::DoRun ( )

overrideprotectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2356 of file wifi-mlo-test.cc.

References ns3::Simulator::Destroy(), m_inflightCount, m_muTrafficPattern, m_nMaxInflight, m_nPackets, m_rxPkts, MultiLinkOperationsTestBase::m_staMacs, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_LT_OR_EQ, and ns3::Simulator::Run().

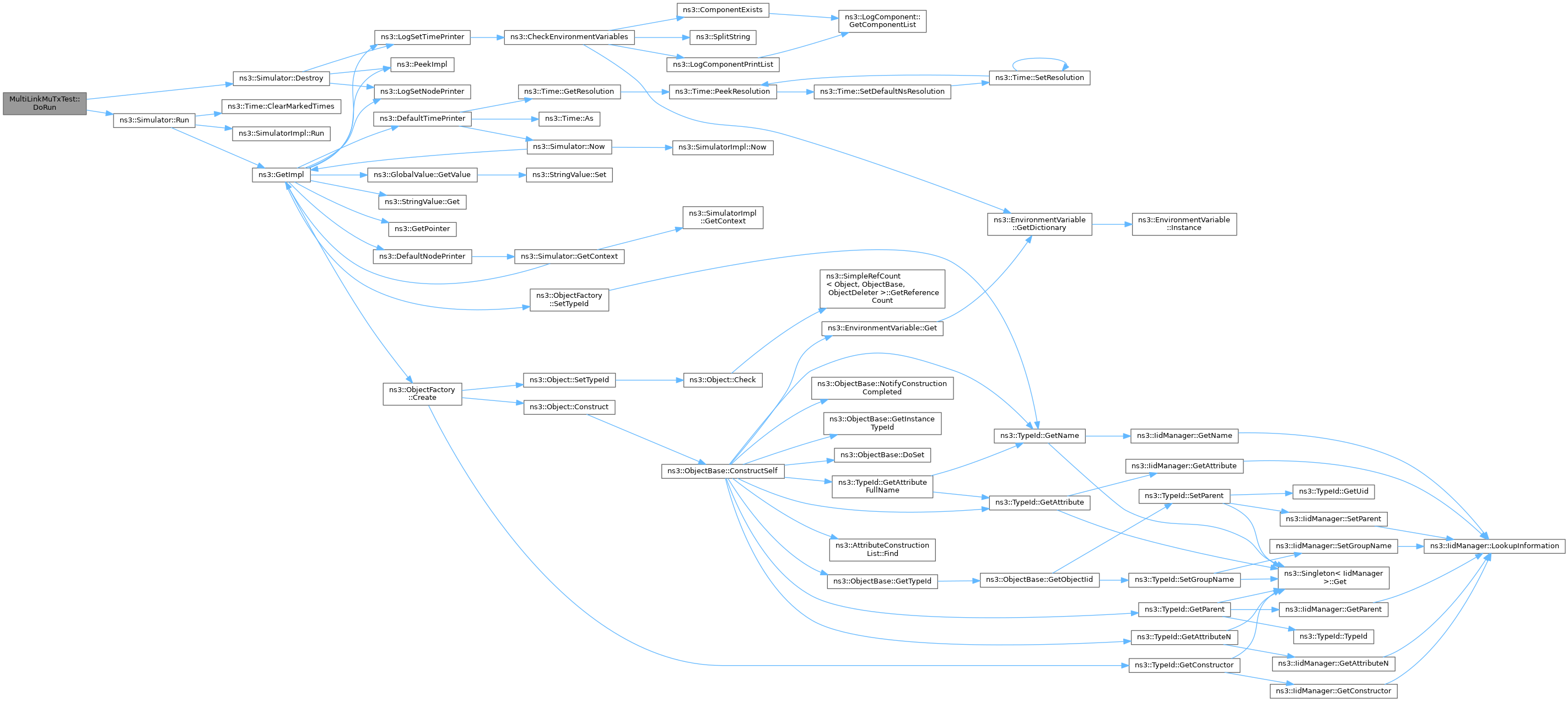

Here is the call graph for this function:

◆ DoSetup()

void MultiLinkMuTxTest::DoSetup ( )

overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from MultiLinkOperationsTestBase.

Definition at line 2177 of file wifi-mlo-test.cc.

References ns3::AC_BE, ns3::AC_VI, ns3::Object::AggregateObject(), ns3::WifiAcknowledgment::DL_MU_AGGREGATE_TF, ns3::WifiAcknowledgment::DL_MU_BAR_BA_SEQUENCE, ns3::WifiAcknowledgment::DL_MU_TF_MU_BAR, MultiLinkOperationsTestBase::DoSetup(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetWifiPhy(), MultiLinkOperationsTestBase::m_apMac, m_errorModels, m_muTrafficPattern, m_nMaxInflight, MultiLinkOperationsTestBase::m_staMacs, m_useBarAfterMissedBa, ns3::Config::SetDefault(), and ns3::WifiPhy::SetPostReceptionErrorModel().

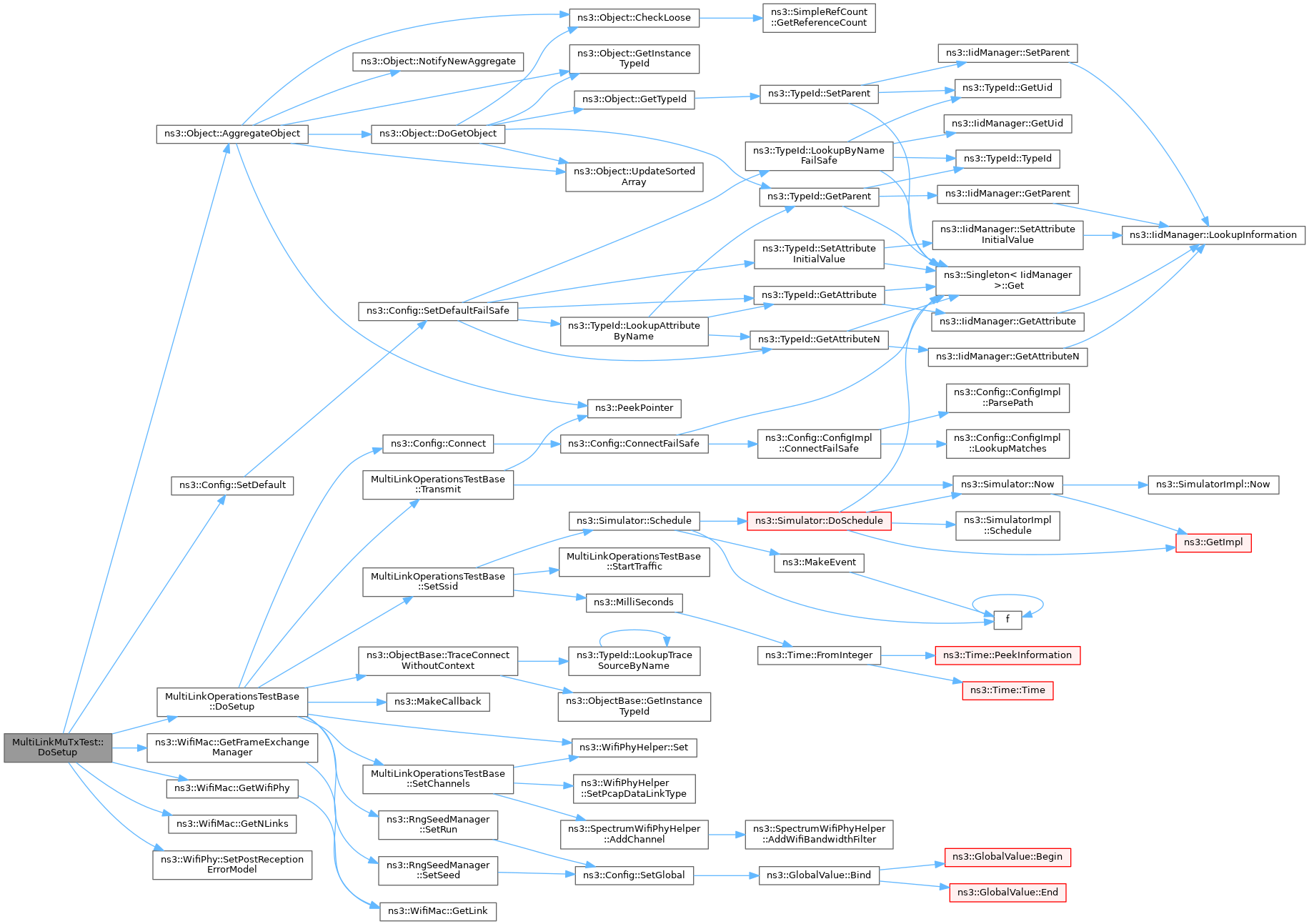

Here is the call graph for this function:

◆ L7Receive()

void MultiLinkMuTxTest::L7Receive	(	uint8_t	nodeId,
		Ptr< const Packet >	p,
		const Address &	addr
	)

protected

Function to trace packets received by the server application.

Parameters

nodeId	the ID of the node that received the packet
p	the packet
addr	the address

Definition at line 2170 of file wifi-mlo-test.cc.

References m_rxPkts, and NS_LOG_INFO.

Referenced by StartTraffic().

Here is the caller graph for this function:

◆ StartTraffic()

void MultiLinkMuTxTest::StartTraffic ( )

overrideprivatevirtual

Start the generation of traffic (needs to be overridden)

Reimplemented from MultiLinkOperationsTestBase.

Definition at line 2242 of file wifi-mlo-test.cc.

References ns3::Node::AddApplication(), ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::WifiNetDevice::GetAddress(), ns3::WifiMac::GetDevice(), ns3::WifiNetDevice::GetIfIndex(), ns3::WifiNetDevice::GetNode(), ns3::Object::GetObject(), ns3::PacketSocketHelper::Install(), L7Receive(), MultiLinkOperationsTestBase::m_apMac, m_muTrafficPattern, m_nPackets, MultiLinkOperationsTestBase::m_nStations, m_sockets, MultiLinkOperationsTestBase::m_staMacs, ns3::MakeCallback(), ns3::MicroSeconds(), ns3::MilliSeconds(), NS_TEST_ASSERT_MSG_NE, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), and ns3::Simulator::Stop().

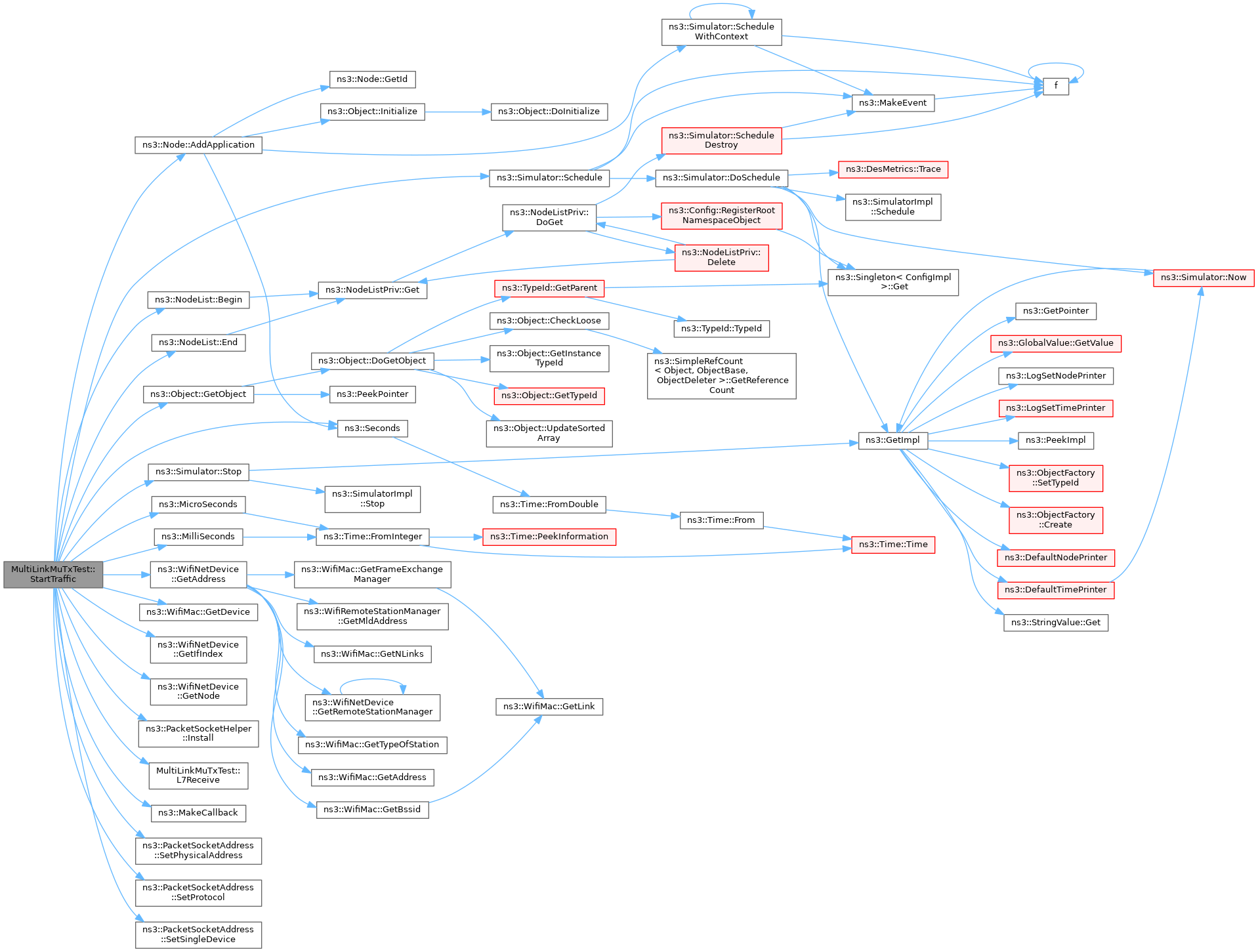

Here is the call graph for this function:

◆ Transmit()

void MultiLinkMuTxTest::Transmit	(	uint8_t	linkId,
		std::string	context,
		WifiConstPsduMap	psduMap,
		WifiTxVector	txVector,
		double	txPowerW
	)

overrideprotectedvirtual

Callback invoked when a FEM passes PSDUs to the PHY.

Parameters

linkId	the ID of the link transmitting the PSDUs
context	the context
psduMap	the PSDU map
txVector	the TX vector
txPowerW	the tx power in Watts

Reimplemented from MultiLinkOperationsTestBase.

Definition at line 1872 of file wifi-mlo-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), MultiLinkOperationsTestBase::CheckAddresses(), CheckBlockAck(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiMac::GetMldAddress(), ns3::WifiPhy::GetPhyBand(), ns3::WifiMac::GetWifiPhy(), ns3::CtrlTriggerHeader::IsBasic(), ns3::WifiTxVector::IsUlMu(), MultiLinkOperationsTestBase::m_apMac, m_blockAckCount, m_dataCorruptedSta, m_errorModels, m_inflightCount, m_muTrafficPattern, m_nMaxInflight, m_nPackets, MultiLinkOperationsTestBase::m_nStations, m_sockets, MultiLinkOperationsTestBase::m_staMacs, m_uidList, m_waitFirstTf, ns3::MicroSeconds(), NS_LOG_INFO, NS_TEST_EXPECT_MSG_EQ, ns3::Seconds(), MultiLinkOperationsTestBase::Transmit(), ns3::WIFI_MAC_CTL_BACKRESP, ns3::WIFI_MAC_CTL_TRIGGER, and ns3::WIFI_MAC_QOSDATA.

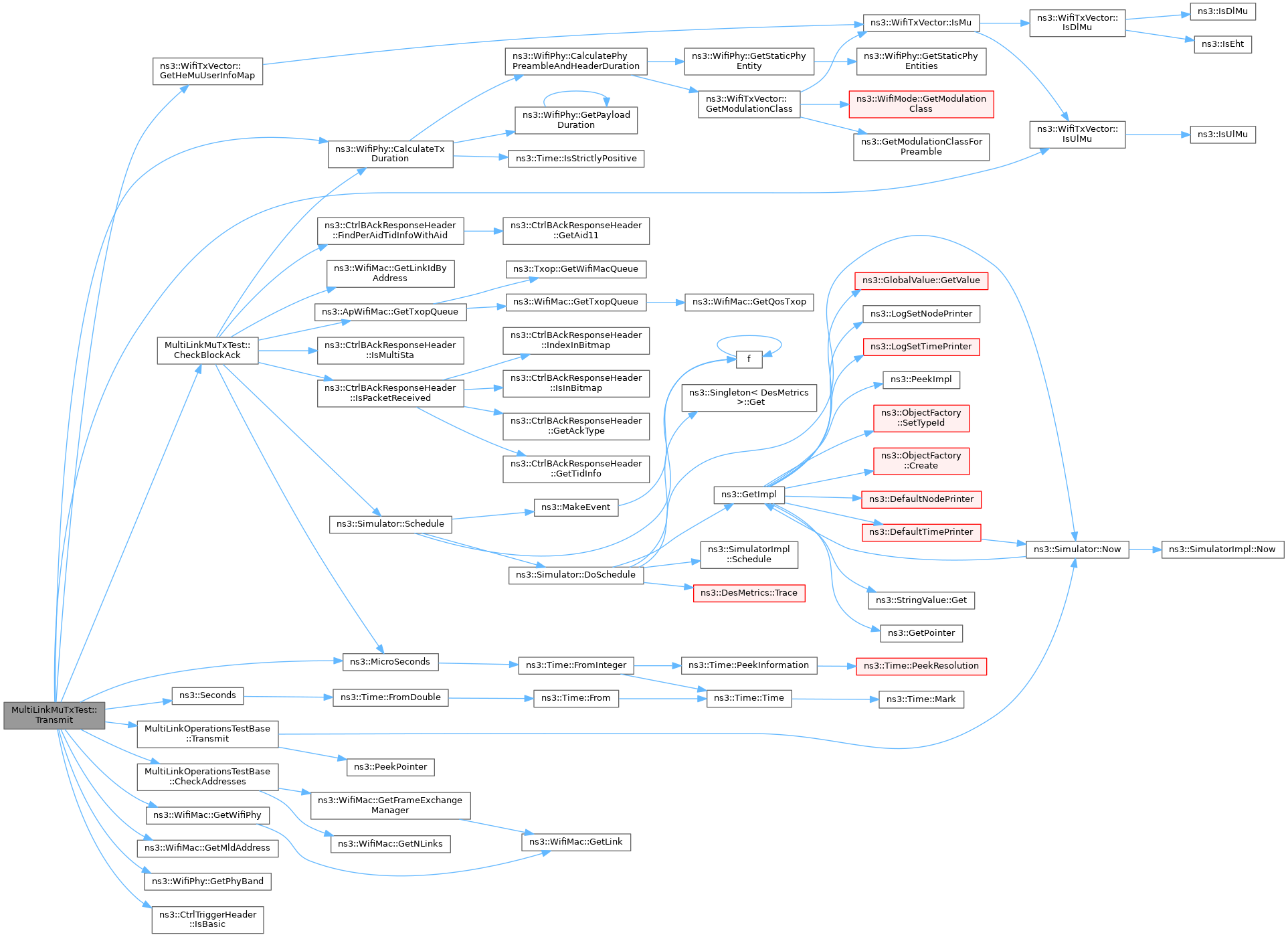

Here is the call graph for this function:

Member Data Documentation

◆ m_blockAckCount

std::size_t MultiLinkMuTxTest::m_blockAckCount {0}

private

transmitted BlockAck counter

Definition at line 1837 of file wifi-mlo-test.cc.

Referenced by CheckBlockAck(), and Transmit().

◆ m_dataCorruptedSta

std::optional<Mac48Address> MultiLinkMuTxTest::m_dataCorruptedSta

private

MAC address of the station that received MPDU with SeqNo=2 corrupted.

Definition at line 1829 of file wifi-mlo-test.cc.

Referenced by CheckBlockAck(), and Transmit().

◆ m_errorModels

RxErrorModelMap MultiLinkMuTxTest::m_errorModels

private

error rate models to corrupt packets

Definition at line 1827 of file wifi-mlo-test.cc.

Referenced by DoSetup(), and Transmit().

◆ m_inflightCount

std::map<AddrSeqNoPair, std::size_t> MultiLinkMuTxTest::m_inflightCount

private

max number of simultaneous transmissions of each data frame

Definition at line 1841 of file wifi-mlo-test.cc.

Referenced by DoRun(), and Transmit().

◆ m_muTrafficPattern

WifiMuTrafficPattern MultiLinkMuTxTest::m_muTrafficPattern

private

the pattern of traffic to generate

Definition at line 1832 of file wifi-mlo-test.cc.

Referenced by CheckBlockAck(), DoRun(), DoSetup(), StartTraffic(), and Transmit().

◆ m_nMaxInflight

std::size_t MultiLinkMuTxTest::m_nMaxInflight

private

max number of links on which an MPDU can be inflight

Definition at line 1834 of file wifi-mlo-test.cc.

Referenced by DoRun(), DoSetup(), and Transmit().

◆ m_nPackets

std::size_t MultiLinkMuTxTest::m_nPackets

private

number of application packets to generate

Definition at line 1836 of file wifi-mlo-test.cc.

Referenced by CheckBlockAck(), DoRun(), StartTraffic(), and Transmit().

◆ m_rxPkts

std::array<std::size_t, 3> MultiLinkMuTxTest::m_rxPkts {}

private

number of packets received at application layer by each node (AP, STA 0, STA 1)

Definition at line 1839 of file wifi-mlo-test.cc.

Referenced by DoRun(), and L7Receive().

◆ m_sockets

std::vector<PacketSocketAddress> MultiLinkMuTxTest::m_sockets

private

packet socket addresses for STAs

Definition at line 1835 of file wifi-mlo-test.cc.

Referenced by StartTraffic(), and Transmit().

◆ m_sourceMac

Ptr<WifiMac> MultiLinkMuTxTest::m_sourceMac

private

MAC of the node sending application packets.

Definition at line 1843 of file wifi-mlo-test.cc.

◆ m_uidList

std::list<uint64_t> MultiLinkMuTxTest::m_uidList

private

list of UIDs of packets to corrupt

Definition at line 1828 of file wifi-mlo-test.cc.

Referenced by Transmit().

◆ m_useBarAfterMissedBa

bool MultiLinkMuTxTest::m_useBarAfterMissedBa

private

whether to send BAR after missed BlockAck

Definition at line 1833 of file wifi-mlo-test.cc.

Referenced by DoSetup().

◆ m_waitFirstTf

bool MultiLinkMuTxTest::m_waitFirstTf {true}

private

whether we are waiting for the first Basic Trigger Frame

Definition at line 1831 of file wifi-mlo-test.cc.

Referenced by Transmit().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-mlo-test.cc

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AddrSeqNoPair

◆ RxErrorModelMap

Constructor & Destructor Documentation

◆ MultiLinkMuTxTest()

◆ ~MultiLinkMuTxTest()

Member Function Documentation

◆ CheckBlockAck()

◆ DoRun()

◆ DoSetup()

◆ L7Receive()

◆ StartTraffic()

◆ Transmit()

Member Data Documentation

◆ m_blockAckCount

◆ m_dataCorruptedSta

◆ m_errorModels

◆ m_inflightCount

◆ m_muTrafficPattern

◆ m_nMaxInflight

◆ m_nPackets

◆ m_rxPkts

◆ m_sockets

◆ m_sourceMac

◆ m_uidList

◆ m_useBarAfterMissedBa

◆ m_waitFirstTf
