BulkSendSeqTsSizeTestCase Class Reference

This test checks that the sequence number is sent and received in sequence despite the sending application having to pause and restart its sending due to a temporarily full transmit buffer. More...

+ Inheritance diagram for BulkSendSeqTsSizeTestCase:

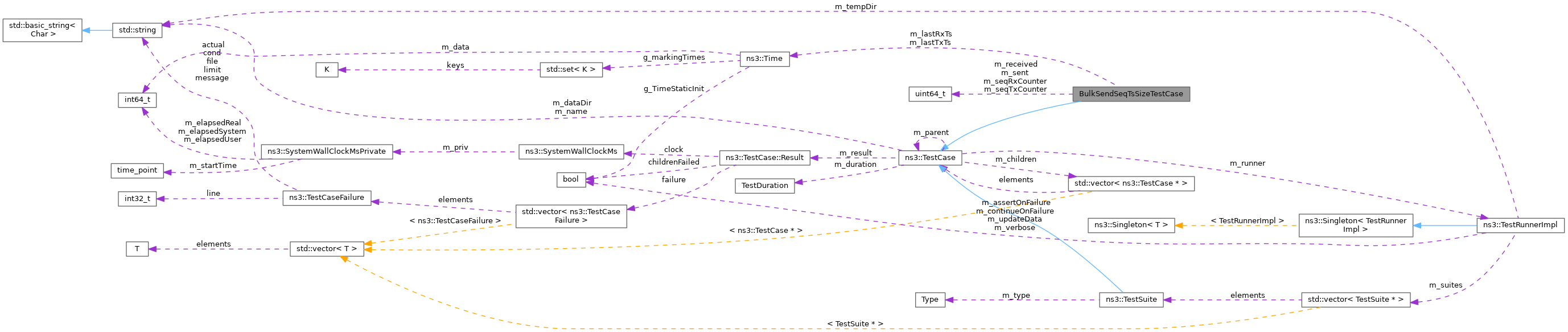

+ Collaboration diagram for BulkSendSeqTsSizeTestCase:

Public Member Functions

 BulkSendSeqTsSizeTestCase ()

 ~BulkSendSeqTsSizeTestCase () override

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Implementation to actually run this TestCase.

void ReceiveRx (Ptr< const Packet > p, const Address &from, const Address &to, const SeqTsSizeHeader &header)
 Record a packet successfully received.

void SendTx (Ptr< const Packet > p, const Address &from, const Address &to, const SeqTsSizeHeader &header)
 Record a packet successfully sent.


Private Attributes

Time m_lastRxTs {Seconds(0)}
 Last recorded timestamp on Rx.

Time m_lastTxTs {Seconds(0)}
 Last recorded timestamp on Tx.

uint64_t m_received {0}
 number of bytes received

uint64_t m_sent {0}
 number of bytes sent

uint64_t m_seqRxCounter {0}
 Counter for Sequences on Rx.

uint64_t m_seqTxCounter {0}
 Counter for Sequences on Tx.


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

This test checks that the sequence number is sent and received in sequence despite the sending application having to pause and restart its sending due to a temporarily full transmit buffer.

Definition at line 142 of file bulk-send-application-test-suite.cc.

Constructor & Destructor Documentation

◆ BulkSendSeqTsSizeTestCase()

BulkSendSeqTsSizeTestCase::BulkSendSeqTsSizeTestCase ( )

Definition at line 180 of file bulk-send-application-test-suite.cc.

◆ ~BulkSendSeqTsSizeTestCase()

BulkSendSeqTsSizeTestCase::~BulkSendSeqTsSizeTestCase ( )
override

Definition at line 185 of file bulk-send-application-test-suite.cc.

Member Function Documentation

◆ DoRun()

◆ ReceiveRx()

void BulkSendSeqTsSizeTestCase::ReceiveRx ( Ptr< const Packet p,
const Address from,
const Address to,
const SeqTsSizeHeader header
)
private

Record a packet successfully received.

Parameters
pthe packet
fromsource address
todestination address
headerthe SeqTsSizeHeader

Definition at line 204 of file bulk-send-application-test-suite.cc.

References ns3::SeqTsHeader::GetSeq(), ns3::SeqTsSizeHeader::GetSerializedSize(), ns3::SeqTsHeader::GetTs(), m_lastRxTs, m_received, m_seqRxCounter, NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_GT_OR_EQ.

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SendTx()

void BulkSendSeqTsSizeTestCase::SendTx ( Ptr< const Packet p,
const Address from,
const Address to,
const SeqTsSizeHeader header
)
private

Record a packet successfully sent.

Parameters
pthe packet
fromsource address
todestination address
headerthe SeqTsSizeHeader

Definition at line 190 of file bulk-send-application-test-suite.cc.

References ns3::SeqTsHeader::GetSeq(), ns3::SeqTsSizeHeader::GetSerializedSize(), ns3::SeqTsHeader::GetTs(), m_lastTxTs, m_sent, m_seqTxCounter, NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_GT_OR_EQ.

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_lastRxTs

Time BulkSendSeqTsSizeTestCase::m_lastRxTs {Seconds(0)}
private

Last recorded timestamp on Rx.

Definition at line 177 of file bulk-send-application-test-suite.cc.

Referenced by ReceiveRx().

◆ m_lastTxTs

Time BulkSendSeqTsSizeTestCase::m_lastTxTs {Seconds(0)}
private

Last recorded timestamp on Tx.

Definition at line 176 of file bulk-send-application-test-suite.cc.

Referenced by SendTx().

◆ m_received

uint64_t BulkSendSeqTsSizeTestCase::m_received {0}
private

number of bytes received

Definition at line 173 of file bulk-send-application-test-suite.cc.

Referenced by DoRun(), and ReceiveRx().

◆ m_sent

uint64_t BulkSendSeqTsSizeTestCase::m_sent {0}
private

number of bytes sent

Definition at line 172 of file bulk-send-application-test-suite.cc.

Referenced by DoRun(), and SendTx().

◆ m_seqRxCounter

uint64_t BulkSendSeqTsSizeTestCase::m_seqRxCounter {0}
private

Counter for Sequences on Rx.

Definition at line 175 of file bulk-send-application-test-suite.cc.

Referenced by ReceiveRx().

◆ m_seqTxCounter

uint64_t BulkSendSeqTsSizeTestCase::m_seqTxCounter {0}
private

Counter for Sequences on Tx.

Definition at line 174 of file bulk-send-application-test-suite.cc.

Referenced by SendTx().


The documentation for this class was generated from the following file:
