ns3::WifiPhyHelper Class Referenceabstract

create PHY objects More...

#include "wifi-helper.h"

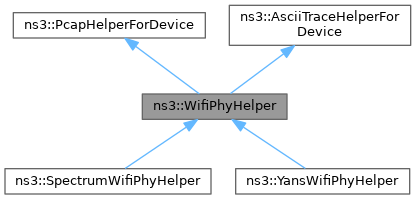

+ Inheritance diagram for ns3::WifiPhyHelper:

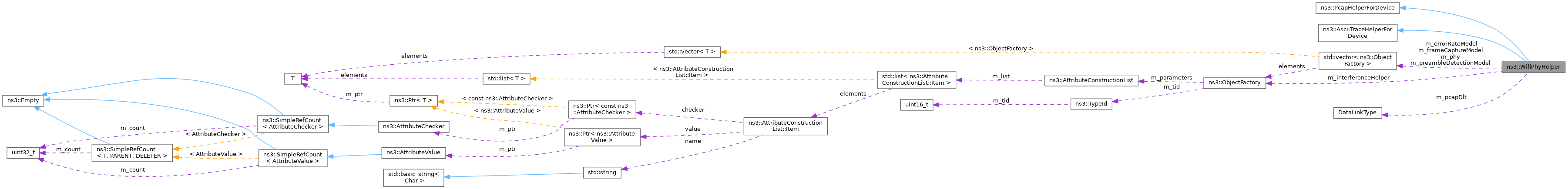

+ Collaboration diagram for ns3::WifiPhyHelper:

Public Types

enum  SupportedPcapDataLinkTypes { DLT_IEEE802_11 , DLT_PRISM_HEADER , DLT_IEEE802_11_RADIO }
 An enumeration of the pcap data link types (DLTs) which this helper supports. More...


Public Member Functions

 WifiPhyHelper (uint8_t nLinks=1)
 Constructor.

 ~WifiPhyHelper () override

virtual std::vector< Ptr< WifiPhy > > Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const =0

void DisablePreambleDetectionModel ()
 Disable the preamble detection model on all links.

PcapHelper::DataLinkType GetPcapDataLinkType () const
 Get the data link type of PCAP traces to be used.

void Set (std::string name, const AttributeValue &v)

void Set (uint8_t linkId, std::string name, const AttributeValue &v)

template<typename... Args>
void SetErrorRateModel (std::string type, Args &&... args)
 Helper function used to set the error rate model.

template<typename... Args>
void SetErrorRateModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void SetFrameCaptureModel (std::string type, Args &&... args)
 Helper function used to set the frame capture model.

template<typename... Args>
void SetFrameCaptureModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void SetInterferenceHelper (std::string type, Args &&... args)
 Helper function used to set the interference helper.

void SetPcapDataLinkType (SupportedPcapDataLinkTypes dlt)
 Set the data link type of PCAP traces to be used.

template<typename... Args>
void SetPreambleDetectionModel (std::string type, Args &&... args)
 Helper function used to set the preamble detection model.

template<typename... Args>
void SetPreambleDetectionModel (uint8_t linkId, std::string type, Args &&... args)

- Public Member Functions inherited from ns3::PcapHelperForDevice
 PcapHelperForDevice ()
 Construct a PcapHelperForDevice.

virtual ~PcapHelperForDevice ()
 Destroy a PcapHelperForDevice.

void EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
 Enable pcap output on each device in the container which is of the appropriate type.

void EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device.

void EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device using a device previously named using the ns-3 object name service.

void EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
 Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnablePcapAll (std::string prefix, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)=0
 Enable pcap output the indicated net device.

- Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
 AsciiTraceHelperForDevice ()
 Construct an AsciiTraceHelperForDevice.

virtual ~AsciiTraceHelperForDevice ()
 Destroy an AsciiTraceHelperForDevice.

void EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type.

void EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
 Enable ascii trace output on the indicated net device.

void EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnableAscii (std::string prefix, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type.

void EnableAscii (std::string prefix, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
 Enable ascii trace output on the indicated net device.

void EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

void EnableAsciiAll (std::string prefix)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0
 Enable ascii trace output on the indicated net device.


Static Protected Member Functions

static void PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId=SU_STA_ID)

static void PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId=SU_STA_ID)


Protected Attributes

std::vector< ObjectFactorym_errorRateModel
 error rate model

std::vector< ObjectFactorym_frameCaptureModel
 frame capture model

ObjectFactory m_interferenceHelper
 interference helper

std::vector< ObjectFactorym_phy
 PHY object.

std::vector< ObjectFactorym_preambleDetectionModel
 preamble detection model


Private Member Functions

void EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename) override
 Enable ASCII trace output on the indicated net device.

void EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename) override
 Enable pcap output the indicated net device.


Static Private Member Functions

static void GetRadiotapHeader (RadiotapHeader &header, Ptr< Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)
 Get the Radiotap header for a transmitted packet.

static void GetRadiotapHeader (RadiotapHeader &header, Ptr< Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId, SignalNoiseDbm signalNoise)
 Get the Radiotap header for a received packet.


Private Attributes

PcapHelper::DataLinkType m_pcapDlt
 PCAP data link type.


Detailed Description

create PHY objects

This base class must be implemented by new PHY implementation which wish to integrate with the ns3::WifiHelper class.

Definition at line 48 of file wifi-helper.h.

Member Enumeration Documentation

◆ SupportedPcapDataLinkTypes

An enumeration of the pcap data link types (DLTs) which this helper supports.

See http://wiki.wireshark.org/Development/LibpcapFileFormat for more information on these formats.

Enumerator
DLT_IEEE802_11

IEEE 802.11 Wireless LAN headers on packets.

DLT_PRISM_HEADER

Include Prism monitor mode information.

DLT_IEEE802_11_RADIO

Include Radiotap link layer information.

Definition at line 172 of file wifi-helper.h.

Constructor & Destructor Documentation

◆ WifiPhyHelper()

ns3::WifiPhyHelper::WifiPhyHelper ( uint8_t  nLinks = 1)

Constructor.

Parameters
nLinksthe number of links to configure (>1 only for 11be devices)

Definition at line 146 of file wifi-helper.cc.

References m_errorRateModel, m_frameCaptureModel, m_phy, m_preambleDetectionModel, NS_ABORT_IF, and SetPreambleDetectionModel().

+ Here is the call graph for this function:

◆ ~WifiPhyHelper()

ns3::WifiPhyHelper::~WifiPhyHelper ( )
override

Definition at line 158 of file wifi-helper.cc.

Member Function Documentation

◆ Create()

virtual std::vector< Ptr< WifiPhy > > ns3::WifiPhyHelper::Create ( Ptr< Node node,
Ptr< WifiNetDevice device
) const
pure virtual
Parameters
nodethe node on which the PHY object(s) will reside
devicethe device within which the PHY object(s) will reside
Returns
new PHY objects.

Subclasses must implement this method to allow the ns3::WifiHelper class to create PHY objects from ns3::WifiHelper::Install.

Implemented in ns3::SpectrumWifiPhyHelper, and ns3::YansWifiPhyHelper.

Referenced by ns3::MeshHelper::CreateInterface(), and ns3::WifiHelper::Install().

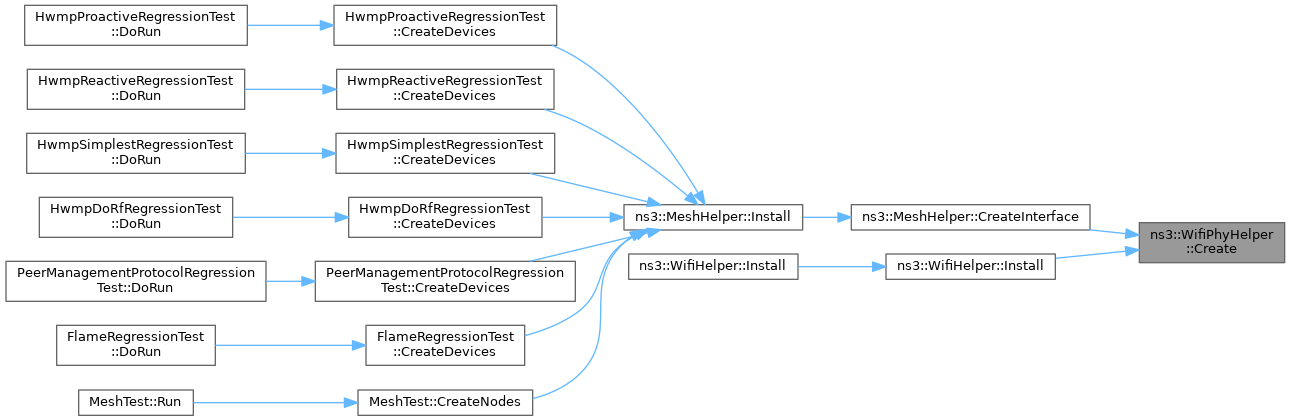

+ Here is the caller graph for this function:

◆ DisablePreambleDetectionModel()

void ns3::WifiPhyHelper::DisablePreambleDetectionModel ( )

◆ EnableAsciiInternal()

void ns3::WifiPhyHelper::EnableAsciiInternal ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ptr< NetDevice nd,
bool  explicitFilename
)
overrideprivatevirtual

Enable ASCII trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
streamThe output stream object to use when logging ASCII traces.
prefixFilename prefix to use for ASCII trace files.
ndNet device for which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 624 of file wifi-helper.cc.

References ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::Config::Connect(), ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

+ Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::WifiPhyHelper::EnablePcapInternal ( std::string  prefix,
Ptr< NetDevice nd,
bool  promiscuous,
bool  explicitFilename
)
overrideprivatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
prefixFilename prefix to use for pcap files.
ndNet device for which you want to enable tracing.
promiscuousIf true capture all possible packets available at the device.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 568 of file wifi-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::GetFilenameFromDevice(), m_pcapDlt, ns3::MakeBoundCallback(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, NS_LOG_INFO, PcapSniffRxEvent(), and PcapSniffTxEvent().

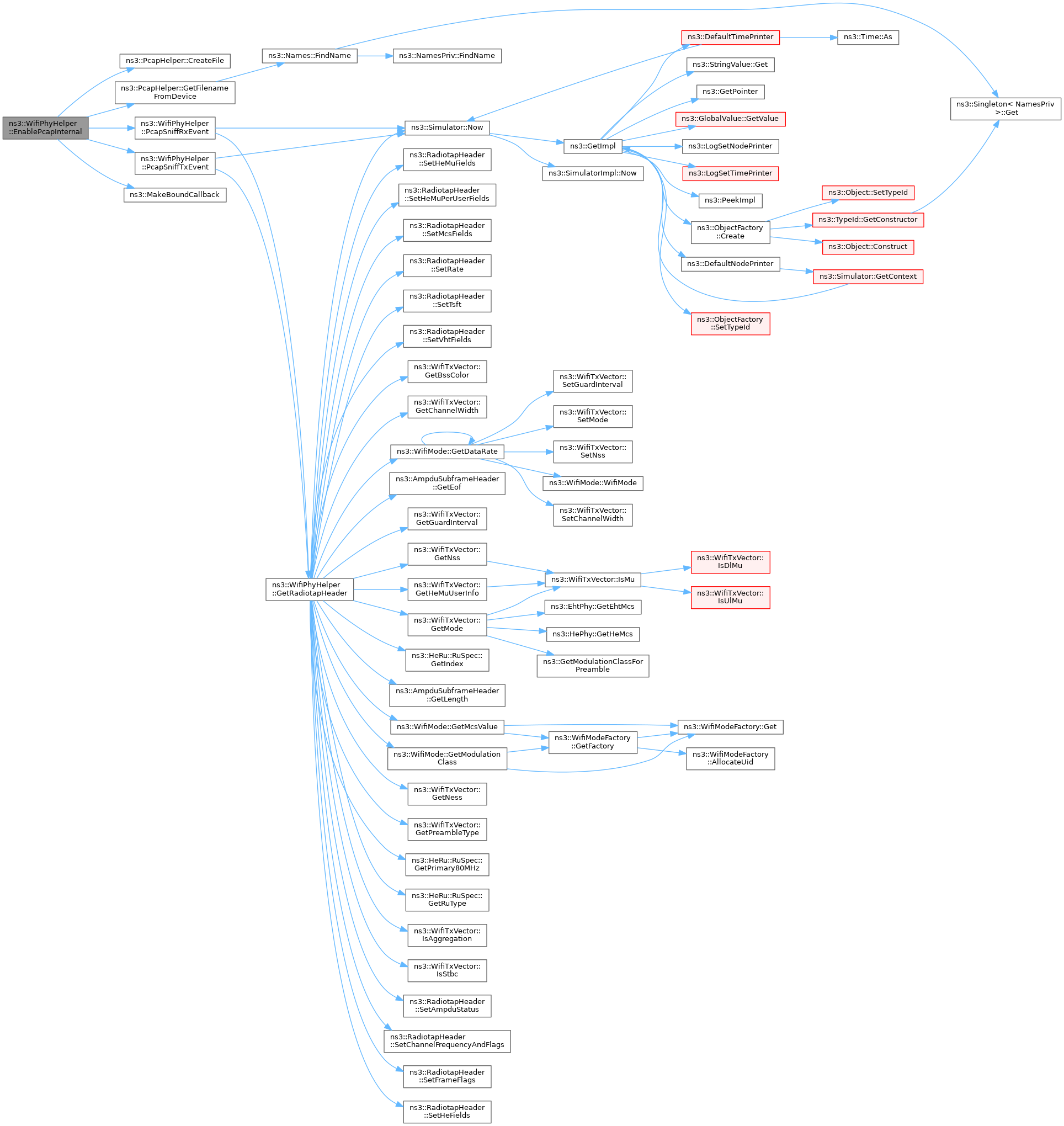

+ Here is the call graph for this function:

◆ GetPcapDataLinkType()

PcapHelper::DataLinkType ns3::WifiPhyHelper::GetPcapDataLinkType ( ) const

Get the data link type of PCAP traces to be used.

See also
SupportedPcapDataLinkTypes
Returns
The data link type of the pcap file (and packets) to be used

Definition at line 562 of file wifi-helper.cc.

References m_pcapDlt.

◆ GetRadiotapHeader() [1/2]

void ns3::WifiPhyHelper::GetRadiotapHeader ( RadiotapHeader header,
Ptr< Packet packet,
uint16_t  channelFreqMhz,
WifiTxVector  txVector,
MpduInfo  aMpdu,
uint16_t  staId
)
staticprivate

Get the Radiotap header for a transmitted packet.

Parameters
headerthe radiotap header to be filled in
packetthe packet
channelFreqMhzthe channel frequency
txVectorthe TXVECTOR
aMpduthe A-MPDU information
staIdthe STA-ID

Definition at line 264 of file wifi-helper.cc.

References ns3::RadiotapHeader::A_MPDU_STATUS_LAST, ns3::RadiotapHeader::A_MPDU_STATUS_LAST_KNOWN, ns3::RadiotapHeader::A_MPDU_STATUS_NONE, ns3::RadiotapHeader::CHANNEL_FLAG_CCK, ns3::RadiotapHeader::CHANNEL_FLAG_OFDM, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_2GHZ, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_5GHZ, ns3::RadiotapHeader::FRAME_FLAG_FCS_INCLUDED, ns3::RadiotapHeader::FRAME_FLAG_NONE, ns3::RadiotapHeader::FRAME_FLAG_SHORT_GUARD, ns3::RadiotapHeader::FRAME_FLAG_SHORT_PREAMBLE, ns3::WifiTxVector::GetBssColor(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::AmpduSubframeHeader::GetEof(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiTxVector::GetHeMuUserInfo(), ns3::HeRu::RuSpec::GetIndex(), ns3::AmpduSubframeHeader::GetLength(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetPreambleType(), ns3::HeRu::RuSpec::GetPrimary80MHz(), ns3::HeRu::RuSpec::GetRuType(), ns3::RadiotapHeader::HE_DATA1_BSS_COLOR_KNOWN, ns3::RadiotapHeader::HE_DATA1_BW_RU_ALLOC_KNOWN, ns3::RadiotapHeader::HE_DATA1_DATA_MCS_KNOWN, ns3::RadiotapHeader::HE_DATA1_FORMAT_EXT_SU, ns3::RadiotapHeader::HE_DATA1_FORMAT_MU, ns3::RadiotapHeader::HE_DATA1_FORMAT_TRIG, ns3::RadiotapHeader::HE_DATA1_SPTL_REUSE2_KNOWN, ns3::RadiotapHeader::HE_DATA2_GI_KNOWN, ns3::RadiotapHeader::HE_DATA2_RU_OFFSET_KNOWN, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_106T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_160MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_242T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_26T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_2x996T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_40MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_484T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_52T, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_80MHZ, ns3::RadiotapHeader::HE_DATA5_DATA_BW_RU_ALLOC_996T, ns3::RadiotapHeader::HE_DATA5_GI_1_6, ns3::RadiotapHeader::HE_DATA5_GI_3_2, ns3::WifiTxVector::IsAggregation(), ns3::WifiTxVector::IsStbc(), ns3::LAST_MPDU_IN_AGGREGATE, ns3::RadiotapHeader::MCS_FLAGS_BANDWIDTH_40, ns3::RadiotapHeader::MCS_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_FLAGS_NESS_BIT_0, ns3::RadiotapHeader::MCS_FLAGS_NONE, ns3::RadiotapHeader::MCS_FLAGS_STBC_STREAMS, ns3::RadiotapHeader::MCS_KNOWN_BANDWIDTH, ns3::RadiotapHeader::MCS_KNOWN_FEC_TYPE, ns3::RadiotapHeader::MCS_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_KNOWN_HT_FORMAT, ns3::RadiotapHeader::MCS_KNOWN_INDEX, ns3::RadiotapHeader::MCS_KNOWN_NESS, ns3::RadiotapHeader::MCS_KNOWN_NESS_BIT_1, ns3::RadiotapHeader::MCS_KNOWN_NONE, ns3::RadiotapHeader::MCS_KNOWN_STBC, ns3::MpduInfo::mpduRefNumber, ns3::Simulator::Now(), NS_ABORT_MSG, ns3::HeMuUserInfo::ru, ns3::HeRu::RU_106_TONE, ns3::HeRu::RU_242_TONE, ns3::HeRu::RU_26_TONE, ns3::HeRu::RU_2x996_TONE, ns3::HeRu::RU_484_TONE, ns3::HeRu::RU_52_TONE, ns3::HeRu::RU_996_TONE, ns3::RadiotapHeader::SetAmpduStatus(), ns3::RadiotapHeader::SetChannelFrequencyAndFlags(), ns3::RadiotapHeader::SetFrameFlags(), ns3::RadiotapHeader::SetHeFields(), ns3::RadiotapHeader::SetHeMuFields(), ns3::RadiotapHeader::SetHeMuPerUserFields(), ns3::RadiotapHeader::SetMcsFields(), ns3::RadiotapHeader::SetRate(), ns3::RadiotapHeader::SetTsft(), ns3::RadiotapHeader::SetVhtFields(), ns3::MpduInfo::type, ns3::RadiotapHeader::VHT_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_FLAGS_NONE, ns3::RadiotapHeader::VHT_FLAGS_STBC, ns3::RadiotapHeader::VHT_KNOWN_BANDWIDTH, ns3::RadiotapHeader::VHT_KNOWN_BEAMFORMED, ns3::RadiotapHeader::VHT_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_KNOWN_NONE, ns3::RadiotapHeader::VHT_KNOWN_STBC, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_ER_SU, ns3::WIFI_PREAMBLE_HE_MU, ns3::WIFI_PREAMBLE_HE_TB, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetRadiotapHeader(), PcapSniffRxEvent(), and PcapSniffTxEvent().

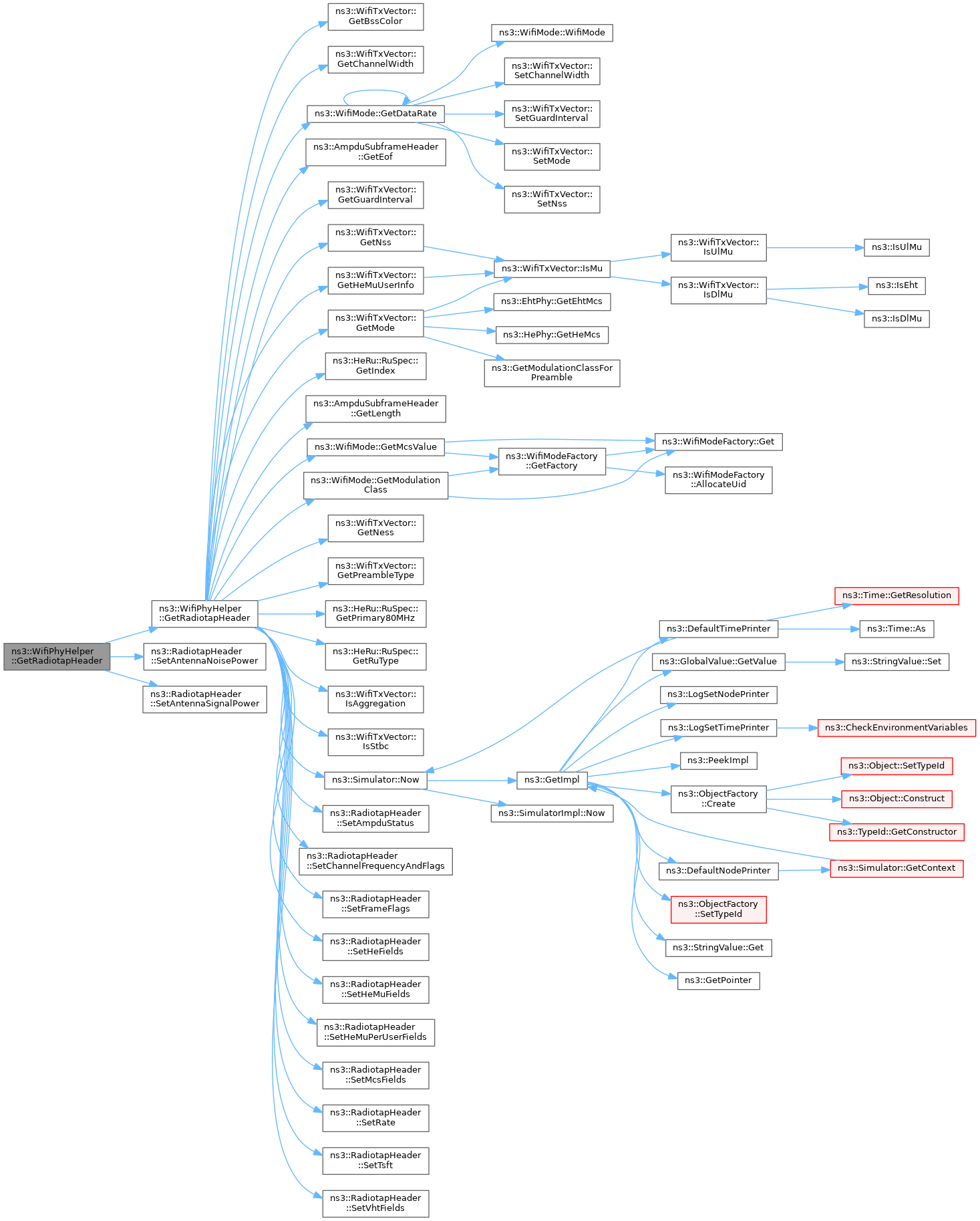

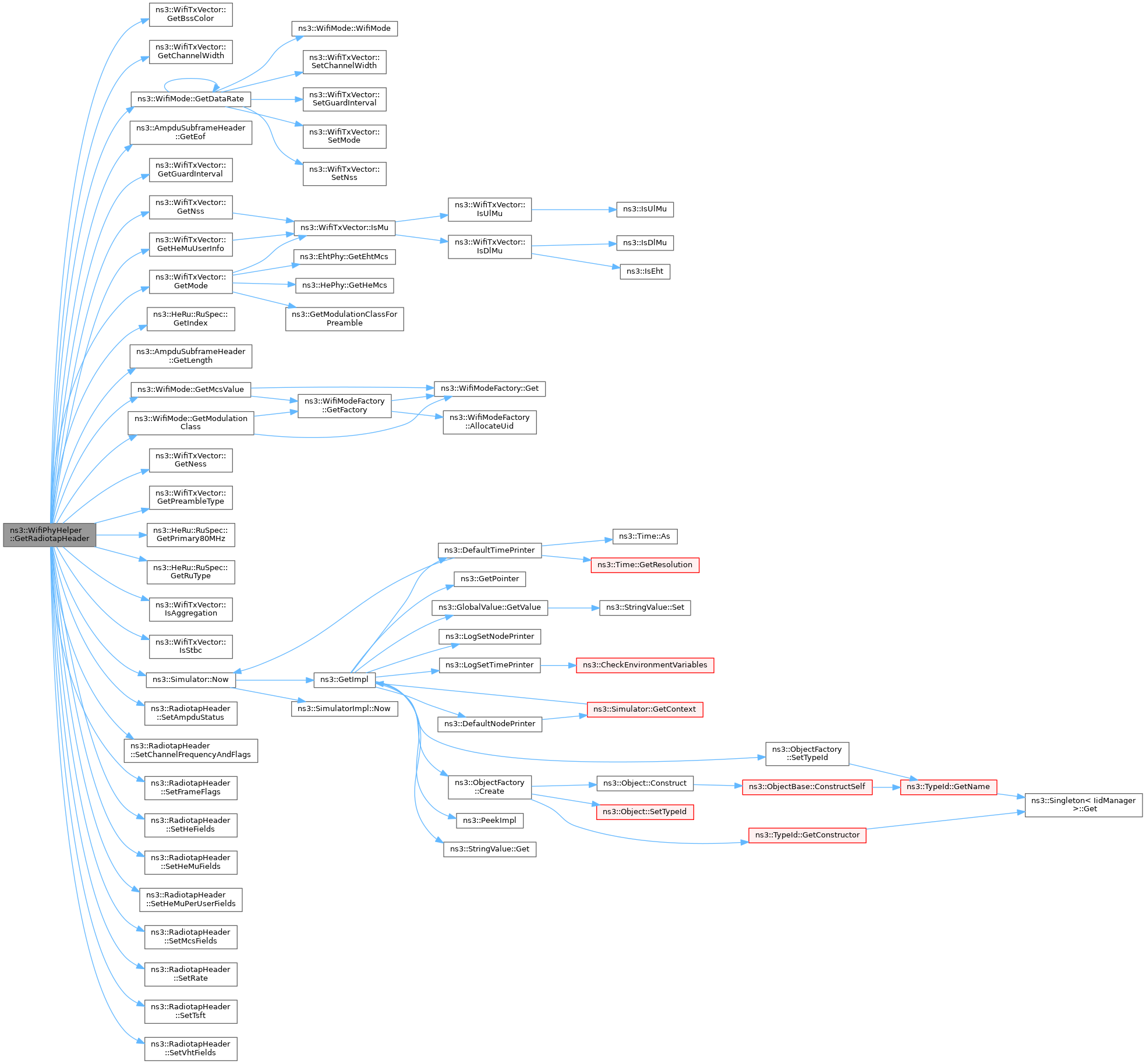

+ Here is the call graph for this function:

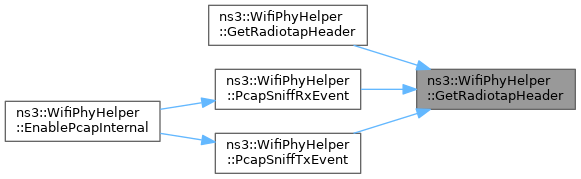

+ Here is the caller graph for this function:

◆ GetRadiotapHeader() [2/2]

void ns3::WifiPhyHelper::GetRadiotapHeader ( RadiotapHeader header,
Ptr< Packet packet,
uint16_t  channelFreqMhz,
WifiTxVector  txVector,
MpduInfo  aMpdu,
uint16_t  staId,
SignalNoiseDbm  signalNoise
)
staticprivate

Get the Radiotap header for a received packet.

Parameters
headerthe radiotap header to be filled in
packetthe packet
channelFreqMhzthe channel frequency
txVectorthe TXVECTOR
aMpduthe A-MPDU information
staIdthe STA-ID
signalNoisethe rx signal and noise information

Definition at line 250 of file wifi-helper.cc.

References GetRadiotapHeader(), ns3::SignalNoiseDbm::noise, ns3::RadiotapHeader::SetAntennaNoisePower(), ns3::RadiotapHeader::SetAntennaSignalPower(), and ns3::SignalNoiseDbm::signal.

+ Here is the call graph for this function:

◆ PcapSniffRxEvent()

void ns3::WifiPhyHelper::PcapSniffRxEvent ( Ptr< PcapFileWrapper file,
Ptr< const Packet packet,
uint16_t  channelFreqMhz,
WifiTxVector  txVector,
MpduInfo  aMpdu,
SignalNoiseDbm  signalNoise,
uint16_t  staId = SU_STA_ID
)
staticprotected
Parameters
filethe pcap file wrapper
packetthe packet
channelFreqMhzthe channel frequency
txVectorthe TXVECTOR
aMpduthe A-MPDU information
signalNoisethe RX signal and noise information
staIdthe STA-ID (only used for MU)

Handle RX pcap.

Definition at line 218 of file wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, GetRadiotapHeader(), ns3::Simulator::Now(), NS_ABORT_MSG, and NS_FATAL_ERROR.

Referenced by EnablePcapInternal().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ PcapSniffTxEvent()

void ns3::WifiPhyHelper::PcapSniffTxEvent ( Ptr< PcapFileWrapper file,
Ptr< const Packet packet,
uint16_t  channelFreqMhz,
WifiTxVector  txVector,
MpduInfo  aMpdu,
uint16_t  staId = SU_STA_ID
)
staticprotected
Parameters
filethe pcap file wrapper
packetthe packet
channelFreqMhzthe channel frequency
txVectorthe TXVECTOR
aMpduthe A-MPDU information
staIdthe STA-ID (only used for MU)

Handle TX pcap.

Definition at line 187 of file wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, GetRadiotapHeader(), ns3::Simulator::Now(), NS_ABORT_MSG, and NS_FATAL_ERROR.

Referenced by EnablePcapInternal().

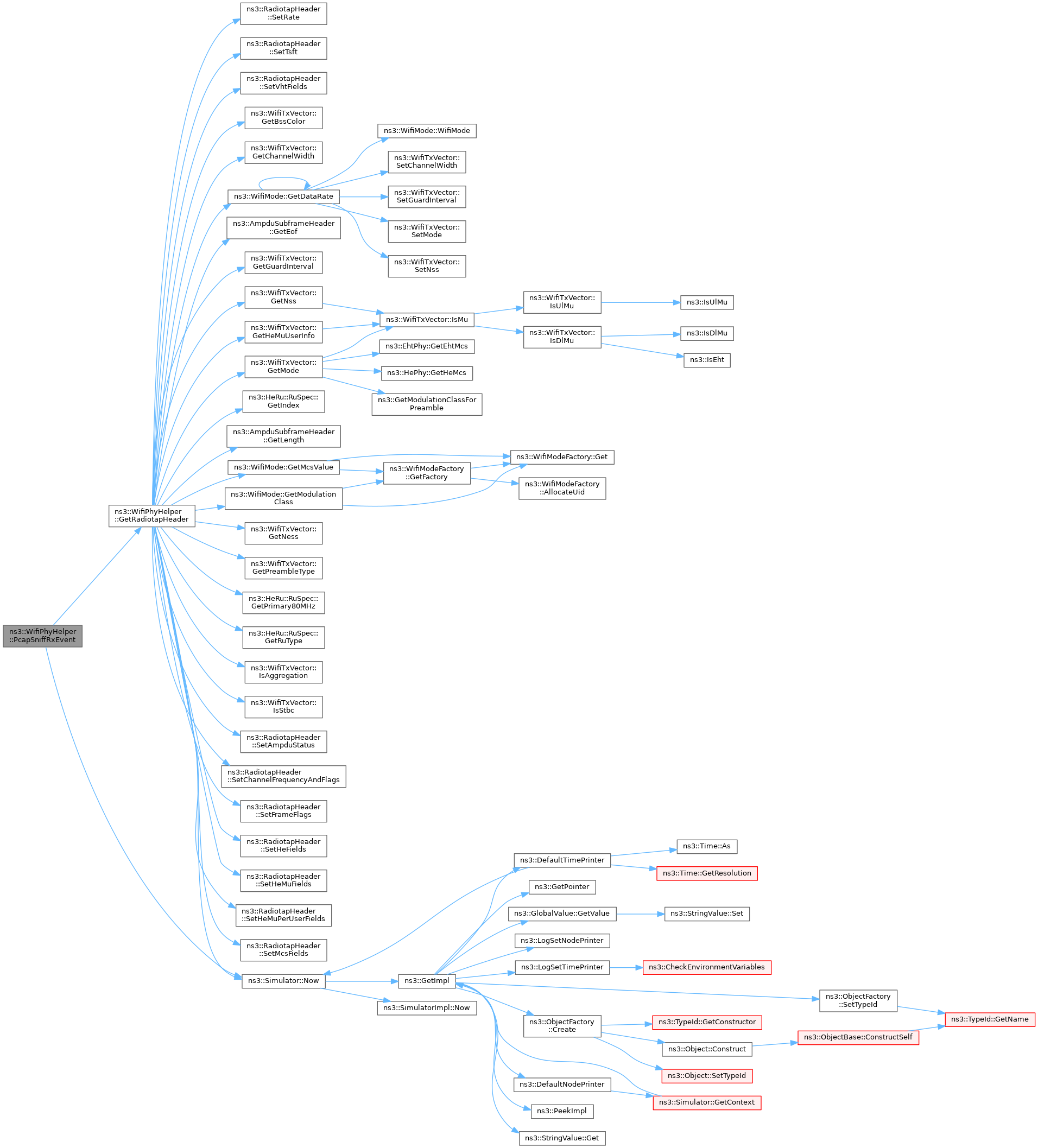

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Set() [1/2]

void ns3::WifiPhyHelper::Set ( std::string  name,
const AttributeValue v
)
Parameters
namethe name of the attribute to set
vthe value of the attribute

Set an attribute of all the underlying PHY object.

Definition at line 163 of file wifi-helper.cc.

References m_phy.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), Bug772ChainTest::CreateDevices(), BasicEnergyDepletionTest::DepletionTestCase(), Bug2843TestCase::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), TestUlOfdmaPowerControl::DoSetup(), RoutingExperiment::Run(), MultiLinkOperationsTestBase::SetChannels(), and BatteryLifetimeTest::VariableLoadTest().

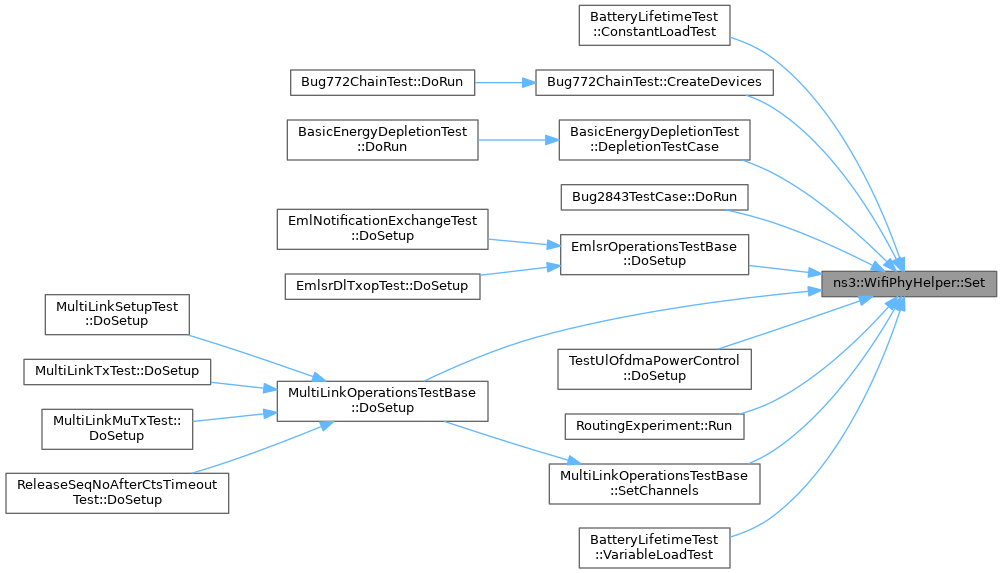

+ Here is the caller graph for this function:

◆ Set() [2/2]

void ns3::WifiPhyHelper::Set ( uint8_t  linkId,
std::string  name,
const AttributeValue v
)
Parameters
namethe name of the attribute to set
vthe value of the attribute
linkIdID of the link to configure (>0 only for 11be devices)

Set an attribute of the given underlying PHY object.

Definition at line 172 of file wifi-helper.cc.

References m_phy.

◆ SetErrorRateModel() [1/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetErrorRateModel ( std::string  type,
Args &&...  args
)

Helper function used to set the error rate model.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of error rate model
argsA sequence of name-value pairs of the attributes to set.

Definition at line 550 of file wifi-helper.h.

References m_phy, and SetErrorRateModel().

Referenced by ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper(), ns3::YansWifiPhyHelper::YansWifiPhyHelper(), ChainRegressionTest::CreateDevices(), Bug772ChainTest::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), FlameRegressionTest::CreateDevices(), Bug2843TestCase::DoRun(), TestUlOfdmaPowerControl::DoSetup(), and SetErrorRateModel().

+ Here is the call graph for this function:

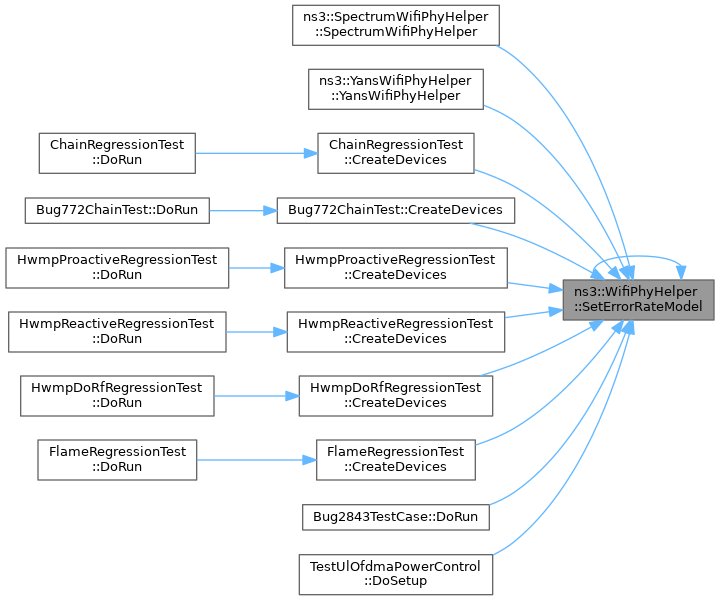

+ Here is the caller graph for this function:

◆ SetErrorRateModel() [2/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetErrorRateModel ( uint8_t  linkId,
std::string  type,
Args &&...  args
)
Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
linkIdID of the link to configure (>0 only for 11be devices)
typethe type of the error rate model to set.
argsA sequence of name-value pairs of the attributes to set.

Set the error rate model and its attributes to use for the given link when Install is called.

Definition at line 560 of file wifi-helper.h.

References m_errorRateModel.

◆ SetFrameCaptureModel() [1/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetFrameCaptureModel ( std::string  type,
Args &&...  args
)

Helper function used to set the frame capture model.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of frame capture model
argsA sequence of name-value pairs of the attributes to set.

Definition at line 568 of file wifi-helper.h.

References m_phy, and SetFrameCaptureModel().

Referenced by SetFrameCaptureModel().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetFrameCaptureModel() [2/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetFrameCaptureModel ( uint8_t  linkId,
std::string  type,
Args &&...  args
)
Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
linkIdID of the link to configure (>0 only for 11be devices)
typethe type of the frame capture model to set.
argsA sequence of name-value pairs of the attributes to set.

Set the frame capture model and its attributes to use for the given link when Install is called.

Definition at line 578 of file wifi-helper.h.

References m_frameCaptureModel.

◆ SetInterferenceHelper()

template<typename... Args>
void ns3::WifiPhyHelper::SetInterferenceHelper ( std::string  type,
Args &&...  args
)

Helper function used to set the interference helper.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of interference helper
argsA sequence of name-value pairs of the attributes to set.

Definition at line 542 of file wifi-helper.h.

References m_interferenceHelper, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper(), and ns3::YansWifiPhyHelper::YansWifiPhyHelper().

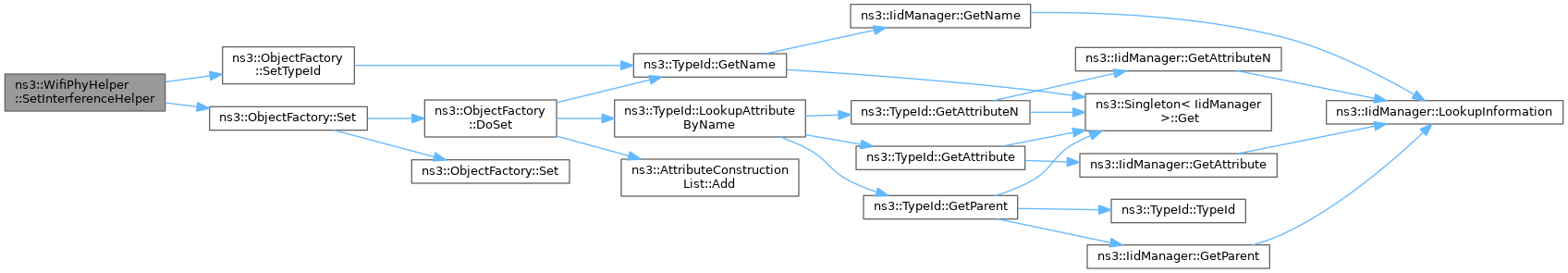

+ Here is the call graph for this function:

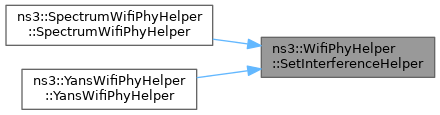

+ Here is the caller graph for this function:

◆ SetPcapDataLinkType()

void ns3::WifiPhyHelper::SetPcapDataLinkType ( SupportedPcapDataLinkTypes  dlt)

Set the data link type of PCAP traces to be used.

This function has to be called before EnablePcap(), so that the header of the pcap file can be written correctly.

See also
SupportedPcapDataLinkTypes
Parameters
dltThe data link type of the pcap file (and packets) to be used

Definition at line 543 of file wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, DLT_PRISM_HEADER, m_pcapDlt, and NS_ABORT_MSG.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), WifiMsduAggregatorThroughputTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::SetChannels(), and BatteryLifetimeTest::VariableLoadTest().

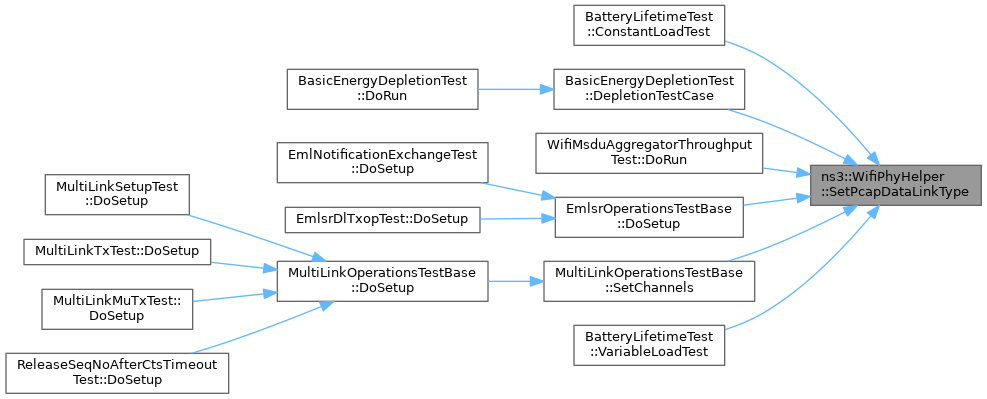

+ Here is the caller graph for this function:

◆ SetPreambleDetectionModel() [1/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetPreambleDetectionModel ( std::string  type,
Args &&...  args
)

Helper function used to set the preamble detection model.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
typethe type of preamble detection model
argsA sequence of name-value pairs of the attributes to set.

Definition at line 586 of file wifi-helper.h.

References m_phy, and SetPreambleDetectionModel().

Referenced by WifiPhyHelper(), and SetPreambleDetectionModel().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetPreambleDetectionModel() [2/2]

template<typename... Args>
void ns3::WifiPhyHelper::SetPreambleDetectionModel ( uint8_t  linkId,
std::string  type,
Args &&...  args
)
Template Parameters
Args[deduced] Template type parameter pack for the sequence of name-value pairs.
Parameters
linkIdID of the link to configure (>0 only for 11be devices)
typethe type of the preamble detection model to set.
argsA sequence of name-value pairs of the attributes to set.

Set the preamble detection model and its attributes to use for the given link when Install is called.

Definition at line 596 of file wifi-helper.h.

References m_preambleDetectionModel.

Member Data Documentation

◆ m_errorRateModel

std::vector<ObjectFactory> ns3::WifiPhyHelper::m_errorRateModel
protected

◆ m_frameCaptureModel

std::vector<ObjectFactory> ns3::WifiPhyHelper::m_frameCaptureModel
protected

◆ m_interferenceHelper

ObjectFactory ns3::WifiPhyHelper::m_interferenceHelper
protected

interference helper

Definition at line 239 of file wifi-helper.h.

Referenced by ns3::SpectrumWifiPhyHelper::Create(), ns3::YansWifiPhyHelper::Create(), and SetInterferenceHelper().

◆ m_pcapDlt

PcapHelper::DataLinkType ns3::WifiPhyHelper::m_pcapDlt
private

PCAP data link type.

Definition at line 313 of file wifi-helper.h.

Referenced by EnablePcapInternal(), GetPcapDataLinkType(), and SetPcapDataLinkType().

◆ m_phy

◆ m_preambleDetectionModel

std::vector<ObjectFactory> ns3::WifiPhyHelper::m_preambleDetectionModel
protected

The documentation for this class was generated from the following files:
