Two BSSes, each with one AP and one non-AP STA, are configured to operate on different channels. More...

Inheritance diagram for WifiUseAvailBwTest:

Collaboration diagram for WifiUseAvailBwTest:

Classes
struct	FrameInfo
	Information about transmitted frames. More...

Public Member Functions
	WifiUseAvailBwTest (std::initializer_list< std::string > channelStr, uint16_t bss0Width)
	Constructor.

	~WifiUseAvailBwTest () override

void	CheckResults ()
	Check correctness of transmitted frames.

void	L7Receive (uint8_t bss, Ptr< const Packet > p, const Address &addr)
	Function to trace packets received by the server application in the given BSS.

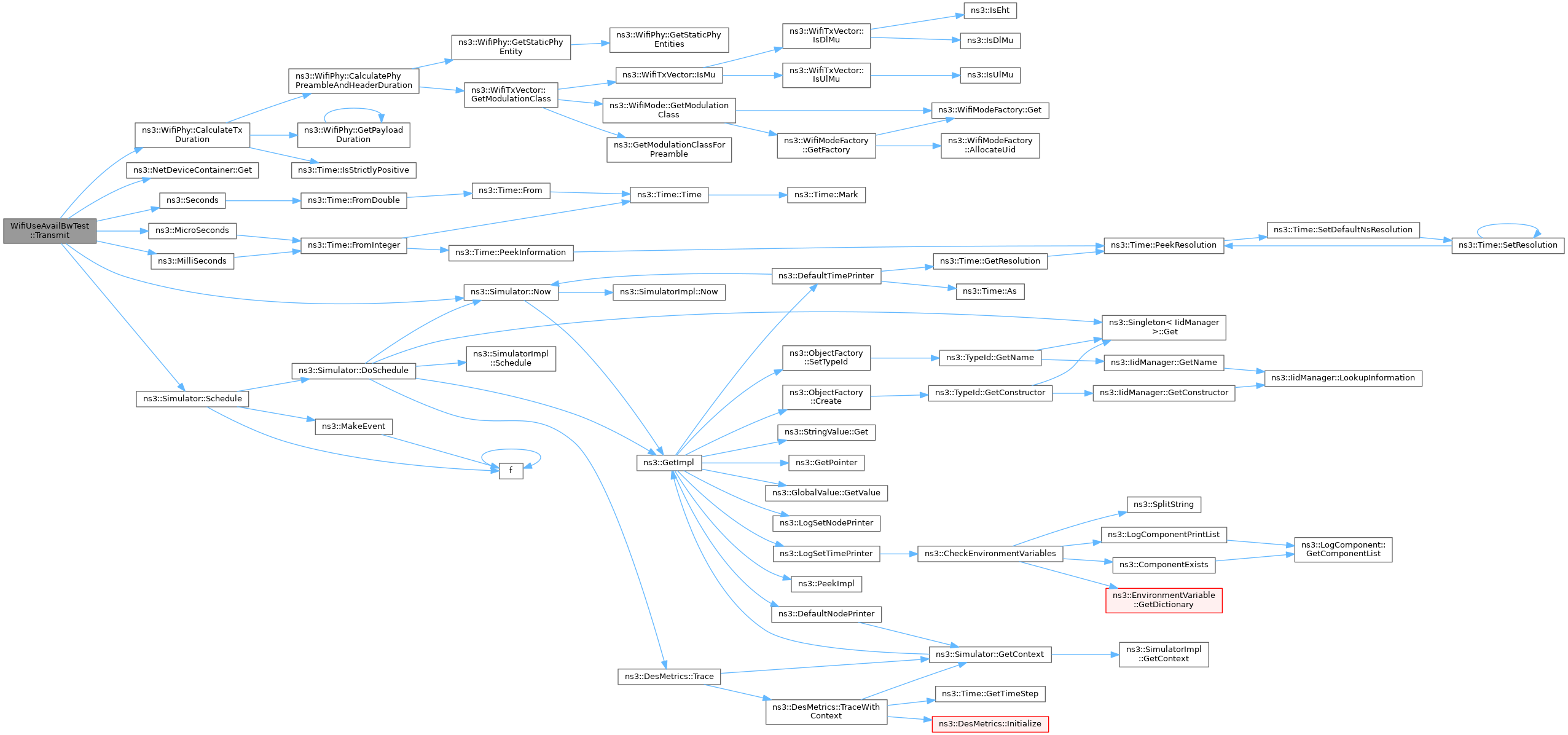

void	Transmit (uint8_t bss, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a PHY receives a PSDU to transmit.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions

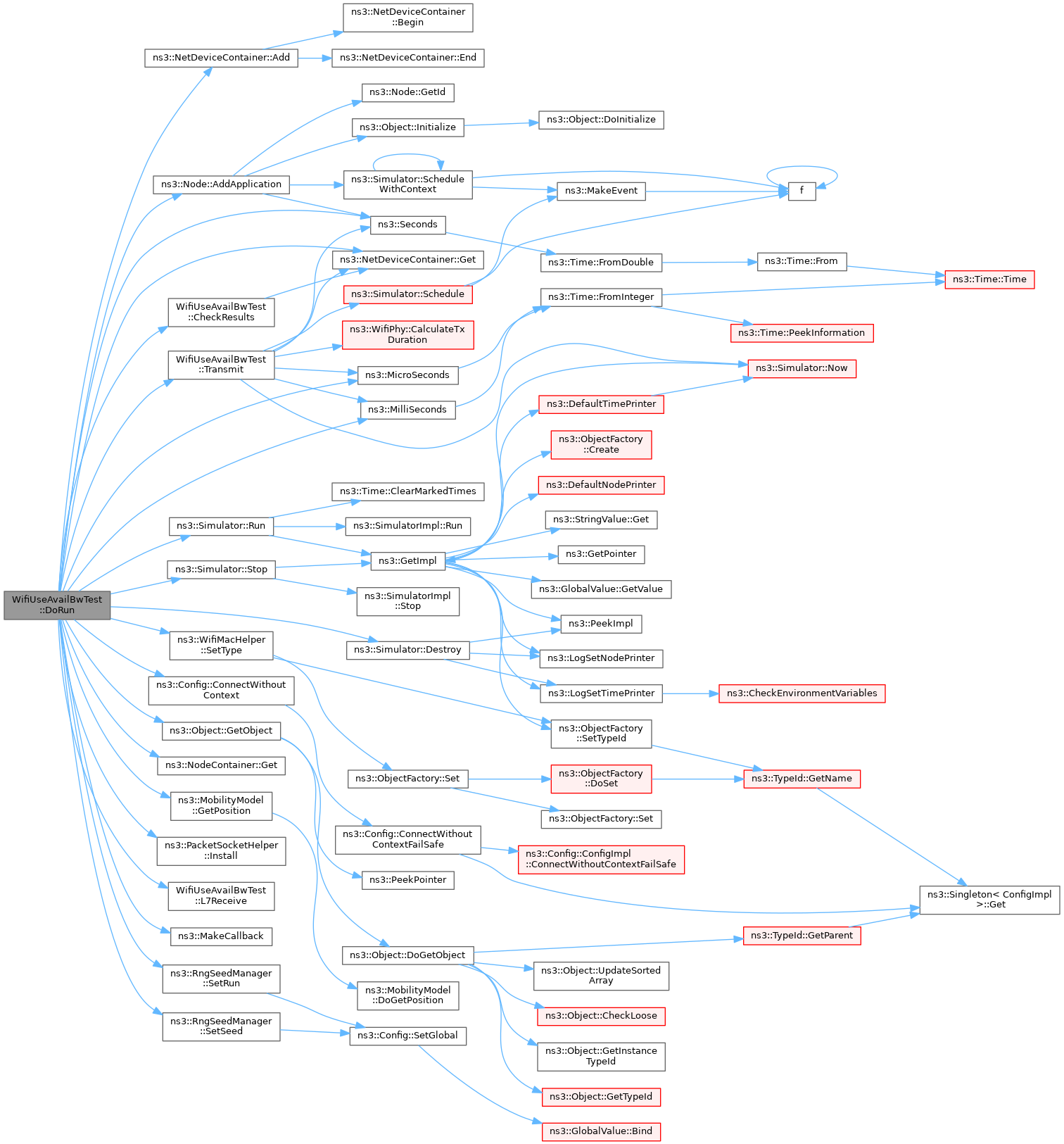

void	DoRun () override
	Implementation to actually run this TestCase.

Private Attributes
NetDeviceContainer	m_apDevices
	container for AP's NetDevice

uint16_t	m_bss0Width
	width (MHz) of the transmission in BSS 0 started when BSS 1 is transmitting

std::vector< std::string >	m_channelStr
	channel setting strings

std::array< uint8_t, 2 >	m_rcvPkts
	number of packets received by the stations

std::array< PacketSocketAddress, 2 >	m_sockets
	packet sockets for the two BSSes

NetDeviceContainer	m_staDevices
	container for stations' NetDevices

uint8_t	m_txPkts
	TX packets per BSS (in addition to the two required to establish BA agreement)

std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Two BSSes, each with one AP and one non-AP STA, are configured to operate on different channels.

Specifically, the operating channel of BSS 1 is the secondary<X> channel of BSS 0, where X is half the width of the channel used by BSS 0. This test demonstrates that, if a transmission is ongoing on BSS 1, we can have a transmission on BSS 0 on its primary<X> channel.

Definition at line 50 of file wifi-dynamic-bw-op-test.cc.
