wifi-power-adaptation-interference.cc File Reference

#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/flow-monitor-helper.h"
#include "ns3/gnuplot.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/ipv4-flow-classifier.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/on-off-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/ssid.h"
#include "ns3/uinteger.h"
#include "ns3/wifi-mac-header.h"
#include "ns3/wifi-mac.h"
#include "ns3/wifi-net-device.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

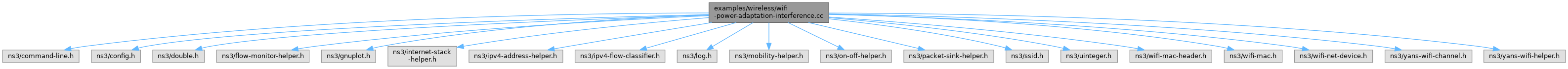

Include dependency graph for wifi-power-adaptation-interference.cc:

Go to the source code of this file.

Classes
class	NodeStatistics
	Class to collect node statistics. More...

Functions
void	PowerCallback (std::string path, double oldPower, double newPower, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.
void	RateCallback (std::string path, DataRate oldRate, DataRate newRate, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

Variables
static const uint32_t	packetSize = 1420
	Packet size generated at the AP.

Detailed Description

Usage

$ ./ns3 run "wifi-power-adaptation-interference [Program Options]"

Program Options

--manager

PRC Manager [ns3::ParfWifiManager]

--rtsThreshold

RTS threshold [2346]

--outputFileName

Output filename [parf]

--simuTime

Total simulation time (sec) [100]

--maxPower

Maximum available transmission level (dbm). [17]

--minPower

Minimum available transmission level (dbm). [0]

--powerLevels

Number of transmission power levels available between TxPowerStart and TxPowerEnd included. [18]

--AP1_x

Position of AP1 in x coordinate [0]

--AP1_y

Position of AP1 in y coordinate [0]

--STA1_x

Position of STA1 in x coordinate [10]

--STA1_y

Position of STA1 in y coordinate [0]

--AP2_x

Position of AP2 in x coordinate [200]

--AP2_y

Position of AP2 in y coordinate [0]

--STA2_x

Position of STA2 in x coordinate [180]

--STA2_y

Position of STA2 in y coordinate [0]

Definition in file wifi-power-adaptation-interference.cc.

Function Documentation

PowerCallback()

void PowerCallback	(	std::string	path,
		double	oldPower,
		double	newPower,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

Parameters

path	The trace path.
oldPower	Old Tx power.
newPower	Actual Tx power.
dest	Destination of the transmission.

Definition at line 433 of file wifi-power-adaptation-interference.cc.

References ns3::Simulator::Now(), and NS_LOG_INFO.

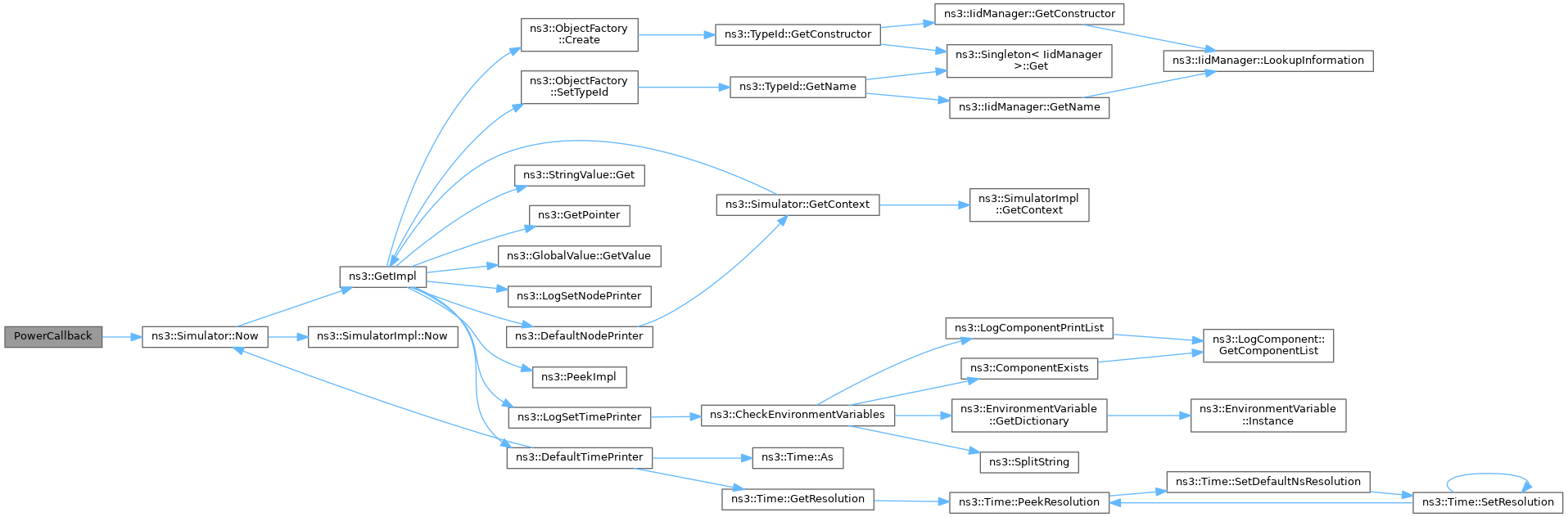

Here is the call graph for this function:

RateCallback()

void RateCallback	(	std::string	path,
		DataRate	oldRate,
		DataRate	newRate,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

Parameters

path	The trace path.
oldRate	Old rate.
newRate	Actual rate.
dest	Destination of the transmission.

Definition at line 448 of file wifi-power-adaptation-interference.cc.

References ns3::Simulator::Now(), and NS_LOG_INFO.

Here is the call graph for this function:

Variable Documentation

packetSize

const uint32_t packetSize = 1420

static

Packet size generated at the AP.

Definition at line 83 of file wifi-power-adaptation-interference.cc.
