DataRateTestCase2 Class Reference

Test Data rate. More...

Inheritance diagram for DataRateTestCase2:

Collaboration diagram for DataRateTestCase2:

Public Member Functions
	DataRateTestCase2 ()
void	AdditionTest (std::string rate1, std::string rate2, std::string rate3)
	Checks data rate addition.
void	MultiplicationDoubleTest (std::string rate1, double factor, std::string rate2)
	Checks data rate floating point multiplication.
void	MultiplicationIntTest (std::string rate1, uint64_t factor, std::string rate2)
	Checks data rate integer multiplication.
void	SubtractionTest (std::string rate1, std::string rate2, std::string rate3)
	Checks data rate subtraction.
Public Member Functions inherited from DataRateTestCase
	DataRateTestCase (std::string name)
	Constructor.
	~DataRateTestCase () override
void	CheckDataRateEqual (DataRate d1, DataRate d2, const std::string msg)
	Checks if two data rates values are equal.
void	CheckTimesEqual (Time t1, Time t2, const std::string msg)
	Checks if two time values are equal.
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
void	DoRun () override=0
	Implementation to actually run this TestCase.
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Test Data rate.

Definition at line 163 of file test-data-rate.cc.

Constructor & Destructor Documentation

DataRateTestCase2()

DataRateTestCase2::DataRateTestCase2

(

)

Definition at line 200 of file test-data-rate.cc.

Member Function Documentation

AdditionTest()

void DataRateTestCase2::AdditionTest	(	std::string	rate1,
		std::string	rate2,
		std::string	rate3
	)

Checks data rate addition.

Parameters

rate1	first data rate
rate2	second data rate
rate3	third data rate (first plus second)

Definition at line 206 of file test-data-rate.cc.

References DataRateTestCase::CheckDataRateEqual().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void DataRateTestCase2::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements DataRateTestCase.

Definition at line 260 of file test-data-rate.cc.

References AdditionTest(), MultiplicationDoubleTest(), MultiplicationIntTest(), and SubtractionTest().

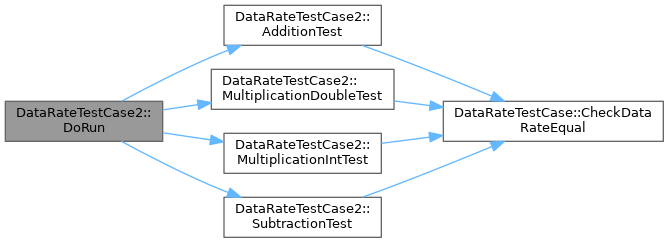

Here is the call graph for this function:

MultiplicationDoubleTest()

void DataRateTestCase2::MultiplicationDoubleTest	(	std::string	rate1,
		double	factor,
		std::string	rate2
	)

Checks data rate floating point multiplication.

Parameters

rate1	first data rate
factor	multiplication factor
rate2	second data rate (first multiplied by factor)

Definition at line 246 of file test-data-rate.cc.

References DataRateTestCase::CheckDataRateEqual().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

MultiplicationIntTest()

void DataRateTestCase2::MultiplicationIntTest	(	std::string	rate1,
		uint64_t	factor,
		std::string	rate2
	)

Checks data rate integer multiplication.

Parameters

rate1	first data rate
factor	multiplication factor
rate2	second data rate (first multiplied by factor)

Definition at line 232 of file test-data-rate.cc.

References DataRateTestCase::CheckDataRateEqual().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

SubtractionTest()

void DataRateTestCase2::SubtractionTest	(	std::string	rate1,
		std::string	rate2,
		std::string	rate3
	)

Checks data rate subtraction.

Parameters

rate1	first data rate
rate2	second data rate
rate3	third data rate (first minus second)

Definition at line 219 of file test-data-rate.cc.

References DataRateTestCase::CheckDataRateEqual().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/network/test/test-data-rate.cc
