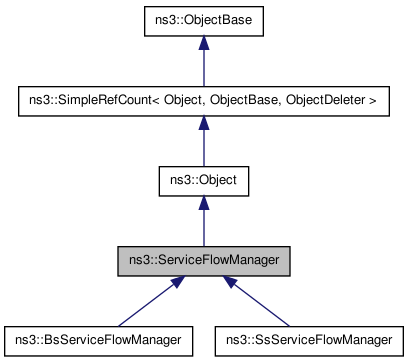

Inheritance diagram for ns3::ServiceFlowManager:

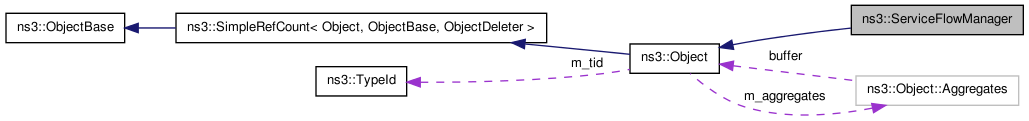

Collaboration diagram for ns3::ServiceFlowManager:
Public Types | |
| enum | ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT } |
Public Member Functions | |
| void | DoDispose (void) |
| void | AddServiceFlow (ServiceFlow *serviceFlow) |
| ServiceFlow * | GetServiceFlow (uint32_t sfid) const |
| ServiceFlow * | GetServiceFlow (Cid cid) const |
| std::vector< ServiceFlow * > | GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const |
| bool | AreServiceFlowsAllocated () |
| bool | AreServiceFlowsAllocated (std::vector< ServiceFlow * > *serviceFlows) |
| bool | AreServiceFlowsAllocated (std::vector< ServiceFlow * > serviceFlows) |
| ServiceFlow * | GetNextServiceFlowToAllocate () |
| uint32_t | GetNrServiceFlows (void) const |
| ServiceFlow * | DoClassify (Ipv4Address SrcAddress, Ipv4Address DstAddress, uint16_t SrcPort, uint16_t DstPort, uint8_t Proto, ServiceFlow::Direction dir) const |
Member Function Documentation
| bool ns3::ServiceFlowManager::AreServiceFlowsAllocated | ( | std::vector< ServiceFlow * > | serviceFlows | ) |
- Parameters:
-
serviceFlows the list of the service flows to be checked
- Returns:
- true if all service flows are allocated, false otherwise
| bool ns3::ServiceFlowManager::AreServiceFlowsAllocated | ( | ) |
- Returns:
- true if all service flows are allocated, false otherwise
| bool ns3::ServiceFlowManager::AreServiceFlowsAllocated | ( | std::vector< ServiceFlow * > * | serviceFlows | ) |
- Parameters:
-
serviceFlows the list of the service flows to be checked
- Returns:
- true if all service flows are allocated, false otherwise
| ServiceFlow* ns3::ServiceFlowManager::DoClassify | ( | Ipv4Address | SrcAddress, | |
| Ipv4Address | DstAddress, | |||
| uint16_t | SrcPort, | |||
| uint16_t | DstPort, | |||
| uint8_t | Proto, | |||
| ServiceFlow::Direction | dir | |||
| ) | const |
- Parameters:
-
SrcAddress the source ip address DstAddress the destination ip address SrcPort the source port DstPort the destination port Proto the protocol dir the direction of the service flow
- Returns:
- the service flow to which this ip flow is associated
| void ns3::ServiceFlowManager::DoDispose | ( | void | ) | [virtual] |
This method is called by Object::Dispose or by the object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.
It is safe to call GetObject from within this method.
Reimplemented from ns3::Object.
Reimplemented in ns3::BsServiceFlowManager, and ns3::SsServiceFlowManager.
| ServiceFlow* ns3::ServiceFlowManager::GetNextServiceFlowToAllocate | ( | ) |
- Returns:
- the next service flow to be allocated
| uint32_t ns3::ServiceFlowManager::GetNrServiceFlows | ( | void | ) | const |
- Returns:
- the number of all service flows
The documentation for this class was generated from the following file:
- src/devices/wimax/service-flow-manager.h
