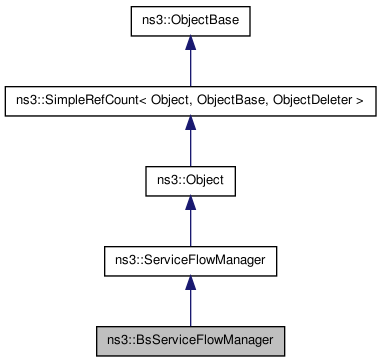

Inheritance diagram for ns3::BsServiceFlowManager:

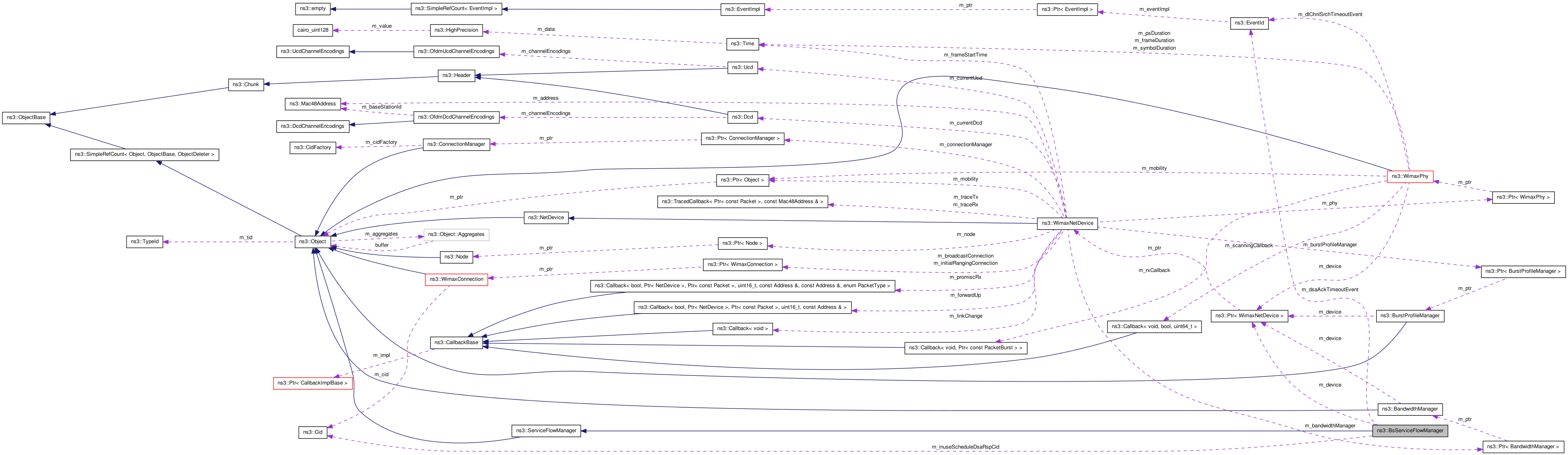

Collaboration diagram for ns3::BsServiceFlowManager:

Public Types
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }
Public Member Functions
	BsServiceFlowManager (Ptr< BaseStationNetDevice > device)
void	DoDispose (void)
void	AddServiceFlow (ServiceFlow *serviceFlow)
	Add a new service flow.
ServiceFlow *	GetServiceFlow (uint32_t sfid) const
ServiceFlow *	GetServiceFlow (Cid cid) const
std::vector< ServiceFlow * >	GetServiceFlows (ServiceFlow::SchedulingType schedulingType) const
void	SetMaxDsaRspRetries (uint8_t maxDsaRspRetries)
	set the maximum Dynamic ServiceFlow Add (DSA) retries
EventId	GetDsaAckTimeoutEvent (void) const
void	AllocateServiceFlows (const DsaReq &dsaReq, Cid cid)
void	AddMulticastServiceFlow (ServiceFlow sf, enum WimaxPhy::ModulationType modulation)
	add a multicast service flow
void	ProcessDsaAck (const DsaAck &dsaAck, Cid cid)
	process a DSA-ACK message
ServiceFlow *	ProcessDsaReq (const DsaReq &dsaReq, Cid cid)
	process a DSA-Req message

Member Function Documentation

void ns3::BsServiceFlowManager::AddServiceFlow ( ServiceFlow * serviceFlow )

Add a new service flow.

Parameters:

serviceFlow

the service flow to add

Reimplemented from ns3::ServiceFlowManager.

void ns3::BsServiceFlowManager::DoDispose ( void ) [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::ServiceFlowManager.

ServiceFlow* ns3::BsServiceFlowManager::GetServiceFlow ( Cid cid ) const

Returns:: the service flow which has as connection identifier cid

Reimplemented from ns3::ServiceFlowManager.

ServiceFlow* ns3::BsServiceFlowManager::GetServiceFlow ( uint32_t sfid ) const

Returns:: the service flow which has as identifier sfid

Reimplemented from ns3::ServiceFlowManager.

std::vector<ServiceFlow*> ns3::BsServiceFlowManager::GetServiceFlows ( ServiceFlow::SchedulingType schedulingType ) const

Returns:: the list of service flows configured with schedulingType as a QoS class

Reimplemented from ns3::ServiceFlowManager.

void ns3::BsServiceFlowManager::ProcessDsaAck	(	const DsaAck &	dsaAck,
		Cid	cid
	)

process a DSA-ACK message

Parameters:

	dsaAck	the message to process
	cid	the identifier of the connection on which the message was received

ServiceFlow* ns3::BsServiceFlowManager::ProcessDsaReq	(	const DsaReq &	dsaReq,
		Cid	cid
	)

process a DSA-Req message

Parameters:

	dsaReq	the message to process
	cid	the identifier of the connection on which the message was received

The documentation for this class was generated from the following file:

src/devices/wimax/bs-service-flow-manager.h
