ns3::UanPhyCalcSinrDual Class Reference

Default SINR model for UanPhyDual. More...

#include <uan-phy-dual.h>

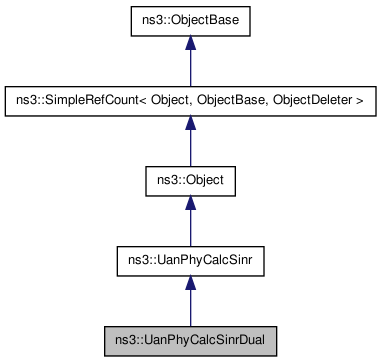

Inheritance diagram for ns3::UanPhyCalcSinrDual:
Inheritance graph
[legend]

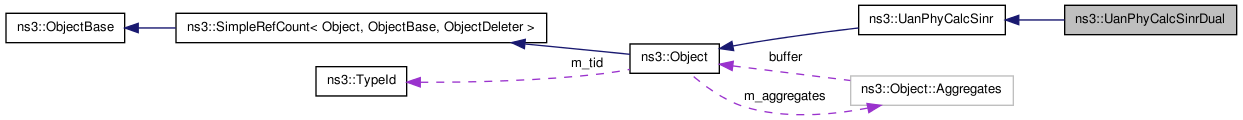

Collaboration diagram for ns3::UanPhyCalcSinrDual:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual double CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::UanPhyCalcSinrDual.

Detailed Description

Default SINR model for UanPhyDual.

Considers interfering packet power as additional ambient noise only if there is overlap in frequency band as found from supplied UanTxMode. If there is no overlap, then the packets are considered not to interfere.


Member Function Documentation

virtual double ns3::UanPhyCalcSinrDual::CalcSinrDb ( Ptr< Packet pkt,
Time  arrTime,
double  rxPowerDb,
double  ambNoiseDb,
UanTxMode  mode,
UanPdp  pdp,
const UanTransducer::ArrivalList arrivalList
) const [virtual]
Parameters:
pkt Packet to calculate SINR for
arrTime Arrival time of pkt
rxPowerDb The received signal strength of the packet in dB re 1 uPa
ambNoiseDb Ambient channel noise in dB re 1 uPa
mode TX Mode of pkt
pdp Power delay profile of pkt
arrivalList List of interfering arrivals given from Transducer.

Implements ns3::UanPhyCalcSinr.

static TypeId ns3::UanPhyCalcSinrDual::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::UanPhyCalcSinrDual.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrDual
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrDual

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.


The documentation for this class was generated from the following files:
