#include <uan-phy.h>

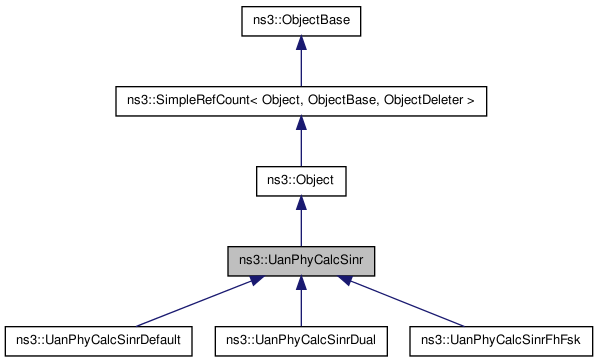

Inheritance diagram for ns3::UanPhyCalcSinr:

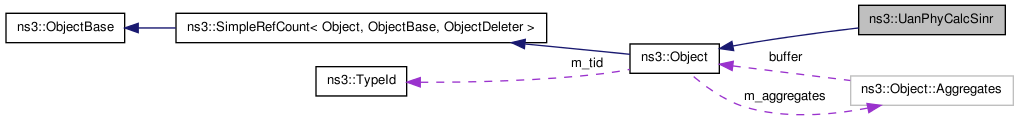

Collaboration diagram for ns3::UanPhyCalcSinr:

Public Member Functions
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const =0
virtual void	Clear (void)
virtual void	DoDispose (void)
double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals.
double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa.

Detailed Description

Class used for calculating SINR of packet in UanPhy. Can be set to any derived class using attributes of UanPhy to implement different models.

Member Function Documentation

virtual double ns3::UanPhyCalcSinr::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)			const `[pure virtual]`

Parameters:

	pkt	Packet to calculate SINR for
	arrTime	Arrival time of pkt
	rxPowerDb	The received signal strength of the packet in dB re 1 uPa
	ambNoiseDb	Ambient channel noise in dB re 1 uPa
	mode	TX Mode of pkt
	pdp	Power delay profile of pkt
	arrivalList	List of interfering arrivals given from Transducer.

Implemented in ns3::UanPhyCalcSinrDual, ns3::UanPhyCalcSinrDefault, and ns3::UanPhyCalcSinrFhFsk.

virtual void ns3::UanPhyCalcSinr::Clear ( void ) [virtual]

Clears all pointer references

double ns3::UanPhyCalcSinr::DbToKp ( double db ) const [inline]

Converts dB re 1 uPa to kilopascals.

Parameters:

db

dB value

Returns:: kilopascals

virtual void ns3::UanPhyCalcSinr::DoDispose ( void ) [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

double ns3::UanPhyCalcSinr::KpToDb ( double kp ) const [inline]

Converts kilopascals to dB re 1 uPa.

Parameters:

kp

value in kilopascals

Returns:: dB re 1 uPa

The documentation for this class was generated from the following file:

src/devices/uan/model/uan-phy.h
