ns3::UanPhyCalcSinrFhFsk Class Reference

WHOI Micromodem like FH-FSK model. More...

#include <uan-phy-gen.h>

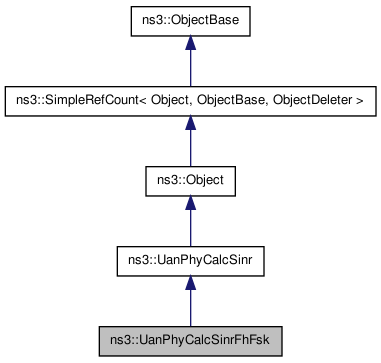

Inheritance diagram for ns3::UanPhyCalcSinrFhFsk:

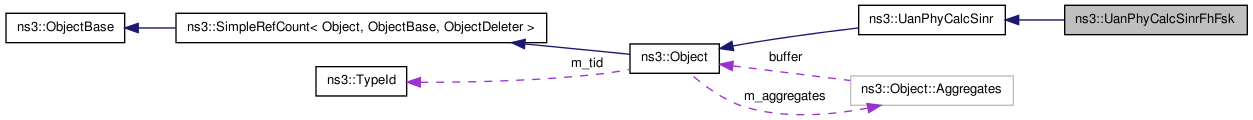

Collaboration diagram for ns3::UanPhyCalcSinrFhFsk:

List of all members.

Public Member Functions
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyCalcSinrFhFsk.

---

Detailed Description

WHOI Micromodem like FH-FSK model.

Model of interference calculation for FH-FSK wherein all nodes use an identical hopping pattern. In this case, there is an (M-1)*SymbolTime clearing time between symbols transmitted on the same frequency. This clearing time combats ISI from channel delay spread and also has a byproduct of possibly reducing interference from other transmitted packets.

---

Member Function Documentation

virtual double ns3::UanPhyCalcSinrFhFsk::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)			const [virtual]

Parameters:

	pkt	Packet to calculate SINR for
	arrTime	Arrival time of pkt
	rxPowerDb	The received signal strength of the packet in dB re 1 uPa
	ambNoiseDb	Ambient channel noise in dB re 1 uPa
	mode	TX Mode of pkt
	pdp	Power delay profile of pkt
	arrivalList	List of interfering arrivals given from Transducer.

Implements ns3::UanPhyCalcSinr.

static TypeId ns3::UanPhyCalcSinrFhFsk::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UanPhyCalcSinrFhFsk.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrFhFsk
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrFhFsk

Attributes defined for this type:

• NumberOfHops: Number of frequencies in hopping pattern
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 13
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/uan/model/uan-phy-gen.h
• doc/introspected-doxygen.h
