#include <lte-simple-net-device.h>

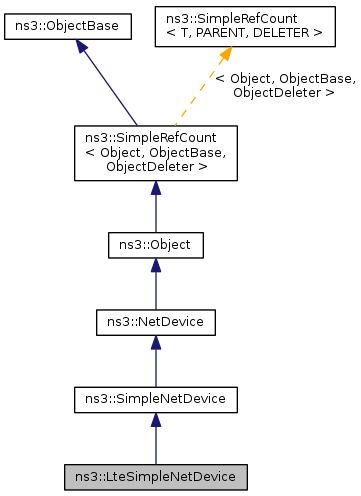

Inheritance diagram for ns3::LteSimpleNetDevice:

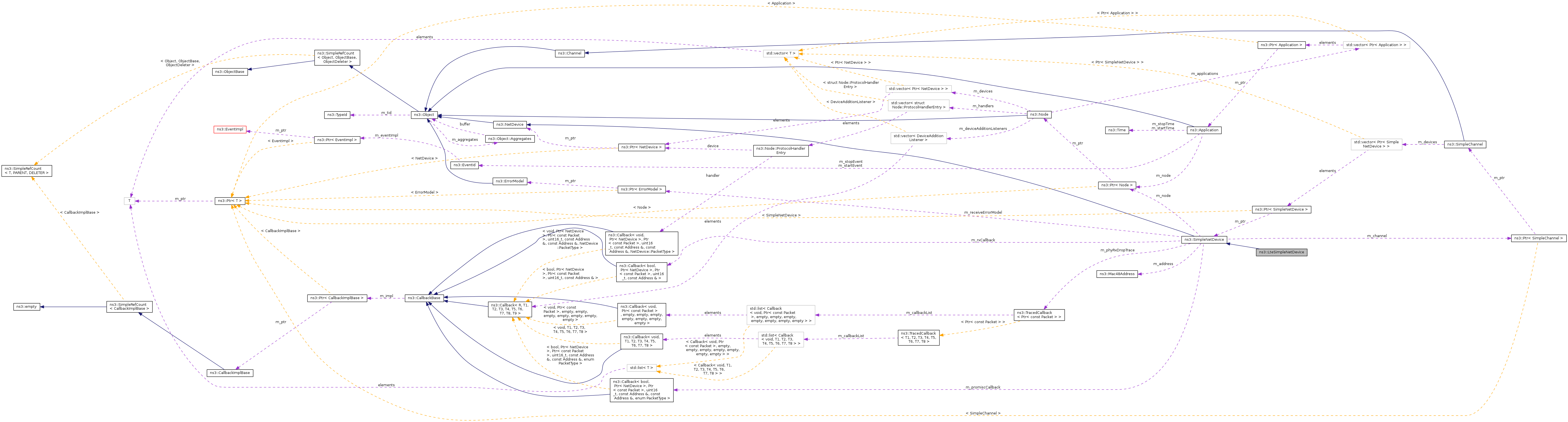

Collaboration diagram for ns3::LteSimpleNetDevice:

Public Member Functions
	LteSimpleNetDevice (void)
	LteSimpleNetDevice (Ptr< Node > node)
virtual	~LteSimpleNetDevice (void)
virtual void	DoDispose ()
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
Public Member Functions inherited from ns3::SimpleNetDevice
	SimpleNetDevice ()
virtual void	AddLinkChangeCallback (Callback< void > callback)
virtual Address	GetAddress (void) const
virtual Address	GetBroadcast (void) const
virtual Ptr< Channel >	GetChannel (void) const
virtual uint32_t	GetIfIndex (void) const
virtual uint16_t	GetMtu (void) const
virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group.
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided.
virtual Ptr< Node >	GetNode (void) const
virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge.
virtual bool	IsBroadcast (void) const
virtual bool	IsLinkUp (void) const
virtual bool	IsMulticast (void) const
virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link.
virtual bool	NeedsArp (void) const
void	Receive (Ptr< Packet > packet, uint16_t protocol, Mac48Address to, Mac48Address from)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void	SetAddress (Address address)
void	SetChannel (Ptr< SimpleChannel > channel)
virtual void	SetIfIndex (const uint32_t index)
virtual bool	SetMtu (const uint16_t mtu)
virtual void	SetNode (Ptr< Node > node)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
void	SetReceiveErrorModel (Ptr< ErrorModel > em)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SimpleNetDevice.

Protected Member Functions
virtual void	DoStart (void)

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

The LteSimpleNetDevice class implements the LTE simple net device

Definition at line 38 of file lte-simple-net-device.h.

Constructor & Destructor Documentation

ns3::LteSimpleNetDevice::LteSimpleNetDevice ( void )

Definition at line 47 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

ns3::LteSimpleNetDevice::LteSimpleNetDevice ( Ptr< Node > node )

Definition at line 53 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION, and ns3::SimpleNetDevice::SetNode().

Here is the call graph for this function:

ns3::LteSimpleNetDevice::~LteSimpleNetDevice ( void )

virtual

Definition at line 59 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSimpleNetDevice::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::SimpleNetDevice.

Definition at line 65 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

void ns3::LteSimpleNetDevice::DoStart ( void )

protectedvirtual

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 73 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

TypeId ns3::LteSimpleNetDevice::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SimpleNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice

Attributes defined for this type:

ReceiveErrorModel: The receiver error model used to simulate packet loss
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorModel >
- Initial value: 0
- Flags: construct write read

TraceSources defined for this type:

PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

Reimplemented from ns3::SimpleNetDevice.

Definition at line 34 of file lte-simple-net-device.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::LteSimpleHelper::LteSimpleHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteSimpleNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Reimplemented from ns3::SimpleNetDevice.

Definition at line 79 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

The documentation for this class was generated from the following files:

src/lte/test/lte-simple-net-device.h
src/lte/test/lte-simple-net-device.cc
