Generic PHY model. More...

#include <uan-phy-gen.h>

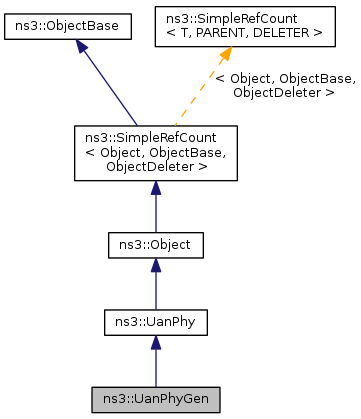

Inheritance diagram for ns3::UanPhyGen:

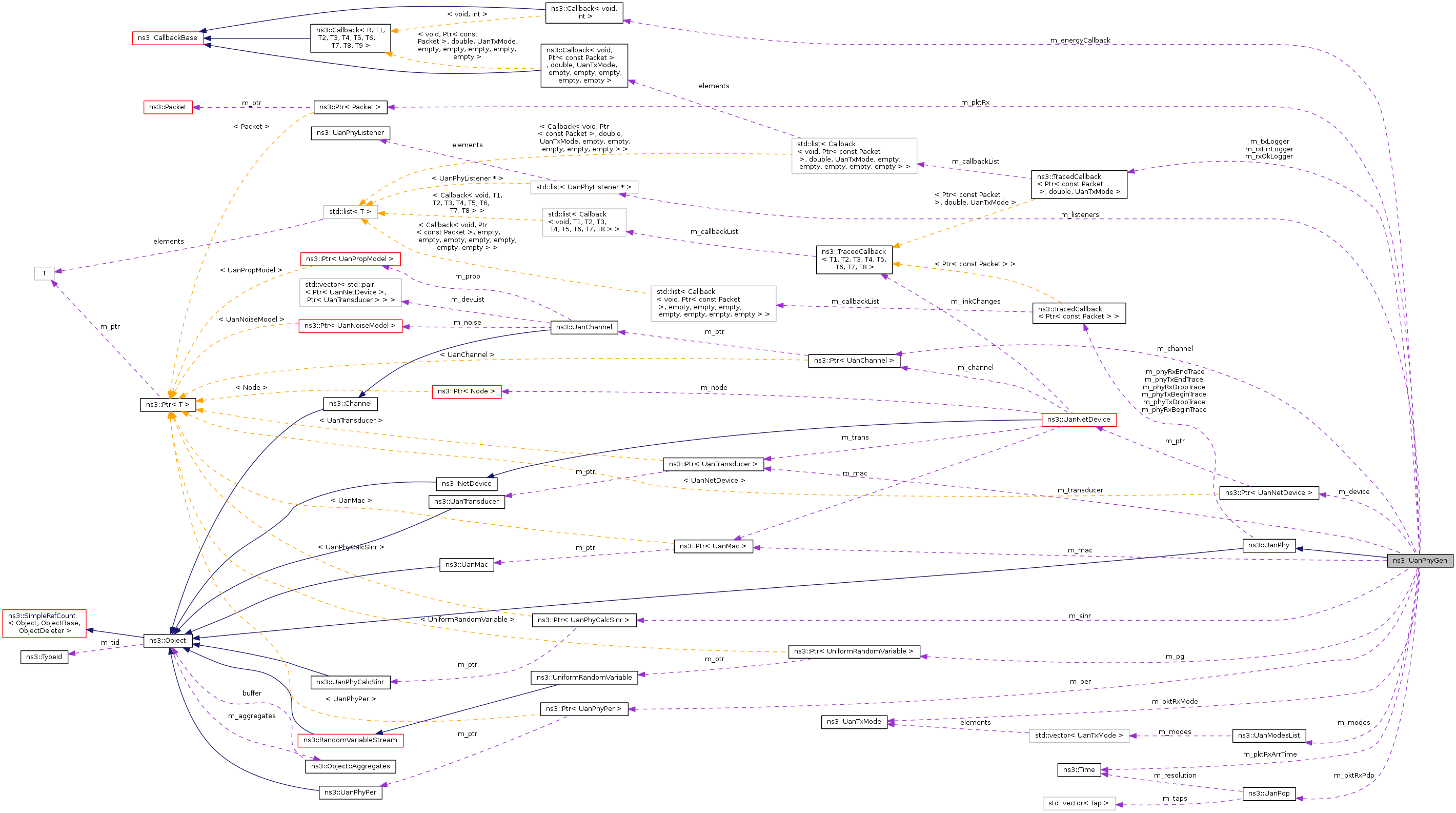

Collaboration diagram for ns3::UanPhyGen:

Public Member Functions
	UanPhyGen ()
virtual	~UanPhyGen ()
int64_t	AssignStreams (int64_t stream)
virtual void	Clear (void)
virtual void	EnergyDepletionHandler (void)
virtual double	GetCcaThresholdDb (void)
virtual Ptr< UanChannel >	GetChannel (void) const
virtual Ptr< UanNetDevice >	GetDevice (void)
virtual UanTxMode	GetMode (uint32_t n)
virtual uint32_t	GetNModes (void)
virtual Ptr< Packet >	GetPacketRx (void) const
virtual double	GetRxGainDb (void)
virtual double	GetRxThresholdDb (void)
virtual Ptr< UanTransducer >	GetTransducer (void)
virtual double	GetTxPowerDb (void)
virtual bool	IsStateBusy (void)
virtual bool	IsStateCcaBusy (void)
virtual bool	IsStateIdle (void)
virtual bool	IsStateRx (void)
virtual bool	IsStateSleep (void)
virtual bool	IsStateTx (void)

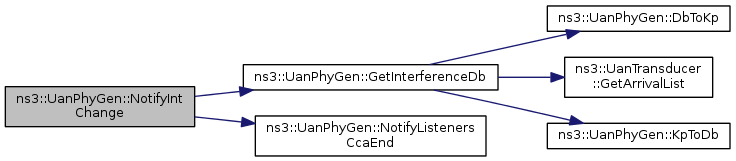

virtual void	NotifyIntChange (void)
virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
virtual void	RegisterListener (UanPhyListener *listener)
virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)
virtual void	SetCcaThresholdDb (double thresh)
virtual void	SetChannel (Ptr< UanChannel > channel)
virtual void	SetDevice (Ptr< UanNetDevice > device)
virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback cb)
virtual void	SetMac (Ptr< UanMac > mac)
virtual void	SetReceiveErrorCallback (RxErrCallback cb)
virtual void	SetReceiveOkCallback (RxOkCallback cb)
virtual void	SetRxGainDb (double gain)
virtual void	SetRxThresholdDb (double thresh)
virtual void	SetSleepMode (bool sleep)
virtual void	SetTransducer (Ptr< UanTransducer > trans)
virtual void	SetTxPowerDb (double txpwr)

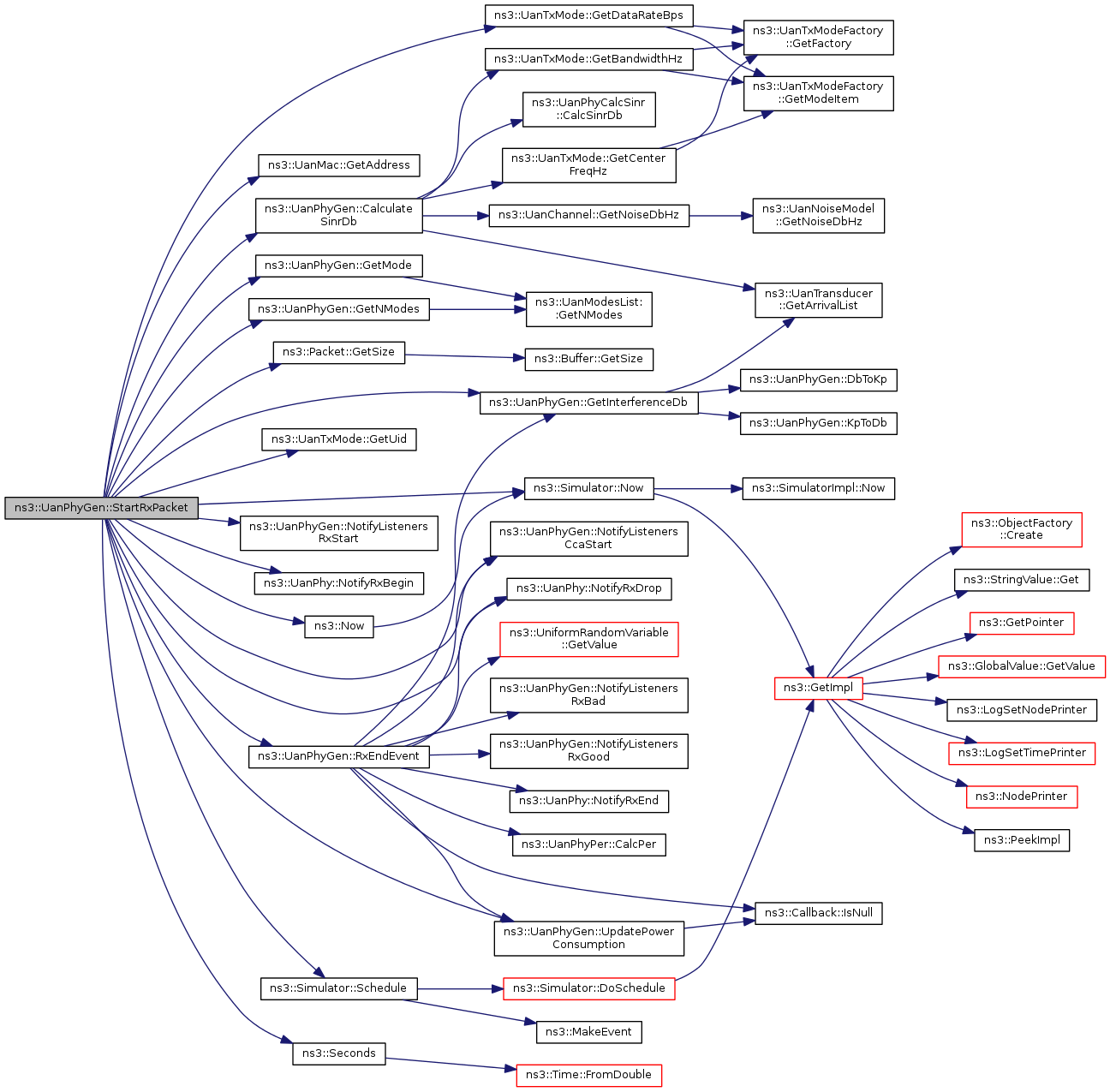

virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Packet arriving from channel: i.e. leading bit of packet has arrived.
Public Member Functions inherited from ns3::UanPhy
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static UanModesList	GetDefaultModes (void)

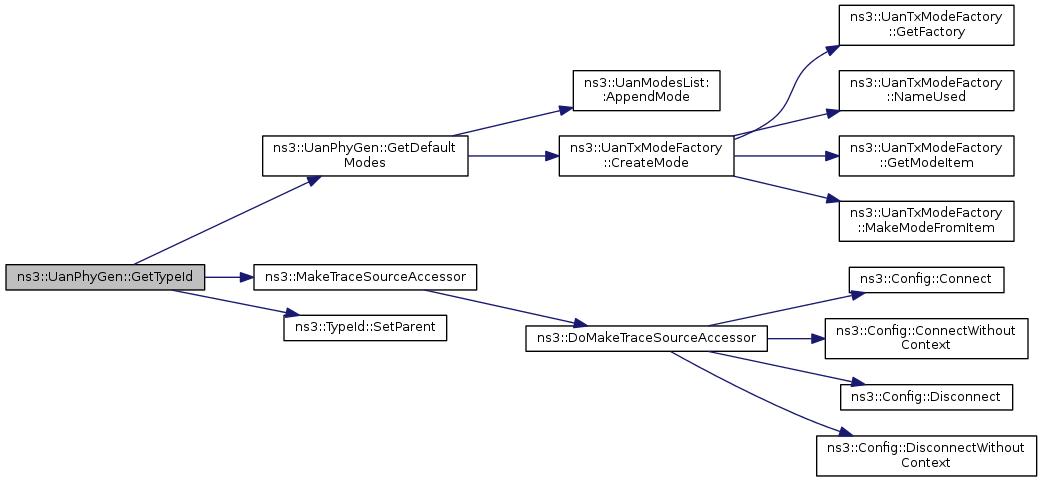

static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyGen.

Protected Member Functions
virtual void	DoDispose ()

Private Types
typedef std::list < UanPhyListener * >	ListenerList

Private Member Functions
double	CalculateSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, UanTxMode mode, UanPdp pdp)
double	DbToKp (double db)
double	GetInterferenceDb (Ptr< Packet > pkt)
double	KpToDb (double kp)
void	NotifyListenersCcaEnd (void)

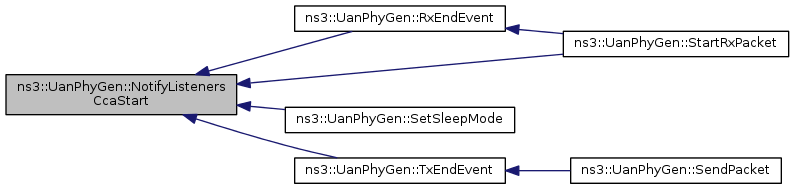

void	NotifyListenersCcaStart (void)
void	NotifyListenersRxBad (void)
void	NotifyListenersRxGood (void)
void	NotifyListenersRxStart (void)
void	NotifyListenersTxStart (Time duration)

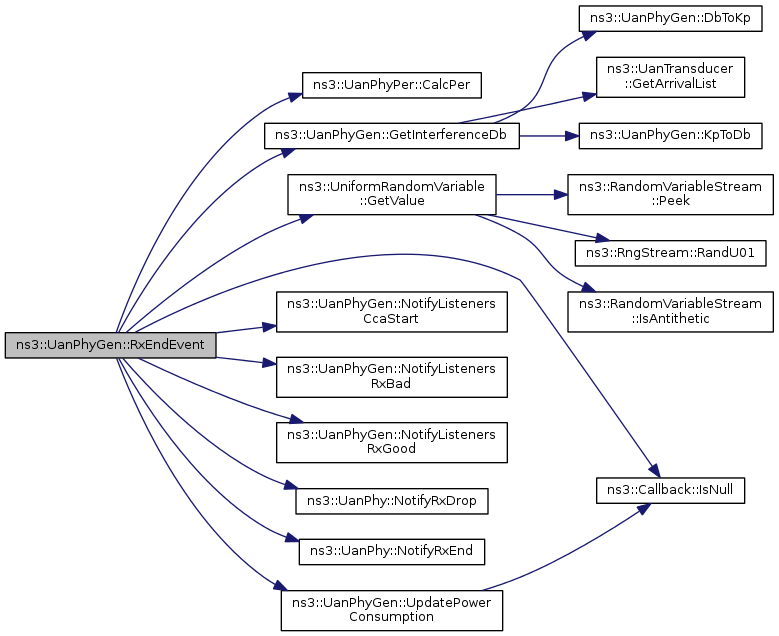

void	RxEndEvent (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode)

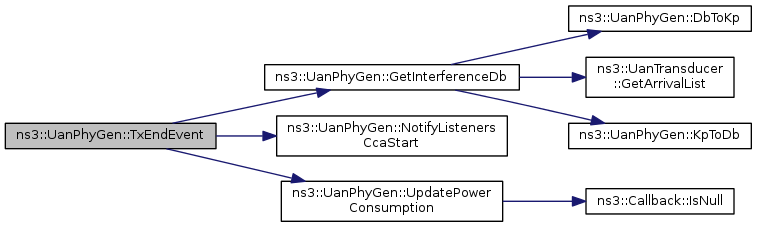

void	TxEndEvent ()
void	UpdatePowerConsumption (const State state)

Private Attributes
double	m_ccaThreshDb
Ptr< UanChannel >	m_channel
bool	m_cleared
Ptr< UanNetDevice >	m_device
bool	m_disabled
DeviceEnergyModel::ChangeStateCallback	m_energyCallback
ListenerList	m_listeners
Ptr< UanMac >	m_mac
double	m_minRxSinrDb
UanModesList	m_modes
Ptr< UanPhyPer >	m_per
Ptr< UniformRandomVariable >	m_pg
	Provides uniform random variables.
Ptr< Packet >	m_pktRx
Time	m_pktRxArrTime
UanTxMode	m_pktRxMode
UanPdp	m_pktRxPdp
RxErrCallback	m_recErrCb
RxOkCallback	m_recOkCb
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxErrLogger
double	m_rxGainDb
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxOkLogger
double	m_rxRecvPwrDb
double	m_rxThreshDb
Ptr< UanPhyCalcSinr >	m_sinr
State	m_state
Ptr< UanTransducer >	m_transducer
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_txLogger
double	m_txPwrDb

Additional Inherited Members
Public Types inherited from ns3::UanPhy
typedef Callback< void, Ptr < Packet >, double >	RxErrCallback
typedef Callback< void, Ptr < Packet >, double, UanTxMode >	RxOkCallback
enum	State { IDLE, CCABUSY, RX, TX, SLEEP }
	Enum defining possible Phy states. More...

Detailed Description

Generic PHY model.

This is a generic PHY class. SINR and PER information are controlled via attributes. By adapting the SINR and PER models to a specific situation, this PHY should be able to model a wide variety of networks.

Definition at line 161 of file uan-phy-gen.h.

Member Typedef Documentation

typedef std::list<UanPhyListener *> ns3::UanPhyGen::ListenerList

private

Definition at line 220 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyGen::UanPhyGen ( )

Definition at line 344 of file uan-phy-gen.cc.

References m_energyCallback, m_pg, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

ns3::UanPhyGen::~UanPhyGen ( )

virtual

Definition at line 364 of file uan-phy-gen.cc.

Member Function Documentation

int64_t ns3::UanPhyGen::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::UanPhy.

Definition at line 869 of file uan-phy-gen.cc.

References m_pg, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

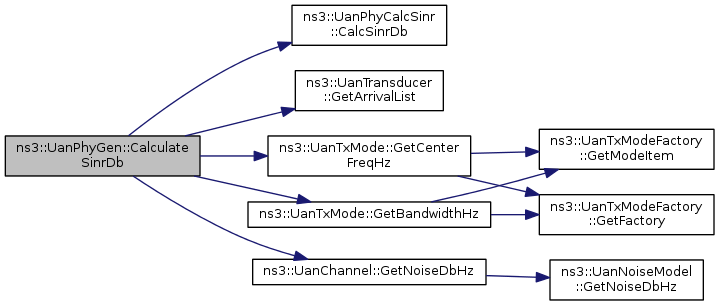

double ns3::UanPhyGen::CalculateSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		UanTxMode	mode,
		UanPdp	pdp
	)

private

Definition at line 896 of file uan-phy-gen.cc.

References ns3::UanPhyCalcSinr::CalcSinrDb(), ns3::UanTransducer::GetArrivalList(), ns3::UanTxMode::GetBandwidthHz(), ns3::UanTxMode::GetCenterFreqHz(), ns3::UanChannel::GetNoiseDbHz(), m_channel, m_sinr, and m_transducer.

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyGen::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanPhy.

Definition at line 370 of file uan-phy-gen.cc.

References ns3::UanPhyCalcSinr::Clear(), ns3::UanMac::Clear(), ns3::UanChannel::Clear(), ns3::UanNetDevice::Clear(), ns3::UanPhyPer::Clear(), ns3::UanTransducer::Clear(), m_channel, m_cleared, m_device, m_listeners, m_mac, m_per, m_pktRx, m_sinr, and m_transducer.

Referenced by DoDispose().

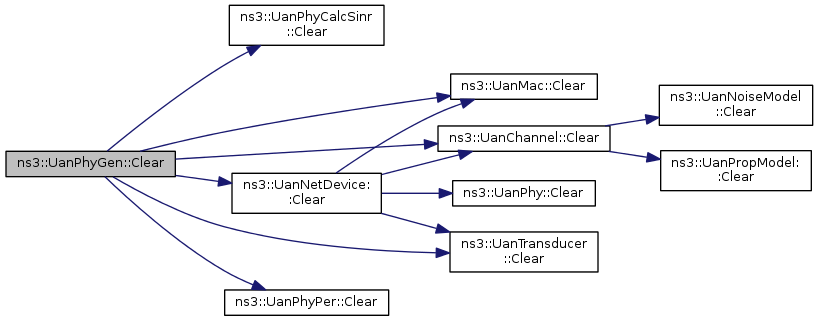

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPhyGen::DbToKp ( double db )

private

Definition at line 925 of file uan-phy-gen.cc.

Referenced by GetInterferenceDb().

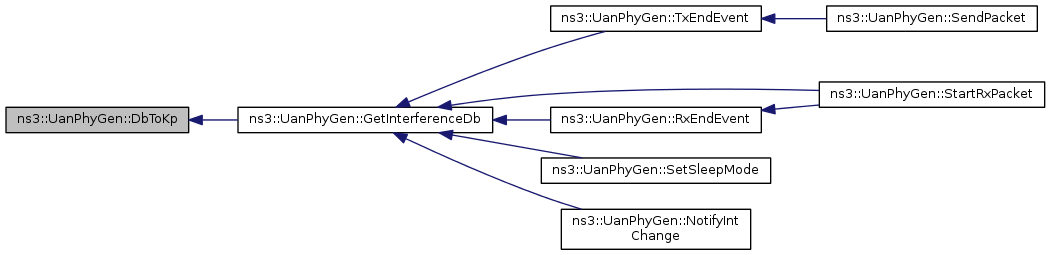

Here is the caller graph for this function:

void ns3::UanPhyGen::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 412 of file uan-phy-gen.cc.

References Clear(), m_energyCallback, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

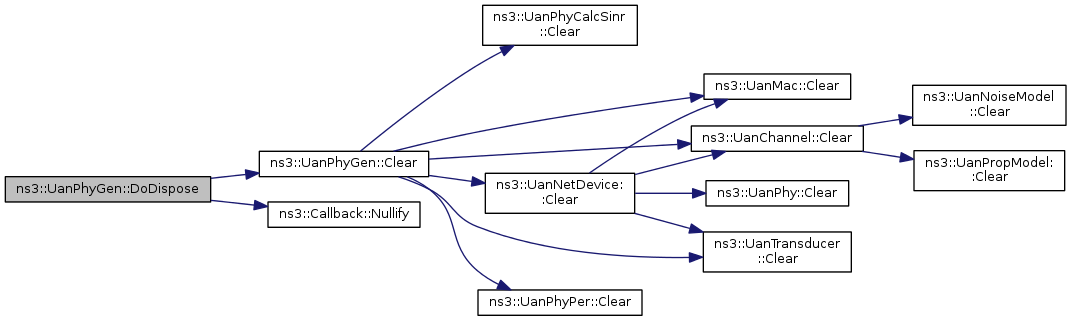

Here is the call graph for this function:

void ns3::UanPhyGen::EnergyDepletionHandler ( void )

virtual

This function handles the energy depletion event. Must be implemented by UanPhy child classes.

Implements ns3::UanPhy.

Definition at line 502 of file uan-phy-gen.cc.

References ns3::Node::GetId(), ns3::UanNetDevice::GetNode(), m_device, m_disabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

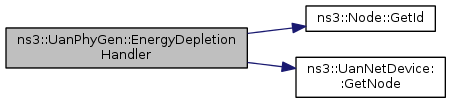

Here is the call graph for this function:

double ns3::UanPhyGen::GetCcaThresholdDb ( void )

virtual

Returns: Threshold signal strength in dB to enter CCA busy mode

Implements ns3::UanPhy.

Definition at line 791 of file uan-phy-gen.cc.

References m_ccaThreshDb.

Ptr< UanChannel > ns3::UanPhyGen::GetChannel ( void ) const

virtual

Returns: Channel this phy is attached to

Implements ns3::UanPhy.

Definition at line 797 of file uan-phy-gen.cc.

References m_channel.

UanModesList ns3::UanPhyGen::GetDefaultModes ( void )

static

Returns: Default TX modes of UanPhyGen

Definition at line 420 of file uan-phy-gen.cc.

References ns3::UanModesList::AppendMode(), ns3::UanTxModeFactory::CreateMode(), ns3::UanTxMode::FSK, and ns3::UanTxMode::PSK.

Referenced by ns3::UanPhyDual::GetTypeId(), and GetTypeId().

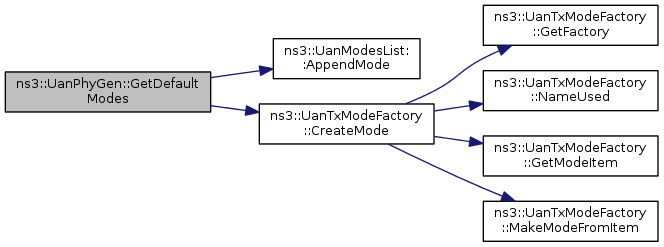

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< UanNetDevice > ns3::UanPhyGen::GetDevice ( void )

virtual

Returns: the Net Device that this Phy is a part of

Implements ns3::UanPhy.

Definition at line 803 of file uan-phy-gen.cc.

References m_device.

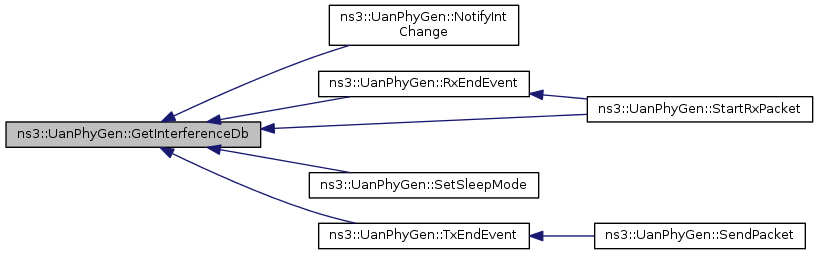

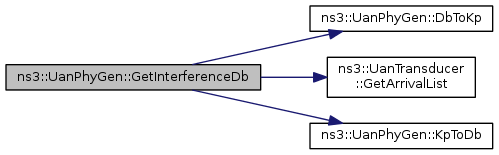

double ns3::UanPhyGen::GetInterferenceDb ( Ptr< Packet > pkt )

private

Definition at line 903 of file uan-phy-gen.cc.

References DbToKp(), ns3::UanTransducer::GetArrivalList(), KpToDb(), and m_transducer.

Referenced by NotifyIntChange(), RxEndEvent(), SetSleepMode(), StartRxPacket(), and TxEndEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

UanTxMode ns3::UanPhyGen::GetMode ( uint32_t n )

virtual

Parameters

n	Mode number of mode to return (place in Modeslist)

Returns: Mode n

Implements ns3::UanPhy.

Definition at line 999 of file uan-phy-gen.cc.

References ns3::UanModesList::GetNModes(), m_modes, and NS_ASSERT.

Referenced by SendPacket(), and StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::UanPhyGen::GetNModes ( void )

virtual

Returns: Number of TX modes supported by this PHY

Implements ns3::UanPhy.

Definition at line 993 of file uan-phy-gen.cc.

References ns3::UanModesList::GetNModes(), and m_modes.

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::UanPhyGen::GetPacketRx ( void ) const

virtual

Warning: Returns non-valid pointer if IsStateRx == false

Returns: Packet currently being received in PHY

Implements ns3::UanPhy.

Definition at line 1007 of file uan-phy-gen.cc.

References m_pktRx.

double ns3::UanPhyGen::GetRxGainDb ( void )

virtual

Returns: Gain added to signal at receiver in dB

Implements ns3::UanPhy.

Definition at line 775 of file uan-phy-gen.cc.

References m_rxGainDb.

double ns3::UanPhyGen::GetRxThresholdDb ( void )

virtual

Returns: Required signal strength, in dB, to begin receiving packet

Implements ns3::UanPhy.

Definition at line 786 of file uan-phy-gen.cc.

References m_rxThreshDb.

Ptr< UanTransducer > ns3::UanPhyGen::GetTransducer ( void )

virtual

Returns: Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

Definition at line 809 of file uan-phy-gen.cc.

References m_transducer.

double ns3::UanPhyGen::GetTxPowerDb ( void )

virtual

Returns: Current TX power output

Implements ns3::UanPhy.

Definition at line 780 of file uan-phy-gen.cc.

References m_txPwrDb.

TypeId ns3::UanPhyGen::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::UanPhyGen.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen

Attributes defined for this type:

CcaThreshold: Aggregate energy of incoming signals to move to CCA Busy state dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
RxThreshold: Required SNR for signal acquisition in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
TxPower: Transmission output power in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
RxGain: Gain added to incoming signal at receiver
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
SupportedModes: List of modes supported by this PHY
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 2|0|1|
- Flags: construct write read
PerModel: Functor to calculate PER based on SINR and TxMode
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer >
- Initial value: 0x2212e10
- Flags: construct write read
SinrModel: Functor to calculate SINR based on pkt arrivals and modes
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr >
- Initial value: 0x2212c90
- Flags: construct write read

TraceSources defined for this type:

RxOk: A packet was received successfully
RxError: A packet was received unsuccessfully
Tx: Packet transmission beginning

TraceSources defined in parent class ns3::UanPhy:

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

Reimplemented from ns3::UanPhy.

Definition at line 428 of file uan-phy-gen.cc.

References GetDefaultModes(), m_ccaThreshDb, m_modes, m_per, m_rxErrLogger, m_rxGainDb, m_rxOkLogger, m_rxThreshDb, m_sinr, m_txLogger, m_txPwrDb, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::UanPhyGen::IsStateBusy ( void )

virtual

Returns: True if Phy is not IDLE

Implements ns3::UanPhy.

Definition at line 731 of file uan-phy-gen.cc.

References IsStateIdle(), and IsStateSleep().

Here is the call graph for this function:

bool ns3::UanPhyGen::IsStateCcaBusy ( void )

virtual

Returns: True if Phy is not TX or RX but the channel is sensed busy

Implements ns3::UanPhy.

Definition at line 747 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, and m_state.

bool ns3::UanPhyGen::IsStateIdle ( void )

virtual

Returns: True if Phy is IDLE

Implements ns3::UanPhy.

Definition at line 726 of file uan-phy-gen.cc.

References ns3::UanPhy::IDLE, and m_state.

Referenced by IsStateBusy().

Here is the caller graph for this function:

bool ns3::UanPhyGen::IsStateRx ( void )

virtual

Returns: True if Phy is currently in receive mode

Implements ns3::UanPhy.

Definition at line 736 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::RX.

bool ns3::UanPhyGen::IsStateSleep ( void )

virtual

Returns: True if Phy is SLEEP

Implements ns3::UanPhy.

Definition at line 721 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::SLEEP.

Referenced by IsStateBusy().

Here is the caller graph for this function:

bool ns3::UanPhyGen::IsStateTx ( void )

virtual

Returns: True if Phy is busy transmitting

Implements ns3::UanPhy.

Definition at line 741 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::TX.

double ns3::UanPhyGen::KpToDb ( double kp )

private

Definition at line 930 of file uan-phy-gen.cc.

Referenced by GetInterferenceDb().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyIntChange ( void )

virtual

Function called when there has been a change in the ammount of interference this node is experiencing from other transmissions

Implements ns3::UanPhy.

Definition at line 886 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UanPhy::IDLE, m_ccaThreshDb, m_state, and NotifyListenersCcaEnd().

Here is the call graph for this function:

void ns3::UanPhyGen::NotifyListenersCcaEnd ( void )

private

Definition at line 973 of file uan-phy-gen.cc.

References m_listeners.

Referenced by NotifyIntChange().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersCcaStart ( void )

private

Definition at line 964 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent(), SetSleepMode(), StartRxPacket(), and TxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxBad ( void )

private

Definition at line 955 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxGood ( void )

private

Definition at line 946 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxStart ( void )

private

Definition at line 936 of file uan-phy-gen.cc.

References m_listeners.

Referenced by StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersTxStart ( Time duration )

private

Definition at line 983 of file uan-phy-gen.cc.

References m_listeners.

Referenced by SendPacket().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

virtual

Parameters

packet	Packet that is beginning transmission
txPowerDb	Transmit power of packet
txMode	Transmission mode of packet

Notification that there is a transmission beginning on the transducer that this Phy is attached to.

Implements ns3::UanPhy.

Definition at line 877 of file uan-phy-gen.cc.

References m_minRxSinrDb, and m_pktRx.

void ns3::UanPhyGen::RegisterListener ( UanPhyListener * listener )

virtual

Parameters

listener New listener to register

Register an object to be notified of common Phy events

Implements ns3::UanPhy.

Definition at line 573 of file uan-phy-gen.cc.

References m_listeners.

void ns3::UanPhyGen::RxEndEvent	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode
	)

private

Definition at line 659 of file uan-phy-gen.cc.

References ns3::UanPhyPer::CalcPer(), ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UniformRandomVariable::GetValue(), ns3::UanPhy::IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ccaThreshDb, m_disabled, m_minRxSinrDb, m_per, m_pg, m_pktRx, m_recErrCb, m_recOkCb, m_rxErrLogger, m_rxOkLogger, m_state, NotifyListenersCcaStart(), NotifyListenersRxBad(), NotifyListenersRxGood(), ns3::UanPhy::NotifyRxDrop(), ns3::UanPhy::NotifyRxEnd(), NS_LOG_DEBUG, ns3::UanPhy::SLEEP, and UpdatePowerConsumption().

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyGen::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

virtual

Parameters

pkt	Packet to transmit
modeNum	Index of mode in SupportedModes list to use for transmission

Implements ns3::UanPhy.

Definition at line 512 of file uan-phy-gen.cc.

References ns3::UanMac::GetAddress(), ns3::UanTxMode::GetDataRateBps(), GetMode(), ns3::Packet::GetSize(), m_disabled, m_mac, m_minRxSinrDb, m_pktRx, m_state, m_transducer, m_txLogger, m_txPwrDb, NotifyListenersTxStart(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::UanPhy::SLEEP, ns3::UanTransducer::Transmit(), ns3::UanPhy::TX, TxEndEvent(), and UpdatePowerConsumption().

Here is the call graph for this function:

void ns3::UanPhyGen::SetCcaThresholdDb ( double thresh )

virtual

Parameters

thresh Signal power at receiver required for CCA busy state

Implements ns3::UanPhy.

Definition at line 770 of file uan-phy-gen.cc.

References m_ccaThreshDb.

void ns3::UanPhyGen::SetChannel ( Ptr< UanChannel > channel )

virtual

Parameters

channel The channel this Phy is attached to

Implements ns3::UanPhy.

Definition at line 814 of file uan-phy-gen.cc.

References m_channel.

void ns3::UanPhyGen::SetDevice ( Ptr< UanNetDevice > device )

virtual

Parameters

device The Net Device this Phy is a part of

Implements ns3::UanPhy.

Definition at line 820 of file uan-phy-gen.cc.

References m_device.

void ns3::UanPhyGen::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

virtual

Parameters

callback DeviceEnergyModel change state callback.

This function sets the DeviceEnergyModel callback for UanPhy device. Must be implemented by UanPhy child classes.

Implements ns3::UanPhy.

Definition at line 484 of file uan-phy-gen.cc.

References m_energyCallback, and NS_LOG_FUNCTION.

void ns3::UanPhyGen::SetMac ( Ptr< UanMac > mac )

virtual

Parameters

mac	The MAC forwarding messages to this Phy

Implements ns3::UanPhy.

Definition at line 826 of file uan-phy-gen.cc.

References m_mac.

void ns3::UanPhyGen::SetReceiveErrorCallback ( RxErrCallback cb )

virtual

Parameters

cb	Callback to be enabled when a packet is received with errors

Implements ns3::UanPhy.

Definition at line 716 of file uan-phy-gen.cc.

References m_recErrCb.

void ns3::UanPhyGen::SetReceiveOkCallback ( RxOkCallback cb )

virtual

Parameters

cb	Callback to be enabled when packet is received without error

Implements ns3::UanPhy.

Definition at line 710 of file uan-phy-gen.cc.

References m_recOkCb.

void ns3::UanPhyGen::SetRxGainDb ( double gain )

virtual

Parameters

gain	Gain added at receiver

Implements ns3::UanPhy.

Definition at line 754 of file uan-phy-gen.cc.

References m_rxGainDb.

void ns3::UanPhyGen::SetRxThresholdDb ( double thresh )

virtual

Parameters

thresh Threshold SINR for propper reception in dB

Implements ns3::UanPhy.

Definition at line 765 of file uan-phy-gen.cc.

References m_rxThreshDb.

void ns3::UanPhyGen::SetSleepMode ( bool sleep )

virtual

Implements ns3::UanPhy.

Definition at line 839 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UanPhy::IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ccaThreshDb, m_energyCallback, m_state, NotifyListenersCcaStart(), and ns3::UanPhy::SLEEP.

Here is the call graph for this function:

void ns3::UanPhyGen::SetTransducer ( Ptr< UanTransducer > trans )

virtual

Parameters

trans Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

Definition at line 832 of file uan-phy-gen.cc.

References ns3::UanTransducer::AddPhy(), and m_transducer.

Here is the call graph for this function:

void ns3::UanPhyGen::SetTxPowerDb ( double txpwr )

virtual

Parameters

txpwr Final output transmission power in dB

Implements ns3::UanPhy.

Definition at line 760 of file uan-phy-gen.cc.

References m_txPwrDb.

void ns3::UanPhyGen::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

virtual

Packet arriving from channel: i.e. leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving
rxPowerDb	Signal power of incoming packet in dB
txMode	Transmission mode defining modulation of incoming packet
pdp	Power delay profile of incoming packet

Implements ns3::UanPhy.

Definition at line 580 of file uan-phy-gen.cc.

References CalculateSinrDb(), ns3::UanPhy::CCABUSY, ns3::UanMac::GetAddress(), ns3::UanTxMode::GetDataRateBps(), GetInterferenceDb(), GetMode(), GetNModes(), ns3::Packet::GetSize(), ns3::UanTxMode::GetUid(), ns3::UanPhy::IDLE, m_ccaThreshDb, m_disabled, m_mac, m_minRxSinrDb, m_pktRx, m_pktRxArrTime, m_pktRxMode, m_pktRxPdp, m_rxRecvPwrDb, m_rxThreshDb, m_state, NotifyListenersCcaStart(), NotifyListenersRxStart(), ns3::UanPhy::NotifyRxBegin(), ns3::UanPhy::NotifyRxDrop(), ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::UanPhy::RX, RxEndEvent(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::UanPhy::SLEEP, ns3::UanPhy::TX, and UpdatePowerConsumption().
