base class for all MAC-level wifi objects.This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines). More...

#include <wifi-mac.h>

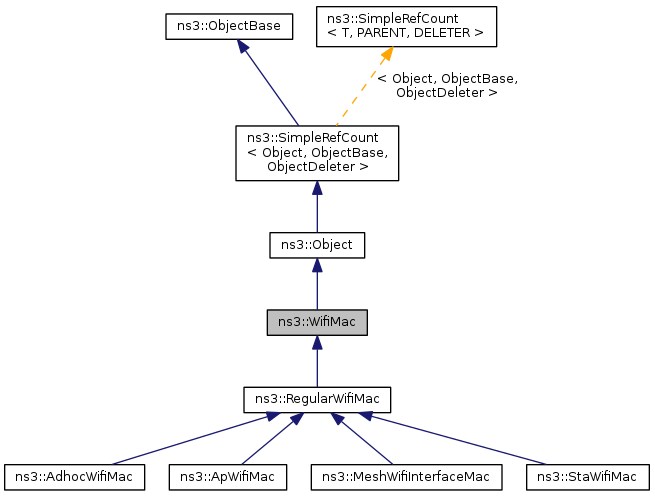

Inheritance diagram for ns3::WifiMac:

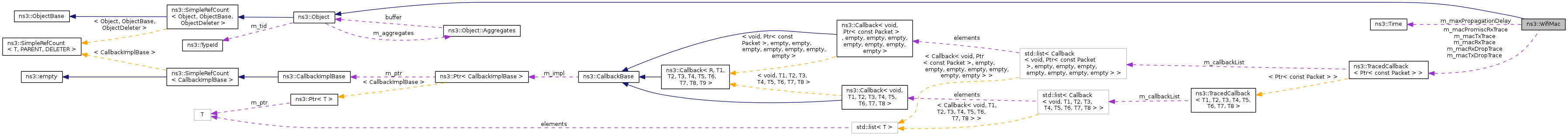

Collaboration diagram for ns3::WifiMac:

Public Member Functions
void	ConfigureStandard (enum WifiPhyStandard standard)
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)=0
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0
virtual Time	GetAckTimeout (void) const =0
virtual Mac48Address	GetAddress (void) const =0
virtual Time	GetBasicBlockAckTimeout (void) const
virtual Mac48Address	GetBssid (void) const =0
virtual Time	GetCompressedBlockAckTimeout (void) const
virtual Time	GetCtsTimeout (void) const =0
virtual Time	GetEifsNoDifs (void) const =0
Time	GetMaxPropagationDelay (void) const
Time	GetMsduLifetime (void) const
virtual Time	GetPifs (void) const =0
virtual Time	GetSifs (void) const =0
virtual Time	GetSlot (void) const =0
virtual Ssid	GetSsid (void) const =0
void	NotifyPromiscRx (Ptr< const Packet > packet)
void	NotifyRx (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyTx (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
virtual void	SetAckTimeout (Time ackTimeout)=0
virtual void	SetAddress (Mac48Address address)=0
virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
virtual void	SetCtsTimeout (Time ctsTimeout)=0
virtual void	SetEifsNoDifs (Time eifsNoDifs)=0
virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
virtual void	SetLinkDownCallback (Callback< void > linkDown)=0
virtual void	SetLinkUpCallback (Callback< void > linkUp)=0
void	SetMaxPropagationDelay (Time delay)
virtual void	SetPifs (Time pifs)=0
virtual void	SetPromisc (void)=0
	Sets the interface in promiscuous mode.
virtual void	SetSifs (Time sifs)=0
virtual void	SetSlot (Time slotTime)=0
virtual void	SetSsid (Ssid ssid)=0
virtual void	SetWifiPhy (Ptr< WifiPhy > phy)=0
virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)=0
virtual bool	SupportsSendFrom (void) const =0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiMac.

Protected Member Functions
void	ConfigureCCHDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	Configure80211_10Mhz (void)
void	Configure80211_5Mhz ()
void	Configure80211a (void)
void	Configure80211b (void)
void	Configure80211g (void)
void	Configure80211p_CCH (void)
void	Configure80211p_SCH (void)
virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)=0

Static Private Member Functions
static Time	GetDefaultBasicBlockAckDelay (void)
static Time	GetDefaultBasicBlockAckTimeout (void)
static Time	GetDefaultCompressedBlockAckDelay (void)
static Time	GetDefaultCompressedBlockAckTimeout (void)
static Time	GetDefaultCtsAckDelay (void)
static Time	GetDefaultCtsAckTimeout (void)
static Time	GetDefaultEifsNoDifs (void)
static Time	GetDefaultMaxPropagationDelay (void)
static Time	GetDefaultSifs (void)
static Time	GetDefaultSlot (void)

Private Attributes
TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
TracedCallback< Ptr< const Packet > >	m_macRxTrace
TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
TracedCallback< Ptr< const Packet > >	m_macTxTrace
Time	m_maxPropagationDelay

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Definition at line 44 of file wifi-mac.h.

Member Function Documentation

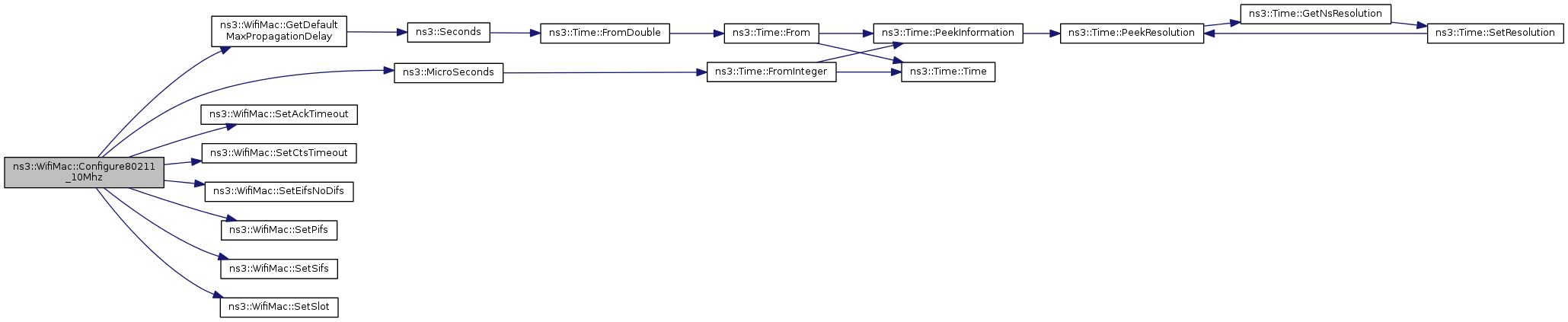

void ns3::WifiMac::Configure80211_10Mhz ( void )

private

Definition at line 331 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by Configure80211p_CCH(), Configure80211p_SCH(), and ConfigureStandard().

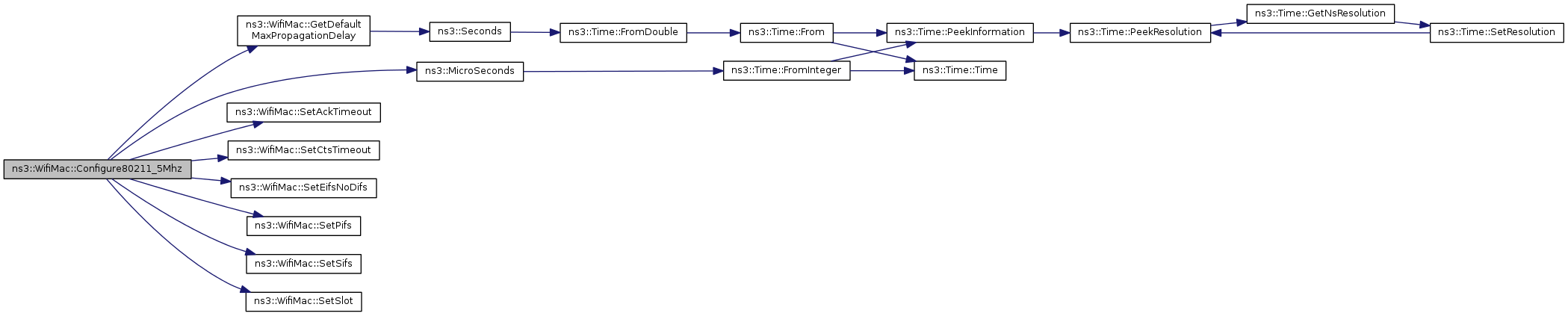

Here is the call graph for this function:

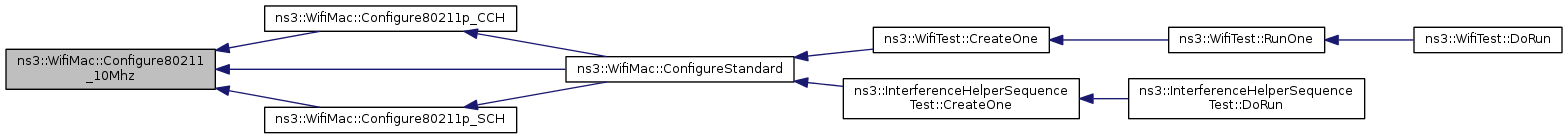

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211_5Mhz ( void )

private

Definition at line 342 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

Here is the call graph for this function:

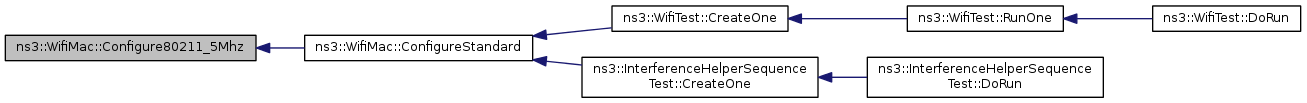

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211a ( void )

private

Definition at line 297 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211b ( void )

private

Definition at line 308 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

Here is the call graph for this function:

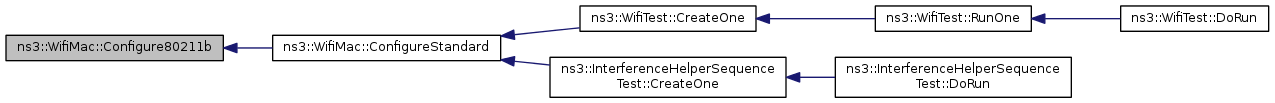

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211g ( void )

private

Definition at line 319 of file wifi-mac.cc.

References GetDefaultMaxPropagationDelay(), ns3::MicroSeconds(), SetAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), SetPifs(), SetSifs(), and SetSlot().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMac::Configure80211p_CCH ( void )

private

Definition at line 353 of file wifi-mac.cc.

References Configure80211_10Mhz().

Referenced by ConfigureStandard().

Here is the call graph for this function:

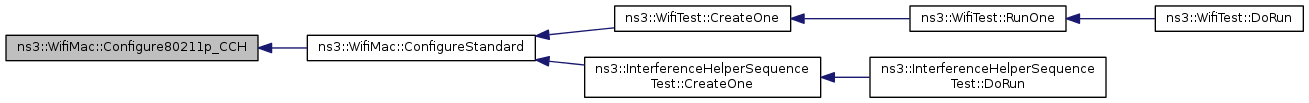

Here is the caller graph for this function:

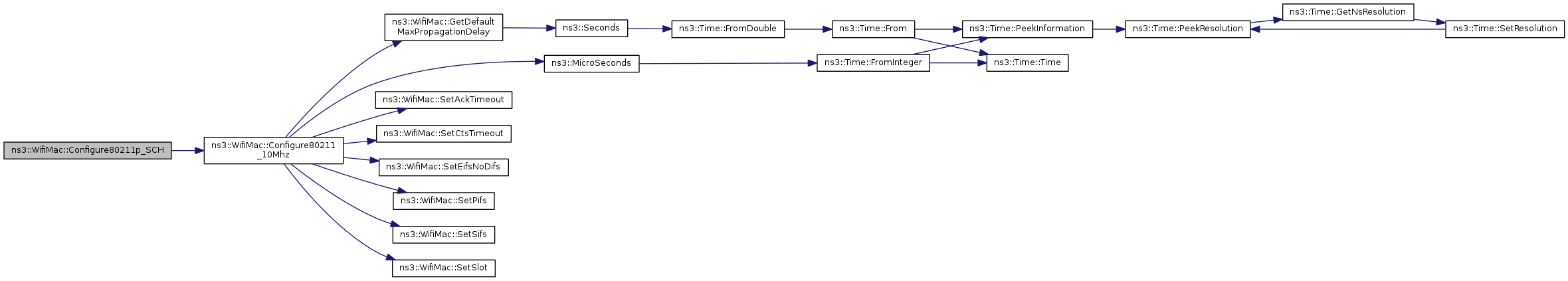

void ns3::WifiMac::Configure80211p_SCH ( void )

private

Definition at line 359 of file wifi-mac.cc.

References Configure80211_10Mhz().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMac::ConfigureCCHDcf	(	Ptr< Dcf >	dcf,
		uint32_t	cwmin,
		uint32_t	cwmax,
		enum AcIndex	ac
	)

protected

Definition at line 402 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, and NS_FATAL_ERROR.

Referenced by ns3::RegularWifiMac::FinishConfigureStandard().

Here is the caller graph for this function:

void ns3::WifiMac::ConfigureDcf	(	Ptr< Dcf >	dcf,
		uint32_t	cwmin,
		uint32_t	cwmax,
		enum AcIndex	ac
	)

protected

Definition at line 365 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, and NS_FATAL_ERROR.

Referenced by ns3::RegularWifiMac::FinishConfigureStandard().

Here is the caller graph for this function:

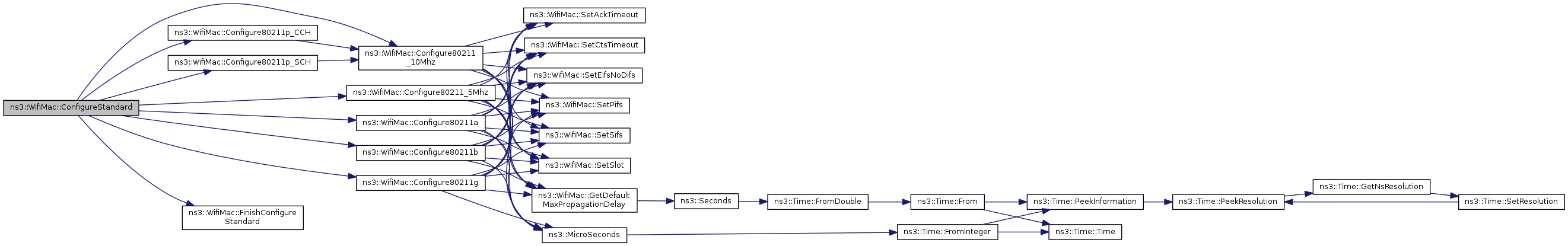

void ns3::WifiMac::ConfigureStandard ( enum WifiPhyStandard standard )

Parameters

standard the wifi standard to be configured

Definition at line 261 of file wifi-mac.cc.

References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211p_CCH(), Configure80211p_SCH(), FinishConfigureStandard(), NS_ASSERT, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211p_CCH, ns3::WIFI_PHY_STANDARD_80211p_SCH, and ns3::WIFI_PHY_STANDARD_holland.

Referenced by ns3::WifiTest::CreateOne(), and ns3::InterferenceHelperSequenceTest::CreateOne().

Here is the call graph for this function:

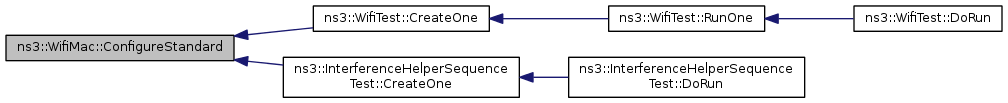

Here is the caller graph for this function:

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Referenced by ns3::WifiNetDevice::Send(), and ns3::WifiNetDevice::SendFrom().

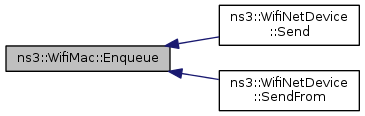

Here is the caller graph for this function:

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::StaWifiMac.

virtual void ns3::WifiMac::FinishConfigureStandard ( enum WifiPhyStandard standard )

privatepure virtual

Parameters

standard the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard. Subclasses should implement this method to configure their dcf queues according to the requested standard.

Implemented in ns3::RegularWifiMac, and ns3::MeshWifiInterfaceMac.

Referenced by ConfigureStandard().

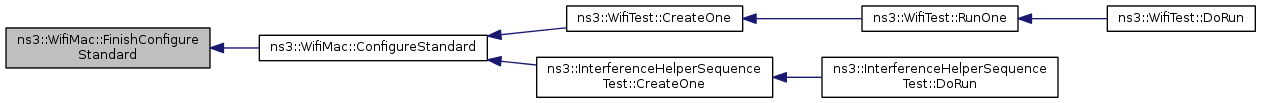

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetAckTimeout ( void ) const

pure virtual

Returns: the current ACK timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

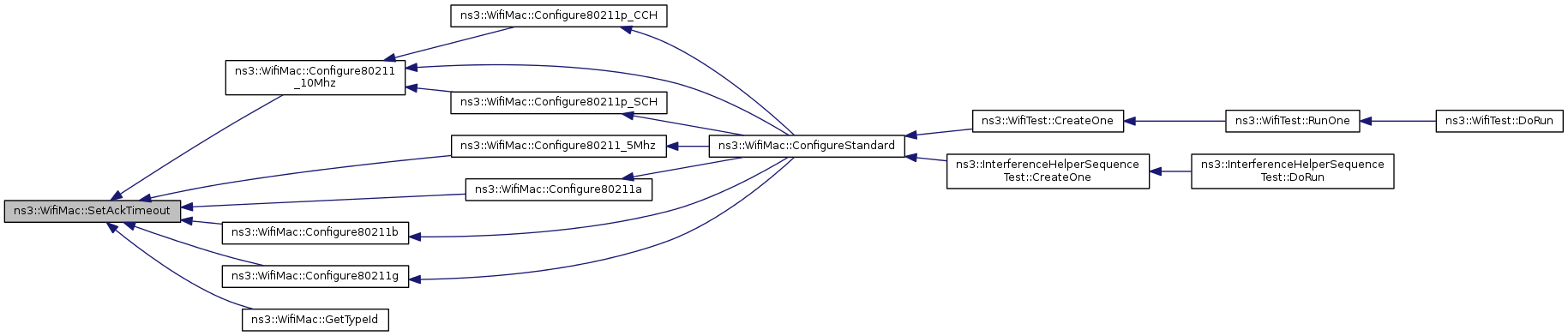

Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetAddress ( void ) const

pure virtual

Returns: the MAC address associated to this MAC layer.

Implemented in ns3::RegularWifiMac.

Referenced by ns3::WifiNetDevice::ForwardUp(), and ns3::WifiNetDevice::GetAddress().

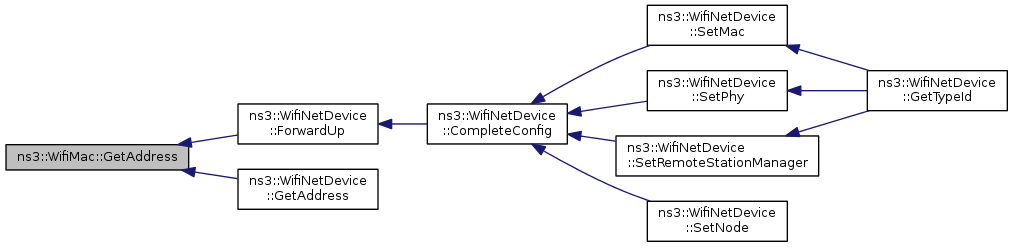

Here is the caller graph for this function:

Time ns3::WifiMac::GetBasicBlockAckTimeout ( void ) const

virtual

Reimplemented in ns3::RegularWifiMac.

Definition at line 110 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetTypeId().

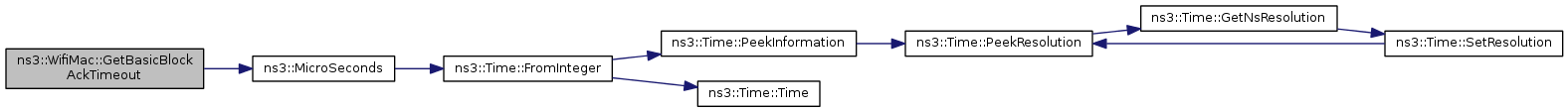

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Mac48Address ns3::WifiMac::GetBssid ( void ) const

pure virtual

Returns: the bssid of the network this device belongs to.

Implemented in ns3::RegularWifiMac.

Time ns3::WifiMac::GetCompressedBlockAckTimeout ( void ) const

virtual

Reimplemented in ns3::RegularWifiMac.

Definition at line 123 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetTypeId().

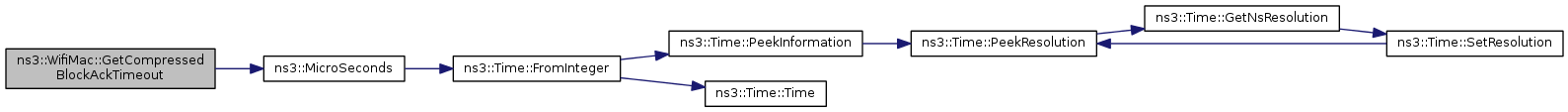

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetCtsTimeout ( void ) const

pure virtual

Returns: the current CTS timeout duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

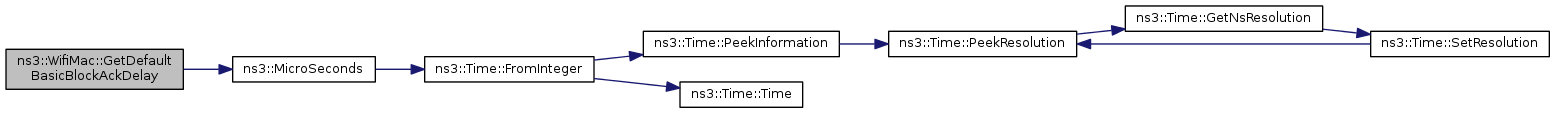

Time ns3::WifiMac::GetDefaultBasicBlockAckDelay ( void )

staticprivate

Definition at line 73 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultBasicBlockAckTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

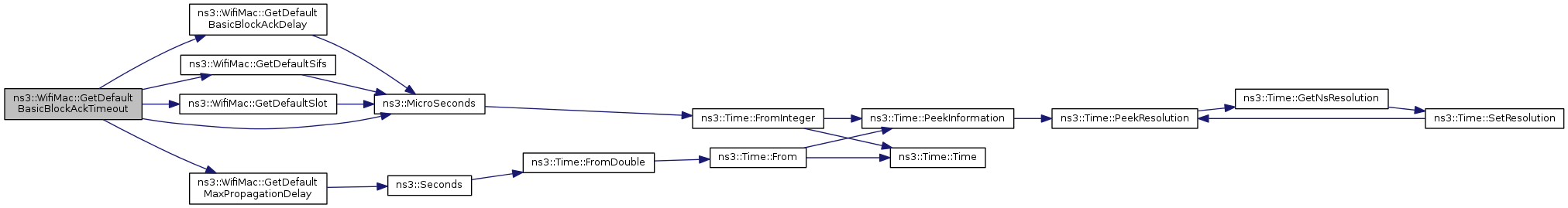

Time ns3::WifiMac::GetDefaultBasicBlockAckTimeout ( void )

staticprivate

Definition at line 85 of file wifi-mac.cc.

References GetDefaultBasicBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckDelay ( void )

staticprivate

Definition at line 79 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultCompressedBlockAckTimeout().

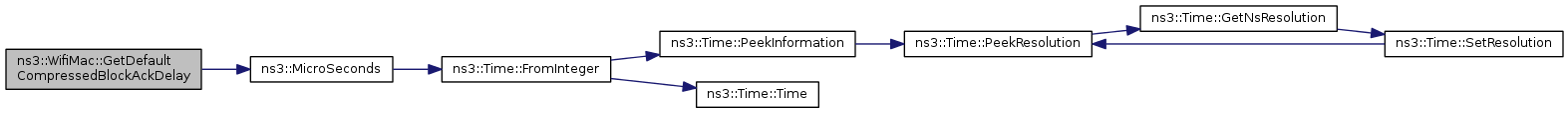

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultCompressedBlockAckTimeout ( void )

staticprivate

Definition at line 94 of file wifi-mac.cc.

References GetDefaultCompressedBlockAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

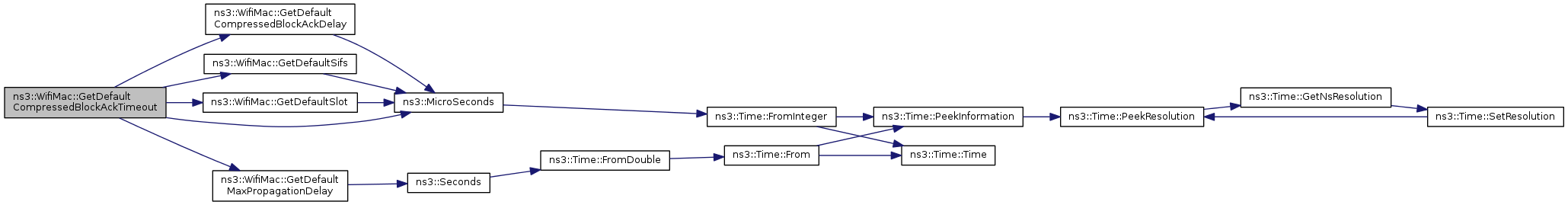

Here is the call graph for this function:

Here is the caller graph for this function:

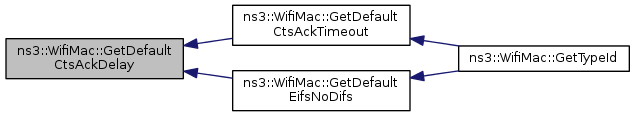

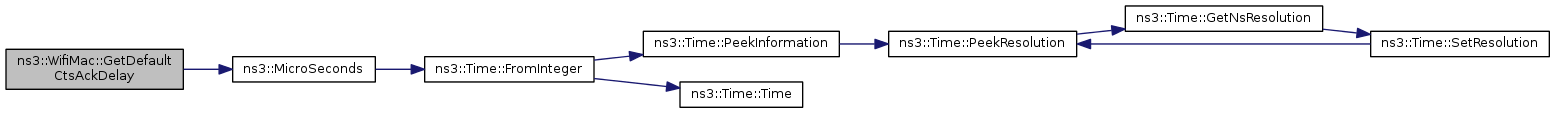

Time ns3::WifiMac::GetDefaultCtsAckDelay ( void )

staticprivate

Definition at line 53 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultCtsAckTimeout(), and GetDefaultEifsNoDifs().

Here is the call graph for this function:

Here is the caller graph for this function:

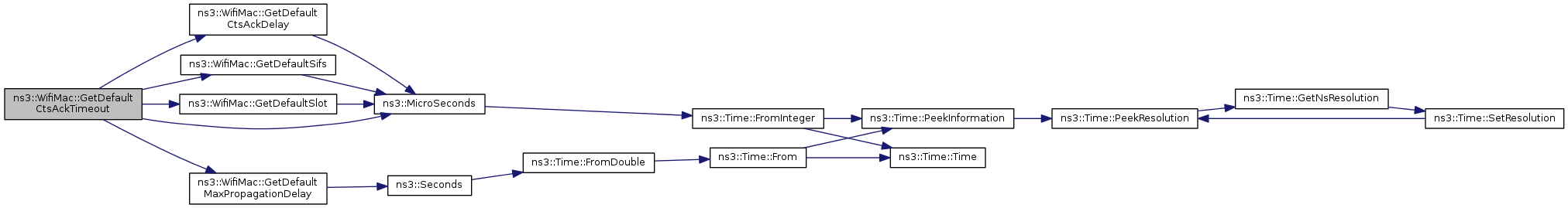

Time ns3::WifiMac::GetDefaultCtsAckTimeout ( void )

staticprivate

Definition at line 59 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), and ns3::MicroSeconds().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

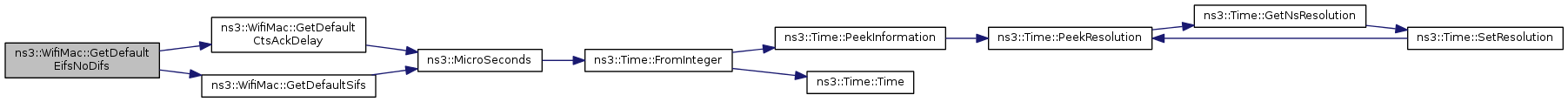

Time ns3::WifiMac::GetDefaultEifsNoDifs ( void )

staticprivate

Definition at line 48 of file wifi-mac.cc.

References GetDefaultCtsAckDelay(), and GetDefaultSifs().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

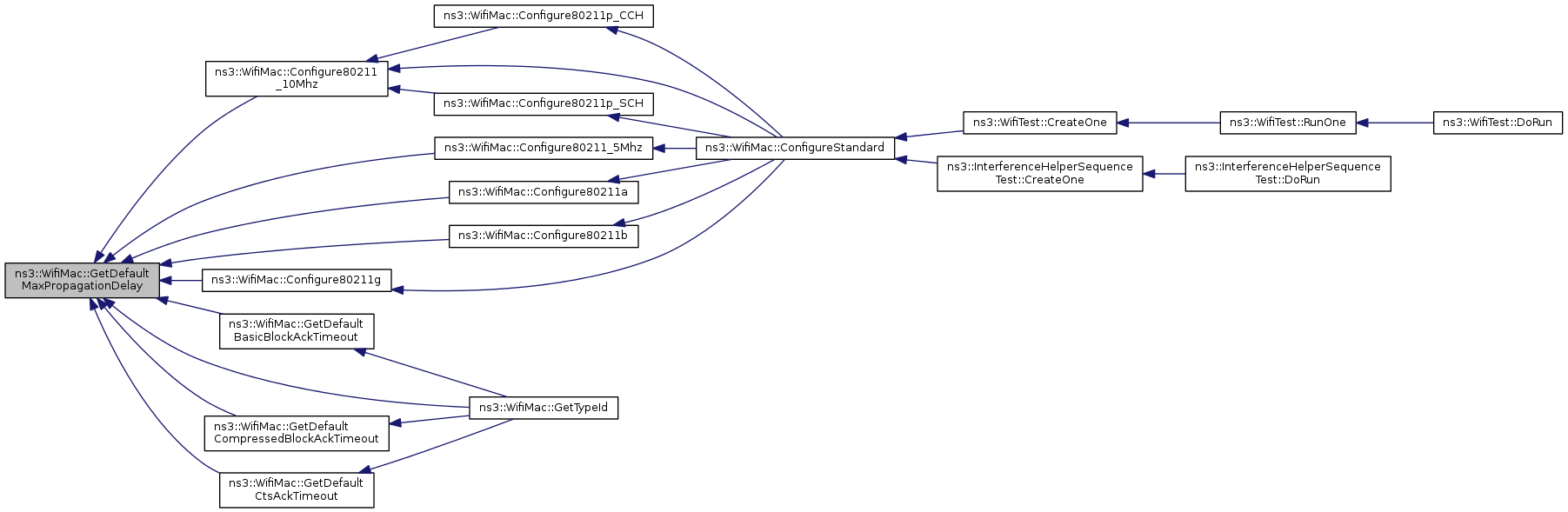

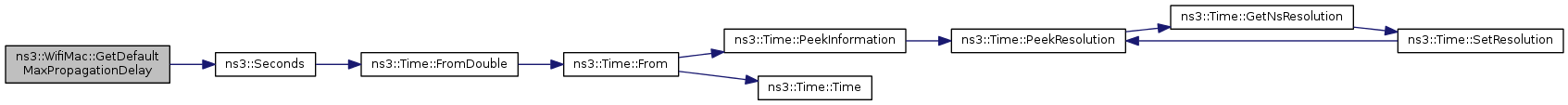

Time ns3::WifiMac::GetDefaultMaxPropagationDelay ( void )

staticprivate

Definition at line 30 of file wifi-mac.cc.

References ns3::Seconds().

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiMac::GetDefaultSifs ( void )

staticprivate

Definition at line 42 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), GetDefaultEifsNoDifs(), and GetTypeId().

Here is the call graph for this function:

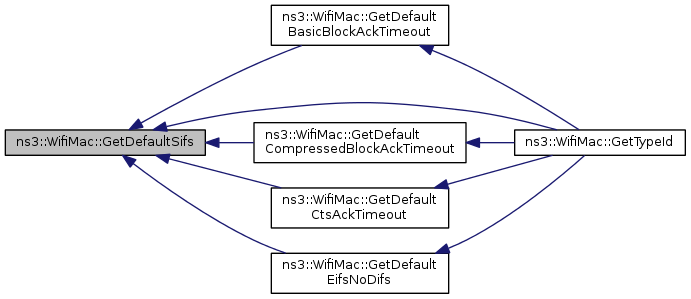

Here is the caller graph for this function:

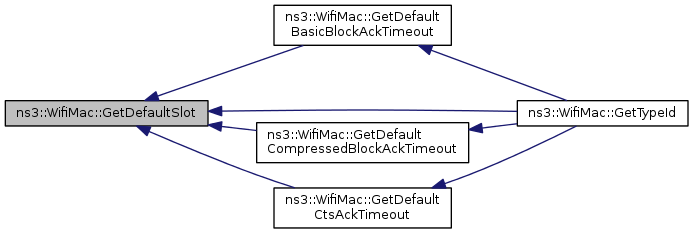

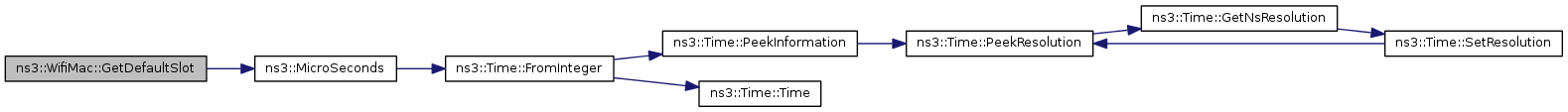

Time ns3::WifiMac::GetDefaultSlot ( void )

staticprivate

Definition at line 36 of file wifi-mac.cc.

References ns3::MicroSeconds().

Referenced by GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetEifsNoDifs ( void ) const

pure virtual

Returns: the current EIFS minus DIFS duration

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::WifiMac::GetMaxPropagationDelay ( void ) const

Unused for now.

Definition at line 225 of file wifi-mac.cc.

References m_maxPropagationDelay.

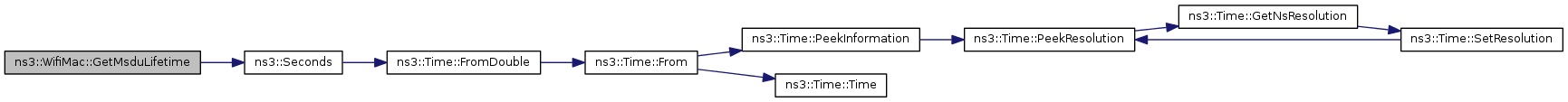

Time ns3::WifiMac::GetMsduLifetime ( void ) const

Unused for now.

Definition at line 220 of file wifi-mac.cc.

References ns3::Seconds().

Here is the call graph for this function:

virtual Time ns3::WifiMac::GetPifs ( void ) const

pure virtual

Returns: the current PIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetSifs ( void ) const

pure virtual

Returns: the current SIFS duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Time ns3::WifiMac::GetSlot ( void ) const

pure virtual

Returns: the current slot duration.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual Ssid ns3::WifiMac::GetSsid ( void ) const

pure virtual

Returns: the ssid which this MAC layer is going to try to stay in.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

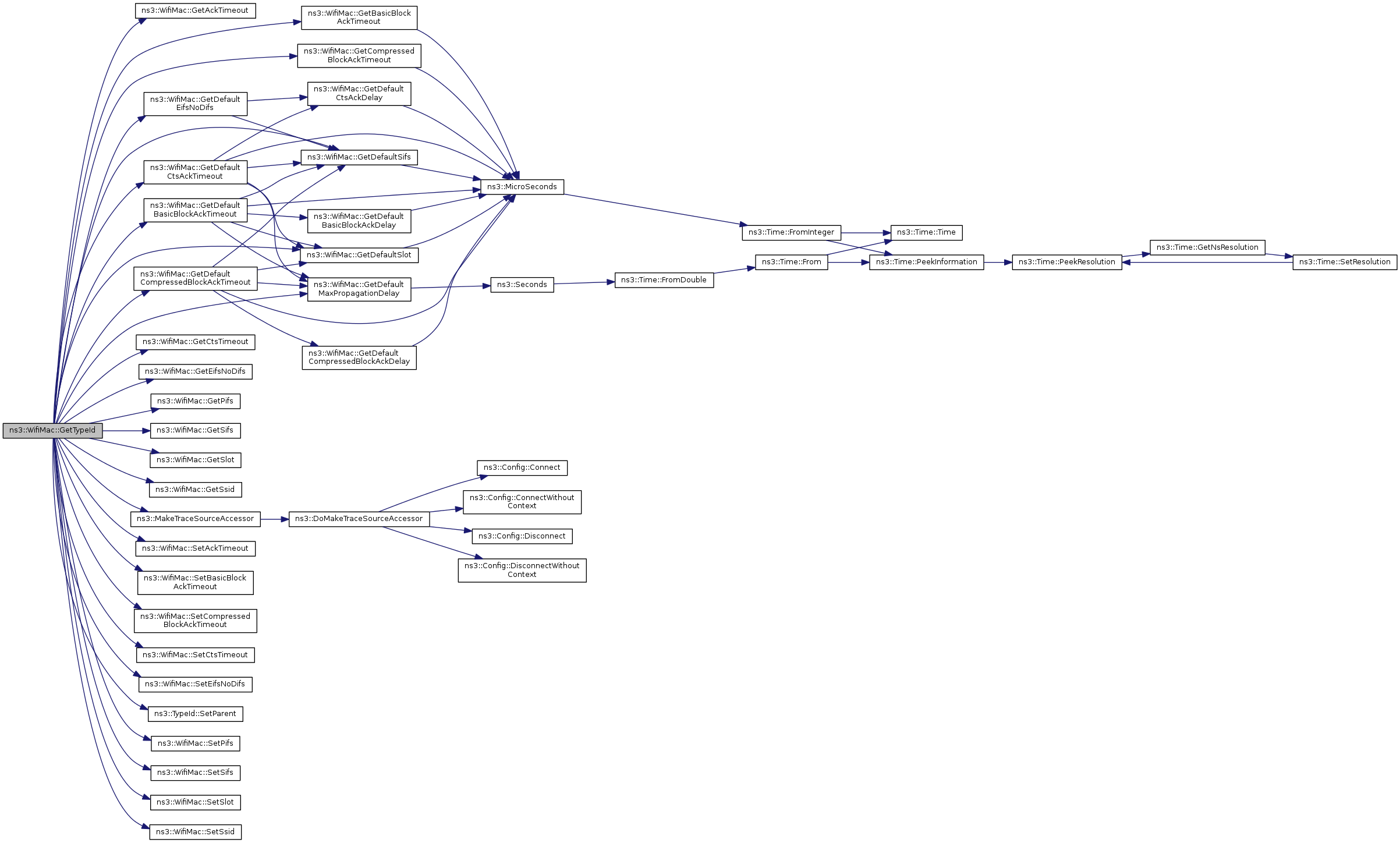

TypeId ns3::WifiMac::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::WifiMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac

Attributes defined for this type:

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +99000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +25000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources defined for this type:

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Reimplemented from ns3::Object.

Reimplemented in ns3::MeshWifiInterfaceMac, ns3::RegularWifiMac, ns3::StaWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 130 of file wifi-mac.cc.

References GetAckTimeout(), GetBasicBlockAckTimeout(), GetCompressedBlockAckTimeout(), GetCtsTimeout(), GetDefaultBasicBlockAckTimeout(), GetDefaultCompressedBlockAckTimeout(), GetDefaultCtsAckTimeout(), GetDefaultEifsNoDifs(), GetDefaultMaxPropagationDelay(), GetDefaultSifs(), GetDefaultSlot(), GetEifsNoDifs(), GetPifs(), GetSifs(), GetSlot(), GetSsid(), m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_maxPropagationDelay, ns3::MakeTraceSourceAccessor(), SetAckTimeout(), SetBasicBlockAckTimeout(), SetCompressedBlockAckTimeout(), SetCtsTimeout(), SetEifsNoDifs(), ns3::TypeId::SetParent(), SetPifs(), SetSifs(), SetSlot(), and SetSsid().

Here is the call graph for this function:

void ns3::WifiMac::NotifyPromiscRx ( Ptr< const Packet > packet )

Public method used to fire a MacPromiscRx trace. Implemented for encapsulation purposes.

Definition at line 249 of file wifi-mac.cc.

References m_macPromiscRxTrace.

Referenced by ns3::WifiNetDevice::ForwardUp().

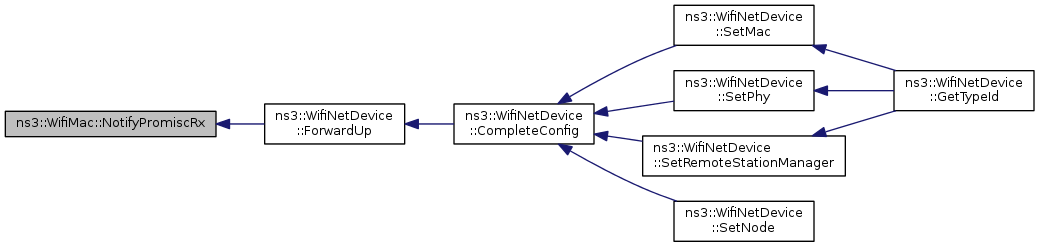

Here is the caller graph for this function:

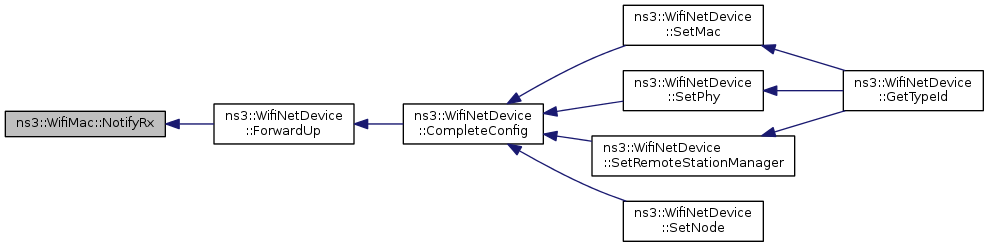

void ns3::WifiMac::NotifyRx ( Ptr< const Packet > packet )

Public method used to fire a MacRx trace. Implemented for encapsulation purposes.

Definition at line 243 of file wifi-mac.cc.

References m_macRxTrace.

Referenced by ns3::WifiNetDevice::ForwardUp().

Here is the caller graph for this function:

void ns3::WifiMac::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a MacRxDrop trace. Implemented for encapsulation purposes.

Definition at line 255 of file wifi-mac.cc.

References m_macRxDropTrace.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

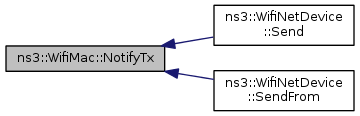

void ns3::WifiMac::NotifyTx ( Ptr< const Packet > packet )

Public method used to fire a MacTx trace. Implemented for encapsulation purposes.

Definition at line 231 of file wifi-mac.cc.

References m_macTxTrace.

Referenced by ns3::WifiNetDevice::Send(), and ns3::WifiNetDevice::SendFrom().

Here is the caller graph for this function:

void ns3::WifiMac::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a MacTxDrop trace. Implemented for encapsulation purposes.

Definition at line 237 of file wifi-mac.cc.

References m_macTxDropTrace.

Referenced by ns3::StaWifiMac::Enqueue().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetAckTimeout ( Time ackTimeout )

pure virtual

Parameters

ackTimeout the duration of an ACK timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetAddress ( Mac48Address address )

pure virtual

Parameters

address the current address of this MAC layer.

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Referenced by ns3::WifiNetDevice::SetAddress().

Here is the caller graph for this function:

void ns3::WifiMac::SetBasicBlockAckTimeout ( Time blockAckTimeout )

virtual

Reimplemented in ns3::RegularWifiMac.

Definition at line 104 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiMac::SetCompressedBlockAckTimeout ( Time blockAckTimeout )

virtual

Reimplemented in ns3::RegularWifiMac.

Definition at line 117 of file wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetCtsTimeout ( Time ctsTimeout )

pure virtual

Parameters

ctsTimeout the duration of a CTS timeout.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetEifsNoDifs ( Time eifsNoDifs )

pure virtual

Parameters

eifsNoDifs the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetForwardUpCallback ( Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback )

pure virtual

Parameters

upCallback the callback to invoke when a packet must be forwarded up the stack.

Referenced by ns3::WifiNetDevice::CompleteConfig().

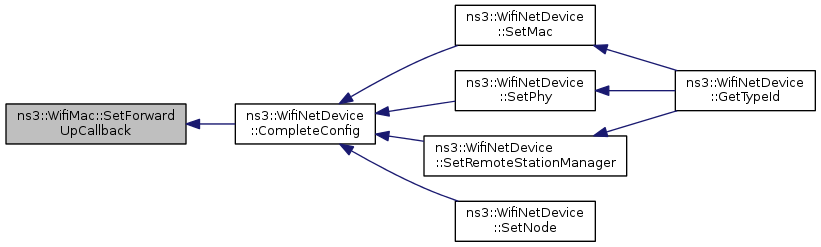

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetLinkDownCallback ( Callback< void > linkDown )

pure virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Implemented in ns3::RegularWifiMac.

Referenced by ns3::WifiNetDevice::CompleteConfig().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetLinkUpCallback ( Callback< void > linkUp )

pure virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implemented in ns3::RegularWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Referenced by ns3::WifiNetDevice::CompleteConfig().

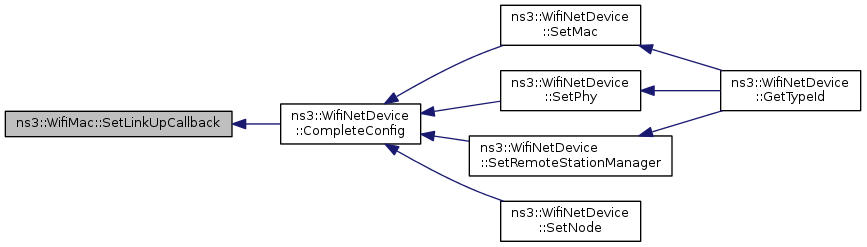

Here is the caller graph for this function:

void ns3::WifiMac::SetMaxPropagationDelay ( Time delay )

Parameters

delay the max propagation delay.

Unused for now.

Definition at line 214 of file wifi-mac.cc.

References m_maxPropagationDelay.

virtual void ns3::WifiMac::SetPifs ( Time pifs )

pure virtual

Parameters

pifs	the pifs duration.

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetPromisc ( void )

pure virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implemented in ns3::RegularWifiMac.

Referenced by ns3::WifiNetDevice::SetPromiscReceiveCallback().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSifs ( Time sifs )

pure virtual

Parameters

sifs	the sifs duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSlot ( Time slotTime )

pure virtual

Parameters

slotTime the slot duration

Implemented in ns3::RegularWifiMac.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), and GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetSsid ( Ssid ssid )

pure virtual

Parameters

ssid	the current ssid of this MAC layer.

Implemented in ns3::RegularWifiMac.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetWifiPhy ( Ptr< WifiPhy > phy )

pure virtual

Parameters

phy	the physical layer attached to this MAC.

Implemented in ns3::RegularWifiMac.

Referenced by ns3::WifiNetDevice::CompleteConfig().

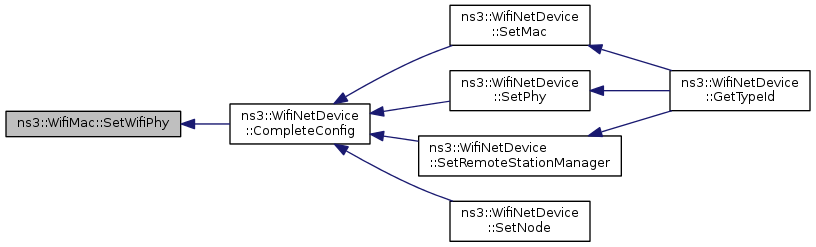

Here is the caller graph for this function:

virtual void ns3::WifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > stationManager )

pure virtual

Parameters

stationManager the station manager attached to this MAC.

Implemented in ns3::RegularWifiMac, and ns3::ApWifiMac.

Referenced by ns3::WifiNetDevice::CompleteConfig().

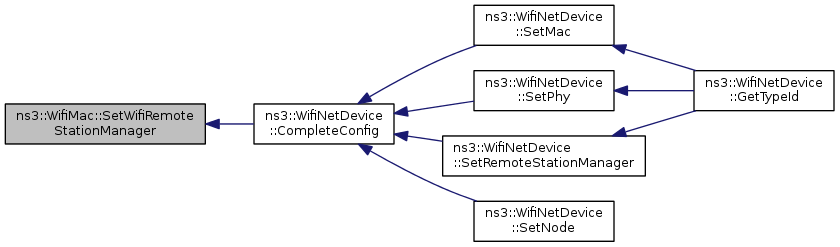

Here is the caller graph for this function:

virtual bool ns3::WifiMac::SupportsSendFrom ( void ) const

pure virtual

Implemented in ns3::RegularWifiMac, ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Referenced by ns3::WifiNetDevice::SupportsSendFrom().

Here is the caller graph for this function:

Member Data Documentation

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a promiscuous trace.

See Also: class CallBackTraceSource

Definition at line 286 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyPromiscRx().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See Also: class CallBackTraceSource

Definition at line 303 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a non- promiscuous trace.
