ns3::ConstantSpectrumPropagationLossModel Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <constant-spectrum-propagation-loss.h>

+ Inheritance diagram for ns3::ConstantSpectrumPropagationLossModel:
+ Collaboration diagram for ns3::ConstantSpectrumPropagationLossModel:

Public Member Functions

 ConstantSpectrumPropagationLossModel ()

 ~ConstantSpectrumPropagationLossModel ()

virtual Ptr< SpectrumValue > DoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const

double GetLossDb () const

void SetLossDb (double lossDb)

- Public Member Functions inherited from ns3::SpectrumPropagationLossModel
 SpectrumPropagationLossModel ()

virtual ~SpectrumPropagationLossModel ()

Ptr< SpectrumValue > CalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
 This method is to be called to calculate. More...

void SetNext (Ptr< SpectrumPropagationLossModel > next)
 used to chain various instances of SpectrumPropagationLossModel More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::SpectrumPropagationLossModel
static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Attributes

double m_lossDb

double m_lossLinear


Additional Inherited Members

- Protected Member Functions inherited from ns3::SpectrumPropagationLossModel
virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.


Attributes

  • Loss: Path loss (dB) between transmitter and receiver
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 29 of file constant-spectrum-propagation-loss.h.

Constructor & Destructor Documentation

ns3::ConstantSpectrumPropagationLossModel::ConstantSpectrumPropagationLossModel ( )

Definition at line 37 of file constant-spectrum-propagation-loss.cc.

References NS_LOG_FUNCTION.

ns3::ConstantSpectrumPropagationLossModel::~ConstantSpectrumPropagationLossModel ( )

Definition at line 42 of file constant-spectrum-propagation-loss.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< SpectrumValue > ns3::ConstantSpectrumPropagationLossModel::DoCalcRxPowerSpectralDensity ( Ptr< const SpectrumValue >  txPsd,
Ptr< const MobilityModel >  a,
Ptr< const MobilityModel >  b
) const
virtual
Parameters
txPsdset of values vs frequency representing the transmission power. See SpectrumChannel for details.
asender mobility
breceiver mobility
Returns
set of values vs frequency representing the received power in the same units used for the txPower parameter.

Implements ns3::SpectrumPropagationLossModel.

Definition at line 82 of file constant-spectrum-propagation-loss.cc.

References m_lossLinear, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

double ns3::ConstantSpectrumPropagationLossModel::GetLossDb ( ) const

Definition at line 74 of file constant-spectrum-propagation-loss.cc.

References m_lossDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

TypeId ns3::ConstantSpectrumPropagationLossModel::GetTypeId ( void  )
static

Definition at line 48 of file constant-spectrum-propagation-loss.cc.

References GetLossDb(), SetLossDb(), and ns3::TypeId::SetParent().

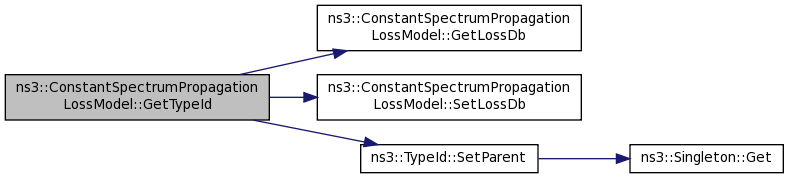

+ Here is the call graph for this function:

void ns3::ConstantSpectrumPropagationLossModel::SetLossDb ( double  lossDb)

Definition at line 65 of file constant-spectrum-propagation-loss.cc.

References m_lossDb, m_lossLinear, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

double ns3::ConstantSpectrumPropagationLossModel::m_lossDb
protected

Definition at line 45 of file constant-spectrum-propagation-loss.h.

Referenced by GetLossDb(), and SetLossDb().

double ns3::ConstantSpectrumPropagationLossModel::m_lossLinear
protected

Definition at line 46 of file constant-spectrum-propagation-loss.h.

Referenced by DoCalcRxPowerSpectralDensity(), and SetLossDb().

The documentation for this class was generated from the following files:
