ns3::ErlangRandomVariable Class Reference

The Erlang distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...

#include <random-variable-stream.h>

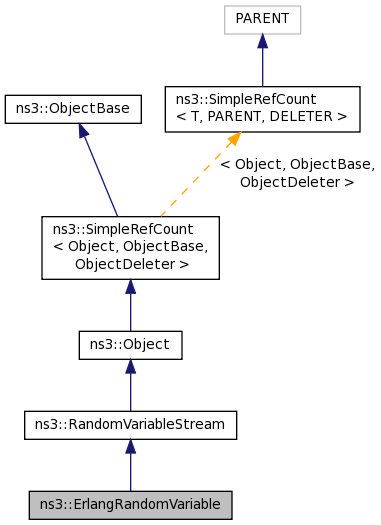

+ Inheritance diagram for ns3::ErlangRandomVariable:

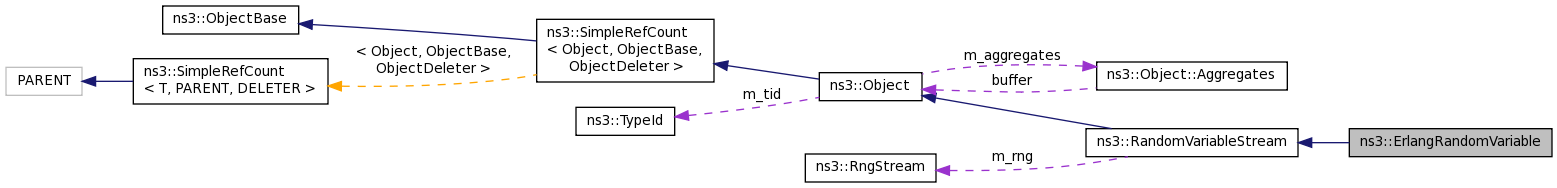

+ Collaboration diagram for ns3::ErlangRandomVariable:

Public Member Functions

 ErlangRandomVariable ()
 Creates an Erlang distribution RNG with the default values for k and lambda. More...

uint32_t GetInteger (uint32_t k, uint32_t lambda)
 Returns a random unsigned integer from an Erlang distribution with the specified k and lambda. More...

virtual uint32_t GetInteger (void)
 Returns a random unsigned integer from an Erlang distribution with the current k and lambda. More...

uint32_t GetK (void) const
 Returns the k value for the Erlang distribution returned by this RNG stream. More...

double GetLambda (void) const
 Returns the lambda value for the Erlang distribution returned by this RNG stream. More...

double GetValue (uint32_t k, double lambda)
 Returns a random double from an Erlang distribution with the specified k and lambda. More...

virtual double GetValue (void)
 Returns a random double from an Erlang distribution with the current k and lambda. More...

- Public Member Functions inherited from ns3::RandomVariableStream
 RandomVariableStream ()

virtual ~RandomVariableStream ()

int64_t GetStream (void) const
 Returns the stream number for this RNG stream. More...

bool IsAntithetic (void) const
 Returns true if antithetic values should be generated. More...

void SetAntithetic (bool isAntithetic)
 Specifies whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for this RNG stream. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double GetExponentialValue (double mean, double bound)
 Returns a random double from an exponential distribution with the specified mean and upper bound. More...


Private Attributes

uint32_t m_k
 The k value for the Erlang distribution returned by this RNG stream. More...

double m_lambda
 The lambda value for the Erlang distribution returned by this RNG stream. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::RandomVariableStream
RngStreamPeek (void) const
 Returns a pointer to the underlying RNG stream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

The Erlang distribution Random Number Generator (RNG) that allows stream numbers to be set deterministically.

This class supports the creation of objects that return random numbers from a fixed Erlang distribution. It also supports the generation of single random numbers from various Erlang distributions.

The Erlang distribution is a special case of the Gamma distribution where k (= alpha) is a non-negative integer. Erlang distributed variables can be generated using a much faster algorithm than gamma variables.

The probability density function is defined over the interval [0, $+\infty$) as: $ \frac{x^{k-1} e^{-\frac{x}{\lambda}}}{\lambda^k (k-1)!}$ where $ mean = k \lambda $ and $ variance = k \lambda^2$

Here is an example of how to use this class:

uint32_t k = 5;
double lambda = 2.0;
Ptr<ErlangRandomVariable> x = CreateObject<ErlangRandomVariable> ();
x->SetAttribute ("K", IntegerValue (k));
x->SetAttribute ("Lambda", DoubleValue (lambda));
// The expected value for the mean of the values returned by a
// Erlangly distributed random variable is equal to
//
// E[value] = k * lambda .
//
double value = x->GetValue ();

Config Paths

ns3::ErlangRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ErlangRandomVariable
  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::NakagamiPropagationLossModel/ErlangRv
  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ErlangRandomVariable
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ErlangRandomVariable
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::NakagamiPropagationLossModel/ErlangRv
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::ErlangRandomVariable
  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::ErlangRandomVariable
  • /NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::ErlangRandomVariable
  • /NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ErlangRandomVariable
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::NakagamiPropagationLossModel/ErlangRv
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ErlangRandomVariable

Attributes

  • K: The k value for the Erlang distribution returned by this RNG stream.
  • Lambda: The lambda value for the Erlang distribution returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read

Attributes defined in parent class ns3::RandomVariableStream

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 1671 of file random-variable-stream.h.

Constructor & Destructor Documentation

ns3::ErlangRandomVariable::ErlangRandomVariable ( )

Creates an Erlang distribution RNG with the default values for k and lambda.

Definition at line 1068 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

double ns3::ErlangRandomVariable::GetExponentialValue ( double  mean,
double  bound
)
private

Returns a random double from an exponential distribution with the specified mean and upper bound.

Parameters
meanMean value of the random variables.
boundUpper bound on values returned.
Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and

\[ x = - mean * \log(u) \]

is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, is calculated as

\[ x' = - mean * \log(1 - u), \]

which now involves the log of the distance $u$ is from the 1.

Definition at line 1137 of file random-variable-stream.cc.

References ns3::RandomVariableStream::IsAntithetic(), NS_LOG_FUNCTION, ns3::RandomVariableStream::Peek(), and ns3::RngStream::RandU01().

Referenced by GetValue().

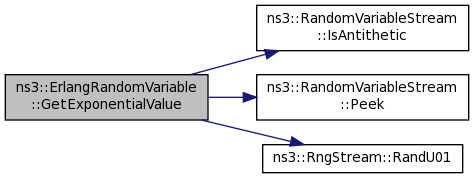

+ Here is the call graph for this function:

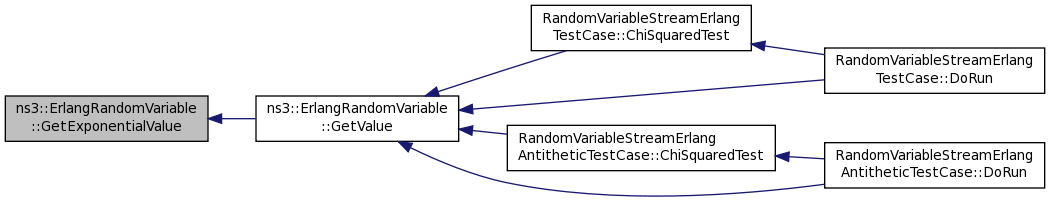

+ Here is the caller graph for this function:

uint32_t ns3::ErlangRandomVariable::GetInteger ( uint32_t  k,
uint32_t  lambda
)

Returns a random unsigned integer from an Erlang distribution with the specified k and lambda.

Parameters
kK value for the Erlang distribution.
lambdaLambda value for the Erlang distribution.
Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, uses (1-u), which is the distance $u$ is from the 1.

Definition at line 1117 of file random-variable-stream.cc.

References GetValue(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint32_t ns3::ErlangRandomVariable::GetInteger ( void  )
virtual

Returns a random unsigned integer from an Erlang distribution with the current k and lambda.

Returns
A random unsigned integer value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, uses (1-u), which is the distance $u$ is from the 1.

Implements ns3::RandomVariableStream.

Definition at line 1130 of file random-variable-stream.cc.

References GetValue(), m_k, m_lambda, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint32_t ns3::ErlangRandomVariable::GetK ( void  ) const

Returns the k value for the Erlang distribution returned by this RNG stream.

Returns
The k value for the Erlang distribution returned by this RNG stream.

Definition at line 1075 of file random-variable-stream.cc.

References m_k, and NS_LOG_FUNCTION.

double ns3::ErlangRandomVariable::GetLambda ( void  ) const

Returns the lambda value for the Erlang distribution returned by this RNG stream.

Returns
The lambda value for the Erlang distribution returned by this RNG stream.

Definition at line 1081 of file random-variable-stream.cc.

References m_lambda, and NS_LOG_FUNCTION.

TypeId ns3::ErlangRandomVariable::GetTypeId ( void  )
static

Definition at line 1052 of file random-variable-stream.cc.

References m_k, m_lambda, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

double ns3::ErlangRandomVariable::GetValue ( uint32_t  k,
double  lambda
)

Returns a random double from an Erlang distribution with the specified k and lambda.

Parameters
kK value for the Erlang distribution.
lambdaLambda value for the Erlang distribution.
Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, uses (1-u), which is the distance $u$ is from the 1.

Definition at line 1100 of file random-variable-stream.cc.

References GetExponentialValue(), and NS_LOG_FUNCTION.

Referenced by RandomVariableStreamErlangTestCase::ChiSquaredTest(), RandomVariableStreamErlangAntitheticTestCase::ChiSquaredTest(), RandomVariableStreamErlangTestCase::DoRun(), and RandomVariableStreamErlangAntitheticTestCase::DoRun().

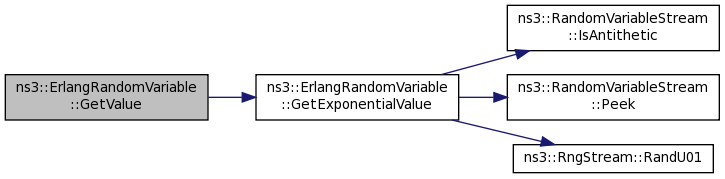

+ Here is the call graph for this function:

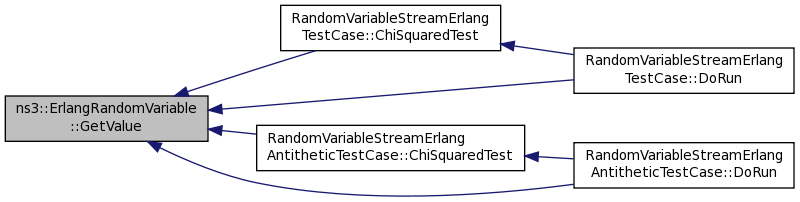

+ Here is the caller graph for this function:

double ns3::ErlangRandomVariable::GetValue ( void  )
virtual

Returns a random double from an Erlang distribution with the current k and lambda.

Returns
A floating point random value.

Note that antithetic values are being generated if m_isAntithetic is equal to true. If $u$ is a uniform variable over [0,1] and $x$ is a value that would be returned normally, then $(1 - u$) is the distance that $u$ would be from $1$. The value returned in the antithetic case, $x'$, uses (1-u), which is the distance $u$ is from the 1.

Note that we have to re-implement this method here because the method is overloaded above for the two-argument variant and the c++ name resolution rules don't work well with overloads split between parent and child classes.

Implements ns3::RandomVariableStream.

Definition at line 1124 of file random-variable-stream.cc.

References m_k, m_lambda, and NS_LOG_FUNCTION.

Referenced by GetInteger().

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::ErlangRandomVariable::m_k
private

The k value for the Erlang distribution returned by this RNG stream.

Definition at line 1783 of file random-variable-stream.h.

Referenced by GetInteger(), GetK(), GetTypeId(), and GetValue().

double ns3::ErlangRandomVariable::m_lambda
private

The lambda value for the Erlang distribution returned by this RNG stream.

Definition at line 1786 of file random-variable-stream.h.

Referenced by GetInteger(), GetLambda(), GetTypeId(), and GetValue().


The documentation for this class was generated from the following files:
