the ITU-R 1411 LOS propagation model More...

#include <itu-r-1411-los-propagation-loss-model.h>

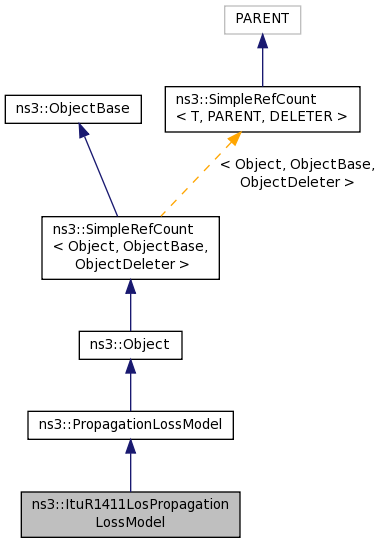

Inheritance diagram for ns3::ItuR1411LosPropagationLossModel:

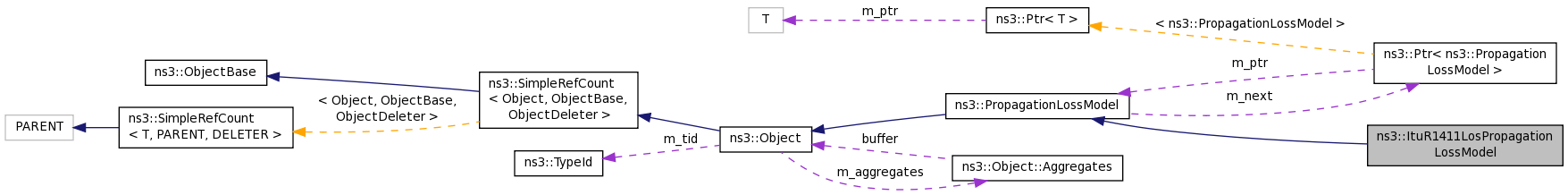

Collaboration diagram for ns3::ItuR1411LosPropagationLossModel:

Public Member Functions

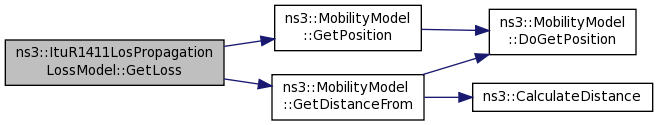

double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

void	SetFrequency (double freq)
	Set the operating frequency. More...

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

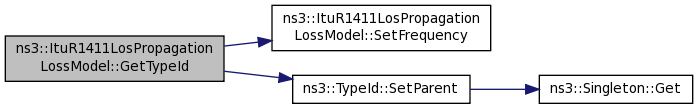

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
	Subclasses must implement this; those not using random variables can return zero. More...

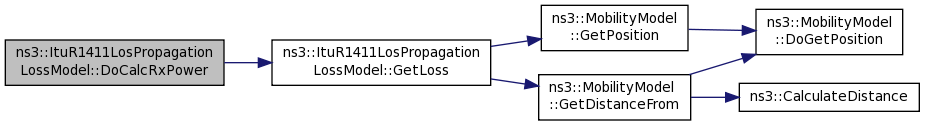

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	m_lambda

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

the ITU-R 1411 LOS propagation model

This class implements the ITU-R 1411 LOS propagation model for Line-of-Sight (LoS) short range outdoor communication in the frequency range 300 MHz to 100 GHz. For more information about the model, please see the propagation module documentation in .rst format.

Config Paths

ns3::ItuR1411LosPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel
/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel

Attributes

Frequency: The propagation frequency in Hz
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.16e+09
- Flags: construct write

No TraceSources are defined for this type.

Definition at line 42 of file itu-r-1411-los-propagation-loss-model.h.
