a jakes narrowband propagation model. More...
#include <jakes-propagation-loss-model.h>
Public Member Functions | |
JakesPropagationLossModel () | |
virtual | ~JakesPropagationLossModel () |
![]() | |
PropagationLossModel () | |
virtual | ~PropagationLossModel () |
int64_t | AssignStreams (int64_t stream) |
If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More... | |
double | CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const |
Ptr< PropagationLossModel > | GetNext () |
Gets the next PropagationLossModel in the chain of loss models that act on the signal. More... | |
void | SetNext (Ptr< PropagationLossModel > next) |
Enables a chain of loss models to act on the signal. More... | |
![]() | |
Object () | |
virtual | ~Object () |
void | AggregateObject (Ptr< Object > other) |
void | Dispose (void) |
Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
AggregateIterator | GetAggregateIterator (void) const |
virtual TypeId | GetInstanceTypeId (void) const |
template<typename T > | |
Ptr< T > | GetObject (void) const |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
void | Initialize (void) |
This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
![]() | |
SimpleRefCount () | |
Constructor. More... | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. More... | |
uint32_t | GetReferenceCount (void) const |
Get the reference count of the object. More... | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment. More... | |
void | Ref (void) const |
Increment the reference count. More... | |
void | Unref (void) const |
Decrement the reference count. More... | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. More... | |
void | GetAttribute (std::string name, AttributeValue &value) const |
bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
void | SetAttribute (std::string name, const AttributeValue &value) |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
static TypeId | GetTypeId () |
![]() | |
static TypeId | GetTypeId (void) |
![]() | |
static TypeId | GetTypeId (void) |
Register this type. More... | |
![]() | |
static void | Cleanup (void) |
Noop. More... | |
![]() | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Static Public Attributes | |
static const double | PI = 3.14159265358979323846 |
Private Member Functions | |
virtual int64_t | DoAssignStreams (int64_t stream) |
Subclasses must implement this; those not using random variables can return zero. More... | |
double | DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const |
Ptr< UniformRandomVariable > | GetUniformRandomVariable () const |
Private Attributes | |
PropagationCache< JakesProcess > | m_propagationCache |
Ptr< UniformRandomVariable > | m_uniformVariable |
Friends | |
class | JakesProcess |
Additional Inherited Members | |
![]() | |
Object (const Object &o) | |
virtual void | DoDispose (void) |
This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
virtual void | DoInitialize (void) |
This method is called only once by Object::Initialize. More... | |
virtual void | NotifyNewAggregate (void) |
This method is invoked whenever two sets of objects are aggregated together. More... | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
virtual void | NotifyConstructionCompleted (void) |
This method is invoked once all member attributes have been initialized. More... | |
a jakes narrowband propagation model.
Symmetrical cache for JakesProcess
ns3::JakesPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 36 of file jakes-propagation-loss-model.h.

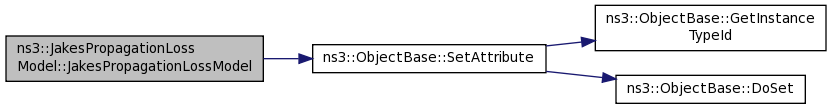

ns3::JakesPropagationLossModel::JakesPropagationLossModel | ( | ) |
Definition at line 35 of file jakes-propagation-loss-model.cc.
References m_uniformVariable, PI, and ns3::ObjectBase::SetAttribute().
|
virtual |
Definition at line 42 of file jakes-propagation-loss-model.cc.
|

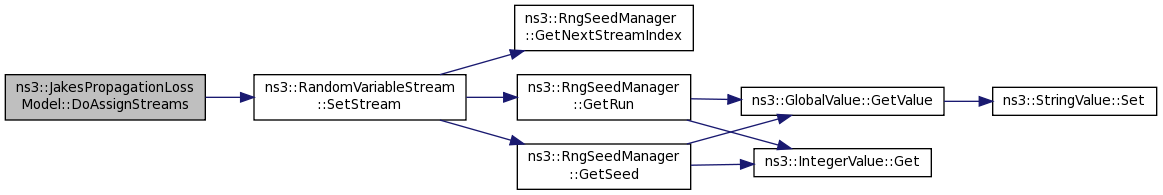

privatevirtual |
Subclasses must implement this; those not using random variables can return zero.
Implements ns3::PropagationLossModel.
Definition at line 77 of file jakes-propagation-loss-model.cc.
References m_uniformVariable, and ns3::RandomVariableStream::SetStream().
|
privatevirtual |
Spectrum model uid is not used in PropagationLossModel
Spectrum model uid is not used in PropagationLossModel
Implements ns3::PropagationLossModel.
Definition at line 56 of file jakes-propagation-loss-model.cc.
References m_propagationCache.
|
static |
Definition at line 46 of file jakes-propagation-loss-model.cc.
References ns3::TypeId::SetParent().
|
private |
Definition at line 71 of file jakes-propagation-loss-model.cc.
References m_uniformVariable.
|
friend |
Definition at line 46 of file jakes-propagation-loss-model.h.
|
mutableprivate |
Definition at line 55 of file jakes-propagation-loss-model.h.
Referenced by DoCalcRxPower().
|
private |
Definition at line 53 of file jakes-propagation-loss-model.h.
Referenced by DoAssignStreams(), GetUniformRandomVariable(), and JakesPropagationLossModel().
|
static |
Definition at line 43 of file jakes-propagation-loss-model.h.
Referenced by ns3::JakesProcess::ConstructOscillators(), JakesPropagationLossModel(), and ns3::JakesProcess::SetDopplerFrequencyHz().
