ns3::MatrixPropagationLossModel Class Reference

The propagation loss is fixed for each pair of nodes and doesn't depend on their actual positions. More...

#include <propagation-loss-model.h>

+ Inheritance diagram for ns3::MatrixPropagationLossModel:
+ Collaboration diagram for ns3::MatrixPropagationLossModel:

Public Member Functions

 MatrixPropagationLossModel ()

virtual ~MatrixPropagationLossModel ()

void SetDefaultLoss (double)
 Set default loss (in dB, positive) to be used, infinity if not set. More...

void SetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b, double loss, bool symmetric=true)
 Set loss (in dB, positive) between pair of ns-3 objects (typically, nodes). More...

- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()

virtual ~PropagationLossModel ()

int64_t AssignStreams (int64_t stream)
 If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModelGetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::pair< Ptr
< MobilityModel >, Ptr
< MobilityModel > >
MobilityPair


Private Member Functions

virtual int64_t DoAssignStreams (int64_t stream)
 Subclasses must implement this; those not using random variables can return zero. More...

virtual double DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const


Private Attributes

double m_default
 default loss More...

std::map< MobilityPair, double > m_loss
 Fixed loss between pair of nodes. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

The propagation loss is fixed for each pair of nodes and doesn't depend on their actual positions.

This is supposed to be used by synthetic tests. Note that by default propagation loss is assumed to be symmetric.

Config Paths

ns3::MatrixPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::MatrixPropagationLossModel
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::MatrixPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::MatrixPropagationLossModel

Attributes

  • DefaultLoss: The default value for propagation loss, dB.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1.79769e+308
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 545 of file propagation-loss-model.h.

Member Typedef Documentation

Constructor & Destructor Documentation

ns3::MatrixPropagationLossModel::MatrixPropagationLossModel ( )

Definition at line 826 of file propagation-loss-model.cc.

ns3::MatrixPropagationLossModel::~MatrixPropagationLossModel ( )
virtual

Definition at line 831 of file propagation-loss-model.cc.

Member Function Documentation

int64_t ns3::MatrixPropagationLossModel::DoAssignStreams ( int64_t  stream)
privatevirtual

Subclasses must implement this; those not using random variables can return zero.

Implements ns3::PropagationLossModel.

Definition at line 882 of file propagation-loss-model.cc.

double ns3::MatrixPropagationLossModel::DoCalcRxPower ( double  txPowerDbm,
Ptr< MobilityModel a,
Ptr< MobilityModel b
) const
privatevirtual

Implements ns3::PropagationLossModel.

Definition at line 865 of file propagation-loss-model.cc.

References m_default, and m_loss.

TypeId ns3::MatrixPropagationLossModel::GetTypeId ( void  )
static

Definition at line 813 of file propagation-loss-model.cc.

References m_default, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::MatrixPropagationLossModel::SetDefaultLoss ( double  loss)

Set default loss (in dB, positive) to be used, infinity if not set.

Definition at line 836 of file propagation-loss-model.cc.

References m_default.

Referenced by MatrixPropagationLossModelTestCase::DoRun(), and experiment().

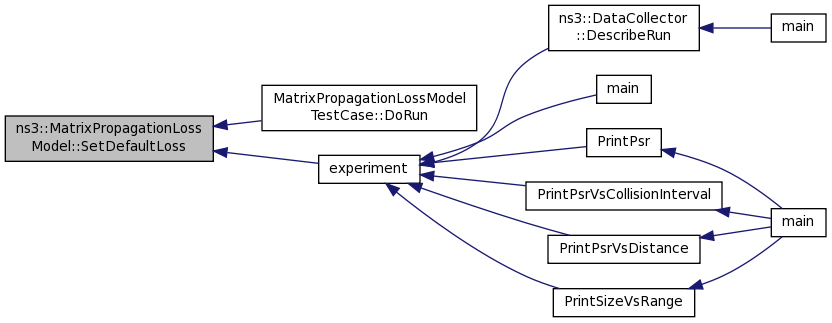

+ Here is the caller graph for this function:

void ns3::MatrixPropagationLossModel::SetLoss ( Ptr< MobilityModel a,
Ptr< MobilityModel b,
double  loss,
bool  symmetric = true
)

Set loss (in dB, positive) between pair of ns-3 objects (typically, nodes).

Parameters
ama Source mobility model
bmb Destination mobility model
lossa -> b path loss, positive in dB
symmetricIf true (default), both a->b and b->a paths will be affected

Definition at line 842 of file propagation-loss-model.cc.

References m_loss, and NS_ASSERT.

Referenced by MatrixPropagationLossModelTestCase::DoRun(), experiment(), and main().

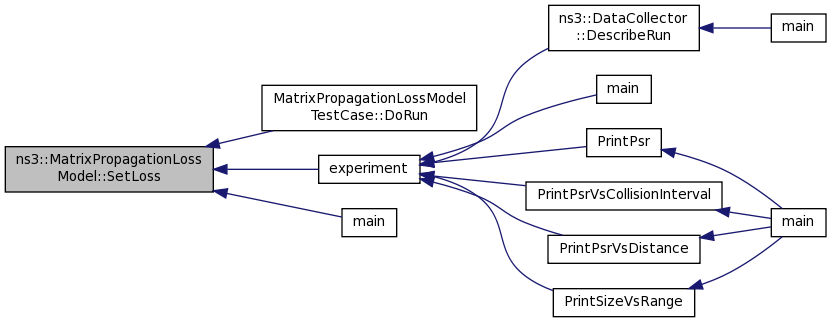

+ Here is the caller graph for this function:

Member Data Documentation

double ns3::MatrixPropagationLossModel::m_default
private

default loss

Definition at line 573 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), GetTypeId(), and SetDefaultLoss().

std::map<MobilityPair, double> ns3::MatrixPropagationLossModel::m_loss
private

Fixed loss between pair of nodes.

Definition at line 577 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and SetLoss().


The documentation for this class was generated from the following files:
