Main PacketBB Packet object. More...

#include <packetbb.h>

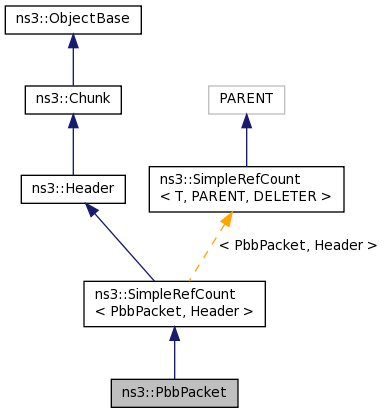

Inheritance diagram for ns3::PbbPacket:

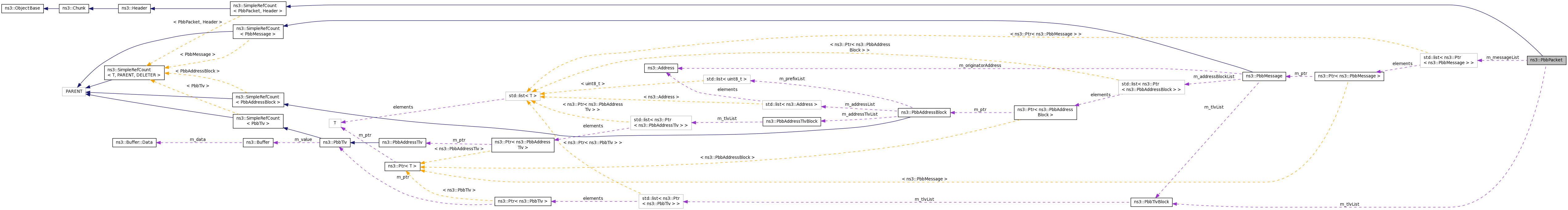

Collaboration diagram for ns3::PbbPacket:

Public Types
typedef std::list< Ptr < PbbMessage > >::const_iterator	ConstMessageIterator
	This is a PbbMessageIterator for PbbPacket. More...

typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
	This is a PbbTlv iterator for PbbPacket. More...

typedef std::list< Ptr < PbbMessage > >::iterator	MessageIterator
	This is a const PbbTlv iterator for PbbPacket. More...

typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator

Public Member Functions
	PbbPacket (void)
	This is a const PbbMessageIterator for PbbPacket. More...

	~PbbPacket (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserializes a packet from the specified buffer. More...

TlvIterator	Erase (TlvIterator position)
	Removes the packet TLV at the specified position. More...

TlvIterator	Erase (TlvIterator first, TlvIterator last)
	Removes all packet TLVs from [first, last) (includes first, not includes last). More...

MessageIterator	Erase (MessageIterator position)
	Removes the message at the specified position. More...

MessageIterator	Erase (MessageIterator first, MessageIterator last)
	Removes all messages from [first, last) (includes first, not includes last). More...

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetSequenceNumber (void) const

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetVersion (void) const

bool	HasSequenceNumber (void) const
	Tests whether or not this packet has a sequence number. More...

Ptr< PbbMessage >	MessageBack (void)

const Ptr< PbbMessage >	MessageBack (void) const

MessageIterator	MessageBegin (void)

ConstMessageIterator	MessageBegin (void) const

void	MessageClear (void)
	Removes all messages from this packet. More...

bool	MessageEmpty (void) const

MessageIterator	MessageEnd (void)

ConstMessageIterator	MessageEnd (void) const

Ptr< PbbMessage >	MessageFront (void)

const Ptr< PbbMessage >	MessageFront (void) const

void	MessagePopBack (void)
	Removes a message from the back of this packet. More...

void	MessagePopFront (void)
	Removes a message from the front of this packet. More...

void	MessagePushBack (Ptr< PbbMessage > message)
	Appends a message to the back of this packet. More...

void	MessagePushFront (Ptr< PbbMessage > message)
	Prepends a message to the front of this packet. More...

int	MessageSize (void) const

bool	operator!= (const PbbPacket &other) const
	Inequality operator for PbbPacket. More...

bool	operator== (const PbbPacket &other) const
	Equality operator for PbbPacket. More...

virtual void	Print (std::ostream &os) const
	Pretty-prints the contents of this block. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serializes this packet into the specified buffer. More...

void	SetSequenceNumber (uint16_t number)
	Sets the sequence number of this packet. More...

Ptr< PbbTlv >	TlvBack (void)

const Ptr< PbbTlv >	TlvBack (void) const

TlvIterator	TlvBegin (void)

ConstTlvIterator	TlvBegin (void) const

void	TlvClear (void)
	Removes all packet TLVs from this packet. More...

bool	TlvEmpty (void) const

TlvIterator	TlvEnd (void)

ConstTlvIterator	TlvEnd (void) const

Ptr< PbbTlv >	TlvFront (void)

const Ptr< PbbTlv >	TlvFront (void) const

void	TlvPopBack (void)
	Removes a packet TLV from the back of this block. More...

void	TlvPopFront (void)
	Removes a packet TLV from the front of this packet. More...

void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a packet TLV to the back of this packet. More...

void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a packet TLV to the front of this packet. More...

int	TlvSize (void) const

Public Member Functions inherited from ns3::SimpleRefCount< PbbPacket, Header >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< PbbPacket, Header >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_hasseqnum

std::list< Ptr< PbbMessage > >	m_messageList

uint16_t	m_seqnum

PbbTlvBlock	m_tlvList

uint8_t	m_version

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Main PacketBB Packet object.

Doxygen introspection did not find any typical Config paths.

A PacketBB packet is made up of zero or more packet TLVs (PbbTlv), and zero or more messages (PbbMessage).

See: RFC 5444 for details.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 385 of file packetbb.h.

Member Typedef Documentation

typedef std::list< Ptr<PbbMessage> >::const_iterator ns3::PbbPacket::ConstMessageIterator

This is a PbbMessageIterator for PbbPacket.

Definition at line 391 of file packetbb.h.

typedef std::list< Ptr<PbbTlv> >::const_iterator ns3::PbbPacket::ConstTlvIterator

This is a PbbTlv iterator for PbbPacket.

Definition at line 389 of file packetbb.h.

typedef std::list< Ptr<PbbMessage> >::iterator ns3::PbbPacket::MessageIterator

This is a const PbbTlv iterator for PbbPacket.

Definition at line 390 of file packetbb.h.

typedef std::list< Ptr<PbbTlv> >::iterator ns3::PbbPacket::TlvIterator

Definition at line 388 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbPacket::PbbPacket ( void )

This is a const PbbMessageIterator for PbbPacket.

Definition at line 547 of file packetbb.cc.

References m_hasseqnum, m_version, NS_LOG_FUNCTION, and VERSION.

ns3::PbbPacket::~PbbPacket ( void )

Definition at line 554 of file packetbb.cc.

References MessageClear(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

uint32_t ns3::PbbPacket::Deserialize ( Buffer::Iterator start )

virtual

Deserializes a packet from the specified buffer.

Parameters

start start offset

Returns: the number of bytes deserialized

If this returns a number smaller than the total number of bytes in the buffer, there was an error.

Implements ns3::Header.

Definition at line 917 of file packetbb.cc.

References ns3::PbbTlvBlock::Deserialize(), ns3::PbbMessage::DeserializeMessage(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::IsEnd(), m_tlvList, m_version, MessagePushBack(), NS_LOG_FUNCTION, PHAS_SEQ_NUM, PHAS_TLV, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), SetSequenceNumber(), and visualizer.core::start().

Referenced by PbbTestCase::TestDeserialize().

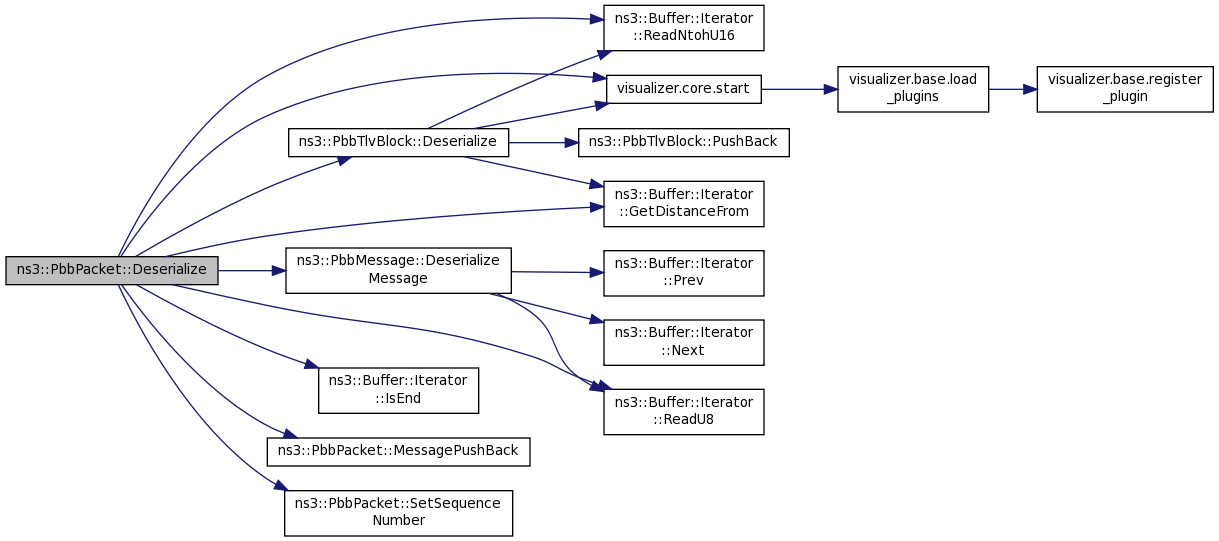

Here is the call graph for this function:

Here is the caller graph for this function:

PbbPacket::MessageIterator ns3::PbbPacket::Erase ( PbbPacket::TlvIterator position )

Removes the packet TLV at the specified position.

Parameters

position an Iterator pointing to the packet TLV to erase.

Returns: an iterator pointing to the next packet TLV in the block.

Definition at line 691 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbPacket::MessageIterator ns3::PbbPacket::Erase	(	PbbPacket::TlvIterator	first,
		PbbPacket::TlvIterator	last
	)

Removes all packet TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first packet TLV to erase (inclusive).
last	an Iterator pointing to the element past the last packet TLV to erase.

Returns: an iterator pointing to the next packet TLV in the block.

Definition at line 698 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

MessageIterator ns3::PbbPacket::Erase ( MessageIterator position )

Removes the message at the specified position.

Parameters

position an Iterator pointing to the message to erase.

Returns: an iterator pointing to the next message in the packet.

MessageIterator ns3::PbbPacket::Erase	(	MessageIterator	first,
		MessageIterator	last
	)

Removes all messages from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first message to erase (inclusive).
last	an Iterator pointing to the element past the last message to erase.

Returns: an iterator pointing to the next message in the block.

TypeId ns3::PbbPacket::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 849 of file packetbb.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::PbbPacket::GetSequenceNumber ( void ) const

Returns: the sequence number of this packet.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 576 of file packetbb.cc.

References HasSequenceNumber(), m_seqnum, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

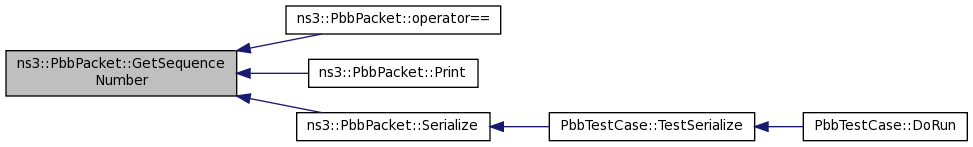

Here is the caller graph for this function:

uint32_t ns3::PbbPacket::GetSerializedSize ( void ) const

virtual

Returns: The size (in bytes) needed to serialize this packet.

Implements ns3::Header.

Definition at line 855 of file packetbb.cc.

References ns3::PbbTlvBlock::GetSerializedSize(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), NS_LOG_FUNCTION, and TlvEmpty().

Referenced by PbbTestCase::TestSerialize().

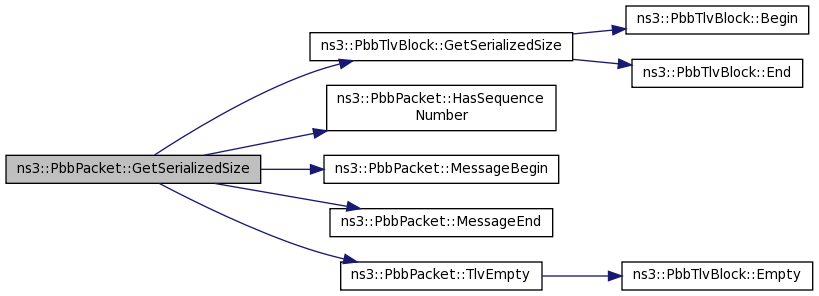

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::PbbPacket::GetTypeId ( void )

static

Definition at line 839 of file packetbb.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::PbbPacket::GetVersion ( void ) const

Returns: the version of PacketBB that constructed this packet.

This will always return 0 for packets constructed using this API.

Definition at line 561 of file packetbb.cc.

References m_version, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

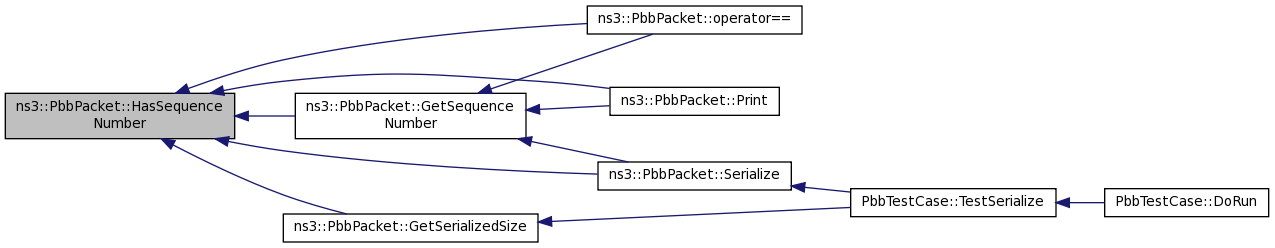

bool ns3::PbbPacket::HasSequenceNumber ( void ) const

Tests whether or not this packet has a sequence number.

Returns: true if this packet has a sequence number, false otherwise.

This should be called before calling GetSequenceNumber to make sure there actually is one.

Definition at line 584 of file packetbb.cc.

References m_hasseqnum, and NS_LOG_FUNCTION.

Referenced by GetSequenceNumber(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

Ptr< PbbMessage > ns3::PbbPacket::MessageBack ( void )

Returns: a smart pointer to the last message in this packet.

Definition at line 770 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

const Ptr< PbbMessage > ns3::PbbPacket::MessageBack ( void ) const

Returns: a const smart pointer to the last message in this packet.

Definition at line 777 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

PbbPacket::MessageIterator ns3::PbbPacket::MessageBegin ( void )

Returns: an iterator to the first message in this packet.

Definition at line 714 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), MessageClear(), operator==(), Print(), and Serialize().

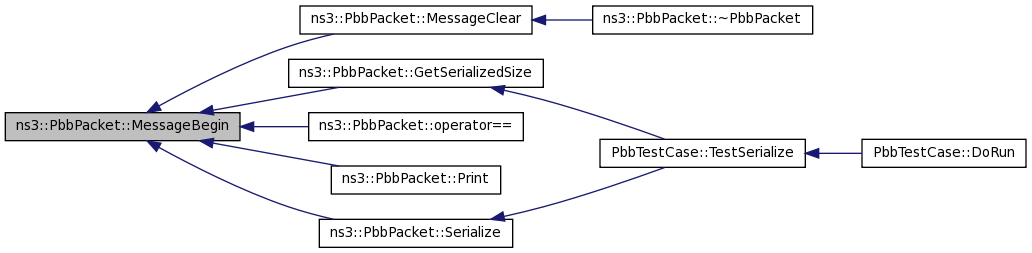

Here is the caller graph for this function:

PbbPacket::ConstMessageIterator ns3::PbbPacket::MessageBegin ( void ) const

Returns: a const iterator to the first message in this packet.

Definition at line 721 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

void ns3::PbbPacket::MessageClear ( void )

Removes all messages from this packet.

Definition at line 827 of file packetbb.cc.

References m_messageList, MessageBegin(), MessageEnd(), and NS_LOG_FUNCTION.

Referenced by ~PbbPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PbbPacket::MessageEmpty ( void ) const

Returns: true if there are no messages in this packet, false otherwise.

Definition at line 749 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

PbbPacket::MessageIterator ns3::PbbPacket::MessageEnd ( void )

Returns: an iterator to the past-the-end element in this message block.

Definition at line 728 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), MessageClear(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

PbbPacket::ConstMessageIterator ns3::PbbPacket::MessageEnd ( void ) const

Returns: a const iterator to the past-the-end element in this message block.

Definition at line 735 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Ptr< PbbMessage > ns3::PbbPacket::MessageFront ( void )

Returns: a smart pointer to the first message in this packet.

Definition at line 756 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

const Ptr< PbbMessage > ns3::PbbPacket::MessageFront ( void ) const

Returns: a const smart pointer to the first message in this packet.

Definition at line 763 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

void ns3::PbbPacket::MessagePopBack ( void )

Removes a message from the back of this packet.

Definition at line 805 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

void ns3::PbbPacket::MessagePopFront ( void )

Removes a message from the front of this packet.

Definition at line 791 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

void ns3::PbbPacket::MessagePushBack ( Ptr< PbbMessage > message )

Appends a message to the back of this packet.

Parameters

message a smart pointer to the message to append.

Definition at line 798 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbPacket::MessagePushFront ( Ptr< PbbMessage > message )

Prepends a message to the front of this packet.

Parameters

message a smart pointer to the message to prepend.

Definition at line 784 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

int ns3::PbbPacket::MessageSize ( void ) const

Returns: the number of messages in this packet.

Definition at line 742 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

bool ns3::PbbPacket::operator!= ( const PbbPacket & other ) const

Inequality operator for PbbPacket.

Parameters

other PbbPacket to compare to this one

Returns: true if PbbPacket are not equal

Definition at line 1018 of file packetbb.cc.

bool ns3::PbbPacket::operator== ( const PbbPacket & other ) const

Equality operator for PbbPacket.

Parameters

other PbbPacket to compare to this one

Returns: true if PbbPacket are equal

Definition at line 976 of file packetbb.cc.

References GetSequenceNumber(), GetVersion(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), and MessageSize().

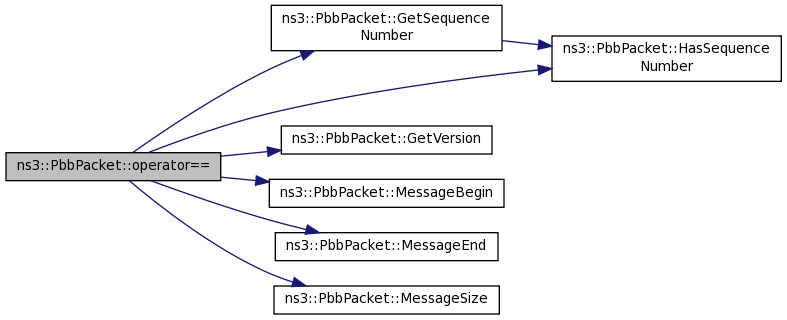

Here is the call graph for this function:

void ns3::PbbPacket::Print ( std::ostream & os ) const

virtual

Pretty-prints the contents of this block.

Parameters

os	a stream object to print to.

Implements ns3::Header.

Definition at line 951 of file packetbb.cc.

References GetSequenceNumber(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Print().

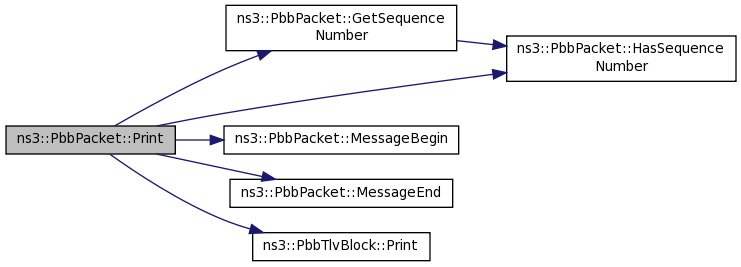

Here is the call graph for this function:

void ns3::PbbPacket::Serialize ( Buffer::Iterator start ) const

virtual

Serializes this packet into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Implements ns3::Header.

Definition at line 882 of file packetbb.cc.

References GetSequenceNumber(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, PHAS_SEQ_NUM, PHAS_TLV, ns3::PbbTlvBlock::Serialize(), visualizer.core::start(), TlvEmpty(), VERSION, ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by PbbTestCase::TestSerialize().

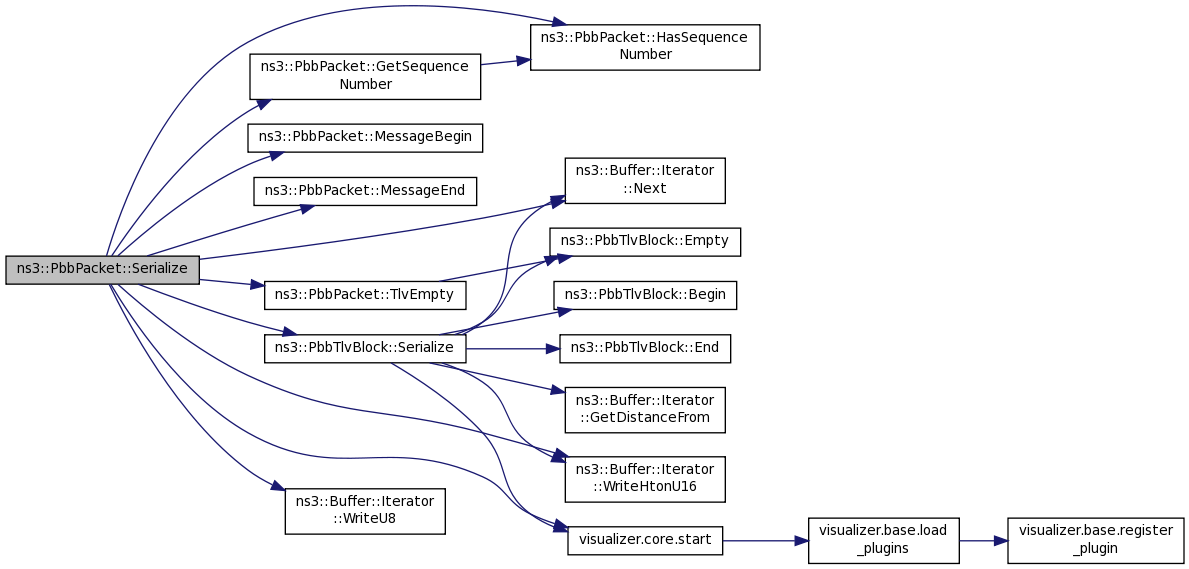

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PbbPacket::SetSequenceNumber ( uint16_t number )

Sets the sequence number of this packet.

Parameters

number the sequence number.

Definition at line 568 of file packetbb.cc.

References m_hasseqnum, m_seqnum, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

Ptr< PbbTlv > ns3::PbbPacket::TlvBack ( void )

Returns: a smart pointer to the last packet TLV in this packet.

Definition at line 649 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbTlv > ns3::PbbPacket::TlvBack ( void ) const

Returns: a const smart pointer to the last packet TLV in this packet.

Definition at line 656 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbPacket::TlvIterator ns3::PbbPacket::TlvBegin ( void )

Returns: an iterator to the first Packet TLV in this packet.

Definition at line 593 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbPacket::ConstTlvIterator ns3::PbbPacket::TlvBegin ( void ) const

Returns: a const iterator to the first Packet TLV in this packet.

Definition at line 600 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PbbPacket::TlvClear ( void )

Removes all packet TLVs from this packet.

Definition at line 705 of file packetbb.cc.

References ns3::PbbTlvBlock::Clear(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::PbbPacket::TlvEmpty ( void ) const

Returns: true if there are no packet TLVs in this packet, false otherwise.

Definition at line 628 of file packetbb.cc.

References ns3::PbbTlvBlock::Empty(), m_tlvList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

PbbPacket::TlvIterator ns3::PbbPacket::TlvEnd ( void )

Returns: an iterator to the past-the-end element in this packet TLV block.

Definition at line 607 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbPacket::ConstTlvIterator ns3::PbbPacket::TlvEnd ( void ) const

Returns: a const iterator to the past-the-end element in this packet TLV block.

Definition at line 614 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< PbbTlv > ns3::PbbPacket::TlvFront ( void )

Returns: a smart pointer to the first packet TLV in this packet.

Definition at line 635 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbTlv > ns3::PbbPacket::TlvFront ( void ) const

Returns: a const smart pointer to the first packet TLV in this packet.

Definition at line 642 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PbbPacket::TlvPopBack ( void )

Removes a packet TLV from the back of this block.

Definition at line 684 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopBack().

Here is the call graph for this function:

void ns3::PbbPacket::TlvPopFront ( void )

Removes a packet TLV from the front of this packet.

Definition at line 670 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopFront().

Here is the call graph for this function:

void ns3::PbbPacket::TlvPushBack ( Ptr< PbbTlv > tlv )

Appends a packet TLV to the back of this packet.

Parameters

tlv	a smart pointer to the packet TLV to append.

Definition at line 677 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushBack().

Referenced by PbbTestSuite::PbbTestSuite().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PbbPacket::TlvPushFront ( Ptr< PbbTlv > tlv )

Prepends a packet TLV to the front of this packet.

Parameters

tlv	a smart pointer to the packet TLV to prepend.

Definition at line 663 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushFront().

Here is the call graph for this function:

int ns3::PbbPacket::TlvSize ( void ) const

Returns: the number of packet TLVs in this packet.

Definition at line 621 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Size().

Here is the call graph for this function:

Member Data Documentation

bool ns3::PbbPacket::m_hasseqnum

private

Definition at line 673 of file packetbb.h.

Referenced by HasSequenceNumber(), PbbPacket(), and SetSequenceNumber().

std::list< Ptr<PbbMessage> > ns3::PbbPacket::m_messageList

private

Definition at line 669 of file packetbb.h.

Referenced by MessageBack(), MessageBegin(), MessageClear(), MessageEmpty(), MessageEnd(), MessageFront(), MessagePopBack(), MessagePopFront(), MessagePushBack(), MessagePushFront(), and MessageSize().

uint16_t ns3::PbbPacket::m_seqnum

private

Definition at line 674 of file packetbb.h.

Referenced by GetSequenceNumber(), and SetSequenceNumber().

PbbTlvBlock ns3::PbbPacket::m_tlvList

private

Definition at line 668 of file packetbb.h.

Referenced by Deserialize(), Erase(), GetSerializedSize(), operator==(), Print(), Serialize(), TlvBack(), TlvBegin(), TlvClear(), TlvEmpty(), TlvEnd(), TlvFront(), TlvPopBack(), TlvPopFront(), TlvPushBack(), TlvPushFront(), and TlvSize().

uint8_t ns3::PbbPacket::m_version

private

Definition at line 671 of file packetbb.h.

Referenced by Deserialize(), GetVersion(), and PbbPacket().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
