#include <point-to-point-remote-channel.h>

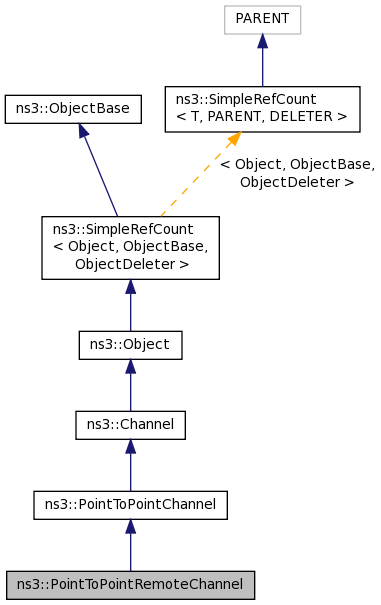

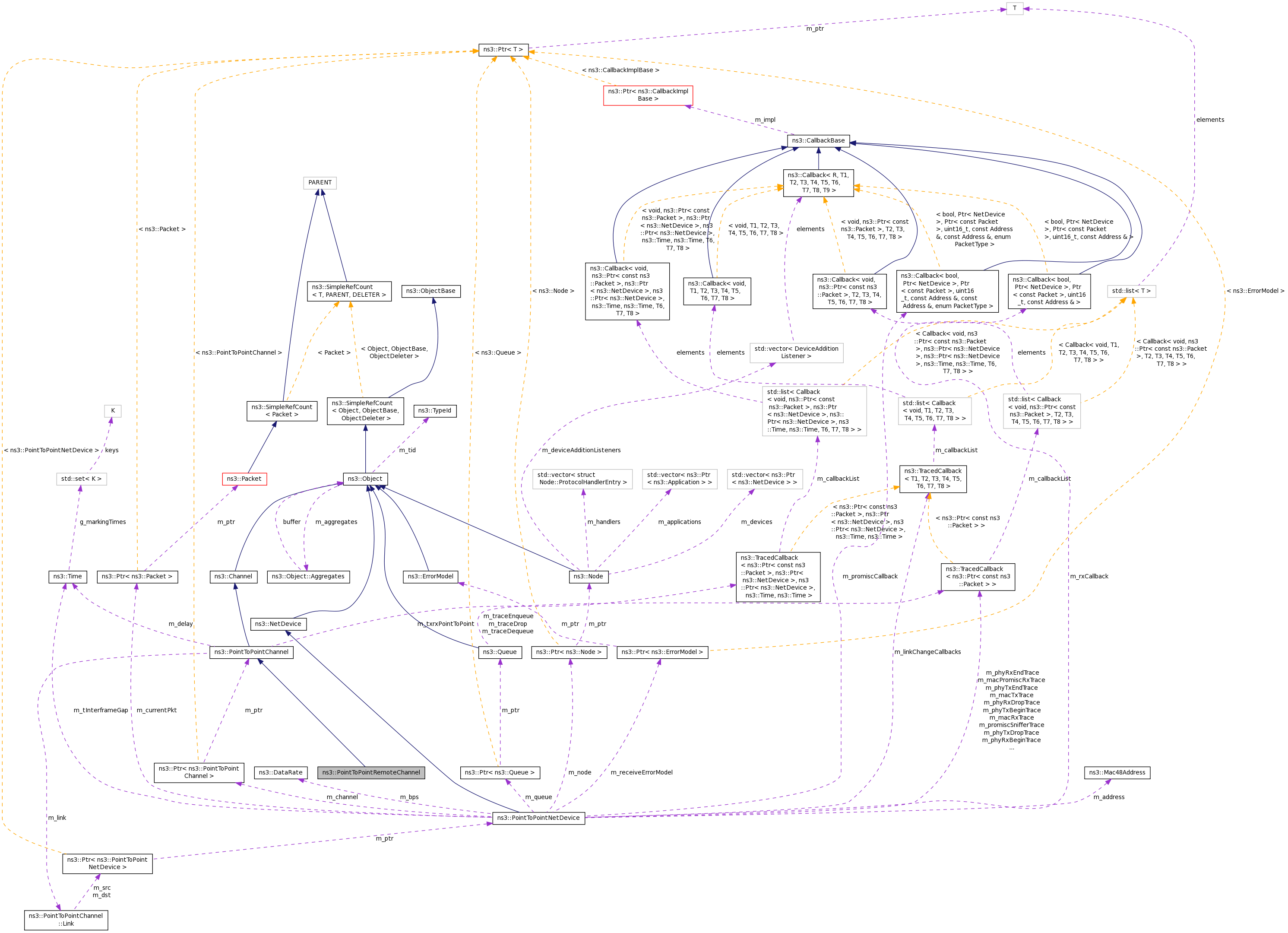

Inheritance diagram for ns3::PointToPointRemoteChannel: Collaboration diagram for ns3::PointToPointRemoteChannel:Public Member Functions | |
| PointToPointRemoteChannel () | |
| ~PointToPointRemoteChannel () | |
| virtual bool | TransmitStart (Ptr< Packet > p, Ptr< PointToPointNetDevice > src, Time txTime) |
| Transmit a packet over this channel. More... | |
| Public Member Functions inherited from ns3::PointToPointChannel | |
| PointToPointChannel () | |
| Create a PointToPointChannel. More... | |
| void | Attach (Ptr< PointToPointNetDevice > device) |
| Attach a given netdevice to this channel. More... | |
| virtual Ptr< NetDevice > | GetDevice (uint32_t i) const |
| virtual uint32_t | GetNDevices (void) const |
| Get number of devices on this channel. More... | |
| Ptr< PointToPointNetDevice > | GetPointToPointDevice (uint32_t i) const |
| Public Member Functions inherited from ns3::Channel | |
| Channel () | |
| virtual | ~Channel () |
| uint32_t | GetId (void) const |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Initialize (void) |
| This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::PointToPointChannel | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Channel | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::PointToPointChannel | |
| Time | GetDelay (void) const |
| Ptr< PointToPointNetDevice > | GetDestination (uint32_t i) const |
| Ptr< PointToPointNetDevice > | GetSource (uint32_t i) const |
| bool | IsInitialized (void) const |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
| virtual void | DoInitialize (void) |
| This method is called only once by Object::Initialize. More... | |
| virtual void | NotifyNewAggregate (void) |
| This method is invoked whenever two sets of objects are aggregated together. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
ns3::PointToPointRemoteChannel is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 35 of file point-to-point-remote-channel.h.
| ns3::PointToPointRemoteChannel::PointToPointRemoteChannel | ( | ) |
Definition at line 47 of file point-to-point-remote-channel.cc.
| ns3::PointToPointRemoteChannel::~PointToPointRemoteChannel | ( | ) |
Definition at line 51 of file point-to-point-remote-channel.cc.
|
static |
Definition at line 38 of file point-to-point-remote-channel.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:
|
virtual |
Transmit a packet over this channel.
| p | Packet to transmit |
| src | Source PointToPointNetDevice |
| txTime | Transmit time to apply |
Reimplemented from ns3::PointToPointChannel.
Definition at line 56 of file point-to-point-remote-channel.cc.
References ns3::PointToPointChannel::GetDelay(), ns3::PointToPointChannel::GetDestination(), ns3::PointToPointChannel::GetSource(), ns3::Packet::GetUid(), ns3::PointToPointChannel::IsInitialized(), ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::MpiInterface::SendPacket().

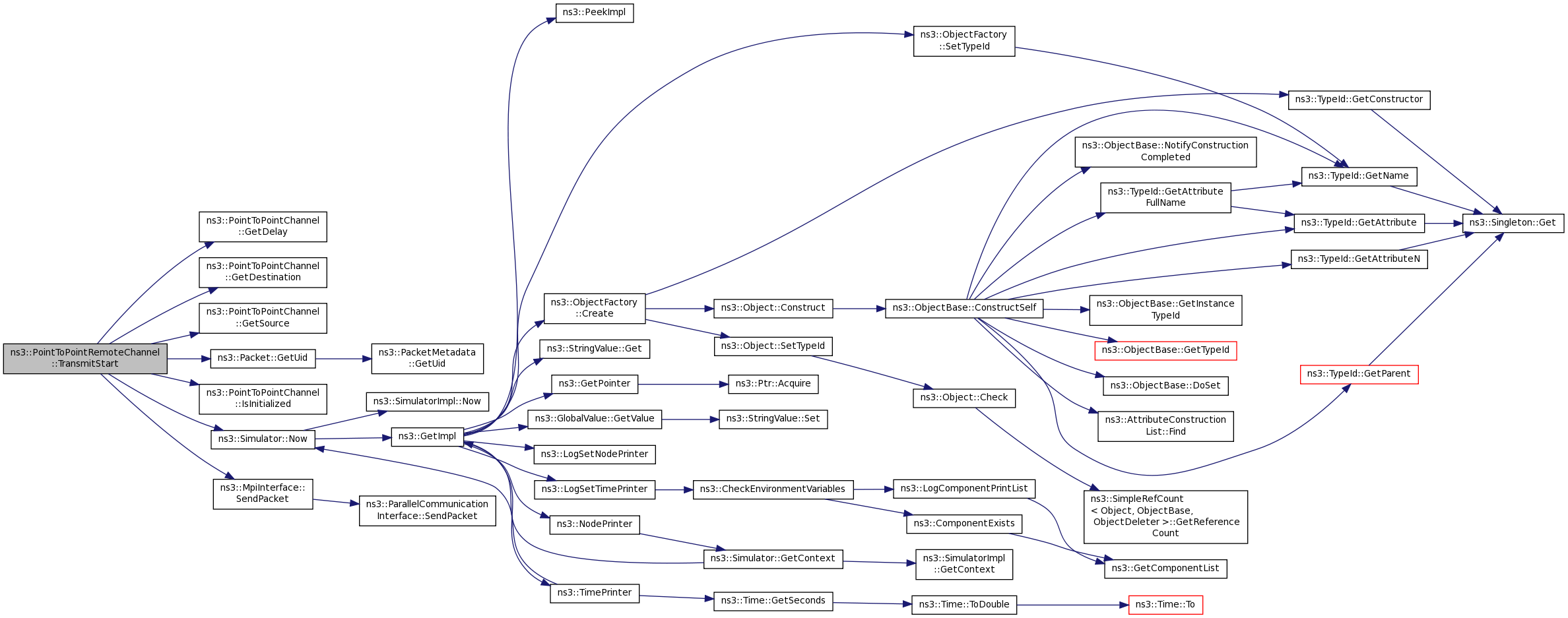

Here is the call graph for this function:
