ns3::RocketfuelTopologyReader Class Reference

Topology file reader (Rocketfuel-format type). More...

#include <rocketfuel-topology-reader.h>

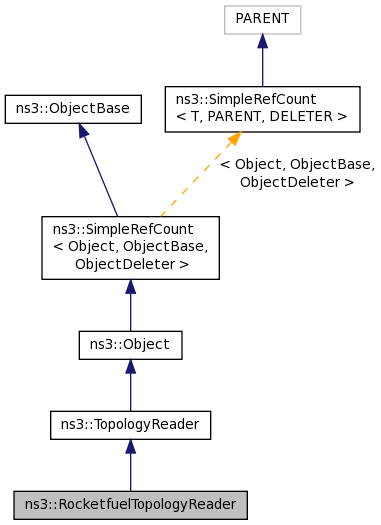

+ Inheritance diagram for ns3::RocketfuelTopologyReader:

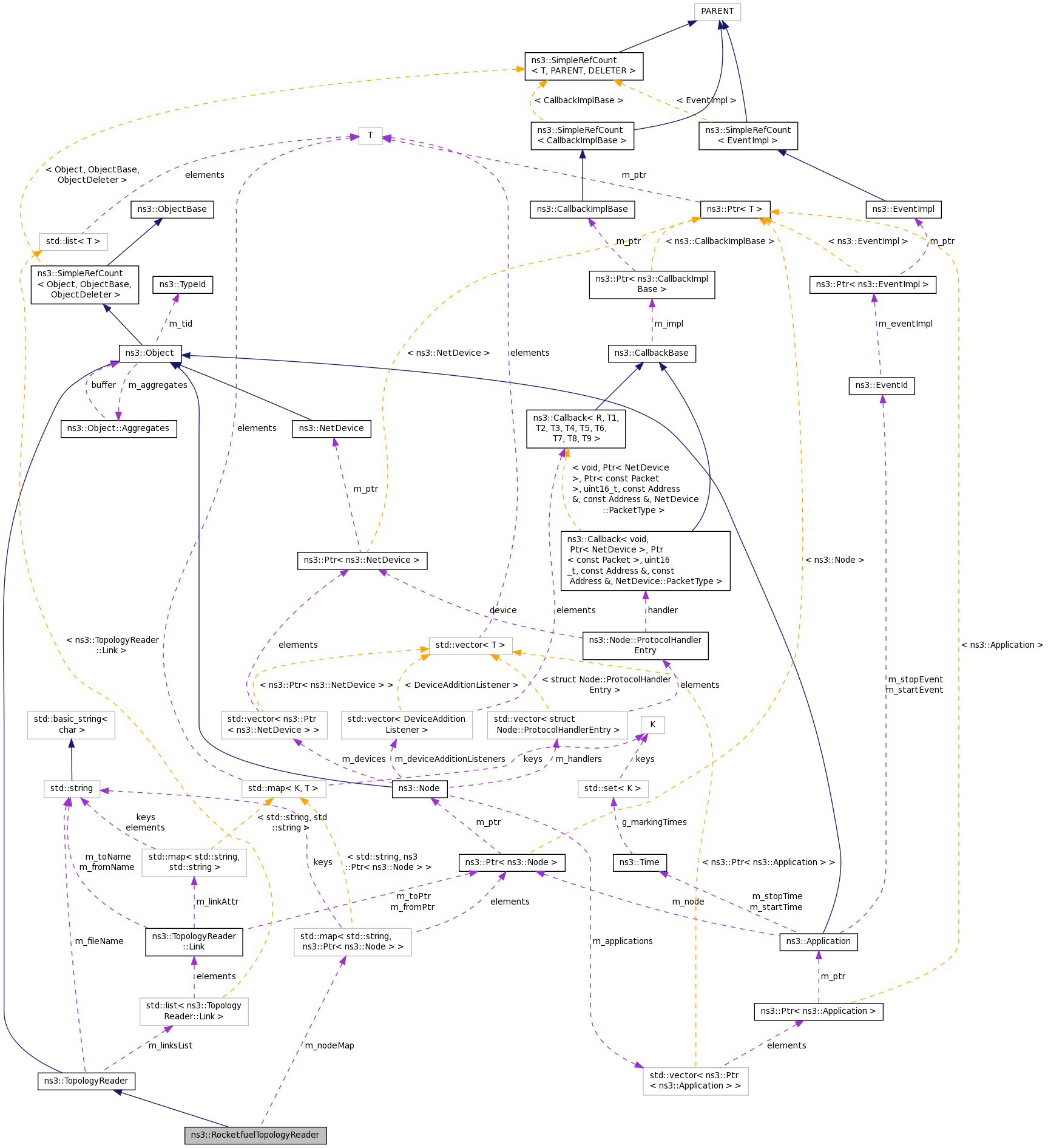

+ Collaboration diagram for ns3::RocketfuelTopologyReader:

Public Member Functions

 RocketfuelTopologyReader ()

virtual ~RocketfuelTopologyReader ()

virtual NodeContainer Read (void)
 Main topology reading function. More...

- Public Member Functions inherited from ns3::TopologyReader
 TopologyReader ()

virtual ~TopologyReader ()

void AddLink (Link link)
 Adds a link to the topology. More...

std::string GetFileName (void) const
 Returns the input file name. More...

ConstLinksIterator LinksBegin (void) const
 Returns an iterator to the the first link in this block. More...

bool LinksEmpty (void) const
 Checks if the block contains any links. More...

ConstLinksIterator LinksEnd (void) const
 Returns an iterator to the the last link in this block. More...

int LinksSize (void) const
 Returns the number of links in this block. More...

void SetFileName (const std::string &fileName)
 Sets the input file name. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::TopologyReader
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

enum  RF_FileType { RF_MAPS, RF_WEIGHTS, RF_UNKNOWN }
 Enum of the possible file types. More...


Private Member Functions

 RocketfuelTopologyReader (const RocketfuelTopologyReader &)
 Copy constructor. More...

NodeContainer GenerateFromMapsFile (int argc, char *argv[])
 Topology read function from a file containing the nodes map. More...

NodeContainer GenerateFromWeightsFile (int argc, char *argv[])
 Topology read function from a file containing the nodes weights. More...

enum RF_FileType GetFileType (const char *)
 Classifies the file type according to its content. More...

RocketfuelTopologyReaderoperator= (const RocketfuelTopologyReader &)
 Copy constructor. More...


Private Attributes

int m_linksNumber
 number of links More...

std::map< std::string, Ptr
< Node > >
m_nodeMap
 map of the nodes (name, node) More...

int m_nodesNumber
 number of nodes More...


Additional Inherited Members

- Public Types inherited from ns3::TopologyReader
typedef std::list< Link >
::const_iterator
ConstLinksIterator
 Constant iterator to the list of the links. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Topology file reader (Rocketfuel-format type).

Doxygen introspection did not find any typical Config paths.

http://www.cs.washington.edu/research/networking/rocketfuel/

May 2nd, 2010: Currently only support "weights" file and "cch" file. http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file rocketfuel-topology-reader.h.

Member Enumeration Documentation

Enum of the possible file types.

Enumerator
RF_MAPS
RF_WEIGHTS
RF_UNKNOWN

Definition at line 95 of file rocketfuel-topology-reader.h.

Constructor & Destructor Documentation

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( )

Definition at line 47 of file rocketfuel-topology-reader.cc.

References m_linksNumber, m_nodesNumber, and NS_LOG_FUNCTION.

ns3::RocketfuelTopologyReader::~RocketfuelTopologyReader ( )
virtual

Definition at line 54 of file rocketfuel-topology-reader.cc.

References NS_LOG_FUNCTION.

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( const RocketfuelTopologyReader )
private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromMapsFile ( int  argc,
char *  argv[]
)
private

Topology read function from a file containing the nodes map.

Parser for the *.cch file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz

Parameters
argcargument counter
argvargument vector
Returns
the container of the nodes created (or empty container if there was an error)

Definition at line 104 of file rocketfuel-topology-reader.cc.

References ns3::NodeContainer::Add(), ns3::TopologyReader::AddLink(), m_linksNumber, m_nodeMap, m_nodesNumber, first::nodes, NS_LOG_INFO, NS_LOG_WARN, and ns3::PrintNodeInfo().

Referenced by Read().

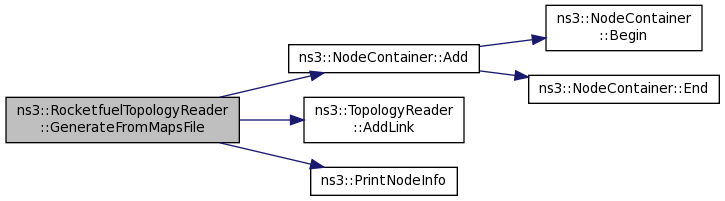

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromWeightsFile ( int  argc,
char *  argv[]
)
private

Topology read function from a file containing the nodes weights.

Parser for the weights.* file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz

Parameters
argcargument counter
argvargument vector
Returns
the container of the nodes created (or empty container if there was an error)

Definition at line 219 of file rocketfuel-topology-reader.cc.

References ns3::NodeContainer::Add(), ns3::TopologyReader::AddLink(), ns3::TopologyReader::LinksBegin(), ns3::TopologyReader::LinksEnd(), m_linksNumber, m_nodeMap, m_nodesNumber, first::nodes, NS_LOG_INFO, NS_LOG_WARN, and NS_UNUSED.

Referenced by Read().

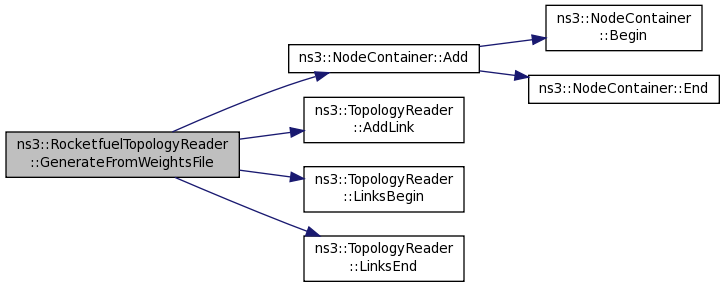

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

enum RocketfuelTopologyReader::RF_FileType ns3::RocketfuelTopologyReader::GetFileType ( const char *  line)
private

Classifies the file type according to its content.

Returns
the file type (RF_MAPS, RF_WEIGHTS, or RF_UNKNOWN)

Definition at line 282 of file rocketfuel-topology-reader.cc.

References REGMATCH_MAX, RF_MAPS, RF_UNKNOWN, RF_WEIGHTS, ROCKETFUEL_MAPS_LINE, and ROCKETFUEL_WEIGHTS_LINE.

Referenced by Read().

+ Here is the caller graph for this function:

TypeId ns3::RocketfuelTopologyReader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 39 of file rocketfuel-topology-reader.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

RocketfuelTopologyReader& ns3::RocketfuelTopologyReader::operator= ( const RocketfuelTopologyReader )
private

Copy constructor.

Defined and unimplemented to avoid misuse

Returns
NodeContainer ns3::RocketfuelTopologyReader::Read ( void  )
virtual

Main topology reading function.

This method opens an input stream and reads the Rocketfuel-format file. Every row represents a topology link (the ids of a couple of nodes), so the input file is read line by line to figure out how many links and nodes are in the topology.

Returns
the container of the nodes created (or empty container if there was an error)

Implements ns3::TopologyReader.

Definition at line 324 of file rocketfuel-topology-reader.cc.

References ns3::NodeContainer::Add(), GenerateFromMapsFile(), GenerateFromWeightsFile(), ns3::TopologyReader::GetFileName(), GetFileType(), first::nodes, NS_LOG_INFO, NS_LOG_WARN, REGMATCH_MAX, RF_MAPS, RF_UNKNOWN, RF_WEIGHTS, ROCKETFUEL_MAPS_LINE, and ROCKETFUEL_WEIGHTS_LINE.

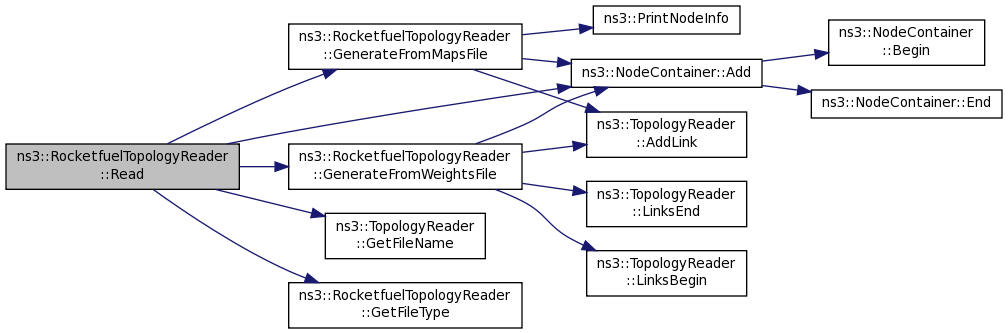

+ Here is the call graph for this function:

Member Data Documentation

int ns3::RocketfuelTopologyReader::m_linksNumber
private

number of links

Definition at line 110 of file rocketfuel-topology-reader.h.

Referenced by GenerateFromMapsFile(), GenerateFromWeightsFile(), and RocketfuelTopologyReader().

std::map<std::string, Ptr<Node> > ns3::RocketfuelTopologyReader::m_nodeMap
private

map of the nodes (name, node)

Definition at line 112 of file rocketfuel-topology-reader.h.

Referenced by GenerateFromMapsFile(), and GenerateFromWeightsFile().

int ns3::RocketfuelTopologyReader::m_nodesNumber
private

number of nodes

Definition at line 111 of file rocketfuel-topology-reader.h.

Referenced by GenerateFromMapsFile(), GenerateFromWeightsFile(), and RocketfuelTopologyReader().
