#include <simple-ofdm-wimax-channel.h>

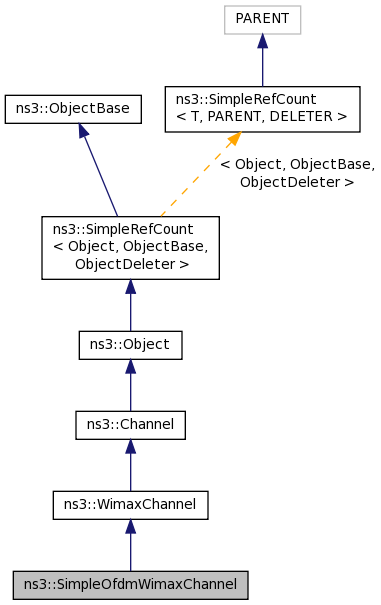

Inheritance diagram for ns3::SimpleOfdmWimaxChannel:

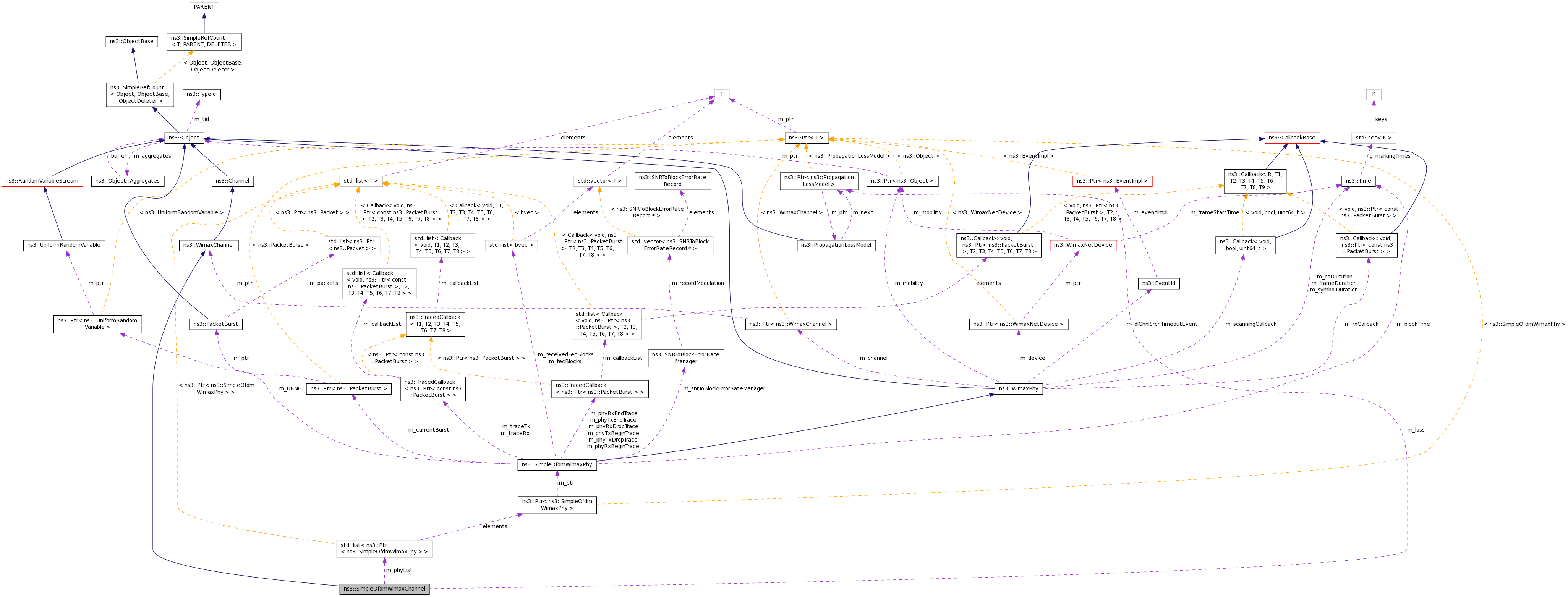

Collaboration diagram for ns3::SimpleOfdmWimaxChannel:

Public Types
enum	PropModel { RANDOM_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, COST231_PROPAGATION }

Public Member Functions
	SimpleOfdmWimaxChannel (void)

	SimpleOfdmWimaxChannel (PropModel propModel)
	Creates a channel and sets the propagation model. More...

	~SimpleOfdmWimaxChannel (void)

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Send (Time BlockTime, uint32_t burstSize, Ptr< WimaxPhy > phy, bool isFirstBlock, bool isLastBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double txPowerDbm, Ptr< PacketBurst > burst)
	Sends a dummy fec block to all connected physical devices. More...

void	SetPropagationModel (PropModel propModel)
	sets the propagation model More...

Public Member Functions inherited from ns3::WimaxChannel
	WimaxChannel (void)

virtual	~WimaxChannel (void)

void	Attach (Ptr< WimaxPhy > phy)
	attach the channel to a physical layer of a device More...

Ptr< NetDevice >	GetDevice (uint32_t i) const

uint32_t	GetNDevices (void) const

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Member Functions
void	DoAttach (Ptr< WimaxPhy > phy)

Ptr< NetDevice >	DoGetDevice (uint32_t i) const

uint32_t	DoGetNDevices (void) const

void	EndSendDummyBlock (Ptr< SimpleOfdmWimaxPhy > rxphy, simpleOfdmSendParam *param)

Private Attributes
Ptr< PropagationLossModel >	m_loss

std::list< Ptr < SimpleOfdmWimaxPhy > >	m_phyList

Additional Inherited Members
Static Public Member Functions inherited from ns3::WimaxChannel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 41 of file simple-ofdm-wimax-channel.h.

Member Enumeration Documentation

enum ns3::SimpleOfdmWimaxChannel::PropModel

Enumerator
RANDOM_PROPAGATION
FRIIS_PROPAGATION
LOG_DISTANCE_PROPAGATION
COST231_PROPAGATION

Definition at line 47 of file simple-ofdm-wimax-channel.h.

Constructor & Destructor Documentation

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( void )

Definition at line 43 of file simple-ofdm-wimax-channel.cc.

References m_loss.

ns3::SimpleOfdmWimaxChannel::~SimpleOfdmWimaxChannel ( void )

Definition at line 48 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( PropModel propModel )

Creates a channel and sets the propagation model.

Parameters

propModel the propagation model to use

Definition at line 53 of file simple-ofdm-wimax-channel.cc.

References COST231_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, m_loss, and RANDOM_PROPAGATION.

Member Function Documentation

int64_t ns3::SimpleOfdmWimaxChannel::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WimaxChannel.

Definition at line 208 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

void ns3::SimpleOfdmWimaxChannel::DoAttach ( Ptr< WimaxPhy > phy )

privatevirtual

Implements ns3::WimaxChannel.

Definition at line 106 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

Ptr< NetDevice > ns3::SimpleOfdmWimaxChannel::DoGetDevice ( uint32_t i ) const

privatevirtual

Implements ns3::WimaxChannel.

Definition at line 119 of file simple-ofdm-wimax-channel.cc.

References list, m_phyList, and NS_FATAL_ERROR.

uint32_t ns3::SimpleOfdmWimaxChannel::DoGetNDevices ( void ) const

privatevirtual

Implements ns3::WimaxChannel.

Definition at line 113 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

void ns3::SimpleOfdmWimaxChannel::EndSendDummyBlock	(	Ptr< SimpleOfdmWimaxPhy >	rxphy,
		simpleOfdmSendParam *	param
	)

private

Definition at line 195 of file simple-ofdm-wimax-channel.cc.

References ns3::simpleOfdmSendParam::GetBurst(), ns3::simpleOfdmSendParam::GetBurstSize(), ns3::simpleOfdmSendParam::GetDirection(), ns3::simpleOfdmSendParam::GetFrequency(), ns3::simpleOfdmSendParam::GetIsFirstBlock(), ns3::simpleOfdmSendParam::GetModulationType(), and ns3::simpleOfdmSendParam::GetRxPowerDbm().

Referenced by Send().

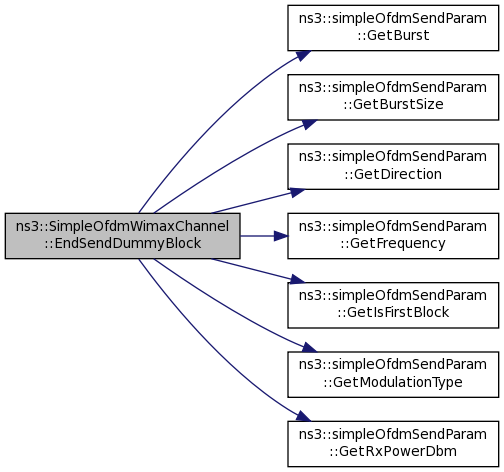

Here is the call graph for this function:

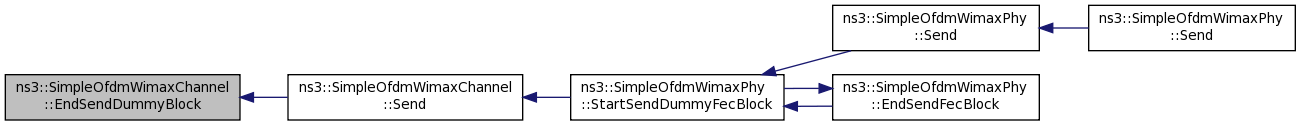

Here is the caller graph for this function:

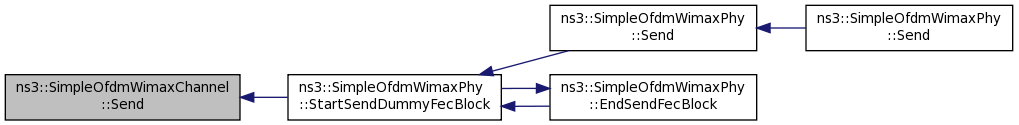

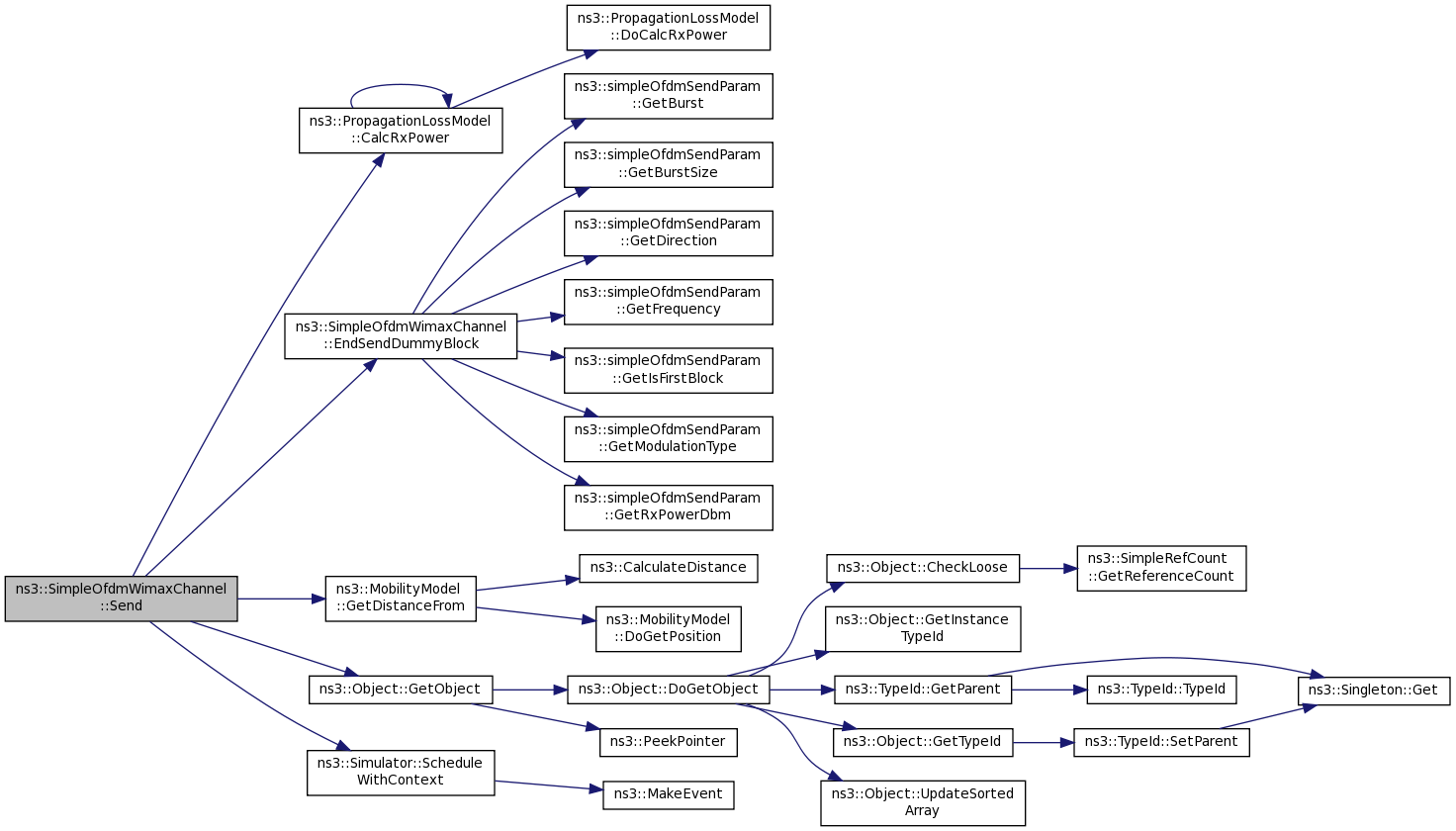

void ns3::SimpleOfdmWimaxChannel::Send	(	Time	BlockTime,
		uint32_t	burstSize,
		Ptr< WimaxPhy >	phy,
		bool	isFirstBlock,
		bool	isLastBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	txPowerDbm,
		Ptr< PacketBurst >	burst
	)

Sends a dummy fec block to all connected physical devices.

Parameters

BlockTime	the time needed to send the block
burstSize	the size of the burst
phy	the sender device
isFirstBlock	true if this block is the first one, false otherwise
isLastBlock	true if this block is the last one, false otherwise
frequency	the frequency on which the block is sent
modulationType	the modulation used to send the fec block
direction	uplink or downlink
txPowerDbm	the transmission power
burst	the packet burst to send
