Default SINR calculator for UanPhyGen. More...

#include <uan-phy-gen.h>

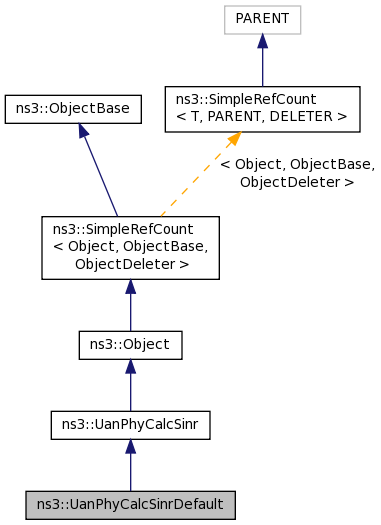

Inheritance diagram for ns3::UanPhyCalcSinrDefault:

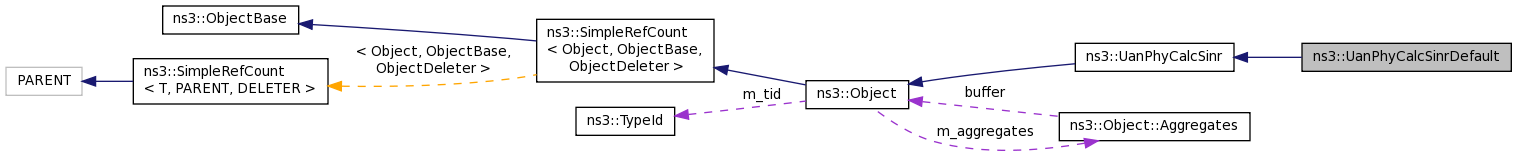

Collaboration diagram for ns3::UanPhyCalcSinrDefault:

Public Member Functions
	UanPhyCalcSinrDefault ()
	Constructor. More...

virtual	~UanPhyCalcSinrDefault ()
	Destructor. More...

virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
	Calculate the SINR value for a packet. More...

Public Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	Clear (void)
	Clear all pointer references. More...

double	DbToKp (double db) const
	Convert dB re 1 uPa to kilopascals. More...

double	KpToDb (double kp) const
	Convert kilopascals to dB re 1 uPa. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhyCalcSinr
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Default SINR calculator for UanPhyGen.

Doxygen introspection did not find any typical Config paths.

The default ignores mode data and assumes that all rxpower transmitted is captured by the receiver, and that all signal power associated with interfering packets affects SINR identically to additional ambient noise.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 127 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyCalcSinrDefault::UanPhyCalcSinrDefault ( )

Constructor.

Definition at line 56 of file uan-phy-gen.cc.

ns3::UanPhyCalcSinrDefault::~UanPhyCalcSinrDefault ( )

virtual

Destructor.

Definition at line 60 of file uan-phy-gen.cc.

Member Function Documentation

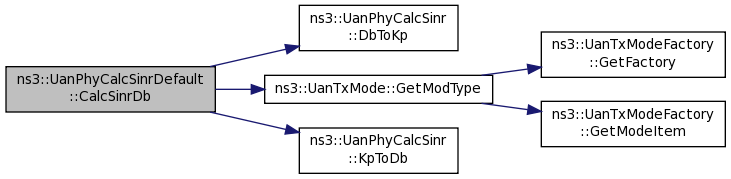

double ns3::UanPhyCalcSinrDefault::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

virtual

Calculate the SINR value for a packet.

This implementation simply adds all arriving signal power and assumes it acts identically to additional noise.

Parameters

pkt	Packet to calculate SINR for.
arrTime	Arrival time of pkt.
rxPowerDb	The received signal strength of the packet in dB re 1 uPa.
ambNoiseDb	Ambient channel noise in dB re 1 uPa.
mode	TX Mode of pkt.
pdp	Power delay profile of pkt.
arrivalList	List of interfering arrivals given from Transducer.
