Default Packet Error Rate calculator for UanPhyGen. More...

#include <uan-phy-gen.h>

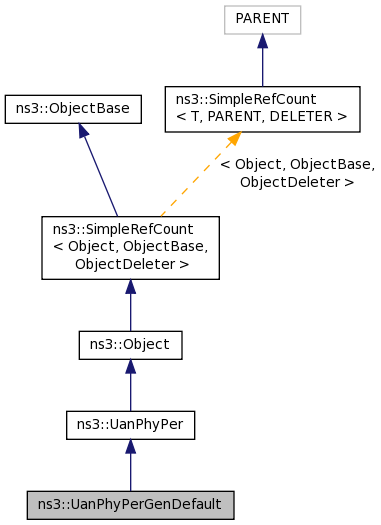

Inheritance diagram for ns3::UanPhyPerGenDefault:

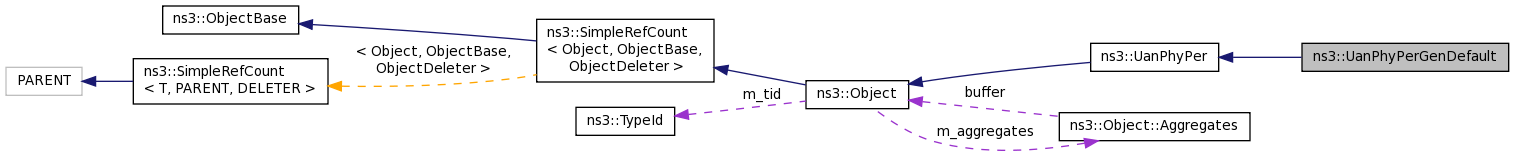

Collaboration diagram for ns3::UanPhyPerGenDefault:

Public Member Functions
	UanPhyPerGenDefault ()
	Constructor. More...

virtual	~UanPhyPerGenDefault ()
	Destructor. More...

virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
	Calculate the packet error probability based on SINR at the receiver and a tx mode. More...

Public Member Functions inherited from ns3::UanPhyPer
virtual void	Clear (void)
	Clear all pointer references. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhyPer
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_thresh
	SINR threshold. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::UanPhyPer
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Default Packet Error Rate calculator for UanPhyGen.

Doxygen introspection did not find any typical Config paths.

Considers no error if SINR is > user defined threshold (configured by an attribute).

Attributes

Threshold: SINR cutoff for good packet reception.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 8
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 43 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyPerGenDefault::UanPhyPerGenDefault ( )

Constructor.

Definition at line 209 of file uan-phy-gen.cc.

ns3::UanPhyPerGenDefault::~UanPhyPerGenDefault ( )

virtual

Destructor.

Definition at line 214 of file uan-phy-gen.cc.

Member Function Documentation

double ns3::UanPhyPerGenDefault::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)

virtual

Calculate the packet error probability based on SINR at the receiver and a tx mode.

Parameters

pkt	Packet which is under consideration.
sinrDb	SINR at receiver.
mode	TX mode used to transmit packet.

Returns: Probability of packet error.

Implements ns3::UanPhyPer.

Definition at line 235 of file uan-phy-gen.cc.

References m_thresh.

TypeId ns3::UanPhyPerGenDefault::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 219 of file uan-phy-gen.cc.

References m_thresh, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

double ns3::UanPhyPerGenDefault::m_thresh

private

SINR threshold.

Definition at line 60 of file uan-phy-gen.h.

Referenced by CalcPer(), and GetTypeId().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy-gen.h
src/uan/model/uan-phy-gen.cc
