Doxygen introspection did not find any typical Config paths. More...

#include <dsr-options.h>

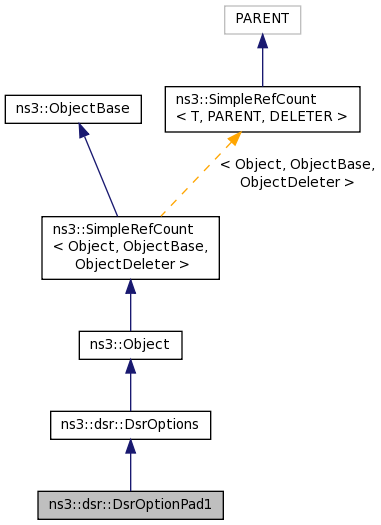

Inheritance diagram for ns3::dsr::DsrOptionPad1:

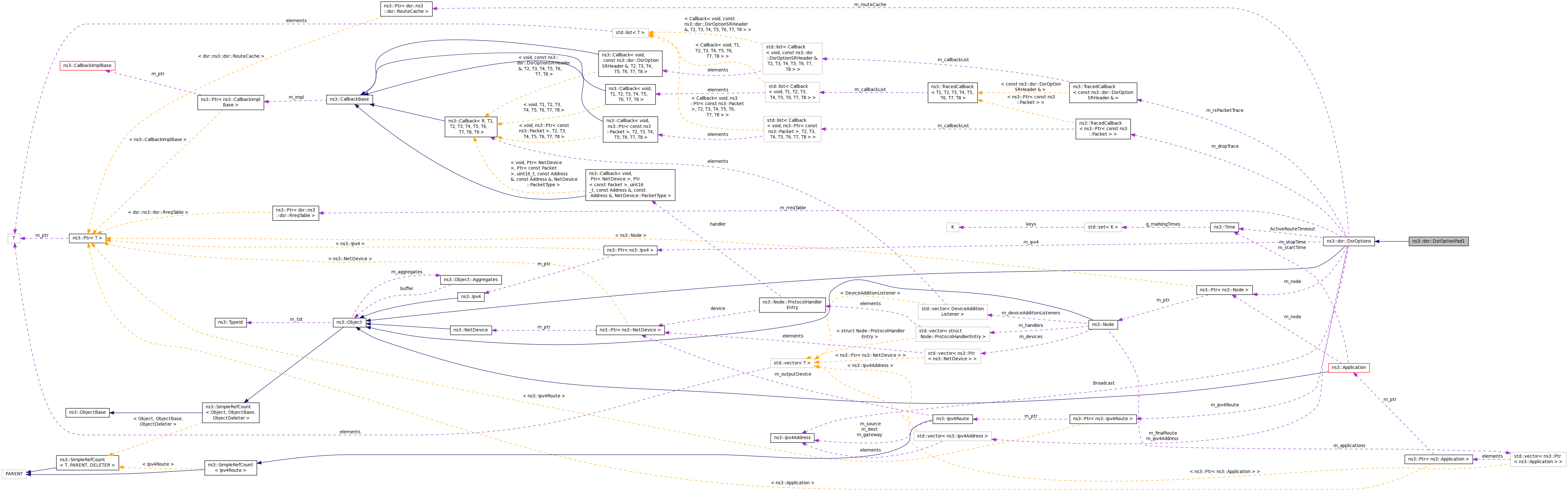

Collaboration diagram for ns3::dsr::DsrOptionPad1:

Public Member Functions
	DsrOptionPad1 ()

virtual	~DsrOptionPad1 ()

virtual uint8_t	GetOptionNumber () const
	Get the option number. More...

virtual uint8_t	Process (Ptr< Packet > packet, Ptr< Packet > dsrP, Ipv4Address ipv4Address, Ipv4Address source, Ipv4Header const &ipv4Header, uint8_t protocol, bool &isPromisc, Ipv4Address promiscSource)
	Process method. More...

Public Member Functions inherited from ns3::dsr::DsrOptions
	DsrOptions ()
	Constructor. More...

virtual	~DsrOptions ()
	Destructor. More...

bool	CheckDuplicates (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Check if the route already contains the node ip address. More...

bool	ContainAddressAfter (Ipv4Address ipv4Address, Ipv4Address destAddress, std::vector< Ipv4Address > &nodeList)
	Search for the ipv4 address in the node list. More...

std::vector< Ipv4Address >	CutRoute (Ipv4Address ipv4Address, std::vector< Ipv4Address > &nodeList)
	Cut the route from ipv4Address to the end of the route vector. More...

uint32_t	GetIDfromIP (Ipv4Address address)
	Get the node id with Ipv4Address. More...

Ptr< Node >	GetNode () const
	Get the node. More...

Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
	Get the node object with Ipv4Address. More...

bool	IfDuplicates (std::vector< Ipv4Address > &vec, std::vector< Ipv4Address > &vec2)
	Check if the two vectors contain duplicate or not. More...

void	PrintVector (std::vector< Ipv4Address > &vec)
	Print out the elements in the route vector. More...

void	RemoveDuplicates (std::vector< Ipv4Address > &vec)
	Remove the duplicates from the route. More...

bool	ReverseRoutes (std::vector< Ipv4Address > &vec)
	Reverse the routes. More...

Ipv4Address	ReverseSearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Reverse search for the next hop in the route. More...

Ipv4Address	ReverseSearchNextTwoHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Reverse search for the next two hop in the route. More...

void	ScheduleReply (Ptr< Packet > &packet, std::vector< Ipv4Address > &nodeList, Ipv4Address &source, Ipv4Address &destination)
	Schedule the intermediate node route request broadcast. More...

Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Search for the next hop in the route. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

virtual Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
	Set the route to use for data packets, used by the option headers when sending data/control packets. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::dsr::DsrOptions
static TypeId	GetTypeId (void)
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	OPT_NUMBER = 224
	Pad1 option number. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::dsr::DsrOptions
Time	ActiveRouteTimeout
	The active route timeout value. More...

Ipv4Address	Broadcast
	The broadcast IP address. More...

TracedCallback< Ptr< const Packet > >	m_dropTrace
	Drop trace callback. More...

std::vector< Ipv4Address >	m_finalRoute
	The vector of final Ipv4 address. More...

Ptr< Ipv4 >	m_ipv4
	The ipv4. More...

std::vector< Ipv4Address >	m_ipv4Address
	The vector of Ipv4 address. More...

Ptr< Ipv4Route >	m_ipv4Route
	The ipv4 route. More...

Ptr< dsr::RouteCache >	m_routeCache
	The route cache table. More...

Ptr< dsr::RreqTable >	m_rreqTable
	The route request table. More...

TracedCallback< const DsrOptionSRHeader & >	m_rxPacketTrace
	The receive trace back, only triggered when final destination receive data packet. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Dsr Option Pad1.

No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::dsr::DsrOptions

Rx: Receive DSR packet.

Definition at line 277 of file dsr-options.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionPad1::DsrOptionPad1 ( )

Definition at line 387 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::dsr::DsrOptionPad1::~DsrOptionPad1 ( )

virtual

Definition at line 392 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint8_t ns3::dsr::DsrOptionPad1::GetOptionNumber ( ) const

virtual

Get the option number.

Returns: option number

Implements ns3::dsr::DsrOptions.

Definition at line 397 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.

TypeId ns3::dsr::DsrOptionPad1::GetTypeId ( void )

static

Definition at line 378 of file dsr-options.cc.

References ns3::TypeId::SetParent().

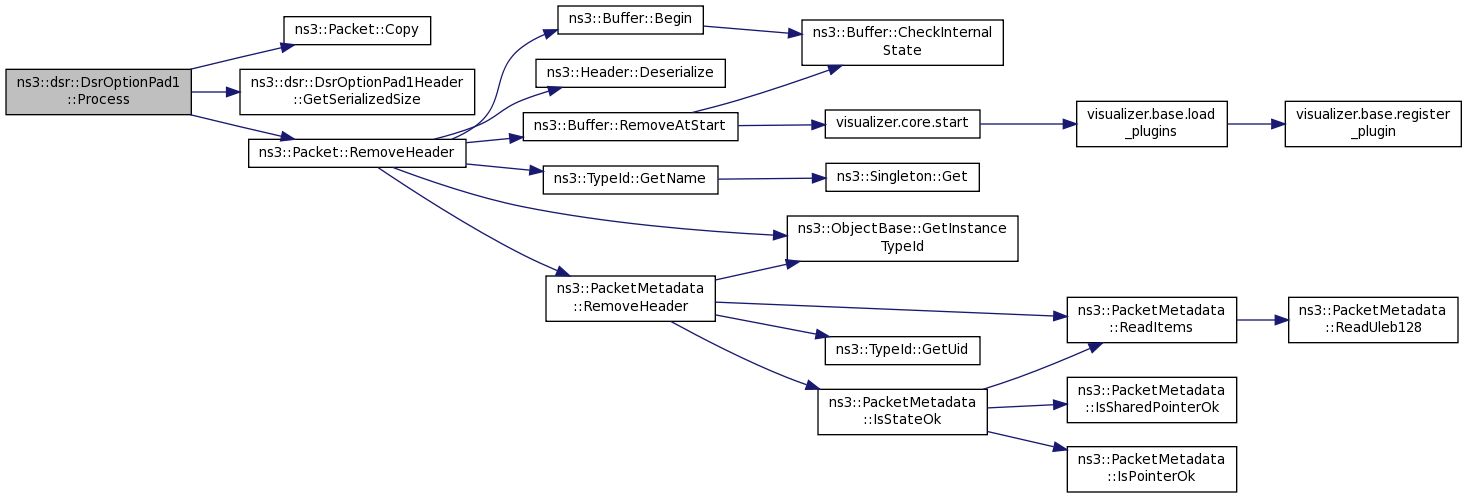

Here is the call graph for this function:

uint8_t ns3::dsr::DsrOptionPad1::Process	(	Ptr< Packet >	packet,
		Ptr< Packet >	dsrP,
		Ipv4Address	ipv4Address,
		Ipv4Address	source,
		Ipv4Header const &	ipv4Header,
		uint8_t	protocol,
		bool &	isPromisc,
		Ipv4Address	promiscSource
	)

virtual

Process method.

Called from DsrRouting::Receive.

Parameters

packet	the packet
dsrP	the clean packet with payload
ipv4Address	the IPv4 address
source	IPv4 address of the source
ipv4Header	the IPv4 header of packet received
protocol	the protocol number of the up layer
isPromisc	if the packet must be dropped
promiscSource	IPv4 address
