ns3::Simulator Class Reference

Control the scheduling of simulation events. More...

#include <simulator.h>

Static Public Member Functions

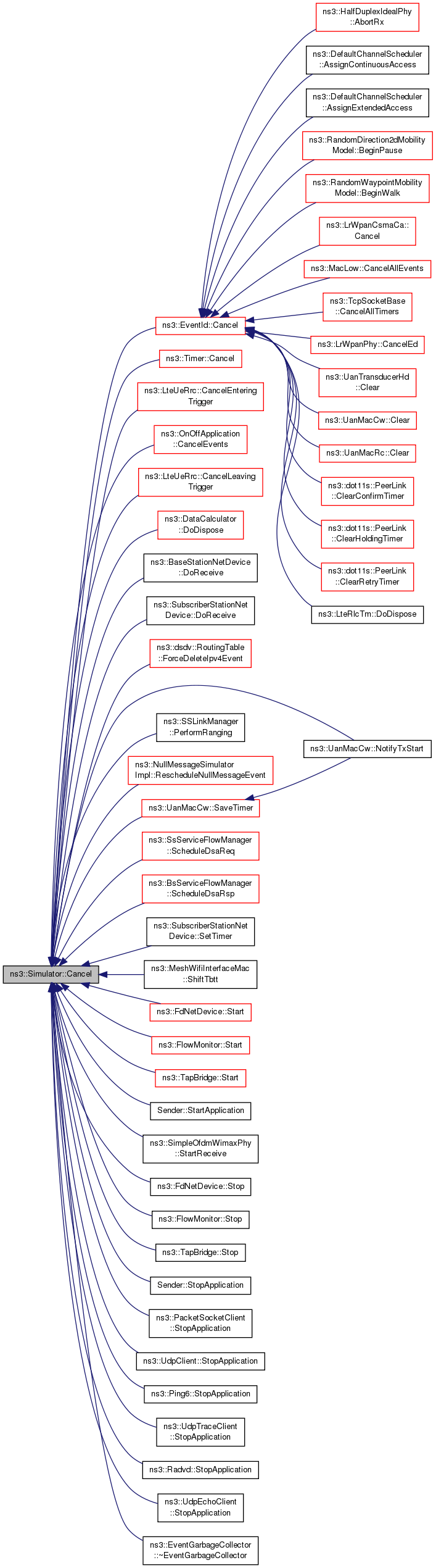

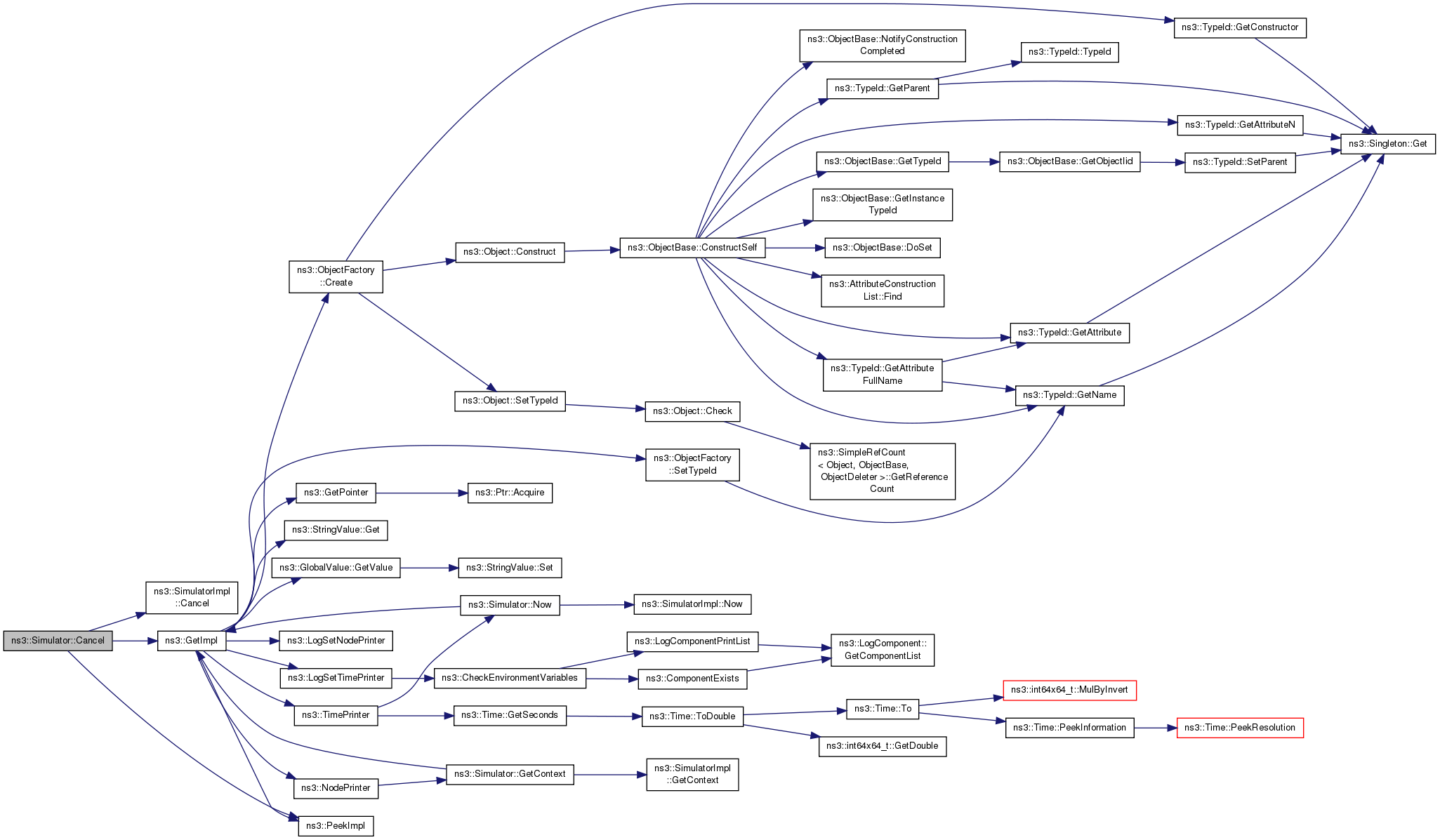

static void	Cancel (const EventId &id)
	Set the cancel bit on this event: the event's associated function will not be invoked when it expires. More...

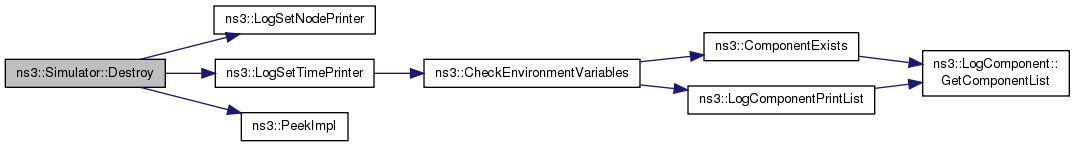

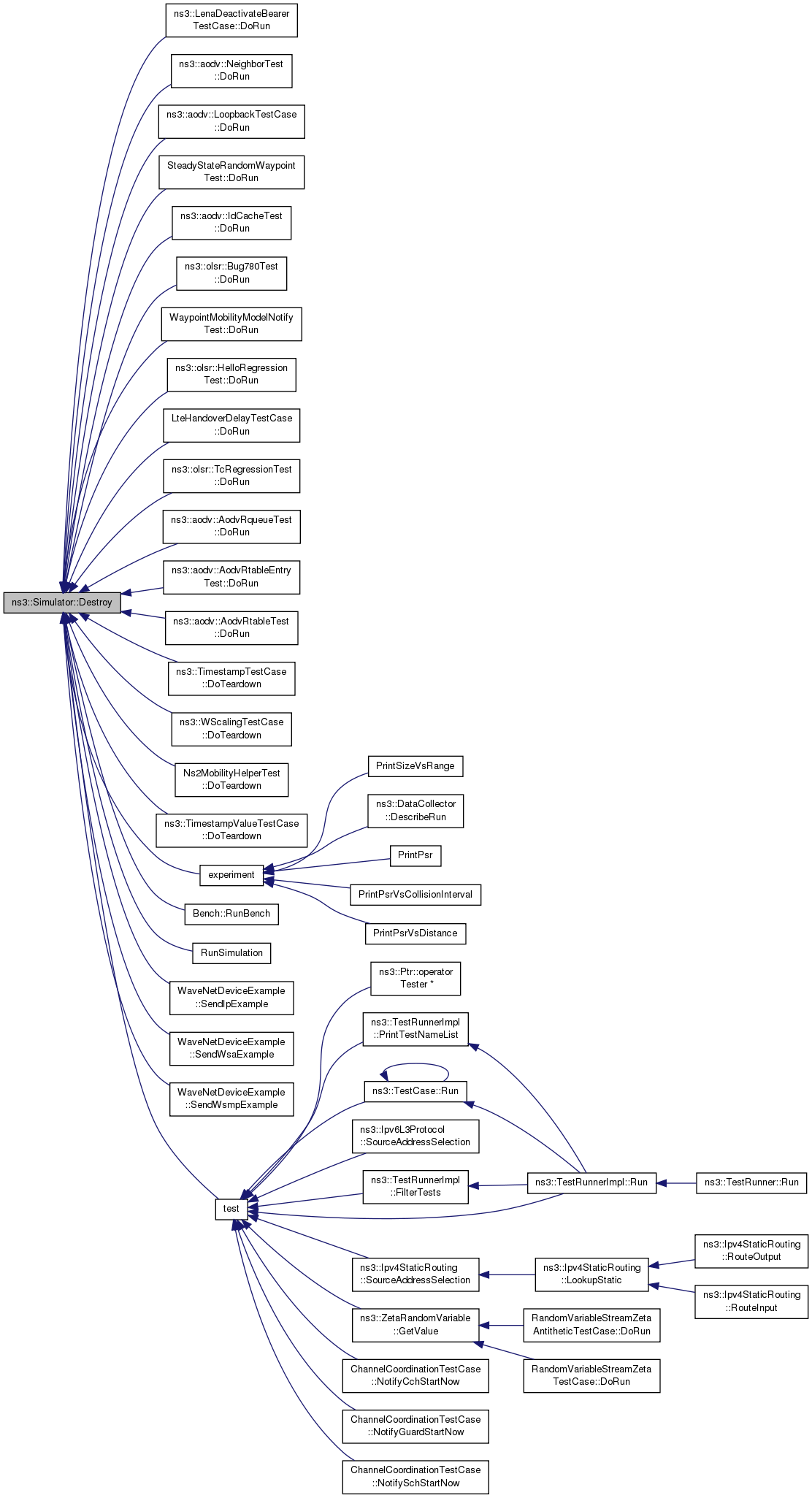

static void	Destroy (void)
	Execute the events scheduled with ScheduleDestroy(). More...

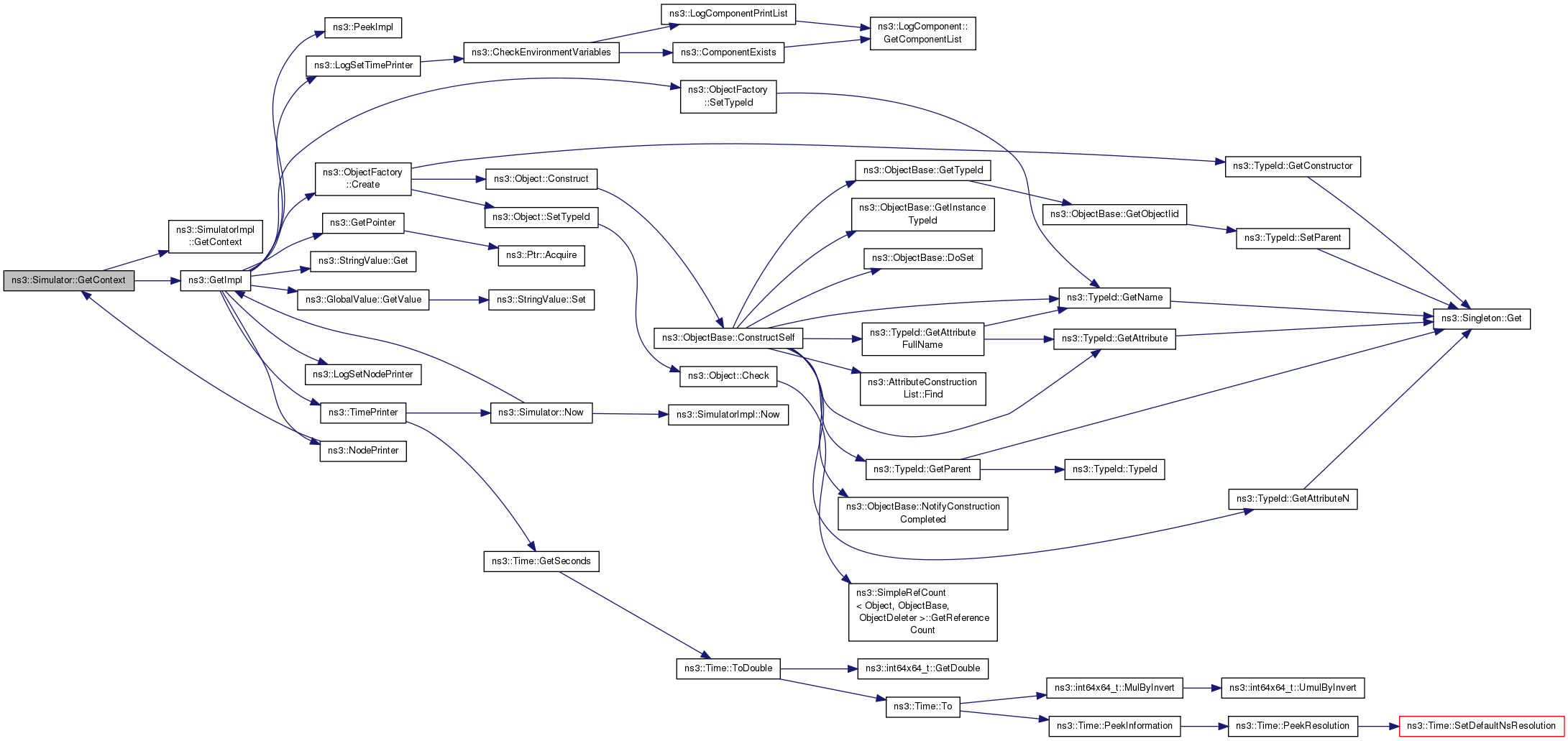

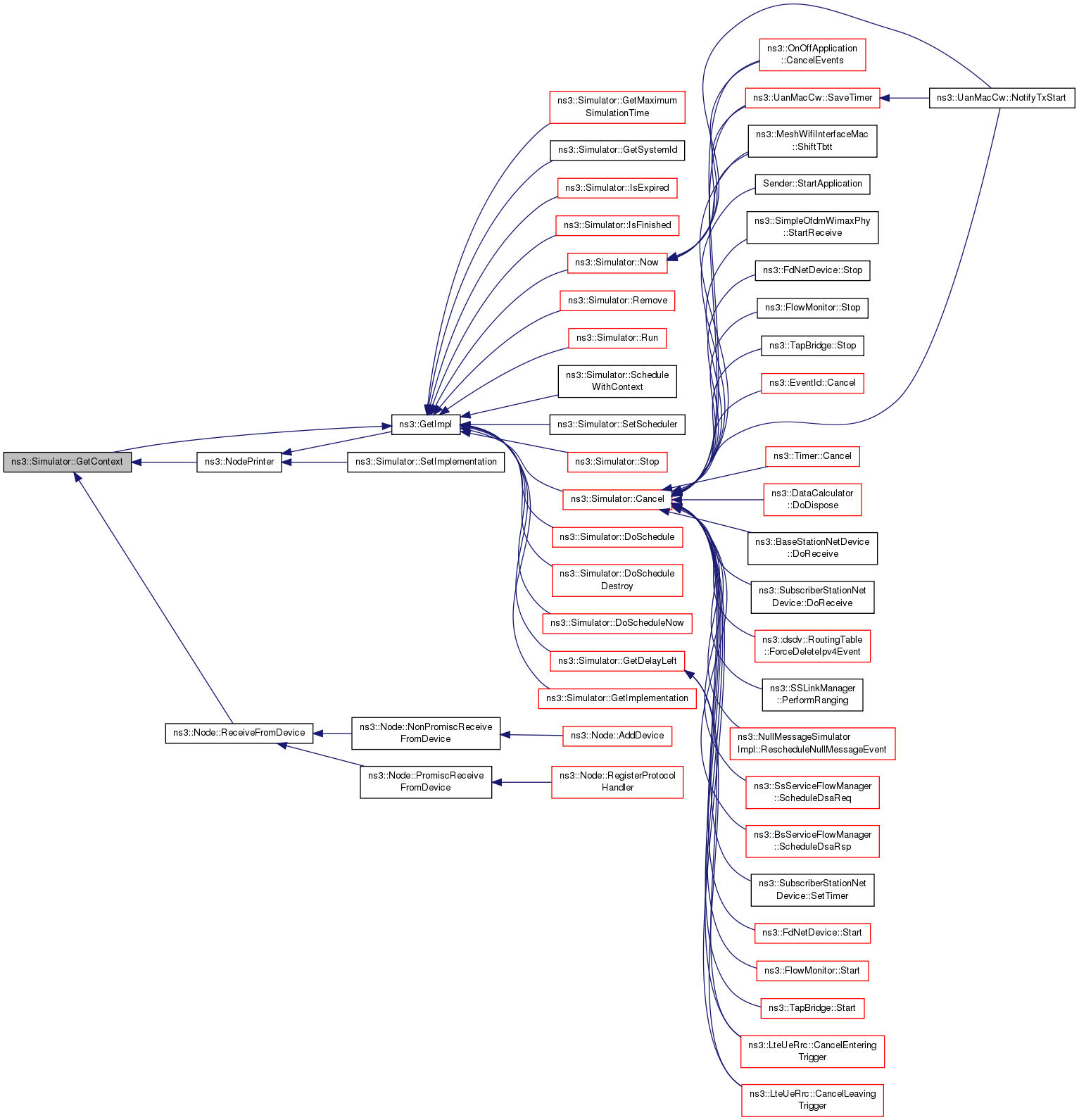

static uint32_t	GetContext (void)
	Get the current simulation context. More...

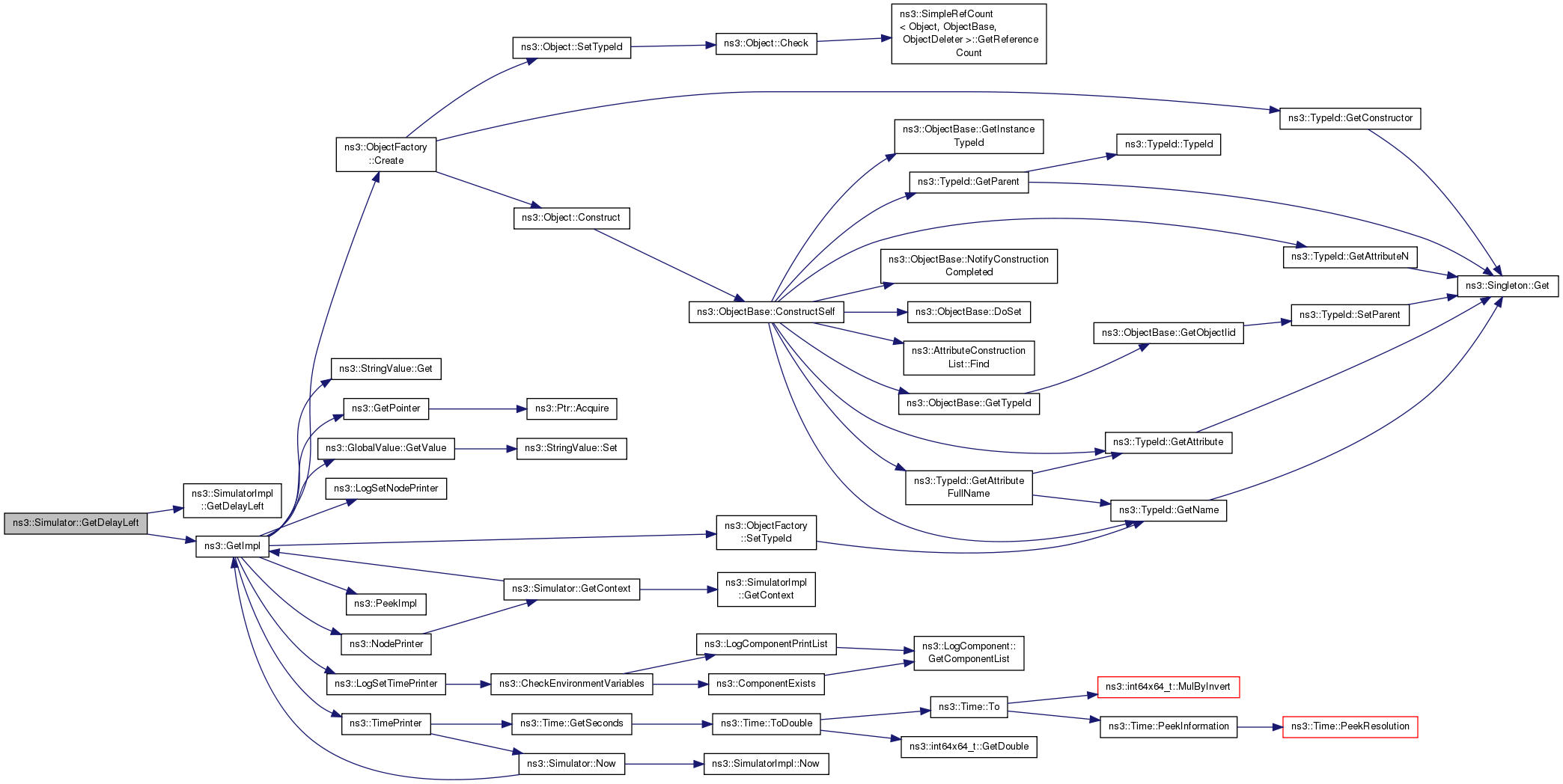

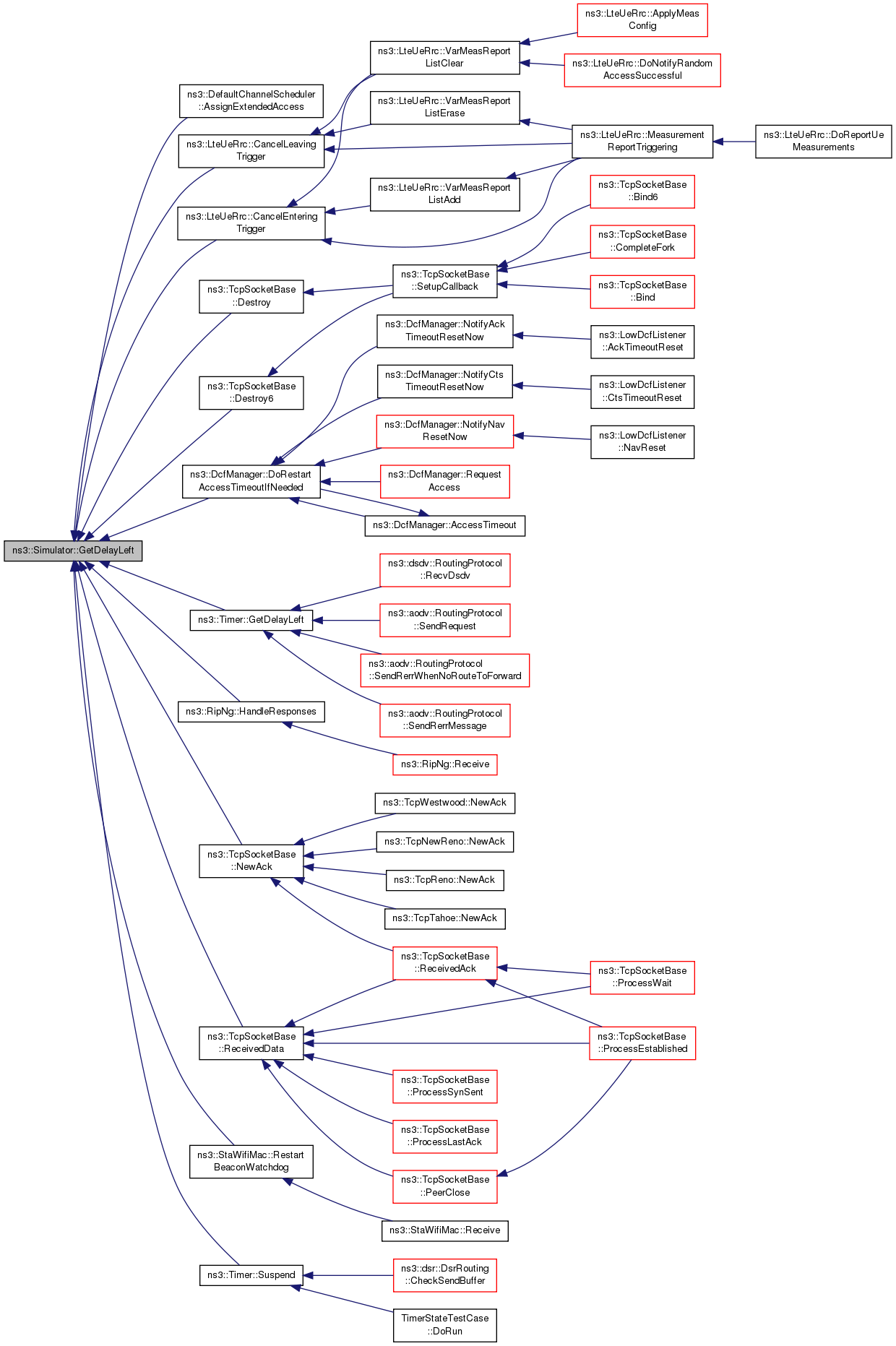

static Time	GetDelayLeft (const EventId &id)
	Get the remaining time until this event will execute. More...

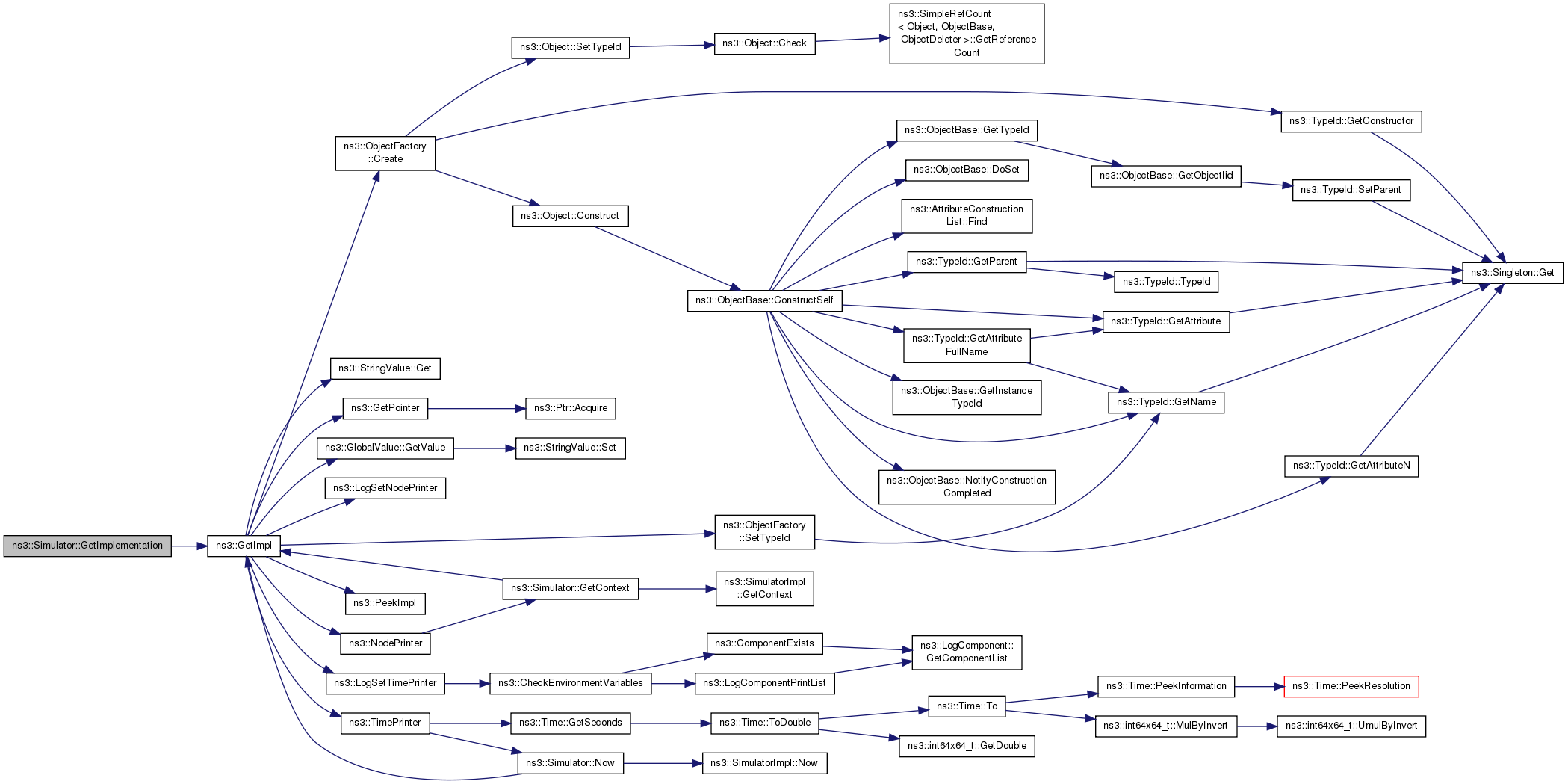

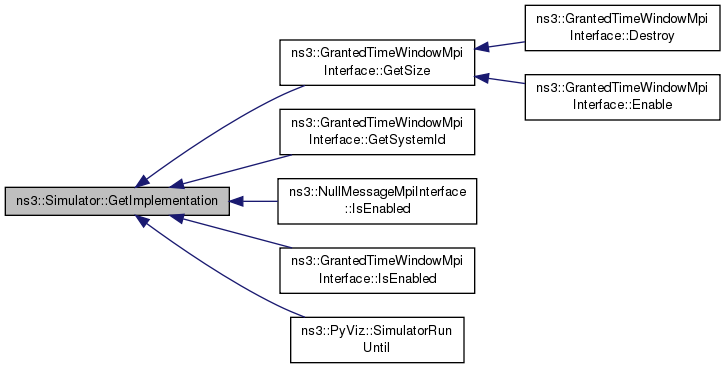

static Ptr< SimulatorImpl >	GetImplementation (void)
	Get the SimulatorImpl singleton. More...

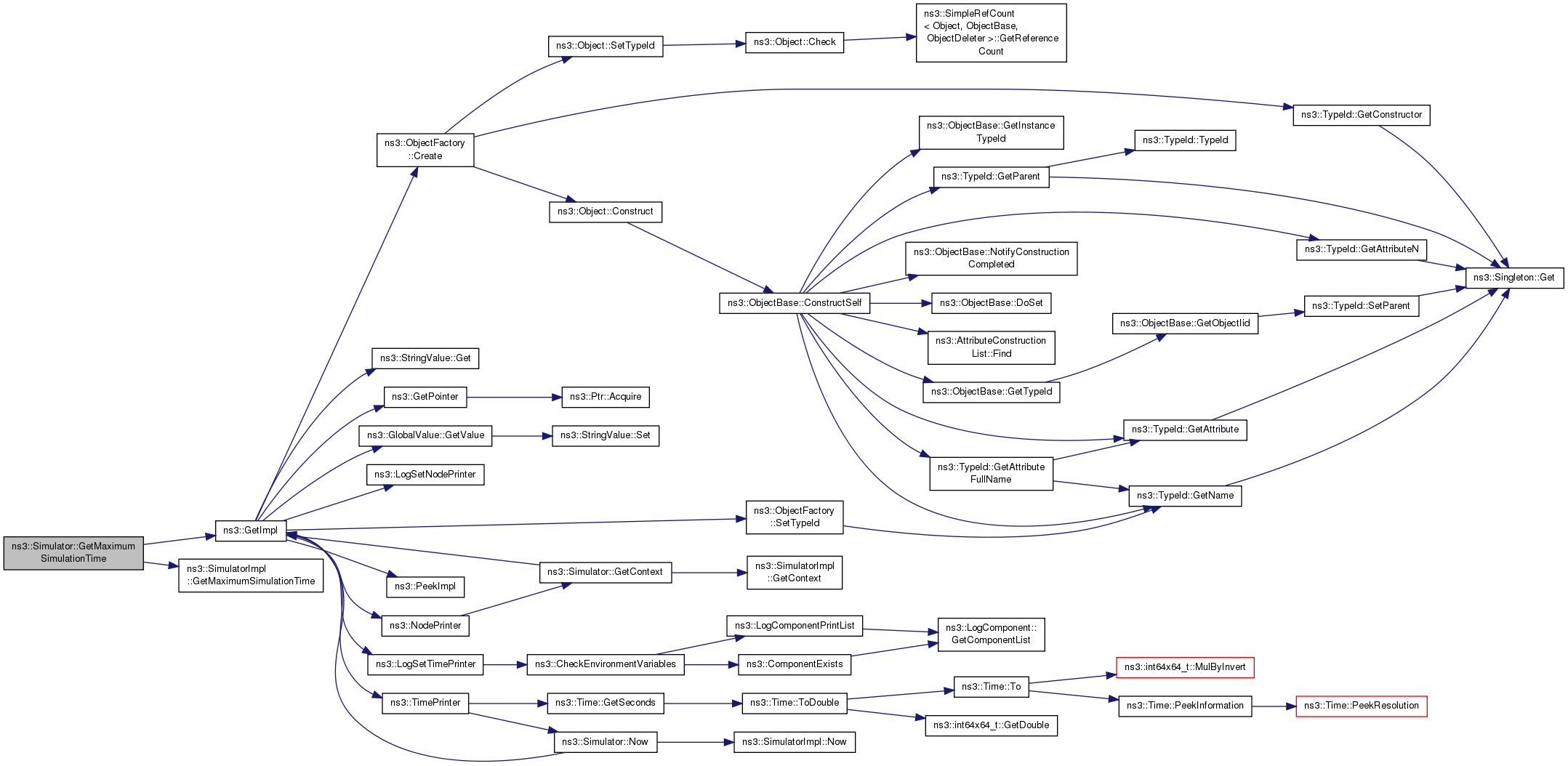

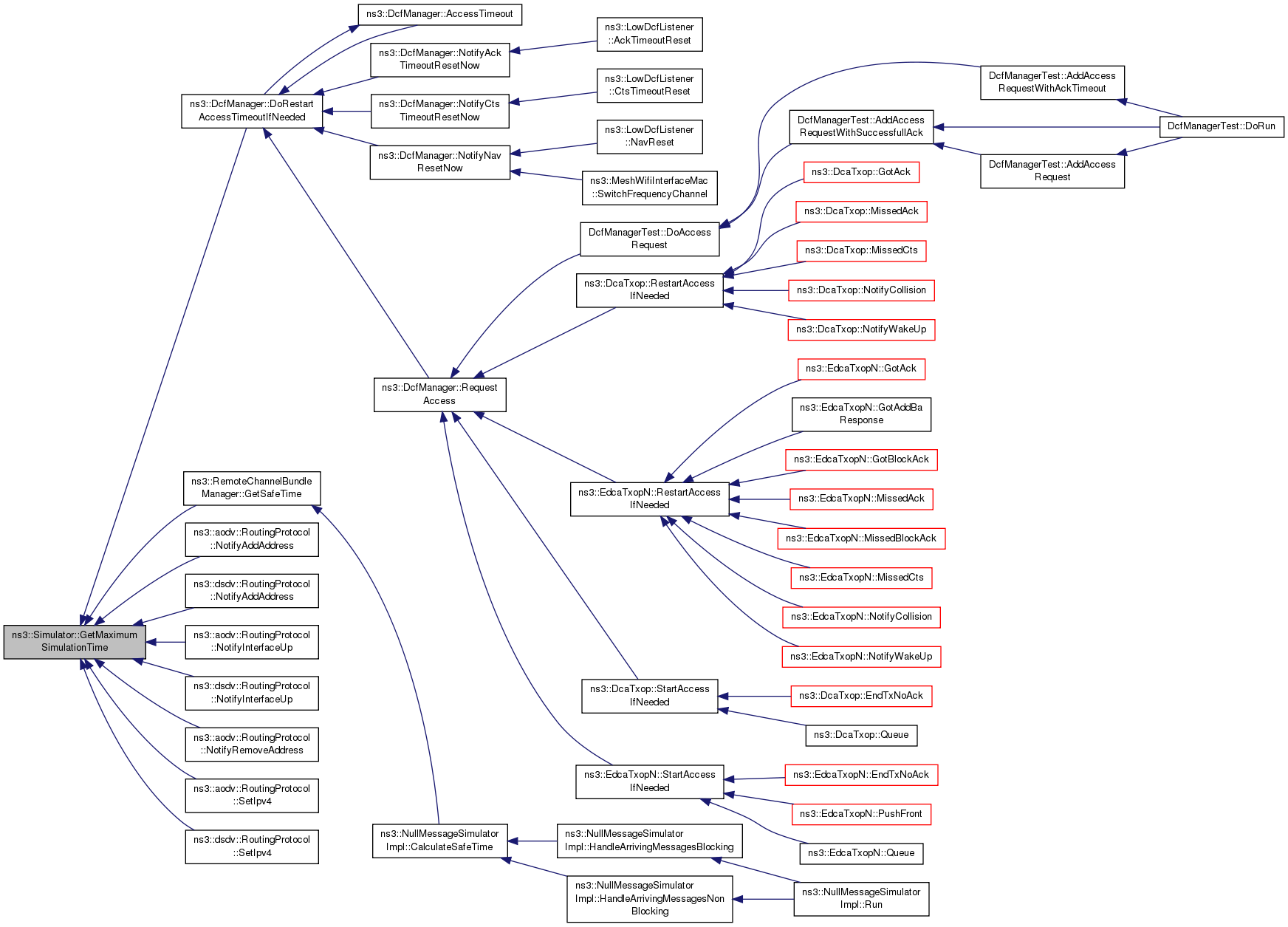

static Time	GetMaximumSimulationTime (void)
	Get the maximum representable simulation time. More...

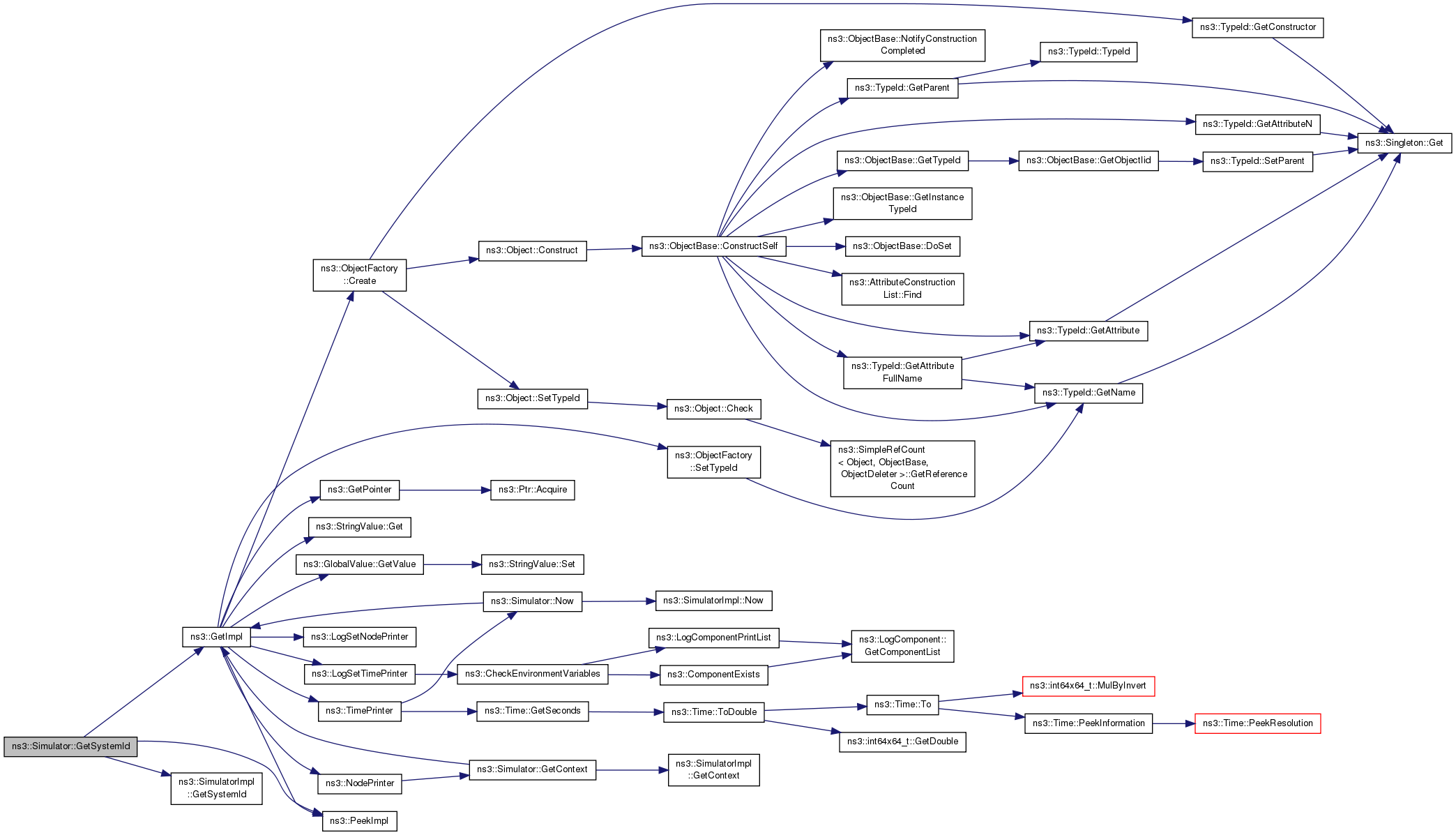

static uint32_t	GetSystemId (void)
	Get the system id of this simulator. More...

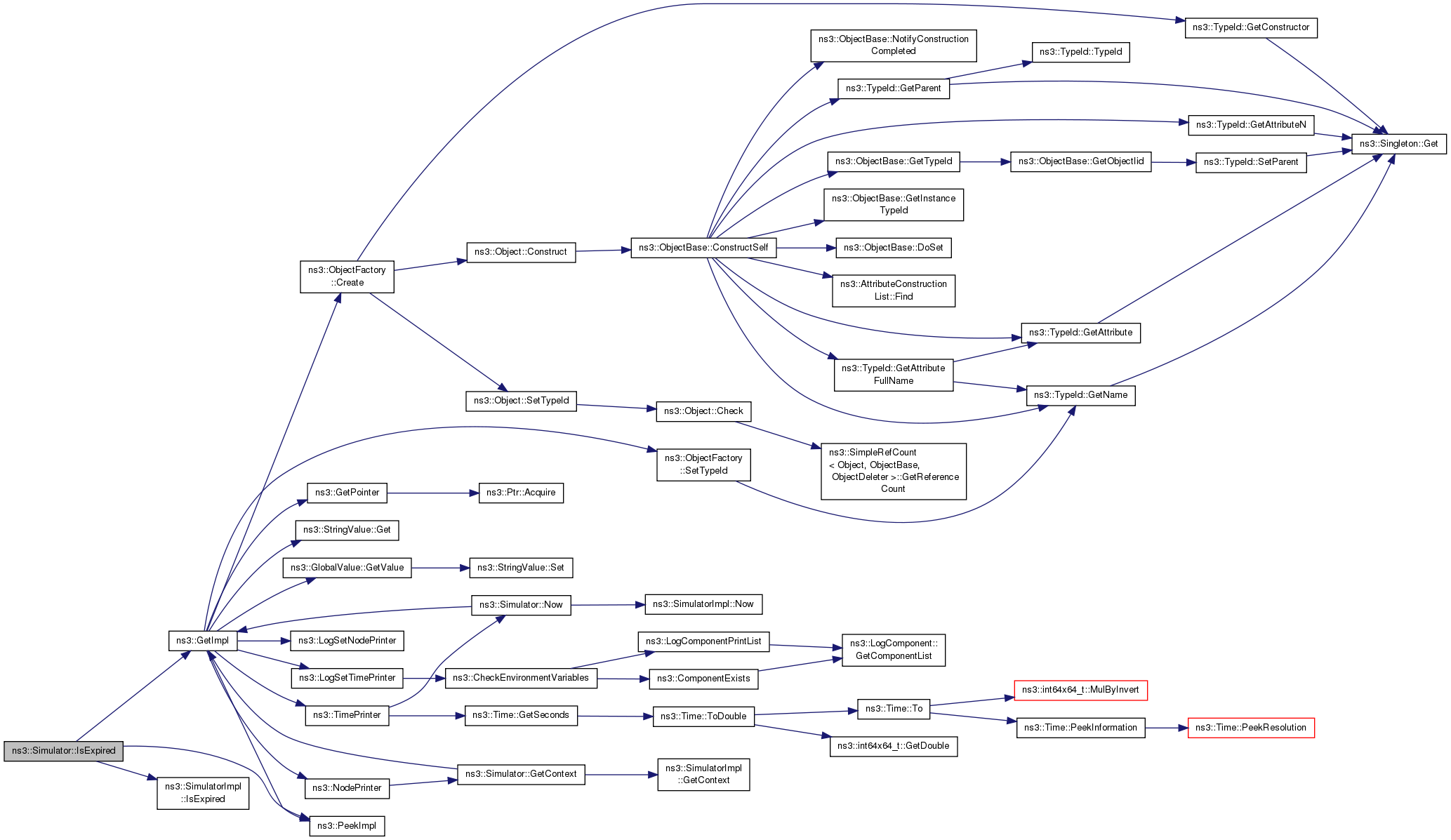

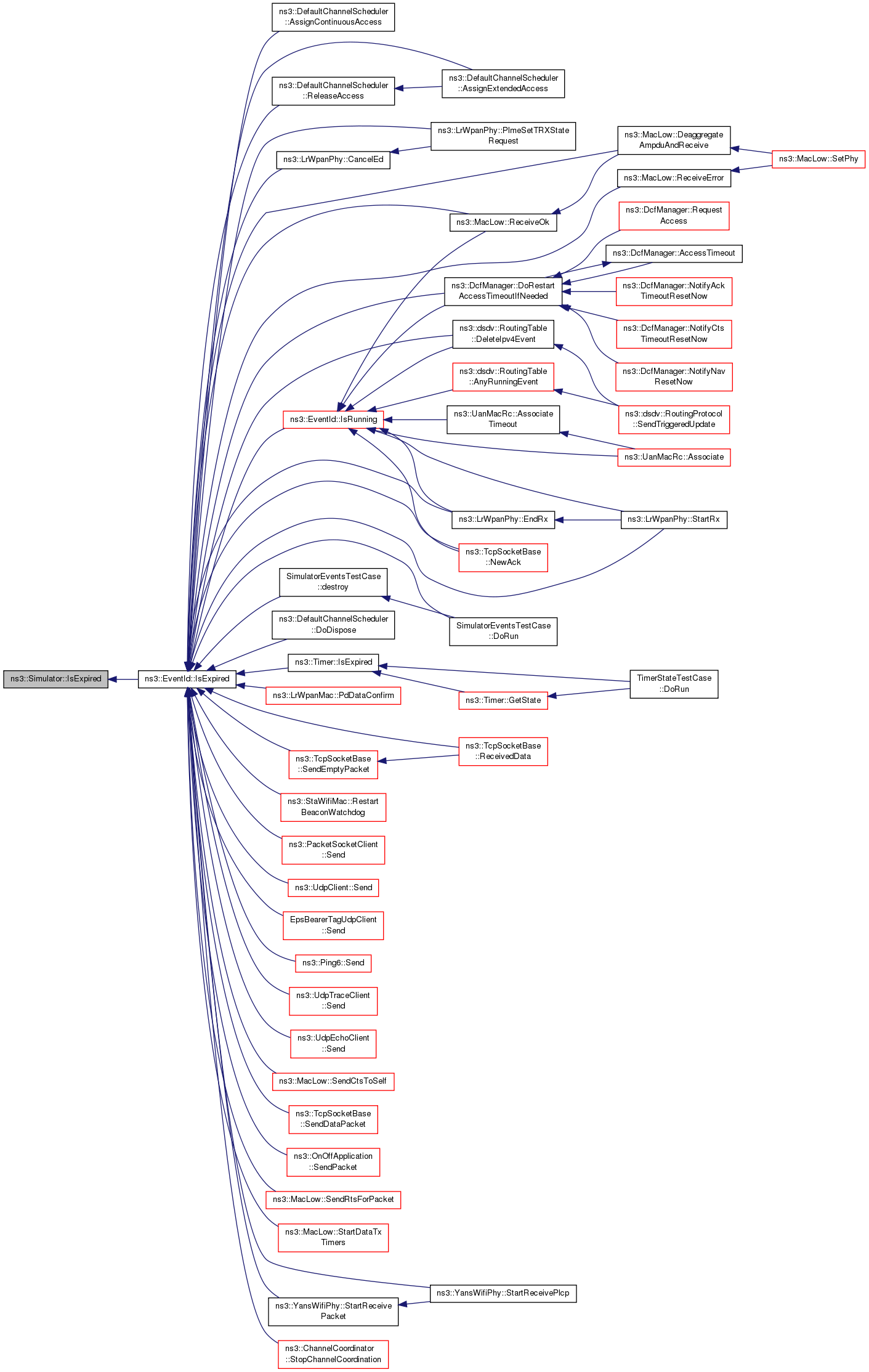

static bool	IsExpired (const EventId &id)
	Check if an event has already run or been cancelled. More...

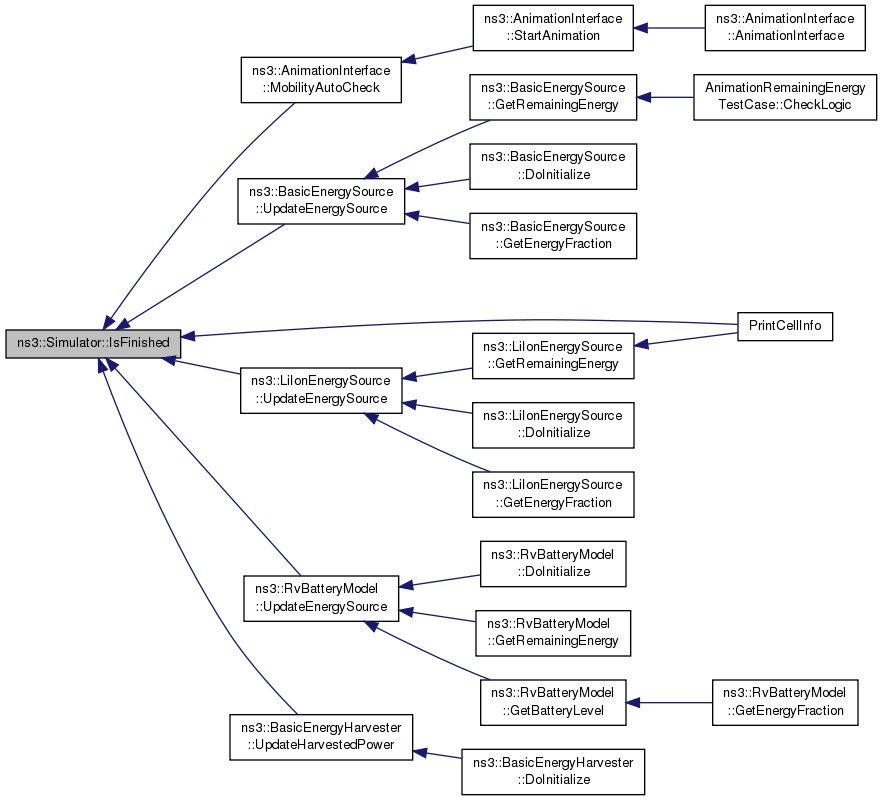

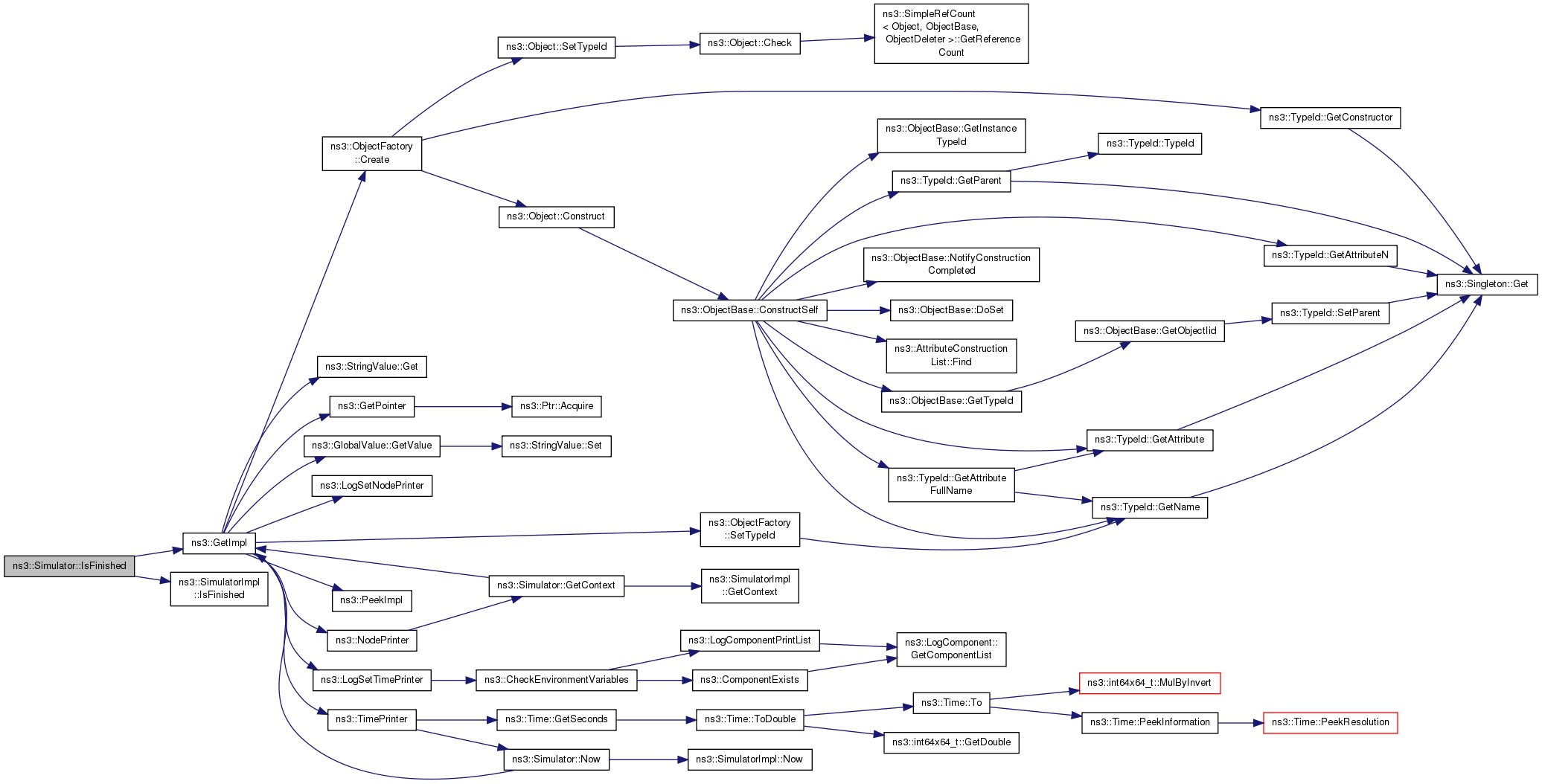

static bool	IsFinished (void)
	Check if the simulation should finish. More...

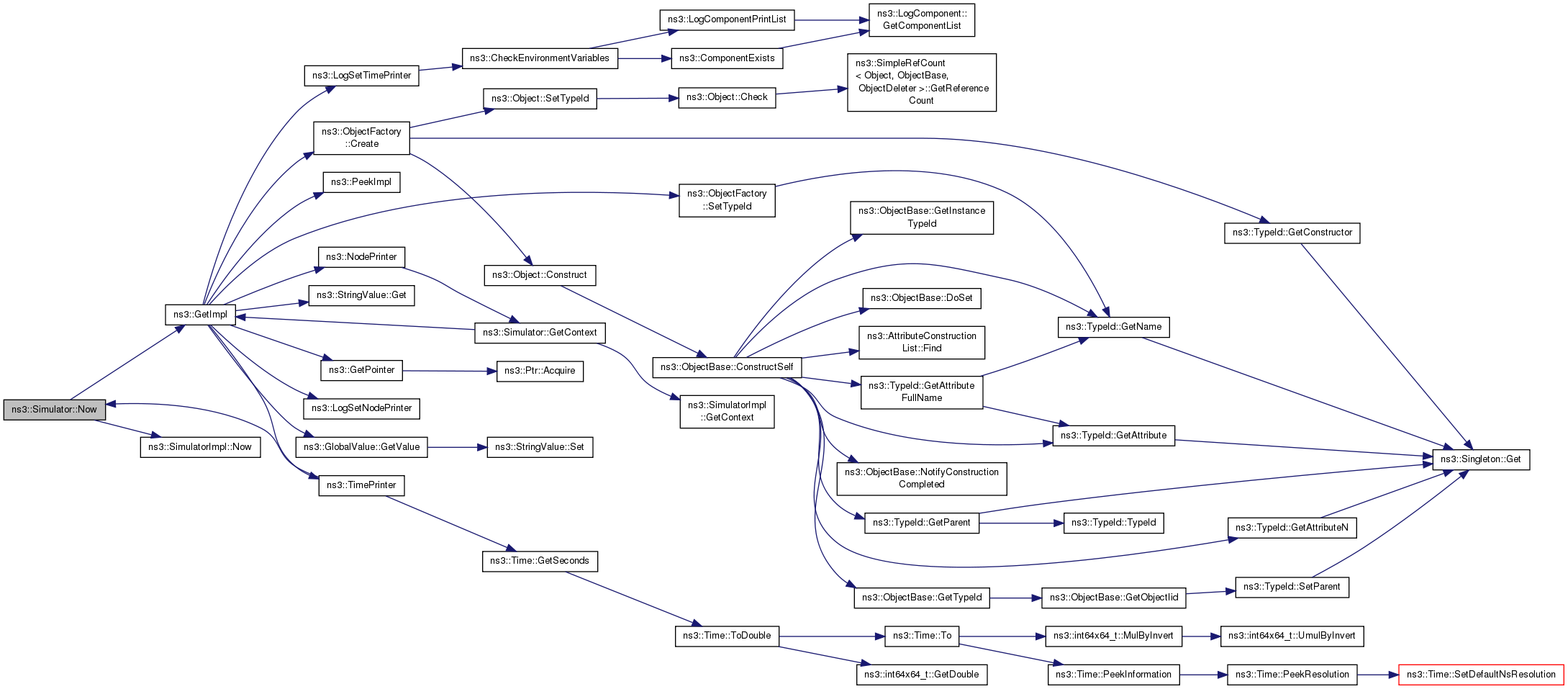

static Time	Now (void)
	Return the current simulation virtual time. More...

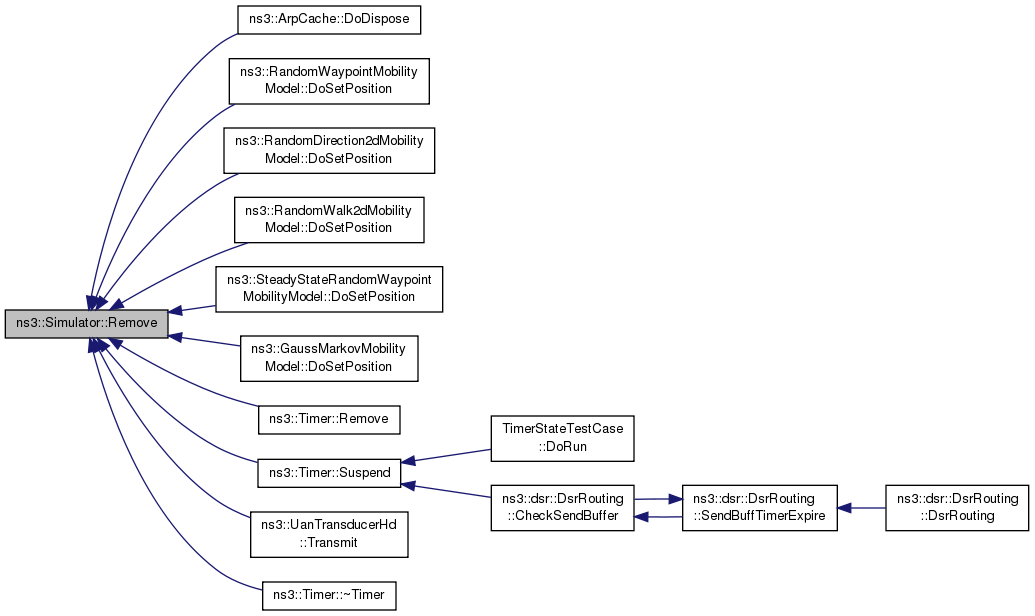

static void	Remove (const EventId &id)
	Remove an event from the event list. More...

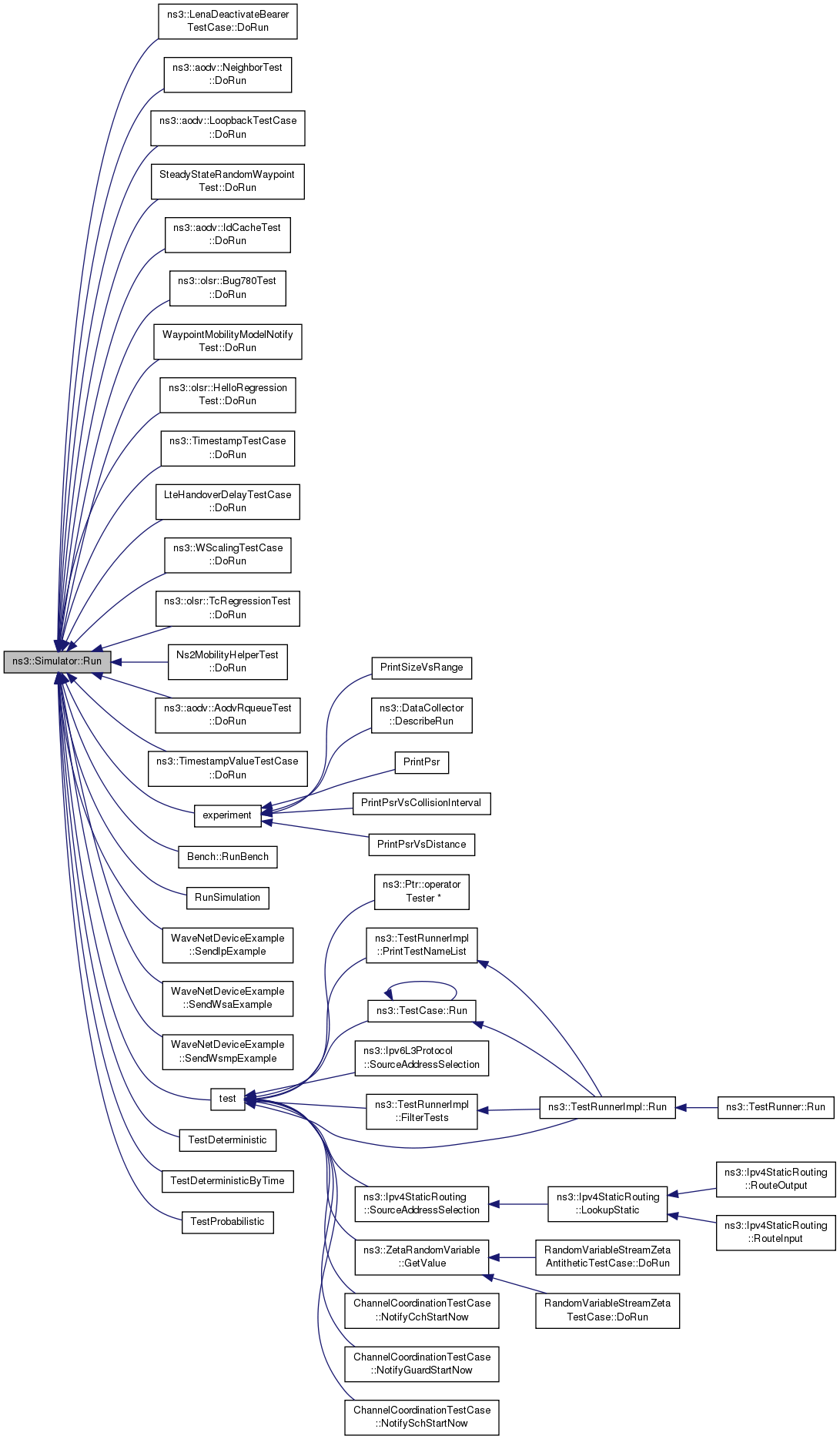

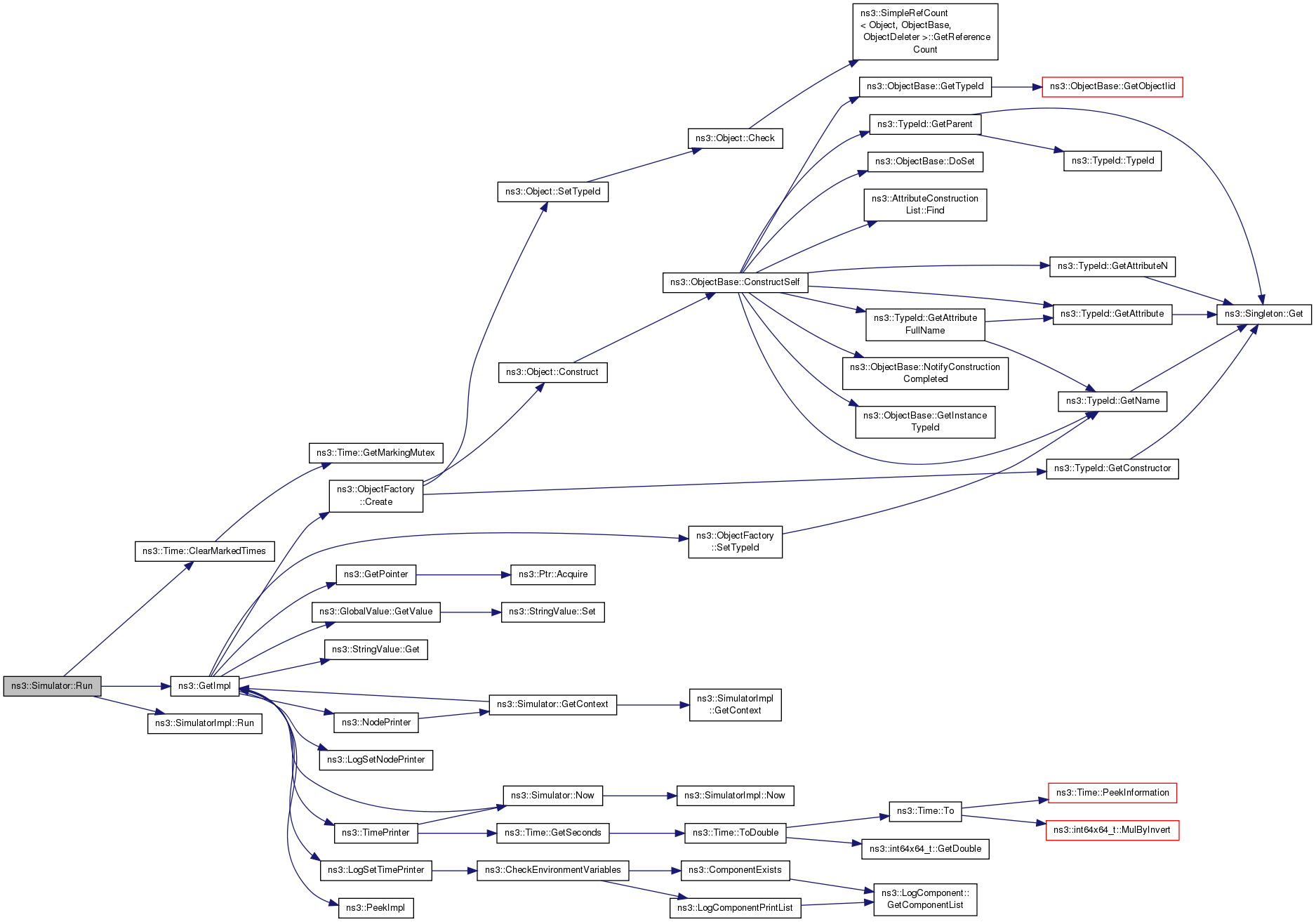

static void	Run (void)
	Run the simulation. More...

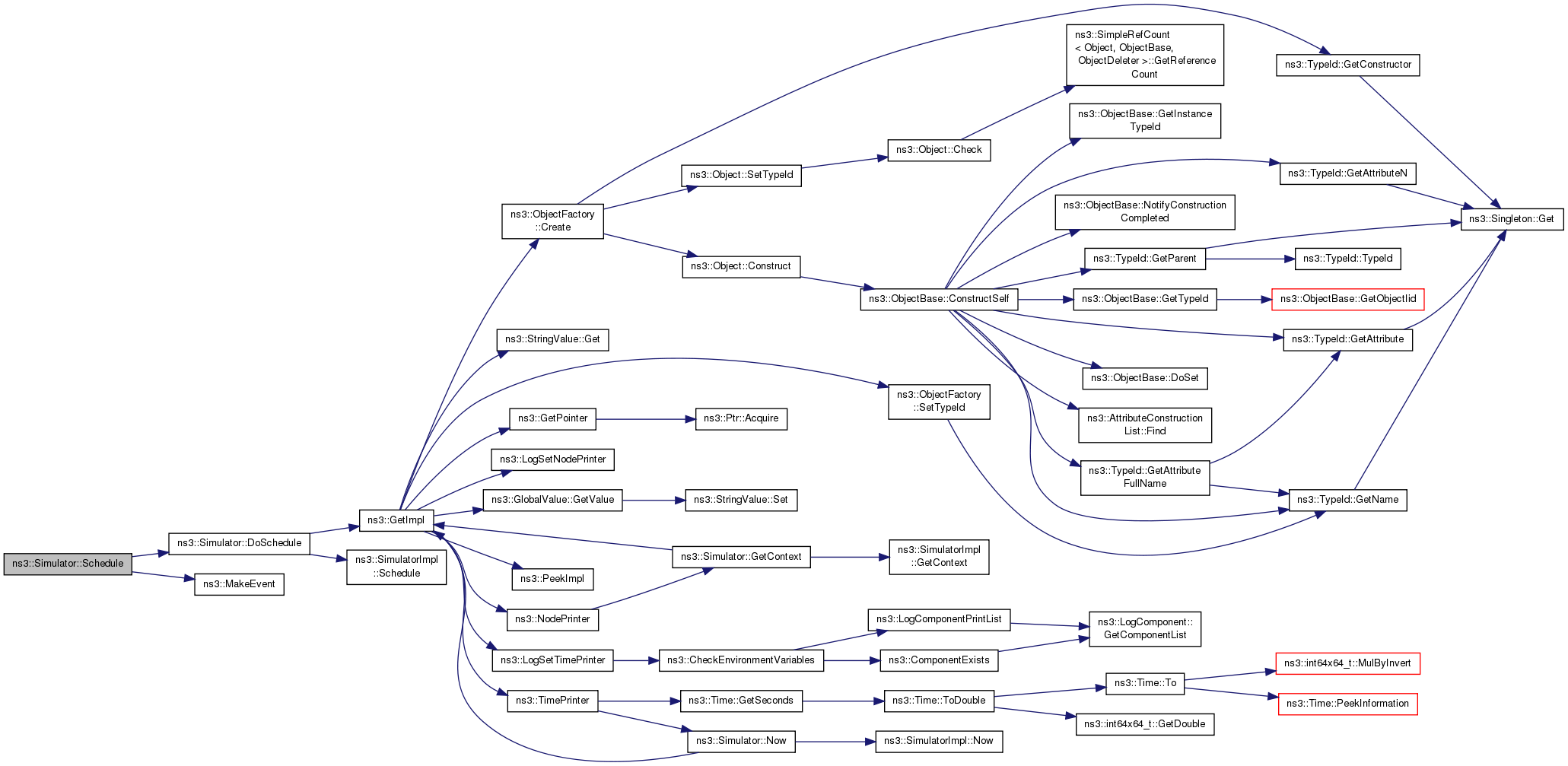

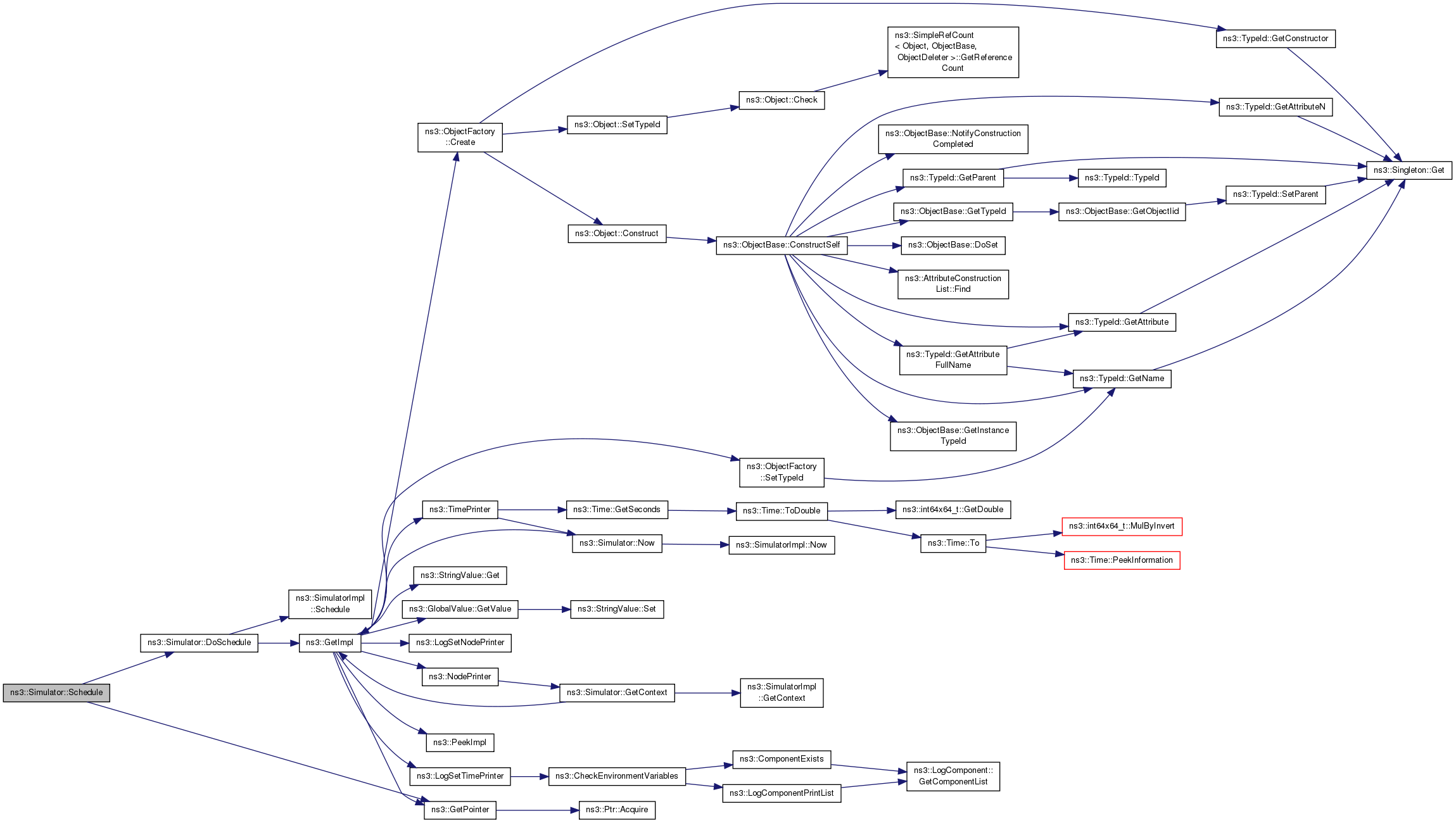

static EventId	Schedule (Time const &time, const Ptr< EventImpl > &event)
	Schedule a future event execution (in the same context). More...

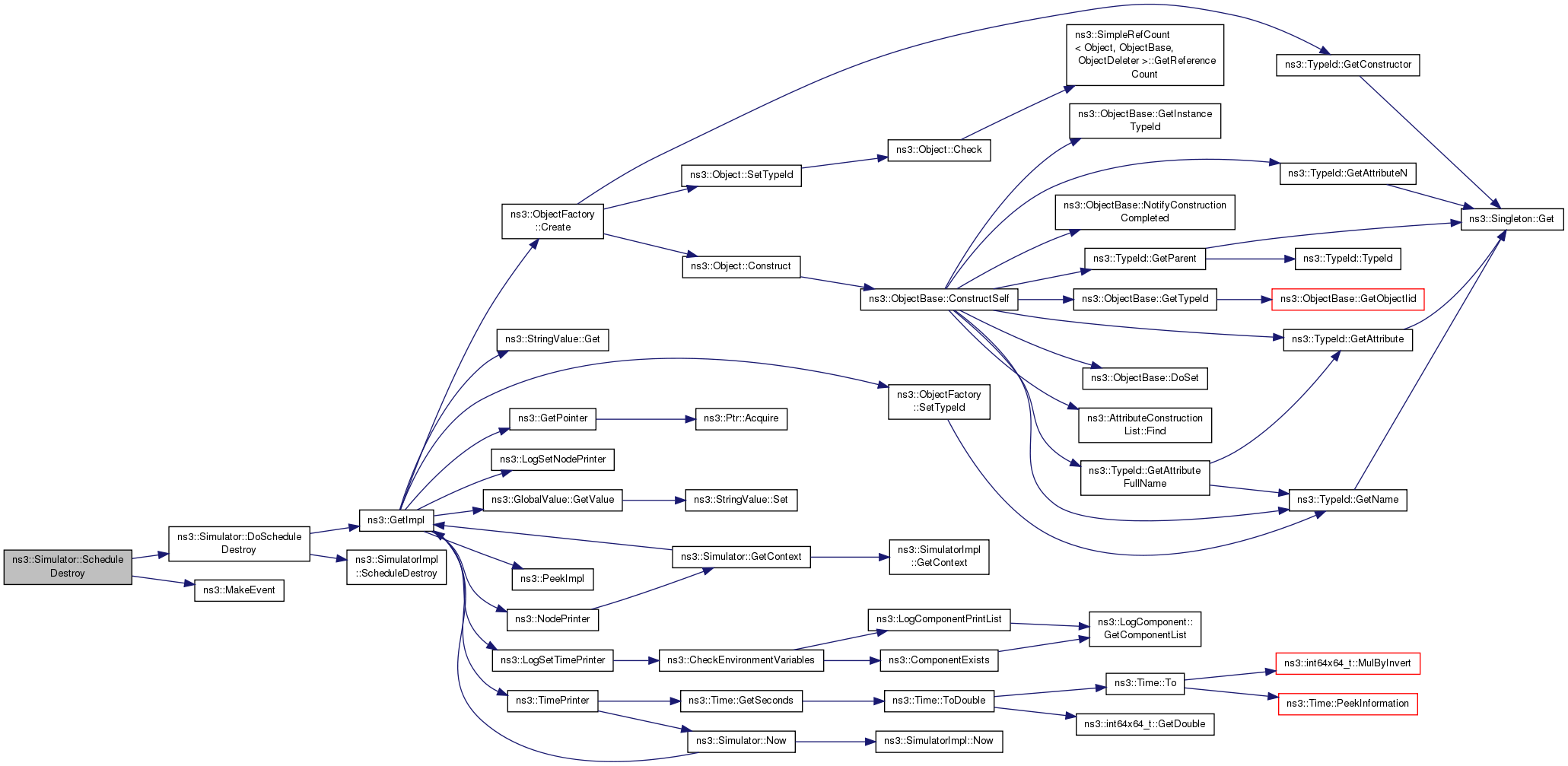

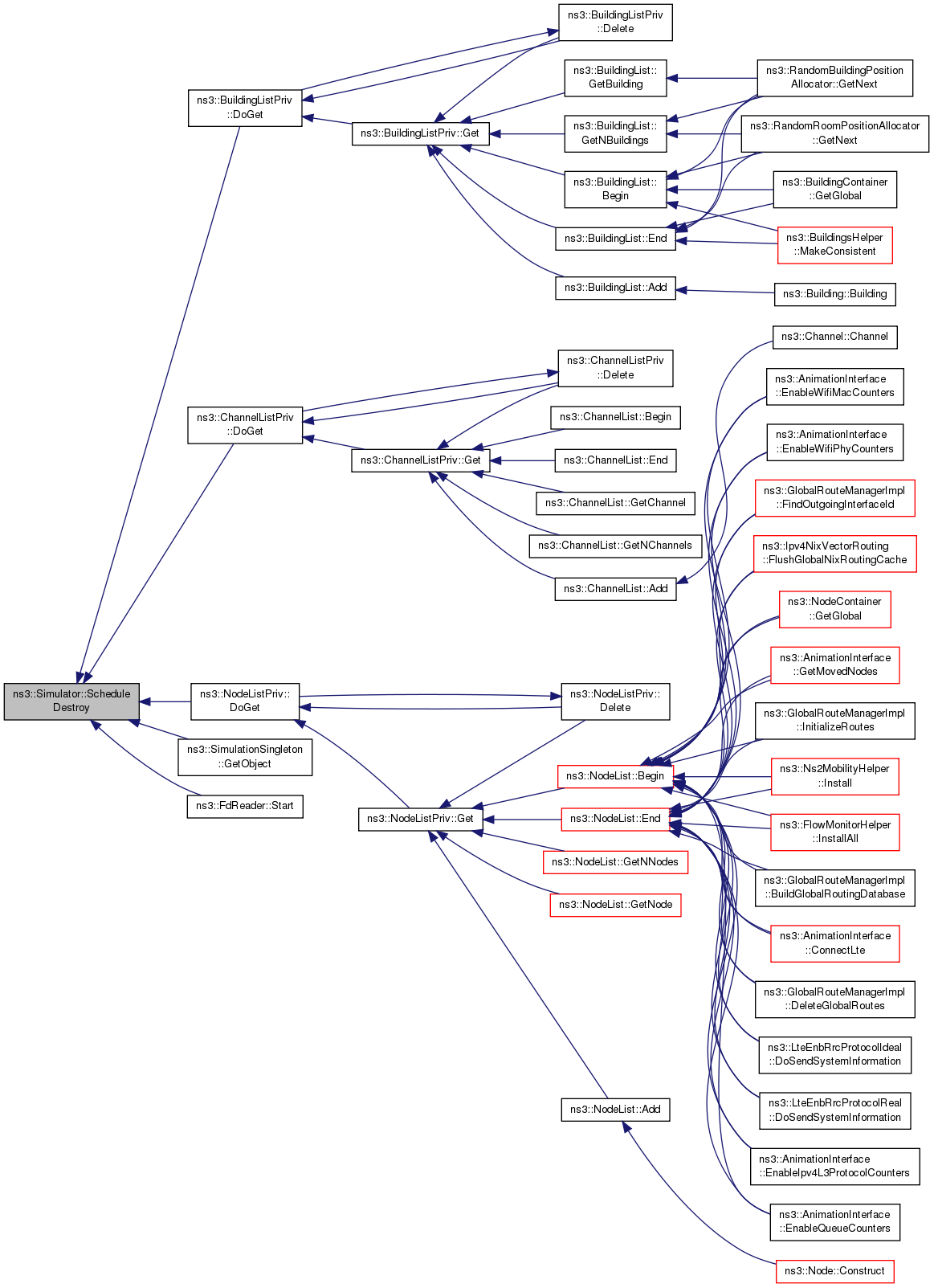

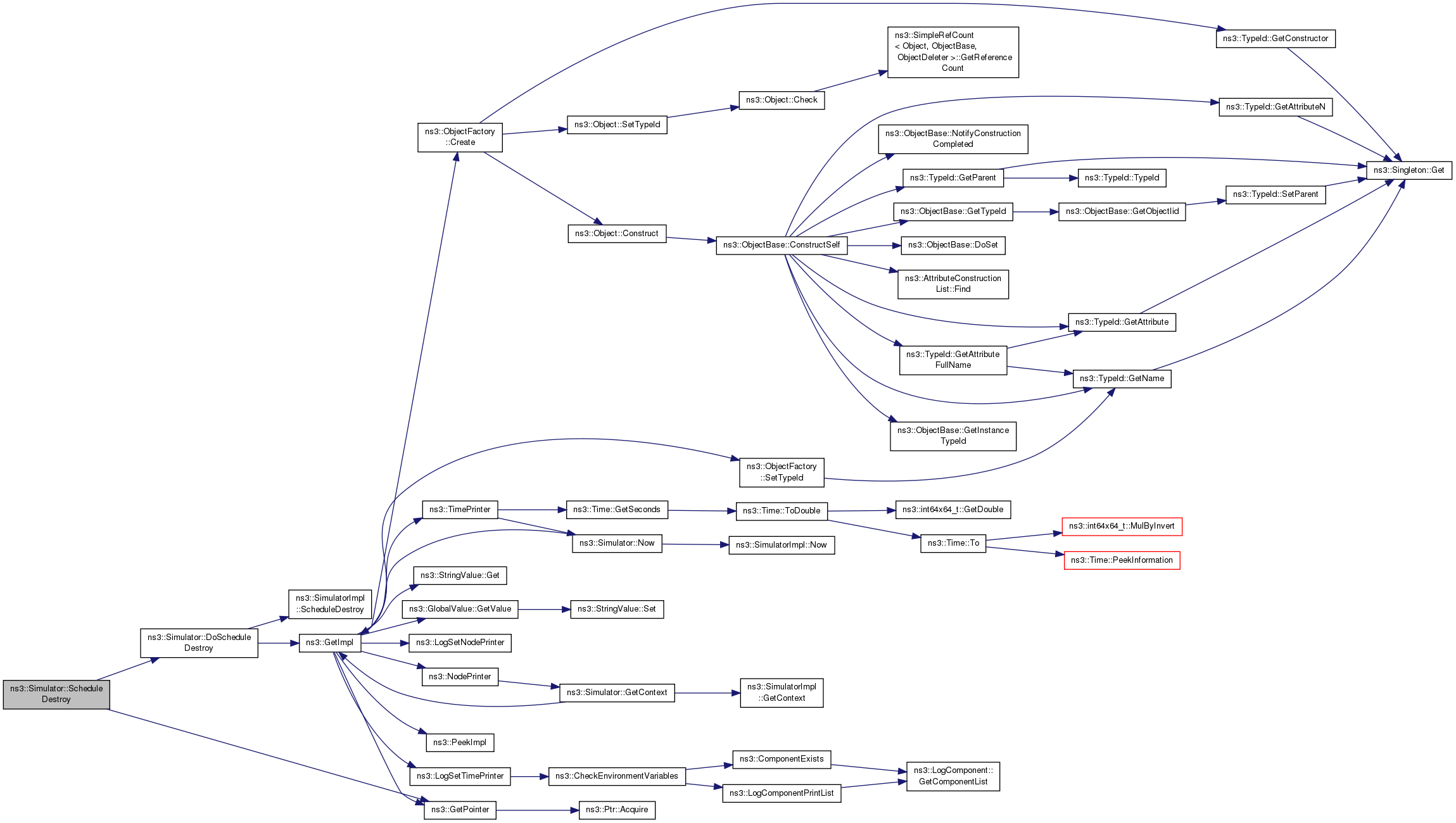

static EventId	ScheduleDestroy (const Ptr< EventImpl > &event)
	Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached. More...

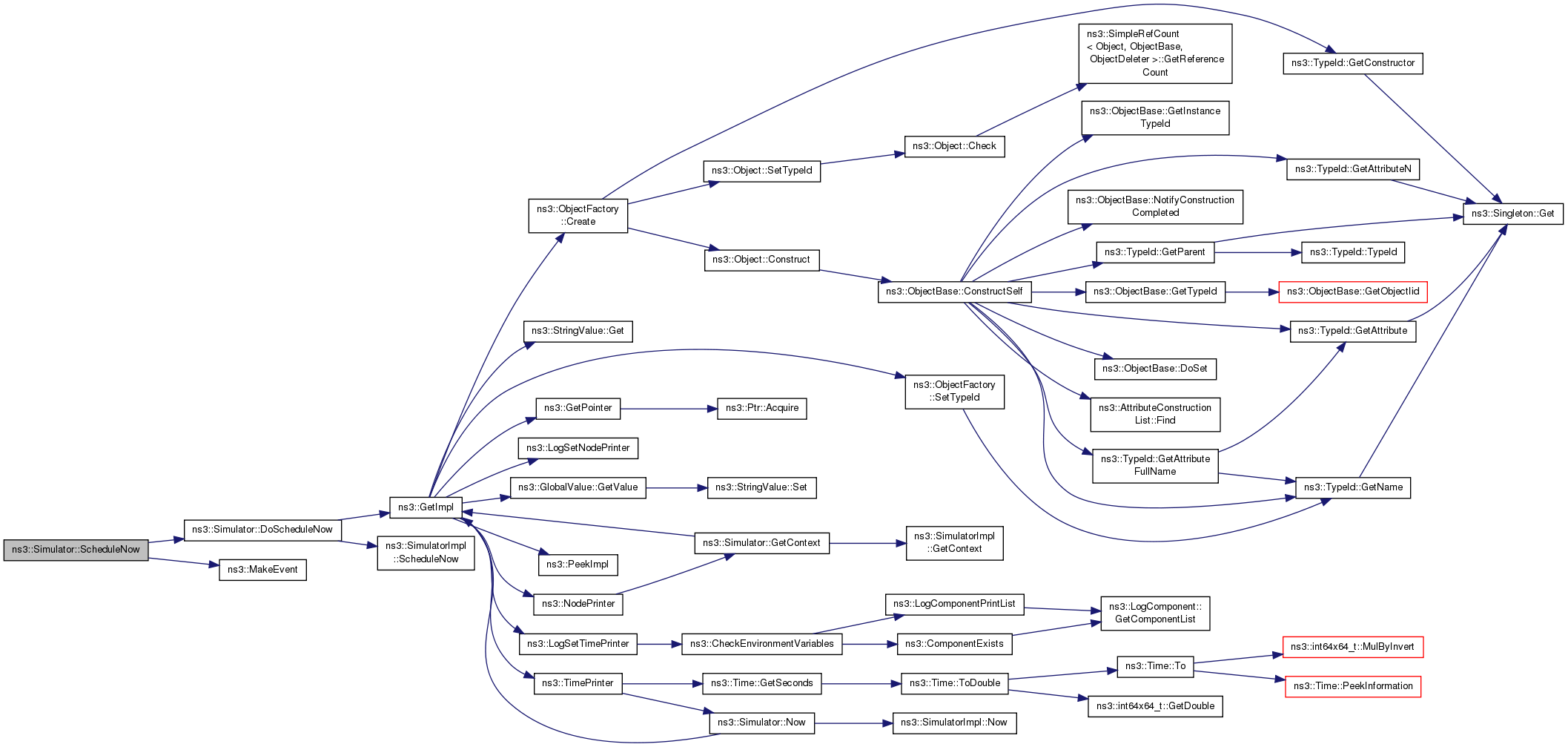

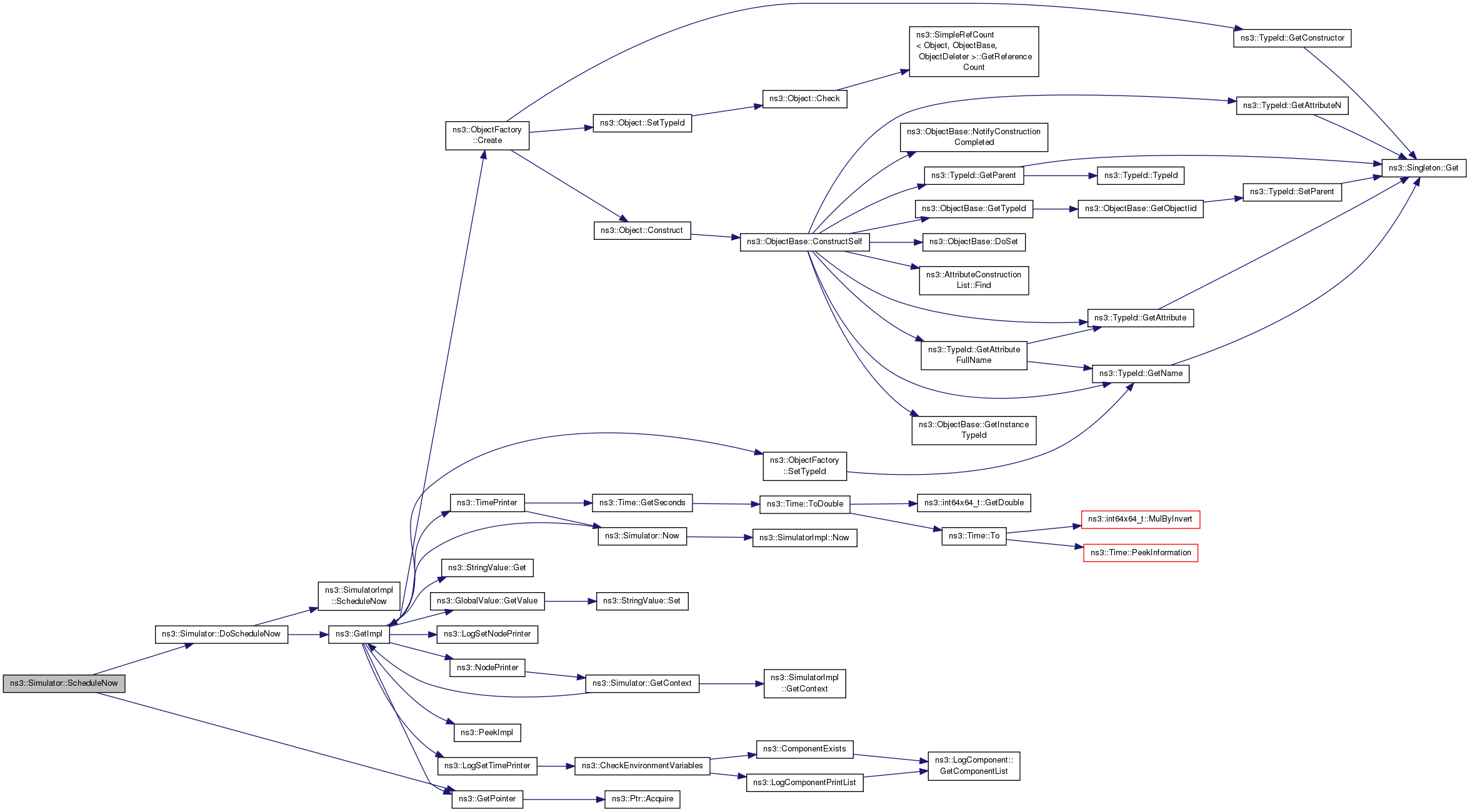

static EventId	ScheduleNow (const Ptr< EventImpl > &event)
	Schedule an event to run at the current virtual time. More...

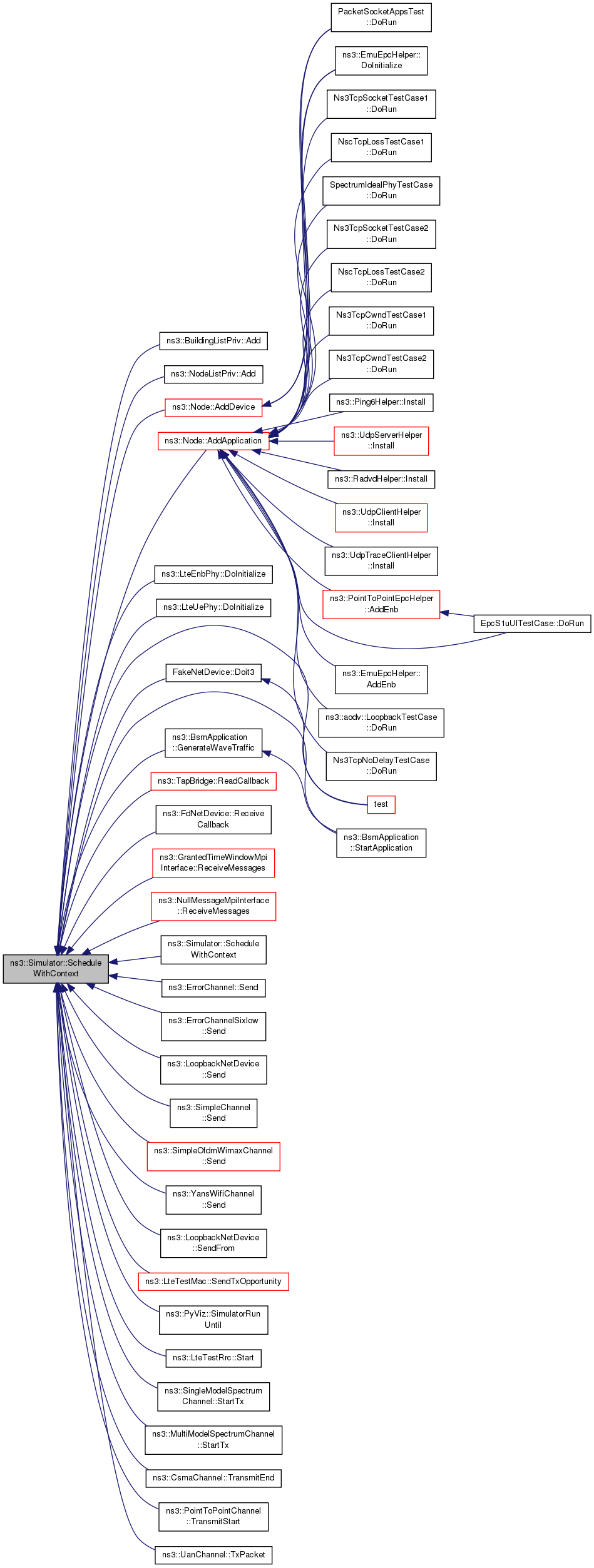

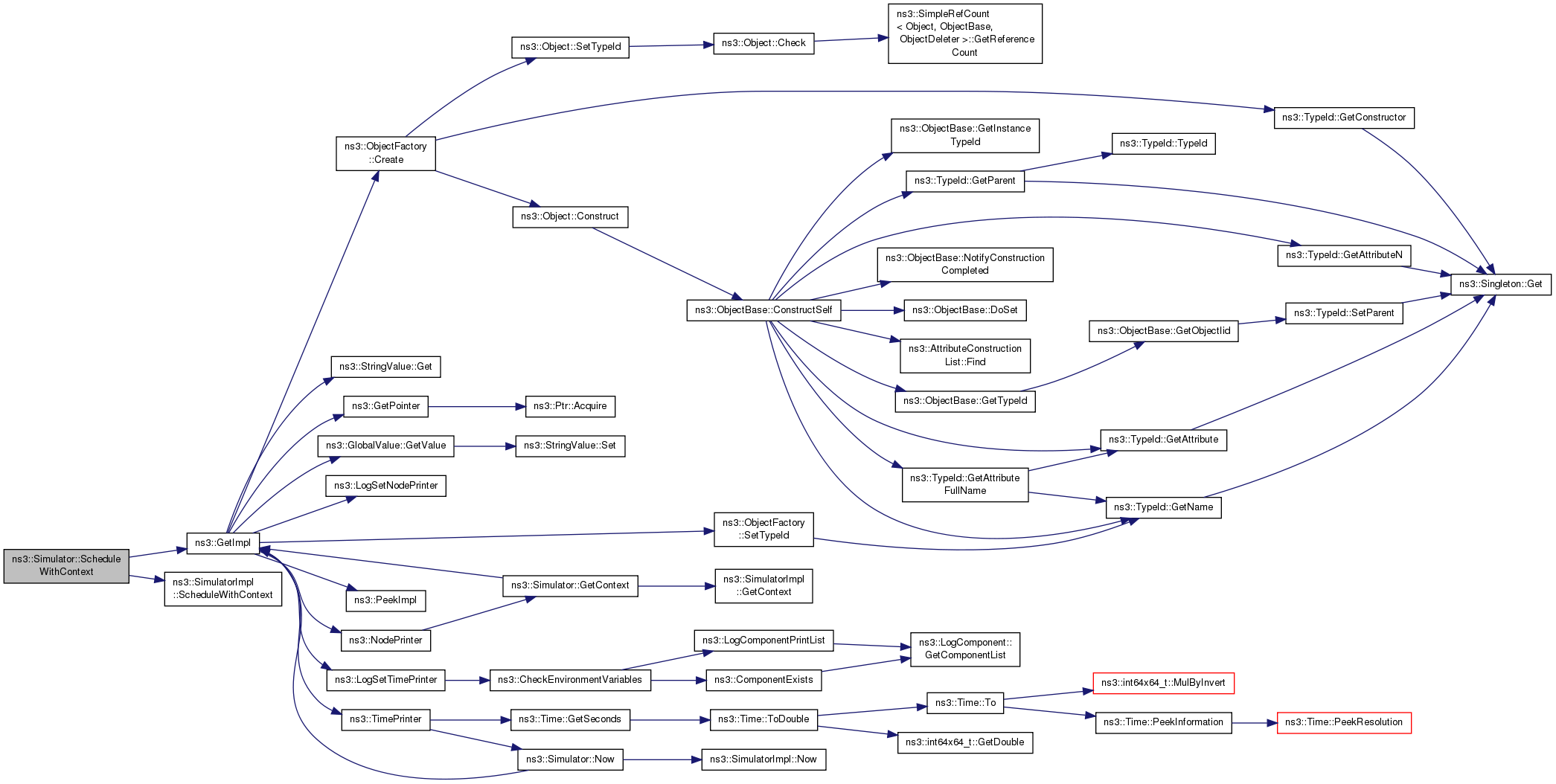

static void	ScheduleWithContext (uint32_t context, const Time &time, EventImpl *event)
	Schedule a future event execution (in a different context). More...
static void	SetImplementation (Ptr< SimulatorImpl > impl)

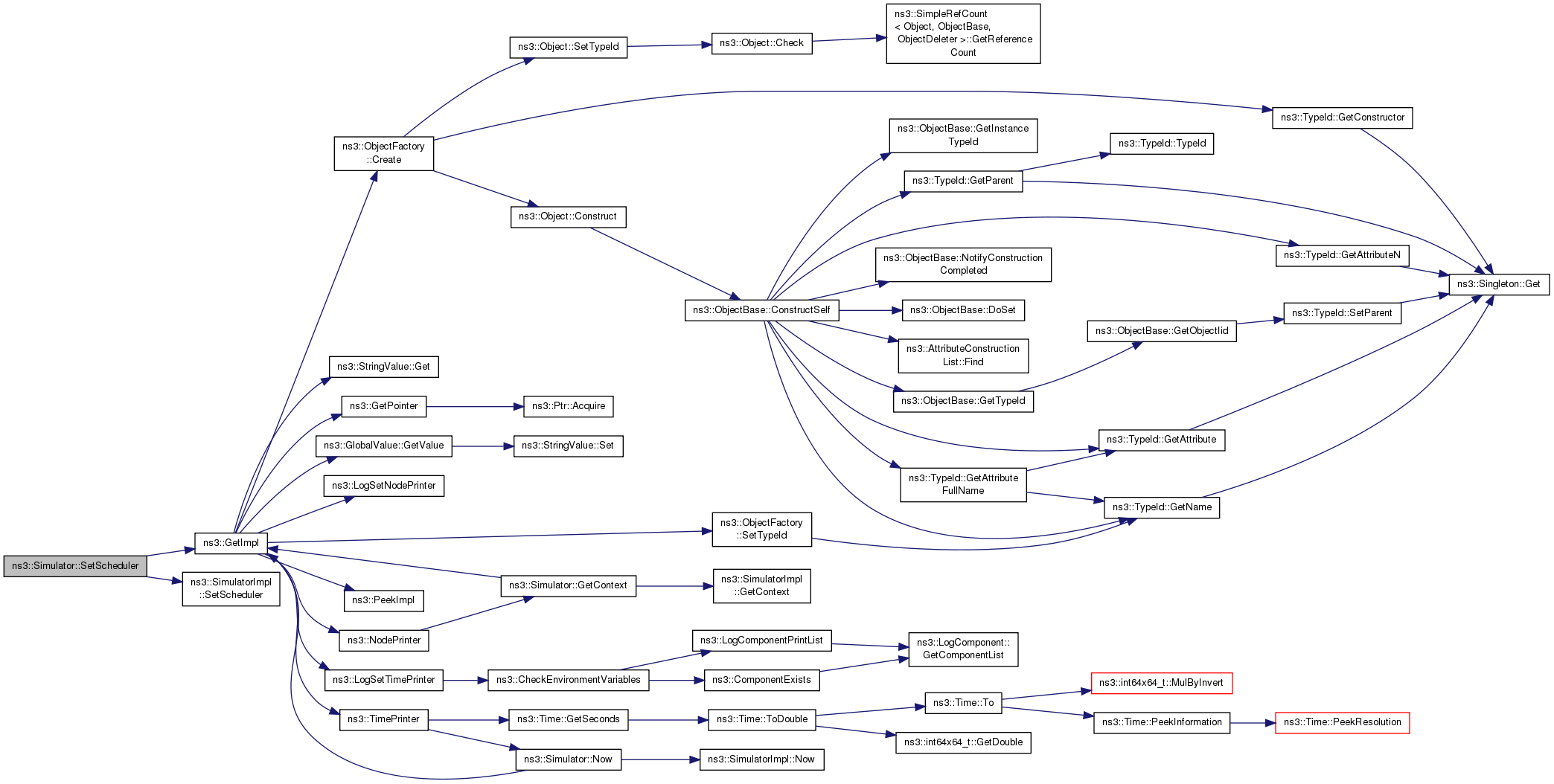

static void	SetScheduler (ObjectFactory schedulerFactory)

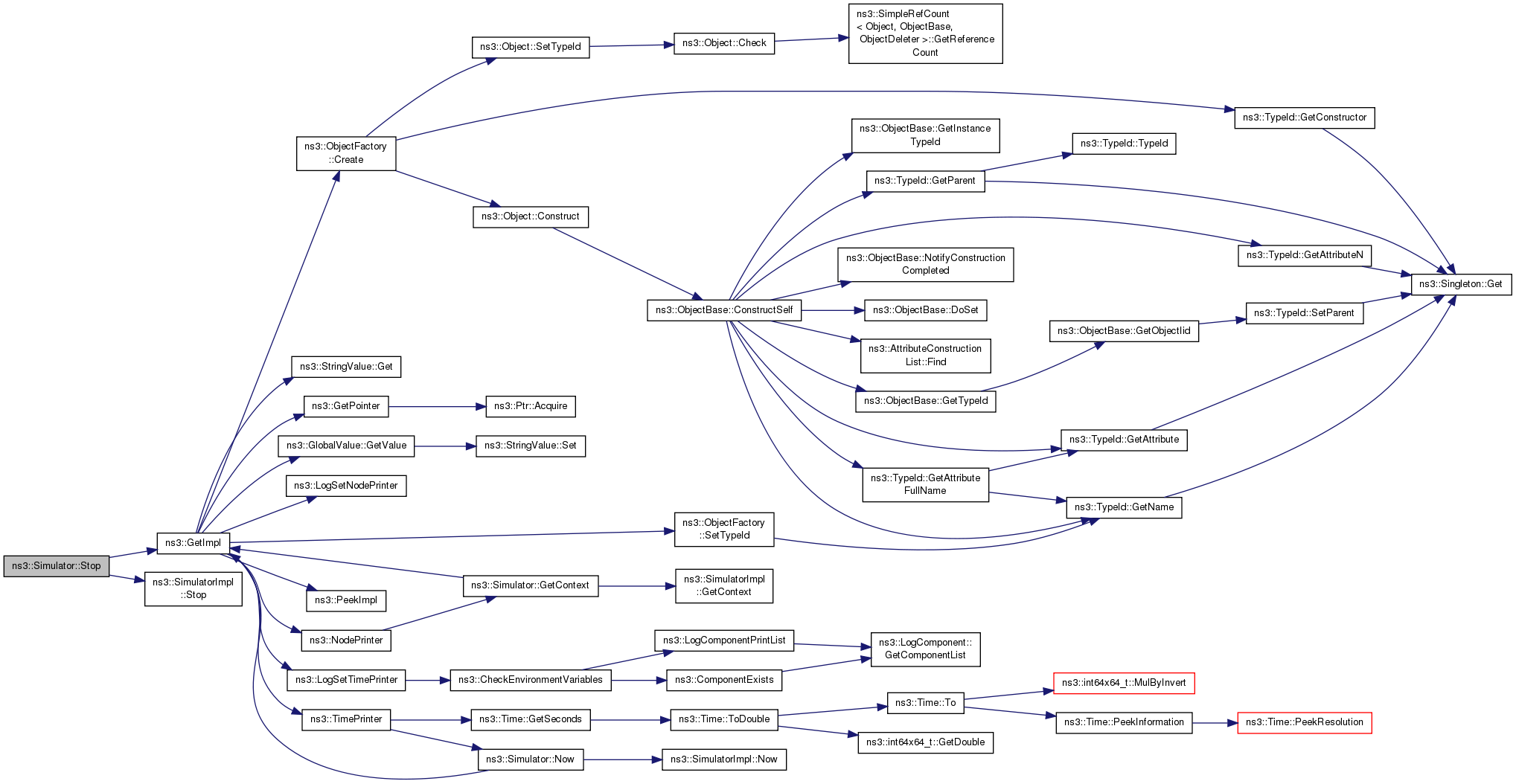

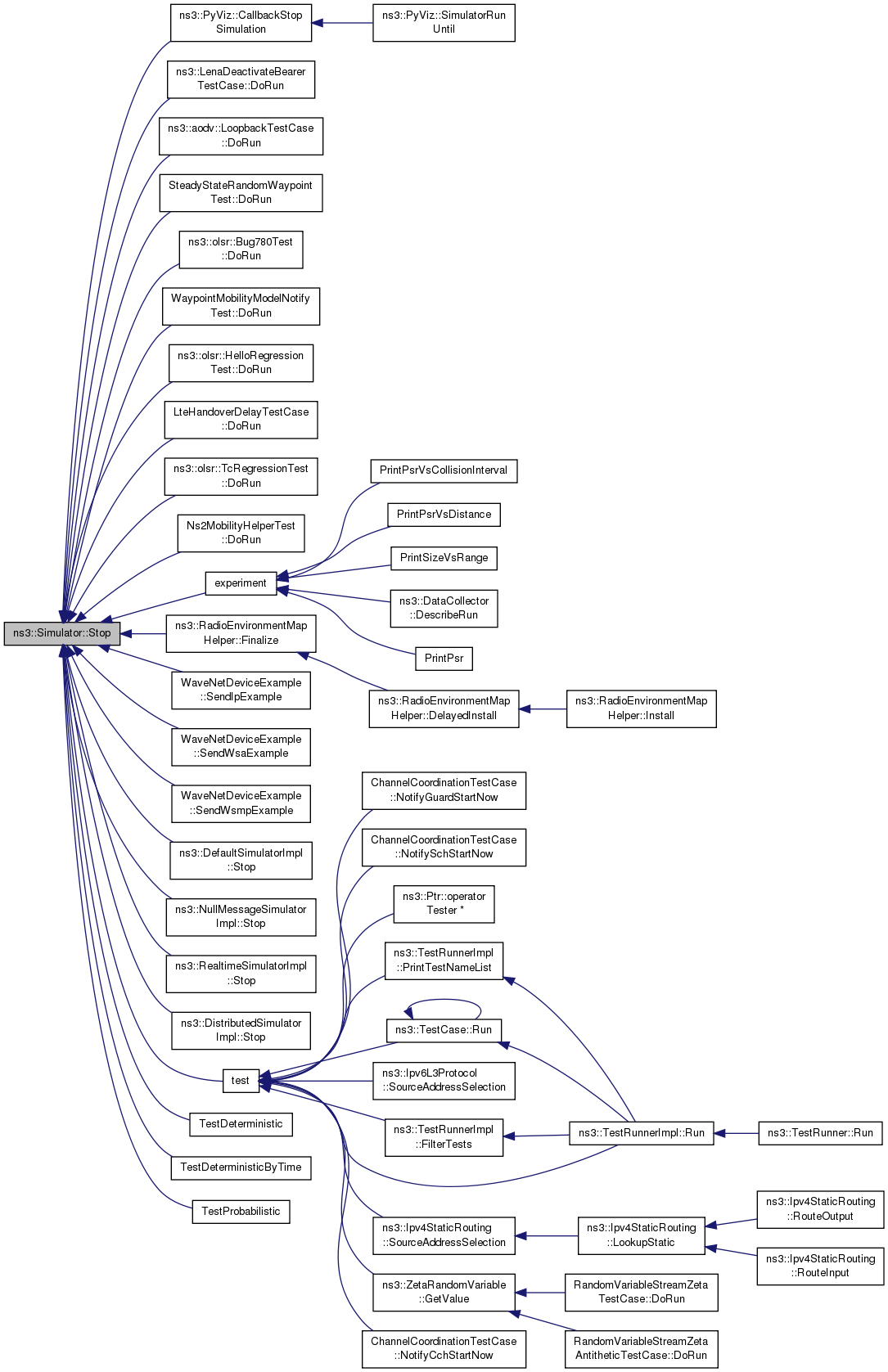

static void	Stop (void)
	Tell the Simulator the calling event should be the last one executed. More...
static void	Stop (Time const &time)
	Schedule the time delay until the Simulator should stop. More...
Schedule events (in the same context) to run at a future time.
template<typename MEM , typename OBJ >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj)
	Schedule an event to expire at the relative time "time" is reached. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	Schedule (Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
static EventId	Schedule (Time const &time, void(*f)(void))
template<typename U1 , typename T1 >
static EventId	Schedule (Time const &time, void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	Schedule (Time const &time, void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	Schedule (Time const &time, void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	Schedule (Time const &time, void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	Schedule (Time const &time, void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
Schedule events (in a different context) to run at a particular time.
See main-test-sync.cc for example usage.
template<typename MEM , typename OBJ >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj)
	Schedule an event with the given context. More...
template<typename MEM , typename OBJ , typename T1 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1)
	This method is thread-safe: it can be called from any thread. More...
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
	This method is thread-safe: it can be called from any thread. More...
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
	This method is thread-safe: it can be called from any thread. More...
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
	This method is thread-safe: it can be called from any thread. More...
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static void	ScheduleWithContext (uint32_t context, Time const &time, MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	This method is thread-safe: it can be called from any thread. More...
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(void))
	This method is thread-safe: it can be called from any thread. More...
template<typename U1 , typename T1 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1), T1 a1)
	This method is thread-safe: it can be called from any thread. More...
template<typename U1 , typename U2 , typename T1 , typename T2 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1, U2), T1 a1, T2 a2)
	This method is thread-safe: it can be called from any thread. More...
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
	This method is thread-safe: it can be called from any thread. More...
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
	This method is thread-safe: it can be called from any thread. More...
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static void	ScheduleWithContext (uint32_t context, Time const &time, void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	This method is thread-safe: it can be called from any thread. More...
Schedule events (in the same context) to run now.
template<typename MEM , typename OBJ >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj)
	Schedule an event to expire Now. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleNow (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
static EventId	ScheduleNow (void(*f)(void))
template<typename U1 , typename T1 >
static EventId	ScheduleNow (void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	ScheduleNow (void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleNow (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
Schedule events to run at the end of the simulation.
template<typename MEM , typename OBJ >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj)
	Schedule an event to expire at Destroy time. More...
template<typename MEM , typename OBJ , typename T1 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1)
template<typename MEM , typename OBJ , typename T1 , typename T2 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4)
template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleDestroy (MEM mem_ptr, OBJ obj, T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
static EventId	ScheduleDestroy (void(*f)(void))
template<typename U1 , typename T1 >
static EventId	ScheduleDestroy (void(*f)(U1), T1 a1)
template<typename U1 , typename U2 , typename T1 , typename T2 >
static EventId	ScheduleDestroy (void(*f)(U1, U2), T1 a1, T2 a2)
template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3), T1 a1, T2 a2, T3 a3)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3, U4), T1 a1, T2 a2, T3 a3, T4 a4)
template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
static EventId	ScheduleDestroy (void(*f)(U1, U2, U3, U4, U5), T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

Private Member Functions
	Simulator ()
	Default constructor. More...
	~Simulator ()
	Destructor. More...

Static Private Member Functions

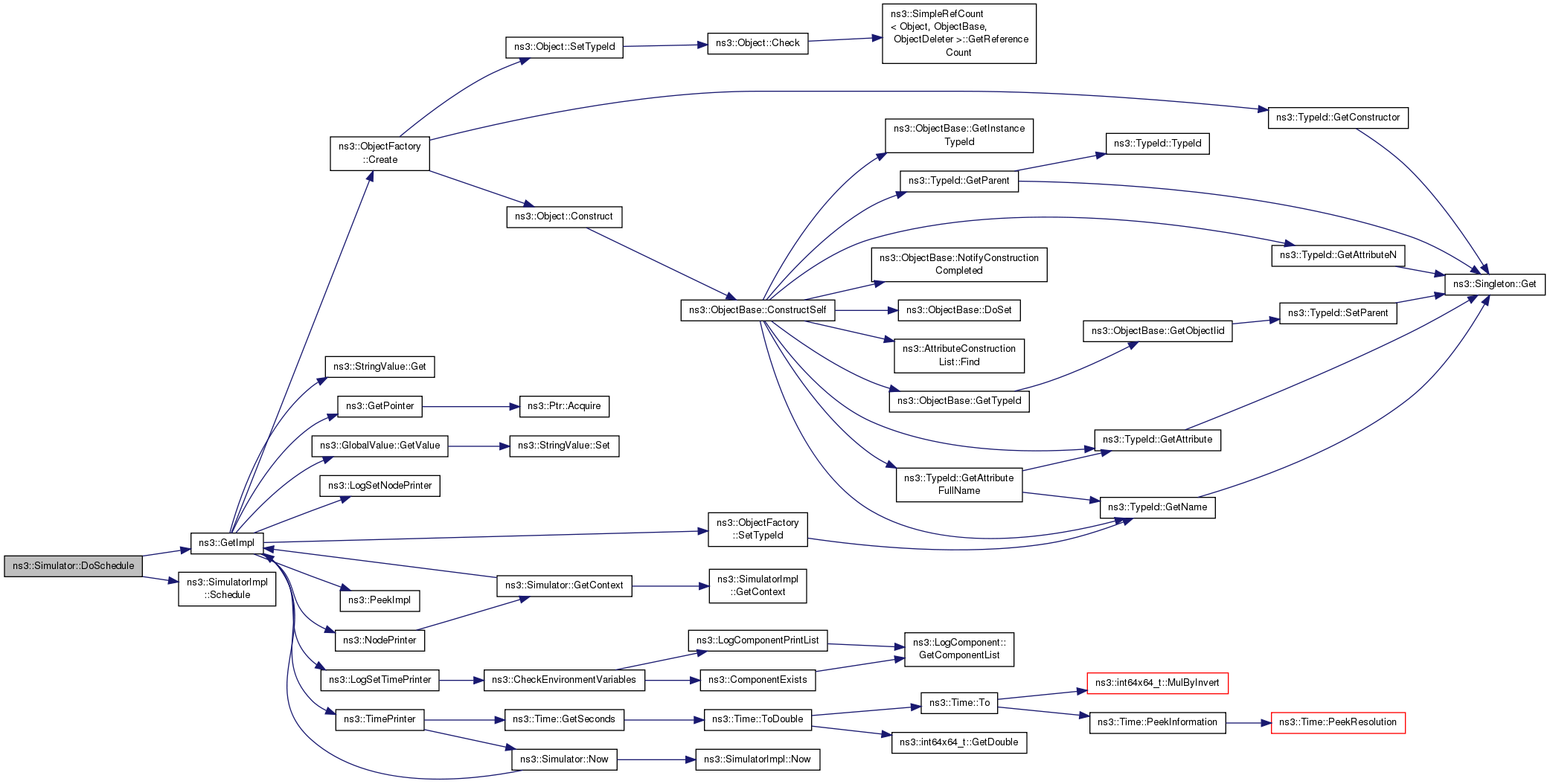

static EventId	DoSchedule (Time const &time, EventImpl *event)
	Implementation of the various Schedule methods. More...
static EventId	DoScheduleDestroy (EventImpl *event)
	Implementation of the various ScheduleDestroy methods. More...

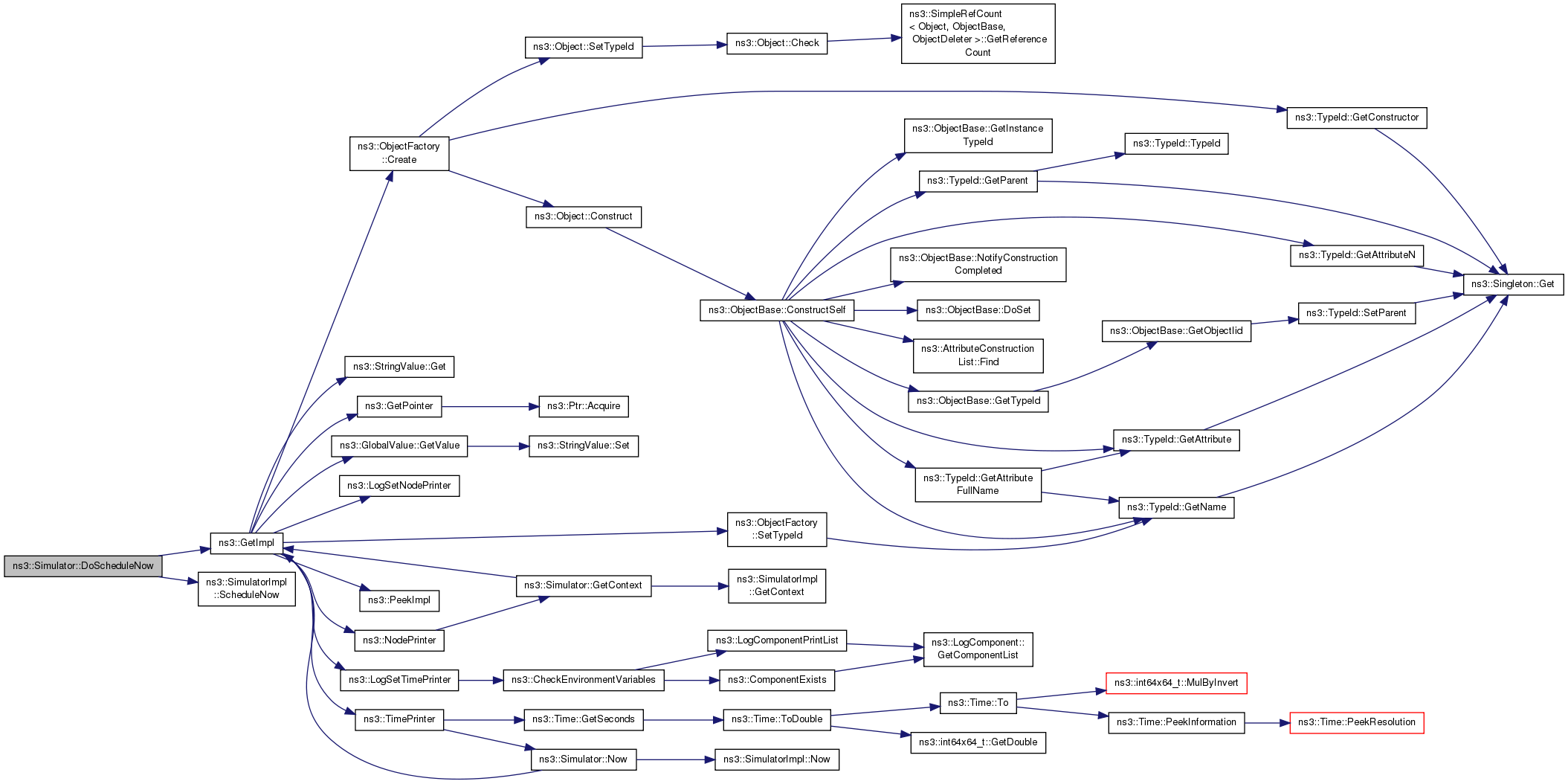

static EventId	DoScheduleNow (EventImpl *event)
	Implementation of the various ScheduleNow methods. More...

Detailed Description

Control the scheduling of simulation events.

The internal simulation clock is maintained as a 64-bit integer in a unit specified by the user through the Time::SetResolution function. This means that it is not possible to specify event expiration times with anything better than this user-specified accuracy. Events whose expiration time is the same modulo this accuracy are scheduled in FIFO order: the first event inserted in the scheduling queue is scheduled to expire first.

A simple example of how to use the Simulator class to schedule events is shown in sample-simulator.cc ::

/* -*- Mode:C++; c-file-style:"gnu"; indent-tabs-mode:nil; -*- */
/*
 * Copyright (c) 2010 INRIA
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation;
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 *
 * Authors: Mathieu Lacage <mathieu.lacage@sophia.inria.fr>
 */

#include <iostream>
#include "ns3/simulator.h"
#include "ns3/nstime.h"
#include "ns3/command-line.h"
#include "ns3/double.h"
#include "ns3/random-variable-stream.h"

using namespace ns3;

class MyModel
{
public:
  void Start (void);
private:
  void HandleEvent (double eventValue);
};

void
MyModel::Start (void)
{
  Simulator::Schedule (Seconds (10.0),
                       &MyModel::HandleEvent,
                       this, Simulator::Now ().GetSeconds ());
}
void
MyModel::HandleEvent (double value)
{
  std::cout << "Member method received event at "
            << Simulator::Now ().GetSeconds ()
            << "s started at " << value << "s" << std::endl;
}

static void
ExampleFunction (MyModel *model)
{
  std::cout << "ExampleFunction received event at "
            << Simulator::Now ().GetSeconds () << "s" << std::endl;
  model->Start ();
}

static void
RandomFunction (void)
{
  std::cout << "RandomFunction received event at "
            << Simulator::Now ().GetSeconds () << "s" << std::endl;
}

static void
CancelledEvent (void)
{
  std::cout << "I should never be called... " << std::endl;
}

int main (int argc, char *argv[])
{
  CommandLine cmd;
  cmd.Parse (argc, argv);

  MyModel model;
  Ptr<UniformRandomVariable> v = CreateObject<UniformRandomVariable> ();
  v->SetAttribute ("Min", DoubleValue (10));
  v->SetAttribute ("Max", DoubleValue (20));

  Simulator::Schedule (Seconds (10.0), &ExampleFunction, &model);

  Simulator::Schedule (Seconds (v->GetValue ()), &RandomFunction);

  EventId id = Simulator::Schedule (Seconds (30.0), &CancelledEvent);
  Simulator::Cancel (id);

  Simulator::Run ();

  Simulator::Destroy ();
}

Todo:

Define what the simulation or event context means.

Definition at line 70 of file simulator.h.

Constructor & Destructor Documentation

ns3::Simulator::Simulator ( )

private

Default constructor.

ns3::Simulator::~Simulator ( )

private

Destructor.

Member Function Documentation

void ns3::Simulator::Cancel ( const EventId &  id )

static

Set the cancel bit on this event: the event's associated function will not be invoked when it expires.

This method has the same visible effect as the ns3::Simulator::Remove method but its algorithmic complexity is much lower: it has O(1) complexity. This method has the exact same semantics as ns3::EventId::Cancel. Note that it is not possible to cancel events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

id	the event to cancel

Definition at line 311 of file simulator.cc.

References ns3::SimulatorImpl::Cancel(), ns3::GetImpl(), and ns3::PeekImpl().

Referenced by ns3::EventId::Cancel(), ns3::Timer::Cancel(), ns3::LteUeRrc::CancelEnteringTrigger(), ns3::OnOffApplication::CancelEvents(), ns3::LteUeRrc::CancelLeavingTrigger(), ns3::DataCalculator::DoDispose(), ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::dsdv::RoutingTable::ForceDeleteIpv4Event(), ns3::UanMacCw::NotifyTxStart(), ns3::SSLinkManager::PerformRanging(), ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent(), ns3::UanMacCw::SaveTimer(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::SubscriberStationNetDevice::SetTimer(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::FdNetDevice::Start(), ns3::FlowMonitor::Start(), ns3::TapBridge::Start(), Sender::StartApplication(), ns3::SimpleOfdmWimaxPhy::StartReceive(), ns3::FdNetDevice::Stop(), ns3::FlowMonitor::Stop(), ns3::TapBridge::Stop(), Sender::StopApplication(), ns3::PacketSocketClient::StopApplication(), ns3::UdpClient::StopApplication(), ns3::Ping6::StopApplication(), ns3::UdpTraceClient::StopApplication(), ns3::Radvd::StopApplication(), ns3::UdpEchoClient::StopApplication(), and ns3::EventGarbageCollector::~EventGarbageCollector().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Simulator::Destroy ( void  )

static

Execute the events scheduled with ScheduleDestroy().

This method is typically invoked at the end of a simulation to avoid false-positive reports by a leak checker. After this method has been invoked, it is actually possible to restart a new simulation with a set of calls to Simulator::Run, Simulator::Schedule and Simulator::ScheduleWithContext.

Definition at line 164 of file simulator.cc.

References ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), NS_LOG_FUNCTION_NOARGS, and ns3::PeekImpl().

Referenced by ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::NeighborTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::aodv::IdCacheTest::DoRun(), ns3::olsr::Bug780Test::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::TimestampTestCase::DoTeardown(), ns3::WScalingTestCase::DoTeardown(), Ns2MobilityHelperTest::DoTeardown(), ns3::TimestampValueTestCase::DoTeardown(), experiment(), Bench::RunBench(), RunSimulation(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), and test().

Here is the call graph for this function:

Here is the caller graph for this function:

EventId ns3::Simulator::DoSchedule ( Time const &  time, EventImpl *  event  )

staticprivate

Implementation of the various Schedule methods.

Parameters

[in]	time	Delay until the event should execute.
[in]	event	The event to execute.

Returns

The EventId.

Definition at line 260 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::Schedule().

Referenced by Schedule().

Here is the call graph for this function:

Here is the caller graph for this function:

EventId ns3::Simulator::DoScheduleDestroy ( EventImpl *  event )

staticprivate

Implementation of the various ScheduleDestroy methods.

Parameters

[in]

event

The event to execute.

Returns

The EventId.

Definition at line 270 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::ScheduleDestroy().

Referenced by ScheduleDestroy().

Here is the call graph for this function:

Here is the caller graph for this function:

EventId ns3::Simulator::DoScheduleNow ( EventImpl *  event )

staticprivate

Implementation of the various ScheduleNow methods.

Parameters

[in]

event

The event to execute.

Returns

The EventId.

Definition at line 265 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::ScheduleNow().

Referenced by ScheduleNow().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Simulator::GetContext ( void  )

static

Get the current simulation context.

Returns

The current simulation context

Definition at line 343 of file simulator.cc.

References ns3::SimulatorImpl::GetContext(), and ns3::GetImpl().

Referenced by ns3::NodePrinter(), and ns3::Node::ReceiveFromDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::Simulator::GetDelayLeft ( const EventId &  id )

static

Get the remaining time until this event will execute.

Parameters

id	The event id to analyse.

Returns

The delay left until the input event id expires. if the event is not running, this method returns zero.

Definition at line 232 of file simulator.cc.

References ns3::SimulatorImpl::GetDelayLeft(), ns3::GetImpl(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::LteUeRrc::CancelEnteringTrigger(), ns3::LteUeRrc::CancelLeavingTrigger(), ns3::TcpSocketBase::Destroy(), ns3::TcpSocketBase::Destroy6(), ns3::DcfManager::DoRestartAccessTimeoutIfNeeded(), ns3::Timer::GetDelayLeft(), ns3::RipNg::HandleResponses(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::ReceivedData(), ns3::StaWifiMac::RestartBeaconWatchdog(), and ns3::Timer::Suspend().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SimulatorImpl > ns3::Simulator::GetImplementation ( void  )

static

Get the SimulatorImpl singleton.

Internal:

If the SimulatorImpl singleton hasn't been created yet, this function does so. At the same time it also creates the Scheduler. Both of these respect the global values which may have been set from the command line or through the Config system.

As a side effect we also call LogSetTimePrinter() and LogSetNodePrinter() with the default implementations since we can't really do any logging until we have a SimulatorImpl and Scheduler.

Returns

The SimulatorImpl singleton.

Definition at line 390 of file simulator.cc.

References ns3::GetImpl(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::GrantedTimeWindowMpiInterface::GetSize(), ns3::GrantedTimeWindowMpiInterface::GetSystemId(), ns3::NullMessageMpiInterface::IsEnabled(), ns3::GrantedTimeWindowMpiInterface::IsEnabled(), and ns3::PyViz::SimulatorRunUntil().

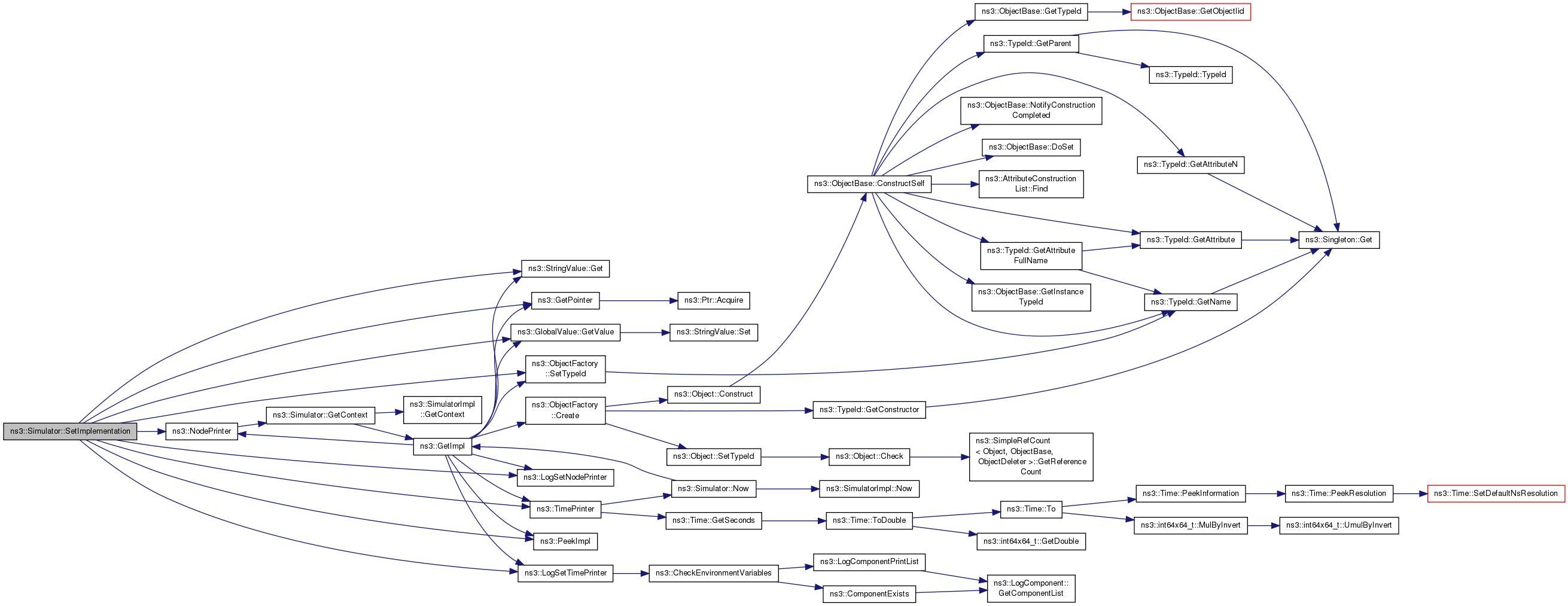

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::Simulator::GetMaximumSimulationTime ( void  )

static

Get the maximum representable simulation time.

Returns

The maximum simulation time at which an event can be scheduled.

The returned value will always be bigger than or equal to Simulator::Now.

Definition at line 336 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::GetMaximumSimulationTime(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::DcfManager::DoRestartAccessTimeoutIfNeeded(), ns3::RemoteChannelBundleManager::GetSafeTime(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::aodv::RoutingProtocol::SetIpv4(), and ns3::dsdv::RoutingProtocol::SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Simulator::GetSystemId ( void  )

static

Get the system id of this simulator.

The system id is the identifier for this simulator instance in a distributed simulation. For MPI this is the MPI rank.

Returns

The system id for this simulator.

Definition at line 349 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::GetSystemId(), NS_LOG_FUNCTION_NOARGS, and ns3::PeekImpl().

Here is the call graph for this function:

bool ns3::Simulator::IsExpired ( const EventId &  id )

static

Check if an event has already run or been cancelled.

This method has O(1) complexity. Note that it is not possible to test for the expiration of events which were scheduled for the "destroy" time. Doing so will result in a program error (crash). An event is said to "expire" when it starts being scheduled which means that if the code executed by the event calls this function, it will get true.

Parameters

id	The event to test for expiration.

Returns

true if the event has expired, false otherwise.

Definition at line 321 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::IsExpired(), and ns3::PeekImpl().

Referenced by ns3::EventId::IsExpired().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Simulator::IsFinished ( void  )

static

Check if the simulation should finish.

Reasons to finish are because there are no more events lefts to be scheduled, or if simulation time has already reached the "stop time" (see Simulator::Stop()).

Returns

true if no more events or stop time reached.

Definition at line 193 of file simulator.cc.

References ns3::GetImpl(), ns3::SimulatorImpl::IsFinished(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::AnimationInterface::MobilityAutoCheck(), PrintCellInfo(), ns3::BasicEnergySource::UpdateEnergySource(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), and ns3::BasicEnergyHarvester::UpdateHarvestedPower().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::Simulator::Now ( void  )

static

Return the current simulation virtual time.

Returns

The current virtual time.

Definition at line 223 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::Now().

Referenced by ns3::dsr::RouteCache::AddNeighbor(), ns3::flame::FlameRtable::AddPath(), ns3::dot11s::HwmpRtable::AddPrecursor(), ns3::dot11s::HwmpRtable::AddProactivePath(), ns3::dot11s::HwmpRtable::AddReactivePath(), ns3::LteEnbRrc::AddUeMeasReportConfig(), NodeStatistics::AdvancePosition(), ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval(), ns3::InterferenceHelper::AppendEvent(), ns3::AsciiLrWpanMacTransmitSinkWithContext(), ns3::AsciiLrWpanMacTransmitSinkWithoutContext(), ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyRxOkEvent(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::AsciiPhyTxEvent(), ns3::WimaxHelper::AsciiRxEvent(), ns3::WimaxHelper::AsciiTxEvent(), ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire(), background_function(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::BandwidthManager::CalculateAllocationSize(), ns3::WifiRemoteStationInfo::CalculateAveragingCoefficient(), ns3::BasicEnergyHarvester::CalculateHarvestedPower(), ns3::BasicEnergySource::CalculateRemainingEnergy(), ns3::LiIonEnergySource::CalculateRemainingEnergy(), ns3::PyViz::CallbackStopSimulation(), ns3::dsr::DsrRouting::CallCancelPacketTimer(), ns3::OnOffApplication::CancelEvents(), Bench::Cb(), ns3::AcousticModemEnergyModel::ChangeState(), ns3::WifiRadioEnergyModel::ChangeState(), ns3::LrWpanPhy::ChangeTrxState(), ns3::UplinkSchedulerMBQoS::CheckDeadline(), ns3::FlowMonitor::CheckForLostPackets(), ns3::LrWpanPhy::CheckInterference(), CheckQueueSize(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::RraaWifiManager::CheckTimeout(), ns3::WifiMacQueue::Cleanup(), ns3::dsr::DsrNetworkQueue::Cleanup(), ns3::BlockAckManager::CleanupBuffers(), ns3::ServiceFlow::CleanUpQueue(), ns3::CoDelGetTime(), Emitter::Count(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), CourseChange(), Ns2MobilityHelperTest::CourseChange(), WaypointMobilityModelNotifyTest::CourseChangeCallback(), ns3::MobilityHelper::CourseChanged(), ns3::LteUePhy::CreateDlCqiFeedbackMessage(), ns3::AnimationInterface::CsmaPhyRxEndTrace(), ns3::AnimationInterface::CsmaPhyTxBeginTrace(), ns3::AnimationInterface::CsmaPhyTxEndTrace(), CwndTracer(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithContext(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithoutContext(), ns3::PcapHelper::DefaultSink(), ns3::dot11s::HwmpRtable::DeleteProactivePath(), ns3::TcpSocketBase::Destroy(), ns3::TcpSocketBase::Destroy6(), ns3::AnimationInterface::DevTxTrace(), ns3::RadioBearerStatsCalculator::DlRxPdu(), ns3::MacStatsCalculator::DlScheduling(), ns3::RadioBearerStatsCalculator::DlTxPdu(), ns3::LteEnbMac::DoAllocateNcRaPreamble(), ns3::TraceFadingLossModel::DoCalcRxPowerSpectralDensity(), ns3::AmrrWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoCreateStation(), ns3::PfFfMacScheduler::DoCschedLcConfigReq(), ns3::TdBetFfMacScheduler::DoCschedLcConfigReq(), ns3::FdBetFfMacScheduler::DoCschedLcConfigReq(), ns3::CqaFfMacScheduler::DoCschedLcConfigReq(), ns3::TdTbfqFfMacScheduler::DoCschedLcConfigReq(), ns3::FdTbfqFfMacScheduler::DoCschedLcConfigReq(), ns3::PssFfMacScheduler::DoCschedLcConfigReq(), ns3::RedQueue::DoDequeue(), ns3::RedQueue::DoEnqueue(), ns3::ConstantAccelerationMobilityModel::DoGetPosition(), ns3::ConstantAccelerationMobilityModel::DoGetVelocity(), ns3::DcfManager::DoGrantAccess(), ns3::BasicEnergyHarvester::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::MacLow::DoNavResetNow(), ns3::MacLow::DoNavStartNow(), ns3::LteRlcTm::DoNotifyTxOpportunity(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcSm::DoNotifyTxOpportunity(), ns3::PyViz::DoPause(), ns3::LteTestRrc::DoReceivePdcpSdu(), ns3::LteRlcTm::DoReceivePdu(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LtePdcp::DoReceivePdu(), ns3::LteRlcSm::DoReceivePdu(), ns3::LteRlcTm::DoReportBufferStatus(), ns3::LteRlcUm::DoReportBufferStatus(), ns3::LteRlcAm::DoReportBufferStatus(), ns3::LteUePhy::DoReset(), ns3::DcfManager::DoRestartAccessTimeoutIfNeeded(), ns3::ConstantAccelerationMobilityModel::DoSetPosition(), ns3::WaypointMobilityModel::DoSetPosition(), ns3::LteEnbPhy::DoSetSrsConfigurationIndex(), ns3::LteUePhy::DoSetSrsConfigurationIndex(), ns3::LteUeMac::DoSubframeIndication(), ns3::WifiPhyStateHelper::DoSwitchFromRx(), ns3::LteRlcTm::DoTransmitPdcpPdu(), ns3::LteRlcUm::DoTransmitPdcpPdu(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LtePdcp::DoTransmitPdcpSdu(), DroppingStateTracer(), ns3::olsr::RoutingProtocol::Dump(), ns3::TcpTahoe::DupAck(), ns3::olsr::RoutingProtocol::DupTupleTimerExpire(), ns3::TcpOptionTS::ElapsedTimeFromTsValue(), Emitter::Emit(), LteHandoverDelayTestCase::EnbHandoverEndOkCallback(), LteHandoverDelayTestCase::EnbHandoverStartCallback(), ns3::UanMacRcGw::EndCycle(), ns3::LrWpanPhy::EndEd(), ns3::LteEnbPhy::EndFrame(), ns3::YansWifiPhy::EndReceive(), ns3::LrWpanPhy::EndRx(), ns3::LteSpectrumPhy::EndRxData(), ns3::LteEnbPhy::EndSubFrame(), ns3::UanMacCw::EndTx(), ns3::WimaxMacQueue::Enqueue(), ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::WifiMacQueue::Enqueue(), ns3::dsr::DsrNetworkQueue::Enqueue(), ns3::TcpWestwood::EstimateBW(), ns3::TcpSocketBase::EstimateRtt(), EveryDropTracer(), ExampleFunction(), ns3::Watchdog::Expire(), ns3::dsr::GraReply::FindAndUpdate(), ns3::dsr::RreqTable::FindAndUpdate(), ns3::UanMacRcGw::FindOptA(), first_function(), ns3::ArpCache::Flush(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::dsr::DsrRouting::ForwardErrPacket(), ns3::LteUePhy::GenerateCqiRsrpRsrq(), ns3::LteEnbPhy::GenerateCtrlCqiReport(), GenerateTraffic(), ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate(), ns3::WifiPhyStateHelper::GetDelayUntilIdle(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::aodv::Neighbors::GetExpireTime(), ns3::aodv::QueueEntry::GetExpireTime(), ns3::dsr::SendBuffEntry::GetExpireTime(), ns3::dsdv::QueueEntry::GetExpireTime(), ns3::dsr::ErrorBuffEntry::GetExpireTime(), ns3::dsr::PassiveBuffEntry::GetExpireTime(), ns3::dsr::ReceivedRreqEntry::GetExpireTime(), ns3::dsr::MaintainBuffEntry::GetExpireTime(), ns3::dsr::RouteCacheEntry::GetExpireTime(), ns3::dsr::RouteCache::GetExpireTime(), ns3::BridgeNetDevice::GetLearnedState(), ns3::aodv::RoutingTableEntry::GetLifeTime(), ns3::dsdv::RoutingTableEntry::GetLifeTime(), ns3::dsr::LinkStab::GetLinkStability(), ns3::dsr::NodeStab::GetNodeStability(), ns3::PyViz::GetPauseMessages(), ns3::dot11s::HwmpRtable::GetPrecursors(), GetSetTRXStateConfirm(), ns3::WifiPhyStateHelper::GetState(), ns3::WifiPhyStateHelper::GetStateDuration(), ns3::NscTcpL4Protocol::gettime(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), MyModel::HandleEvent(), ns3::UdpEchoServer::HandleRead(), ns3::PacketSocketServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::Radvd::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::ArpCache::HandleWaitReplyTimeout(), HarvestedPower(), ns3::aodv::RoutingProtocol::HelloTimerExpire(), ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire(), inserted_function(), ns3::aodv::RoutingTableEntry::Invalidate(), ns3::dsr::RouteCacheEntry::Invalidate(), ns3::Ipv4L3ProtocolDropSinkWithContext(), ns3::Ipv4L3ProtocolDropSinkWithoutContext(), ns3::Ipv4L3ProtocolRxSinkWithContext(), ns3::Ipv4L3ProtocolRxSinkWithoutContext(), ns3::Ipv4L3ProtocolRxTxSink(), ns3::Ipv4L3ProtocolTxSinkWithContext(), ns3::Ipv4L3ProtocolTxSinkWithoutContext(), ns3::Ipv6L3ProtocolDropSinkWithContext(), ns3::Ipv6L3ProtocolDropSinkWithoutContext(), ns3::Ipv6L3ProtocolRxSinkWithContext(), ns3::Ipv6L3ProtocolRxSinkWithoutContext(), ns3::Ipv6L3ProtocolRxTxSink(), ns3::Ipv6L3ProtocolTxSinkWithContext(), ns3::Ipv6L3ProtocolTxSinkWithoutContext(), ns3::DcfManager::IsBusy(), ns3::aodv::IdCache::IsDuplicate(), ns3::Probe::IsEnabled(), ns3::ArpCache::Entry::IsExpired(), ns3::AnimationInterface::IsInTimeWindow(), ns3::MacLow::IsNavZero(), ns3::BridgeNetDevice::Learn(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::TraceFadingLossModel::LoadTrace(), ns3::WifiPhyStateHelper::LogPreviousIdleAndCcaBusyStates(), ns3::flame::FlameRtable::Lookup(), ns3::dot11s::HwmpRtable::LookupProactive(), ns3::dot11s::HwmpRtable::LookupProactiveExpired(), ns3::dot11s::HwmpRtable::LookupReactive(), ns3::dot11s::HwmpRtable::LookupReactiveExpired(), ns3::AnimationInterface::LteRxTrace(), ns3::AnimationInterface::LteSpectrumPhyRxStart(), ns3::AnimationInterface::LteSpectrumPhyTxStart(), ns3::AnimationInterface::LteTxTrace(), ns3::LteUePhy::LteUePhy(), ns3::dsr::RreqTable::MarkLinkAsUnidirectional(), ns3::StaWifiMac::MissedBeacons(), modify(), ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire(), ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire(), ns3::olsr::RoutingProtocol::NeighborLoss(), ns3::TcpSocketBase::NewAck(), ns3::DcfManager::NotifyAckTimeoutResetNow(), ns3::DcfManager::NotifyAckTimeoutStartNow(), ns3::Ipv4GlobalRouting::NotifyAddAddress(), ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent(), ns3::UanMacCw::NotifyCcaEnd(), ns3::UanMacCw::NotifyCcaStart(), NotifyConnectionEstablishedEnb(), NotifyConnectionEstablishedUe(), ns3::DcfManager::NotifyCtsTimeoutResetNow(), ns3::DcfManager::NotifyCtsTimeoutStartNow(), NotifyHandoverEndOkEnb(), NotifyHandoverEndOkUe(), NotifyHandoverStartEnb(), NotifyHandoverStartUe(), ns3::Ipv4GlobalRouting::NotifyInterfaceDown(), ns3::Ipv4GlobalRouting::NotifyInterfaceUp(), ns3::DcfManager::NotifyMaybeCcaBusyStartNow(), ns3::MacLow::NotifyNav(), ns3::DcfManager::NotifyNavResetNow(), ns3::DcfManager::NotifyNavStartNow(), ns3::Ipv4GlobalRouting::NotifyRemoveAddress(), ns3::UanMacCw::NotifyRxEndError(), ns3::DcfManager::NotifyRxEndErrorNow(), ns3::UanMacCw::NotifyRxEndOk(), ns3::DcfManager::NotifyRxEndOkNow(), ns3::UanMacCw::NotifyRxStart(), ns3::DcfManager::NotifyRxStartNow(), ns3::MacLow::NotifySleepNow(), ns3::DcfManager::NotifySwitchingStartNow(), ns3::MacLow::NotifySwitchingStartNow(), ns3::UanMacCw::NotifyTxStart(), ns3::DcfManager::NotifyTxStartNow(), ns3::DcfManager::NotifyWakeupNow(), ns3::Now(), ns3::TcpOptionTS::NowToTsValue(), ns3::CoDelQueue::OkToDrop(), ns3::aodv::IdCache::IsExpired::operator()(), ns3::aodv::CloseNeighbor::operator()(), ns3::dsr::GraReply::IsExpired::operator()(), ns3::dsr::RreqTable::IsExpired::operator()(), ns3::dsr::CloseNeighbor::operator()(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::PcapSniffLrWpan(), ns3::PcapSniffRxEvent(), ns3::PcapSniffTxEvent(), ns3::PcapSniffTxRxEvent(), ns3::TcpSocketBase::PersistTimeout(), PhyStateTrace(), ns3::Watchdog::Ping(), ns3::LrWpanPhy::PlmeEdRequest(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), PowerCallback(), ns3::aodv::RoutingTableEntry::Print(), ns3::dsdv::RoutingTableEntry::Print(), ns3::dsr::RouteCacheEntry::Print(), ns3::Ipv4RoutingHelper::PrintArpCache(), ns3::Ipv4RoutingHelper::PrintArpCacheEvery(), PrintCellInfo(), IpAddressHelper::PrintIpAddresses(), ns3::Ipv6RoutingHelper::PrintNdiscCache(), ns3::Ipv6RoutingHelper::PrintNdiscCacheEvery(), PrintReceivedPacket(), ns3::dsdv::RoutingProtocol::PrintRoutingTable(), ns3::aodv::RoutingProtocol::PrintRoutingTable(), ns3::Ipv4ListRouting::PrintRoutingTable(), ns3::Ipv6ListRouting::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), ns3::Ipv6StaticRouting::PrintRoutingTable(), ns3::UanMacRc::ProcessAck(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::olsr::RoutingProtocol::ProcessHello(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::BSLinkManager::ProcessRangingRequest(), ns3::olsr::RoutingProtocol::ProcessTc(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::AnimationInterface::PurgePendingPackets(), ns3::WifiMacQueue::PushFront(), RandomFunction(), ns3::BaseStationNetDevice::RangingOppStart(), RateCallback(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), ns3::UanTransducerHd::Receive(), ns3::V4Ping::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::PeerManagementProtocol::ReceiveBeacon(), ns3::TcpSocketBase::ReceivedData(), ns3::LteUePhy::ReceiveLteControlMessageList(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ReceivePdDataIndication(), ns3::DelayJitterEstimation::RecordRx(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::aodv::RoutingProtocol::RecvRequest(), RemainingEnergy(), RemainingEnergyTrace(), ns3::olsr::RoutingProtocol::RemoveLinkTuple(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), ns3::MeshHelper::Report(), ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinr(), ns3::FlowMonitor::ReportFirstTx(), ns3::FlowMonitor::ReportForwarding(), ns3::PhyStatsCalculator::ReportInterference(), ns3::FlowMonitor::ReportLastRx(), ns3::LteUePhy::ReportUeMeasurements(), ns3::PhyStatsCalculator::ReportUeSinr(), ns3::flame::FlameProtocol::RequestRoute(), SampleEmitter::Reschedule(), ns3::RadioBearerStatsCalculator::RescheduleEndEpoch(), ns3::RraaWifiManager::ResetCountersBasic(), ns3::StaWifiMac::RestartBeaconWatchdog(), ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), ns3::TcpWestwood::Retransmit(), ns3::dot11s::HwmpProtocol::RetryPathDiscovery(), ns3::TcpSocketBase::ReTxTimeout(), ns3::olsr::RoutingProtocol::RoutingTableComputation(), RtoTracer(), ns3::UanMacRc::RtsTimeout(), RttTracer(), ns3::RvBatteryModel::RvBatteryModel(), ns3::UanPhyDual::RxOkFromSubPhy(), ns3::UanMacAloha::RxPacketError(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::UanMacCw::SaveTimer(), ns3::LteUeRrc::SaveUeMeasurements(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::RealtimeSimulatorImpl::Schedule(), ns3::UanMacRc::ScheduleData(), ns3::SSScheduler::SelectConnection(), ns3::BSSchedulerSimple::SelectConnection(), ns3::PacketSocketClient::Send(), ns3::UdpClient::Send(), ns3::V4Ping::Send(), ns3::Radvd::Send(), ns3::UdpEchoClient::Send(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendAck(), ns3::BulkSendApplication::SendData(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::dsr::DsrRouting::SendGratuitousReply(), ns3::olsr::RoutingProtocol::SendHello(), Sender::SendPacket(), ns3::UanPhyDual::SendPacket(), ns3::OnOffApplication::SendPacket(), ns3::UanMacCw::SendPacket(), ns3::UanMacRcGw::SendPacket(), ns3::dsr::DsrRouting::SendPacket(), ns3::UanMacRc::SendPacket(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsr::DsrRouting::SendReply(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::dsr::DsrRouting::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward(), ns3::UanMacRc::SendRts(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::MgtProbeResponseHeader::Serialize(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), ns3::SimpleDeviceEnergyModel::SetCurrentA(), ns3::aodv::QueueEntry::SetExpireTime(), ns3::dsr::SendBuffEntry::SetExpireTime(), ns3::dsdv::QueueEntry::SetExpireTime(), ns3::dsr::ErrorBuffEntry::SetExpireTime(), ns3::dsr::PassiveBuffEntry::SetExpireTime(), ns3::dsr::ReceivedRreqEntry::SetExpireTime(), ns3::dsr::MaintainBuffEntry::SetExpireTime(), ns3::dsr::RouteCacheEntry::SetExpireTime(), ns3::RemoteChannelBundle::SetGuaranteeTime(), ns3::aodv::RoutingTableEntry::SetLifeTime(), ns3::dsr::LinkStab::SetLinkStability(), ns3::AcousticModemEnergyModel::SetMicroModemState(), ns3::dsr::NodeStab::SetNodeStability(), ns3::ConstantVelocityHelper::SetPosition(), ns3::ConstantVelocityHelper::SetVelocity(), ns3::ConstantAccelerationMobilityModel::SetVelocityAndAcceleration(), ns3::WifiRadioEnergyModel::SetWifiRadioState(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::dot11s::HwmpProtocol::ShouldSendPreq(), showPosition(), ns3::PyViz::SimulatorRunUntil(), SocketPrinter(), SsThreshTracer(), MyModel::Start(), ns3::LteTestRrc::Start(), ns3::V4Ping::StartApplication(), ns3::DcfState::StartBackoffNow(), ns3::UanMacRcGw::StartCycle(), ns3::BaseStationNetDevice::StartDlSubFrame(), StartFlow(), ns3::BaseStationNetDevice::StartFrame(), ns3::YansWifiPhy::StartReceivePlcp(), ns3::LrWpanPhy::StartRx(), ns3::LteSpectrumPhy::StartRxData(), ns3::LteSpectrumPhy::StartRxDlCtrl(), ns3::UanPhyGen::StartRxPacket(), ns3::LteSpectrumPhy::StartRxUlSrs(), ns3::OnOffApplication::StartSending(), ns3::LteEnbPhy::StartSubFrame(), ns3::UanMacCw::StartTimer(), ns3::BaseStationNetDevice::StartUlSubFrame(), ns3::ArpCache::StartWaitReplyTimer(), ns3::V4Ping::StopApplication(), ns3::LteUePhy::SubframeIndication(), ns3::WifiPhyStateHelper::SwitchFromSleep(), ns3::WifiPhyStateHelper::SwitchMaybeToCcaBusy(), ns3::WifiPhyStateHelper::SwitchToChannelSwitching(), ns3::WifiPhyStateHelper::SwitchToRx(), ns3::WifiPhyStateHelper::SwitchToSleep(), ns3::WifiPhyStateHelper::SwitchToTx(), TestDeterministicByTime(), ns3::TimePrinter(), ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire(), TotalEnergy(), TotalEnergyHarvested(), ns3::PyViz::TraceDevQueueDrop(), ns3::PyViz::TraceNetDevRxCommon(), ns3::PyViz::TraceNetDevTxCommon(), ns3::TimeSeriesAdaptor::TraceSinkDouble(), ns3::AnimationInterface::TrackIpv4L3ProtocolCounters(), ns3::AnimationInterface::TrackIpv4Route(), ns3::AnimationInterface::TrackQueueCounters(), ns3::AnimationInterface::TrackWifiMacCounters(), ns3::AnimationInterface::TrackWifiPhyCounters(), ns3::UanTransducerHd::Transmit(), ns3::PointToPointRemoteChannel::TransmitStart(), ns3::AnimationInterface::UanPhyGenRxTrace(), ns3::AnimationInterface::UanPhyGenTxTrace(), LteHandoverDelayTestCase::UeHandoverEndOkCallback(), LteHandoverDelayTestCase::UeHandoverStartCallback(), ns3::RadioBearerStatsCalculator::UlRxPdu(), ns3::MacStatsCalculator::UlScheduling(), ns3::RadioBearerStatsCalculator::UlTxPdu(), ns3::aodv::Neighbors::Update(), ns3::ConstantVelocityHelper::Update(), ns3::WaypointMobilityModel::Update(), ns3::DcfManager::UpdateBackoff(), ns3::BasicEnergySource::UpdateEnergySource(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), ns3::AmrrWifiManager::UpdateMode(), ns3::OnoeWifiManager::UpdateMode(), ns3::dsr::RouteCache::UpdateNeighbor(), ns3::ArpCache::Entry::UpdateSeen(), ns3::MinstrelWifiManager::UpdateStats(), ns3::BaseStationNetDevice::UplinkAllocationEnd(), ns3::BaseStationNetDevice::UplinkAllocationStart(), ns3::UplinkSchedulerRtps::UplinkSchedulerRtps(), ns3::UplinkSchedulerSimple::UplinkSchedulerSimple(), ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer(), ns3::AnimationInterface::WifiPhyRxBeginTrace(), ns3::AnimationInterface::WifiPhyTxBeginTrace(), ns3::AnimationInterface::WimaxRxTrace(), ns3::AnimationInterface::WimaxTxTrace(), ns3::AnimationInterface::WriteXmlRouting(), ns3::AnimationInterface::WriteXmlRp(), ns3::AnimationInterface::WriteXmlUpdateLink(), ns3::AnimationInterface::WriteXmlUpdateNodeColor(), ns3::AnimationInterface::WriteXmlUpdateNodeCounter(), ns3::AnimationInterface::WriteXmlUpdateNodeDescription(), ns3::AnimationInterface::WriteXmlUpdateNodeImage(), ns3::AnimationInterface::WriteXmlUpdateNodePosition(), and ns3::AnimationInterface::WriteXmlUpdateNodeSize().

Here is the call graph for this function:

void ns3::Simulator::Remove ( const EventId &  id )

static

Remove an event from the event list.

This method has the same visible effect as the ns3::EventId::Cancel method but its algorithmic complexity is much higher: it has often O(log(n)) complexity, sometimes O(n), sometimes worse. Note that it is not possible to remove events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

id	The event to remove from the list of scheduled events.

Definition at line 301 of file simulator.cc.

References ns3::GetImpl(), ns3::PeekImpl(), and ns3::SimulatorImpl::Remove().

Referenced by ns3::ArpCache::DoDispose(), ns3::RandomWaypointMobilityModel::DoSetPosition(), ns3::RandomDirection2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::SteadyStateRandomWaypointMobilityModel::DoSetPosition(), ns3::GaussMarkovMobilityModel::DoSetPosition(), ns3::Timer::Remove(), ns3::Timer::Suspend(), ns3::UanTransducerHd::Transmit(), and ns3::Timer::~Timer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Simulator::Run ( void  )

static

Run the simulation.

The simulation will run until one of:

• No events are present anymore
• The user called Simulator::Stop
• The user called Simulator::Stop with a stop time and the expiration time of the next event to be processed is greater than or equal to the stop time.

Definition at line 200 of file simulator.cc.

References ns3::Time::ClearMarkedTimes(), ns3::GetImpl(), NS_LOG_FUNCTION_NOARGS, and ns3::SimulatorImpl::Run().

Referenced by ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::NeighborTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::aodv::IdCacheTest::DoRun(), ns3::olsr::Bug780Test::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), ns3::TimestampTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::WScalingTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), Ns2MobilityHelperTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), ns3::TimestampValueTestCase::DoRun(), experiment(), Bench::RunBench(), RunSimulation(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), test(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename MEM , typename OBJ >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire at the relative time "time" is reached.

This can be thought of as scheduling an event for the current simulation time plus the Time passed as a parameter

When the event expires (when it becomes due to be run), the input method will be invoked on the input object.

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method

Returns

an id for the scheduled event.

Definition at line 819 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Referenced by ns3::Ipv6Interface::AddAddress(), ns3::SpectrumInterference::AddSignal(), ns3::LteInterference::AddSignal(), ns3::WaypointMobilityModel::AddWaypoint(), AdvancePosition(), NodeStatistics::AdvancePosition(), ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire(), ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::SteadyStateRandomWaypointMobilityModel::BeginWalk(), ns3::LteFfrDistributedAlgorithm::Calculate(), ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), ns3::LrWpanCsmaCa::CanProceed(), Bench::Cb(), CheckQueueSize(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::LteEnbRrc::ConfigureCell(), Emitter::Count(), ns3::MacLow::CreateBlockAckAgreement(), ns3::olsr::Bug780Test::CreateNodes(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::RadioEnvironmentMapHelper::DelayedInstall(), ns3::Icmpv6L4Protocol::DoDAD(), Emitter::DoInitialize(), ns3::dot11s::HwmpProtocol::DoInitialize(), ns3::UeManager::DoInitialize(), ns3::Application::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::RandomWaypointMobilityModel::DoInitializePrivate(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), ns3::LteRlcTm::DoNotifyTxOpportunity(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::TcpSocketBase::DoPeerClose(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::VsaManager::DoRepeat(), ns3::LteTestMac::DoReportBufferStatus(), ns3::DcfManager::DoRestartAccessTimeoutIfNeeded(), ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::NeighborTest::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::aodv::IdCacheTest::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), ns3::TimestampValueTestCase::DoRun(), ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReconfiguration(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishment(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishmentReject(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReject(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionRelease(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest(), ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionSetup(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), ns3::VsaManager::DoSendVsa(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LteTestMac::DoTransmitPdu(), ns3::RandomWalk2dMobilityModel::DoWalk(), ns3::GaussMarkovMobilityModel::DoWalk(), ns3::olsr::RoutingProtocol::DupTupleTimerExpire(), Emitter::Emit(), ns3::AnimationInterface::EnableIpv4L3ProtocolCounters(), ns3::AnimationInterface::EnableIpv4RouteTracking(), ns3::AnimationInterface::EnableQueueCounters(), ns3::AnimationInterface::EnableWifiMacCounters(), ns3::AnimationInterface::EnableWifiPhyCounters(), ns3::UanMacRcGw::EndCycle(), ns3::BaseStationNetDevice::EndDlSubFrame(), ns3::RadioBearerStatsCalculator::EndEpoch(), ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock(), ns3::BaseStationNetDevice::EndUlSubFrame(), ns3::TcpWestwood::EstimateRtt(), ns3::Watchdog::Expire(), ns3::LteRlcTm::ExpireRbsTimer(), ns3::LteRlcUm::ExpireRbsTimer(), ns3::LteRlcAm::ExpireRbsTimer(), ns3::LteRlcUm::ExpireReorderingTimer(), ns3::LteRlcAm::ExpireReorderingTimer(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::MacLow::ForwardDown(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::SpectrumAnalyzer::GenerateReport(), GenerateTraffic(), ns3::WaveformGenerator::GenerateWaveform(), ns3::Radvd::HandleRead(), ns3::RipNg::HandleResponses(), ns3::ArpCache::HandleWaitReplyTimeout(), ns3::LteHelper::HandoverRequest(), ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire(), ns3::RadioEnvironmentMapHelper::Install(), ns3::RipNg::InvalidateRoute(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::LinkTupleTimerExpire(), ns3::ArpL3Protocol::Lookup(), ns3::LteUePhy::LteUePhy(), ns3::MakeTimerImpl(), ns3::BaseStationNetDevice::MarkRangingOppStart(), ns3::BaseStationNetDevice::MarkUplinkAllocationEnd(), ns3::BaseStationNetDevice::MarkUplinkAllocationStart(), ns3::LteUeRrc::MeasurementReportTriggering(), ns3::StaWifiMac::MissedBeacons(), ns3::AnimationInterface::MobilityAutoCheck(), modify(), ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire(), ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire(), ns3::TcpSocketBase::NewAck(), ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent(), ns3::ChannelCoordinator::NotifyCchSlot(), ns3::FlowMonitor::NotifyConstructionCompleted(), ns3::BlockAckManager::NotifyGotBlockAck(), ns3::ChannelCoordinator::NotifyGuardSlot(), ns3::WifiRadioEnergyModelPhyListener::NotifyMaybeCcaBusyStart(), ns3::MacLow::NotifyNav(), ns3::ChannelCoordinator::NotifySchSlot(), ns3::WifiRadioEnergyModelPhyListener::NotifySwitchingStart(), ns3::UanMacCw::NotifyTxStart(), ns3::WifiRadioEnergyModelPhyListener::NotifyTxStart(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanPhy::PdDataRequest(), ns3::SSLinkManager::PerformBackoff(), ns3::FlowMonitor::PeriodicCheckForLostPackets(), ns3::TcpSocketBase::PersistTimeout(), ns3::Watchdog::Ping(), ns3::LrWpanPhy::PlmeCcaRequest(), ns3::LrWpanPhy::PlmeEdRequest(), ns3::LrWpanPhy::PlmeSetTRXStateRequest(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::Ipv4RoutingHelper::PrintArpCacheEvery(), PrintCellInfo(), ns3::Ipv4RoutingHelper::PrintEvery(), ns3::Ipv6RoutingHelper::PrintEvery(), ns3::Ipv6RoutingHelper::PrintNdiscCacheEvery(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAllAt(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAllAt(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAllEvery(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAllEvery(), ns3::Ipv4RoutingHelper::PrintNeighborCacheAt(), ns3::Ipv6RoutingHelper::PrintNeighborCacheAt(), ns3::Ipv4RoutingHelper::PrintNeighborCacheEvery(), ns3::Ipv6RoutingHelper::PrintNeighborCacheEvery(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableAllEvery(), ns3::Ipv4RoutingHelper::PrintRoutingTableAt(), ns3::Ipv6RoutingHelper::PrintRoutingTableAt(), ns3::Ipv4RoutingHelper::PrintRoutingTableEvery(), ns3::Ipv6RoutingHelper::PrintRoutingTableEvery(), ns3::dsr::DsrRouting::PriorityScheduler(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::olsr::RoutingProtocol::ProcessTc(), ns3::SubscriberStationNetDevice::ProcessUlMap(), Progress(), ns3::LrWpanCsmaCa::RandomBackoffDelay(), ns3::UanTransducerHd::Receive(), ns3::TcpSocketBase::ReceivedData(), ns3::MacLow::ReceiveError(), ns3::MacLow::ReceiveOk(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::UeManager::RecvHandoverRequestAck(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::UeManager::RecvRrcConnectionRequest(), ns3::LteUePhy::ReportUeMeasurements(), SampleEmitter::Reschedule(), ns3::RadioBearerStatsCalculator::RescheduleEndEpoch(), ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent(), ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), ns3::StaWifiMac::RestartBeaconWatchdog(), ns3::dot11s::HwmpProtocol::RetryPathDiscovery(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::UanMacRc::RtsTimeout(), Bench::RunBench(), ns3::RadioEnvironmentMapHelper::RunOneIteration(), ns3::dsr::DsrRouting::ScheduleCachedReply(), ns3::UanMacRc::ScheduleData(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), ns3::dsr::DsrRouting::ScheduleInterRequest(), ns3::MeshWifiInterfaceMac::ScheduleNextBeacon(), ns3::OnOffApplication::ScheduleNextTx(), ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent(), ns3::SSLinkManager::ScheduleScanningRestart(), ns3::OnOffApplication::ScheduleStartEvent(), ns3::OnOffApplication::ScheduleStopEvent(), ns3::Ping6::ScheduleTransmit(), ns3::UdpEchoClient::ScheduleTransmit(), ns3::PacketSocketClient::Send(), ns3::UdpClient::Send(), ns3::V4Ping::Send(), ns3::UdpTraceClient::Send(), ns3::Radvd::Send(), ns3::TcpSocketBase::Send(), ns3::dsr::DsrRouting::Send(), ns3::StaWifiMac::SendAssociationRequest(), ns3::BaseStationNetDevice::SendBursts(), ns3::MacLow::SendCtsToSelf(), ns3::LteTestRrc::SendData(), ns3::LteTestPdcp::SendData(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::SimpleNetDevice::SendFrom(), ns3::aodv::RoutingProtocol::SendHello(), WaveNetDeviceExample::SendIpExample(), ns3::LteUeRrc::SendMeasurementReport(), ns3::dot11s::HwmpProtocolMac::SendMyPerr(), ns3::dot11s::HwmpProtocolMac::SendMyPreq(), ns3::Icmpv6L4Protocol::SendNS(), ns3::ApWifiMac::SendOneBeacon(), Sender::SendPacket(), SendPacket(), ns3::UanPhyGen::SendPacket(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), ns3::dot11s::HwmpProtocol::SendProactivePreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::SSLinkManager::SendRangingRequest(), ns3::LteUeMac::SendRaPreamble(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::Icmpv6L4Protocol::SendRS(), ns3::UanMacRc::SendRts(), ns3::MacLow::SendRtsForPacket(), ns3::LteEnbRrc::SendSystemInformation(), ns3::RipNg::SendTriggeredRouteUpdate(), ns3::LteTestMac::SendTxOpportunity(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::VsaManager::SendVsa(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), ns3::dot11s::PeerLink::SetBeaconInformation(), ns3::YansWifiPhy::SetChannelNumber(), ns3::dot11s::PeerLink::SetConfirmTimer(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), ns3::dot11s::PeerLink::SetHoldingTimer(), ns3::SetMovement(), ns3::Ipv6PmtuCache::SetPmtu(), ns3::dot11s::PeerLink::SetRetryTimer(), ns3::SetSchedPosition(), ns3::YansWifiPhy::SetSleepMode(), ns3::MeshWifiInterfaceMac::ShiftTbtt(), ns3::dot11s::HwmpProtocol::ShouldSendPreq(), showPosition(), MyModel::Start(), ns3::LteTestRrc::Start(), ns3::SteadyStateRandomWaypointMobilityModel::Start(), ns3::SpectrumAnalyzer::Start(), ns3::TvSpectrumTransmitter::Start(), ns3::FdNetDevice::Start(), ns3::DataCalculator::Start(), ns3::FlowMonitor::Start(), ns3::TapBridge::Start(), ns3::LrWpanCsmaCa::Start(), ns3::AnimationInterface::StartAnimation(), ns3::UdpClient::StartApplication(), ns3::Radvd::StartApplication(), ns3::UdpTraceClient::StartApplication(), ns3::UanMacRcGw::StartCycle(), ns3::MacLow::StartDataTxTimers(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::SimpleOfdmWimaxPhy::StartReceive(), ns3::YansWifiPhy::StartReceivePlcp(), ns3::SpectrumAnalyzer::StartRx(), ns3::HalfDuplexIdealPhy::StartRx(), ns3::LrWpanPhy::StartRx(), ns3::LteSpectrumPhy::StartRxData(), ns3::LteSpectrumPhy::StartRxDlCtrl(), ns3::UanPhyGen::StartRxPacket(), ns3::LteSpectrumPhy::StartRxUlSrs(), ns3::WimaxPhy::StartScanning(), ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock(), ns3::LteEnbPhy::StartSubFrame(), ns3::SSLinkManager::StartSynchronizing(), ns3::UanMacCw::StartTimer(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), ns3::HalfDuplexIdealPhy::StartTx(), ns3::LteSpectrumPhy::StartTxDataFrame(), ns3::LteSpectrumPhy::StartTxDlCtrlFrame(), ns3::LteSpectrumPhy::StartTxUlSrsFrame(), ns3::BaseStationNetDevice::StartUlSubFrame(), ns3::ArpCache::StartWaitReplyTimer(), ns3::SteadyStateRandomWaypointMobilityModel::SteadyStateBeginWalk(), ns3::DefaultSimulatorImpl::Stop(), ns3::NullMessageSimulatorImpl::Stop(), ns3::RealtimeSimulatorImpl::Stop(), ns3::DistributedSimulatorImpl::Stop(), ns3::FdNetDevice::Stop(), ns3::FlowMonitor::Stop(), ns3::DataCalculator::Stop(), ns3::TapBridge::Stop(), ns3::LteUePhy::SubframeIndication(), test(), ns3::TcpSocketBase::TimeWait(), ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire(), ns3::AnimationInterface::TrackIpv4L3ProtocolCounters(), ns3::AnimationInterface::TrackIpv4Route(), ns3::AnimationInterface::TrackQueueCounters(), ns3::AnimationInterface::TrackWifiMacCounters(), ns3::AnimationInterface::TrackWifiPhyCounters(), ns3::UanTransducerHd::Transmit(), ns3::SimpleNetDevice::TransmitComplete(), ns3::CsmaNetDevice::TransmitCompleteEvent(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointNetDevice::TransmitStart(), ns3::CsmaNetDevice::TransmitStart(), ns3::BlockAckManager::UpdateAgreement(), ns3::BasicEnergySource::UpdateEnergySource(), ns3::RvBatteryModel::UpdateEnergySource(), ns3::LiIonEnergySource::UpdateEnergySource(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer(), ns3::LteUeRrc::VarMeasReportListAdd(), and ns3::AthstatsWifiTraceSink::WriteStats().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 827 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 834 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 841 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 848 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::Schedule ( Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

time	the relative expiration time of the event.
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method

Returns

an id for the scheduled event.

Definition at line 855 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(void)  f  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke

Returns

an id for the scheduled event.

Definition at line 277 of file simulator.cc.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename T1 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1)  f, T1  a1  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 862 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 869 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 876 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 883 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::Schedule ( Time const &  time, void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

time	the relative expiration time of the event.
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke

Returns

an id for the scheduled event.

Definition at line 890 of file simulator.h.

References DoSchedule(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::Schedule ( Time const &  time, const Ptr< EventImpl > &  event  )

static

Schedule a future event execution (in the same context).

Parameters

time	Delay until the event expires.
event	The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 239 of file simulator.cc.

References DoSchedule(), and ns3::GetPointer().

Here is the call graph for this function:

template<typename MEM , typename OBJ >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire at Destroy time.

All events scheduled to expire at "Destroy" time are scheduled FIFO, after all normal events have expired and only when Simulator::Destroy is invoked.

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method

Returns

The EventId of the scheduled event.

Definition at line 1071 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Referenced by ns3::BuildingListPriv::DoGet(), ns3::ChannelListPriv::DoGet(), ns3::NodeListPriv::DoGet(), ns3::SimulationSingleton< T >::GetObject(), and ns3::FdReader::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1080 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1088 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1096 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1104 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleDestroy ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1112 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::ScheduleDestroy ( void(*)(void)  f )

static

Parameters

f	the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 295 of file simulator.cc.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename T1 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1)  f, T1  a1  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1121 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1129 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1137 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1145 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleDestroy ( void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1153 of file simulator.h.

References DoScheduleDestroy(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::ScheduleDestroy ( const Ptr< EventImpl > &  event )

static

Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached.

Parameters

event

The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 255 of file simulator.cc.

References DoScheduleDestroy(), and ns3::GetPointer().

Here is the call graph for this function:

template<typename MEM , typename OBJ >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj  )

static

Schedule an event to expire Now.

All events scheduled to to expire "Now" are scheduled FIFO, after all normal events have expired.

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method

Returns

The EventId of the scheduled event.

Definition at line 980 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Referenced by ns3::NscTcpSocketImpl::Accept(), ns3::EmuEpcHelper::ActivateEpsBearer(), ns3::AthstatsWifiTraceSink::AthstatsWifiTraceSink(), ns3::LrWpanMac::CheckQueue(), ns3::LteFfrDistributedAlgorithm::DoInitialize(), ns3::LteEnbPhy::DoInitialize(), ns3::LteUePhy::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::EpcUeNas::DoNotifyConnectionFailed(), ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), ns3::RandomWaypointMobilityModel::DoSetPosition(), ns3::RandomDirection2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::SteadyStateRandomWaypointMobilityModel::DoSetPosition(), ns3::GaussMarkovMobilityModel::DoSetPosition(), ns3::LteEnbPhy::EndFrame(), ns3::LteEnbPhy::EndSubFrame(), ns3::Ipv4EndPoint::ForwardIcmp(), ns3::Ipv6EndPoint::ForwardIcmp(), ns3::Ipv4EndPoint::ForwardUp(), ns3::Ipv6EndPoint::ForwardUp(), ns3::GaussMarkovMobilityModel::GaussMarkovMobilityModel(), ns3::LteTestPdcp::LteTestPdcp(), ns3::dsr::DsrRouting::NotifyNewAggregate(), ns3::AlohaNoackNetDevice::NotifyTransmissionEnd(), ns3::NscTcpSocketImpl::NSCWakeup(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanCsmaCa::PlmeCcaConfirm(), ns3::TcpSocketBase::ProcessListen(), ns3::TcpSocketBase::ProcessSynSent(), ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReconfiguration(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishment(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReestablishmentReject(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionReject(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionRelease(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest(), ns3::MemberLteUeRrcSapProvider< C >::RecvRrcConnectionSetup(), ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted(), ns3::MemberLteUeRrcSapProvider< C >::RecvSystemInformation(), ns3::dsr::DsrRouting::ScheduleInitialReply(), ns3::TcpSocketBase::SendDataPacket(), ns3::NscTcpSocketImpl::SendPendingData(), ns3::StaWifiMac::SetActiveProbing(), ns3::ApWifiMac::SetBeaconGeneration(), ns3::aodv::RoutingProtocol::SetIpv4(), ns3::dsdv::RoutingProtocol::SetIpv4(), ns3::NscTcpL4Protocol::SetNode(), ns3::WaveformGenerator::Start(), ns3::LrWpanCsmaCa::Start(), ns3::BaseStationNetDevice::Start(), ns3::SubscriberStationNetDevice::Start(), Sender::StartApplication(), and ns3::PacketSocketClient::StartApplication().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 989 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 997 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1005 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1013 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleNow ( MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method

Returns

The EventId of the scheduled event.

Definition at line 1021 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::ScheduleNow ( void(*)(void)  f )

static

Parameters

f	the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 289 of file simulator.cc.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename T1 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1)  f, T1  a1  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1030 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename T1 , typename T2 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1038 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1046 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1054 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

EventId ns3::Simulator::ScheduleNow ( void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

Parameters

f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke

Returns

The EventId of the scheduled event.

Definition at line 1062 of file simulator.h.

References DoScheduleNow(), and ns3::MakeEvent().

Here is the call graph for this function:

EventId ns3::Simulator::ScheduleNow ( const Ptr< EventImpl > &  event )

static

Schedule an event to run at the current virtual time.

Parameters

event

The event to schedule.

Returns

A unique identifier for the newly-scheduled event.

Definition at line 245 of file simulator.cc.

References DoScheduleNow(), and ns3::GetPointer().

Here is the call graph for this function:

template<typename MEM , typename OBJ >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj  )

static

Schedule an event with the given context.

A context of 0xffffffff means no context is specified. This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method

Definition at line 899 of file simulator.h.

References ns3::MakeEvent().

Referenced by ns3::BuildingListPriv::Add(), ns3::NodeListPriv::Add(), ns3::Node::AddApplication(), ns3::Node::AddDevice(), ns3::LteEnbPhy::DoInitialize(), ns3::LteUePhy::DoInitialize(), FakeNetDevice::Doit3(), ns3::BsmApplication::GenerateWaveTraffic(), ns3::TapBridge::ReadCallback(), ns3::FdNetDevice::ReceiveCallback(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ScheduleWithContext(), ns3::ErrorChannel::Send(), ns3::ErrorChannelSixlow::Send(), ns3::LoopbackNetDevice::Send(), ns3::SimpleChannel::Send(), ns3::SimpleOfdmWimaxChannel::Send(), ns3::YansWifiChannel::Send(), ns3::LoopbackNetDevice::SendFrom(), ns3::LteTestMac::SendTxOpportunity(), ns3::PyViz::SimulatorRunUntil(), ns3::LteTestRrc::Start(), ns3::BsmApplication::StartApplication(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), test(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointChannel::TransmitStart(), and ns3::UanChannel::TxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename MEM , typename OBJ , typename T1 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method

Definition at line 907 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method

Definition at line 914 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method

Definition at line 921 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method

Definition at line 928 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename MEM , typename OBJ , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, MEM  mem_ptr, OBJ  obj, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
mem_ptr	member method pointer to invoke
obj	the object on which to invoke the member method
a1	the first argument to pass to the invoked method
a2	the second argument to pass to the invoked method
a3	the third argument to pass to the invoked method
a4	the fourth argument to pass to the invoked method
a5	the fifth argument to pass to the invoked method

Definition at line 935 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(void)  f  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke

Definition at line 283 of file simulator.cc.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename U1 , typename T1 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1)  f, T1  a1  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke

Definition at line 942 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename T1 , typename T2 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1, U2)  f, T1  a1, T2  a2  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke

Definition at line 949 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename T1 , typename T2 , typename T3 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1, U2, U3)  f, T1  a1, T2  a2, T3  a3  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke

Definition at line 956 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1, U2, U3, U4)  f, T1  a1, T2  a2, T3  a3, T4  a4  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke

Definition at line 963 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

template<typename U1 , typename U2 , typename U3 , typename U4 , typename U5 , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, Time const &  time, void(*)(U1, U2, U3, U4, U5)  f, T1  a1, T2  a2, T3  a3, T4  a4, T5  a5  )

static

This method is thread-safe: it can be called from any thread.

Parameters

time	the relative expiration time of the event.
context	user-specified context parameter
f	the function to invoke
a1	the first argument to pass to the function to invoke
a2	the second argument to pass to the function to invoke
a3	the third argument to pass to the function to invoke
a4	the fourth argument to pass to the function to invoke
a5	the fifth argument to pass to the function to invoke

Definition at line 970 of file simulator.h.

References ns3::MakeEvent(), and ScheduleWithContext().

Here is the call graph for this function:

void ns3::Simulator::ScheduleWithContext ( uint32_t  context, const Time &  time, EventImpl *  event  )

static

Schedule a future event execution (in a different context).

Parameters

time	Delay until the event expires.
context	Event context.
event	The event to schedule.

Returns

A unique identifier for the newly-scheduled event. This method is thread-safe: it can be called from any thread.

Definition at line 250 of file simulator.cc.

References ns3::GetImpl(), and ns3::SimulatorImpl::ScheduleWithContext().

Here is the call graph for this function:

void ns3::Simulator::SetImplementation ( Ptr< SimulatorImpl >  impl )

static

Parameters

impl	A new simulator implementation.

The simulator provides a mechanism to swap out different implementations. For example, the default implementation is a single-threaded simulator that performs no realtime synchronization. By calling this method, you can substitute in a new simulator implementation that might be multi- threaded and synchronize events to a realtime clock.

The simulator implementation can be set when the simulator is not running.

Definition at line 364 of file simulator.cc.

References ns3::StringValue::Get(), ns3::GetPointer(), ns3::GlobalValue::GetValue(), ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), ns3::NodePrinter(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::PeekImpl(), ns3::ObjectFactory::SetTypeId(), and ns3::TimePrinter().

Here is the call graph for this function:

void ns3::Simulator::SetScheduler ( ObjectFactory  schedulerFactory )

static

Parameters

schedulerFactory

a new event scheduler factory

The event scheduler can be set at any time: the events scheduled in the previous scheduler will be transfered to the new scheduler before we start to use it.

Definition at line 186 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION, and ns3::SimulatorImpl::SetScheduler().

Here is the call graph for this function:

void ns3::Simulator::Stop ( void  )

static

Tell the Simulator the calling event should be the last one executed.

If a running event invokes this method, it will be the last event executed by the Simulator::Run method before returning to the caller.

Definition at line 208 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, and ns3::SimulatorImpl::Stop().

Referenced by ns3::PyViz::CallbackStopSimulation(), ns3::LenaDeactivateBearerTestCase::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), SteadyStateRandomWaypointTest::DoRun(), ns3::olsr::Bug780Test::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), ns3::olsr::HelloRegressionTest::DoRun(), LteHandoverDelayTestCase::DoRun(), ns3::olsr::TcRegressionTest::DoRun(), Ns2MobilityHelperTest::DoRun(), experiment(), ns3::RadioEnvironmentMapHelper::Finalize(), WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), ns3::DefaultSimulatorImpl::Stop(), ns3::NullMessageSimulatorImpl::Stop(), ns3::RealtimeSimulatorImpl::Stop(), ns3::DistributedSimulatorImpl::Stop(), test(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Simulator::Stop ( Time const &  time )

static

Schedule the time delay until the Simulator should stop.

Force the Simulator::Run method to return to the caller when the expiration time of the next event to be processed is greater than or equal to the stop time. The stop time is relative to the current simulation time.

Parameters

time	The stop time, relative to the current time.

Definition at line 216 of file simulator.cc.

References ns3::GetImpl(), NS_LOG_FUNCTION, and ns3::SimulatorImpl::Stop().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/core/model/simulator.h
• src/core/model/simulator.cc
