Mac Low Stub. More...

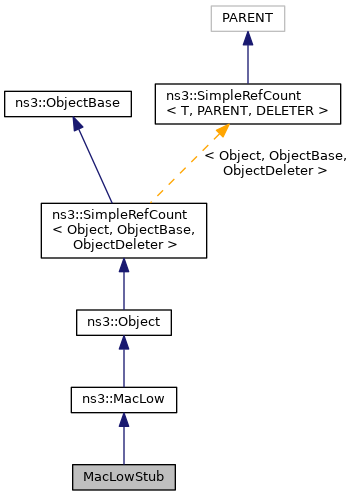

Inheritance diagram for MacLowStub:

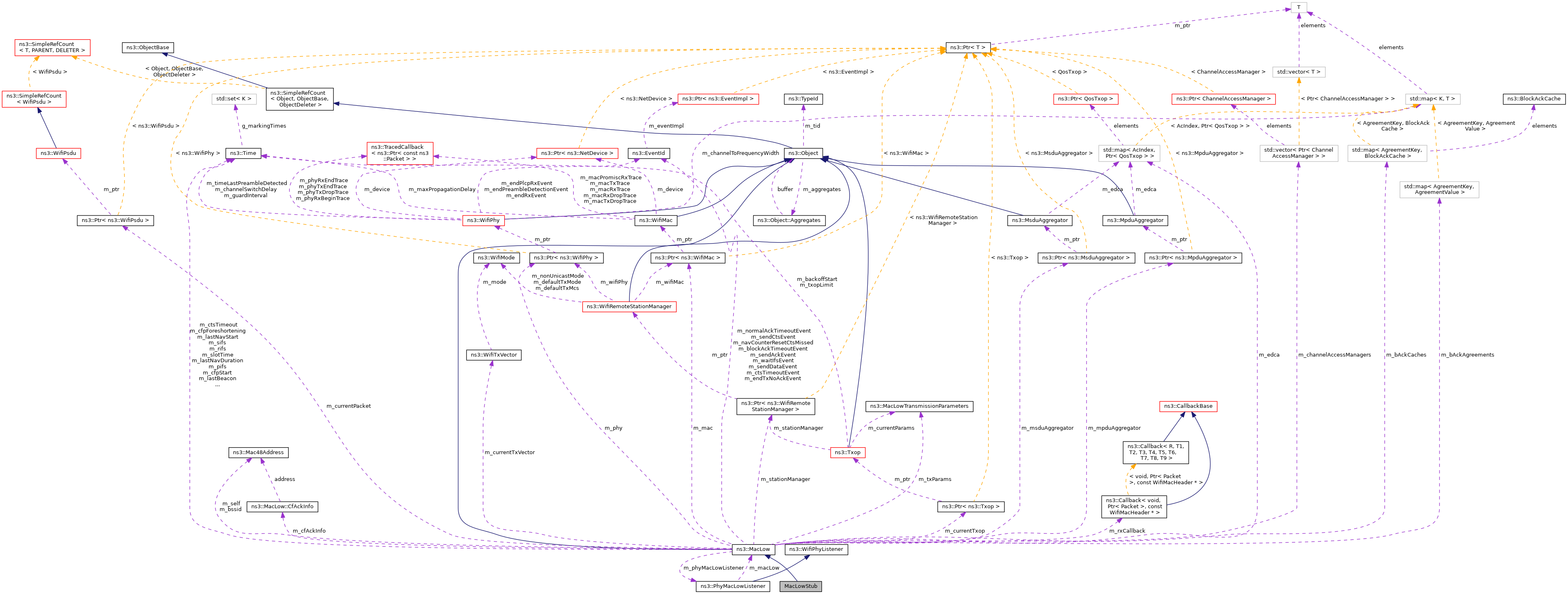

Collaboration diagram for MacLowStub:

Public Member Functions
	MacLowStub ()

bool	IsCfPeriod (void) const
	This function indicates whether it is the CF period. More...

Public Member Functions inherited from ns3::MacLow
	MacLow ()

virtual	~MacLow ()

Time	CalculateOverallTxTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &params, uint32_t fragmentSize=0) const

Time	CalculateOverheadTxTime (Ptr< const WifiMacQueueItem > item, const MacLowTransmissionParameters &params) const

Time	CalculateTransmissionTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &parameters) const

bool	CanTransmitNextCfFrame (void) const
	This function decides if a CF frame can be transmitted in the current CFP. More...

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DeaggregateAmpduAndReceive (Ptr< Packet > aggregatedPacket, double rxSnr, WifiTxVector txVector, std::vector< bool > statusPerMpdu)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)

bool	DoNavStartNow (Time duration)
	Start NAV with the given duration. More...

Time	GetAckTimeout (void) const
	Return ACK timeout of this MacLow. More...

Mac48Address	GetAddress (void) const
	Return the MAC address of this MacLow. More...

Time	GetBasicBlockAckTimeout (void) const
	Return Basic Block ACK timeout of this MacLow. More...

Time	GetBeaconInterval (void) const

Mac48Address	GetBssid (void) const
	Return the Basic Service Set Identification. More...

Time	GetCfpMaxDuration (void) const

Time	GetCompressedBlockAckTimeout (void) const
	Return Compressed Block ACK timeout of this MacLow. More...

Time	GetCtsTimeout (void) const
	Return CTS timeout of this MacLow. More...

bool	GetCtsToSelfSupported (void) const
	Return whether CTS-to-self capability is supported. More...

virtual WifiTxVector	GetDataTxVector (Ptr< const WifiMacQueueItem > item) const
	Return a TXVECTOR for the DATA frame given the destination. More...

Ptr< MpduAggregator >	GetMpduAggregator (void) const
	Returns the aggregator used to construct A-MPDU subframes. More...

Ptr< MsduAggregator >	GetMsduAggregator (void) const
	Returns the aggregator used to construct A-MSDU subframes. More...

Ptr< WifiPhy >	GetPhy (void) const

Time	GetPifs (void) const
	Return PCF Interframe Space (PIFS) of this MacLow. More...

Time	GetRemainingCfpDuration (void) const

Time	GetRifs (void) const
	Return Reduced Interframe Space (RIFS) of this MacLow. More...

Time	GetSifs (void) const
	Return Short Interframe Space (SIFS) of this MacLow. More...

Time	GetSlotTime (void) const
	Return slot duration of this MacLow. More...

bool	IsPromisc (void) const
	Check if MacLow is operating in promiscuous mode. More...

bool	IsWithinSizeAndTimeLimits (Ptr< const WifiMacQueueItem > mpdu, WifiTxVector txVector, uint32_t ampduSize, Time ppduDurationLimit)
	Check whether the given MPDU, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive). More...

bool	IsWithinSizeAndTimeLimits (uint32_t mpduSize, Mac48Address receiver, uint8_t tid, WifiTxVector txVector, uint32_t ampduSize, Time ppduDurationLimit)
	Check whether an MPDU of the given size, destined to the given receiver and belonging to the given TID, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive). More...

void	NotifyOffNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into off mode. More...

void	NotifySleepNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into sleep mode. More...

void	NotifySwitchingStartNow (Time duration)

void	ReceiveError (Ptr< Packet > packet)

void	ReceiveOk (Ptr< Packet > packet, double rxSnr, WifiTxVector txVector, bool ampduSubframe)

void	RegisterDcf (Ptr< ChannelAccessManager > dcf)

void	RegisterEdcaForAc (AcIndex ac, Ptr< QosTxop > edca)

void	ResetPhy (void)
	Remove WifiPhy associated with this MacLow. More...

void	SetAckTimeout (Time ackTimeout)
	Set ACK timeout of this MacLow. More...

void	SetAddress (Mac48Address ad)
	Set MAC address of this MacLow. More...

void	SetBasicBlockAckTimeout (Time blockAckTimeout)
	Set Basic Block ACK timeout of this MacLow. More...

void	SetBeaconInterval (Time interval)

void	SetBssid (Mac48Address ad)
	Set the Basic Service Set Identification. More...

void	SetCfpMaxDuration (Time duration)

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
	Set Compressed Block ACK timeout of this MacLow. More...

void	SetCtsTimeout (Time ctsTimeout)
	Set CTS timeout of this MacLow. More...

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self capability. More...

void	SetMac (const Ptr< WifiMac > mac)
	Set up WifiMac associated with this MacLow. More...

void	SetMpduAggregator (const Ptr< MpduAggregator > aggr)
	Set the aggregator used to construct A-MPDU subframes. More...

void	SetMsduAggregator (const Ptr< MsduAggregator > aggr)
	Set the aggregator used to construct A-MSDU subframes. More...

void	SetPhy (const Ptr< WifiPhy > phy)
	Set up WifiPhy associated with this MacLow. More...

void	SetPifs (Time pifs)
	Set PCF Interframe Space (PIFS) of this MacLow. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

void	SetRifs (Time rifs)
	Set Reduced Interframe Space (RIFS) of this MacLow. More...

void	SetRxCallback (Callback< void, Ptr< Packet >, const WifiMacHeader *> callback)

void	SetSifs (Time sifs)
	Set Short Interframe Space (SIFS) of this MacLow. More...

void	SetSlotTime (Time slotTime)
	Set slot duration of this MacLow. More...

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this MacLow. More...

virtual void	StartTransmission (Ptr< WifiMacQueueItem > mpdu, MacLowTransmissionParameters parameters, Ptr< Txop > txop)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Additional Inherited Members
Public Types inherited from ns3::MacLow
typedef Callback< void, Ptr< Packet >, const WifiMacHeader * >	MacLowRxCallback
	typedef for a callback for MacLowRx More...

Static Public Member Functions inherited from ns3::MacLow
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...
