Handle packet fragmentation and retransmissions for data and management frames. More...

#include "txop.h"

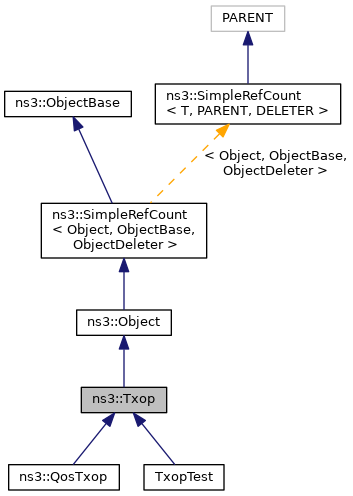

Inheritance diagram for ns3::Txop:

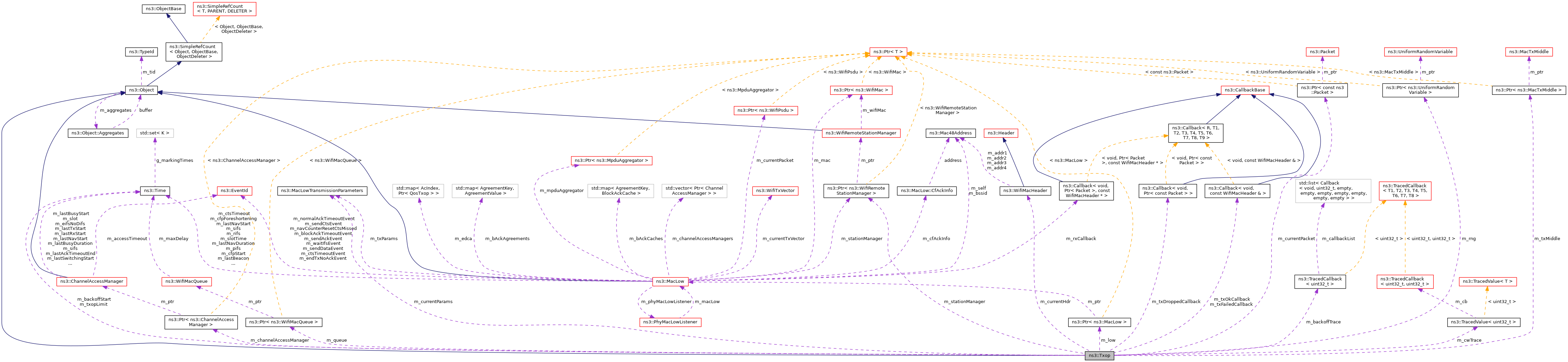

Collaboration diagram for ns3::Txop:

Public Types
typedef Callback< void, Ptr< const Packet > >	TxDropped
	typedef for a callback to invoke when a packet is dropped. More...

typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions
	Txop ()

virtual	~Txop ()

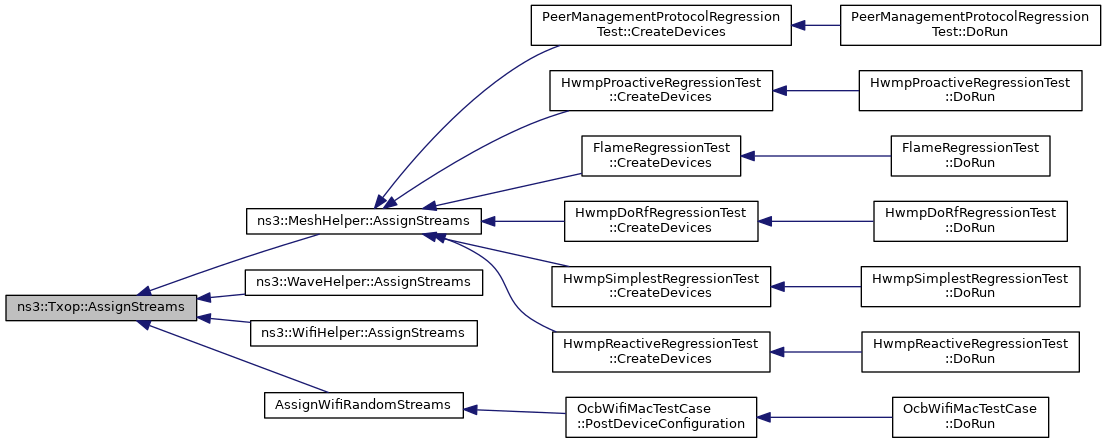

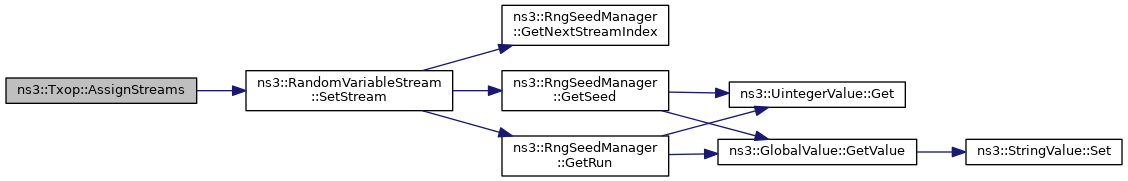

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

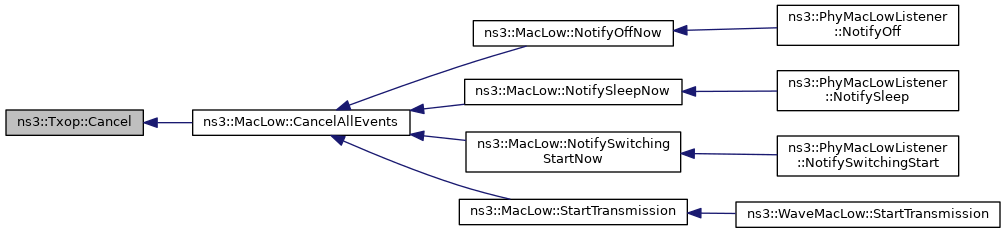

virtual void	Cancel (void)
	Cancel the transmission. More...

bool	CanStartNextPolling (void) const
	Check if the next PCF transmission can fit in the remaining CFP duration. More...

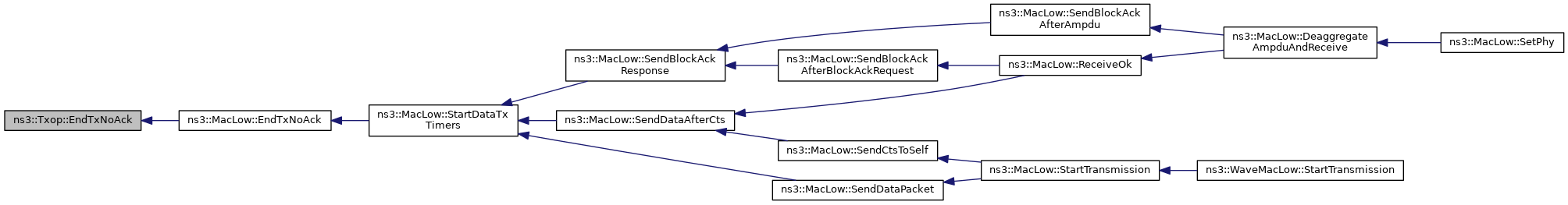

virtual void	EndTxNoAck (void)
	Event handler when a transmission that does not require an ACK has completed. More...

uint8_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

Ptr< MacLow >	GetLow (void) const
	Return the MacLow associated with this Txop. More...

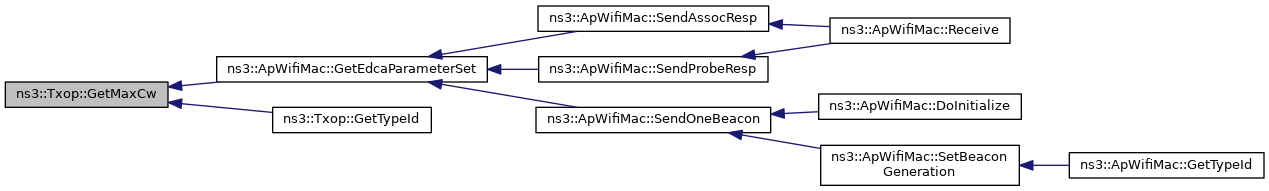

uint32_t	GetMaxCw (void) const
	Return the maximum contention window size. More...

uint32_t	GetMinCw (void) const
	Return the minimum contention window size. More...

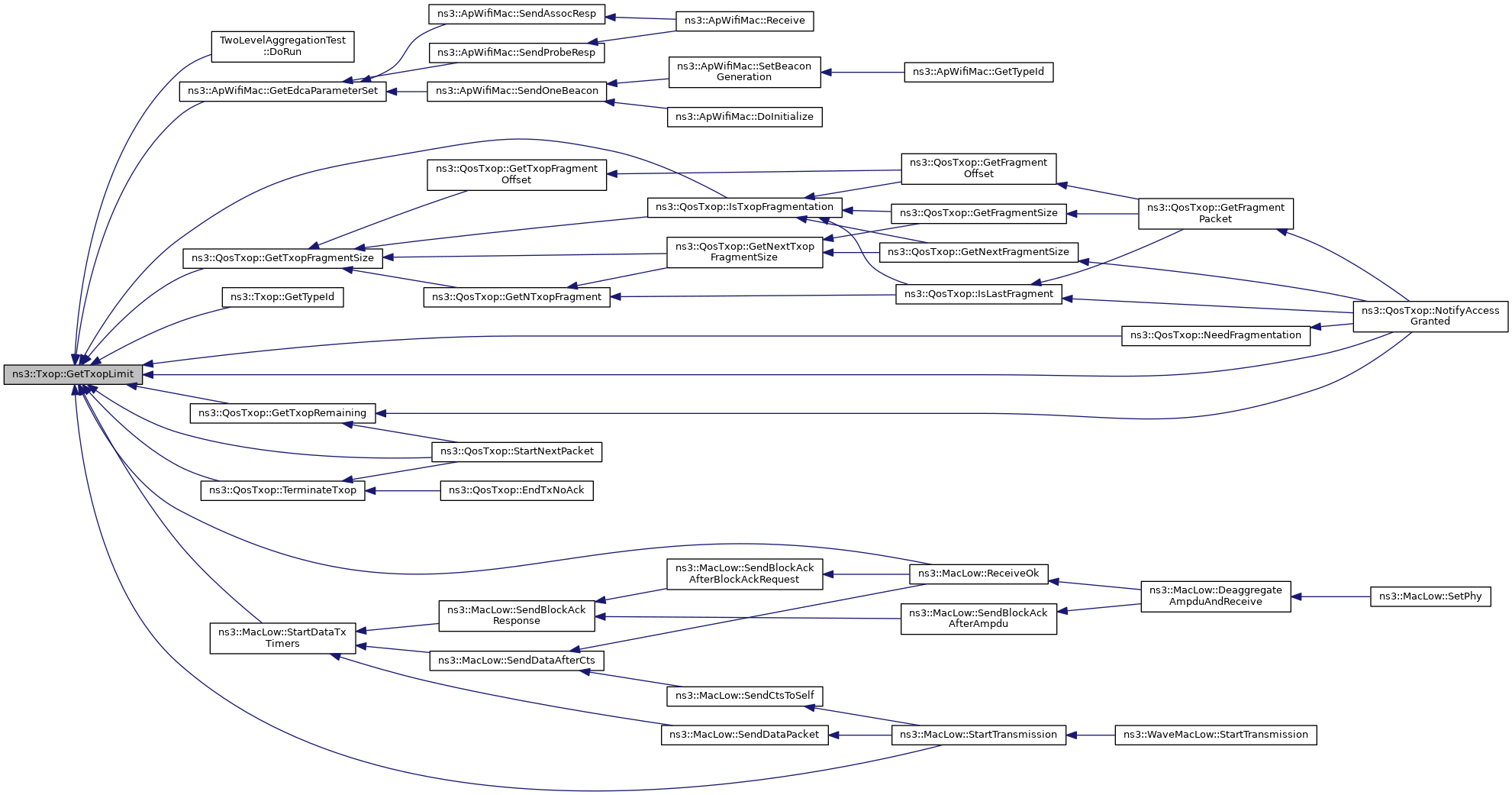

Time	GetTxopLimit (void) const
	Return the TXOP limit. More...

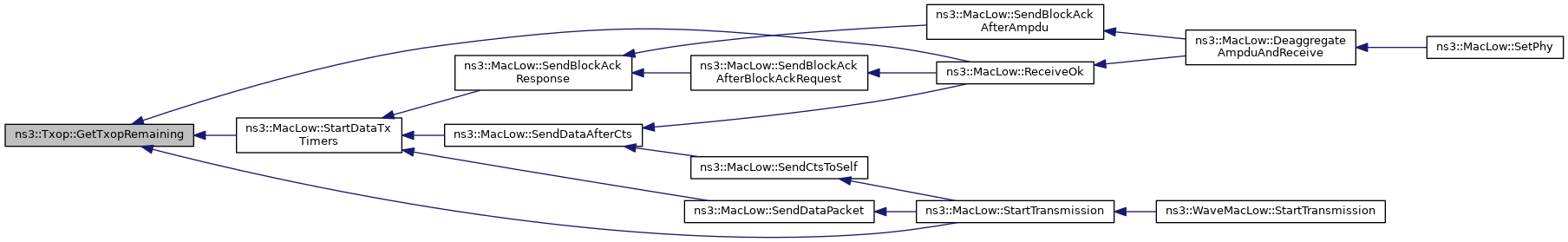

virtual Time	GetTxopRemaining (void) const
	Return the remaining duration in the current TXOP. More...

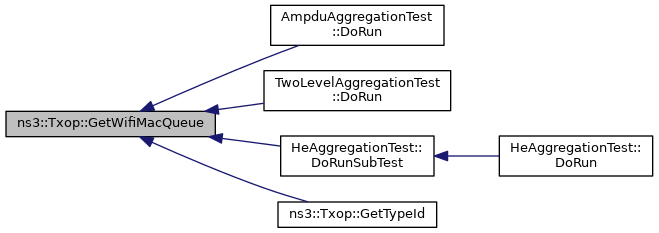

Ptr< WifiMacQueue >	GetWifiMacQueue () const
	Return the packet queue associated with this Txop. More...

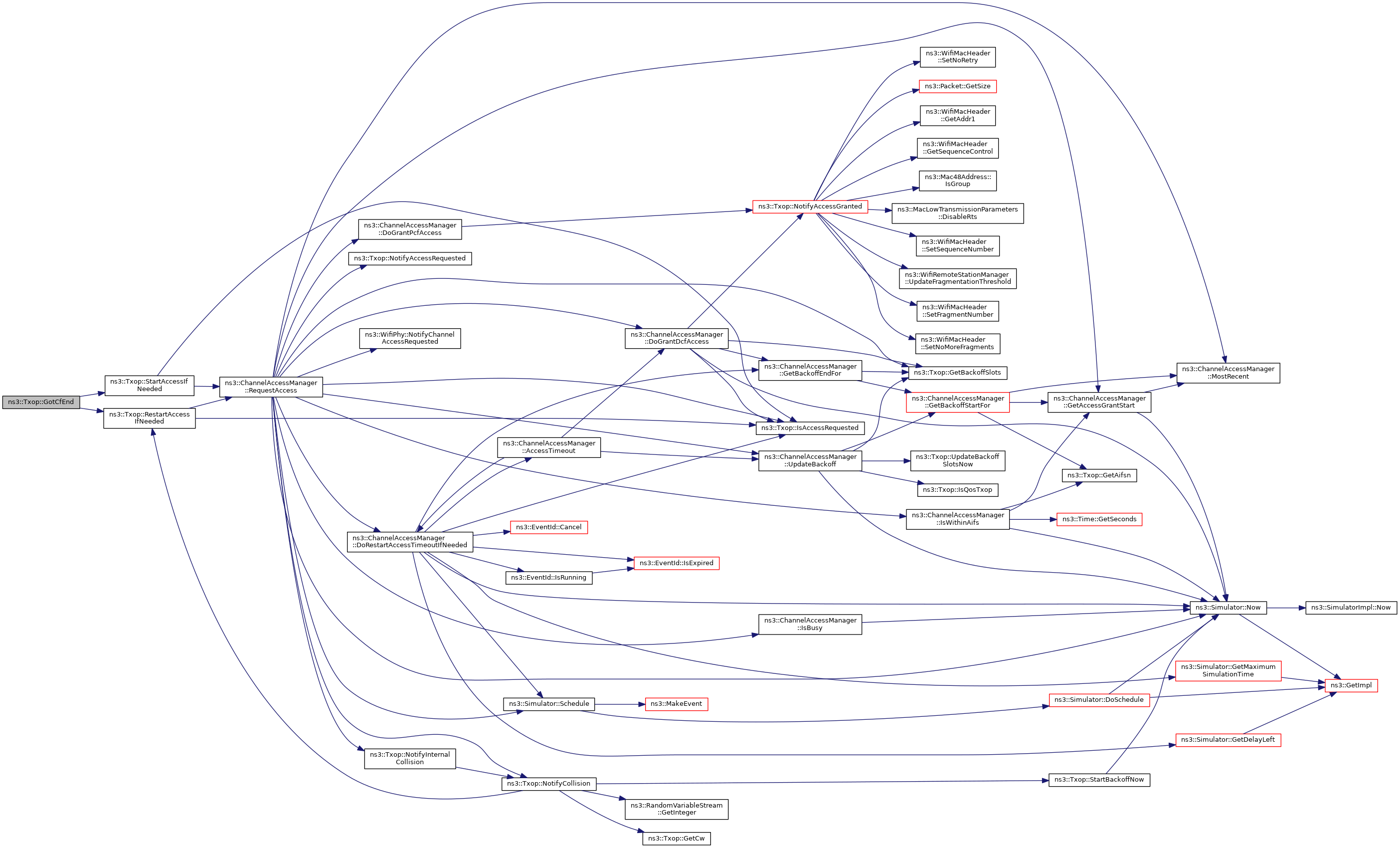

virtual void	GotAck (void)
	Event handler when an ACK is received. More...

virtual void	GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient, double rxSnr, WifiMode txMode, double dataSnr)
	Event handler when a Block ACK is received. More...

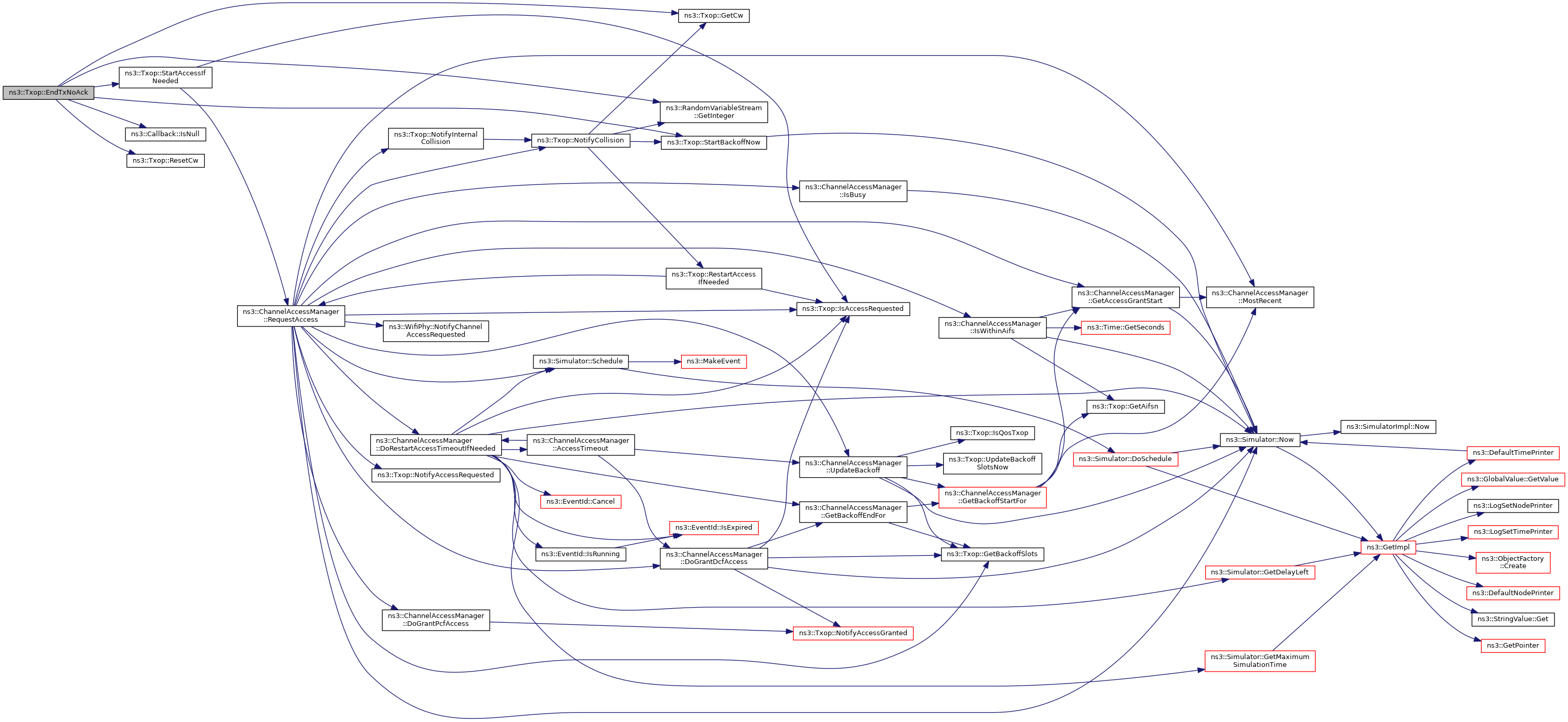

void	GotCfEnd (void)
	Event handler when a CF-END frame is received. More...

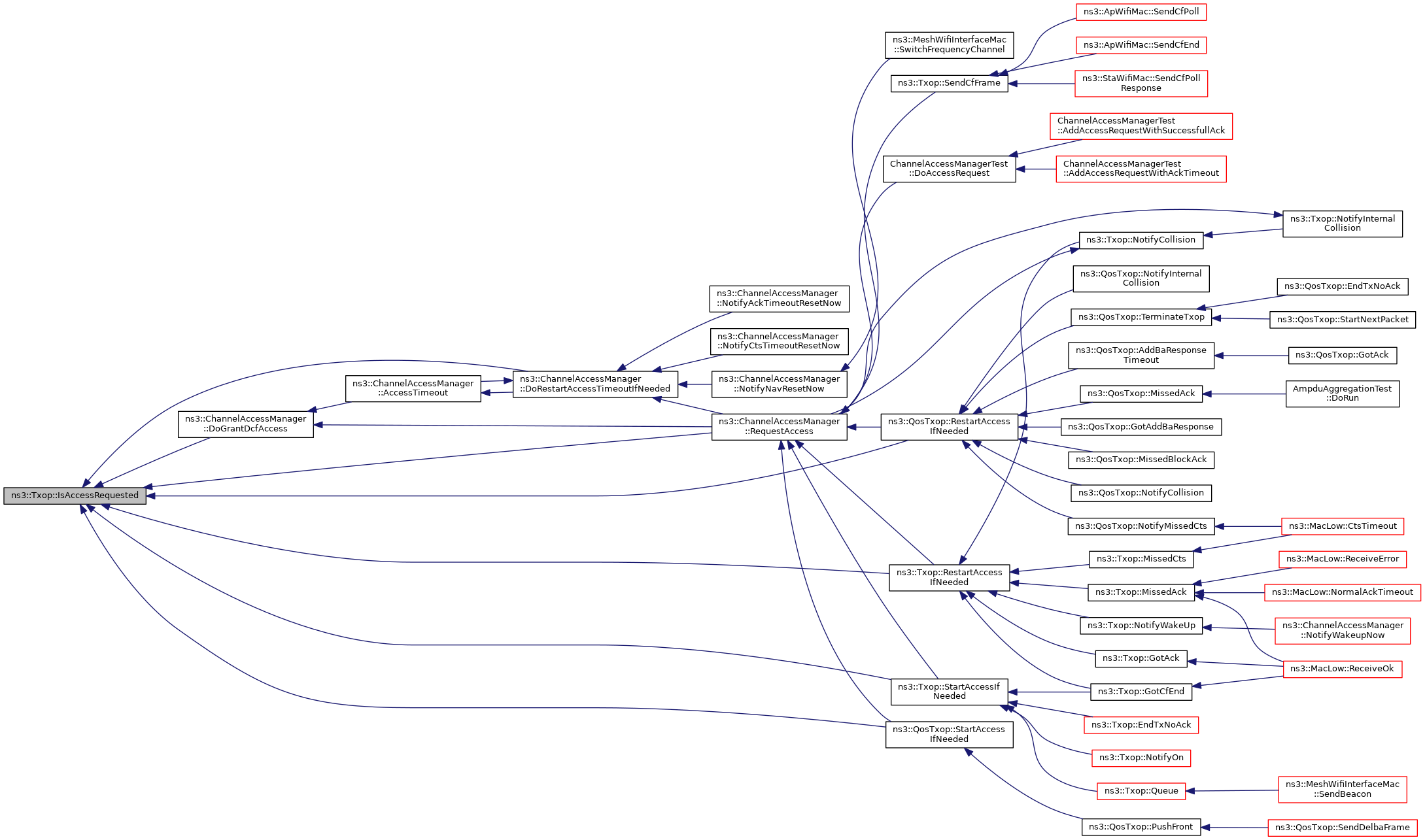

virtual bool	IsAccessRequested (void) const

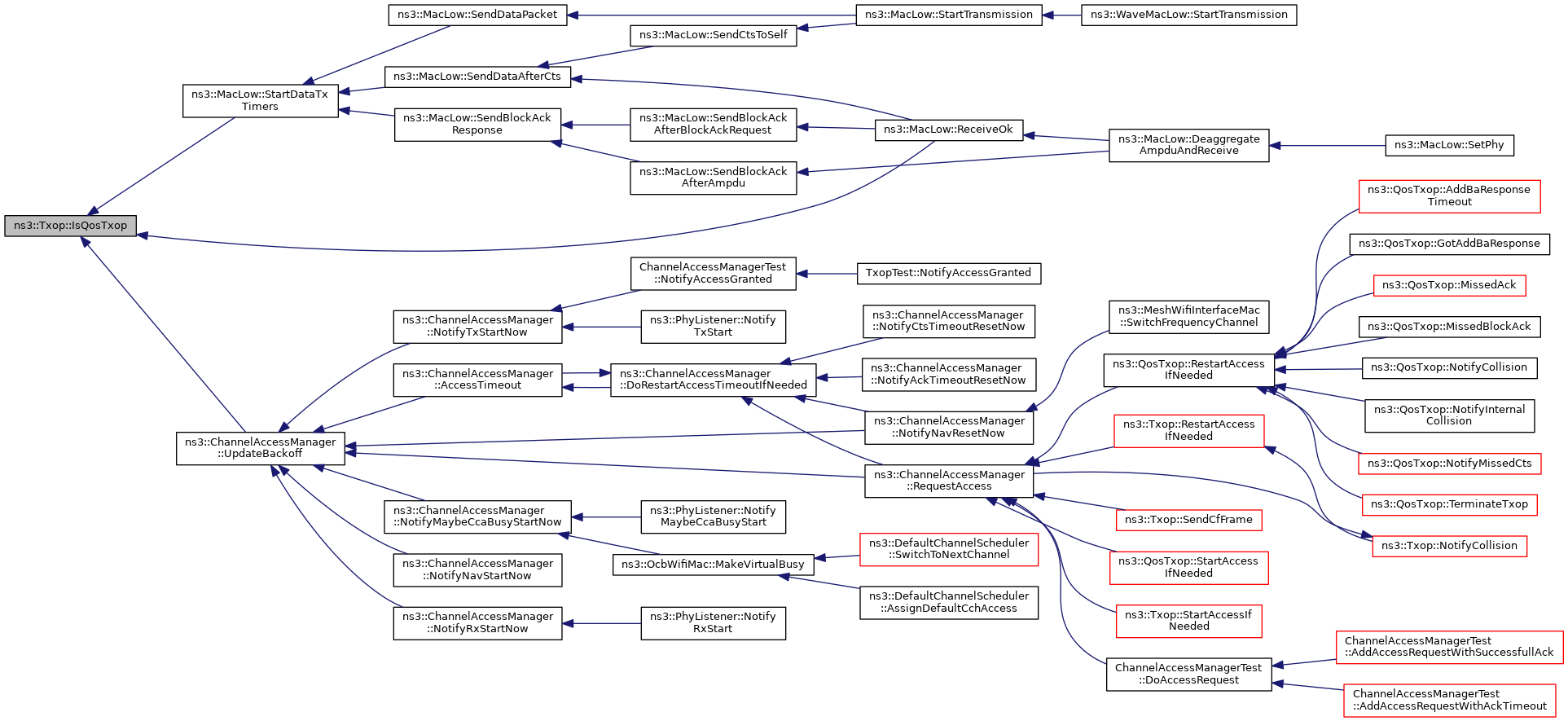

virtual bool	IsQosTxop () const
	Check for QoS TXOP. More...

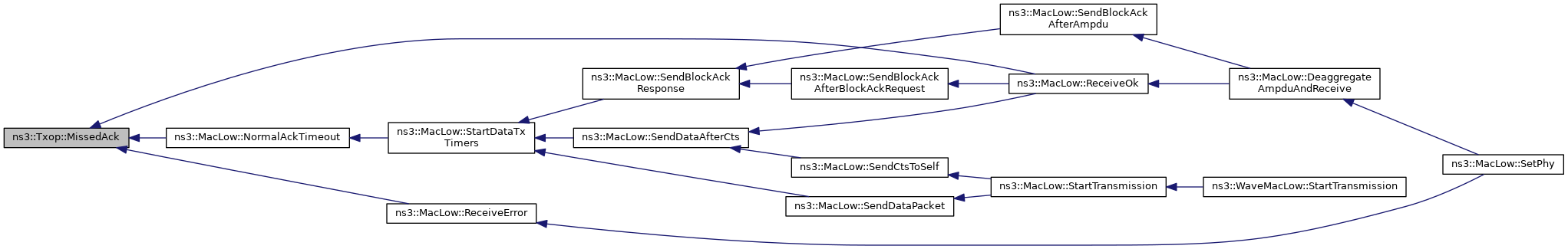

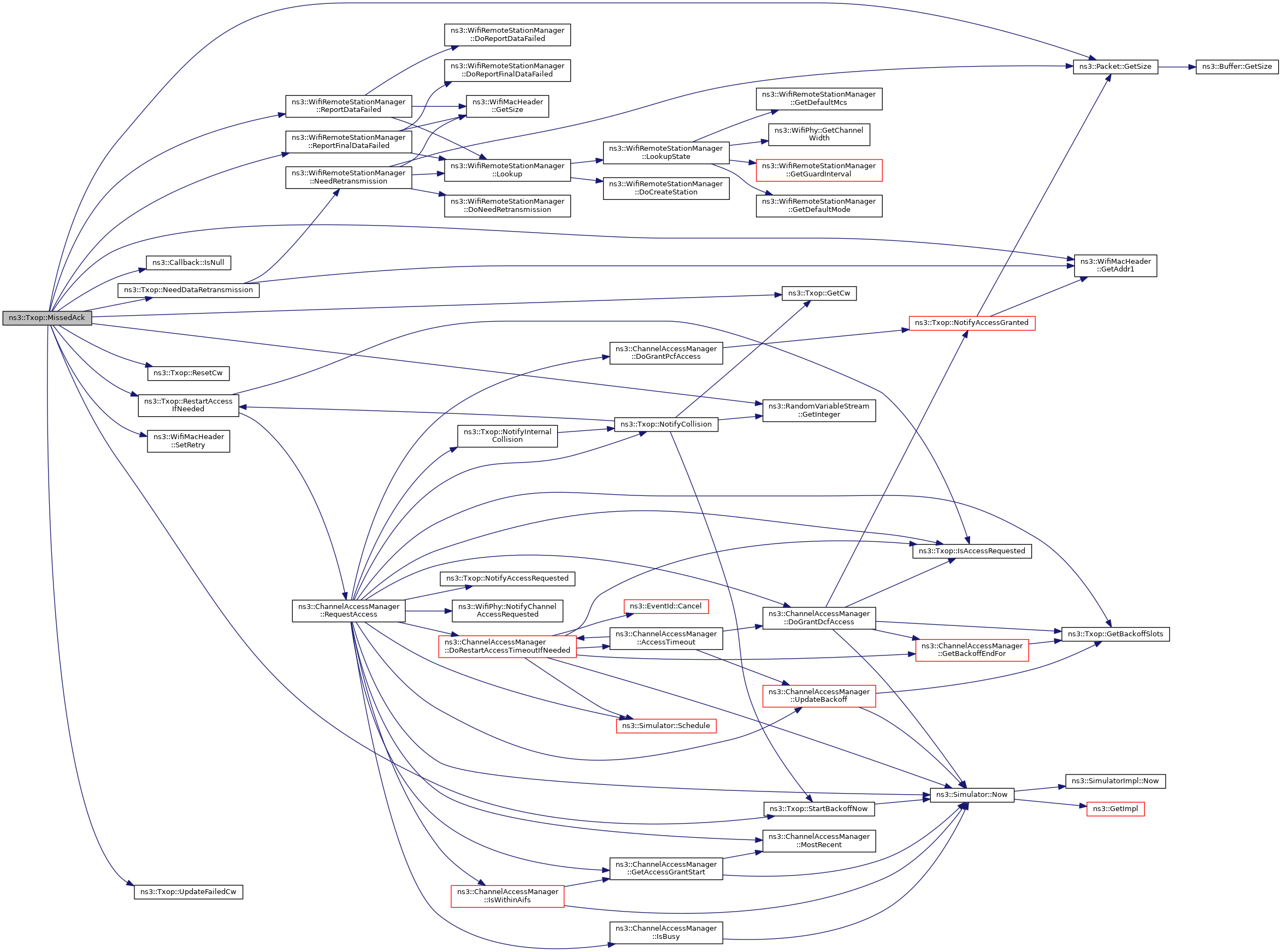

virtual void	MissedAck (void)
	Event handler when an ACK is missed. More...

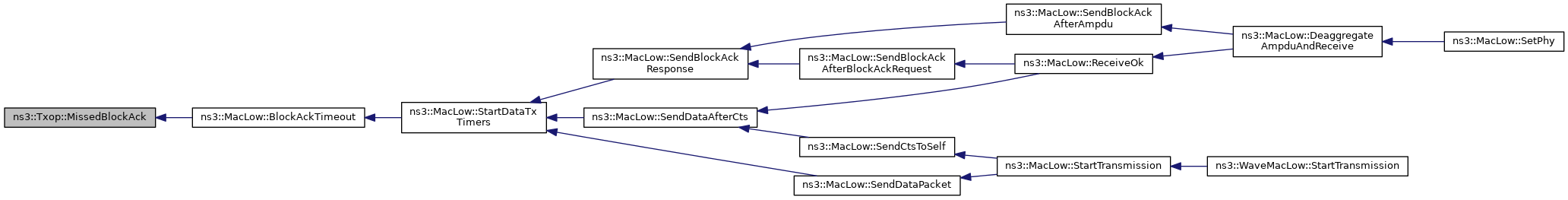

virtual void	MissedBlockAck (uint8_t nMpdus)
	Event handler when a Block ACK timeout has occurred. More...

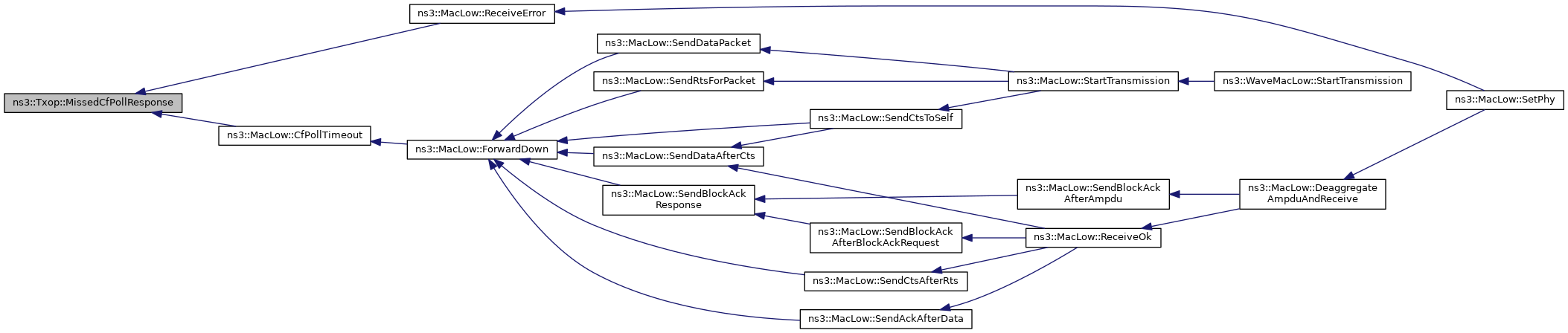

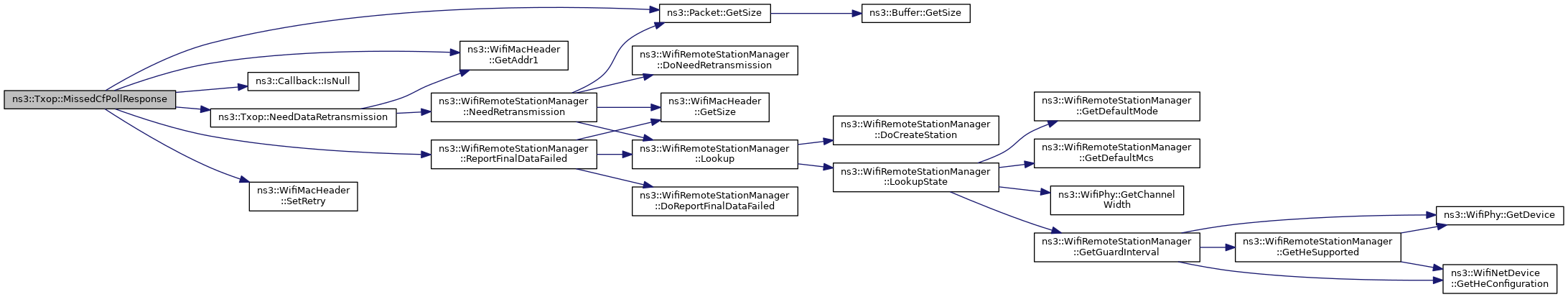

void	MissedCfPollResponse (bool expectedCfAck)
	Event handler when a response to a CF-POLL frame is missed. More...

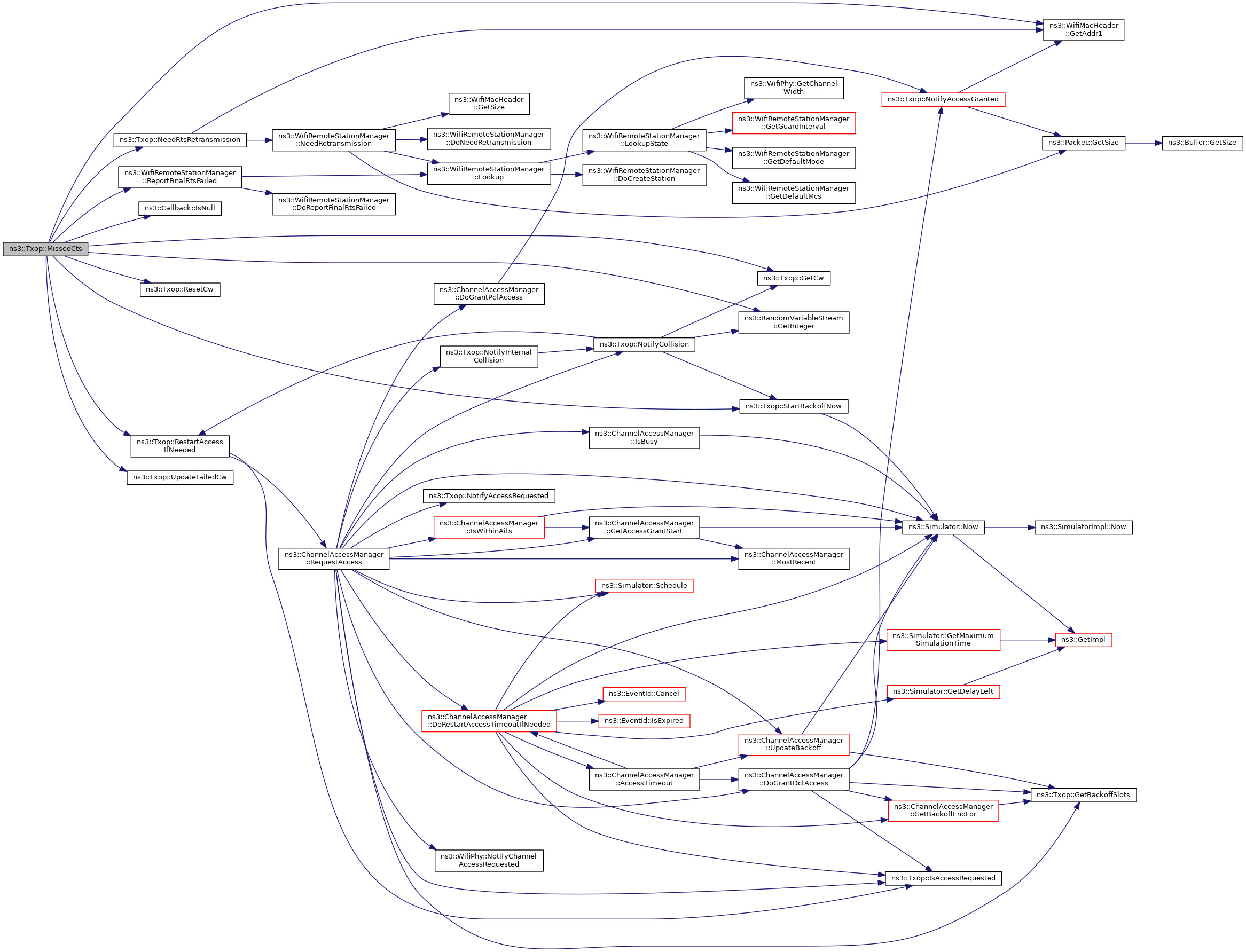

virtual void	MissedCts (void)
	Event handler when a CTS timeout has occurred. More...

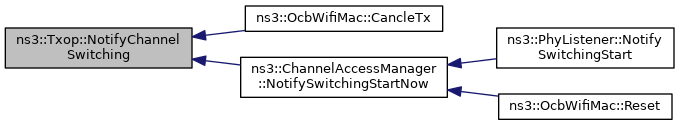

virtual void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

virtual void	NotifyOff (void)
	When off operation occurs, the queue gets cleaned up. More...

virtual void	NotifyOn (void)
	When on operation occurs, channel access will be started. More...

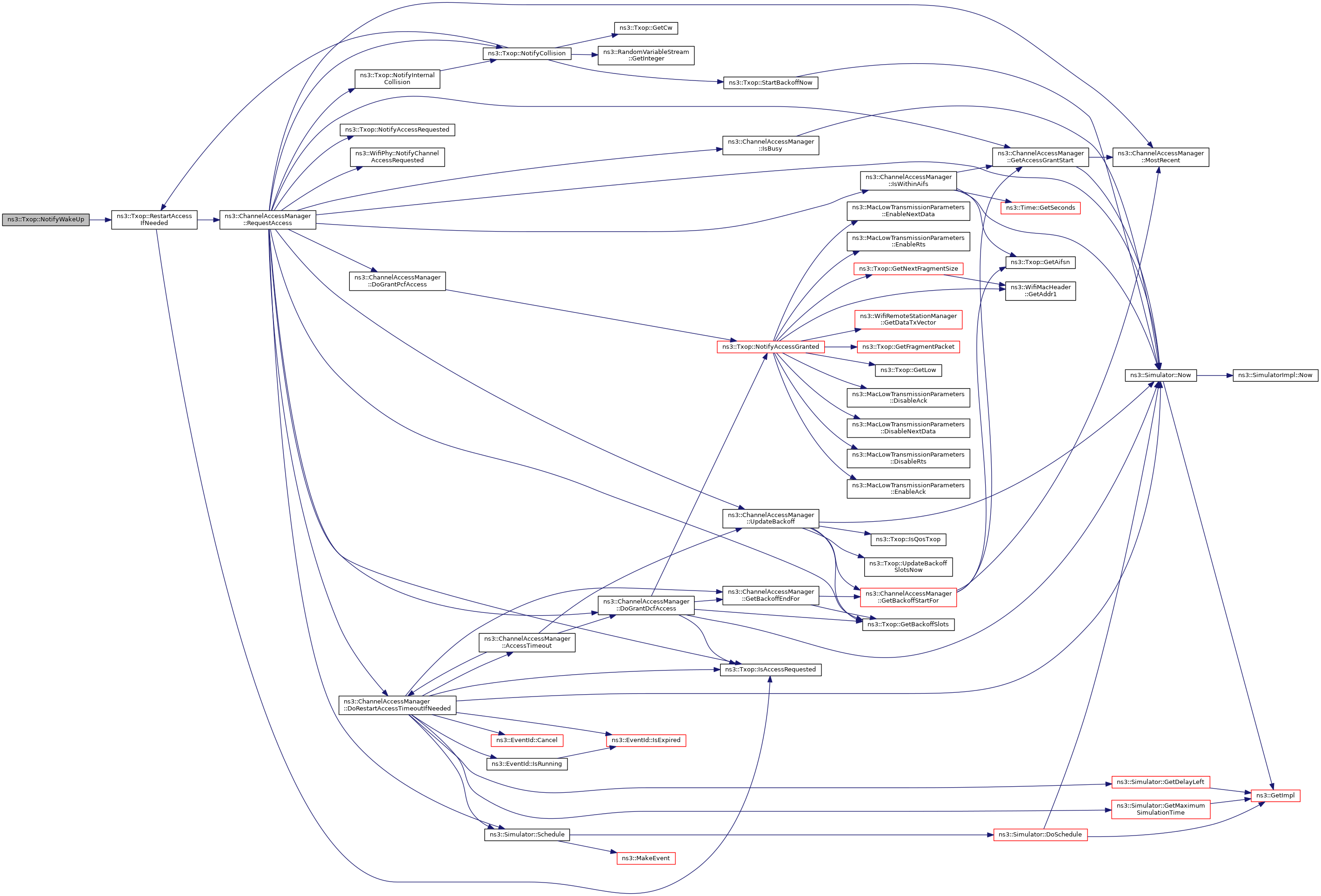

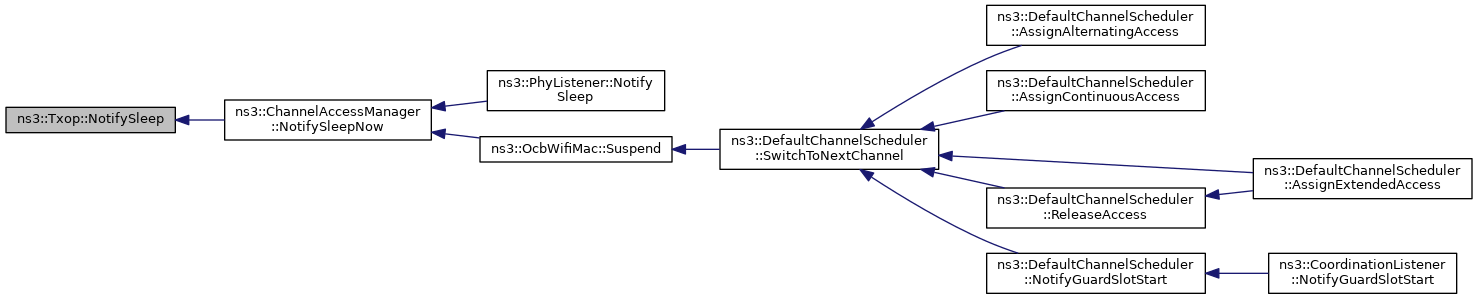

virtual void	NotifySleep (void)
	When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue. More...

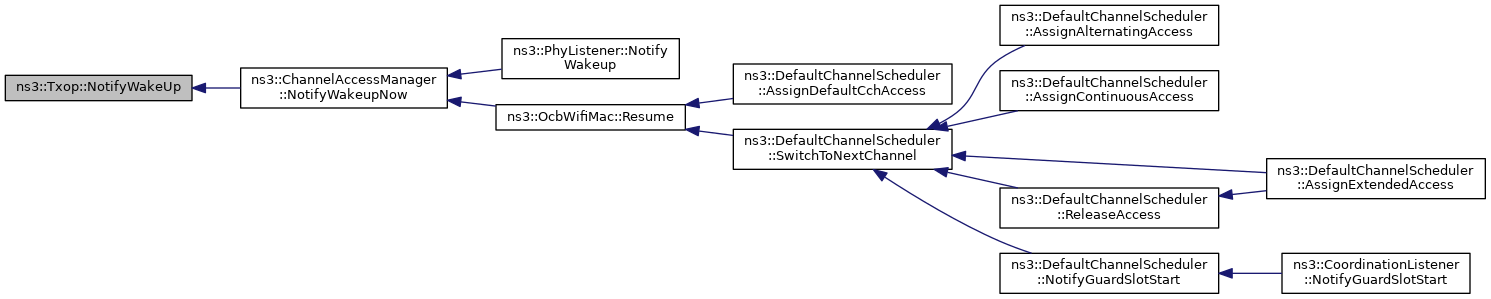

virtual void	NotifyWakeUp (void)
	When wake up operation occurs, channel access will be restarted. More...

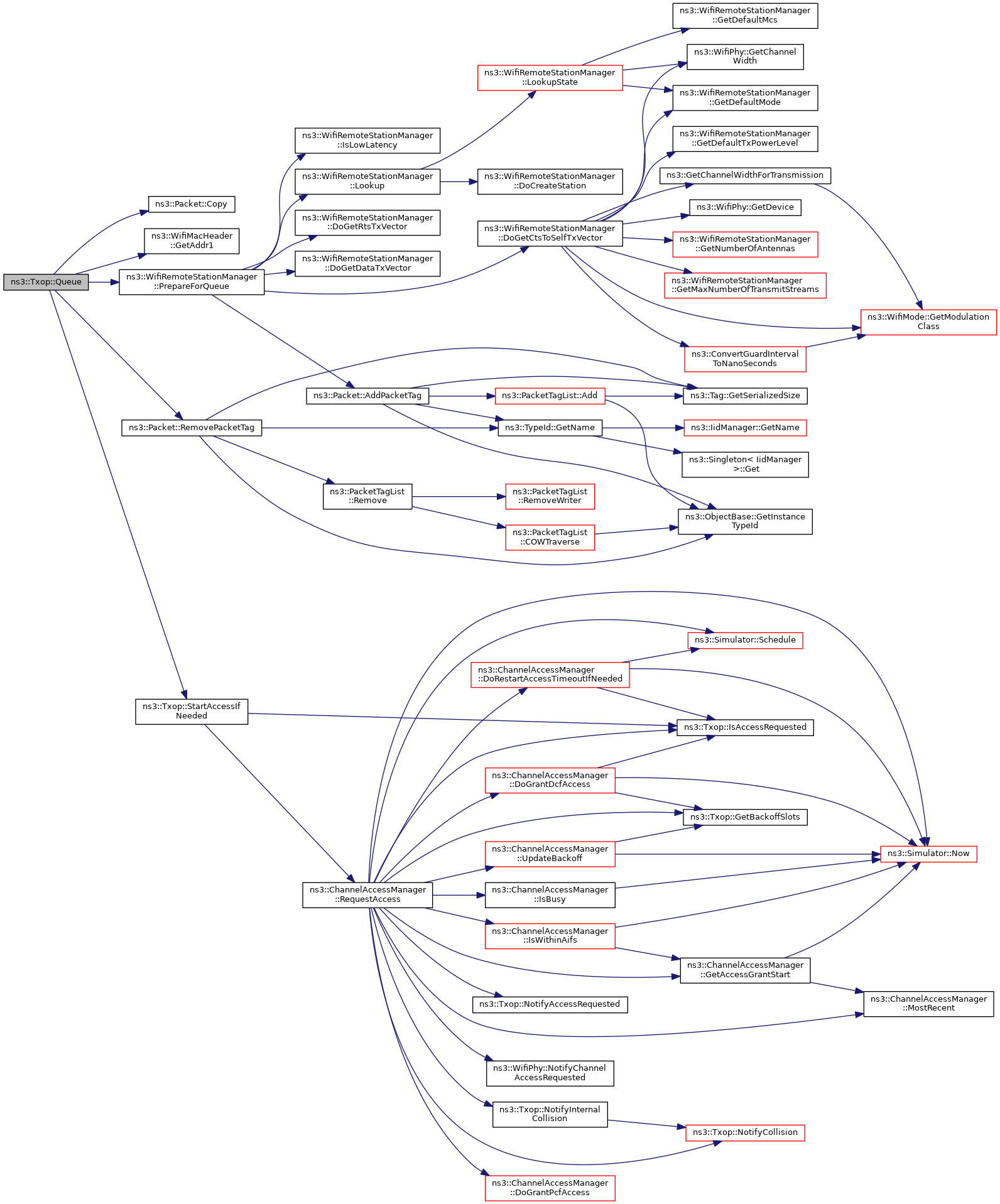

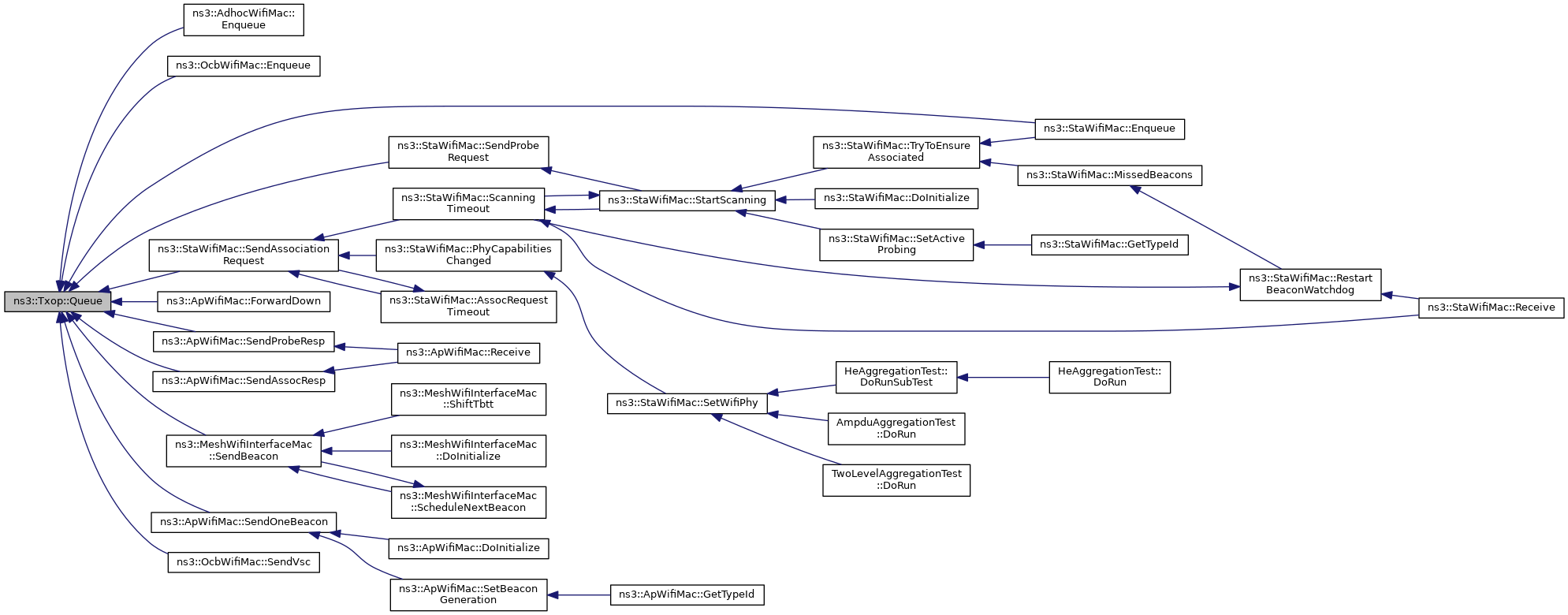

virtual void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

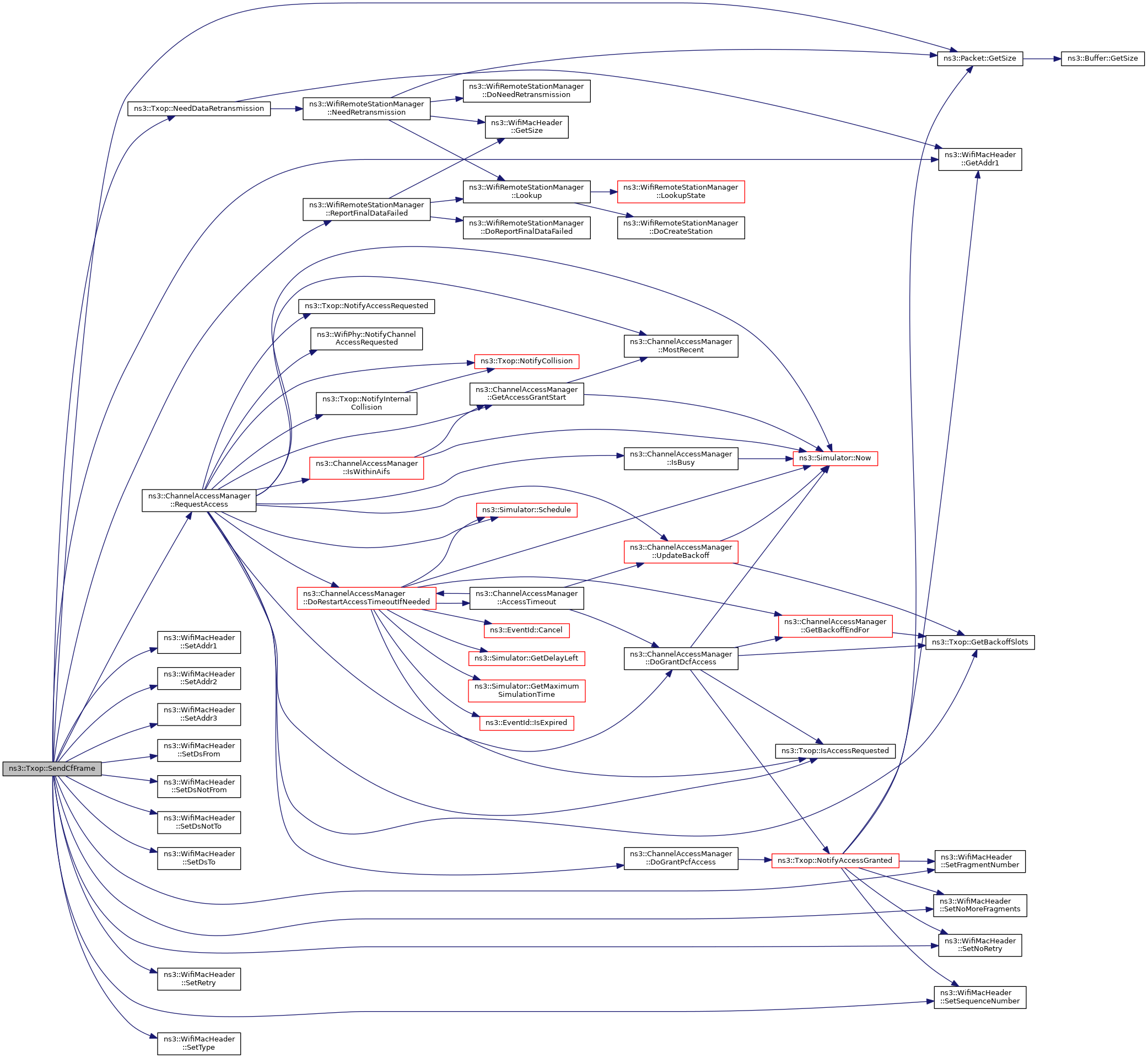

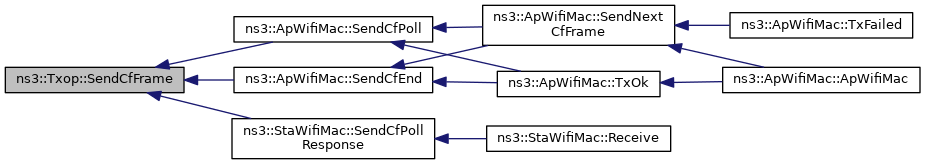

void	SendCfFrame (WifiMacType frameType, Mac48Address addr)
	Sends CF frame to sta with address addr. More...

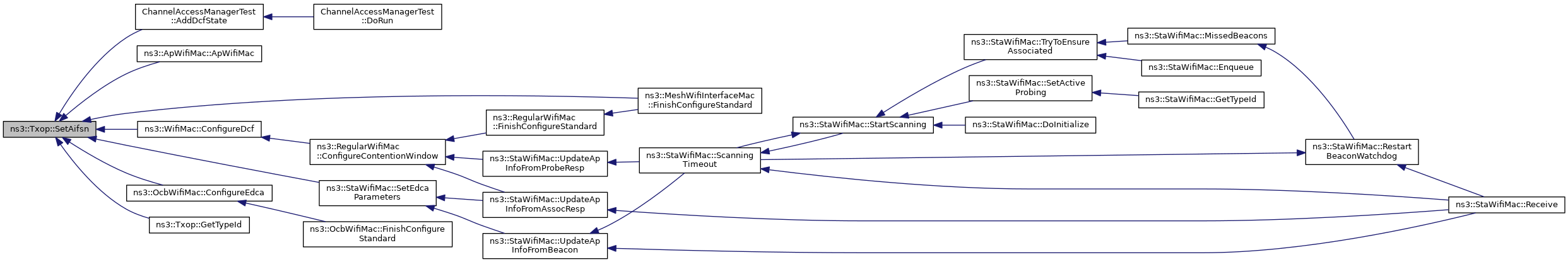

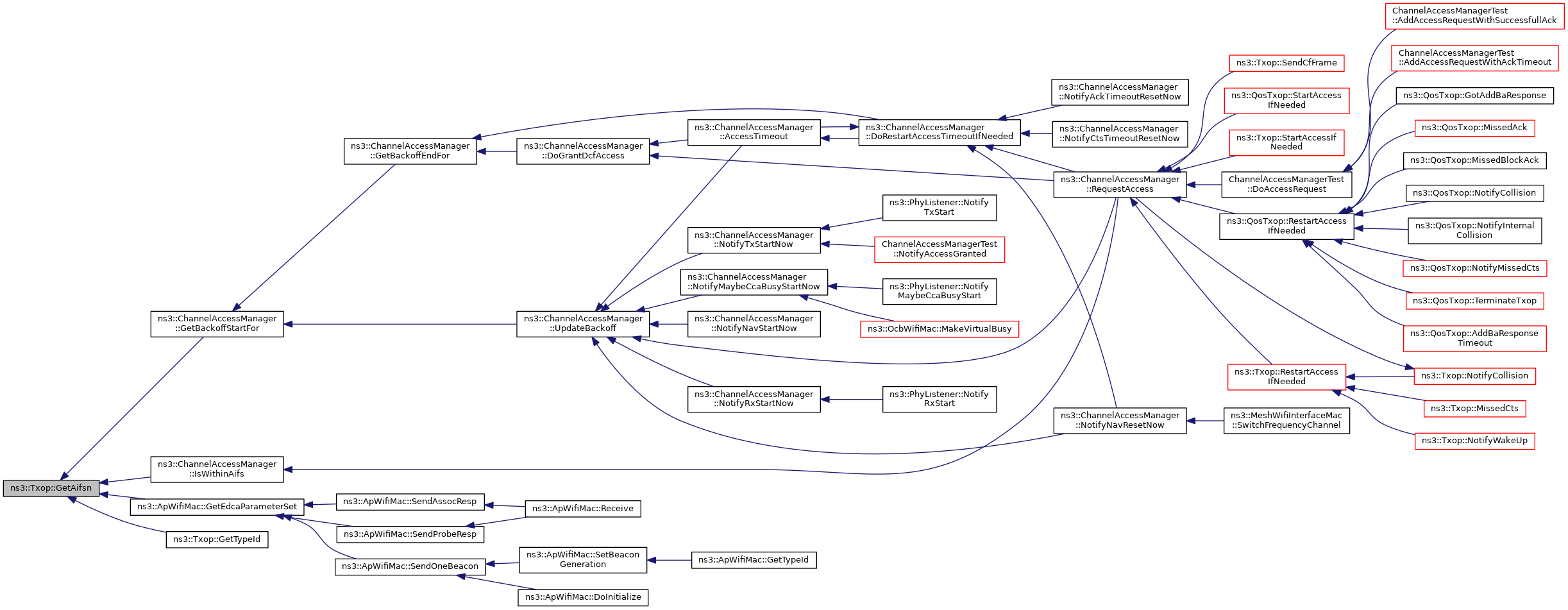

void	SetAifsn (uint8_t aifsn)
	Set the number of slots that make up an AIFS. More...

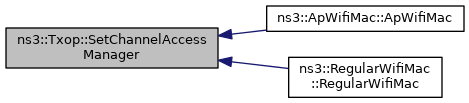

void	SetChannelAccessManager (const Ptr< ChannelAccessManager > manager)
	Set ChannelAccessManager this Txop is associated to. More...

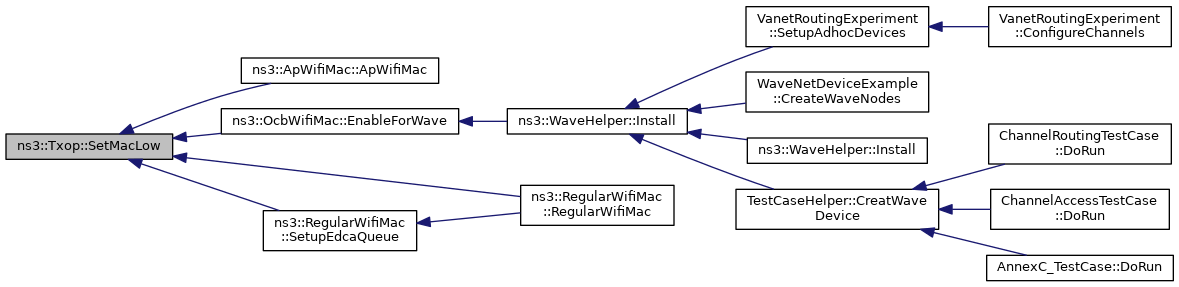

void	SetMacLow (const Ptr< MacLow > low)
	Set MacLow associated with this Txop. More...

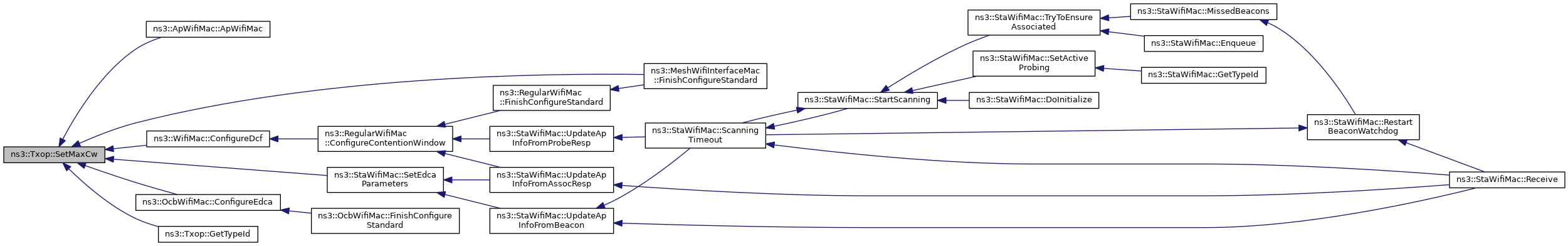

void	SetMaxCw (uint32_t maxCw)
	Set the maximum contention window size. More...

void	SetMinCw (uint32_t minCw)
	Set the minimum contention window size. More...

void	SetTxDroppedCallback (TxDropped callback)

void	SetTxFailedCallback (TxFailed callback)

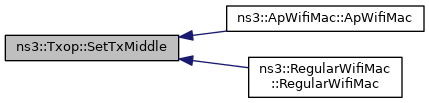

void	SetTxMiddle (const Ptr< MacTxMiddle > txMiddle)
	Set MacTxMiddle this Txop is associated to. More...

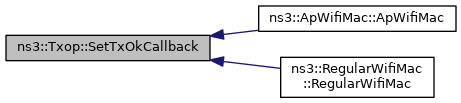

void	SetTxOkCallback (TxOk callback)

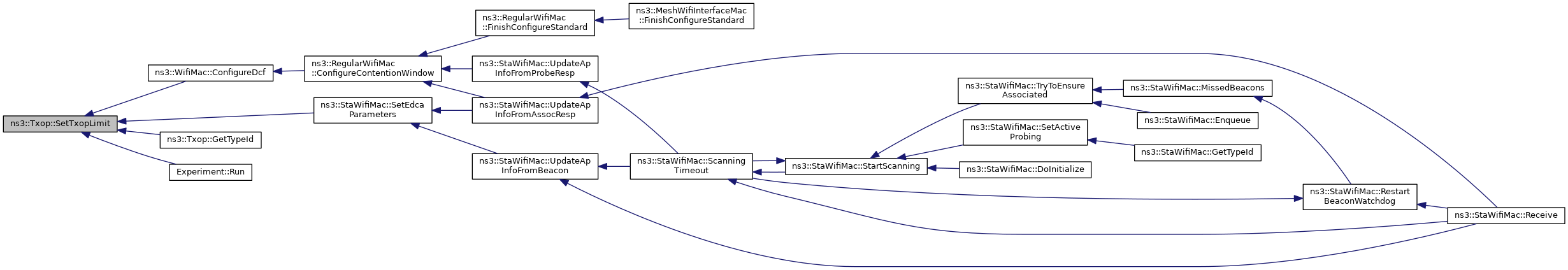

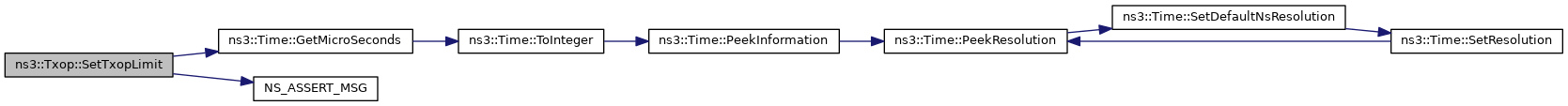

void	SetTxopLimit (Time txopLimit)
	Set the TXOP limit. More...

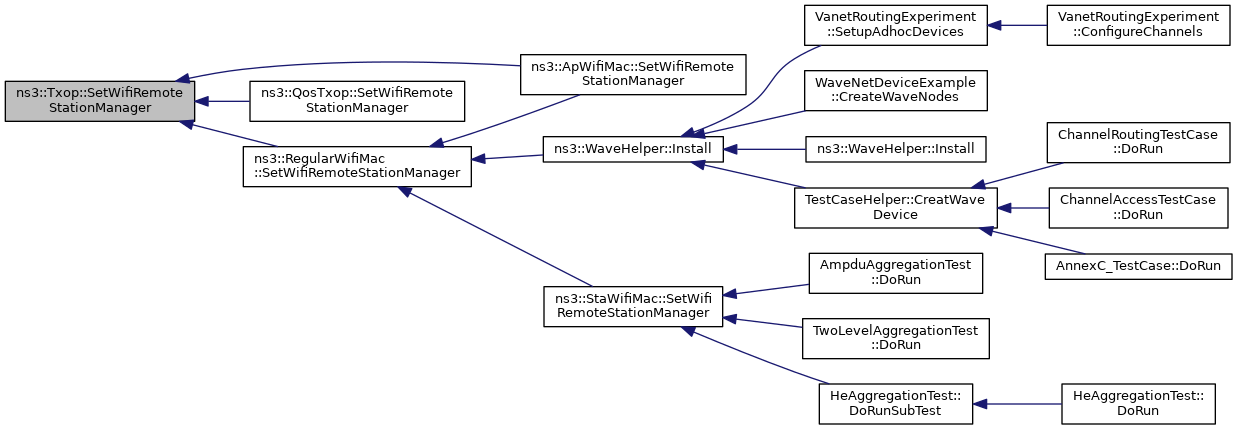

virtual void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > remoteManager)
	Set WifiRemoteStationsManager this Txop is associated to. More...

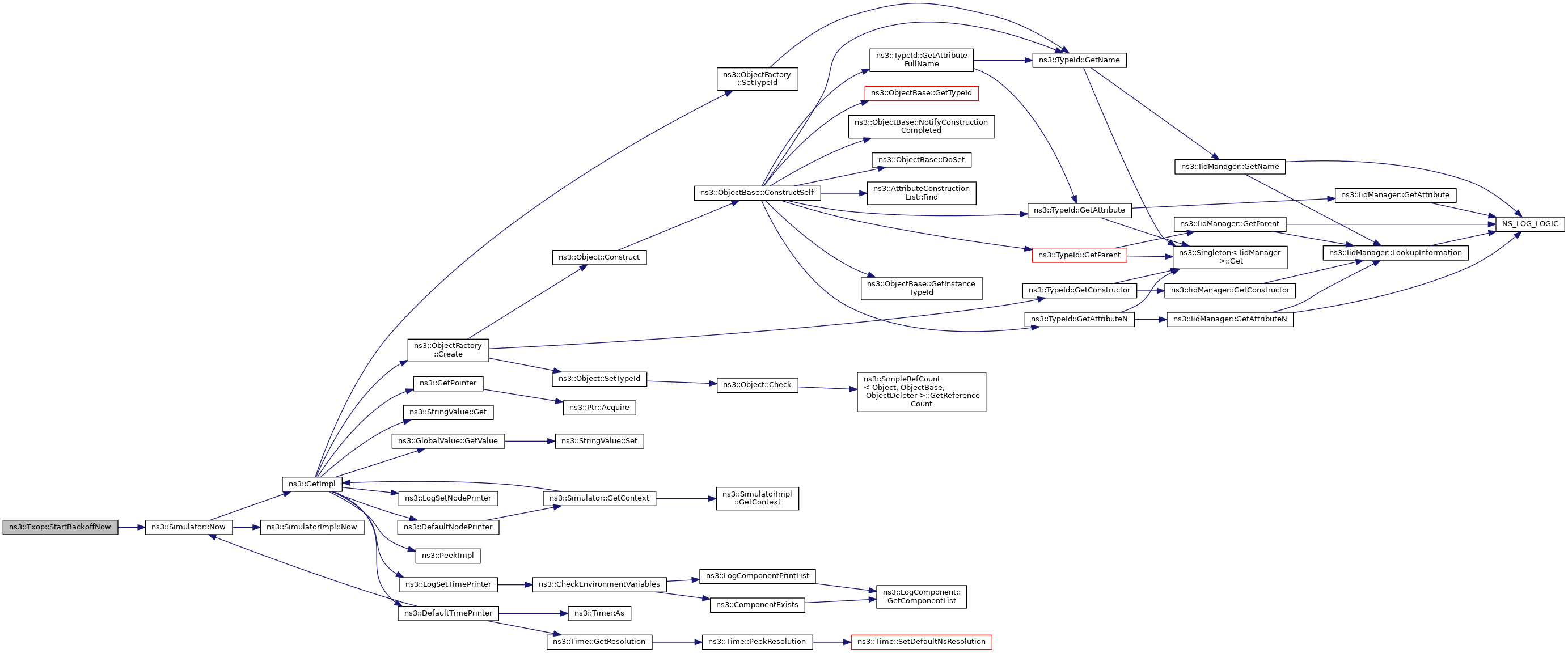

void	StartBackoffNow (uint32_t nSlots)

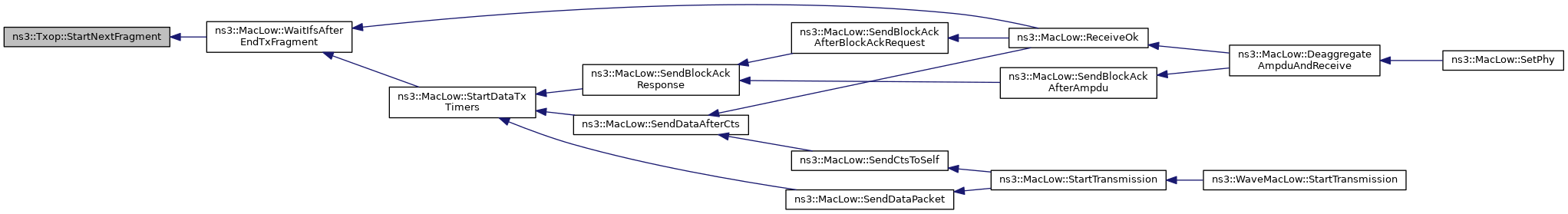

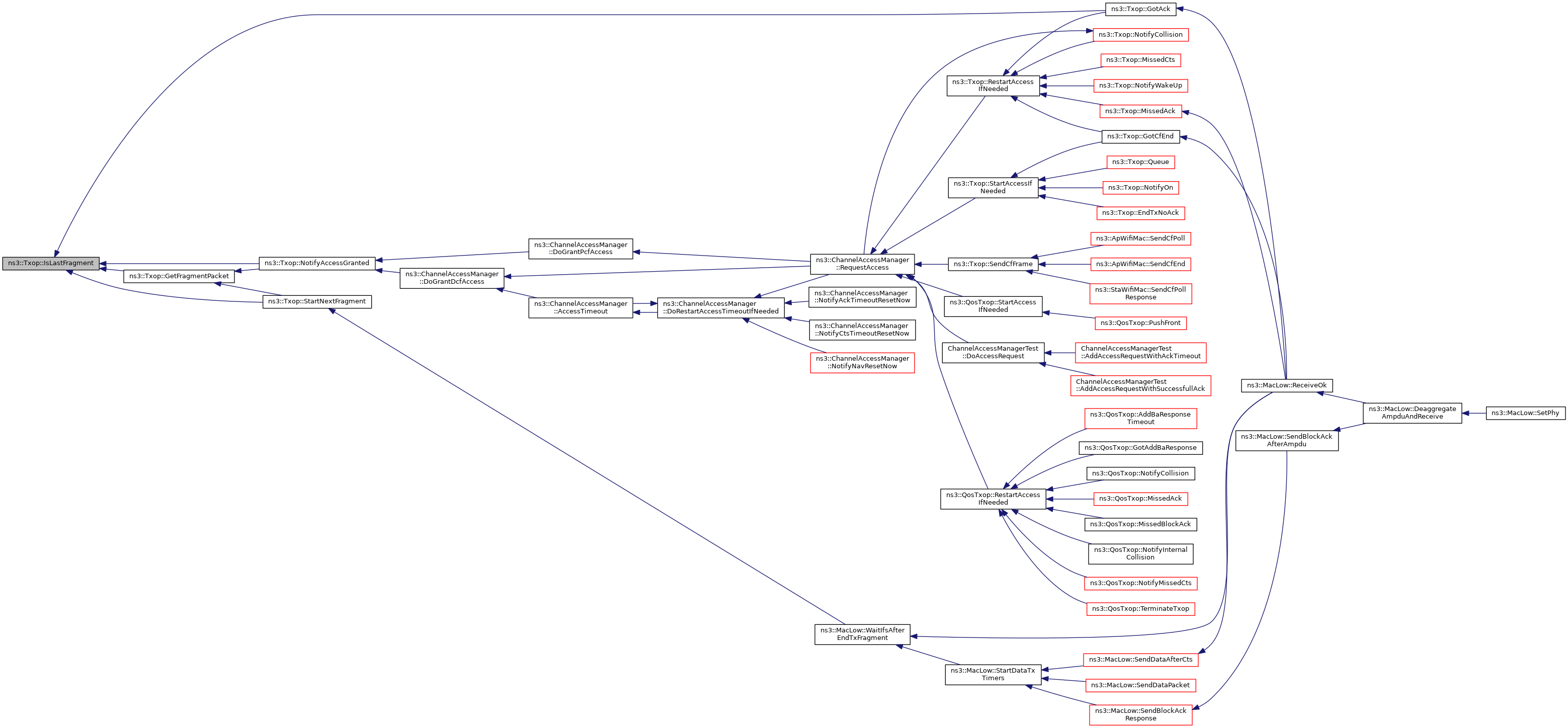

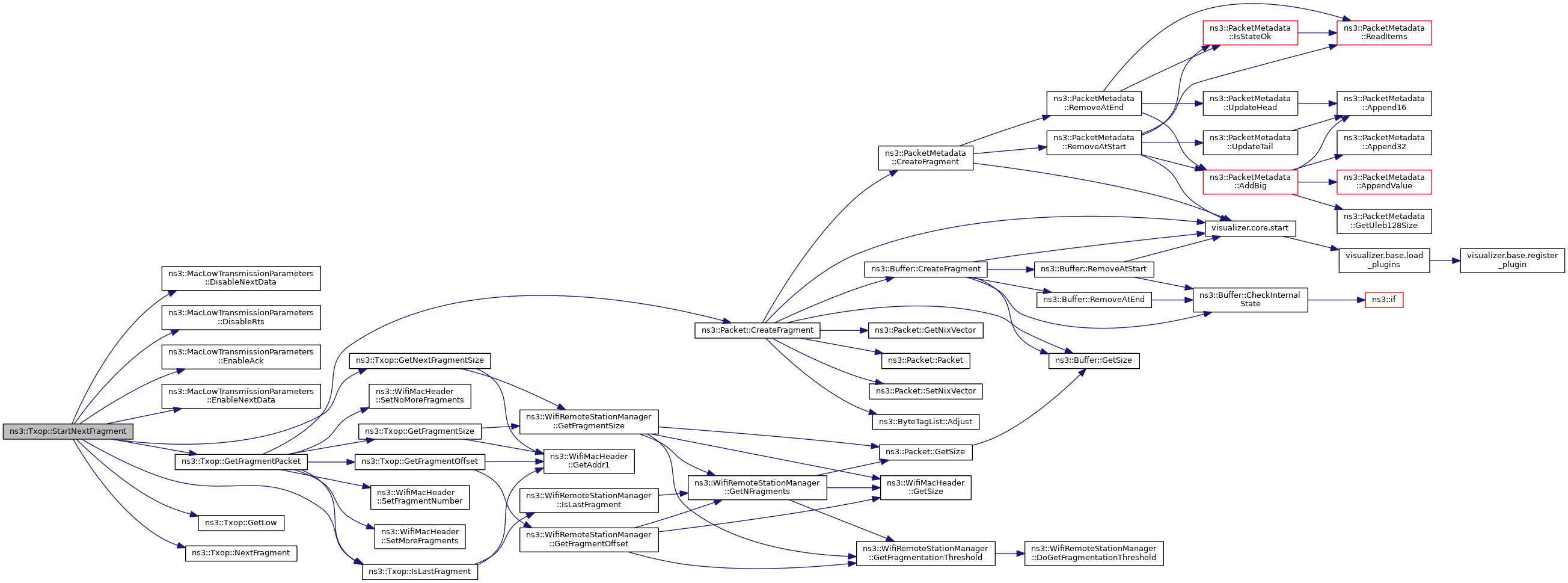

virtual void	StartNextFragment (void)
	Start transmission for the next fragment. More...

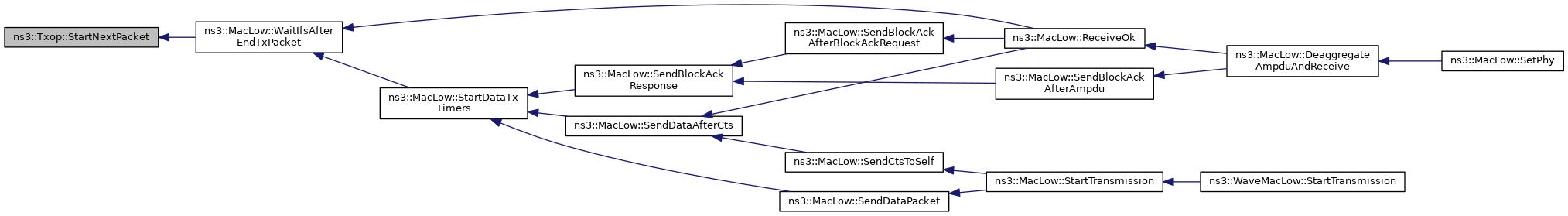

virtual void	StartNextPacket (void)
	Start transmission for the next packet if allowed by the TxopLimit. More...

virtual void	TerminateTxop (void)
	Update backoff and restart access if needed. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

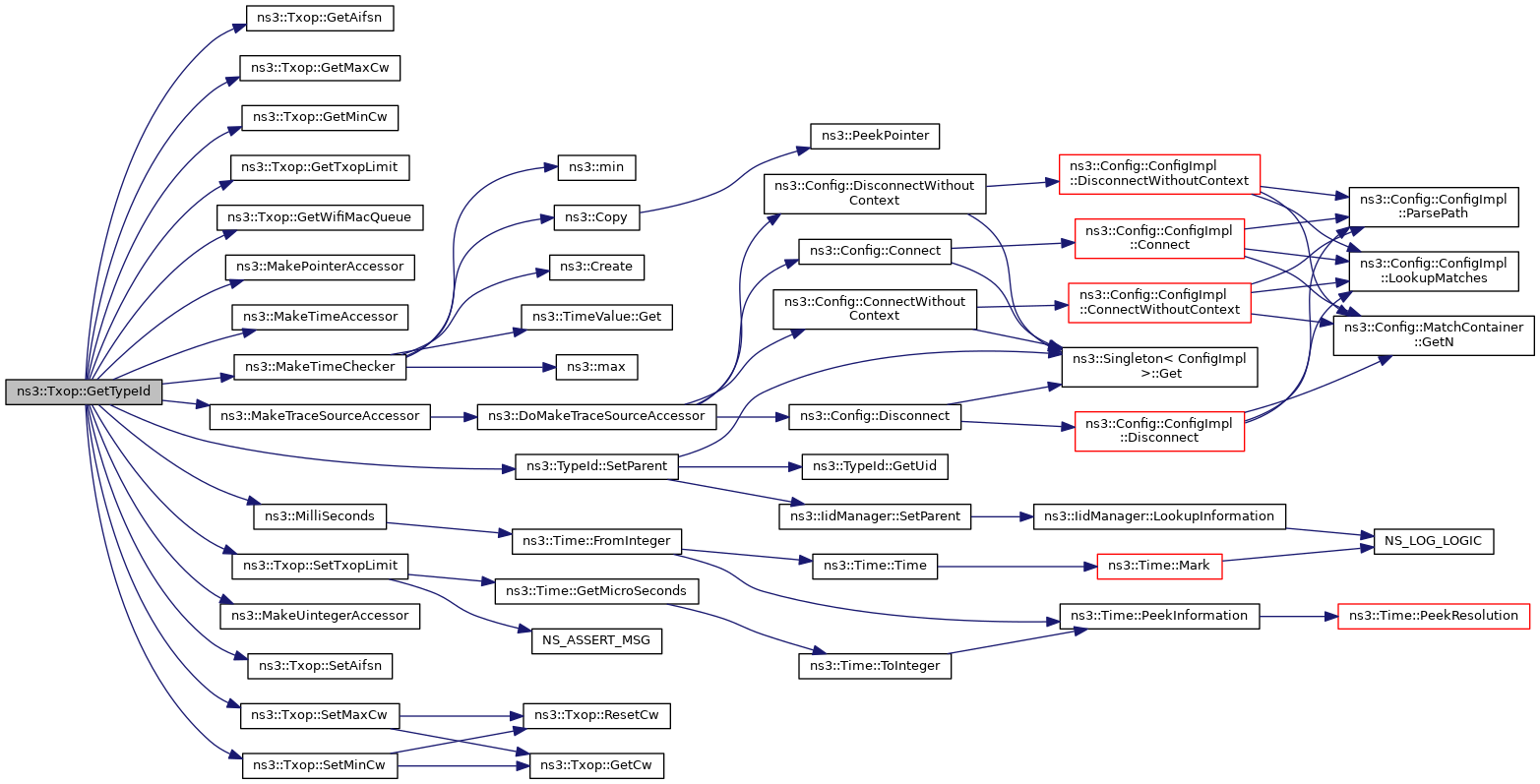

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

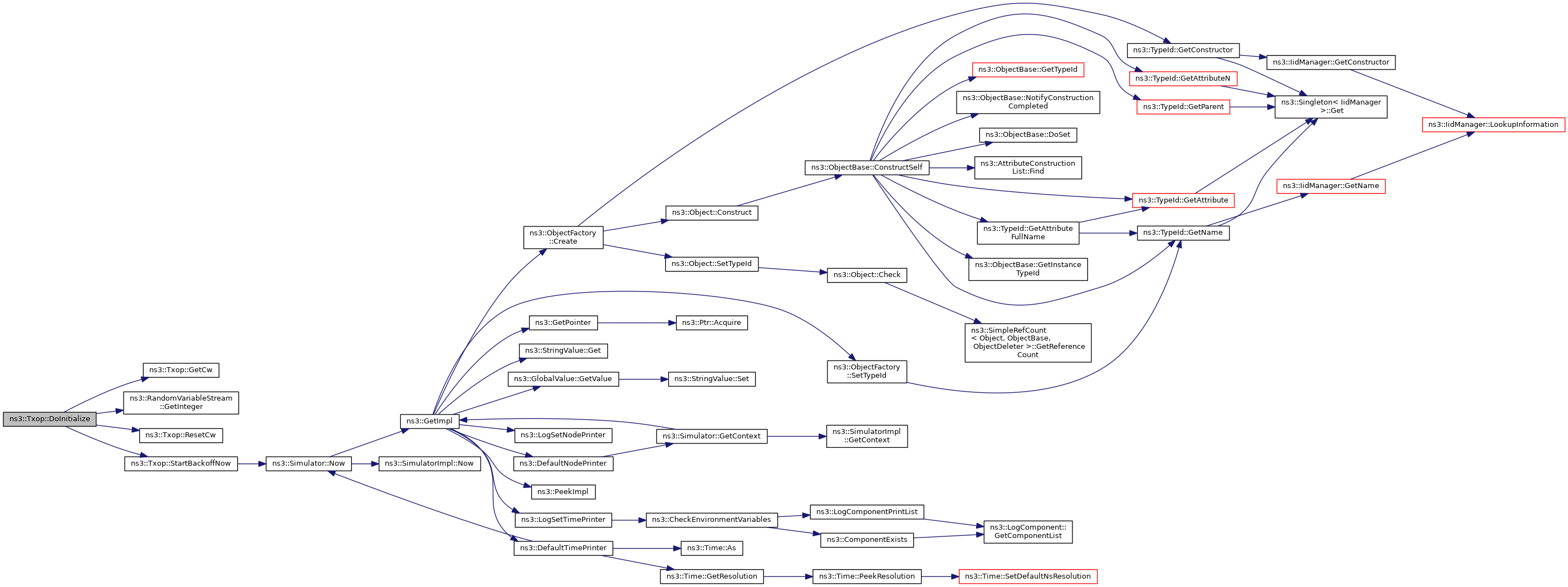

virtual void	DoInitialize (void)
	Initialize() implementation. More...

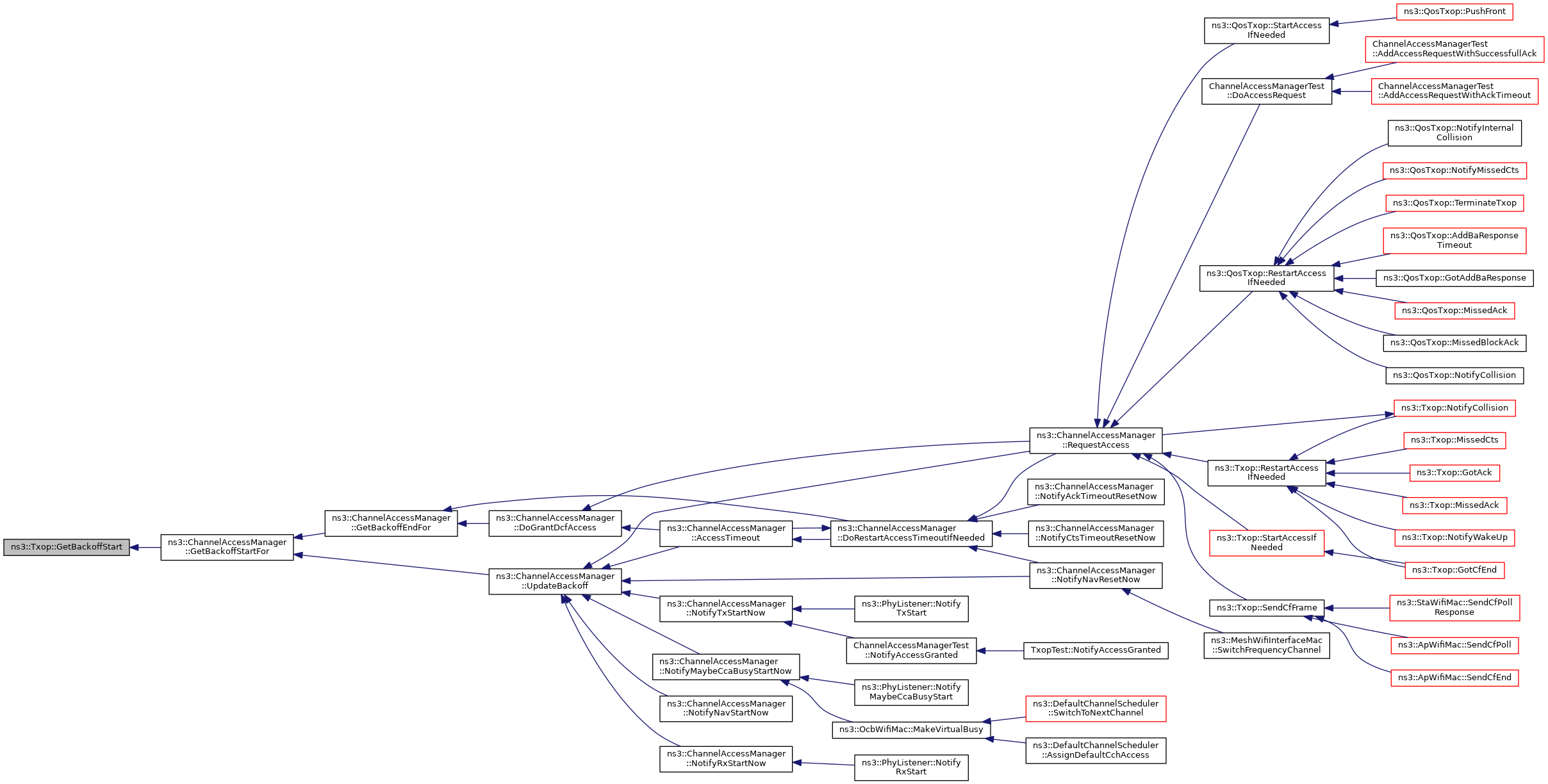

uint32_t	GetBackoffSlots (void) const
	Return the current number of backoff slots. More...

Time	GetBackoffStart (void) const
	Return the time when the backoff procedure started. More...

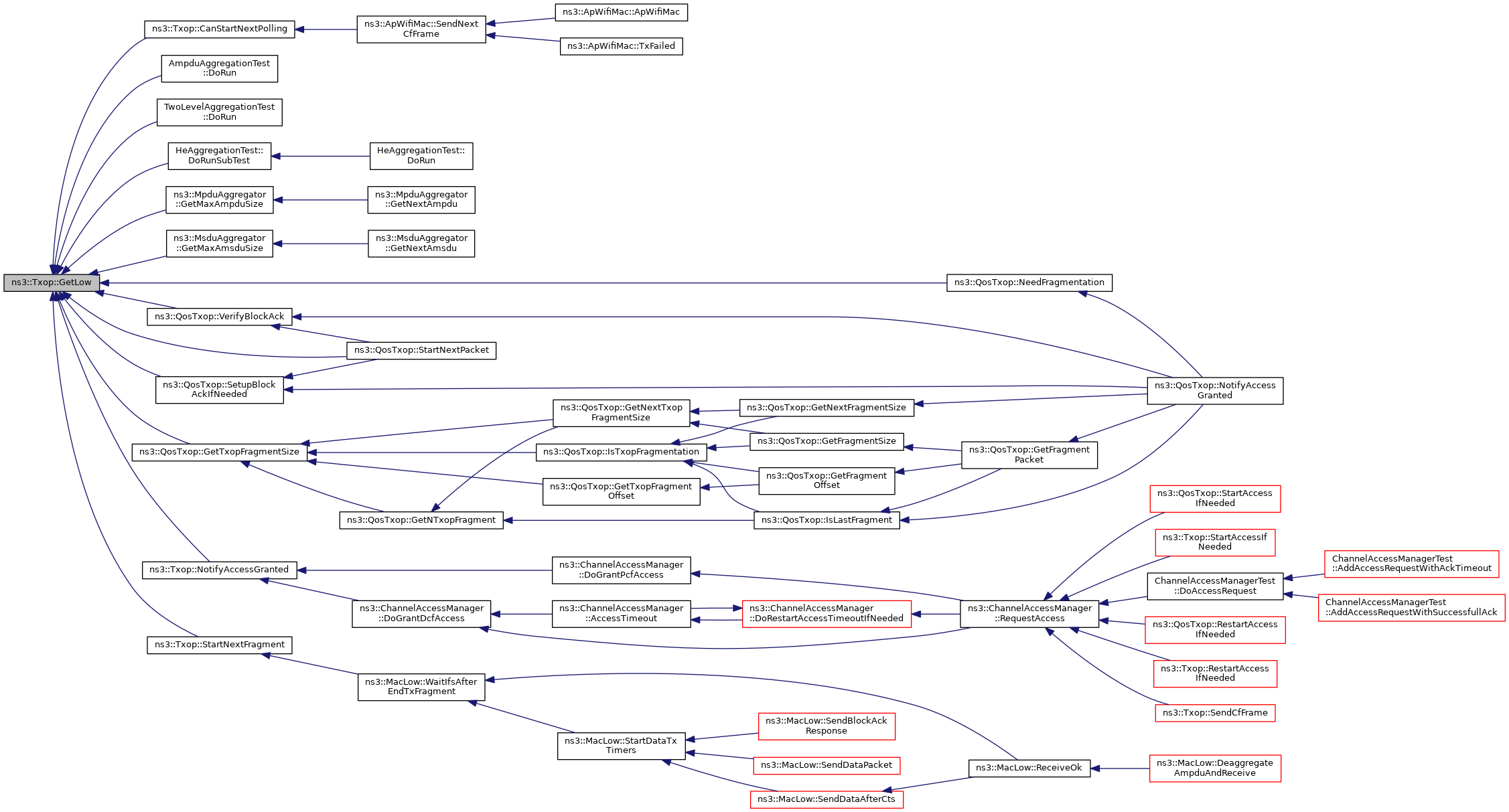

uint32_t	GetCw (void) const

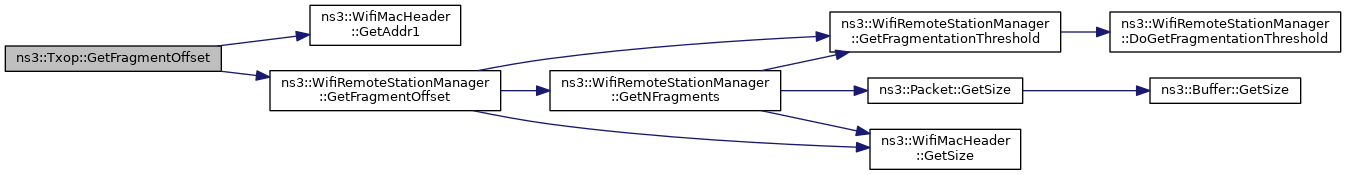

virtual uint32_t	GetFragmentOffset (void) const
	Calculate the offset for the current fragment. More...

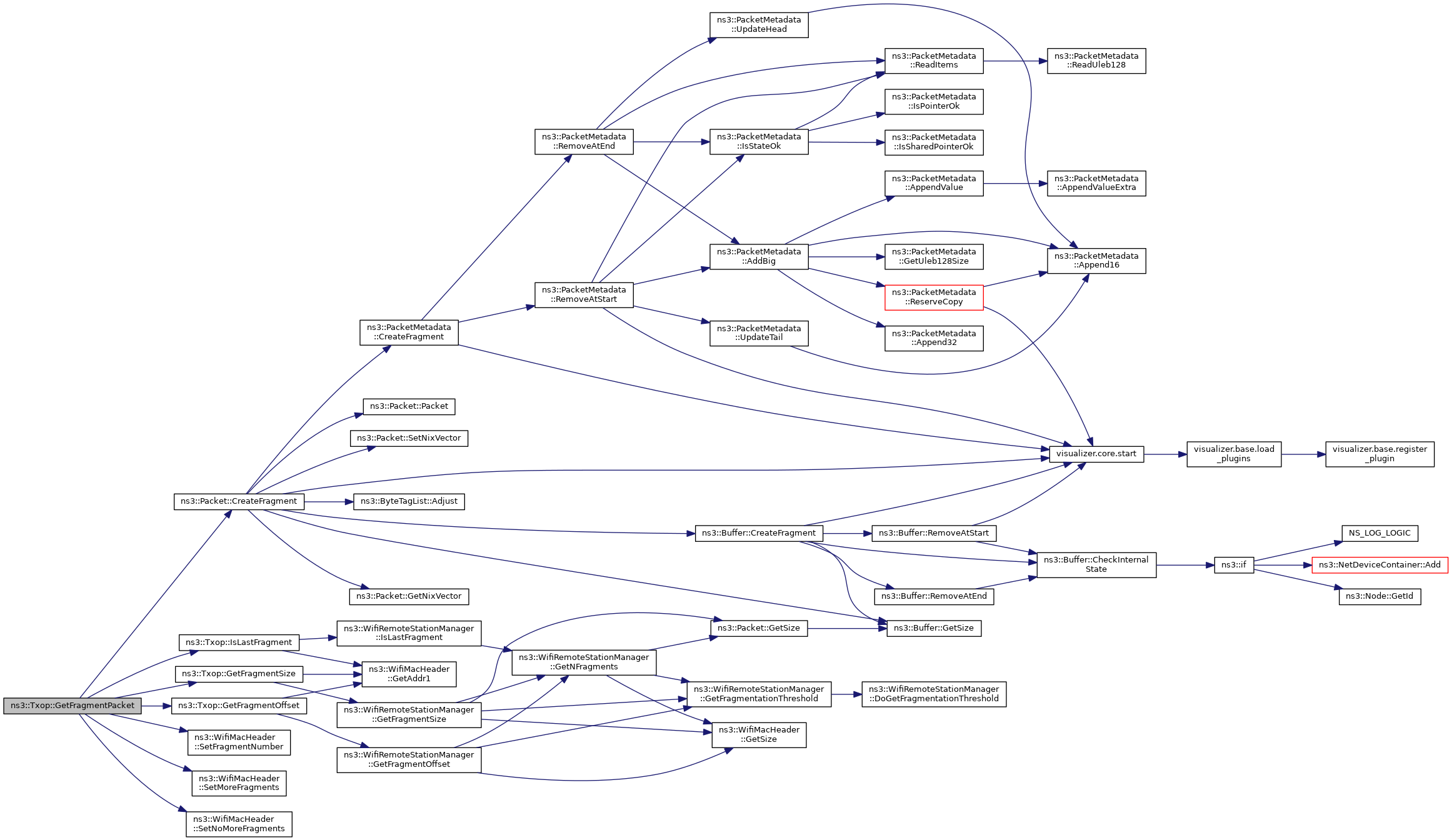

virtual Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
	Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

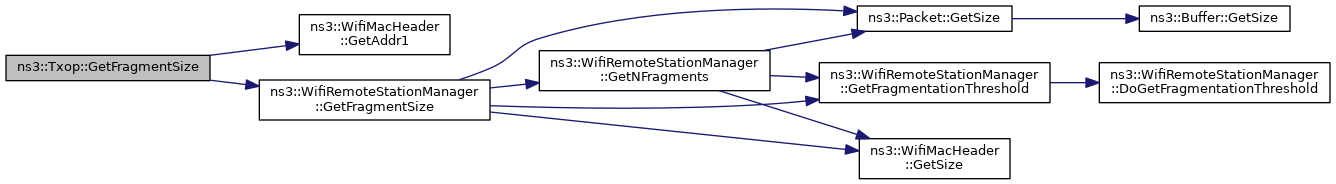

virtual uint32_t	GetFragmentSize (void) const
	Calculate the size of the current fragment. More...

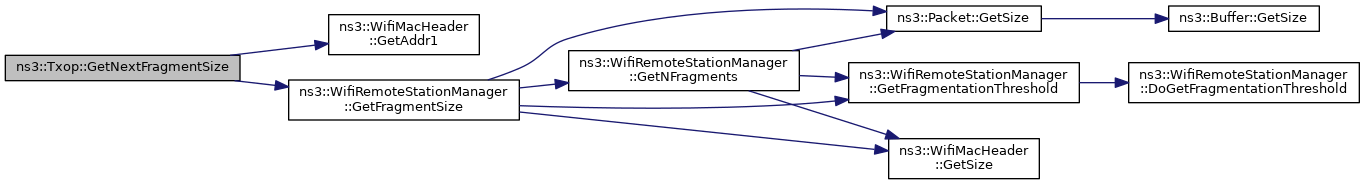

virtual uint32_t	GetNextFragmentSize (void) const
	Calculate the size of the next fragment. More...

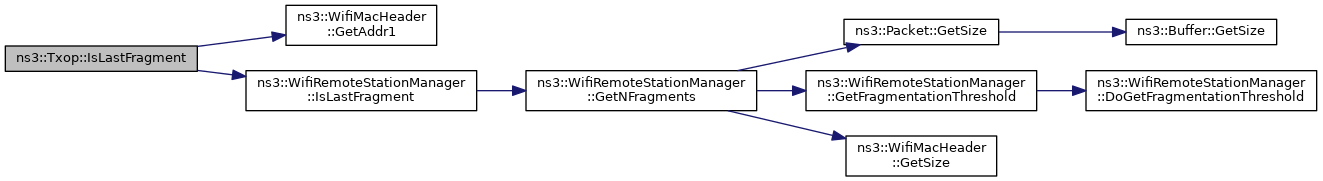

virtual bool	IsLastFragment (void) const
	Check if the current fragment is the last fragment. More...

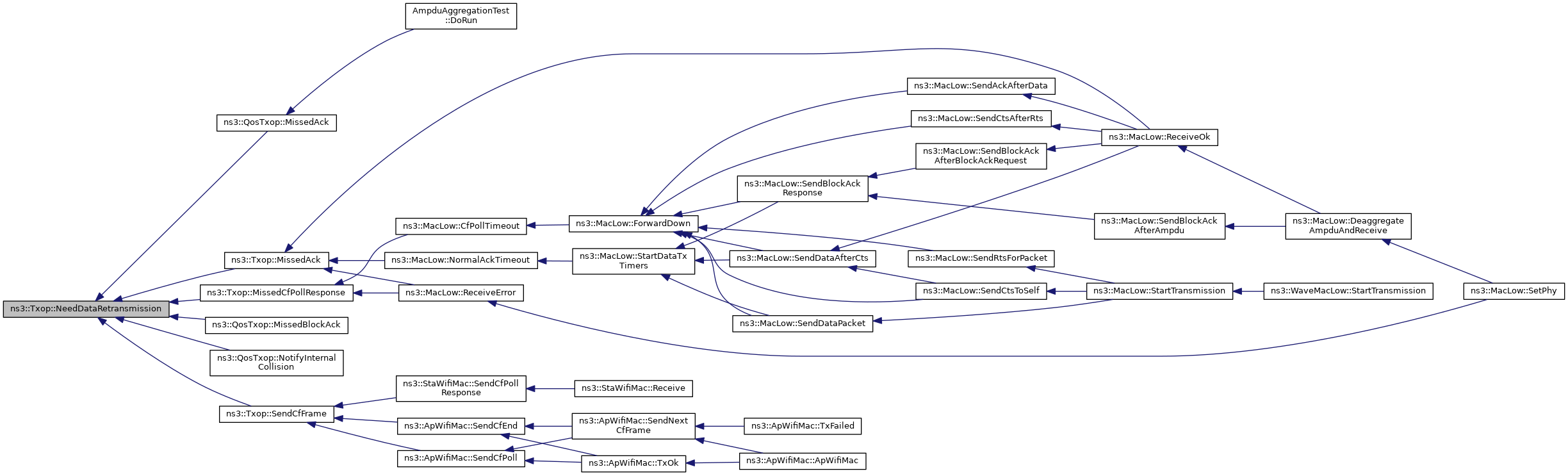

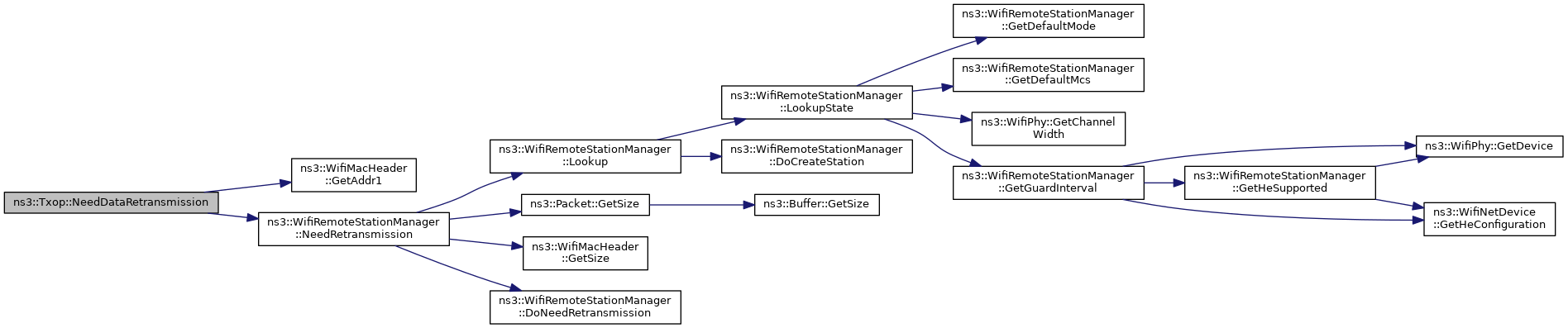

bool	NeedDataRetransmission (Ptr< const Packet > packet, const WifiMacHeader &hdr)
	Check if DATA should be re-transmitted if ACK was missed. More...

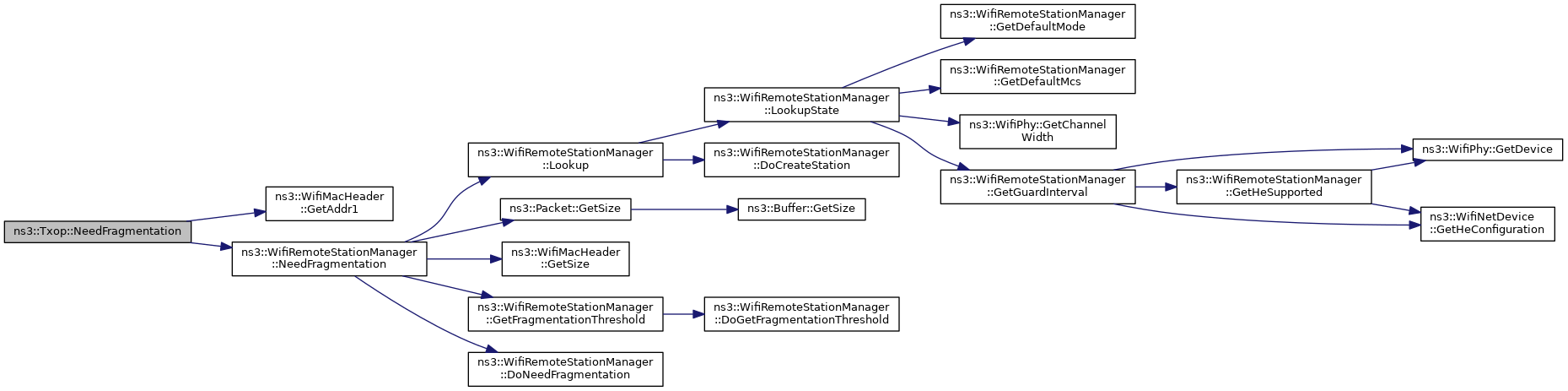

virtual bool	NeedFragmentation (void) const
	Check if the current packet should be fragmented. More...

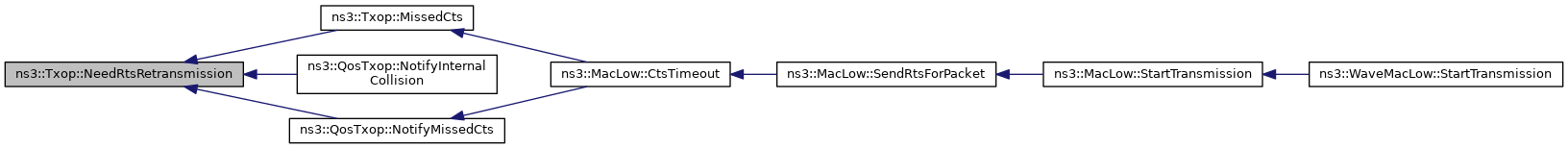

bool	NeedRtsRetransmission (Ptr< const Packet > packet, const WifiMacHeader &hdr)
	Check if RTS should be re-transmitted if CTS was missed. More...

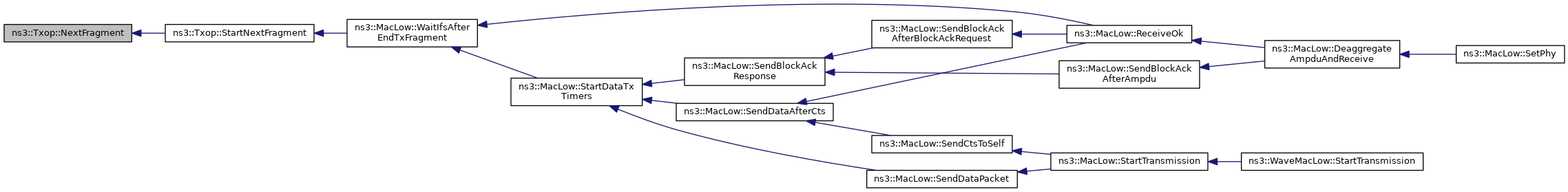

void	NextFragment (void)
	Continue to the next fragment. More...

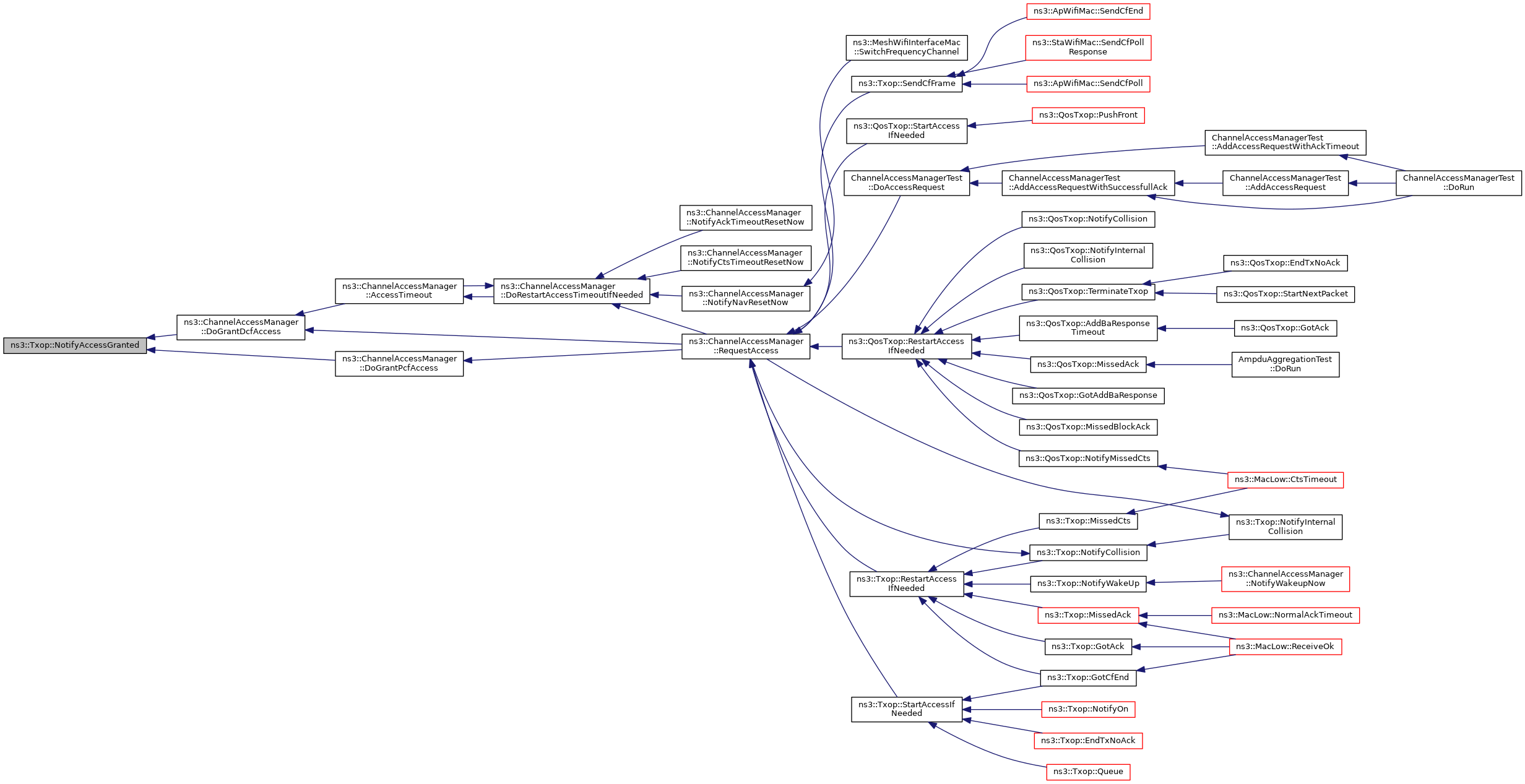

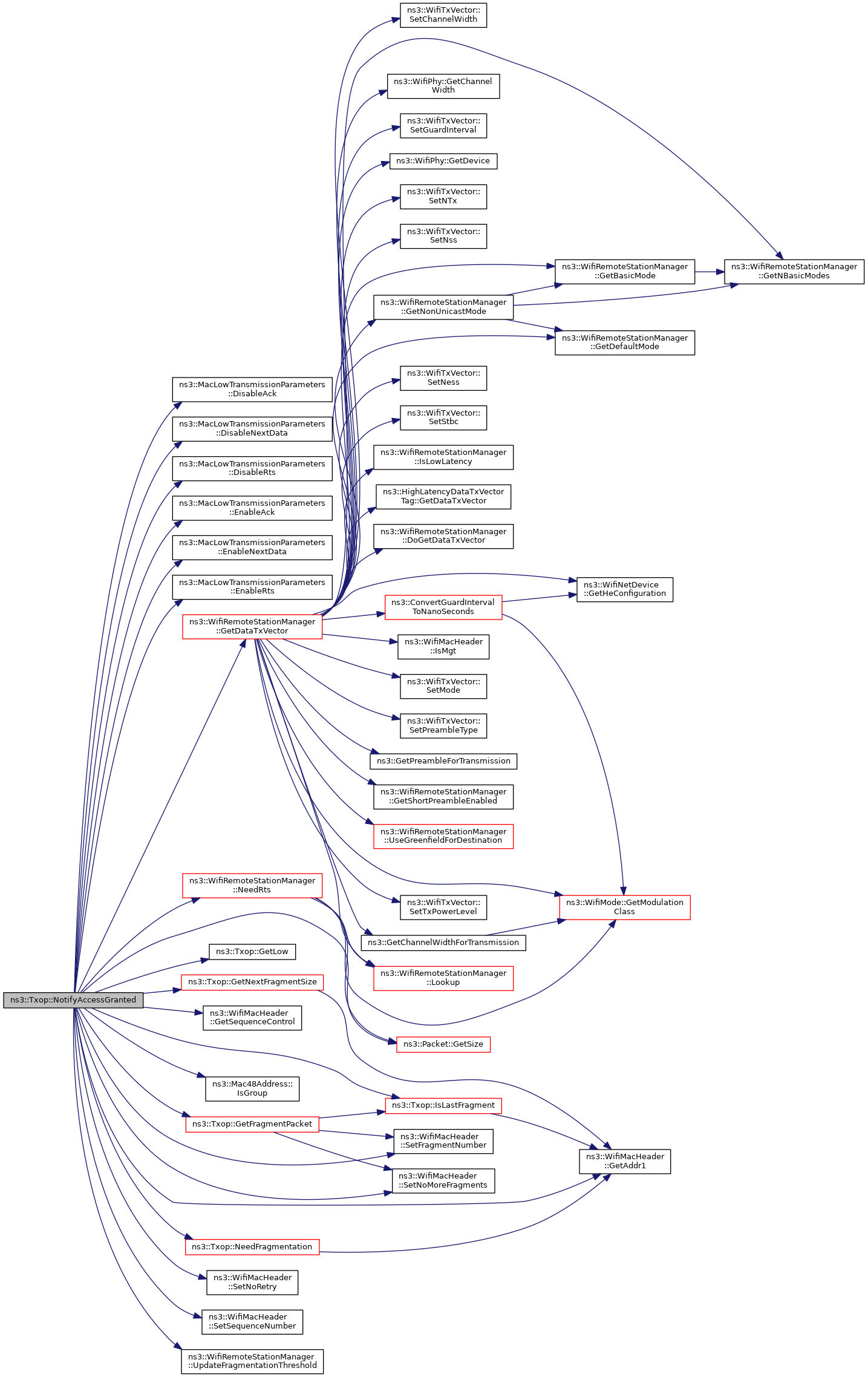

virtual void	NotifyAccessGranted (void)
	Notify the DCF that access has been granted. More...

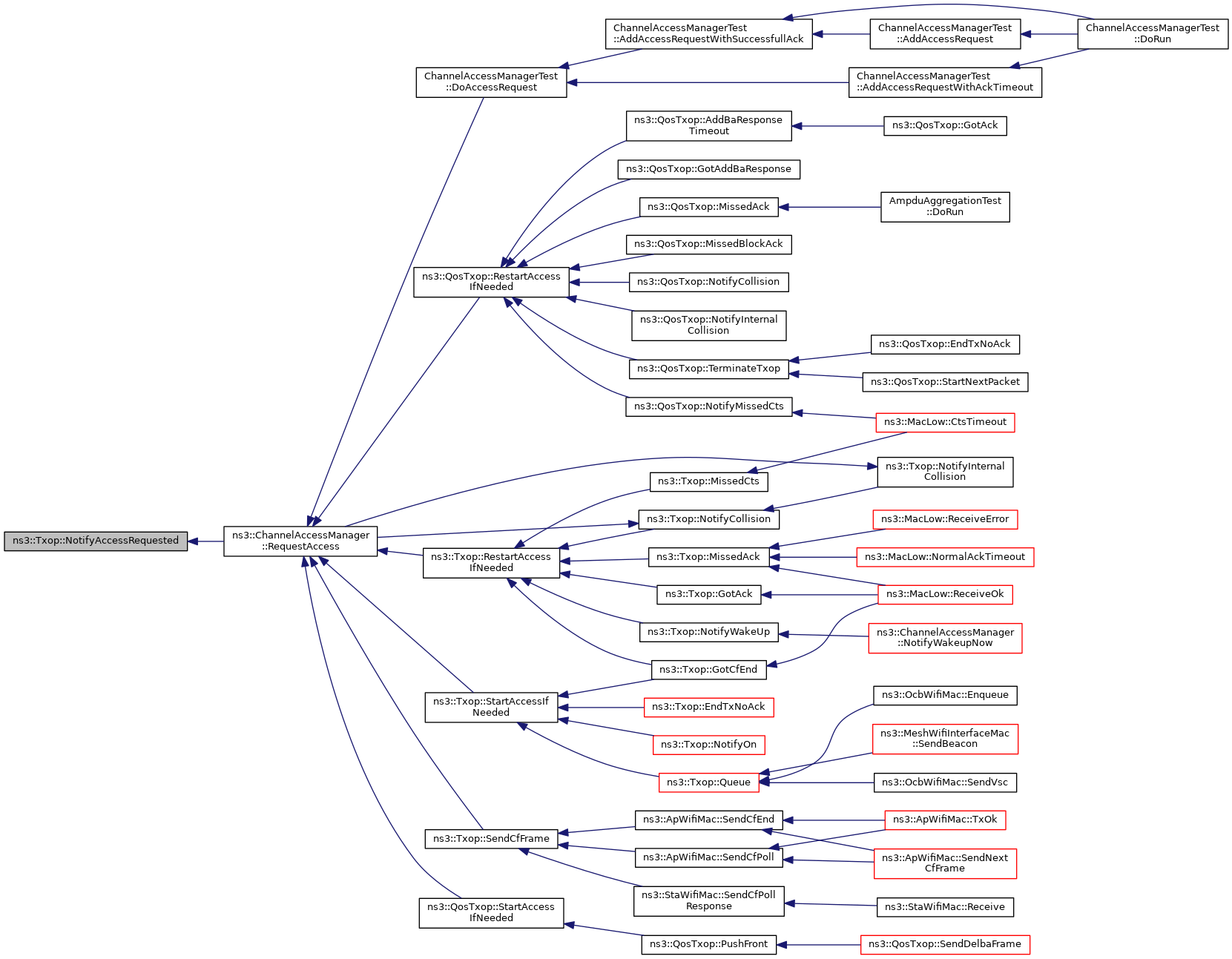

virtual void	NotifyAccessRequested (void)
	Notify that access request has been received. More...

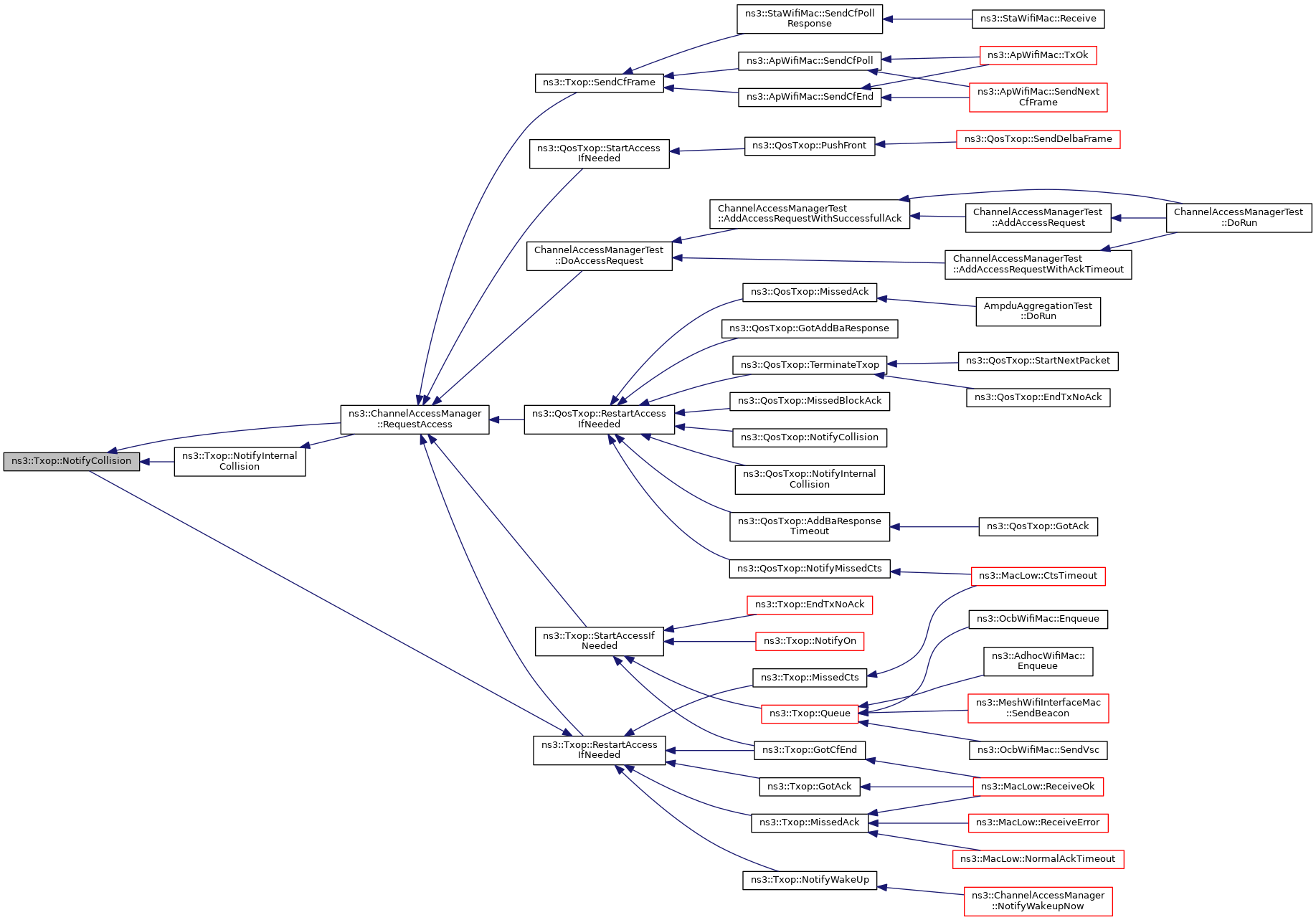

virtual void	NotifyCollision (void)
	Notify the DCF that collision has occurred. More...

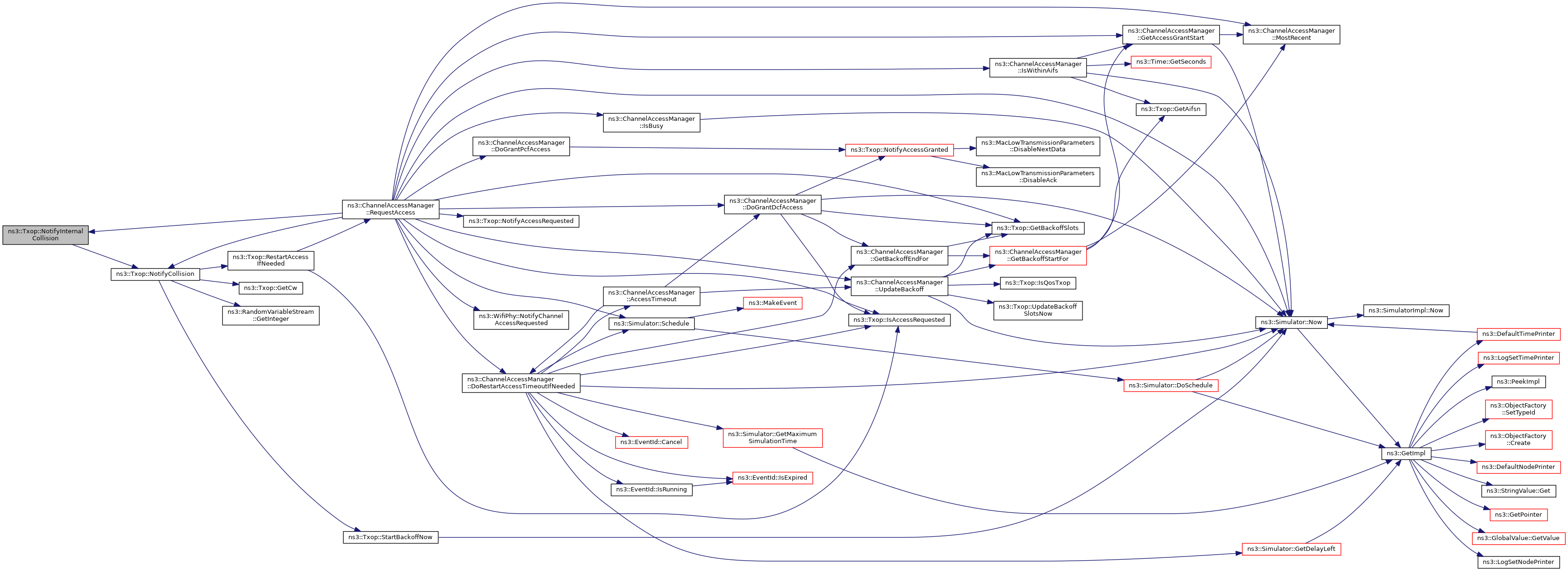

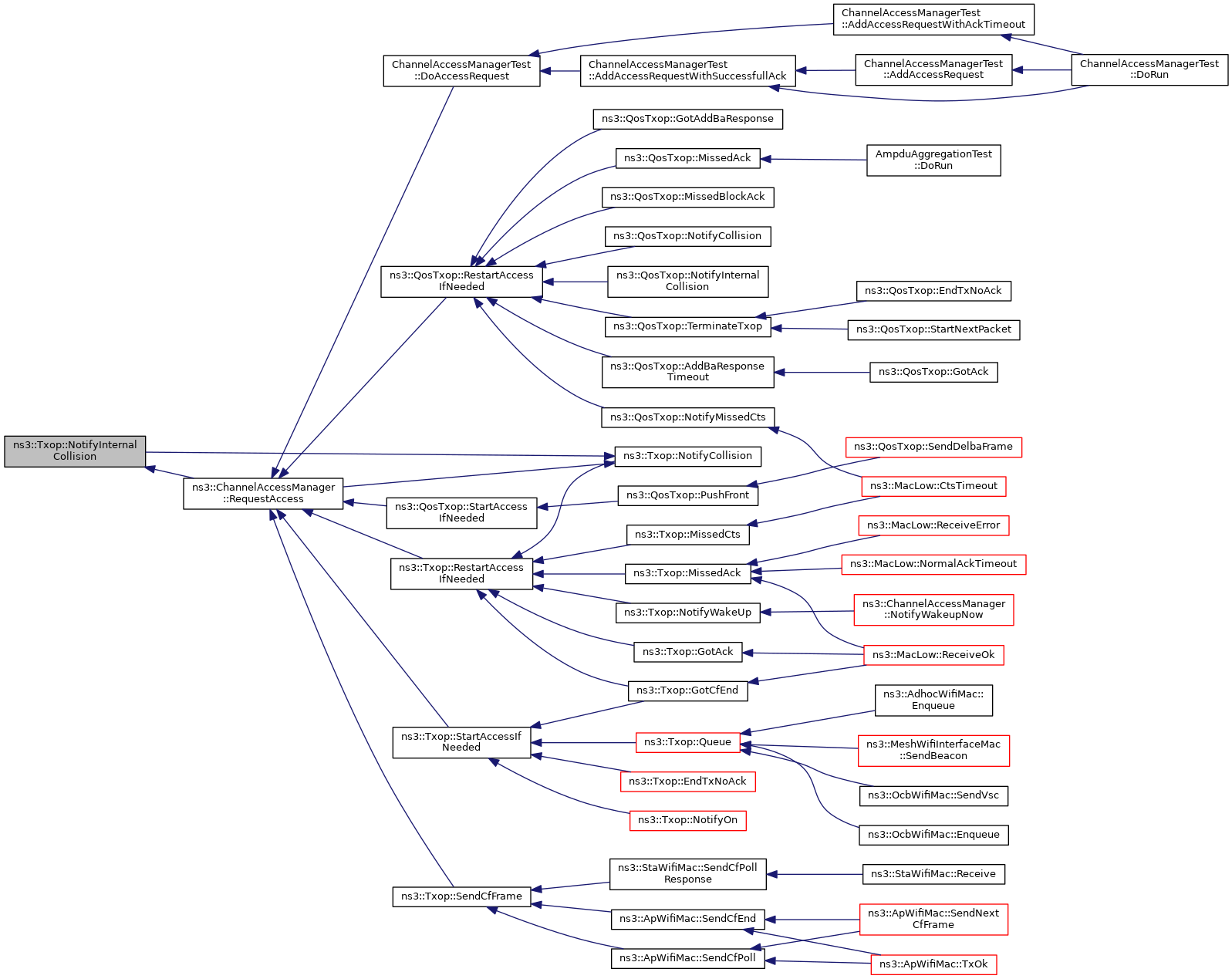

virtual void	NotifyInternalCollision (void)
	Notify the DCF that internal collision has occurred. More...

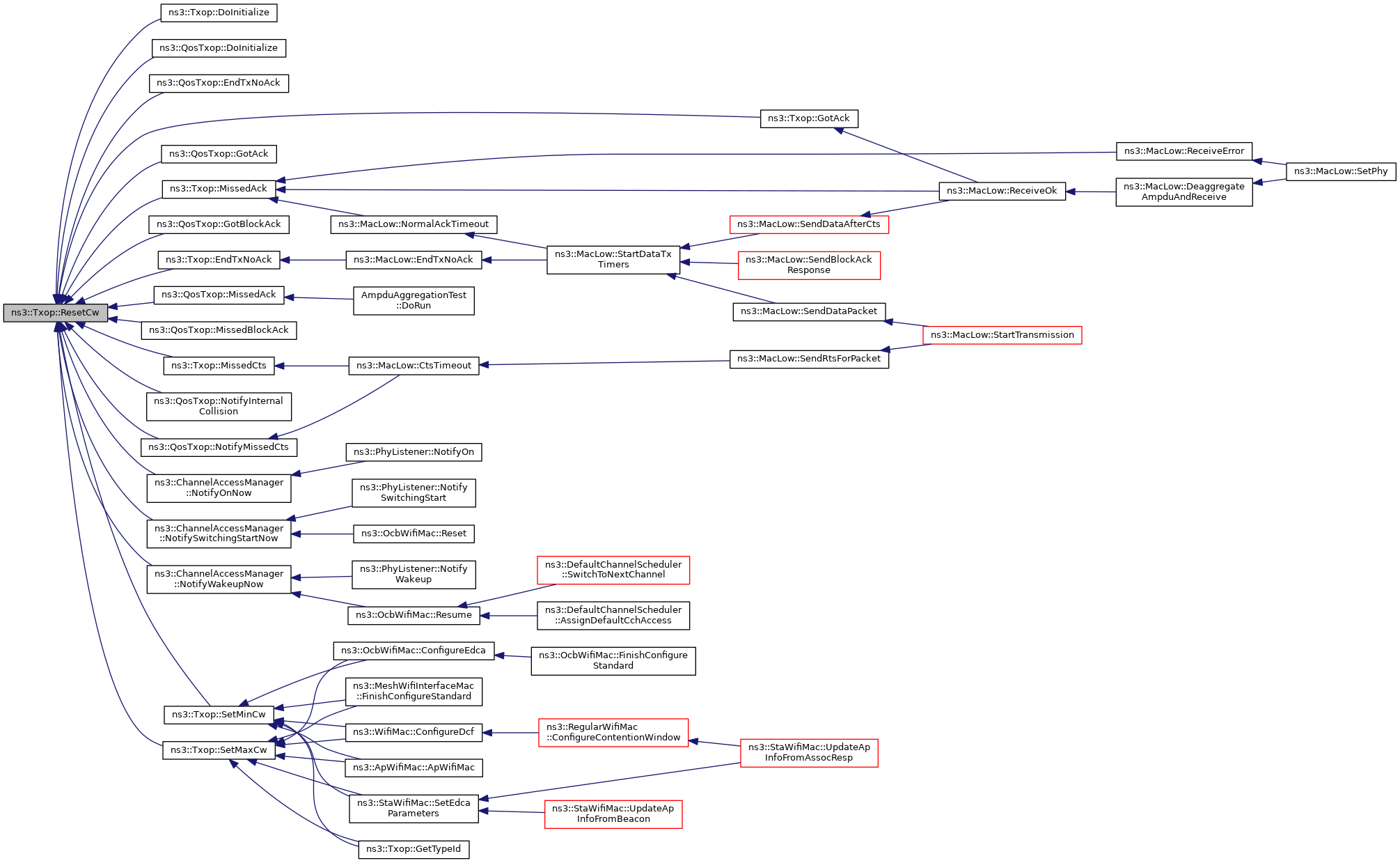

void	ResetCw (void)
	Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached). More...

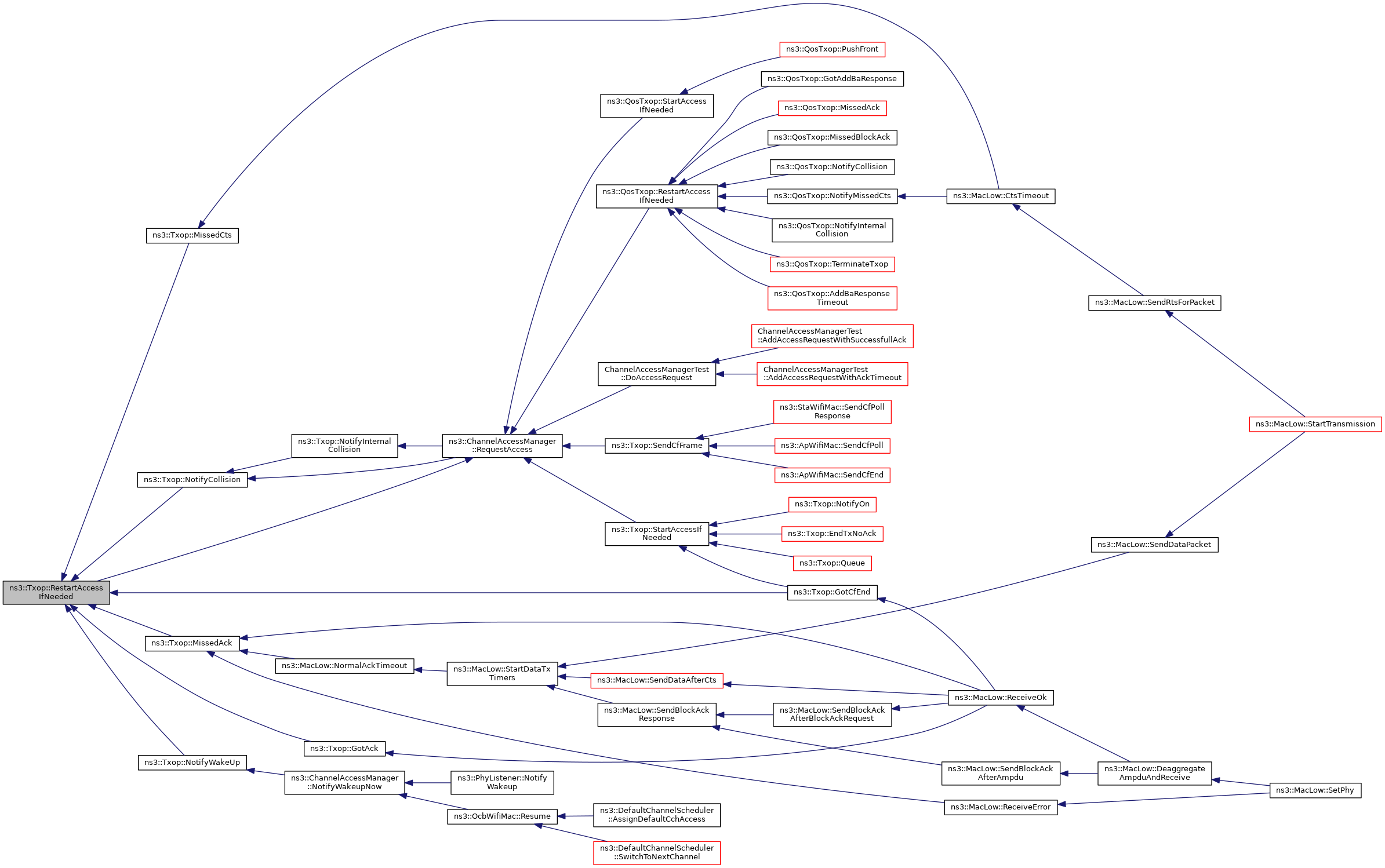

virtual void	RestartAccessIfNeeded (void)
	Restart access request if needed. More...

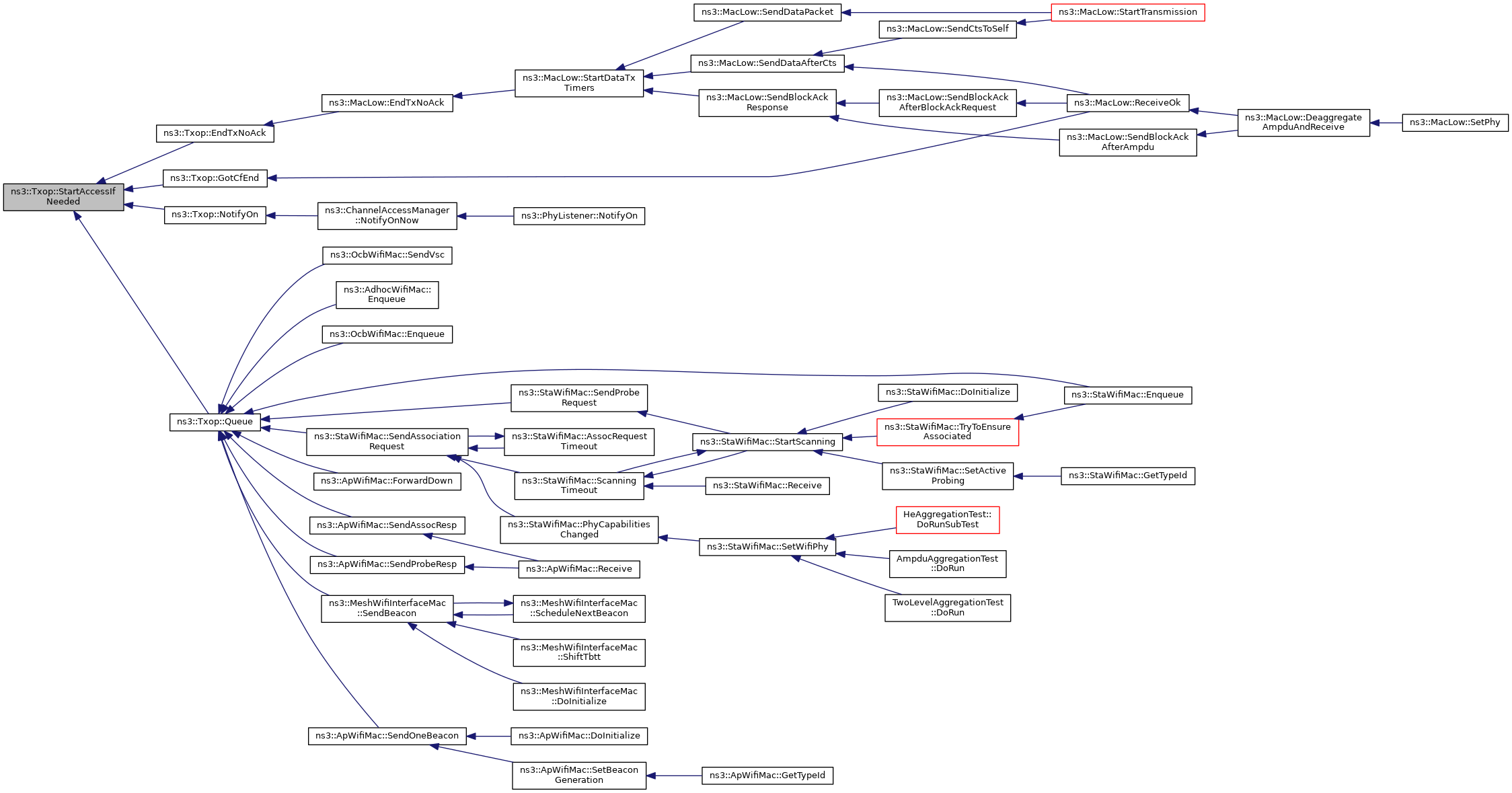

virtual void	StartAccessIfNeeded (void)
	Request access from DCF manager if needed. More...

void	TxDroppedPacket (Ptr< const WifiMacQueueItem > item)
	Pass the packet included in the wifi MAC queue item to the packet dropped callback. More...

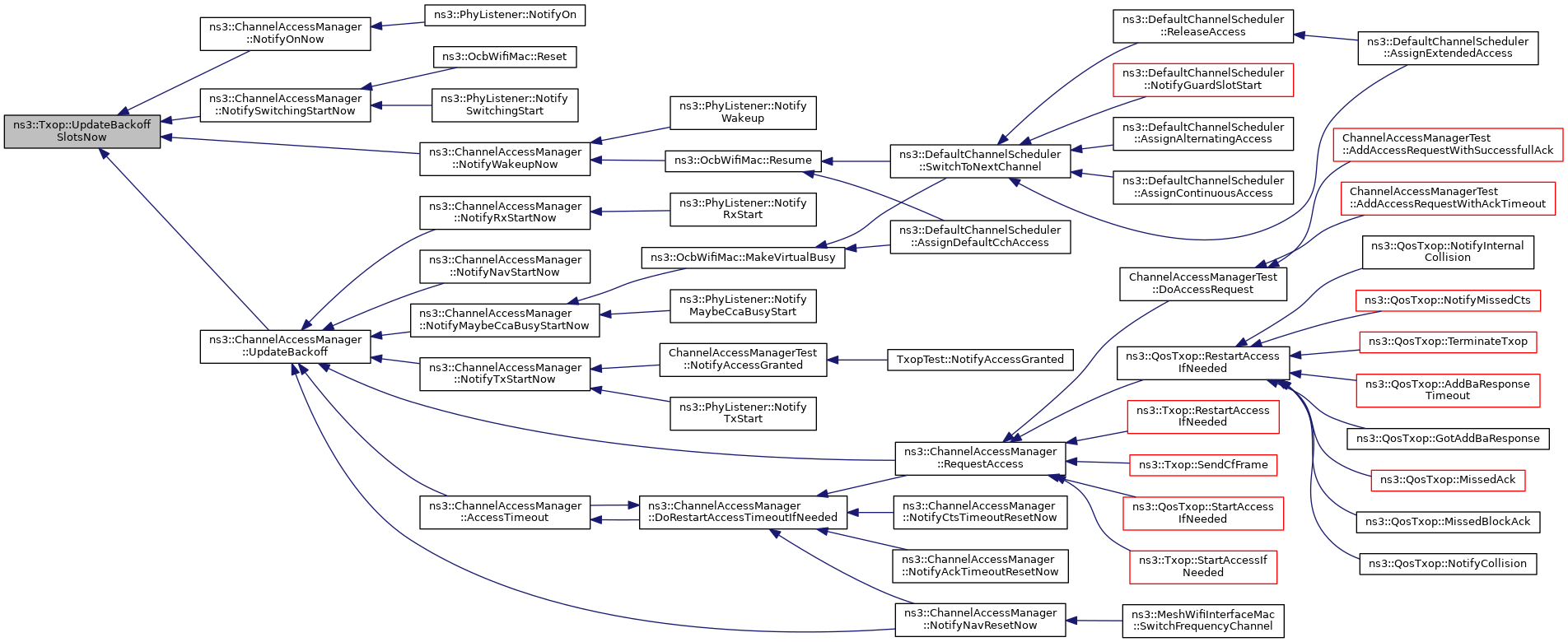

void	UpdateBackoffSlotsNow (uint32_t nSlots, Time backoffUpdateBound)
	Update backoff slots that nSlots has passed. More...

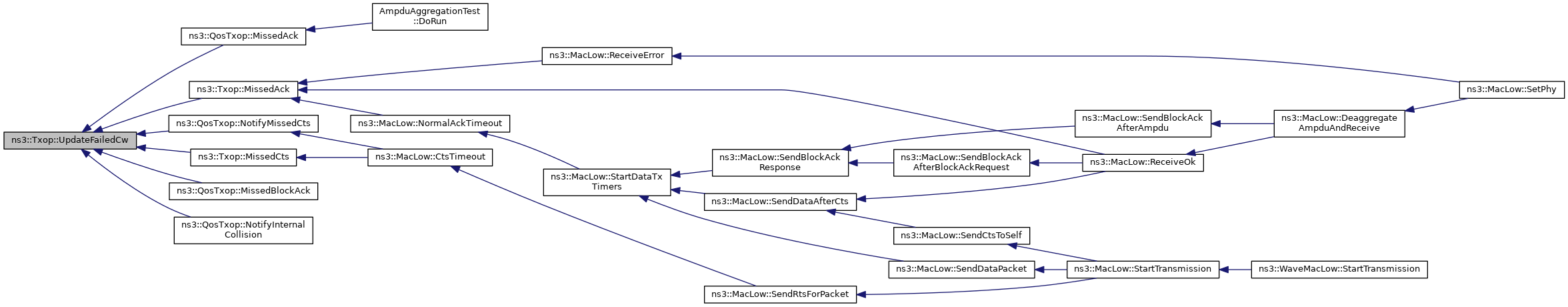

void	UpdateFailedCw (void)
	Update the value of the CW variable to take into account a transmission failure. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
bool	m_accessRequested
	flag whether channel access is already requested More...

uint8_t	m_aifsn
	the AIFSN More...

uint32_t	m_backoff
	the current backoff More...

uint32_t	m_backoffSlots
	the backoff slots More...

Time	m_backoffStart
	the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated. More...

TracedCallback< uint32_t >	m_backoffTrace
	backoff trace value More...

Ptr< ChannelAccessManager >	m_channelAccessManager
	the channel access manager More...

WifiMacHeader	m_currentHdr
	the current header More...

Ptr< const Packet >	m_currentPacket
	the current packet More...

MacLowTransmissionParameters	m_currentParams
	current transmission parameters More...

uint32_t	m_cw
	the current CW More...

uint32_t	m_cwMax
	the CW maximum More...

uint32_t	m_cwMin
	the CW minimum More...

TracedValue< uint32_t >	m_cwTrace
	CW trace value. More...

uint8_t	m_fragmentNumber
	the fragment number More...

Ptr< MacLow >	m_low
	the MacLow More...

Ptr< WifiMacQueue >	m_queue
	the wifi MAC queue More...

Ptr< UniformRandomVariable >	m_rng
	the random stream More...

Ptr< WifiRemoteStationManager >	m_stationManager
	the wifi remote station manager More...

TxDropped	m_txDroppedCallback
	the packet dropped callback More...

TxFailed	m_txFailedCallback
	the transmit failed callback More...

Ptr< MacTxMiddle >	m_txMiddle
	the MacTxMiddle More...

TxOk	m_txOkCallback
	the transmit OK callback More...

Time	m_txopLimit
	the txop limit time More...

Friends
class	ChannelAccessManager
	< ChannelAccessManager associated class More...

class	DcfListener
	allow DcfListener class access More...

class	MacLowTransmissionListener
	allow MacLowTransmissionListener class access More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Handle packet fragmentation and retransmissions for data and management frames.

This class implements the packet fragmentation and retransmission policy for data and management frames. It uses the ns3::MacLow and ns3::ChannelAccessManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

The policy currently implemented uses a simple fragmentation threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the ssrc or slrc thresholds.

The rts/cts policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the rts/cts protocol is used.

Config Paths

ns3::Txop is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/Txop"

Attributes

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to non-QOS.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 2
- Flags: construct write read
TxopLimit: The TXOP limit: the default value conforms to non-QoS.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue>
- Flags: read

TraceSources

BackoffTrace: Trace source for backoff values
Callback signature: ns3::TracedCallback::Uint32Callback
CwTrace: Trace source for contention window values
Callback signature: ns3::TracedValueCallback::Uint32

Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 65 of file txop.h.

Member Typedef Documentation

◆ TxDropped

typedef Callback<void, Ptr<const Packet> > ns3::Txop::TxDropped

typedef for a callback to invoke when a packet is dropped.

Definition at line 96 of file txop.h.

◆ TxFailed

typedef Callback<void, const WifiMacHeader&> ns3::Txop::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 91 of file txop.h.

◆ TxOk

typedef Callback<void, const WifiMacHeader&> ns3::Txop::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 86 of file txop.h.

Constructor & Destructor Documentation

◆ Txop()

ns3::Txop::Txop ( )

Definition at line 85 of file txop.cc.

References m_queue, m_rng, and NS_LOG_FUNCTION.

◆ ~Txop()

ns3::Txop::~Txop ( )

virtual

Definition at line 101 of file txop.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::Txop::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use.

Returns: the number of stream indices assigned by this model.

Definition at line 321 of file txop.cc.

References m_rng, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Referenced by ns3::MeshHelper::AssignStreams(), ns3::WaveHelper::AssignStreams(), ns3::WifiHelper::AssignStreams(), and AssignWifiRandomStreams().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cancel()

void ns3::Txop::Cancel ( void )

virtual

Cancel the transmission.

Definition at line 761 of file txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CancelAllEvents().

Here is the caller graph for this function:

◆ CanStartNextPolling()

bool ns3::Txop::CanStartNextPolling ( void ) const

Check if the next PCF transmission can fit in the remaining CFP duration.

Returns: true if the next PCF transmission can fit in the remaining CFP duration, false otherwise

Definition at line 858 of file txop.cc.

References GetLow(), ns3::ChannelAccessManager::IsBusy(), and m_channelAccessManager.

Referenced by ns3::ApWifiMac::SendNextCfFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::Txop::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::QosTxop, and TxopTest.

Definition at line 107 of file txop.cc.

References m_channelAccessManager, m_low, m_queue, m_rng, m_stationManager, m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::DoDispose().

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::Txop::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::QosTxop.

Definition at line 361 of file txop.cc.

References GetCw(), ns3::RandomVariableStream::GetInteger(), m_backoff, m_backoffTrace, m_cwTrace, m_rng, NS_LOG_FUNCTION, ResetCw(), and StartBackoffNow().

Here is the call graph for this function:

◆ EndTxNoAck()

void ns3::Txop::EndTxNoAck ( void )

virtual

Event handler when a transmission that does not require an ACK has completed.

Reimplemented in ns3::QosTxop.

Definition at line 768 of file txop.cc.

References GetCw(), ns3::RandomVariableStream::GetInteger(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_backoff, m_backoffTrace, m_currentHdr, m_currentPacket, m_cwTrace, m_rng, m_txOkCallback, NS_LOG_DEBUG, NS_LOG_FUNCTION, ResetCw(), StartAccessIfNeeded(), and StartBackoffNow().

Referenced by ns3::MacLow::EndTxNoAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAifsn()

uint8_t ns3::Txop::GetAifsn ( void ) const

Return the number of slots that make up an AIFS.

Returns: the number of slots that make up an AIFS.

Definition at line 296 of file txop.cc.

References m_aifsn.

Referenced by ns3::ChannelAccessManager::GetBackoffStartFor(), ns3::ApWifiMac::GetEdcaParameterSet(), GetTypeId(), and ns3::ChannelAccessManager::IsWithinAifs().

Here is the caller graph for this function:

◆ GetBackoffSlots()

uint32_t ns3::Txop::GetBackoffSlots ( void ) const

protected

Return the current number of backoff slots.

Returns: the current number of backoff slots

Definition at line 232 of file txop.cc.

References m_backoffSlots.

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::ChannelAccessManager::GetBackoffEndFor(), ns3::ChannelAccessManager::NotifyOnNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::ChannelAccessManager::NotifyWakeupNow(), ns3::ChannelAccessManager::RequestAccess(), and ns3::ChannelAccessManager::UpdateBackoff().

Here is the caller graph for this function:

◆ GetBackoffStart()

Time ns3::Txop::GetBackoffStart ( void ) const

protected

Return the time when the backoff procedure started.

Returns: the time when the backoff procedure started

Definition at line 238 of file txop.cc.

References m_backoffStart.

Referenced by ns3::ChannelAccessManager::GetBackoffStartFor().

Here is the caller graph for this function:

◆ GetCw()

uint32_t ns3::Txop::GetCw ( void ) const

protected

Returns: the current value of the CW variable. The initial value is minCW.

Definition at line 211 of file txop.cc.

References m_cw.

Referenced by ns3::QosTxop::AddBaResponseTimeout(), DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyCollision(), NotifyCollision(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), SetMaxCw(), SetMinCw(), and ns3::QosTxop::TerminateTxop().

Here is the caller graph for this function:

◆ GetFragmentOffset()

uint32_t ns3::Txop::GetFragmentOffset ( void ) const

protectedvirtual

Calculate the offset for the current fragment.

Returns: the offset for the current fragment.

Reimplemented in ns3::QosTxop.

Definition at line 425 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFragmentPacket()

Ptr< Packet > ns3::Txop::GetFragmentPacket ( WifiMacHeader * hdr )

protectedvirtual

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters

hdr	Wi-Fi header.

Returns: the fragment with the current fragment number.

Reimplemented in ns3::QosTxop.

Definition at line 433 of file txop.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFragmentSize()

uint32_t ns3::Txop::GetFragmentSize ( void ) const

protectedvirtual

Calculate the size of the current fragment.

Returns: the size of the current fragment.

Reimplemented in ns3::QosTxop.

Definition at line 401 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLow()

Ptr< MacLow > ns3::Txop::GetLow ( void ) const

Return the MacLow associated with this Txop.

Returns: MacLow

Definition at line 355 of file txop.cc.

References m_low.

Referenced by CanStartNextPolling(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::MpduAggregator::GetMaxAmpduSize(), ns3::MsduAggregator::GetMaxAmsduSize(), ns3::QosTxop::GetTxopFragmentSize(), ns3::QosTxop::NeedFragmentation(), NotifyAccessGranted(), ns3::QosTxop::SetupBlockAckIfNeeded(), StartNextFragment(), ns3::QosTxop::StartNextPacket(), and ns3::QosTxop::VerifyBlockAck().

Here is the caller graph for this function:

◆ GetMaxCw()

uint32_t ns3::Txop::GetMaxCw ( void ) const

Return the maximum contention window size.

Returns: the maximum contention window size.

Definition at line 290 of file txop.cc.

References m_cwMax.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet(), and GetTypeId().

Here is the caller graph for this function:

◆ GetMinCw()

uint32_t ns3::Txop::GetMinCw ( void ) const

Return the minimum contention window size.

Returns: the minimum contention window size.

Definition at line 284 of file txop.cc.

References m_cwMin.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet(), and GetTypeId().

Here is the caller graph for this function:

◆ GetNextFragmentSize()

uint32_t ns3::Txop::GetNextFragmentSize ( void ) const

protectedvirtual

Calculate the size of the next fragment.

Returns: the size of the next fragment.

Reimplemented in ns3::QosTxop.

Definition at line 417 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTxopLimit()

Time ns3::Txop::GetTxopLimit ( void ) const

Return the TXOP limit.

Returns: the TXOP limit.

Definition at line 302 of file txop.cc.

References m_txopLimit.

Referenced by TwoLevelAggregationTest::DoRun(), ns3::ApWifiMac::GetEdcaParameterSet(), ns3::QosTxop::GetTxopFragmentSize(), ns3::QosTxop::GetTxopRemaining(), GetTypeId(), ns3::QosTxop::IsTxopFragmentation(), ns3::QosTxop::NeedFragmentation(), ns3::QosTxop::NotifyAccessGranted(), ns3::MacLow::ReceiveOk(), ns3::MacLow::StartDataTxTimers(), ns3::QosTxop::StartNextPacket(), ns3::MacLow::StartTransmission(), and ns3::QosTxop::TerminateTxop().

Here is the caller graph for this function:

◆ GetTxopRemaining()

Time ns3::Txop::GetTxopRemaining ( void ) const

virtual

Return the remaining duration in the current TXOP.

Returns: the remaining duration in the current TXOP.

Reimplemented in ns3::QosTxop.

Definition at line 888 of file txop.cc.

References NS_LOG_WARN, and ns3::Seconds().

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Txop::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 43 of file txop.cc.

References GetAifsn(), GetMaxCw(), GetMinCw(), GetTxopLimit(), GetWifiMacQueue(), m_backoffTrace, m_cwTrace, ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), SetAifsn(), SetMaxCw(), SetMinCw(), ns3::TypeId::SetParent(), and SetTxopLimit().

Here is the call graph for this function:

◆ GetWifiMacQueue()

Ptr< WifiMacQueue > ns3::Txop::GetWifiMacQueue ( ) const

Return the packet queue associated with this Txop.

Returns: WifiMacQueue

Definition at line 178 of file txop.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and GetTypeId().

Here is the caller graph for this function:

◆ GotAck()

void ns3::Txop::GotAck ( void )

virtual

Event handler when an ACK is received.

Reimplemented in ns3::QosTxop.

Definition at line 635 of file txop.cc.

References GetCw(), ns3::RandomVariableStream::GetInteger(), ns3::Packet::GetSize(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_backoff, m_backoffTrace, m_currentHdr, m_currentPacket, m_cwTrace, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ResetCw(), RestartAccessIfNeeded(), and StartBackoffNow().

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GotBlockAck()

void ns3::Txop::GotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	recipient,
		double	rxSnr,
		WifiMode	txMode,
		double	dataSnr
	)

virtual

Event handler when a Block ACK is received.

Parameters

blockAck	block ack.
recipient	address of the recipient.
rxSnr	SNR of the block ack itself.
txMode	wifi mode.
dataSnr	reported data SNR from the peer.

Reimplemented in ns3::QosTxop.

Definition at line 876 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::ReceiveOk().

Here is the caller graph for this function:

◆ GotCfEnd()

void ns3::Txop::GotCfEnd ( void )

Event handler when a CF-END frame is received.

Definition at line 699 of file txop.cc.

References m_currentPacket, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and StartAccessIfNeeded().

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAccessRequested()

bool ns3::Txop::IsAccessRequested ( void ) const

virtual

Returns: true if access has been requested for this function and has not been granted already, false otherwise.

Reimplemented in TxopTest.

Definition at line 454 of file txop.cc.

References m_accessRequested.

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded(), ns3::ChannelAccessManager::RequestAccess(), ns3::QosTxop::RestartAccessIfNeeded(), RestartAccessIfNeeded(), ns3::QosTxop::StartAccessIfNeeded(), and StartAccessIfNeeded().

Here is the caller graph for this function:

◆ IsLastFragment()

bool ns3::Txop::IsLastFragment ( void ) const

protectedvirtual

Check if the current fragment is the last fragment.

Returns: true if the current fragment is the last fragment, false otherwise.

Reimplemented in ns3::QosTxop.

Definition at line 409 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsQosTxop()

bool ns3::Txop::IsQosTxop ( void ) const

virtual

Check for QoS TXOP.

Returns: true if QoS TXOP.

Reimplemented in ns3::QosTxop.

Definition at line 864 of file txop.cc.

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::StartDataTxTimers(), and ns3::ChannelAccessManager::UpdateBackoff().

Here is the caller graph for this function:

◆ MissedAck()

void ns3::Txop::MissedAck ( void )

virtual

Event handler when an ACK is missed.

Reimplemented in ns3::QosTxop.

Definition at line 665 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), GetCw(), ns3::RandomVariableStream::GetInteger(), ns3::Packet::GetSize(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_backoff, m_backoffTrace, m_currentHdr, m_currentPacket, m_cwTrace, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportDataFailed(), ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), StartBackoffNow(), and UpdateFailedCw().

Referenced by ns3::MacLow::NormalAckTimeout(), ns3::MacLow::ReceiveError(), and ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MissedBlockAck()

void ns3::Txop::MissedBlockAck ( uint8_t nMpdus )

virtual

Event handler when a Block ACK timeout has occurred.

Parameters

nMpdus the number of MPDUs sent in the A-MPDU transmission that results in a Block ACK timeout.

Reimplemented in ns3::QosTxop.

Definition at line 882 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::BlockAckTimeout().

Here is the caller graph for this function:

◆ MissedCfPollResponse()

void ns3::Txop::MissedCfPollResponse ( bool expectedCfAck )

Event handler when a response to a CF-POLL frame is missed.

Parameters

expectedCfAck flag to indicate whether a CF-ACK was expected in the response.

Definition at line 713 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::Packet::GetSize(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalDataFailed(), and ns3::WifiMacHeader::SetRetry().

Referenced by ns3::MacLow::CfPollTimeout(), and ns3::MacLow::ReceiveError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MissedCts()

void ns3::Txop::MissedCts ( void )

virtual

Event handler when a CTS timeout has occurred.

Definition at line 606 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), GetCw(), ns3::RandomVariableStream::GetInteger(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_backoff, m_backoffTrace, m_currentHdr, m_currentPacket, m_cwTrace, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ResetCw(), RestartAccessIfNeeded(), StartBackoffNow(), and UpdateFailedCw().

Referenced by ns3::MacLow::CtsTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedDataRetransmission()

bool ns3::Txop::NeedDataRetransmission	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

protected

Check if DATA should be re-transmitted if ACK was missed.

Parameters

packet	current packet being transmitted.
hdr	current header being transmitted.

Returns: true if DATA should be re-transmitted, false otherwise.

Definition at line 379 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, ns3::WifiRemoteStationManager::NeedRetransmission(), and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), ns3::QosTxop::NotifyInternalCollision(), and SendCfFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedFragmentation()

bool ns3::Txop::NeedFragmentation ( void ) const

protectedvirtual

Check if the current packet should be fragmented.

Returns: true if the current packet should be fragmented, false otherwise

Reimplemented in ns3::QosTxop.

Definition at line 386 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedFragmentation(), and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedRtsRetransmission()

bool ns3::Txop::NeedRtsRetransmission	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

protected

Check if RTS should be re-transmitted if CTS was missed.

Parameters

packet	current packet being transmitted.
hdr	current header being transmitted.

Returns: true if RTS should be re-transmitted, false otherwise.

Definition at line 372 of file txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, ns3::WifiRemoteStationManager::NeedRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedCts(), ns3::QosTxop::NotifyInternalCollision(), and ns3::QosTxop::NotifyMissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NextFragment()

void ns3::Txop::NextFragment ( void )

protected

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 394 of file txop.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNextFragment().

Here is the caller graph for this function:

◆ NotifyAccessGranted()

void ns3::Txop::NotifyAccessGranted ( void )

protectedvirtual

Notify the DCF that access has been granted.

Reimplemented in ns3::QosTxop, and TxopTest.

Definition at line 467 of file txop.cc.

References ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetDataTxVector(), GetFragmentPacket(), GetLow(), GetNextFragmentSize(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), IsLastFragment(), m_accessRequested, m_currentHdr, m_currentPacket, m_currentParams, m_fragmentNumber, m_low, m_queue, m_stationManager, m_txMiddle, NeedFragmentation(), ns3::WifiRemoteStationManager::NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetSequenceNumber(), and ns3::WifiRemoteStationManager::UpdateFragmentationThreshold().

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), and ns3::ChannelAccessManager::DoGrantPcfAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAccessRequested()

void ns3::Txop::NotifyAccessRequested ( void )

protectedvirtual

Notify that access request has been received.

Reimplemented in TxopTest.

Definition at line 460 of file txop.cc.

References m_accessRequested, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::RequestAccess().

Here is the caller graph for this function:

◆ NotifyChannelSwitching()

void ns3::Txop::NotifyChannelSwitching ( void )

virtual

When a channel switching occurs, enqueued packets are removed.

Reimplemented in TxopTest.

Definition at line 565 of file txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::CancleTx(), and ns3::ChannelAccessManager::NotifySwitchingStartNow().

Here is the caller graph for this function:

◆ NotifyCollision()

void ns3::Txop::NotifyCollision ( void )

protectedvirtual

Notify the DCF that collision has occurred.

Reimplemented in ns3::QosTxop, and TxopTest.

Definition at line 555 of file txop.cc.

References GetCw(), ns3::RandomVariableStream::GetInteger(), m_backoff, m_backoffTrace, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and StartBackoffNow().

Referenced by NotifyInternalCollision(), and ns3::ChannelAccessManager::RequestAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyInternalCollision()

void ns3::Txop::NotifyInternalCollision ( void )

protectedvirtual

Notify the DCF that internal collision has occurred.

Reimplemented in ns3::QosTxop, and TxopTest.

Definition at line 548 of file txop.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::RequestAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyOff()

void ns3::Txop::NotifyOff ( void )

virtual

When off operation occurs, the queue gets cleaned up.

Definition at line 584 of file txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::NotifyOffNow().

Here is the caller graph for this function:

◆ NotifyOn()

void ns3::Txop::NotifyOn ( void )

virtual

When on operation occurs, channel access will be started.

Definition at line 599 of file txop.cc.

References NS_LOG_FUNCTION, and StartAccessIfNeeded().

Referenced by ns3::ChannelAccessManager::NotifyOnNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifySleep()

void ns3::Txop::NotifySleep ( void )

virtual

When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue.

Reimplemented in TxopTest.

Definition at line 573 of file txop.cc.

References m_currentHdr, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::NotifySleepNow().

Here is the caller graph for this function:

◆ NotifyWakeUp()

void ns3::Txop::NotifyWakeUp ( void )

virtual

When wake up operation occurs, channel access will be restarted.

Reimplemented in TxopTest.

Definition at line 592 of file txop.cc.

References NS_LOG_FUNCTION, and RestartAccessIfNeeded().

Referenced by ns3::ChannelAccessManager::NotifyWakeupNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Queue()

void ns3::Txop::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

virtual

Parameters

packet	packet to send.
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 308 of file txop.cc.

References ns3::Packet::Copy(), ns3::WifiMacHeader::GetAddr1(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), ns3::Packet::RemovePacketTag(), and StartAccessIfNeeded().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::OcbWifiMac::SendVsc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetCw()

void ns3::Txop::ResetCw ( void )

protected

Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached).

By default, this resets the CW variable to minCW.

Definition at line 217 of file txop.cc.

References m_cw, m_cwMin, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), ns3::QosTxop::DoInitialize(), ns3::QosTxop::EndTxNoAck(), EndTxNoAck(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), ns3::ChannelAccessManager::NotifyOnNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::ChannelAccessManager::NotifyWakeupNow(), SetMaxCw(), and SetMinCw().

Here is the caller graph for this function:

◆ RestartAccessIfNeeded()

void ns3::Txop::RestartAccessIfNeeded ( void )

protectedvirtual

Restart access request if needed.

Reimplemented in ns3::QosTxop.

Definition at line 329 of file txop.cc.

References IsAccessRequested(), m_channelAccessManager, m_currentPacket, m_low, m_queue, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RequestAccess().

Referenced by GotAck(), GotCfEnd(), MissedAck(), MissedCts(), NotifyCollision(), and NotifyWakeUp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCfFrame()

void ns3::Txop::SendCfFrame	(	WifiMacType	frameType,
		Mac48Address	addr
	)

Sends CF frame to sta with address addr.

Parameters

frameType	the type of frame to be transmitted.
addr	address of the recipient.

Definition at line 786 of file txop.cc.

Referenced by ns3::ApWifiMac::SendCfEnd(), ns3::ApWifiMac::SendCfPoll(), and ns3::StaWifiMac::SendCfPollResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAifsn()

void ns3::Txop::SetAifsn ( uint8_t aifsn )

Set the number of slots that make up an AIFS.

Parameters

aifsn the number of slots that make up an AIFS.

Definition at line 269 of file txop.cc.

References m_aifsn, and NS_LOG_FUNCTION.

Referenced by ChannelAccessManagerTest::AddDcfState(), ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::FinishConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

Here is the caller graph for this function:

◆ SetChannelAccessManager()

void ns3::Txop::SetChannelAccessManager ( const Ptr< ChannelAccessManager > manager )

Set ChannelAccessManager this Txop is associated to.

Parameters

manager ChannelAccessManager.

Definition at line 119 of file txop.cc.

References ns3::ChannelAccessManager::Add(), m_channelAccessManager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMacLow()

void ns3::Txop::SetMacLow ( const Ptr< MacLow > low )

Set MacLow associated with this Txop.

Parameters

low MacLow.

Definition at line 133 of file txop.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::OcbWifiMac::EnableForWave(), ns3::RegularWifiMac::RegularWifiMac(), and ns3::RegularWifiMac::SetupEdcaQueue().

Here is the caller graph for this function:

◆ SetMaxCw()

void ns3::Txop::SetMaxCw ( uint32_t maxCw )

Set the maximum contention window size.

Parameters

maxCw the maximum contention window size.

Definition at line 198 of file txop.cc.

References GetCw(), m_cwMax, m_cwTrace, NS_LOG_FUNCTION, and ResetCw().

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::FinishConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMinCw()

void ns3::Txop::SetMinCw ( uint32_t minCw )

Set the minimum contention window size.

Parameters

minCw the minimum contention window size.

Definition at line 185 of file txop.cc.

References GetCw(), m_cwMin, m_cwTrace, NS_LOG_FUNCTION, and ResetCw().

Referenced by ns3::ApWifiMac::ApWifiMac(), ns3::WifiMac::ConfigureDcf(), ns3::OcbWifiMac::ConfigureEdca(), ns3::MeshWifiInterfaceMac::FinishConfigureStandard(), GetTypeId(), and ns3::StaWifiMac::SetEdcaParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxDroppedCallback()

void ns3::Txop::SetTxDroppedCallback ( TxDropped callback )

Parameters

callback the callback to invoke when a packet is dropped.

Definition at line 161 of file txop.cc.

References m_queue, m_txDroppedCallback, ns3::MakeCallback(), NS_LOG_FUNCTION, and TxDroppedPacket().

Referenced by ns3::RegularWifiMac::RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxFailedCallback()

void ns3::Txop::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 154 of file txop.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::RegularWifiMac().

Here is the caller graph for this function:

◆ SetTxMiddle()

void ns3::Txop::SetTxMiddle ( const Ptr< MacTxMiddle > txMiddle )

Set MacTxMiddle this Txop is associated to.

Parameters

txMiddle MacTxMiddle.

Definition at line 126 of file txop.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

Here is the caller graph for this function:

◆ SetTxOkCallback()

void ns3::Txop::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 147 of file txop.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ApWifiMac(), and ns3::RegularWifiMac::RegularWifiMac().

Here is the caller graph for this function:

◆ SetTxopLimit()

void ns3::Txop::SetTxopLimit ( Time txopLimit )

Set the TXOP limit.

Parameters

txopLimit the TXOP limit. Value zero corresponds to default DCF.

Definition at line 276 of file txop.cc.

References ns3::Time::GetMicroSeconds(), m_txopLimit, NS_ASSERT_MSG(), and NS_LOG_FUNCTION.

Referenced by ns3::WifiMac::ConfigureDcf(), GetTypeId(), Experiment::Run(), and ns3::StaWifiMac::SetEdcaParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::Txop::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > remoteManager )

virtual

Set WifiRemoteStationsManager this Txop is associated to.

Parameters

remoteManager WifiRemoteStationManager.

Reimplemented in ns3::QosTxop.

Definition at line 140 of file txop.cc.

References m_stationManager, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::SetWifiRemoteStationManager(), ns3::QosTxop::SetWifiRemoteStationManager(), and ns3::RegularWifiMac::SetWifiRemoteStationManager().

Here is the caller graph for this function:

◆ StartAccessIfNeeded()

void ns3::Txop::StartAccessIfNeeded ( void )

protectedvirtual

Request access from DCF manager if needed.

Reimplemented in ns3::QosTxop.

Definition at line 342 of file txop.cc.

References IsAccessRequested(), m_channelAccessManager, m_currentPacket, m_low, m_queue, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RequestAccess().

Referenced by EndTxNoAck(), GotCfEnd(), NotifyOn(), and Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartBackoffNow()

void ns3::Txop::StartBackoffNow ( uint32_t nSlots )

Parameters

nSlots the number of slots of the backoff.

Start a backoff by initializing the backoff counter to the number of slots specified.

Definition at line 253 of file txop.cc.

References m_backoffSlots, m_backoffStart, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::AddBaResponseTimeout(), DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ChannelAccessManagerTest::NotifyCollision(), ns3::QosTxop::NotifyCollision(), NotifyCollision(), ChannelAccessManagerTest::NotifyInternalCollision(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), and ns3::QosTxop::TerminateTxop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartNextFragment()

void ns3::Txop::StartNextFragment ( void )

virtual

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 739 of file txop.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetLow(), GetNextFragmentSize(), IsLastFragment(), m_currentParams, NextFragment(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::WaitIfsAfterEndTxFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartNextPacket()

void ns3::Txop::StartNextPacket ( void )

virtual

Start transmission for the next packet if allowed by the TxopLimit.

Reimplemented in ns3::QosTxop.

Definition at line 870 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::WaitIfsAfterEndTxPacket().

Here is the caller graph for this function:

◆ TerminateTxop()

void ns3::Txop::TerminateTxop ( void )

virtual

Update backoff and restart access if needed.

Reimplemented in ns3::QosTxop.

Definition at line 895 of file txop.cc.

References NS_LOG_WARN.

Referenced by ns3::MacLow::ReceiveOk().

Here is the caller graph for this function:

◆ TxDroppedPacket()

void ns3::Txop::TxDroppedPacket ( Ptr< const WifiMacQueueItem > item )

protected

Pass the packet included in the wifi MAC queue item to the packet dropped callback.

Parameters

item	the wifi MAC queue item.

Definition at line 169 of file txop.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_txDroppedCallback.

Referenced by SetTxDroppedCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateBackoffSlotsNow()

void ns3::Txop::UpdateBackoffSlotsNow	(	uint32_t	nSlots,
		Time	backoffUpdateBound
	)

protected

Update backoff slots that nSlots has passed.

Parameters

nSlots
backoffUpdateBound

Definition at line 244 of file txop.cc.

References m_backoffSlots, m_backoffStart, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::ChannelAccessManager::NotifyOnNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), ns3::ChannelAccessManager::NotifyWakeupNow(), and ns3::ChannelAccessManager::UpdateBackoff().

Here is the caller graph for this function:

◆ UpdateFailedCw()

void ns3::Txop::UpdateFailedCw ( void )

protected

Update the value of the CW variable to take into account a transmission failure.

By default, this triggers a doubling of CW (capped by maxCW).

Definition at line 224 of file txop.cc.

References m_cw, m_cwMax, min, and NS_LOG_FUNCTION.

Referenced by ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyInternalCollision(), and ns3::QosTxop::NotifyMissedCts().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ChannelAccessManager

friend class ChannelAccessManager

friend

< ChannelAccessManager associated class

Definition at line 355 of file txop.h.

◆ DcfListener

friend class DcfListener

friend

allow DcfListener class access

Definition at line 69 of file txop.h.

◆ MacLowTransmissionListener

friend class MacLowTransmissionListener

friend

allow MacLowTransmissionListener class access

Definition at line 71 of file txop.h.

Member Data Documentation

◆ m_accessRequested

bool ns3::Txop::m_accessRequested

protected

flag whether channel access is already requested

Definition at line 514 of file txop.h.

Referenced by IsAccessRequested(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), NotifyAccessRequested(), ns3::ChannelAccessManager::NotifyOnNow(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), and ns3::ChannelAccessManager::NotifyWakeupNow().

◆ m_aifsn

uint8_t ns3::Txop::m_aifsn

protected

the AIFSN

Definition at line 523 of file txop.h.

Referenced by GetAifsn(), and SetAifsn().

◆ m_backoff

uint32_t ns3::Txop::m_backoff

protected

the current backoff

Definition at line 513 of file txop.h.

Referenced by ns3::QosTxop::AddBaResponseTimeout(), DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyCollision(), NotifyCollision(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), and ns3::QosTxop::TerminateTxop().

◆ m_backoffSlots

uint32_t ns3::Txop::m_backoffSlots

protected

the backoff slots

Definition at line 515 of file txop.h.

Referenced by GetBackoffSlots(), StartBackoffNow(), and UpdateBackoffSlotsNow().

◆ m_backoffStart

Time ns3::Txop::m_backoffStart

protected

the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated.

Definition at line 521 of file txop.h.

Referenced by GetBackoffStart(), StartBackoffNow(), and UpdateBackoffSlotsNow().

◆ m_backoffTrace

TracedCallback<uint32_t> ns3::Txop::m_backoffTrace

protected

backoff trace value

Definition at line 530 of file txop.h.

Referenced by ns3::QosTxop::AddBaResponseTimeout(), DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GetTypeId(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyCollision(), NotifyCollision(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), and ns3::QosTxop::TerminateTxop().

◆ m_channelAccessManager

Ptr<ChannelAccessManager> ns3::Txop::m_channelAccessManager

protected

the channel access manager

Definition at line 500 of file txop.h.

Referenced by CanStartNextPolling(), DoDispose(), ns3::QosTxop::RestartAccessIfNeeded(), RestartAccessIfNeeded(), SendCfFrame(), SetChannelAccessManager(), ns3::QosTxop::StartAccessIfNeeded(), and StartAccessIfNeeded().

◆ m_currentHdr

WifiMacHeader ns3::Txop::m_currentHdr

protected

the current header

Definition at line 527 of file txop.h.

Referenced by ns3::QosTxop::BaTxFailed(), ns3::QosTxop::BaTxOk(), ns3::QosTxop::CompleteTx(), AmpduAggregationTest::DoRun(), EndTxNoAck(), GetFragmentOffset(), ns3::QosTxop::GetFragmentOffset(), ns3::QosTxop::GetFragmentPacket(), GetFragmentPacket(), GetFragmentSize(), ns3::QosTxop::GetFragmentSize(), GetNextFragmentSize(), ns3::QosTxop::GetNextFragmentSize(), ns3::QosTxop::GetTxopFragmentSize(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), IsLastFragment(), ns3::QosTxop::IsLastFragment(), ns3::QosTxop::IsTxopFragmentation(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), MissedCts(), ns3::QosTxop::NeedBarRetransmission(), ns3::QosTxop::NeedFragmentation(), NeedFragmentation(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), NotifySleep(), ns3::QosTxop::RestartAccessIfNeeded(), ns3::QosTxop::SendAddBaRequest(), ns3::QosTxop::SendBlockAckRequest(), SendCfFrame(), ns3::QosTxop::SetupBlockAckIfNeeded(), ns3::QosTxop::StartNextPacket(), and ns3::QosTxop::VerifyBlockAck().

◆ m_currentPacket

Ptr<const Packet> ns3::Txop::m_currentPacket

protected

the current packet

Definition at line 526 of file txop.h.

Referenced by ns3::QosTxop::CompleteTx(), AmpduAggregationTest::DoRun(), ns3::QosTxop::EndTxNoAck(), EndTxNoAck(), GetFragmentOffset(), ns3::QosTxop::GetFragmentOffset(), ns3::QosTxop::GetFragmentPacket(), GetFragmentPacket(), GetFragmentSize(), ns3::QosTxop::GetFragmentSize(), GetNextFragmentSize(), ns3::QosTxop::GetNextFragmentSize(), ns3::QosTxop::GetNextTxopFragmentSize(), ns3::QosTxop::GetNTxopFragment(), ns3::QosTxop::GetTxopFragmentOffset(), ns3::QosTxop::GetTxopFragmentSize(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), GotCfEnd(), IsLastFragment(), ns3::QosTxop::IsLastFragment(), ns3::QosTxop::IsTxopFragmentation(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), MissedCts(), ns3::QosTxop::NeedBarRetransmission(), ns3::QosTxop::NeedFragmentation(), NeedFragmentation(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), NotifyChannelSwitching(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), NotifyOff(), NotifySleep(), ns3::QosTxop::RestartAccessIfNeeded(), RestartAccessIfNeeded(), ns3::QosTxop::SendAddBaRequest(), ns3::QosTxop::SendBlockAckRequest(), SendCfFrame(), ns3::QosTxop::StartAccessIfNeeded(), StartAccessIfNeeded(), ns3::QosTxop::StartNextPacket(), and ns3::QosTxop::VerifyBlockAck().

◆ m_currentParams

MacLowTransmissionParameters ns3::Txop::m_currentParams

protected

current transmission parameters

Definition at line 528 of file txop.h.

Referenced by ns3::QosTxop::GetTxopFragmentSize(), ns3::QosTxop::GotAck(), ns3::QosTxop::NeedFragmentation(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), ns3::QosTxop::SendAddBaRequest(), ns3::QosTxop::SendBlockAckRequest(), StartNextFragment(), and ns3::QosTxop::StartNextPacket().

◆ m_cw

uint32_t ns3::Txop::m_cw

protected

the current CW

Definition at line 512 of file txop.h.

Referenced by GetCw(), ResetCw(), and UpdateFailedCw().

◆ m_cwMax

uint32_t ns3::Txop::m_cwMax

protected

the CW maximum

Definition at line 511 of file txop.h.

Referenced by GetMaxCw(), SetMaxCw(), and UpdateFailedCw().

◆ m_cwMin

uint32_t ns3::Txop::m_cwMin

protected

the CW minimum

Definition at line 510 of file txop.h.

Referenced by GetMinCw(), ResetCw(), and SetMinCw().

◆ m_cwTrace

TracedValue<uint32_t> ns3::Txop::m_cwTrace

protected

CW trace value.

Definition at line 531 of file txop.h.

Referenced by DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GetTypeId(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyMissedCts(), SetMaxCw(), SetMinCw(), and ns3::QosTxop::TerminateTxop().

◆ m_fragmentNumber

uint8_t ns3::Txop::m_fragmentNumber

protected

the fragment number

Definition at line 529 of file txop.h.

Referenced by GetFragmentOffset(), ns3::QosTxop::GetFragmentOffset(), ns3::QosTxop::GetFragmentPacket(), GetFragmentPacket(), GetFragmentSize(), ns3::QosTxop::GetFragmentSize(), GetNextFragmentSize(), ns3::QosTxop::GetNextFragmentSize(), IsLastFragment(), ns3::QosTxop::IsLastFragment(), NextFragment(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), and ns3::QosTxop::StartNextPacket().

◆ m_low

◆ m_queue

Ptr<WifiMacQueue> ns3::Txop::m_queue

protected

◆ m_rng

Ptr<UniformRandomVariable> ns3::Txop::m_rng

protected

the random stream

Definition at line 508 of file txop.h.

Referenced by ns3::QosTxop::AddBaResponseTimeout(), AssignStreams(), DoDispose(), DoInitialize(), ns3::QosTxop::DoInitialize(), EndTxNoAck(), GotAck(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCts(), ns3::QosTxop::NotifyCollision(), NotifyCollision(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), ns3::QosTxop::TerminateTxop(), and Txop().

◆ m_stationManager

Ptr<WifiRemoteStationManager> ns3::Txop::m_stationManager

protected

the wifi remote station manager

Definition at line 507 of file txop.h.

Referenced by DoDispose(), GetFragmentOffset(), ns3::QosTxop::GetFragmentOffset(), GetFragmentSize(), ns3::QosTxop::GetFragmentSize(), GetNextFragmentSize(), ns3::QosTxop::GetNextFragmentSize(), ns3::QosTxop::GetTransmissionParameters(), IsLastFragment(), ns3::QosTxop::IsLastFragment(), ns3::QosTxop::IsTxopFragmentation(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), MissedCts(), NeedDataRetransmission(), ns3::QosTxop::NeedFragmentation(), NeedFragmentation(), NeedRtsRetransmission(), ns3::QosTxop::NotifyAccessGranted(), NotifyAccessGranted(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), ns3::QosTxop::PushFront(), Queue(), ns3::QosTxop::RestartAccessIfNeeded(), ns3::QosTxop::SendAddBaRequest(), SendCfFrame(), ns3::QosTxop::SetupBlockAckIfNeeded(), ns3::QosTxop::SetWifiRemoteStationManager(), SetWifiRemoteStationManager(), ns3::QosTxop::StartAccessIfNeeded(), and ns3::QosTxop::StartNextPacket().

◆ m_txDroppedCallback

TxDropped ns3::Txop::m_txDroppedCallback

protected

the packet dropped callback

Definition at line 503 of file txop.h.

Referenced by SetTxDroppedCallback(), and TxDroppedPacket().

◆ m_txFailedCallback

TxFailed ns3::Txop::m_txFailedCallback

protected

the transmit failed callback

Definition at line 502 of file txop.h.

Referenced by ns3::QosTxop::BaTxFailed(), ns3::QosTxop::MissedAck(), MissedAck(), ns3::QosTxop::MissedBlockAck(), MissedCfPollResponse(), MissedCts(), ns3::QosTxop::NotifyInternalCollision(), ns3::QosTxop::NotifyMissedCts(), and SetTxFailedCallback().

◆ m_txMiddle

Ptr<MacTxMiddle> ns3::Txop::m_txMiddle

protected

the MacTxMiddle

Definition at line 505 of file txop.h.

Referenced by ns3::QosTxop::CompleteConfig(), ns3::QosTxop::CompleteMpduTx(), ns3::QosTxop::CompleteTx(), ns3::QosTxop::DequeuePeekedFrame(), DoDispose(), ns3::QosTxop::GetNextSequenceNumberFor(), NotifyAccessGranted(), ns3::QosTxop::PeekNextFrame(), ns3::QosTxop::PeekNextSequenceNumberFor(), ns3::QosTxop::SendAddBaRequest(), SendCfFrame(), SetTxMiddle(), and ns3::QosTxop::SetupBlockAckIfNeeded().

◆ m_txOkCallback

TxOk ns3::Txop::m_txOkCallback

protected

the transmit OK callback

Definition at line 501 of file txop.h.

Referenced by ns3::QosTxop::BaTxOk(), EndTxNoAck(), ns3::QosTxop::GotAck(), GotAck(), ns3::QosTxop::GotBlockAck(), and SetTxOkCallback().

◆ m_txopLimit

Time ns3::Txop::m_txopLimit

protected

the txop limit time

Definition at line 524 of file txop.h.

Referenced by GetTxopLimit(), and SetTxopLimit().

The documentation for this class was generated from the following files:

src/wifi/model/txop.h
src/wifi/model/txop.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

◆ TxDropped

◆ TxFailed

◆ TxOk

Constructor & Destructor Documentation

◆ Txop()

◆ ~Txop()

Member Function Documentation

◆ AssignStreams()

◆ Cancel()

◆ CanStartNextPolling()

◆ DoDispose()

◆ DoInitialize()

◆ EndTxNoAck()

◆ GetAifsn()

◆ GetBackoffSlots()

◆ GetBackoffStart()

◆ GetCw()

◆ GetFragmentOffset()

◆ GetFragmentPacket()

◆ GetFragmentSize()

◆ GetLow()

◆ GetMaxCw()

◆ GetMinCw()

◆ GetNextFragmentSize()

◆ GetTxopLimit()

◆ GetTxopRemaining()

◆ GetTypeId()

◆ GetWifiMacQueue()

◆ GotAck()

◆ GotBlockAck()

◆ GotCfEnd()

◆ IsAccessRequested()

◆ IsLastFragment()

◆ IsQosTxop()

◆ MissedAck()

◆ MissedBlockAck()

◆ MissedCfPollResponse()

◆ MissedCts()

◆ NeedDataRetransmission()

◆ NeedFragmentation()

◆ NeedRtsRetransmission()

◆ NextFragment()

◆ NotifyAccessGranted()

◆ NotifyAccessRequested()

◆ NotifyChannelSwitching()

◆ NotifyCollision()

◆ NotifyInternalCollision()

◆ NotifyOff()

◆ NotifyOn()

◆ NotifySleep()

◆ NotifyWakeUp()

◆ Queue()

◆ ResetCw()

◆ RestartAccessIfNeeded()

◆ SendCfFrame()

◆ SetAifsn()

◆ SetChannelAccessManager()

◆ SetMacLow()

◆ SetMaxCw()

◆ SetMinCw()

◆ SetTxDroppedCallback()

◆ SetTxFailedCallback()

◆ SetTxMiddle()

◆ SetTxOkCallback()

◆ SetTxopLimit()

◆ SetWifiRemoteStationManager()

◆ StartAccessIfNeeded()

◆ StartBackoffNow()
