handle RTS/CTS/DATA/ACK transactions. More...

#include "mac-low.h"

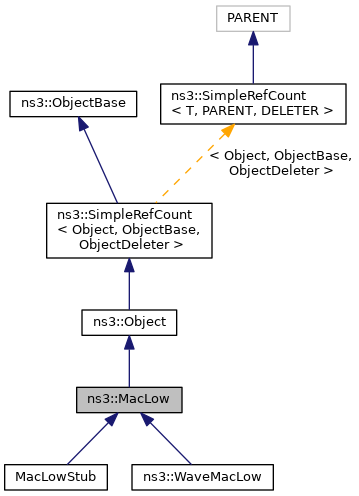

Inheritance diagram for ns3::MacLow:

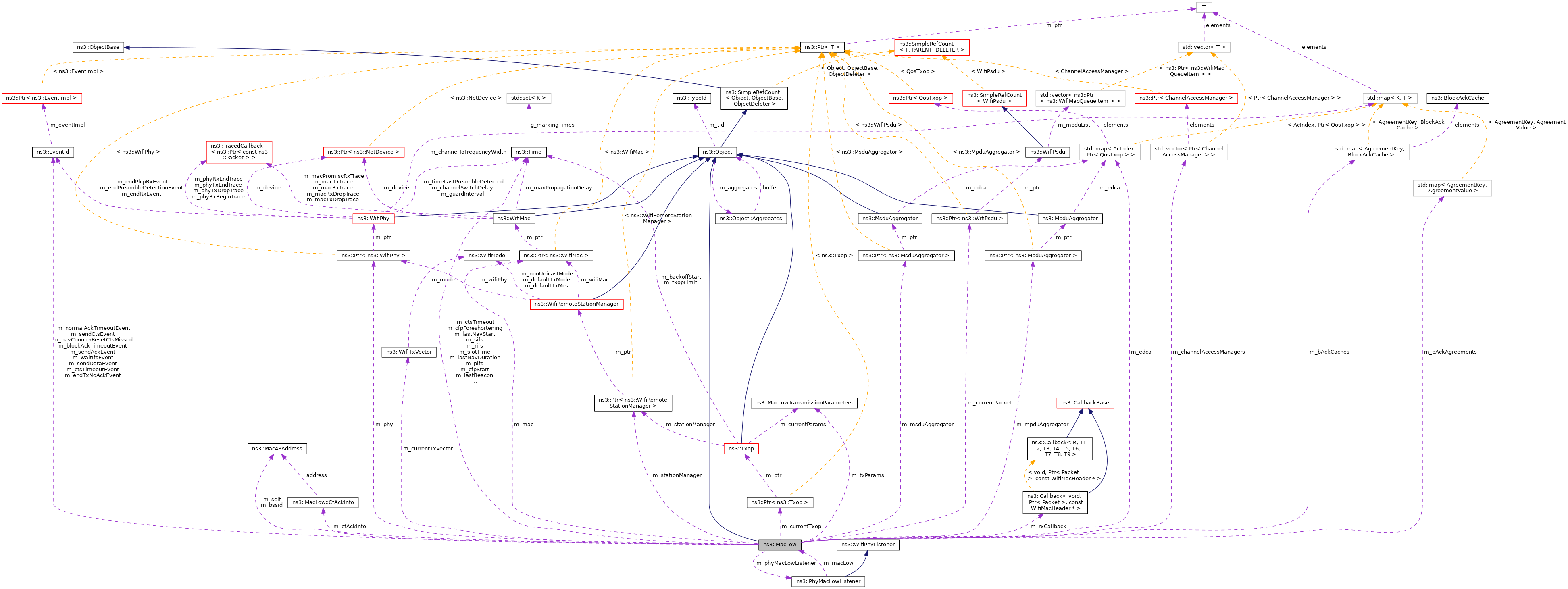

Collaboration diagram for ns3::MacLow:

Classes
struct	CfAckInfo
	A struct that holds information about ACK piggybacking (CF-ACK). More...

Public Types
typedef Callback< void, Ptr< Packet >, const WifiMacHeader * >	MacLowRxCallback
	typedef for a callback for MacLowRx More...

Public Member Functions
	MacLow ()

virtual	~MacLow ()

Time	CalculateOverallTxTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &params, uint32_t fragmentSize=0) const

Time	CalculateOverheadTxTime (Ptr< const WifiMacQueueItem > item, const MacLowTransmissionParameters &params) const

Time	CalculateTransmissionTime (Ptr< const Packet > packet, const WifiMacHeader *hdr, const MacLowTransmissionParameters &parameters) const

bool	CanTransmitNextCfFrame (void) const
	This function decides if a CF frame can be transmitted in the current CFP. More...

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DeaggregateAmpduAndReceive (Ptr< Packet > aggregatedPacket, double rxSnr, WifiTxVector txVector, std::vector< bool > statusPerMpdu)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)

bool	DoNavStartNow (Time duration)
	Start NAV with the given duration. More...

Time	GetAckTimeout (void) const
	Return ACK timeout of this MacLow. More...

Mac48Address	GetAddress (void) const
	Return the MAC address of this MacLow. More...

Time	GetBasicBlockAckTimeout (void) const
	Return Basic Block ACK timeout of this MacLow. More...

Time	GetBeaconInterval (void) const

Mac48Address	GetBssid (void) const
	Return the Basic Service Set Identification. More...

Time	GetCfpMaxDuration (void) const

Time	GetCompressedBlockAckTimeout (void) const
	Return Compressed Block ACK timeout of this MacLow. More...

Time	GetCtsTimeout (void) const
	Return CTS timeout of this MacLow. More...

bool	GetCtsToSelfSupported (void) const
	Return whether CTS-to-self capability is supported. More...

virtual WifiTxVector	GetDataTxVector (Ptr< const WifiMacQueueItem > item) const
	Return a TXVECTOR for the DATA frame given the destination. More...

Ptr< MpduAggregator >	GetMpduAggregator (void) const
	Returns the aggregator used to construct A-MPDU subframes. More...

Ptr< MsduAggregator >	GetMsduAggregator (void) const
	Returns the aggregator used to construct A-MSDU subframes. More...

Ptr< WifiPhy >	GetPhy (void) const

Time	GetPifs (void) const
	Return PCF Interframe Space (PIFS) of this MacLow. More...

Time	GetRemainingCfpDuration (void) const

Time	GetRifs (void) const
	Return Reduced Interframe Space (RIFS) of this MacLow. More...

Time	GetSifs (void) const
	Return Short Interframe Space (SIFS) of this MacLow. More...

Time	GetSlotTime (void) const
	Return slot duration of this MacLow. More...

virtual bool	IsCfPeriod (void) const
	This function indicates whether it is the CF period. More...

bool	IsPromisc (void) const
	Check if MacLow is operating in promiscuous mode. More...

bool	IsWithinSizeAndTimeLimits (Ptr< const WifiMacQueueItem > mpdu, WifiTxVector txVector, uint32_t ampduSize, Time ppduDurationLimit)
	Check whether the given MPDU, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive). More...

bool	IsWithinSizeAndTimeLimits (uint32_t mpduSize, Mac48Address receiver, uint8_t tid, WifiTxVector txVector, uint32_t ampduSize, Time ppduDurationLimit)
	Check whether an MPDU of the given size, destined to the given receiver and belonging to the given TID, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive). More...

void	NotifyOffNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into off mode. More...

void	NotifySleepNow (void)
	This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into sleep mode. More...

void	NotifySwitchingStartNow (Time duration)

void	ReceiveError (Ptr< Packet > packet)

void	ReceiveOk (Ptr< Packet > packet, double rxSnr, WifiTxVector txVector, bool ampduSubframe)

void	RegisterDcf (Ptr< ChannelAccessManager > dcf)

void	RegisterEdcaForAc (AcIndex ac, Ptr< QosTxop > edca)

void	ResetPhy (void)
	Remove WifiPhy associated with this MacLow. More...

void	SetAckTimeout (Time ackTimeout)
	Set ACK timeout of this MacLow. More...

void	SetAddress (Mac48Address ad)
	Set MAC address of this MacLow. More...

void	SetBasicBlockAckTimeout (Time blockAckTimeout)
	Set Basic Block ACK timeout of this MacLow. More...

void	SetBeaconInterval (Time interval)

void	SetBssid (Mac48Address ad)
	Set the Basic Service Set Identification. More...

void	SetCfpMaxDuration (Time duration)

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
	Set Compressed Block ACK timeout of this MacLow. More...

void	SetCtsTimeout (Time ctsTimeout)
	Set CTS timeout of this MacLow. More...

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self capability. More...

void	SetMac (const Ptr< WifiMac > mac)
	Set up WifiMac associated with this MacLow. More...

void	SetMpduAggregator (const Ptr< MpduAggregator > aggr)
	Set the aggregator used to construct A-MPDU subframes. More...

void	SetMsduAggregator (const Ptr< MsduAggregator > aggr)
	Set the aggregator used to construct A-MSDU subframes. More...

void	SetPhy (const Ptr< WifiPhy > phy)
	Set up WifiPhy associated with this MacLow. More...

void	SetPifs (Time pifs)
	Set PCF Interframe Space (PIFS) of this MacLow. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

void	SetRifs (Time rifs)
	Set Reduced Interframe Space (RIFS) of this MacLow. More...

void	SetRxCallback (Callback< void, Ptr< Packet >, const WifiMacHeader *> callback)

void	SetSifs (Time sifs)
	Set Short Interframe Space (SIFS) of this MacLow. More...

void	SetSlotTime (Time slotTime)
	Set slot duration of this MacLow. More...

void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this MacLow. More...

virtual void	StartTransmission (Ptr< WifiMacQueueItem > mpdu, MacLowTransmissionParameters parameters, Ptr< Txop > txop)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::pair< Mac48Address, uint8_t >	AgreementKey
	agreement key typedef More...

typedef std::map< AgreementKey, AgreementValue >	Agreements
	agreements More...

typedef std::map< AgreementKey, AgreementValue >::iterator	AgreementsI
	agreements iterator More...

typedef std::pair< BlockAckAgreement, std::list< BufferedPacket > >	AgreementValue
	agreement value typedef More...

typedef std::map< AgreementKey, BlockAckCache >	BlockAckCaches
	block ack caches typedef More...

typedef std::map< AgreementKey, BlockAckCache >::iterator	BlockAckCachesI
	block ack caches iterator typedef More...

typedef std::pair< Ptr< Packet >, WifiMacHeader >	BufferedPacket
	buffered packet typedef More...

typedef std::list< BufferedPacket >::iterator	BufferedPacketI
	buffered packet iterator typedef More...

typedef std::vector< Ptr< ChannelAccessManager > >	ChannelAccessManagers
	typedef for a list of ChannelAccessManager. More...

typedef std::vector< Ptr< ChannelAccessManager > >::const_iterator	ChannelAccessManagersCI
	typedef for an iterator for a list of ChannelAccessManager. More...

typedef std::map< AcIndex, Ptr< QosTxop > >	QueueEdcas
	EDCA queues typedef. More...

Private Member Functions
void	BlockAckTimeout (void)
	Event handler when block ACK timeout occurs. More...

void	CancelAllEvents (void)
	Cancel all scheduled events. More...

void	CfPollTimeout (void)
	Event handler when CF-POLL timeout occurs. More...

void	CtsTimeout (void)
	Event handler when CTS timeout occurs. More...

void	DoDispose (void)
	Destructor implementation. More...

void	DoNavResetNow (Time duration)
	Reset NAV with the given duration. More...

void	EndTxNoAck (void)
	A transmission that does not require an ACK has completed. More...

void	ForwardDown (Ptr< const WifiPsdu > psdu, WifiTxVector txVector)
	Forward a PSDU down to WifiPhy for transmission. More...

Time	GetAckDuration (WifiTxVector ackTxVector) const
	Return the time required to transmit the ACK (including preamble and FCS). More...

Time	GetAckDuration (Mac48Address to, WifiTxVector dataTxVector) const
	Return the time required to transmit the ACK to the specified address given the TXVECTOR of the DATA (including preamble and FCS). More...

WifiTxVector	GetAckTxVector (Mac48Address to, WifiMode dataTxMode) const
	Return a TXVECTOR for the ACK frame given the destination and the mode of the DATA used by the sender. More...

WifiTxVector	GetAckTxVectorForData (Mac48Address to, WifiMode dataTxMode) const
	Return a TXVECTOR for the Block ACK frame given the destination and the mode of the DATA used by the sender. More...

Time	GetBlockAckDuration (WifiTxVector blockAckReqTxVector, BlockAckType type) const
	Return the time required to transmit the Block ACK to the specified address given the TXVECTOR of the BAR (including preamble and FCS). More...

WifiTxVector	GetBlockAckTxVector (Mac48Address to, WifiMode dataTxMode) const
	Return a TXVECTOR for the Block ACK frame given the destination and the mode of the DATA used by the sender. More...

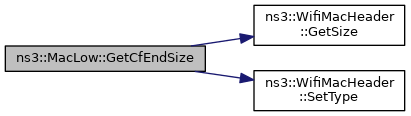

uint32_t	GetCfEndSize (void) const
	Return the total CF-END size (including FCS trailer). More...

WifiMode	GetControlAnswerMode (WifiMode reqMode) const
	Get control answer mode function. More...

Time	GetCtsDuration (WifiTxVector ctsTxVector) const
	Return the time required to transmit the CTS (including preamble and FCS). More...

Time	GetCtsDuration (Mac48Address to, WifiTxVector rtsTxVector) const
	Return the time required to transmit the CTS to the specified address given the TXVECTOR of the RTS (including preamble and FCS). More...

WifiTxVector	GetCtsTxVector (Mac48Address to, WifiMode rtsTxMode) const
	Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender. More...

WifiTxVector	GetCtsTxVectorForRts (Mac48Address to, WifiMode rtsTxMode) const
	Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender. More...

WifiTxVector	GetRtsTxVector (Ptr< const WifiMacQueueItem > item) const
	Return a TXVECTOR for the RTS frame given the destination. More...

bool	IsNavZero (void) const
	Check if NAV is zero. More...

void	NavCounterResetCtsMissed (Time rtsEndRxTime)
	Reset NAV after CTS was missed when the NAV was set with RTS. More...

bool	NeedCtsToSelf (void) const
	Check if CTS-to-self mechanism should be used for the current packet. More...

void	NormalAckTimeout (void)
	Event handler when normal ACK timeout occurs. More...

void	NotifyAckTimeoutResetNow (void)
	Notify ChannelAccessManager that ACK timer should be reset. More...

void	NotifyAckTimeoutStartNow (Time duration)
	Notify ChannelAccessManager that ACK timer should be started for the given duration. More...

void	NotifyCtsTimeoutResetNow (void)
	Notify ChannelAccessManager that CTS timer should be reset. More...

void	NotifyCtsTimeoutStartNow (Time duration)
	Notify ChannelAccessManager that CTS timer should be started for the given duration. More...

void	NotifyNav (Ptr< const Packet > packet, const WifiMacHeader &hdr)
	Notify NAV function. More...

bool	ReceiveMpdu (Ptr< Packet > packet, WifiMacHeader hdr)

void	RemovePhyMacLowListener (Ptr< WifiPhy > phy)
	Remove current WifiPhy listener for this MacLow. More...

void	ResetBlockAckInactivityTimerIfNeeded (BlockAckAgreement &agreement)
	Every time that a block ack request or a packet with ack policy equals to block ack are received, if a relative block ack agreement exists and the value of inactivity timeout is not 0, the timer is reset. More...

void	RxCompleteBufferedPacketsUntilFirstLost (Mac48Address originator, uint8_t tid)

void	RxCompleteBufferedPacketsWithSmallerSequence (uint16_t seq, Mac48Address originator, uint8_t tid)

void	SendAckAfterData (Mac48Address source, Time duration, WifiMode dataTxMode, double dataSnr)
	Send ACK after receiving DATA. More...

void	SendBlockAckAfterAmpdu (uint8_t tid, Mac48Address originator, Time duration, WifiTxVector blockAckReqTxVector, double rxSnr)
	Invoked after an A-MPDU has been received. More...

void	SendBlockAckAfterBlockAckRequest (const CtrlBAckRequestHeader reqHdr, Mac48Address originator, Time duration, WifiMode blockAckReqTxMode, double rxSnr)
	Invoked after that a block ack request has been received. More...

void	SendBlockAckResponse (const CtrlBAckResponseHeader *blockAck, Mac48Address originator, bool immediate, Time duration, WifiMode blockAckReqTxMode, double rxSnr)
	This method creates block ack frame with header equals to blockAck and start its transmission. More...

void	SendCtsAfterRts (Mac48Address source, Time duration, WifiTxVector rtsTxVector, double rtsSnr)
	Send CTS after receiving RTS. More...

void	SendCtsToSelf (void)
	Send CTS for a CTS-to-self mechanism. More...

void	SendDataAfterCts (Time duration)
	Send DATA after receiving CTS. More...

void	SendDataPacket (void)
	Send DATA packet, which can be DATA-ACK or RTS-CTS-DATA-ACK transaction. More...

void	SendRtsForPacket (void)
	Send RTS to begin RTS-CTS-DATA-ACK transaction. More...

void	SetupPhyMacLowListener (const Ptr< WifiPhy > phy)
	Set up WifiPhy listener for this MacLow. More...

void	StartDataTxTimers (WifiTxVector dataTxVector)
	Start a DATA timer by scheduling appropriate ACK timeout. More...

bool	StoreMpduIfNeeded (Ptr< Packet > packet, WifiMacHeader hdr)

void	WaitIfsAfterEndTxFragment (void)
	Event handler that is usually scheduled to fired at the appropriate time after completing transmissions. More...

void	WaitIfsAfterEndTxPacket (void)
	Event handler that is usually scheduled to fired at the appropriate time after sending a packet. More...

Private Attributes
Time	m_ackTimeout
	ACK timeout duration. More...

Agreements	m_bAckAgreements
	block ack agreements More...

BlockAckCaches	m_bAckCaches
	block ack caches More...

Time	m_basicBlockAckTimeout
	Basic block ACK timeout duration. More...

Time	m_beaconInterval
	Expected interval between two beacon transmissions. More...

EventId	m_blockAckTimeoutEvent
	Block ACK timeout event. More...

Mac48Address	m_bssid
	BSSID address (Mac48Address) More...

CfAckInfo	m_cfAckInfo
	Info about piggyback ACKs used in PCF. More...

Time	m_cfpForeshortening
	The delay the current CF period should be foreshortened. More...

Time	m_cfpMaxDuration
	CFP max duration. More...

Time	m_cfpStart
	The time when the latest CF period started. More...

ChannelAccessManagers	m_channelAccessManagers
	List of ChannelAccessManager. More...

Time	m_compressedBlockAckTimeout
	Compressed block ACK timeout duration. More...

Time	m_ctsTimeout
	CTS timeout duration. More...

EventId	m_ctsTimeoutEvent
	CTS timeout event. More...

bool	m_ctsToSelfSupported
	Flag whether CTS-to-self is supported. More...

Ptr< WifiPsdu >	m_currentPacket
	Current packet transmitted/to be transmitted. More...

Ptr< Txop >	m_currentTxop
	Current TXOP. More...

WifiTxVector	m_currentTxVector
	TXVECTOR used for the current packet transmission. More...

QueueEdcas	m_edca
	EDCA queues. More...

EventId	m_endTxNoAckEvent
	Event for finishing transmission that does not require ACK. More...

Time	m_lastBeacon
	The time when the last beacon frame transmission started. More...

Time	m_lastNavDuration
	The duration of the latest NAV. More...

Time	m_lastNavStart
	The time when the latest NAV started. More...

Ptr< WifiMac >	m_mac
	Pointer to WifiMac (to fetch configuration) More...

Ptr< MpduAggregator >	m_mpduAggregator
	A-MPDU aggregator. More...

Ptr< MsduAggregator >	m_msduAggregator
	A-MSDU aggregator. More...

EventId	m_navCounterResetCtsMissed
	Event to reset NAV when CTS is not received. More...

EventId	m_normalAckTimeoutEvent
	Normal ACK timeout event. More...

Ptr< WifiPhy >	m_phy
	Pointer to WifiPhy (actually send/receives frames) More...

class PhyMacLowListener *	m_phyMacLowListener
	Listener needed to monitor when a channel switching occurs. More...

Time	m_pifs
	PCF Interframe Space (PIFS) duration. More...

bool	m_promisc
	Flag if the device is operating in promiscuous mode. More...

Time	m_rifs
	Reduced Interframe Space (RIFS) duration. More...

MacLowRxCallback	m_rxCallback
	Callback to pass packet up. More...

Mac48Address	m_self
	Address of this MacLow (Mac48Address) More...

EventId	m_sendAckEvent
	Event to send ACK. More...

EventId	m_sendCtsEvent
	Event to send CTS. More...

EventId	m_sendDataEvent
	Event to send DATA. More...

Time	m_sifs
	Short Interframe Space (SIFS) duration. More...

Time	m_slotTime
	Slot duration. More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Pointer to WifiRemoteStationManager (rate control) More...

MacLowTransmissionParameters	m_txParams
	Transmission parameters of the current packet. More...

EventId	m_waitIfsEvent
	Wait for IFS event. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

handle RTS/CTS/DATA/ACK transactions.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 18446744073709551615 bytes (on a 64-bit architecture).

Definition at line 59 of file mac-low.h.

Member Typedef Documentation

◆ AgreementKey

typedef std::pair<Mac48Address, uint8_t> ns3::MacLow::AgreementKey

private

agreement key typedef

Definition at line 940 of file mac-low.h.

◆ Agreements

typedef std::map<AgreementKey, AgreementValue> ns3::MacLow::Agreements

private

agreements

Definition at line 943 of file mac-low.h.

◆ AgreementsI

typedef std::map<AgreementKey, AgreementValue>::iterator ns3::MacLow::AgreementsI

private

agreements iterator

Definition at line 944 of file mac-low.h.

◆ AgreementValue

typedef std::pair<BlockAckAgreement, std::list<BufferedPacket> > ns3::MacLow::AgreementValue

private

agreement value typedef

Definition at line 941 of file mac-low.h.

◆ BlockAckCaches

typedef std::map<AgreementKey, BlockAckCache> ns3::MacLow::BlockAckCaches

private

block ack caches typedef

Definition at line 946 of file mac-low.h.

◆ BlockAckCachesI

typedef std::map<AgreementKey, BlockAckCache>::iterator ns3::MacLow::BlockAckCachesI

private

block ack caches iterator typedef

Definition at line 947 of file mac-low.h.

◆ BufferedPacket

typedef std::pair<Ptr<Packet>, WifiMacHeader> ns3::MacLow::BufferedPacket

private

buffered packet typedef

Definition at line 937 of file mac-low.h.

◆ BufferedPacketI

typedef std::list<BufferedPacket>::iterator ns3::MacLow::BufferedPacketI

private

buffered packet iterator typedef

Definition at line 938 of file mac-low.h.

◆ ChannelAccessManagers

typedef std::vector<Ptr<ChannelAccessManager> > ns3::MacLow::ChannelAccessManagers

private

typedef for a list of ChannelAccessManager.

Definition at line 890 of file mac-low.h.

◆ ChannelAccessManagersCI

typedef std::vector<Ptr<ChannelAccessManager> >::const_iterator ns3::MacLow::ChannelAccessManagersCI

private

typedef for an iterator for a list of ChannelAccessManager.

Definition at line 886 of file mac-low.h.

◆ MacLowRxCallback

typedef Callback<void, Ptr<Packet>, const WifiMacHeader*> ns3::MacLow::MacLowRxCallback

typedef for a callback for MacLowRx

Definition at line 66 of file mac-low.h.

◆ QueueEdcas

typedef std::map<AcIndex, Ptr<QosTxop> > ns3::MacLow::QueueEdcas

private

EDCA queues typedef.

Definition at line 952 of file mac-low.h.

Constructor & Destructor Documentation

◆ MacLow()

ns3::MacLow::MacLow ( )

Definition at line 110 of file mac-low.cc.

References NS_LOG_FUNCTION.

◆ ~MacLow()

ns3::MacLow::~MacLow ( )

virtual

Definition at line 136 of file mac-low.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BlockAckTimeout()

void ns3::MacLow::BlockAckTimeout ( void )

private

Event handler when block ACK timeout occurs.

Definition at line 1720 of file mac-low.cc.

References m_currentPacket, m_currentTxop, ns3::Txop::MissedBlockAck(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by StartDataTxTimers().

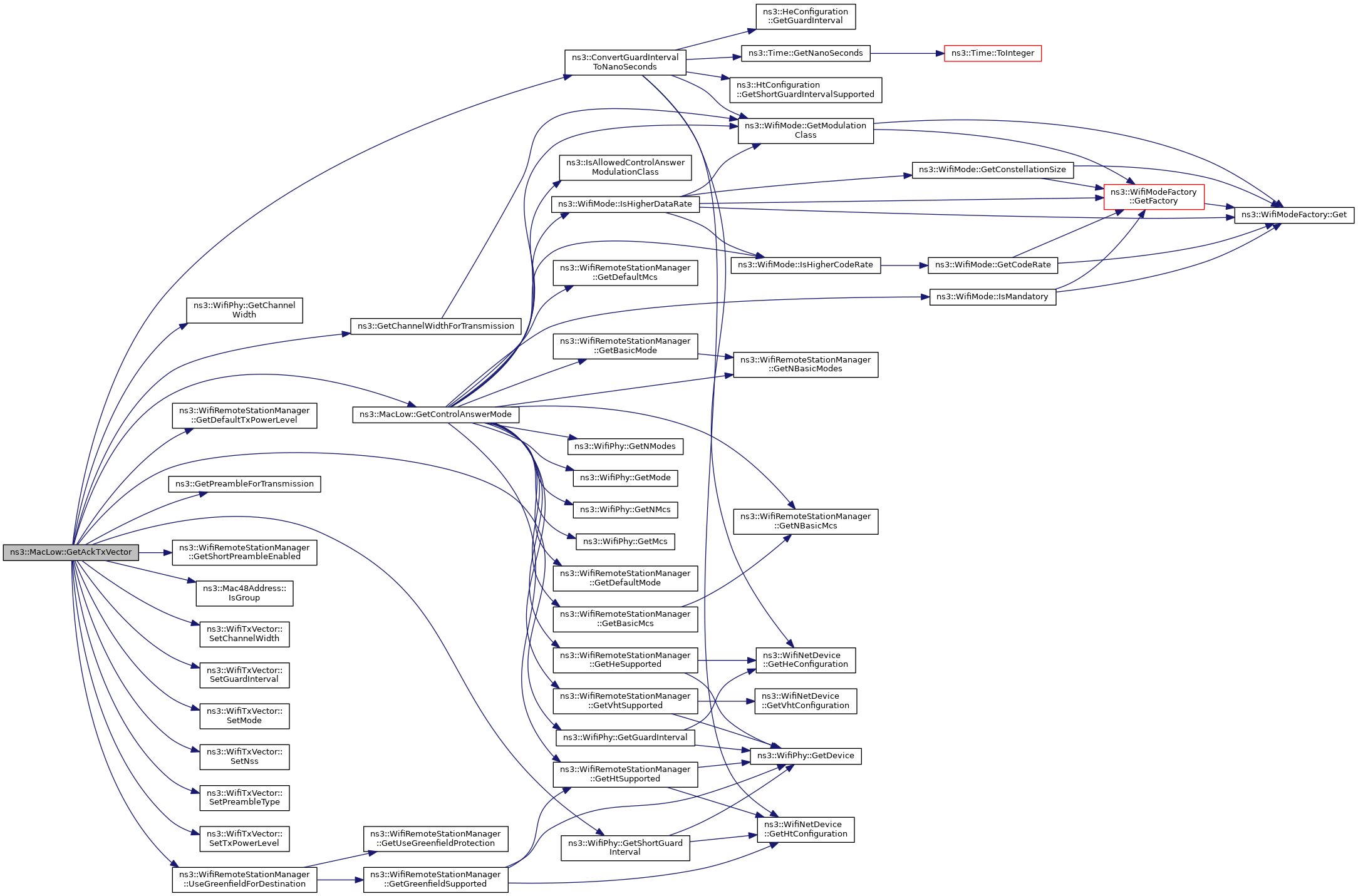

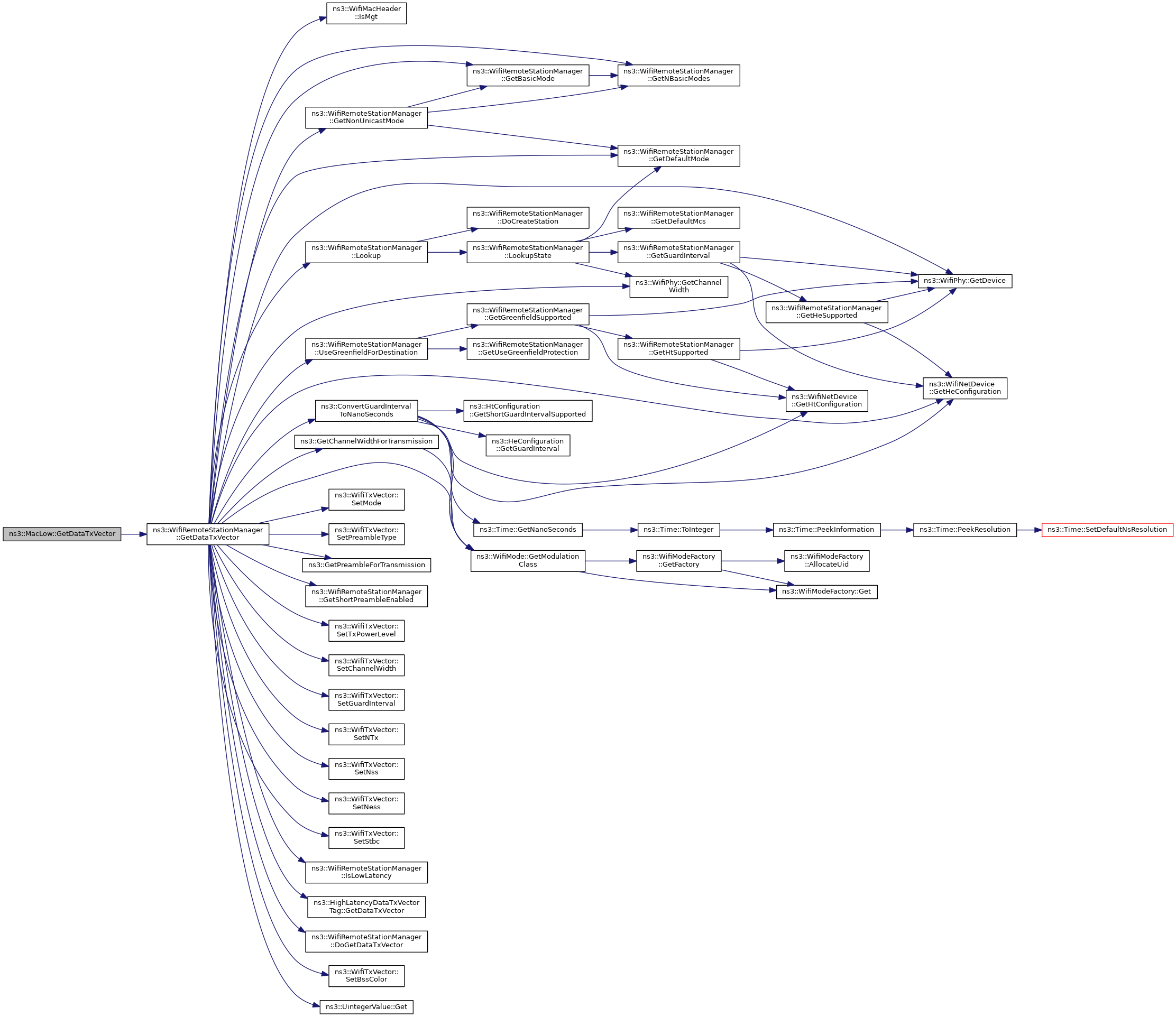

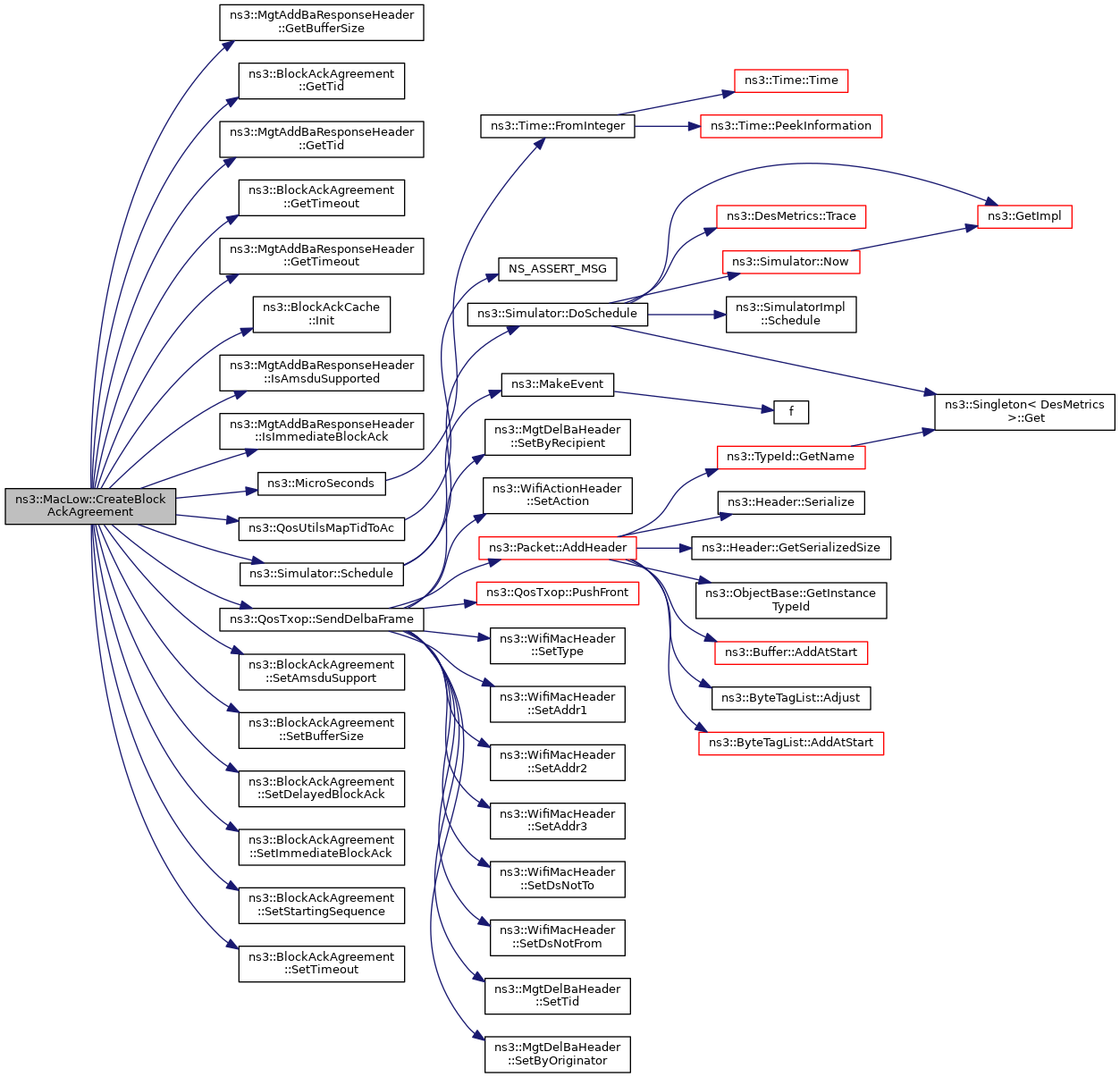

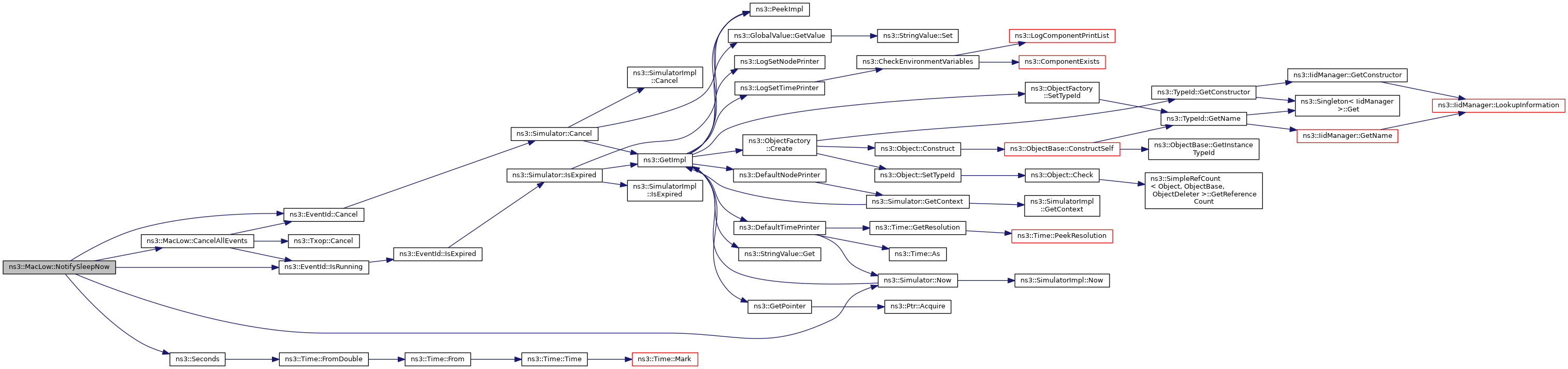

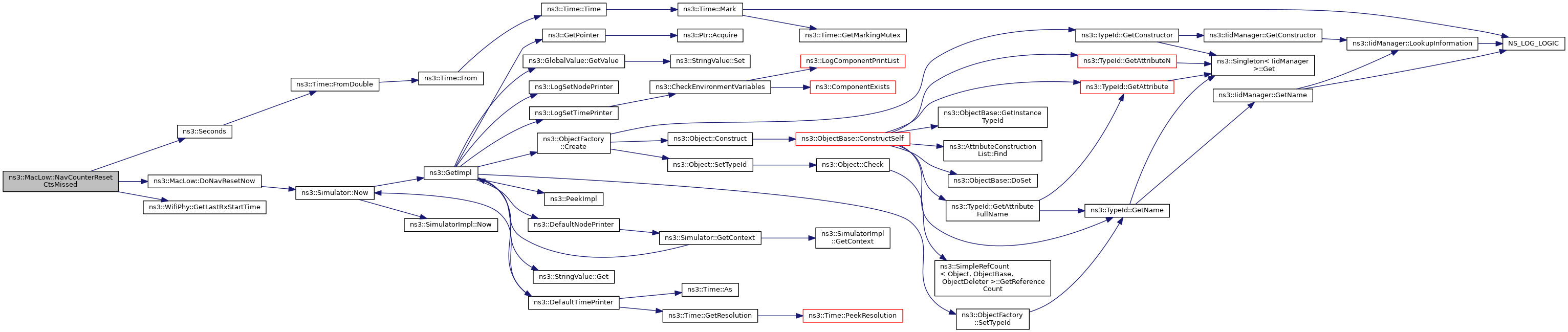

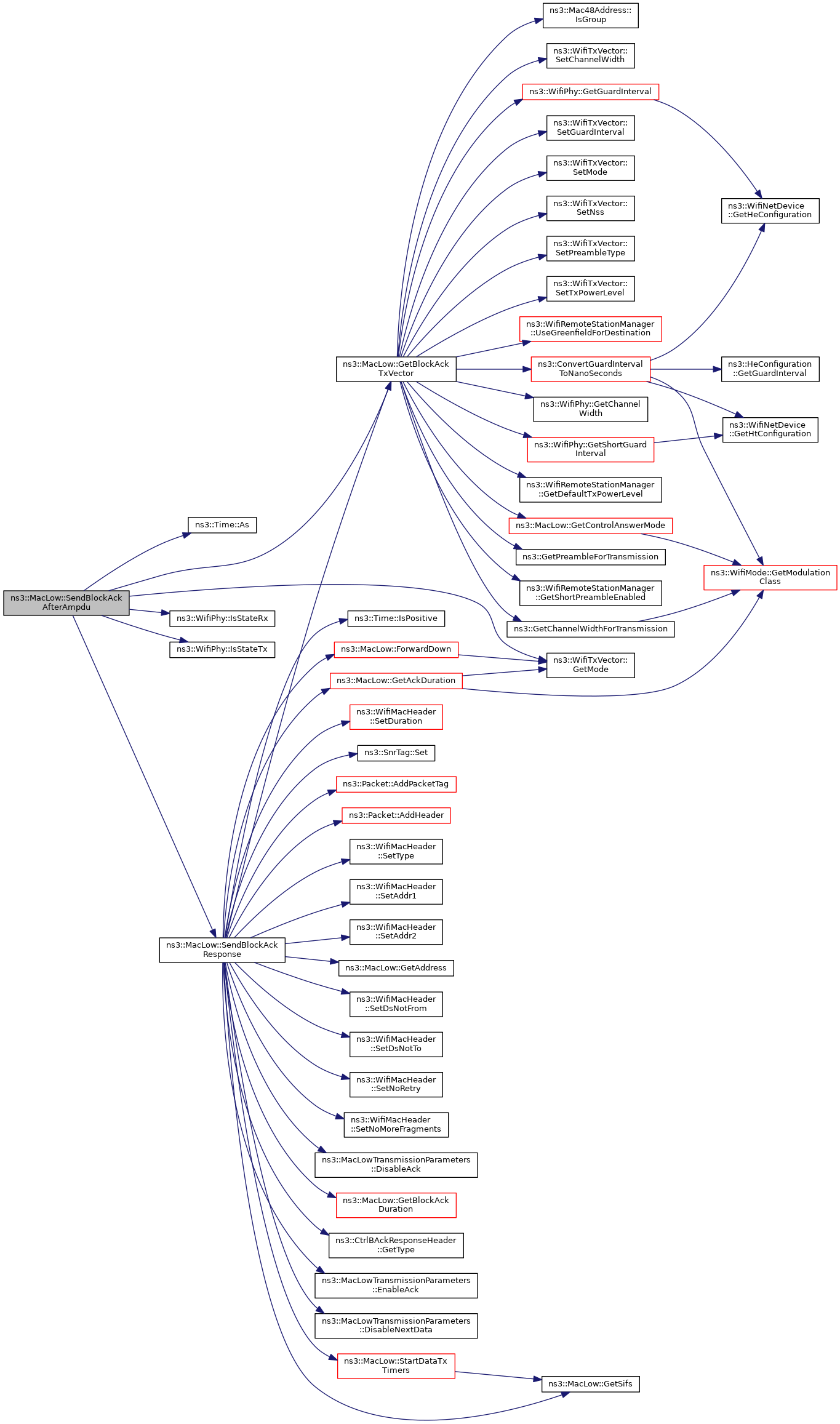

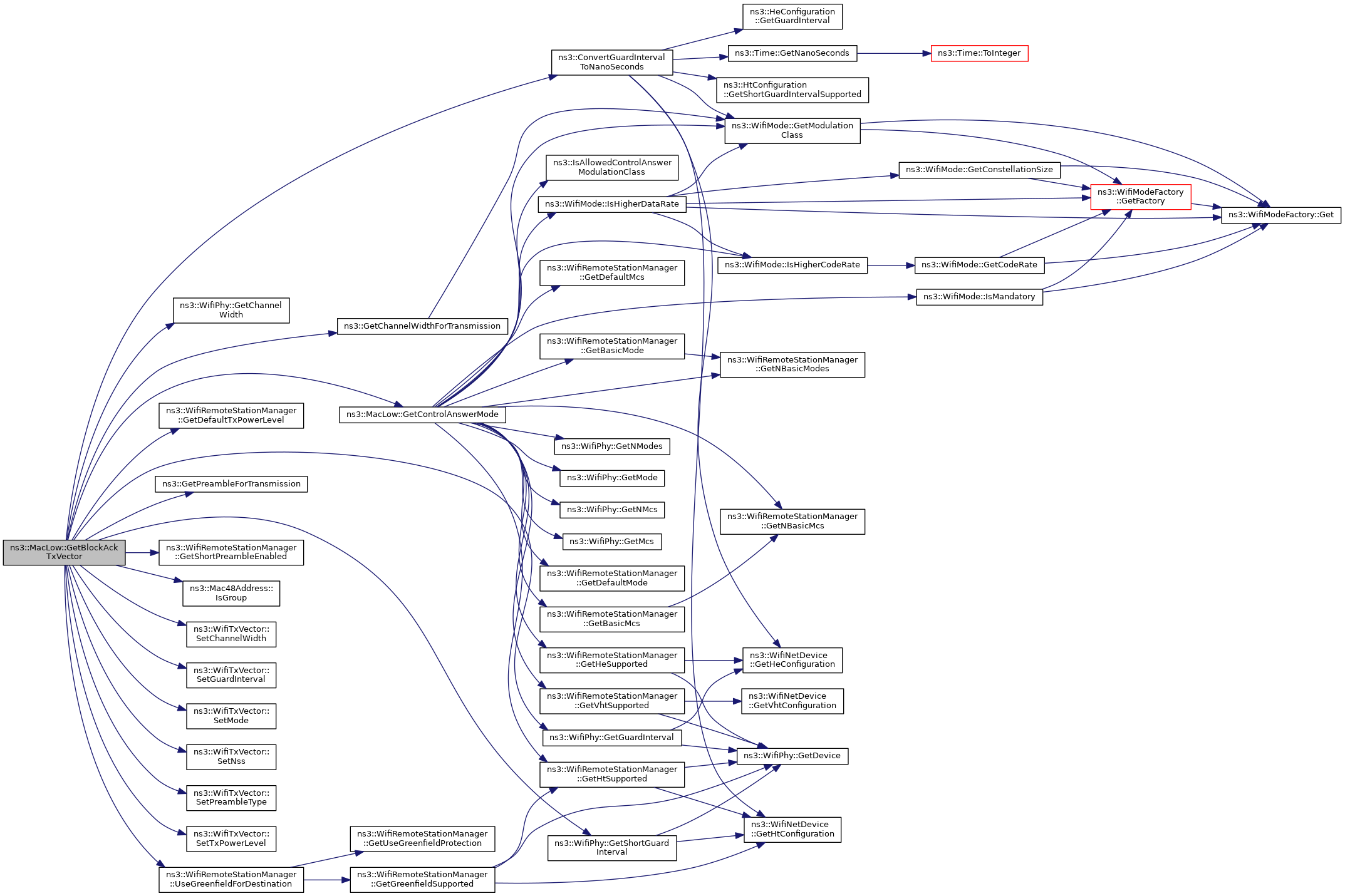

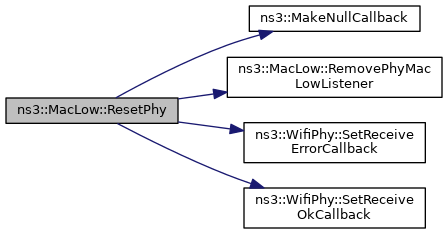

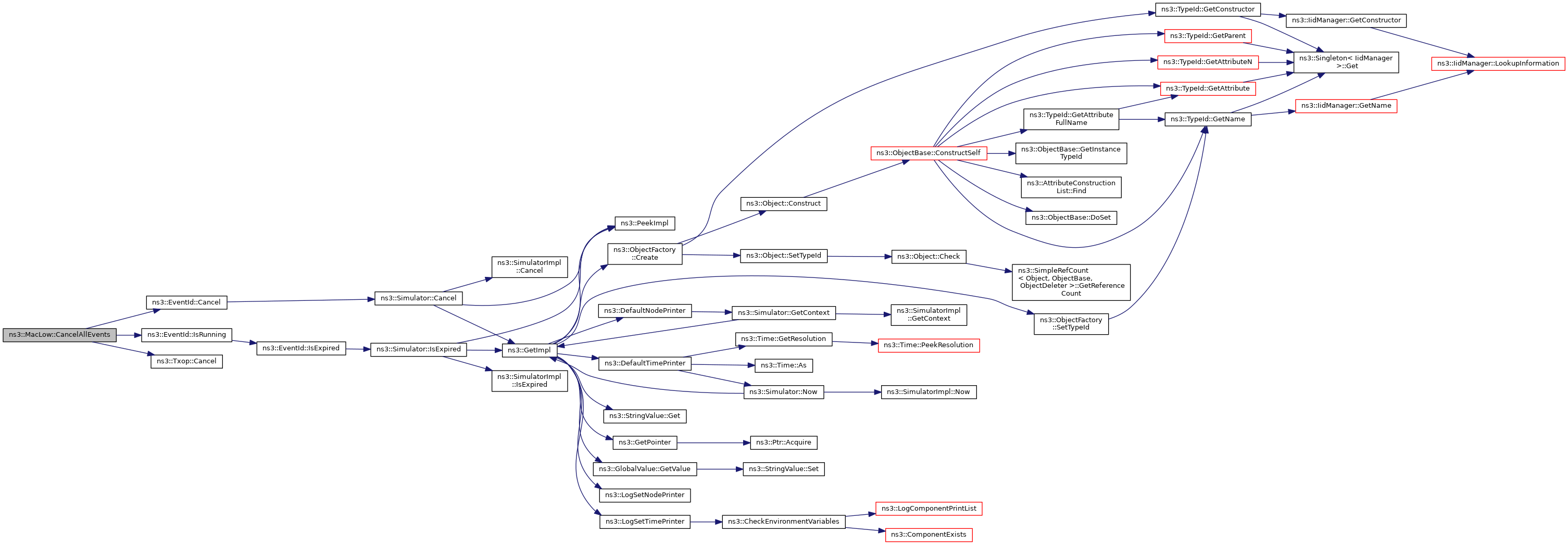

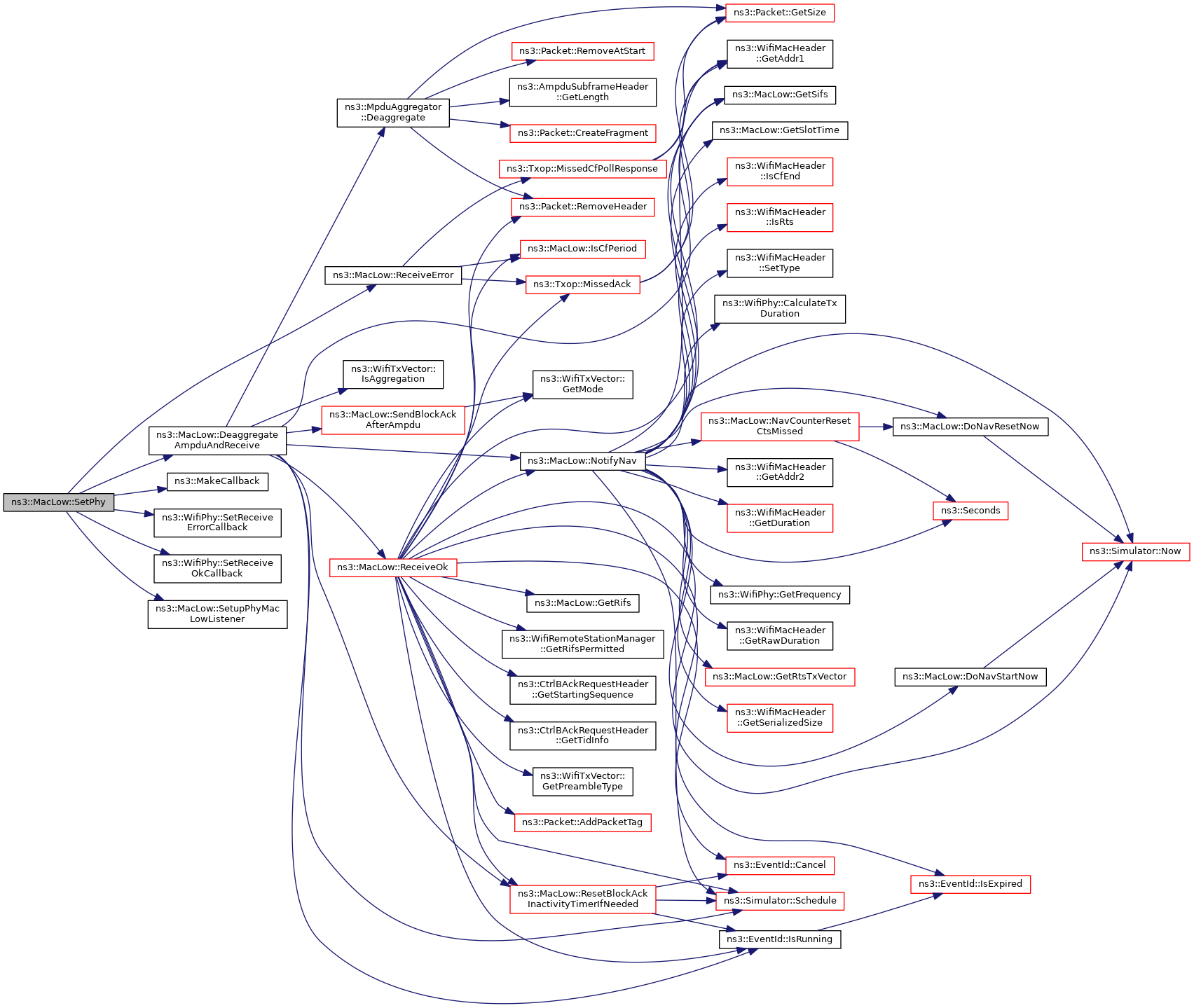

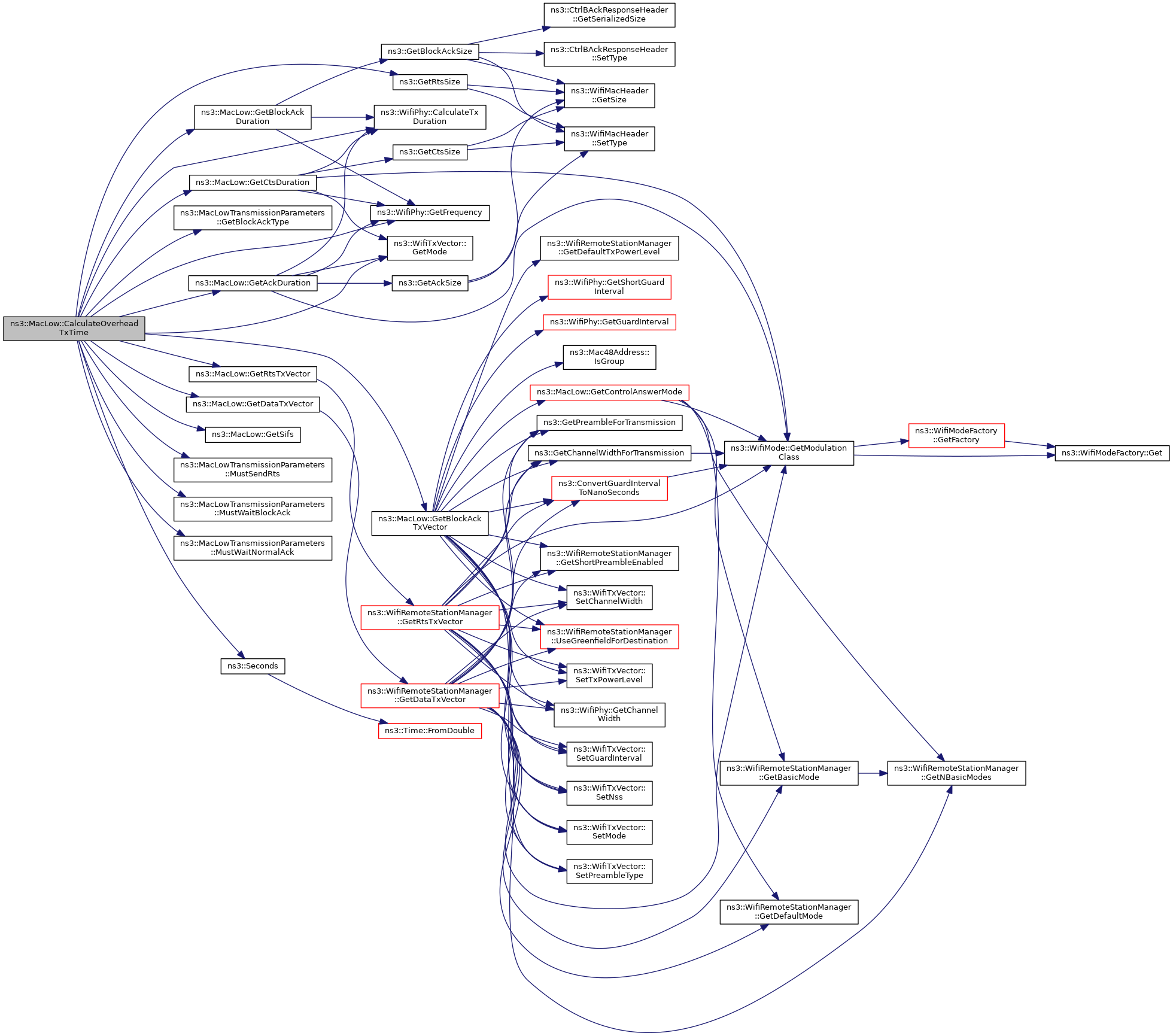

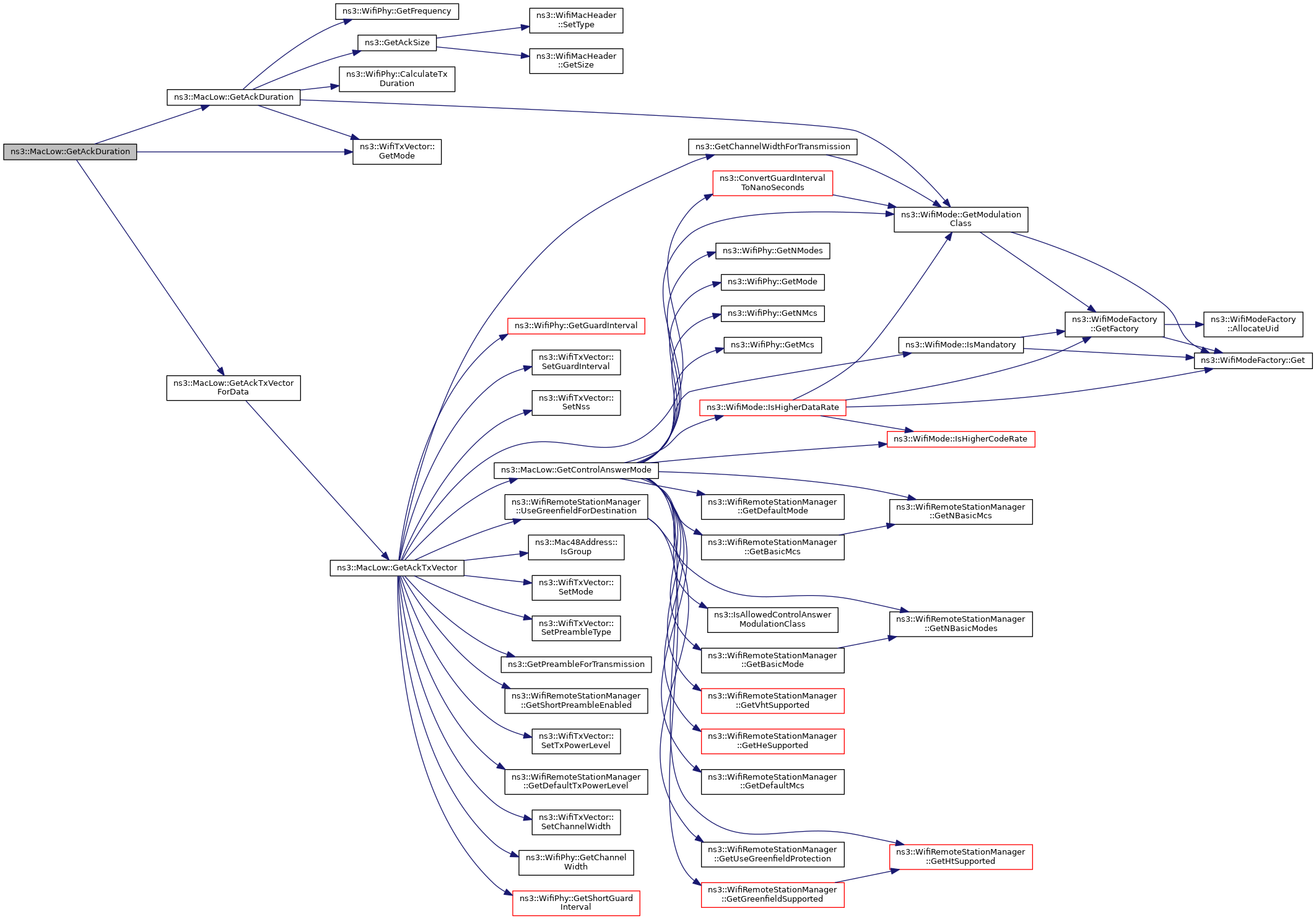

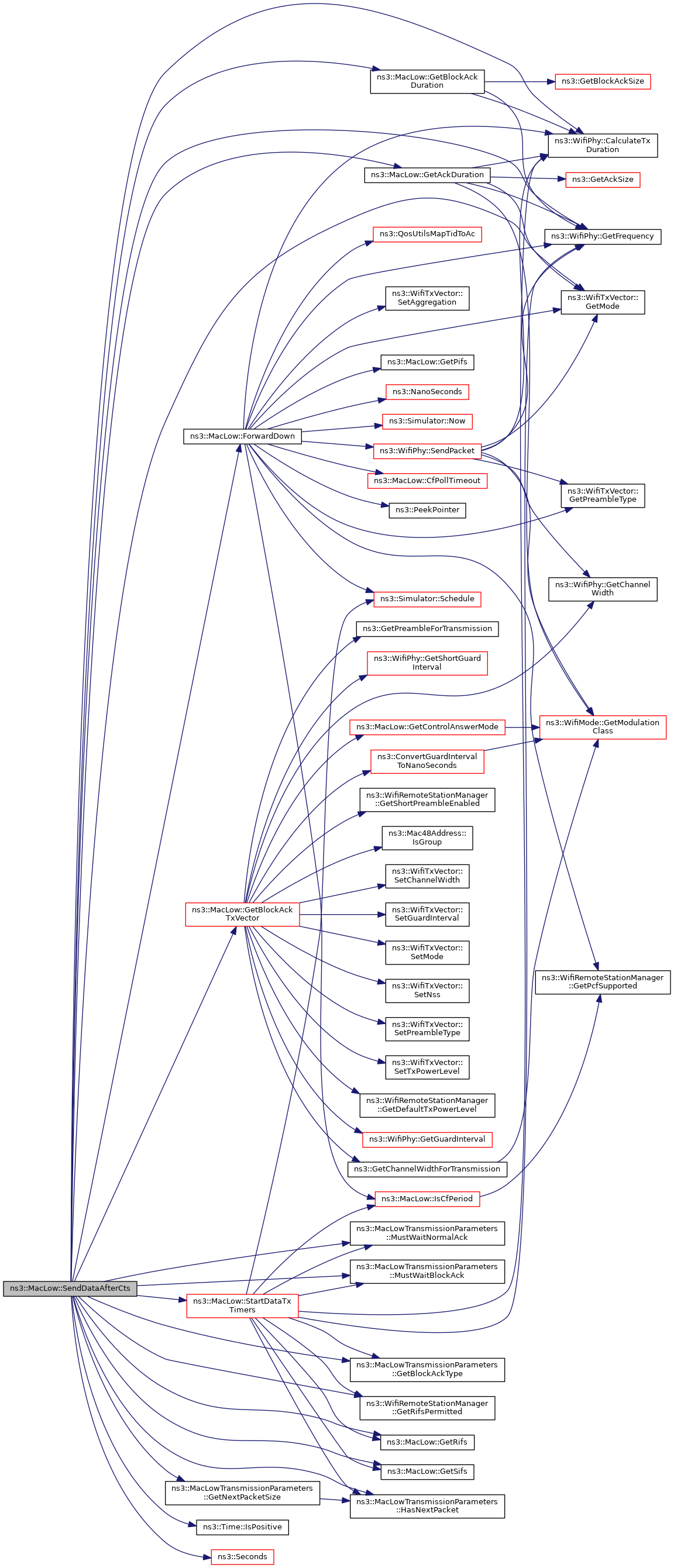

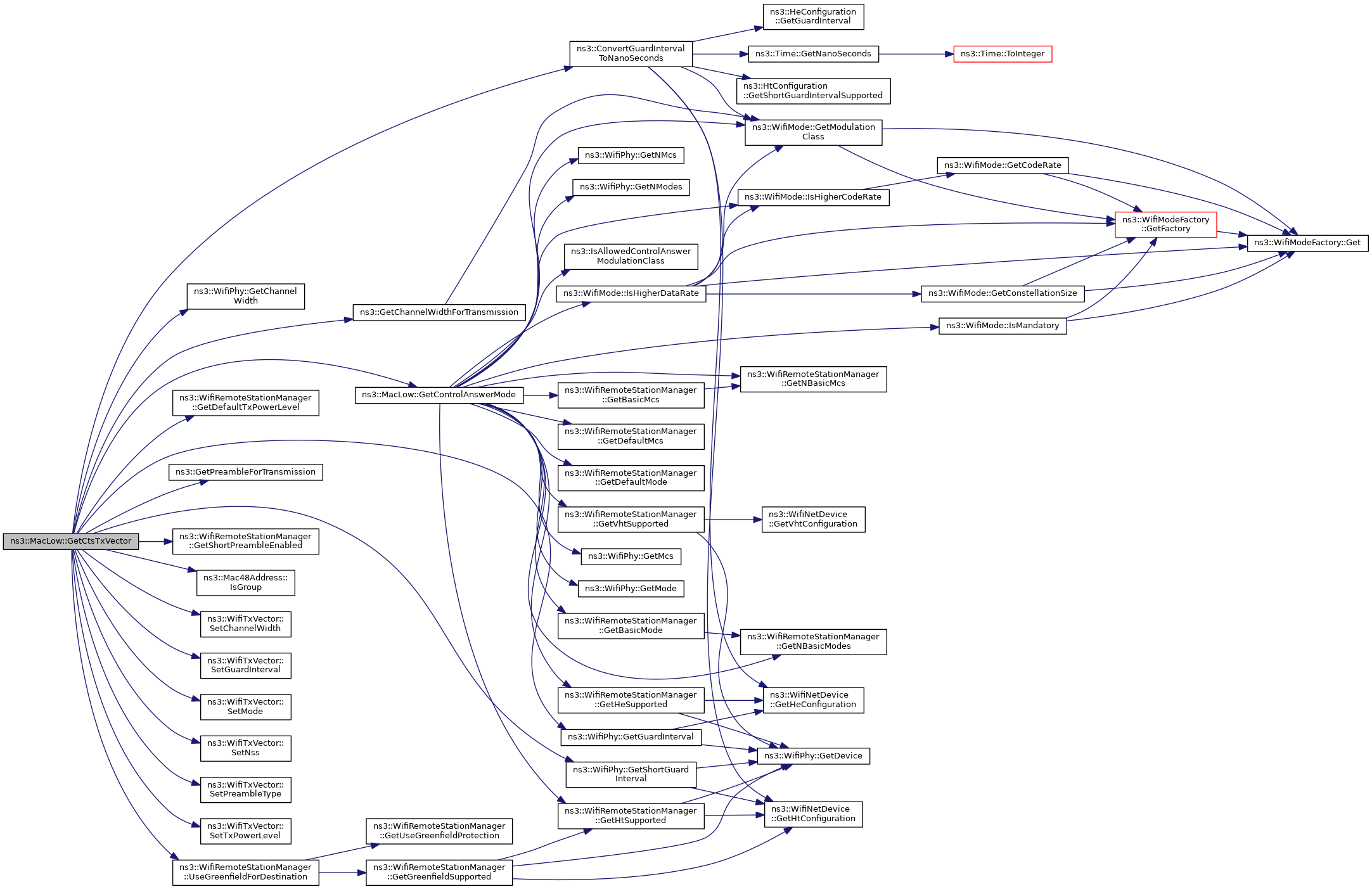

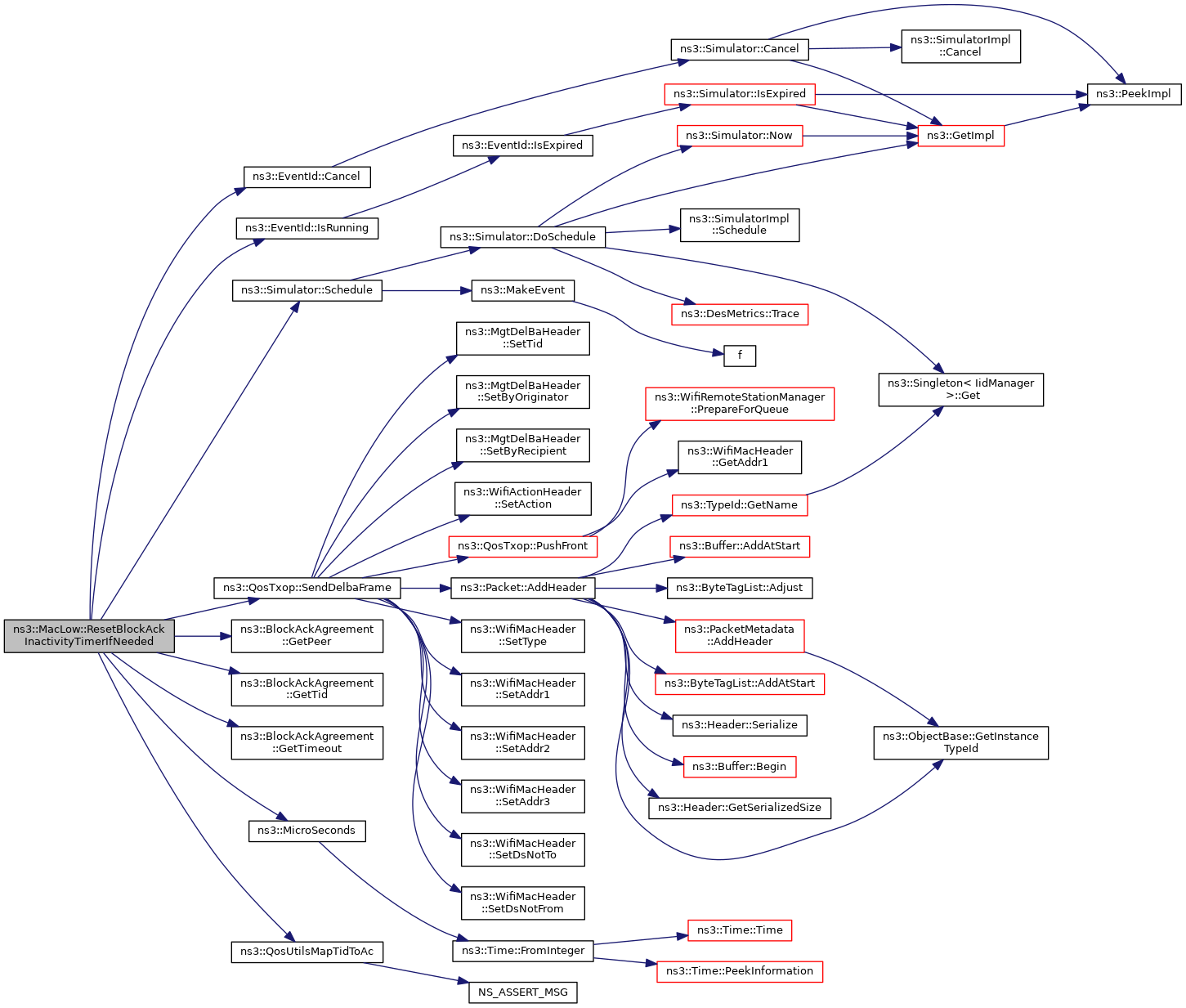

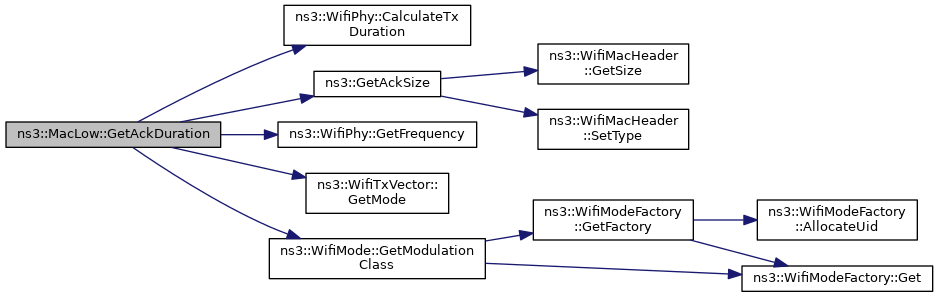

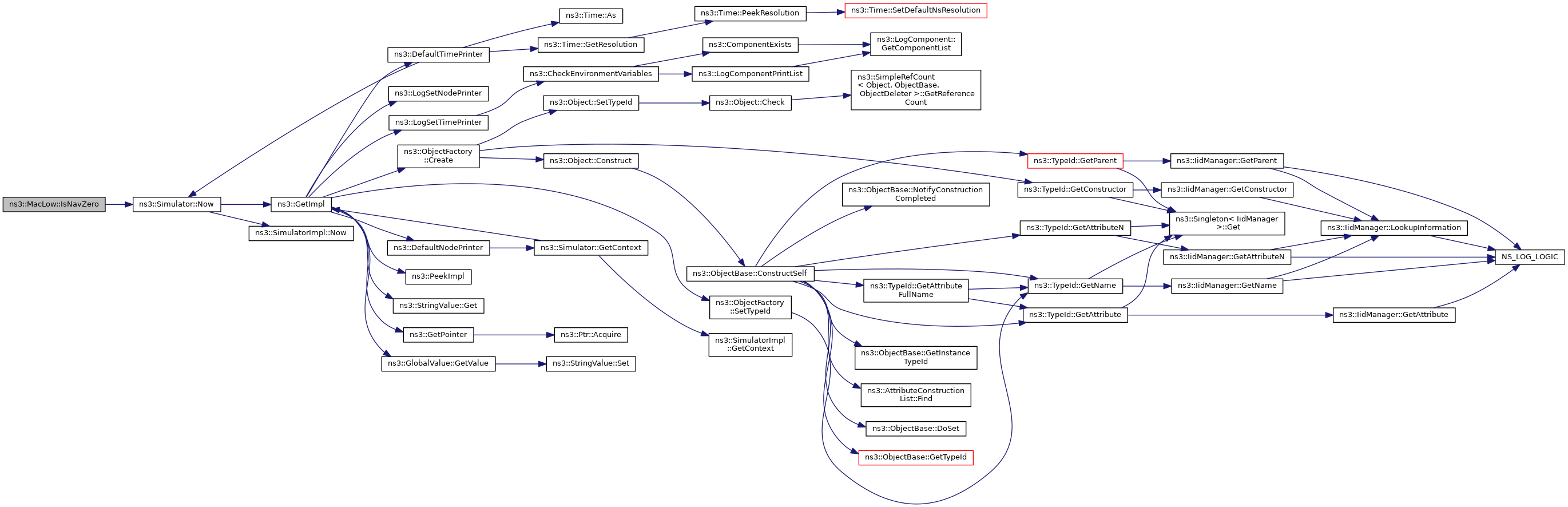

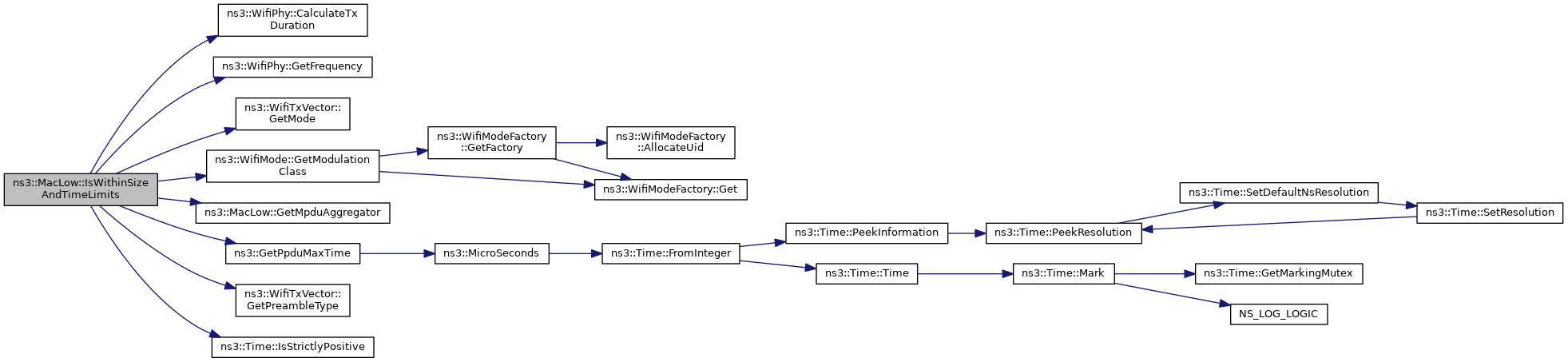

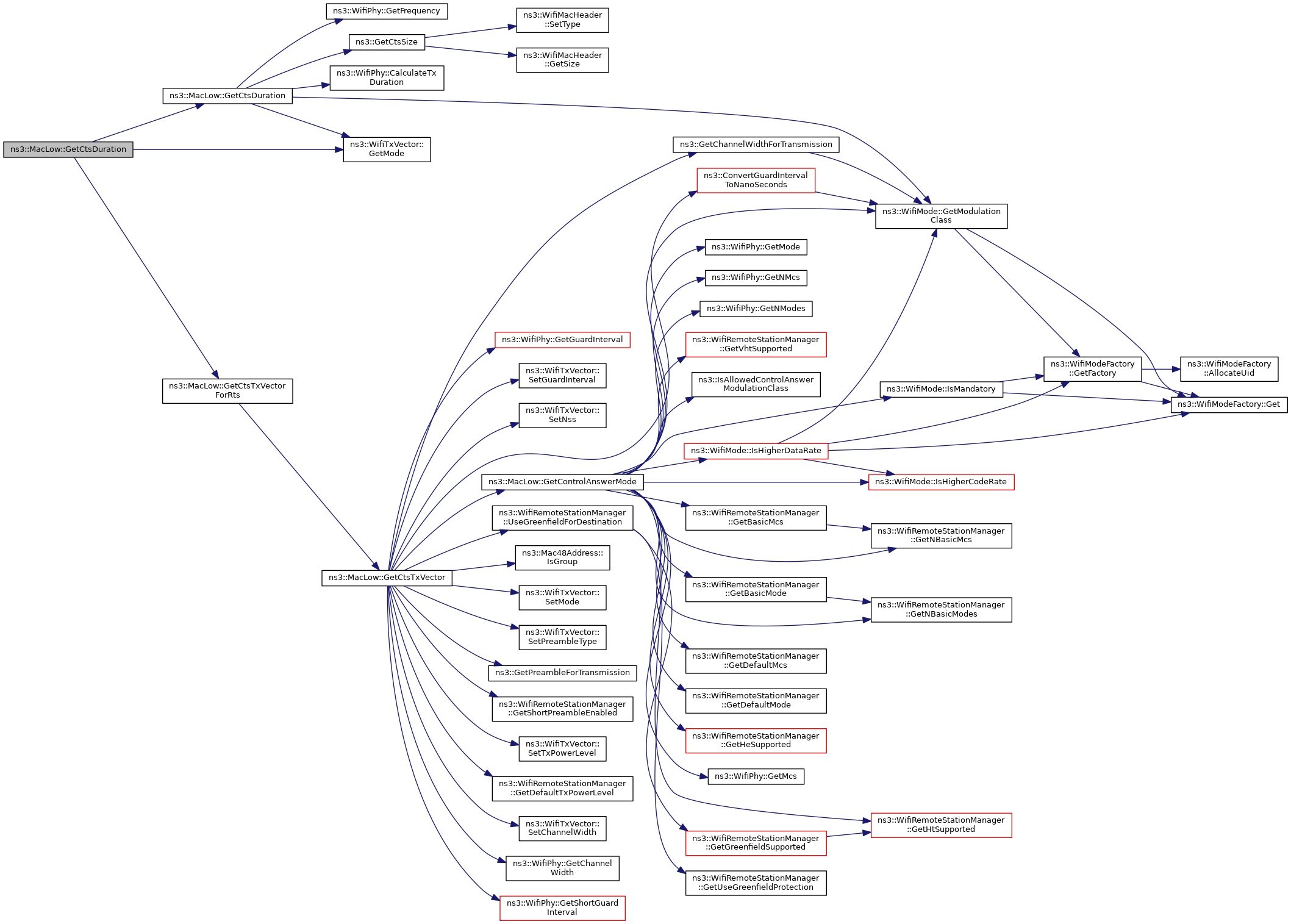

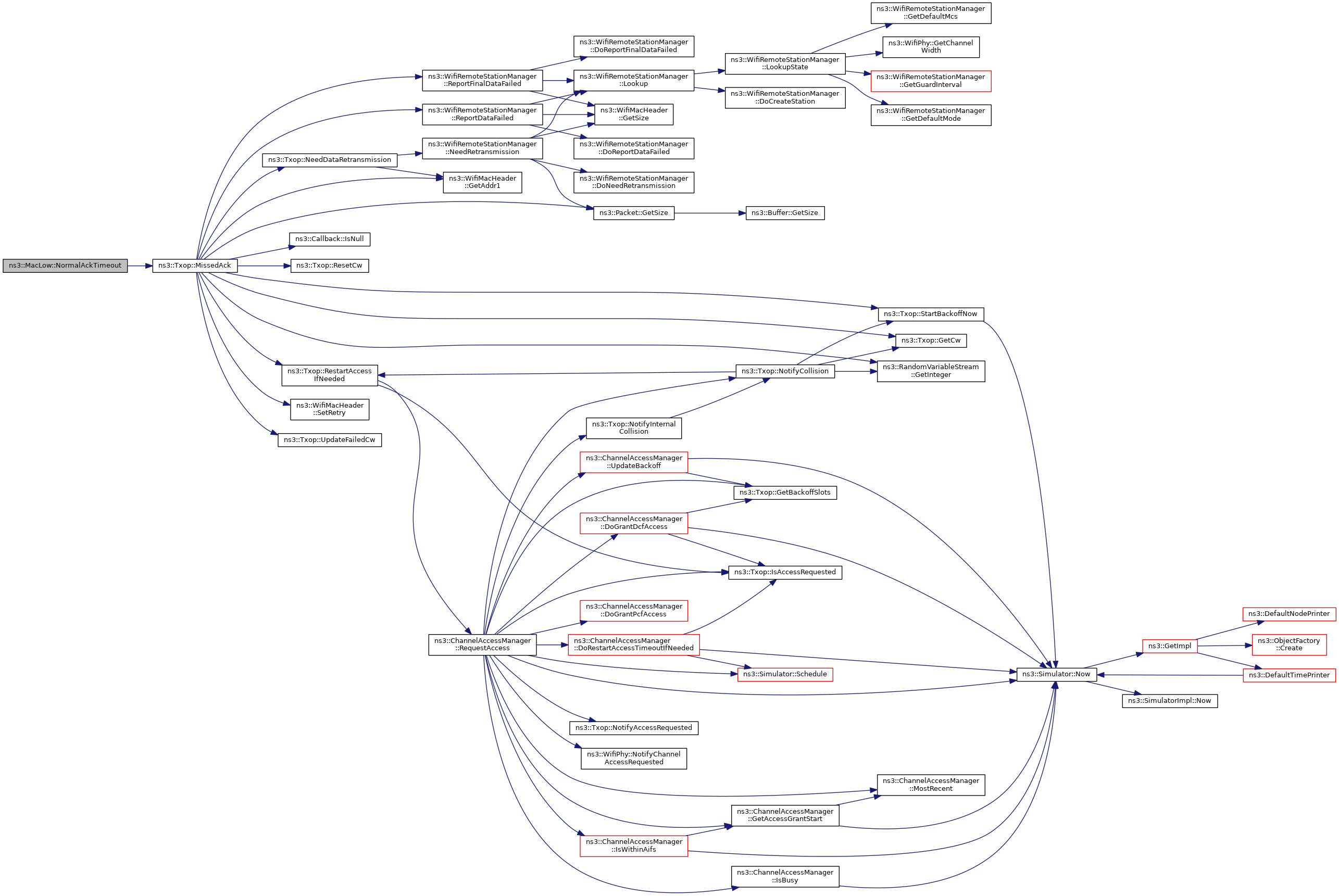

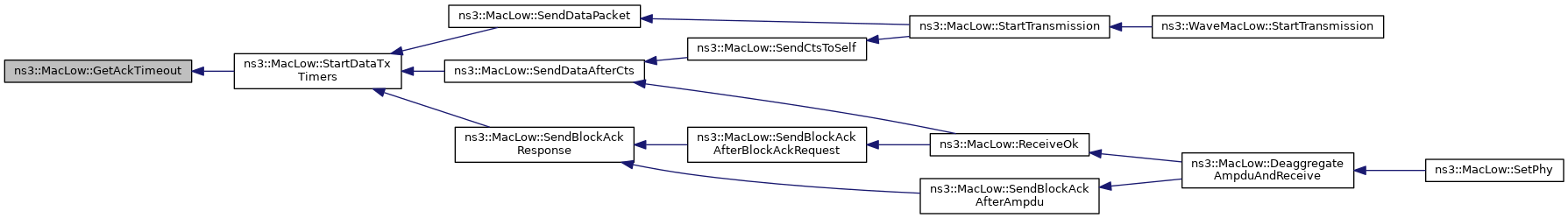

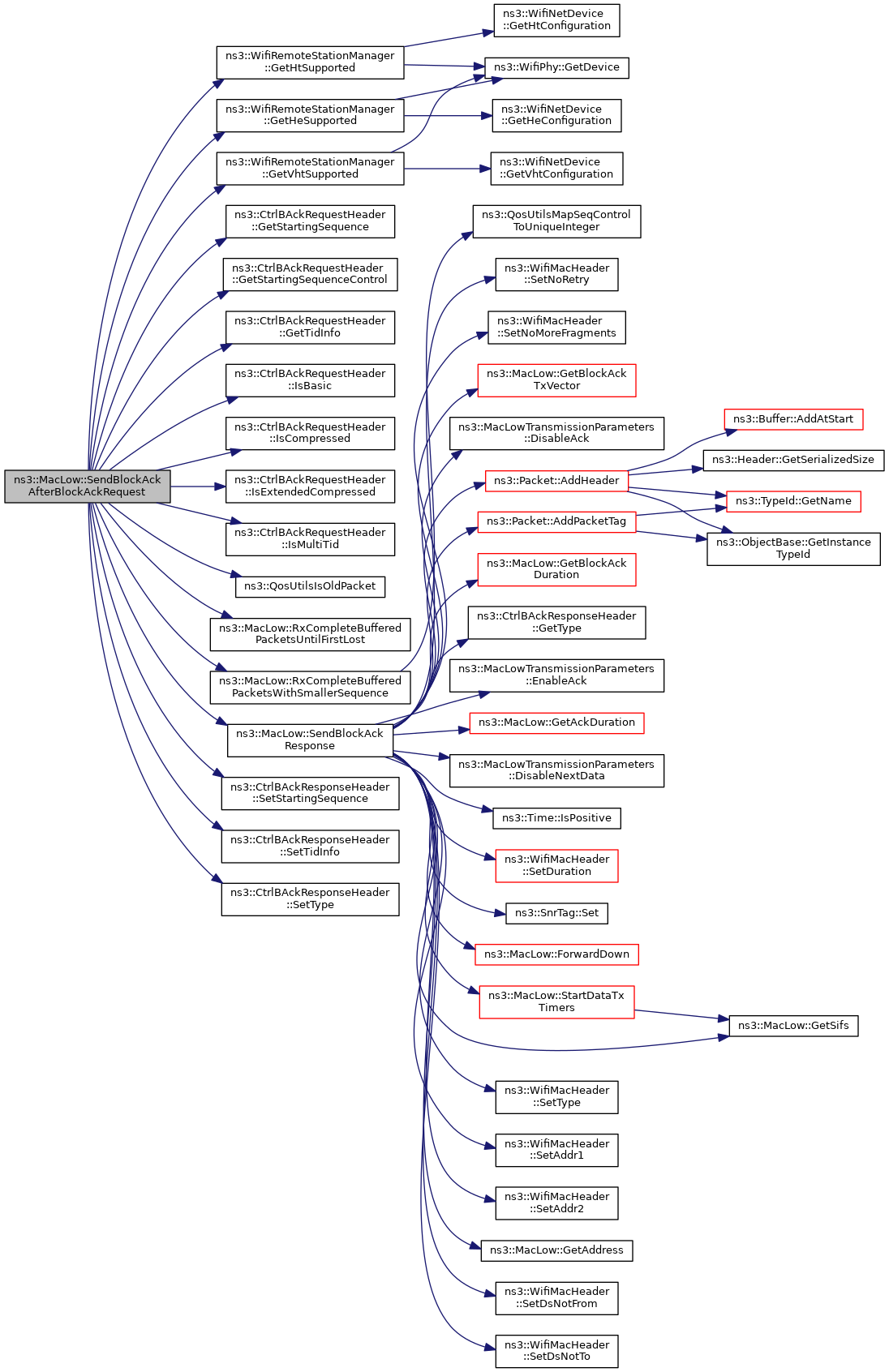

Here is the call graph for this function:

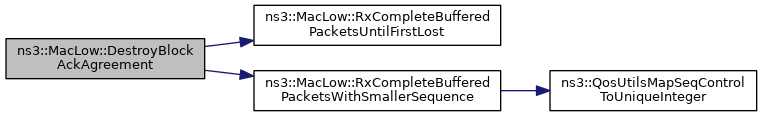

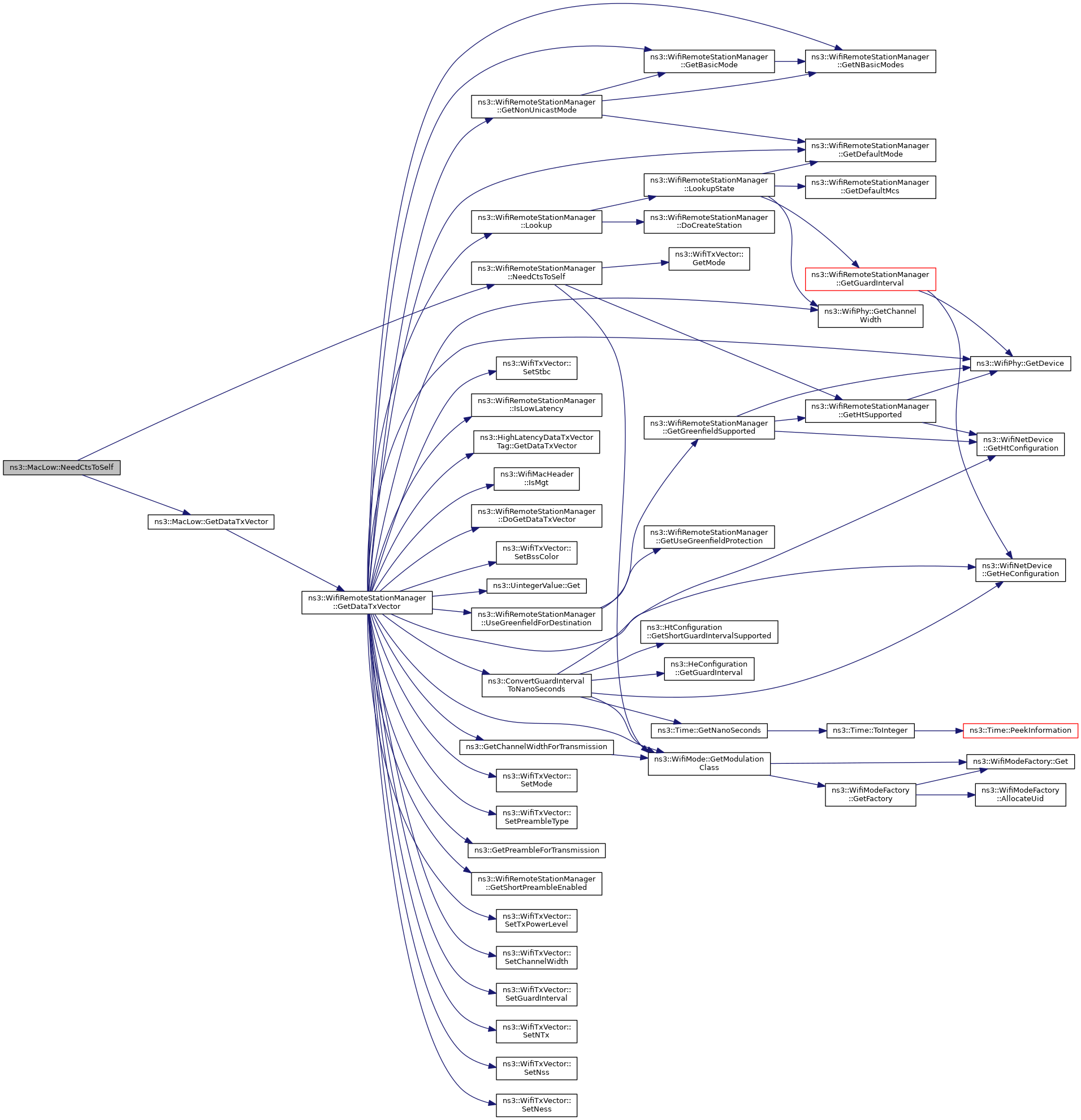

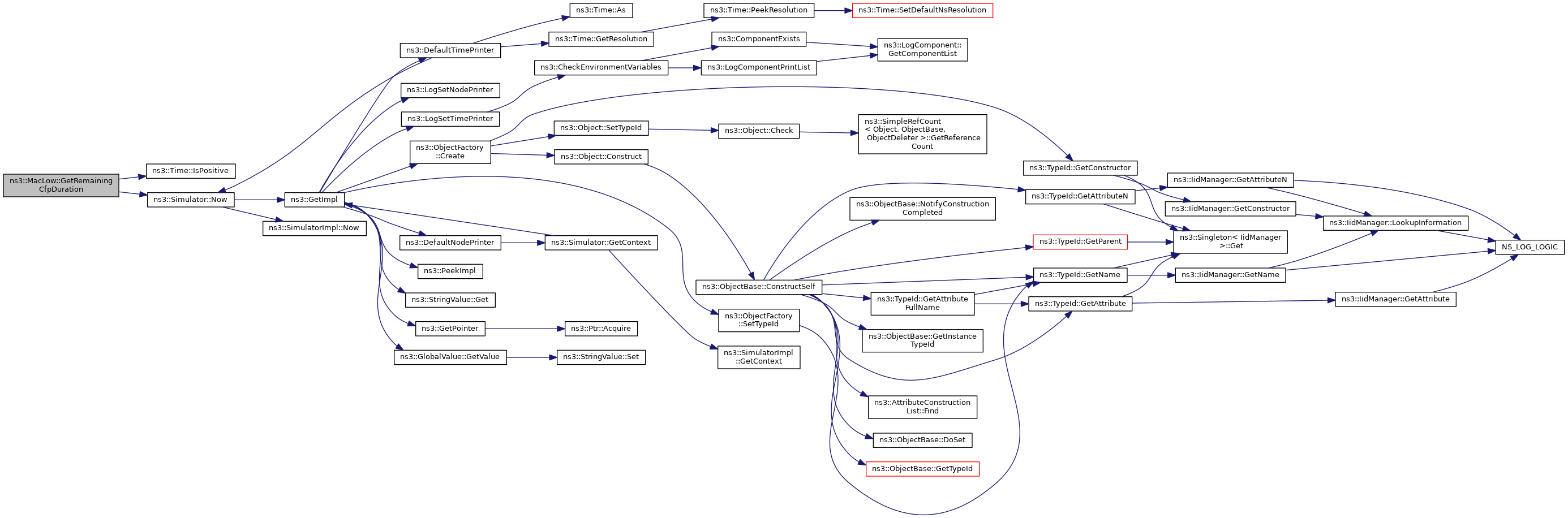

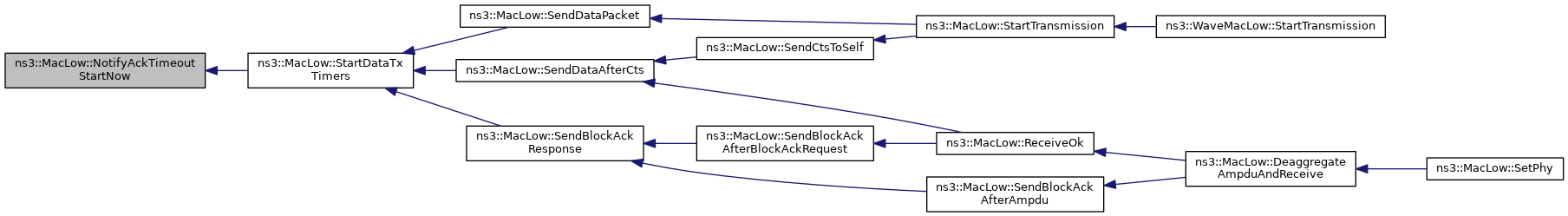

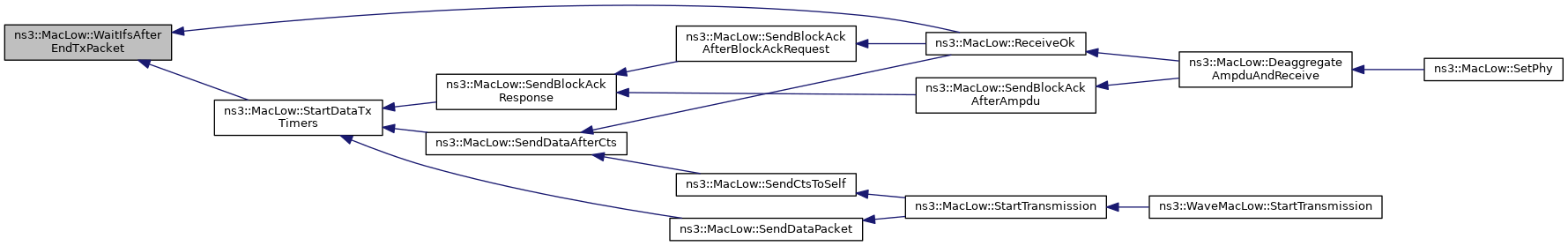

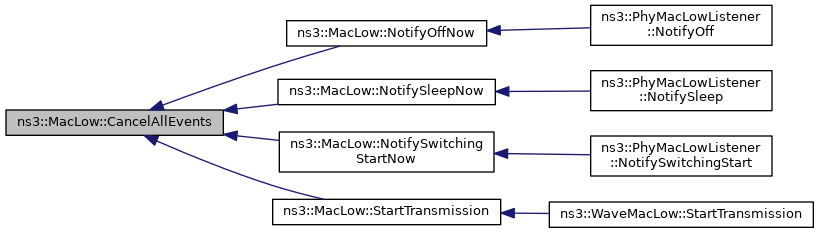

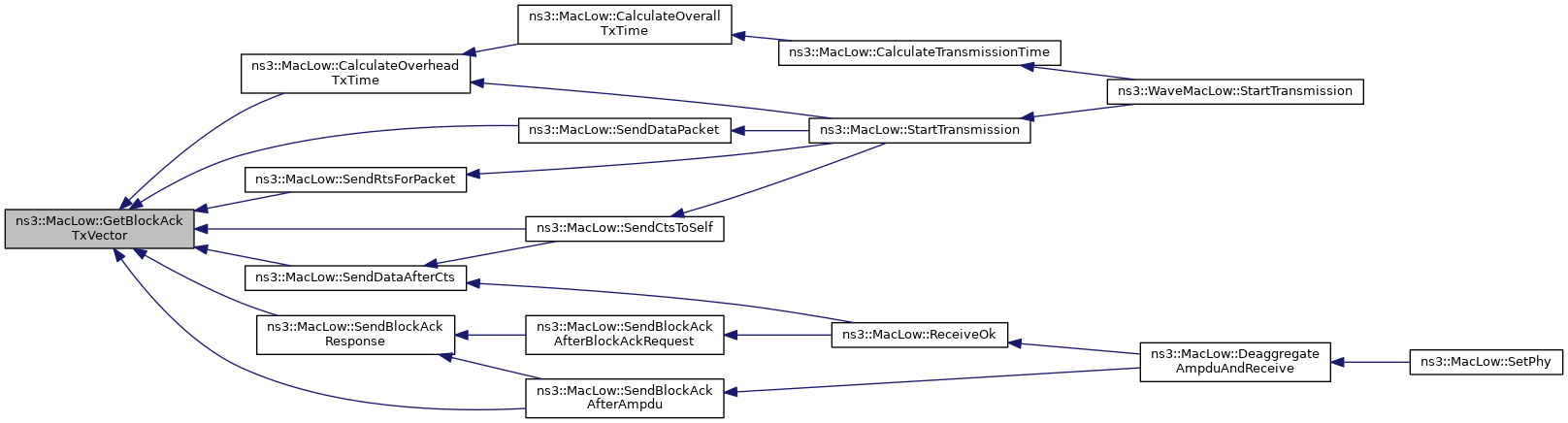

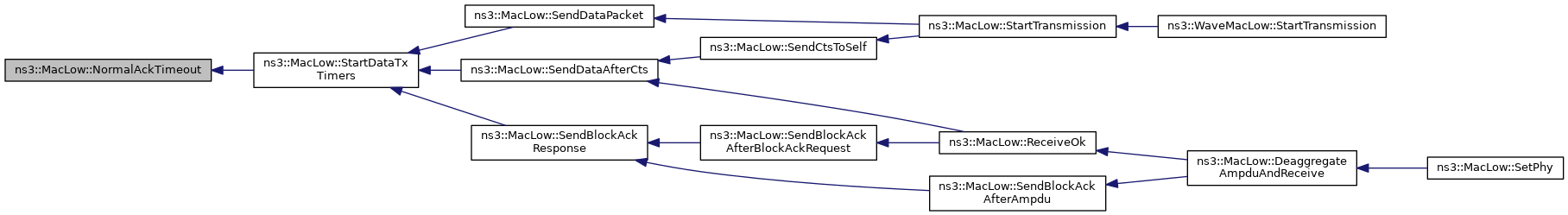

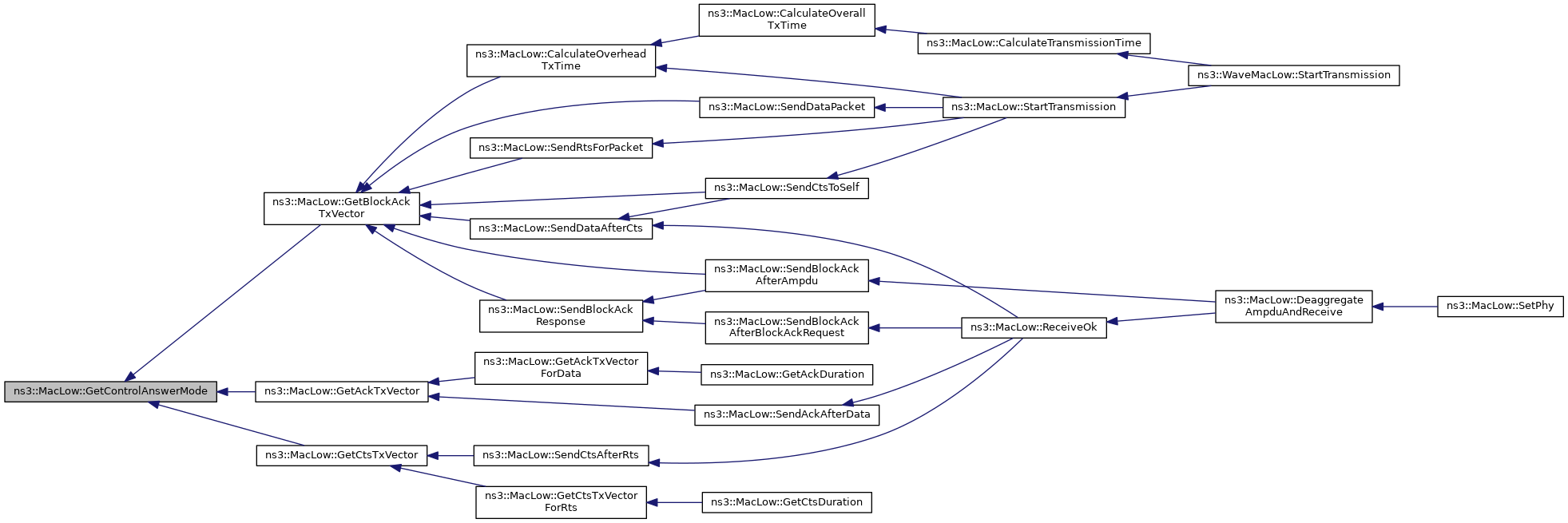

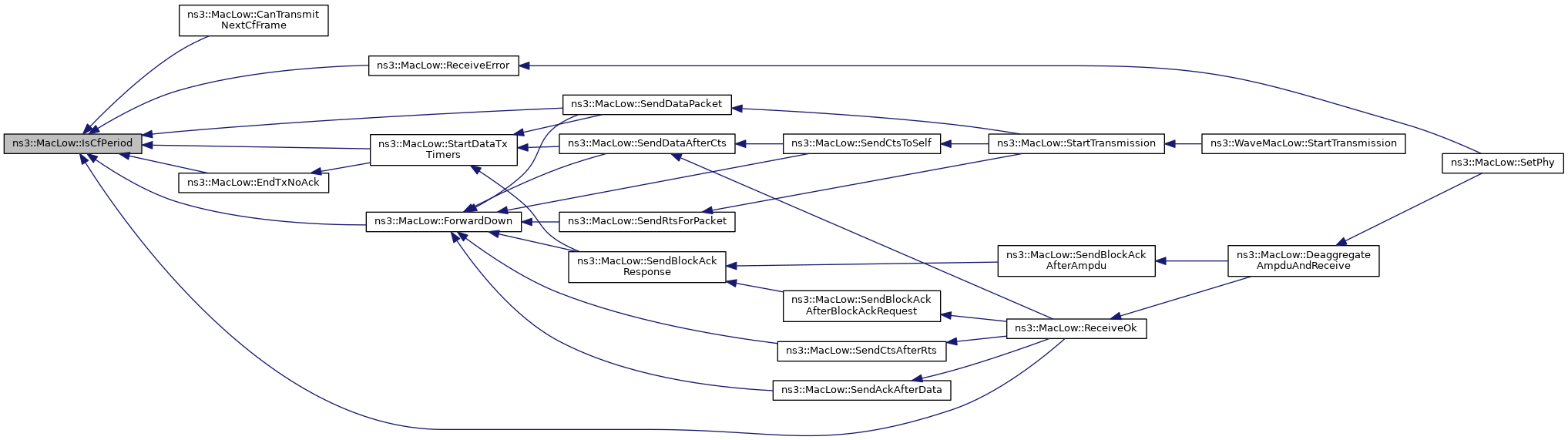

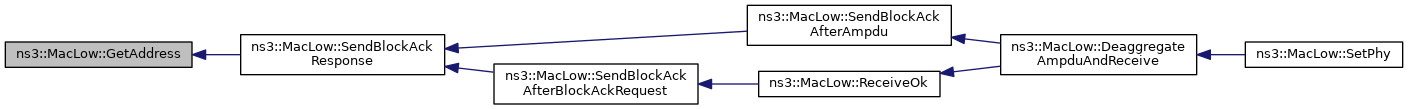

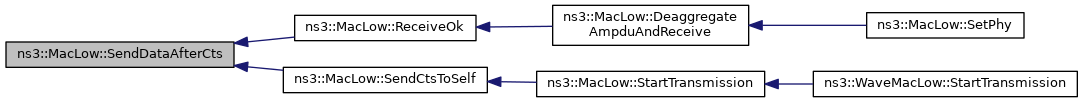

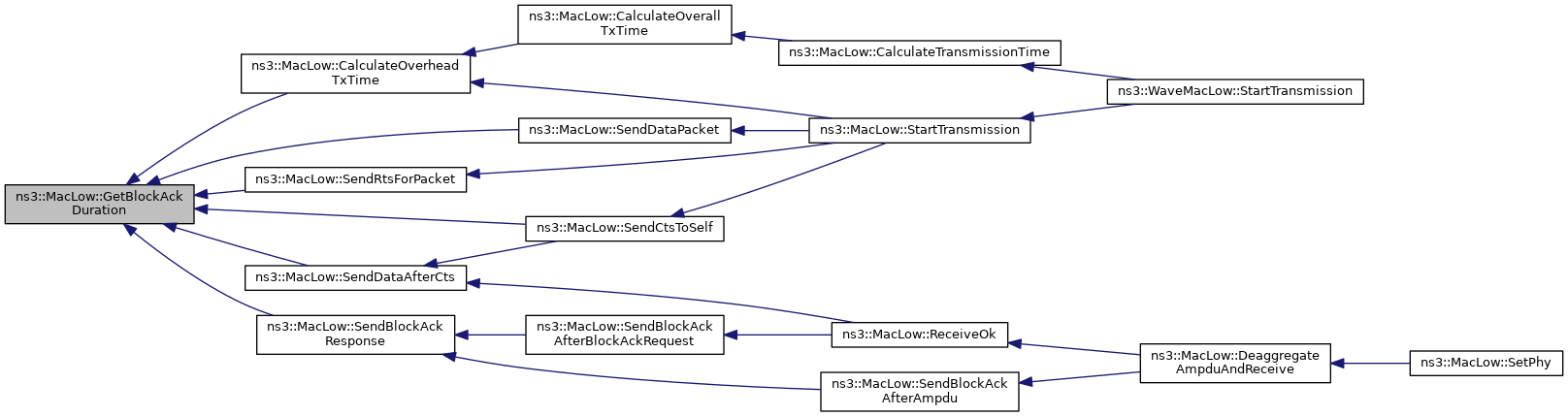

Here is the caller graph for this function:

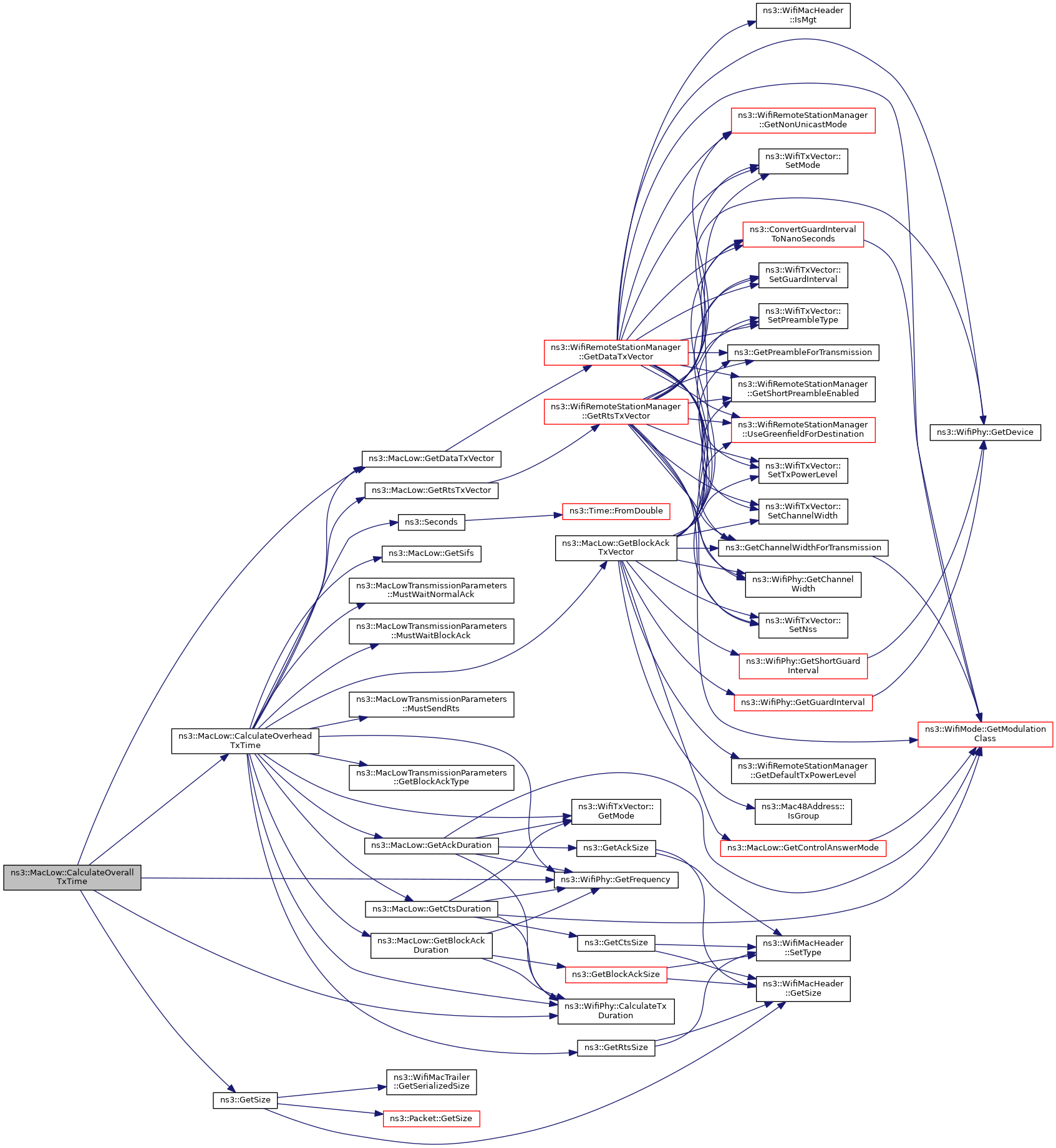

◆ CalculateOverallTxTime()

Time ns3::MacLow::CalculateOverallTxTime	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	hdr,
		const MacLowTransmissionParameters &	params,
		uint32_t	fragmentSize = `0`
	)		const

Parameters

packet	to send (does not include the 802.11 MAC header and checksum)
hdr	header associated to the packet to send.
params	transmission parameters of packet.
fragmentSize	the packet fragment size (if fragmentation is used)

Returns: the transmission time that includes the time for the next packet transmission

This transmission time does not include the time required for the next packet transmission if one was selected.

Definition at line 1413 of file mac-low.cc.

References CalculateOverheadTxTime(), ns3::WifiPhy::CalculateTxDuration(), GetDataTxVector(), ns3::WifiPhy::GetFrequency(), ns3::GetSize(), m_currentPacket, and m_phy.

Referenced by CalculateTransmissionTime().

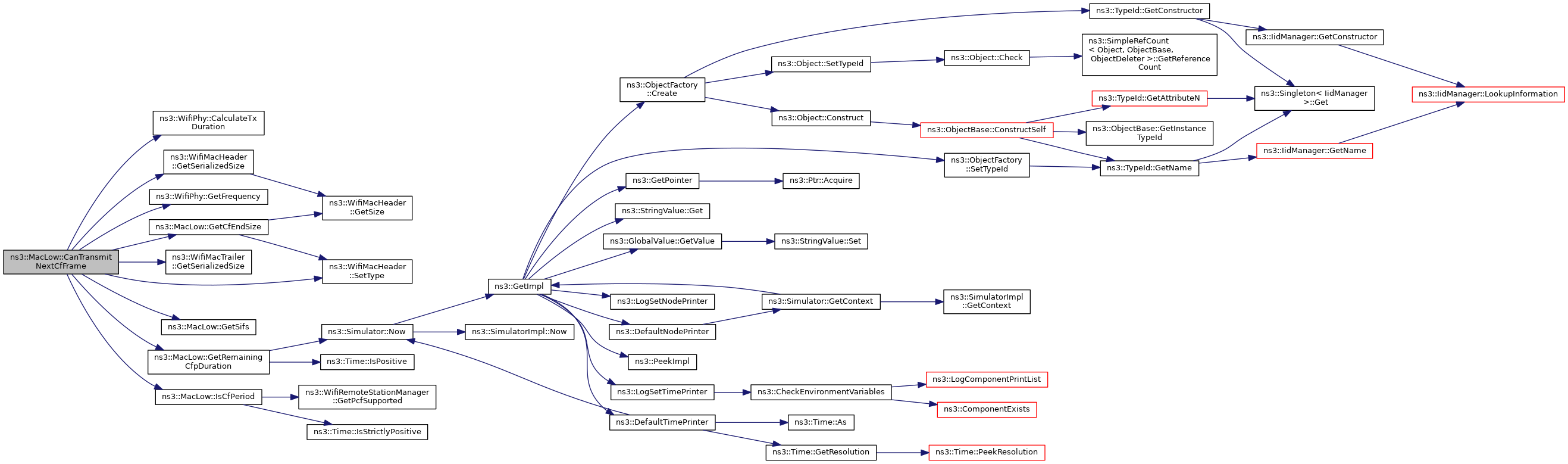

Here is the call graph for this function:

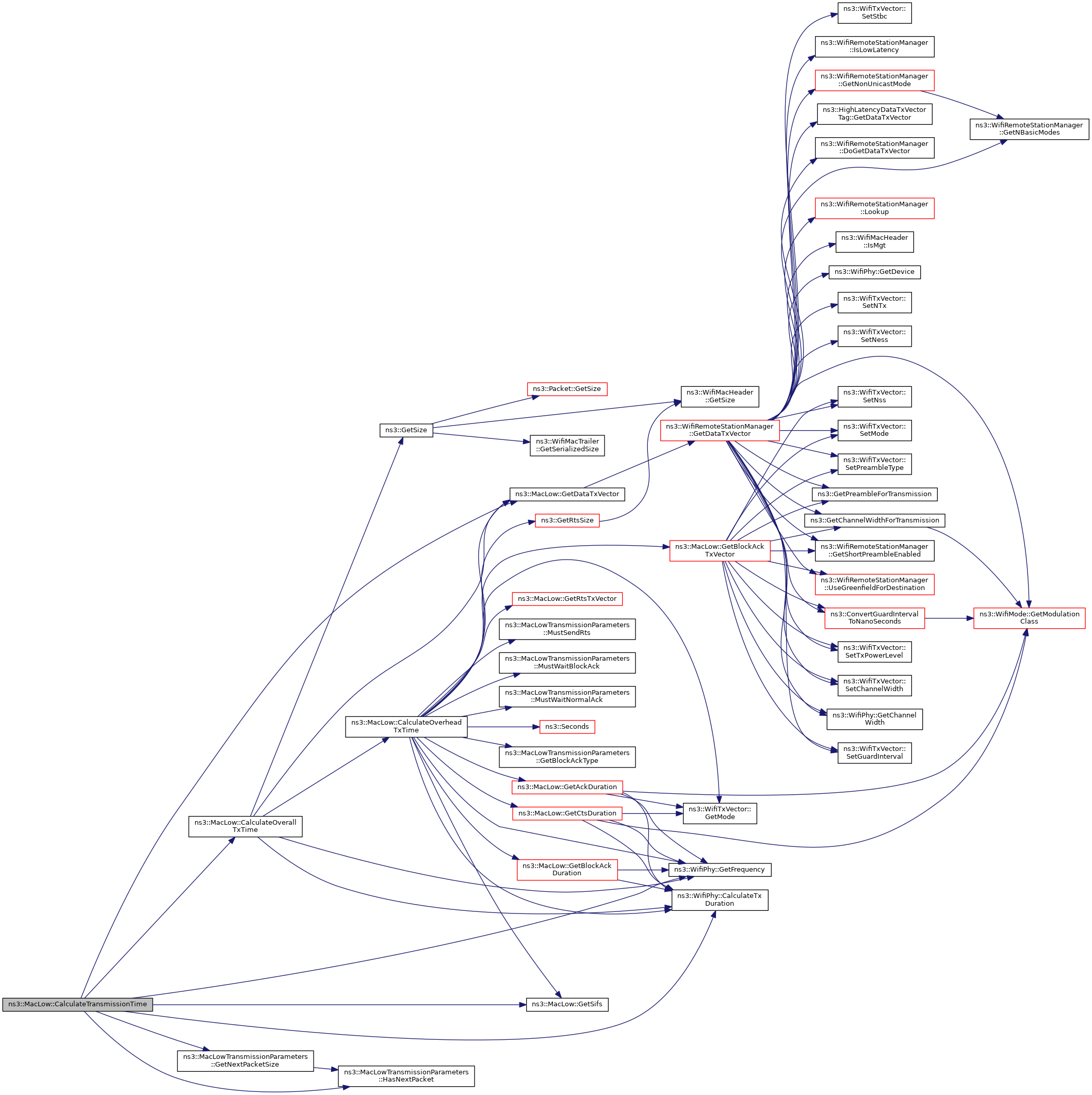

Here is the caller graph for this function:

◆ CalculateOverheadTxTime()

Time ns3::MacLow::CalculateOverheadTxTime	(	Ptr< const WifiMacQueueItem >	item,
		const MacLowTransmissionParameters &	params
	)		const

Parameters

item	packet to send (does not include the 802.11 MAC header and checksum)
params	transmission parameters of packet.

This transmission time does not include the time required to transmit the frame. It only includes the time for the RTS/CTS exchange (if any) and for the Ack frame (if any).

Definition at line 1435 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), GetAckDuration(), GetBlockAckDuration(), GetBlockAckTxVector(), ns3::MacLowTransmissionParameters::GetBlockAckType(), GetCtsDuration(), GetDataTxVector(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::GetRtsSize(), GetRtsTxVector(), GetSifs(), m_phy, ns3::MacLowTransmissionParameters::MustSendRts(), ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), and ns3::Seconds().

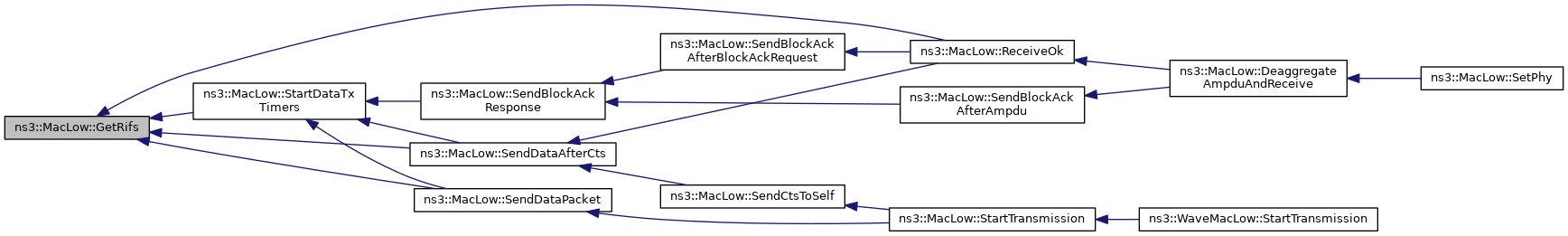

Referenced by CalculateOverallTxTime(), and StartTransmission().

Here is the call graph for this function:

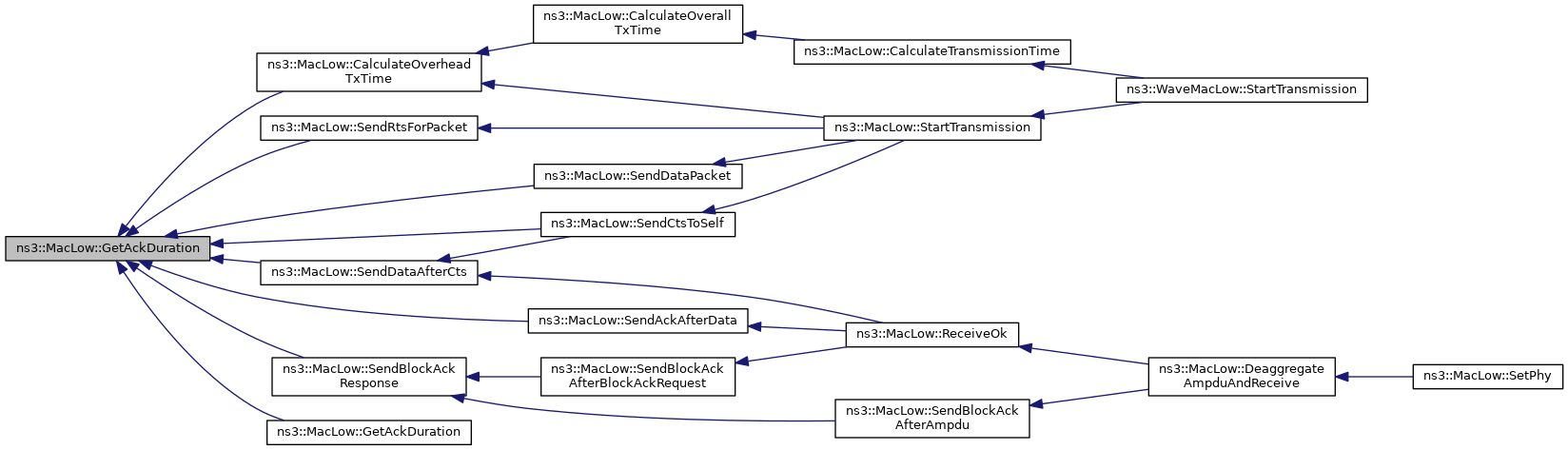

Here is the caller graph for this function:

◆ CalculateTransmissionTime()

Time ns3::MacLow::CalculateTransmissionTime	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	hdr,
		const MacLowTransmissionParameters &	parameters
	)		const

Parameters

packet	to send (does not include the 802.11 MAC header and checksum)
hdr	header associated to the packet to send.
parameters	transmission parameters of packet.

Returns: the transmission time that includes the time for the next packet transmission

This transmission time includes the time required for the next packet transmission if one was selected.

Definition at line 1463 of file mac-low.cc.

References CalculateOverallTxTime(), ns3::WifiPhy::CalculateTxDuration(), GetDataTxVector(), ns3::WifiPhy::GetFrequency(), ns3::MacLowTransmissionParameters::GetNextPacketSize(), GetSifs(), ns3::MacLowTransmissionParameters::HasNextPacket(), and m_phy.

Referenced by ns3::WaveMacLow::StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelAllEvents()

void ns3::MacLow::CancelAllEvents ( void )

private

Cancel all scheduled events.

Called before beginning a transmission or switching channel.

Definition at line 195 of file mac-low.cc.

References ns3::EventId::Cancel(), ns3::Txop::Cancel(), ns3::EventId::IsRunning(), m_blockAckTimeoutEvent, m_ctsTimeoutEvent, m_currentTxop, m_endTxNoAckEvent, m_normalAckTimeoutEvent, m_sendAckEvent, m_sendCtsEvent, m_sendDataEvent, m_waitIfsEvent, and NS_LOG_FUNCTION.

Referenced by NotifyOffNow(), NotifySleepNow(), NotifySwitchingStartNow(), and StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CanTransmitNextCfFrame()

bool ns3::MacLow::CanTransmitNextCfFrame ( void ) const

This function decides if a CF frame can be transmitted in the current CFP.

Definition at line 2675 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), GetCfEndSize(), ns3::WifiPhy::GetFrequency(), GetRemainingCfpDuration(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), GetSifs(), IsCfPeriod(), m_currentTxVector, m_phy, ns3::MAX_MSDU_SIZE, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_DATA.

Here is the call graph for this function:

◆ CfPollTimeout()

void ns3::MacLow::CfPollTimeout ( void )

private

Event handler when CF-POLL timeout occurs.

Definition at line 1667 of file mac-low.cc.

References ns3::MacLow::CfAckInfo::expectCfAck, m_cfAckInfo, m_channelAccessManagers, m_currentTxop, ns3::Txop::MissedCfPollResponse(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ForwardDown().

Here is the call graph for this function:

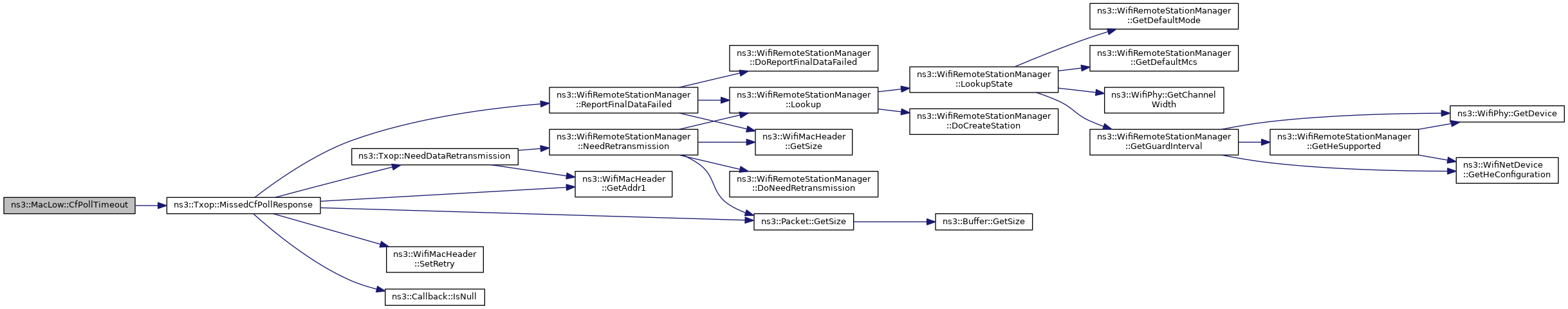

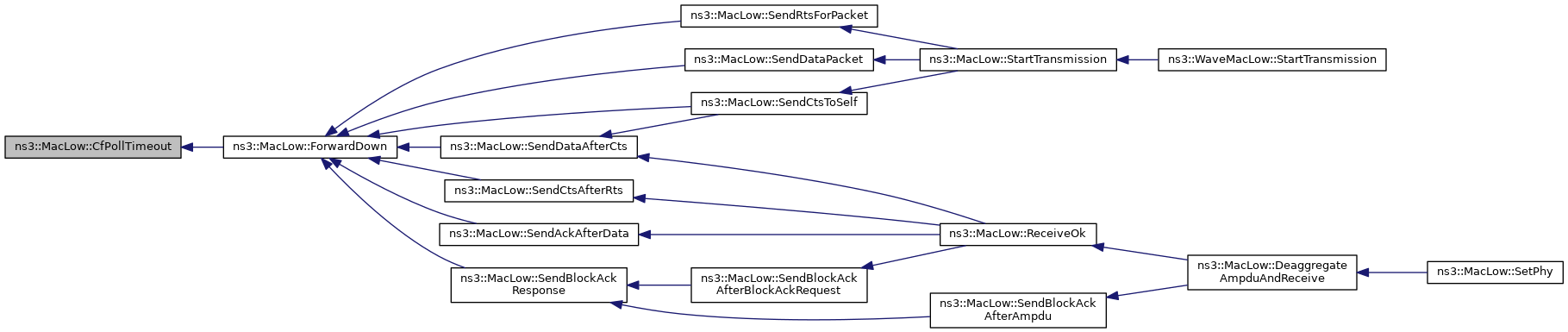

Here is the caller graph for this function:

◆ CreateBlockAckAgreement()

void ns3::MacLow::CreateBlockAckAgreement	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	originator,
		uint16_t	startingSeq
	)

Parameters

respHdr	Add block ack response from originator (action frame).
originator	Address of peer station involved in block ack mechanism.
startingSeq	Sequence number of the first MPDU of all packets for which block ack was negotiated.

This function is typically invoked only by ns3::RegularWifiMac when the STA (which may be non-AP in ESS, or in an IBSS) has received an ADDBA Request frame and is transmitting an ADDBA Response frame. At this point MacLow must allocate buffers to collect all correctly received packets belonging to the category for which Block Ack was negotiated.

Definition at line 2233 of file mac-low.cc.

Here is the call graph for this function:

◆ CtsTimeout()

void ns3::MacLow::CtsTimeout ( void )

private

Event handler when CTS timeout occurs.

Todo:: should check that there was no rx start before now. we should restart a new cts timeout now until the expected end of rx if there was a rx start before now.

Definition at line 1685 of file mac-low.cc.

References list, m_currentPacket, m_currentTxop, m_stationManager, ns3::Txop::MissedCts(), ns3::QosTxop::NotifyMissedCts(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::ReportRtsFailed().

Referenced by SendRtsForPacket().

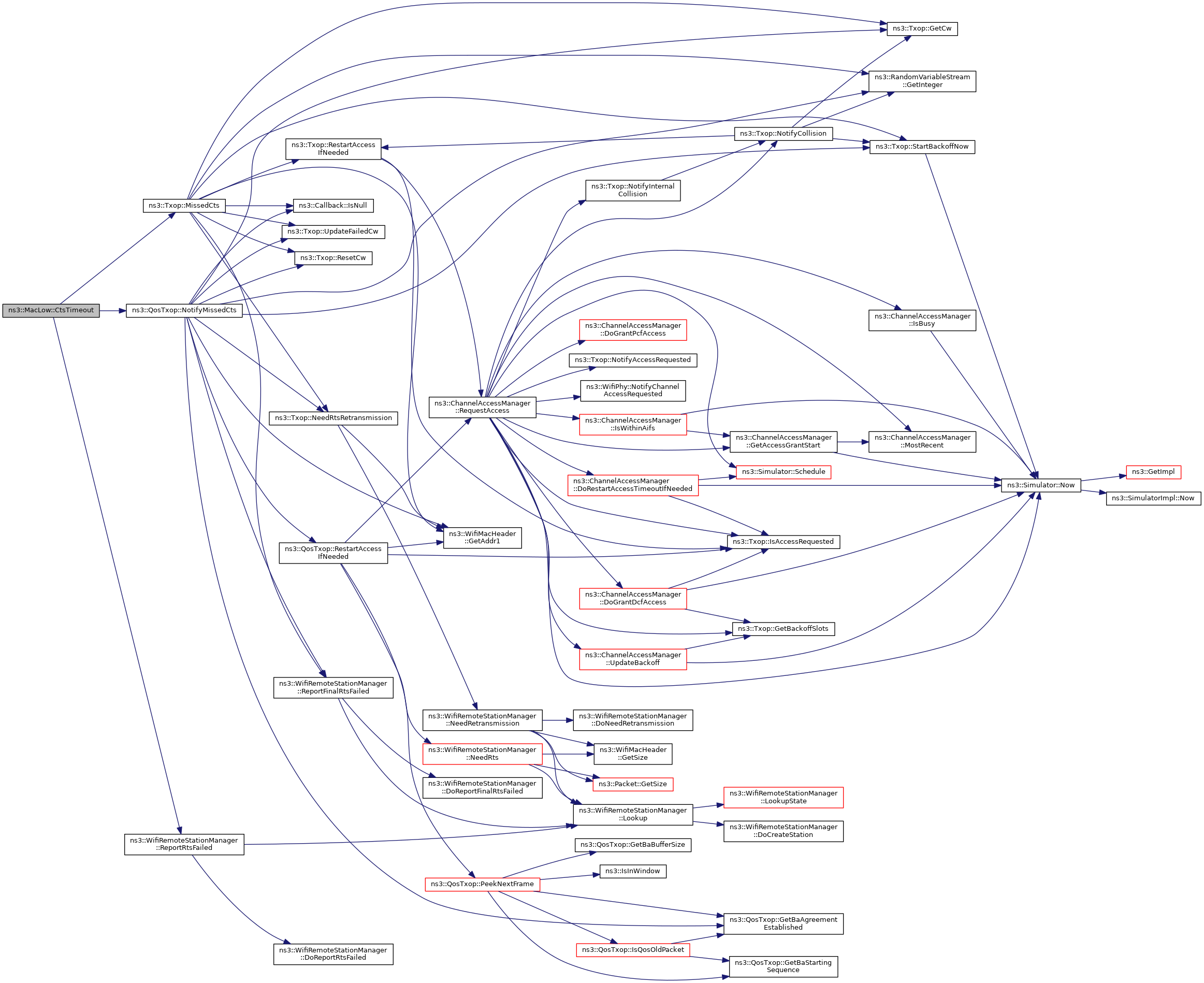

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeaggregateAmpduAndReceive()

void ns3::MacLow::DeaggregateAmpduAndReceive	(	Ptr< Packet >	aggregatedPacket,
		double	rxSnr,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

Parameters

aggregatedPacket	which is the current A-MPDU
rxSnr	snr of packet received
txVector	TXVECTOR of packet received
statusPerMpdu	reception status per MPDU

This function de-aggregates an A-MPDU and decide if each MPDU is received correctly or not

Definition at line 2561 of file mac-low.cc.

References ns3::MpduAggregator::Deaggregate(), GetSifs(), ns3::WifiTxVector::IsAggregation(), ns3::EventId::IsRunning(), m_bAckAgreements, m_self, m_sendAckEvent, sample-rng-plot::n, NotifyNav(), NS_ABORT_MSG_IF, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ReceiveOk(), ResetBlockAckInactivityTimerIfNeeded(), ns3::Simulator::Schedule(), and SendBlockAckAfterAmpdu().

Referenced by SetPhy().

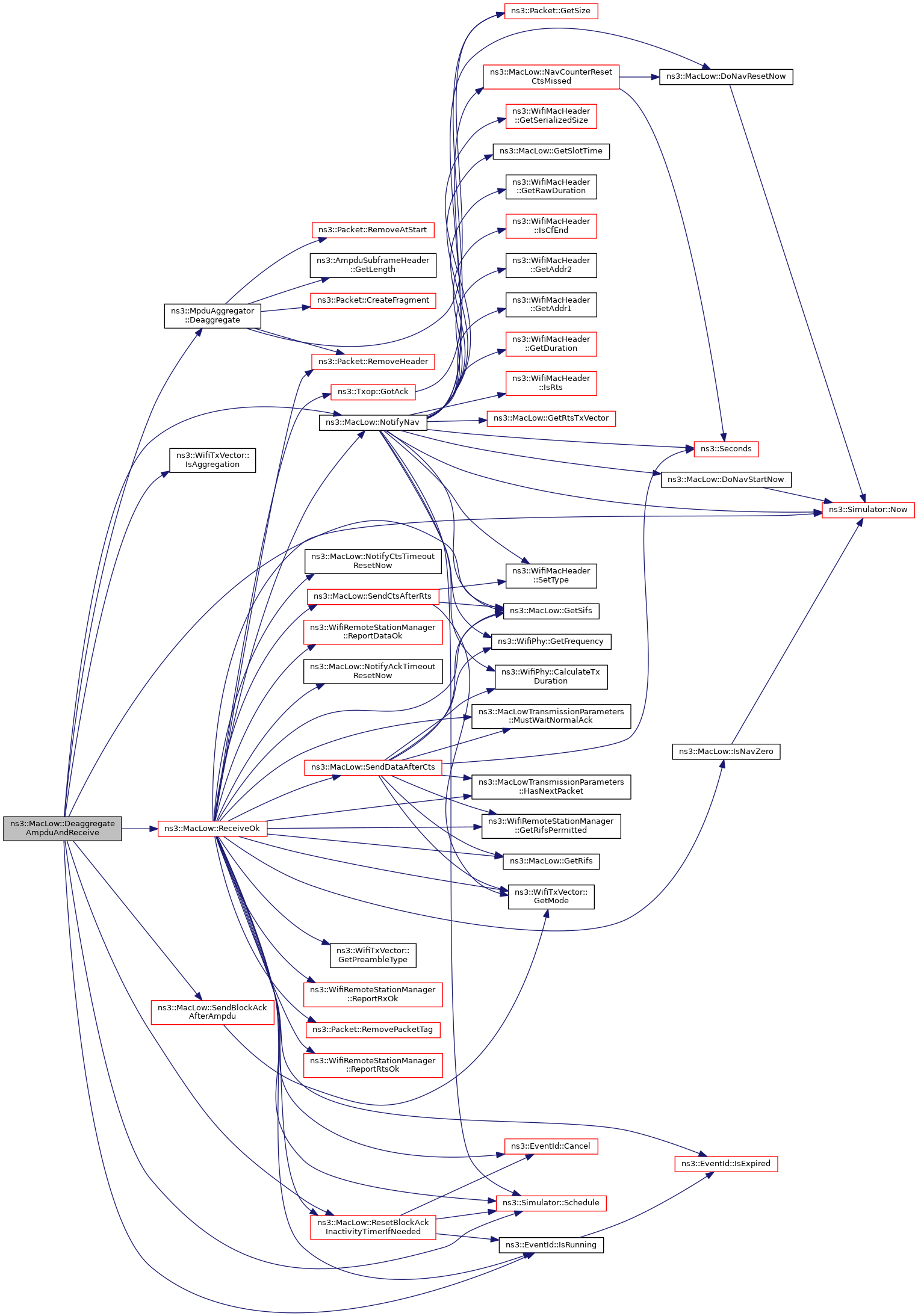

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DestroyBlockAckAgreement()

void ns3::MacLow::DestroyBlockAckAgreement	(	Mac48Address	originator,
		uint8_t	tid
	)

Parameters

originator	Address of peer participating in Block Ack mechanism.
tid	TID for which Block Ack was created.

Checks if exists an established block ack agreement with originator for tid tid. If the agreement exists, tears down it. This function is typically invoked when a DELBA frame is received from originator.

Definition at line 2275 of file mac-low.cc.

References m_bAckAgreements, m_bAckCaches, NS_ASSERT, NS_LOG_FUNCTION, RxCompleteBufferedPacketsUntilFirstLost(), and RxCompleteBufferedPacketsWithSmallerSequence().

Here is the call graph for this function:

◆ DoDispose()

void ns3::MacLow::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 172 of file mac-low.cc.

References ns3::EventId::Cancel(), m_blockAckTimeoutEvent, m_ctsTimeoutEvent, m_endTxNoAckEvent, m_mpduAggregator, m_msduAggregator, m_normalAckTimeoutEvent, m_phy, m_phyMacLowListener, m_sendAckEvent, m_sendCtsEvent, m_sendDataEvent, m_stationManager, m_waitIfsEvent, and NS_LOG_FUNCTION.

Here is the call graph for this function:

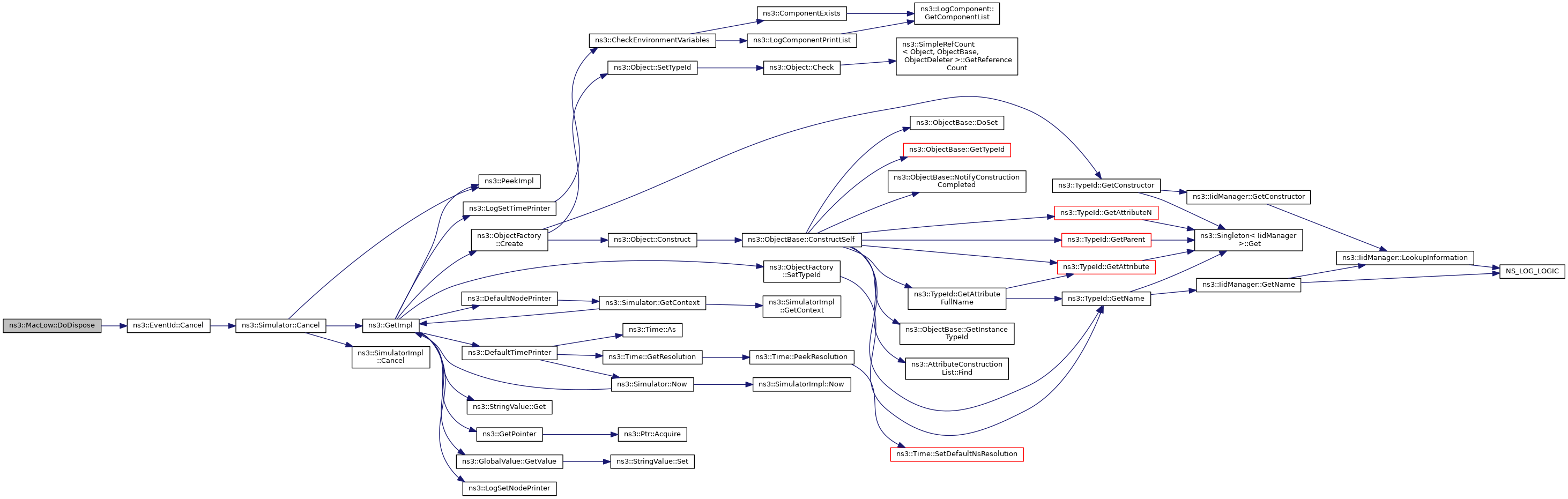

◆ DoNavResetNow()

void ns3::MacLow::DoNavResetNow ( Time duration )

private

Reset NAV with the given duration.

Parameters

duration

Definition at line 1531 of file mac-low.cc.

References m_channelAccessManagers, m_lastNavDuration, m_lastNavStart, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by NavCounterResetCtsMissed(), and NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoNavStartNow()

bool ns3::MacLow::DoNavStartNow ( Time duration )

Start NAV with the given duration.

Parameters

duration the duration

Returns: true if NAV is reset

Definition at line 1543 of file mac-low.cc.

References m_channelAccessManagers, m_lastNavDuration, m_lastNavStart, and ns3::Simulator::Now().

Referenced by NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndTxNoAck()

void ns3::MacLow::EndTxNoAck ( void )

private

A transmission that does not require an ACK has completed.

Definition at line 2111 of file mac-low.cc.

References ns3::Txop::EndTxNoAck(), ns3::MacLow::CfAckInfo::expectCfAck, ns3::WifiRemoteStationManager::GetPcfSupported(), IsCfPeriod(), m_cfAckInfo, m_cfpStart, m_currentPacket, m_currentTxop, m_stationManager, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by StartDataTxTimers().

Here is the call graph for this function:

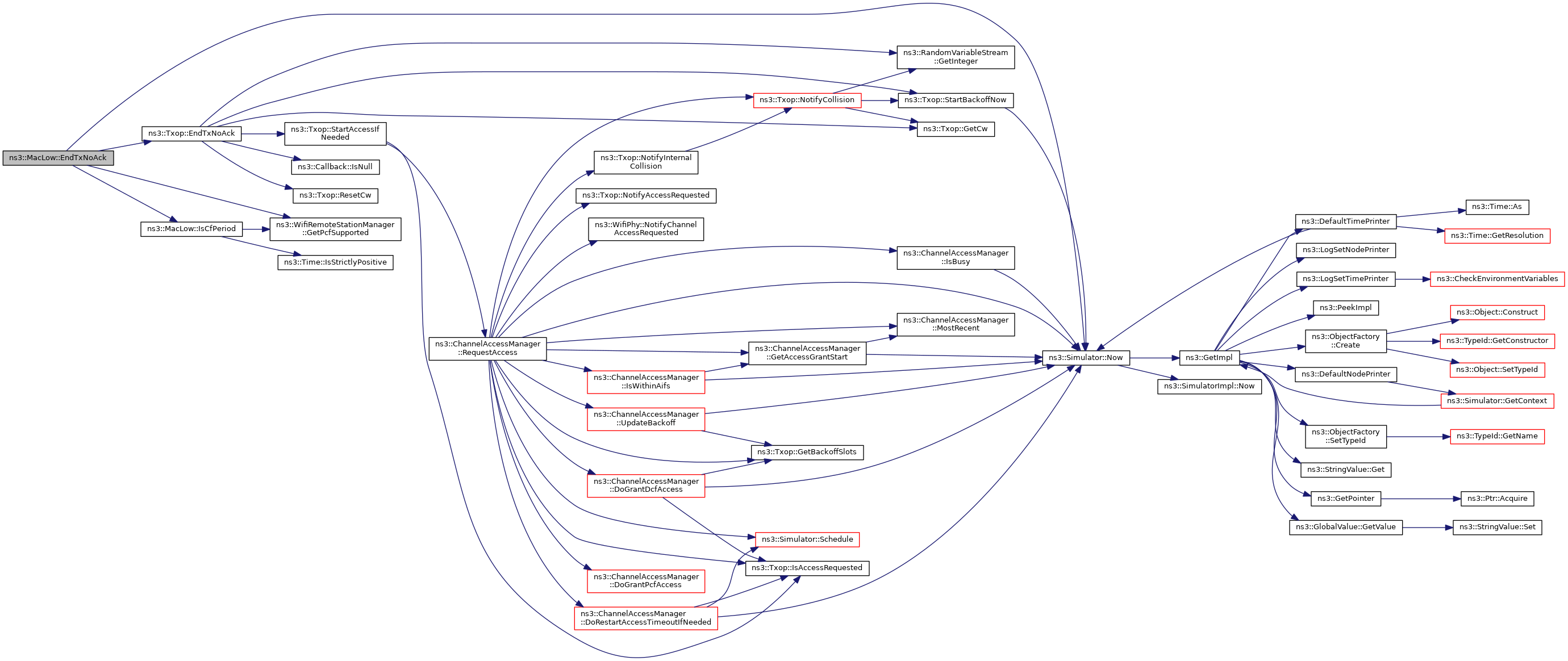

Here is the caller graph for this function:

◆ ForwardDown()

void ns3::MacLow::ForwardDown	(	Ptr< const WifiPsdu >	psdu,
		WifiTxVector	txVector
	)

private

Forward a PSDU down to WifiPhy for transmission.

Parameters

psdu	the PSDU
txVector	the transmit vector

Definition at line 1597 of file mac-low.cc.

References ns3::MacLow::CfAckInfo::appendCfAck, ns3::WifiPhy::CalculateTxDuration(), CfPollTimeout(), ns3::MacLow::CfAckInfo::expectCfAck, ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::WifiRemoteStationManager::GetPcfSupported(), GetPifs(), ns3::WifiTxVector::GetPreambleType(), IsCfPeriod(), m_beaconInterval, m_cfAckInfo, m_cfpForeshortening, m_cfpStart, m_edca, m_lastBeacon, m_phy, m_stationManager, ns3::NanoSeconds(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PeekPointer(), ns3::QosUtilsMapTidToAc(), ns3::Simulator::Schedule(), ns3::WifiPhy::SendPacket(), and ns3::WifiTxVector::SetAggregation().

Referenced by SendAckAfterData(), SendBlockAckResponse(), SendCtsAfterRts(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), and SendRtsForPacket().

Here is the call graph for this function:

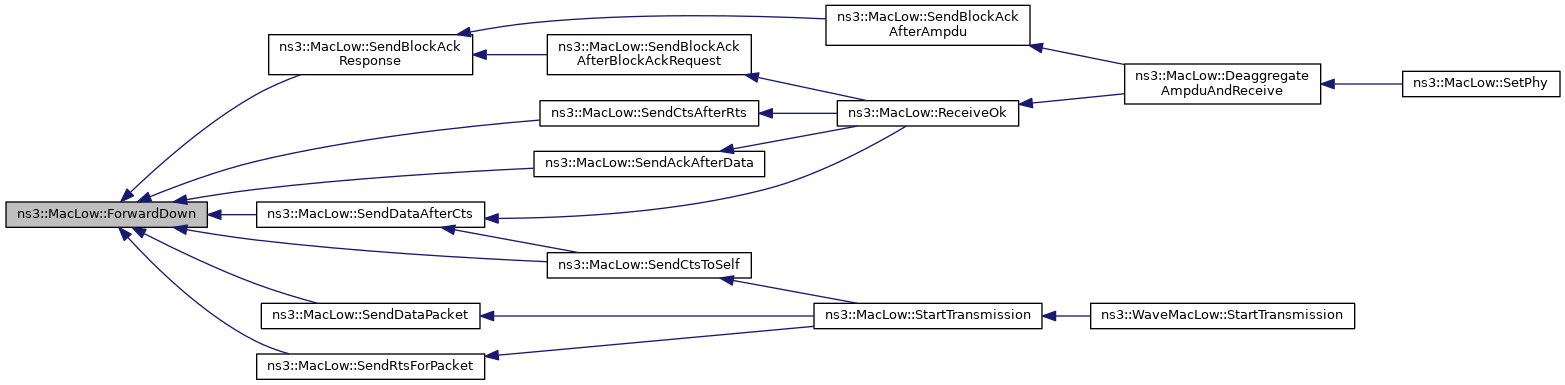

Here is the caller graph for this function:

◆ GetAckDuration() [1/2]

Time ns3::MacLow::GetAckDuration ( WifiTxVector ackTxVector ) const

private

Return the time required to transmit the ACK (including preamble and FCS).

Parameters

ackTxVector

Returns: the time required to transmit the ACK (including preamble and FCS)

Definition at line 1166 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::GetAckSize(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), m_phy, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HT.

Referenced by CalculateOverheadTxTime(), GetAckDuration(), SendAckAfterData(), SendBlockAckResponse(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), and SendRtsForPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAckDuration() [2/2]

Time ns3::MacLow::GetAckDuration	(	Mac48Address	to,
		WifiTxVector	dataTxVector
	)		const

private

Return the time required to transmit the ACK to the specified address given the TXVECTOR of the DATA (including preamble and FCS).

Parameters

to
dataTxVector

Returns: the time required to transmit the ACK (including preamble and FCS)

Definition at line 1159 of file mac-low.cc.

References GetAckDuration(), GetAckTxVectorForData(), and ns3::WifiTxVector::GetMode().

Here is the call graph for this function:

◆ GetAckTimeout()

Time ns3::MacLow::GetAckTimeout ( void ) const

Return ACK timeout of this MacLow.

Returns: ACK timeout

Definition at line 405 of file mac-low.cc.

References m_ackTimeout.

Referenced by StartDataTxTimers().

Here is the caller graph for this function:

◆ GetAckTxVector()

WifiTxVector ns3::MacLow::GetAckTxVector	(	Mac48Address	to,
		WifiMode	dataTxMode
	)		const

private

Return a TXVECTOR for the ACK frame given the destination and the mode of the DATA used by the sender.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

to	the MAC address of the ACK receiver
dataTxMode	the mode of the DATA used by the sender

Returns: TXVECTOR for the ACK

Definition at line 1369 of file mac-low.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetChannelWidth(), ns3::GetChannelWidthForTransmission(), GetControlAnswerMode(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), ns3::GetPreambleForTransmission(), ns3::WifiPhy::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::Mac48Address::IsGroup(), m_phy, m_stationManager, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetTxPowerLevel(), and ns3::WifiRemoteStationManager::UseGreenfieldForDestination().

Referenced by GetAckTxVectorForData(), and SendAckAfterData().

Here is the call graph for this function:

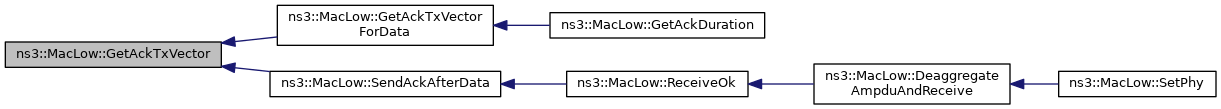

Here is the caller graph for this function:

◆ GetAckTxVectorForData()

WifiTxVector ns3::MacLow::GetAckTxVectorForData	(	Mac48Address	to,
		WifiMode	dataTxMode
	)		const

private

Return a TXVECTOR for the Block ACK frame given the destination and the mode of the DATA used by the sender.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

to	the MAC address of the Block ACK receiver
dataTxMode	the mode of the DATA used by the sender

Returns: TXVECTOR for the Block ACK

Definition at line 1407 of file mac-low.cc.

References GetAckTxVector().

Referenced by GetAckDuration().

Here is the call graph for this function:

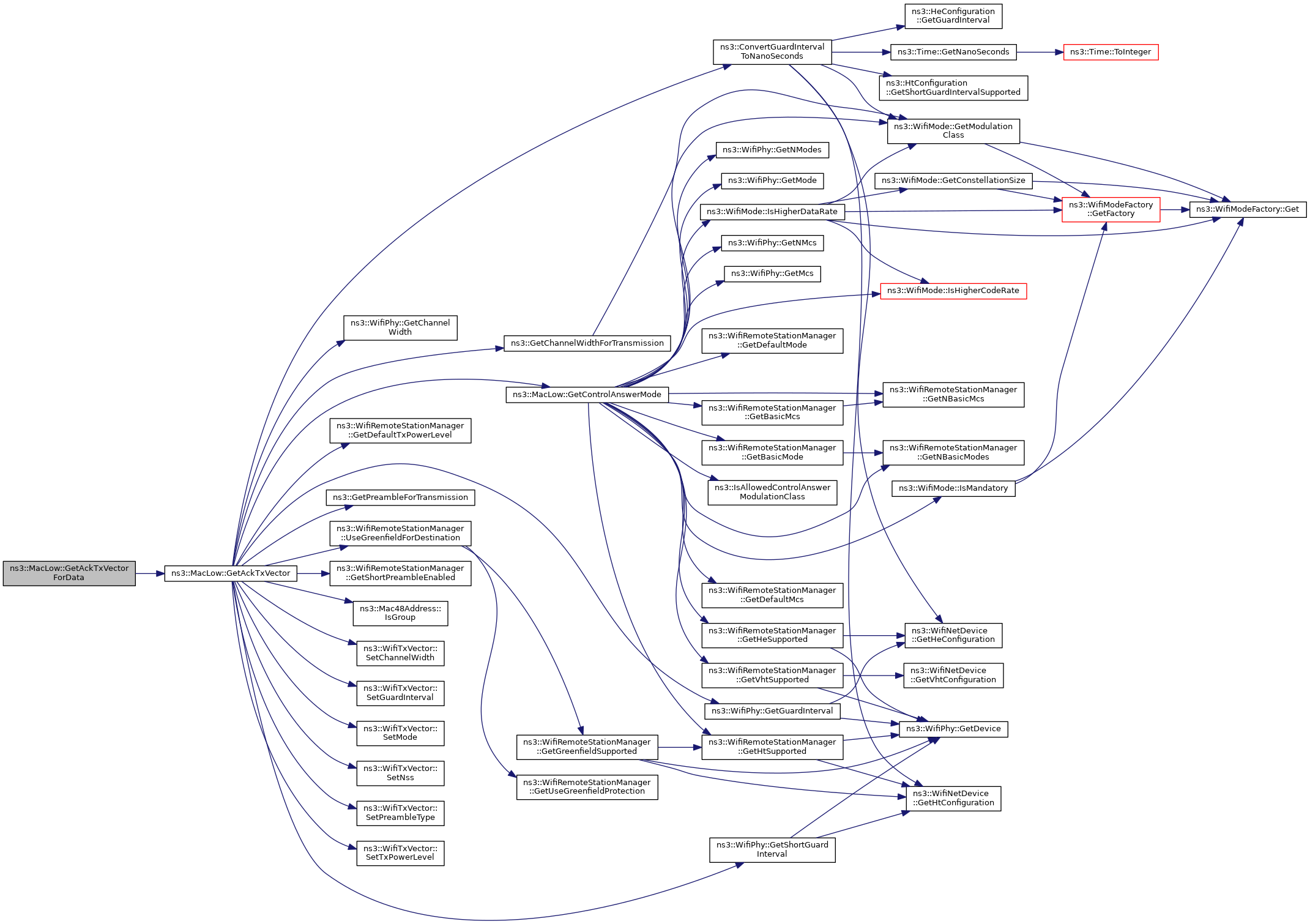

Here is the caller graph for this function:

◆ GetAddress()

Mac48Address ns3::MacLow::GetAddress ( void ) const

Return the MAC address of this MacLow.

Returns: Mac48Address of this MacLow

Definition at line 399 of file mac-low.cc.

References m_self.

Referenced by SendBlockAckResponse().

Here is the caller graph for this function:

◆ GetBasicBlockAckTimeout()

Time ns3::MacLow::GetBasicBlockAckTimeout ( void ) const

Return Basic Block ACK timeout of this MacLow.

Returns: Basic Block ACK timeout

Definition at line 411 of file mac-low.cc.

References m_basicBlockAckTimeout.

Referenced by StartDataTxTimers().

Here is the caller graph for this function:

◆ GetBeaconInterval()

Time ns3::MacLow::GetBeaconInterval ( void ) const

Returns: the expected interval between two beacon transmissions.

Definition at line 459 of file mac-low.cc.

References m_beaconInterval.

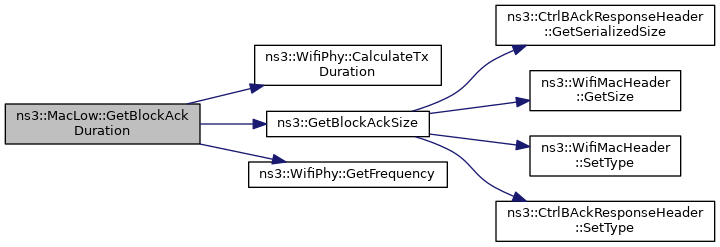

◆ GetBlockAckDuration()

Time ns3::MacLow::GetBlockAckDuration	(	WifiTxVector	blockAckReqTxVector,
		BlockAckType	type
	)		const

private

Return the time required to transmit the Block ACK to the specified address given the TXVECTOR of the BAR (including preamble and FCS).

Parameters

blockAckReqTxVector
type	the Block ACK type

Returns: the time required to transmit the Block ACK (including preamble and FCS)

Definition at line 1173 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::GetBlockAckSize(), ns3::WifiPhy::GetFrequency(), and m_phy.

Referenced by CalculateOverheadTxTime(), SendBlockAckResponse(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), and SendRtsForPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBlockAckTxVector()

WifiTxVector ns3::MacLow::GetBlockAckTxVector	(	Mac48Address	to,
		WifiMode	dataTxMode
	)		const

private

Return a TXVECTOR for the Block ACK frame given the destination and the mode of the DATA used by the sender.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

to	the MAC address of the Block ACK receiver
dataTxMode	the mode of the DATA used by the sender

Returns: TXVECTOR for the Block ACK

Definition at line 1385 of file mac-low.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetChannelWidth(), ns3::GetChannelWidthForTransmission(), GetControlAnswerMode(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), ns3::GetPreambleForTransmission(), ns3::WifiPhy::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::Mac48Address::IsGroup(), m_phy, m_stationManager, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetTxPowerLevel(), and ns3::WifiRemoteStationManager::UseGreenfieldForDestination().

Referenced by CalculateOverheadTxTime(), SendBlockAckAfterAmpdu(), SendBlockAckResponse(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), and SendRtsForPacket().

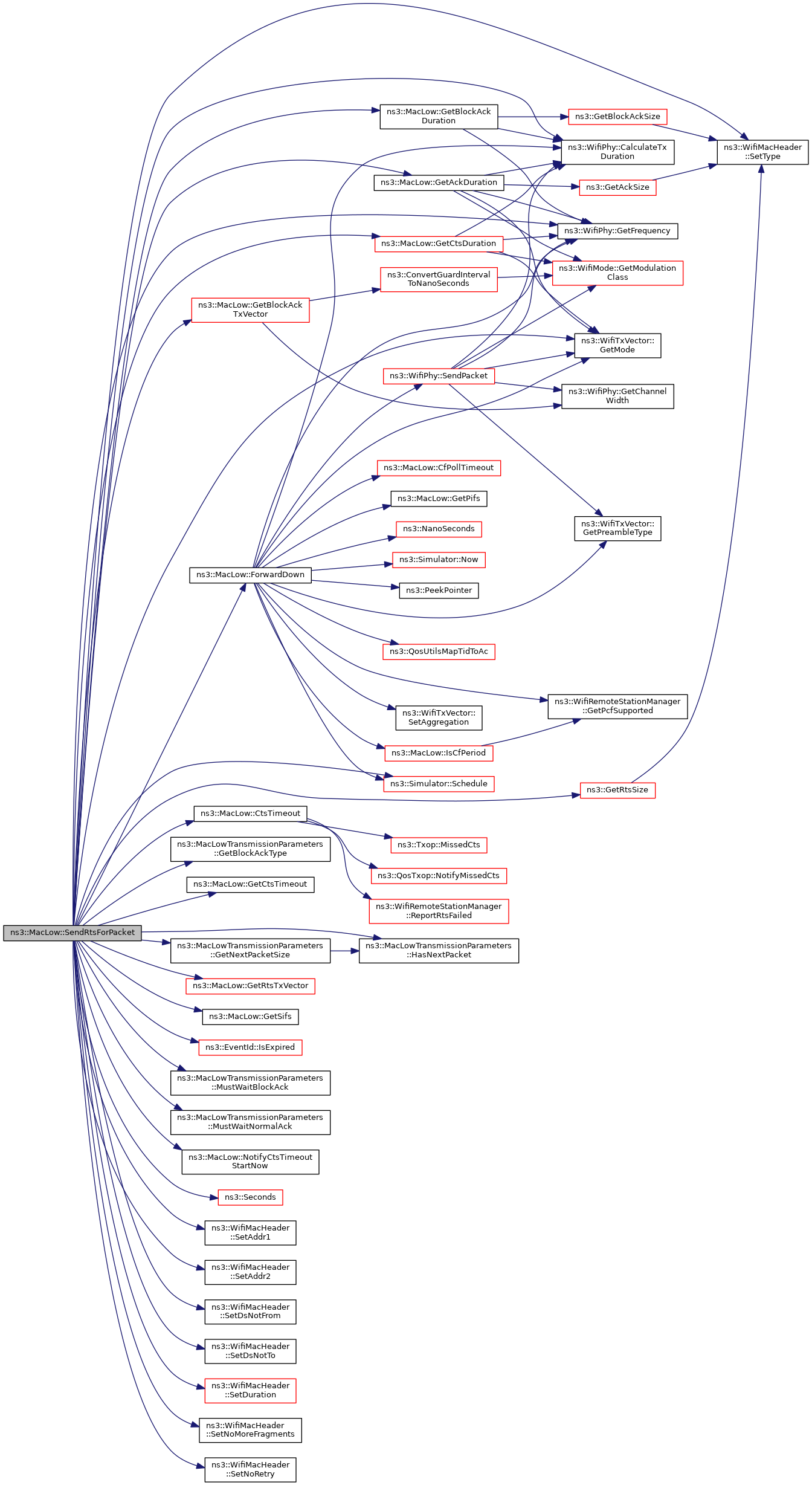

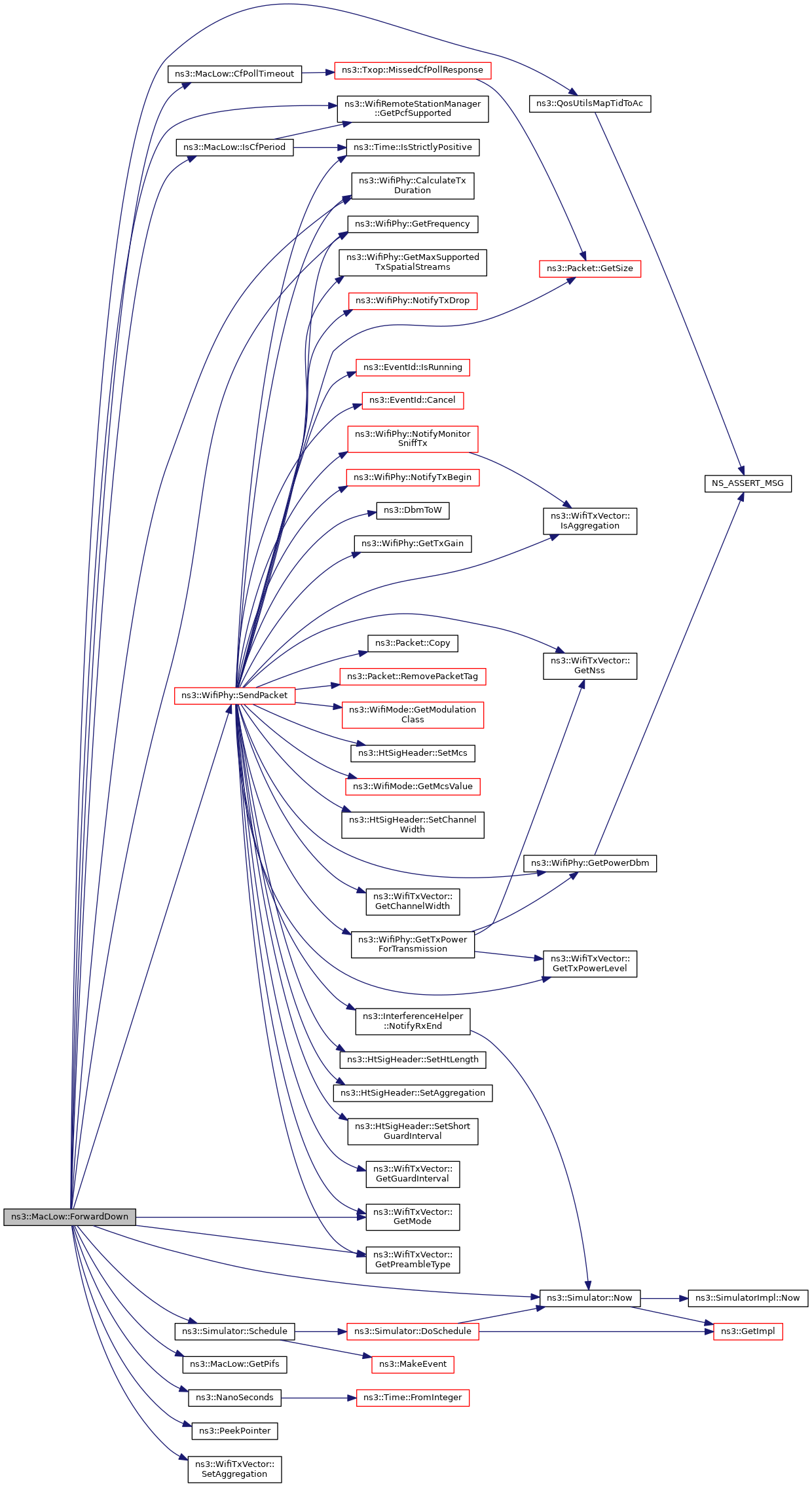

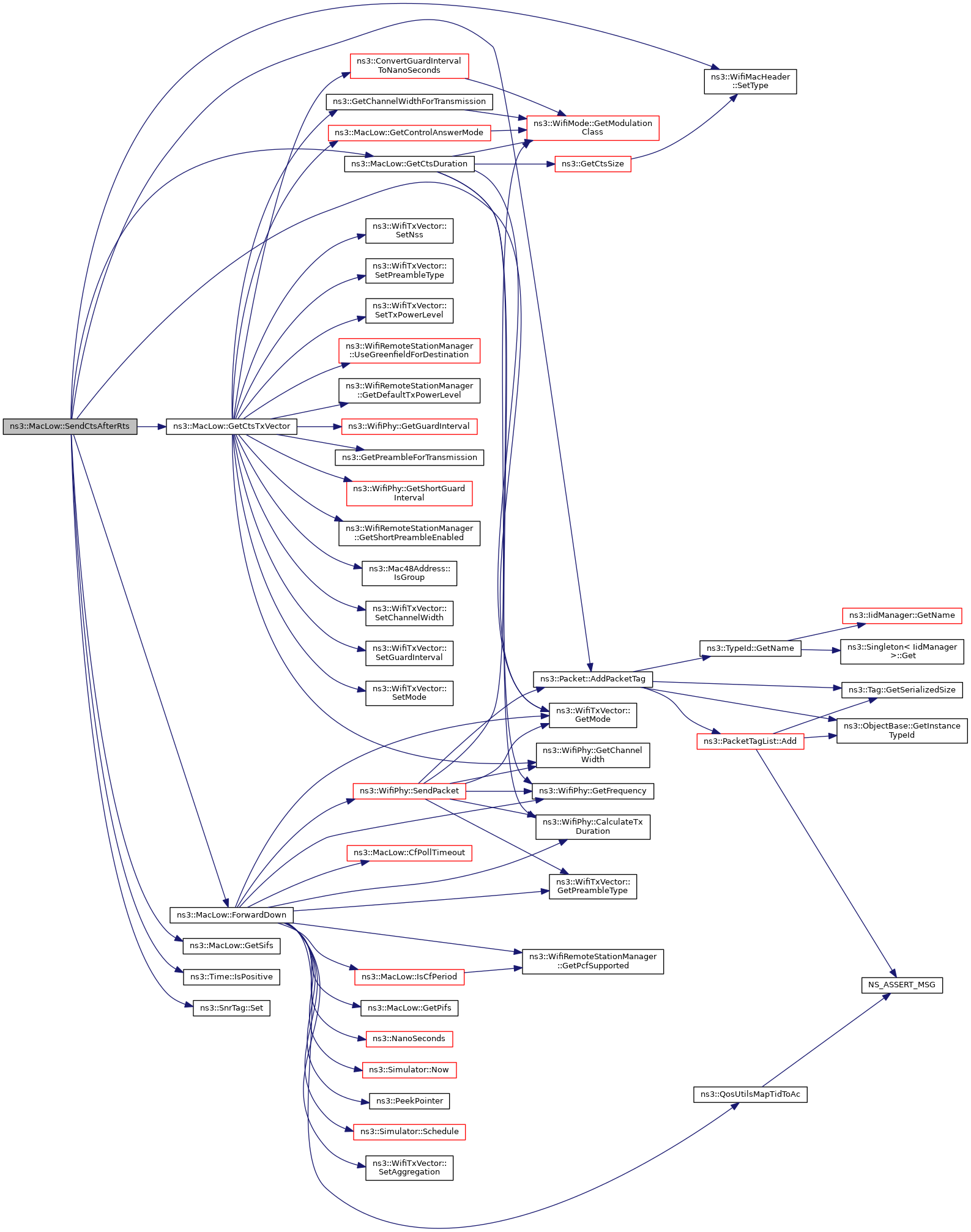

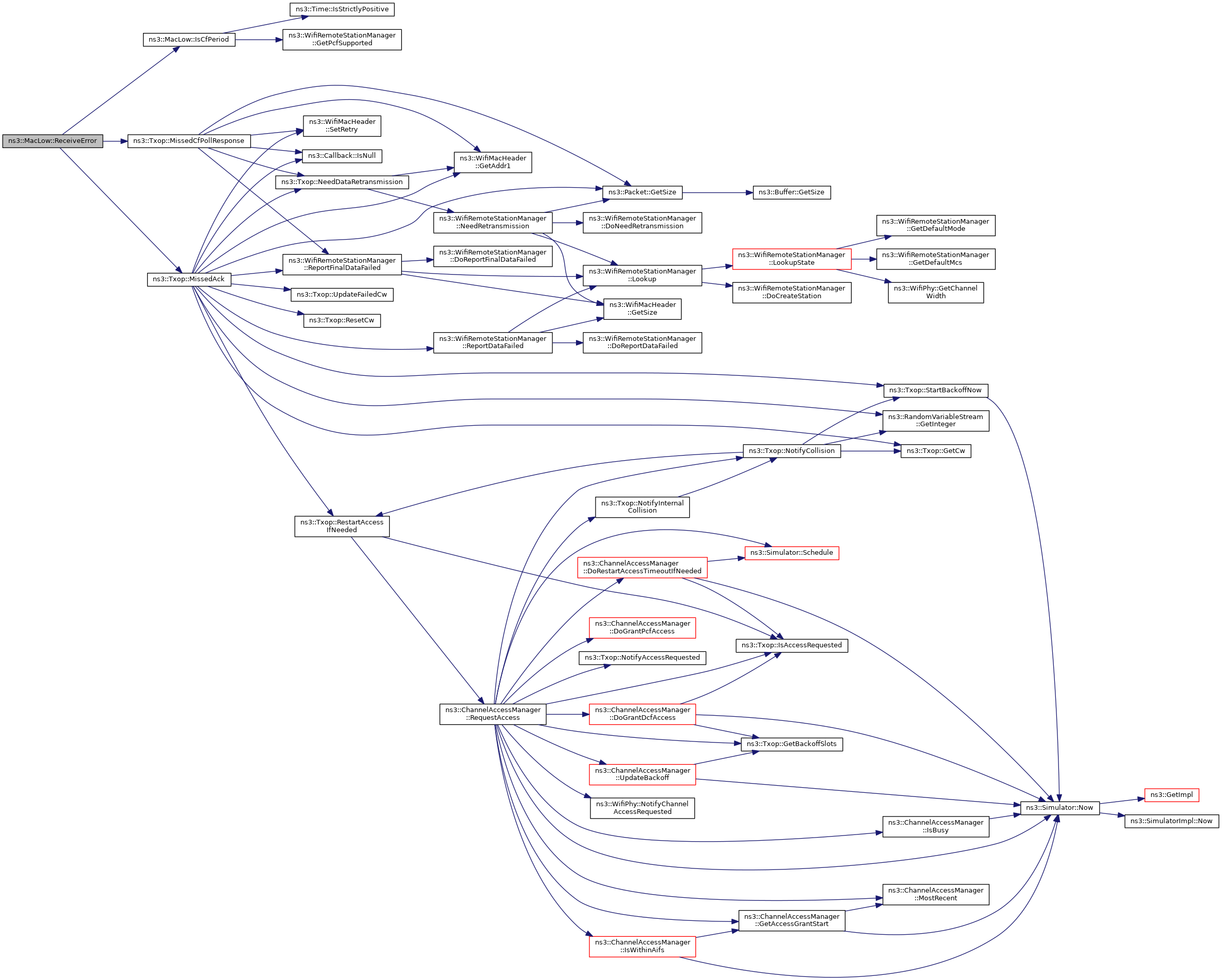

Here is the call graph for this function:

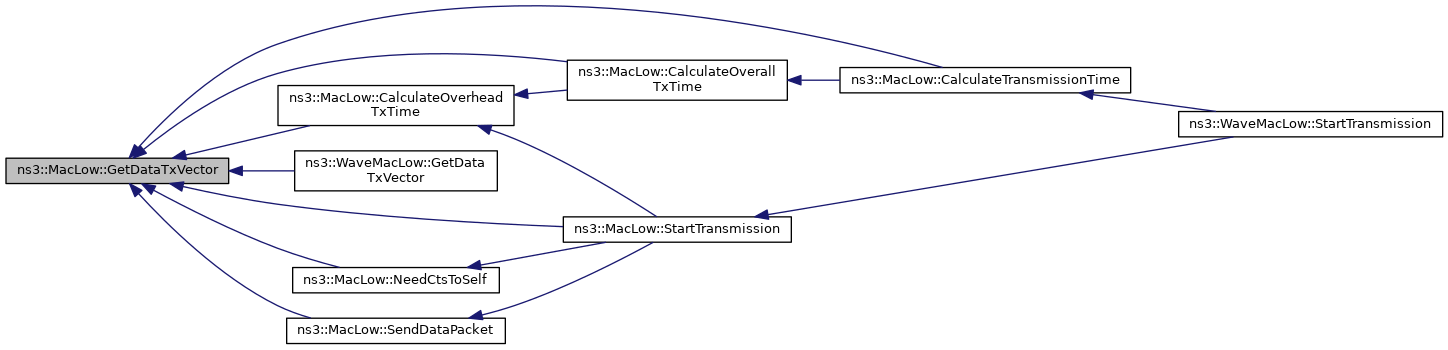

Here is the caller graph for this function:

◆ GetBssid()

Mac48Address ns3::MacLow::GetBssid ( void ) const

Return the Basic Service Set Identification.

Returns: BSSID

Definition at line 453 of file mac-low.cc.

References m_bssid.

◆ GetCfEndSize()

uint32_t ns3::MacLow::GetCfEndSize ( void ) const

private

Return the total CF-END size (including FCS trailer).

Returns: the total CF-END size

Definition at line 1144 of file mac-low.cc.

References ns3::MacLow::CfAckInfo::appendCfAck, ns3::MacLow::CfAckInfo::expectCfAck, ns3::WifiMacHeader::GetSize(), m_cfAckInfo, ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_CTL_END, and ns3::WIFI_MAC_CTL_END_ACK.

Referenced by CanTransmitNextCfFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCfpMaxDuration()

Time ns3::MacLow::GetCfpMaxDuration ( void ) const

Returns: the maximum duration for the CF period.

Definition at line 465 of file mac-low.cc.

References m_cfpMaxDuration.

◆ GetCompressedBlockAckTimeout()

Time ns3::MacLow::GetCompressedBlockAckTimeout ( void ) const

Return Compressed Block ACK timeout of this MacLow.

Returns: Compressed Block ACK timeout

Definition at line 417 of file mac-low.cc.

References m_compressedBlockAckTimeout.

Referenced by StartDataTxTimers().

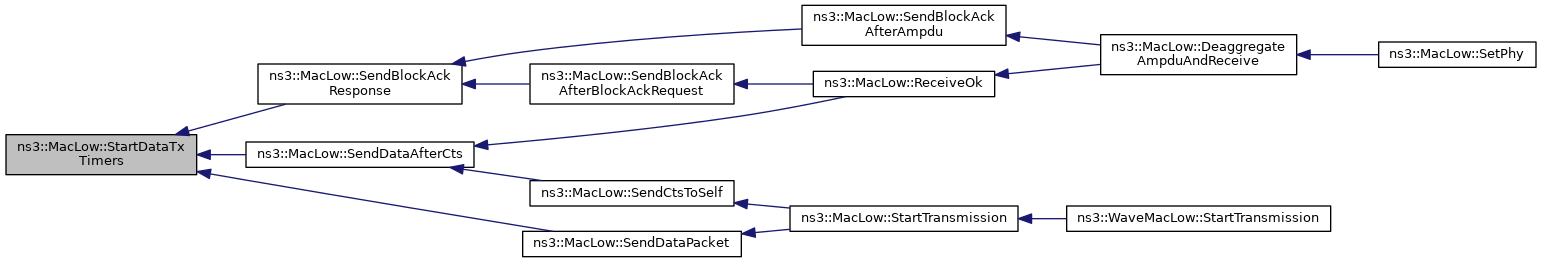

Here is the caller graph for this function:

◆ GetControlAnswerMode()

WifiMode ns3::MacLow::GetControlAnswerMode ( WifiMode reqMode ) const

private

Get control answer mode function.

Parameters

reqMode request mode

Returns: control answer mode

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2012, Section 9.7):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or ACK), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in Annex G) and that is of the same modulation class (see Section 9.7.8) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

Todo:: Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation config. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 1211 of file mac-low.cc.

References ns3::WifiRemoteStationManager::GetBasicMcs(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiRemoteStationManager::GetDefaultMcs(), ns3::WifiRemoteStationManager::GetDefaultMode(), ns3::WifiRemoteStationManager::GetHeSupported(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiRemoteStationManager::GetNBasicMcs(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetNModes(), ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::IsAllowedControlAnswerModulationClass(), ns3::WifiMode::IsHigherCodeRate(), ns3::WifiMode::IsHigherDataRate(), ns3::WifiMode::IsMandatory(), m_phy, m_stationManager, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GetAckTxVector(), GetBlockAckTxVector(), and GetCtsTxVector().

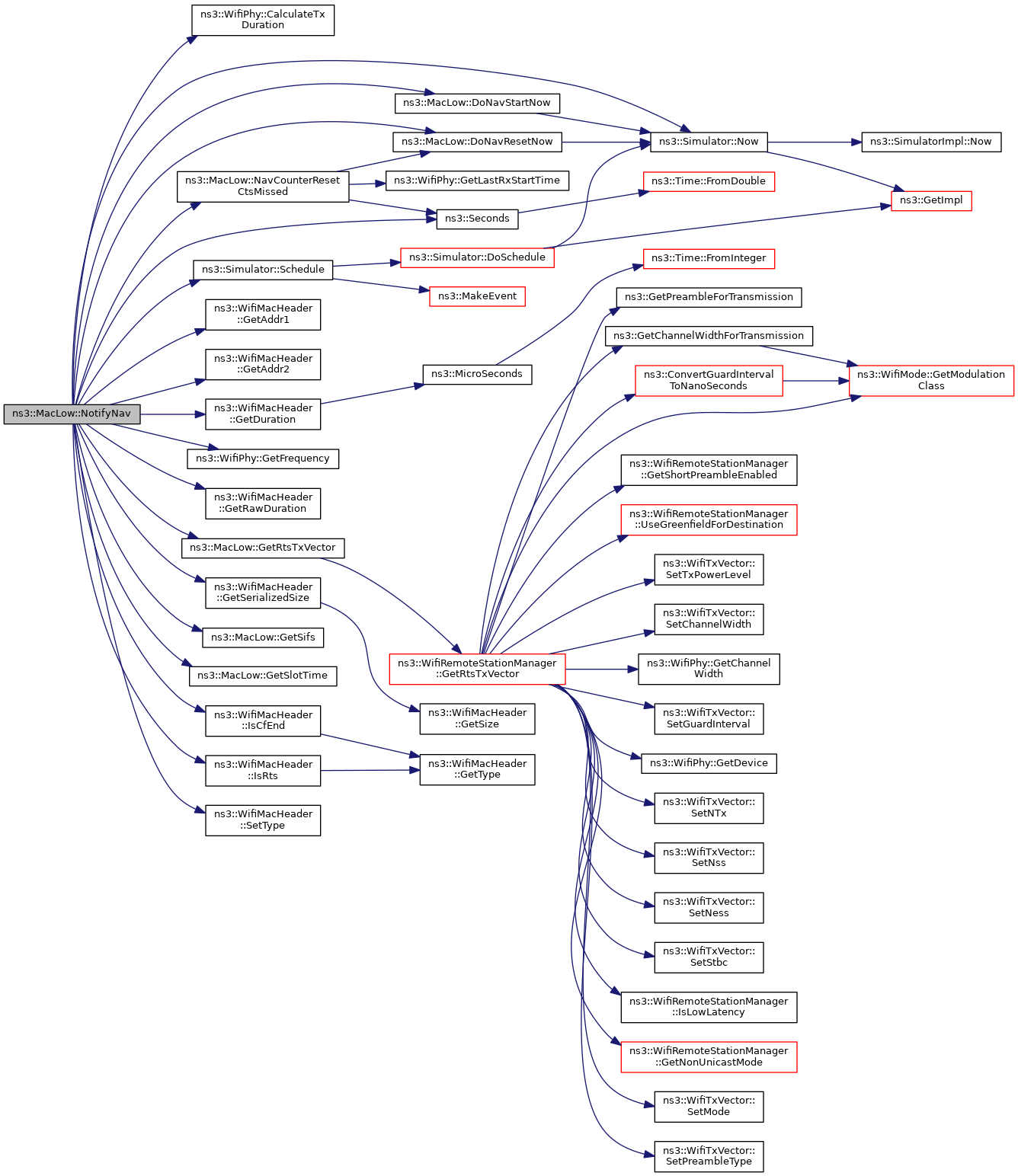

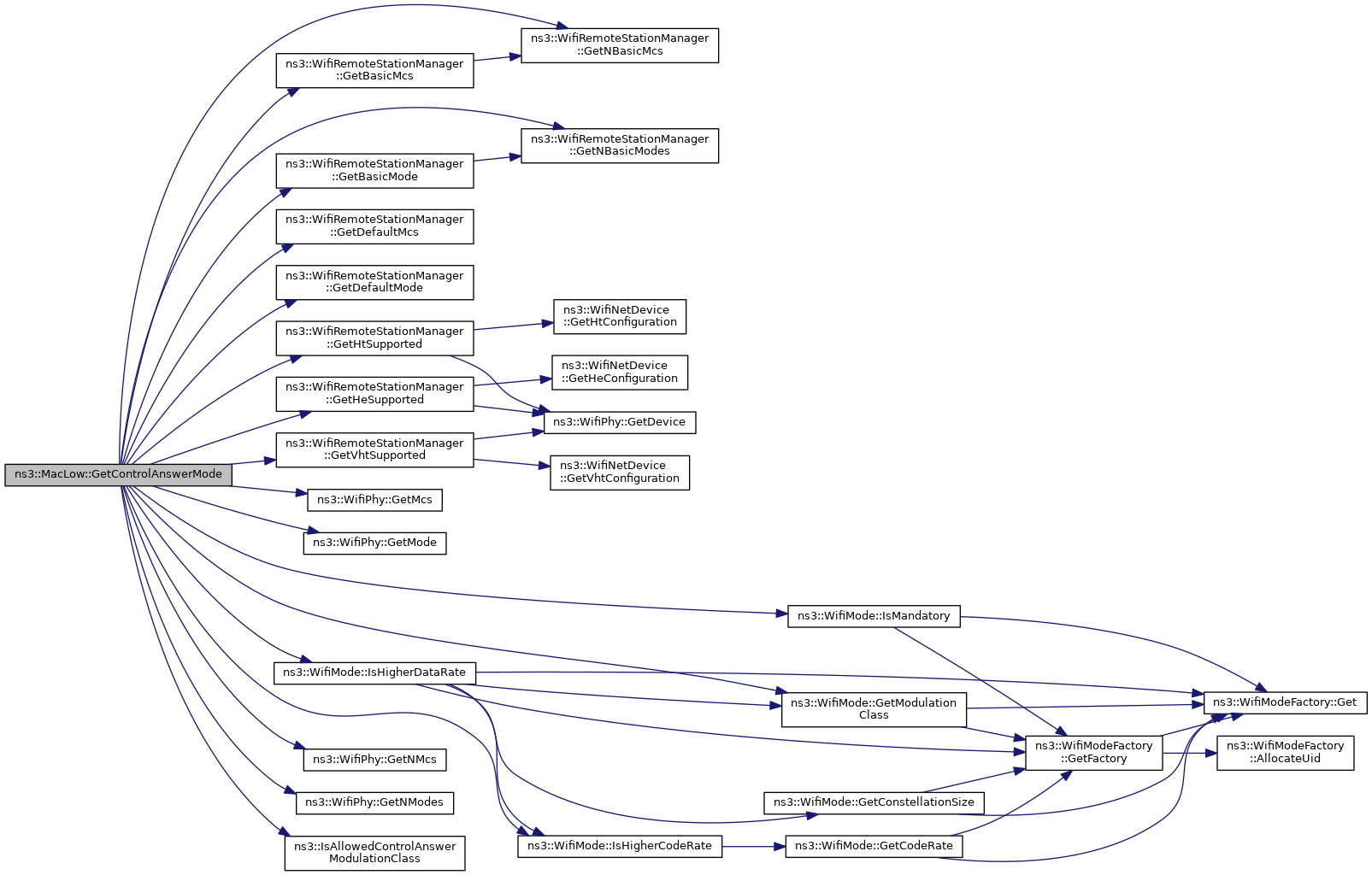

Here is the call graph for this function:

Here is the caller graph for this function:

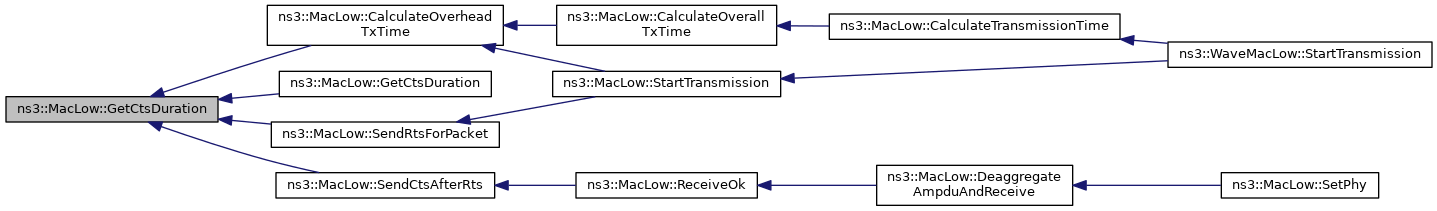

◆ GetCtsDuration() [1/2]

Time ns3::MacLow::GetCtsDuration ( WifiTxVector ctsTxVector ) const

private

Return the time required to transmit the CTS (including preamble and FCS).

Parameters

ctsTxVector

Returns: the time required to transmit the CTS (including preamble and FCS)

Definition at line 1190 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::GetCtsSize(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), m_phy, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HT.

Referenced by CalculateOverheadTxTime(), GetCtsDuration(), SendCtsAfterRts(), and SendRtsForPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCtsDuration() [2/2]

Time ns3::MacLow::GetCtsDuration	(	Mac48Address	to,
		WifiTxVector	rtsTxVector
	)		const

private

Return the time required to transmit the CTS to the specified address given the TXVECTOR of the RTS (including preamble and FCS).

Parameters

to
rtsTxVector

Returns: the time required to transmit the CTS (including preamble and FCS)

Definition at line 1183 of file mac-low.cc.

References GetCtsDuration(), GetCtsTxVectorForRts(), and ns3::WifiTxVector::GetMode().

Here is the call graph for this function:

◆ GetCtsTimeout()

Time ns3::MacLow::GetCtsTimeout ( void ) const

Return CTS timeout of this MacLow.

Returns: CTS timeout

Definition at line 423 of file mac-low.cc.

References m_ctsTimeout.

Referenced by SendRtsForPacket().

Here is the caller graph for this function:

◆ GetCtsToSelfSupported()

bool ns3::MacLow::GetCtsToSelfSupported ( void ) const

Return whether CTS-to-self capability is supported.

Returns: true if CTS-to-self is supported, false otherwise

Definition at line 339 of file mac-low.cc.

References m_ctsToSelfSupported.

◆ GetCtsTxVector()

WifiTxVector ns3::MacLow::GetCtsTxVector	(	Mac48Address	to,
		WifiMode	rtsTxMode
	)		const

private

Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

to	the MAC address of the CTS receiver
rtsTxMode	the mode of the RTS used by the sender

Returns: TXVECTOR for the CTS

Definition at line 1353 of file mac-low.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiPhy::GetChannelWidth(), ns3::GetChannelWidthForTransmission(), GetControlAnswerMode(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), ns3::GetPreambleForTransmission(), ns3::WifiPhy::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::Mac48Address::IsGroup(), m_phy, m_stationManager, NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetTxPowerLevel(), and ns3::WifiRemoteStationManager::UseGreenfieldForDestination().

Referenced by GetCtsTxVectorForRts(), and SendCtsAfterRts().

Here is the call graph for this function:

Here is the caller graph for this function:

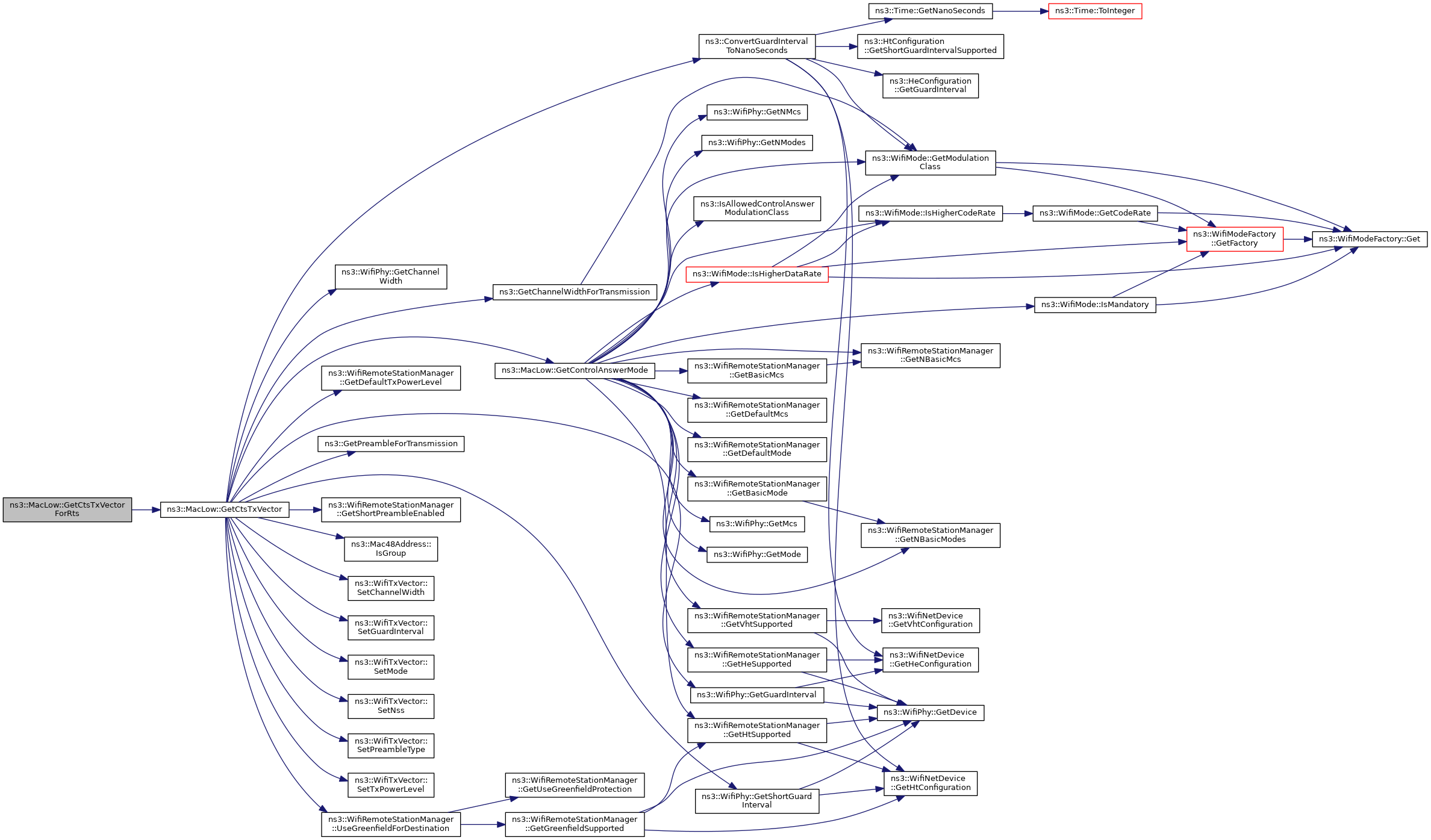

◆ GetCtsTxVectorForRts()

WifiTxVector ns3::MacLow::GetCtsTxVectorForRts	(	Mac48Address	to,
		WifiMode	rtsTxMode
	)		const

private

Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

to	the MAC address of the CTS receiver
rtsTxMode	the mode of the RTS used by the sender

Returns: TXVECTOR for the CTS

Definition at line 1401 of file mac-low.cc.

References GetCtsTxVector().

Referenced by GetCtsDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataTxVector()

WifiTxVector ns3::MacLow::GetDataTxVector ( Ptr< const WifiMacQueueItem > item ) const

virtual

Return a TXVECTOR for the DATA frame given the destination.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

item	the item being asked for TXVECTOR

Returns: TXVECTOR for the given item

Reimplemented in ns3::WaveMacLow.

Definition at line 1204 of file mac-low.cc.

References ns3::WifiRemoteStationManager::GetDataTxVector(), and m_stationManager.

Referenced by CalculateOverallTxTime(), CalculateOverheadTxTime(), CalculateTransmissionTime(), ns3::WaveMacLow::GetDataTxVector(), NeedCtsToSelf(), SendDataPacket(), and StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMpduAggregator()

Ptr< MpduAggregator > ns3::MacLow::GetMpduAggregator ( void ) const

Returns the aggregator used to construct A-MPDU subframes.

Returns: the aggregator used to construct A-MPDU subframes.

Definition at line 289 of file mac-low.cc.

References m_mpduAggregator.

Referenced by IsWithinSizeAndTimeLimits().

Here is the caller graph for this function:

◆ GetMsduAggregator()

Ptr< MsduAggregator > ns3::MacLow::GetMsduAggregator ( void ) const

Returns the aggregator used to construct A-MSDU subframes.

Returns: the aggregator used to construct A-MSDU subframes.

Definition at line 283 of file mac-low.cc.

References m_msduAggregator.

◆ GetPhy()

Ptr< WifiPhy > ns3::MacLow::GetPhy ( void ) const

Returns: current attached PHY device

Definition at line 256 of file mac-low.cc.

References m_phy.

Referenced by ns3::WaveMacLow::StartTransmission().

Here is the caller graph for this function:

◆ GetPifs()

Time ns3::MacLow::GetPifs ( void ) const

Return PCF Interframe Space (PIFS) of this MacLow.

Returns: PIFS

Definition at line 447 of file mac-low.cc.

References m_pifs.

Referenced by ForwardDown().

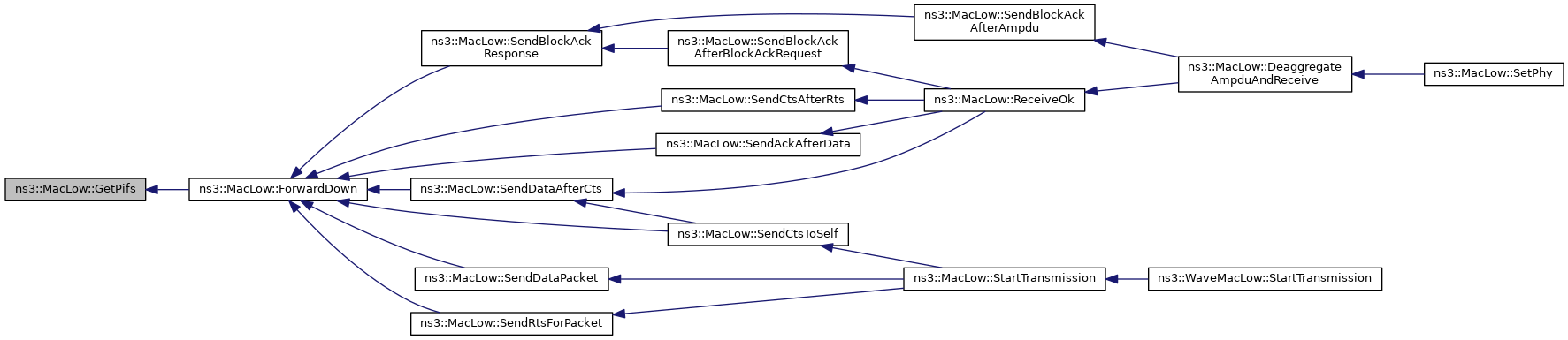

Here is the caller graph for this function:

◆ GetRemainingCfpDuration()

Time ns3::MacLow::GetRemainingCfpDuration ( void ) const

Returns: the remaining duration for the CF period.

Definition at line 2660 of file mac-low.cc.

References ns3::Time::IsPositive(), m_cfpForeshortening, m_cfpMaxDuration, m_cfpStart, min, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by CanTransmitNextCfFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRifs()

Time ns3::MacLow::GetRifs ( void ) const

Return Reduced Interframe Space (RIFS) of this MacLow.

Returns: RIFS

Definition at line 435 of file mac-low.cc.

References m_rifs.

Referenced by ReceiveOk(), SendDataAfterCts(), SendDataPacket(), and StartDataTxTimers().

Here is the caller graph for this function:

◆ GetRtsTxVector()

WifiTxVector ns3::MacLow::GetRtsTxVector ( Ptr< const WifiMacQueueItem > item ) const

private

Return a TXVECTOR for the RTS frame given the destination.

The function consults WifiRemoteStationManager, which controls the rate to different destinations.

Parameters

item	the item being asked for RTS TXVECTOR

Returns: TXVECTOR for the RTS of the given item

Definition at line 1197 of file mac-low.cc.

References ns3::WifiRemoteStationManager::GetRtsTxVector(), and m_stationManager.

Referenced by CalculateOverheadTxTime(), NotifyNav(), SendCtsToSelf(), SendRtsForPacket(), and StartTransmission().

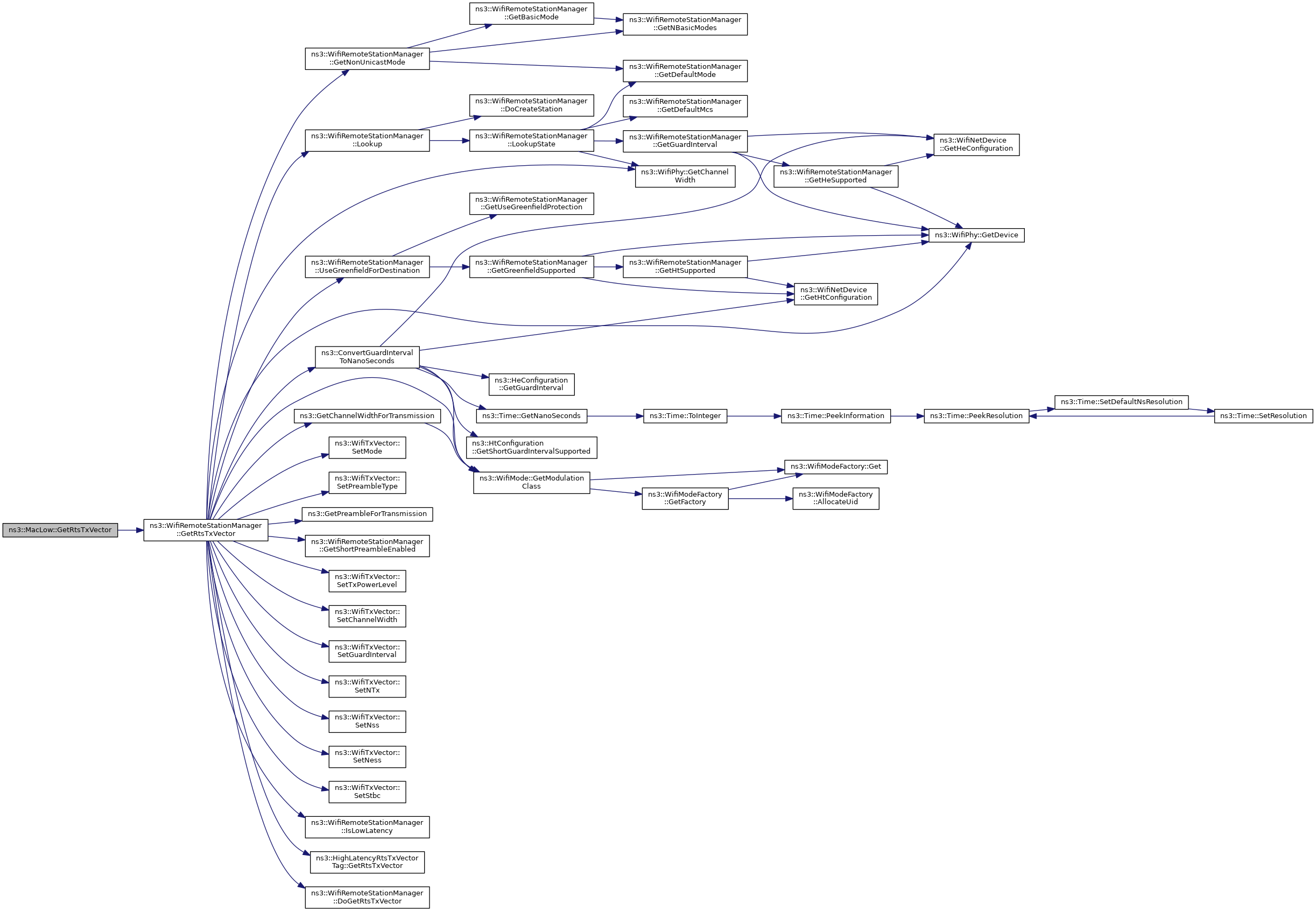

Here is the call graph for this function:

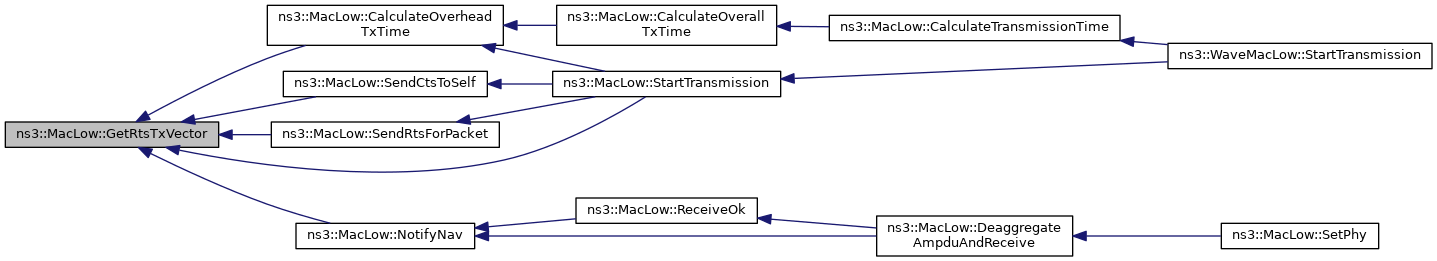

Here is the caller graph for this function:

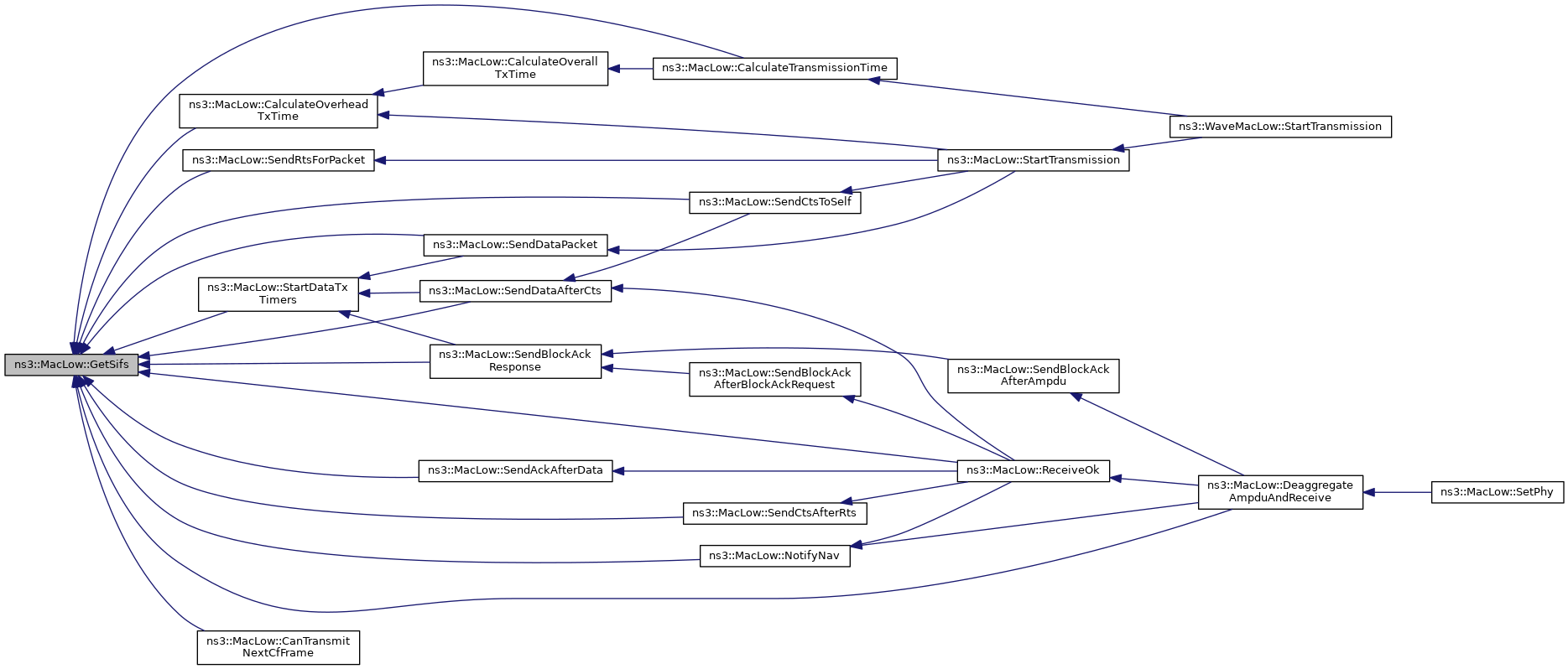

◆ GetSifs()

Time ns3::MacLow::GetSifs ( void ) const

Return Short Interframe Space (SIFS) of this MacLow.

Returns: SIFS

Definition at line 429 of file mac-low.cc.

References m_sifs.

Referenced by CalculateOverheadTxTime(), CalculateTransmissionTime(), CanTransmitNextCfFrame(), DeaggregateAmpduAndReceive(), NotifyNav(), ReceiveOk(), SendAckAfterData(), SendBlockAckResponse(), SendCtsAfterRts(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), SendRtsForPacket(), and StartDataTxTimers().

Here is the caller graph for this function:

◆ GetSlotTime()

Time ns3::MacLow::GetSlotTime ( void ) const

Return slot duration of this MacLow.

Returns: slot duration

Definition at line 441 of file mac-low.cc.

References m_slotTime.

Referenced by NotifyNav().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MacLow::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 143 of file mac-low.cc.

References ns3::TypeId::SetParent().

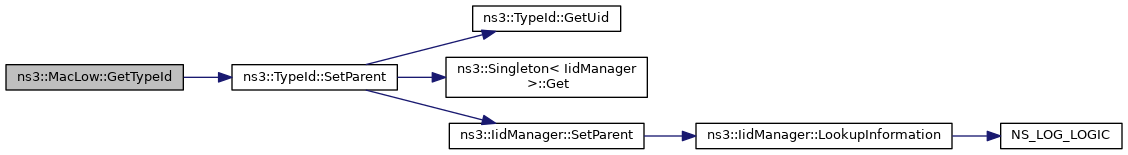

Here is the call graph for this function:

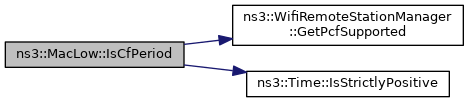

◆ IsCfPeriod()

bool ns3::MacLow::IsCfPeriod ( void ) const

virtual

This function indicates whether it is the CF period.

Reimplemented in MacLowStub.

Definition at line 2669 of file mac-low.cc.

References ns3::WifiRemoteStationManager::GetPcfSupported(), ns3::Time::IsStrictlyPositive(), m_cfpStart, and m_stationManager.

Referenced by CanTransmitNextCfFrame(), EndTxNoAck(), ForwardDown(), ReceiveError(), ReceiveOk(), SendDataPacket(), and StartDataTxTimers().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsNavZero()

bool ns3::MacLow::IsNavZero ( void ) const

private

Check if NAV is zero.

Returns: true if NAV is zero, false otherwise

Definition at line 1944 of file mac-low.cc.

References m_lastNavDuration, m_lastNavStart, and ns3::Simulator::Now().

Referenced by ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsPromisc()

bool ns3::MacLow::IsPromisc ( void ) const

Check if MacLow is operating in promiscuous mode.

Returns: true if MacLow is operating in promiscuous mode, false otherwise

Definition at line 471 of file mac-low.cc.

References m_promisc.

◆ IsWithinSizeAndTimeLimits() [1/2]

bool ns3::MacLow::IsWithinSizeAndTimeLimits	(	Ptr< const WifiMacQueueItem >	mpdu,
		WifiTxVector	txVector,
		uint32_t	ampduSize,
		Time	ppduDurationLimit
	)

Check whether the given MPDU, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive).

The given MPDU needs to be a QoS Data frame.

Parameters

mpdu	the MPDU.
txVector	the TX vector used to transmit the MPDU
ampduSize	the size of the existing A-MPDU, if any
ppduDurationLimit	the limit on the PPDU duration

Returns: true if constraints on size and duration limit are met.

Definition at line 620 of file mac-low.cc.

References NS_ASSERT.

◆ IsWithinSizeAndTimeLimits() [2/2]

bool ns3::MacLow::IsWithinSizeAndTimeLimits	(	uint32_t	mpduSize,
		Mac48Address	receiver,
		uint8_t	tid,
		WifiTxVector	txVector,
		uint32_t	ampduSize,
		Time	ppduDurationLimit
	)

Check whether an MPDU of the given size, destined to the given receiver and belonging to the given TID, if transmitted according to the given TX vector, meets the constraint on the maximum A-MPDU size (by assuming that the frame has to be aggregated to an existing A-MPDU of the given size) and its transmission time exceeds neither the max PPDU duration (depending on the PPDU format) nor the given PPDU duration limit (if strictly positive).

Parameters

mpduSize	the MPDU size.
receiver	the receiver
tid	the TID
txVector	the TX vector used to transmit the MPDU
ampduSize	the size of the existing A-MPDU, if any
ppduDurationLimit	the limit on the PPDU duration

Returns: true if constraints on size and duration limit are met.

Definition at line 631 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), GetMpduAggregator(), ns3::GetPpduMaxTime(), ns3::WifiTxVector::GetPreambleType(), ns3::Time::IsStrictlyPositive(), m_phy, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_MOD_CLASS_VHT.

Here is the call graph for this function:

◆ NavCounterResetCtsMissed()

void ns3::MacLow::NavCounterResetCtsMissed ( Time rtsEndRxTime )

private

Reset NAV after CTS was missed when the NAV was set with RTS.

Parameters

rtsEndRxTime

Definition at line 1522 of file mac-low.cc.

References DoNavResetNow(), ns3::WifiPhy::GetLastRxStartTime(), m_phy, and ns3::Seconds().

Referenced by NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedCtsToSelf()

bool ns3::MacLow::NeedCtsToSelf ( void ) const

private

Check if CTS-to-self mechanism should be used for the current packet.

Returns: true if CTS-to-self mechanism should be used for the current packet, false otherwise

Definition at line 613 of file mac-low.cc.

References GetDataTxVector(), m_currentPacket, m_stationManager, and ns3::WifiRemoteStationManager::NeedCtsToSelf().

Referenced by StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NormalAckTimeout()

void ns3::MacLow::NormalAckTimeout ( void )

private

Event handler when normal ACK timeout occurs.

Todo:: should check that there was no rx start before now. we should restart a new ack timeout now until the expected end of rx if there was a rx start before now.

Definition at line 1707 of file mac-low.cc.

References m_currentTxop, ns3::Txop::MissedAck(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by StartDataTxTimers().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAckTimeoutResetNow()

void ns3::MacLow::NotifyAckTimeoutResetNow ( void )

private

Notify ChannelAccessManager that ACK timer should be reset.

Definition at line 1570 of file mac-low.cc.

References m_channelAccessManagers.

Referenced by ReceiveOk().

Here is the caller graph for this function:

◆ NotifyAckTimeoutStartNow()

void ns3::MacLow::NotifyAckTimeoutStartNow ( Time duration )

private

Notify ChannelAccessManager that ACK timer should be started for the given duration.

Parameters

duration the duration

Definition at line 1561 of file mac-low.cc.

References m_channelAccessManagers.

Referenced by StartDataTxTimers().

Here is the caller graph for this function:

◆ NotifyCtsTimeoutResetNow()

void ns3::MacLow::NotifyCtsTimeoutResetNow ( void )

private

Notify ChannelAccessManager that CTS timer should be reset.

Definition at line 1588 of file mac-low.cc.

References m_channelAccessManagers.

Referenced by ReceiveOk().

Here is the caller graph for this function:

◆ NotifyCtsTimeoutStartNow()

void ns3::MacLow::NotifyCtsTimeoutStartNow ( Time duration )

private

Notify ChannelAccessManager that CTS timer should be started for the given duration.

Parameters

duration

Definition at line 1579 of file mac-low.cc.

References m_channelAccessManagers.

Referenced by SendRtsForPacket().

Here is the caller graph for this function:

◆ NotifyNav()

void ns3::MacLow::NotifyNav	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

private

Notify NAV function.

Parameters

packet	the packet
hdr	the header

A STA that used information from an RTS frame as the most recent basis to update its NAV setting is permitted to reset its NAV if no PHY-RXSTART.indication is detected from the PHY during a period with a duration of (2 * aSIFSTime) + (CTS_Time) + (2 * aSlotTime) starting at the PHY-RXEND.indication corresponding to the detection of the RTS frame. The “CTS_Time” shall be calculated using the length of the CTS frame and the data rate at which the RTS frame used for the most recent NAV update was received.

Definition at line 1478 of file mac-low.cc.

Referenced by DeaggregateAmpduAndReceive(), and ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyOffNow()

void ns3::MacLow::NotifyOffNow ( void )

This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into off mode.

When the device is put into off mode, pending MAC transmissions (RTS, CTS, DATA and ACK) are cancelled.

Definition at line 729 of file mac-low.cc.

References ns3::EventId::Cancel(), CancelAllEvents(), ns3::EventId::IsRunning(), m_currentPacket, m_currentTxop, m_lastNavDuration, m_lastNavStart, m_navCounterResetCtsMissed, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Seconds().

Referenced by ns3::PhyMacLowListener::NotifyOff().

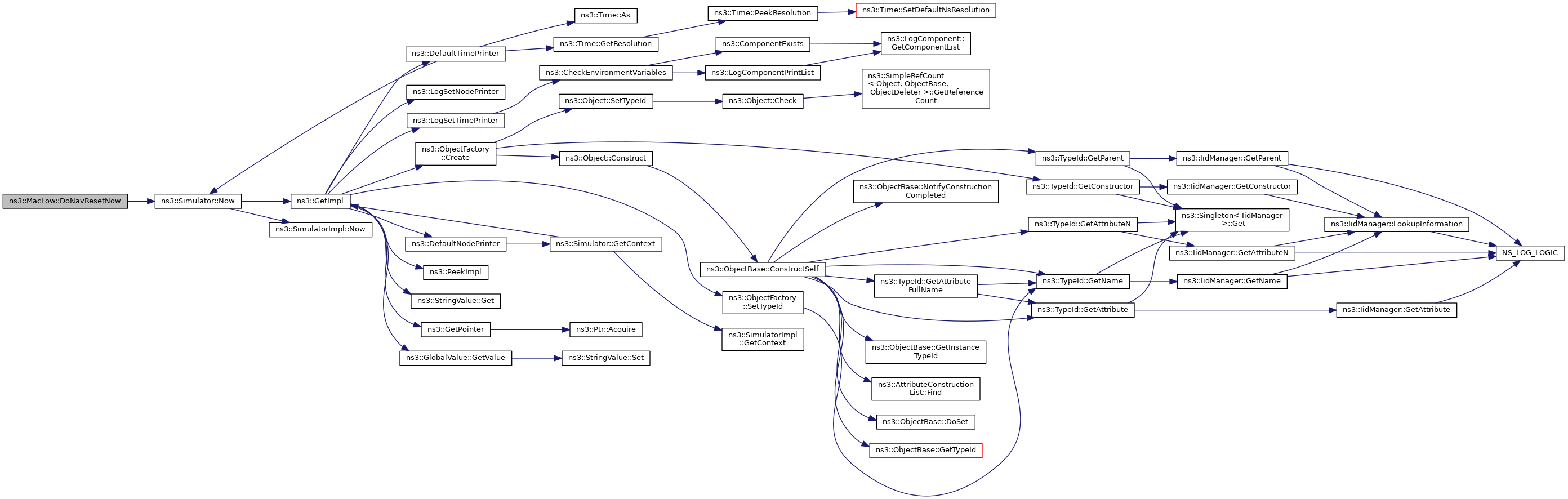

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifySleepNow()

void ns3::MacLow::NotifySleepNow ( void )

This method is typically invoked by the PhyMacLowListener to notify the MAC layer that the device has been put into sleep mode.

When the device is put into sleep mode, pending MAC transmissions (RTS, CTS, DATA and ACK) are cancelled.

Definition at line 714 of file mac-low.cc.

References ns3::EventId::Cancel(), CancelAllEvents(), ns3::EventId::IsRunning(), m_currentPacket, m_currentTxop, m_lastNavDuration, m_lastNavStart, m_navCounterResetCtsMissed, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Seconds().

Referenced by ns3::PhyMacLowListener::NotifySleep().

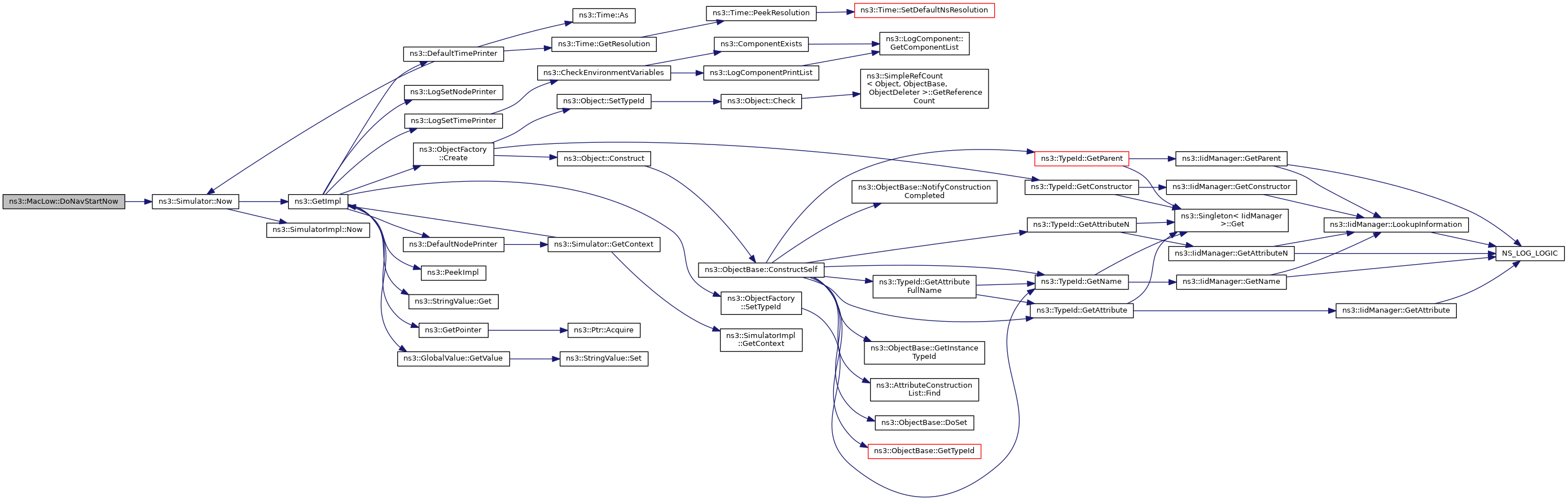

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifySwitchingStartNow()

void ns3::MacLow::NotifySwitchingStartNow ( Time duration )

Parameters

duration switching delay duration.

This method is typically invoked by the PhyMacLowListener to notify the MAC layer that a channel switching occurred. When a channel switching occurs, pending MAC transmissions (RTS, CTS, DATA and ACK) are cancelled.

Definition at line 698 of file mac-low.cc.

References ns3::EventId::Cancel(), CancelAllEvents(), ns3::EventId::IsRunning(), m_currentPacket, m_currentTxop, m_lastNavDuration, m_lastNavStart, m_navCounterResetCtsMissed, m_stationManager, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::WifiRemoteStationManager::Reset(), and ns3::Seconds().

Referenced by ns3::PhyMacLowListener::NotifySwitchingStart().

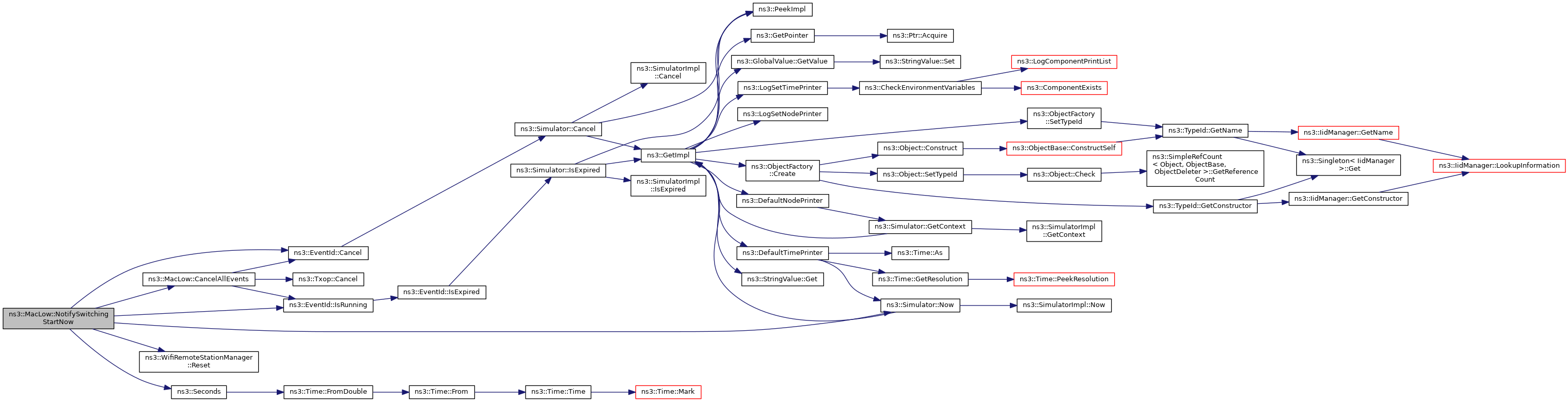

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveError()

void ns3::MacLow::ReceiveError ( Ptr< Packet > packet )

Parameters

packet packet received.

This method is typically invoked by the lower PHY layer to notify the MAC layer that a packet was unsuccessfully received.

Definition at line 677 of file mac-low.cc.

References ns3::MacLow::CfAckInfo::expectCfAck, IsCfPeriod(), m_cfAckInfo, m_currentPacket, m_currentTxop, ns3::Txop::MissedAck(), ns3::Txop::MissedCfPollResponse(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by SetPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveMpdu()

bool ns3::MacLow::ReceiveMpdu	(	Ptr< Packet >	packet,
		WifiMacHeader	hdr
	)

private

Parameters

packet	the packet
hdr	the header

Returns: true if MPDU received

This method updates the reorder buffer and the scoreboard when an MPDU is received in an HT station and stores the MPDU if needed when an MPDU is received in an non-HT Station (implements HT immediate block Ack)

Definition at line 2160 of file mac-low.cc.

References ns3::WifiMacHeader::GetAddr2(), ns3::WifiRemoteStationManager::GetHeSupported(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::IsInWindow(), ns3::WifiMacHeader::IsQosData(), m_bAckAgreements, m_stationManager, ns3::QosUtilsIsOldPacket(), RxCompleteBufferedPacketsUntilFirstLost(), RxCompleteBufferedPacketsWithSmallerSequence(), and StoreMpduIfNeeded().

Referenced by ReceiveOk().

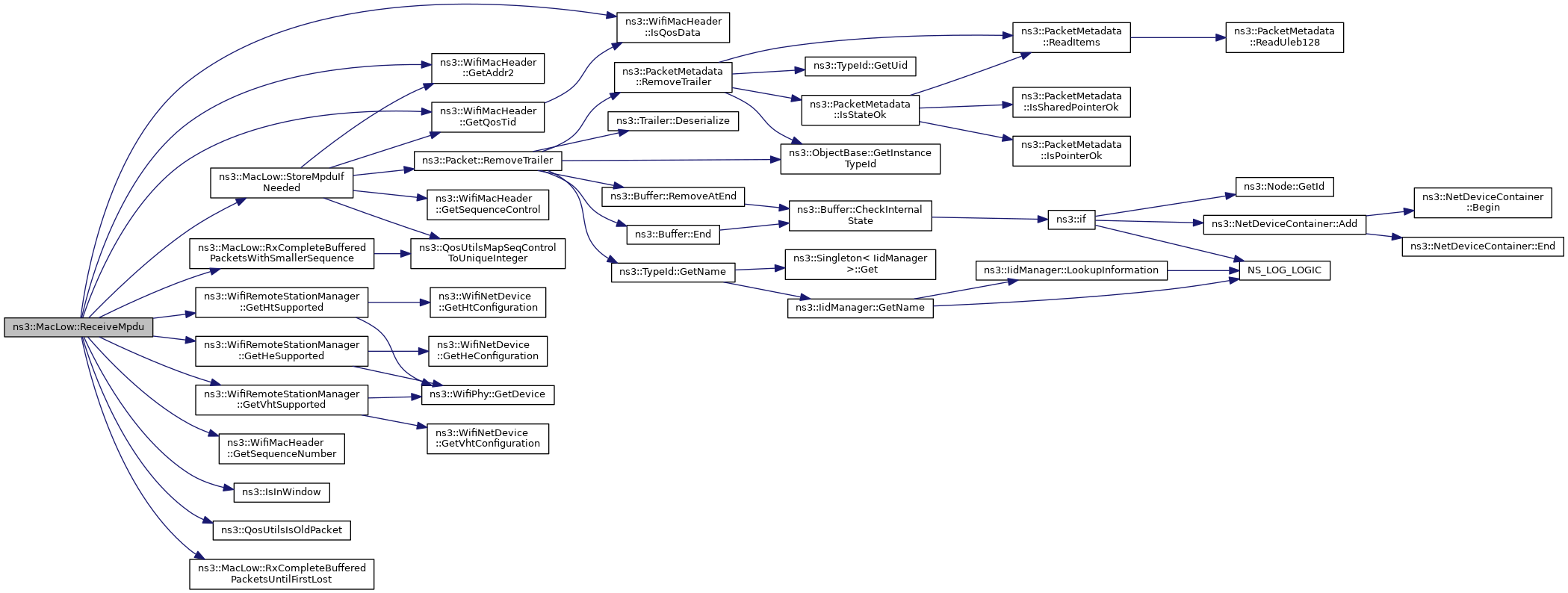

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveOk()

void ns3::MacLow::ReceiveOk	(	Ptr< Packet >	packet,
		double	rxSnr,
		WifiTxVector	txVector,
		bool	ampduSubframe
	)

Parameters

packet	packet received
rxSnr	snr of packet received
txVector	TXVECTOR of packet received
ampduSubframe	true if this MPDU is part of an A-MPDU

This method is typically invoked by the lower PHY layer to notify the MAC layer that a packet was successfully received.

Definition at line 744 of file mac-low.cc.

References ns3::Packet::AddPacketTag(), ns3::MacLow::CfAckInfo::address, ns3::MacLow::CfAckInfo::appendCfAck, ns3::EventId::Cancel(), ns3::MacLow::CfAckInfo::expectCfAck, ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), GetRifs(), ns3::WifiRemoteStationManager::GetRifsPermitted(), GetSifs(), ns3::CtrlBAckRequestHeader::GetStartingSequence(), ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::Txop::GetTxopLimit(), ns3::Txop::GetTxopRemaining(), ns3::Txop::GotAck(), ns3::Txop::GotBlockAck(), ns3::Txop::GotCfEnd(), ns3::MacLowTransmissionParameters::HasNextPacket(), IsCfPeriod(), ns3::EventId::IsExpired(), ns3::CtrlBAckRequestHeader::IsMultiTid(), IsNavZero(), ns3::Txop::IsQosTxop(), ns3::EventId::IsRunning(), ns3::Time::IsStrictlyPositive(), m_bAckAgreements, m_bAckCaches, m_blockAckTimeoutEvent, m_cfAckInfo, m_cfpStart, m_ctsTimeoutEvent, m_currentPacket, m_currentTxop, m_edca, m_normalAckTimeoutEvent, m_promisc, m_rxCallback, m_self, m_sendAckEvent, m_sendCtsEvent, m_sendDataEvent, m_stationManager, m_txParams, m_waitIfsEvent, ns3::Txop::MissedAck(), ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), ns3::NanoSeconds(), NotifyAckTimeoutResetNow(), NotifyCtsTimeoutResetNow(), NotifyNav(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ReceiveMpdu(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::Packet::RemoveTrailer(), ns3::WifiRemoteStationManager::ReportDataOk(), ns3::WifiRemoteStationManager::ReportRtsOk(), ns3::WifiRemoteStationManager::ReportRxOk(), ResetBlockAckInactivityTimerIfNeeded(), RxCompleteBufferedPacketsUntilFirstLost(), RxCompleteBufferedPacketsWithSmallerSequence(), ns3::Simulator::Schedule(), SendAckAfterData(), SendBlockAckAfterBlockAckRequest(), SendCtsAfterRts(), SendDataAfterCts(), ns3::SnrTag::Set(), ns3::Txop::TerminateTxop(), WaitIfsAfterEndTxFragment(), and WaitIfsAfterEndTxPacket().

Referenced by DeaggregateAmpduAndReceive().

Here is the caller graph for this function:

◆ RegisterDcf()

void ns3::MacLow::RegisterDcf ( Ptr< ChannelAccessManager > dcf )

Parameters

dcf	listen to NAV events for every incoming and outgoing packet.

Definition at line 483 of file mac-low.cc.

References m_channelAccessManagers.

◆ RegisterEdcaForAc()

void ns3::MacLow::RegisterEdcaForAc	(	AcIndex	ac,
		Ptr< QosTxop >	edca
	)

Parameters

ac	Access class managed by the queue.
edca	the QosTxop for the queue.

The lifetime of the registered QosTxop is typically equal to the lifetime of the queue associated to this AC.

Definition at line 2555 of file mac-low.cc.

References m_edca.

◆ RemovePhyMacLowListener()

void ns3::MacLow::RemovePhyMacLowListener ( Ptr< WifiPhy > phy )

private

Remove current WifiPhy listener for this MacLow.

Parameters

phy	the WifiPhy this MacLow is connected to

Definition at line 161 of file mac-low.cc.

References m_phyMacLowListener, and third::phy.

Referenced by ResetPhy().

Here is the caller graph for this function:

◆ ResetBlockAckInactivityTimerIfNeeded()

void ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded ( BlockAckAgreement & agreement )

private

Every time that a block ack request or a packet with ack policy equals to block ack are received, if a relative block ack agreement exists and the value of inactivity timeout is not 0, the timer is reset.

see section 11.5.3 in IEEE 802.11e for more details.

Parameters

agreement

Definition at line 2539 of file mac-low.cc.

References ns3::EventId::Cancel(), ns3::BlockAckAgreement::GetPeer(), ns3::BlockAckAgreement::GetTid(), ns3::BlockAckAgreement::GetTimeout(), ns3::EventId::IsRunning(), m_edca, ns3::BlockAckAgreement::m_inactivityEvent, ns3::MicroSeconds(), NS_ASSERT, ns3::QosUtilsMapTidToAc(), ns3::Simulator::Schedule(), ns3::QosTxop::SendDelbaFrame(), and timeout.

Referenced by DeaggregateAmpduAndReceive(), and ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetPhy()

void ns3::MacLow::ResetPhy ( void )

Remove WifiPhy associated with this MacLow.

Definition at line 262 of file mac-low.cc.

References m_phy, ns3::MakeNullCallback(), RemovePhyMacLowListener(), ns3::WifiPhy::SetReceiveErrorCallback(), and ns3::WifiPhy::SetReceiveOkCallback().

Here is the call graph for this function:

◆ RxCompleteBufferedPacketsUntilFirstLost()

void ns3::MacLow::RxCompleteBufferedPacketsUntilFirstLost	(	Mac48Address	originator,
		uint8_t	tid
	)

private

Parameters

originator	Address of peer participating in Block Ack mechanism.
tid	TID for which Block Ack was created.

This method is typically invoked when a MPDU with ack policy subfield set to Normal Ack is received and a block ack agreement for that packet exists. This happens when the originator of block ack has only few MPDUs to send. All completed MSDUs starting with starting sequence number of block ack agreement are forward up to WifiMac until there is an incomplete or missing MSDU. See section 9.10.4 in IEEE 802.11 standard for more details.

Definition at line 2354 of file mac-low.cc.

References m_bAckAgreements, and m_rxCallback.

Referenced by DestroyBlockAckAgreement(), ReceiveMpdu(), ReceiveOk(), and SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

◆ RxCompleteBufferedPacketsWithSmallerSequence()

void ns3::MacLow::RxCompleteBufferedPacketsWithSmallerSequence	(	uint16_t	seq,
		Mac48Address	originator,
		uint8_t	tid
	)

private

Parameters

originator	Address of peer participating in Block Ack mechanism.
tid	TID for which Block Ack was created.
seq	Starting sequence control

This function forward up all completed "old" packets with sequence number smaller than seq. All comparison are performed circularly mod 4096.

Definition at line 2291 of file mac-low.cc.

References m_bAckAgreements, m_rxCallback, and ns3::QosUtilsMapSeqControlToUniqueInteger().

Referenced by DestroyBlockAckAgreement(), ReceiveMpdu(), ReceiveOk(), and SendBlockAckAfterBlockAckRequest().

Here is the call graph for this function:

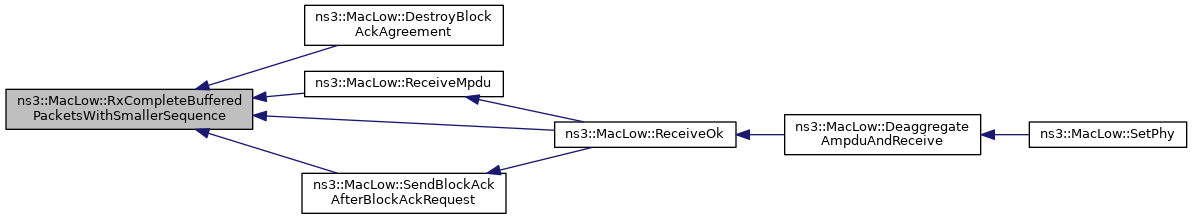

Here is the caller graph for this function:

◆ SendAckAfterData()

void ns3::MacLow::SendAckAfterData	(	Mac48Address	source,
		Time	duration,
		WifiMode	dataTxMode,
		double	dataSnr
	)

private

Send ACK after receiving DATA.

Parameters

source
duration
dataTxMode
dataSnr

Definition at line 2130 of file mac-low.cc.

References ns3::Packet::AddPacketTag(), ForwardDown(), GetAckDuration(), GetAckTxVector(), GetSifs(), ns3::Time::IsPositive(), NS_ASSERT_MSG(), NS_LOG_FUNCTION, ns3::SnrTag::Set(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetDuration(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_ACK.

Referenced by ReceiveOk().

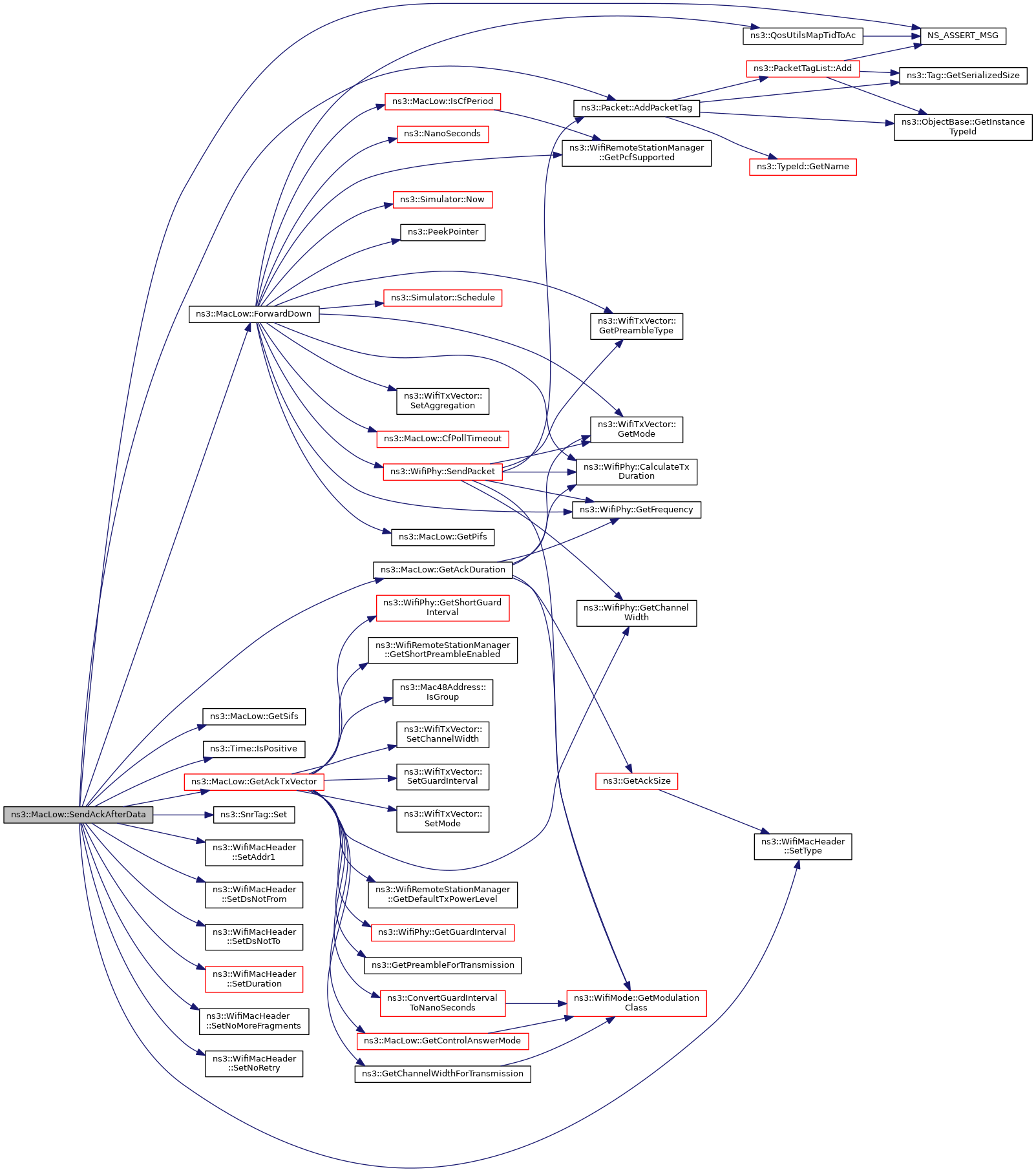

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBlockAckAfterAmpdu()

void ns3::MacLow::SendBlockAckAfterAmpdu	(	uint8_t	tid,
		Mac48Address	originator,
		Time	duration,
		WifiTxVector	blockAckReqTxVector,
		double	rxSnr
	)

private

Invoked after an A-MPDU has been received.

Looks for corresponding block ack agreement and creates block ack bitmap on a received packets basis.

Parameters

tid	the Traffic ID
originator	the originator MAC address
duration	the remaining NAV duration
blockAckReqTxVector	the transmit vector
rxSnr	the receive SNR

Definition at line 2432 of file mac-low.cc.

References ns3::Time::As(), ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, GetBlockAckTxVector(), ns3::WifiTxVector::GetMode(), ns3::WifiPhy::IsStateRx(), ns3::WifiPhy::IsStateTx(), m_bAckAgreements, m_bAckCaches, m_phy, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, and SendBlockAckResponse().

Referenced by DeaggregateAmpduAndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBlockAckAfterBlockAckRequest()

void ns3::MacLow::SendBlockAckAfterBlockAckRequest	(	const CtrlBAckRequestHeader	reqHdr,
		Mac48Address	originator,
		Time	duration,
		WifiMode	blockAckReqTxMode,
		double	rxSnr
	)

private

Invoked after that a block ack request has been received.

Looks for corresponding block ack agreement and creates block ack bitmap on a received packets basis.

Parameters

reqHdr
originator
duration
blockAckReqTxMode
rxSnr

Definition at line 2471 of file mac-low.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, ns3::WifiRemoteStationManager::GetHeSupported(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::CtrlBAckRequestHeader::GetStartingSequence(), ns3::CtrlBAckRequestHeader::GetStartingSequenceControl(), ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::CtrlBAckRequestHeader::IsBasic(), ns3::CtrlBAckRequestHeader::IsCompressed(), ns3::CtrlBAckRequestHeader::IsExtendedCompressed(), ns3::CtrlBAckRequestHeader::IsMultiTid(), m_bAckAgreements, m_bAckCaches, m_stationManager, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsIsOldPacket(), RxCompleteBufferedPacketsUntilFirstLost(), RxCompleteBufferedPacketsWithSmallerSequence(), SendBlockAckResponse(), ns3::CtrlBAckResponseHeader::SetStartingSequence(), ns3::CtrlBAckResponseHeader::SetTidInfo(), and ns3::CtrlBAckResponseHeader::SetType().

Referenced by ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBlockAckResponse()

void ns3::MacLow::SendBlockAckResponse	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	originator,
		bool	immediate,
		Time	duration,
		WifiMode	blockAckReqTxMode,
		double	rxSnr
	)

private

This method creates block ack frame with header equals to blockAck and start its transmission.

Parameters

blockAck
originator
immediate
duration
blockAckReqTxMode
rxSnr

Definition at line 2384 of file mac-low.cc.

Referenced by SendBlockAckAfterAmpdu(), and SendBlockAckAfterBlockAckRequest().

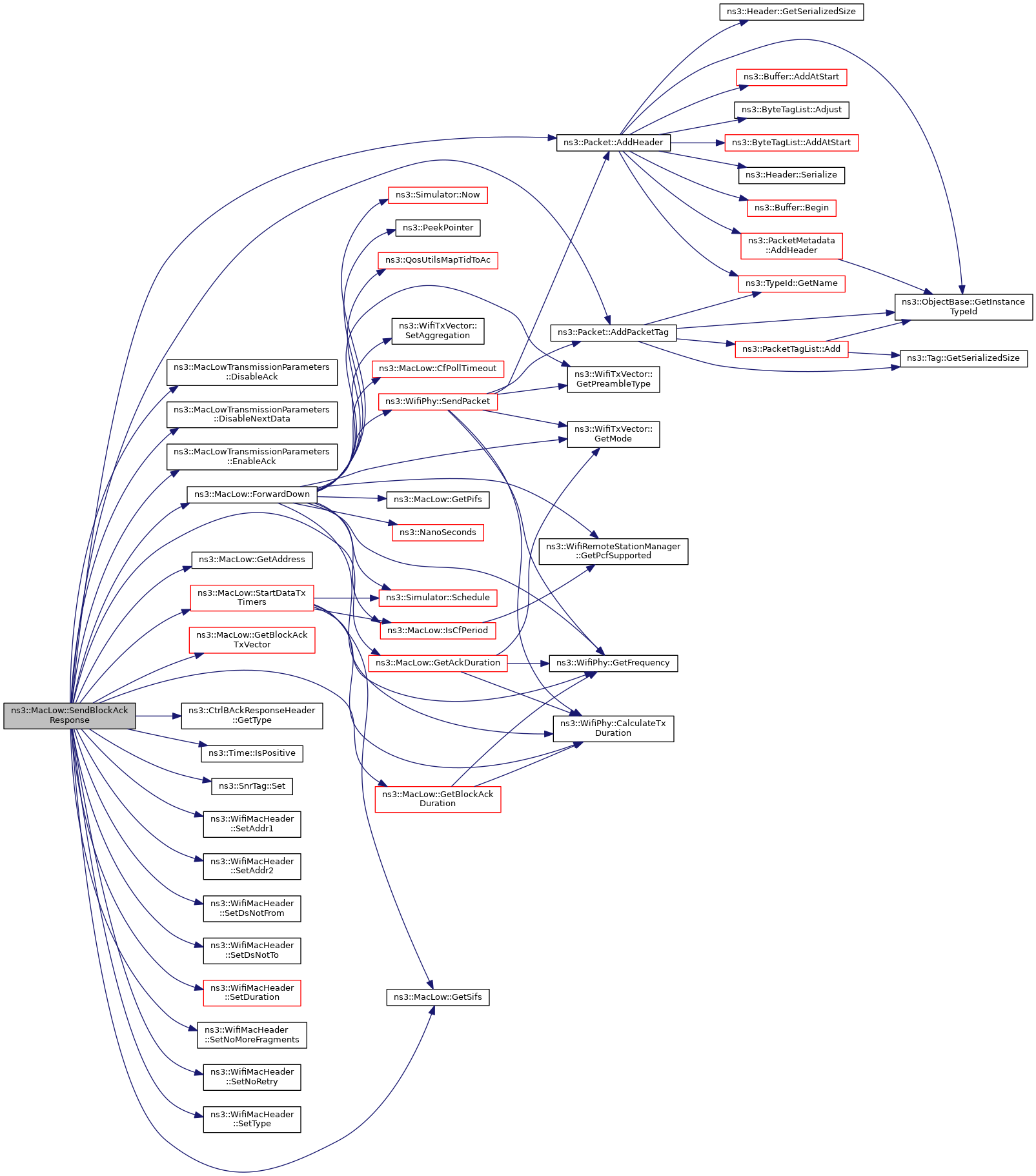

Here is the call graph for this function:

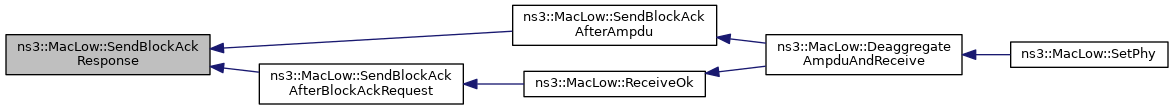

Here is the caller graph for this function:

◆ SendCtsAfterRts()

void ns3::MacLow::SendCtsAfterRts	(	Mac48Address	source,
		Time	duration,
		WifiTxVector	rtsTxVector,
		double	rtsSnr
	)

private

Send CTS after receiving RTS.

Parameters

source
duration
rtsTxVector
rtsSnr

Definition at line 2011 of file mac-low.cc.

References ns3::Packet::AddPacketTag(), ForwardDown(), GetCtsDuration(), GetCtsTxVector(), ns3::WifiTxVector::GetMode(), GetSifs(), ns3::Time::IsPositive(), NS_ASSERT, NS_LOG_FUNCTION, ns3::SnrTag::Set(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_CTS.

Referenced by ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCtsToSelf()

void ns3::MacLow::SendCtsToSelf ( void )

private

Send CTS for a CTS-to-self mechanism.

Definition at line 1950 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ForwardDown(), GetAckDuration(), GetBlockAckDuration(), GetBlockAckTxVector(), ns3::MacLowTransmissionParameters::GetBlockAckType(), ns3::GetCtsSize(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::MacLowTransmissionParameters::GetNextPacketSize(), GetRtsTxVector(), GetSifs(), ns3::MacLowTransmissionParameters::HasNextPacket(), ns3::EventId::IsExpired(), m_currentPacket, m_currentTxVector, m_phy, m_self, m_sendDataEvent, m_txParams, ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), NS_ASSERT, ns3::Simulator::Schedule(), ns3::Seconds(), SendDataAfterCts(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetDuration(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_CTS.

Referenced by StartTransmission().

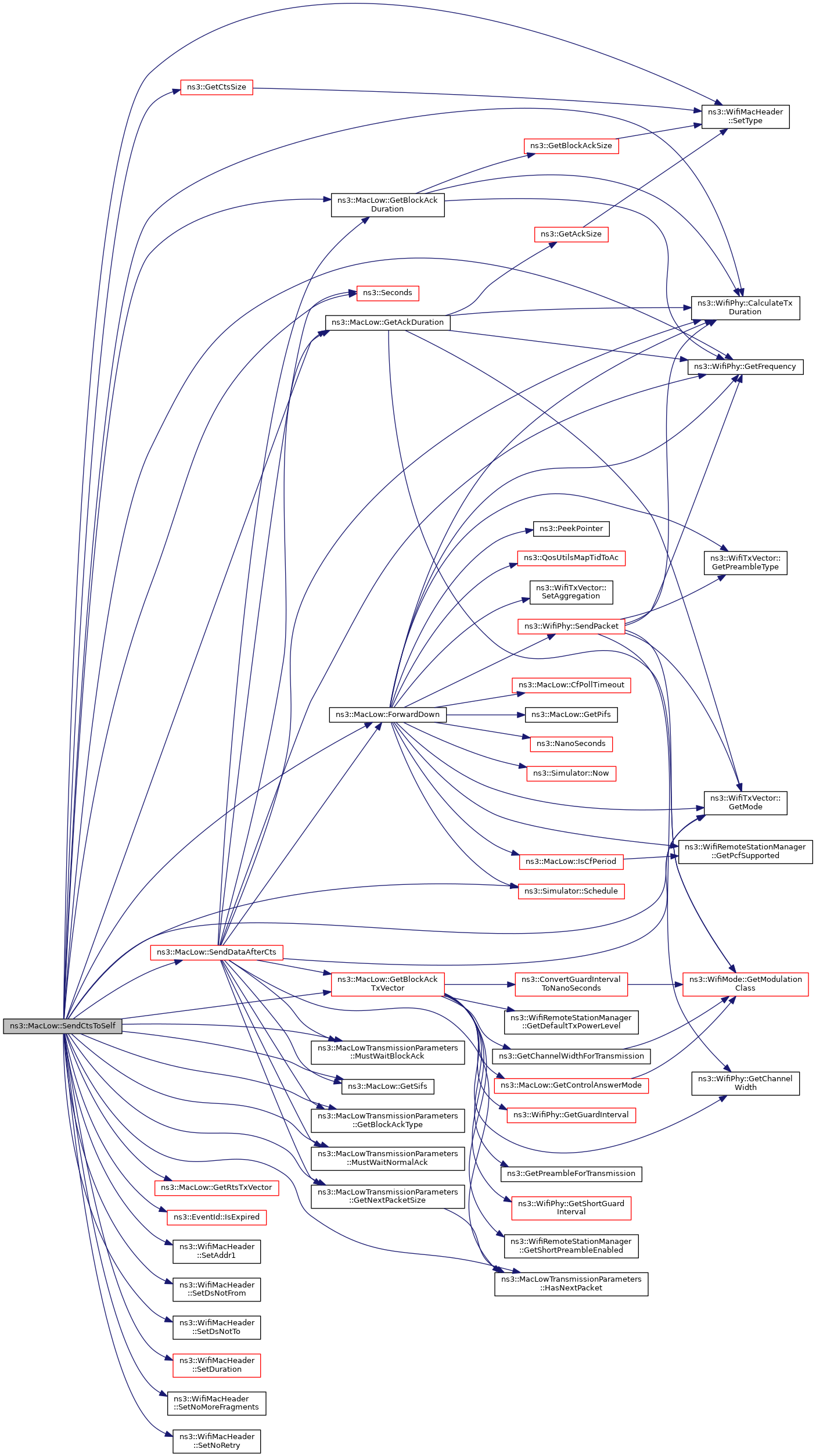

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendDataAfterCts()

void ns3::MacLow::SendDataAfterCts ( Time duration )

private

Send DATA after receiving CTS.

Parameters

duration

Definition at line 2041 of file mac-low.cc.

References ns3::WifiPhy::CalculateTxDuration(), ForwardDown(), GetAckDuration(), GetBlockAckDuration(), GetBlockAckTxVector(), ns3::MacLowTransmissionParameters::GetBlockAckType(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::MacLowTransmissionParameters::GetNextPacketSize(), GetRifs(), ns3::WifiRemoteStationManager::GetRifsPermitted(), GetSifs(), ns3::MacLowTransmissionParameters::HasNextPacket(), ns3::Time::IsPositive(), m_currentPacket, m_currentTxVector, m_phy, m_stationManager, m_txParams, max, ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), and StartDataTxTimers().

Referenced by ReceiveOk(), and SendCtsToSelf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendDataPacket()

void ns3::MacLow::SendDataPacket ( void )

private

Send DATA packet, which can be DATA-ACK or RTS-CTS-DATA-ACK transaction.

Definition at line 1845 of file mac-low.cc.

References ns3::MacLow::CfAckInfo::address, ns3::MacLow::CfAckInfo::appendCfAck, ns3::WifiPhy::CalculateTxDuration(), ForwardDown(), GetAckDuration(), GetBlockAckDuration(), GetBlockAckTxVector(), ns3::MacLowTransmissionParameters::GetBlockAckType(), ns3::WifiMode::GetDataRate(), GetDataTxVector(), ns3::WifiPhy::GetFrequency(), ns3::WifiTxVector::GetMode(), ns3::MacLowTransmissionParameters::GetNextPacketSize(), GetRifs(), ns3::WifiRemoteStationManager::GetRifsPermitted(), GetSifs(), ns3::MacLowTransmissionParameters::HasNextPacket(), IsCfPeriod(), m_cfAckInfo, m_currentPacket, m_currentTxVector, m_phy, m_stationManager, m_txParams, ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), ns3::WifiMacHeader::SetAddr1(), StartDataTxTimers(), ns3::WIFI_MAC_CTL_END, ns3::WIFI_MAC_CTL_END_ACK, ns3::WIFI_MAC_DATA, ns3::WIFI_MAC_DATA_CFACK, ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL, ns3::WIFI_MAC_DATA_NULL_CFACK, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_DATA_NULL_CFPOLL.

Referenced by StartTransmission().

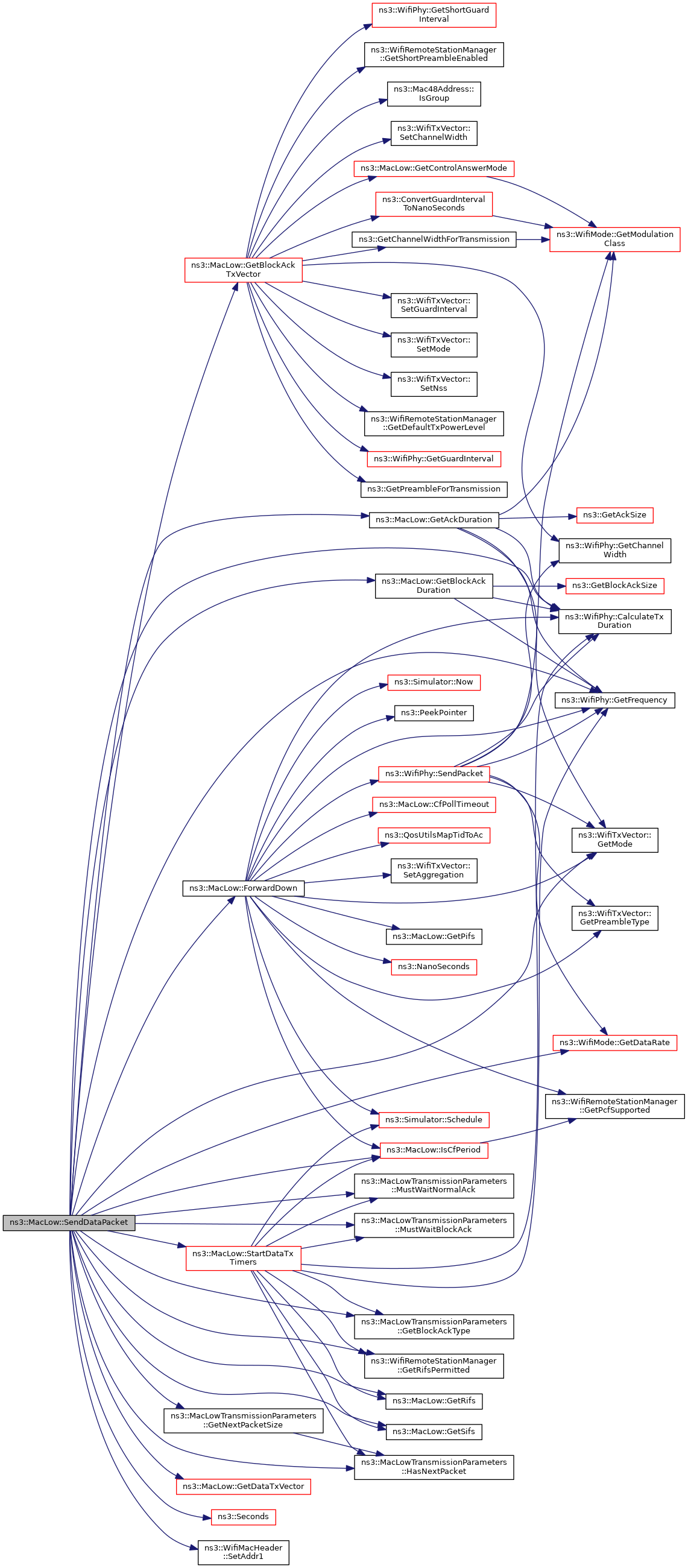

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRtsForPacket()

void ns3::MacLow::SendRtsForPacket ( void )

private

Send RTS to begin RTS-CTS-DATA-ACK transaction.

Definition at line 1730 of file mac-low.cc.

Referenced by StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAckTimeout()

void ns3::MacLow::SetAckTimeout ( Time ackTimeout )

Set ACK timeout of this MacLow.

Parameters

ackTimeout ACK timeout of this MacLow

Definition at line 315 of file mac-low.cc.

References m_ackTimeout.

◆ SetAddress()

void ns3::MacLow::SetAddress ( Mac48Address ad )

Set MAC address of this MacLow.

Parameters

ad	Mac48Address of this MacLow

Definition at line 309 of file mac-low.cc.

References m_self.

◆ SetBasicBlockAckTimeout()

void ns3::MacLow::SetBasicBlockAckTimeout ( Time blockAckTimeout )

Set Basic Block ACK timeout of this MacLow.

Parameters

blockAckTimeout Basic Block ACK timeout of this MacLow

Definition at line 321 of file mac-low.cc.

References m_basicBlockAckTimeout.

◆ SetBeaconInterval()

void ns3::MacLow::SetBeaconInterval ( Time interval )

Parameters

interval the expected interval between two beacon transmissions.

Definition at line 375 of file mac-low.cc.

References m_beaconInterval.

◆ SetBssid()

void ns3::MacLow::SetBssid ( Mac48Address ad )

Set the Basic Service Set Identification.

Parameters

ad the BSSID

Definition at line 387 of file mac-low.cc.

References m_bssid.

◆ SetCfpMaxDuration()

void ns3::MacLow::SetCfpMaxDuration ( Time duration )

Parameters

duration the maximum duration for the CF period.

Definition at line 381 of file mac-low.cc.

References m_cfpMaxDuration.

◆ SetCompressedBlockAckTimeout()

void ns3::MacLow::SetCompressedBlockAckTimeout ( Time blockAckTimeout )

Set Compressed Block ACK timeout of this MacLow.

Parameters

blockAckTimeout Compressed Block ACK timeout of this MacLow

Definition at line 327 of file mac-low.cc.

References m_compressedBlockAckTimeout.

◆ SetCtsTimeout()

void ns3::MacLow::SetCtsTimeout ( Time ctsTimeout )

Set CTS timeout of this MacLow.

Parameters

ctsTimeout CTS timeout of this MacLow

Definition at line 345 of file mac-low.cc.

References m_ctsTimeout.

◆ SetCtsToSelfSupported()

void ns3::MacLow::SetCtsToSelfSupported ( bool enable )

Enable or disable CTS-to-self capability.

Parameters

enable Enable or disable CTS-to-self capability

Definition at line 333 of file mac-low.cc.

References m_ctsToSelfSupported.

◆ SetMac()

void ns3::MacLow::SetMac ( const Ptr< WifiMac > mac )

Set up WifiMac associated with this MacLow.

Parameters

mac	WifiMac associated with this MacLow

Definition at line 271 of file mac-low.cc.

References m_mac, and third::mac.

◆ SetMpduAggregator()

void ns3::MacLow::SetMpduAggregator ( const Ptr< MpduAggregator > aggr )

Set the aggregator used to construct A-MPDU subframes.

Parameters

aggr	pointer to the MPDU aggregator.

Definition at line 302 of file mac-low.cc.

References m_mpduAggregator, and NS_LOG_FUNCTION.

◆ SetMsduAggregator()

void ns3::MacLow::SetMsduAggregator ( const Ptr< MsduAggregator > aggr )

Set the aggregator used to construct A-MSDU subframes.

Parameters

aggr	pointer to the MSDU aggregator.

Definition at line 295 of file mac-low.cc.

References m_msduAggregator, and NS_LOG_FUNCTION.

◆ SetPhy()

void ns3::MacLow::SetPhy ( const Ptr< WifiPhy > phy )

Set up WifiPhy associated with this MacLow.

Parameters

phy	WifiPhy associated with this MacLow

Definition at line 247 of file mac-low.cc.

References DeaggregateAmpduAndReceive(), m_phy, ns3::MakeCallback(), third::phy, ReceiveError(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), and SetupPhyMacLowListener().

Here is the call graph for this function:

◆ SetPifs()

void ns3::MacLow::SetPifs ( Time pifs )

Set PCF Interframe Space (PIFS) of this MacLow.

Parameters

pifs	PIFS of this MacLow

Definition at line 363 of file mac-low.cc.

References m_pifs.

◆ SetPromisc()

void ns3::MacLow::SetPromisc ( void )

Enable promiscuous mode.

Definition at line 393 of file mac-low.cc.

References m_promisc.

◆ SetRifs()

void ns3::MacLow::SetRifs ( Time rifs )

Set Reduced Interframe Space (RIFS) of this MacLow.

Parameters

rifs	RIFS of this MacLow

Definition at line 369 of file mac-low.cc.

References m_rifs.

◆ SetRxCallback()

void ns3::MacLow::SetRxCallback ( Callback< void, Ptr< Packet >, const WifiMacHeader *> callback )

Parameters

callback the callback which receives every incoming packet.

This callback typically forwards incoming packets to an instance of ns3::MacRxMiddle.

Definition at line 477 of file mac-low.cc.

References m_rxCallback.

◆ SetSifs()

void ns3::MacLow::SetSifs ( Time sifs )

Set Short Interframe Space (SIFS) of this MacLow.

Parameters

sifs	SIFS of this MacLow

Definition at line 351 of file mac-low.cc.

References m_sifs.

◆ SetSlotTime()

void ns3::MacLow::SetSlotTime ( Time slotTime )

Set slot duration of this MacLow.

Parameters

slotTime slot duration of this MacLow

Definition at line 357 of file mac-low.cc.

References m_slotTime.

◆ SetupPhyMacLowListener()

void ns3::MacLow::SetupPhyMacLowListener ( const Ptr< WifiPhy > phy )

private

Set up WifiPhy listener for this MacLow.

Parameters

phy	the WifiPhy this MacLow is connected to

Definition at line 154 of file mac-low.cc.

References m_phyMacLowListener, and third::phy.

Referenced by SetPhy().

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::MacLow::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager > manager )

Set up WifiRemoteStationManager associated with this MacLow.

Parameters

manager WifiRemoteStationManager associated with this MacLow

Definition at line 277 of file mac-low.cc.

References m_stationManager.

◆ StartDataTxTimers()

void ns3::MacLow::StartDataTxTimers ( WifiTxVector dataTxVector )

private

Start a DATA timer by scheduling appropriate ACK timeout.

Parameters

dataTxVector

Definition at line 1783 of file mac-low.cc.

References ns3::BASIC_BLOCK_ACK, BlockAckTimeout(), ns3::WifiPhy::CalculateTxDuration(), ns3::COMPRESSED_BLOCK_ACK, EndTxNoAck(), ns3::EXTENDED_COMPRESSED_BLOCK_ACK, GetAckTimeout(), GetBasicBlockAckTimeout(), ns3::MacLowTransmissionParameters::GetBlockAckType(), GetCompressedBlockAckTimeout(), ns3::WifiPhy::GetFrequency(), GetRifs(), ns3::WifiRemoteStationManager::GetRifsPermitted(), GetSifs(), ns3::Txop::GetTxopLimit(), ns3::Txop::GetTxopRemaining(), ns3::MacLowTransmissionParameters::HasNextPacket(), IsCfPeriod(), ns3::EventId::IsExpired(), ns3::Txop::IsQosTxop(), ns3::Time::IsStrictlyPositive(), m_blockAckTimeoutEvent, m_currentPacket, m_currentTxop, m_endTxNoAckEvent, m_normalAckTimeoutEvent, m_phy, m_stationManager, m_txParams, m_waitIfsEvent, ns3::MacLowTransmissionParameters::MustWaitBlockAck(), ns3::MacLowTransmissionParameters::MustWaitNormalAck(), NormalAckTimeout(), NotifyAckTimeoutStartNow(), NS_ASSERT, ns3::Simulator::Schedule(), WaitIfsAfterEndTxFragment(), and WaitIfsAfterEndTxPacket().

Referenced by SendBlockAckResponse(), SendDataAfterCts(), and SendDataPacket().

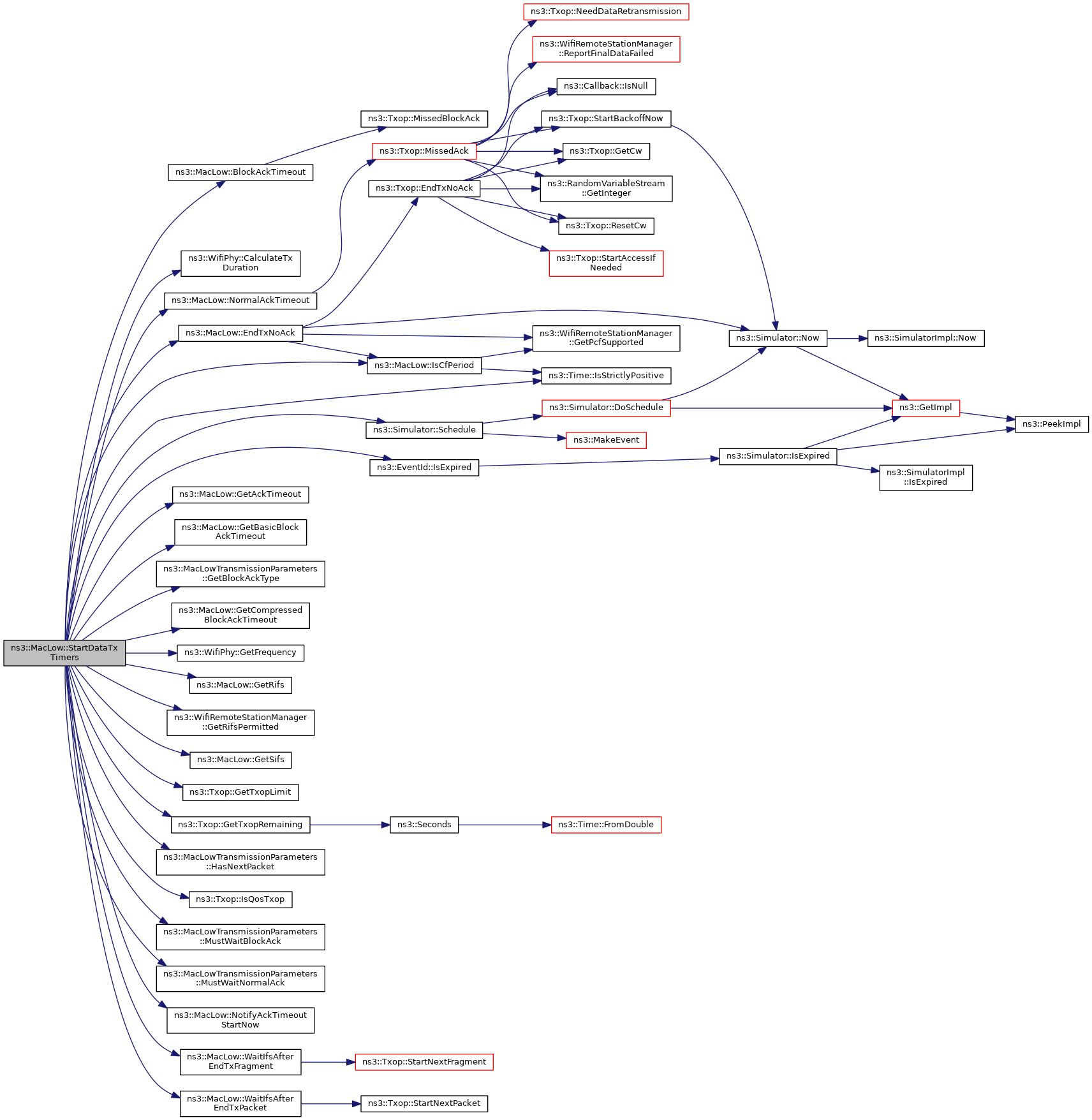

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartTransmission()

void ns3::MacLow::StartTransmission	(	Ptr< WifiMacQueueItem >	mpdu,
		MacLowTransmissionParameters	parameters,
		Ptr< Txop >	txop
	)

virtual

Parameters

mpdu	packet to send
parameters	the transmission parameters to use for this packet.
txop	pointer to the calling Txop.

Start the transmission of the input packet and notify the listener of transmission events.

Reimplemented in ns3::WaveMacLow.

Definition at line 489 of file mac-low.cc.

References CalculateOverheadTxTime(), CancelAllEvents(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableCompressedBlockAck(), ns3::MacLowTransmissionParameters::EnableExtendedCompressedBlockAck(), ns3::MacLow::CfAckInfo::expectCfAck, GetDataTxVector(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), GetRtsTxVector(), ns3::GetTid(), ns3::Txop::GetTxopLimit(), ns3::Txop::GetTxopRemaining(), ns3::WifiRemoteStationManager::GetUseNonErpProtection(), ns3::Time::IsPositive(), ns3::WifiPhy::IsStateOff(), ns3::WifiPhy::IsStateTx(), ns3::Time::IsStrictlyPositive(), m_cfAckInfo, m_ctsToSelfSupported, m_currentPacket, m_currentTxop, m_currentTxVector, m_edca, m_mpduAggregator, m_phy, m_stationManager, m_txParams, ns3::MacLowTransmissionParameters::MustSendRts(), NeedCtsToSelf(), ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Seconds(), SendCtsToSelf(), SendDataPacket(), SendRtsForPacket(), ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::WaveMacLow::StartTransmission().

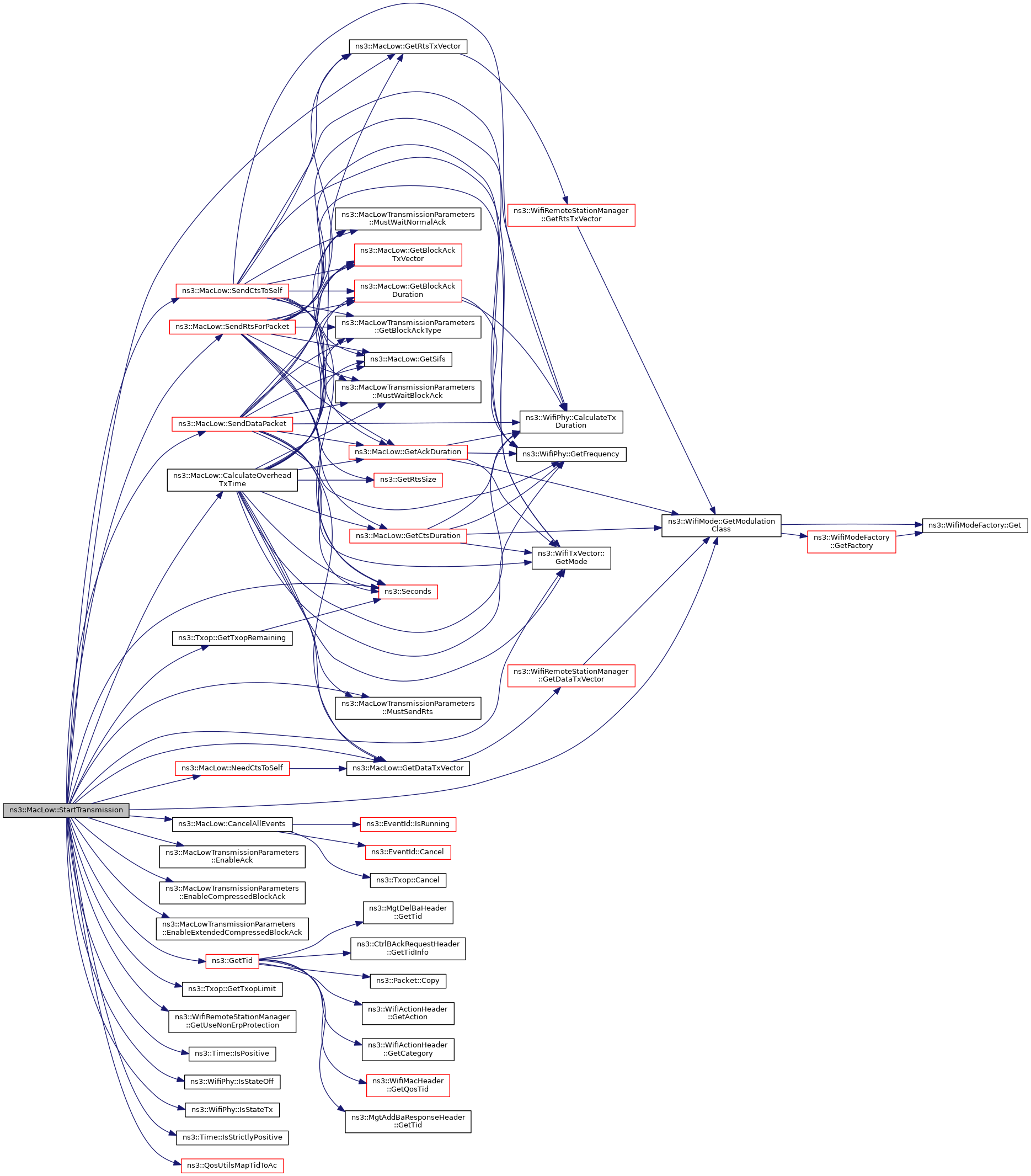

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StoreMpduIfNeeded()

bool ns3::MacLow::StoreMpduIfNeeded	(	Ptr< Packet >	packet,
		WifiMacHeader	hdr
	)

private

Parameters

packet	the packet
hdr	the header

Returns: true if the MPDU stored

This method checks if exists a valid established block ack agreement. If there is, store the packet without pass it up to WifiMac. The packet is buffered in order of increasing sequence control field. All comparison are performed circularly modulo 2^12.

Definition at line 2204 of file mac-low.cc.

References ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), m_bAckAgreements, m_bAckCaches, NS_ASSERT, ns3::QosUtilsMapSeqControlToUniqueInteger(), and ns3::Packet::RemoveTrailer().

Referenced by ReceiveMpdu().

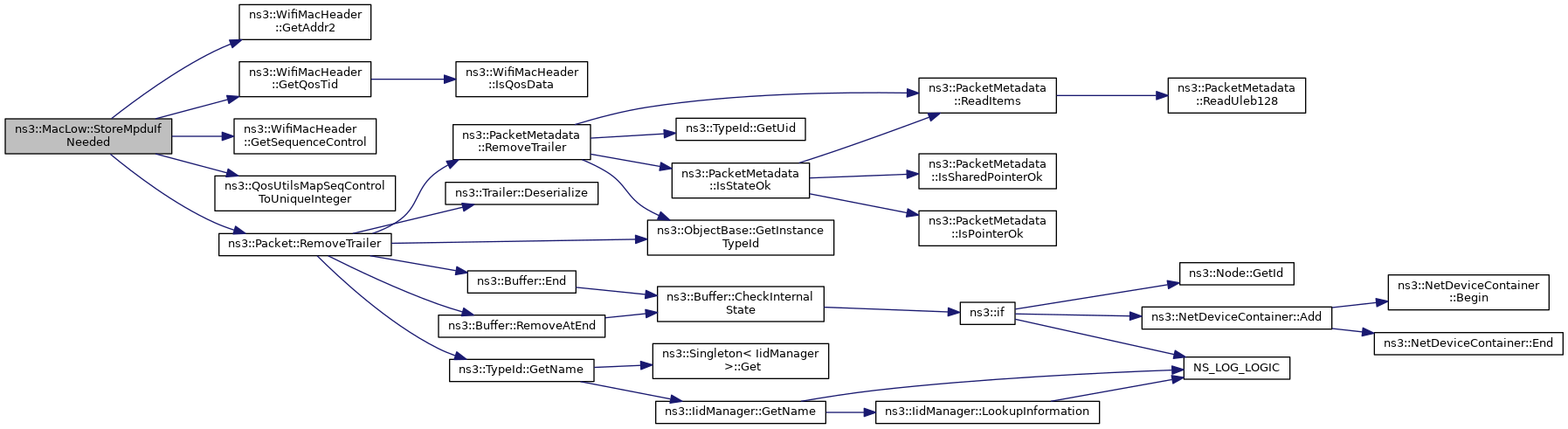

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WaitIfsAfterEndTxFragment()

void ns3::MacLow::WaitIfsAfterEndTxFragment ( void )

private

Event handler that is usually scheduled to fired at the appropriate time after completing transmissions.

Definition at line 2097 of file mac-low.cc.

References m_currentTxop, NS_LOG_FUNCTION, and ns3::Txop::StartNextFragment().

Referenced by ReceiveOk(), and StartDataTxTimers().

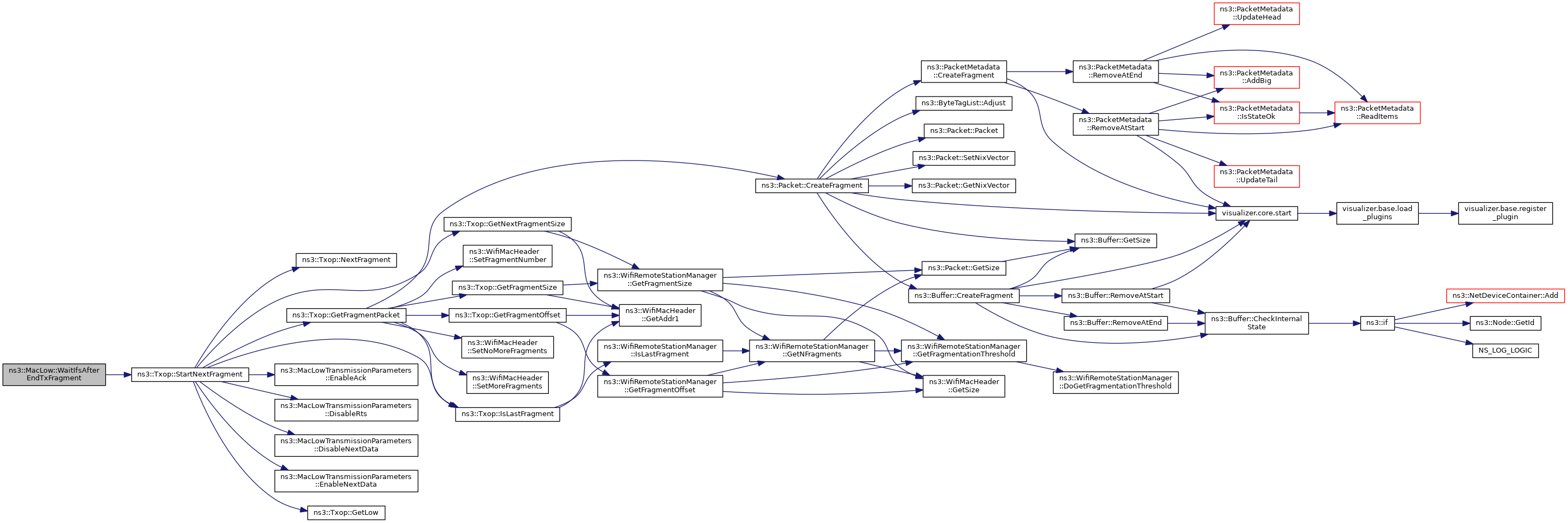

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WaitIfsAfterEndTxPacket()

void ns3::MacLow::WaitIfsAfterEndTxPacket ( void )

private

Event handler that is usually scheduled to fired at the appropriate time after sending a packet.

Definition at line 2104 of file mac-low.cc.

References m_currentTxop, NS_LOG_FUNCTION, and ns3::Txop::StartNextPacket().

Referenced by ReceiveOk(), and StartDataTxTimers().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_ackTimeout

Time ns3::MacLow::m_ackTimeout

private

ACK timeout duration.

Definition at line 911 of file mac-low.h.

Referenced by GetAckTimeout(), and SetAckTimeout().

◆ m_bAckAgreements

Agreements ns3::MacLow::m_bAckAgreements

private

block ack agreements

Definition at line 949 of file mac-low.h.

Referenced by CreateBlockAckAgreement(), DeaggregateAmpduAndReceive(), DestroyBlockAckAgreement(), ReceiveMpdu(), ReceiveOk(), RxCompleteBufferedPacketsUntilFirstLost(), RxCompleteBufferedPacketsWithSmallerSequence(), SendBlockAckAfterAmpdu(), SendBlockAckAfterBlockAckRequest(), and StoreMpduIfNeeded().

◆ m_bAckCaches

BlockAckCaches ns3::MacLow::m_bAckCaches

private

block ack caches

Definition at line 950 of file mac-low.h.

Referenced by CreateBlockAckAgreement(), DestroyBlockAckAgreement(), ReceiveOk(), SendBlockAckAfterAmpdu(), SendBlockAckAfterBlockAckRequest(), and StoreMpduIfNeeded().

◆ m_basicBlockAckTimeout

Time ns3::MacLow::m_basicBlockAckTimeout

private

Basic block ACK timeout duration.

Definition at line 912 of file mac-low.h.

Referenced by GetBasicBlockAckTimeout(), and SetBasicBlockAckTimeout().

◆ m_beaconInterval

Time ns3::MacLow::m_beaconInterval

private

Expected interval between two beacon transmissions.

Definition at line 920 of file mac-low.h.

Referenced by ForwardDown(), GetBeaconInterval(), and SetBeaconInterval().

◆ m_blockAckTimeoutEvent

EventId ns3::MacLow::m_blockAckTimeoutEvent

private

Block ACK timeout event.

Definition at line 897 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), ReceiveOk(), and StartDataTxTimers().

◆ m_bssid

Mac48Address ns3::MacLow::m_bssid

private

BSSID address (Mac48Address)

Definition at line 910 of file mac-low.h.

Referenced by GetBssid(), NotifyNav(), and SetBssid().

◆ m_cfAckInfo

CfAckInfo ns3::MacLow::m_cfAckInfo

private

Info about piggyback ACKs used in PCF.

Definition at line 958 of file mac-low.h.

Referenced by CfPollTimeout(), EndTxNoAck(), ForwardDown(), GetCfEndSize(), ReceiveError(), ReceiveOk(), SendDataPacket(), and StartTransmission().

◆ m_cfpForeshortening

Time ns3::MacLow::m_cfpForeshortening

private

The delay the current CF period should be foreshortened.

Definition at line 928 of file mac-low.h.

Referenced by ForwardDown(), and GetRemainingCfpDuration().

◆ m_cfpMaxDuration

Time ns3::MacLow::m_cfpMaxDuration

private

CFP max duration.

Definition at line 921 of file mac-low.h.

Referenced by GetCfpMaxDuration(), GetRemainingCfpDuration(), and SetCfpMaxDuration().

◆ m_cfpStart

Time ns3::MacLow::m_cfpStart

private

The time when the latest CF period started.

Definition at line 926 of file mac-low.h.

Referenced by EndTxNoAck(), ForwardDown(), GetRemainingCfpDuration(), IsCfPeriod(), and ReceiveOk().

◆ m_channelAccessManagers

ChannelAccessManagers ns3::MacLow::m_channelAccessManagers

private

List of ChannelAccessManager.

Definition at line 891 of file mac-low.h.

Referenced by CfPollTimeout(), DoNavResetNow(), DoNavStartNow(), NotifyAckTimeoutResetNow(), NotifyAckTimeoutStartNow(), NotifyCtsTimeoutResetNow(), NotifyCtsTimeoutStartNow(), and RegisterDcf().

◆ m_compressedBlockAckTimeout

Time ns3::MacLow::m_compressedBlockAckTimeout

private

Compressed block ACK timeout duration.

Definition at line 913 of file mac-low.h.

Referenced by GetCompressedBlockAckTimeout(), and SetCompressedBlockAckTimeout().

◆ m_ctsTimeout

Time ns3::MacLow::m_ctsTimeout

private

CTS timeout duration.

Definition at line 914 of file mac-low.h.

Referenced by GetCtsTimeout(), and SetCtsTimeout().

◆ m_ctsTimeoutEvent

EventId ns3::MacLow::m_ctsTimeoutEvent

private

CTS timeout event.

Definition at line 898 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), ReceiveOk(), and SendRtsForPacket().

◆ m_ctsToSelfSupported

bool ns3::MacLow::m_ctsToSelfSupported

private

Flag whether CTS-to-self is supported.

Definition at line 955 of file mac-low.h.

Referenced by GetCtsToSelfSupported(), SetCtsToSelfSupported(), and StartTransmission().

◆ m_currentPacket

Ptr<WifiPsdu> ns3::MacLow::m_currentPacket

private

Current packet transmitted/to be transmitted.

Definition at line 906 of file mac-low.h.

Referenced by BlockAckTimeout(), CalculateOverallTxTime(), CtsTimeout(), EndTxNoAck(), NeedCtsToSelf(), NotifyOffNow(), NotifySleepNow(), NotifySwitchingStartNow(), ReceiveError(), ReceiveOk(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), SendRtsForPacket(), StartDataTxTimers(), and StartTransmission().

◆ m_currentTxop

Ptr<Txop> ns3::MacLow::m_currentTxop

private

Current TXOP.

Definition at line 907 of file mac-low.h.

Referenced by BlockAckTimeout(), CancelAllEvents(), CfPollTimeout(), CtsTimeout(), EndTxNoAck(), NormalAckTimeout(), NotifyOffNow(), NotifySleepNow(), NotifySwitchingStartNow(), ReceiveError(), ReceiveOk(), StartDataTxTimers(), StartTransmission(), WaitIfsAfterEndTxFragment(), and WaitIfsAfterEndTxPacket().

◆ m_currentTxVector

WifiTxVector ns3::MacLow::m_currentTxVector

private

TXVECTOR used for the current packet transmission.

Definition at line 956 of file mac-low.h.

Referenced by CanTransmitNextCfFrame(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), SendRtsForPacket(), and StartTransmission().

◆ m_edca

QueueEdcas ns3::MacLow::m_edca

private

EDCA queues.

Definition at line 953 of file mac-low.h.

Referenced by CreateBlockAckAgreement(), ForwardDown(), ReceiveOk(), RegisterEdcaForAc(), ResetBlockAckInactivityTimerIfNeeded(), and StartTransmission().

◆ m_endTxNoAckEvent

EventId ns3::MacLow::m_endTxNoAckEvent

private

Event for finishing transmission that does not require ACK.

Definition at line 903 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), and StartDataTxTimers().

◆ m_lastBeacon

Time ns3::MacLow::m_lastBeacon

private

The time when the last beacon frame transmission started.

Definition at line 927 of file mac-low.h.

Referenced by ForwardDown().

◆ m_lastNavDuration

Time ns3::MacLow::m_lastNavDuration

private

The duration of the latest NAV.

Definition at line 924 of file mac-low.h.

Referenced by DoNavResetNow(), DoNavStartNow(), IsNavZero(), NotifyOffNow(), NotifySleepNow(), and NotifySwitchingStartNow().

◆ m_lastNavStart

Time ns3::MacLow::m_lastNavStart

private

The time when the latest NAV started.

Definition at line 923 of file mac-low.h.

Referenced by DoNavResetNow(), DoNavStartNow(), IsNavZero(), NotifyNav(), NotifyOffNow(), NotifySleepNow(), and NotifySwitchingStartNow().

◆ m_mac

Ptr<WifiMac> ns3::MacLow::m_mac

private

Pointer to WifiMac (to fetch configuration)

Definition at line 869 of file mac-low.h.

Referenced by SetMac().

◆ m_mpduAggregator

Ptr<MpduAggregator> ns3::MacLow::m_mpduAggregator

private

A-MPDU aggregator.

Definition at line 894 of file mac-low.h.

Referenced by DoDispose(), GetMpduAggregator(), SetMpduAggregator(), and StartTransmission().

◆ m_msduAggregator

Ptr<MsduAggregator> ns3::MacLow::m_msduAggregator

private

A-MSDU aggregator.

Definition at line 893 of file mac-low.h.

Referenced by DoDispose(), GetMsduAggregator(), and SetMsduAggregator().

◆ m_navCounterResetCtsMissed

EventId ns3::MacLow::m_navCounterResetCtsMissed

private

Event to reset NAV when CTS is not received.

Definition at line 904 of file mac-low.h.

Referenced by NotifyNav(), NotifyOffNow(), NotifySleepNow(), and NotifySwitchingStartNow().

◆ m_normalAckTimeoutEvent

EventId ns3::MacLow::m_normalAckTimeoutEvent

private

Normal ACK timeout event.

Definition at line 896 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), ReceiveOk(), and StartDataTxTimers().

◆ m_phy

Ptr<WifiPhy> ns3::MacLow::m_phy

private

Pointer to WifiPhy (actually send/receives frames)

Definition at line 868 of file mac-low.h.

Referenced by CalculateOverallTxTime(), CalculateOverheadTxTime(), CalculateTransmissionTime(), CanTransmitNextCfFrame(), DoDispose(), ForwardDown(), GetAckDuration(), GetAckTxVector(), GetBlockAckDuration(), GetBlockAckTxVector(), GetControlAnswerMode(), GetCtsDuration(), GetCtsTxVector(), GetPhy(), IsWithinSizeAndTimeLimits(), NavCounterResetCtsMissed(), NotifyNav(), ResetPhy(), SendBlockAckAfterAmpdu(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), SendRtsForPacket(), SetPhy(), StartDataTxTimers(), and StartTransmission().

◆ m_phyMacLowListener

class PhyMacLowListener* ns3::MacLow::m_phyMacLowListener

private

Listener needed to monitor when a channel switching occurs.

Definition at line 932 of file mac-low.h.

Referenced by DoDispose(), RemovePhyMacLowListener(), and SetupPhyMacLowListener().

◆ m_pifs

Time ns3::MacLow::m_pifs

private

PCF Interframe Space (PIFS) duration.

Definition at line 917 of file mac-low.h.

Referenced by GetPifs(), and SetPifs().

◆ m_promisc

bool ns3::MacLow::m_promisc

private

Flag if the device is operating in promiscuous mode.

Definition at line 930 of file mac-low.h.

Referenced by IsPromisc(), ReceiveOk(), and SetPromisc().

◆ m_rifs

Time ns3::MacLow::m_rifs

private

Reduced Interframe Space (RIFS) duration.

Definition at line 918 of file mac-low.h.

Referenced by GetRifs(), and SetRifs().

◆ m_rxCallback

MacLowRxCallback ns3::MacLow::m_rxCallback

private

Callback to pass packet up.

Definition at line 871 of file mac-low.h.

Referenced by ReceiveOk(), RxCompleteBufferedPacketsUntilFirstLost(), RxCompleteBufferedPacketsWithSmallerSequence(), and SetRxCallback().

◆ m_self

Mac48Address ns3::MacLow::m_self

private

Address of this MacLow (Mac48Address)

Definition at line 909 of file mac-low.h.

Referenced by DeaggregateAmpduAndReceive(), GetAddress(), NotifyNav(), ReceiveOk(), SendCtsToSelf(), SendRtsForPacket(), and SetAddress().

◆ m_sendAckEvent

EventId ns3::MacLow::m_sendAckEvent

private

Event to send ACK.

Definition at line 900 of file mac-low.h.

Referenced by CancelAllEvents(), DeaggregateAmpduAndReceive(), DoDispose(), and ReceiveOk().

◆ m_sendCtsEvent

EventId ns3::MacLow::m_sendCtsEvent

private

Event to send CTS.

Definition at line 899 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), and ReceiveOk().

◆ m_sendDataEvent

EventId ns3::MacLow::m_sendDataEvent

private

Event to send DATA.

Definition at line 901 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), ReceiveOk(), and SendCtsToSelf().

◆ m_sifs

Time ns3::MacLow::m_sifs

private

Short Interframe Space (SIFS) duration.

Definition at line 915 of file mac-low.h.

Referenced by GetSifs(), and SetSifs().

◆ m_slotTime

Time ns3::MacLow::m_slotTime

private

Slot duration.

Definition at line 916 of file mac-low.h.

Referenced by GetSlotTime(), and SetSlotTime().

◆ m_stationManager

Ptr<WifiRemoteStationManager> ns3::MacLow::m_stationManager

private

Pointer to WifiRemoteStationManager (rate control)

Definition at line 870 of file mac-low.h.

Referenced by CtsTimeout(), DoDispose(), EndTxNoAck(), ForwardDown(), GetAckTxVector(), GetBlockAckTxVector(), GetControlAnswerMode(), GetCtsTxVector(), GetDataTxVector(), GetRtsTxVector(), IsCfPeriod(), NeedCtsToSelf(), NotifySwitchingStartNow(), ReceiveMpdu(), ReceiveOk(), SendBlockAckAfterBlockAckRequest(), SendDataAfterCts(), SendDataPacket(), SetWifiRemoteStationManager(), StartDataTxTimers(), and StartTransmission().

◆ m_txParams

MacLowTransmissionParameters ns3::MacLow::m_txParams

private

Transmission parameters of the current packet.

Definition at line 908 of file mac-low.h.

Referenced by ReceiveOk(), SendBlockAckResponse(), SendCtsToSelf(), SendDataAfterCts(), SendDataPacket(), SendRtsForPacket(), StartDataTxTimers(), and StartTransmission().

◆ m_waitIfsEvent

EventId ns3::MacLow::m_waitIfsEvent

private

Wait for IFS event.

Definition at line 902 of file mac-low.h.

Referenced by CancelAllEvents(), DoDispose(), ReceiveOk(), and StartDataTxTimers().

The documentation for this class was generated from the following files:

src/wifi/model/mac-low.h
src/wifi/model/mac-low.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AgreementKey

◆ Agreements

◆ AgreementsI

◆ AgreementValue

◆ BlockAckCaches

◆ BlockAckCachesI

◆ BufferedPacket

◆ BufferedPacketI

◆ ChannelAccessManagers

◆ ChannelAccessManagersCI

◆ MacLowRxCallback

◆ QueueEdcas

Constructor & Destructor Documentation

◆ MacLow()

◆ ~MacLow()

Member Function Documentation

◆ BlockAckTimeout()

◆ CalculateOverallTxTime()

◆ CalculateOverheadTxTime()

◆ CalculateTransmissionTime()

◆ CancelAllEvents()

◆ CanTransmitNextCfFrame()

◆ CfPollTimeout()

◆ CreateBlockAckAgreement()

◆ CtsTimeout()

◆ DeaggregateAmpduAndReceive()

◆ DestroyBlockAckAgreement()

◆ DoDispose()

◆ DoNavResetNow()

◆ DoNavStartNow()

◆ EndTxNoAck()

◆ ForwardDown()

◆ GetAckDuration() [1/2]

◆ GetAckDuration() [2/2]

◆ GetAckTimeout()

◆ GetAckTxVector()

◆ GetAckTxVectorForData()

◆ GetAddress()

◆ GetBasicBlockAckTimeout()

◆ GetBeaconInterval()

◆ GetBlockAckDuration()

◆ GetBlockAckTxVector()

◆ GetBssid()

◆ GetCfEndSize()

◆ GetCfpMaxDuration()

◆ GetCompressedBlockAckTimeout()

◆ GetControlAnswerMode()

◆ GetCtsDuration() [1/2]

◆ GetCtsDuration() [2/2]

◆ GetCtsTimeout()

◆ GetCtsToSelfSupported()

◆ GetCtsTxVector()

◆ GetCtsTxVectorForRts()

◆ GetDataTxVector()

◆ GetMpduAggregator()

◆ GetMsduAggregator()

◆ GetPhy()

◆ GetPifs()

◆ GetRemainingCfpDuration()

◆ GetRifs()

◆ GetRtsTxVector()

◆ GetSifs()

◆ GetSlotTime()

◆ GetTypeId()

◆ IsCfPeriod()

◆ IsNavZero()

◆ IsPromisc()

◆ IsWithinSizeAndTimeLimits() [1/2]

◆ IsWithinSizeAndTimeLimits() [2/2]

◆ NavCounterResetCtsMissed()
