ns3::RegularWifiMac Class Reference

base class for all MAC-level wifi objects. More...

#include "regular-wifi-mac.h"

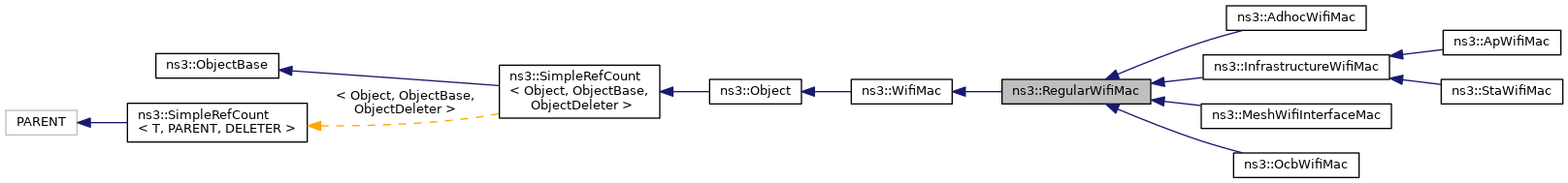

Inheritance diagram for ns3::RegularWifiMac:

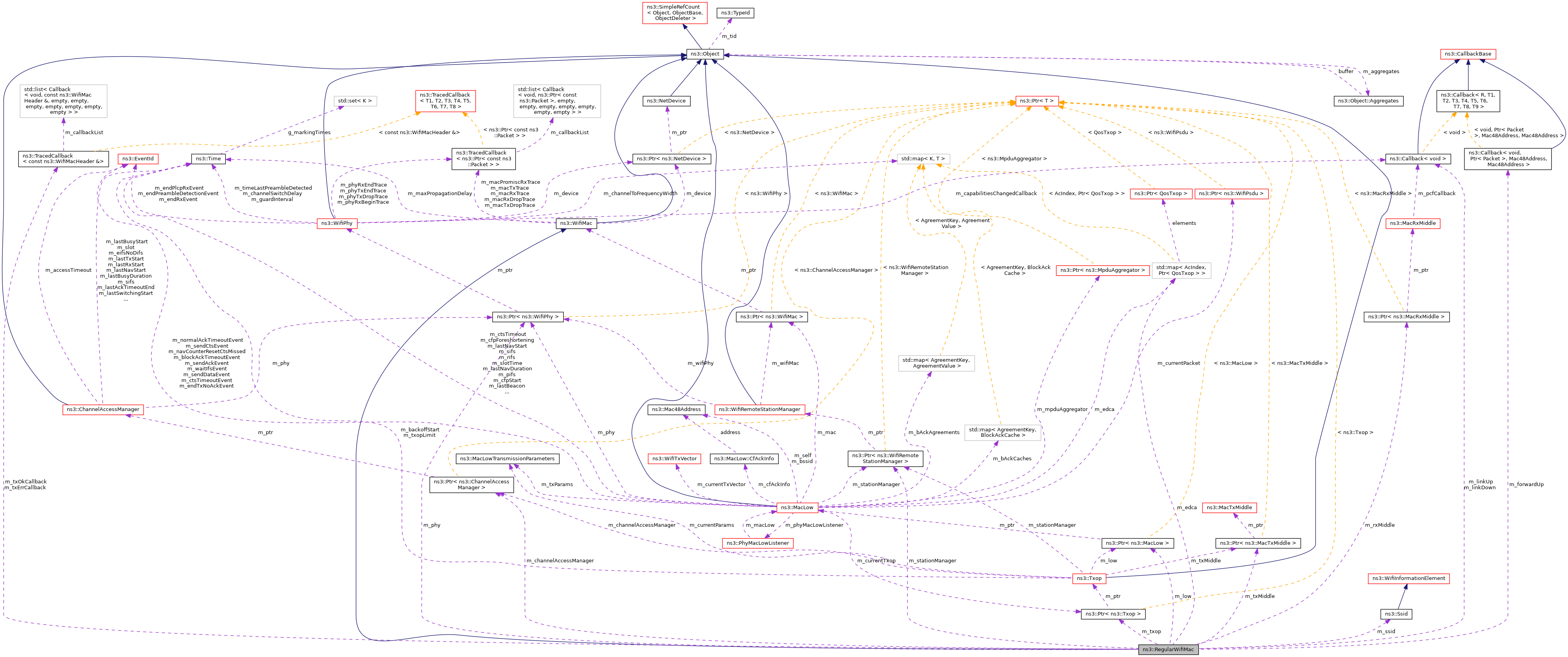

Collaboration diagram for ns3::RegularWifiMac:

Public Types
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Public Member Functions

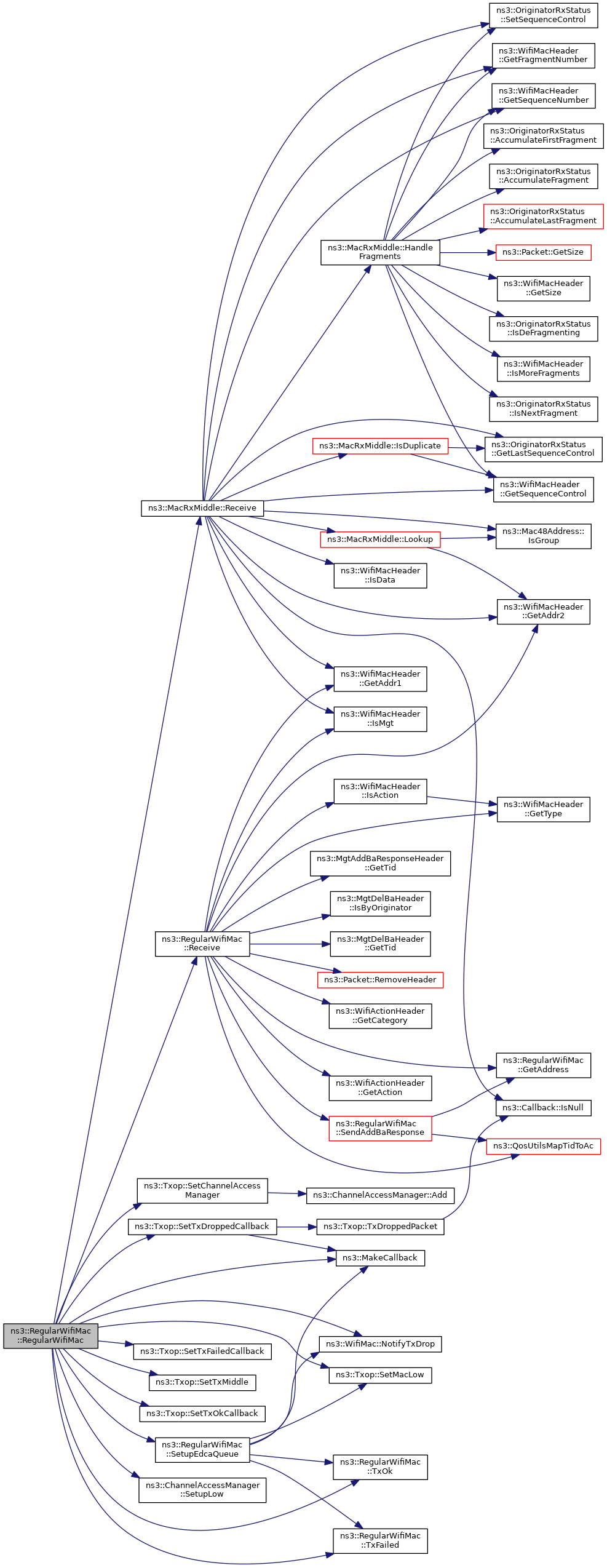

	RegularWifiMac ()
virtual	~RegularWifiMac ()
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0
Time	GetAckTimeout (void) const

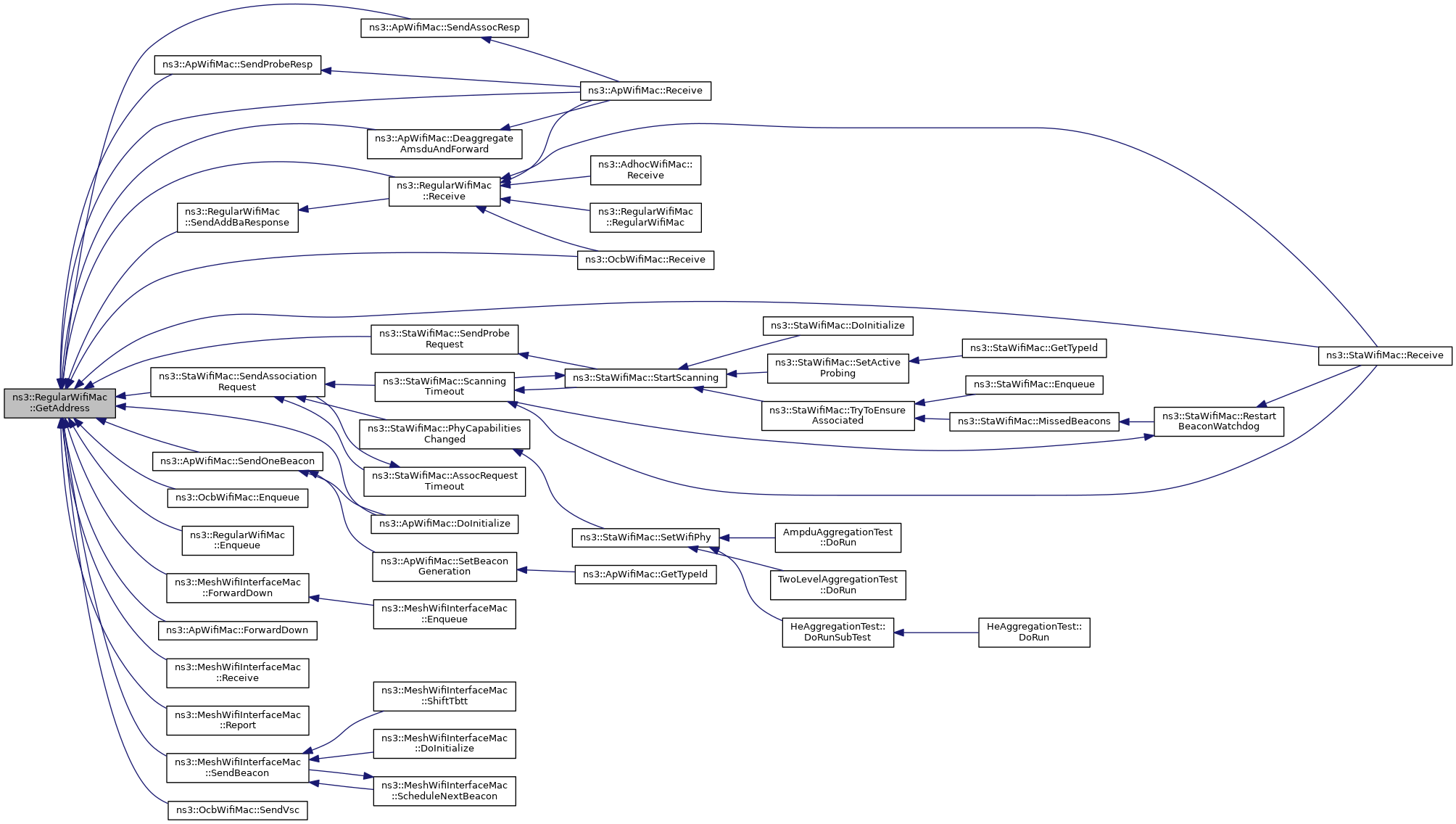

Mac48Address	GetAddress (void) const
Time	GetBasicBlockAckTimeout (void) const

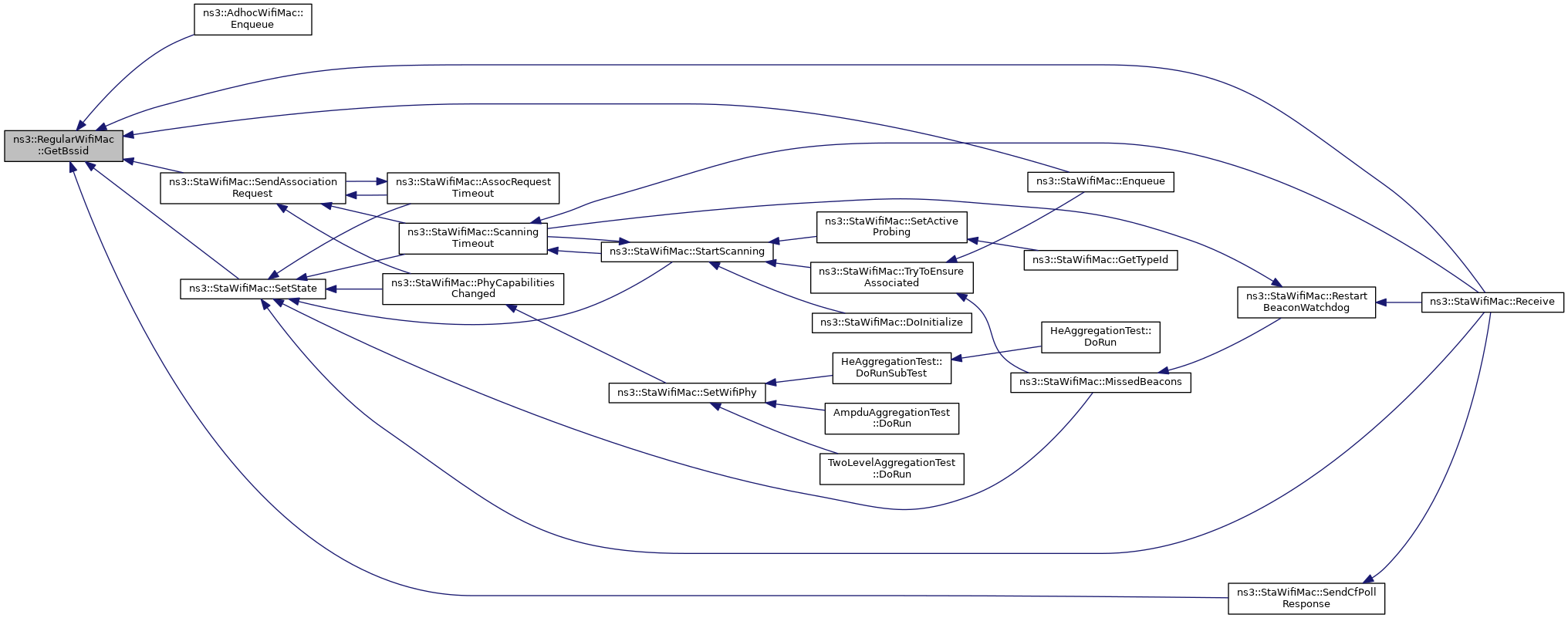

Mac48Address	GetBssid (void) const
Time	GetCompressedBlockAckTimeout (void) const
Time	GetCtsTimeout (void) const
Time	GetEifsNoDifs (void) const

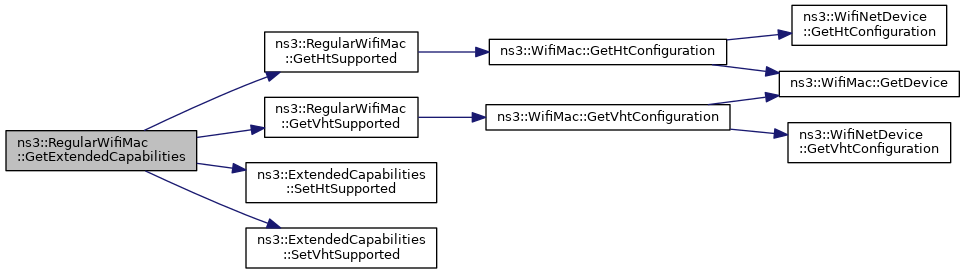

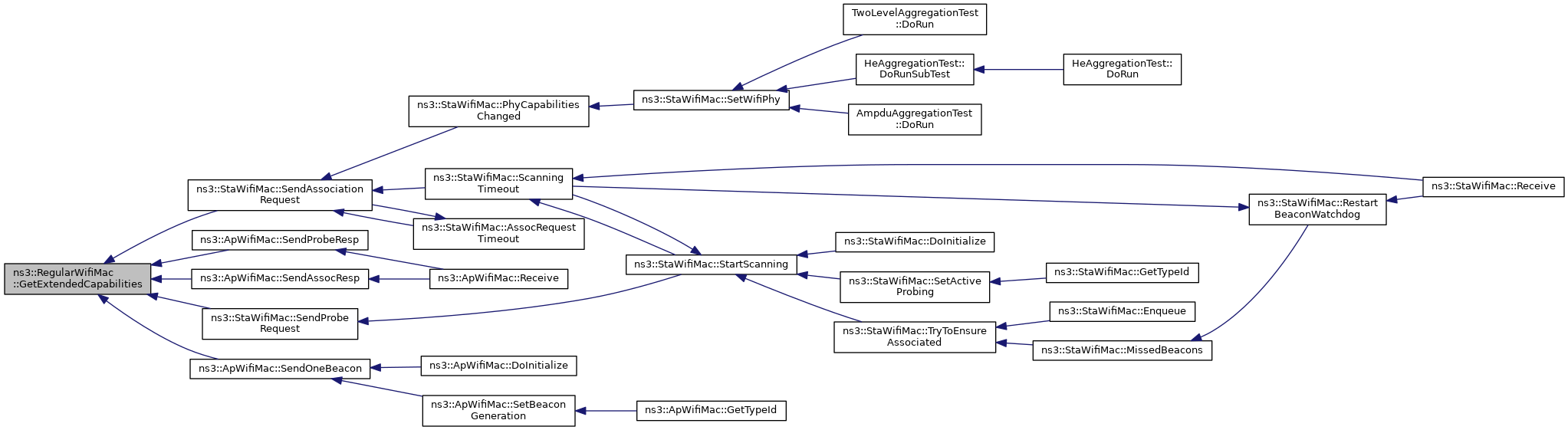

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

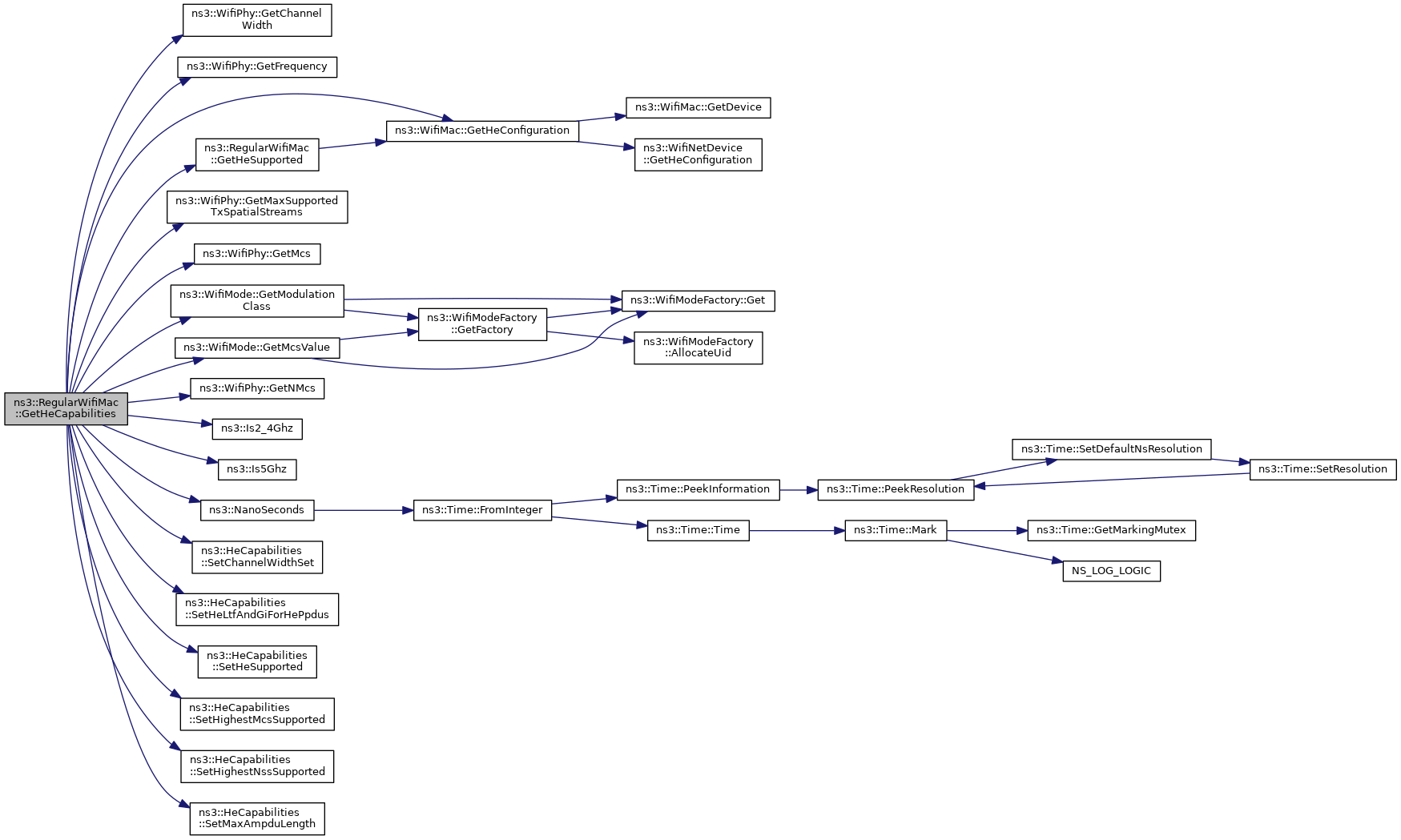

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

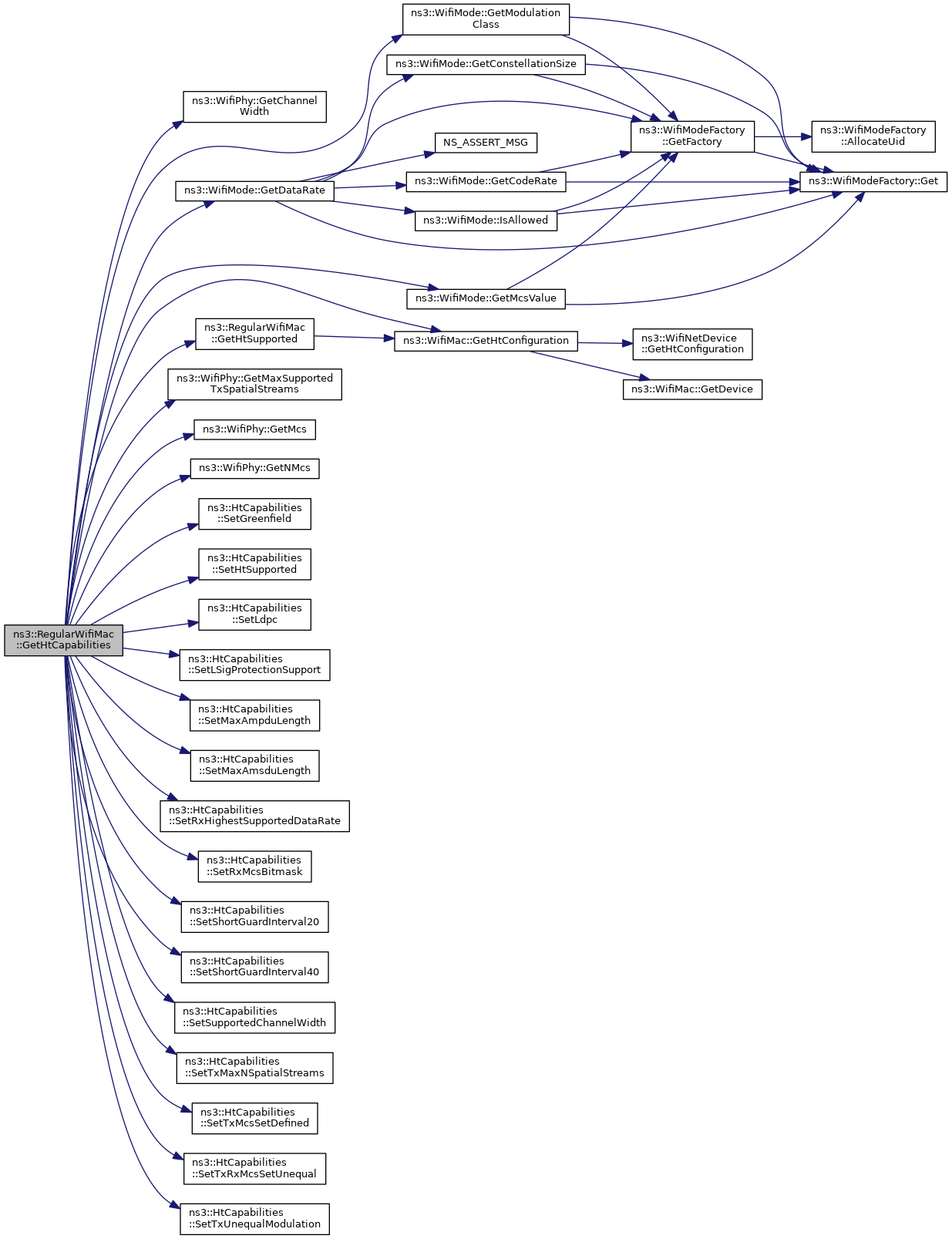

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...
Time	GetPifs (void) const
Time	GetRifs (void) const

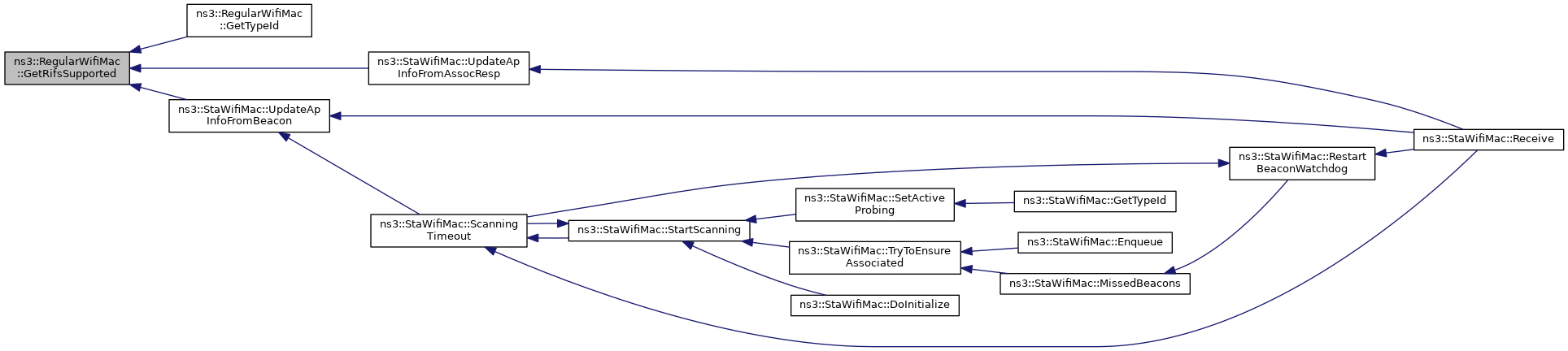

bool	GetRifsSupported (void) const

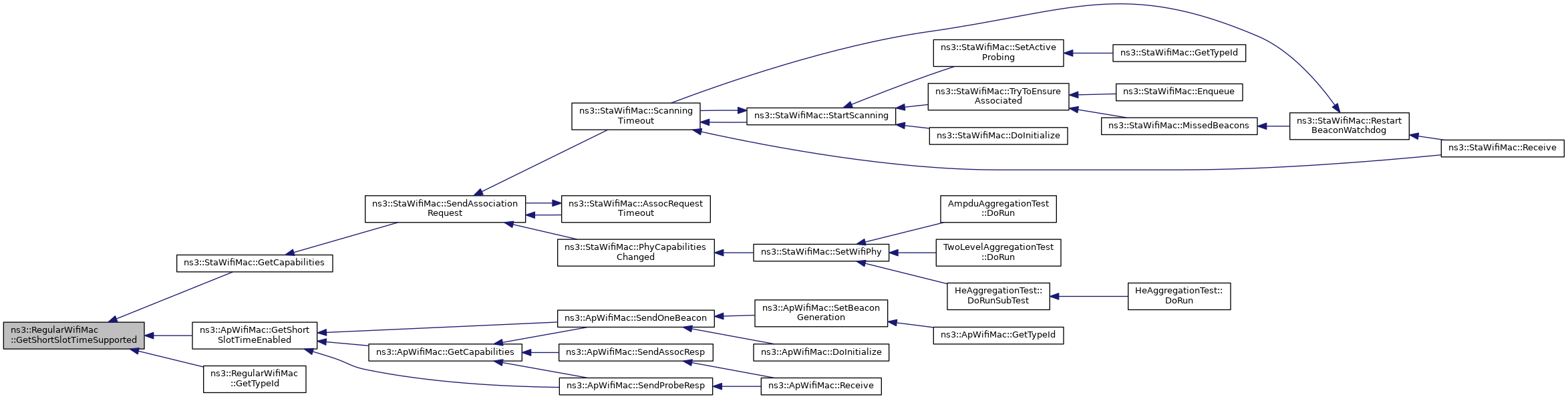

bool	GetShortSlotTimeSupported (void) const
Time	GetSifs (void) const
Time	GetSlot (void) const

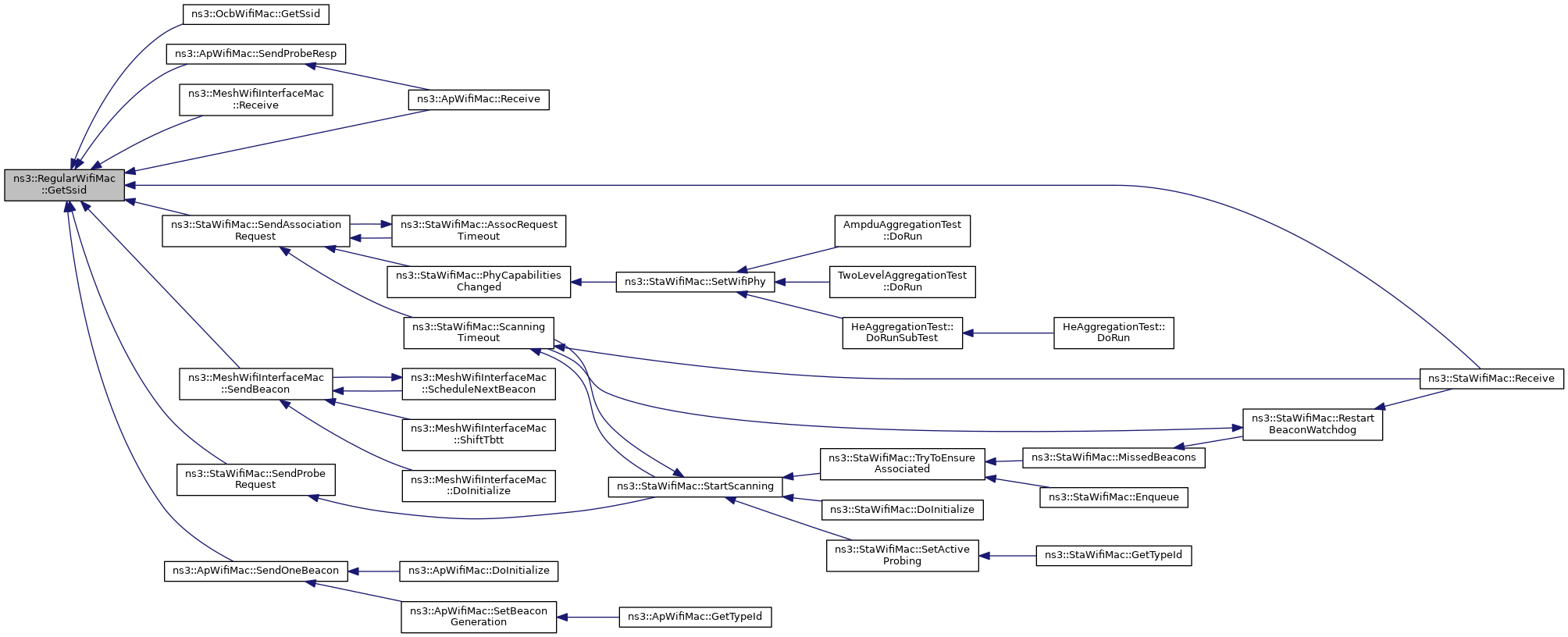

Ssid	GetSsid (void) const

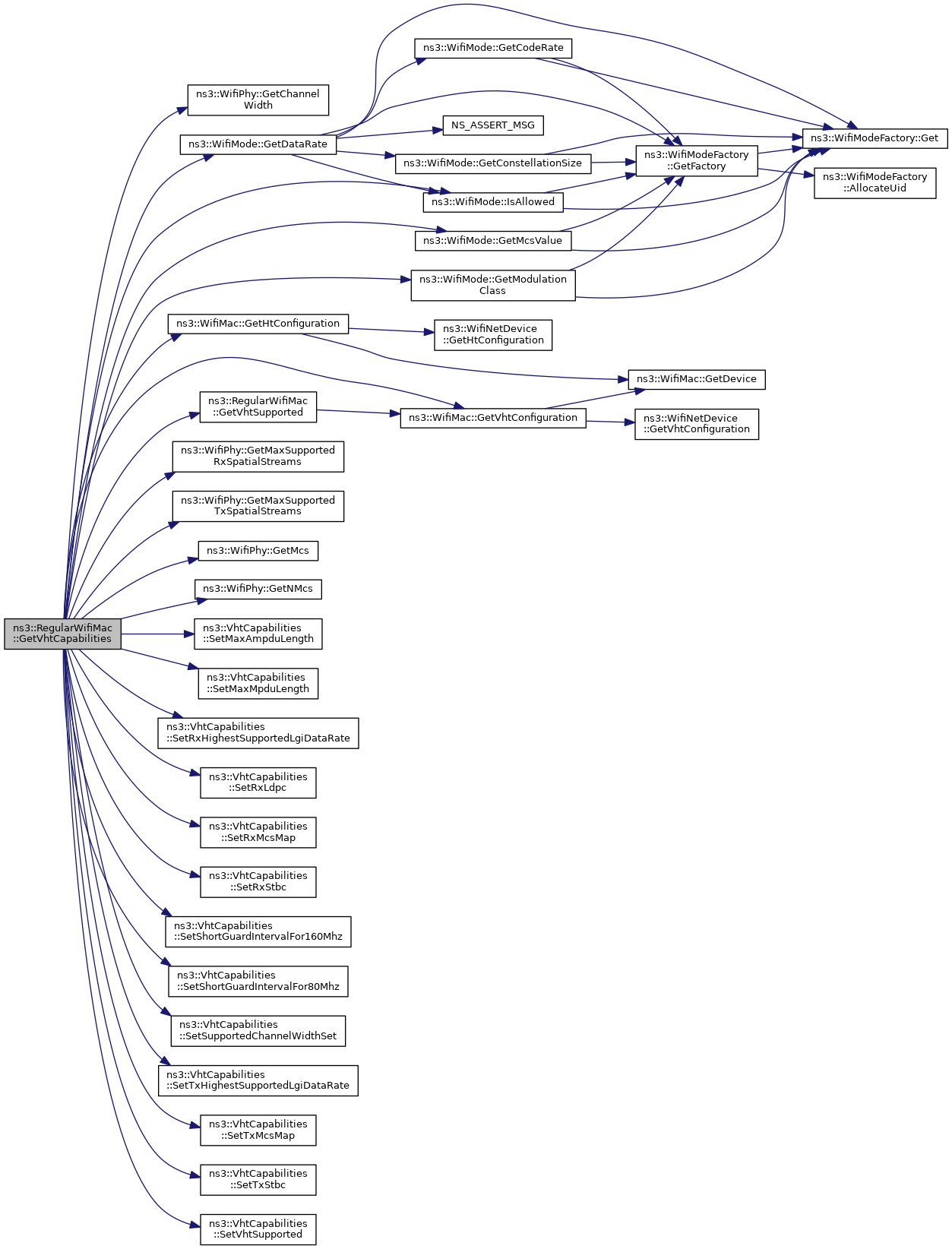

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...
Ptr< WifiPhy >	GetWifiPhy (void) const
Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

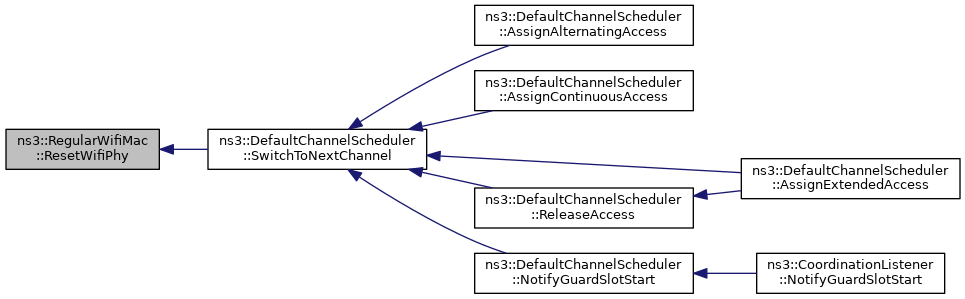

void	ResetWifiPhy (void)
	removes attached WifiPhy device from this MAC. More...
void	SetAckTimeout (Time ackTimeout)

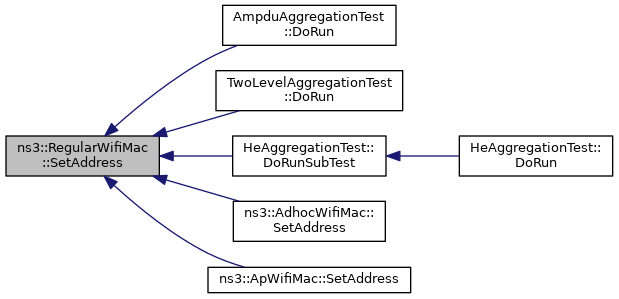

void	SetAddress (Mac48Address address)
void	SetBasicBlockAckTimeout (Time blockAckTimeout)

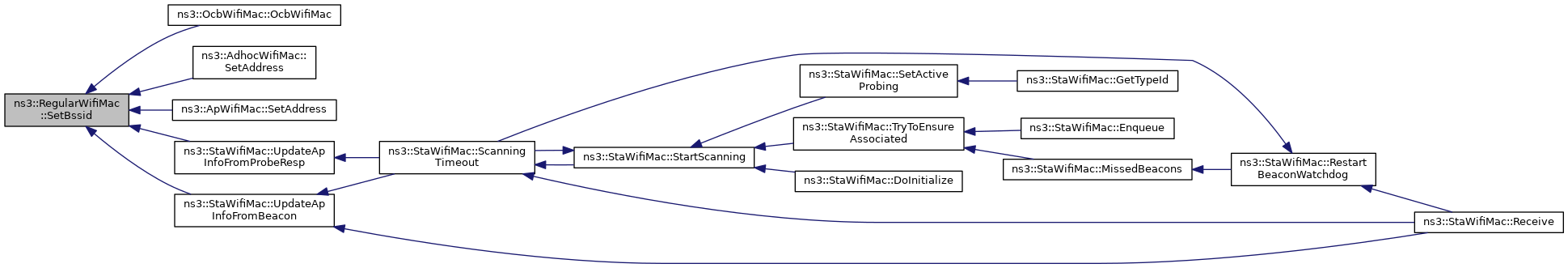

void	SetBssid (Mac48Address bssid)
void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
void	SetCtsTimeout (Time ctsTimeout)
void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...
void	SetEifsNoDifs (Time eifsNoDifs)
void	SetForwardUpCallback (ForwardUpCallback upCallback)
void	SetLinkDownCallback (Callback< void > linkDown)

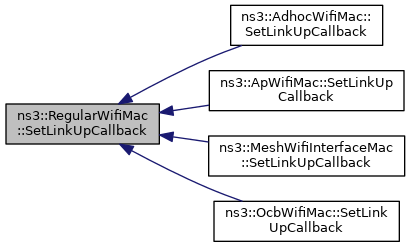

void	SetLinkUpCallback (Callback< void > linkUp)
void	SetPifs (Time pifs)
void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...
void	SetRifs (Time rifs)

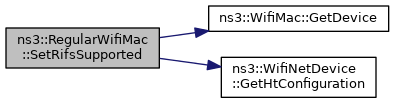

void	SetRifsSupported (bool enable)
	Enable or disable RIFS feature. More...
void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...
void	SetSifs (Time sifs)
void	SetSlot (Time slotTime)
void	SetSsid (Ssid ssid)

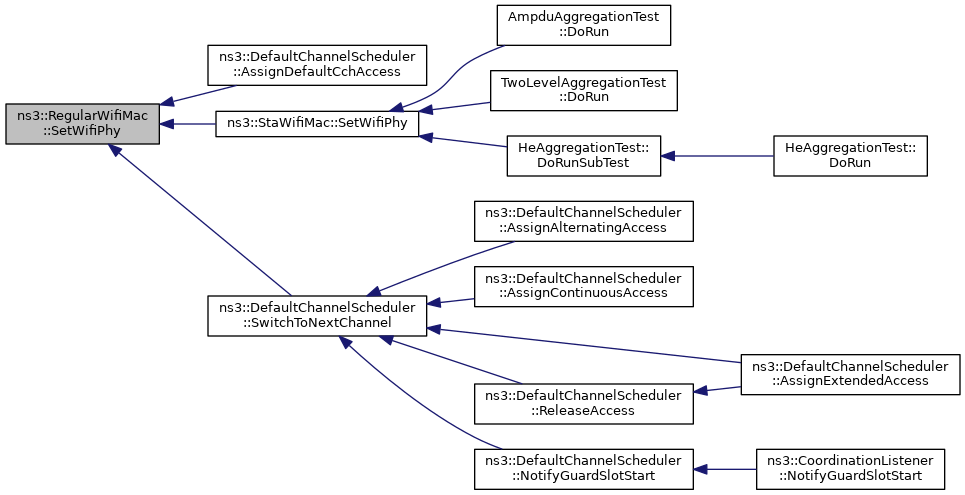

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)

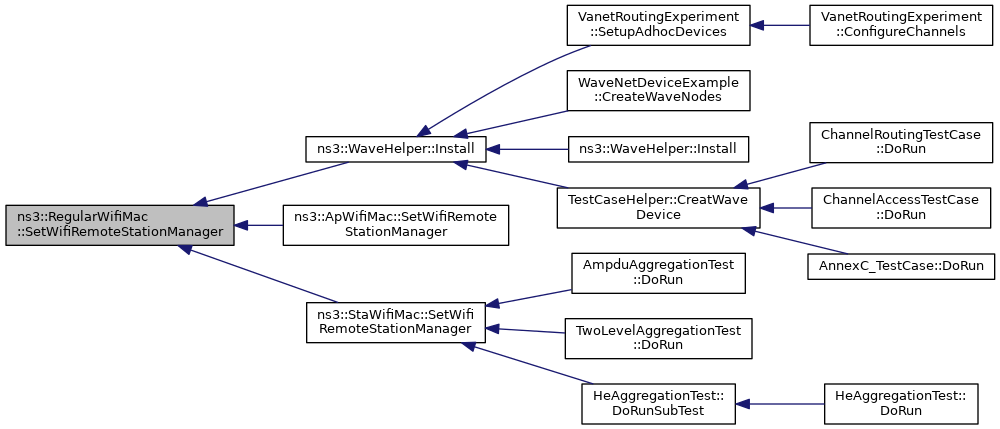

virtual void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (WifiPhyStandard standard)
Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...
Ptr< HeConfiguration >	GetHeConfiguration (void) const
Ptr< HtConfiguration >	GetHtConfiguration (void) const
Ptr< VhtConfiguration >	GetVhtConfiguration (void) const
void	NotifyPromiscRx (Ptr< const Packet > packet)
void	NotifyRx (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyTx (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	SetDevice (const Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...
virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
void	SetMaxPropagationDelay (Time delay)
Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...
virtual	~Object ()
	Destructor. More...
void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...
void	Dispose (void)
	Dispose of this Object. More...
AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...
virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...
template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...
void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...
bool	IsInitialized (void) const
	Check if the object has been initialized. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

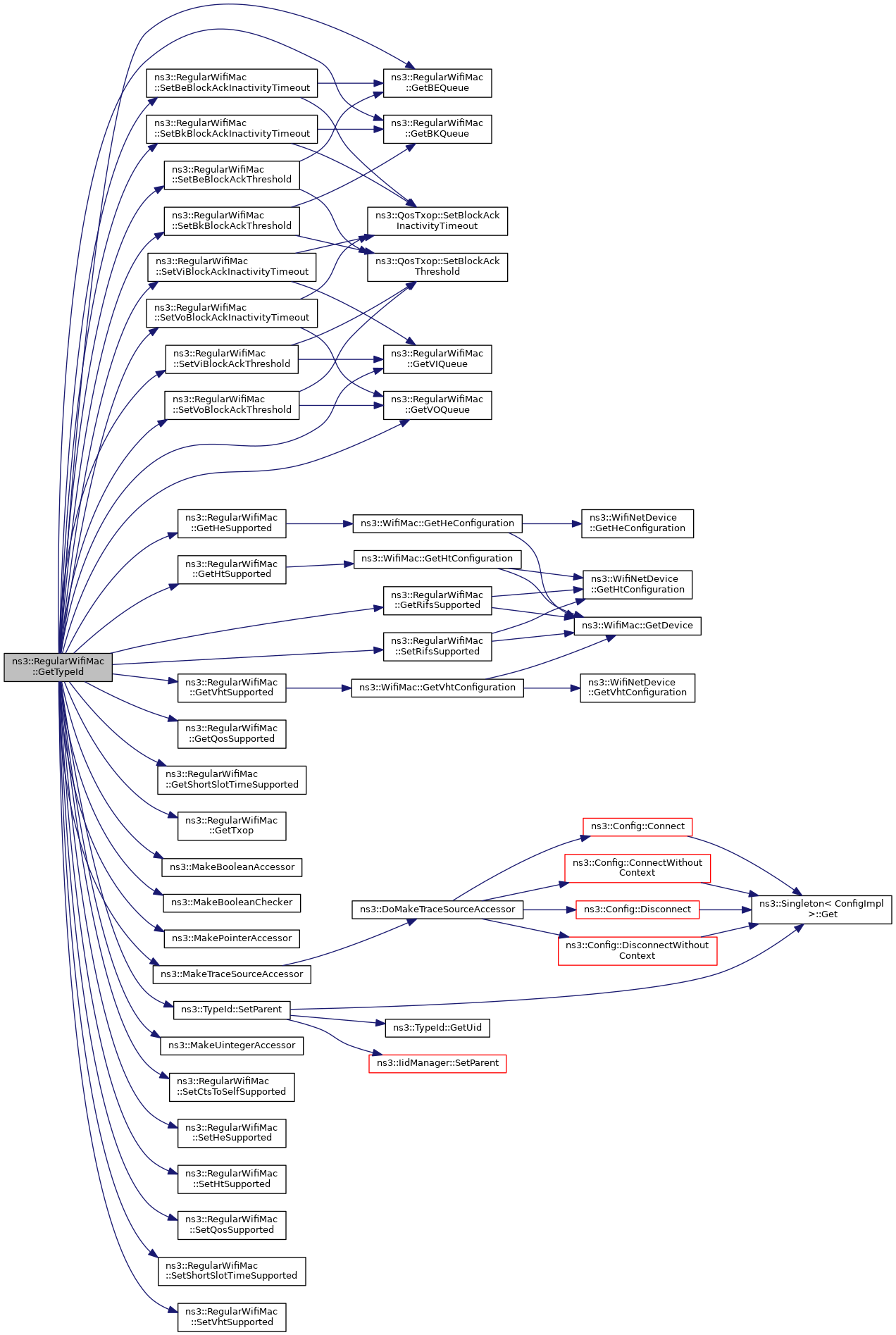

static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions

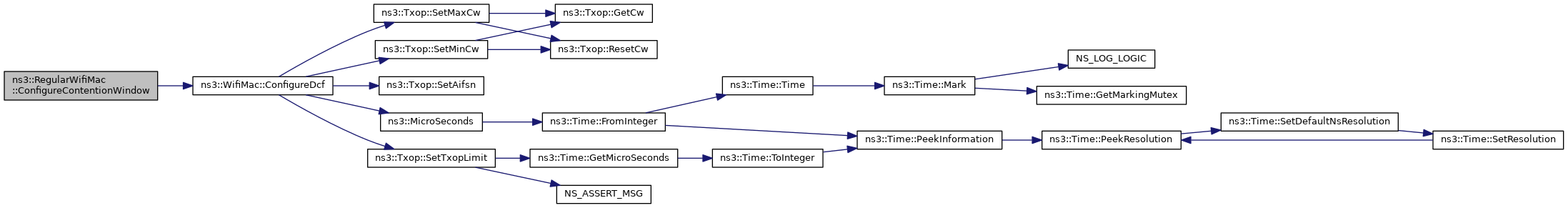

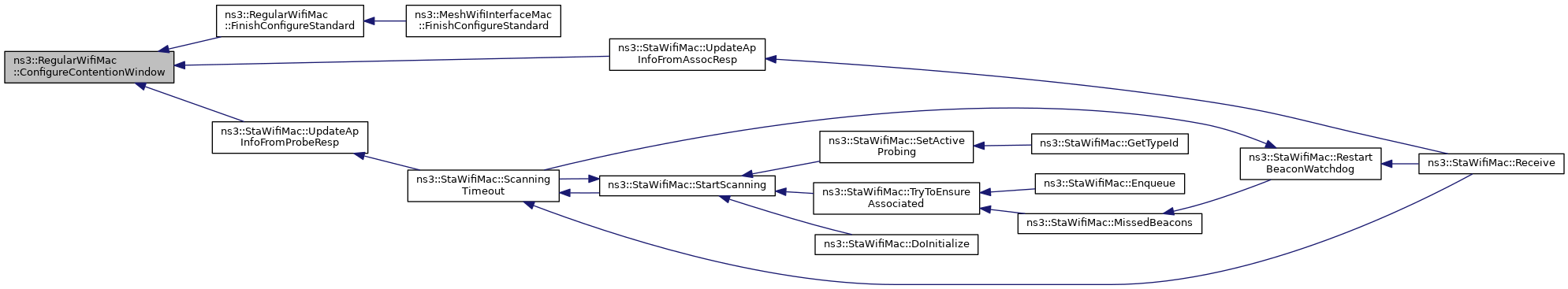

void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

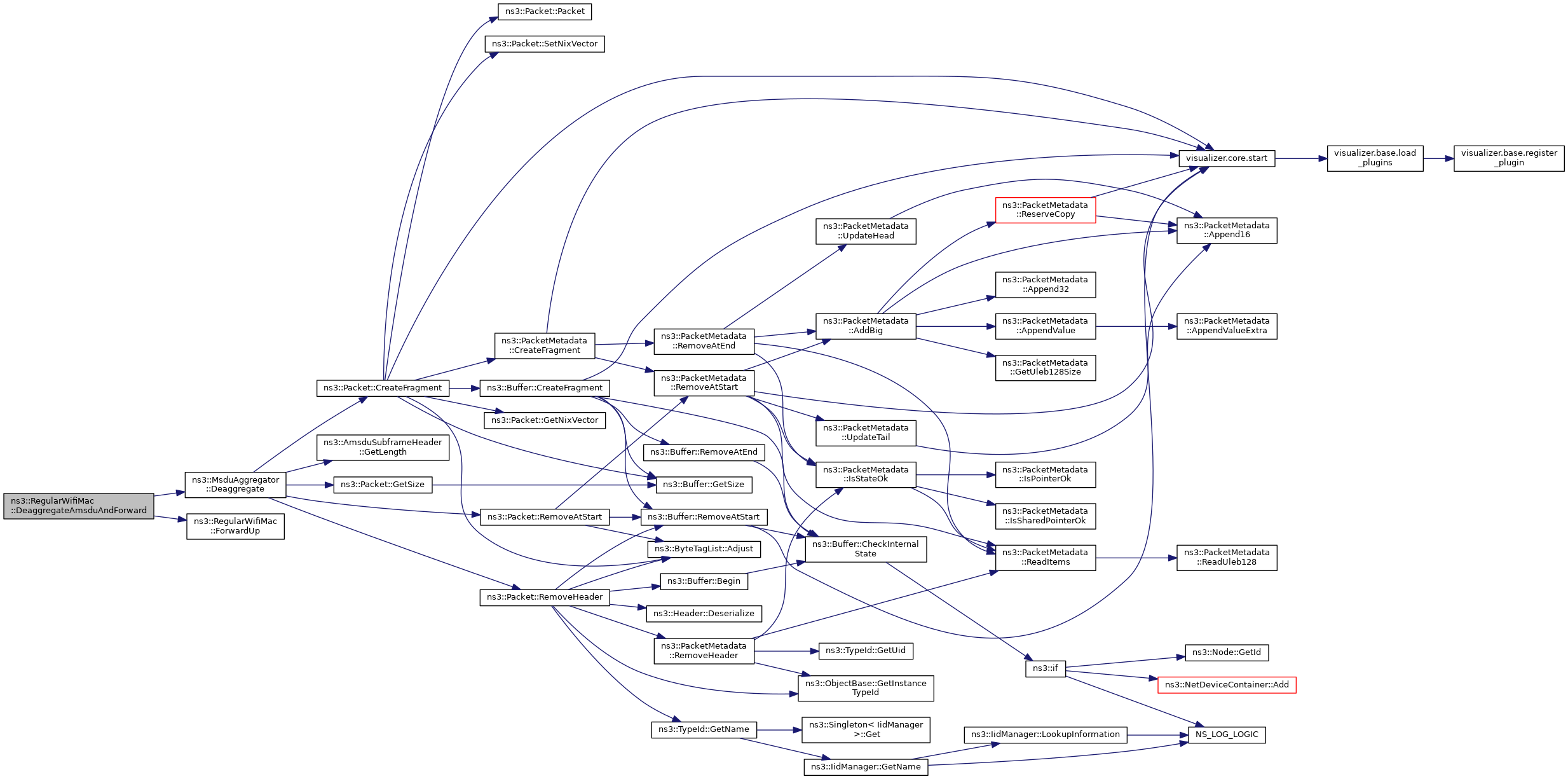

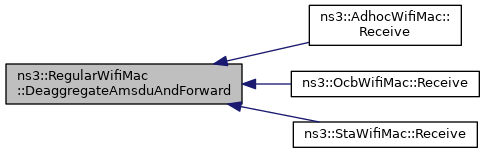

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

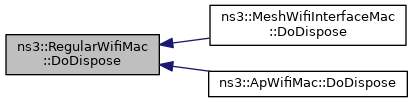

virtual void	DoDispose ()
	Destructor implementation. More...
virtual void	DoInitialize ()
	Initialize() implementation. More...

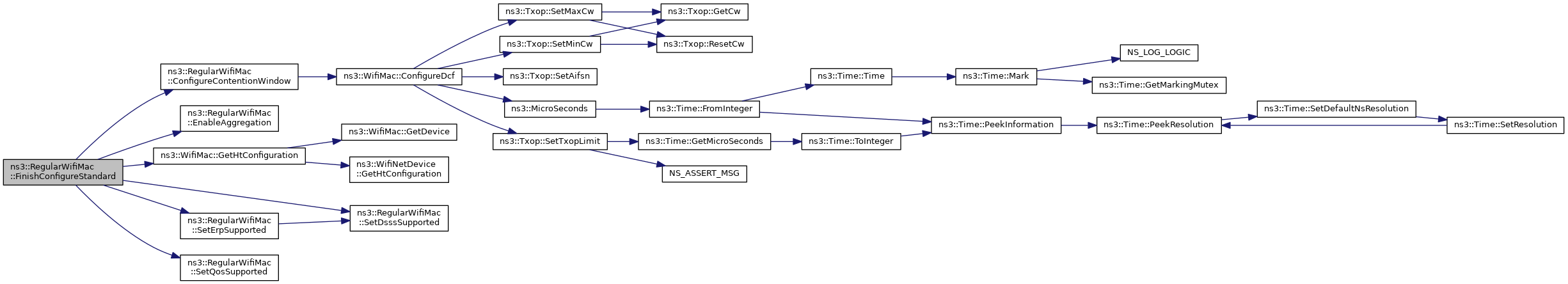

void	FinishConfigureStandard (WifiPhyStandard standard)

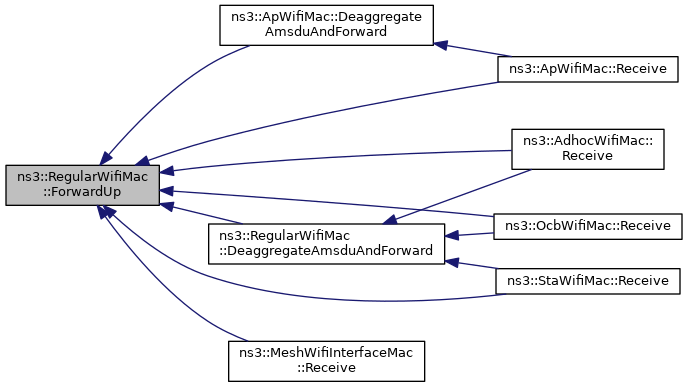

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

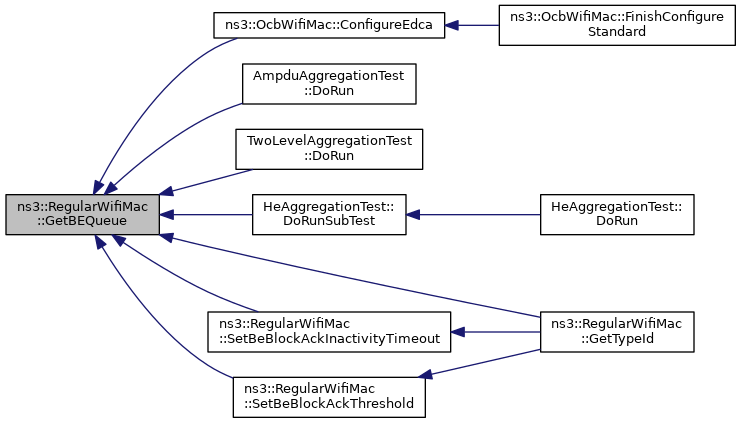

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

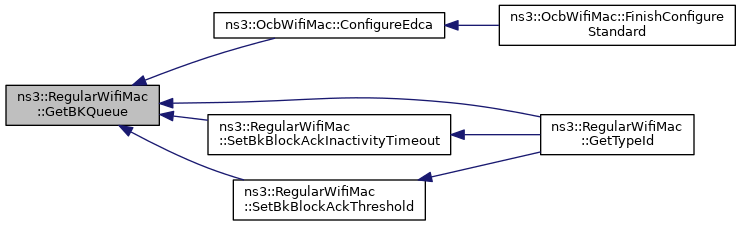

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

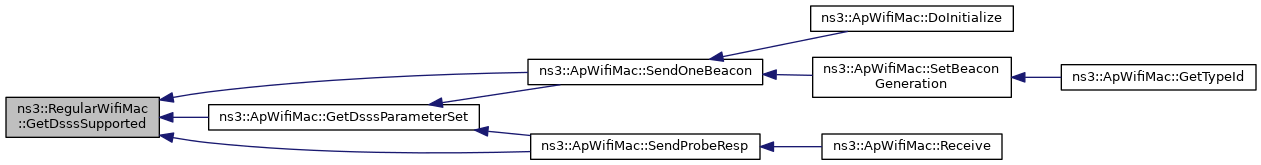

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...
bool	GetErpSupported () const
	Return whether the device supports ERP. More...
bool	GetHeSupported () const
	Return whether the device supports HE. More...

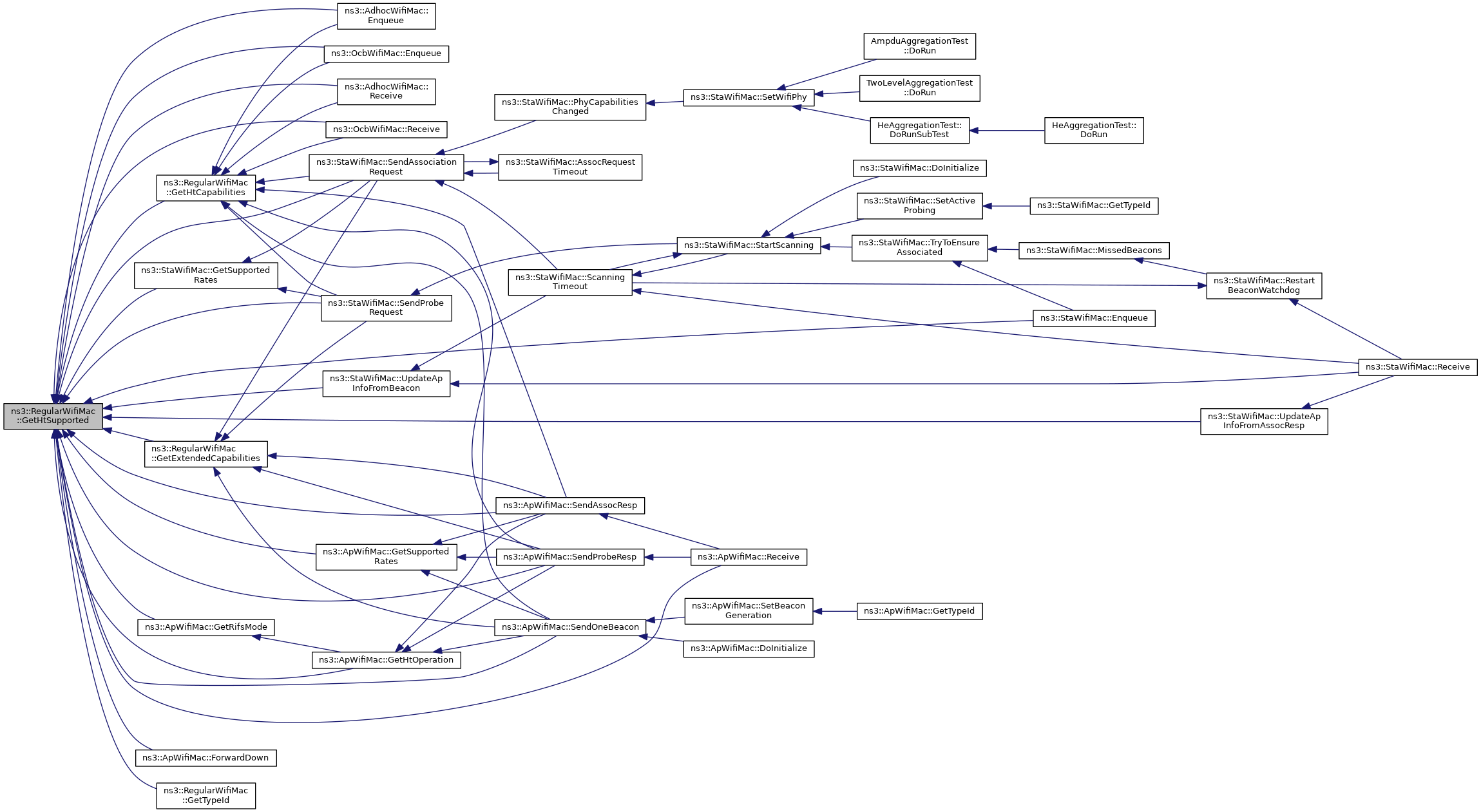

bool	GetHtSupported () const
	Return whether the device supports HT. More...
bool	GetQosSupported () const
	Return whether the device supports QoS. More...

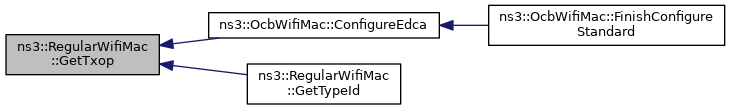

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

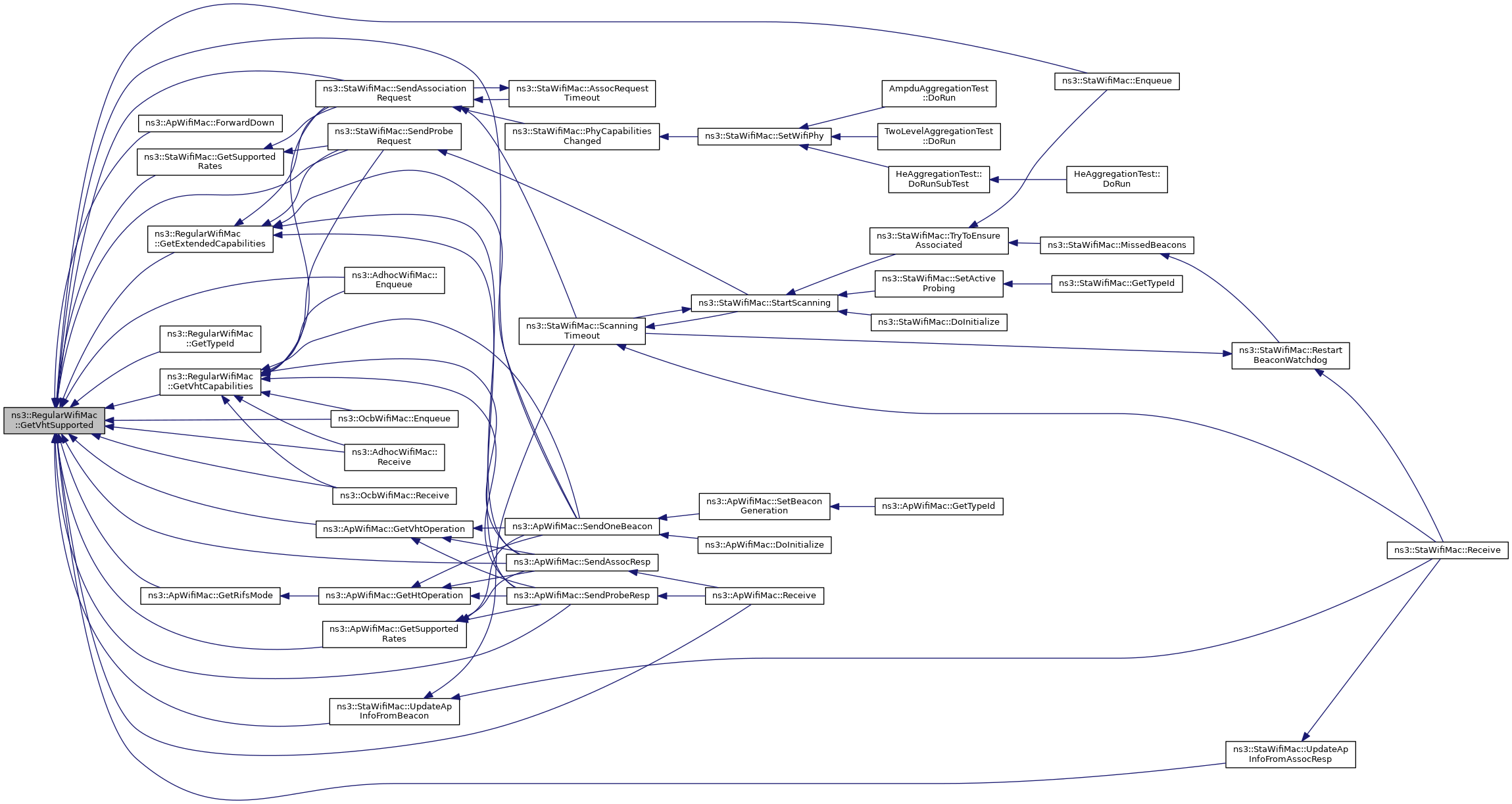

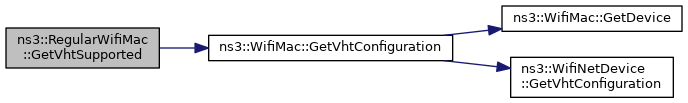

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

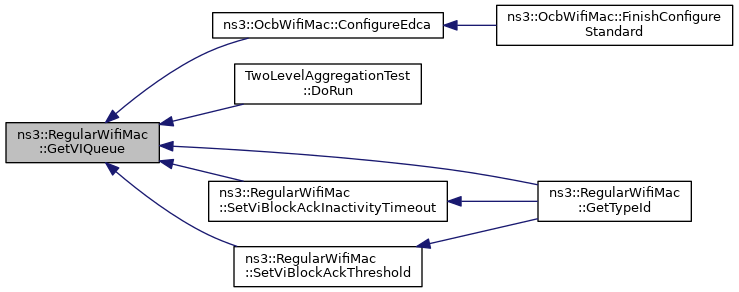

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...
Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

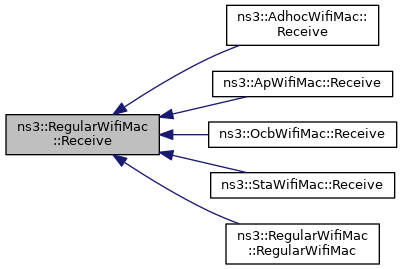

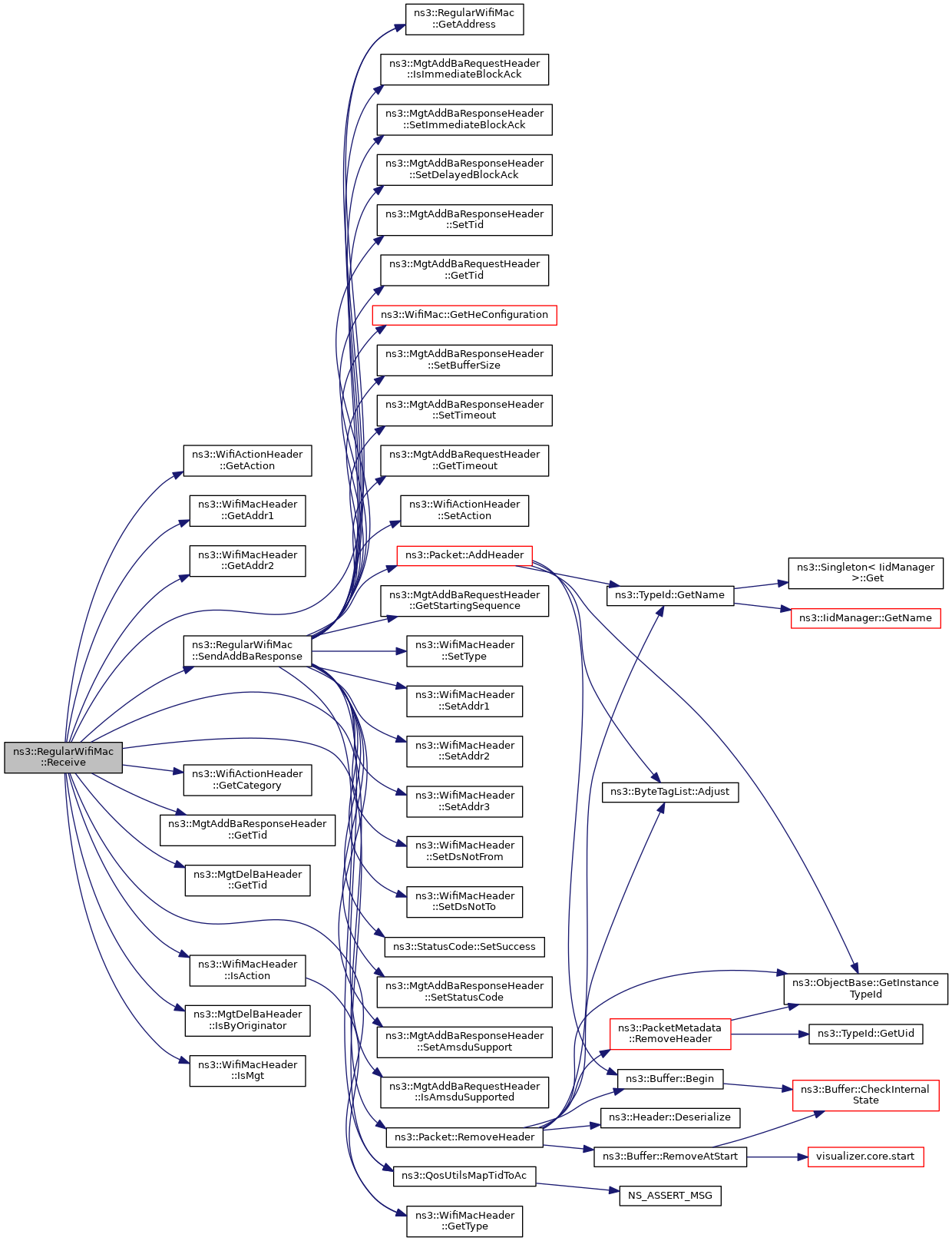

virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

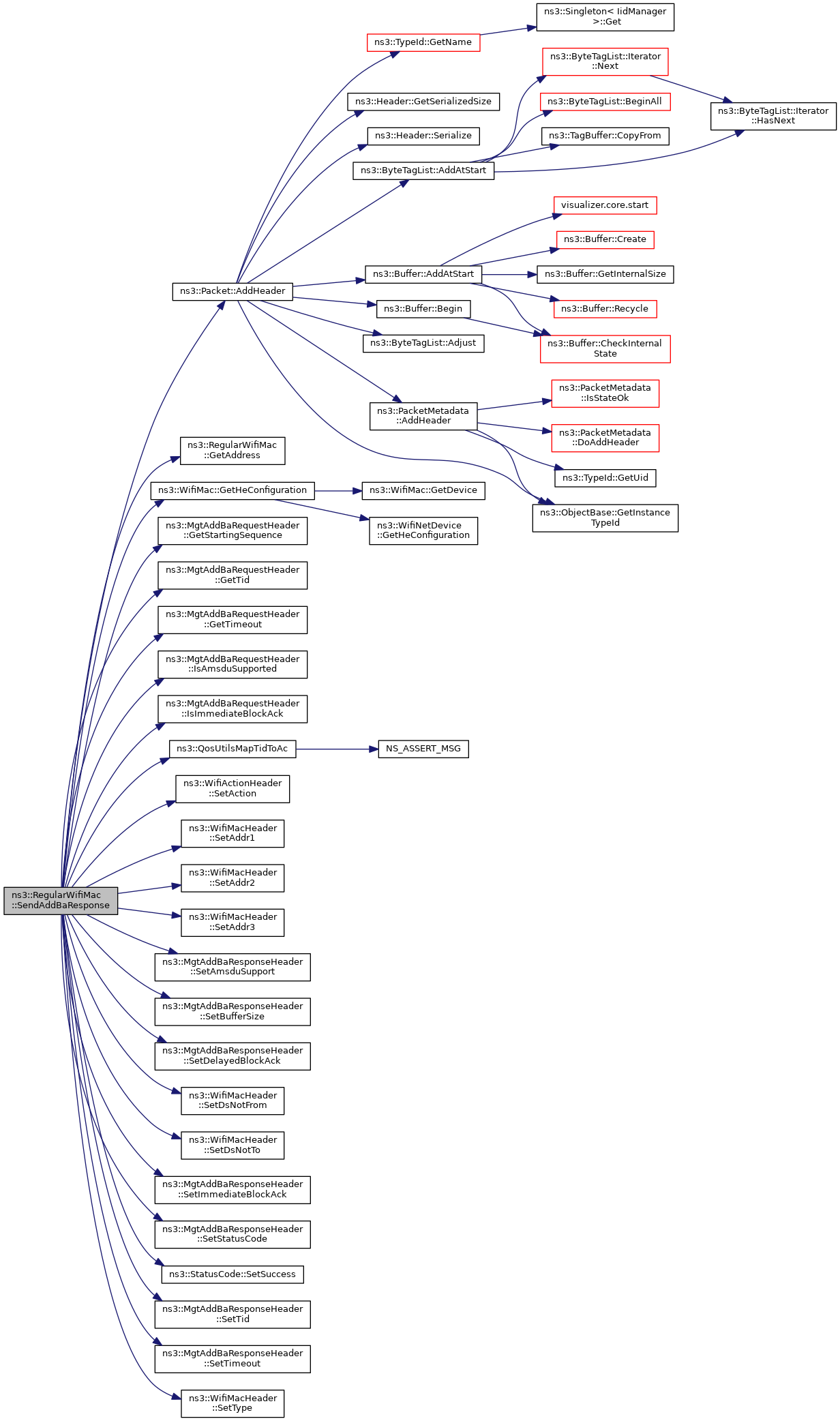

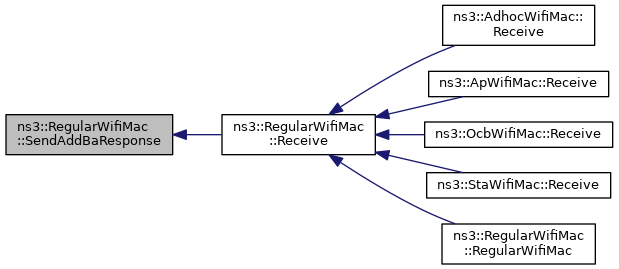

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...
void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...
void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...
void	SetHeSupported (bool enable)
	Enable or disable HE support for the device. More...
void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

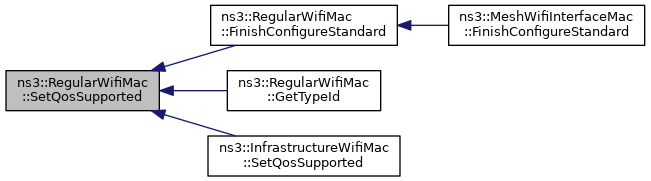

virtual void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

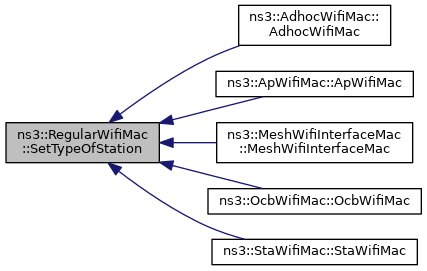

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...
void	SetVhtSupported (bool enable)
	Enable or disable VHT support for the device. More...

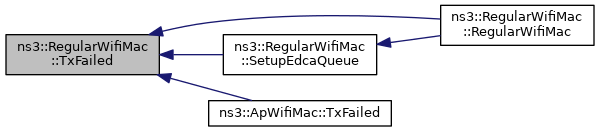

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

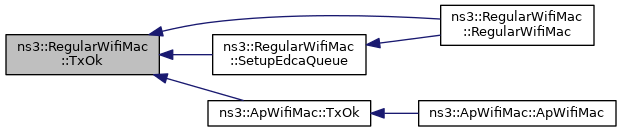

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...
Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...
virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...
EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...
ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...
Callback< void >	m_linkDown
	Callback when a link is down. More...
Callback< void >	m_linkUp
	Callback when a link is up. More...
Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...
Ptr< WifiPhy >	m_phy
	Wifi PHY. More...
Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (de-fragmentation etc.) More...
Ssid	m_ssid
	Service Set ID (SSID) More...
Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...
Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...
Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Private Member Functions
	RegularWifiMac (const RegularWifiMac &)
	type conversion operator More...
void	DisableAggregation (void)
	Disable aggregation function. More...
void	EnableAggregation (void)
	Enable aggregation function. More...
RegularWifiMac &	operator= (const RegularWifiMac &mac)
	assignment operator More...

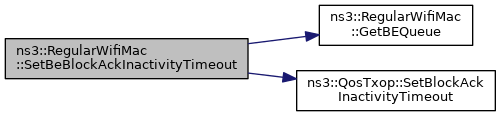

void	SetBeBlockAckInactivityTimeout (uint16_t timeout)
	Set BE block ack inactivity timeout. More...
void	SetBeBlockAckThreshold (uint8_t threshold)
	Set the Block ACK threshold for AC_BE. More...

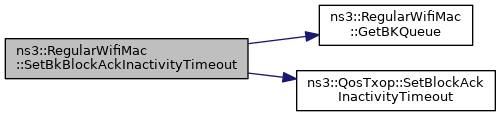

void	SetBkBlockAckInactivityTimeout (uint16_t timeout)
	Set BK block ack inactivity timeout. More...
void	SetBkBlockAckThreshold (uint8_t threshold)
	Set the Block ACK threshold for AC_BK. More...

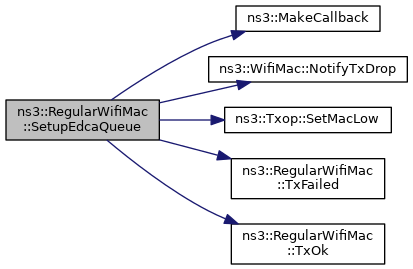

void	SetupEdcaQueue (AcIndex ac)
	This method is a private utility invoked to configure the channel access function for the specified Access Category. More...

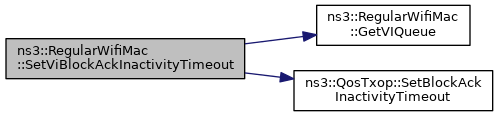

void	SetViBlockAckInactivityTimeout (uint16_t timeout)
	Set VI block ack inactivity timeout. More...
void	SetViBlockAckThreshold (uint8_t threshold)
	Set the Block ACK threshold for AC_VI. More...
void	SetVoBlockAckInactivityTimeout (uint16_t timeout)
	Set VO block ack inactivity timeout. More...

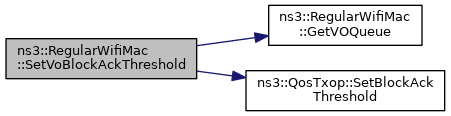

void	SetVoBlockAckThreshold (uint8_t threshold)
	Set the Block ACK threshold for AC_VO. More...

Private Attributes
uint32_t	m_beMaxAmpduSize
	maximum A-MPDU size for AC_BE More...
uint16_t	m_beMaxAmsduSize
	maximum A-MSDU size for AC_BE More...
uint32_t	m_bkMaxAmpduSize
	maximum A-MPDU size for AC_BK More...
uint16_t	m_bkMaxAmsduSize
	maximum A-MSDU size for AC_BK More...
bool	m_dsssSupported
	This Boolean is set true iff this WifiMac is to model 802.11b. More...
bool	m_erpSupported
	This Boolean is set true iff this WifiMac is to model 802.11g. More...
bool	m_qosSupported
	This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...
bool	m_rifsSupported
	flag whether RIFS is supported (deprecated) More...
bool	m_shortSlotTimeSupported
	flag whether short slot time is supported More...
TracedCallback< const WifiMacHeader & >	m_txErrCallback
	transmit error callback More...
TracedCallback< const WifiMacHeader & >	m_txOkCallback
	transmit OK callback More...
uint32_t	m_viMaxAmpduSize
	maximum A-MPDU size for AC_VI More...
uint16_t	m_viMaxAmsduSize
	maximum A-MSDU size for AC_VI More...
uint32_t	m_voMaxAmpduSize
	maximum A-MPDU size for AC_VO More...
uint16_t	m_voMaxAmsduSize
	maximum A-MSDU size for AC_VO More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::RegularWifiMac is accessible through the following paths with Config::Set and Config::Connect:

• "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac"

Attributes

• QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• HeSupported: This Boolean attribute is set to enable 802.11ax support at this STA.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write
• VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:11398
  • Initial value: 0
  • Flags: construct write read
• VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:11398
  • Initial value: 0
  • Flags: construct write read
• BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:11398
  • Initial value: 0
  • Flags: construct write read
• BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:11398
  • Initial value: 0
  • Flags: construct write read
• VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 0
  • Flags: construct write read
• VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 65535
  • Flags: construct write read
• BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 65535
  • Flags: construct write read
• BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 8388607 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 0
  • Flags: construct write read
• VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write
• VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write
• BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write
• BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write
• VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read
• RifsSupported: Whether or not RIFS is supported (only used by HT APs or STAs).
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• Txop: The Txop object.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::Txop>
  • Flags: read
• VO_Txop: Queue that manages packets belonging to AC_VO access class.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::QosTxop>
  • Flags: read
• VI_Txop: Queue that manages packets belonging to AC_VI access class.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::QosTxop>
  • Flags: read
• BE_Txop: Queue that manages packets belonging to AC_BE access class.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::QosTxop>
  • Flags: read
• BK_Txop: Queue that manages packets belonging to AC_BK access class.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::QosTxop>
  • Flags: read

Attributes defined in parent class ns3::WifiMac

• CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +75000.0ns
  • Flags: construct write read
• AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +75000.0ns
  • Flags: construct write read
• BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +281000.0ns
  • Flags: construct write read
• CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +107000.0ns
  • Flags: construct write read
• Sifs: The value of the SIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +16000.0ns
  • Flags: construct write read
• EifsNoDifs: The value of EIFS-DIFS.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +60000.0ns
  • Flags: construct write read
• Slot: The duration of a Slot.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +9000.0ns
  • Flags: construct write read
• Pifs: The value of the PIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +25000.0ns
  • Flags: construct write read
• Rifs: The value of the RIFS constant.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +2000.0ns
  • Flags: construct write read
• MaxPropagationDelay: The maximum propagation delay. Unused for now.
  • Set with class: ns3::TimeValue
  • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
  • Initial value: +3333.0ns
  • Flags: construct write
• Ssid: The ssid we want to belong to.
  • Set with class: SsidValue
  • Underlying type: Ssid
  • Initial value: default
  • Flags: construct write read

TraceSources

• TxOkHeader: The header of successfully transmitted packet.
  Callback signature: ns3::WifiMacHeader::TracedCallback
• TxErrHeader: The header of unsuccessfully transmitted packet.
  Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

• MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
  Callback signature: ns3::Packet::TracedCallback
• MacTxDrop: A packet has been dropped in the MAC layer before transmission.
  Callback signature: ns3::Packet::TracedCallback
• MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
  Callback signature: ns3::Packet::TracedCallback
• MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
  Callback signature: ns3::Packet::TracedCallback
• MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
  Callback signature: ns3::Packet::TracedCallback

Size of this type is 376 bytes (on a 64-bit architecture).

Definition at line 44 of file regular-wifi-mac.h.

Member Typedef Documentation

EdcaQueues

typedef std::map<AcIndex, Ptr<QosTxop> > ns3::RegularWifiMac::EdcaQueues

protected

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function.

Definition at line 310 of file regular-wifi-mac.h.

ForwardUpCallback

typedef Callback<void, Ptr<Packet>, Mac48Address, Mac48Address> ns3::RegularWifiMac::ForwardUpCallback

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters

packet	the packet that has been received.
from	the MAC address of the device that sent the packet.
to	the MAC address of the device that the packet is destined for.

Definition at line 262 of file regular-wifi-mac.h.

Constructor & Destructor Documentation

RegularWifiMac() [1/2]

ns3::RegularWifiMac::RegularWifiMac

(

)

Definition at line 47 of file regular-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_channelAccessManager, m_low, m_rxMiddle, m_txMiddle, m_txop, ns3::MakeCallback(), ns3::WifiMac::NotifyTxDrop(), NS_LOG_FUNCTION, ns3::MacRxMiddle::Receive(), Receive(), ns3::Txop::SetChannelAccessManager(), ns3::Txop::SetMacLow(), ns3::Txop::SetTxDroppedCallback(), ns3::Txop::SetTxFailedCallback(), ns3::Txop::SetTxMiddle(), ns3::Txop::SetTxOkCallback(), SetupEdcaQueue(), ns3::ChannelAccessManager::SetupLow(), TxFailed(), and TxOk().

Here is the call graph for this function:

~RegularWifiMac()

ns3::RegularWifiMac::~RegularWifiMac ( )

virtual

Definition at line 82 of file regular-wifi-mac.cc.

References NS_LOG_FUNCTION.

RegularWifiMac() [2/2]

ns3::RegularWifiMac::RegularWifiMac ( const RegularWifiMac &  )

private

type conversion operator

Member Function Documentation

ConfigureContentionWindow()

void ns3::RegularWifiMac::ConfigureContentionWindow ( uint32_t  cwMin, uint32_t  cwMax  )

protected

Parameters

cwMin	the minimum congestion window size
cwMax	the maximum congestion window size

This method is called to set the minimum and the maximum contention window size.

Definition at line 1289 of file regular-wifi-mac.cc.

References ns3::AC_BE_NQOS, ns3::WifiMac::ConfigureDcf(), m_dsssSupported, m_edca, m_erpSupported, and m_txop.

Referenced by FinishConfigureStandard(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

DeaggregateAmsduAndForward()

void ns3::RegularWifiMac::DeaggregateAmsduAndForward ( Ptr< Packet >  aggregatedPacket, const WifiMacHeader *  hdr  )

protectedvirtual

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters

aggregatedPacket	the Packet containing the A-MSDU.
hdr	a pointer to the MAC header for aggregatedPacket.

Reimplemented in ns3::ApWifiMac.

Definition at line 958 of file regular-wifi-mac.cc.

References ns3::MsduAggregator::Deaggregate(), ForwardUp(), and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

DisableAggregation()

void ns3::RegularWifiMac::DisableAggregation ( void  )

private

Disable aggregation function.

Definition at line 1336 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

DoDispose()

void ns3::RegularWifiMac::DoDispose ( void  )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 100 of file regular-wifi-mac.cc.

References ns3::Object::Dispose(), ns3::WifiMac::DoDispose(), m_channelAccessManager, m_edca, m_low, m_phy, m_rxMiddle, m_stationManager, m_txMiddle, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::DoDispose(), and ns3::ApWifiMac::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

DoInitialize()

void ns3::RegularWifiMac::DoInitialize ( void  )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, ns3::StaWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 88 of file regular-wifi-mac.cc.

References ns3::Object::Initialize(), m_edca, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

EnableAggregation()

void ns3::RegularWifiMac::EnableAggregation ( void  )

private

Enable aggregation function.

Definition at line 1318 of file regular-wifi-mac.cc.

References m_edca, m_low, and NS_LOG_FUNCTION.

Referenced by FinishConfigureStandard().

Here is the caller graph for this function:

Enqueue() [1/2]

void ns3::RegularWifiMac::Enqueue ( Ptr< const Packet >  packet, Mac48Address  to, Mac48Address  from  )

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 835 of file regular-wifi-mac.cc.

References GetAddress(), and NS_FATAL_ERROR.

Here is the call graph for this function:

Enqueue() [2/2]

virtual void ns3::RegularWifiMac::Enqueue ( Ptr< const Packet >  packet, Mac48Address  to  )

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::WifiMac.

Implemented in ns3::StaWifiMac, ns3::OcbWifiMac, ns3::ApWifiMac, ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, and ns3::InfrastructureWifiMac.

FinishConfigureStandard()

void ns3::RegularWifiMac::FinishConfigureStandard ( WifiPhyStandard  standard )

protectedvirtual

Parameters

standard

the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overridden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Implements ns3::WifiMac.

Definition at line 1236 of file regular-wifi-mac.cc.

References ConfigureContentionWindow(), EnableAggregation(), ns3::WifiMac::GetHtConfiguration(), m_rifsSupported, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, SetDsssSupported(), SetErpSupported(), SetQosSupported(), ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211ax_5GHZ, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

Referenced by ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

ForwardUp()

void ns3::RegularWifiMac::ForwardUp ( Ptr< Packet >  packet, Mac48Address  from, Mac48Address  to  )

protected

Forward the packet up to the device.

Parameters

packet	the packet that we are forwarding up to the device
from	the address of the source
to	the address of the destination

Definition at line 853 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), DeaggregateAmsduAndForward(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

GetAckTimeout()

Time ns3::RegularWifiMac::GetAckTimeout ( void  ) const

virtual

Returns

the current ACK timeout duration.

Implements ns3::WifiMac.

Definition at line 701 of file regular-wifi-mac.cc.

References m_low.

GetAddress()

Mac48Address ns3::RegularWifiMac::GetAddress ( void  ) const

virtual

Returns

the MAC address associated to this MAC layer.

Implements ns3::WifiMac.

Definition at line 753 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::ApWifiMac::DoInitialize(), ns3::OcbWifiMac::Enqueue(), Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), Receive(), ns3::MeshWifiInterfaceMac::Report(), SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

GetBasicBlockAckTimeout()

Time ns3::RegularWifiMac::GetBasicBlockAckTimeout ( void  ) const

virtual

Returns

the current basic block ACK timeout duration.

Implements ns3::WifiMac.

Definition at line 727 of file regular-wifi-mac.cc.

References m_low.

GetBEQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetBEQueue ( void  ) const

protected

Accessor for the AC_BE channel access function.

Returns

a smart pointer to QosTxop

Definition at line 471 of file regular-wifi-mac.cc.

References ns3::AC_BE, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), GetTypeId(), SetBeBlockAckInactivityTimeout(), and SetBeBlockAckThreshold().

Here is the caller graph for this function:

GetBKQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetBKQueue ( void  ) const

protected

Accessor for the AC_BK channel access function.

Returns

a smart pointer to QosTxop

Definition at line 477 of file regular-wifi-mac.cc.

References ns3::AC_BK, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetBkBlockAckInactivityTimeout(), and SetBkBlockAckThreshold().

Here is the caller graph for this function:

GetBssid()

Mac48Address ns3::RegularWifiMac::GetBssid ( void  ) const

virtual

Returns

the bssid of the network this device belongs to.

Implements ns3::WifiMac.

Definition at line 779 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::StaWifiMac::SendCfPollResponse(), and ns3::StaWifiMac::SetState().

Here is the caller graph for this function:

GetCompressedBlockAckTimeout()

Time ns3::RegularWifiMac::GetCompressedBlockAckTimeout ( void  ) const

virtual

Returns

the current compressed block ACK timeout duration.

Implements ns3::WifiMac.

Definition at line 740 of file regular-wifi-mac.cc.

References m_low.

GetCtsTimeout()

Time ns3::RegularWifiMac::GetCtsTimeout ( void  ) const

virtual

Returns

the current CTS timeout duration.

Implements ns3::WifiMac.

Definition at line 714 of file regular-wifi-mac.cc.

References m_low.

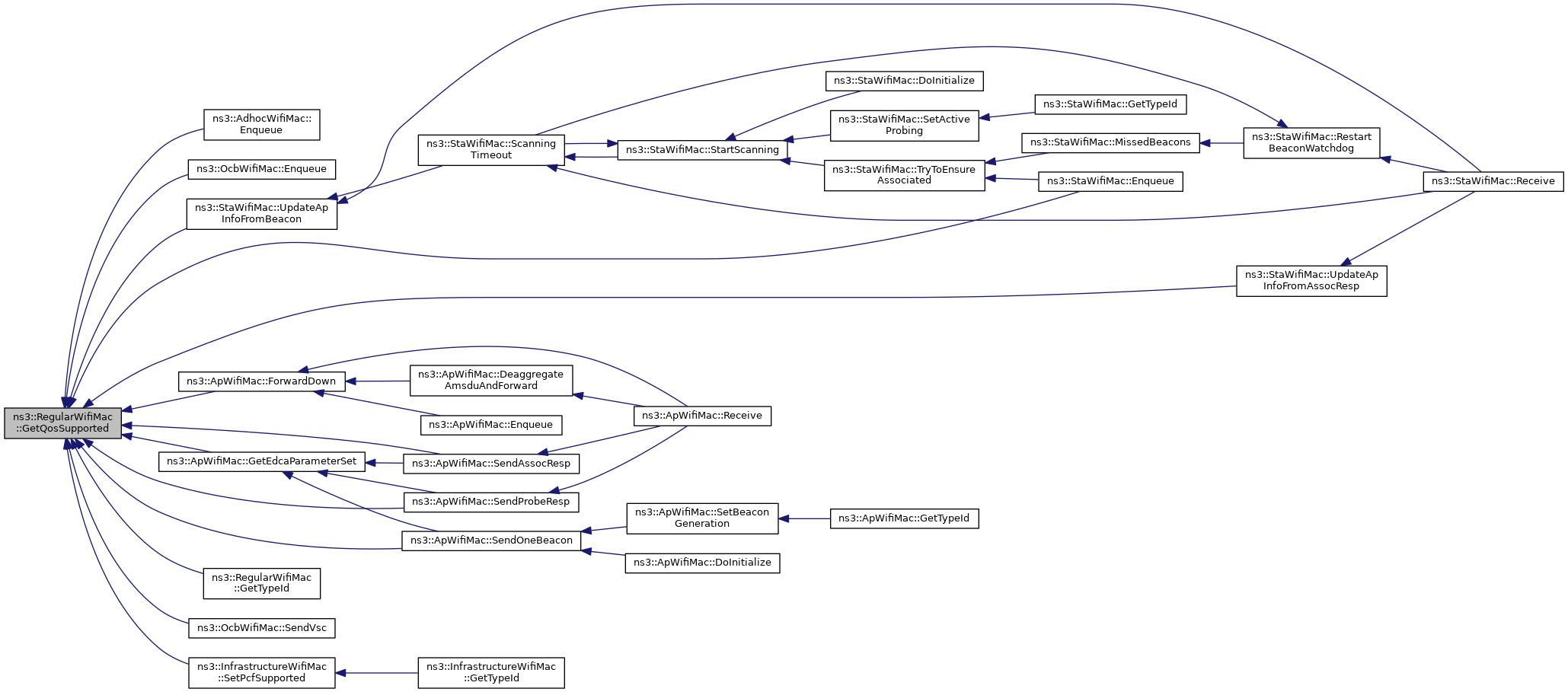

GetDsssSupported()

bool ns3::RegularWifiMac::GetDsssSupported ( ) const

protected

Return whether the device supports DSSS.

Returns

true if DSSS is supported, false otherwise

Definition at line 614 of file regular-wifi-mac.cc.

References m_dsssSupported.

Referenced by ns3::ApWifiMac::GetDsssParameterSet(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

GetEifsNoDifs()

Time ns3::RegularWifiMac::GetEifsNoDifs ( void  ) const

virtual

Returns

the current EIFS minus DIFS duration

Implements ns3::WifiMac.

Definition at line 662 of file regular-wifi-mac.cc.

References ns3::ChannelAccessManager::GetEifsNoDifs(), and m_channelAccessManager.

Here is the call graph for this function:

GetErpSupported()

bool ns3::RegularWifiMac::GetErpSupported ( ) const

protected

Return whether the device supports ERP.

Returns

true if ERP is supported, false otherwise

Definition at line 590 of file regular-wifi-mac.cc.

References m_erpSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetErpInformation(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the caller graph for this function:

GetExtendedCapabilities()

ExtendedCapabilities ns3::RegularWifiMac::GetExtendedCapabilities

(

void

)

const

Return the extended capabilities of the device.

Returns

the extended capabilities that we support

Definition at line 148 of file regular-wifi-mac.cc.

References GetHtSupported(), GetVhtSupported(), NS_LOG_FUNCTION, ns3::ExtendedCapabilities::SetHtSupported(), and ns3::ExtendedCapabilities::SetVhtSupported().

Referenced by ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

GetHeCapabilities()

HeCapabilities ns3::RegularWifiMac::GetHeCapabilities

(

void

)

const

Return the HE capabilities of the device.

Returns

the HE capabilities that we support

Definition at line 308 of file regular-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiPhy::GetFrequency(), ns3::WifiMac::GetHeConfiguration(), GetHeSupported(), ns3::WifiPhy::GetMaxSupportedTxSpatialStreams(), ns3::WifiPhy::GetMcs(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::Is2_4Ghz(), ns3::Is5Ghz(), m_beMaxAmpduSize, m_bkMaxAmpduSize, m_phy, m_viMaxAmpduSize, m_voMaxAmpduSize, max, min, ns3::NanoSeconds(), NS_LOG_FUNCTION, ns3::HeCapabilities::SetChannelWidthSet(), ns3::HeCapabilities::SetHeLtfAndGiForHePpdus(), ns3::HeCapabilities::SetHeSupported(), ns3::HeCapabilities::SetHighestMcsSupported(), ns3::HeCapabilities::SetHighestNssSupported(), ns3::HeCapabilities::SetMaxAmpduLength(), and ns3::WIFI_MOD_CLASS_HE.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

GetHeSupported()

bool ns3::RegularWifiMac::GetHeSupported ( ) const

protected

Return whether the device supports HE.

Returns

true if HE is supported, false otherwise

Definition at line 580 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetHeConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetTypeId(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

GetHtCapabilities()

HtCapabilities ns3::RegularWifiMac::GetHtCapabilities

(

void

)

const

Return the HT capabilities of the device.

Returns

the HT capabilities that we support

Definition at line 159 of file regular-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetHtConfiguration(), GetHtSupported(), ns3::WifiPhy::GetMaxSupportedTxSpatialStreams(), ns3::WifiPhy::GetMcs(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, m_phy, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, max, min, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HtCapabilities::SetGreenfield(), ns3::HtCapabilities::SetHtSupported(), ns3::HtCapabilities::SetLdpc(), ns3::HtCapabilities::SetLSigProtectionSupport(), ns3::HtCapabilities::SetMaxAmpduLength(), ns3::HtCapabilities::SetMaxAmsduLength(), ns3::HtCapabilities::SetRxHighestSupportedDataRate(), ns3::HtCapabilities::SetRxMcsBitmask(), ns3::HtCapabilities::SetShortGuardInterval20(), ns3::HtCapabilities::SetShortGuardInterval40(), ns3::HtCapabilities::SetSupportedChannelWidth(), ns3::HtCapabilities::SetTxMaxNSpatialStreams(), ns3::HtCapabilities::SetTxMcsSetDefined(), ns3::HtCapabilities::SetTxRxMcsSetUnequal(), ns3::HtCapabilities::SetTxUnequalModulation(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

GetHtSupported()

bool ns3::RegularWifiMac::GetHtSupported ( ) const

protected

Return whether the device supports HT.

Returns

true if HT is supported, false otherwise

Definition at line 560 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetHtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetExtendedCapabilities(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetRifsMode(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetTypeId(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

GetPifs()

Time ns3::RegularWifiMac::GetPifs ( void  ) const

virtual

Returns

the current PIFS duration.

Implements ns3::WifiMac.

Definition at line 688 of file regular-wifi-mac.cc.

References m_low.

GetQosSupported()

bool ns3::RegularWifiMac::GetQosSupported ( ) const

protected

Return whether the device supports QoS.

Returns

true if QoS is supported, false otherwise

Definition at line 536 of file regular-wifi-mac.cc.

References m_qosSupported.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::GetEdcaParameterSet(), GetTypeId(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), ns3::InfrastructureWifiMac::SetPcfSupported(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

GetRifs()

Time ns3::RegularWifiMac::GetRifs ( void  ) const

virtual

Returns

the current RIFS duration.

Implements ns3::WifiMac.

Definition at line 675 of file regular-wifi-mac.cc.

References m_low.

GetRifsSupported()

bool ns3::RegularWifiMac::GetRifsSupported

(

void

)

const

Returns

whether the device supports RIFS capability.

true if short RIFS is supported, false otherwise.

Deprecated:

Definition at line 820 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), and m_rifsSupported.

Referenced by GetTypeId(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

GetShortSlotTimeSupported()

bool ns3::RegularWifiMac::GetShortSlotTimeSupported ( void  ) const

virtual

Returns

whether the device supports short slot time capability.

true if short slot time is supported, false otherwise.

Implements ns3::WifiMac.

Definition at line 798 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), and GetTypeId().

Here is the caller graph for this function:

GetSifs()

Time ns3::RegularWifiMac::GetSifs ( void  ) const

virtual

Returns

the current SIFS duration.

Implements ns3::WifiMac.

Definition at line 649 of file regular-wifi-mac.cc.

References m_low.

GetSlot()

Time ns3::RegularWifiMac::GetSlot ( void  ) const

virtual

Returns

the current slot duration.

Implements ns3::WifiMac.

Definition at line 635 of file regular-wifi-mac.cc.

References m_low.

GetSsid()

Ssid ns3::RegularWifiMac::GetSsid ( void  ) const

virtual

Returns

the ssid which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

Definition at line 766 of file regular-wifi-mac.cc.

References m_ssid.

Referenced by ns3::OcbWifiMac::GetSsid(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

GetTxop()

Ptr< Txop > ns3::RegularWifiMac::GetTxop ( void  ) const

protected

Accessor for the DCF object.

Returns

a smart pointer to Txop

Definition at line 453 of file regular-wifi-mac.cc.

References m_txop.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::RegularWifiMac::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 1032 of file regular-wifi-mac.cc.

References ns3::TypeId::DEPRECATED, GetBEQueue(), GetBKQueue(), GetHeSupported(), GetHtSupported(), GetQosSupported(), GetRifsSupported(), GetShortSlotTimeSupported(), GetTxop(), GetVhtSupported(), GetVIQueue(), GetVOQueue(), m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, m_txErrCallback, m_txOkCallback, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetBeBlockAckInactivityTimeout(), SetBeBlockAckThreshold(), SetBkBlockAckInactivityTimeout(), SetBkBlockAckThreshold(), SetCtsToSelfSupported(), SetHeSupported(), SetHtSupported(), ns3::TypeId::SetParent(), SetQosSupported(), SetRifsSupported(), SetShortSlotTimeSupported(), SetVhtSupported(), SetViBlockAckInactivityTimeout(), SetViBlockAckThreshold(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the call graph for this function:

GetVhtCapabilities()

VhtCapabilities ns3::RegularWifiMac::GetVhtCapabilities

(

void

)

const

Return the VHT capabilities of the device.

Returns

the VHT capabilities that we support

Definition at line 222 of file regular-wifi-mac.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetHtConfiguration(), ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiPhy::GetMaxSupportedTxSpatialStreams(), ns3::WifiPhy::GetMcs(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiMac::GetVhtConfiguration(), GetVhtSupported(), ns3::WifiMode::IsAllowed(), m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, m_phy, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, max, min, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::VhtCapabilities::SetMaxAmpduLength(), ns3::VhtCapabilities::SetMaxMpduLength(), ns3::VhtCapabilities::SetRxHighestSupportedLgiDataRate(), ns3::VhtCapabilities::SetRxLdpc(), ns3::VhtCapabilities::SetRxMcsMap(), ns3::VhtCapabilities::SetRxStbc(), ns3::VhtCapabilities::SetShortGuardIntervalFor160Mhz(), ns3::VhtCapabilities::SetShortGuardIntervalFor80Mhz(), ns3::VhtCapabilities::SetSupportedChannelWidthSet(), ns3::VhtCapabilities::SetTxHighestSupportedLgiDataRate(), ns3::VhtCapabilities::SetTxMcsMap(), ns3::VhtCapabilities::SetTxStbc(), ns3::VhtCapabilities::SetVhtSupported(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

GetVhtSupported()

bool ns3::RegularWifiMac::GetVhtSupported ( ) const

protected

Return whether the device supports VHT.

Returns

true if VHT is supported, false otherwise

Definition at line 570 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetVhtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetExtendedCapabilities(), ns3::ApWifiMac::GetRifsMode(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetTypeId(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

GetVIQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetVIQueue ( void  ) const

protected

Accessor for the AC_VI channel access function.

Returns

a smart pointer to QosTxop

Definition at line 465 of file regular-wifi-mac.cc.

References ns3::AC_VI, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), TwoLevelAggregationTest::DoRun(), GetTypeId(), SetViBlockAckInactivityTimeout(), and SetViBlockAckThreshold().

Here is the caller graph for this function:

GetVOQueue()

Ptr< QosTxop > ns3::RegularWifiMac::GetVOQueue ( void  ) const

protected

Accessor for the AC_VO channel access function.

Returns

a smart pointer to QosTxop

Definition at line 459 of file regular-wifi-mac.cc.

References ns3::AC_VO, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), GetTypeId(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the caller graph for this function:

GetWifiPhy()

Ptr< WifiPhy > ns3::RegularWifiMac::GetWifiPhy ( void  ) const

virtual

Returns

the physical layer attached to this MAC.

Implements ns3::WifiMac.

Definition at line 492 of file regular-wifi-mac.cc.

References m_phy, and NS_LOG_FUNCTION.

GetWifiRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::RegularWifiMac::GetWifiRemoteStationManager ( void  ) const

virtual

Returns

the station manager attached to this MAC.

Implements ns3::WifiMac.

Definition at line 142 of file regular-wifi-mac.cc.

References m_stationManager.

operator=()

RegularWifiMac& ns3::RegularWifiMac::operator= ( const RegularWifiMac &  mac )

private

assignment operator

Parameters

mac	the RegularWifiMac to assign

Returns

the assigned value

Receive()

void ns3::RegularWifiMac::Receive ( Ptr< Packet >  packet, const WifiMacHeader *  hdr  )

protectedvirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

packet	the packet that has been received.
hdr	a pointer to the MAC header of the received frame.

Reimplemented in ns3::StaWifiMac, ns3::MeshWifiInterfaceMac, ns3::OcbWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 860 of file regular-wifi-mac.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), GetAddress(), ns3::WifiActionHeader::GetCategory(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::GetType(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), ns3::WifiMacHeader::IsMgt(), m_edca, m_low, m_qosSupported, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Packet::RemoveHeader(), and SendAddBaResponse().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::StaWifiMac::Receive(), and RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

ResetWifiPhy()

void ns3::RegularWifiMac::ResetWifiPhy ( void  )

virtual

removes attached WifiPhy device from this MAC.

Implements ns3::WifiMac.

Definition at line 499 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, m_phy, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::RemovePhyListener().

Referenced by ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

SendAddBaResponse()

void ns3::RegularWifiMac::SendAddBaResponse ( const MgtAddBaRequestHeader *  reqHdr, Mac48Address  originator  )

protected

This method can be called to accept a received ADDBA Request.

An ADDBA Response will be constructed and queued for transmission.

Parameters

reqHdr	a pointer to the received ADDBA Request header.
originator	the MAC address of the originator.

Definition at line 971 of file regular-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::ActionValue::blockAck, GetAddress(), ns3::WifiMac::GetHeConfiguration(), ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_edca, m_low, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaResponseHeader::SetAmsduSupport(), ns3::MgtAddBaResponseHeader::SetBufferSize(), ns3::MgtAddBaResponseHeader::SetDelayedBlockAck(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::MgtAddBaResponseHeader::SetImmediateBlockAck(), ns3::MgtAddBaResponseHeader::SetStatusCode(), ns3::StatusCode::SetSuccess(), ns3::MgtAddBaResponseHeader::SetTid(), ns3::MgtAddBaResponseHeader::SetTimeout(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_MGT_ACTION.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

SetAckTimeout()

void ns3::RegularWifiMac::SetAckTimeout ( Time  ackTimeout )

virtual

Parameters

ackTimeout

the duration of an ACK timeout.

Implements ns3::WifiMac.

Definition at line 694 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetAddress()

void ns3::RegularWifiMac::SetAddress ( Mac48Address  address )

virtual

Parameters

address

the current address of this MAC layer.

Implements ns3::WifiMac.

Definition at line 746 of file regular-wifi-mac.cc.

References first::address, m_low, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

Here is the caller graph for this function:

SetBasicBlockAckTimeout()

void ns3::RegularWifiMac::SetBasicBlockAckTimeout ( Time  blockAckTimeout )

virtual

Parameters

blockAckTimeout

the duration for basic block ACK timeout.

Sets the timeout for basic block ACK.

Implements ns3::WifiMac.

Definition at line 720 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetBeBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetBeBlockAckInactivityTimeout ( uint16_t  timeout )

private

Set BE block ack inactivity timeout.

Parameters

timeout

the BE block ack inactivity timeout.

Definition at line 407 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetBeBlockAckThreshold()

void ns3::RegularWifiMac::SetBeBlockAckThreshold ( uint8_t  threshold )

private

Set the Block ACK threshold for AC_BE.

Parameters

threshold

the Block ACK threshold for AC_BE.

Definition at line 379 of file regular-wifi-mac.cc.

References GetBEQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetBkBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetBkBlockAckInactivityTimeout ( uint16_t  timeout )

private

Set BK block ack inactivity timeout.

Parameters

timeout

the BK block ack inactivity timeout.

Definition at line 414 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetBkBlockAckThreshold()

void ns3::RegularWifiMac::SetBkBlockAckThreshold ( uint8_t  threshold )

private

Set the Block ACK threshold for AC_BK.

Parameters

threshold

the Block ACK threshold for AC_BK.

Definition at line 386 of file regular-wifi-mac.cc.

References GetBKQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetBssid()

void ns3::RegularWifiMac::SetBssid

(

Mac48Address

bssid

)

Parameters

bssid

the BSSID of the network that this device belongs to.

Definition at line 772 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::OcbWifiMac(), ns3::AdhocWifiMac::SetAddress(), ns3::ApWifiMac::SetAddress(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the caller graph for this function:

SetCompressedBlockAckTimeout()

void ns3::RegularWifiMac::SetCompressedBlockAckTimeout ( Time  blockAckTimeout )

virtual

Parameters

blockAckTimeout

Sets the timeout for compressed block ACK.

Implements ns3::WifiMac.

Definition at line 733 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetCtsTimeout()

void ns3::RegularWifiMac::SetCtsTimeout ( Time  ctsTimeout )

virtual

Parameters

ctsTimeout

the duration of a CTS timeout.

Implements ns3::WifiMac.

Definition at line 707 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetCtsToSelfSupported()

void ns3::RegularWifiMac::SetCtsToSelfSupported

(

bool

enable

)

Enable or disable CTS-to-self feature.

Parameters

enable

true if CTS-to-self is to be supported, false otherwise

Definition at line 620 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetDsssSupported()

void ns3::RegularWifiMac::SetDsssSupported ( bool  enable )

protected

Enable or disable DSSS support for the device.

Parameters

enable

whether DSSS is supported

Definition at line 607 of file regular-wifi-mac.cc.

References m_dsssSupported, and NS_LOG_FUNCTION.

Referenced by FinishConfigureStandard(), and SetErpSupported().

Here is the caller graph for this function:

SetEifsNoDifs()

void ns3::RegularWifiMac::SetEifsNoDifs ( Time  eifsNoDifs )

virtual

Parameters

eifsNoDifs

the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implements ns3::WifiMac.

Definition at line 655 of file regular-wifi-mac.cc.

References m_channelAccessManager, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::SetEifsNoDifs().

Here is the call graph for this function:

SetErpSupported()

void ns3::RegularWifiMac::SetErpSupported ( bool  enable )

protected

Enable or disable ERP support for the device.

Parameters

enable

whether ERP is supported

Definition at line 596 of file regular-wifi-mac.cc.

References m_erpSupported, NS_LOG_FUNCTION, and SetDsssSupported().

Referenced by FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

SetForwardUpCallback()

void ns3::RegularWifiMac::SetForwardUpCallback

(

ForwardUpCallback

upCallback

)

Parameters

upCallback

the callback to invoke when a packet must be forwarded up the stack.

Definition at line 508 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

SetHeSupported()

void ns3::RegularWifiMac::SetHeSupported ( bool  enable )

protected

Enable or disable HE support for the device.

Parameters

enable

whether HE is supported

Definition at line 554 of file regular-wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetHtSupported()

void ns3::RegularWifiMac::SetHtSupported ( bool  enable )

protected

Enable or disable HT support for the device.

Parameters

enable

whether HT is supported

Definition at line 548 of file regular-wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetLinkDownCallback()

void ns3::RegularWifiMac::SetLinkDownCallback ( Callback< void >  linkDown )

virtual

Parameters

linkDown

the callback to invoke when the link becomes down.

Implements ns3::WifiMac.

Definition at line 522 of file regular-wifi-mac.cc.

References m_linkDown, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::SetLinkDownCallback().

Here is the caller graph for this function:

SetLinkUpCallback()

void ns3::RegularWifiMac::SetLinkUpCallback ( Callback< void >  linkUp )

virtual

Parameters

linkUp

the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Definition at line 515 of file regular-wifi-mac.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::SetLinkUpCallback(), ns3::ApWifiMac::SetLinkUpCallback(), ns3::MeshWifiInterfaceMac::SetLinkUpCallback(), and ns3::OcbWifiMac::SetLinkUpCallback().

Here is the caller graph for this function:

SetPifs()

void ns3::RegularWifiMac::SetPifs ( Time  pifs )

virtual

Parameters

pifs	the pifs duration.

Implements ns3::WifiMac.

Definition at line 681 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetPromisc()

void ns3::RegularWifiMac::SetPromisc ( void  )

virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implements ns3::WifiMac.

Definition at line 785 of file regular-wifi-mac.cc.

References m_low.

SetQosSupported()

void ns3::RegularWifiMac::SetQosSupported ( bool  enable )

protectedvirtual

Enable or disable QoS support for the device.

Parameters

enable

whether QoS is supported

Reimplemented in ns3::InfrastructureWifiMac.

Definition at line 529 of file regular-wifi-mac.cc.

References m_qosSupported, and NS_LOG_FUNCTION.

Referenced by FinishConfigureStandard(), GetTypeId(), and ns3::InfrastructureWifiMac::SetQosSupported().

Here is the caller graph for this function:

SetRifs()

void ns3::RegularWifiMac::SetRifs ( Time  rifs )

virtual

Parameters

rifs	the rifs duration.

Implements ns3::WifiMac.

Definition at line 668 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

SetRifsSupported()

void ns3::RegularWifiMac::SetRifsSupported

(

bool

enable

)

Enable or disable RIFS feature.

Parameters

enable

true if RIFS is to be supported, false otherwise

Deprecated:

Definition at line 804 of file regular-wifi-mac.cc.

References ns3::WifiMac::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), m_rifsSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetShortSlotTimeSupported()

void ns3::RegularWifiMac::SetShortSlotTimeSupported ( bool  enable )

virtual

Enable or disable short slot time feature.

Parameters

enable

true if short slot time is to be supported, false otherwise

Implements ns3::WifiMac.

Definition at line 791 of file regular-wifi-mac.cc.

References m_shortSlotTimeSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetSifs()

void ns3::RegularWifiMac::SetSifs ( Time  sifs )

virtual

Parameters

sifs	the sifs duration

Implements ns3::WifiMac.

Definition at line 641 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::SetSifs().

Here is the call graph for this function:

SetSlot()

void ns3::RegularWifiMac::SetSlot ( Time  slotTime )

virtual

Parameters

slotTime

the slot duration

Implements ns3::WifiMac.

Definition at line 627 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, NS_LOG_FUNCTION, and ns3::ChannelAccessManager::SetSlot().

Referenced by ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

SetSsid()

void ns3::RegularWifiMac::SetSsid ( Ssid  ssid )

virtual

Parameters

ssid	the current ssid of this MAC layer.

Implements ns3::WifiMac.

Definition at line 759 of file regular-wifi-mac.cc.

References m_ssid, NS_LOG_FUNCTION, and third::ssid.

SetTypeOfStation()

void ns3::RegularWifiMac::SetTypeOfStation ( TypeOfStation  type )

protected

This method is invoked by a subclass to specify what type of station it is implementing.

This is something that the channel access functions (instantiated within this class as QosTxop's) need to know.

Parameters

type	the type of station.

Definition at line 443 of file regular-wifi-mac.cc.

References m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::AdhocWifiMac(), ns3::ApWifiMac::ApWifiMac(), ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac(), ns3::OcbWifiMac::OcbWifiMac(), and ns3::StaWifiMac::StaWifiMac().

Here is the caller graph for this function:

SetupEdcaQueue()

void ns3::RegularWifiMac::SetupEdcaQueue ( AcIndex  ac )

private

This method is a private utility invoked to configure the channel access function for the specified Access Category.

Parameters

ac	the Access Category of the queue to initialise.

Definition at line 421 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_edca, m_low, m_txMiddle, ns3::MakeCallback(), ns3::WifiMac::NotifyTxDrop(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SetMacLow(), TxFailed(), and TxOk().

Referenced by RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

SetVhtSupported()

void ns3::RegularWifiMac::SetVhtSupported ( bool  enable )

protected

Enable or disable VHT support for the device.

Parameters

enable

whether VHT is supported

Definition at line 542 of file regular-wifi-mac.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetViBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetViBlockAckInactivityTimeout ( uint16_t  timeout )

private

Set VI block ack inactivity timeout.

Parameters

timeout

the VI block ack inactivity timeout.

Definition at line 400 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetViBlockAckThreshold()

void ns3::RegularWifiMac::SetViBlockAckThreshold ( uint8_t  threshold )

private

Set the Block ACK threshold for AC_VI.

Parameters

threshold

the Block ACK threshold for AC_VI.

Definition at line 372 of file regular-wifi-mac.cc.

References GetVIQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetVoBlockAckInactivityTimeout()

void ns3::RegularWifiMac::SetVoBlockAckInactivityTimeout ( uint16_t  timeout )

private

Set VO block ack inactivity timeout.

Parameters

timeout

the VO block ack inactivity timeout.

Definition at line 393 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetVoBlockAckThreshold()

void ns3::RegularWifiMac::SetVoBlockAckThreshold ( uint8_t  threshold )

private

Set the Block ACK threshold for AC_VO.

Parameters

threshold

the Block ACK threshold for AC_VO.

Definition at line 365 of file regular-wifi-mac.cc.

References GetVOQueue(), NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

SetWifiPhy()

void ns3::RegularWifiMac::SetWifiPhy ( const Ptr< WifiPhy >  phy )

virtual

Parameters

phy	the physical layer attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::StaWifiMac.

Definition at line 483 of file regular-wifi-mac.cc.

References m_channelAccessManager, m_low, m_phy, NS_LOG_FUNCTION, third::phy, and ns3::ChannelAccessManager::SetupPhyListener().

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::StaWifiMac::SetWifiPhy(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

SetWifiRemoteStationManager()

void ns3::RegularWifiMac::SetWifiRemoteStationManager ( const Ptr< WifiRemoteStationManager >  stationManager )

virtual

Parameters

stationManager

the station manager attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::StaWifiMac, and ns3::ApWifiMac.

Definition at line 129 of file regular-wifi-mac.cc.

References m_edca, m_low, m_stationManager, m_txop, NS_LOG_FUNCTION, and ns3::Txop::SetWifiRemoteStationManager().

Referenced by ns3::WaveHelper::Install(), ns3::ApWifiMac::SetWifiRemoteStationManager(), and ns3::StaWifiMac::SetWifiRemoteStationManager().

Here is the call graph for this function:

Here is the caller graph for this function:

SupportsSendFrom()

bool ns3::RegularWifiMac::SupportsSendFrom ( void  ) const

virtual

Returns

if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 847 of file regular-wifi-mac.cc.

TxFailed()

void ns3::RegularWifiMac::TxFailed ( const WifiMacHeader &  hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we did not receive an ACK from the receiver).

Parameters

hdr	the header of the packet that we failed to sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1311 of file regular-wifi-mac.cc.

References m_txErrCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxFailed().

Here is the caller graph for this function:

TxOk()

void ns3::RegularWifiMac::TxOk ( const WifiMacHeader &  hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we received an ACK from the receiver).

Parameters

hdr	the header of the packet that we successfully sent

Reimplemented in ns3::ApWifiMac.

Definition at line 1304 of file regular-wifi-mac.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxOk().

Here is the caller graph for this function:

Member Data Documentation

m_beMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_beMaxAmpduSize

private

maximum A-MPDU size for AC_BE

Definition at line 624 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_beMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_beMaxAmsduSize

private

maximum A-MSDU size for AC_BE

Definition at line 619 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_bkMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_bkMaxAmpduSize

private

maximum A-MPDU size for AC_BK

Definition at line 625 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_bkMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_bkMaxAmsduSize

private

maximum A-MSDU size for AC_BK

Definition at line 620 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_channelAccessManager

Ptr<ChannelAccessManager> ns3::RegularWifiMac::m_channelAccessManager

protected

channel access manager

Definition at line 293 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), GetEifsNoDifs(), ns3::OcbWifiMac::MakeVirtualBusy(), RegularWifiMac(), ns3::OcbWifiMac::Reset(), ResetWifiPhy(), ns3::OcbWifiMac::Resume(), SetEifsNoDifs(), SetSifs(), SetSlot(), SetupEdcaQueue(), SetWifiPhy(), ns3::OcbWifiMac::Suspend(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

m_dsssSupported

bool ns3::RegularWifiMac::m_dsssSupported

private

This Boolean is set true iff this WifiMac is to model 802.11b.

It is exposed through the attribute system.

Definition at line 610 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), GetDsssSupported(), and SetDsssSupported().

m_edca

EdcaQueues ns3::RegularWifiMac::m_edca

protected

This is a map from Access Category index to the corresponding channel access function.

Definition at line 314 of file regular-wifi-mac.h.

Referenced by ns3::OcbWifiMac::CancleTx(), ConfigureContentionWindow(), DoDispose(), DoInitialize(), EnableAggregation(), ns3::OcbWifiMac::EnableForWave(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), GetBEQueue(), GetBKQueue(), ns3::ApWifiMac::GetEdcaParameterSet(), GetVIQueue(), GetVOQueue(), Receive(), SendAddBaResponse(), ns3::MeshWifiInterfaceMac::SendManagementFrame(), ns3::OcbWifiMac::SendVsc(), ns3::StaWifiMac::SetEdcaParameters(), SetTypeOfStation(), SetupEdcaQueue(), and SetWifiRemoteStationManager().

m_erpSupported

bool ns3::RegularWifiMac::m_erpSupported

private

This Boolean is set true iff this WifiMac is to model 802.11g.

It is exposed through the attribute system.

Definition at line 605 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), GetErpSupported(), and SetErpSupported().

m_forwardUp

ForwardUpCallback ns3::RegularWifiMac::m_forwardUp

protected

Callback to forward packet up the stack.

Definition at line 298 of file regular-wifi-mac.h.

Referenced by ForwardUp(), and SetForwardUpCallback().

m_linkDown

Callback<void> ns3::RegularWifiMac::m_linkDown

protected

Callback when a link is down.

Definition at line 300 of file regular-wifi-mac.h.

Referenced by SetLinkDownCallback(), and ns3::StaWifiMac::TryToEnsureAssociated().

m_linkUp

Callback<void> ns3::RegularWifiMac::m_linkUp

protected

Callback when a link is up.

Definition at line 299 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Receive(), and SetLinkUpCallback().

m_low

Ptr<MacLow> ns3::RegularWifiMac::m_low

protected

MacLow (RTS, CTS, DATA, ACK etc.)

Definition at line 292 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DisableAggregation(), DoDispose(), EnableAggregation(), ns3::OcbWifiMac::EnableForWave(), ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::Enqueue(), ns3::ApWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), GetAckTimeout(), GetAddress(), GetBasicBlockAckTimeout(), ns3::ApWifiMac::GetBeaconInterval(), GetBssid(), ns3::ApWifiMac::GetCfpMaxDuration(), GetCompressedBlockAckTimeout(), GetCtsTimeout(), GetPifs(), GetRifs(), GetSifs(), GetSlot(), ns3::StaWifiMac::Receive(), Receive(), RegularWifiMac(), ns3::OcbWifiMac::Reset(), ResetWifiPhy(), SendAddBaResponse(), ns3::ApWifiMac::SendNextCfFrame(), SetAckTimeout(), SetAddress(), SetBasicBlockAckTimeout(), ns3::ApWifiMac::SetBeaconInterval(), SetBssid(), ns3::ApWifiMac::SetCfpMaxDuration(), SetCompressedBlockAckTimeout(), SetCtsTimeout(), SetCtsToSelfSupported(), SetPifs(), SetPromisc(), SetRifs(), SetSifs(), SetSlot(), SetupEdcaQueue(), SetWifiPhy(), SetWifiRemoteStationManager(), and ns3::OcbWifiMac::Suspend().

m_phy

Ptr<WifiPhy> ns3::RegularWifiMac::m_phy

protected

Wifi PHY.

Definition at line 294 of file regular-wifi-mac.h.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), DoDispose(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetDsssParameterSet(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), ns3::ApWifiMac::GetVhtOperationalChannelWidth(), GetWifiPhy(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), ResetWifiPhy(), ns3::StaWifiMac::SetWifiPhy(), SetWifiPhy(), ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

m_qosSupported

bool ns3::RegularWifiMac::m_qosSupported

private

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

Definition at line 600 of file regular-wifi-mac.h.

Referenced by GetQosSupported(), Receive(), and SetQosSupported().

m_rifsSupported

bool ns3::RegularWifiMac::m_rifsSupported

private

flag whether RIFS is supported (deprecated)

Definition at line 631 of file regular-wifi-mac.h.

Referenced by FinishConfigureStandard(), GetRifsSupported(), and SetRifsSupported().

m_rxMiddle

Ptr<MacRxMiddle> ns3::RegularWifiMac::m_rxMiddle

protected

RX middle (de-fragmentation etc.)

Definition at line 290 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), and RegularWifiMac().

m_shortSlotTimeSupported

bool ns3::RegularWifiMac::m_shortSlotTimeSupported

private

flag whether short slot time is supported

Definition at line 630 of file regular-wifi-mac.h.

Referenced by GetShortSlotTimeSupported(), and SetShortSlotTimeSupported().

m_ssid

Ssid ns3::RegularWifiMac::m_ssid

protected

Service Set ID (SSID)

Definition at line 302 of file regular-wifi-mac.h.

Referenced by GetSsid(), and SetSsid().

m_stationManager

Ptr<WifiRemoteStationManager> ns3::RegularWifiMac::m_stationManager

protected

Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.)

Definition at line 296 of file regular-wifi-mac.h.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), DoDispose(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::GetHeOperation(), ns3::ApWifiMac::GetHtOperation(), ns3::ApWifiMac::GetRifsMode(), ns3::ApWifiMac::GetShortPreambleEnabled(), ns3::ApWifiMac::GetShortSlotTimeEnabled(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetUseNonErpProtection(), ns3::ApWifiMac::GetVhtOperation(), ns3::ApWifiMac::GetVhtOperationalChannelWidth(), GetWifiRemoteStationManager(), ns3::ApWifiMac::IsNonGfHtStasPresent(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::InfrastructureWifiMac::SetPcfSupported(), ns3::ApWifiMac::SetWifiRemoteStationManager(), ns3::StaWifiMac::SetWifiRemoteStationManager(), SetWifiRemoteStationManager(), ns3::ApWifiMac::TxFailed(), ns3::ApWifiMac::TxOk(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), ns3::StaWifiMac::UpdateApInfoFromBeacon(), and ns3::StaWifiMac::UpdateApInfoFromProbeResp().

m_txErrCallback

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txErrCallback

private

transmit error callback

Definition at line 628 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxFailed().

m_txMiddle

Ptr<MacTxMiddle> ns3::RegularWifiMac::m_txMiddle

protected

TX middle (aggregation etc.)

Definition at line 291 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), AmpduAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), RegularWifiMac(), and SetupEdcaQueue().

m_txOkCallback

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txOkCallback

private

transmit OK callback

Definition at line 627 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxOk().

m_txop

Ptr<Txop> ns3::RegularWifiMac::m_txop

protected

This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers.

Definition at line 306 of file regular-wifi-mac.h.

Referenced by ConfigureContentionWindow(), DoDispose(), DoInitialize(), ns3::OcbWifiMac::EnableForWave(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::FinishConfigureStandard(), ns3::ApWifiMac::ForwardDown(), GetTxop(), RegularWifiMac(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendCfEnd(), ns3::ApWifiMac::SendCfPoll(), ns3::StaWifiMac::SendCfPollResponse(), ns3::ApWifiMac::SendNextCfFrame(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), and SetWifiRemoteStationManager().

m_viMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_viMaxAmpduSize

private

maximum A-MPDU size for AC_VI

Definition at line 623 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_viMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_viMaxAmsduSize

private

maximum A-MSDU size for AC_VI

Definition at line 618 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_voMaxAmpduSize

uint32_t ns3::RegularWifiMac::m_voMaxAmpduSize

private

maximum A-MPDU size for AC_VO

Definition at line 622 of file regular-wifi-mac.h.

Referenced by GetHeCapabilities(), GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

m_voMaxAmsduSize

uint16_t ns3::RegularWifiMac::m_voMaxAmsduSize

private

maximum A-MSDU size for AC_VO

Definition at line 617 of file regular-wifi-mac.h.

Referenced by GetHtCapabilities(), GetTypeId(), and GetVhtCapabilities().

---

The documentation for this class was generated from the following files:

• src/wifi/model/regular-wifi-mac.h
• src/wifi/model/regular-wifi-mac.cc
